3DRap Elastomer Brake MOD Heusinkveld Ultimate+

Name: Elastomer Brake MOD for Heusinkveld Ultimate +
Brand: 3DRAP
SKU: HV014_KT1
Price: 34.99 EUR
Availability: InStock

3DRap Elastomer Brake MOD for Heusinkveld Ultimate+ brake pedal

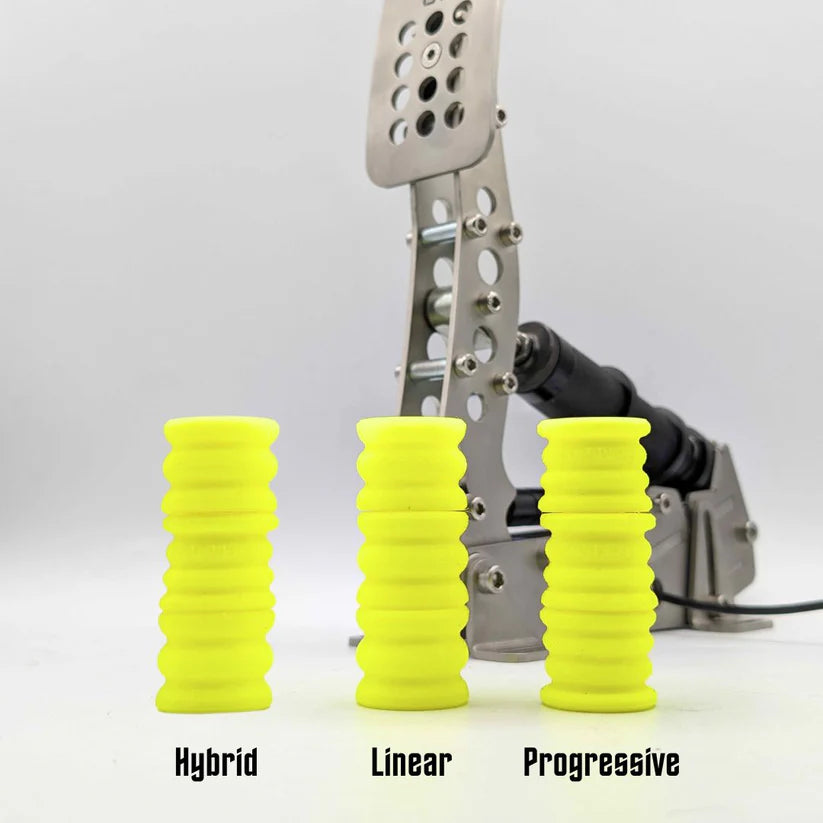

Configurations of the 3DRap brake MOD for Heusinkveld Ultimate+

Shape memory elastomers of the 3DRap brake MOD Ultimate+

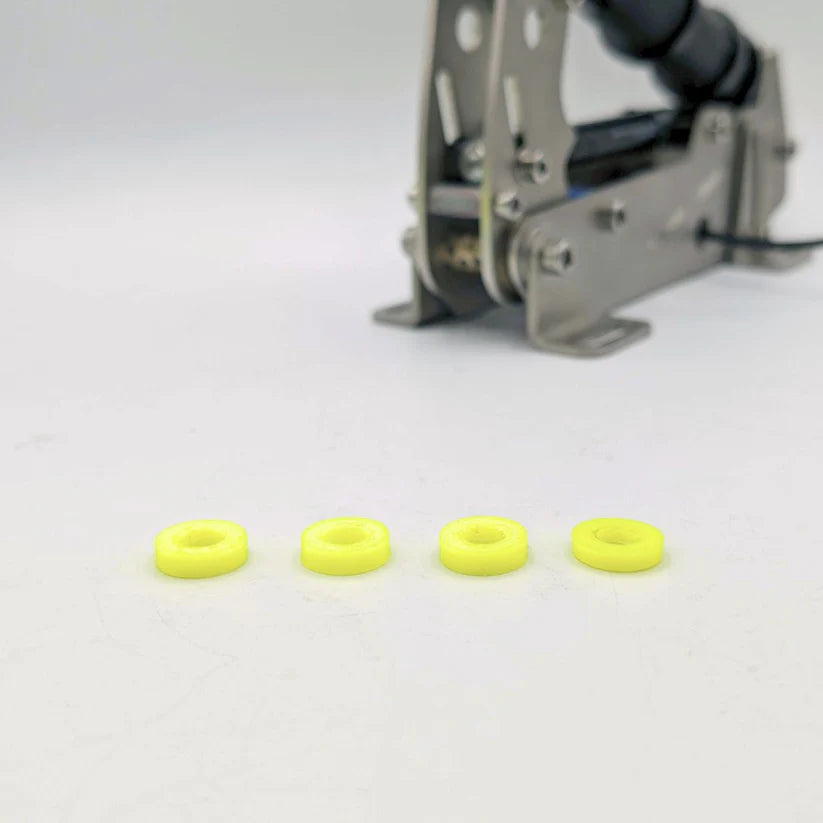

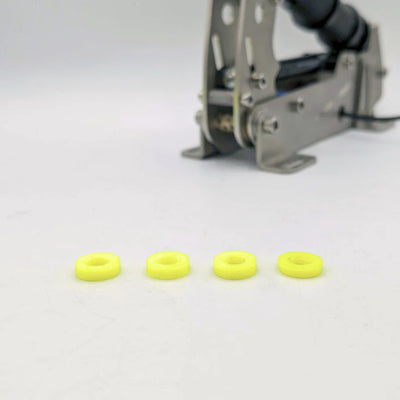

Bite point rings of the 3DRap brake MOD Heusinkveld Ultimate+

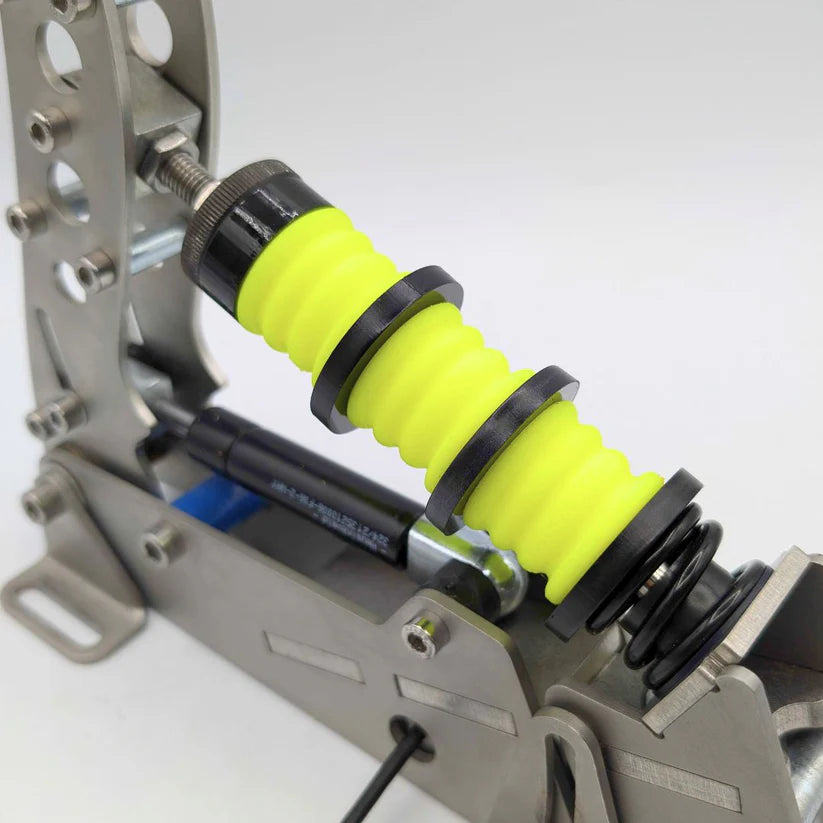

3DRap brake MOD mounted on Heusinkveld Ultimate+ pedal

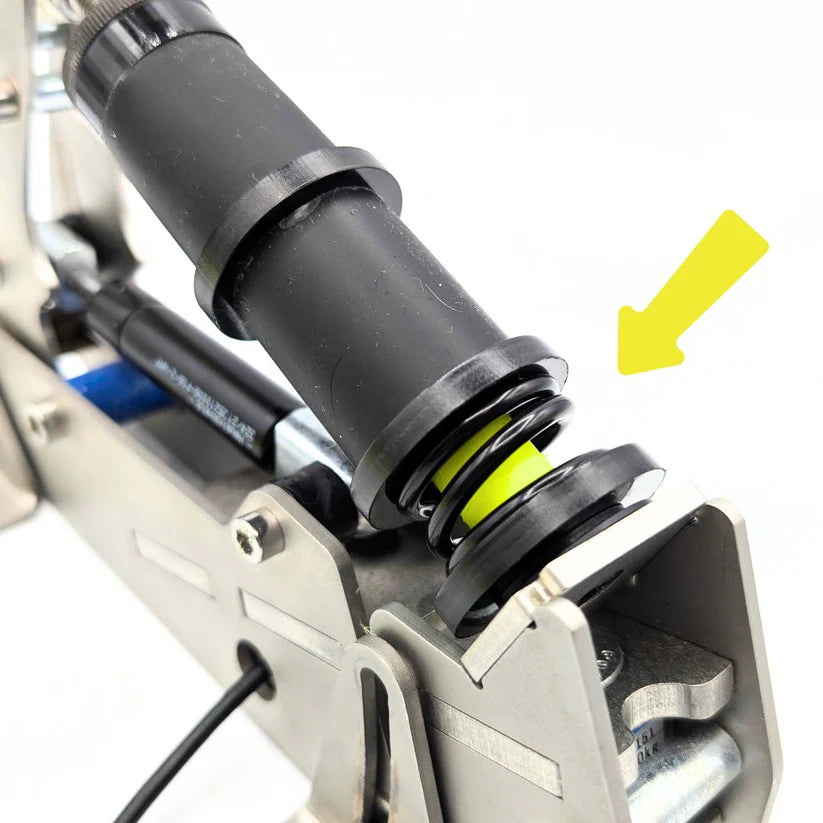

Close-up of the 3DRap elastomer brake MOD Heusinkveld Ultimate+

Linear, Progressive and Hybrid profiles of the 3DRap brake MOD Ultimate+

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":52558378434893,"title":"Linear","option1":"Linear","option2":null,"option3":null,"sku":"HV014_KT1","requires_shipping":true,"taxable":true,"featured_image":{"id":73495580574029,"product_id":10312421835085,"position":5,"created_at":"2025-10-10T16:16:16+02:00","updated_at":"2025-10-10T16:29:54+02:00","alt":"3DRap brake MOD mounted on Heusinkveld Ultimate+ pedal","width":823,"height":823,"src":"\/\/simufy.com\/cdn\/shop\/files\/MOD-Pedal-de-Freno-Heusinkveld-Ultimate-_-Simufy_6.webp?v=1760106594","variant_ids":[52558378434893]},"available":true,"name":"Elastomer Brake MOD for Heusinkveld Ultimate + - Linear","public_title":"Linear","options":["Linear"],"price":3499,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841971","featured_media":{"alt":"3DRap brake MOD mounted on Heusinkveld Ultimate+ pedal","id":57767929413965,"position":5,"preview_image":{"aspect_ratio":1.0,"height":823,"width":823,"src":"\/\/simufy.com\/cdn\/shop\/files\/MOD-Pedal-de-Freno-Heusinkveld-Ultimate-_-Simufy_6.webp?v=1760106594"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52558378467661,"title":"Progressive","option1":"Progressive","option2":null,"option3":null,"sku":"HV014_KT3","requires_shipping":true,"taxable":true,"featured_image":{"id":73495580541261,"product_id":10312421835085,"position":4,"created_at":"2025-10-10T16:16:16+02:00","updated_at":"2025-10-10T16:29:54+02:00","alt":"Bite point rings of the 3DRap brake MOD Heusinkveld Ultimate+","width":823,"height":823,"src":"\/\/simufy.com\/cdn\/shop\/files\/MOD-Pedal-de-Freno-Heusinkveld-Ultimate-_-Simufy_5.webp?v=1760106594","variant_ids":[52558378467661]},"available":true,"name":"Elastomer Brake MOD for Heusinkveld Ultimate + - Progressive","public_title":"Progressive","options":["Progressive"],"price":3499,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841988","featured_media":{"alt":"Bite point rings of the 3DRap brake MOD Heusinkveld Ultimate+","id":57767929381197,"position":4,"preview_image":{"aspect_ratio":1.0,"height":823,"width":823,"src":"\/\/simufy.com\/cdn\/shop\/files\/MOD-Pedal-de-Freno-Heusinkveld-Ultimate-_-Simufy_5.webp?v=1760106594"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52558378500429,"title":"Hybrid","option1":"Hybrid","option2":null,"option3":null,"sku":"HV014_KT5","requires_shipping":true,"taxable":true,"featured_image":{"id":73495580508493,"product_id":10312421835085,"position":3,"created_at":"2025-10-10T16:16:16+02:00","updated_at":"2025-10-10T16:29:54+02:00","alt":"Shape memory elastomers of the 3DRap brake MOD Ultimate+","width":823,"height":823,"src":"\/\/simufy.com\/cdn\/shop\/files\/MOD-Pedal-de-Freno-Heusinkveld-Ultimate-_-Simufy_4.webp?v=1760106594","variant_ids":[52558378500429]},"available":true,"name":"Elastomer Brake MOD for Heusinkveld Ultimate + - Hybrid","public_title":"Hybrid","options":["Hybrid"],"price":3499,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841995","featured_media":{"alt":"Shape memory elastomers of the 3DRap brake MOD Ultimate+","id":57767929348429,"position":3,"preview_image":{"aspect_ratio":1.0,"height":823,"width":823,"src":"\/\/simufy.com\/cdn\/shop\/files\/MOD-Pedal-de-Freno-Heusinkveld-Ultimate-_-Simufy_4.webp?v=1760106594"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The 3DRap Elastomer Brake MOD for Heusinkveld Ultimate+ is a shape-memory elastomer kit that turns the brake pedal feel of the Heusinkveld Ultimate+ pedal set into a progressive, modulable braking action, for sim racing on PC.

It corrects the pedal's original response curve so it firms up as you apply pressure, like a real car, avoiding lock-ups and improving foot sensitivity on your pedals. Each setting recovers part of the pedal's usable travel.

Key features

Fatigue-resistant shape-memory elastomer with a constant response over time.

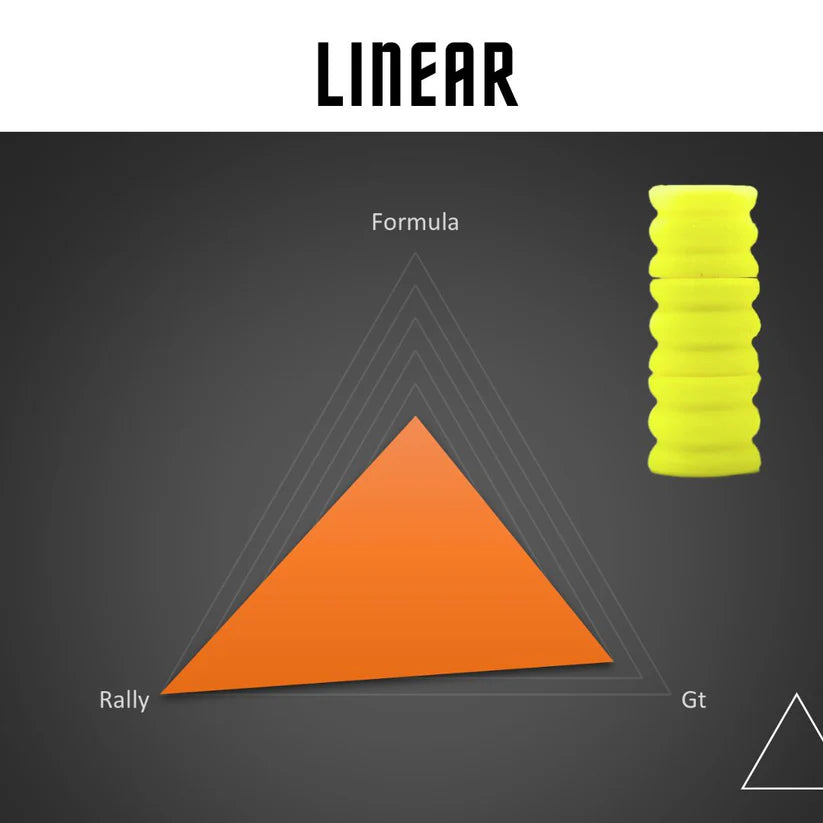

Linear setting: recovers up to 36% of usable travel, for GT, rally and drift.

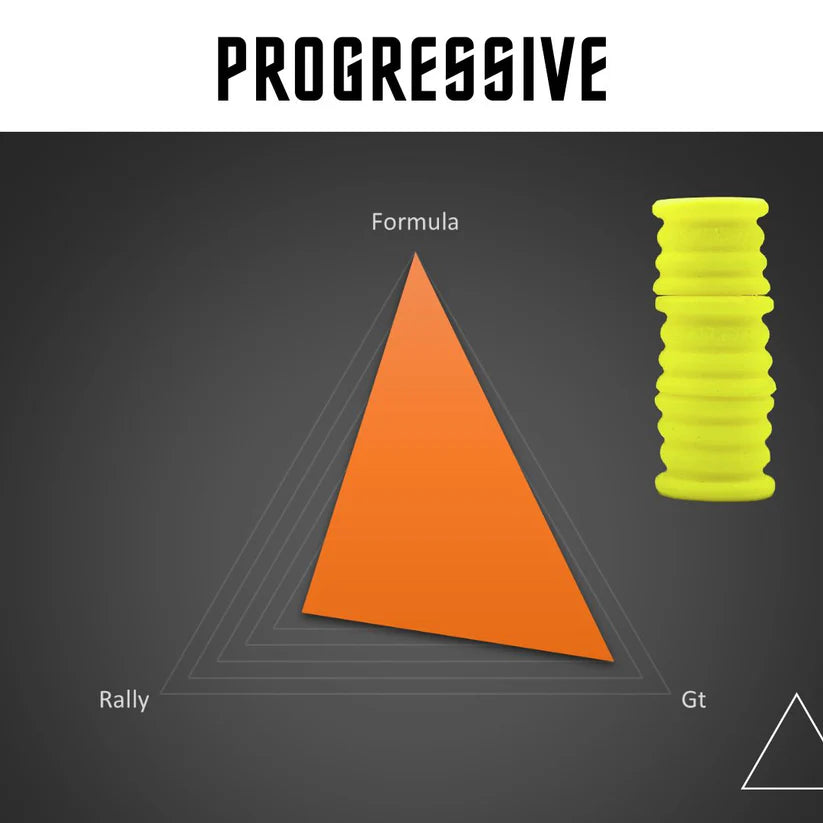

Progressive setting: recovers 20% and stiffens progressively, ideal for Formula.

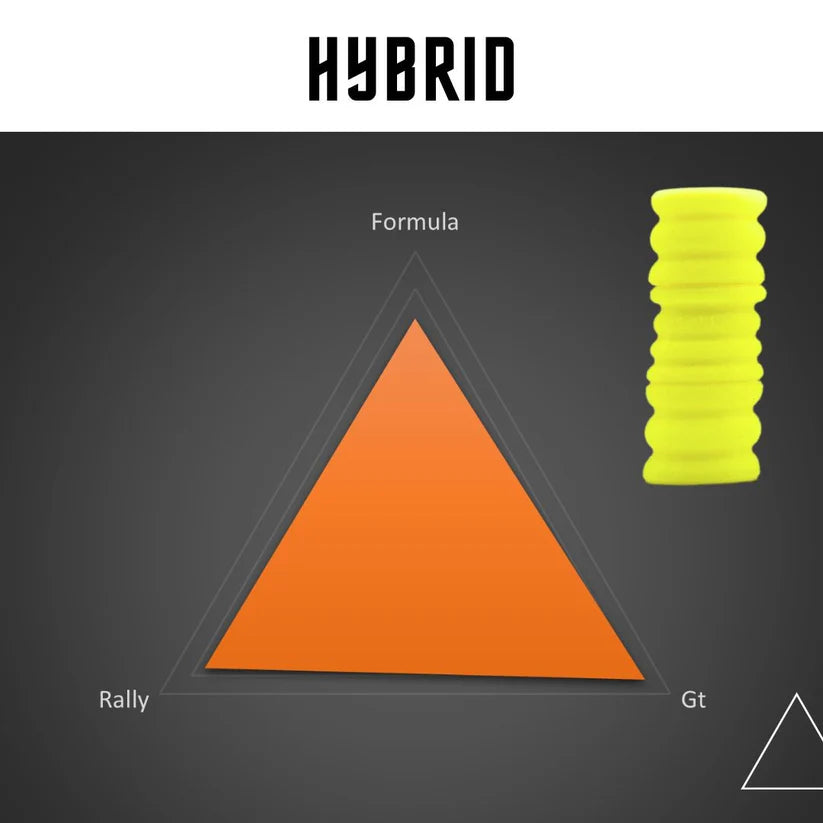

Hybrid setting: recovers 30%, with a soft start and more aggressive end, for prototypes and LMP.
Optional rings for the "Bite" effect, simulating the fast initial brake contact.

Technical specifications

Feature	Detail
Compatibility	Heusinkveld Ultimate+ (PC)
Material	Shape-memory elastomer
Settings	Linear (36% travel), Progressive (20%), Hybrid (30%)
Extras	Bite-effect rings (optional)
Installation	No complex tools
Platform	PC

Which setting should you choose?

"Linear" recovers up to 36% of the travel for consistent braking in GT, rally and drift; "Progressive" recovers 20% and stiffens towards the end, ideal for single-seaters; "Hybrid" recovers 30% with a soft-to-aggressive profile for prototypes and LMP.

Compatibility

Designed exclusively for the Heusinkveld Ultimate+ pedal set. It is a mechanical MOD, with no electronic modifications, for use in PC simulators. Pedal set not included.

Frequently asked questions

Which pedal set is this brake MOD for?

It is designed exclusively for the Heusinkveld Ultimate+ pedal set on PC.

How much travel does each setting recover?

Linear recovers up to 36% of the usable travel, Progressive 20% and Hybrid 30%.

What is the "Bite" effect?

They are optional rings that simulate the fast initial brake contact of competition vehicles.

Do I need to modify the pedal's electronics?

No. It is a mechanical MOD with intuitive installation, no complex tools or electronic changes.

Which setting should I choose for single-seaters?

The Progressive setting, which stiffens the pedal progressively and suits light, high-response cars such as Formula.

Buying your pedal MOD from Simufy means buying with full guarantees

Official premium sim racing distributor in Spain and Portugal — over 70 brands
The only Official Fanatec out-of-warranty Repair Centre in Europe
Simucube Premium Reseller — one of only four in Europe
Shipping from our own 5,000 m² warehouse and Barcelona showroom
Specialised technical support and official warranty on every product
Tailored financing: leasing and renting available
