Raptors AW Pedals

Spectacular Raptor pedals from Another Way!

The Raptors pedals are made of black powder-coated carbon steel, with the pedal elements made of brushed stainless steel. Both the foot and lever elements have beveled edges to minimize the risk of injury when adjusting them.

The rotating elements of the pedal lever and rear spring support are mounted on ball bearings, which contribute to the smoothness and durability of the mechanism by reducing friction between the components.

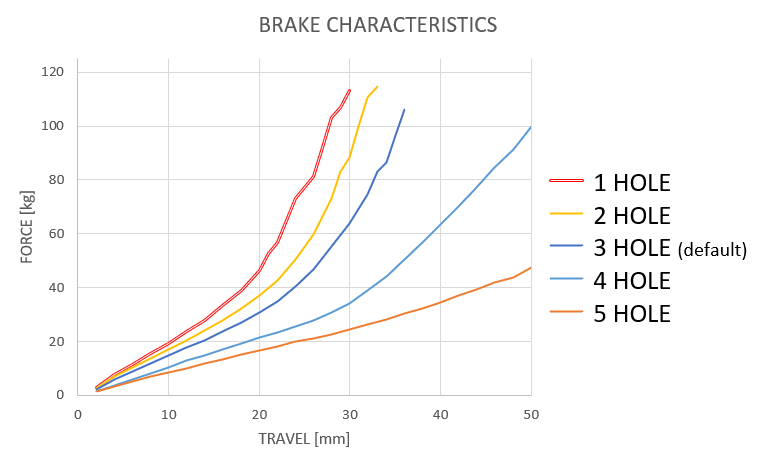

The components acting on the lever vary from pedal to pedal, resulting in different pedal characteristics. The brake pedal contains a combination of elastomers and a spring, resulting in a nonlinear pedal action characteristic that mirrors the action of a real brake.

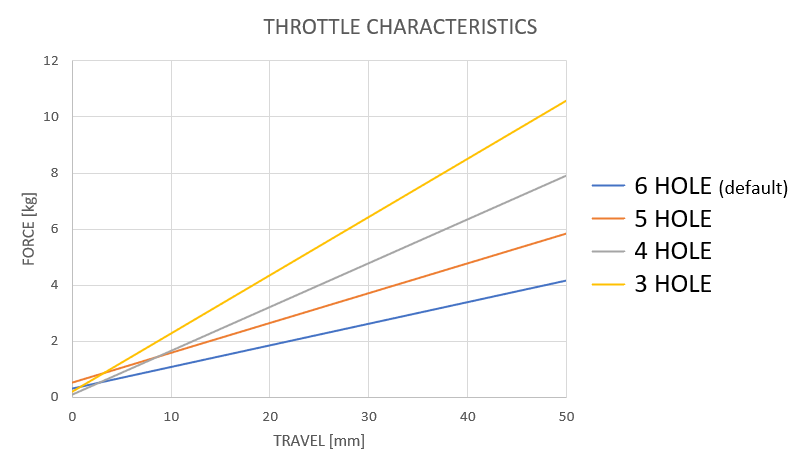

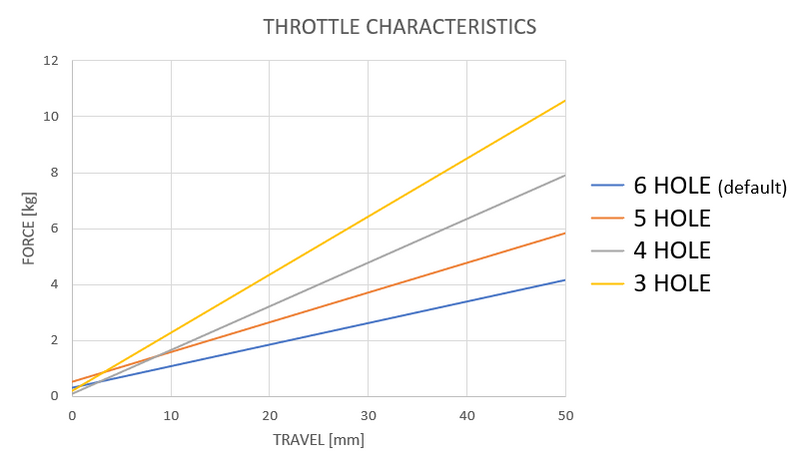

A linear characteristic can be observed in the accelerator pedal, which uses a spring with a low impact force.

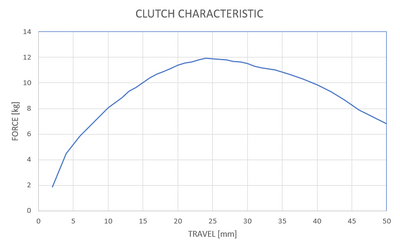

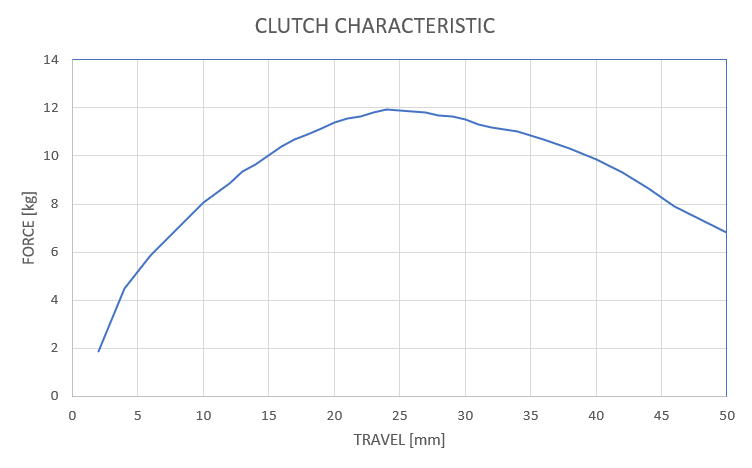

However, in the case of the clutch, which also uses a spring, this characteristic is parabolic due to the modified geometry and design of the system. In the initial phase of pedal action, the actuating force increases and then gradually decreases, just as in a real clutch.

MEASUREMENT METHOD

RAPTORS PEDALS uses two ways to measure and extract accurate data:

• For the brake pedal, the value of the force acting on the LOADCELL is measured and converted using a 24-bit converter.
• For the other two pedals, the displacement of the magnetic element located on the lever relative to the Hall sensor is measured. This measurement is analyzed using a 10-bit converter.

REGULATION

To ensure the ability to adapt to a wide range of riders, RAPTORS PEDALS have been designed with the widest range of adjustments:

• Changing the operating range of the pedal lever;
• Changing the angle of the pedal lever;
• Changing the position of the pressure spring;
• Changing the spring force using the knurled knob;
• Changing the position of the pedal foot.

GENERAL INFORMATION

• Calibration using DIView program;
• The pedal assembly does not contain a separate controller, it is permanently integrated into the accelerator pedal;
• RAPTORS PEDALS is a "PLUG AND PLAY" game controller;
• The set includes two springs, which constitute a replacement set for the brake, an ideal option for those who prefer a spring on the brake;
• They are only compatible with USB 3.0 PCs.
• They are not compatible with Xbox or PlayStation;
• Weight of DOUBLE SET, approximately 4 kg;
