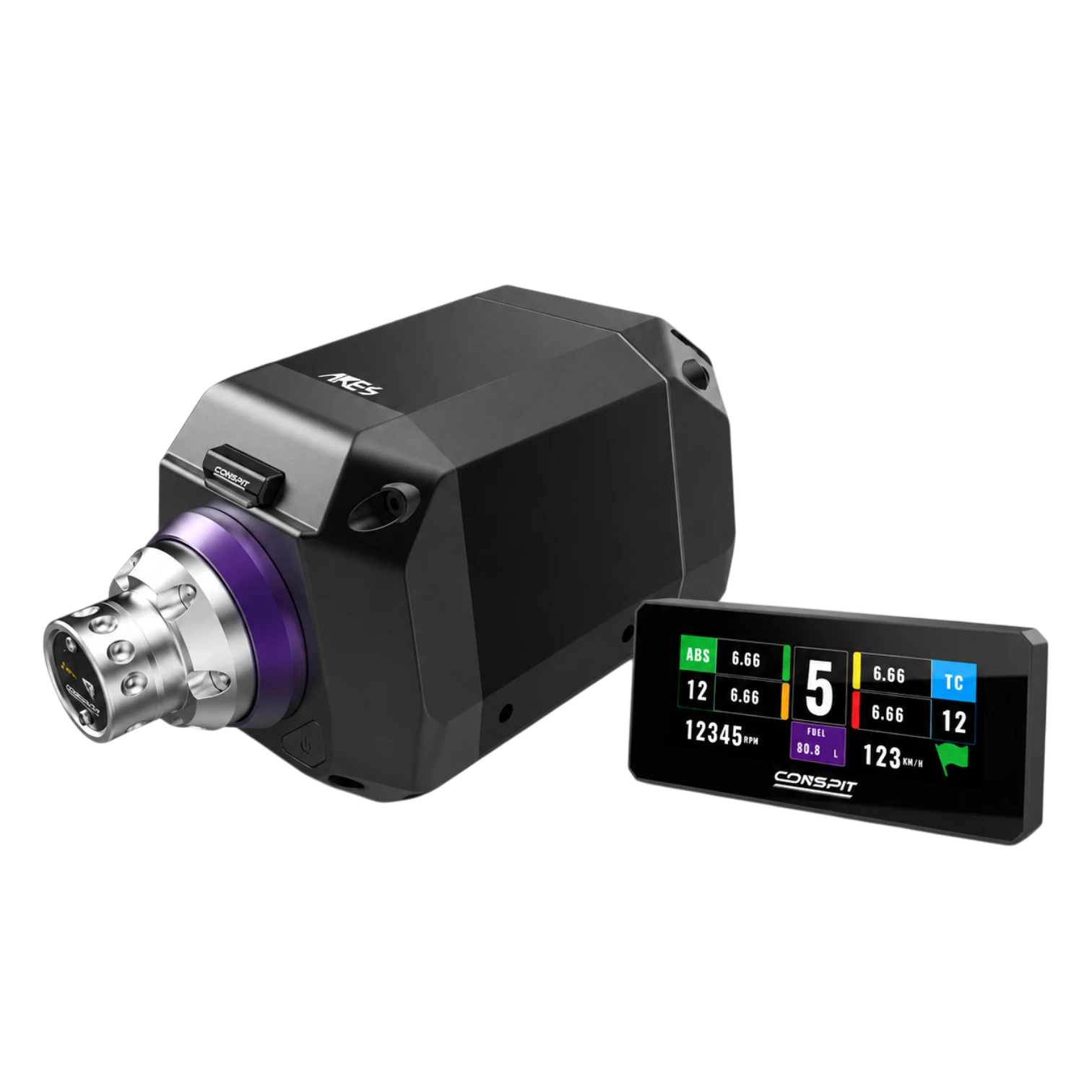

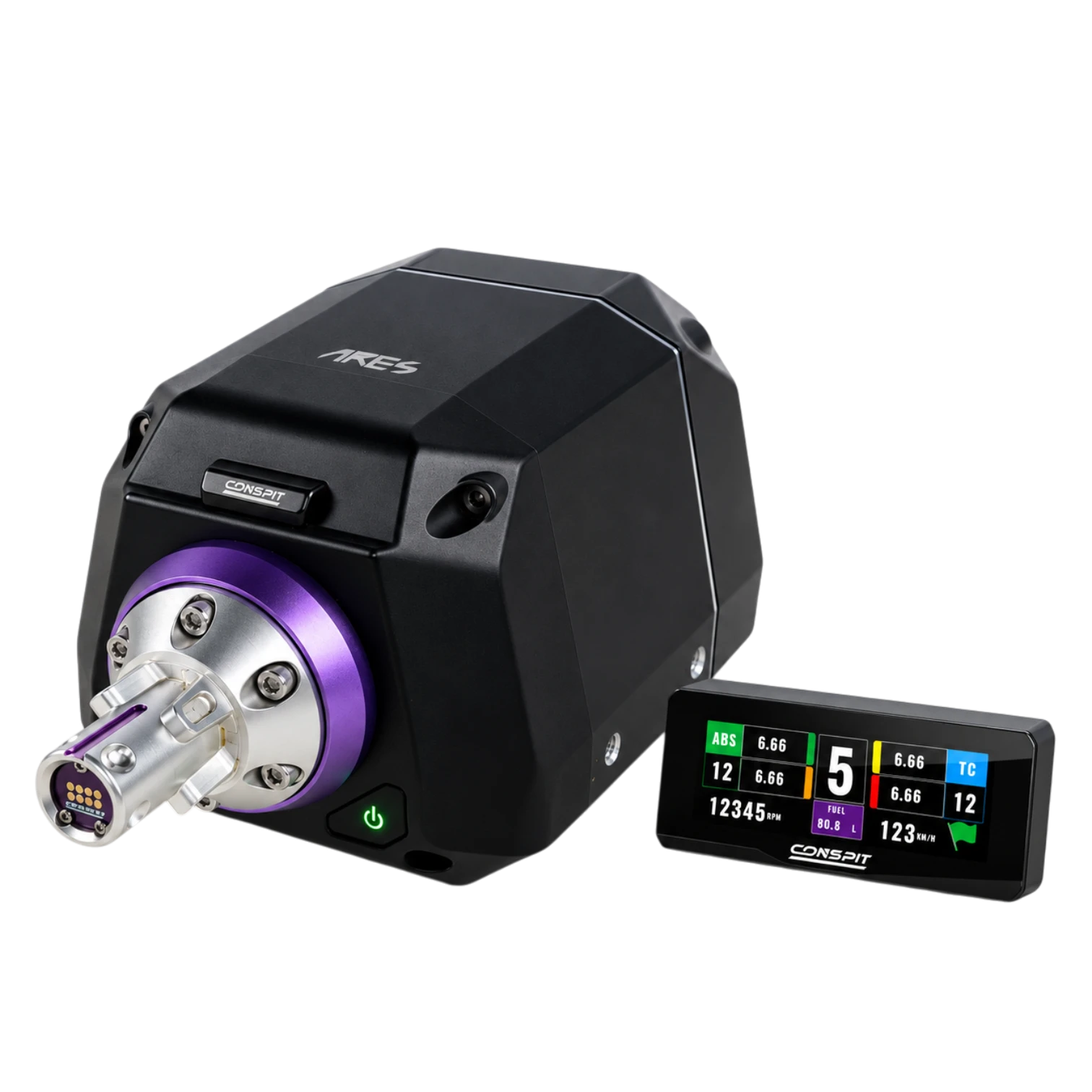

CONSPIT Ares Series Sim-racing Wheelbase
The CONSPIT Ares Series of Direct Drive sim-racing wheel bases is designed for racers seeking the ultimate competitive experience. Equipped with a high-precision bias-pole direct drive motor, specifically developed for sim racing, and an optimized force feedback system, it delivers an unprecedentedly realistic driving experience with extremely detailed tactile feedback.
Highlighted Features:
-
Superior Performance:
- It uses high-performance asymmetric dual processors at 170MHz+168MHz, ensuring efficient and stable calculations.
- Ares series direct drive system with high-precision optical encoders and an angular resolution of less than 0.01°, along with a 23-bit resolution, ensuring that each direction input is captured accurately.
- Military-grade 20 million RPM slip ring ensures stable, lag-free signal transmission, avoiding common electromagnetic interference issues in wireless communications such as Bluetooth or 2.4G.
-
Master Control:
- Industry-leading motor control system in the Ares series, providing excellent stability, efficiency, and positional accuracy during force feedback torque output.
- Torque response of up to 9.5 Nm/ms, ensuring that every high-frequency detail is fully displayed.
-
Professional Force Feedback Algorithm:
- In collaboration with Open FFBoard, a force feedback algorithm has been developed and optimized, iterated by professional racing drivers and vehicle dynamics engineers, simulating real-life vehicle dynamics and road surface detail feedback with high accuracy.
-
Specialized for Sim-racing:
- Unlike competitors who use industrial servo motors, the Ares base motor structure was developed from the ground up to optimize the unique demands of sim racing on handling, steering feedback, and stability.
- Key parameters such as torque response, torque ripple, and engagement torque have been specifically optimized to achieve fast, smooth, and accurate tactile feedback.
-
Skewed Double Pole Design:
- Using a skewed dual-pole design on both the stator and rotor, meshing torque is optimized, significantly reducing torque ripple, electromagnetic vibration, and noise, resulting in exceptional NVH (Noise, Vibration, and Harshness) performance.
-
High Torque Density:
- Compact size, immense power. Featuring high-permeability cores and powerful NdFeB magnets, along with an optimal air-gap ratio design and high slot fill factor, this motor achieves high torque density and delivers powerful output.
-
Excellent Torque Ripple:
- After multiple simulations and prototype iterations, the optimal electromagnetic solution has been developed. The skewed dual-pole design, slot-pole matching, optimal air-gap ratio, and precise magnetic circuit design achieve ultra-low torque ripple, ensuring an incredibly smooth steering feel.
-
Advanced Thermal Management:
- High-frequency, real-time monitoring of system temperature ensures stable operation of the engine and its control system, offering superior thermal management performance.
-
Innovative Industrial Design:
- With a visually lightweight design language, the compact and sleek profile delivers a central aesthetic experience from multiple angles, exceeding both visual and performance expectations.
Manufacturing and Safety Details:
- High Quality Materials: The main body uses high quality aerospace aluminum alloy, ensuring sturdiness and durability.
- Heat Dissipation Efficiency: Proven heat dissipation design ensures reliability even during long-distance and endurance runs.
- Advanced Manufacturing Techniques: Use of multiple forming, machining and surface treatment processes for superior texture.
- POGO Module: The front of the base features magnetic contacts designed for future expansion and quick installation of various functional components.
- High Security: A unique safety mode ensures driver safety, while also allowing children to play safely under adult supervision.
Conspit Link 2.0:
- Quickly configure base functions, monitor status, and create custom presets in Conspit Link 2.0 software.
- Official presets created by professional racers and vehicle dynamics engineers, with quick changes based on different games or vehicle combinations, with special professional presets coming soon.
CDP Quick Release:
- Unlike the single-locking ball-type structures common on the market, the CDP quick release incorporates the clip and ball design found in real Formula One cars. The entire structure is CNC-machined from 7075 aluminum alloy, with the clip structure responsible for transmitting torque, ensuring zero play even after prolonged use.
Technical Specifications:
-
Ares 10NM Sim-racing Wheelbase:
- Dimensions: 134 x 150 x 269 mm
- Net Weight: 5.6 kg
- Maximum Torque: 10NM
- Encoder: High-precision optical encoders
- Motor: Motor with biased double pole design
- Resolution: 23-bit
- Quick Release: CONSPIT ball type quick release (CDP)
- Mounting Holes: M6 x 4 (bottom), M8 x 4 (side)
- Platform: PC: Windows
- E-Stop: Optional
- Connection: USB
- Cable: USB 3.0 cable
- Software: CONSPIT LINK 2.0
The CONSPIT Ares Series offers a combination of innovative design, exceptional performance and an immersive sim-racing experience, ideal for drivers seeking maximum control and precision in their competitions.
