The Qubic System QS-210 is a 2-3DOF motion actuator set for sim racing, compatible with PC, with 60 mm of stroke and under 8 ms latency, aimed at drivers who want to step into motion in a compact, upgradeable format.

Based on the QS-220 linear-actuator technology in a more compact version, the QS-210 is one of the most accessible motion systems in the Qubic range. It reaches 400 mm/s, needs no maintenance and runs on the free Qubic Manager software, compatible with over 80 racing and flight titles. It includes the QS-MC6 controller and the brackets to mount it on aluminium-profile cockpits.

Key features of the Qubic System QS-210

Configurable motion from 2DOF to 3DOF (pitch, roll and heave) with 60 mm-stroke linear actuators.
Up to 400 mm/s and under 8 ms latency for immediate response.
Built-in real-time vibrations (engine, tarmac, kerbs), no bass shakers required.
Modular and upgradeable: start at 2DOF and move up to 2.5DOF with the QS-Pivot or full 3DOF without changing platform.
Included QS-MC6 controller and free Qubic Manager software, compatible with over 80 titles.
Plug & Play installation on aluminium-profile cockpits with the included brackets.
Designed and made in Poland (EU), maintenance-free.

Available configurations

Configuration	DOF	Actuators	Motion axes	Best for
Intro Set	2DOF	2 actuators	Pitch + roll	Getting into motion

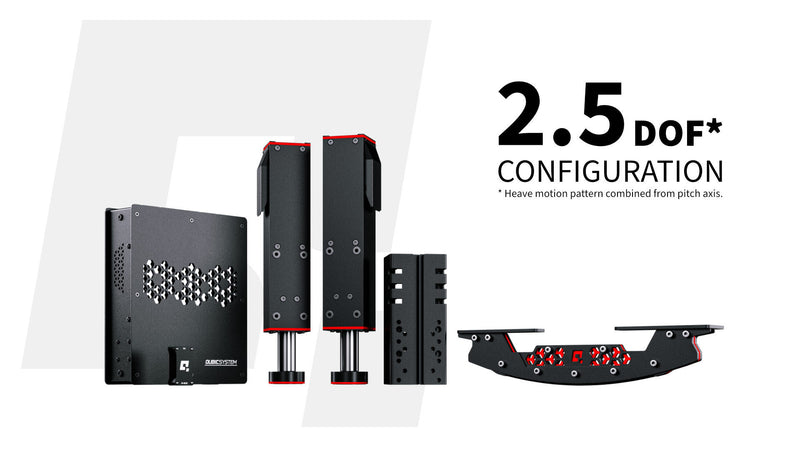

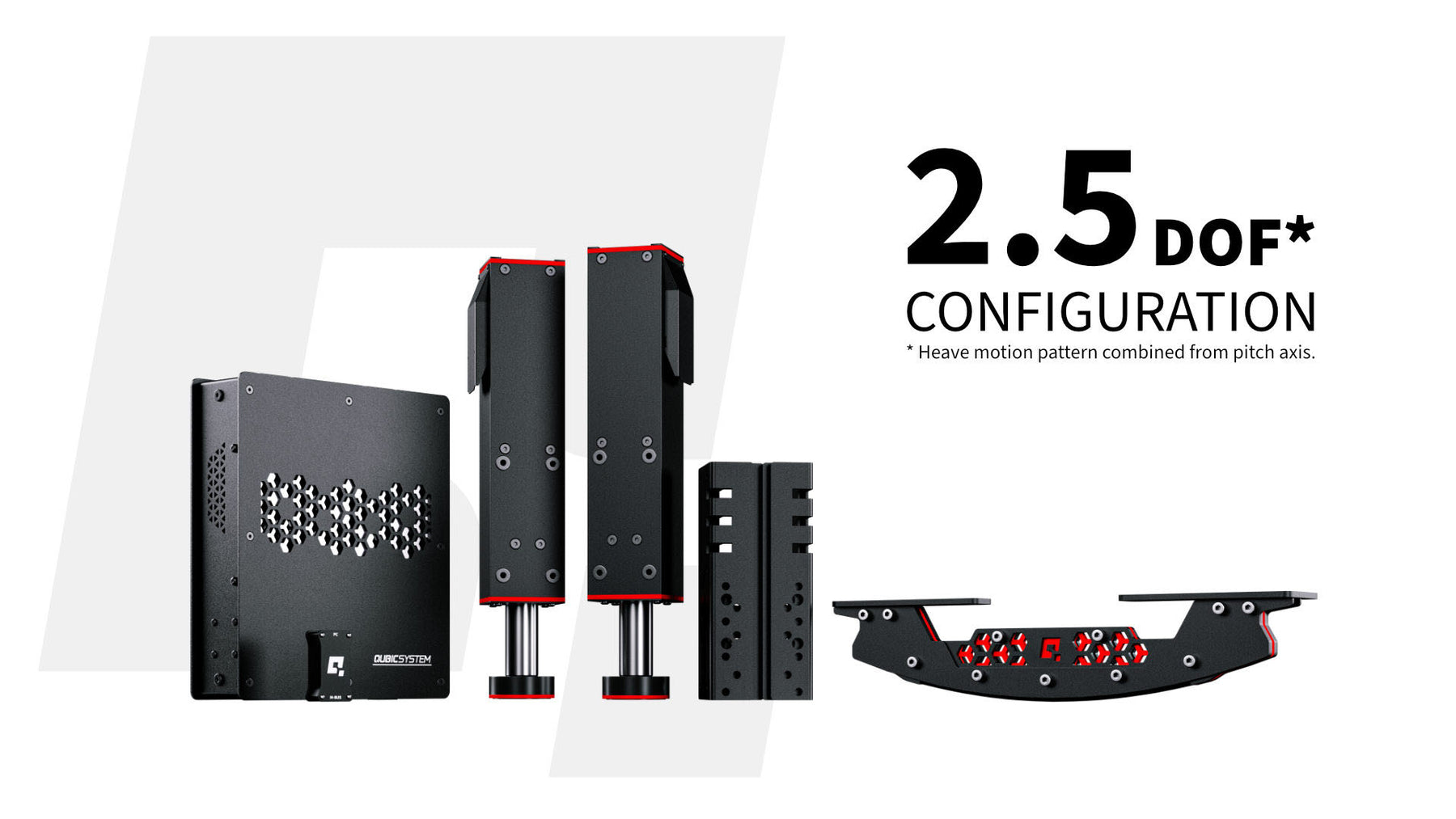

Pivot Set	2.5DOF	2 actuators + QS-Pivot	Pitch + roll + simulated heave	More immersion with just 2 actuators
Upgrade Set	2 → 3DOF	2 extra actuators	Adds the heave axis	Expanding an existing Intro or Pivot Set
Full Set	3DOF	4 actuators	Pitch + roll + heave	Maximum immersion from the start

Which configuration should you choose?

If you are new to motion, the Intro Set (2DOF) is the best entry point; the Pivot Set (2.5DOF) adds the heave sensation with just two actuators. For the fullest experience, the Full Set (3DOF) uses four actuators. The Upgrade Set is intended only to expand an Intro Set or Pivot Set you already own to 3DOF.

Technical specifications

Specification	Detail
Type	Linear actuator set (motion)
Degrees of freedom	2 / 2.5 / 3 DOF (depending on configuration)
Stroke per actuator	60 mm (2.36")
Maximum speed	400 mm/s
Latency	< 8 ms
Maximum load	Up to 250 kg
Controller	QS-MC6 (included)
Connectivity	USB (PC)
Software	Qubic Manager (free)
Power	115 V / 230 V
Manufacturing	Europe (Poland)

Compatibility

Platform: PC (Windows) via Qubic Manager. Not compatible with consoles.
Cockpits: aluminium profiles (Sim-Lab, Trak Racer, etc.) with the included brackets.
Virtual reality: VR Ready through Qubic Manager.
Qubic ecosystem: upgradeable with the QS-Pivot (2.5DOF), the QS-CH2 platform (up to 5DOF) and the QS-BT1 belt tensioner.
Controller: QS-MC6 included.

Frequently asked questions

What is the difference between the 2DOF, 2.5DOF and 3DOF configurations?

The 2DOF (Intro Set) uses 2 actuators for pitch and roll; the 2.5DOF (Pivot Set) adds the QS-Pivot to simulate heave with just 2 actuators; the 3DOF (Full Set) uses 4 actuators for real pitch, roll and heave.

Does the QS-210 include the controller?

Yes. It includes the QS-MC6 controller and the mounting brackets. The Qubic Manager software is free and compatible with over 80 games.

Can I upgrade from 2DOF to 3DOF later?

Yes. With the Upgrade Set you add two more actuators to go from 2DOF to 3DOF without changing the rest of the system.

Is it compatible with consoles?

No. It works on PC (Windows) via Qubic Manager; it is not compatible with PlayStation or Xbox.

Which cockpits does it mount on?

On aluminium-profile cockpits (Sim-Lab, Trak Racer, etc.), with the included universal brackets. Installation is Plug & Play and requires no drilling.

Does it work with VR headsets?

Yes. It is VR Ready through the Qubic Manager software.
