VNM Elite – 18 Nm Direct Drive Wheelbase

Brand: VNM Simulation

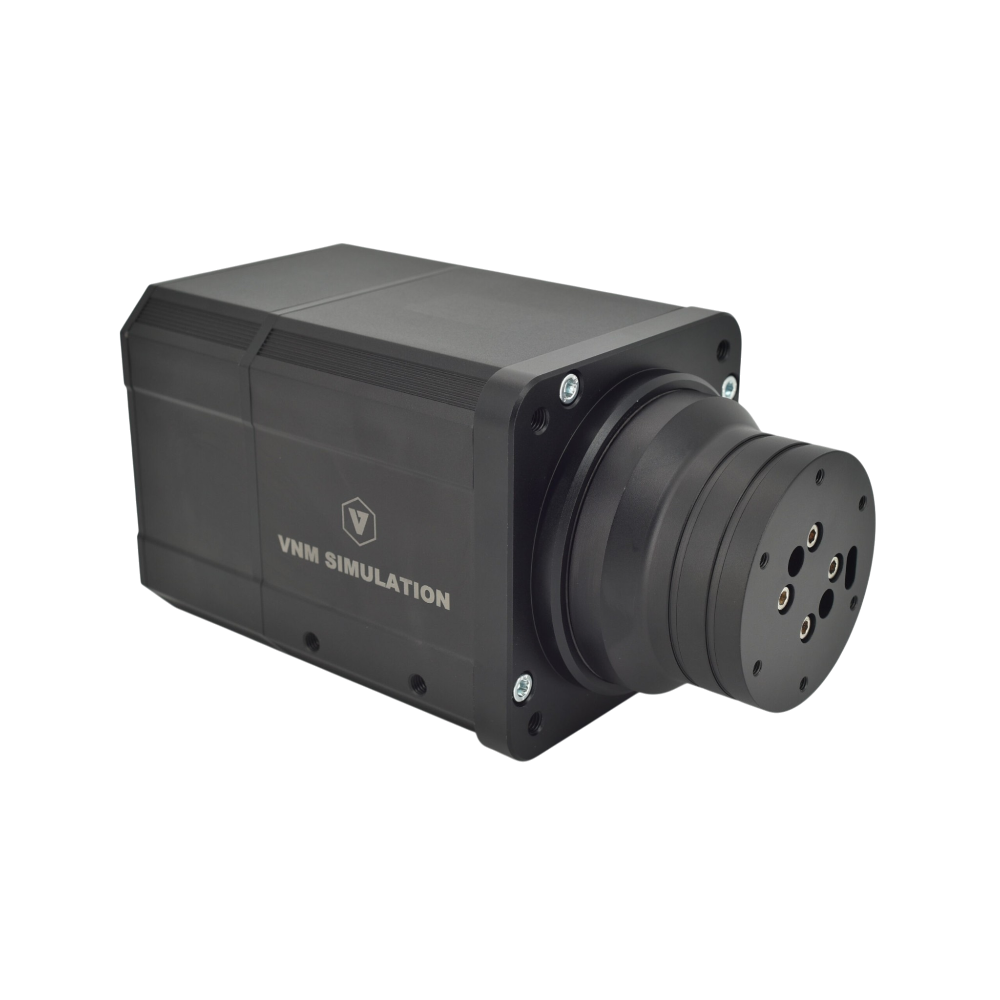

VNM Direct Drive Elite, 18 Nm direct drive wheelbase for sim racing on PC

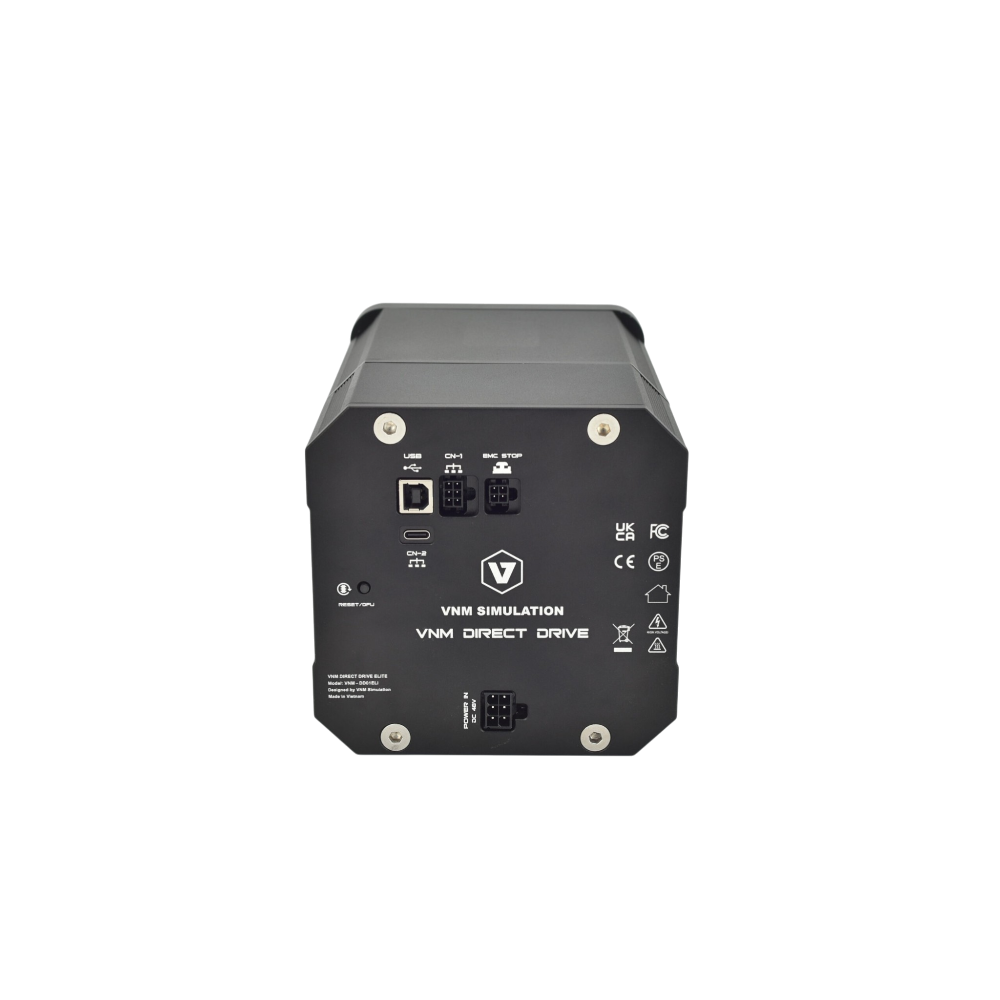

Connections and EMC button on the VNM Elite wheelbase

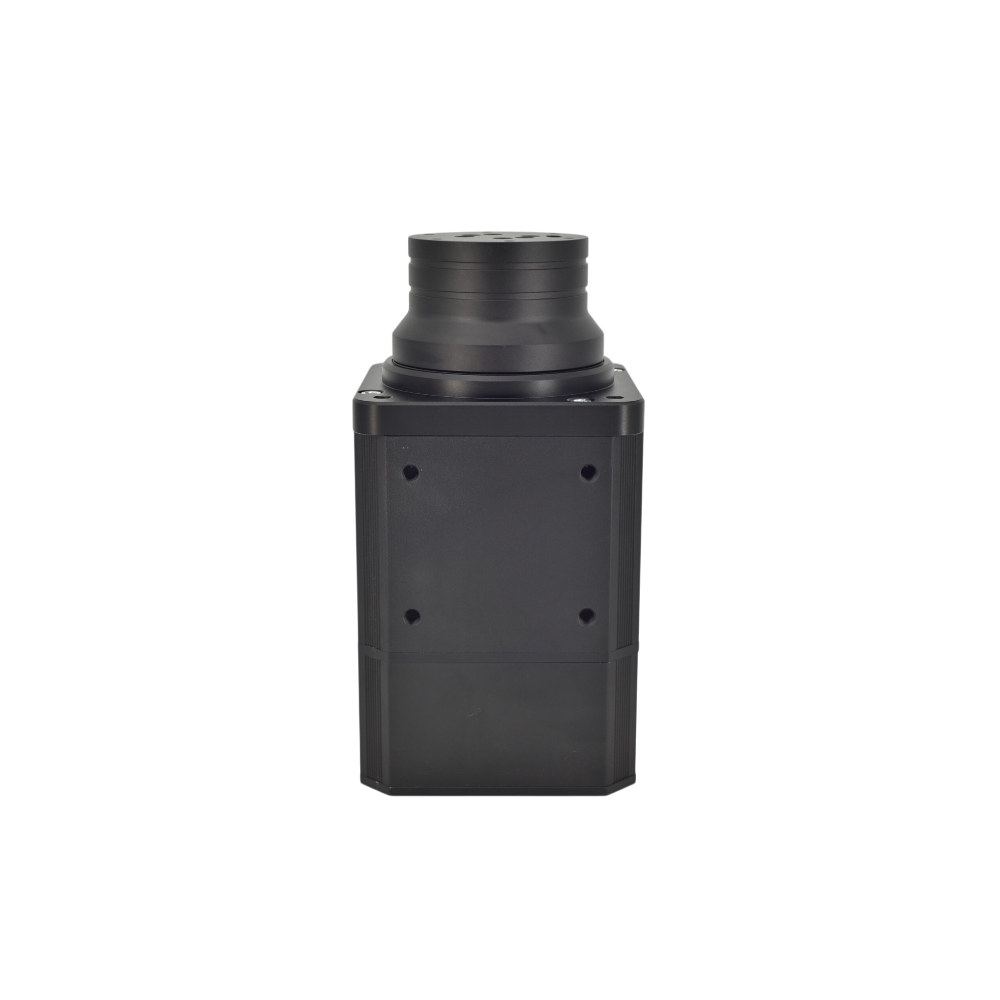

Chassis of the VNM Direct Drive Elite 18 Nm wheelbase

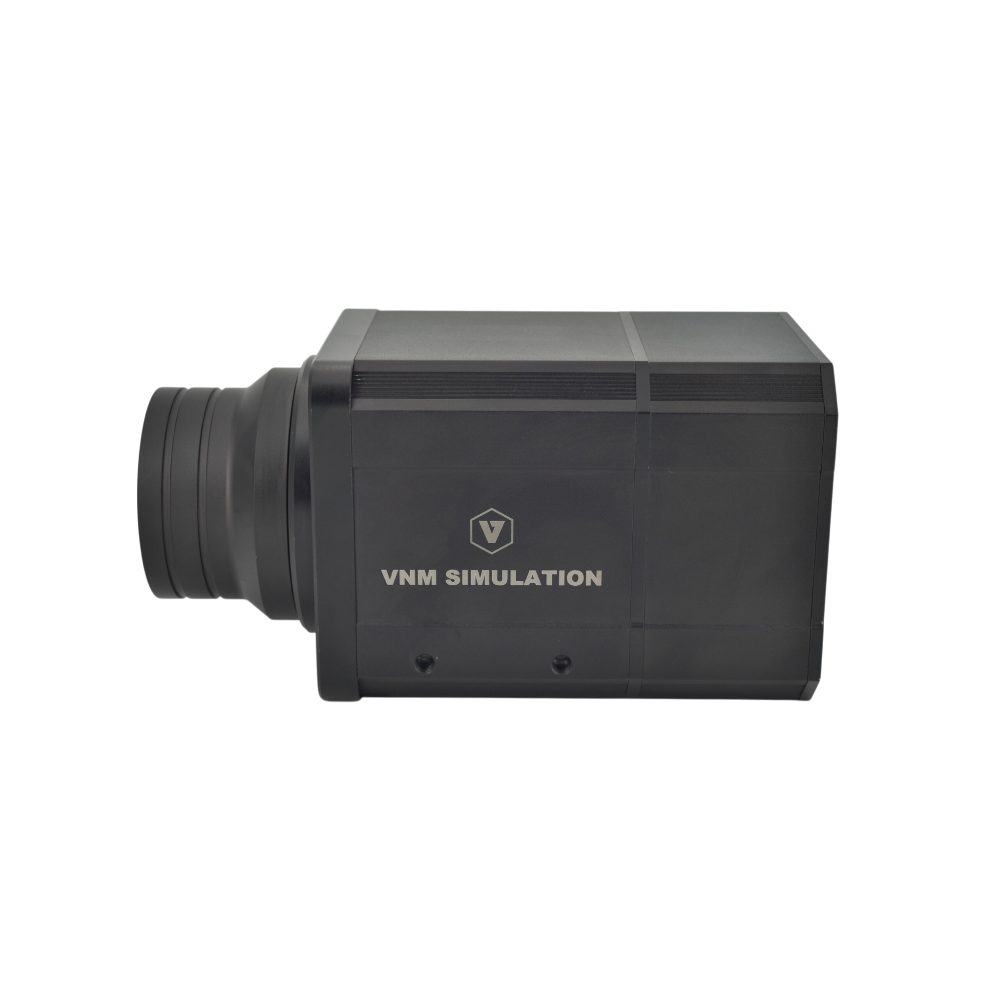

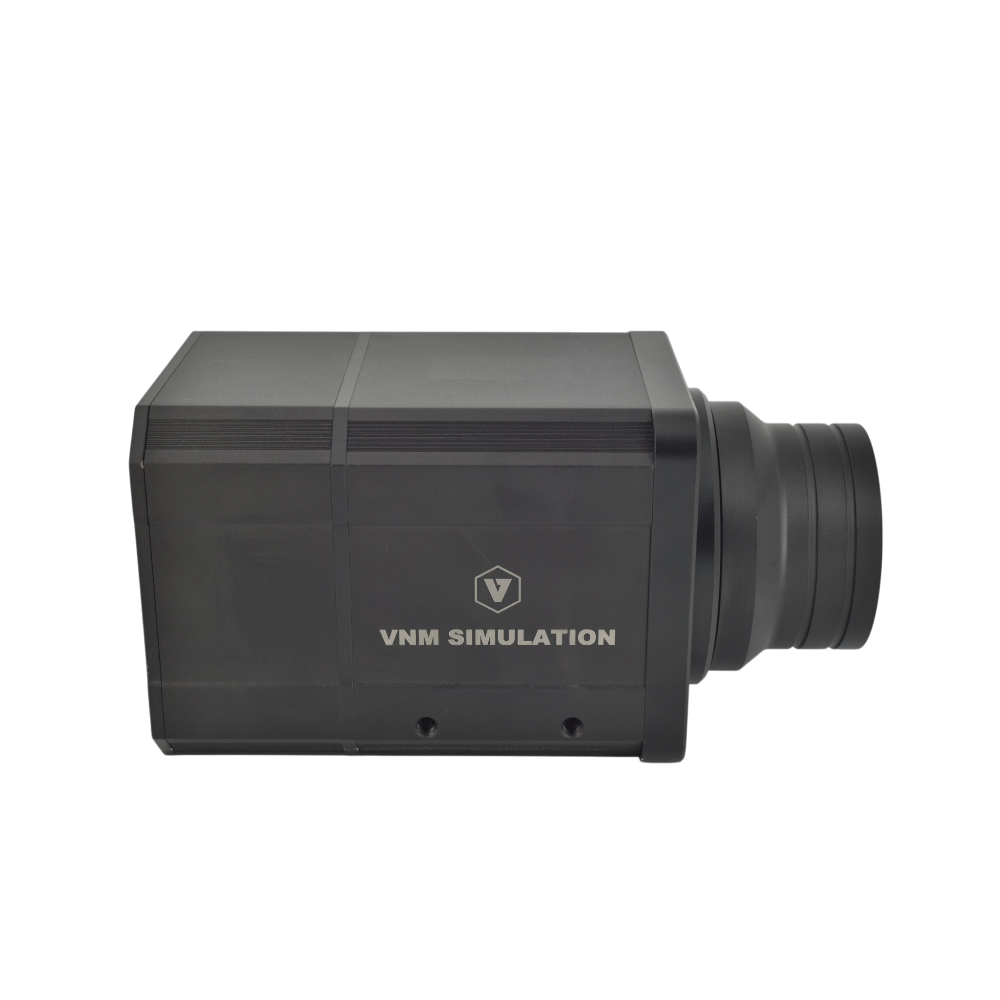

VNM Elite 18 Nm direct drive wheelbase, side view

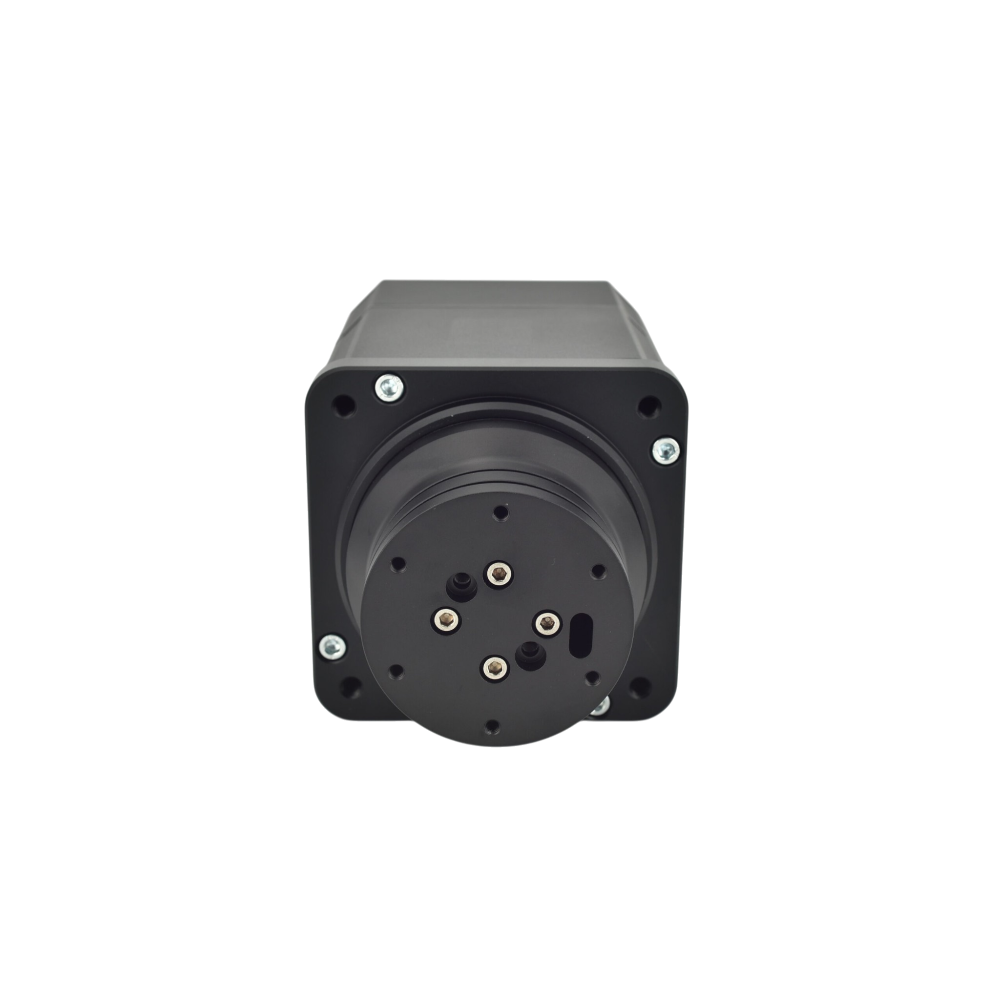

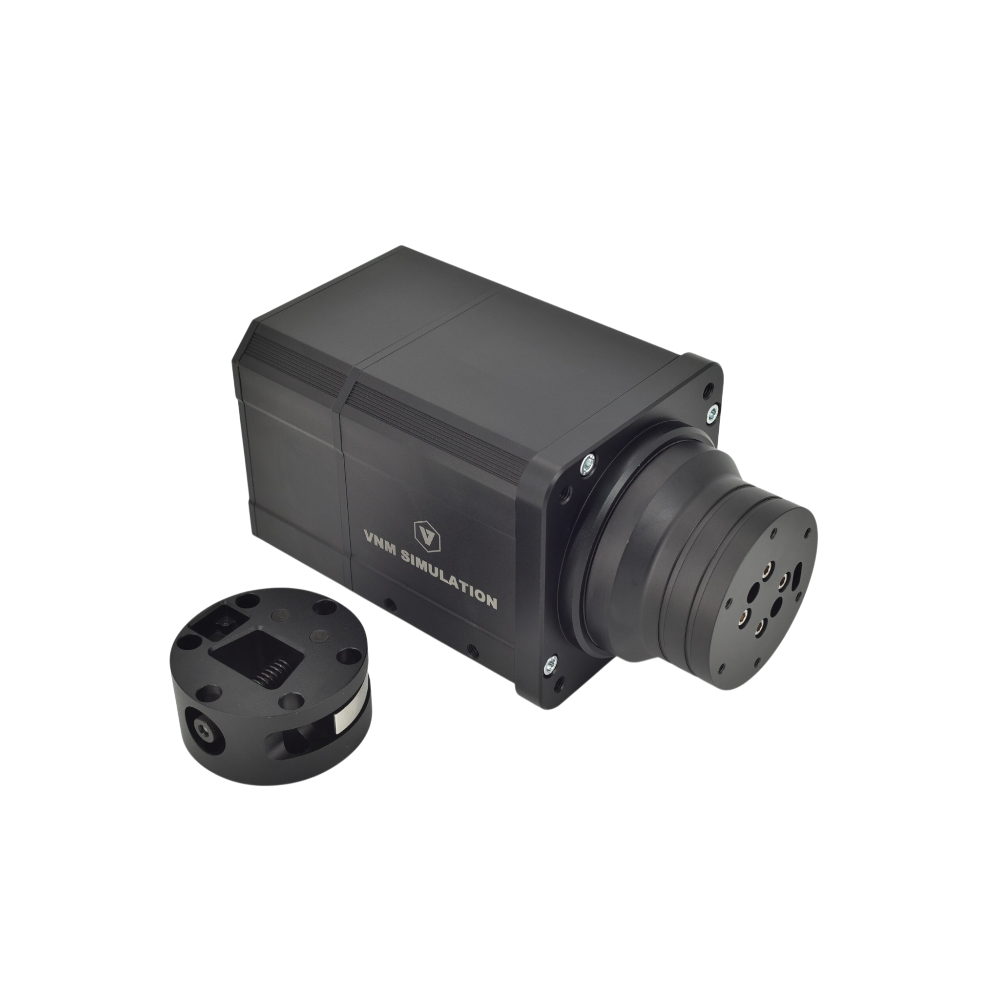

Detail of the base-side Quick Release on the VNM Elite
VNM Elite 18 Nm wheelbase for competition simulators
VNM Elite 18 Nm direct drive wheelbase with front, side or bottom mounting
VNM Direct Drive Elite, 18 Nm direct drive wheelbase for sim racing on PC
Connections and EMC button on the VNM Elite wheelbase
Chassis of the VNM Direct Drive Elite 18 Nm wheelbase
VNM Elite 18 Nm direct drive wheelbase, side view
Detail of the base-side Quick Release on the VNM Elite
VNM Elite 18 Nm wheelbase for competition simulators
VNM Elite 18 Nm direct drive wheelbase with front, side or bottom mounting

VNM Elite – 18 Nm Direct Drive Wheelbase

Brand: VNM Simulation
- 15%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The VNM Direct Drive Elite is a direct drive wheelbase delivering 18 Nm of torque for sim racing, PC-compatible, designed for virtual drivers who want powerful Force Feedback with uncompromising precision and reliability.

Its 5-pole-pair motor delivers 18 Nm of smooth, linear torque, and the 23-bit encoder provides detailed tracking of the wheel. With Plug and Play connectivity for PC and the experimental Telemetry Force Feedback system, it transmits every bump, loss of traction or road vibration with great realism.

Key features of the VNM Elite

  • 18 Nm of torque with powerful Force Feedback, ideal for competition and demanding practice.
  • 5-pole-pair motor with linear torque for a precise, natural response.
  • 23-bit encoder for detailed tracking of every movement.
  • Telemetry Force Feedback (experimental) compatible with iRacing, Assetto Corsa, rFactor 2 and more.
  • VNM Quick Release (base side) included to swap wheels without losing rigidity.
  • EMC emergency button and 360 W power supply for stable performance.

Technical specifications

Specification Detail
Maximum torque 18 Nm
Motor 5 pole pairs, smooth
Encoder 23-bit
Power supply 360 W
Dimensions (without QR) 130 × 130 × 247 mm
Weight 13.3 kg
Mounting Front, side or bottom (M8 screws)
Connection USB A-B and A-C
Compatibility PC only

Compatibility

The VNM Elite is PC-compatible only (not consoles) and works with iRacing, Assetto Corsa, ACC, rFactor 2 and Le Mans Ultimate, among other popular titles. Pair it with your wheels using the included VNM Quick Release.

In the box

VNM Direct Drive Elite base, 360 W power supply, USB A-B and A-C cables, EMC button, base-side Quick Release, M8 screws, Allen keys and full documentation. 47 × 35 × 24 cm packaging.

Frequently asked questions

How much torque does the VNM Elite deliver?

18 Nm of torque. Its 5-pole-pair motor with linear torque and the 23-bit encoder deliver powerful, precise Force Feedback, ideal for competition and demanding practice.

Is it compatible with consoles?

No. The VNM Elite works exclusively with PC. It runs with iRacing, Assetto Corsa, ACC, rFactor 2 and Le Mans Ultimate, among others.

Does it include a Quick Release?

Yes, it includes the base-side VNM Quick Release so you can swap wheels quickly without losing rigidity or precision.

How is it mounted?

It supports front, side or bottom mounting with M8 screws, adapting to any professional cockpit. It measures 130 × 130 × 247 mm (without QR) and weighs 13.3 kg, so a rigid structure is recommended.

Where does it sit in the VNM range?

The Elite delivers 18 Nm, above the Premier (13 Nm) and below the Supreme (25 Nm) and Xtreme (32 Nm). They all share a 5-pole-pair motor and 23-bit encoder.

Is it available in Spain and Portugal?

Yes. Simufy is the official VNM Simulation distributor in Spain and Portugal, with a 5,000 m² warehouse and showroom in Barcelona for technical support and returns.
