What's the difference from the VNM Xtreme?

The Supreme delivers 25 Nm of torque versus the 32 Nm of the Xtreme. Both share a 5-pole-pair motor and 23-bit encoder; the Xtreme is the flagship with an industrial motor and a 480 MHz controller.

VNM Direct Drive Supreme 25 Nm | Direct Drive Wheelbase

Name: VNM Supreme – 25 Nm Direct Drive Wheelbase
Brand: VNM Simulation
SKU: VNM-DD01SUP
Price: 1249.99 EUR
Availability: InStock

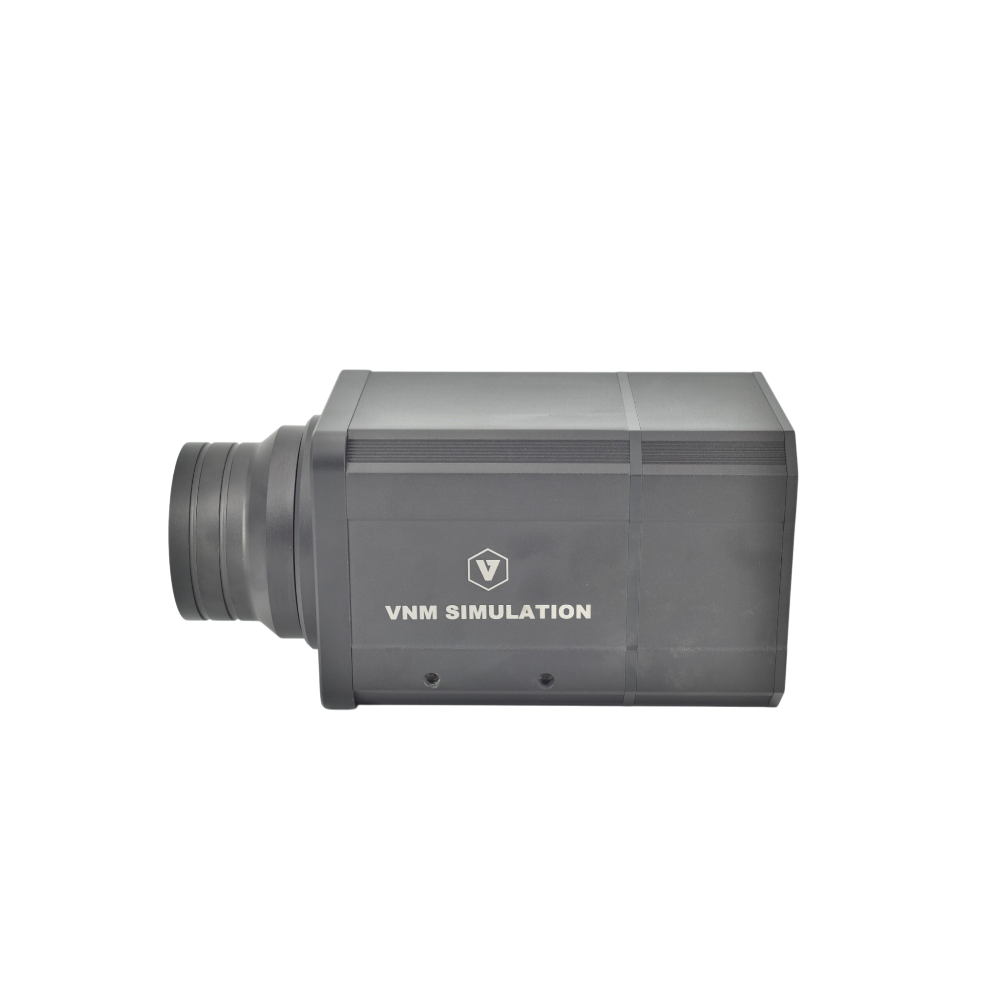

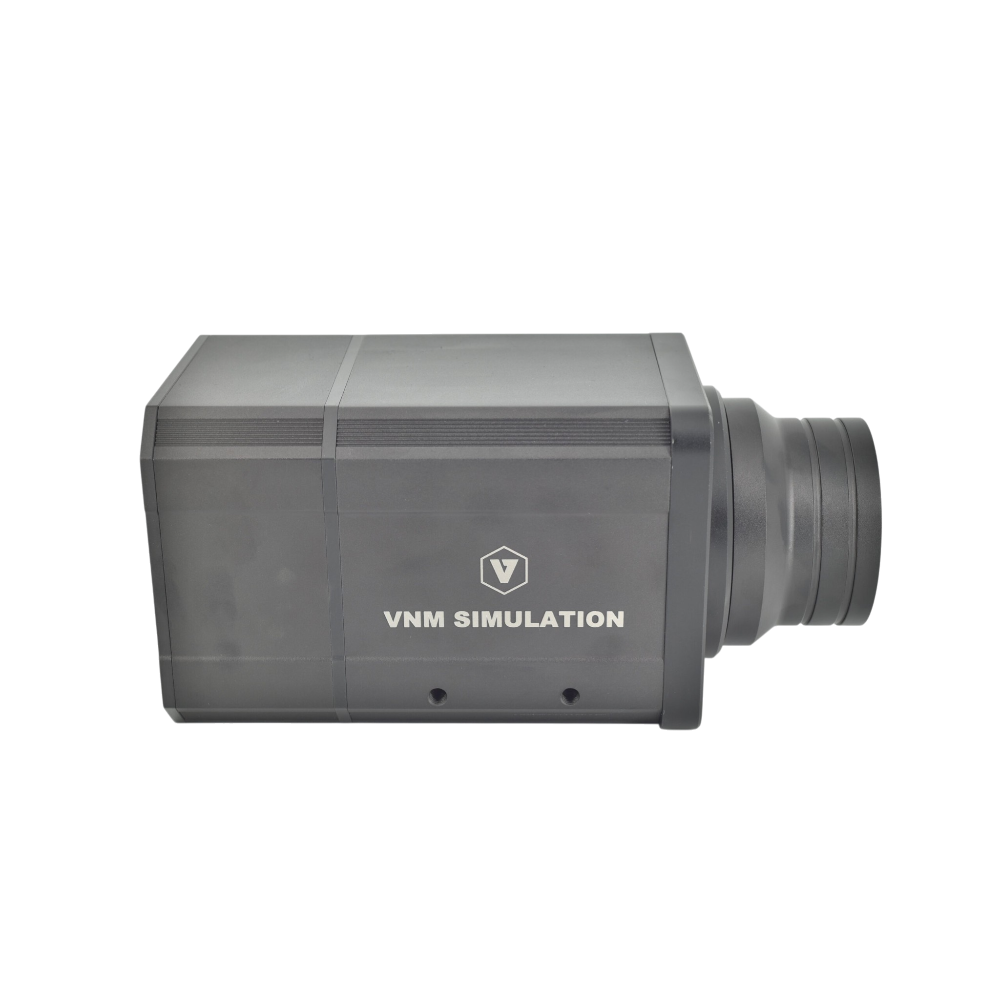

VNM Supreme 25 Nm direct drive wheelbase, side view

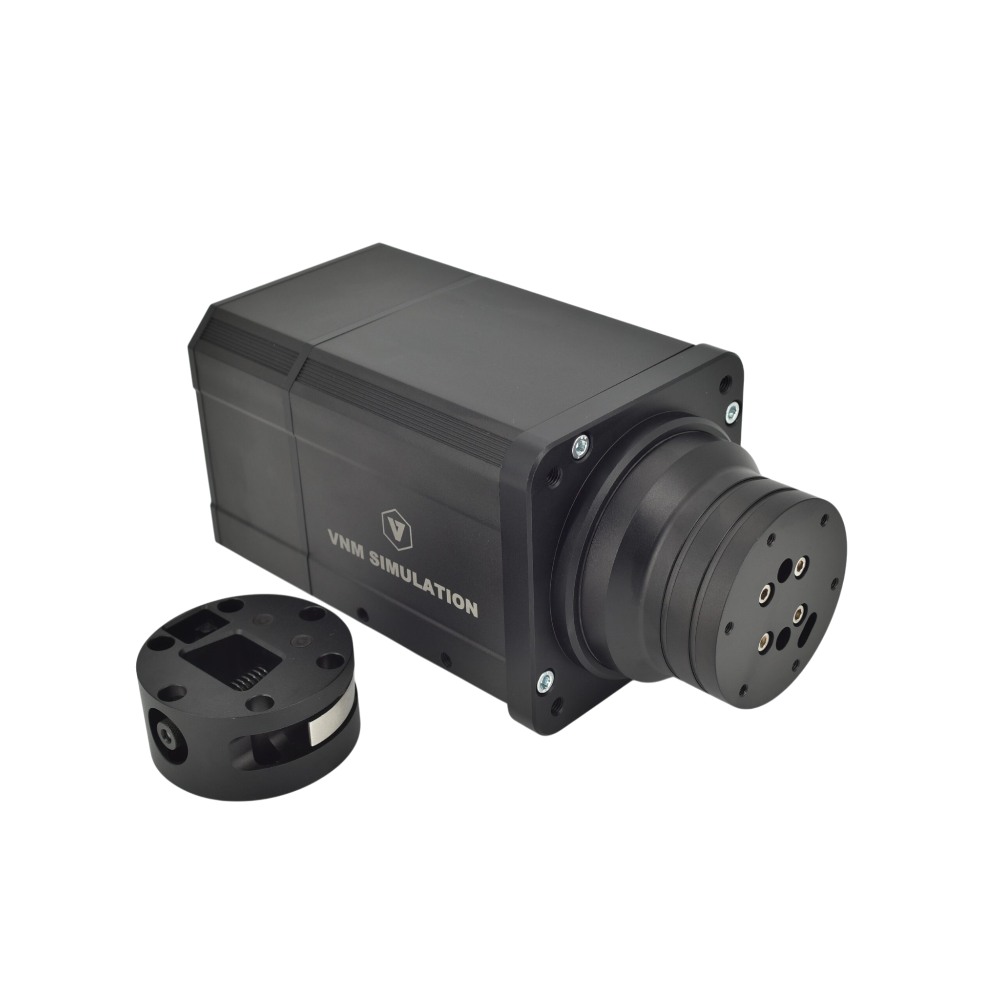

Detail of the base-side Quick Release on the VNM Supreme

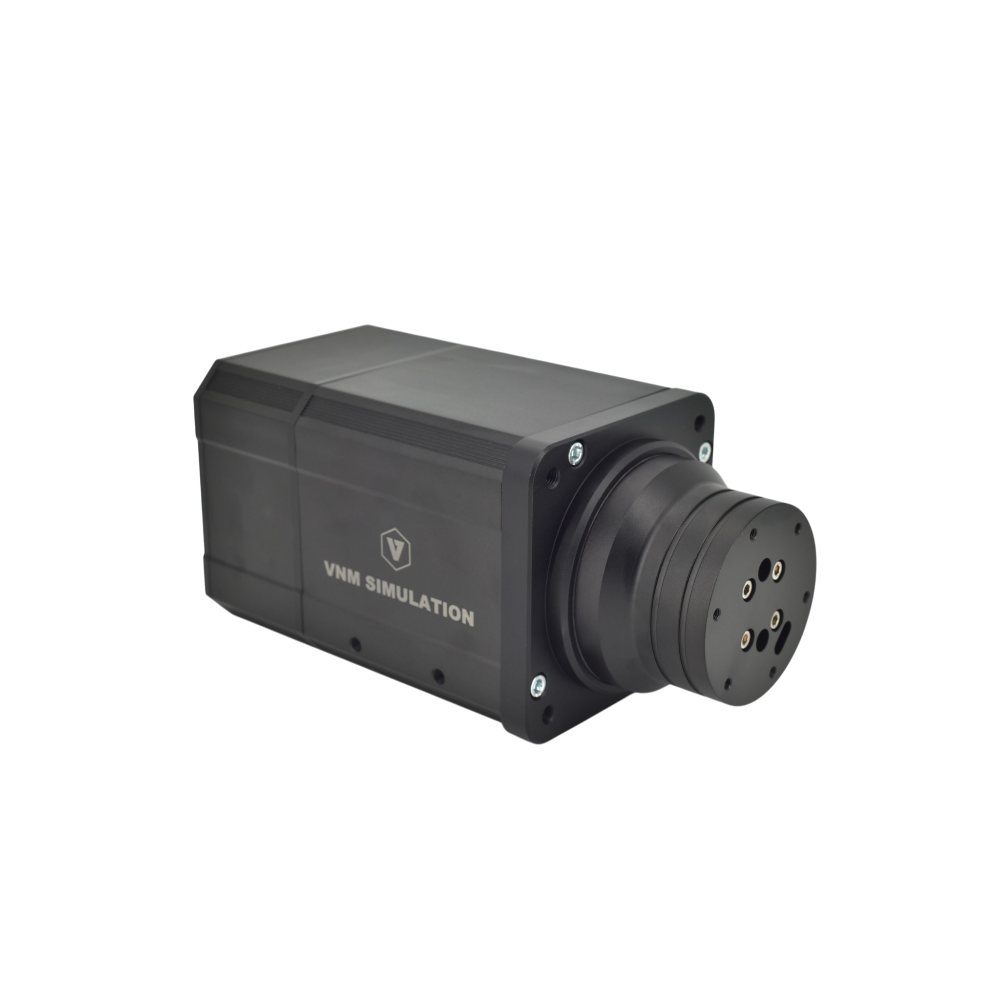

Chassis of the VNM Direct Drive Supreme 25 Nm wheelbase

VNM Supreme 25 Nm wheelbase for competition simulators

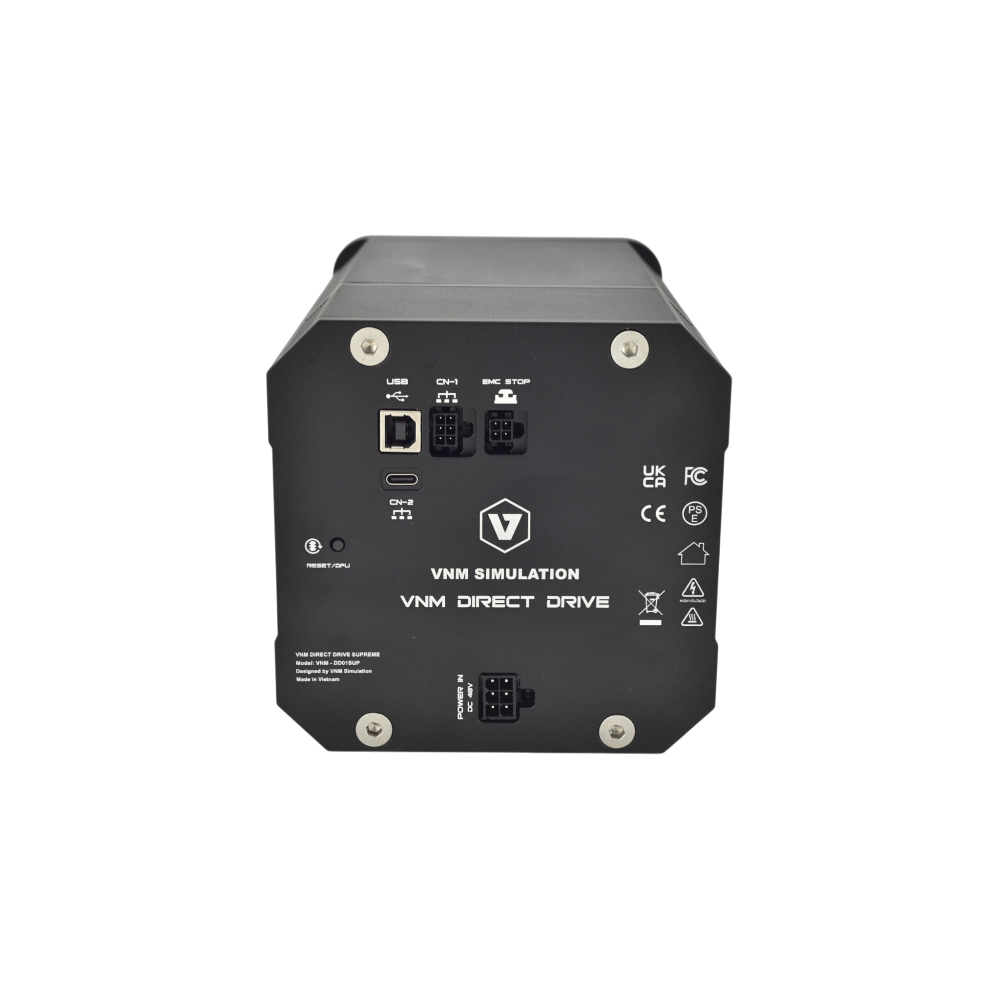

Connections and Superior EMC button on the VNM Supreme wheelbase

VNM Supreme 25 Nm direct drive wheelbase with front, side or bottom mounting

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The VNM Direct Drive Supreme is a 25 Nm direct drive wheelbase for sim racing, compatible with PC, designed for drivers who demand elite force feedback with maximum fidelity and response.

Its 5-pole-pair motor delivers 25 Nm of smooth, linear torque, and the 23-bit encoder provides ultra-detailed tracking of the wheel. With Plug and Play connectivity for PC and the experimental Telemetry Force Feedback system, it transmits every bump, traction loss or road vibration in a hyper-realistic way.

Key features of the VNM Supreme

25 Nm of torque with elite force feedback, ideal for top-level competition.
5-pole-pair motor with linear torque for a precise, natural response.
23-bit encoder for ultra-detailed movement tracking.
Telemetry Force Feedback (experimental) compatible with iRacing, Assetto Corsa, rFactor 2 and more.
VNM base-side Quick Release included to swap wheels without losing rigidity.
Superior EMC emergency button and a 480 W power supply for stable power.

Technical specifications

Specification	Detail
Max torque	25 Nm
Motor	5-pole-pair, smooth
Encoder	23-bit
Power	480 W
Dimensions (without QR)	130 × 130 × 267 mm
Weight	15.7 kg
Mounting	Front, side or bottom (M8 bolts)
Connection	USB A-to-B and A-to-C
Compatibility	PC only

Compatibility

The VNM Supreme is compatible exclusively with PC (not with consoles) and works with iRacing, Assetto Corsa, ACC, rFactor 2 and Le Mans Ultimate, among other popular titles. Pair it with your sim racing wheels through the included VNM Quick Release.

In the box

VNM Direct Drive Supreme base, 480 W power supply, USB A-to-B and A-to-C cables, Superior EMC button, base-side Quick Release, M8 bolts, Allen keys and full documentation. 47 × 35 × 24 cm box.

Frequently asked questions

How much torque does the VNM Supreme deliver?

25 Nm of torque. Its 5-pole-pair linear-torque motor and 23-bit encoder deliver elite force feedback, ideal for top-level competition simulations.

Is it compatible with consoles?

No. The VNM Supreme is compatible exclusively with PC. It works with iRacing, Assetto Corsa, ACC, rFactor 2 and Le Mans Ultimate, among others.

Does it include a Quick Release?

Yes, it includes the base-side VNM Quick Release for fast wheel swaps without losing rigidity or precision.

How is it mounted?

It supports front, side or bottom mounting with M8 bolts, adapting to any professional cockpit. It measures 130 × 130 × 267 mm (without QR) and weighs 15.7 kg, so a rigid structure is recommended.

How does it differ from the VNM Xtreme?

The Supreme delivers 25 Nm of torque versus the Xtreme's 32 Nm. Both share a 5-pole-pair motor and a 23-bit encoder; the Xtreme is the flagship with an industrial motor and a 480 MHz controller.

Is it available in Spain and Portugal?

Yes. Simufy is the official VNM Simulation distributor in Spain and Portugal, with a 5,000 m² warehouse and showroom in Barcelona for technical support and returns.
