Simucube 3 Pro | 25 Nm Direct Drive Wheelbase

Name: Simucube 3 Pro – 25 Nm Direct Drive Wheelbase
Brand: SIMUCUBE
SKU: SC3PRO-EU-US
Price: 1499.99 EUR
Availability: InStock

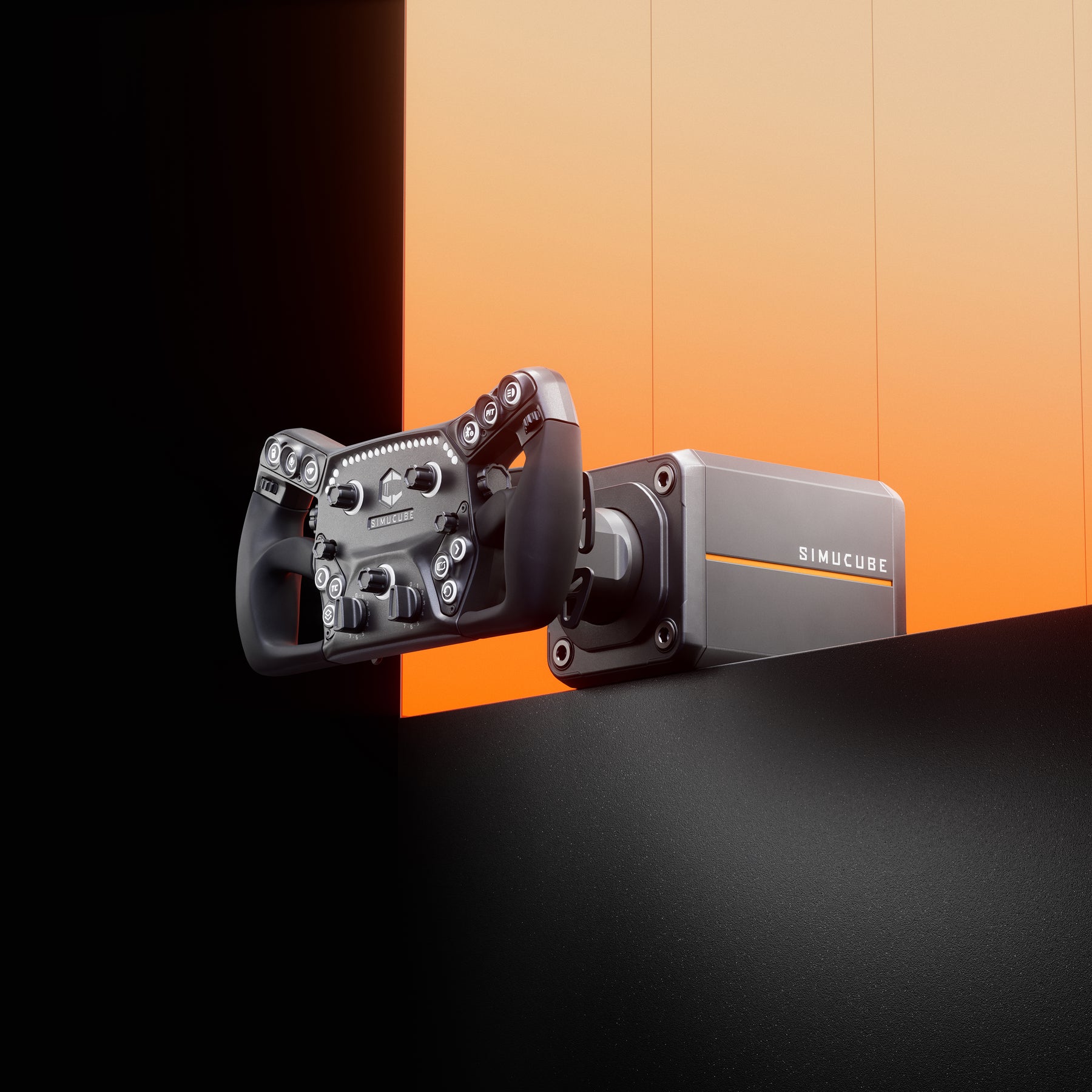

Simucube 3 Pro with the Link Quick Release fitted to the shaft

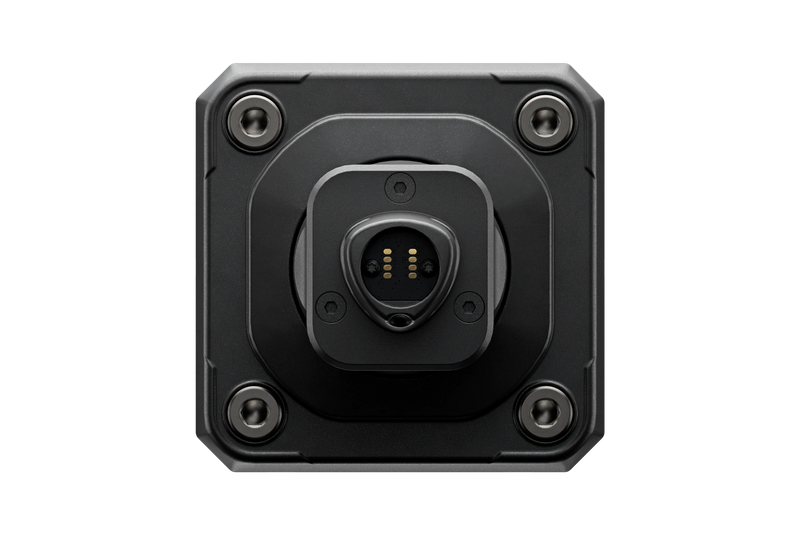

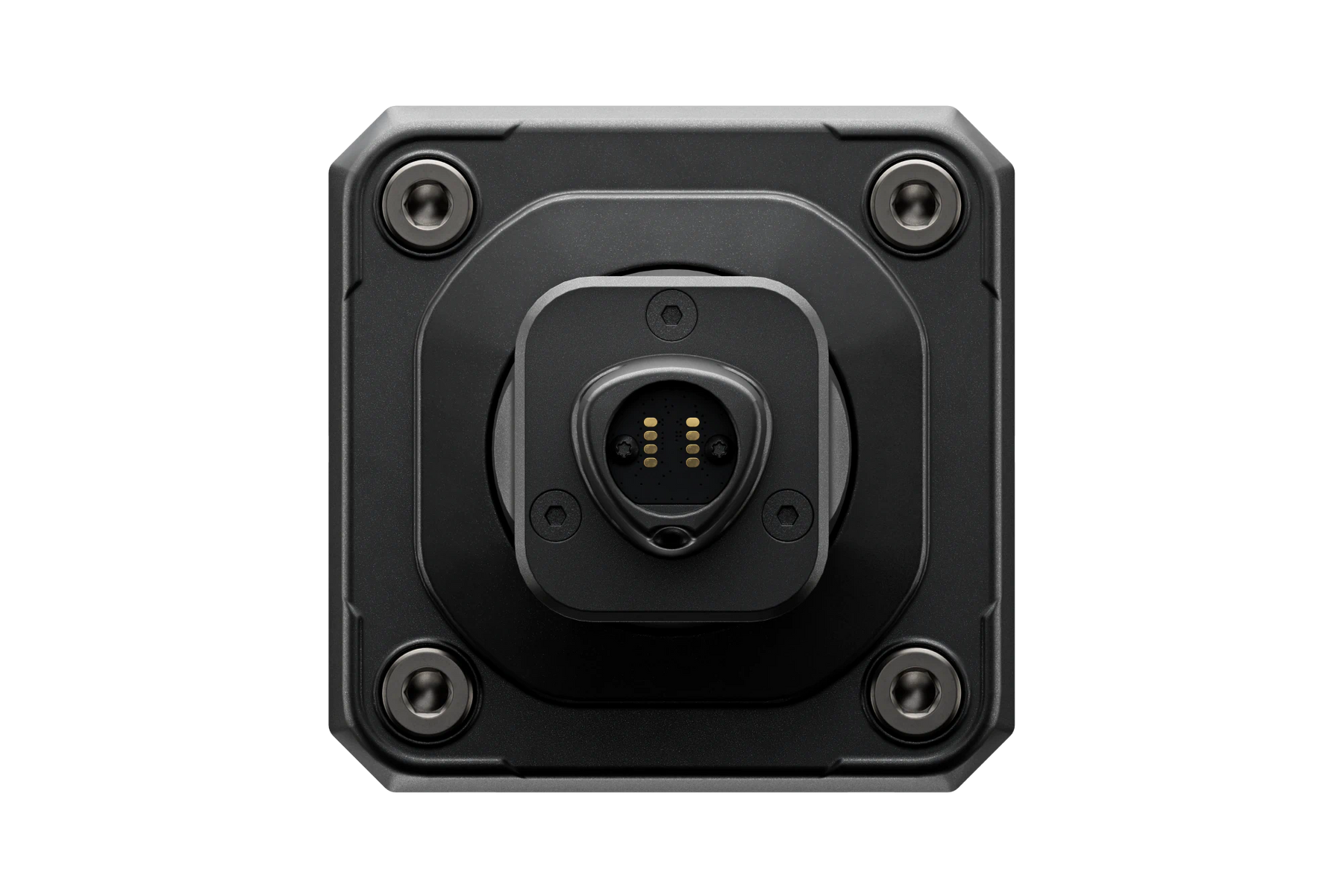

Front view of the Simucube 3 Pro wheelbase with 70 mm flange

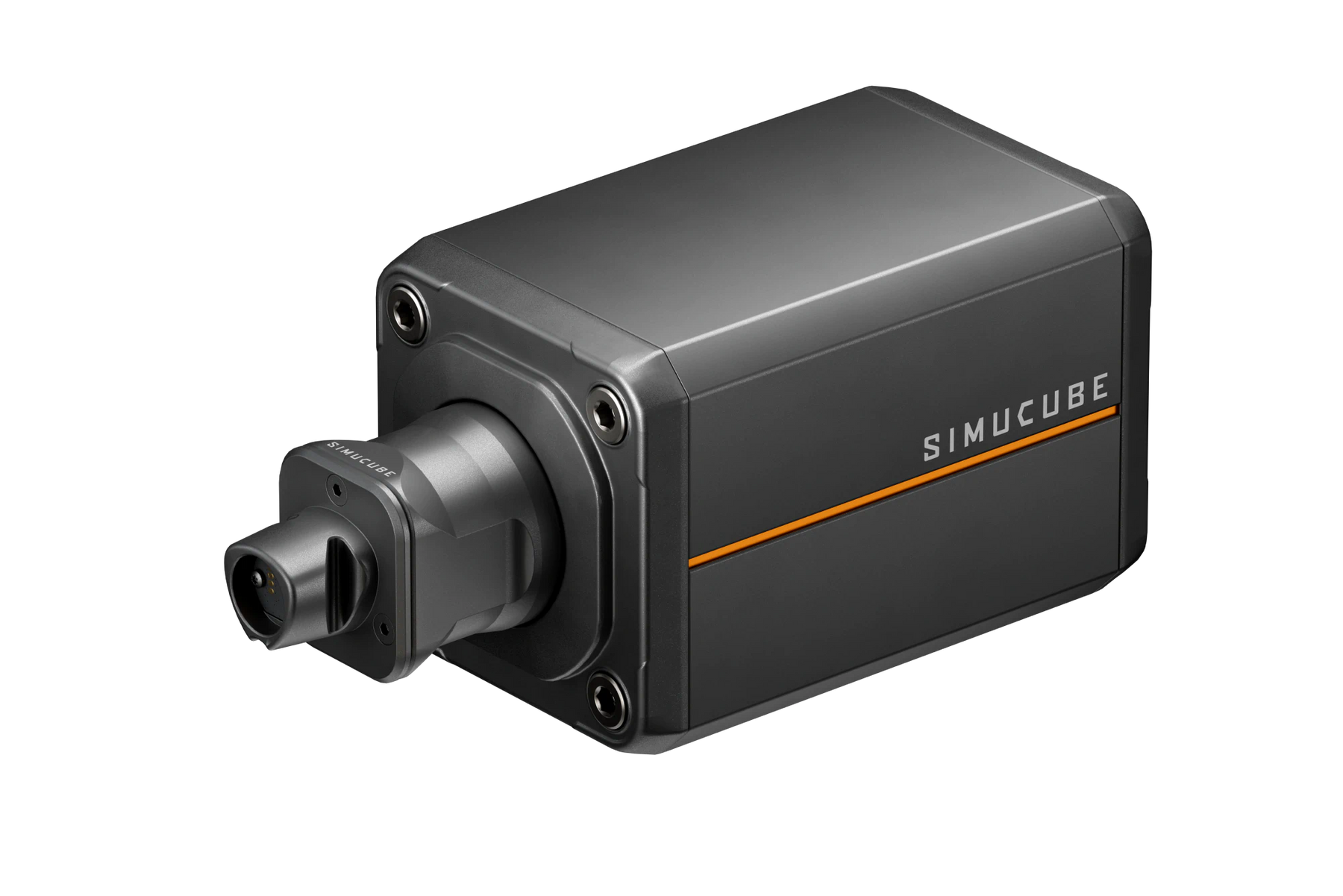

Machined aluminium housing of the Simucube 3 Pro

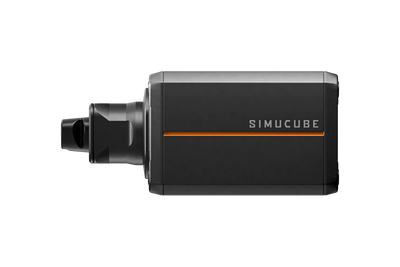

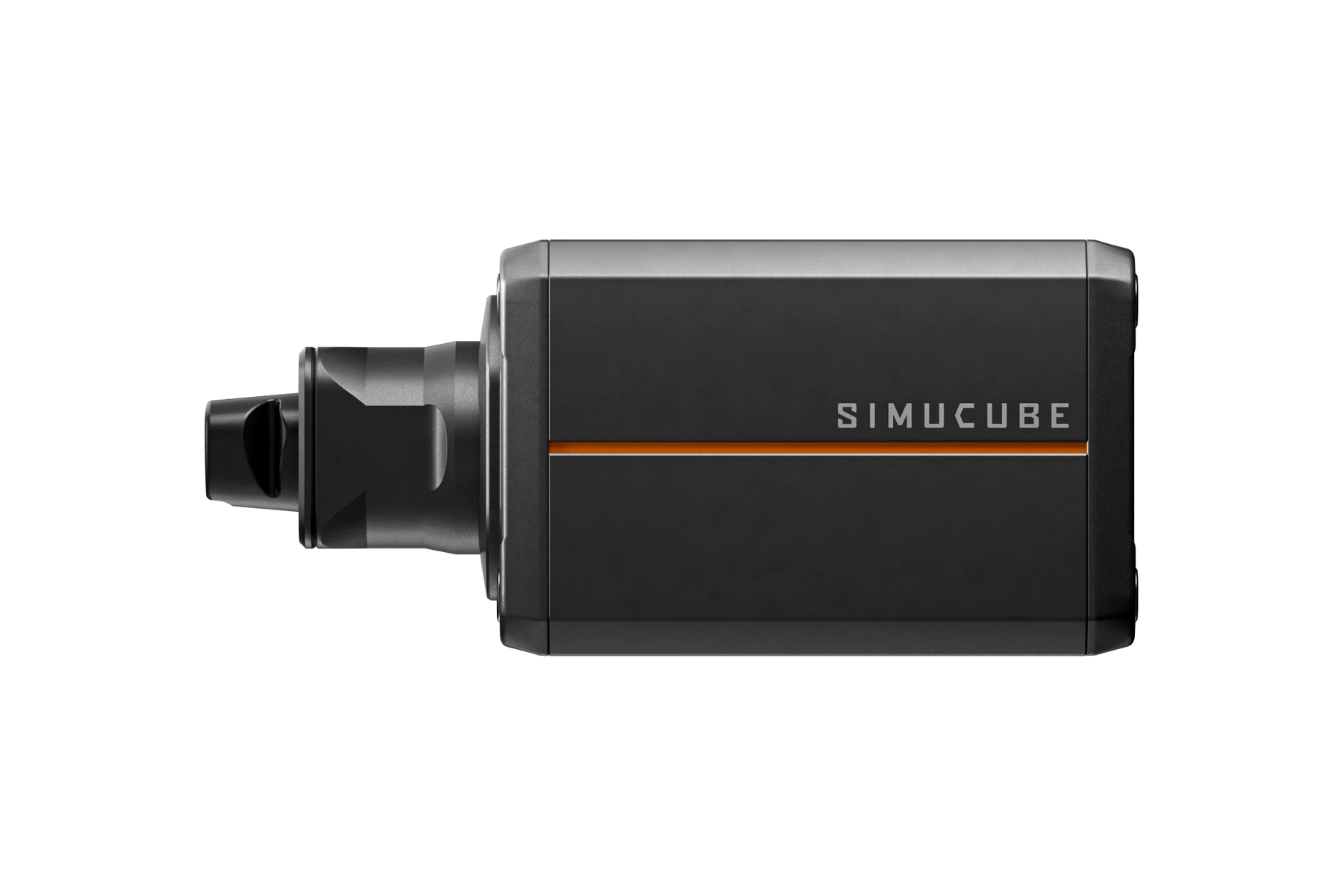

Side view of the Simucube 3 Pro showing its 303 mm length

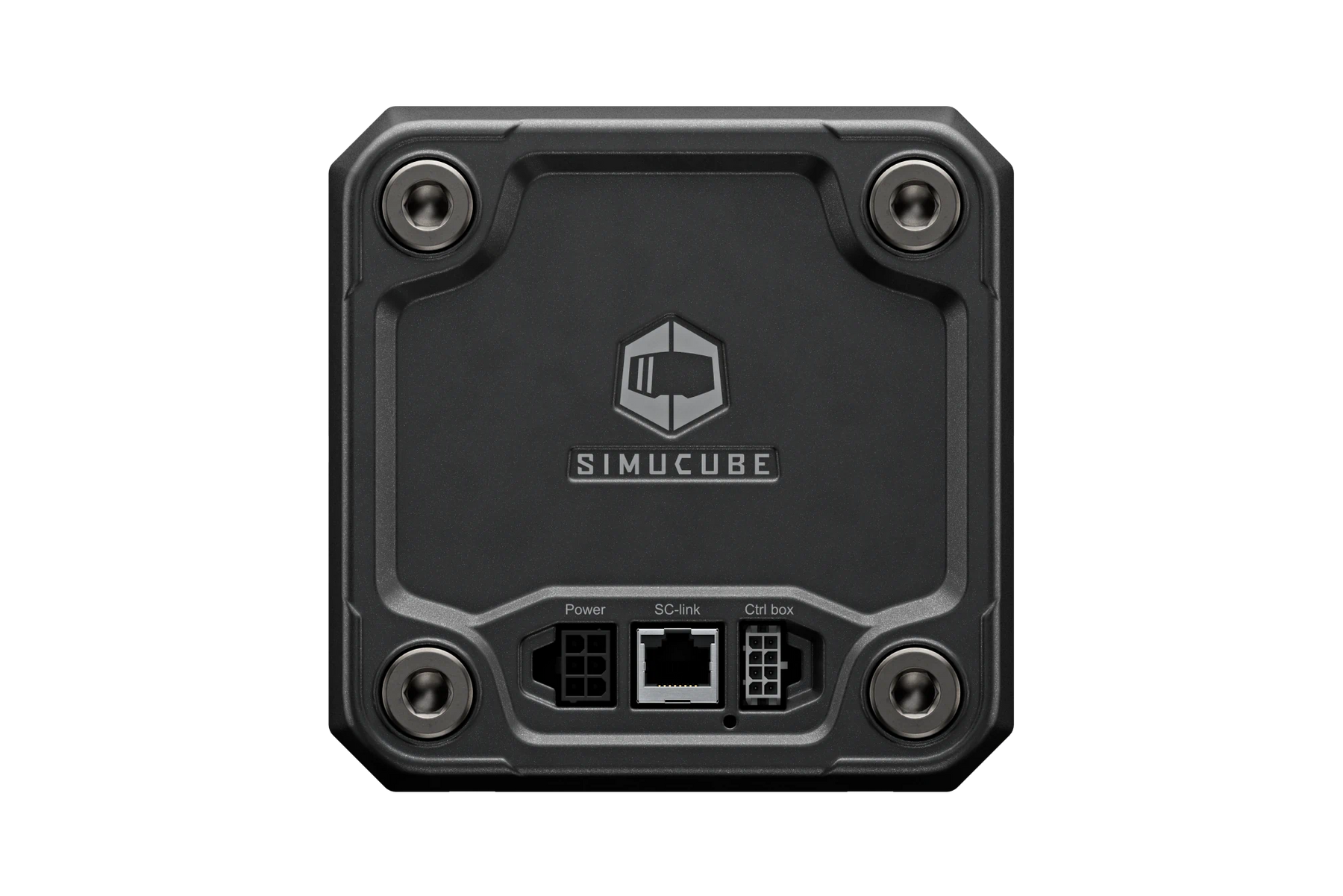

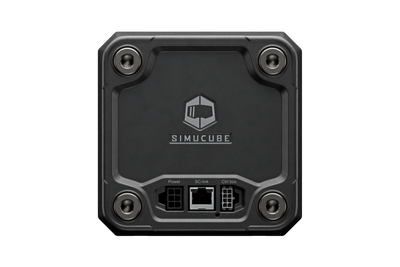

Rear of the Simucube 3 Pro with the RJ45 and power connectors

Simucube Control Box included with the 3 Pro wheelbase

Simucube 3 Pro mounted on a sim racing cockpit

Detail of the Simucube 3 Pro front mounting hole pattern

Simucube 3 Pro next to its 360 W power supply

Simucube 3 Pro set with Link Quick Release and Control Box

Simucube 3 Pro 25 Nm wheelbase ready to install on your rig

Simucube 3 Pro – 25 Nm Direct Drive Wheelbase

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":52546151481677,"title":"No","option1":"No","option2":null,"option3":null,"sku":"SC3PRO-EU-US","requires_shipping":true,"taxable":true,"featured_image":{"id":73413504958797,"product_id":10308708761933,"position":1,"created_at":"2025-10-08T19:25:11+02:00","updated_at":"2025-10-08T19:27:03+02:00","alt":"Simucube 3 Pro 25 Nm direct drive wheelbase for sim racing","width":2000,"height":1334,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Pro-Simufy_3.webp?v=1759944423","variant_ids":[52546151448909,52546151481677]},"available":true,"name":"Simucube 3 Pro – 25 Nm Direct Drive Wheelbase - No","public_title":"No","options":["No"],"price":149999,"weight":12000,"compare_at_price":0,"inventory_management":"shopify","barcode":"6430082360480","featured_media":{"alt":"Simucube 3 Pro 25 Nm direct drive wheelbase for sim racing","id":57741726024013,"position":1,"preview_image":{"aspect_ratio":1.499,"height":1334,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Pro-Simufy_3.webp?v=1759944423"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52546151448909,"title":"Yes","option1":"Yes","option2":null,"option3":null,"sku":"SC3PRO-EU-US+SCLINK","requires_shipping":true,"taxable":true,"featured_image":{"id":73413504958797,"product_id":10308708761933,"position":1,"created_at":"2025-10-08T19:25:11+02:00","updated_at":"2025-10-08T19:27:03+02:00","alt":"Simucube 3 Pro 25 Nm direct drive wheelbase for sim racing","width":2000,"height":1334,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Pro-Simufy_3.webp?v=1759944423","variant_ids":[52546151448909,52546151481677]},"available":true,"name":"Simucube 3 Pro – 25 Nm Direct Drive Wheelbase - Yes","public_title":"Yes","options":["Yes"],"price":159999,"weight":13000,"compare_at_price":167998,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Simucube 3 Pro 25 Nm direct drive wheelbase for sim racing","id":57741726024013,"position":1,"preview_image":{"aspect_ratio":1.499,"height":1334,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Pro-Simufy_3.webp?v=1759944423"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The Simucube 3 Pro is a 25 Nm peak torque direct drive wheelbase for sim racing, compatible with PC, aimed at drivers who want the industry's benchmark force feedback without stepping up to the torque of the Ultimate.

Designed in Finland and manufactured in the EU by Granite Devices, it runs a high response speed SPM motor optimised for direct drive and a 23-bit absolute angle sensor with over 8,000,000 steps. Every unit is laser-scanned during production to build a digital twin of its motor, and the control algorithm works on that model rather than the physical motor — the result is whisper-quiet operation and consistent response from one unit to the next. A Simucube Link Hub is required to operate, and the Link Quick Release is bought separately within the Simucube range.

Key features of the Simucube 3 Pro

25 Nm of peak torque with a 360 W power supply and 450 W peaks.

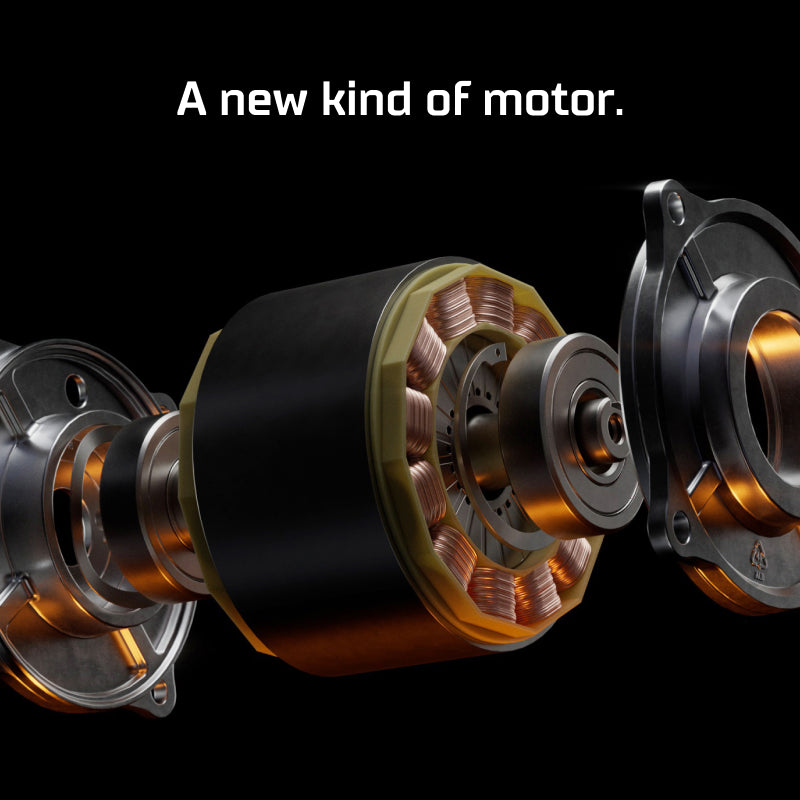

Direct drive optimised SPM motor with high response speed, engineered exclusively for Simucube.
23-bit absolute angle sensor: over 8,000,000 steps per revolution.
Control Box included: adjust torque, damping and other parameters without leaving your session.
Telemetry-based effects — road texture, ABS and RPM — configurable from Simucube Tuner 3.0.

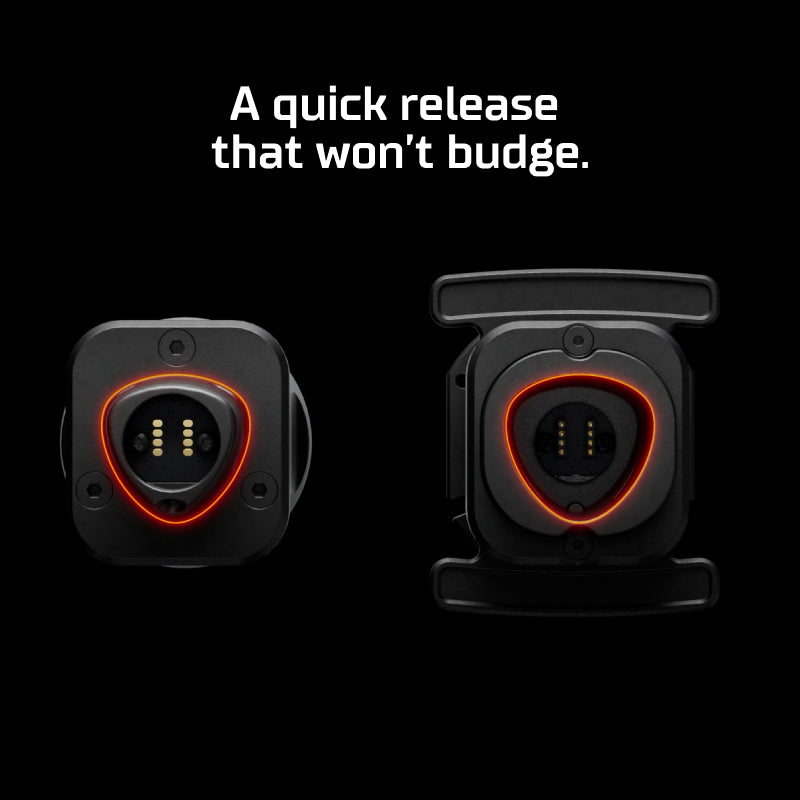

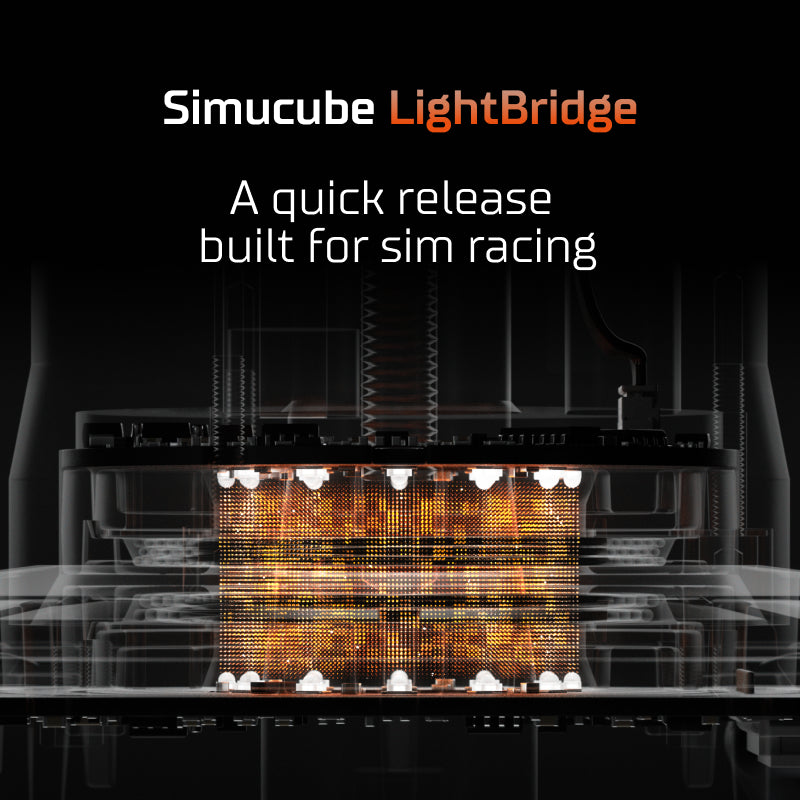

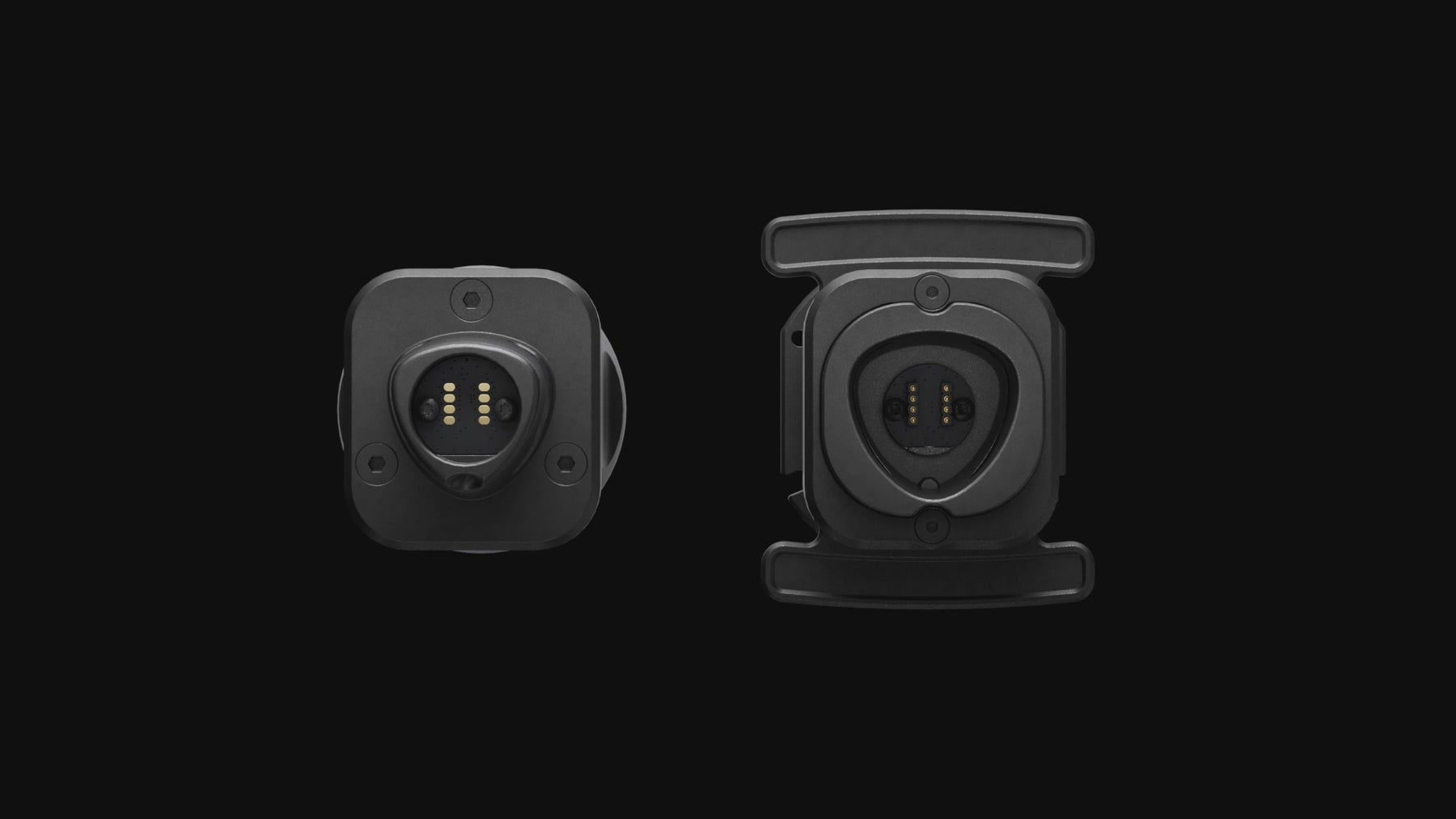

Link Quick Release with LightBridge technology: contactless power and data transfer with no wearing parts (sold separately).
Front and bottom mounting with 135 mm and 78.4 mm hole patterns, and a 3-year warranty.

Technical specifications

Feature	Detail
Peak torque	25 Nm
Motor type	Direct drive optimised SPM, high response speed
Angle sensor	23-bit absolute (8,000,000 steps)
Power supply	360 W (450 W peak)
Dimensions (with Link Quick Release)	135 × 135 × 303 mm
Package dimensions	190 × 300 × 390 mm
Weight	11 kg
Mounting	Front and bottom
Hole pattern	135 mm and 78.4 mm
Flange centring diameter	110 mm
Control Box	Included
Simucube Link Hub	Not included — required to operate
Link Quick Release	Not included
Warranty	3 years
Origin	Designed in Finland, manufactured in the EU

What's in the box

1 × Simucube 3 Pro wheelbase
1 × power adapter and 1 × AC power cord
1 × RJ45 cable
1 × Control Box
1 × quick start guide
Fastener kit in M8, M6 and M5 with washers and t-slot nuts

Compatibility

Platform: PC (Windows). It is not compatible with PlayStation or Xbox.
Simucube Link Hub: mandatory. A single Link Hub serves every Simucube device you own, so if you already have an ActivePedal or a Valo GT-23 you do not need another one.
Simucube Wireless Wheels: compatible through the Link Hub and the Link Quick Release.
Wired USB wheels: they work exactly as they do on Simucube 2; the mechanical connection still needs the Link Quick Release. Browse the compatible sim racing wheels.
Wheels with a 50.8 mm bolt pattern: these require the Simucube 50.8 mm to 70 mm adapter.
Several Simucube Link devices: to connect more than one Link Hub, the manufacturer specifies the Teltonika Ethernet Switch.
Software: Simucube Tuner 3.0.

Frequently asked questions

Does the Simucube 3 Pro work without the Simucube Link Hub?

No. The Simucube Link Hub is essential: it replaces the wheelbase's direct USB connection and handles communication with the PC. One is enough for your entire Simucube setup, so if you already own an ActivePedal or a Valo GT-23 you do not need to buy another.

Is the Link Quick Release included with the wheelbase?

No. The Link Quick Release for Simucube 3 is sold separately and is required to fit any wheel, wireless or USB.

Is it compatible with PlayStation or Xbox?

No. The Simucube 3 Pro is a PC-only wheelbase for Windows and offers no console compatibility.

Can I use my Simucube 2 wheel on the Simucube 3 Pro?

Yes. Simucube Wireless Wheels run through the Link Hub and USB wheels connect like any other USB device. Both cases need the Link Quick Release, and if your wheel uses a 50.8 mm bolt pattern, the Simucube 50.8 mm to 70 mm adapter as well.

What is the difference between the Simucube 3 Sport, Pro and Ultimate?

Peak torque and motor. The Sport delivers 15 Nm and the Pro 25 Nm, both with an SPM motor and a 3-year warranty; the Ultimate reaches 35 Nm with a spoke-type IPM motor and a 5-year warranty. All three share the 23-bit sensor, the Control Box and front and bottom mounting.

What warranty does the Simucube 3 Pro carry?

A 3-year manufacturer warranty. At Simufy we handle the claim ourselves as the official distributor in Spain and Portugal.
