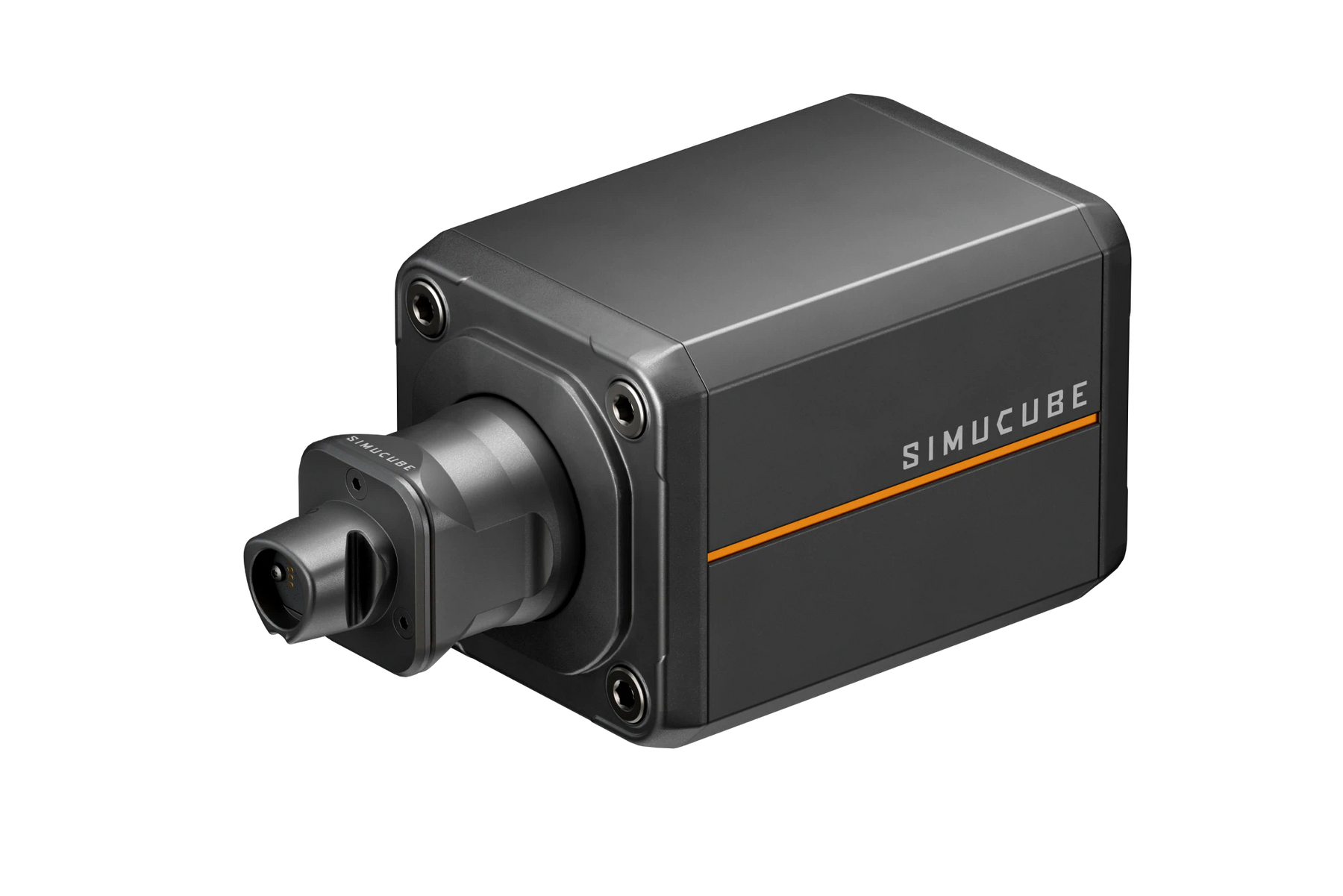

Simucube 3 Sport with the Link Quick Release fitted to the shaft

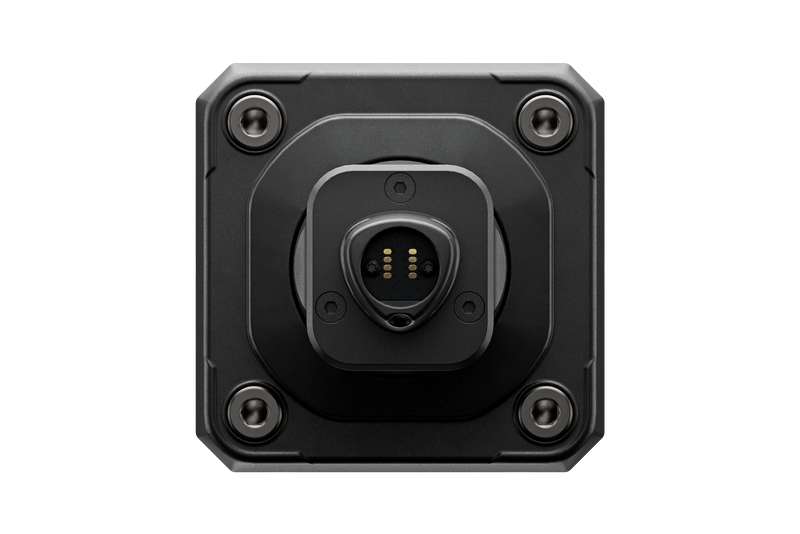

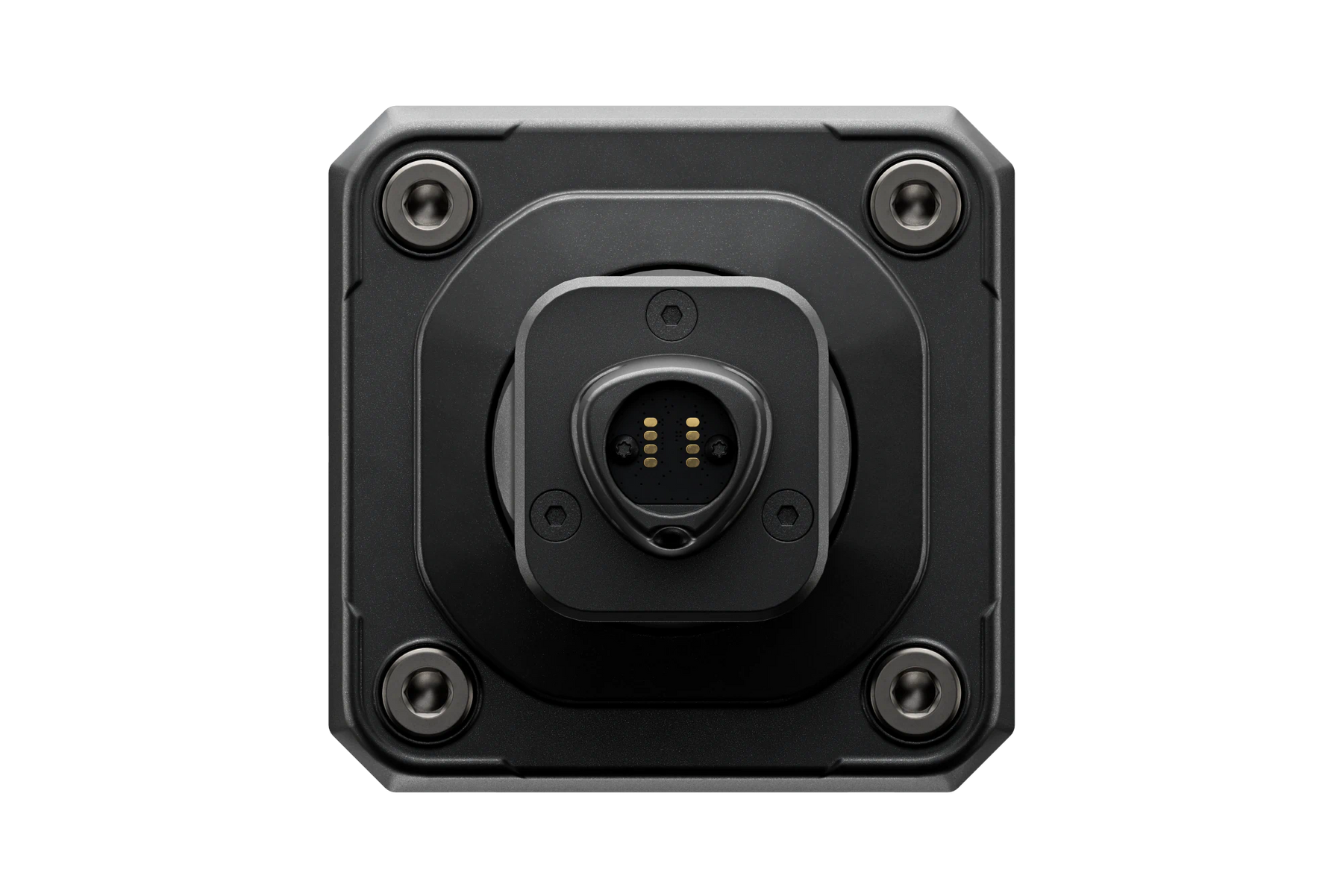

Front view of the Simucube 3 Sport wheelbase with 70 mm flange

Machined aluminium housing of the Simucube 3 Sport

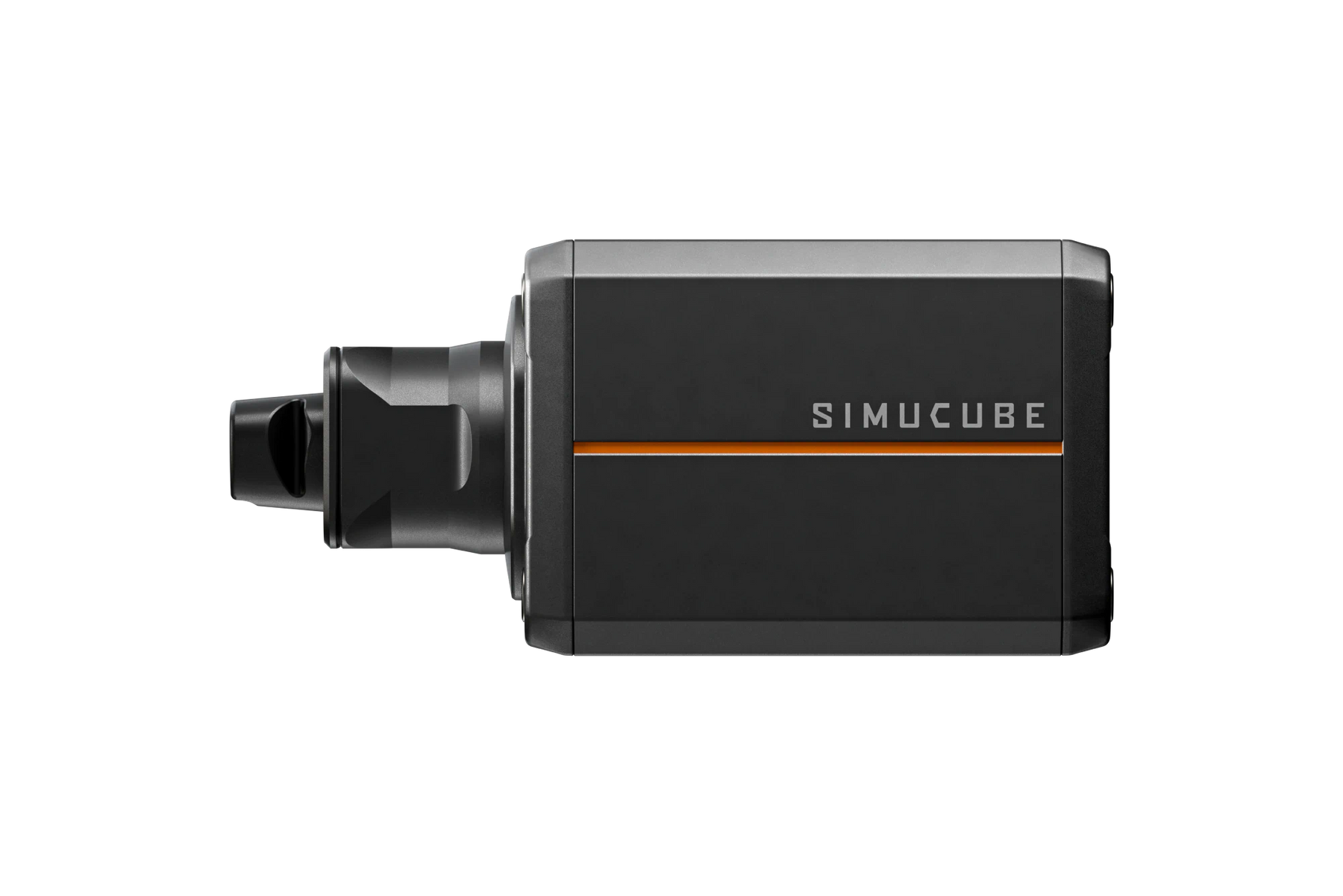

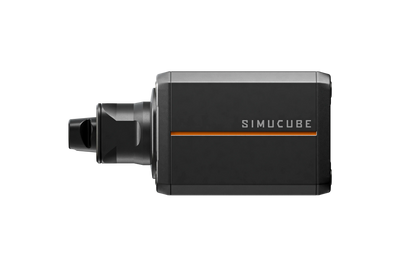

Side view of the Simucube 3 Sport showing its 278 mm length

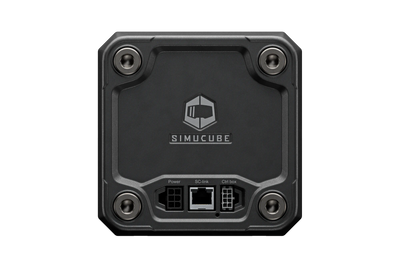

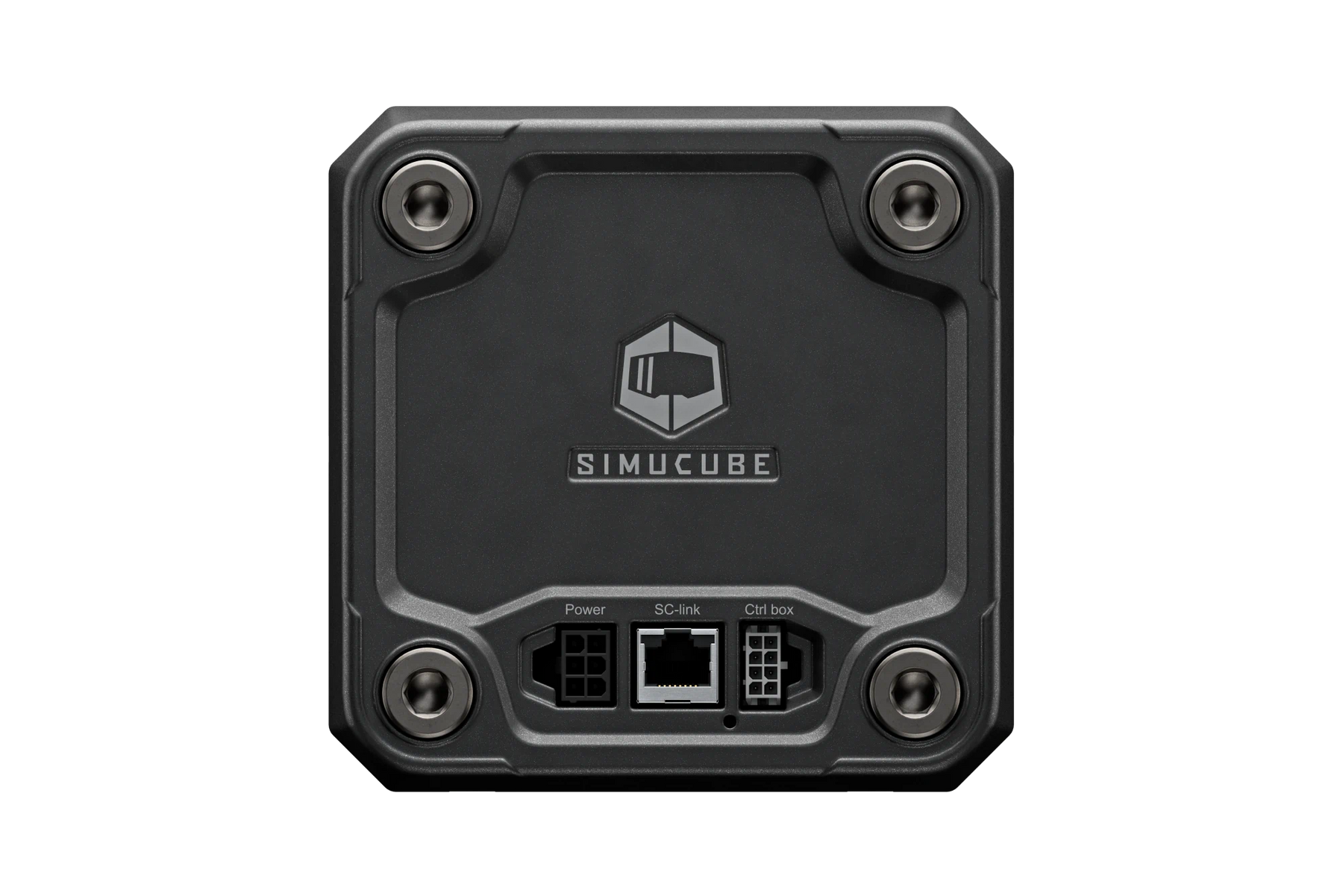

Rear of the Simucube 3 Sport with the RJ45 and power connectors

Simucube Control Box included with the 3 Sport wheelbase

Simucube 3 Sport mounted on a sim racing cockpit

Detail of the Simucube 3 Sport front mounting hole pattern

Simucube 3 Sport next to its 280 W power supply

Simucube 3 Sport set with Link Quick Release and Control Box

Simucube 3 Sport 15 Nm wheelbase ready to install on your rig

Simucube 3 Sport – 15 Nm Direct Drive Wheelbase

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

[{"id":52546198634829,"title":"No","option1":"No","option2":null,"option3":null,"sku":"SC3SPORT-EU-US","requires_shipping":true,"taxable":true,"featured_image":{"id":73413613158733,"product_id":10308720886093,"position":1,"created_at":"2025-10-08T19:40:12+02:00","updated_at":"2025-10-08T19:40:16+02:00","alt":"Simucube 3 Sport 15 Nm direct drive wheelbase for sim racing","width":2000,"height":1334,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Sport-Simufy_2.webp?v=1759945216","variant_ids":[52546198634829,52546198667597]},"available":true,"name":"Simucube 3 Sport – 15 Nm Direct Drive Wheelbase - No","public_title":"No","options":["No"],"price":124999,"weight":9000,"compare_at_price":0,"inventory_management":"shopify","barcode":"6430082360459","featured_media":{"alt":"Simucube 3 Sport 15 Nm direct drive wheelbase for sim racing","id":57741834027341,"position":1,"preview_image":{"aspect_ratio":1.499,"height":1334,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Sport-Simufy_2.webp?v=1759945216"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52546198667597,"title":"Yes","option1":"Yes","option2":null,"option3":null,"sku":"SC3SPORT-EU-US+SCLINK","requires_shipping":true,"taxable":true,"featured_image":{"id":73413613158733,"product_id":10308720886093,"position":1,"created_at":"2025-10-08T19:40:12+02:00","updated_at":"2025-10-08T19:40:16+02:00","alt":"Simucube 3 Sport 15 Nm direct drive wheelbase for sim racing","width":2000,"height":1334,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Sport-Simufy_2.webp?v=1759945216","variant_ids":[52546198634829,52546198667597]},"available":true,"name":"Simucube 3 Sport – 15 Nm Direct Drive Wheelbase - Yes","public_title":"Yes","options":["Yes"],"price":134999,"weight":9500,"compare_at_price":142998,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Simucube 3 Sport 15 Nm direct drive wheelbase for sim racing","id":57741834027341,"position":1,"preview_image":{"aspect_ratio":1.499,"height":1334,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Base-Simucube-3-Sport-Simufy_2.webp?v=1759945216"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The Simucube 3 Sport is a 15 Nm peak torque direct drive wheelbase for sim racing, compatible with PC, built for drivers stepping into high-end direct drive with the same architecture and firmware as its bigger siblings.

Designed in Finland and manufactured in the EU by Granite Devices, it runs a direct drive optimised SPM motor and a 23-bit absolute angle sensor with over 8,000,000 steps. Every unit is laser-scanned during production to build a digital twin of its motor, and the control algorithm works on that model rather than the physical motor — the result is whisper-quiet operation and consistent response from one unit to the next. A Simucube Link Hub is required to operate, and the Link Quick Release is bought separately within the Simucube range.

Key features of the Simucube 3 Sport

15 Nm of peak torque with a 280 W power supply.

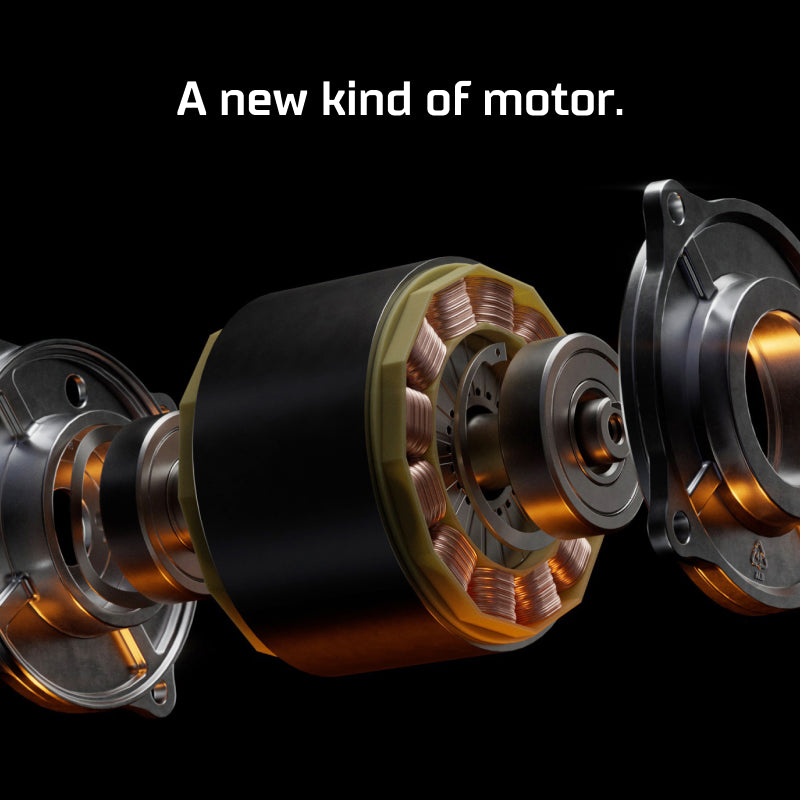

Direct drive optimised SPM motor, engineered exclusively for Simucube.
23-bit absolute angle sensor: over 8,000,000 steps per revolution.
Control Box included: adjust torque, damping and other parameters without leaving your session.
Telemetry-based effects — road texture, ABS and RPM — configurable from Simucube Tuner 3.0.

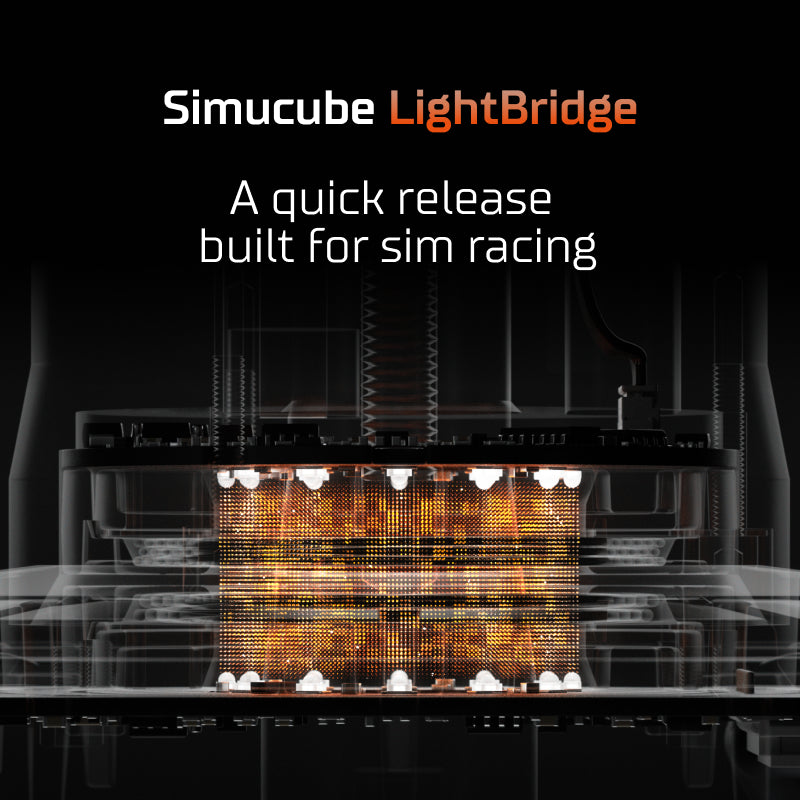

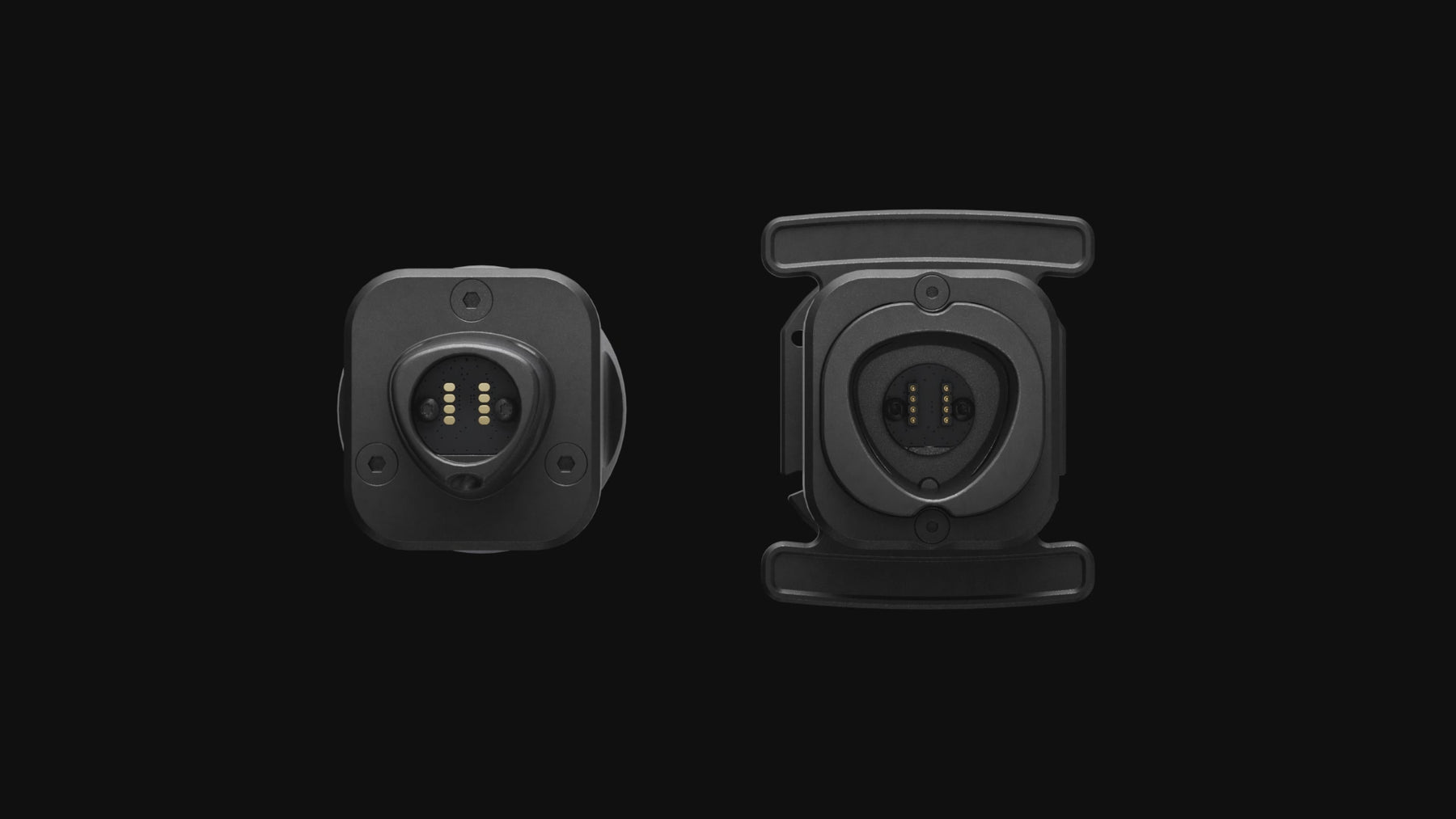

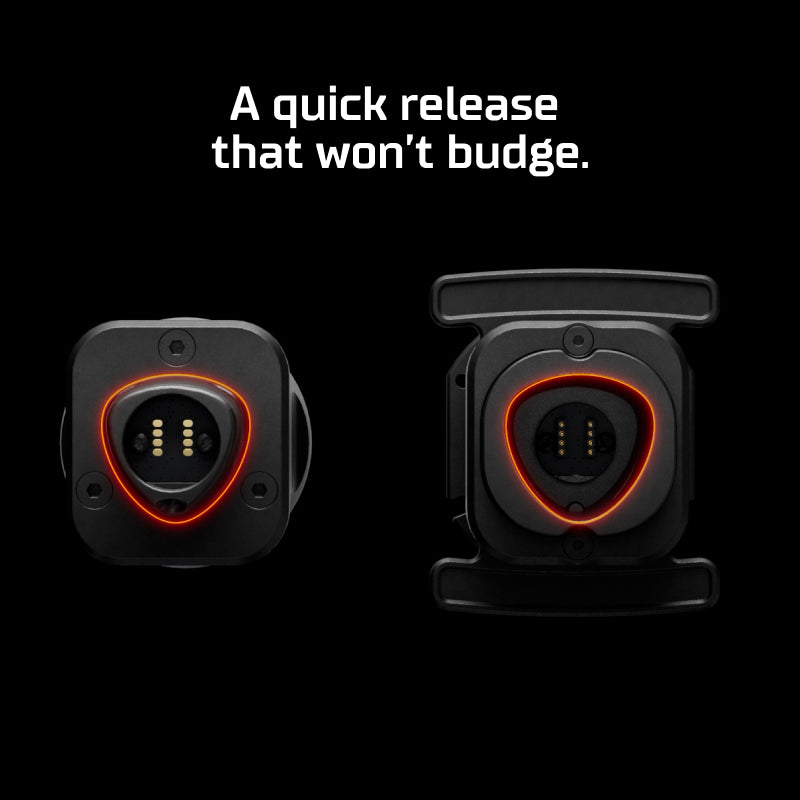

Link Quick Release with LightBridge technology: contactless power and data transfer with no wearing parts (sold separately).
8.7 kg and 278 mm long, the most compact and lightest model in the Simucube 3 range.
Front and bottom mounting with 135 mm and 78.4 mm hole patterns, and a 3-year warranty.

Technical specifications

Feature	Detail
Peak torque	15 Nm
Motor type	Direct drive optimised SPM
Angle sensor	23-bit absolute (8,000,000 steps)
Power supply	280 W
Dimensions (with Link Quick Release)	135 × 135 × 278 mm
Package dimensions	190 × 300 × 390 mm
Weight	8.7 kg
Mounting	Front and bottom
Hole pattern	135 mm and 78.4 mm
Flange centring diameter	110 mm
Control Box	Included
Simucube Link Hub	Not included — required to operate
Link Quick Release	Not included
Warranty	3 years
Origin	Designed in Finland, manufactured in the EU

What's in the box

1 × Simucube 3 Sport wheelbase
1 × power adapter and 1 × AC power cord
1 × RJ45 cable
1 × Control Box
1 × quick start guide
Fastener kit in M8, M6 and M5 with washers and t-slot nuts

Compatibility

Platform: PC (Windows). It is not compatible with PlayStation or Xbox.
Simucube Link Hub: mandatory. A single Link Hub serves every Simucube device you own, so if you already have an ActivePedal or a Valo GT-23 you do not need another one.
Simucube Wireless Wheels: compatible through the Link Hub and the Link Quick Release.
Wired USB wheels: they work exactly as they do on Simucube 2; the mechanical connection still needs the Link Quick Release. Browse the compatible sim racing wheels.
Wheels with a 50.8 mm bolt pattern: these require the Simucube 50.8 mm to 70 mm adapter.
Several Simucube Link devices: to connect more than one Link Hub, the manufacturer specifies the Teltonika Ethernet Switch.
Software: Simucube Tuner 3.0.

Frequently asked questions

Does the Simucube 3 Sport work without the Simucube Link Hub?

No. The Simucube Link Hub is essential: it replaces the wheelbase's direct USB connection and handles communication with the PC. One is enough for your entire Simucube setup, so if you already own an ActivePedal or a Valo GT-23 you do not need to buy another.

Is the Link Quick Release included with the wheelbase?

No. The Link Quick Release for Simucube 3 is sold separately and is required to fit any wheel, wireless or USB.

Is 15 Nm enough, or should I go for the Simucube 3 Pro?

A GT3 car asks for peaks of roughly 8 to 12 Nm, so 15 Nm covers the vast majority of situations. The real difference is headroom: the Pro's 25 Nm leaves more room above those peaks, so the force feedback signal clips less under heavy load. The Sport shares its SPM motor, sensor, control algorithm and Control Box with the Pro; only the available torque changes.

Is it compatible with PlayStation or Xbox?

No. The Simucube 3 Sport is a PC-only wheelbase for Windows and offers no console compatibility.

Can I use my Simucube 2 wheel on the Simucube 3 Sport?

Yes. Simucube Wireless Wheels run through the Link Hub and USB wheels connect like any other USB device. Both cases need the Link Quick Release, and if your wheel uses a 50.8 mm bolt pattern, the Simucube 50.8 mm to 70 mm adapter as well.

What warranty does the Simucube 3 Sport carry?

A 3-year manufacturer warranty. At Simufy we handle the claim ourselves as the official distributor in Spain and Portugal.
