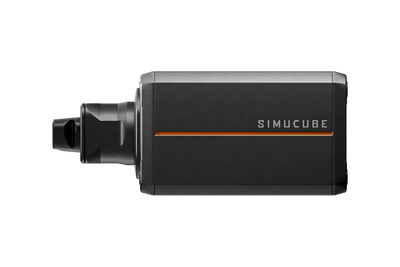

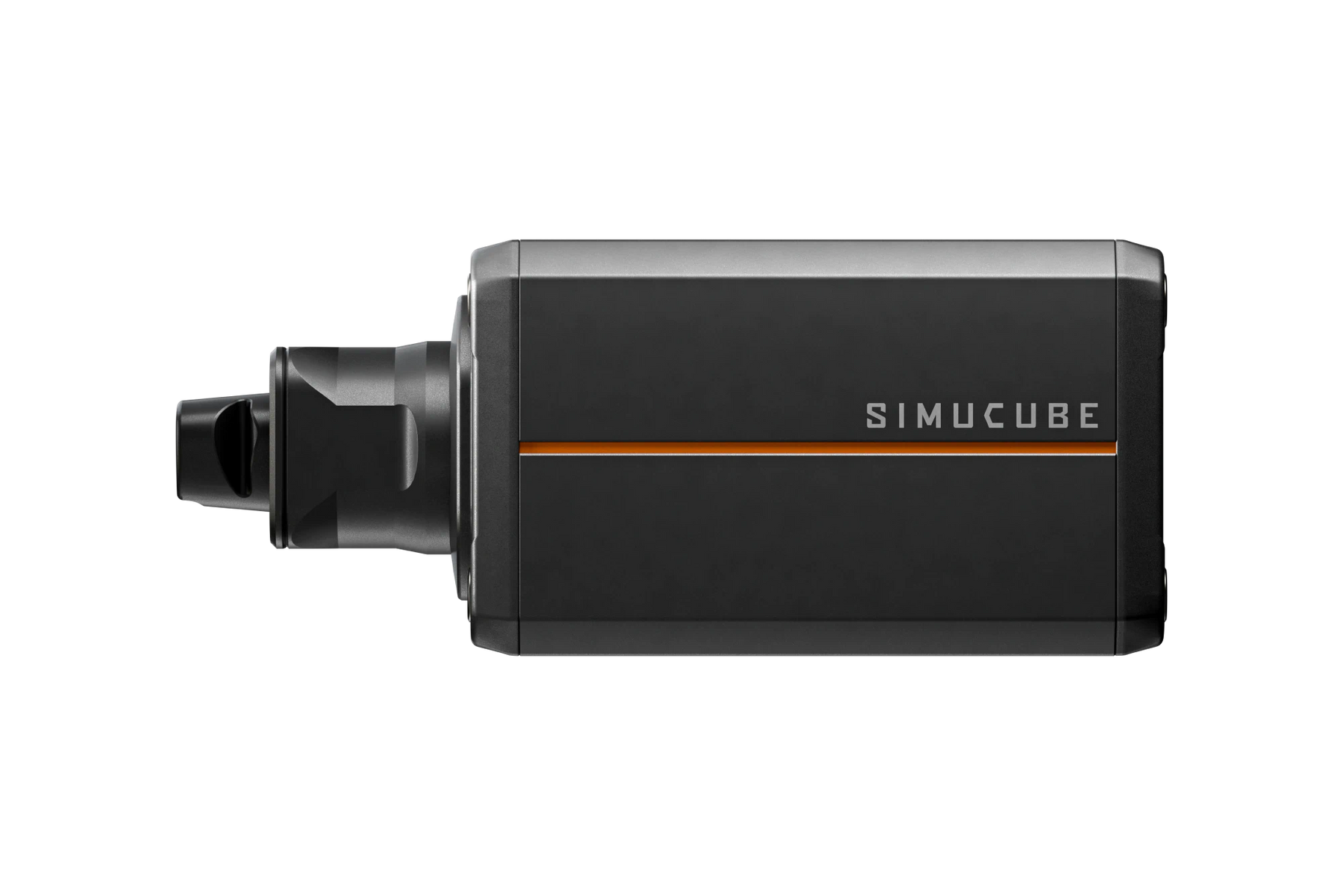

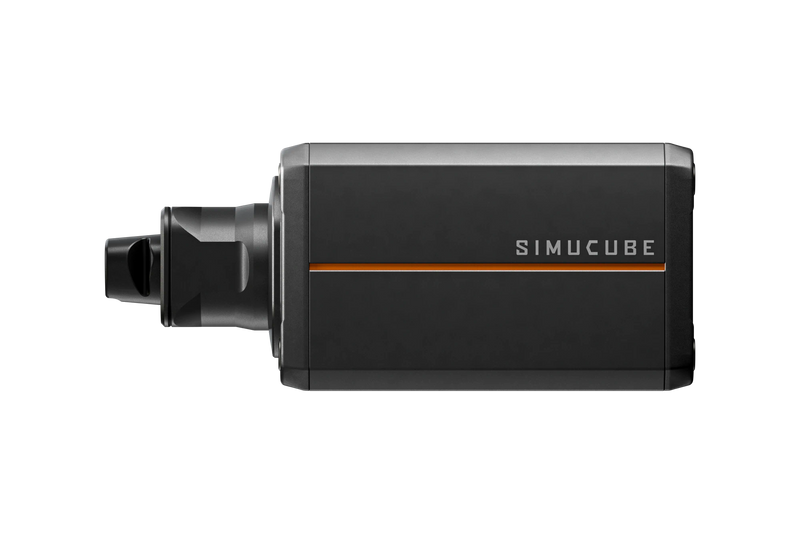

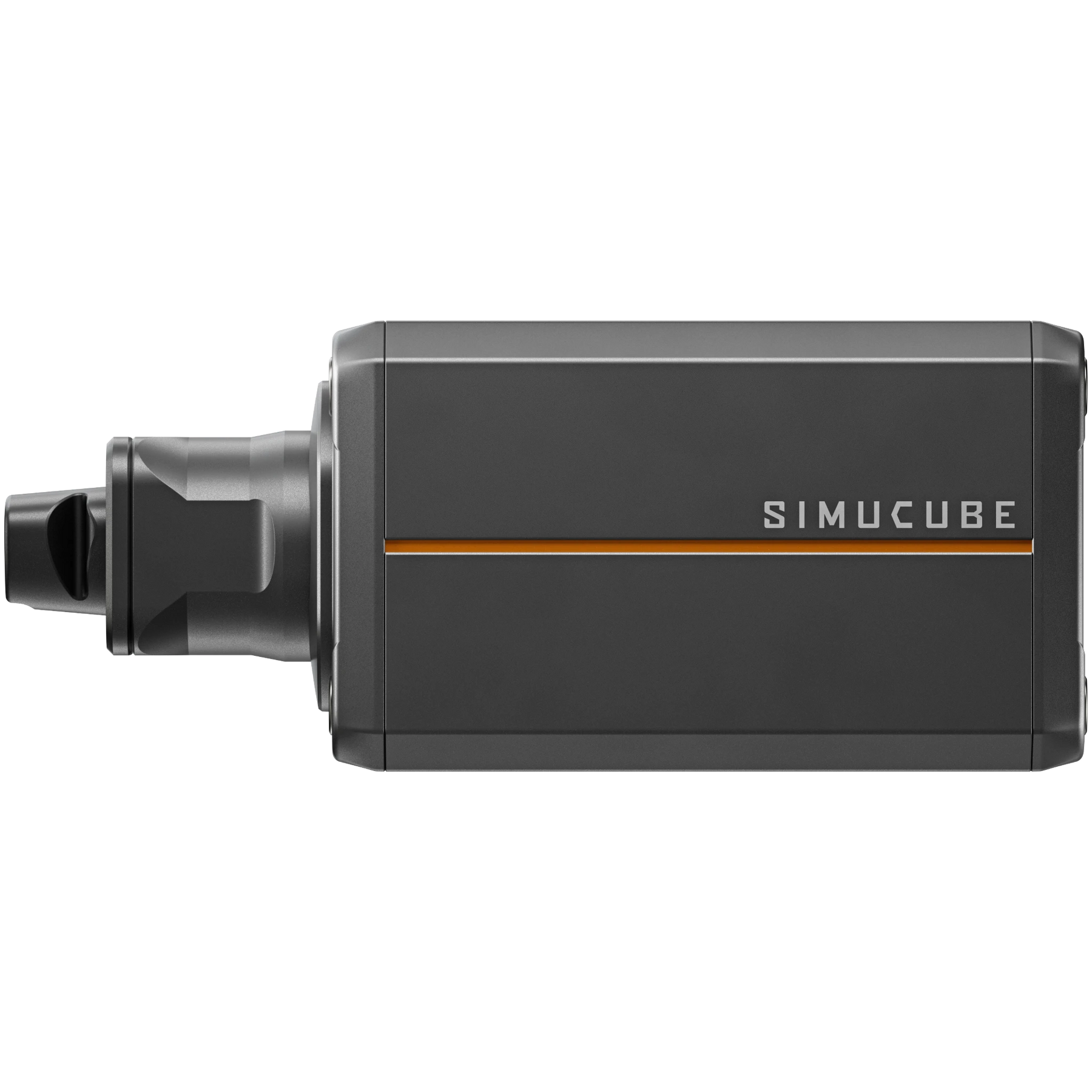

Simucube 3 Ultimate direct drive wheelbase, side view

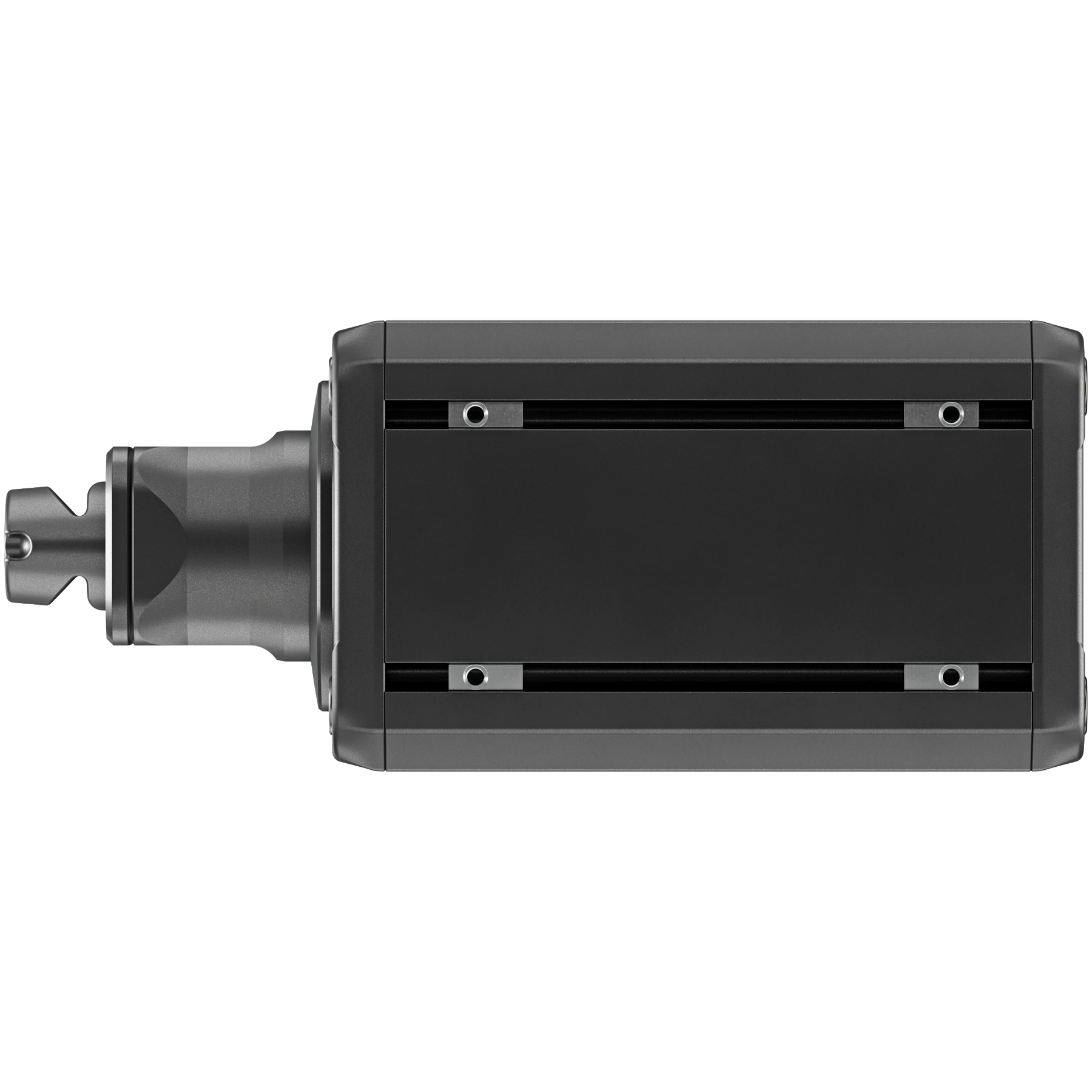

Simucube 3 Ultimate direct drive wheelbase, bottom view

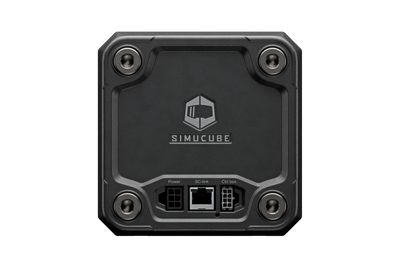

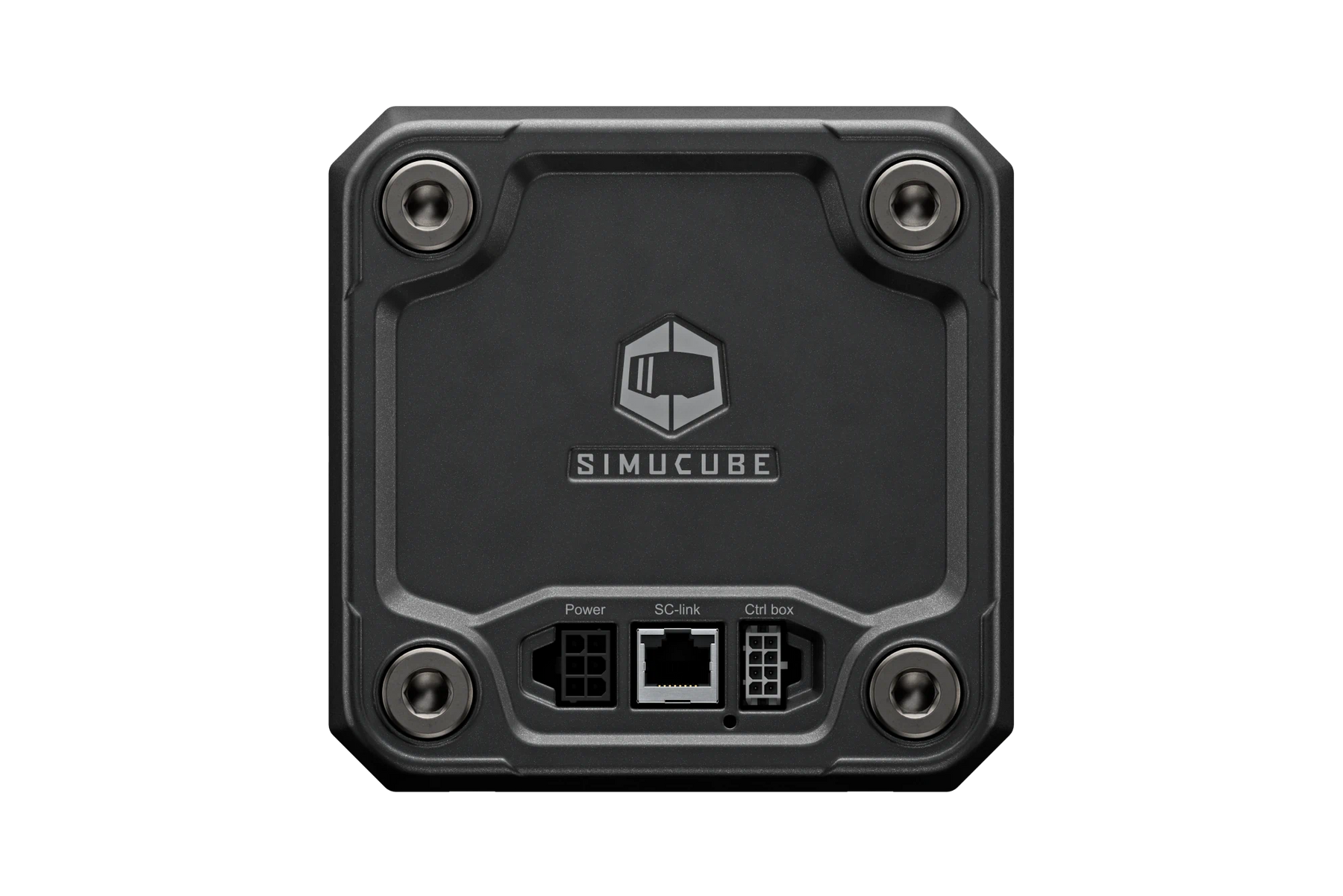

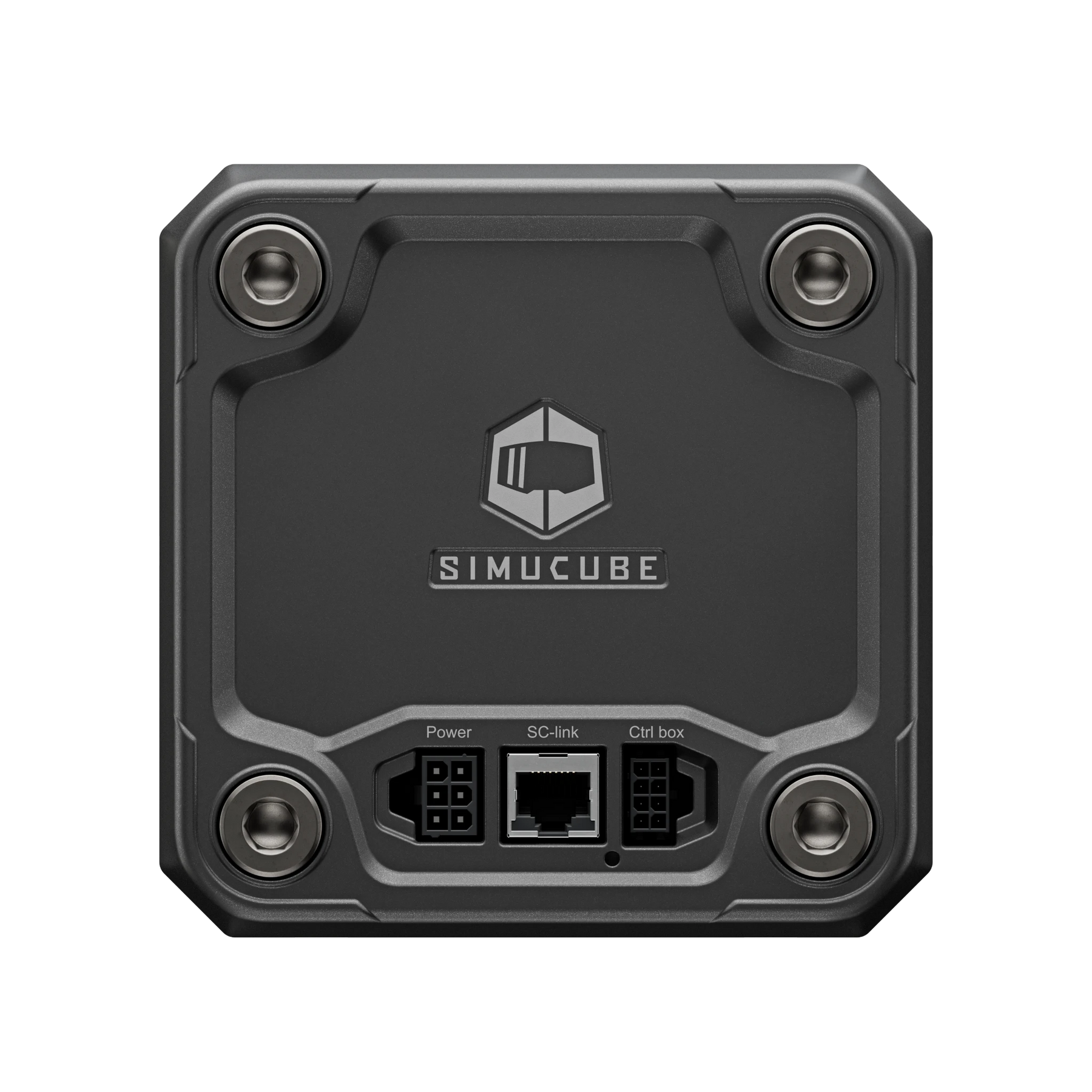

Simucube 3 Ultimate direct drive wheelbase, rear view

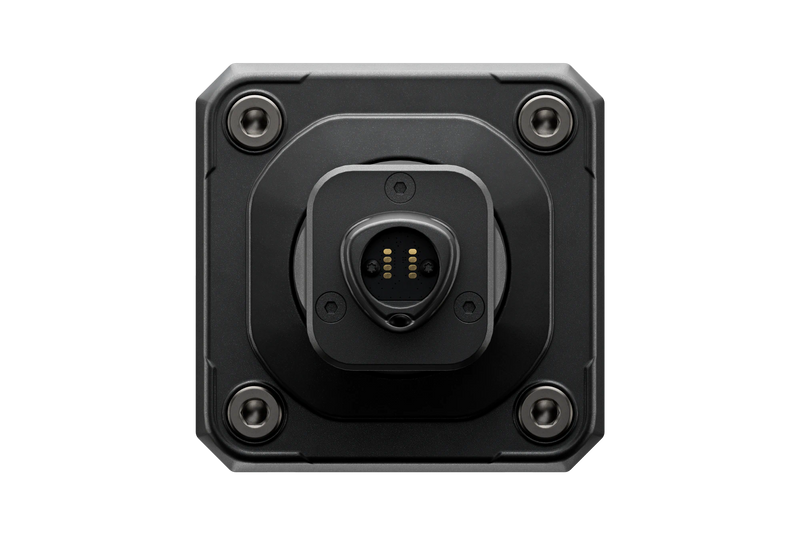

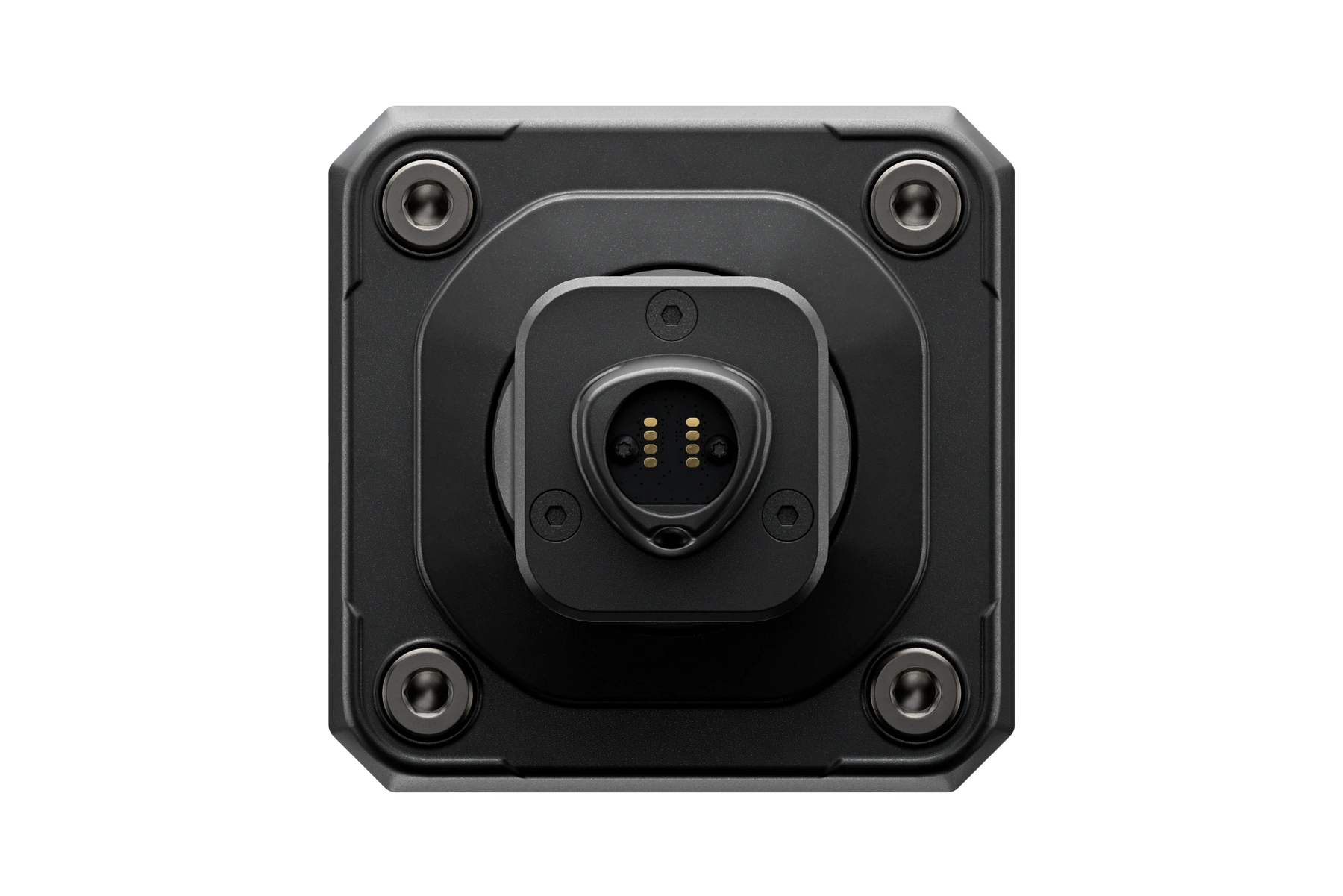

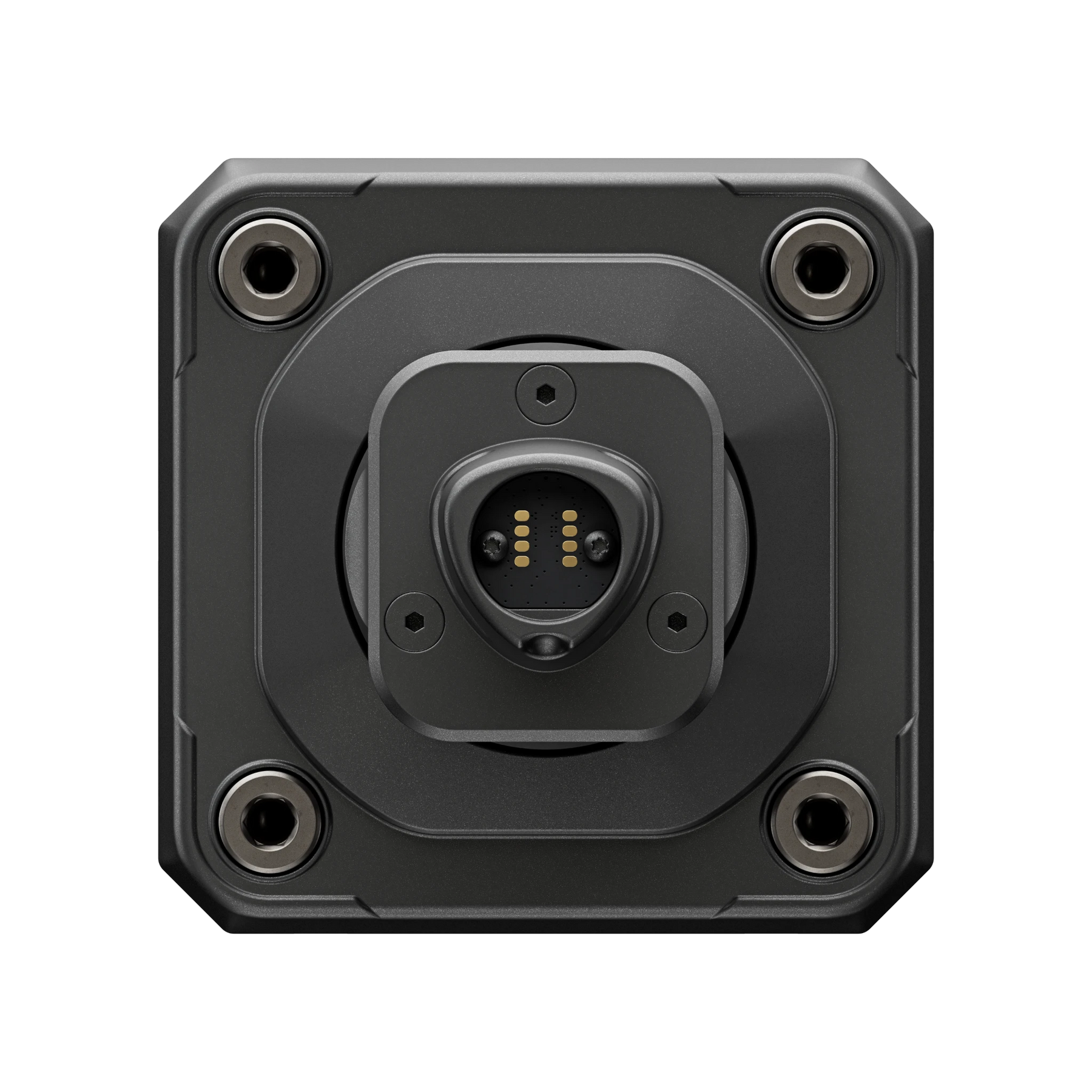

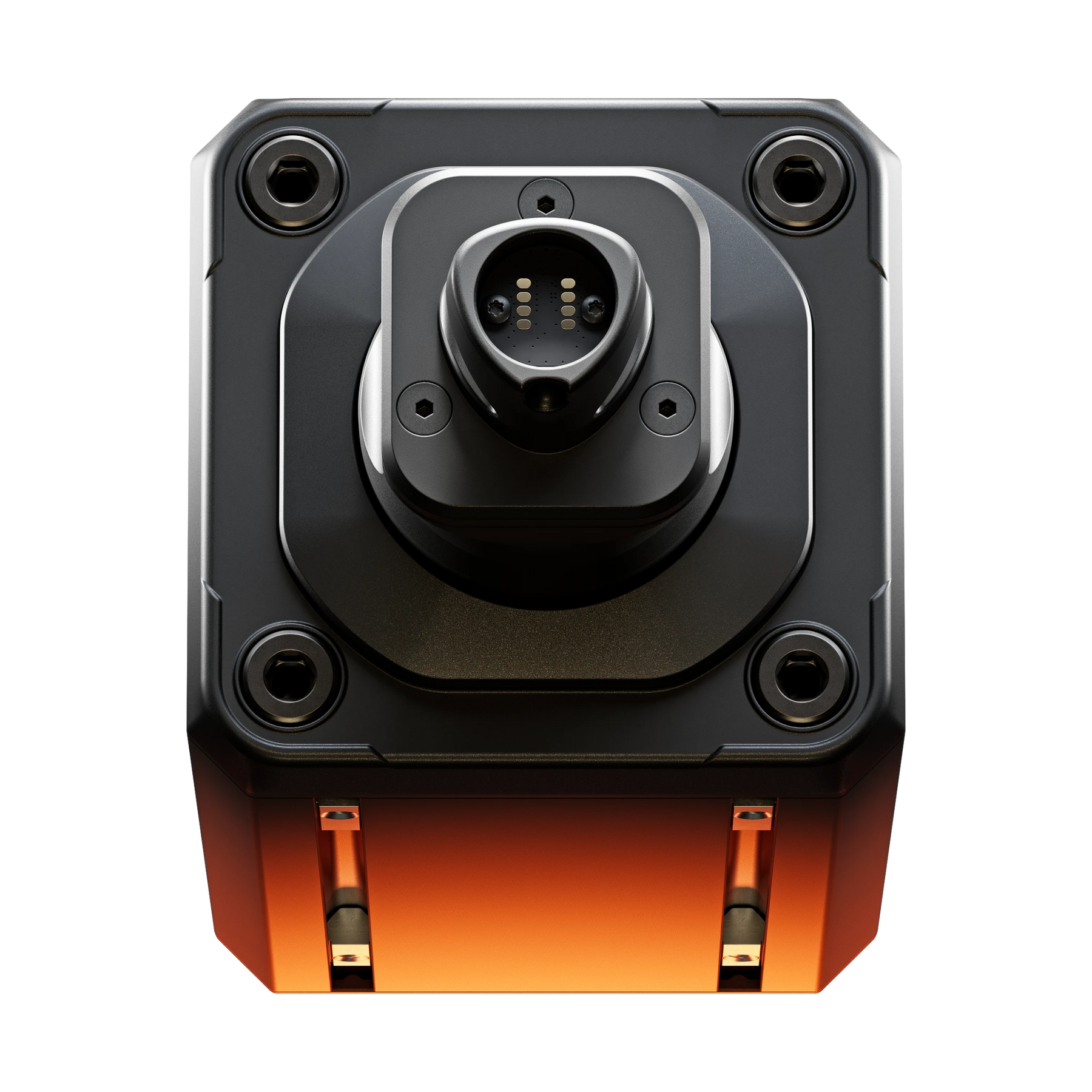

Simucube 3 Ultimate direct drive wheelbase, front view

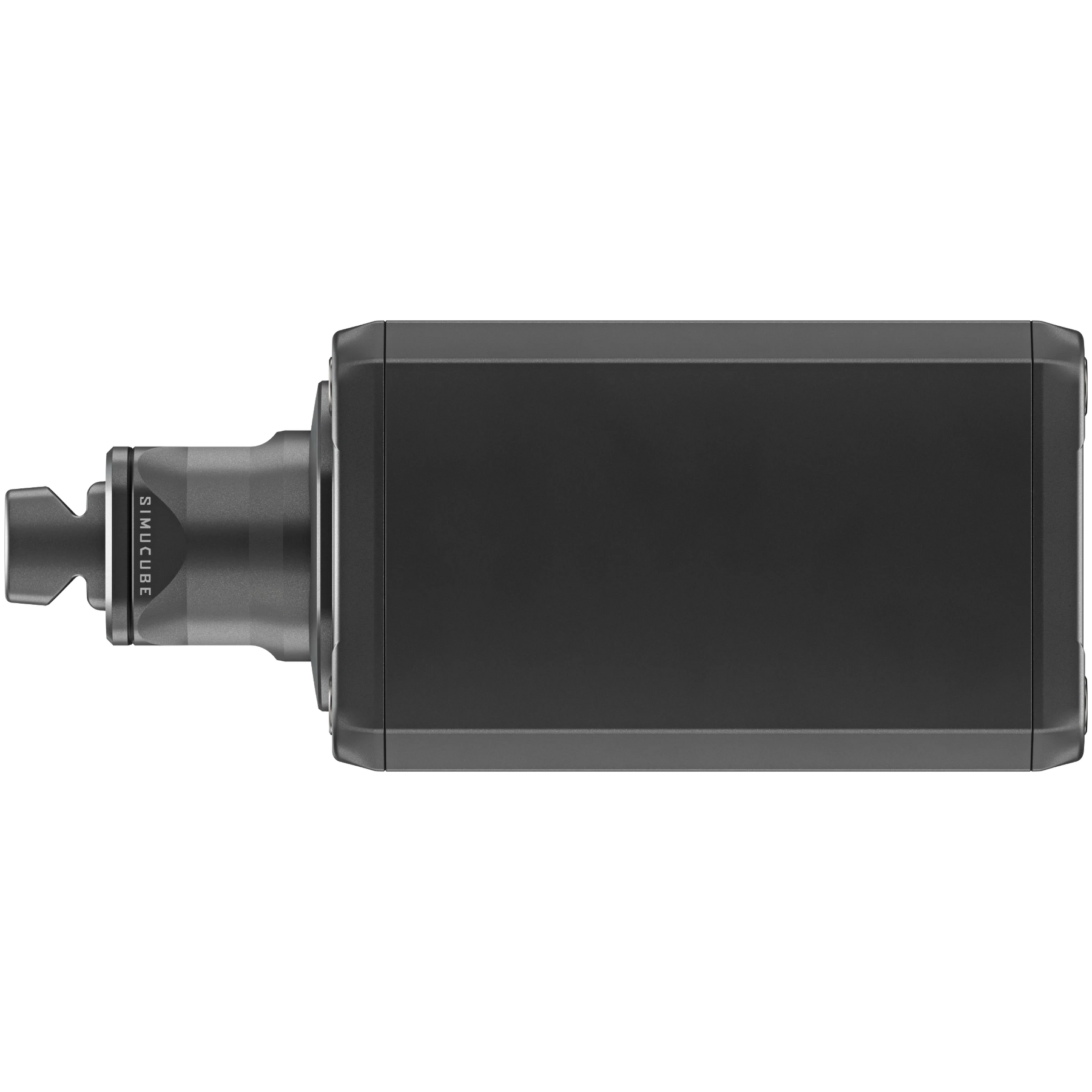

Simucube 3 Ultimate direct drive wheelbase, top view

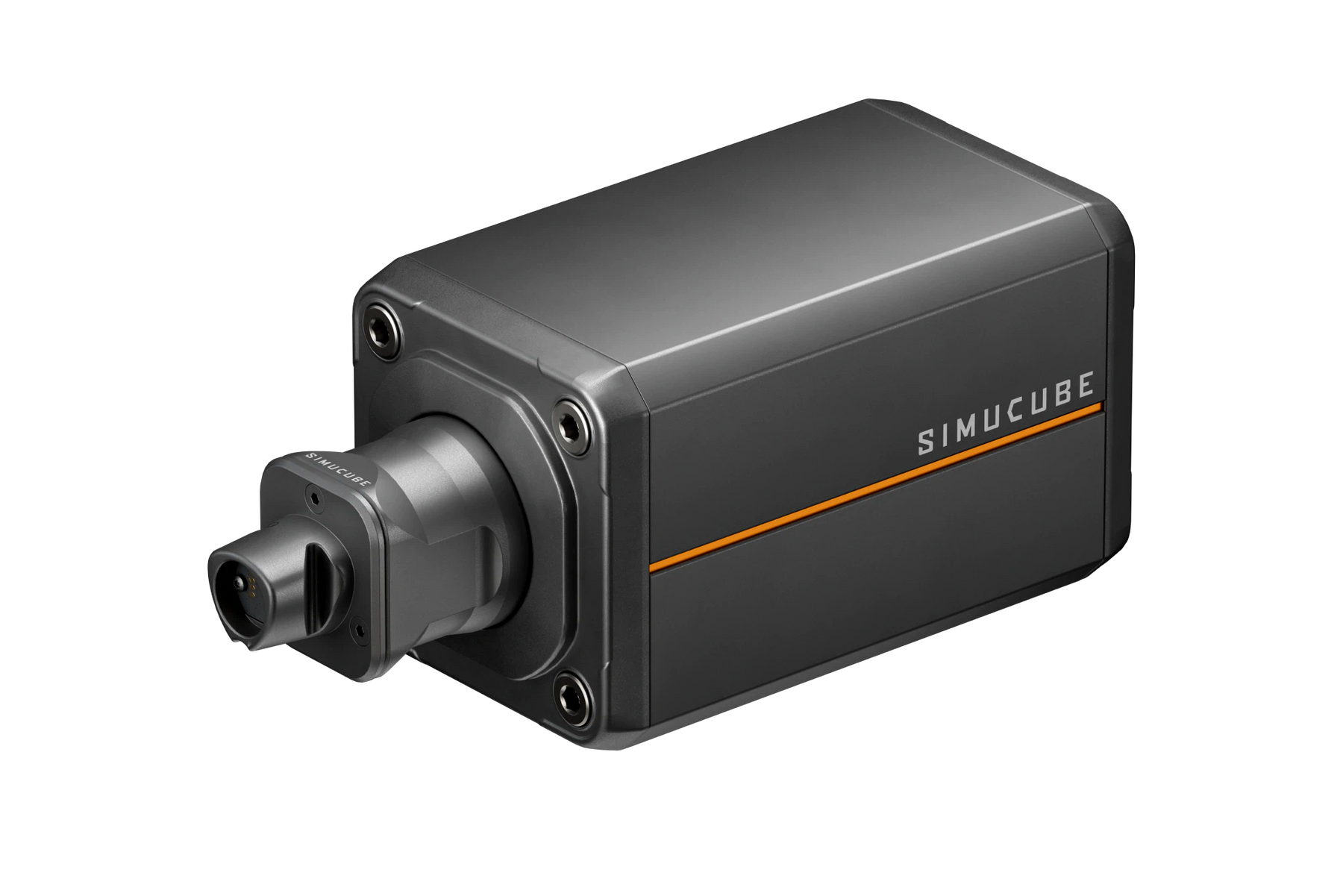

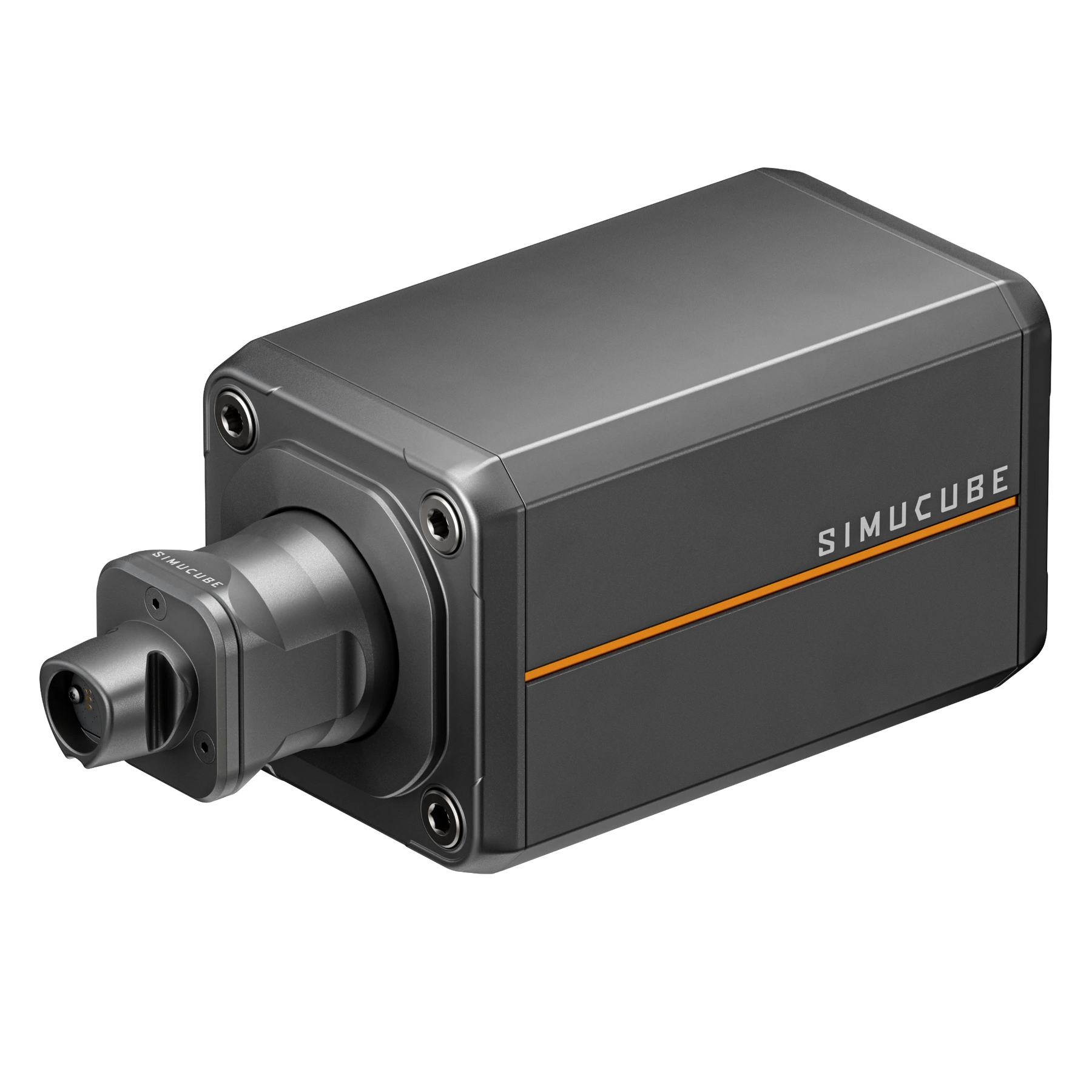

Simucube 3 Ultimate direct drive wheelbase

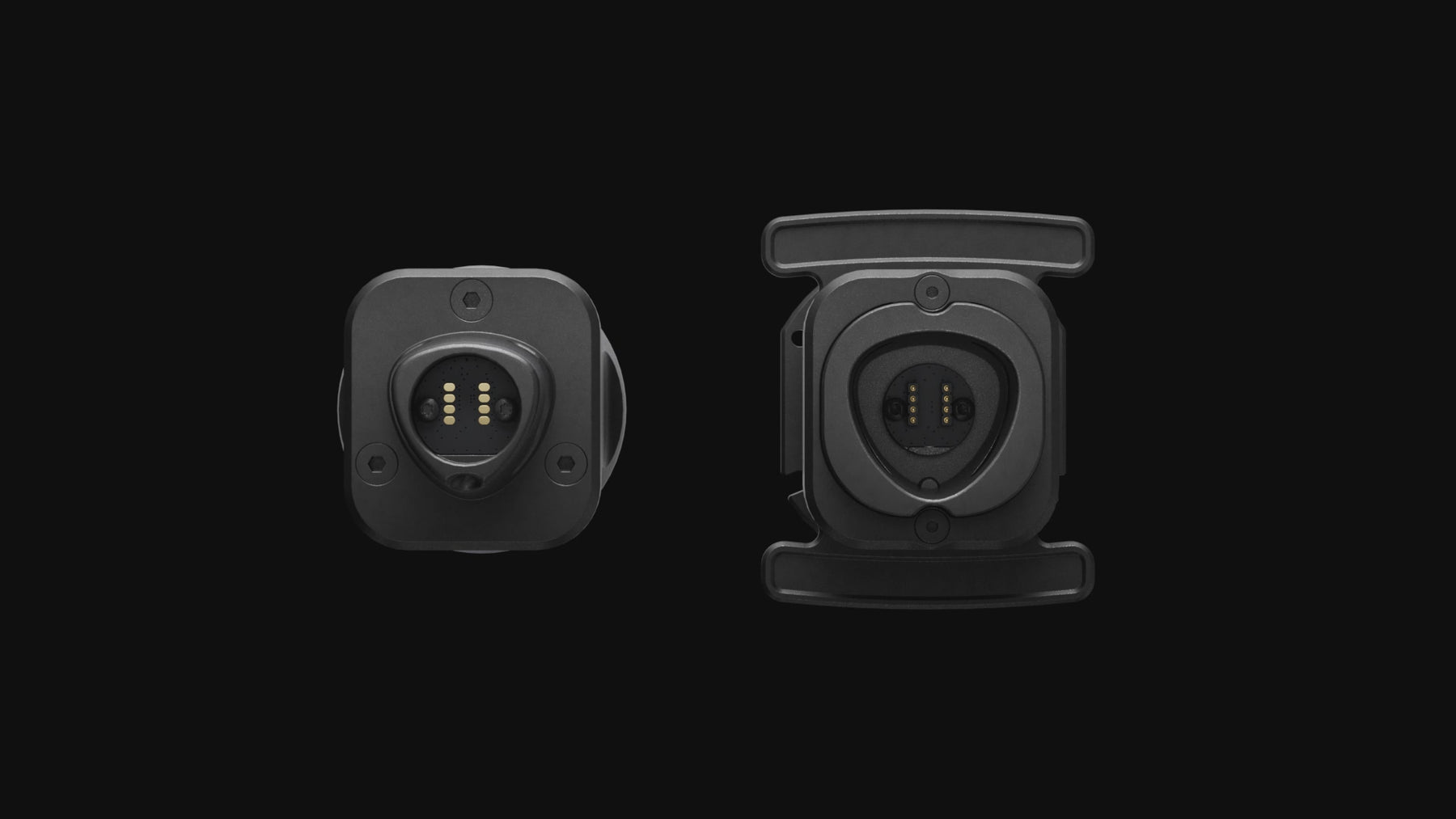

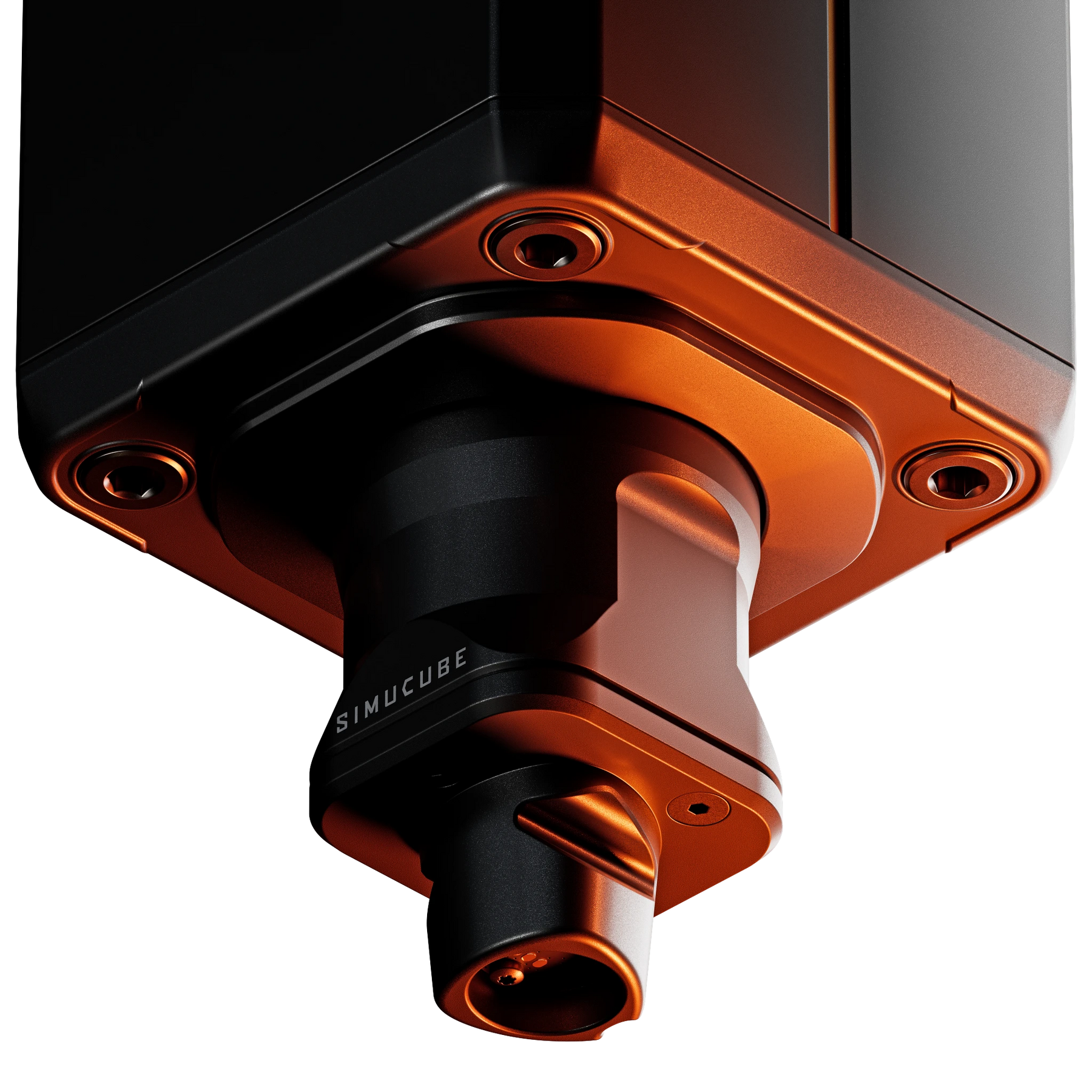

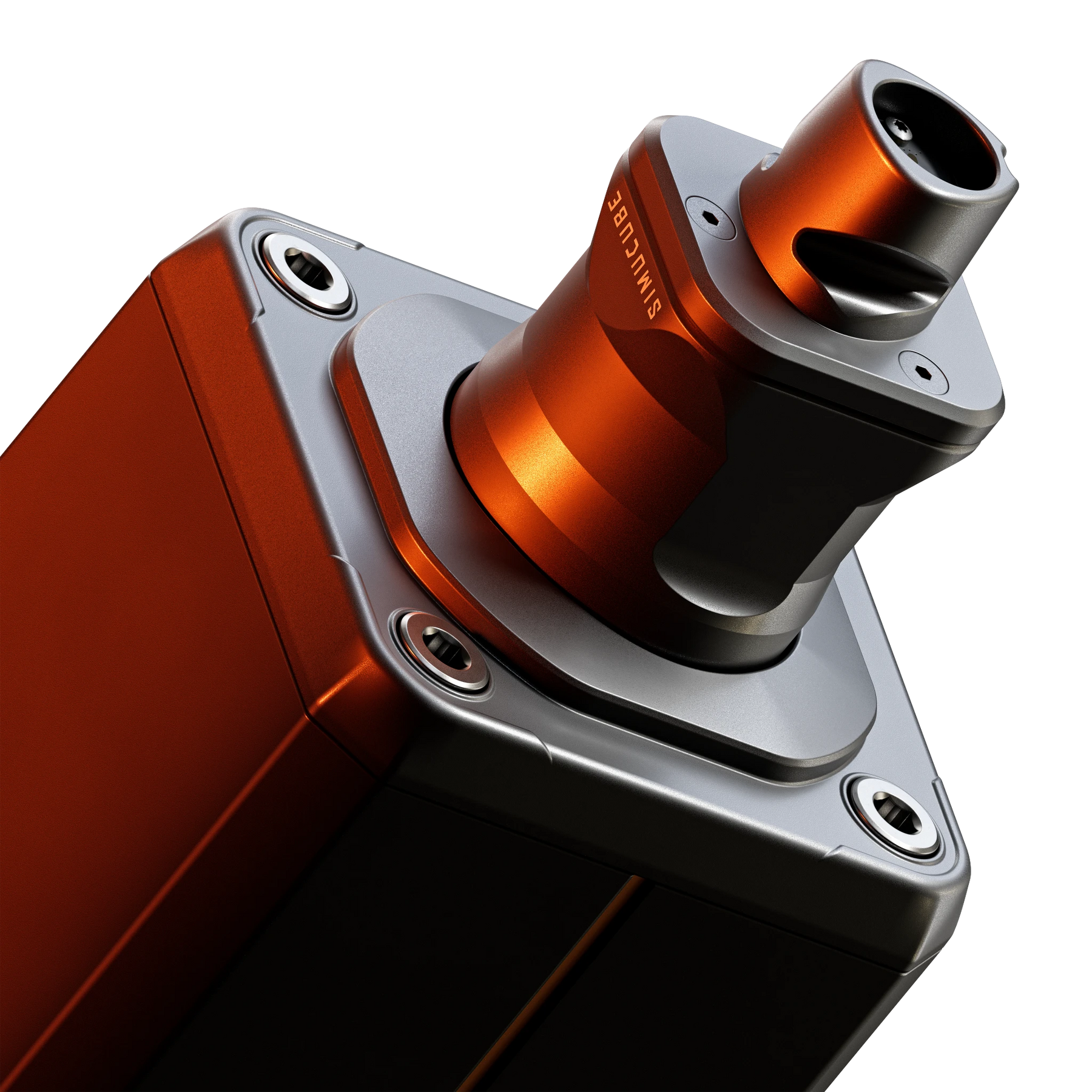

P3G Quick Release of the Simucube 3 Ultimate

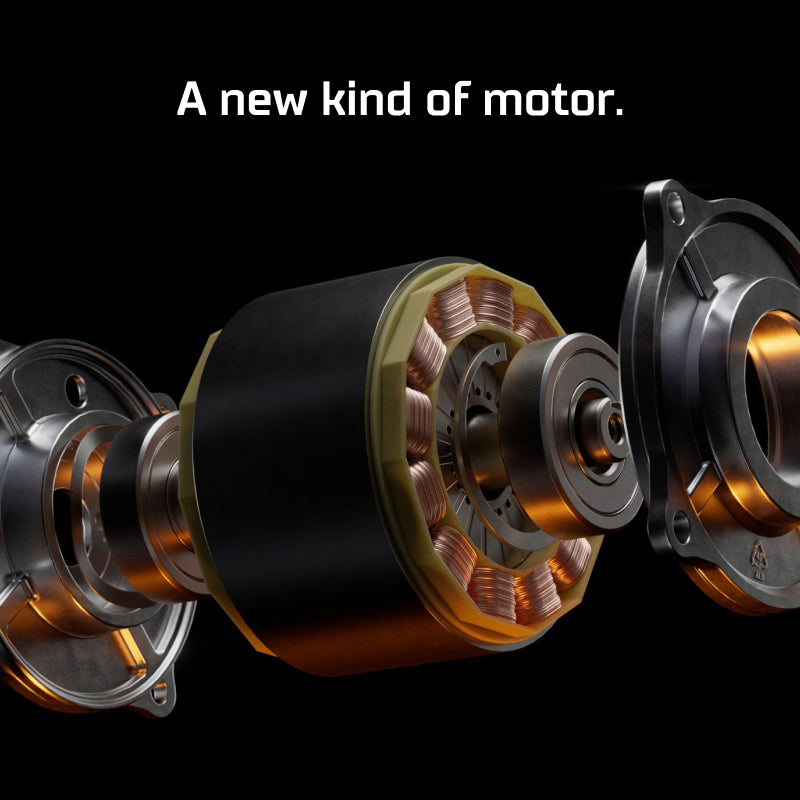

Spoke-type IPM motor of the Simucube 3 Ultimate

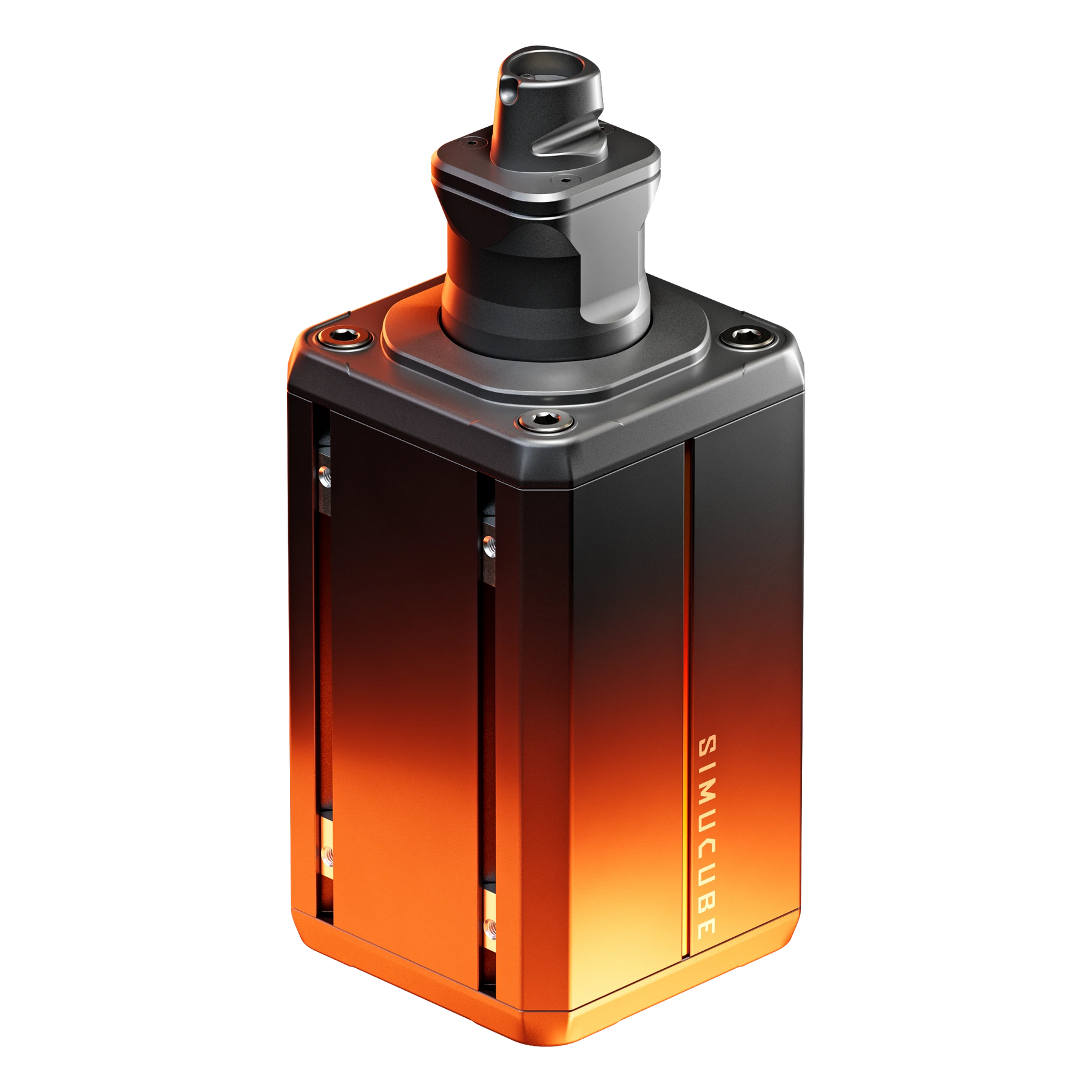

Simucube 3 Ultimate 35 Nm with spoke-type IPM motor

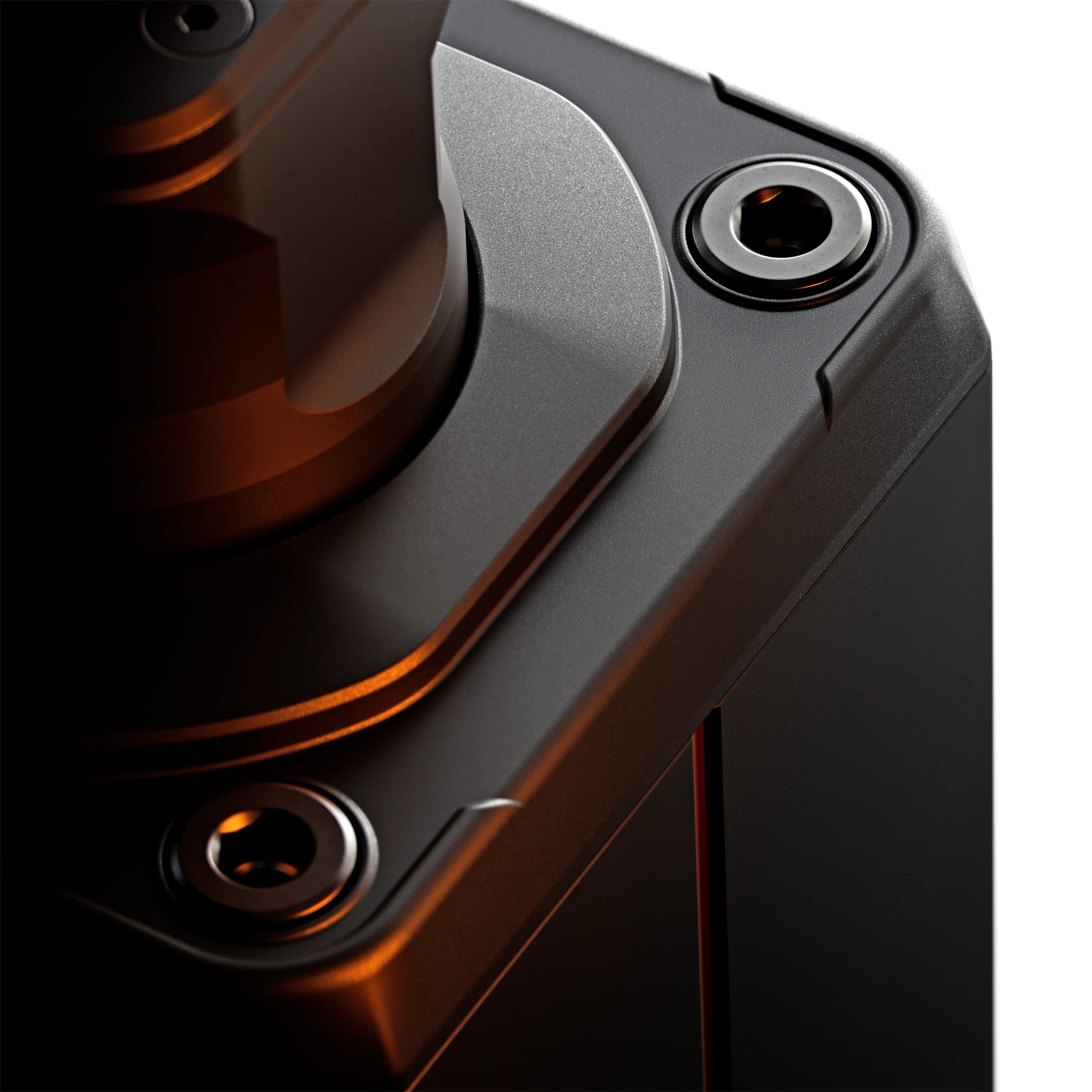

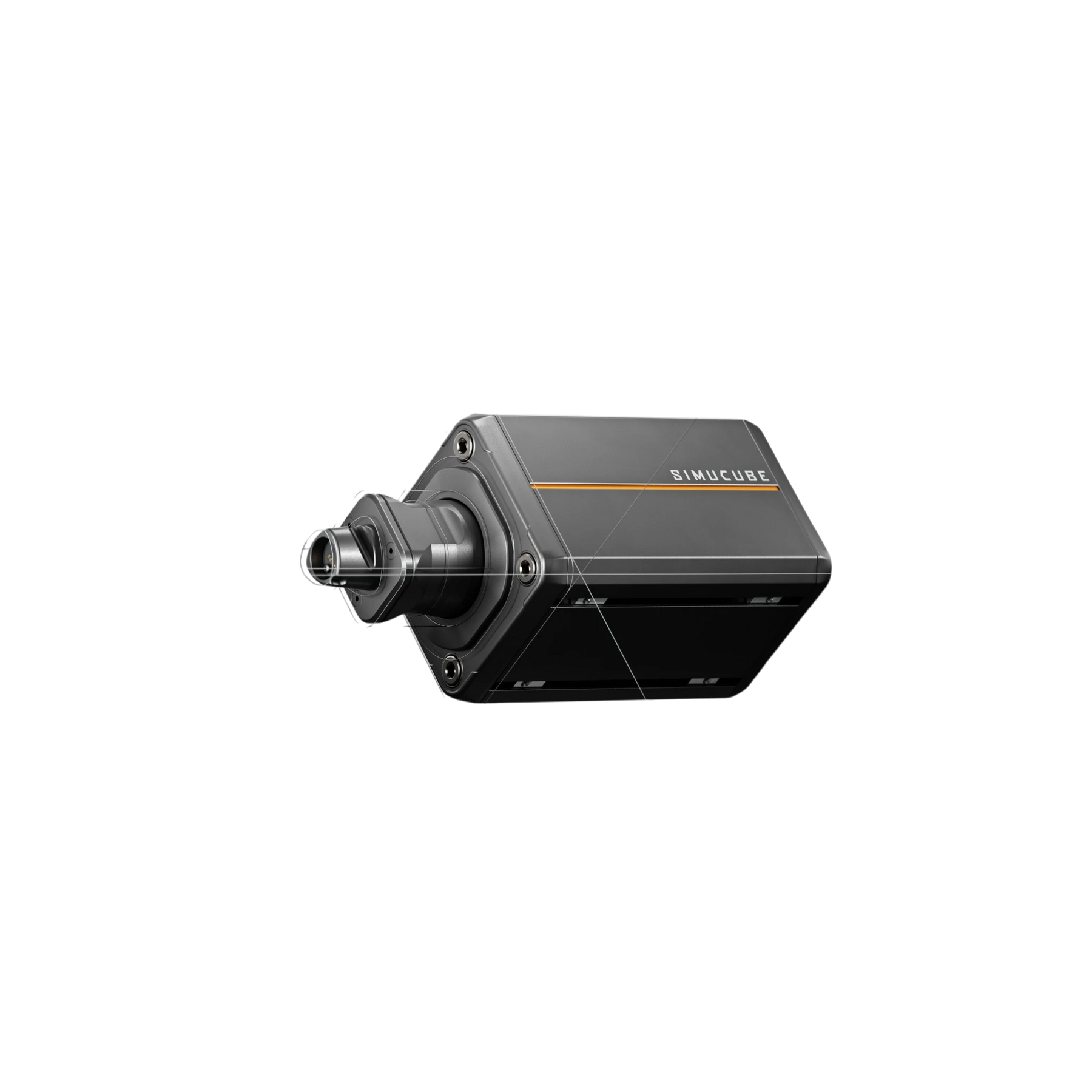

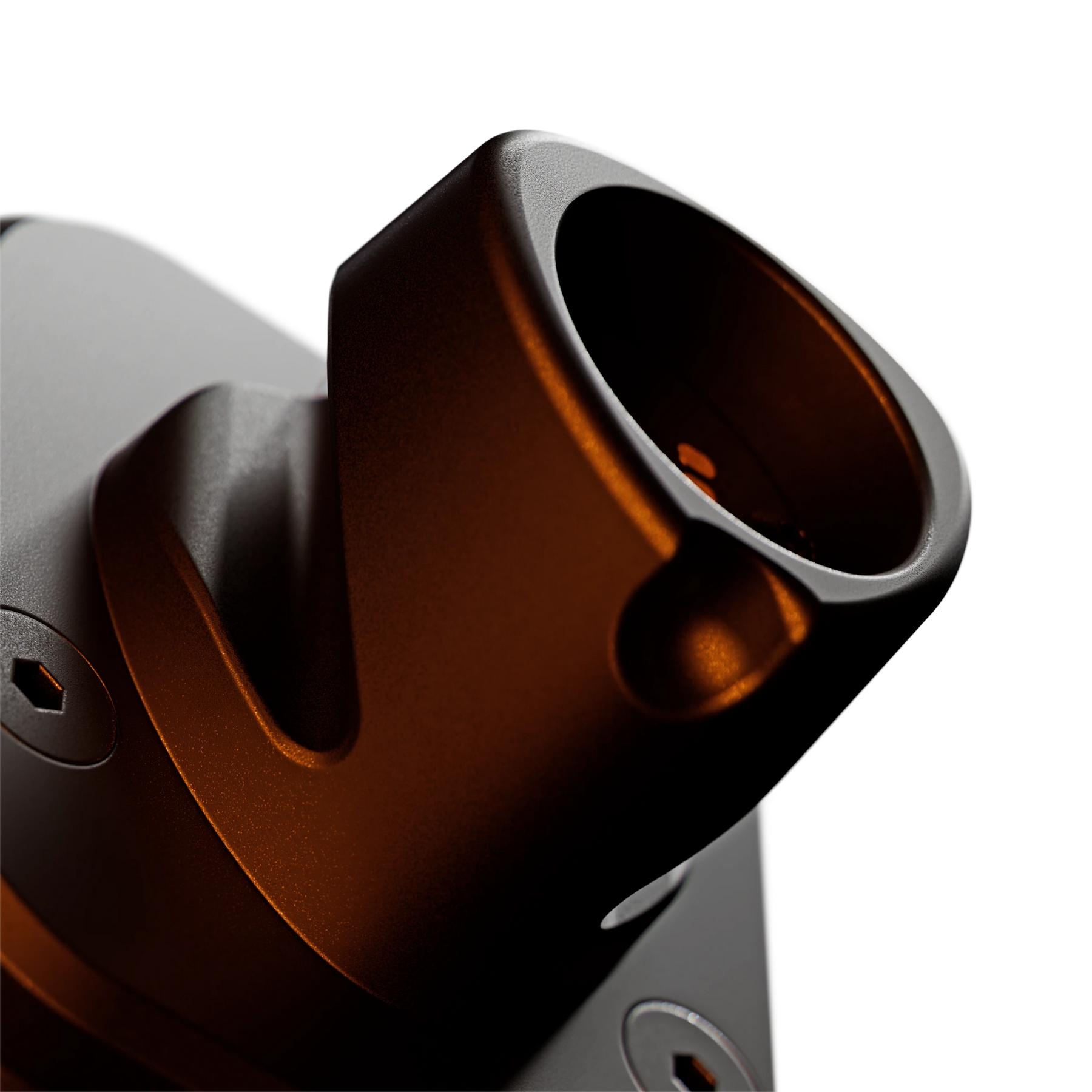

Construction detail of the Simucube 3 Ultimate wheelbase

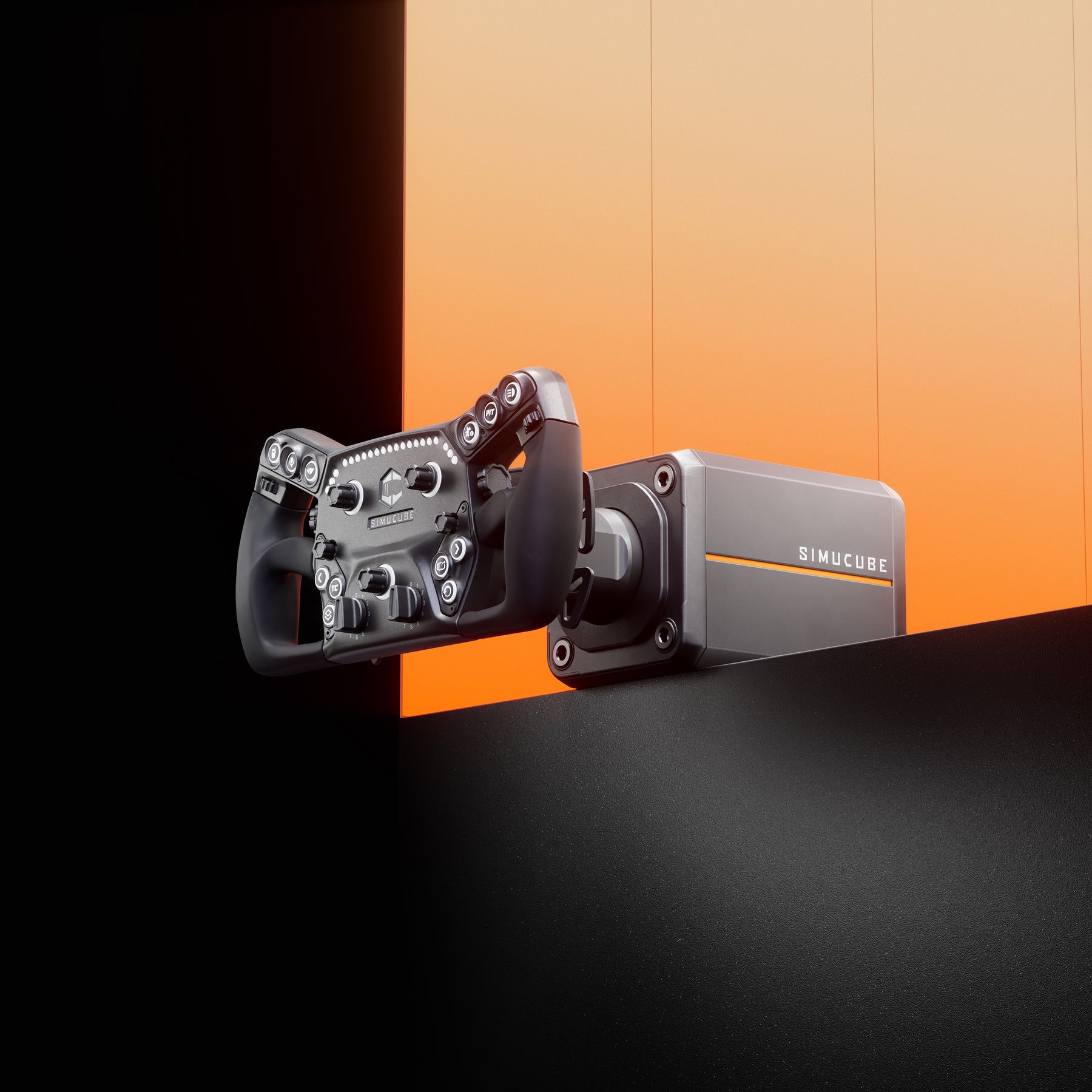

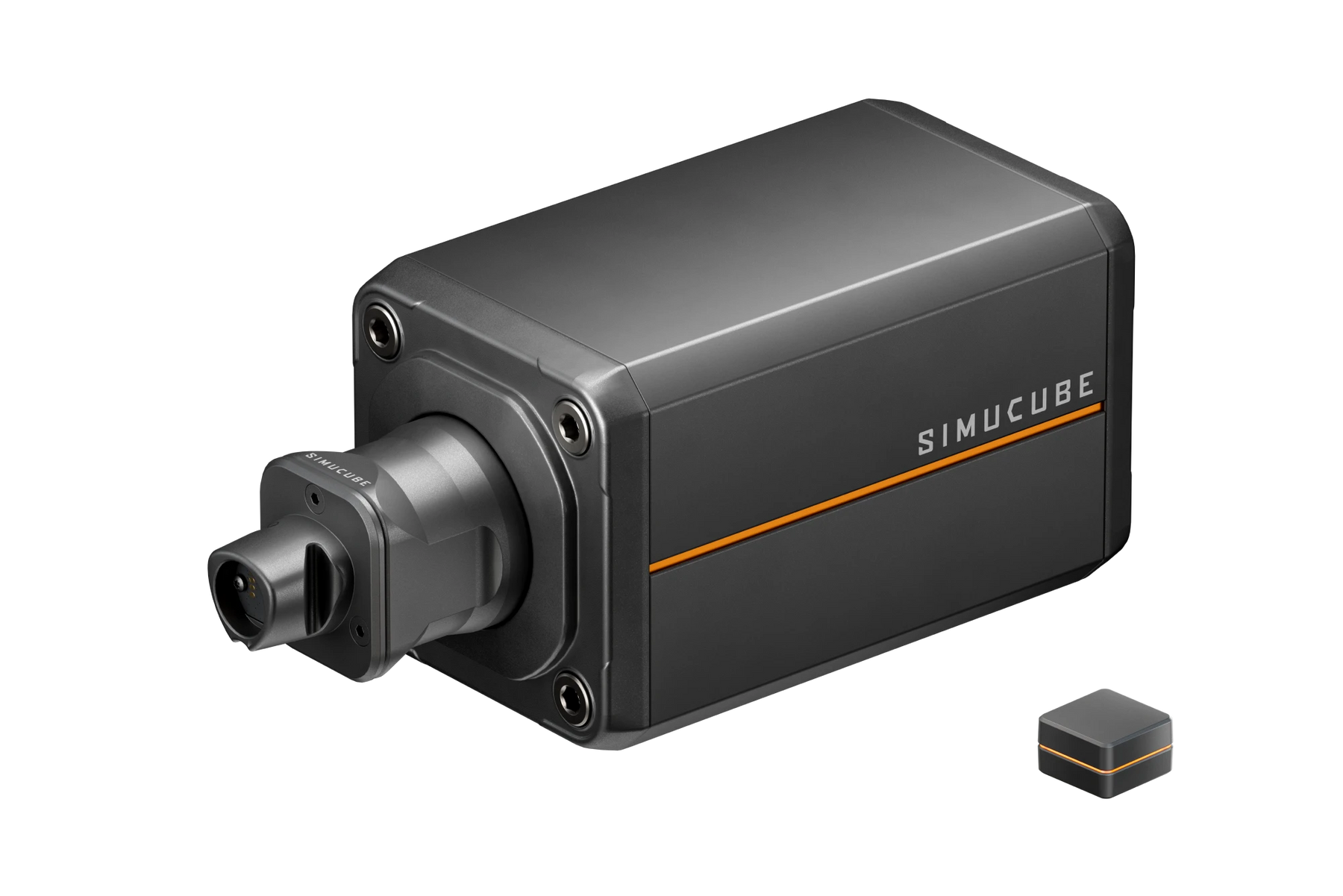

Simucube 3 Ultimate, 35 Nm direct drive wheelbase for PC

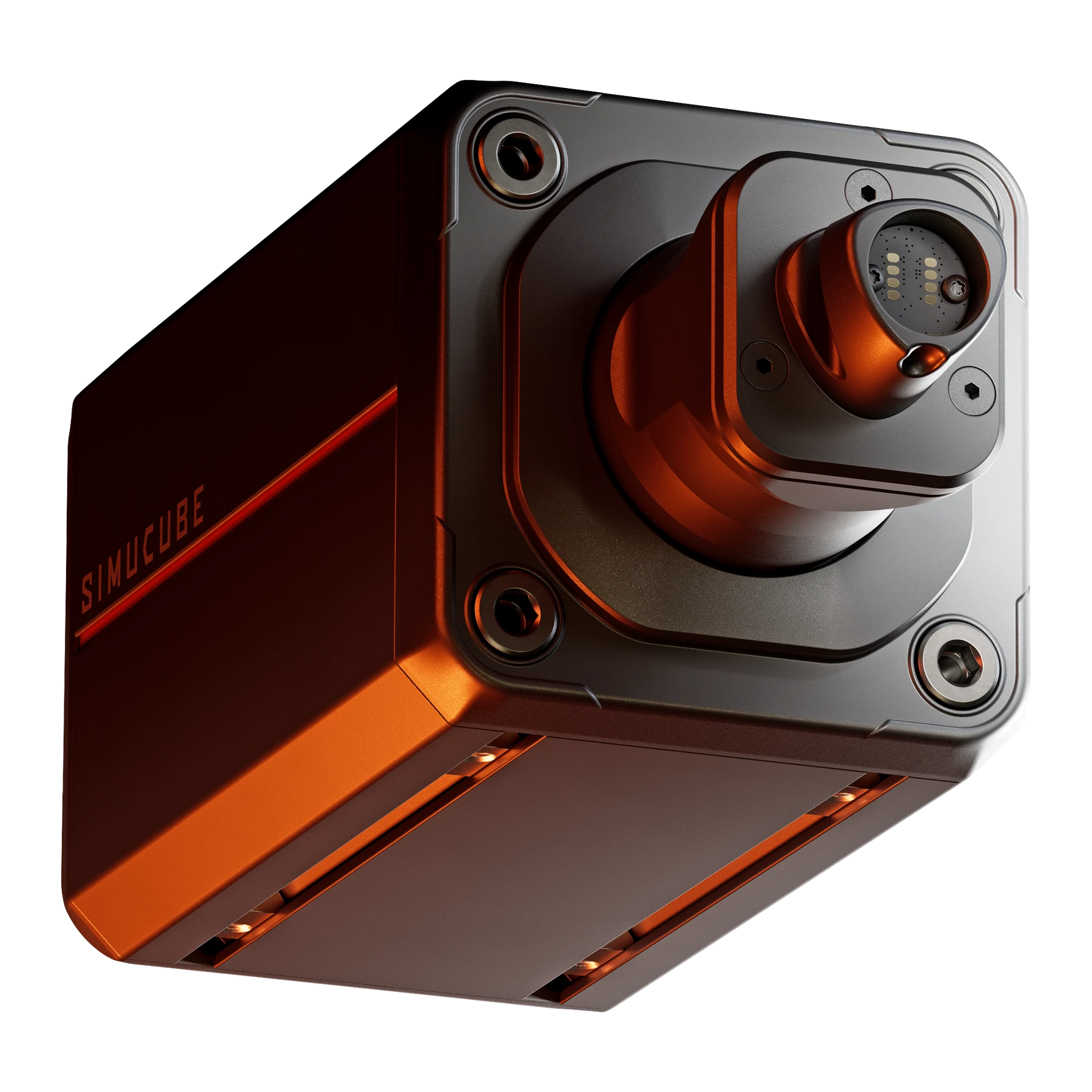

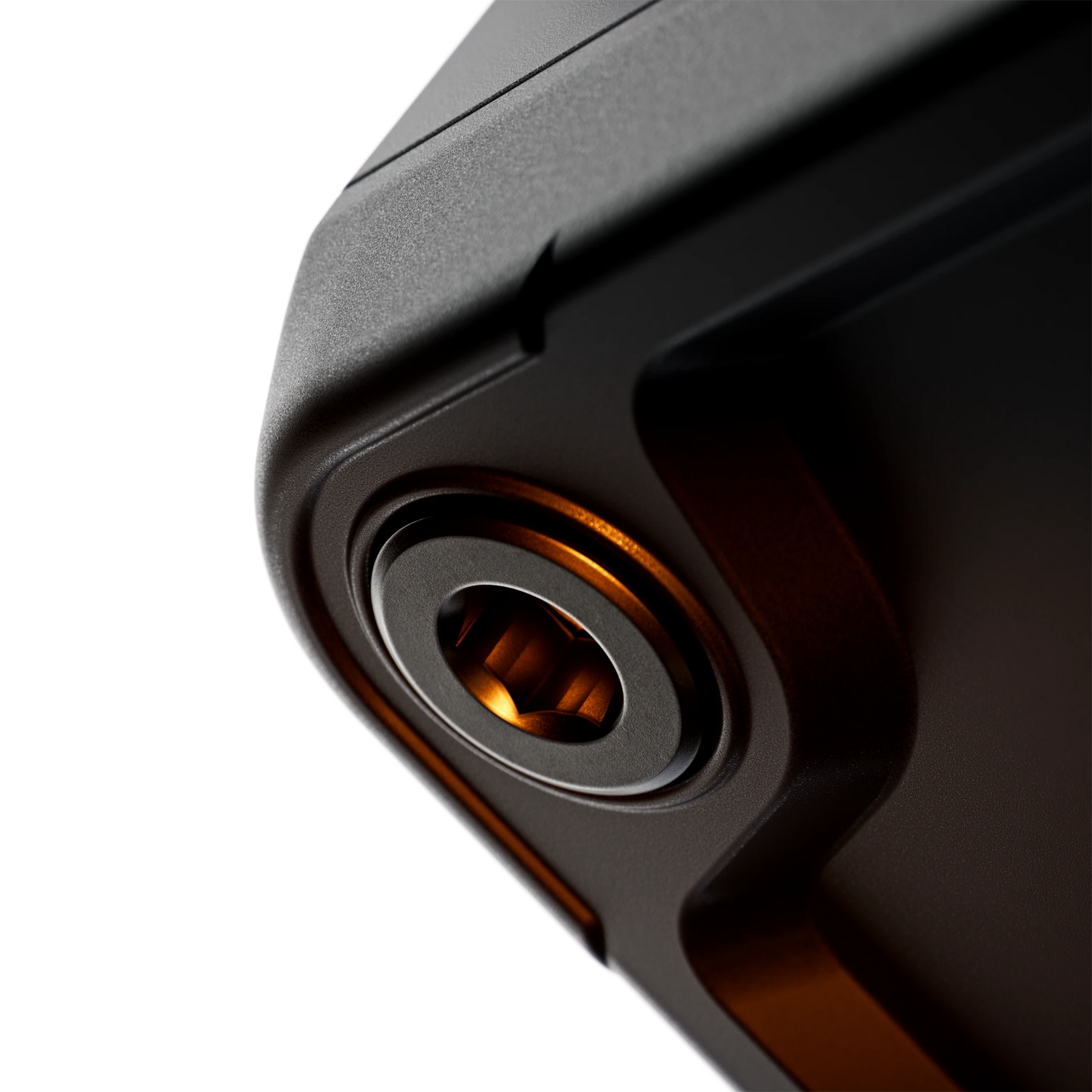

Aluminium finish of the Simucube 3 Ultimate

Simucube 3 Ultimate within the Simucube 3 range

Simucube 3 Ultimate ready to install on your rig

Quick Release P3G de la Simucube 3 Ultimate

Price - 2%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":52546219573581,"title":"No","option1":"No","option2":null,"option3":null,"sku":"SC3ULT-EU-US","requires_shipping":true,"taxable":true,"featured_image":{"id":89781333360973,"product_id":10308727439693,"position":1,"created_at":"2026-06-15T21:34:45+02:00","updated_at":"2026-06-15T21:34:48+02:00","alt":"Simucube 3 Ultimate direct drive wheelbase, profile view","width":2048,"height":2048,"src":"\/\/simufy.com\/cdn\/shop\/files\/Simucube-3-Ultimate-Base-Direct-Drive-35Nm-simufy-distribuidor-oficial_5.webp?v=1781552088","variant_ids":[52546219573581]},"available":true,"name":"Simucube 3 Ultimate – 35 Nm Direct Drive Wheelbase - No","public_title":"No","options":["No"],"price":323999,"weight":13000,"compare_at_price":329999,"inventory_management":"shopify","barcode":"6430082360503","featured_media":{"alt":"Simucube 3 Ultimate direct drive wheelbase, profile view","id":62878150426957,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/simufy.com\/cdn\/shop\/files\/Simucube-3-Ultimate-Base-Direct-Drive-35Nm-simufy-distribuidor-oficial_5.webp?v=1781552088"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52546219606349,"title":"Yes","option1":"Yes","option2":null,"option3":null,"sku":"SC3ULT-EU-US+SCLINK","requires_shipping":true,"taxable":true,"featured_image":{"id":89781698625869,"product_id":10308727439693,"position":16,"created_at":"2026-06-15T21:36:36+02:00","updated_at":"2026-06-15T21:36:39+02:00","alt":"Simucube 3 Ultimate, Simucube's flagship direct drive wheelbase","width":2000,"height":1334,"src":"\/\/simufy.com\/cdn\/shop\/files\/SC3ULT-LINK-1.webp?v=1781552199","variant_ids":[52546219606349]},"available":true,"name":"Simucube 3 Ultimate – 35 Nm Direct Drive Wheelbase - Yes","public_title":"Yes","options":["Yes"],"price":333999,"weight":16000,"compare_at_price":344999,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Simucube 3 Ultimate, Simucube's flagship direct drive wheelbase","id":62878184309069,"position":17,"preview_image":{"aspect_ratio":1.499,"height":1334,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SC3ULT-LINK-1.webp?v=1781552199"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The Simucube 3 Ultimate is a 35 Nm direct drive wheelbase for sim racing with a spoke-type IPM motor and a 23-bit absolute angle sensor, compatible with PC and built for drivers after the highest level of Force Feedback. A Simucube Link Hub is required to operate.

For this new generation, Simucube has completely re-engineered the control algorithm, developed a zero-play quick release and rebuilt its software. The Ultimate adds telemetry-based effects, an included control box and a 5-year warranty; it is designed in Finland and manufactured in the EU. Explore the Simucube range and the other direct drive wheelbases in the catalogue.

Key features

35 Nm of torque from a spoke-type IPM direct drive motor with maximum response speed and lower power draw.

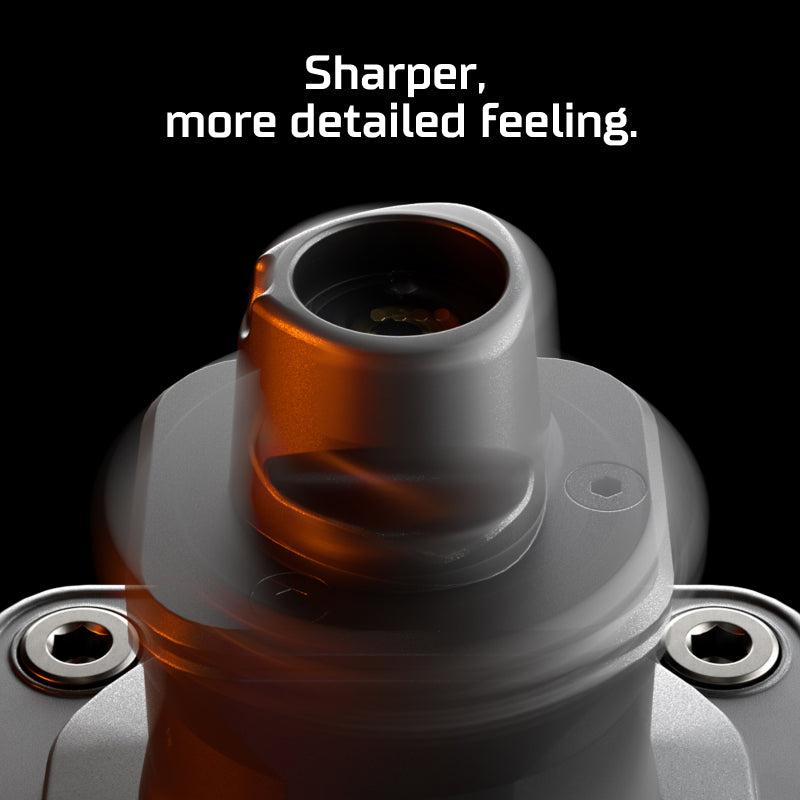

Re-engineered control algorithm and a laser-scanned digital twin for sharper, more detailed and quieter feedback.
Telemetry-based effects: road texture, ABS and RPM.
23-bit absolute angle sensor (8 million steps).

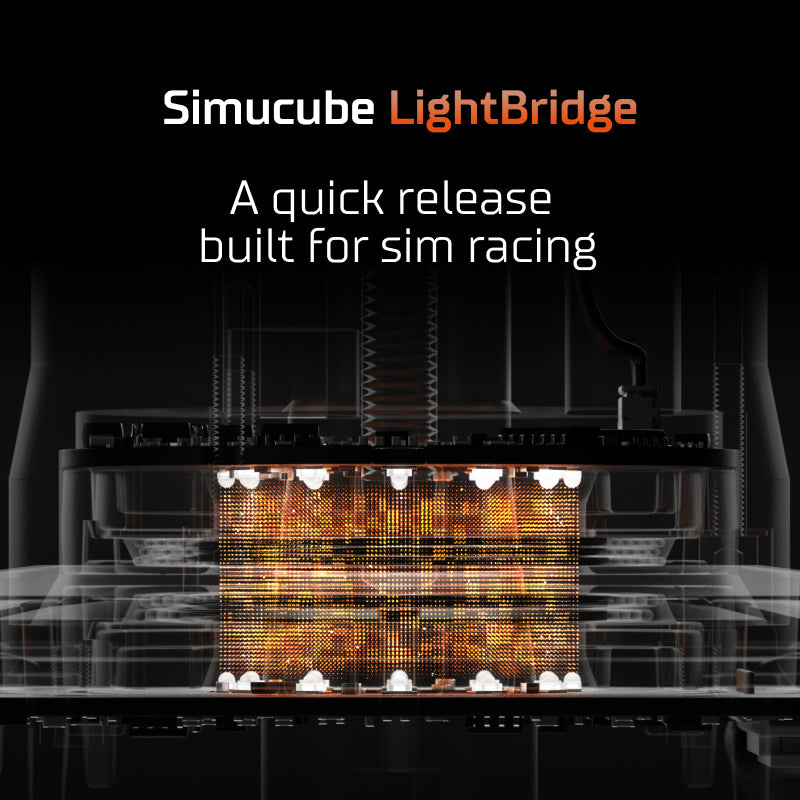

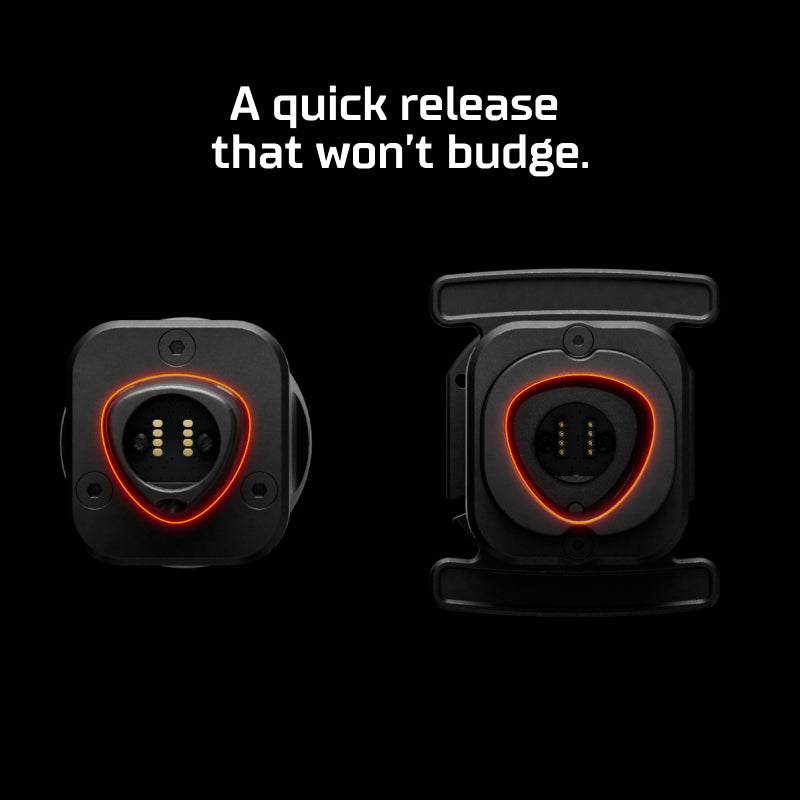

Quick release with P3G polygon technology, self-centring and free of play; power and data through Simucube LightBridge, with no wearing parts.
Control box included to adjust your settings without leaving the sim, with Simucube Tuner 3.0 software.
5-year warranty; designed in Finland and manufactured in the EU.

Technical specifications

Feature	Detail
Peak torque	35 Nm
Motor	Spoke-type IPM direct drive, maximum response speed
Angle sensor	23-bit absolute (8 million steps)
Power supply	360 W (450 W peak)
Control box	Included
Mounting	Front and bottom
Dimensions (with Link Quick Release)	135 × 135 × 323 mm
Weight	13.0 kg
Power and data transfer	Through the Quick Release (Simucube LightBridge)
Simucube Link Hub	Required to operate (not included unless the Including Simucube Link option is chosen)
Link Quick Release	Not included with the wheelbase
Warranty	5 years
Origin	Designed in Finland, manufactured in the EU

Compatibility

Compatible with PC (Windows). It is not compatible with PlayStation or Xbox.
A Simucube Link Hub is required to operate; if you do not have one, choose the option that includes it. A single Link Hub serves several Simucube devices (for example an ActivePedal or a Valo GT-23).
For setups with more than one Link Hub, Simucube recommends the Teltonika Ethernet Switch.
Compatible with Simucube Link wheels.

Frequently asked questions

Do I need the Simucube Link Hub to use the Simucube 3 Ultimate?

Yes, it is mandatory for the wheelbase to work. If you do not own one, choose the option that includes it when ordering. A single Link Hub is enough for several Simucube devices, such as the ActivePedal or the Valo GT-23.

Is the Link Quick Release included with the wheelbase?

No. The wheelbase does not include it: compatible wheels sold by Simucube already come with their Link Quick Release, but if you want to fit a wheel you already own, it has to be bought separately.

Is it compatible with PlayStation or Xbox?

No. The Simucube 3 Ultimate is a PC-only wheelbase for Windows and offers no console compatibility.

What motor does the Ultimate use and how does it differ from the Sport and Pro?

The Ultimate uses a spoke-type IPM motor with 35 Nm and maximum response speed, against the 15 Nm of the Sport and the 25 Nm of the Pro, both with SPM motors. It also carries a 5-year warranty instead of 3.

What telemetry effects does it offer?

It includes telemetry-based effects such as road texture, ABS and RPM, configurable from the Simucube Tuner 3.0 software.

What is the Quick Release like?

It uses P3G polygon technology: self-centring, it locks in instantly and works with zero play under heavy Force Feedback loads. Power and data are transferred through Simucube LightBridge, with no wearing parts.

Which wheels is it compatible with?

It is compatible with Simucube Link sim racing wheels, with partners such as BavarianSimTec (Delta Pro SC) among other manufacturers joining the platform.
