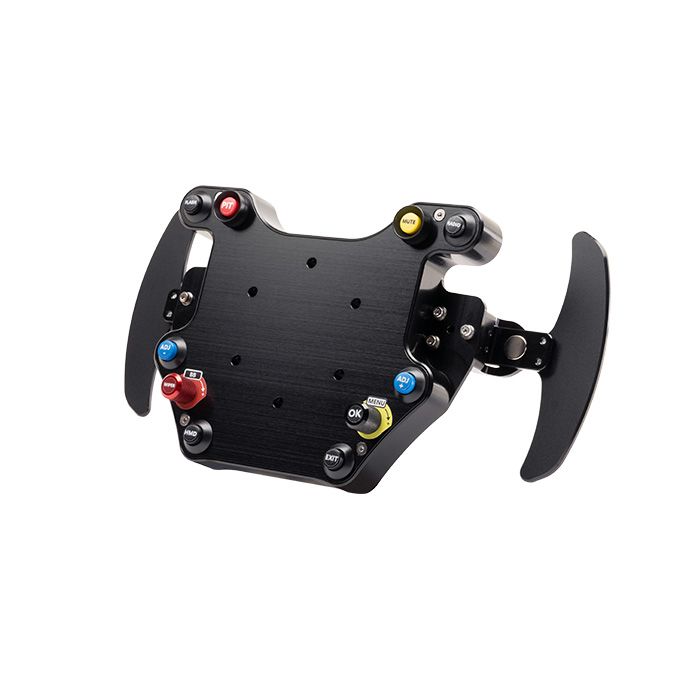

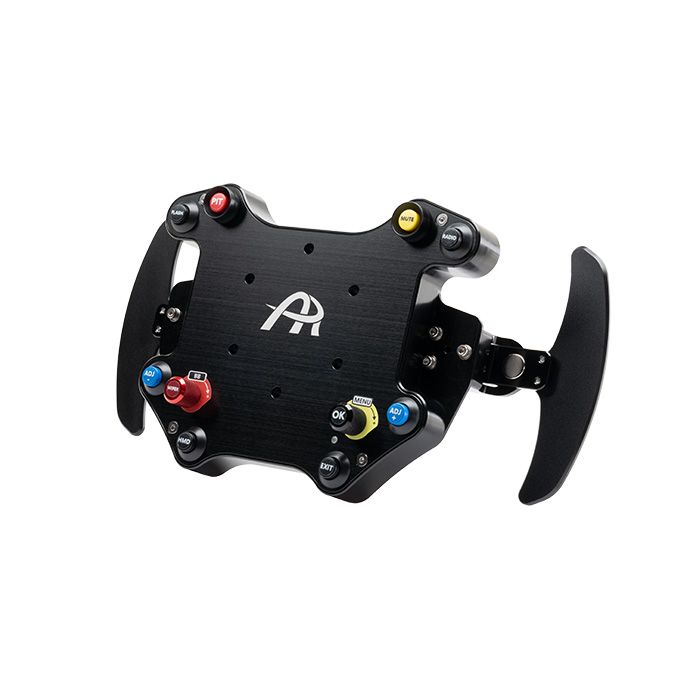

Botonera Ascher Racing B16-USB de aluminio CNC para sim racing con levas magnéticas

Botonera Ascher B16-USB, detalle de botones y encoders en aluminio anodizado negro

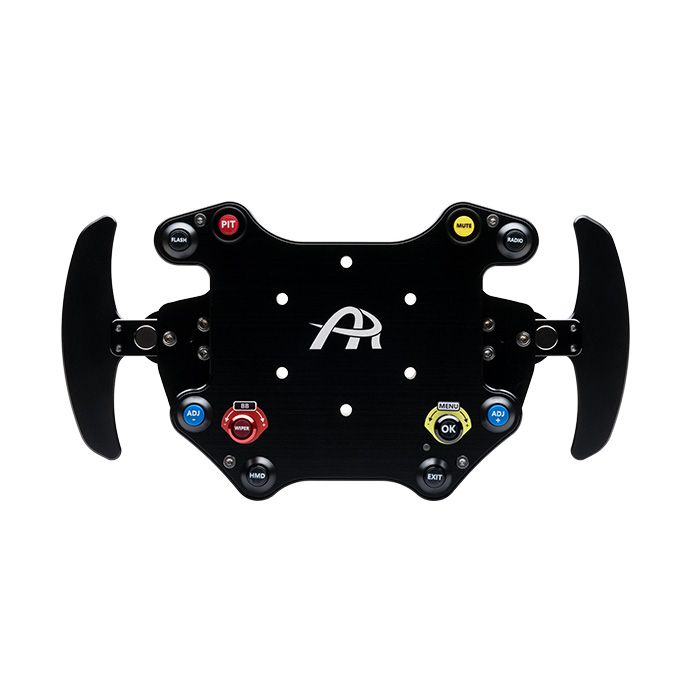

Ascher Racing B16-USB vista frontal con 16 entradas configurables para simracing

Botonera Ascher B16-USB, levas magnéticas ajustables y conector USB Binder M16

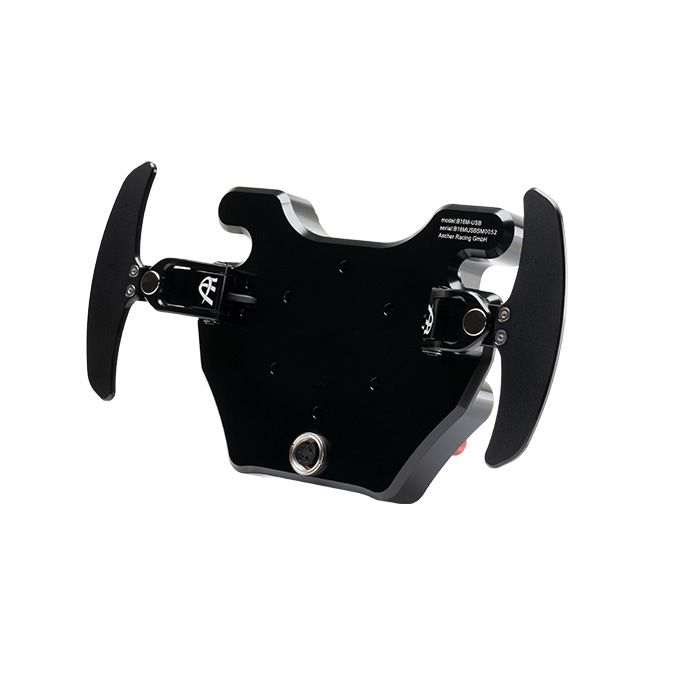

Ascher Racing B16-USB variante B16M para volantes con centro plano

Botonera Ascher B16-USB B16M con disposición de botones elevada

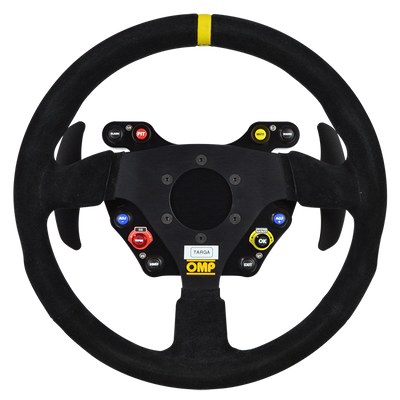

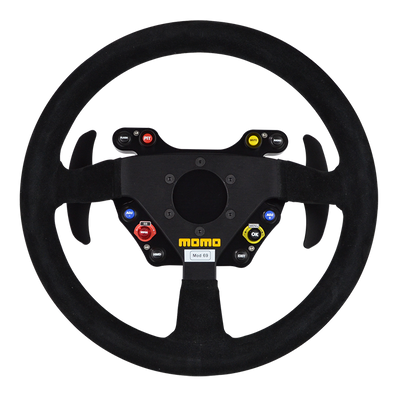

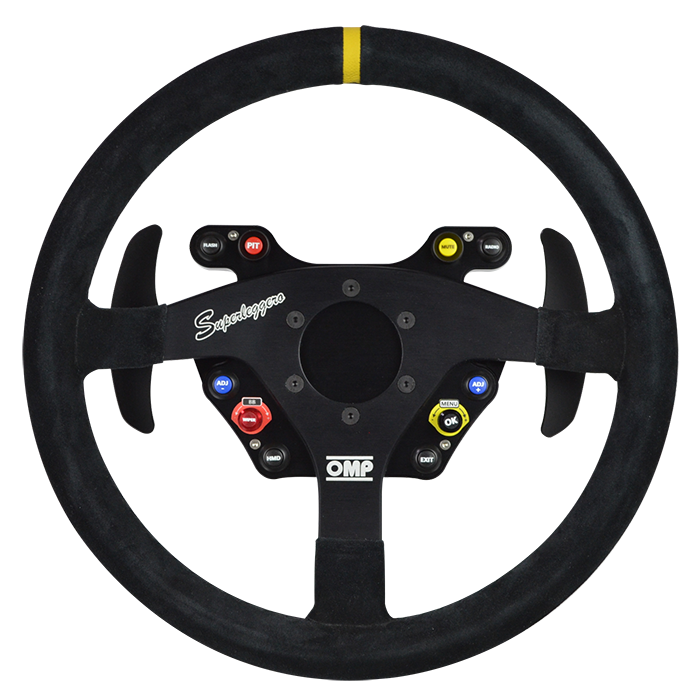

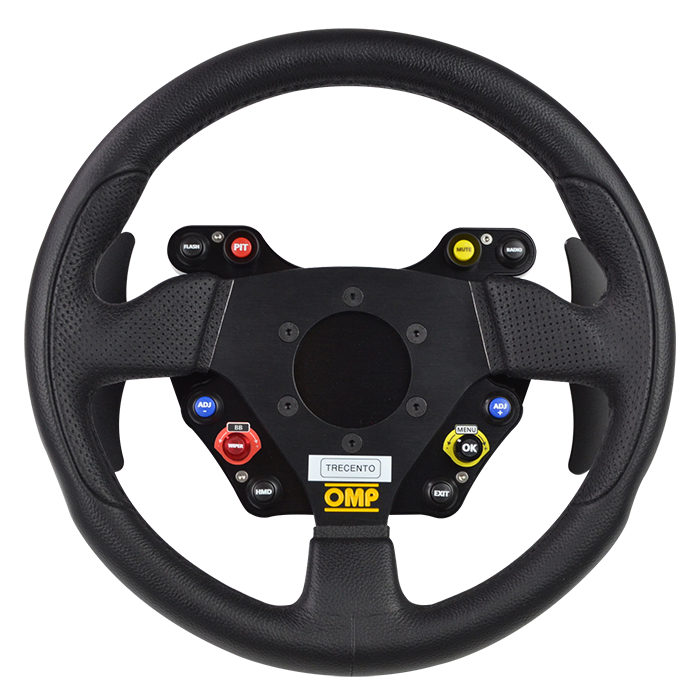

Ascher Racing B16-USB B16M montada en volante de sim racing

Botonera Ascher B16-USB, patrón de montaje 6x70 mm para quick release motorsport

Ascher Racing B16-USB con encoders con pulsador y botones táctiles

Botonera Ascher B16-USB con acabado anodizado negro y grabado láser

Ascher Racing B16-USB con botones y protectores anti-pulsación accidental

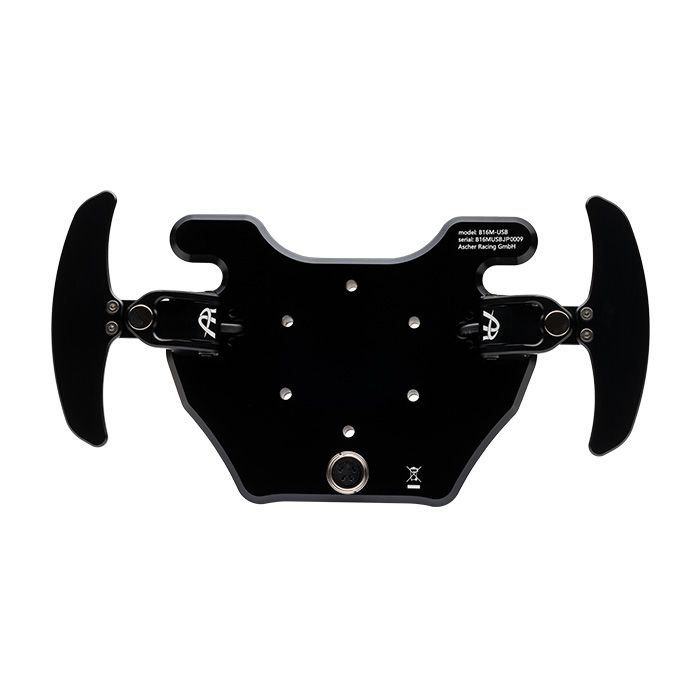

Botonera Ascher B16-USB, vista trasera con conexión USB en espiral

Ascher Racing B16-USB con etiquetas personalizables para botones y encoders

Botonera Ascher B16-USB B16M con cuerpo de aluminio mecanizado CNC

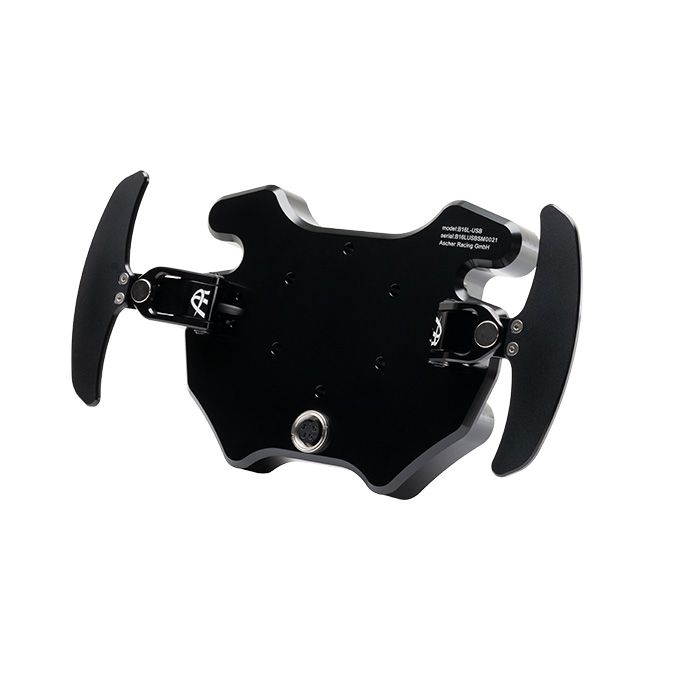

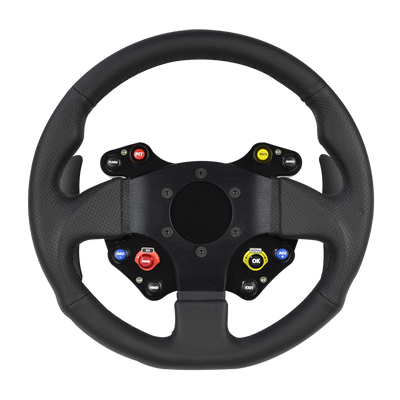

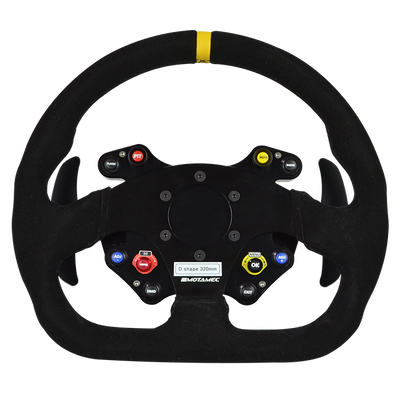

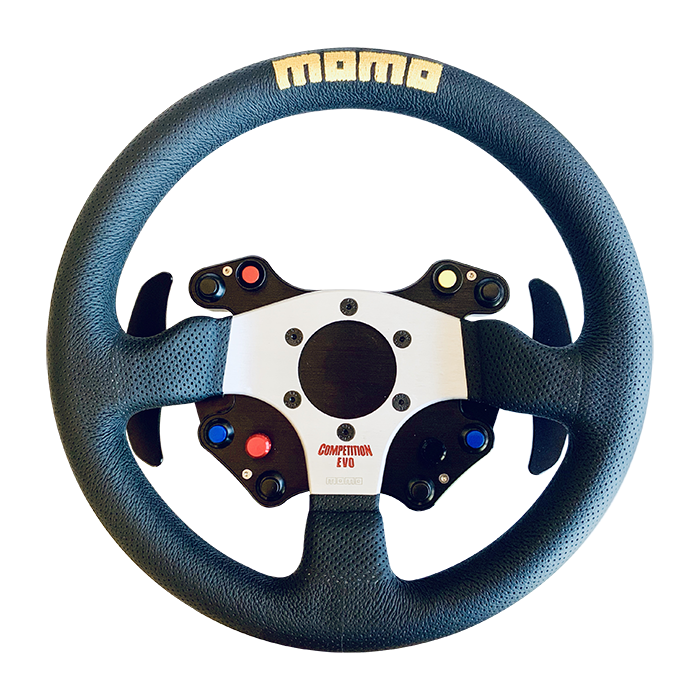

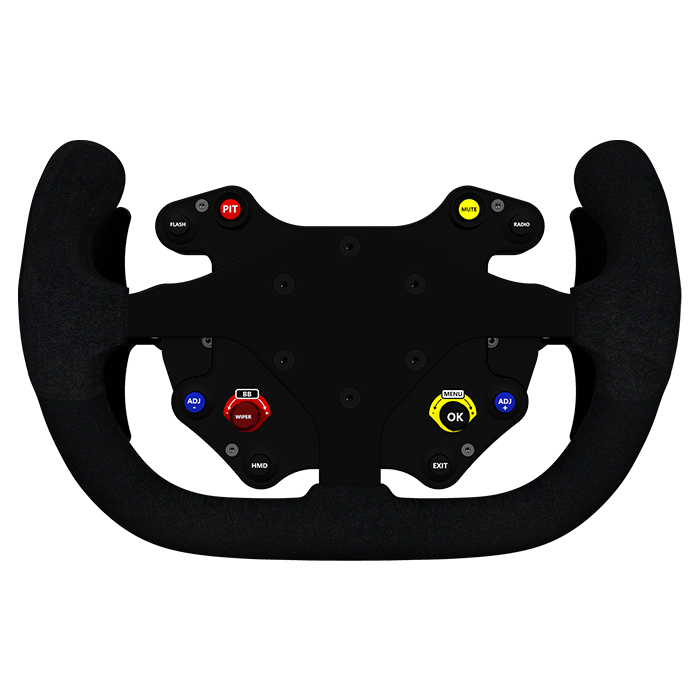

Botonera Ascher Racing B16-USB variante B16L para volantes con centro curvado

Ascher B16-USB B16L con levas magnéticas y botones en aluminio anodizado negro

Botonera Ascher B16-USB B16L, detalle de encoders y botones táctiles

Ascher Racing B16-USB B16L con conector USB Binder M16 y cable en espiral

Botonera Ascher B16-USB B16L con disposición de botones más baja

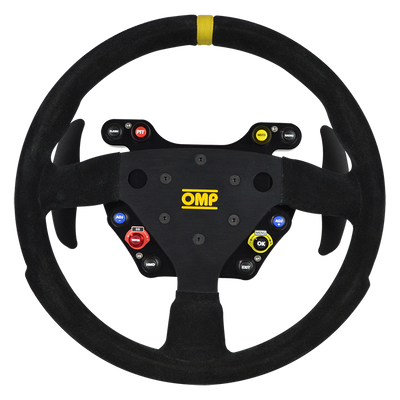

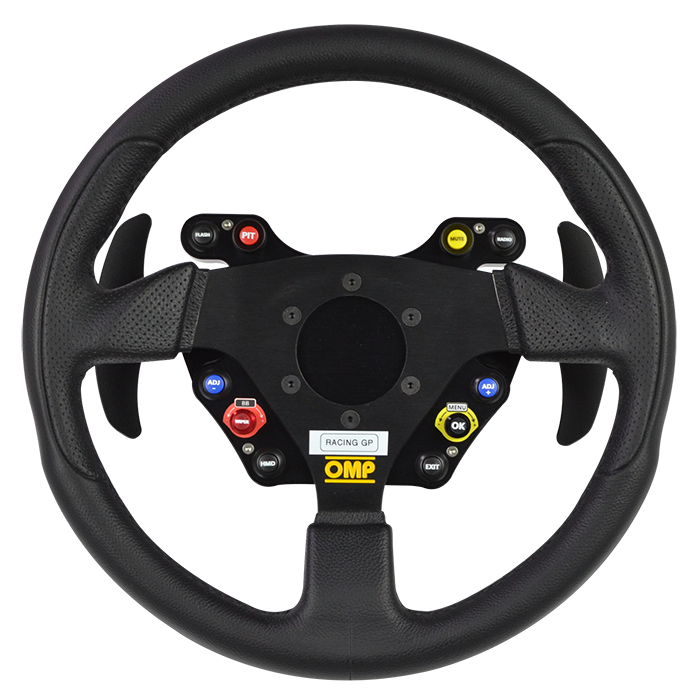

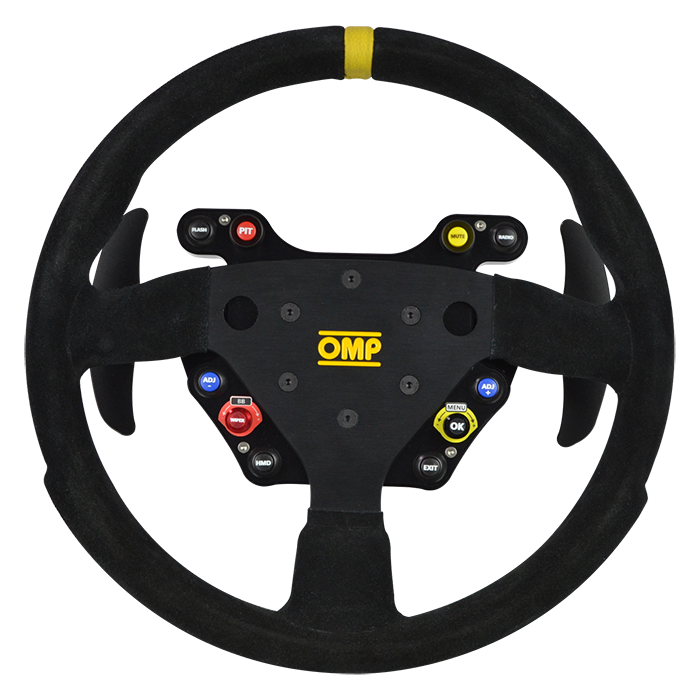

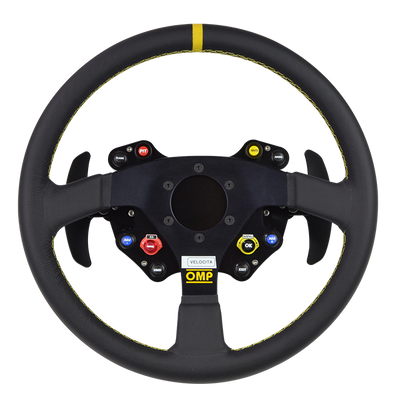

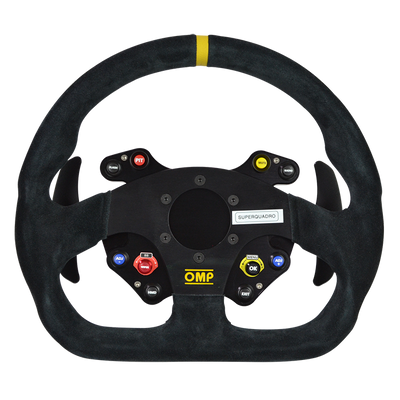

Ascher Racing B16-USB B16L montada en volante OMP Superquadro

Botonera Ascher B16-USB B16L con patrón de montaje 6x70 mm

Ascher Racing B16-USB B16L con acabado anodizado negro y grabado láser

Botonera Ascher B16-USB B16L con botones y protectores anti-pulsación

Ascher Racing B16-USB B16L con encoders con pulsador incorporado

Botonera Ascher B16-USB B16L, vista trasera con conexión USB

Ascher Racing B16-USB B16L con etiquetas personalizables incluidas

Botonera Ascher B16-USB B16L de aluminio mecanizado CNC para sim racing

Ascher Racing B16-USB B16L con levas magnéticas ajustables de 260 a 800 g

Botonera Ascher B16-USB B16L, vista frontal con 16 entradas configurables

Ascher Racing B16-USB B16L, detalle de botones y encoders

Ascher Racing B16-USB – Sim Racing Button Box

Price - 8%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

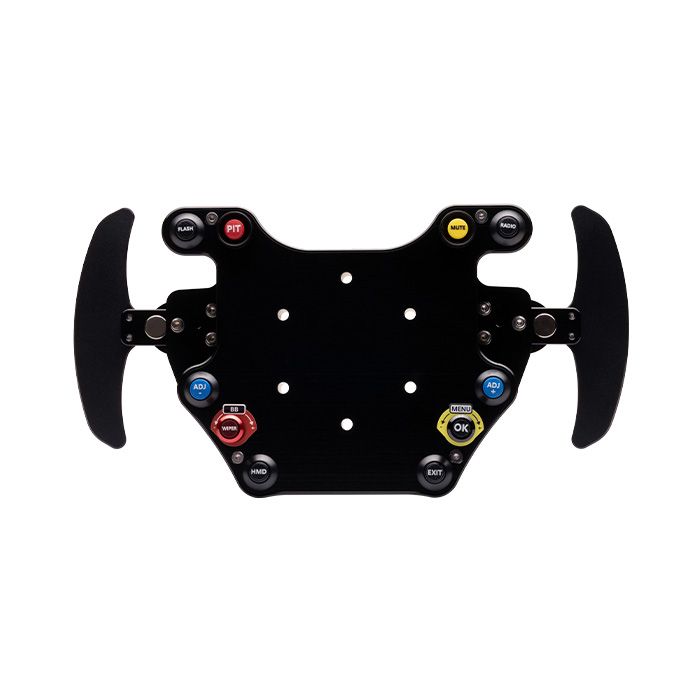

The Ascher Racing B16-USB is a CNC-machined aluminium button box with 16 programmable inputs and adjustable magnetic paddles for sim racing, PC-compatible over USB and fitting most wheel bases via its universal 6×70 mm mount.

It is a motorsport button plate that turns any racing rim into a complete sim racing wheel. Machined from black-anodised automotive aluminium with laser engraving, it carries Ascher Racing's magnetic motorsport paddles —with force adjustable from 260 to 800 g using the included magnets and spacers— and comes in two button layouts (B16M and B16L) to suit your rim's geometry.

Key features of the Ascher Racing B16-USB

16 programmable inputs: 8 positive-action tactile buttons (2 with button guards), 2 encoders with push function and aluminium knobs, and 2 magnetic paddles.
Magnetic shift paddles machined in aluminium, with a firm snap action and force adjustable from 260 to 800 g using the included magnets and spacers.

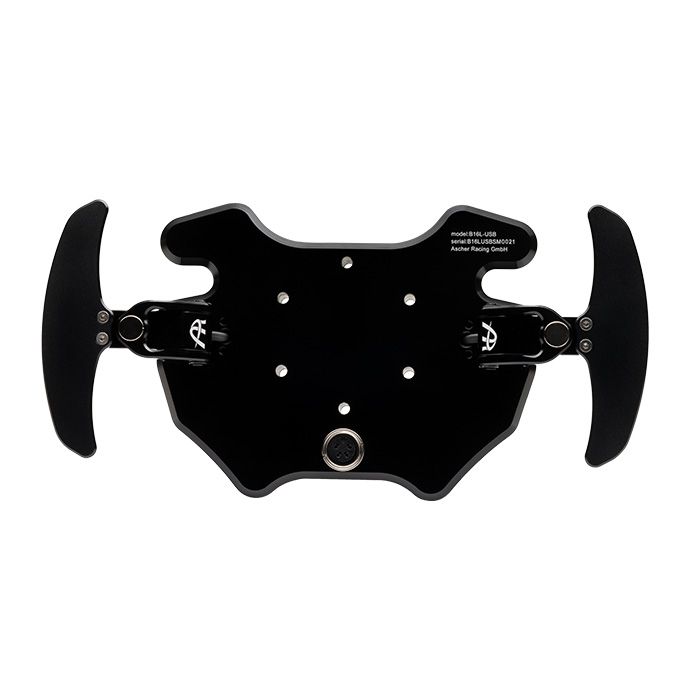

Platform-independent USB connection via a shielded coiled cable with an industrial Binder M16 connector.
Torsion-free automotive aluminium chassis, black anodised, with a brushed front plate and micro-blasted paddles.
Universal 6×70 mm mount with M5 through-holes, compatible with most Direct Drive bases and Quick Releases up to 88 mm outer diameter.
Two button layouts —B16M and B16L— for rims with deeper or narrower spokes, with no change in performance or compatibility.
Includes more than 120 labels (stickers) for buttons and encoders in black, white and various colours.

Technical specifications

Specification	Detail
Programmable inputs	16
Buttons	8 tactile (2 with button guard)
Encoders	2 with push function and aluminium knob
Paddles	2 adjustable magnetic (260–800 g)
Connectivity	USB (coiled cable, Binder M16 connector)
Material	CNC-machined automotive aluminium, black anodised
Finish	Brushed front, micro-blasted paddles, laser engraving
Mounting	6 × 70 mm, M5 through-holes (Quick Release not included)
Labels included	+120 for buttons and encoders in various colours
Weight	700 g

Which version to choose? B16M or B16L

Both versions are identical in electronics, performance and compatibility; only the button layout changes to match the rim's geometry:

Version	Recommended for rims with…	Buttons

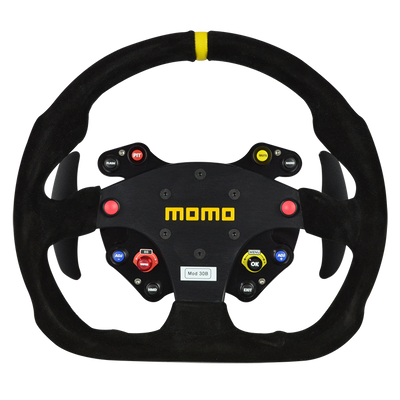

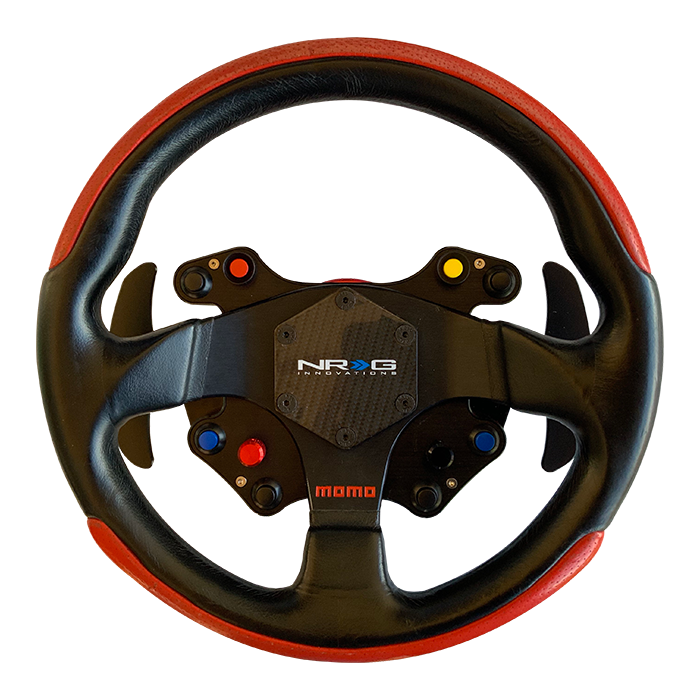

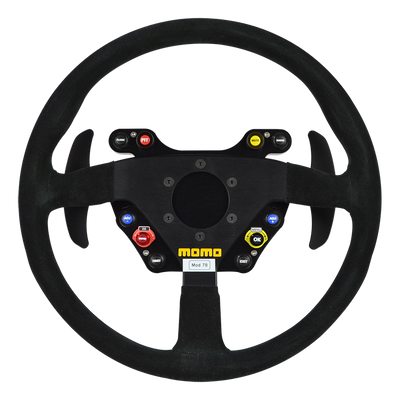

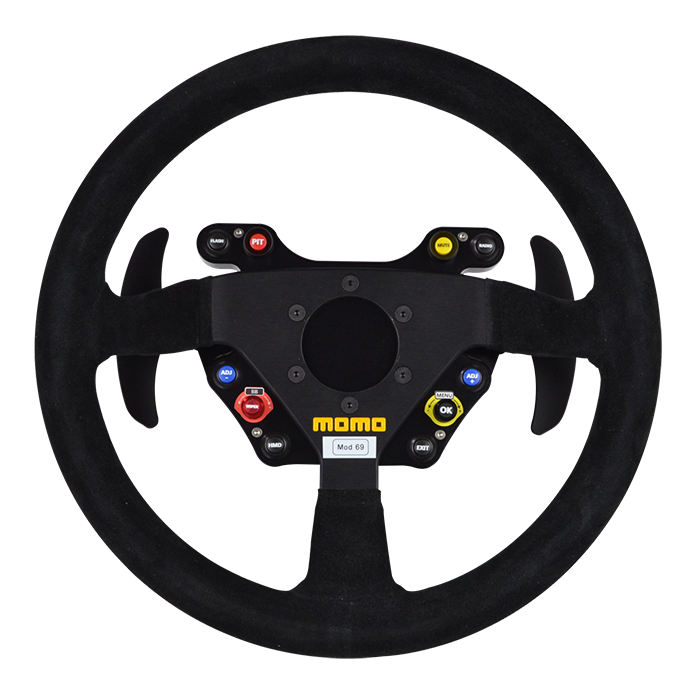

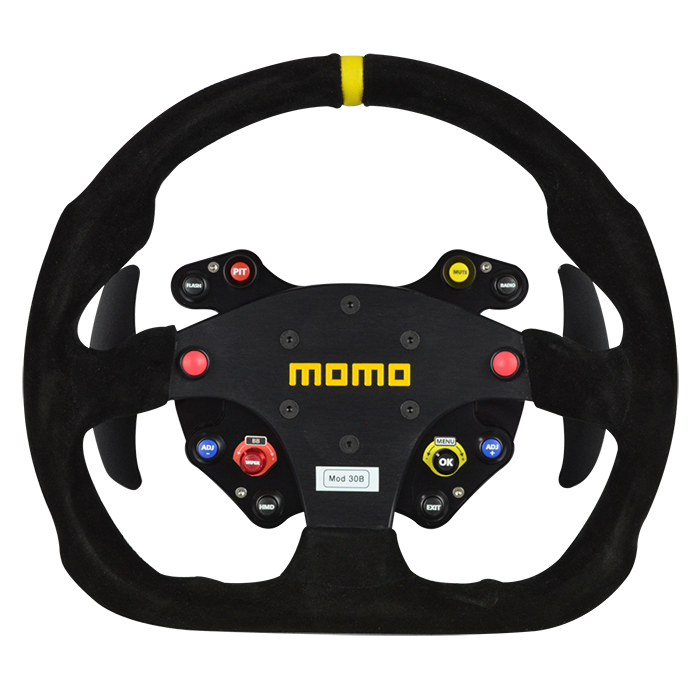

B16M	a horizontal or flat centre and deeper spokes (e.g. MOMO Mod 30)	higher

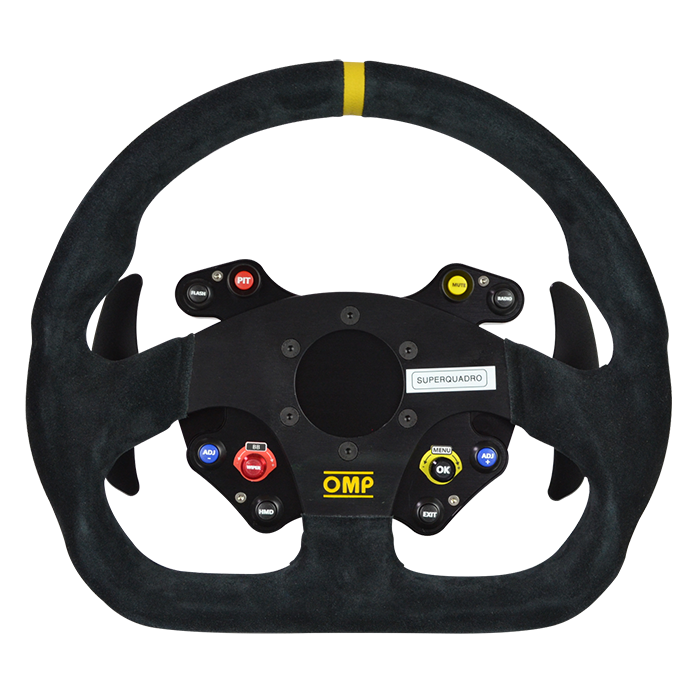

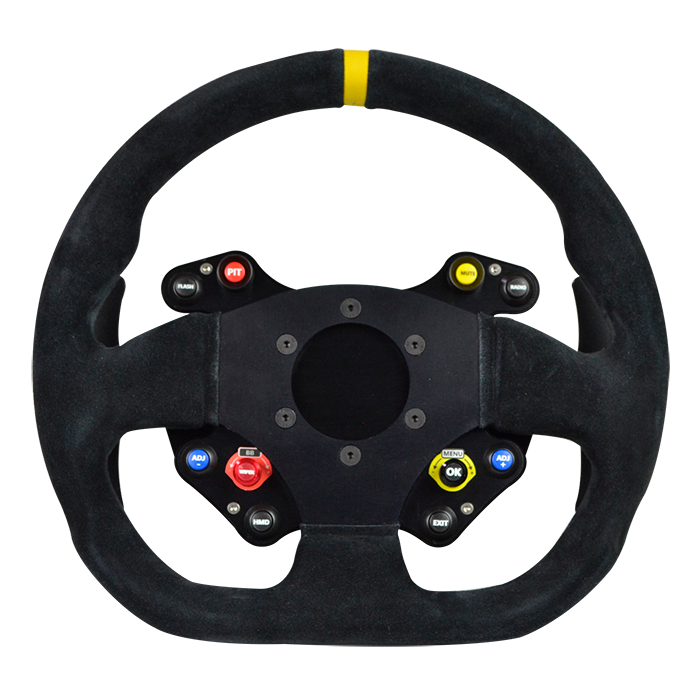

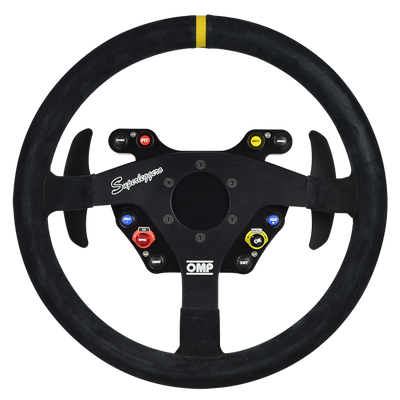

B16L	a curved or sloped centre and narrower spokes (e.g. OMP Superquadro)	lower

Compatibility

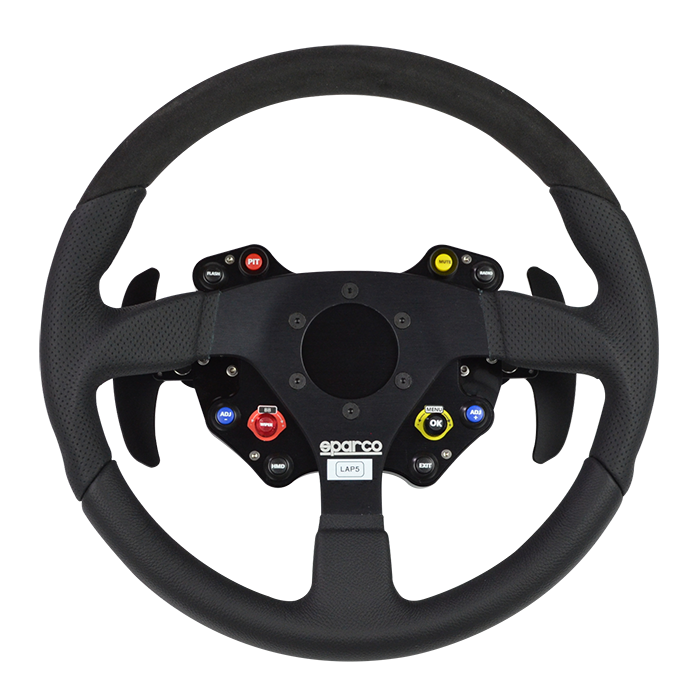

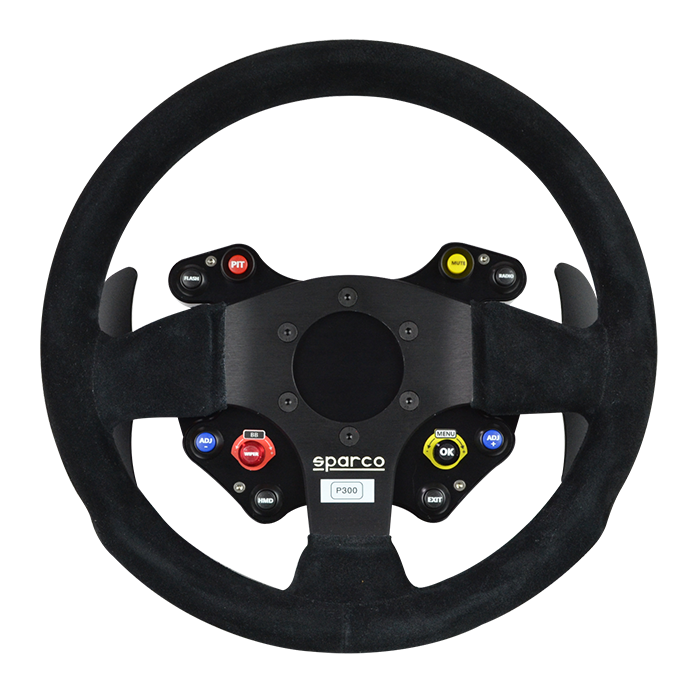

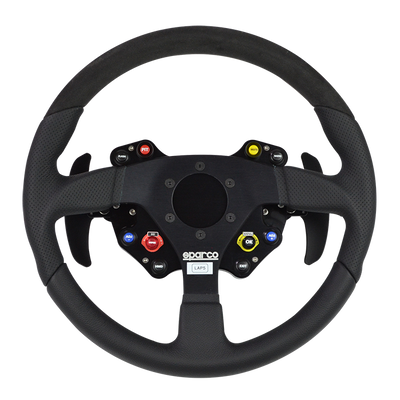

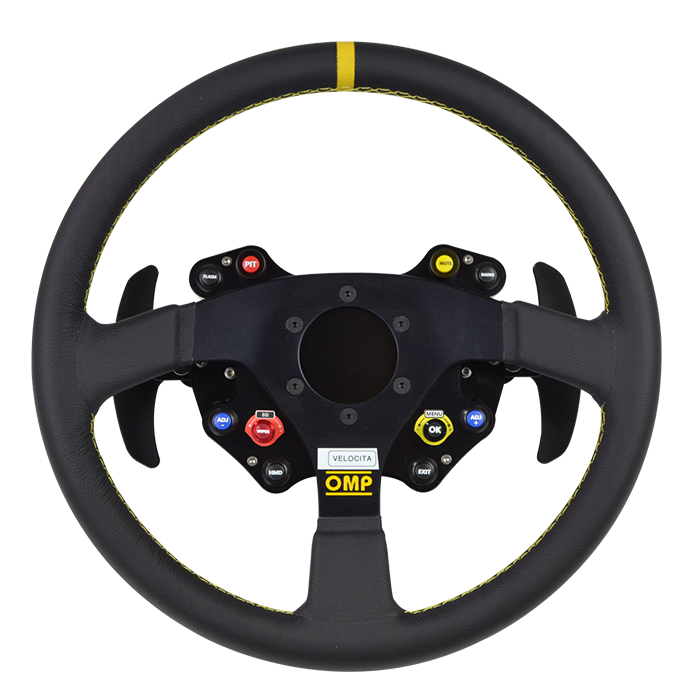

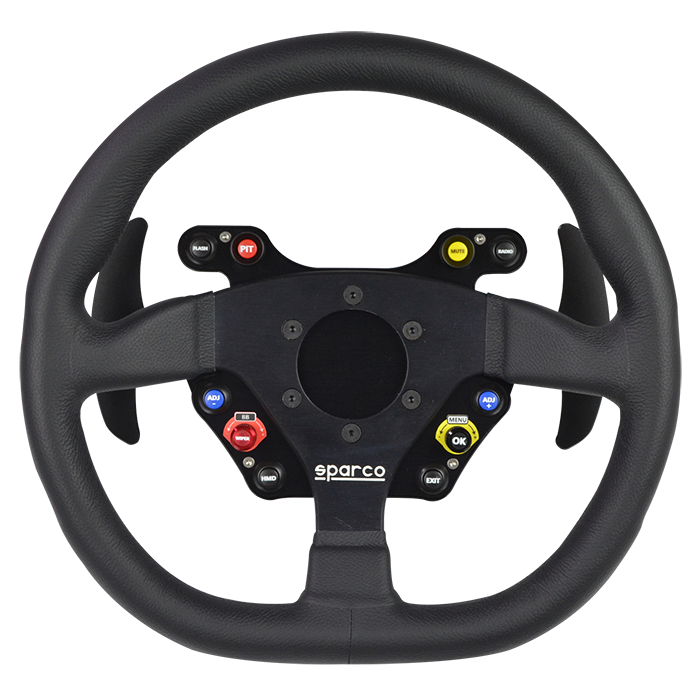

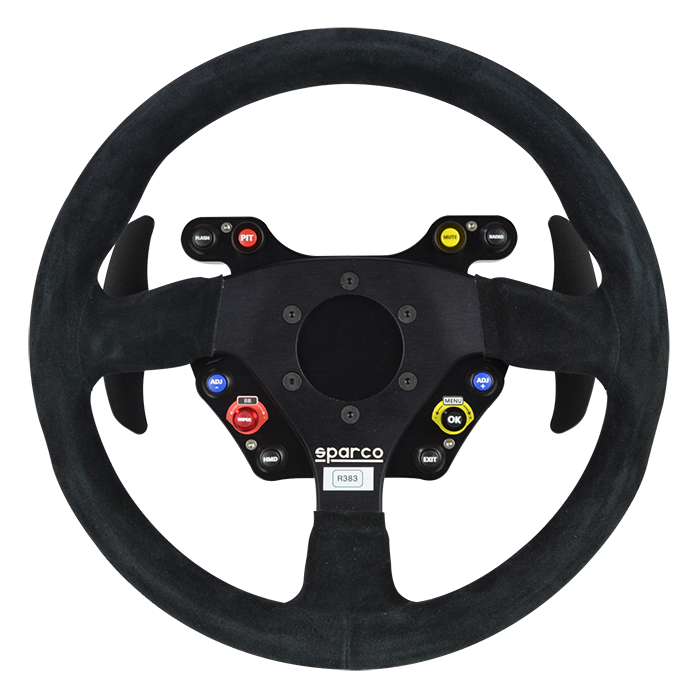

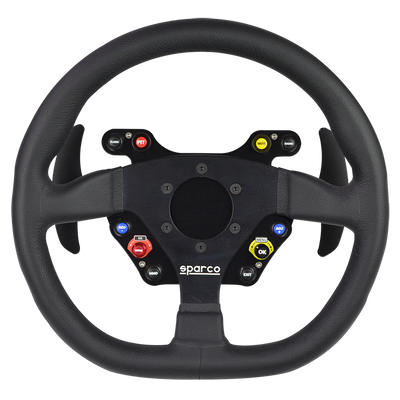

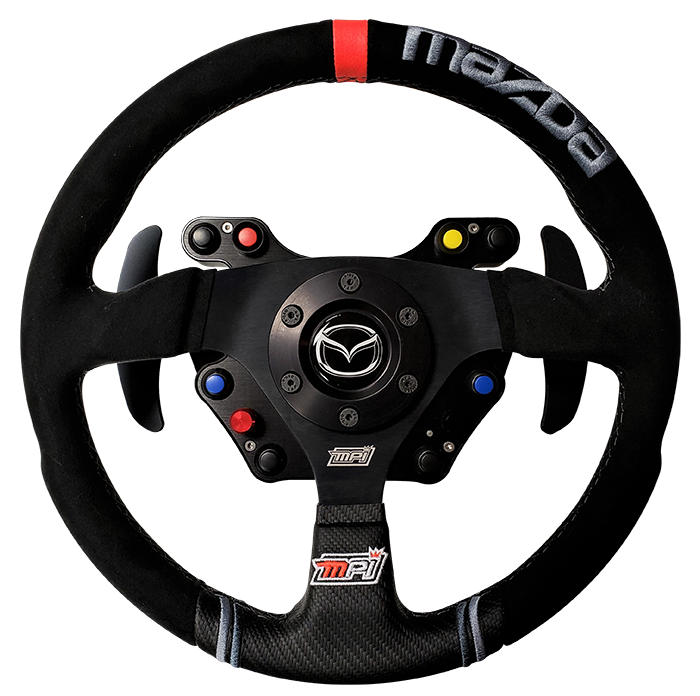

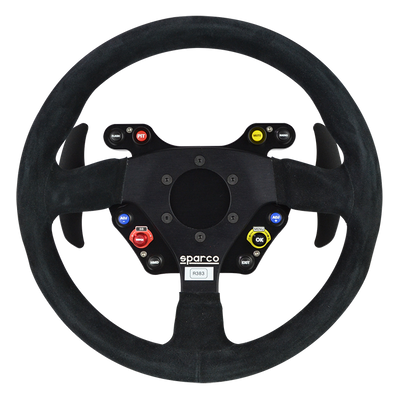

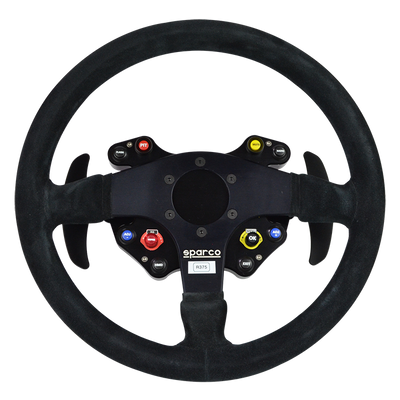

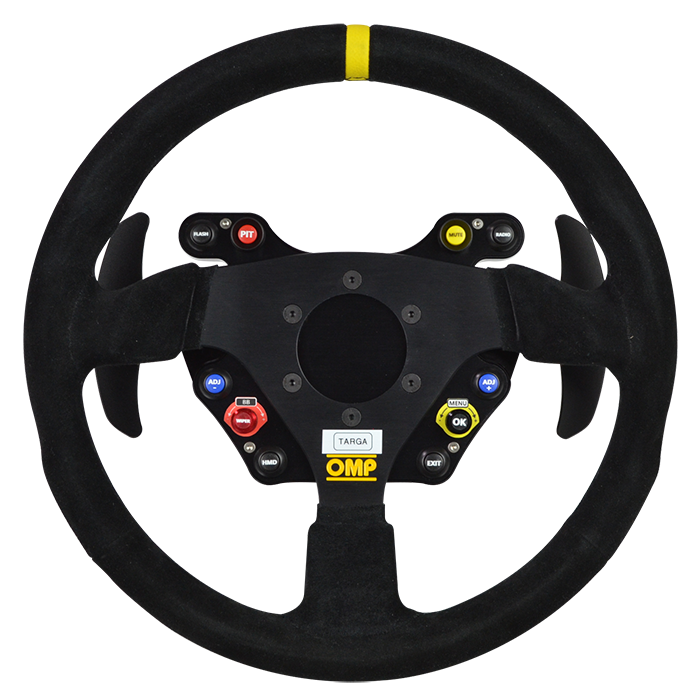

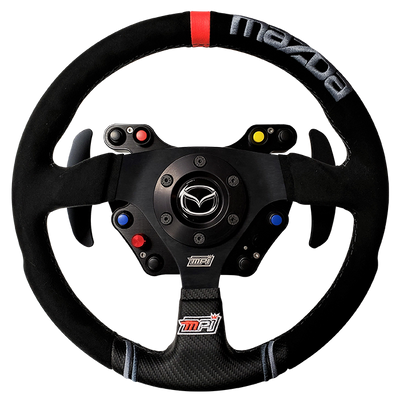

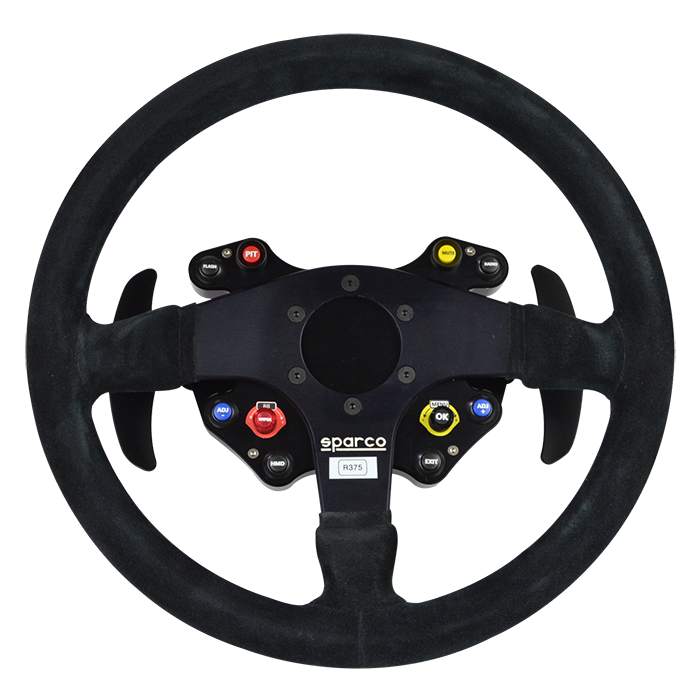

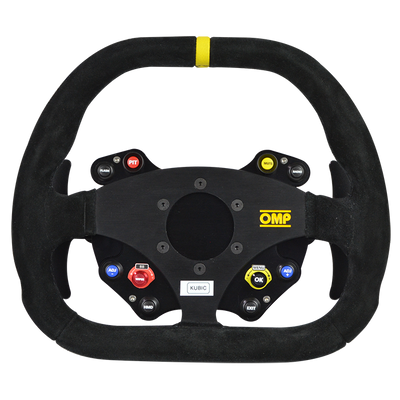

The Ascher Racing B16-USB is a USB button box for PC; it is not console-compatible. Its universal 6×70 mm mount with M5 holes makes it compatible with most Direct Drive bases (Simucube, MOZA, Asetek, Simagic, VRS, Conspit, AccuForce, Leo Bodnar and Fanatec DD1/DD2 with Podium Hub) and with standard 70 mm Quick Releases up to 88 mm outer diameter. It fits sport rims from MOMO, OMP, Sparco, Sabelt, MPI and more; the Quick Release is not included as standard.

Frequently asked questions

Does the Ascher Racing B16-USB work on console?

No. It is a platform-independent USB button box for PC; it connects directly to the computer and is not compatible with consoles.

What is the difference between the B16M and the B16L?

Only the button layout. The B16M is designed for rims with a flat centre and deeper spokes (higher buttons) and the B16L for rims with a curved centre and narrower spokes (lower buttons). Electronics, performance and compatibility are identical.

Can the paddle stiffness be adjusted?

Yes. The magnetic paddles let you set the actuation force between 260 and 800 g by combining the included magnets and spacers.

Which bases and Quick Releases is it compatible with?

With most Direct Drive bases thanks to its universal 6×70 mm pattern (Simucube, MOZA, Asetek, Simagic, VRS, Conspit, Fanatec with Podium Hub…) and with standard 70 mm Quick Releases up to 88 mm outer diameter. The QR is not included.

Which steering rims does it support?

Standard sport rims from brands such as MOMO, OMP, Sparco, Sabelt or MPI. It is not recommended with very concave or deep-dish rims.

Does it include labels for the buttons?

Yes, it includes more than 120 labels (stickers) for buttons and encoders in black, white and various colours, plus blank options to create your own.
