PXN VD6 Bundle | 6 Nm Direct Drive Wheel and Pedals

Name: PXN VD6 Bundle 6 Nm – Direct Drive Wheel and Pedals Set
Brand: PXN
SKU: PXN-VD6B
Price: 379.99 EUR
Availability: InStock

PXN VD6 Bundle: 6 Nm direct drive wheelbase, 280 mm wheel and two-pedal set

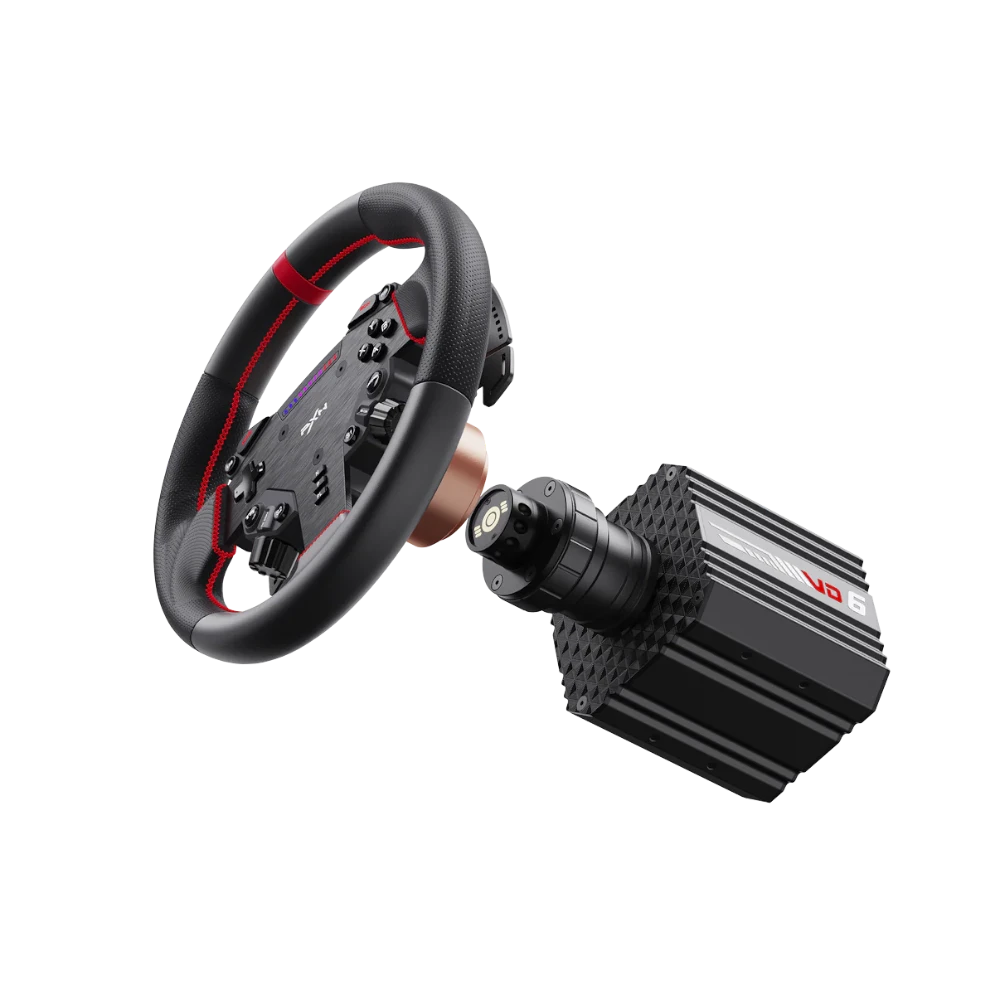

PXN VD6 package with the direct drive base and the wheel fitted

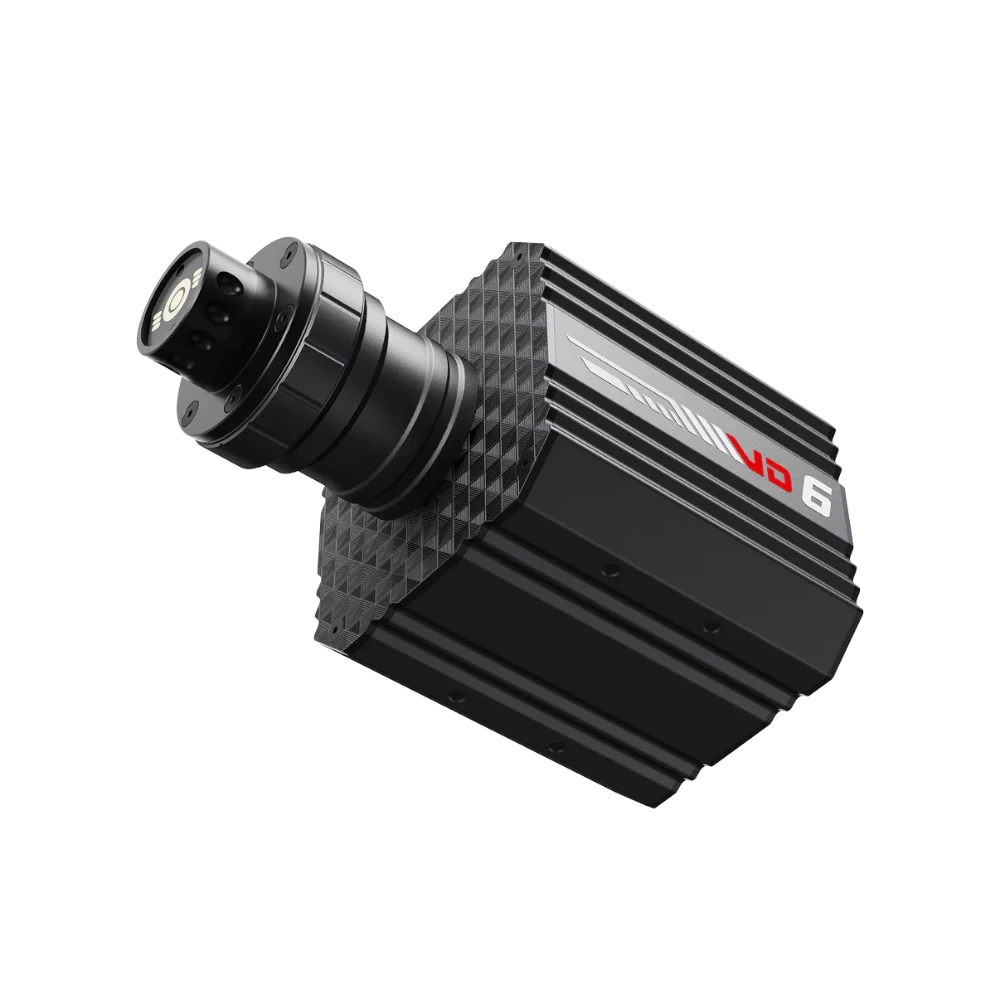

Close-up of the PXN VD6 direct drive base with aluminium chassis

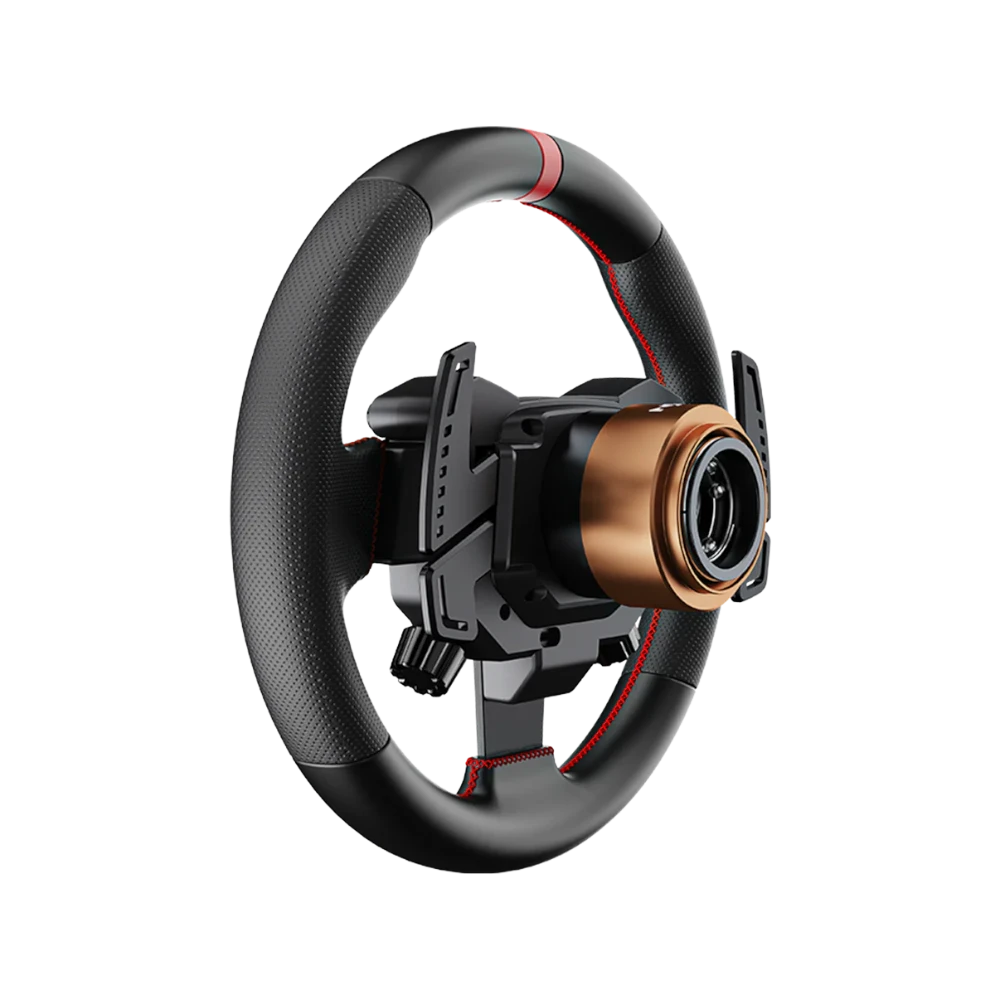

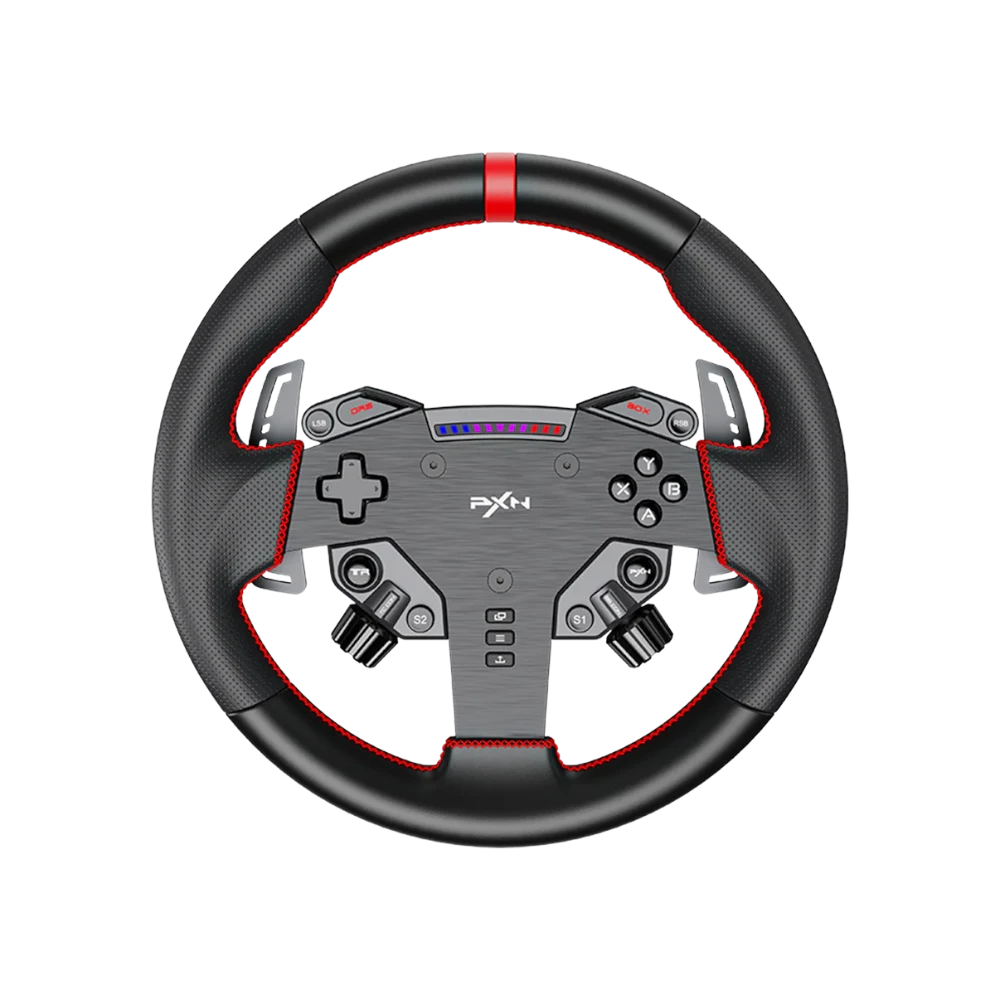

280 mm wheel of the PXN VD6 package with aluminium paddle shifters

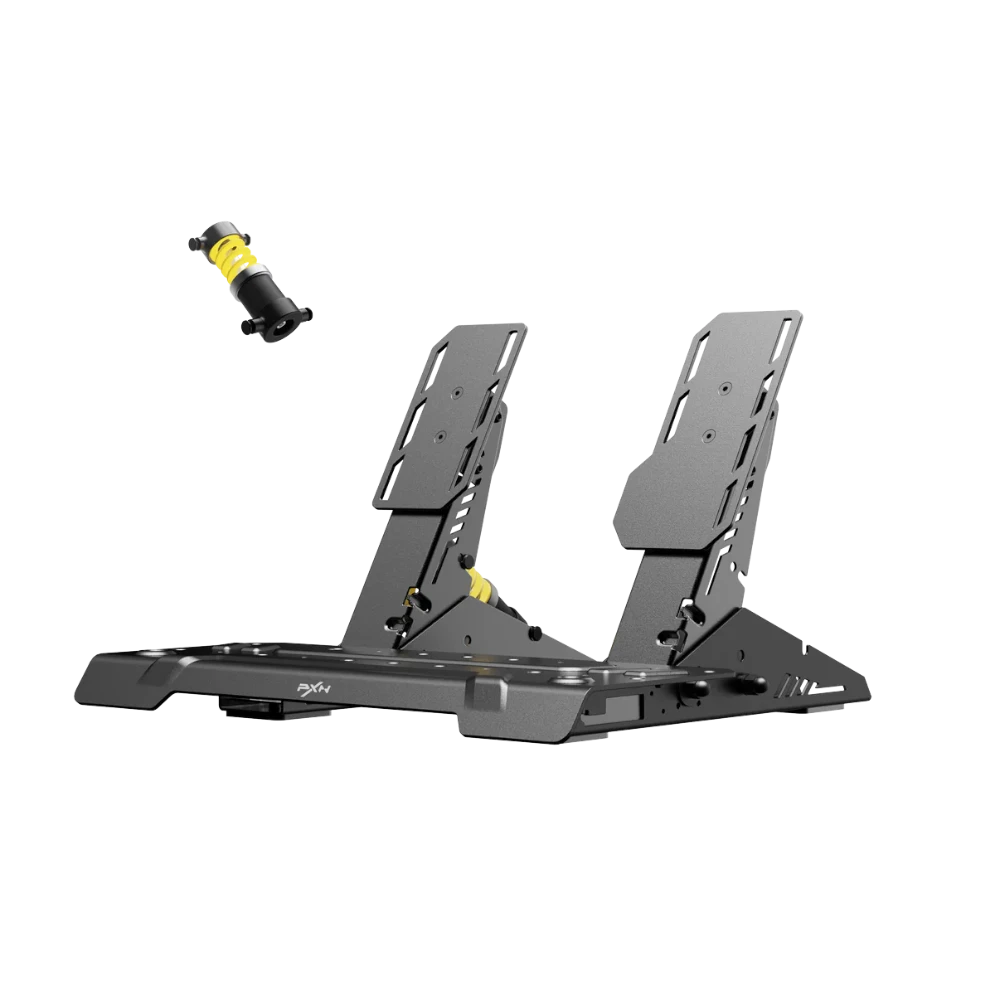

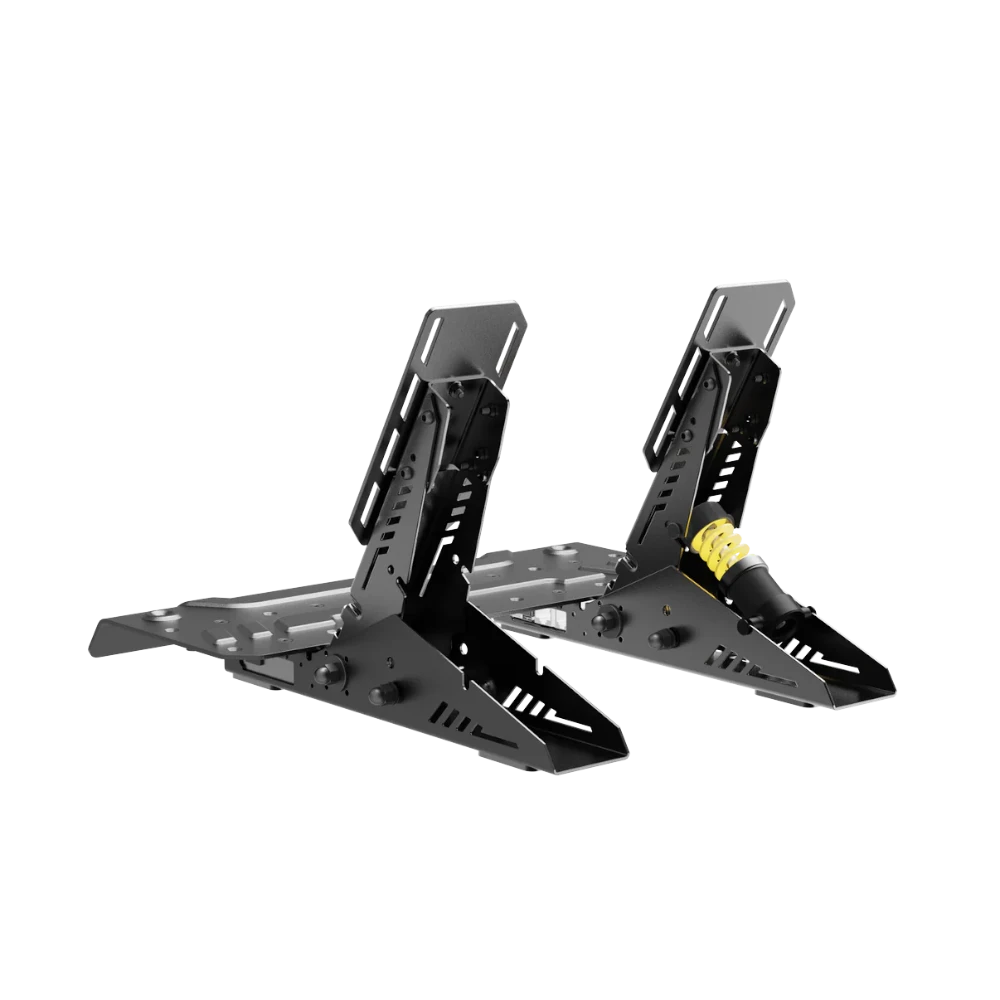

Two-pedal set with Hall effect sensors from the PXN VD6 package

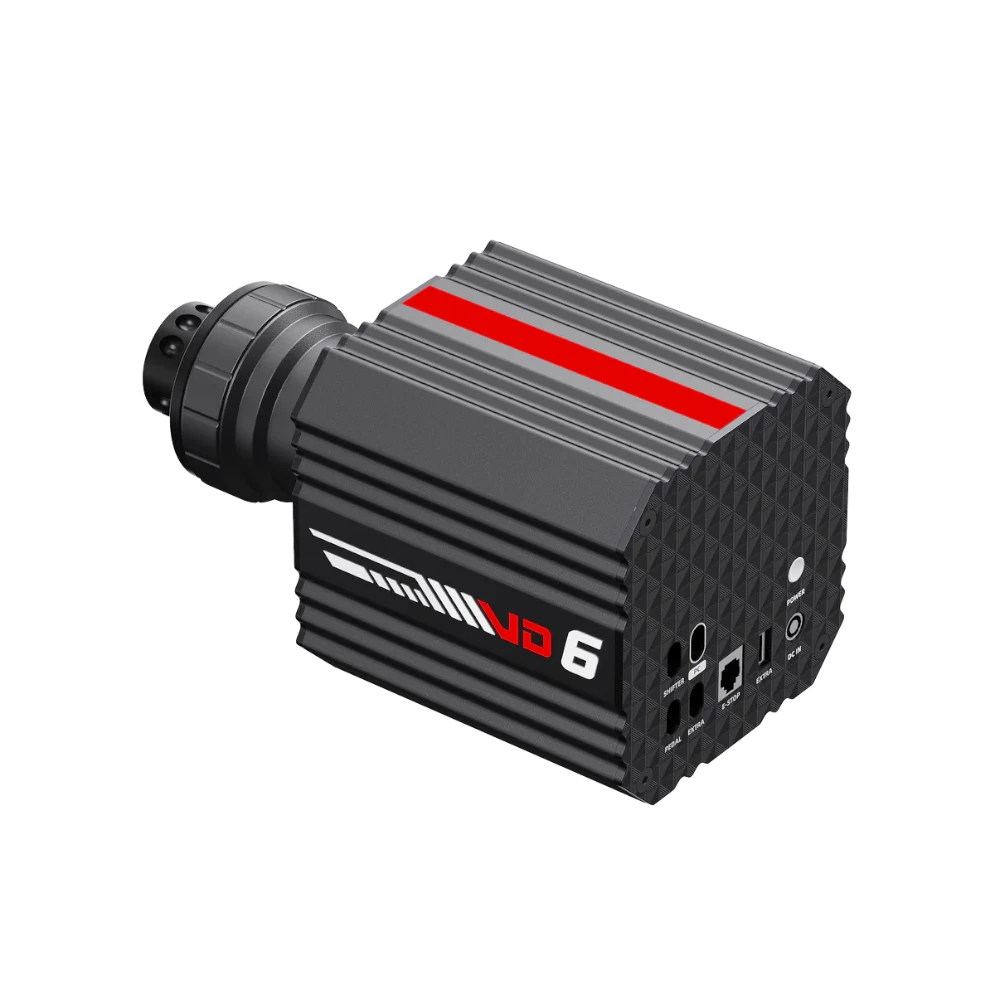

Connections and mounting of the PXN VD6 direct drive base

Table clamp from the PXN VD6 package to secure the base to a desk

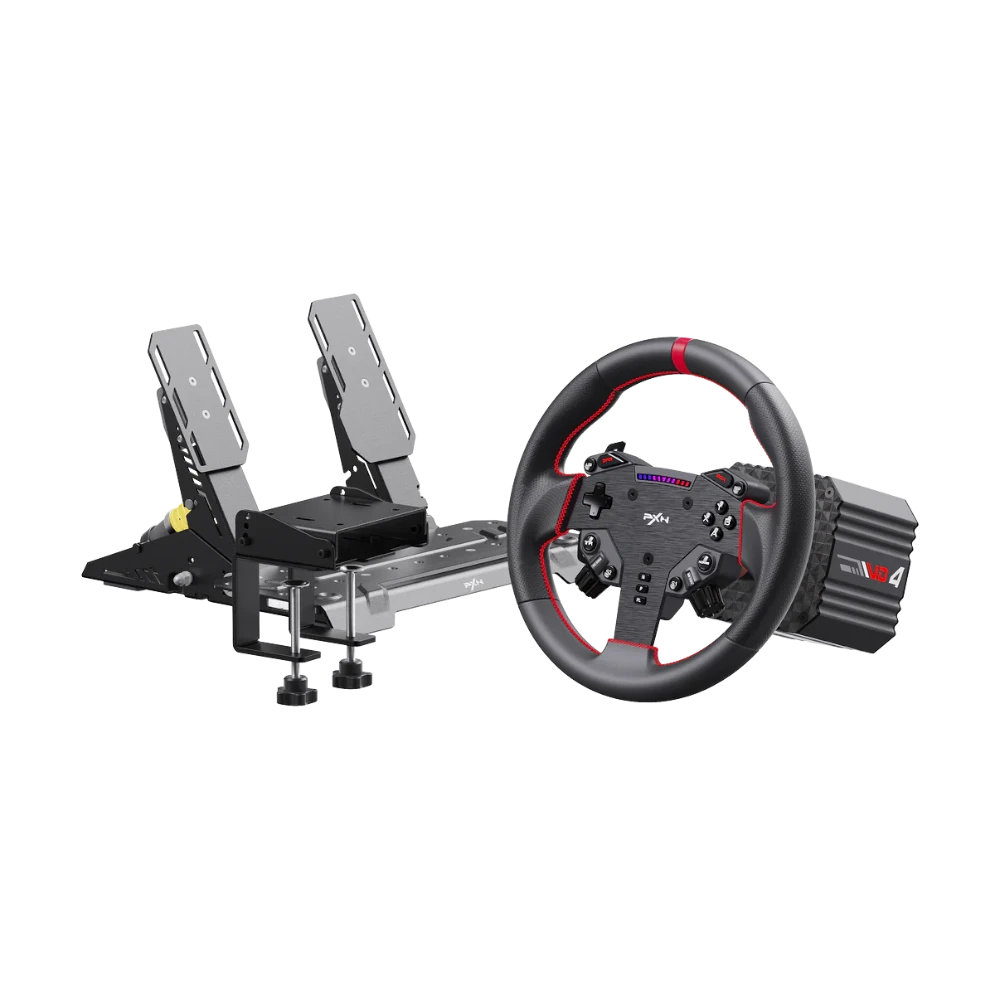

PXN VD6 set assembled and ready to drive on PC

PXN Quick Release on the VD6 base for swapping wheels

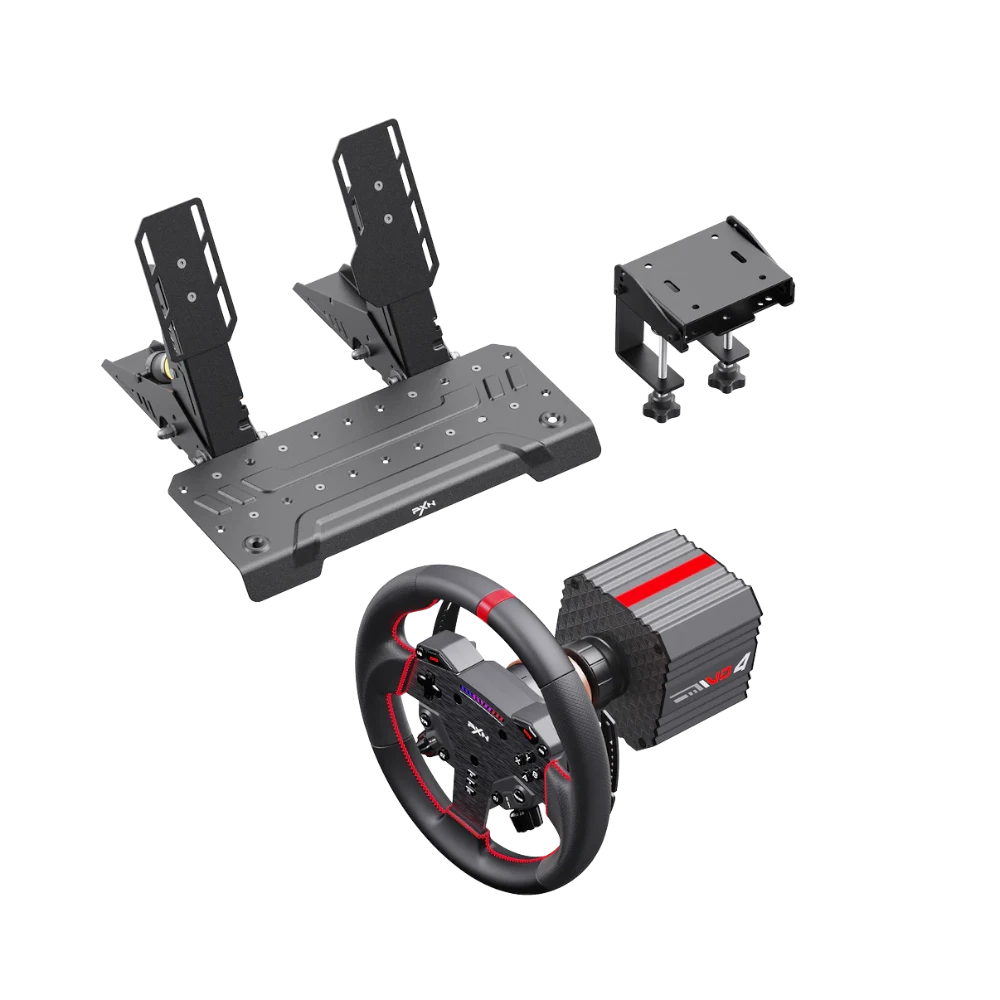

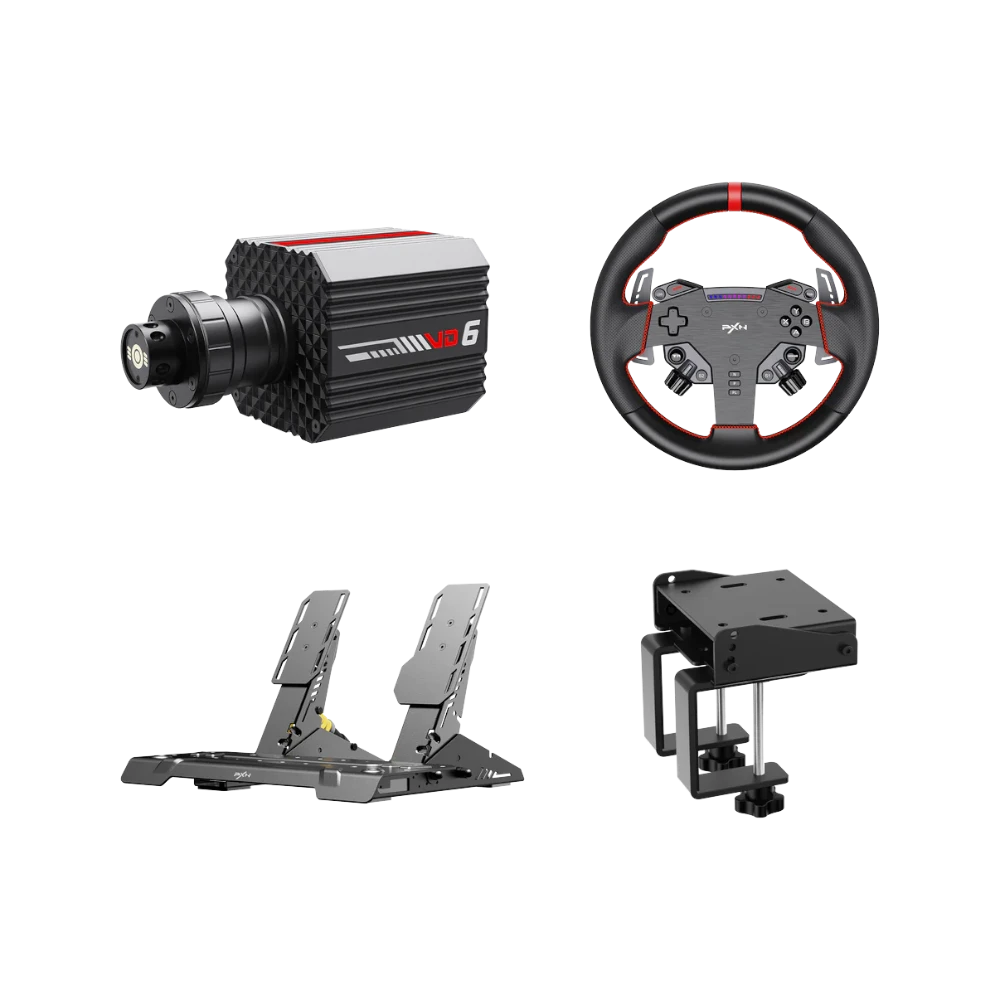

Accessories and contents of the PXN VD6 package

Price - 24%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The PXN VD6 Bundle is a sim racing package built around a 6 Nm constant torque (7 Nm peak) direct drive wheelbase, a 280 mm wheel and a two-pedal set with Hall effect sensors, compatible with PC and aimed at drivers stepping up from a belt or gear-driven base.

The VD6 base uses a 20-pole low-inertia direct drive servo motor, a 24-bit magnetic encoder and the PXN Sense+ algorithm, which shapes the force feedback response. Its aluminium chassis includes intelligent temperature control to keep torque stable through long stints, and the whole set is tuned from the PXN SimRacing software. It is a solid starting point for building a racing simulator without giving up direct drive.

PXN VD6 Bundle key features

6 Nm of constant torque and 7 Nm peak from a 20-pole low-inertia direct drive servo motor, with no belts or gears in between.
24-bit magnetic encoder for precise position reading and rotation free of steps.
PXN Sense+ algorithm, which dynamically adapts the force feedback response to how the car behaves.
Steering angle adjustable from 90° to 2700° in software, moving from a GT to a rally car without touching the hardware.
280 mm, 1,050 g wheel with aluminium alloy paddle shifters.
Two-pedal set with Hall effect sensors, with no physical contact in the sensor and therefore no wear.
PXN Quick Release to fit and remove the wheel without tools.
Intelligent temperature control over an aluminium chassis, to sustain performance through long sessions.

Technical specifications

Specification	Value
Model	VD6 Bundle
Constant torque	6 Nm
Peak torque	7 Nm
Motor	20-pole low-inertia direct drive servo motor
Encoder	24-bit magnetic
Force feedback algorithm	PXN Sense+
Steering angle	Adjustable from 90° to 2700°
Cooling	Intelligent temperature control, aluminium chassis
Wheel mounting	PXN Quick Release
Wheel diameter	280 mm
Wheel weight	1,050 g
Paddle shifters	Aluminium alloy
Pedal set	2 pedals (throttle and brake) with Hall effect sensors
Software	PXN SimRacing (PC)
Platform	PC (Windows)
PC mode	D-input
Connection	Wired (USB) with power adapter
In the box	VD6 base, W AS wheel, PD HM 2-pedal set, table clamp, power adapter, cable, toolkit and user manual
Warranty	12 months

Compatibility

Platform: PC running Windows. It is not compatible with PlayStation or Xbox.
Games: PC sim racing titles such as iRacing, Assetto Corsa, the F1 series, WRC or Euro Truck Simulator 2.
Software: PXN SimRacing, for force feedback curves, steering angle, button mapping and profiles.
Mounting: on a desk with the clamp supplied, or bolted to a cockpit using the mounting points on the base.
Expansion: PXN sells the PD HM clutch pedal separately to complete the pedal set.

PXN VD6 Bundle frequently asked questions

Does the PXN VD6 Bundle work on PS5 or Xbox?

No. PXN only states compatibility with PC running Windows, so the package does not work on PlayStation or Xbox.

What exactly does the PXN VD6 package include?

The VD6 direct drive base, the 280 mm W AS wheel, the PD HM two-pedal set, a table clamp, the power adapter, the cable, a toolkit and the user manual. No clutch pedal is included.

How much torque does the VD6 base deliver?

6 Nm of constant torque and 7 Nm of peak torque, figures PXN places in the middle of its direct drive range, above the 4 Nm VD4.

Can the PXN VD6 wheel be swapped for another one?

Yes. The base uses PXN's own Quick Release system, so it takes PXN wheels prepared for that mounting.

Does the PXN VD6 need a separate power supply?

Nothing else to buy: the package includes its power adapter. The USB cable only handles the data connection to the computer.

Can the PXN VD6 be mounted on a cockpit?

Yes. Beyond the table clamp supplied, the base has mounting points to bolt it to a cockpit or a rigid stand.
