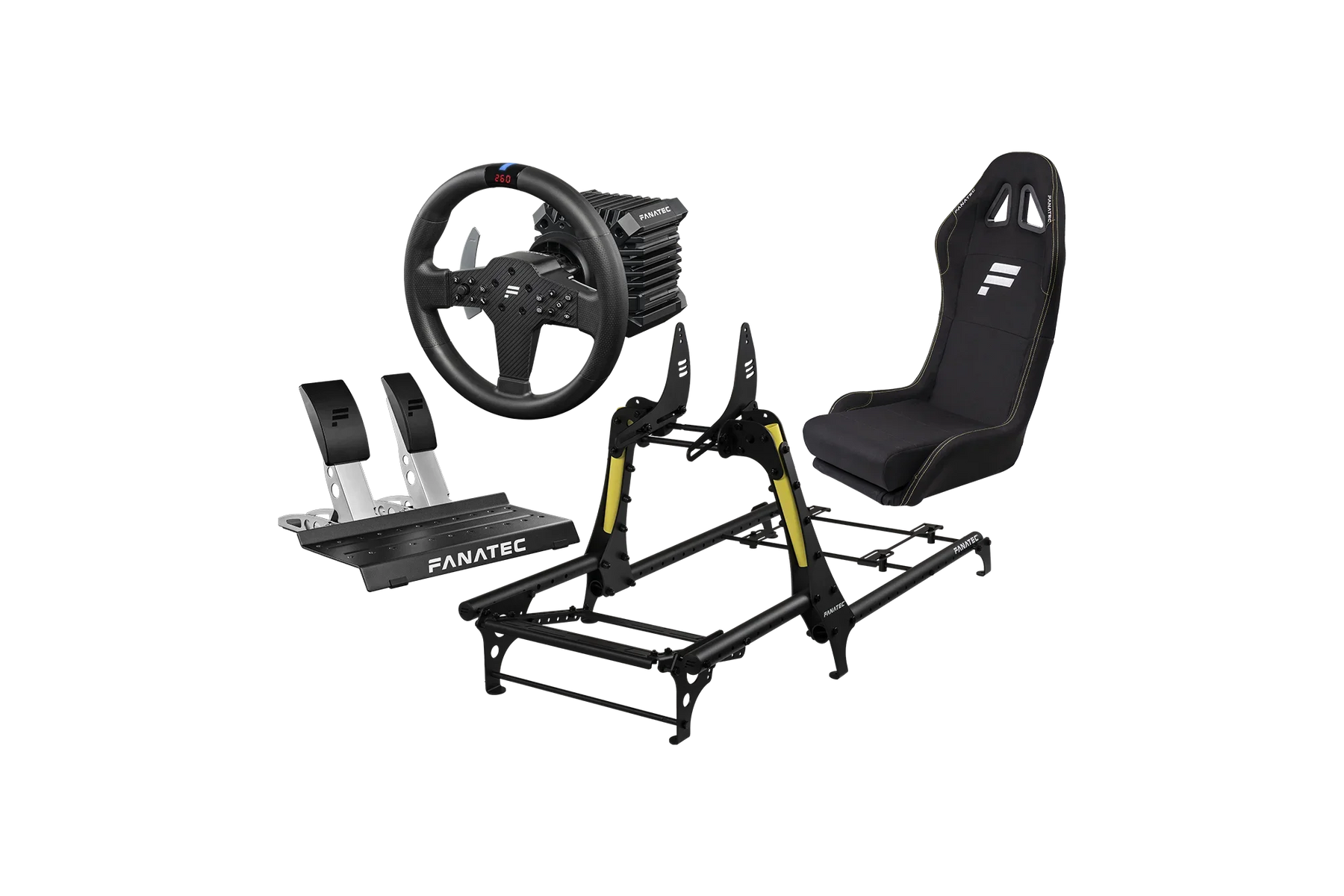

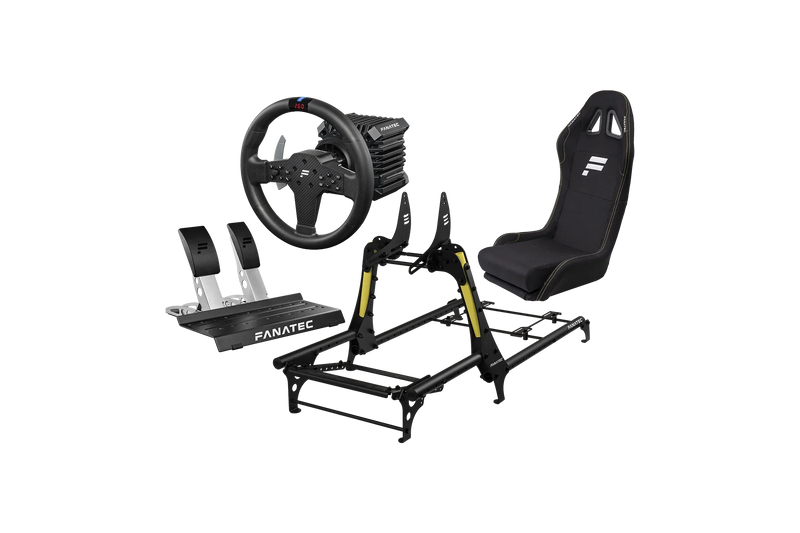

Fanatec CSL Cockpit + CSL DD 5 Nm Ready2Race bundle: complete simulator with cockpit, seat, wheel, wheelbase and pedals for PC

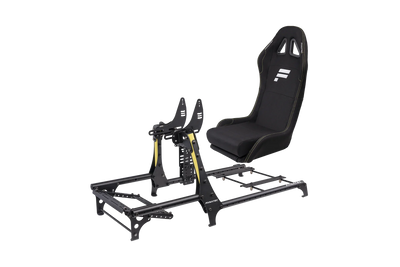

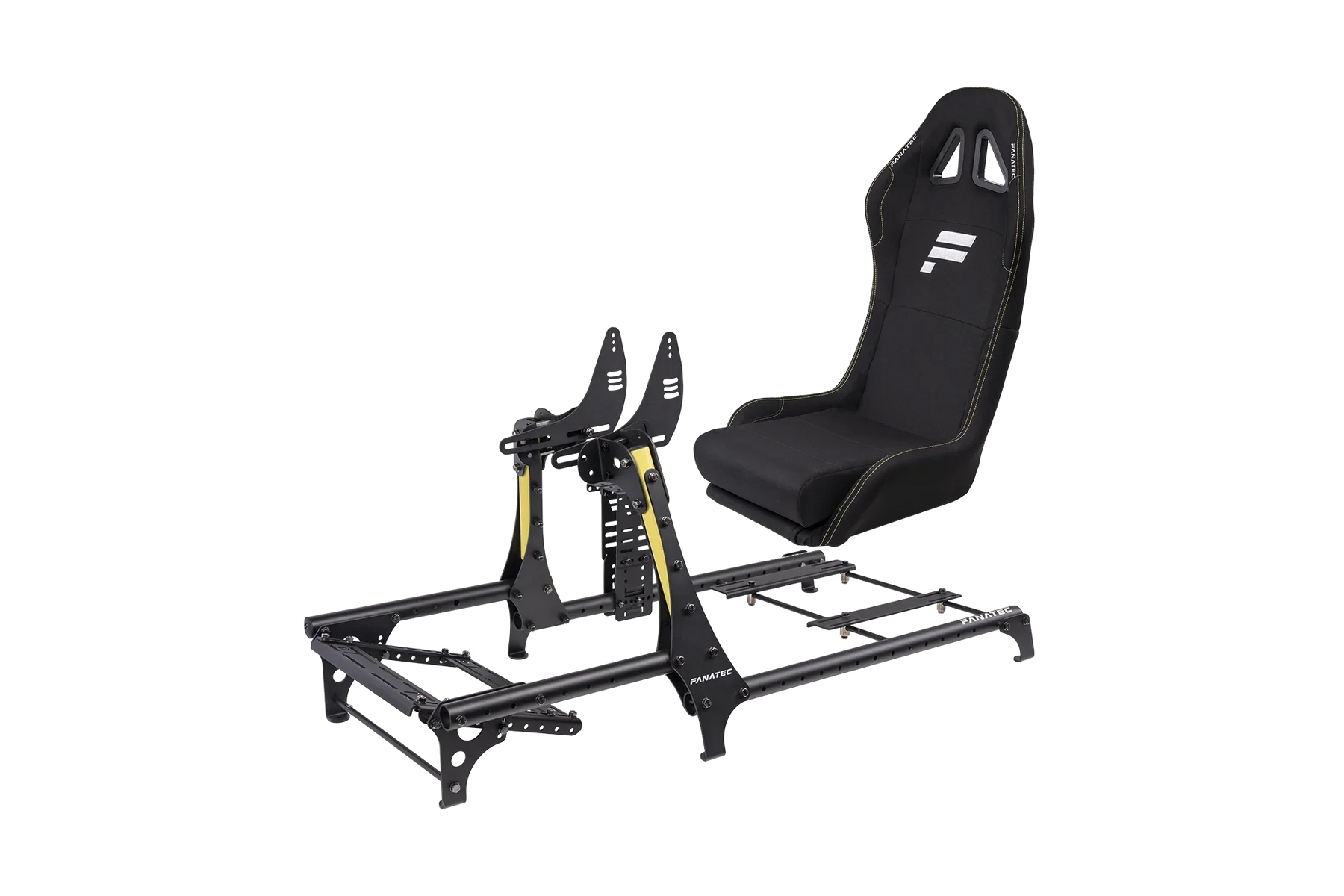

Fanatec CSL cockpit with included seat and trapeze aluminium and steel frame

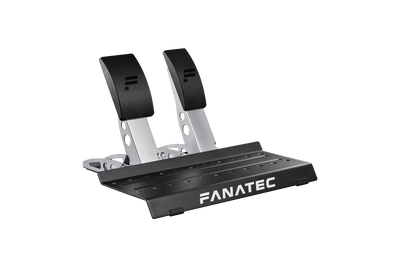

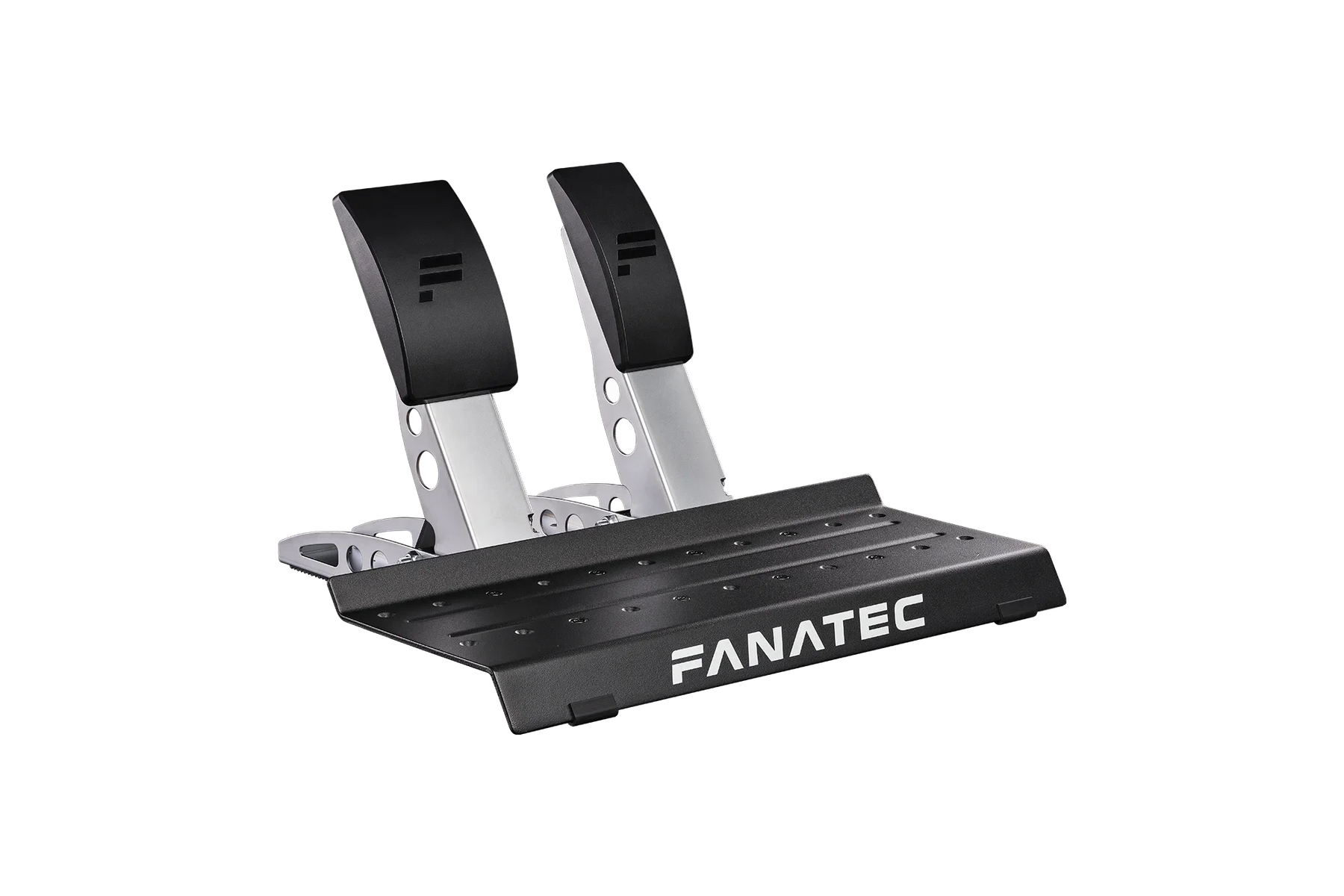

Steel Fanatec CSL pedal set with 12-bit Hall sensors

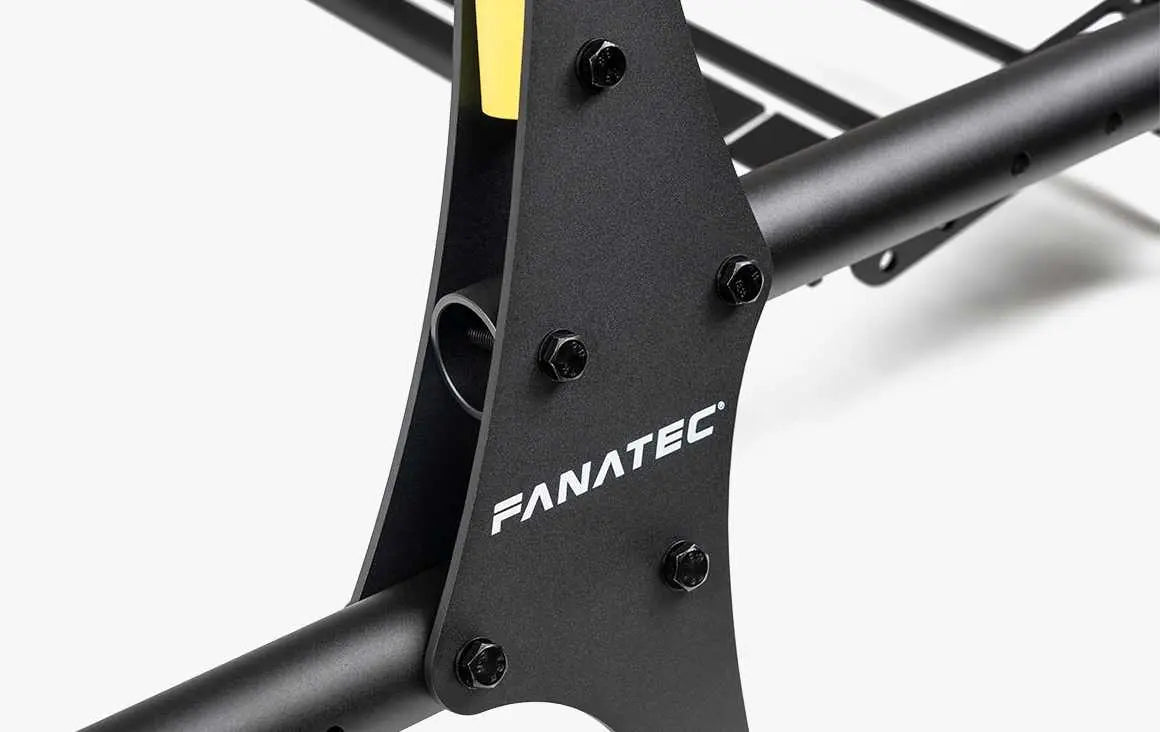

Detail of the CSL Cockpit frame with aluminium tubing and steel brackets

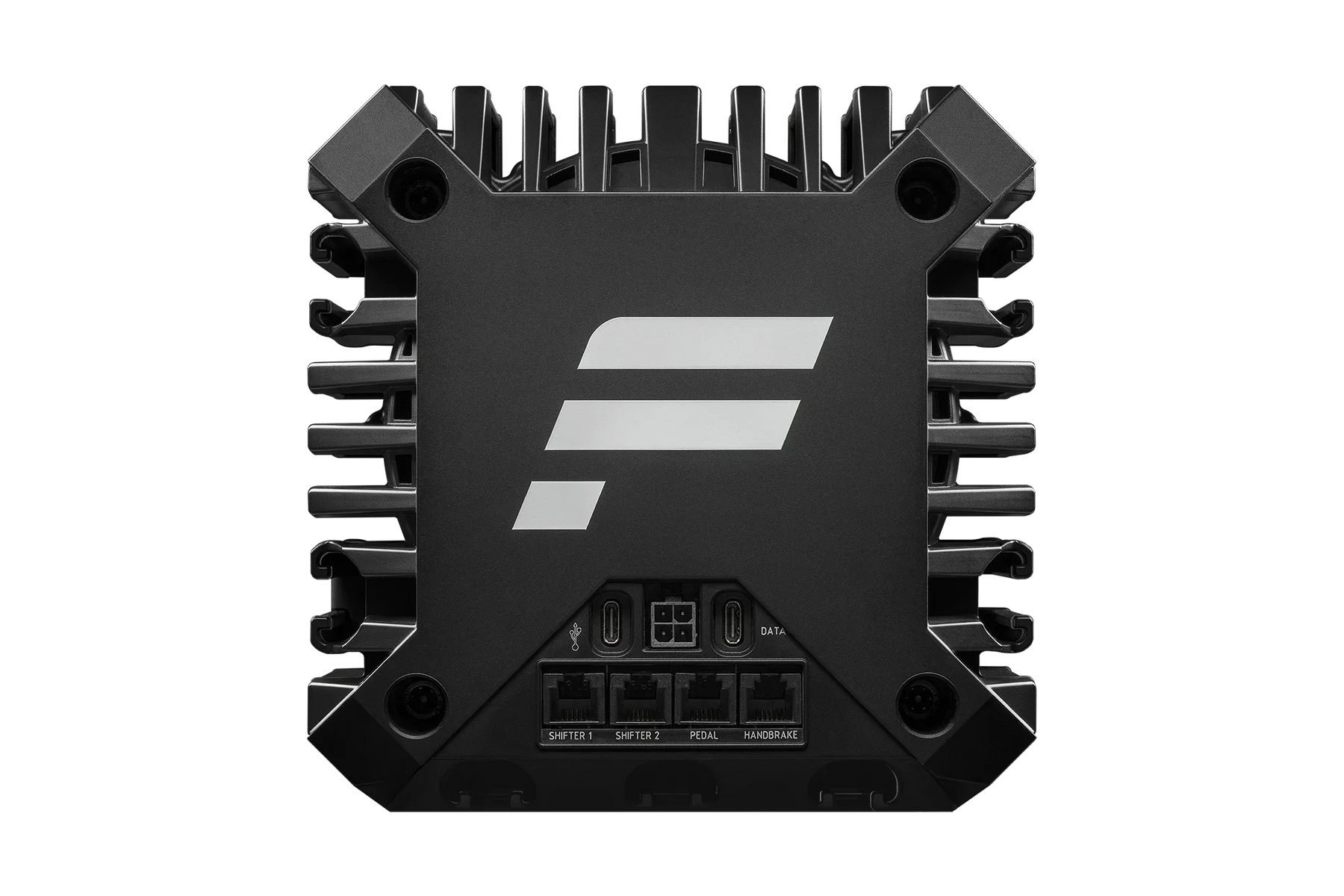

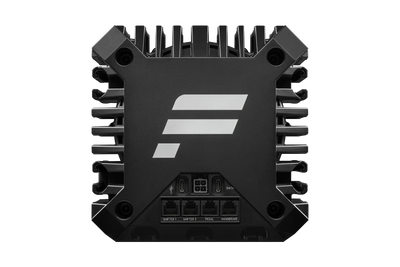

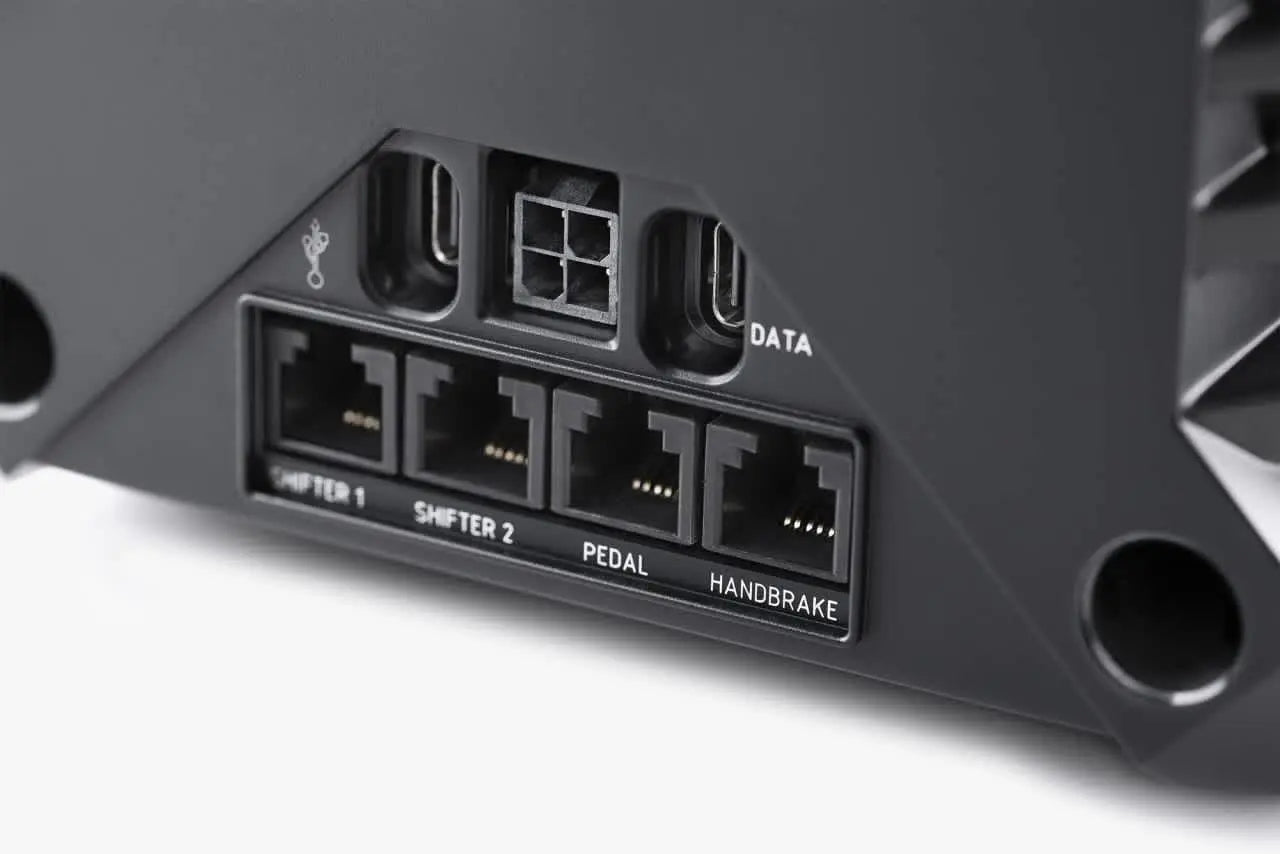

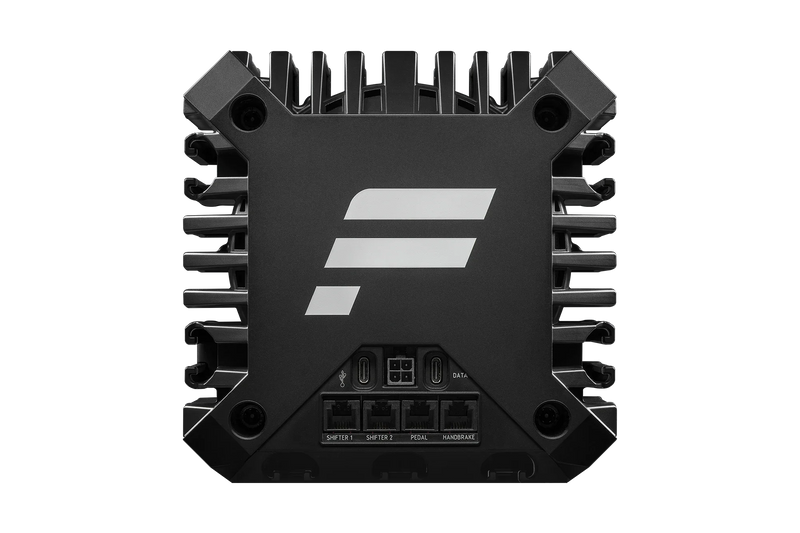

CSL DD base ports: USB-C, DataPort-C, shifter, pedals and handbrake

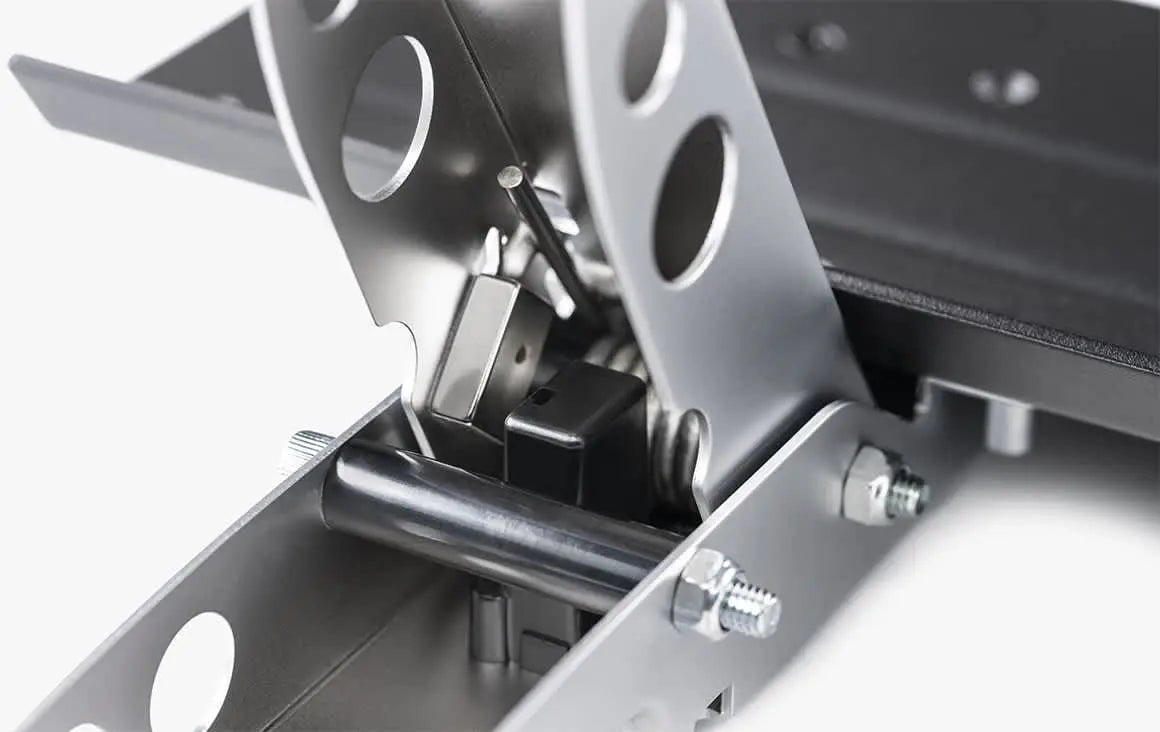

Detail of the CSL brake pedal with stiff spring and progressive PU foam

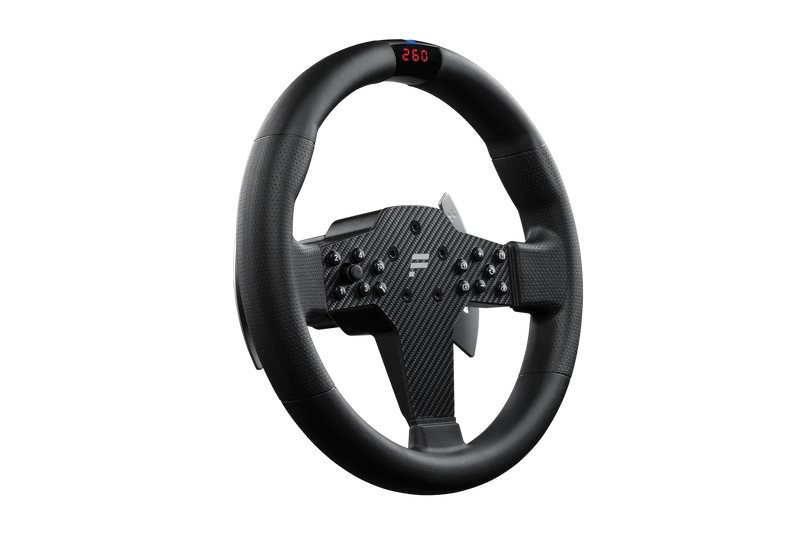

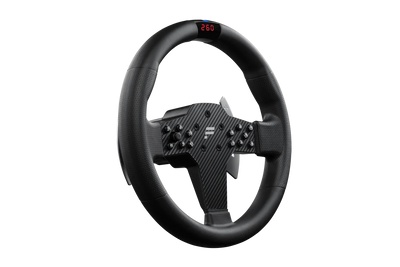

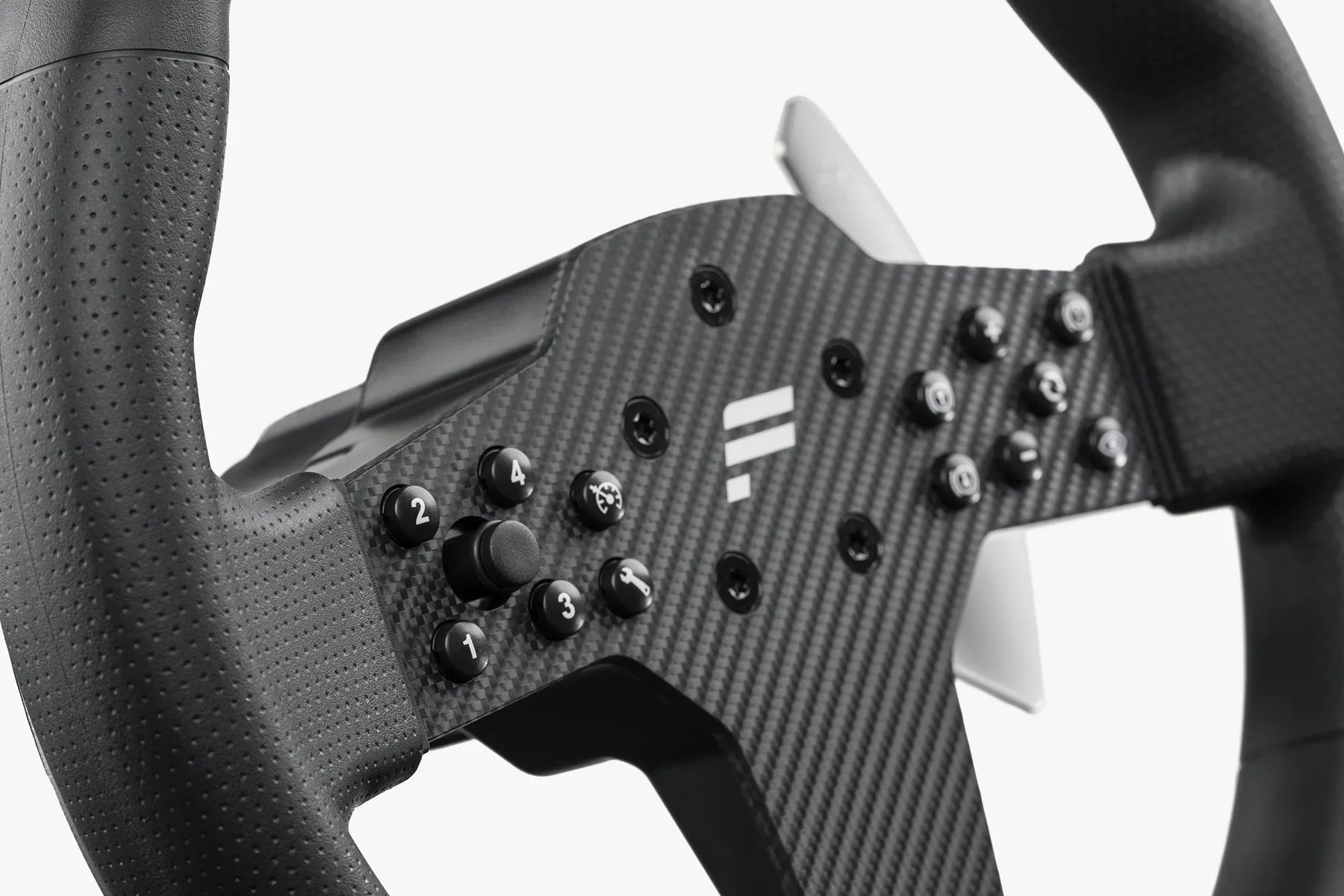

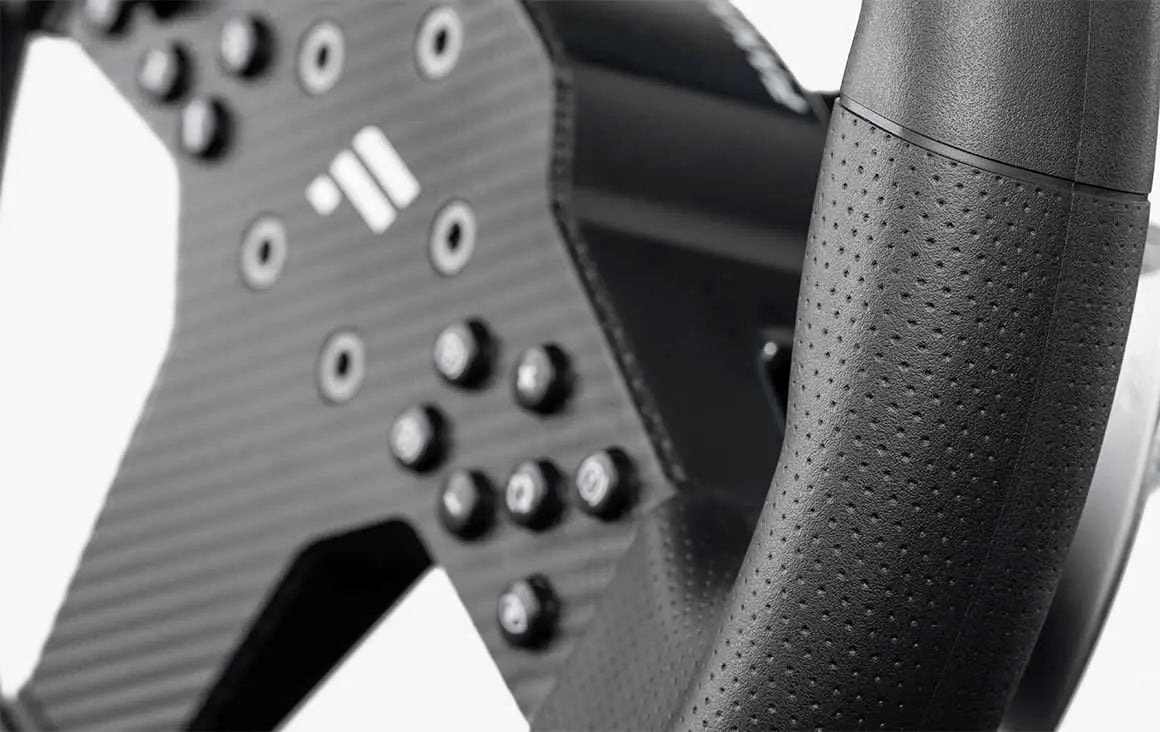

Fanatec CSL P1 V2 wheel, 300 mm, with ergonomic rubberised rim

RevStripe and three-digit LED display on the CSL P1 V2 wheel

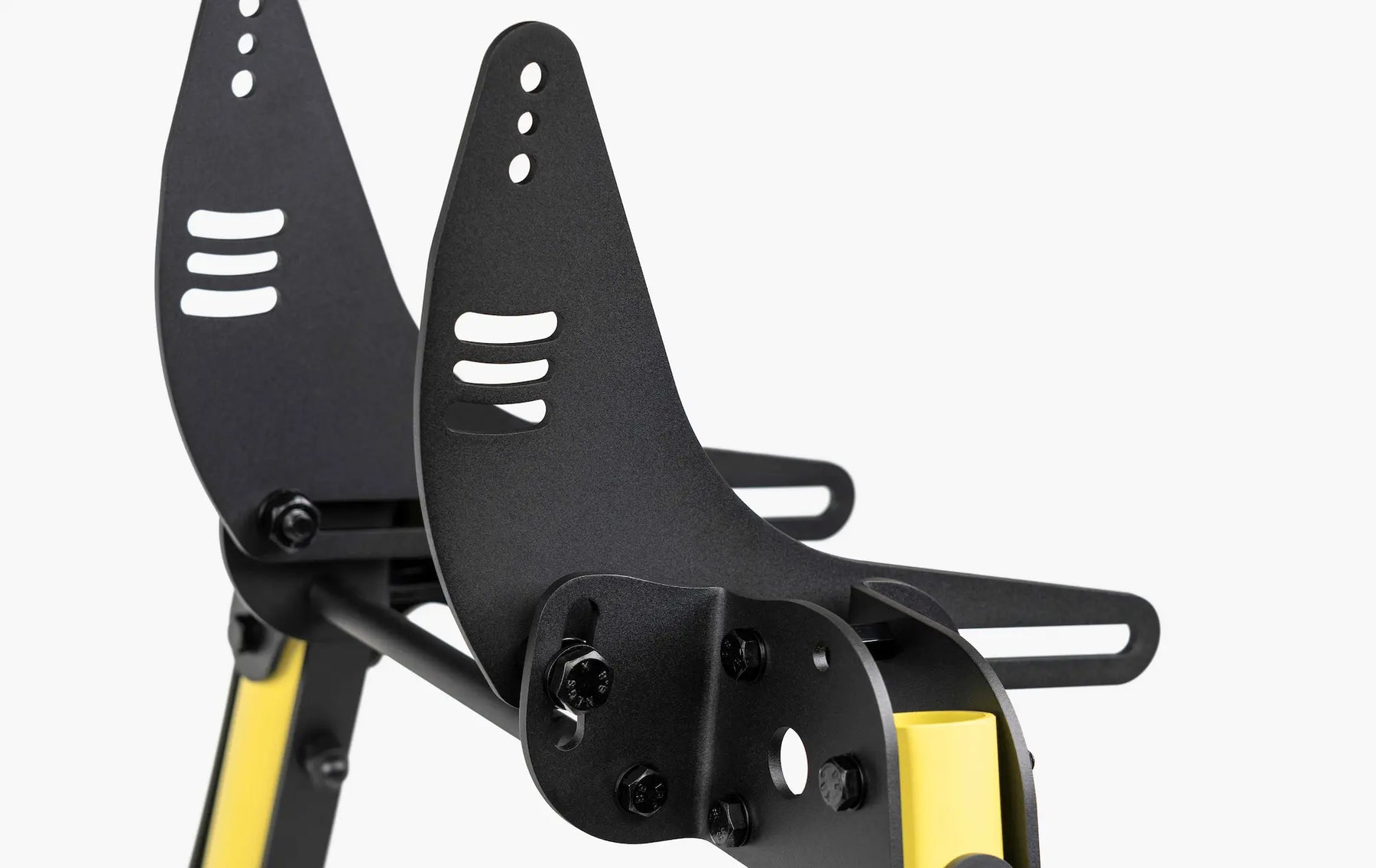

CSL Cockpit wheelbase bracket with height, angle and distance adjustment

CSL Cockpit Seat matching the cockpit frame

Inverted wheelbase bracket of the CSL Cockpit for a karting position

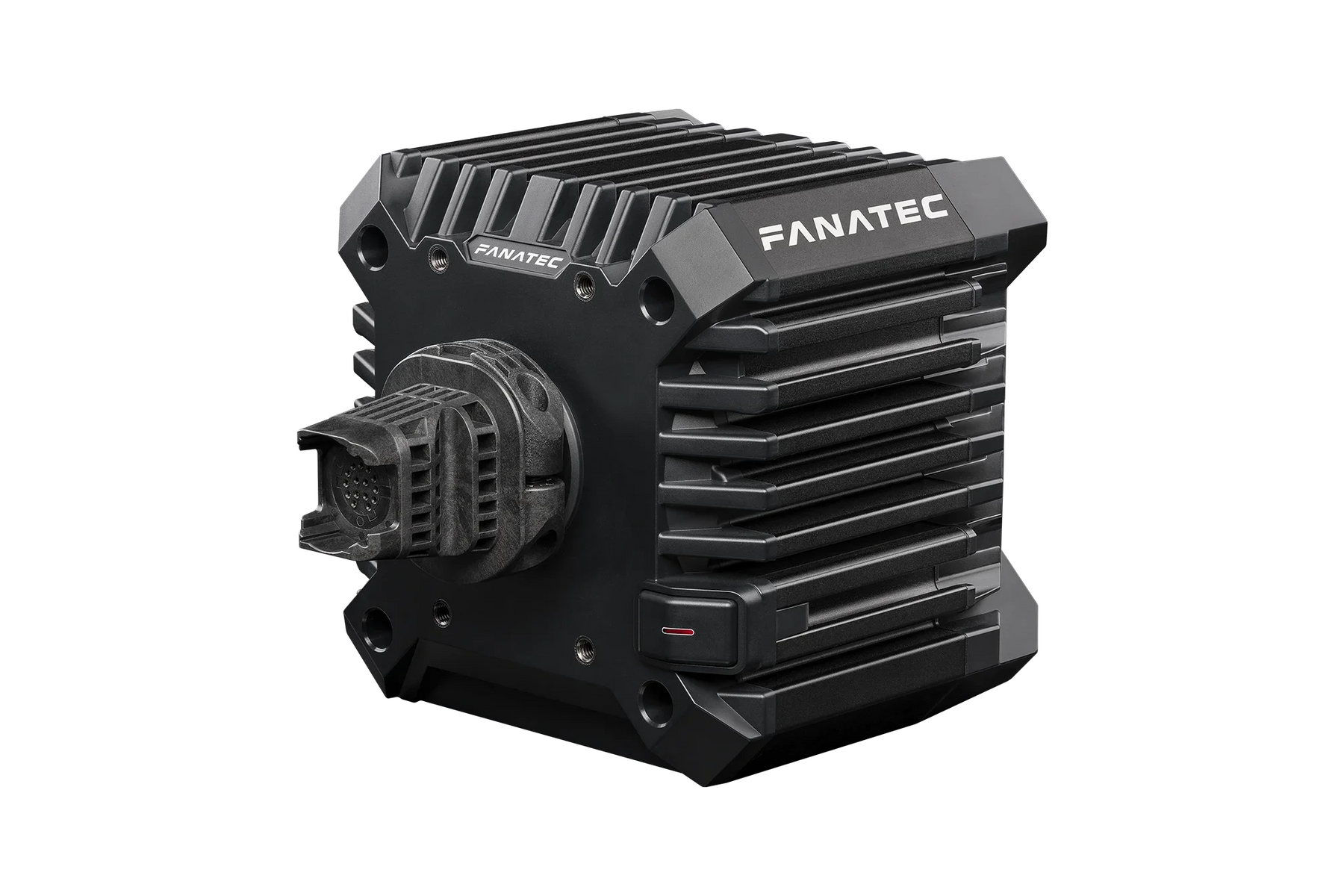

Fanatec CSL DD 5 Nm wheelbase with QR2 Lite preinstalled

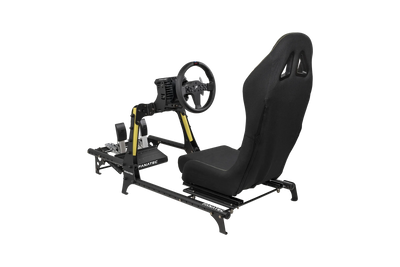

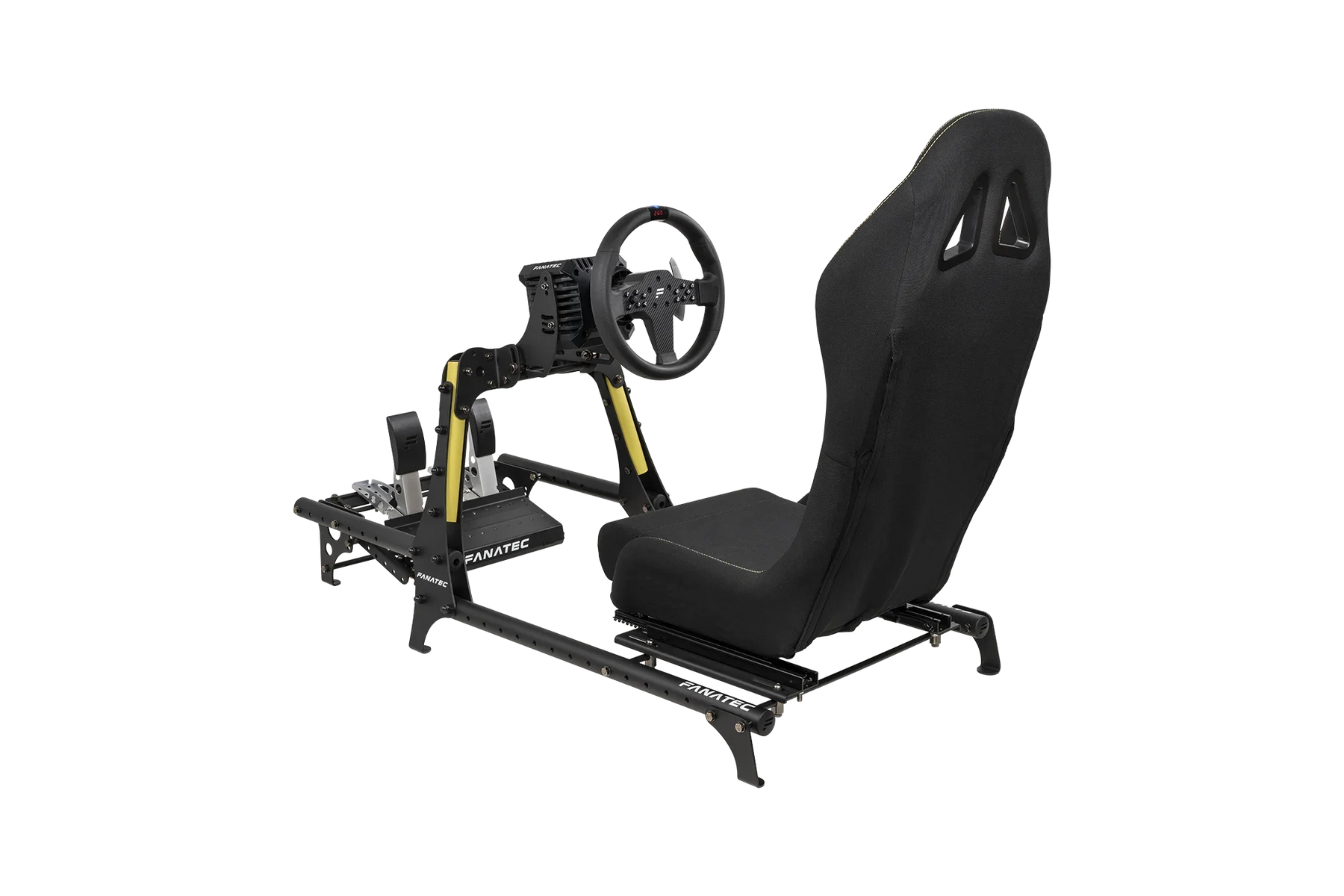

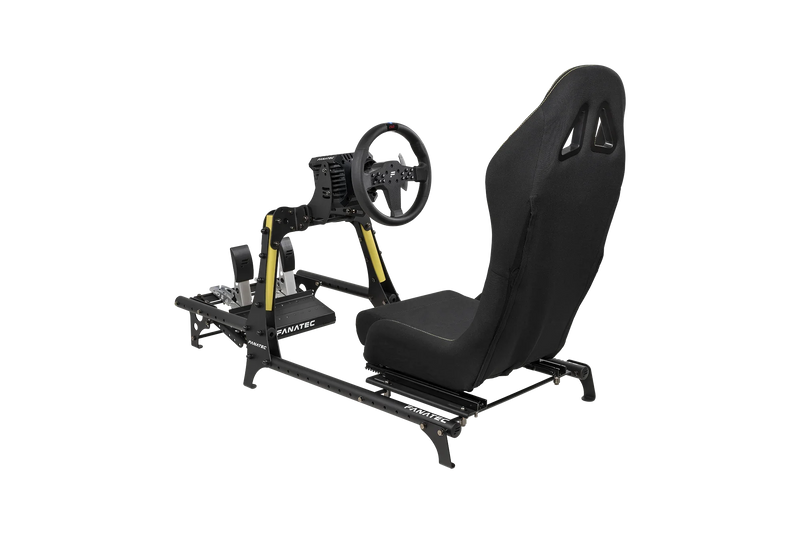

Fanatec CSL Cockpit Ready2Race bundle assembled and ready to race

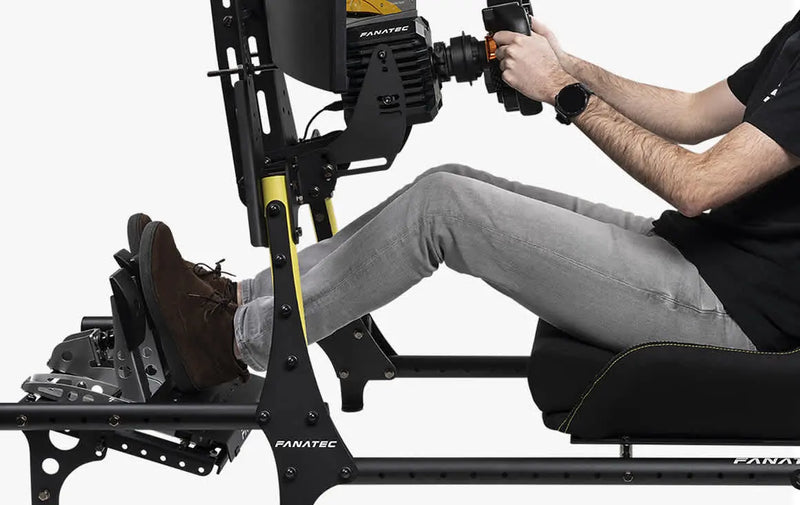

GT driving position on the Fanatec CSL Cockpit Ready2Race bundle

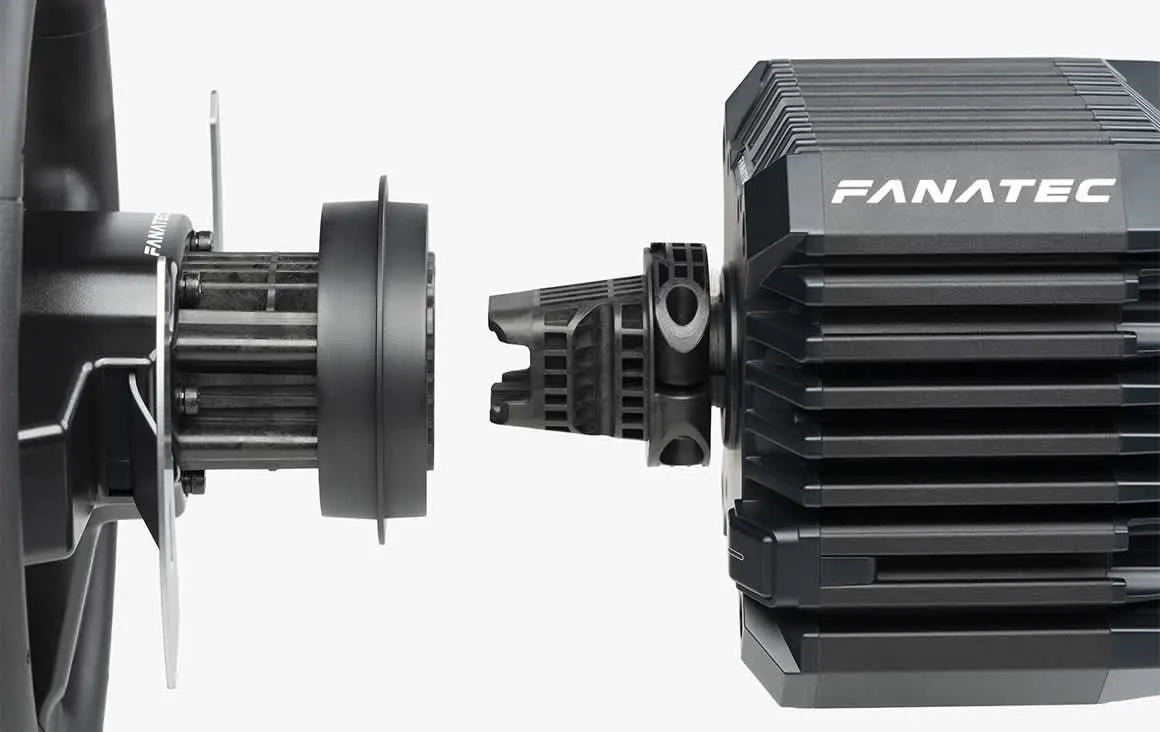

Detail of the QR2 Lite quick release on the CSL DD bundle

Cable management through the hollow tubing of the CSL Cockpit

Please note that pre-order products may arrive later.

Price - 18%

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

ESTIMATED DATE

PRE-ORDER ITEM

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The Fanatec CSL Cockpit + CSL DD 5 Nm Ready2Race bundle is a complete racing simulator for PC: the CSL cockpit with seat included, the CSL P1 V2 steering wheel, the 5 Nm CSL DD Direct Drive wheelbase with QR2 Lite and the steel CSL pedal set — everything ready to assemble and start driving.

It is the most direct way to get into a Direct Drive simulator without hunting for parts or worrying about compatibility: one of the most complete bundles by Fanatec, built around one of the best-selling direct drive wheelbases on the market and a chassis that grows with you.

Key features of the CSL Cockpit + CSL DD bundle

CSL cockpit with a trapeze chassis of aluminium tubing and steel brackets, able to handle any Fanatec Direct Drive wheelbase, including the 25 Nm Podium DD2.
CSL Cockpit Seat included, matching the frame, plus support for most standard racing seats such as the SPARCO R100 QRT.
Wheelbase bracket with 3 height options, stepless 0–30° angle and 80 mm of travel towards the seat; it can be inverted for a karting position.
5 Nm CSL DD wheelbase with FluxBarrier, a high-resolution Hall sensor as on the Podium Series and up to 2,520° of rotation, expandable to 8 Nm with the optional Boost Kit 180.
300 mm CSL P1 V2 wheel with RevStripe, three-digit LED display, snap-dome metal paddles and QR2 Lite; steel CSL pedal set with 12-bit Hall sensors.
Cable management through the hollow tubing, two sets of protective foot pads (felt and rubber) and easy assembly with the included tools.

Technical specifications

Feature	Details
Contents	CSL Cockpit V1.5, CSL Cockpit Seat, CSL P1 V2 wheel, CSL DD 5 Nm wheelbase and CSL Pedals
Chassis	Trapeze design: aluminium tubing and steel brackets with black and yellow powder coating
Stiffness	Rated for every Fanatec Direct Drive wheelbase, up to the 25 Nm Podium DD2
Driving position	Classic GT, ideal for GT, oval, drift and rally; invertible bracket for karting
Bracket adjustment	3 height options, stepless 0–30° angle and 80 mm of seat-distance travel
Seat	CSL Cockpit Seat included; supports standard seats such as the SPARCO R100 QRT
Pedal plate	Reinforced, built for the forces of a load cell brake
Wheelbase	Fanatec CSL DD, 5 Nm peak Direct Drive with FluxBarrier
Torque upgrade	Optional Boost Kit 180: up to 8 Nm peak
Steering sensor	High-resolution contactless Hall sensor, the same type as the Podium Series
Rotation	Up to 2,520°, electronically limited and adjustable
Quick Release	QR2 Lite Wheel-Side and QR2 Lite Base-Side (Type-C) preinstalled
Steering wheel	300 mm CSL P1 V2 with rubberised rim, RevStripe and three-digit LED display
Wheel controls	Snap-dome metal paddles, 4-way direction pad with push button and Tuning functions
Pedals	CSL Pedals: steel throttle and brake, upgradeable to three pedals
Pedal sensors	Contactless 12-bit Hall sensors; brake with stiffer spring and progressive PU foam
Base ports	Power, USB-C, DataPort-C, Shifter 1, Shifter 2 (sequential), Pedal and Handbrake
Extras	Cable management, tube caps with cable holes, felt and rubber foot pads and assembly tools

Compatibility

Platforms: PC (Windows) with all the major simulators. The CSL DD wheelbase becomes compatible with Xbox One and Xbox Series X|S when fitted with a Fanatec Xbox-licensed wheel (the included CSL P1 V2 is not). It is not compatible with PlayStation and cannot be upgraded to be.
Fanatec ecosystem: the wheelbase accepts every sim racing wheel with QR2 Lite, QR2 or QR2 Pro without torque restriction, Fanatec pedals with RJ12 connection, the ClubSport Shifter — including the Static Shifter Paddles — ClubSport handbrakes, the Boost Kit 180 and the rest of the brand's cockpits and mounts.

Frequently asked questions about the CSL Cockpit + CSL DD bundle

What exactly does this bundle include?

Five components: the CSL Cockpit V1.5, the CSL Cockpit Seat, the CSL Steering Wheel P1 V2 with QR2 Lite Wheel-Side preinstalled, the 5 Nm CSL DD wheelbase with QR2 Lite Base-Side preinstalled and the two-pedal CSL Pedals set.

Does it work on consoles?

As supplied, the bundle is designed for PC. The CSL DD wheelbase becomes compatible with Xbox One and Series X|S when used with a Fanatec Xbox-licensed wheel, sold separately. It is not compatible with PlayStation and cannot be upgraded.

Will the cockpit cope if I buy a stronger wheelbase later?

Yes. The CSL Cockpit chassis is designed for every Fanatec Direct Drive wheelbase, even the 25 Nm Podium DD2, and its pedal plate handles the forces of a load cell brake.

How do I go from 5 to 8 Nm?

By adding the Boost Kit 180, sold separately, which raises peak torque to 8 Nm. The wheelbase must only be used with the included 90 W power supply or that Boost Kit: any other power supply voids the warranty.

Can I add a third pedal or clutch?

Yes. The CSL pedal set is modular: the Clutch Kit adds an affordable third pedal, and the Load Cell Kit adds the third pedal while upgrading the brake to a load cell with improved electronics.

Can I fit a different seat to the cockpit?

Yes. Besides the included CSL seat, the cockpit supports most standard racing seats, such as the SPARCO R100 QRT.
