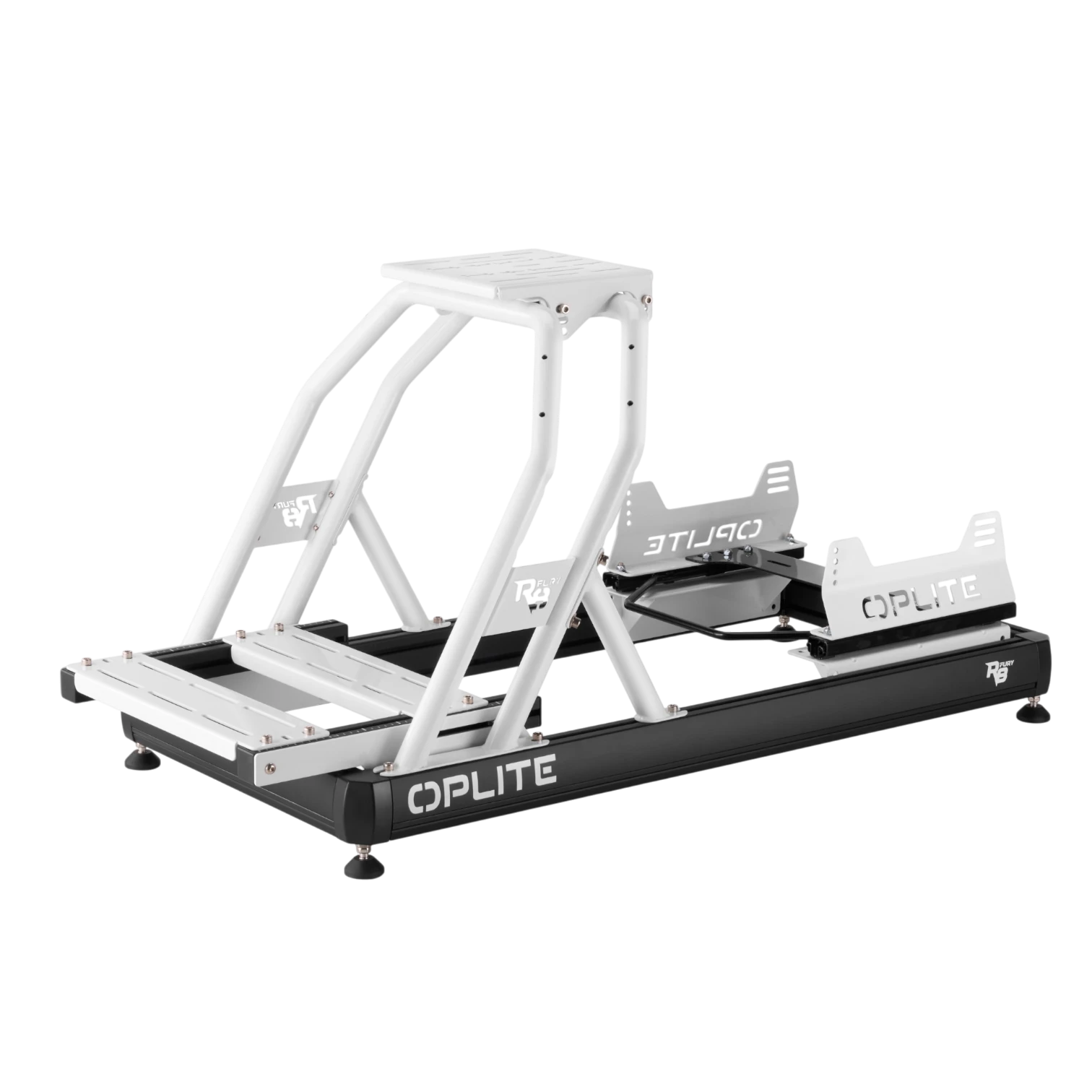

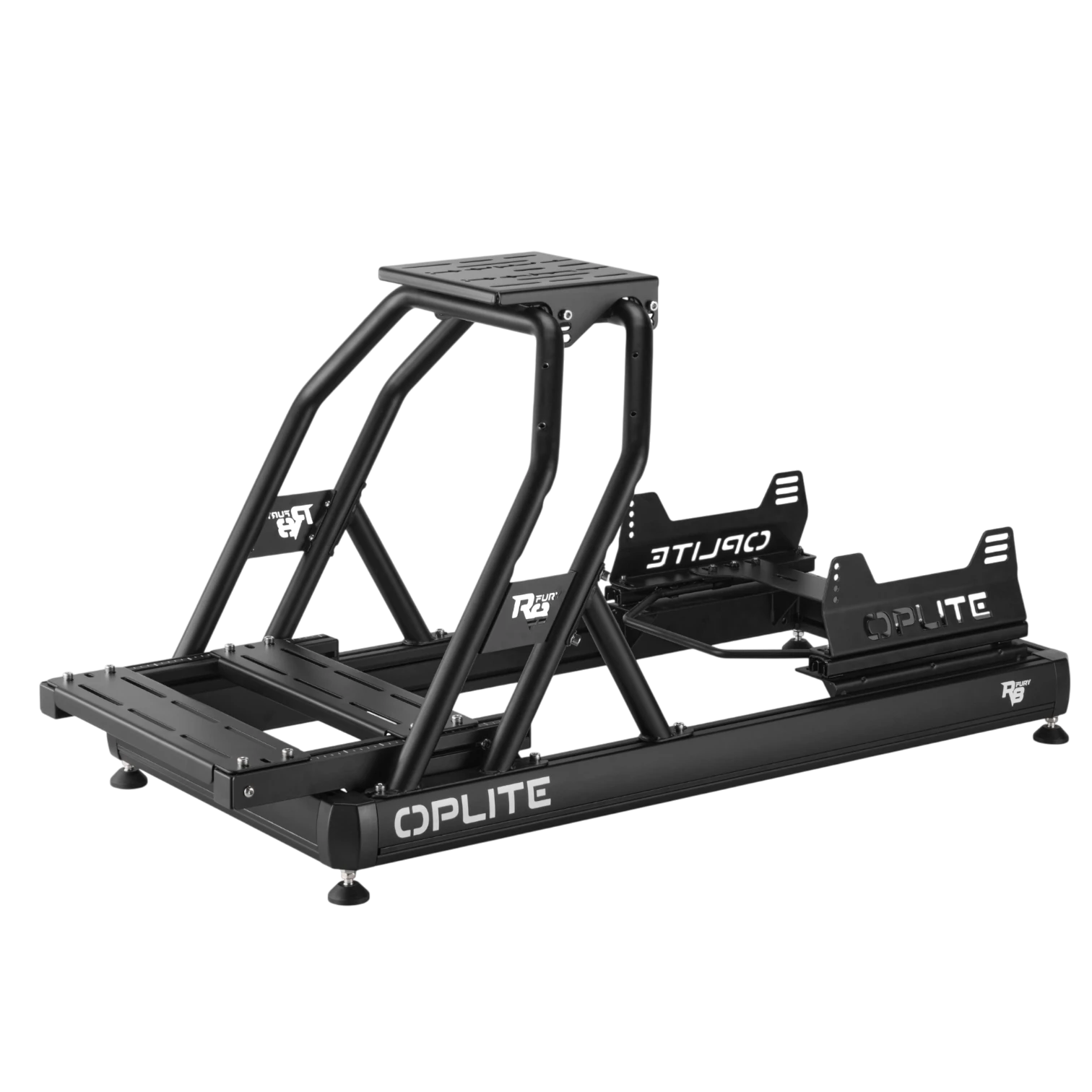

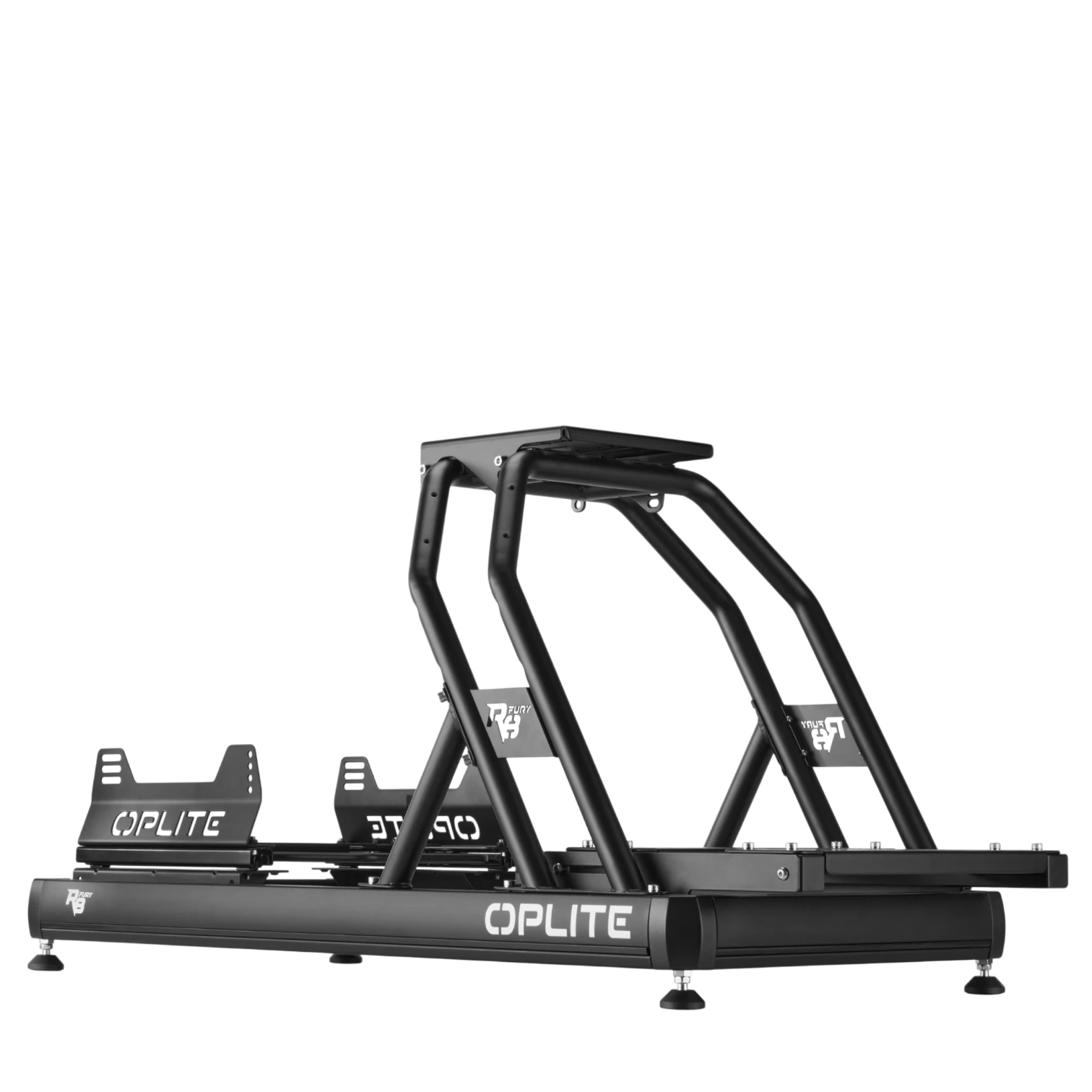

OPLITE R8 Fury hybrid aluminium-and-steel chassis without seat to build your rig

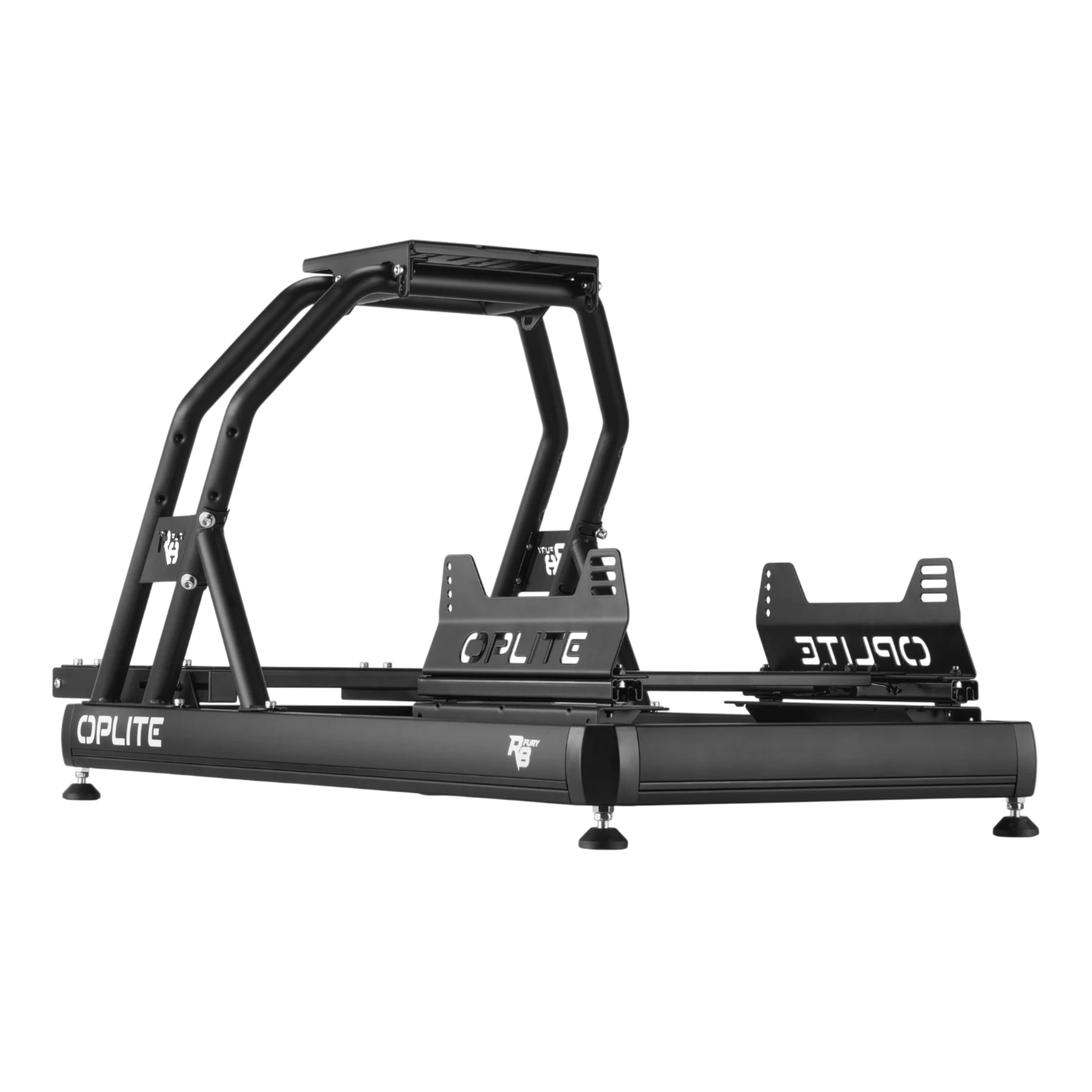

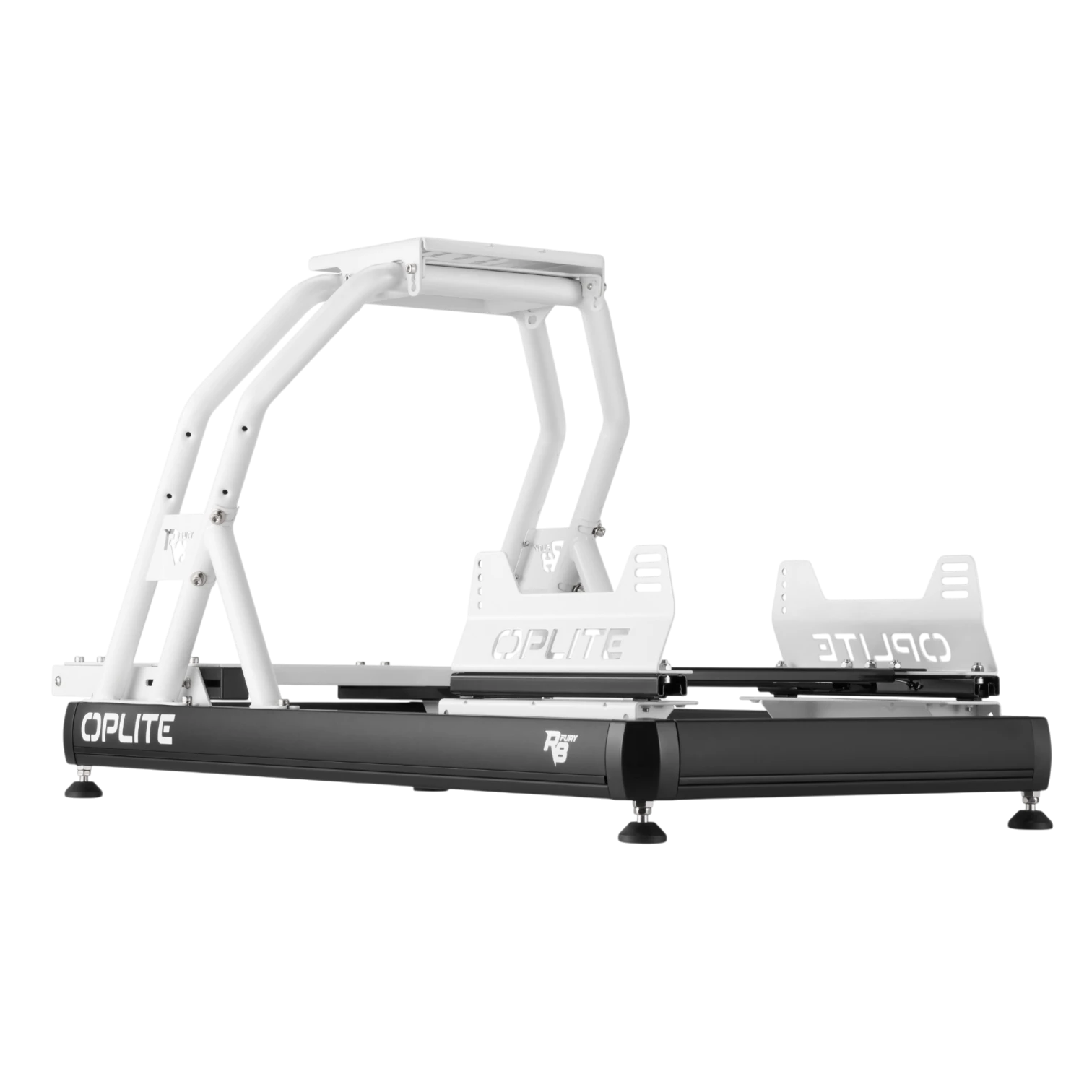

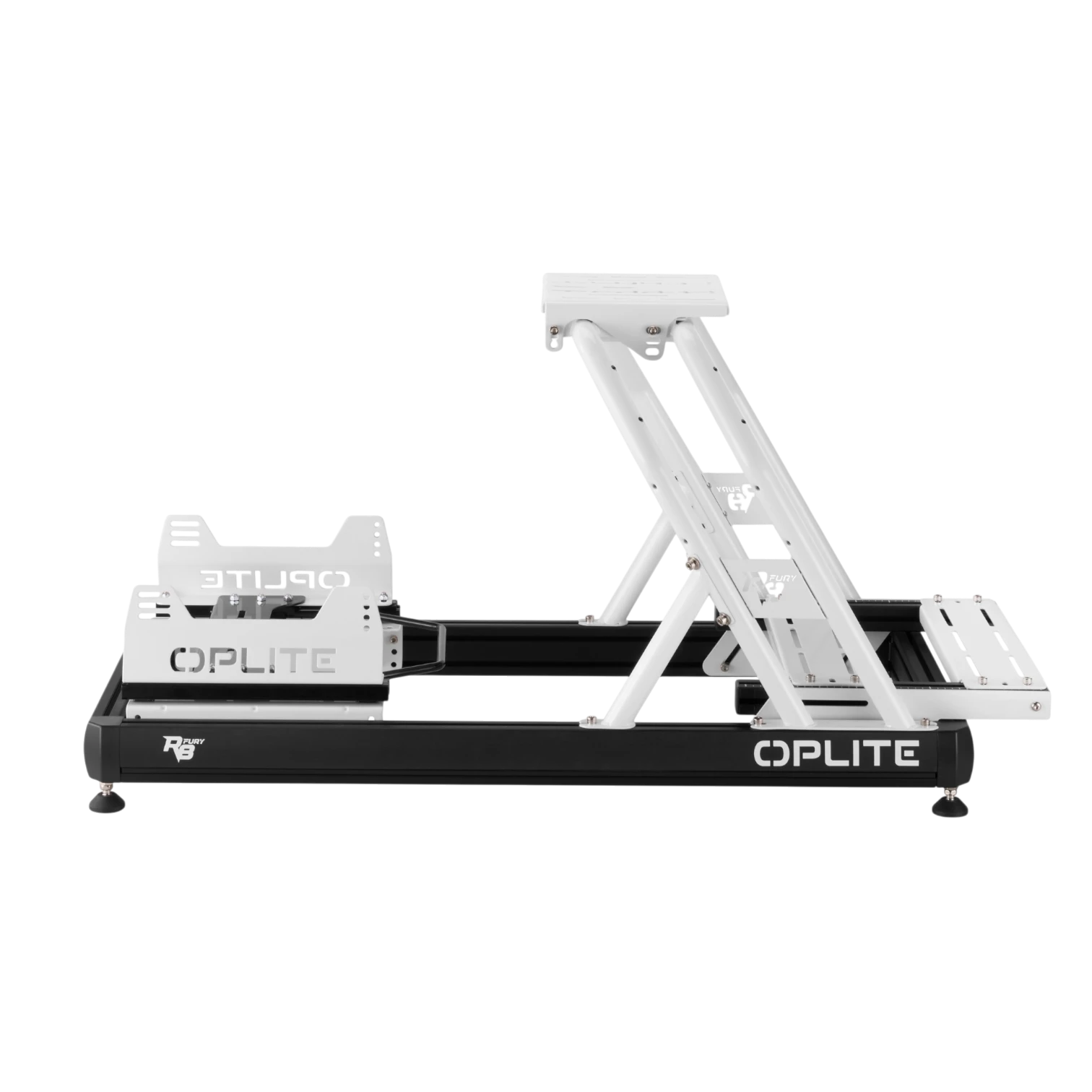

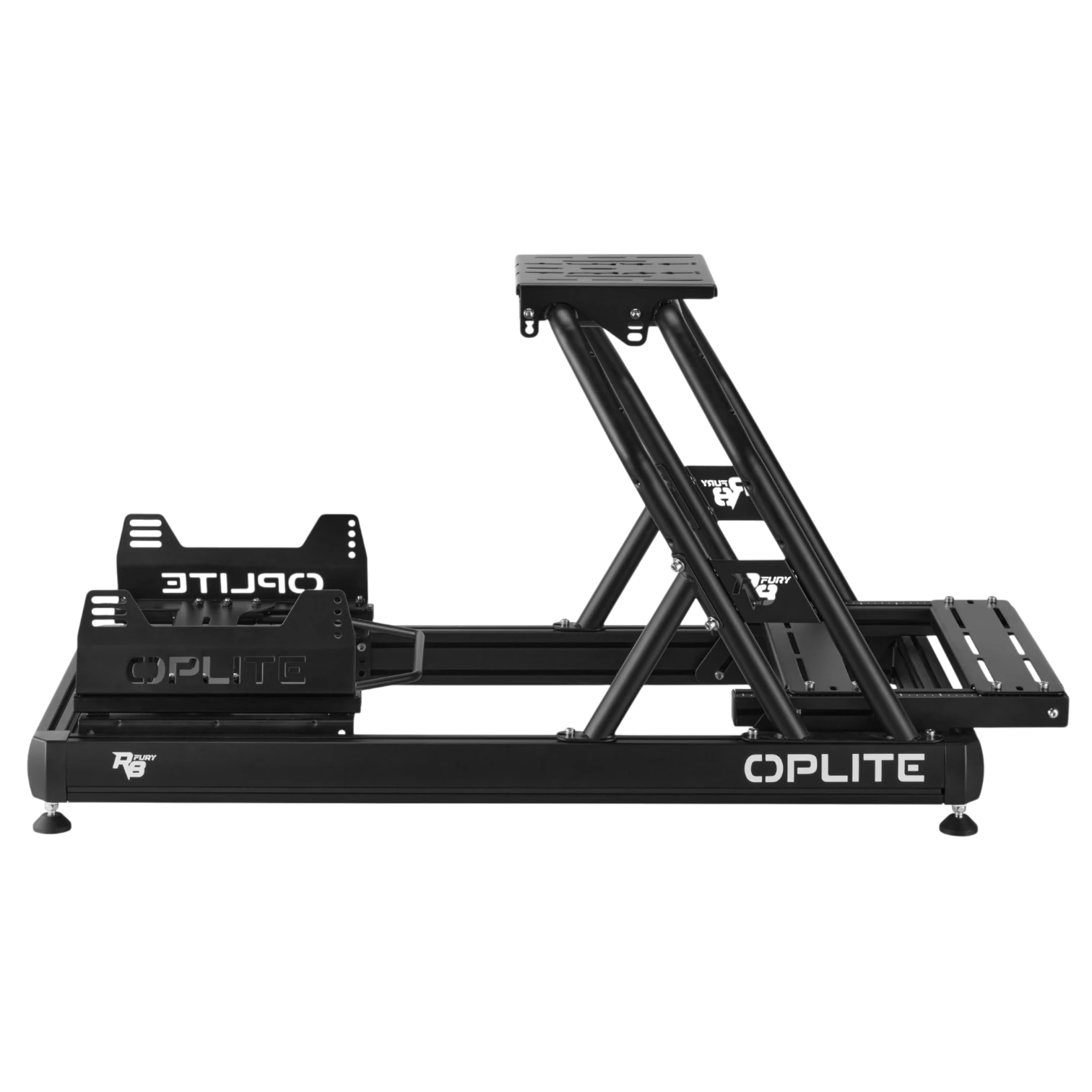

Side view of the compact OPLITE R8 Fury chassis with adjustable supports

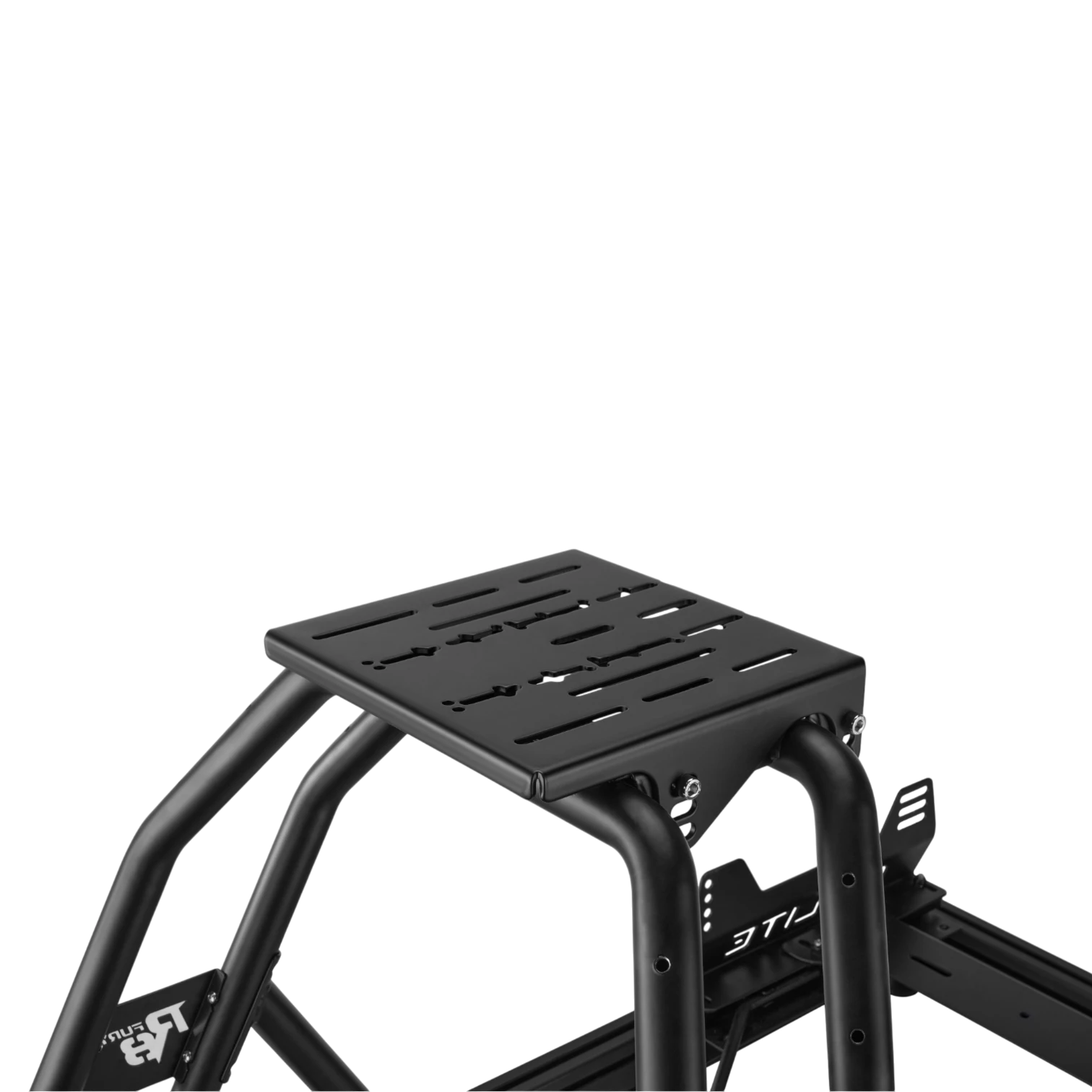

E355 steel wheel support of the OPLITE R8 Fury chassis adjustable for height

Aluminium pedal support of the OPLITE R8 Fury chassis for load cell

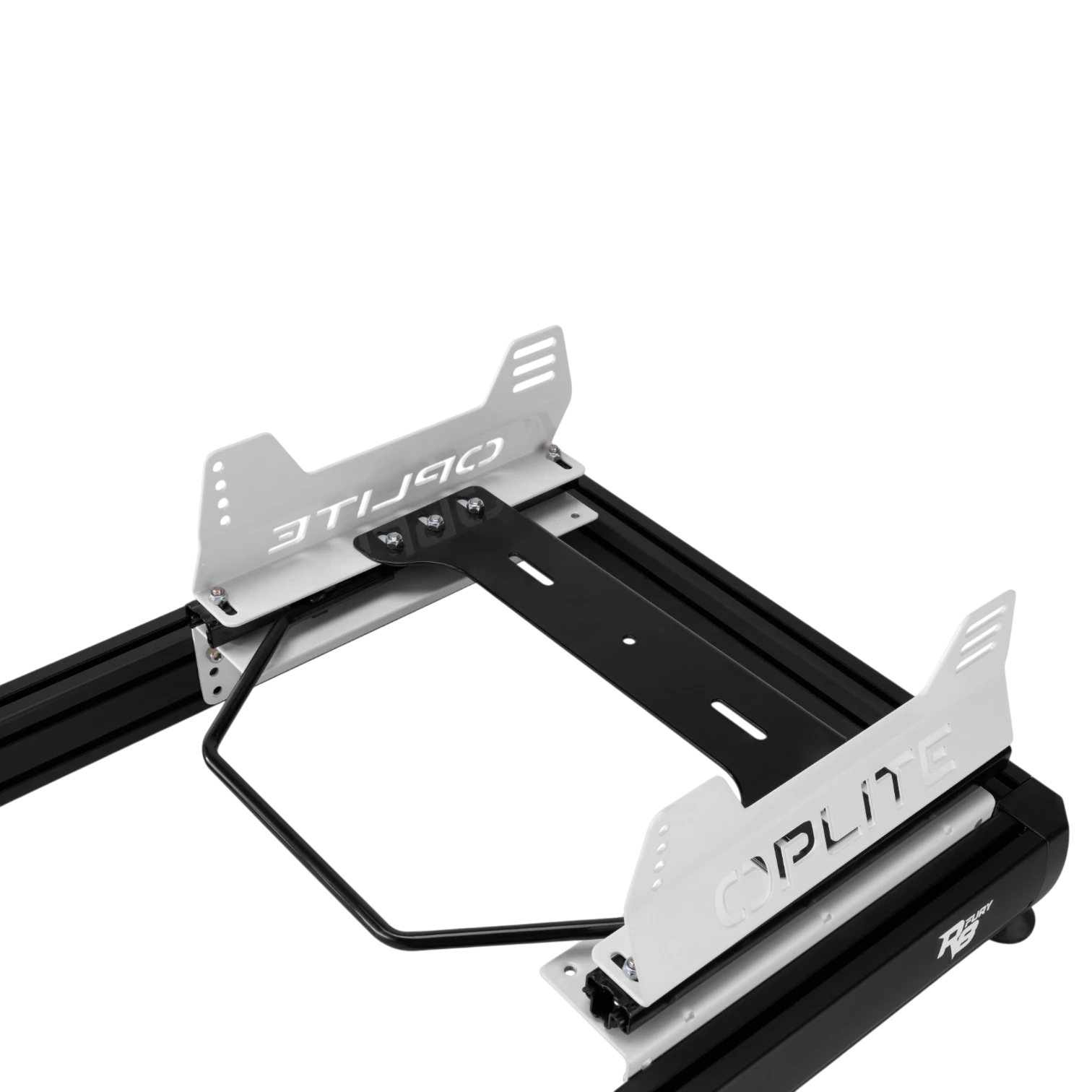

Seat rails of the OPLITE R8 Fury chassis with 220 mm depth adjustment

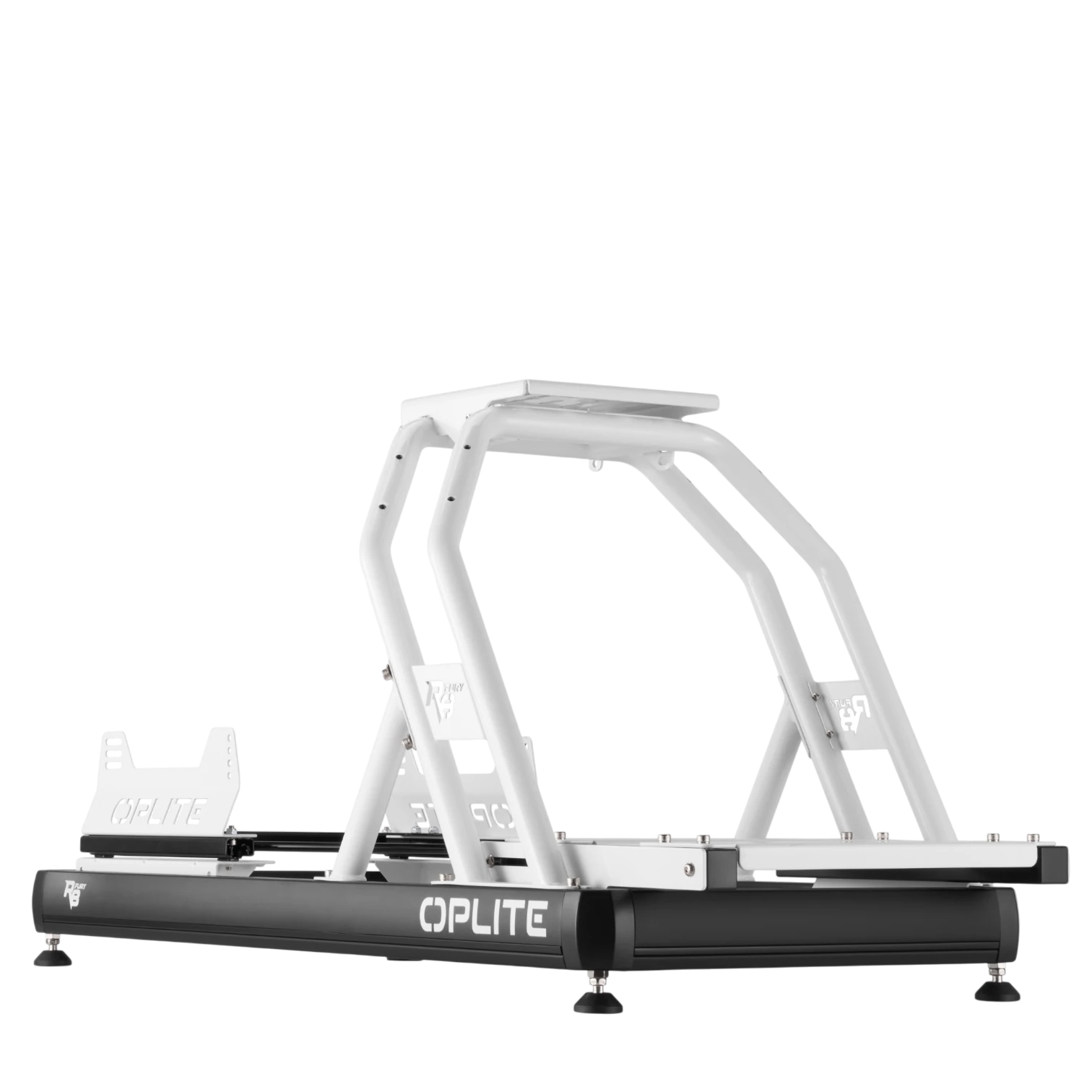

Three-quarter view of the OPLITE R8 Fury chassis with a Direct Drive wheelbase fitted

Swivel pads and nickel steel bolts of the OPLITE R8 Fury chassis

Front view of the OPLITE R8 Fury chassis without seat

Close-up of the tilting wheel support of the OPLITE R8 Fury chassis

Close-up of the adjustable pedal mount of the OPLITE R8 Fury chassis

OPLITE R8 Fury chassis structure ready for motion systems

OPLITE R8 Fury chassis with wheel and pedal supports installed

Top view of the compact OPLITE R8 Fury chassis

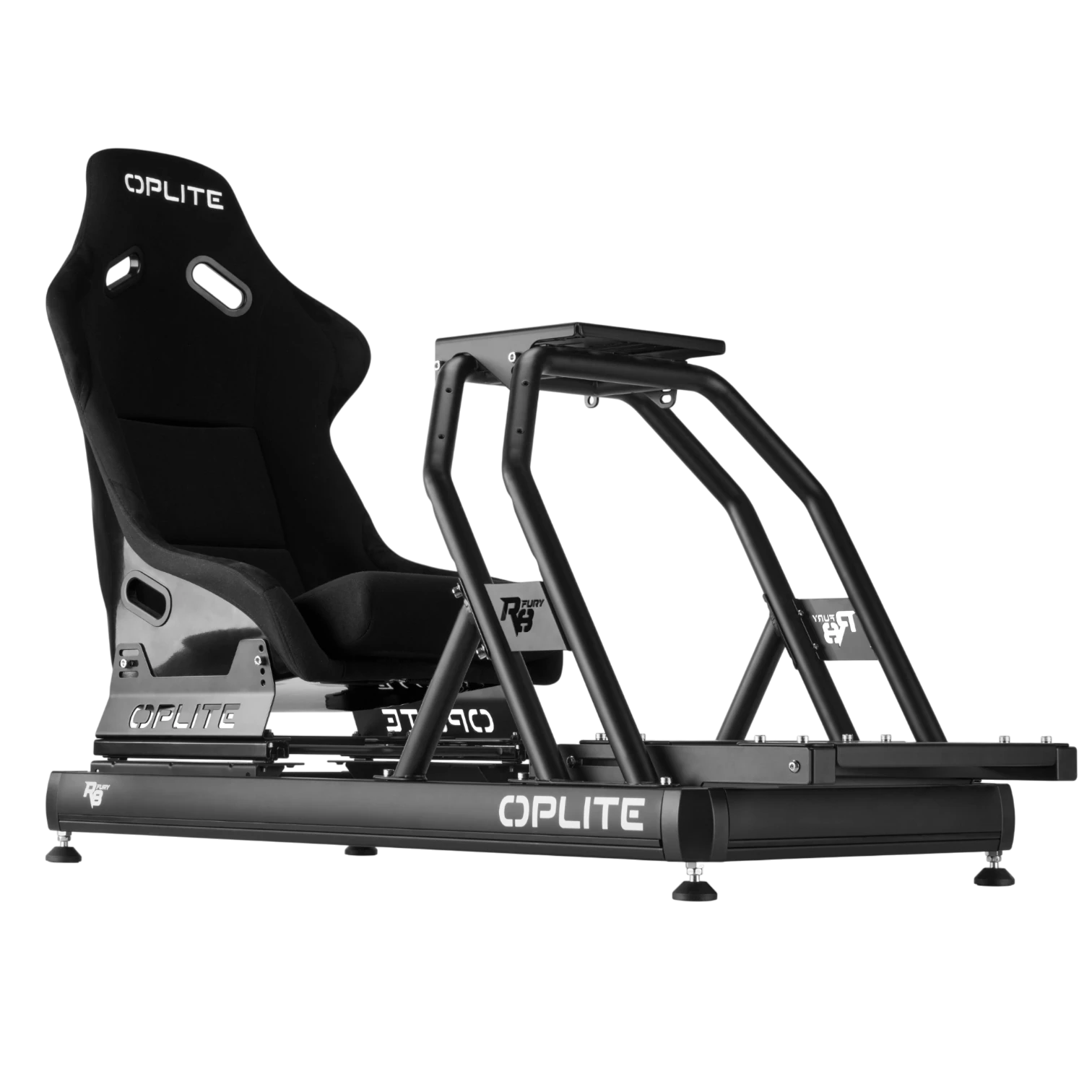

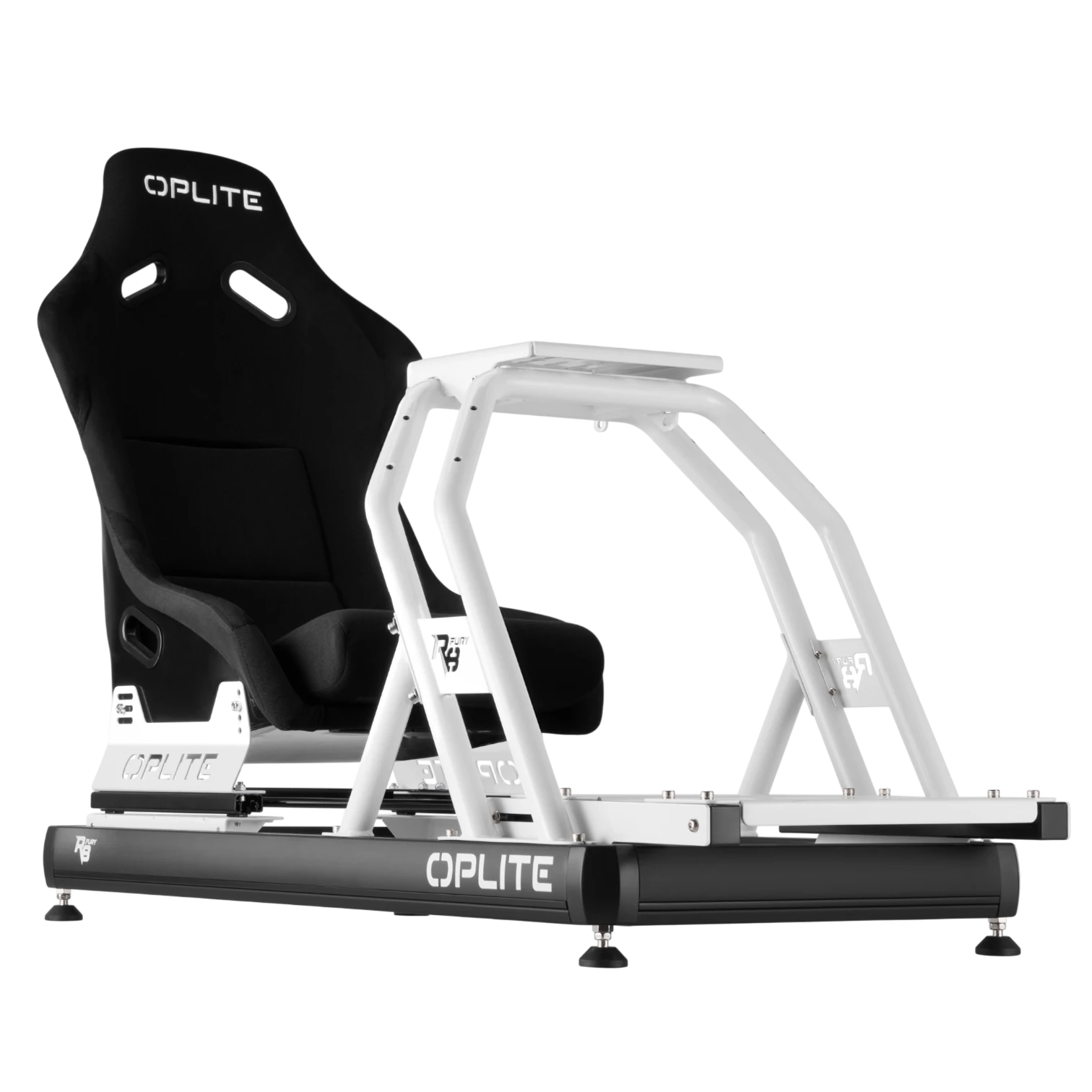

OPLITE R8 Fury chassis ready to fit the RS2 FiberCore bucket seat

Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.

Price - 6%

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

FECHA ESTIMADA

ARTÍCULO EN PRE-ORDER

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":54403215556941,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"OP-R8-CHB","requires_shipping":true,"taxable":true,"featured_image":{"id":91823294775629,"product_id":10778028835149,"position":1,"created_at":"2026-07-27T11:23:26+02:00","updated_at":"2026-07-27T11:23:29+02:00","alt":"OPLITE R8 Fury hybrid aluminium-and-steel chassis without seat to build your rig","width":1512,"height":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/OPLITE-Chassis-R8-Fury-simufy_1.webp?v=1785144209","variant_ids":[54403215556941]},"available":true,"name":"OPLITE R8 Fury – Sim Racing Cockpit Chassis - Black","public_title":"Black","options":["Black"],"price":49999,"weight":44000,"compare_at_price":52999,"inventory_management":"shopify","barcode":"3770031134445","featured_media":{"alt":"OPLITE R8 Fury hybrid aluminium-and-steel chassis without seat to build your rig","id":63821256458573,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1512,"width":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/OPLITE-Chassis-R8-Fury-simufy_1.webp?v=1785144209"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54403215589709,"title":"White","option1":"White","option2":null,"option3":null,"sku":"OP-R8-CHW","requires_shipping":true,"taxable":true,"featured_image":{"id":91823294972237,"product_id":10778028835149,"position":2,"created_at":"2026-07-27T11:23:26+02:00","updated_at":"2026-07-27T11:23:29+02:00","alt":"Side view of the compact OPLITE R8 Fury chassis with adjustable supports","width":1512,"height":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/OPLITE-Chassis-R8-Fury-simufy_7.webp?v=1785144209","variant_ids":[54403215589709]},"available":true,"name":"OPLITE R8 Fury – Sim Racing Cockpit Chassis - White","public_title":"White","options":["White"],"price":49999,"weight":44000,"compare_at_price":52999,"inventory_management":"shopify","barcode":"3770031134452","featured_media":{"alt":"Side view of the compact OPLITE R8 Fury chassis with adjustable supports","id":63821256655181,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1512,"width":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/OPLITE-Chassis-R8-Fury-simufy_7.webp?v=1785144209"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The OPLITE R8 Fury chassis is the hybrid 6063 T6 aluminium profile and E355 tubular steel structure of the R8 Fury cockpit, without a seat, to fit your own seat and build a compact, rigid rig, compatible with Direct Drive wheelbases over 30 Nm and load cell pedals.

It is the same base as the R8 Fury cockpit but without the seat, ideal if you already have a seat or prefer to choose one separately (OPLITE’s RS2 FiberCore bucket seat is compatible). Compatible with hydraulic actuators for motion systems, it supports GT, NASCAR, Rally or Trophy Truck driving styles (F1 optional) and expands with the R8 ecosystem, becoming a true racing simulator. It comes in black and white finishes.

Key features of the OPLITE R8 Fury

Hybrid frame of 80×40 mm 6063 T6 aluminium profile and Ø35 mm E355 tubular steel, 2.5 mm thick.
Steering wheel support in 5 mm E355 steel, adjustable for height, depth and tilt (−10°/+13°).
Pedal support in 40×40 mm 6063 T6 aluminium profile and 5 mm E355 steel plates, adjustable for height, depth and tilt (−9°/+33°).
Seat rails with ±220 mm depth adjustment to fit the seat of your choice (RS2 FiberCore compatible).
Takes Direct Drive wheelbases over 30 Nm and load cell pedals up to 200 kg, and is compatible with hydraulic actuators.
4 long swivel pads included, replaceable with the optional R8 Supreme Castor Wheel kit, with grade 12.9 nickel steel bolts.
Compatible with GT, NASCAR, Rally and Trophy Truck driving styles (F1 optional).

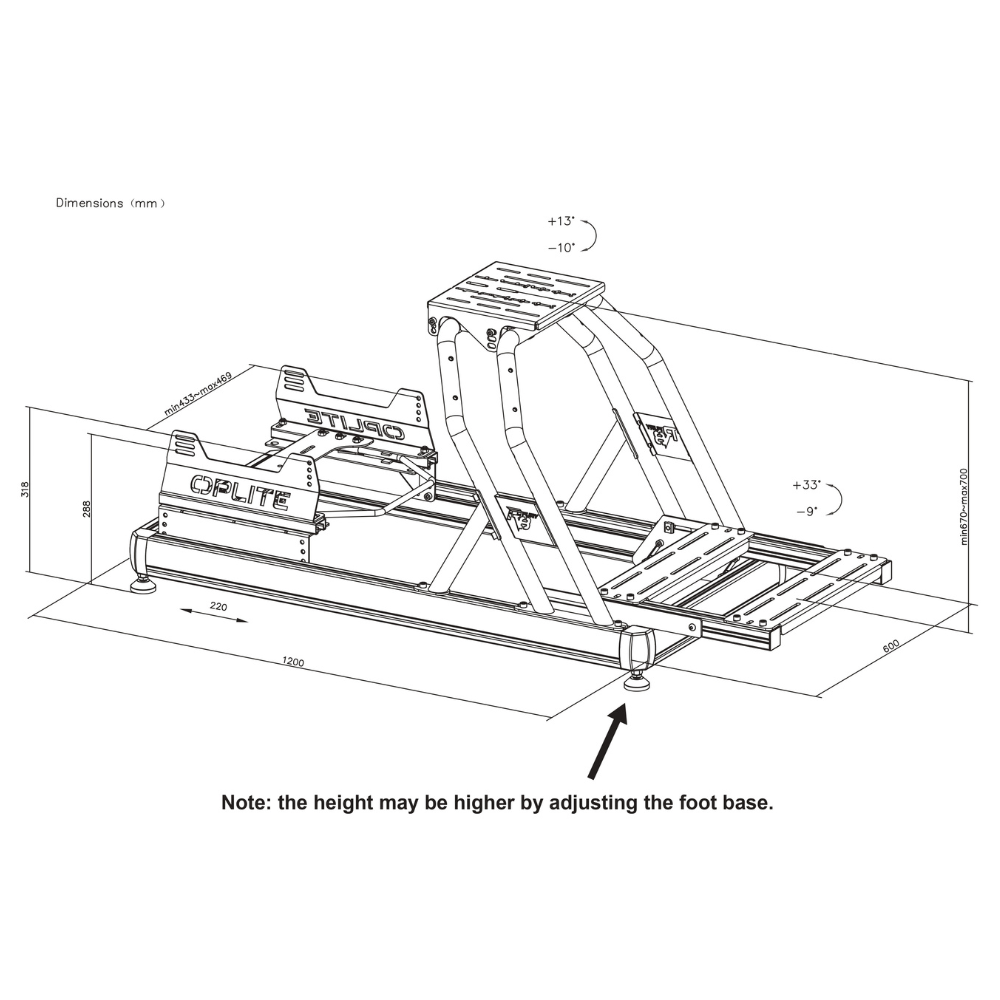

Technical specifications

Feature	Detail
Type	Compact sim racing cockpit chassis (no seat)
Frame	6063 T6 aluminium profile 80×40 mm + E355 tubular steel Ø35 mm × 2.5 mm
Wheel support	5 mm E355 steel; height, depth and tilt −10°/+13°
Pedal support	6063 T6 aluminium 40×40 mm + 5 mm E355 plates; height, depth and tilt −9°/+33°
Seat rails	Depth ±220 mm (seat not included; RS2 FiberCore compatible)
Hardware compatibility	Direct Drive >30 Nm · load cell pedals up to 200 kg · hydraulic actuators
Ergonomics	From 1.50 m to 2.10 m+ · up to 150 kg
Floor fixing	4 long swivel pads (R8 Supreme Castor Wheel optional)
Brand compatibility	Fanatec, Simagic, Simucube, Moza, Thrustmaster, Logitech, Turtle Beach, Asetek
Finishes	Black and white
Driving styles	GT, NASCAR, Rally, Trophy Truck (F1 optional)

Compatibility

The OPLITE R8 Fury chassis is compatible with wheels and pedals from Fanatec, Simagic, Simucube, Moza, Thrustmaster, Logitech, Turtle Beach and Asetek, among others. It takes high-torque Direct Drive wheelbases (over 30 Nm) and load cell pedals up to 200 kg, and works with hydraulic actuators for motion. As a chassis, it works equally with PC and console setups: the final platform depends on the wheelbase, pedals and seat you install. Some devices (for example, certain Thrustmaster wheelbases) may require minor drilling, which does not affect the warranty.

Frequently asked questions

Does it include the seat?

No. This is the chassis (the frame) of the R8 Fury, without a seat, so you can fit the seat you prefer. OPLITE’s RS2 FiberCore bucket seat is compatible and sold separately.

Which wheel and pedal brands does it support?

It is compatible with Fanatec, Simagic, Simucube, Moza, Thrustmaster, Logitech, Turtle Beach and Asetek, among others. Some devices may need a minor adjustment (or drilling on certain Thrustmaster wheelbases) that does not affect the warranty.

Can it handle powerful Direct Drive wheelbases?

Yes. The hybrid 6063 T6 aluminium and E355 steel frame is built for Direct Drive wheelbases over 30 Nm and load cell pedals up to 200 kg, with grade 12.9 nickel steel bolts.

Is it compatible with motion systems?

Yes. The R8 Fury structure is compatible with hydraulic actuators, so it can be integrated into motion platforms.

Can I add a seat later?

Yes. The rails with ±220 mm depth adjustment let you fit the RS2 FiberCore bucket seat or other compatible seats.

Which colours is it available in?

The R8 Fury chassis comes in a black finish and a white edition, both with the same structure and performance.
