Novus X Cage – Aluminium Sim Racing Chassis

Brand: NOVUS

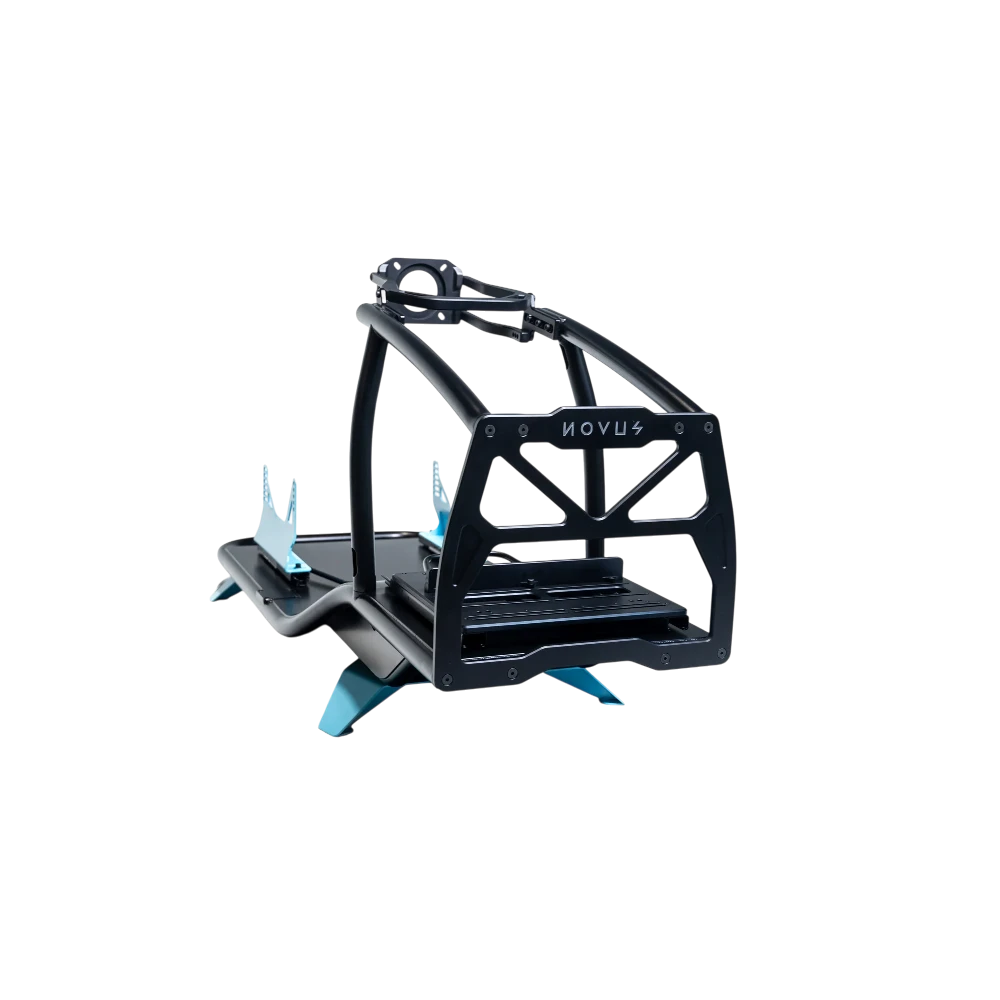

Novus X Cage, aerospace aluminium sim racing cockpit chassis

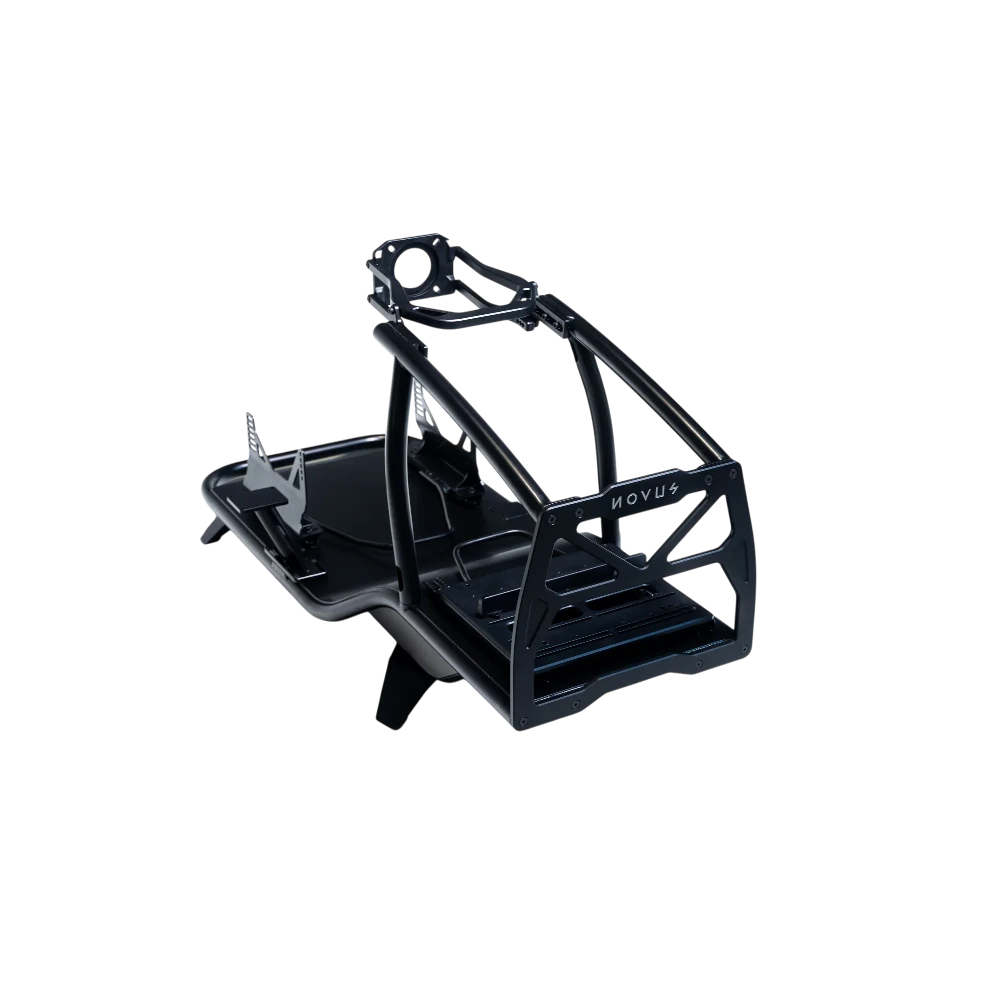

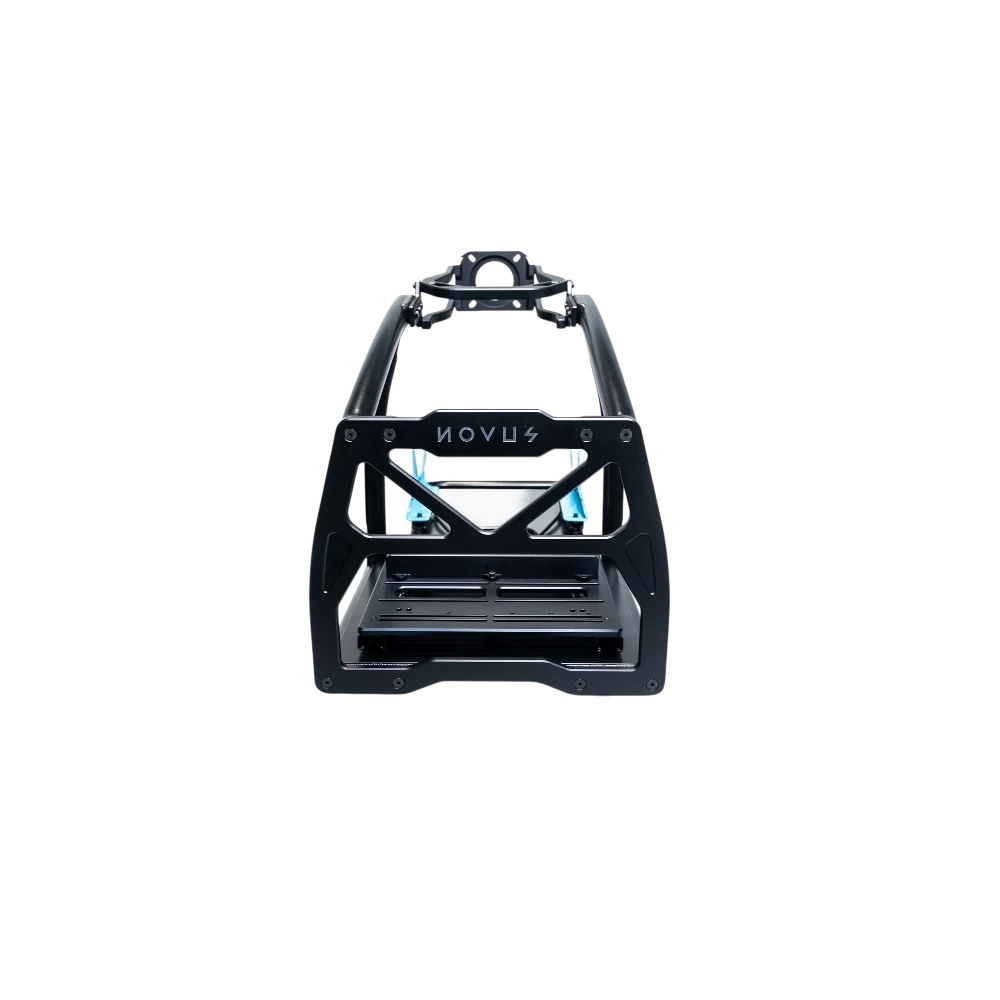

Novus X Cage chassis structure in black aluminium with blue accents
ISO 70 mm wheelbase mount on the Novus X Cage
Adjustable T-slot pedal platform on the Novus X Cage

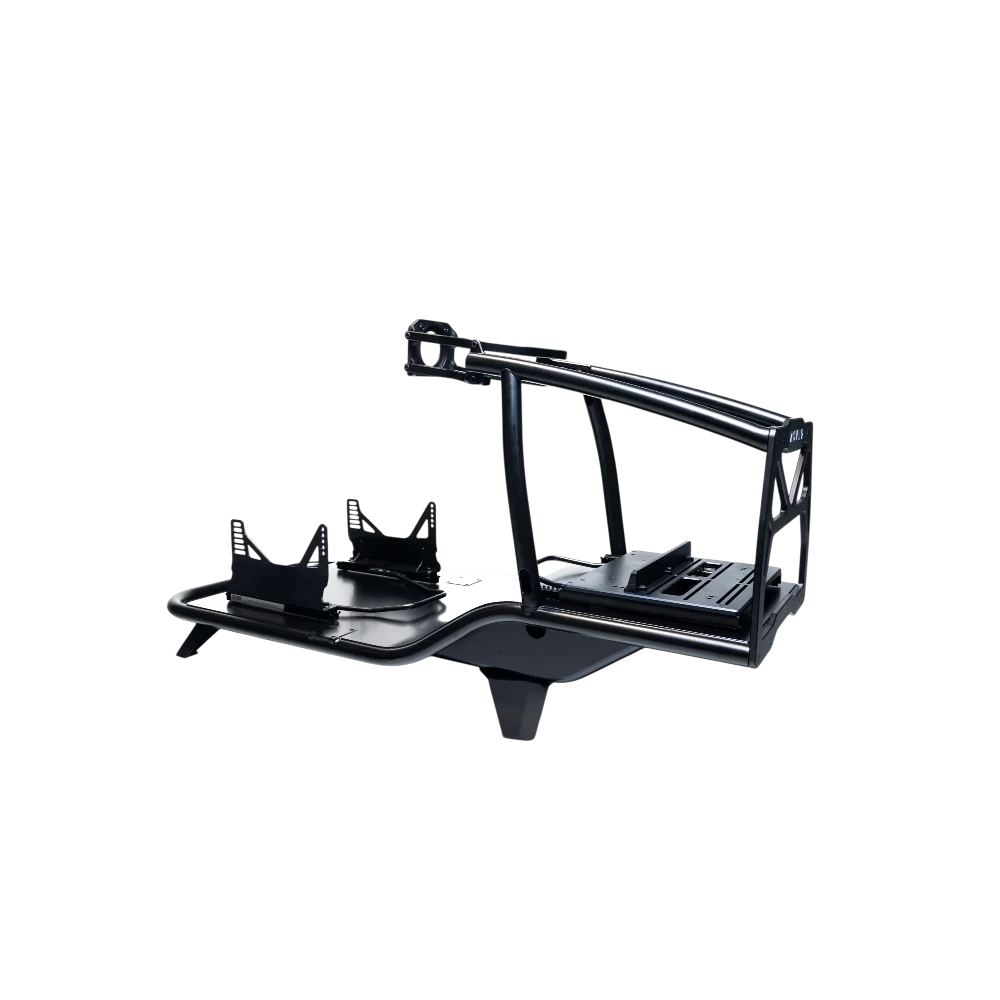

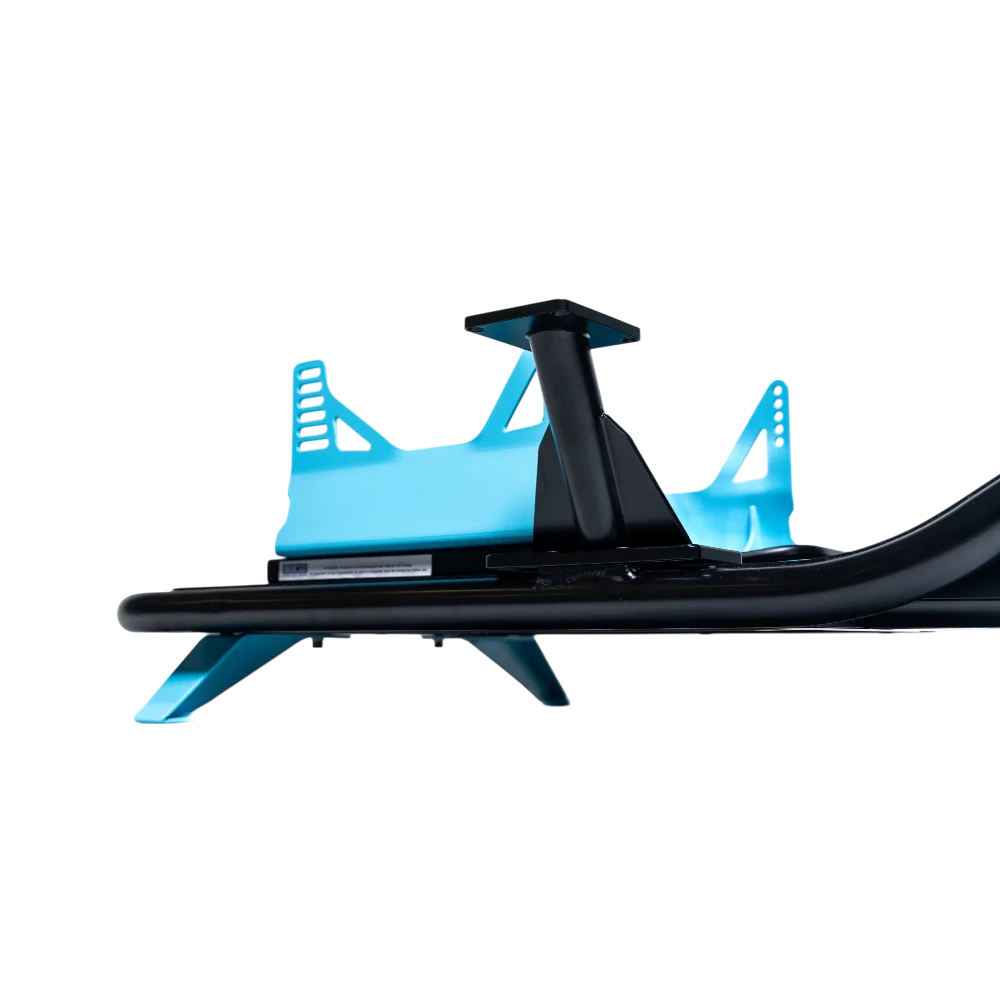

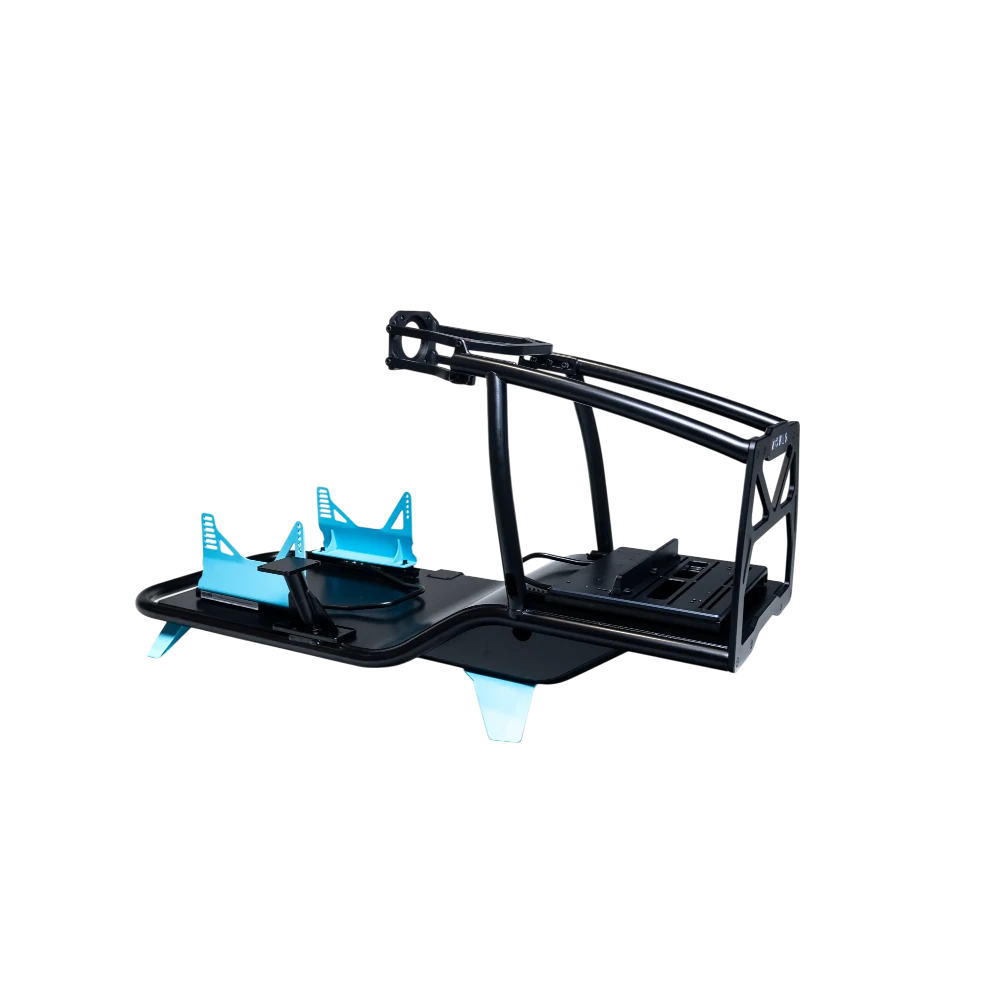

Side view of the Novus X Cage chassis with GT seat brackets
Mounting points and profiles of the Novus X Cage cockpit
Laser weld detail and nameplate on the Novus X Cage chassis
Novus X Cage, aerospace aluminium sim racing cockpit chassis
Novus X Cage chassis structure in black aluminium with blue accents
ISO 70 mm wheelbase mount on the Novus X Cage
Adjustable T-slot pedal platform on the Novus X Cage
Side view of the Novus X Cage chassis with GT seat brackets
Mounting points and profiles of the Novus X Cage cockpit
Laser weld detail and nameplate on the Novus X Cage chassis

Novus X Cage – Aluminium Sim Racing Chassis

Brand: NOVUS
Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.
- 20%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
FECHA ESTIMADA
ARTÍCULO EN PRE-ORDER
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The Novus X Cage is an aerospace-grade aluminium sim racing cockpit chassis with zero flex under up to 25 Nm of torque and universal brand compatibility, built for drivers who want a modular base that won't become obsolete.

Manufactured by ŽustAl in Žiri (Slovenia) using precision CNC bending and laser welding —the same technology they use to produce parts for CERN— the X Cage is the structure every Novus system is built on, from the PS5 setup to the Misha Spec motion rig. It's the chassis you buy once: you change the peripherals, not the racing simulator.

Key features of the Novus X Cage

  • Aerospace-grade aluminium with CNC bending and laser welding: extreme rigidity and zero flex even with +25 Nm direct drive wheelbases.
  • 50-year warranty on frame and welds, far beyond the industry standard.
  • Modular and scalable: start with the essentials and grow up to motion without replacing the structure.
  • Motion-ready (3DOF) from the factory: pre-drilled points for the X Motion Kit, with no drilling or modification.
  • Universal compatibility: ISO 70 mm PCD mounting for wheelbases and T-slot profiles for pedals and accessories.
  • Fully adjustable: seat, backrest, wheelbase height/depth/angle and pedal angle.

Technical specifications

SpecificationDetail
MaterialAerospace-grade aluminium
ManufacturingPrecision CNC bending + laser welding (Žiri, Slovenia)
FinishDeep black with Novus blue accents
DimensionsLength 150 cm · Width 65 cm (98 cm with motion) · Height 75 cm (adjustable 70–85 cm)
Chassis weight25 kg
Weight with motion~110 kg (complete system)
Chassis capacity200 kg (250 kg with motion)
Max driver weight150 kg
Wheelbase mount supportUp to 50 kg
Pedal supportUp to 100 kg
Seat adjustment20 cm travel · 5 cm height · backrest 95°–135°
Wheelbase adjustmentHeight 15 cm · depth 10 cm · tilt -5° to +15°
Pedal adjustmentAngle 0°–45° · distance 20 cm
Driver height150–210 cm (optimal 165–195 cm)
MountingISO 70 mm PCD quick-release wheelbases · pedals and accessories on T-slot
Warranty50 years frame and welds · 5 years adjustable components · 2 years finish
Made inEuropean Union (Slovenia)

Compatibility

The X Cage is a universal chassis for PC and console sim racing setups. It uses open standards, with no adapters or brand lock-in:

  • Wheelbases: every direct drive wheelbase on the market —Simucube, Fanatec, Moza, VRS, Asetek— with the ISO 70 mm PCD pattern; belt-driven Logitech and Thrustmaster bases too.
  • Pedals: Heusinkveld, VRS, Simucube, Simtag and other pedals on the adjustable T-slot platform.
  • Seats: universal side-mount (M8 bolts) or bottom-mount.
  • Accessories: T-slot profiles for shifters, handbrakes and button boxes.

Frequently asked questions

Is it compatible with Simucube, Fanatec or Moza wheelbases?

Yes. The X Cage uses the universal ISO 70 mm PCD quick-release pattern, so direct drive wheelbases from Simucube, Fanatec, Moza, VRS and Asetek mount without adapters, as well as belt-driven bases from Logitech and Thrustmaster. Pedals (Heusinkveld, VRS, Simucube…) fix onto the T-slot platform.

Can I add motion later?

Yes. Every X Cage ships from the factory with pre-drilled points for the X Motion Kit. Installation takes 2–3 hours with basic tools and there's no need to remove or modify your wheel, pedals, seat or display: the four actuators mount underneath your existing setup.

Does it hold high-torque direct drive wheelbases?

Yes. The frame keeps zero flex under 25 Nm of torque thanks to the CNC-bent, laser-welded aerospace aluminium. That rigidity is what separates professional equipment from a consumer rig.

Is it hard to assemble?

No. It arrives in 4 main sections with labelled mounting points and assembles in 3–4 hours with the included Allen keys and tools. No welding, drilling or special tools required.

What warranty does the Novus X Cage have?

The frame and welds are covered for 50 years; adjustable components (seat slider, wheelbase mount and pedal platform) for 5 years, and the finish for 2 years.

What driver heights is it designed for?

The X Cage fits drivers from 150 to 210 cm (optimal comfort between 165 and 195 cm) and takes a maximum driver weight of 150 kg, with 20 cm of seat travel and a backrest adjustable from 95° to 135°.
