SimXPro GT | Aluminium Direct Drive Cockpit

Name: SimXPro GT – 40x40 Aluminium Sim Racing Cockpit
Brand: SIMXPRO
SKU: SXP-GT-1
Price: 289.99 EUR
Availability: InStock

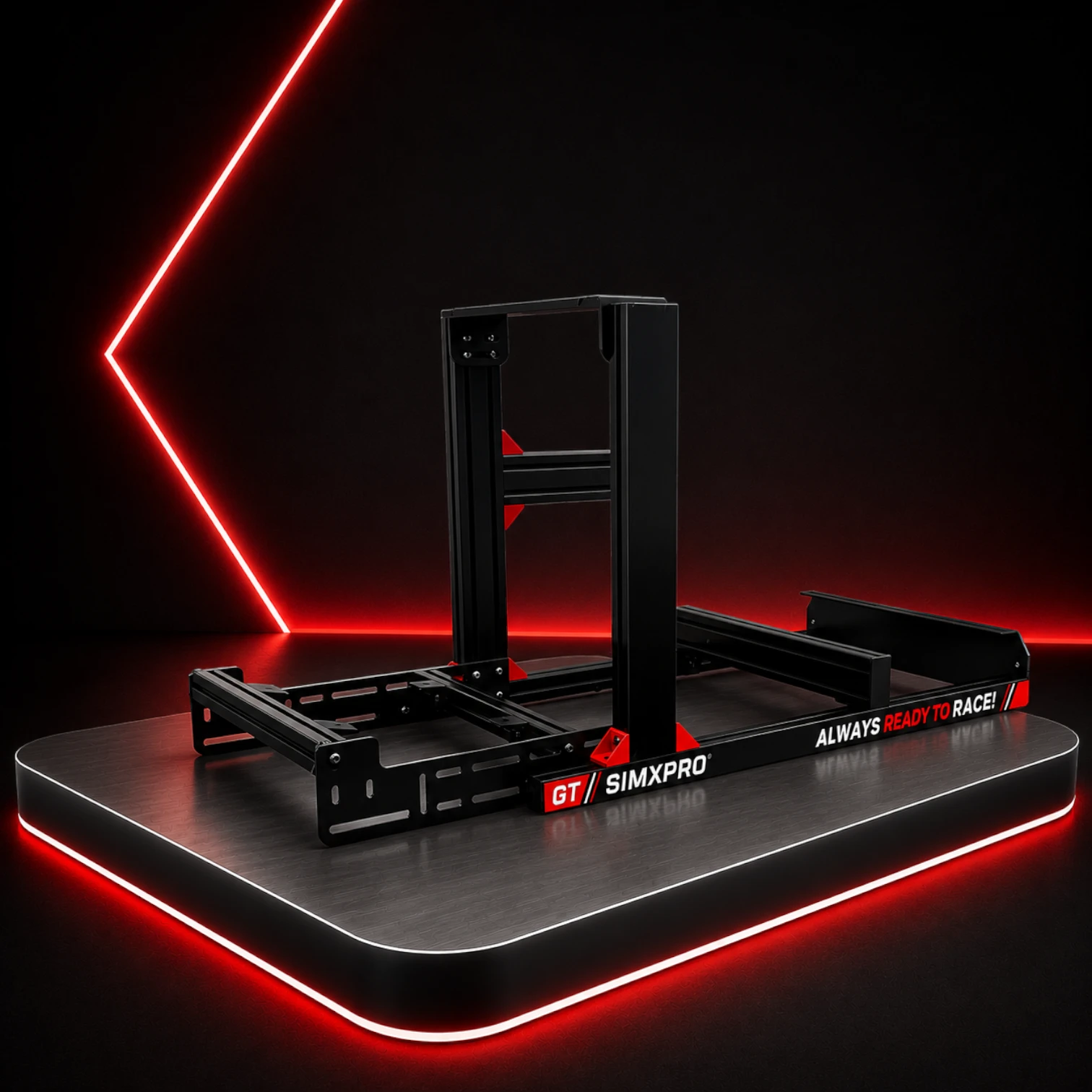

SimXPro GT aluminium sim racing cockpit set up in a GT driving position

Pedal deck area of the SimXPro GT for load-cell forces up to 150 kg

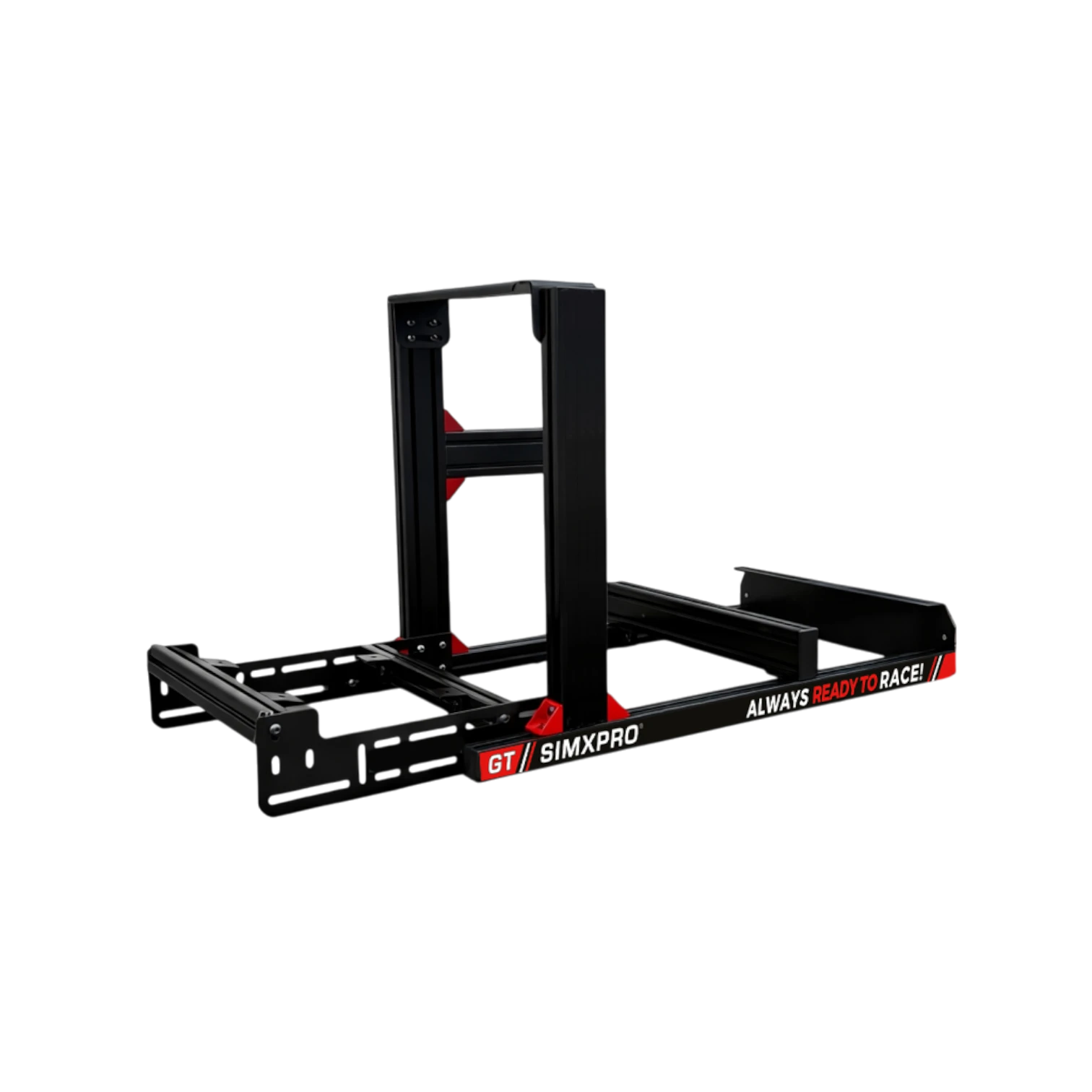

Modular SimXPro GT cockpit frame expandable with accessories

Please note that pre-order products may arrive later.

Price - 19%

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

ESTIMATED DATE

PRE-ORDER ITEM

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":54502870122829,"title":"No Mount \/ No","option1":"No Mount","option2":"No","option3":null,"sku":"SXP-GT-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SimXPro GT – 40x40 Aluminium Sim Racing Cockpit - No Mount \/ No","public_title":"No Mount \/ No","options":["No Mount","No"],"price":28999,"weight":20000,"compare_at_price":35999,"inventory_management":"shopify","barcode":"8721425271104","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54502870155597,"title":"No Mount \/ Yes","option1":"No Mount","option2":"Yes","option3":null,"sku":"SXP-GT-1+SXP-475","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SimXPro GT – 40x40 Aluminium Sim Racing Cockpit - No Mount \/ Yes","public_title":"No Mount \/ Yes","options":["No Mount","Yes"],"price":31999,"weight":24000,"compare_at_price":40998,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54502870188365,"title":"Single Integrated \/ No","option1":"Single Integrated","option2":"No","option3":null,"sku":"SXP-GT-1+SXP-MS-GTRS-1M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SimXPro GT – 40x40 Aluminium Sim Racing Cockpit - Single Integrated \/ No","public_title":"Single Integrated \/ No","options":["Single Integrated","No"],"price":34999,"weight":27000,"compare_at_price":45998,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54502870221133,"title":"Single Integrated \/ Yes","option1":"Single Integrated","option2":"Yes","option3":null,"sku":"SXP-GT-1+SXP-MS-GTRS-1M+SXP-475","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SimXPro GT – 40x40 Aluminium Sim Racing Cockpit - Single Integrated \/ Yes","public_title":"Single Integrated \/ Yes","options":["Single Integrated","Yes"],"price":37999,"weight":29000,"compare_at_price":50997,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54502870253901,"title":"Triple Integrated \/ No","option1":"Triple Integrated","option2":"No","option3":null,"sku":"SXP-GT-1+SXP-MS-GTRS-3M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SimXPro GT – 40x40 Aluminium Sim Racing Cockpit - Triple Integrated \/ No","public_title":"Triple Integrated \/ No","options":["Triple Integrated","No"],"price":44999,"weight":29000,"compare_at_price":59998,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54502870286669,"title":"Triple Integrated \/ Yes","option1":"Triple Integrated","option2":"Yes","option3":null,"sku":"SXP-GT-1+SXP-MS-GTRS-3M+SXP-475","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SimXPro GT – 40x40 Aluminium Sim Racing Cockpit - Triple Integrated \/ Yes","public_title":"Triple Integrated \/ Yes","options":["Triple Integrated","Yes"],"price":47999,"weight":34000,"compare_at_price":64997,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The SimXPro GT is a 40x40 aluminium sim racing cockpit, compatible with direct drive wheelbases up to 10 Nm and load-cell pedals up to 150 kg, designed for drivers stepping up from a desk-mounted wheel to a rigid, expandable rig.

Built from 40x40 mm aluminium profile (8 mm slot) with steel brackets, the frame delivers the torsional rigidity needed to transmit every bit of Force Feedback, without the flex and vibration of entry-level steel structures. It measures 125 x 50 x 59 cm without a seat, weighs roughly 20–22 kg and offers a fully adjustable GT driving position. It is the entry point to SimXPro's range of profile cockpits, expandable at any time with monitor mounts, PC trays, shifter brackets or a handbrake mount.

SimXPro GT key features

40x40 mm aluminium profile with an 8 mm slot and black finish for high torsional rigidity.
Rated for direct drive wheelbases up to 10 Nm, the official limit verified by SimXPro.
Takes pedals with a load cell rated up to 150 kg of braking force.
Bottom-mount wheelbase fixing; the hole pattern must match your wheelbase.
Wheel adjustable for height and tilt; pedals adjustable for height, reach and tilt.
Shifter mounting profile included, with a frame you can expand with monitor mounts, a PC tray and a handbrake.
Recommended for users up to 1.90 m and 90 kg; supplied complete in a single box.

Technical specifications

Specification	Detail
Material	40x40 mm aluminium profile (8 mm slot)
Dimensions without seat (L x W x H)	125 x 50 x 59 cm
Footprint without seat	125 x 50 cm
Approximate weight	20–22 kg
Max wheelbase torque (Direct Drive)	Up to 10 Nm
Max pedal force (load cell)	Up to 150 kg
Wheelbase mounting	Bottom-mount
Wheel adjustment	Height and tilt
Pedal adjustment	Height, reach and tilt
Shifter support	Mounting profile included
Max user height	1.90 m
Max user weight	90 kg
Seat	Not included
In the box	Complete cockpit in a single box
EAN	8721425271104

Compatibility

The SimXPro GT is a universal sim racing chassis. With bottom-mount fixing, it works with direct drive wheelbases up to 10 Nm from all the major ecosystems (Fanatec, MOZA, Simagic, Logitech, Thrustmaster, Asetek or lower-torque Simucube), as long as the hole pattern matches, and it takes load-cell pedals up to 150 kg. As a cockpit, the platform is set by your wheelbase and wheel, not the chassis: it works equally for PC and console setups.

The seat is not included, so you can fit the racing seat of your choice onto the profile. At Simufy you can configure it with a single or triple monitor mount integrated into the frame and add an optional wheel set.

Frequently asked questions

Which direct drive wheelbases does the SimXPro GT support?

It supports direct drive wheelbases up to 10 Nm, the official limit verified by SimXPro. The wheelbase is bottom-mounted, so the hole pattern must match your model. It is compatible with the major ecosystems, such as Fanatec, MOZA, Simagic, Logitech, Thrustmaster or Asetek.

Does the SimXPro GT include a seat?

No. The cockpit ships without a seat so you can mount the racing seat you prefer onto the aluminium profile. At Simufy you can add a compatible seat.

Can I use load-cell pedals?

Yes. The pedal deck takes load-cell pedals up to 150 kg of force, with height, reach and tilt adjustment.

Can I fit a triple-monitor mount?

Yes. At Simufy you can configure the SimXPro GT with a single or triple monitor mount integrated into the frame; the base model does not include it as standard.

Does it work with PlayStation or Xbox?

Yes, as long as you use a wheelbase and wheel compatible with your console. The cockpit is platform-neutral: compatibility with PC, PlayStation or Xbox is determined by your direct drive wheelbase, not the chassis.
