EPLAB DDU 5 – Sim Racing Dashboard 5"

Brand: EPLAB
EPLAB DDU 5 dashboard, 5-inch, with aluminium case and touchscreen for sim racing

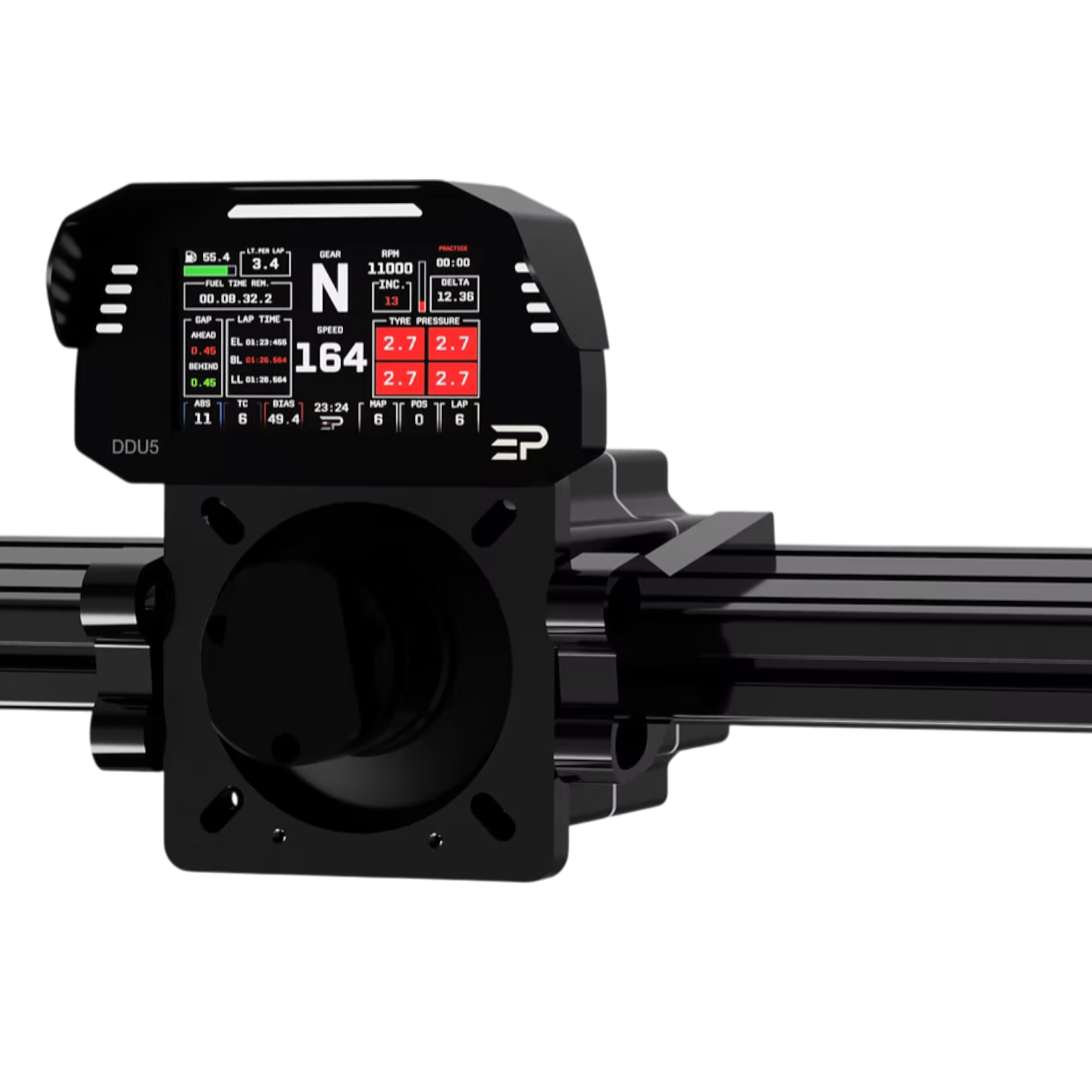

5-inch touchscreen of the DDU 5 showing telemetry in sim racing

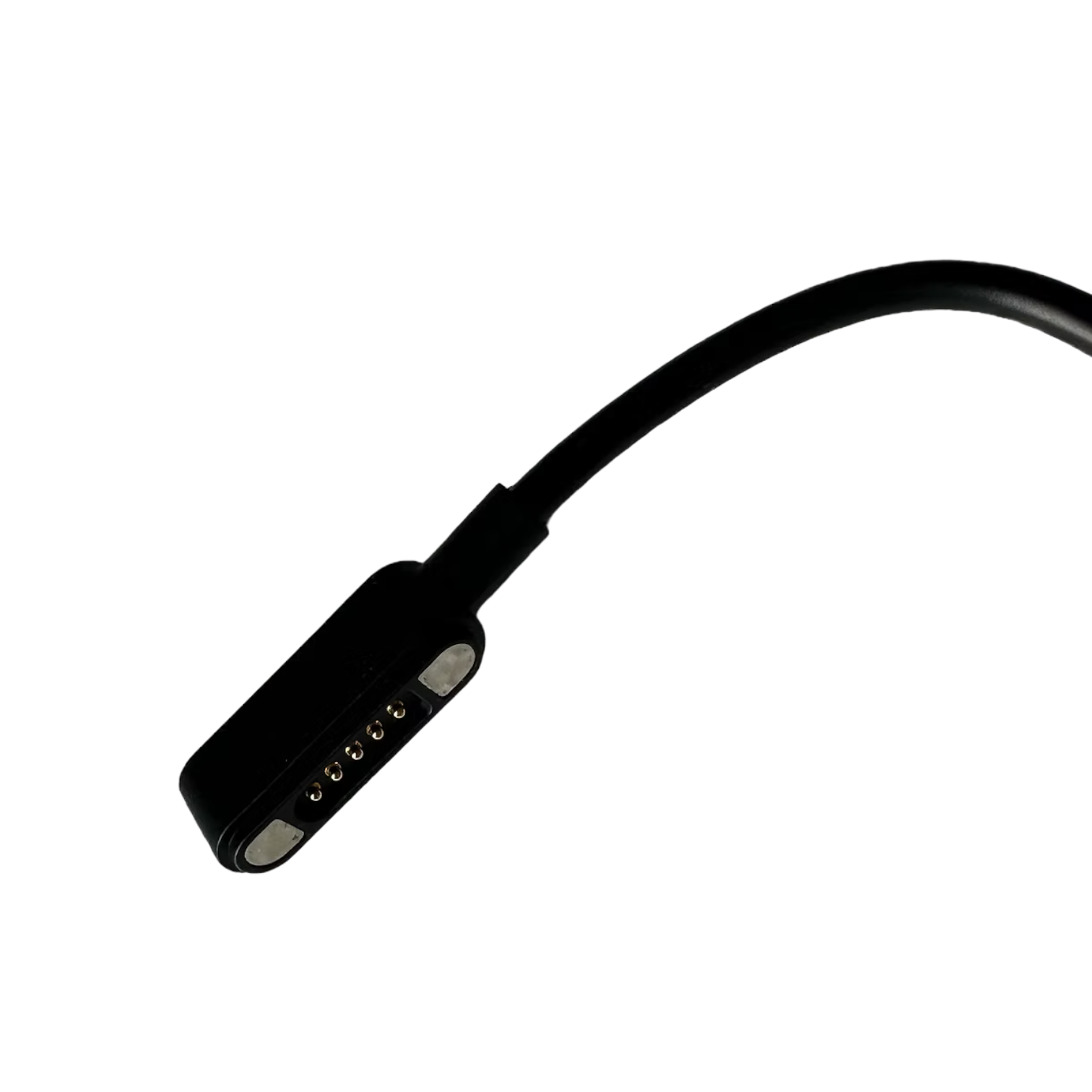

Close-up of the magnetic cabling on the EPLAB DDU 5 dashboard
Side view of the DDU 5 with integrated anti-glare visor
EPLAB DDU 5 dashboard with configurable RGB LEDs in the cockpit

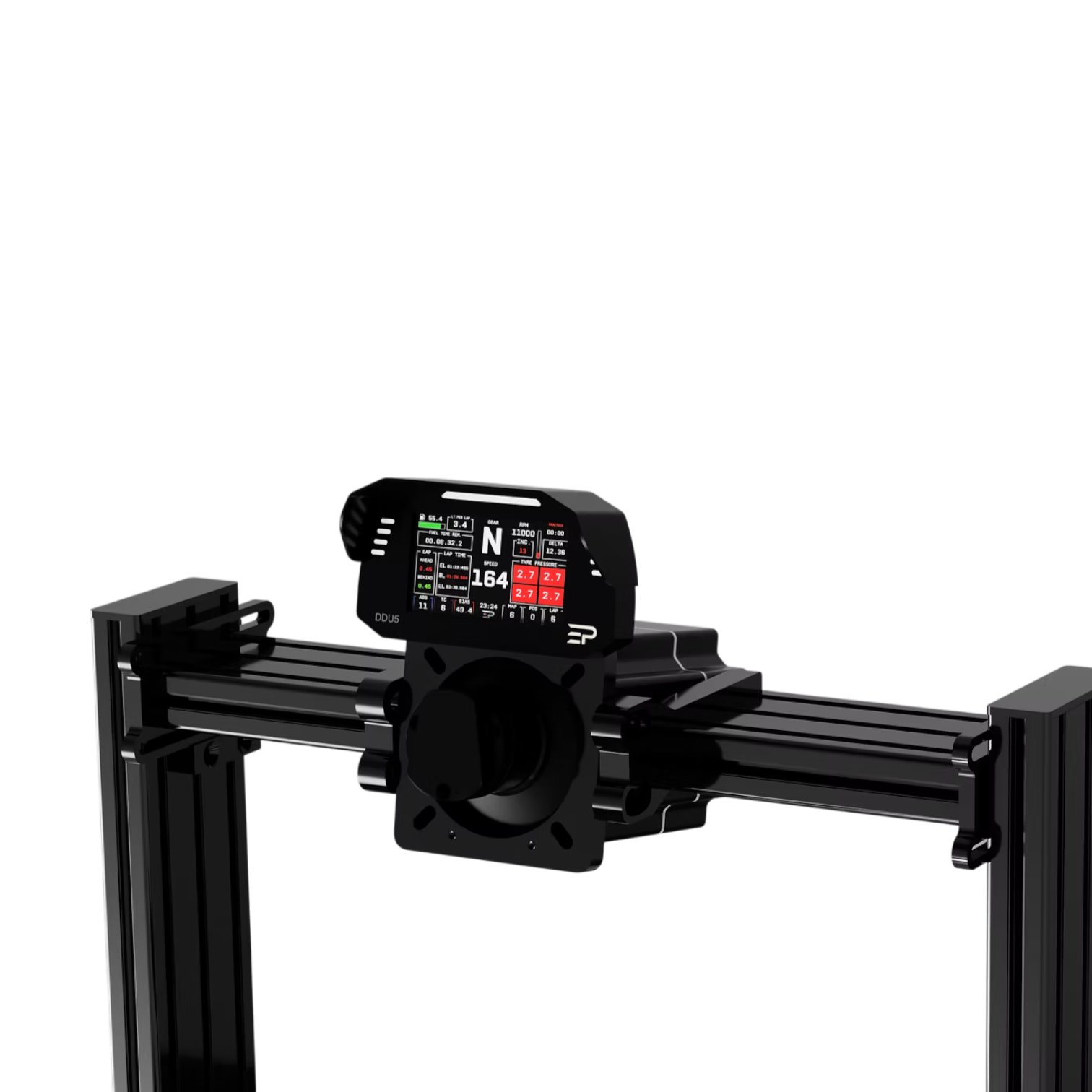

EPLAB DDU 5 dashboard mounted in a sim racing setup
Close-up of the 6061 aluminium finish on the EPLAB DDU 5 dashboard
EPLAB DDU 5 dashboard, 5-inch, with aluminium case and touchscreen for sim racing
5-inch touchscreen of the DDU 5 showing telemetry in sim racing
Close-up of the magnetic cabling on the EPLAB DDU 5 dashboard
Side view of the DDU 5 with integrated anti-glare visor
EPLAB DDU 5 dashboard with configurable RGB LEDs in the cockpit
EPLAB DDU 5 dashboard mounted in a sim racing setup
Close-up of the 6061 aluminium finish on the EPLAB DDU 5 dashboard

EPLAB DDU 5 – Sim Racing Dashboard 5"

Brand: EPLAB
- 9%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The EPLAB DDU 5 is a 5-inch sim racing dashboard for PC, with a touchscreen, a 6061 CNC aluminium case and 8 configurable RGB LEDs, compatible with setups running Fanatec DD1/DD2, Simucube 2 Pro and Simagic bases, aimed at drivers who want clear telemetry without overlays.

It is the first sim racing display with magnetic wiring, which simplifies the connection and leaves more room behind the display to bring the monitors closer to the base. It adds an integrated sunshade that reduces glare and improves visibility.

Key features of the EPLAB DDU 5

  • 5-inch Vocore touchscreen with tempered glass and an anti-glare sunshade.
  • 8 RGB LEDs adjustable in function and colour for RPM, flags and warnings.
  • 100% 6061 anodised aluminium case, CNC-machined.
  • Magnetic wiring with a 1 m USB extension for a quick, clean connection.
  • Compact design that leaves room to bring monitors closer to the base.

DDU 5 technical specifications

SpecificationDetail
ModelEPLAB DDU 5
ScreenVocore 5" touchscreen
Dimensions182 x 100 x 60 mm
Case6061 anodised aluminium (CNC)
FrontTempered glass with integrated sunshade
Lighting8 configurable RGB LEDs
WiringMagnetic USB (1.5 m) + 1 m USB extension
SoftwareSimHub (required)

DDU 5 compatibility

The DDU 5 connects to a PC over USB and needs the SimHub software, so it is not compatible with consoles. It is designed for setups with direct drive wheelbases such as Fanatec DD1/DD2, Simucube 2 Pro or Simagic, and mounts on its included aluminium bracket. Download the SimHub profiles here.

Frequently asked questions about the EPLAB DDU 5

Is the DDU 5 compatible with consoles?

No. The DDU 5 works over USB with a PC and needs SimHub, so it is not compatible with PlayStation or Xbox.

Do I need SimHub to use the DDU 5?

Yes, SimHub is essential. In the software you assign functions and colours to the 8 RGB LEDs, with profiles you can download from the listing.

What is the advantage of the magnetic wiring?

The magnetic connector lets you connect and disconnect the display quickly and leaves more room behind it to bring the monitors closer to the base.

What size and screen does it have?

It is a 5-inch Vocore touchscreen with tempered glass and an integrated sunshade to reduce glare.

Which wheelbases does the DDU 5 work with?

It connects to the PC over USB and is designed for direct drive wheelbases such as Fanatec DD1/DD2, Simucube 2 Pro or Simagic.

What is included in the DDU 5 box?

It includes 1 DDU 5 dashboard, a 1.5 m magnetic USB cable, a 1 m USB extension, an aluminium bracket, screws and an EPLAB sticker.
