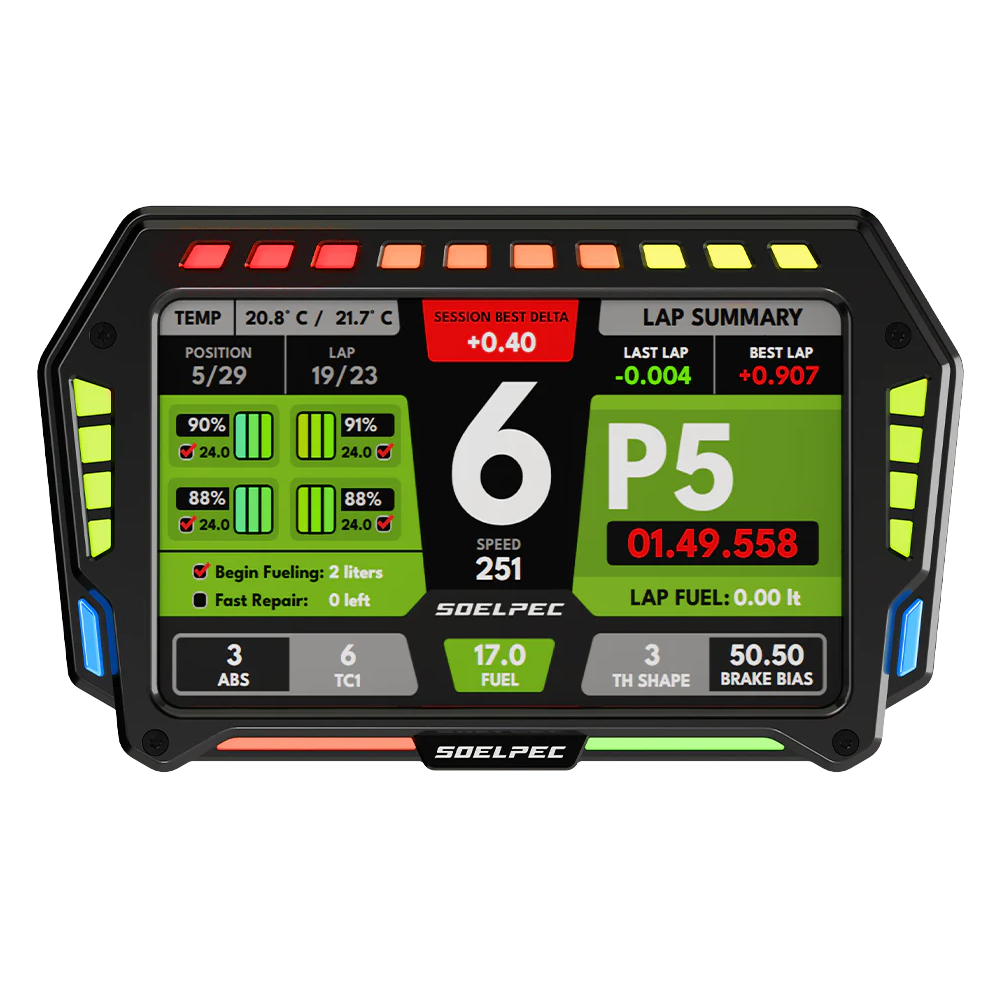

Front view of the SOELPEC XR-7 Display with customisable RGB illumination

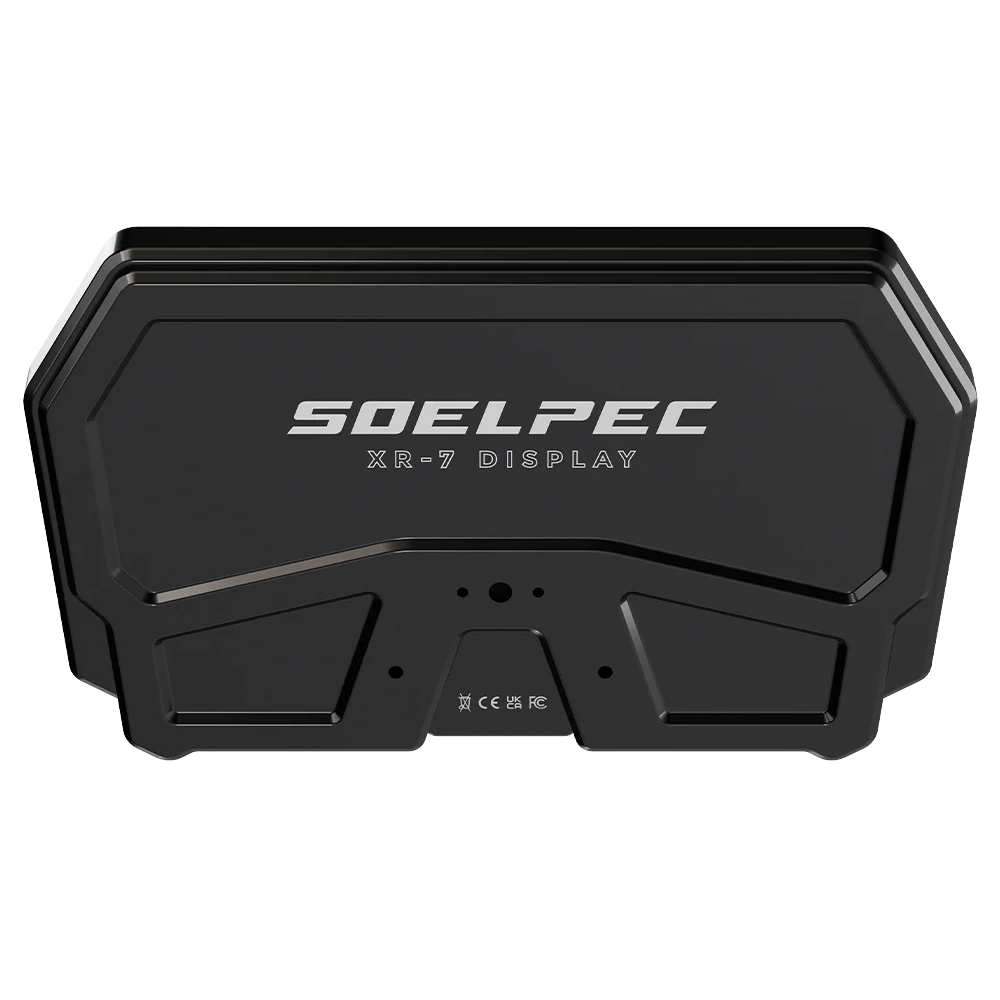

Anodised 6061 aluminium structure of the SOELPEC XR-7 dashboard

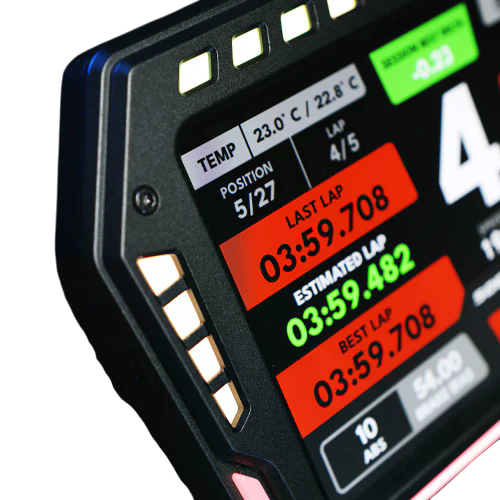

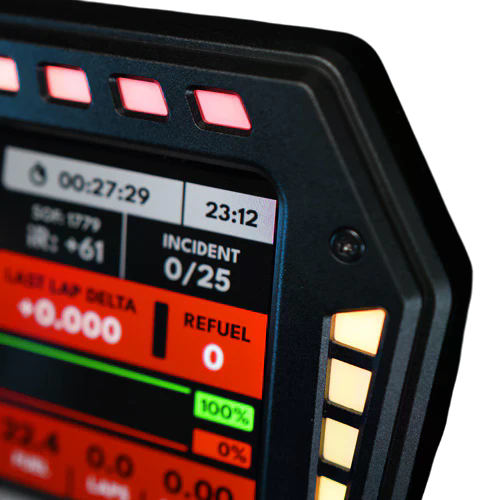

Ring of 30 telemetry LEDs framing the SOELPEC XR-7 Display screen

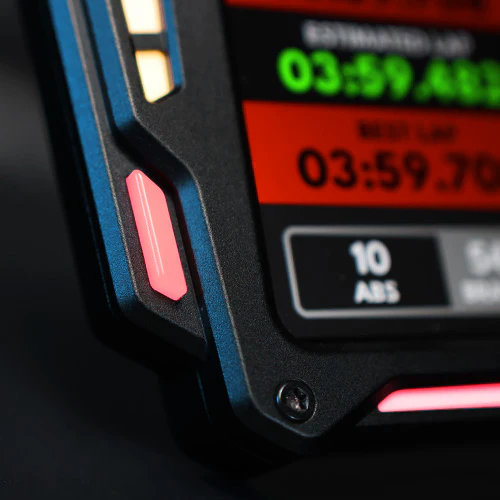

Close-up of the backlit side push buttons on the SOELPEC XR-7 Display

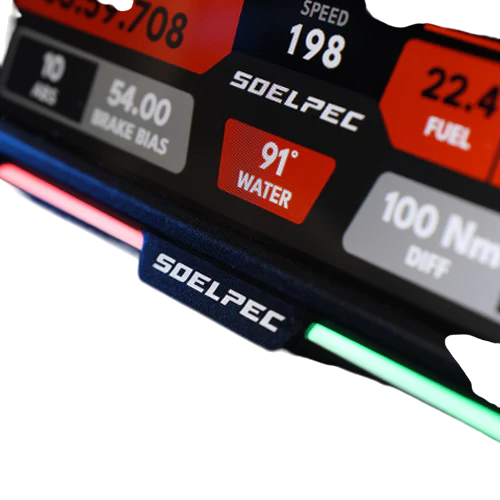

Lower RGB light bar of the SOELPEC XR-7 Display showing delta timing indicators

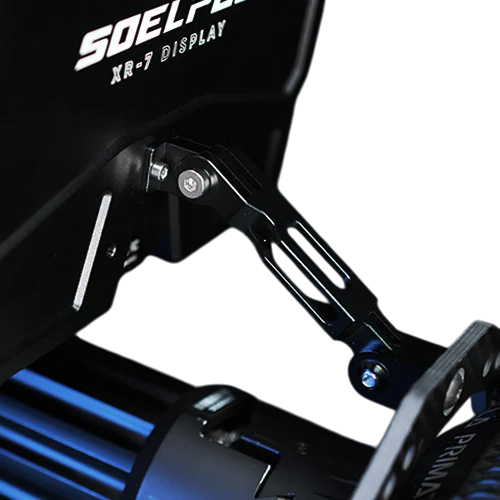

Adjustable mounting system with carbon fibre brackets on the SOELPEC XR-7

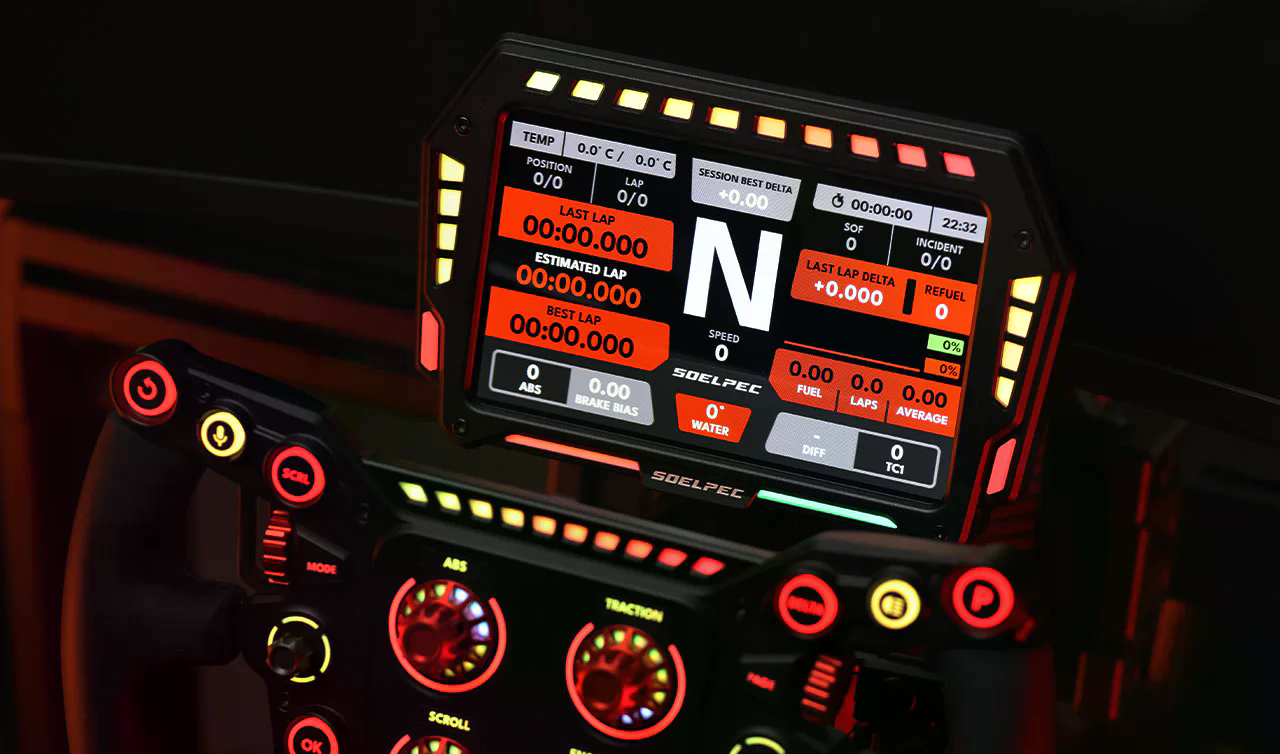

SOELPEC XR-7 Display fitted in a sim racing cockpit next to the wheel
SOELPEC XR-7 Display sim racing dashboard with 6.8-inch touchscreen and telemetry LEDs lit up
Front view of the SOELPEC XR-7 Display with customisable RGB illumination
Anodised 6061 aluminium structure of the SOELPEC XR-7 dashboard
Ring of 30 telemetry LEDs framing the SOELPEC XR-7 Display screen
Close-up of the backlit side push buttons on the SOELPEC XR-7 Display
Lower RGB light bar of the SOELPEC XR-7 Display showing delta timing indicators
Adjustable mounting system with carbon fibre brackets on the SOELPEC XR-7
SOELPEC XR-7 Display fitted in a sim racing cockpit next to the wheel

SOELPEC XR-7 Display – 6.8-Inch Sim Racing Dashboard

Brand: SOELPEC
- 12%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The SOELPEC XR-7 Display is a 6.8-inch 60 Hz touchscreen sim racing dashboard with 30 configurable telemetry LEDs and a 6061 aluminium structure, compatible with PC through SimHub.

It is the bigger sibling of the XR-5: the same machined aluminium approach and SimHub control, but with a noticeably larger screen and a 60 Hz refresh rate. It mounts with two carbon fibre brackets in either a fixed or adjustable position, and connects to your PC with a single USB Type-C cable.

Key features of the SOELPEC XR-7 Display

  • 6.8-inch touchscreen at 60 Hz, with direct navigation through the dashboard pages.
  • 30 telemetry LEDs framing the screen, individually controlled from SimHub.
  • Lower RGB light bar, configurable for real-time telemetry, animations and delta timing indicators.
  • Backlit push buttons on each side, assignable to dashboard or in-game functions.
  • 6061 aluminium structure with an anodised finish.
  • Fixed or adjustable mounting with carbon fibre brackets, spacers included and a 1/4-inch thread.

Technical specifications

SpecificationDetail
Display6.8-inch touchscreen
Refresh rate60 Hz
Telemetry LEDs30, individually configurable
RGB illuminationFully customisable, with a light bar on the lower section
ButtonsBacklit push buttons on each side of the screen
StructureAnodised 6061 aluminium
Mounting brackets2 carbon fibre brackets (fixed or adjustable mounting)
Additional thread1/4 inch
ConnectionUSB Type-C
SoftwareSimHub with SOELPEC plugin and dashboard

Compatibility

  • Platform: PC. It is not compatible with PlayStation or Xbox.
  • Software: SimHub, the SOELPEC plugin and the SOELPEC Dashboard file, all available from the manufacturer's website.
  • Sims: any title supported by SimHub, such as iRacing, Assetto Corsa, Assetto Corsa Competizione or rFactor 2.
  • Mounting: brackets compatible with most direct drive wheelbases on the market, plus a 1/4-inch thread for standard accessories in any cockpit.

What's in the box

  • XR-7 Display
  • USB Type-C cable
  • 2 carbon fibre mounting brackets
  • Adjustable mount accessories and spacers
  • Countersunk screws and Allen keys
  • SOELPEC stickers and quick start guide

Frequently asked questions about the SOELPEC XR-7 Display

What is the difference between the XR-7 and the XR-5?

The XR-7 uses a 6.8-inch screen at 60 Hz with 30 telemetry LEDs, while the XR-5 uses a 5-inch screen with 33 LEDs. Both share the 6061 aluminium structure, RGB light bars, side buttons, USB Type-C connection and SimHub control.

Does the SOELPEC XR-7 Display work on PlayStation or Xbox?

No. The XR-7 Display is PC only, because all of its functionality relies on SimHub. It is not compatible with PlayStation or Xbox.

What software do I need to run the XR-7 Display?

You need SimHub, the SOELPEC plugin and the SOELPEC Dashboard file. Once installed, the display appears in the SimHub devices section as SOELPEC - XR-7 Display.

Which wheelbases and cockpits does the mounting fit?

The included carbon fibre brackets are compatible with most wheelbases on the market and allow either fixed or adjustable mounting. The 1/4-inch thread adds compatibility with standard mounting accessories.

Why is a powered USB hub recommended?

The manufacturer recommends one for working at high brightness levels, since a USB port without additional power may not deliver enough current for stable operation.
