Pimax Crystal Super Ultra-Wide | PCVR VR Headset 140°

Name: Pimax Crystal Super Ultra-Wide 140° – PCVR VR Headset
Brand: PIMAX
SKU: PVH00010206
Price: 1799.99 EUR
Availability: InStock

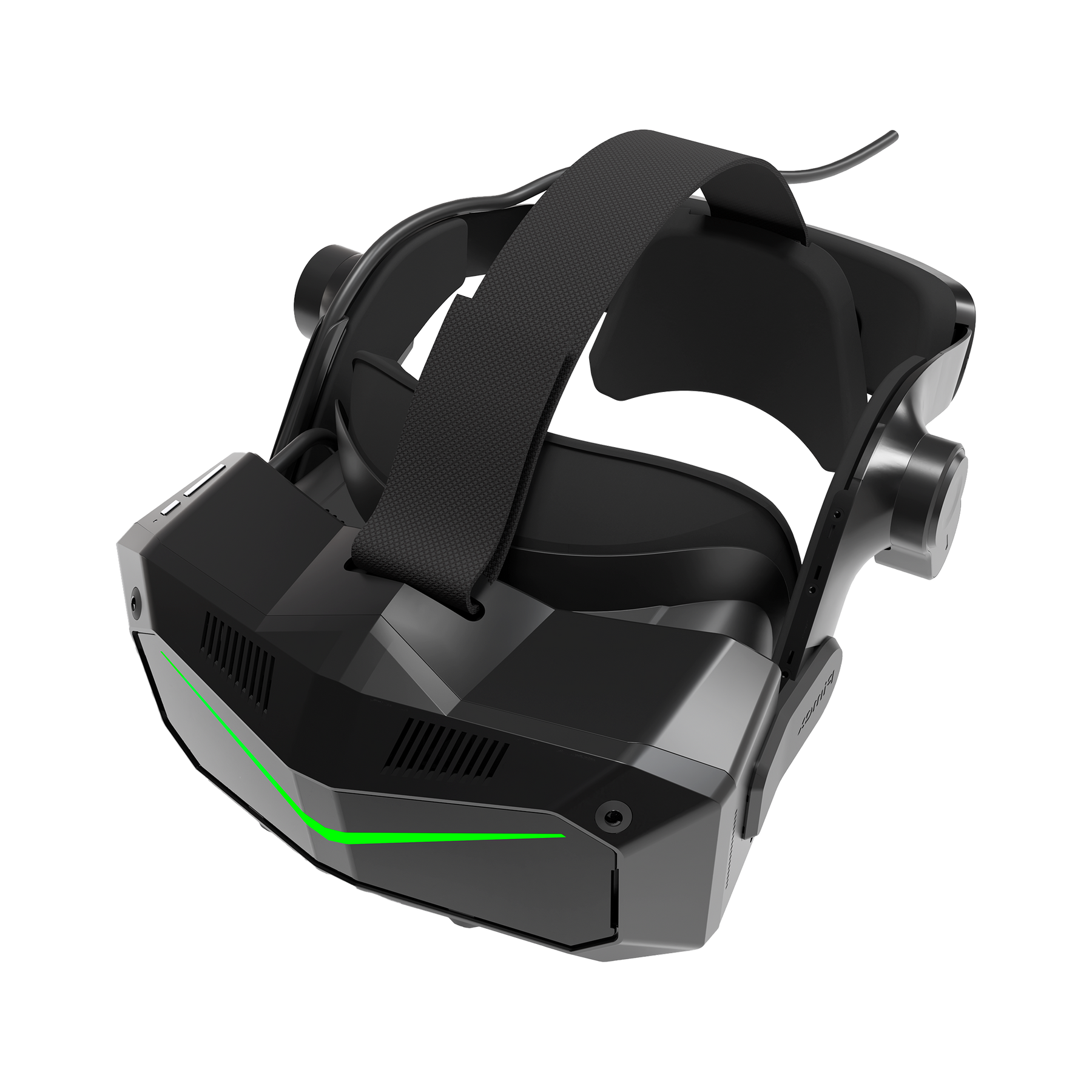

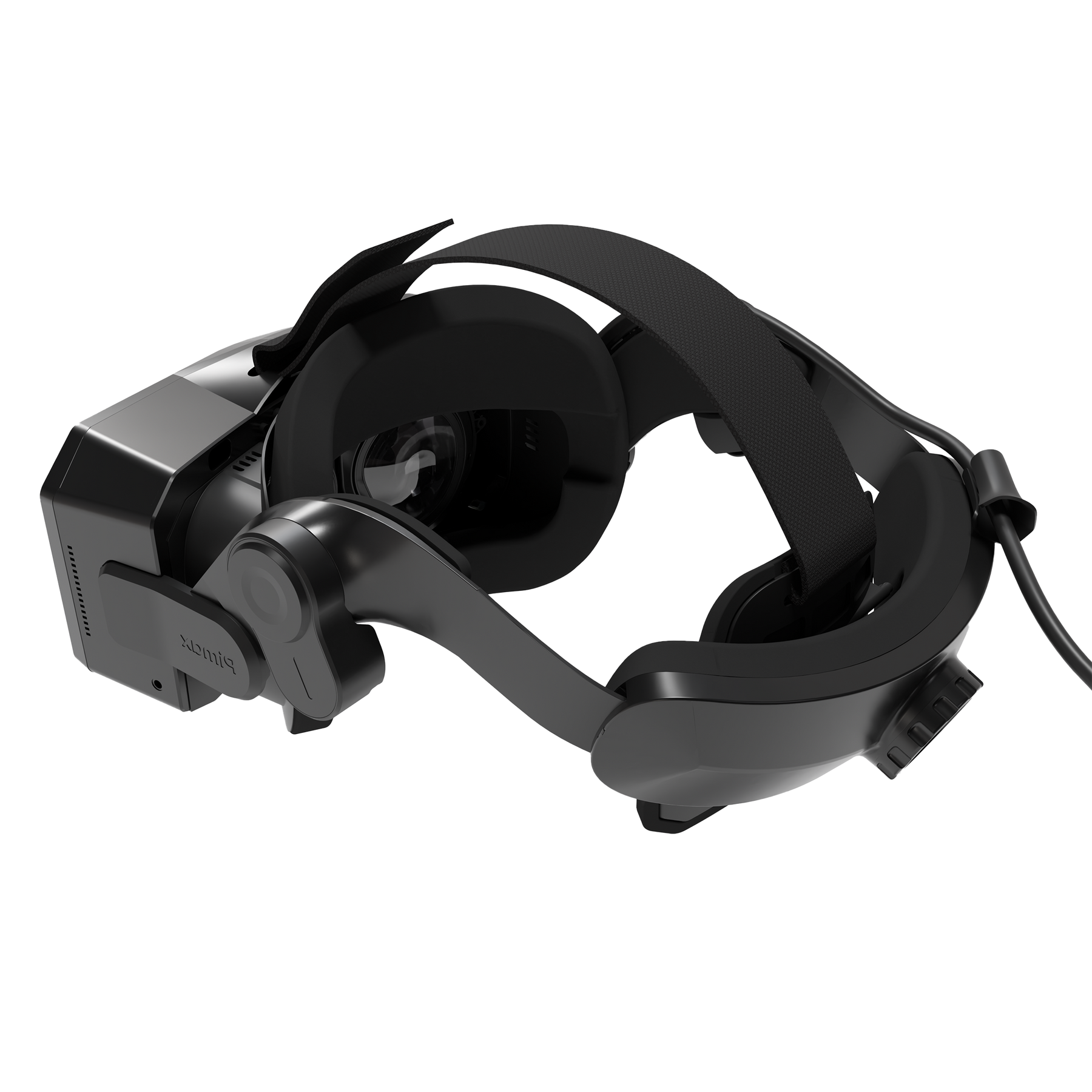

Pimax Crystal Super Ultra-Wide PCVR VR headset with 140° field-of-view optical engine

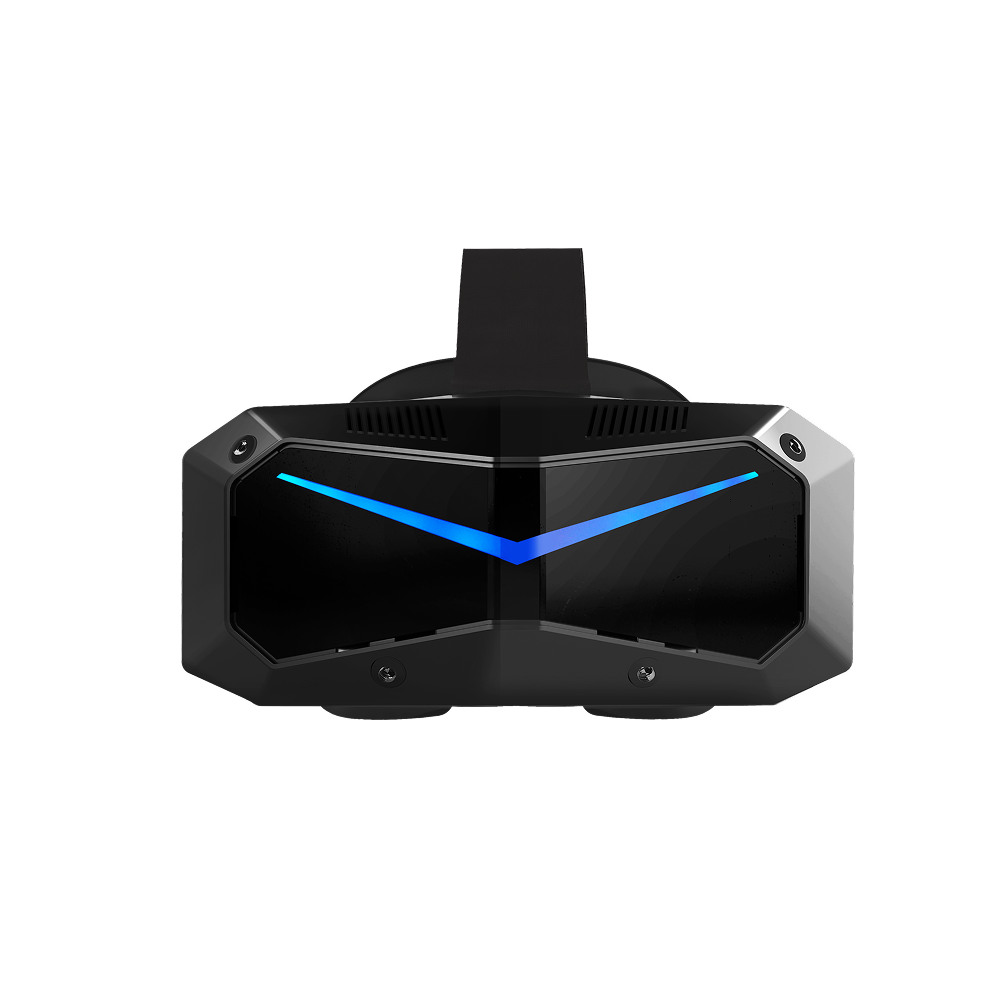

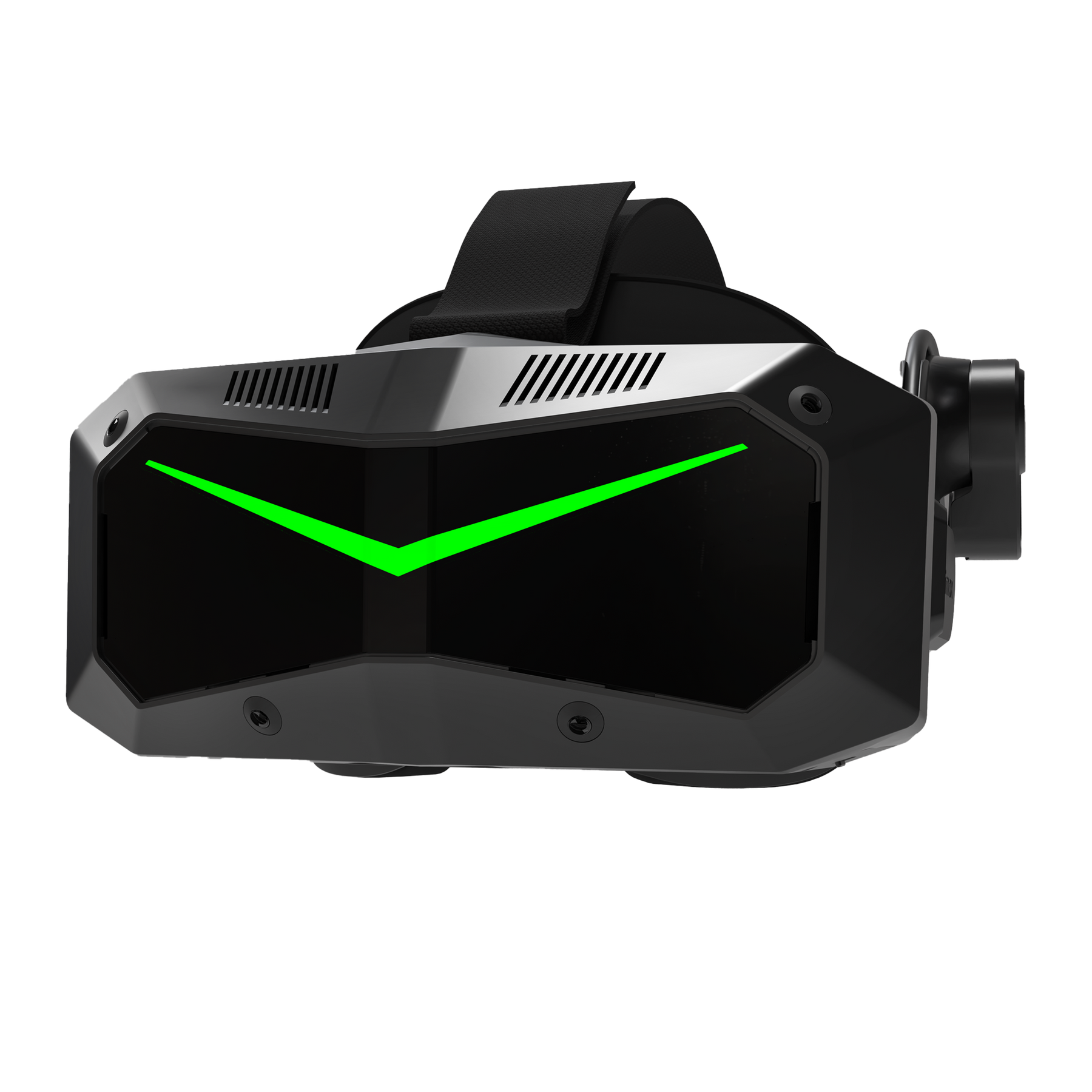

Front view of the Pimax Crystal Super Ultra-Wide with QLED Mini-LED panel and glass aspheric lenses

Ultra-wide 140° field-of-view comparison of the Pimax Crystal Super Ultra-Wide in simulation

Diagram of the 140° horizontal field of view of the Pimax Crystal Super Ultra-Wide headset

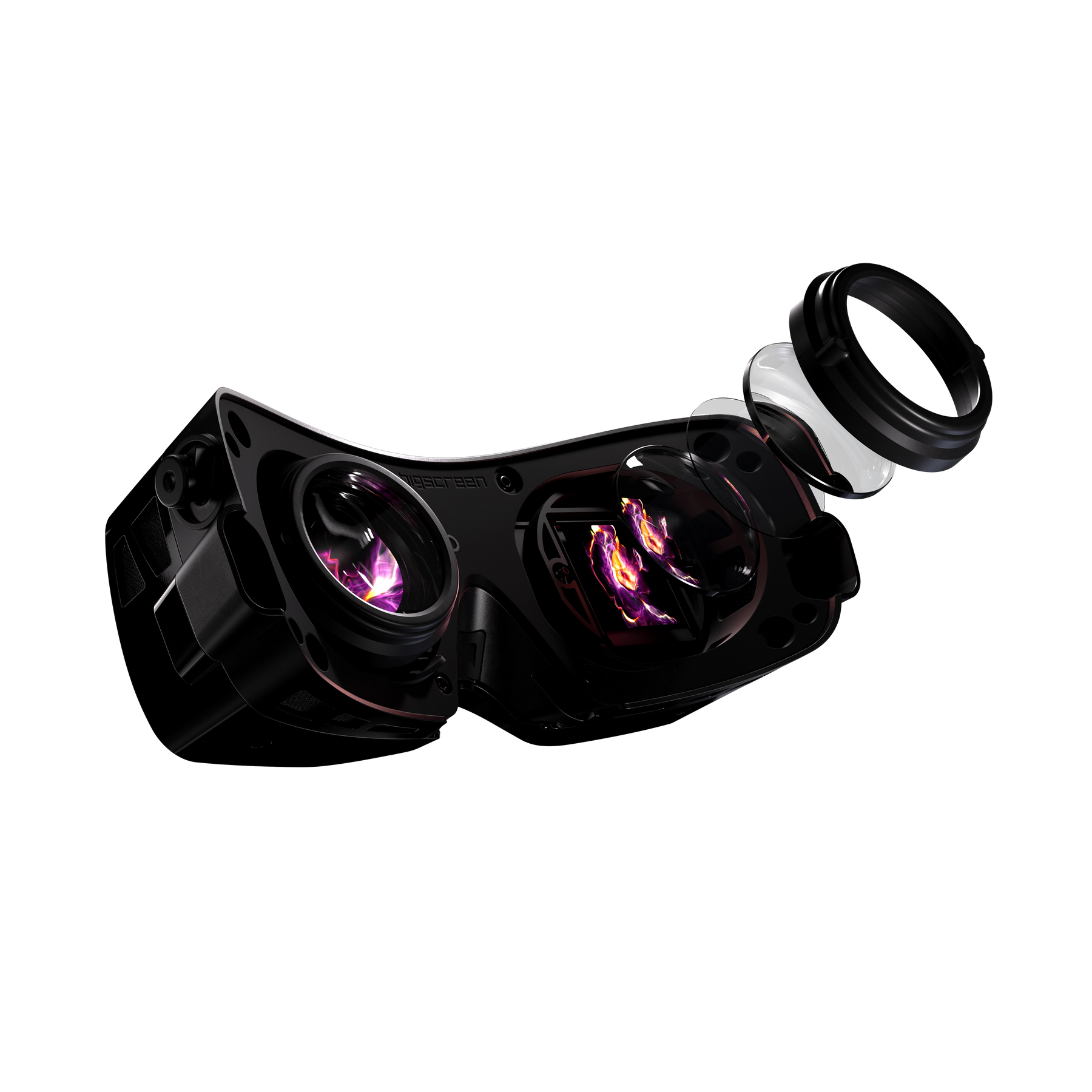

Detail of the glass aspheric lenses and eye tracking of the Pimax Crystal Super Ultra-Wide

Head strap and ergonomics of the Pimax Crystal Super Ultra-Wide VR headset for long sessions

DisplayPort 1.4a port and connection of the Pimax Crystal Super Ultra-Wide PCVR headset

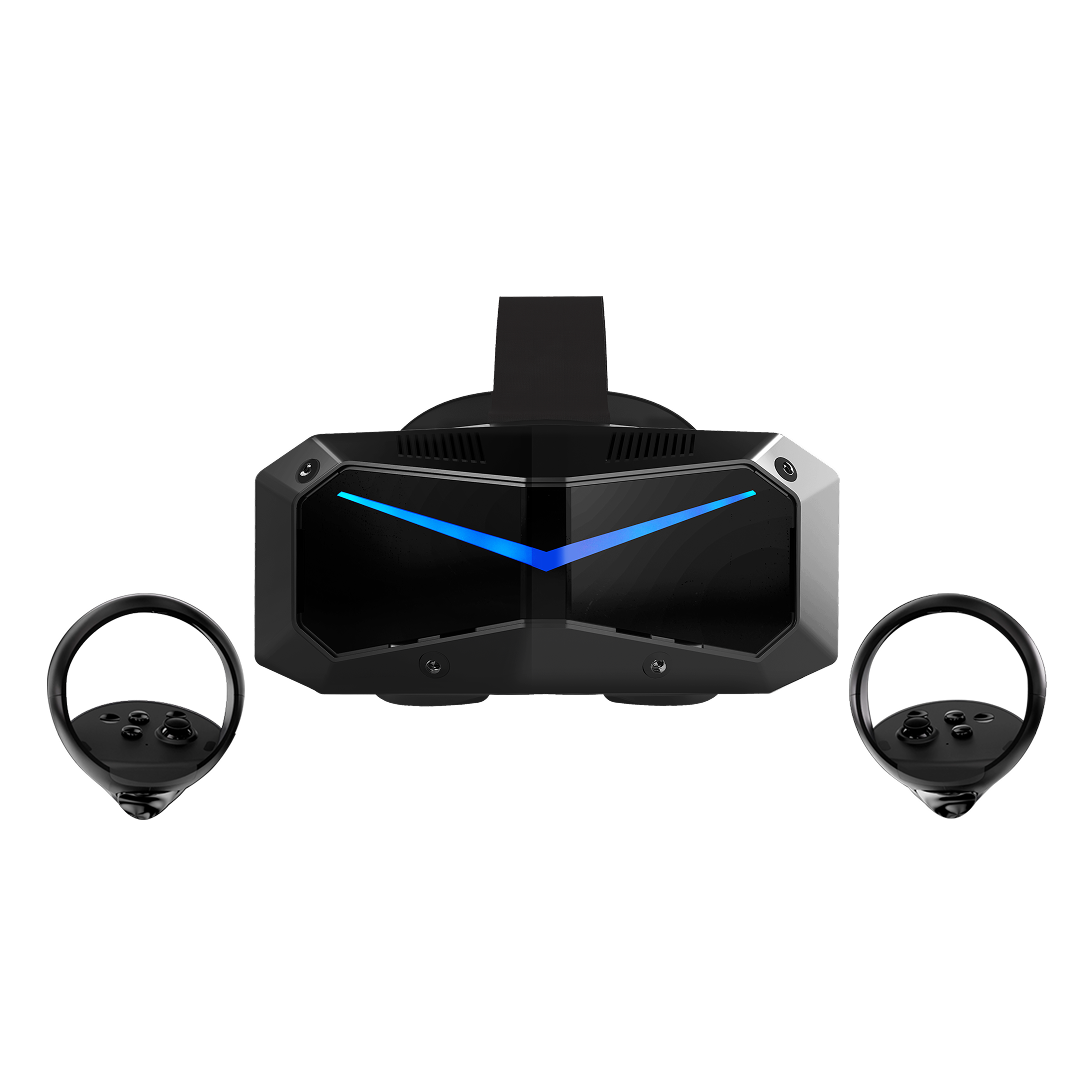

Controllers included with the Pimax Crystal Super Ultra-Wide VR headset

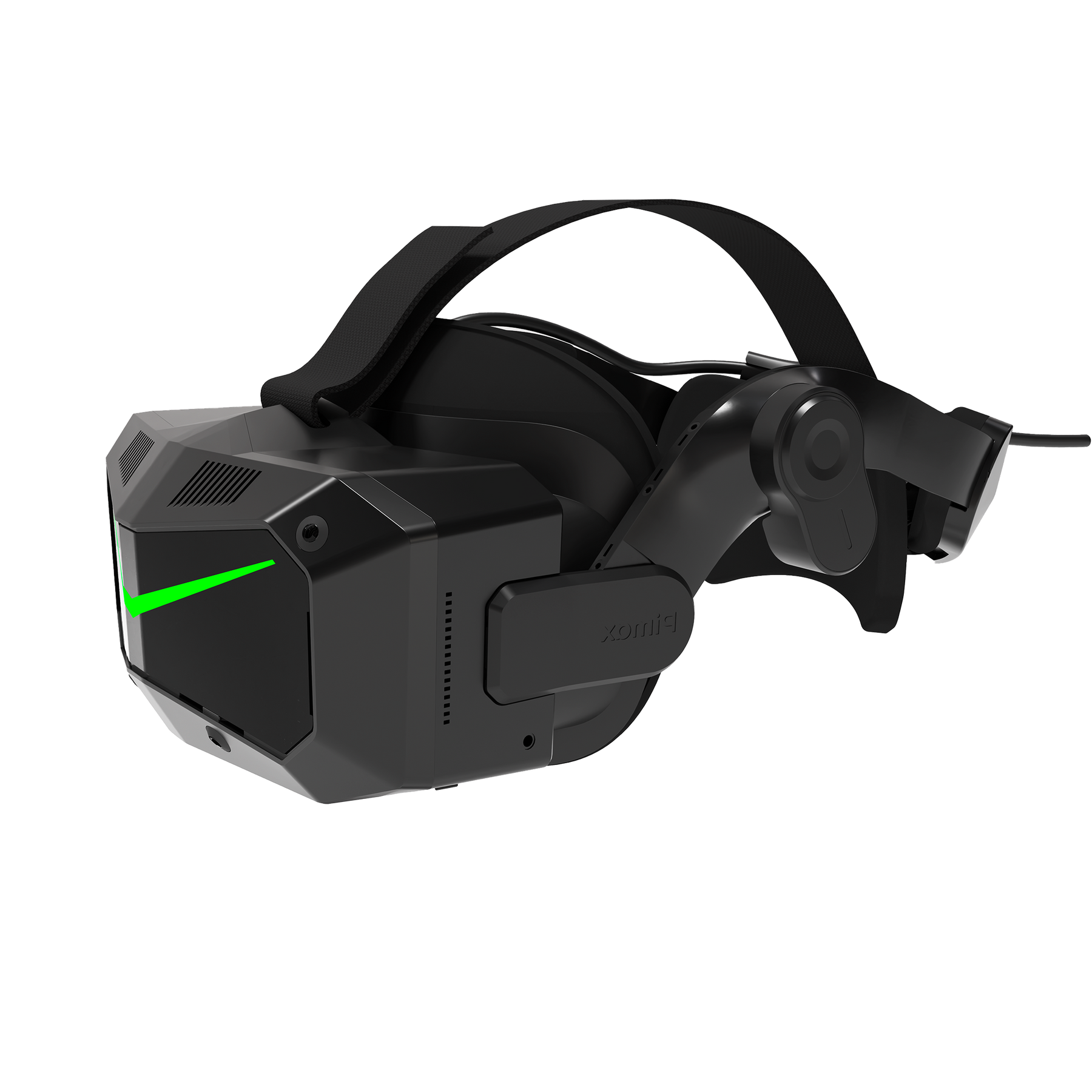

Side view of the Pimax Crystal Super Ultra-Wide with interchangeable Ultra-Wide optical engine

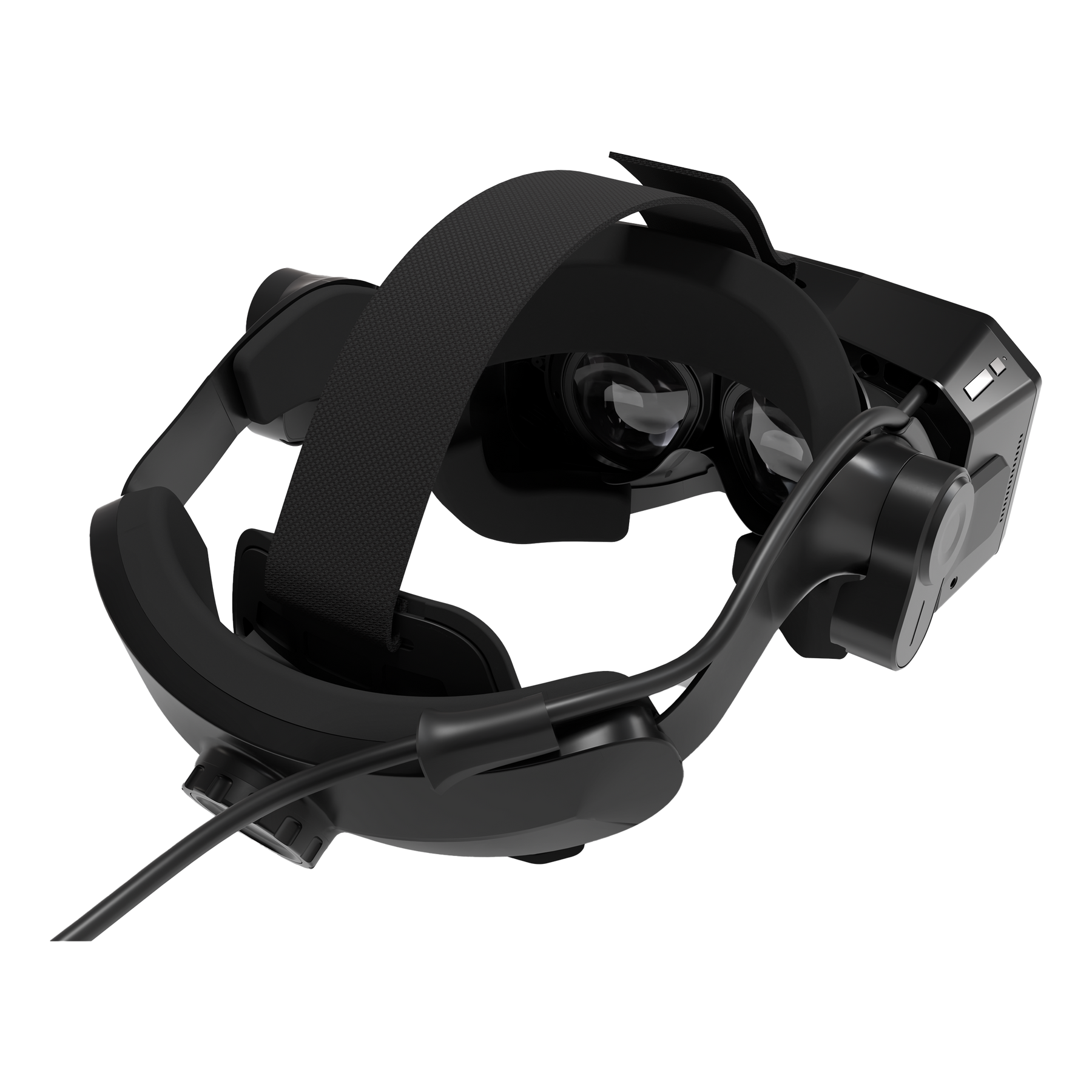

Rear view and automatic IPD adjustment of the Pimax Crystal Super Ultra-Wide

Interior and face cushion of the Pimax Crystal Super Ultra-Wide headset for sim racing

Pimax Crystal Super Ultra-Wide headset ready for sim racing and flight simulation on PC

Price - 14%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The Pimax Crystal Super Ultra-Wide is a PCVR virtual reality headset with a 140° horizontal field of view for sim racing, flight simulation and high-end VR, compatible with PC, aimed at drivers who prioritise peripheral vision and maximum resolution.

It fits the Ultra-Wide optical engine, the widest field of view in the Crystal Super interchangeable optical-engine system: it reaches 140° horizontally by reducing the stereo overlap from 105° to 90°. Its QLED panel with Mini-LED and local dimming, together with aspherical glass lenses, delivers 3840 × 3840 pixels per eye and 50 PPD. It is an ideal headset for a high-end racing simulator and started shipping in July 2025.

Pimax Crystal Super Ultra-Wide key features

140° horizontal field of view, the widest figure in the Crystal Super range.
3840 × 3840 pixels per eye and 50 PPD for an extremely sharp image.
QLED panel with Mini-LED and local dimming for deep blacks and higher contrast.
Eye tracking sampled at 120 Hz that powers Dynamic Foveated Rendering 2.0 and automatic IPD.
Variable 72 / 90 Hz display refresh rate.
Inside-out 6DoF tracking (Pimax SLAM), expandable with an optional Lighthouse Faceplate.
Controllers included, plus audio with a 3.5 mm jack and two microphones.

Technical specifications

Feature	Detail
Product	Pimax Crystal Super Ultra-Wide
Type	PCVR virtual reality headset
Optical engine	Ultra-Wide (interchangeable, Crystal Super system)
Resolution	3840 × 3840 pixels per eye
PPD	50
Horizontal field of view	140°
Display	QLED + Mini-LED with local dimming
Lenses	Aspherical glass
Display refresh rate	72 / 90 Hz variable
Eye tracking	Yes, sampled at 120 Hz
Foveated rendering	Dynamic Foveated Rendering 2.0
IPD	Automatic, 58-72 mm
Tracking	Inside-out 6DoF (Pimax SLAM); optional Lighthouse Faceplate
Controllers	Included
Audio	3.5 mm jack and 2 microphones (optional DMAS)
Connection	DisplayPort 1.4a, 5 m cable
Platform	PCVR only
Minimum GPU	RTX 2080
Recommended GPU	RTX 3070 or higher

Compatibility

The Pimax Crystal Super Ultra-Wide works exclusively as a PCVR headset: it connects via DisplayPort 1.4a with a 5-metre cable and needs a PC with a minimum RTX 2080 GPU, with an RTX 3070 or higher recommended because the 140° field of view is especially demanding. It is not compatible with consoles (PlayStation or Xbox) and does not work standalone, and it fits into simulation cockpits for long driving or flying sessions.

Frequently asked questions

Does the Pimax Crystal Super Ultra-Wide have a 120 Hz display?

No. The display runs at a variable 72 / 90 Hz. The 120 Hz figure refers to the eye-tracking sampling rate, not the display refresh rate.

What GPU do I need for the Pimax Crystal Super Ultra-Wide?

The minimum GPU is an RTX 2080, but an RTX 3070 or higher is recommended because the 140° field of view is especially demanding.

Does it work with consoles like PlayStation or Xbox?

No. It is a PCVR-only headset: it connects to a PC via DisplayPort 1.4a with a 5 m cable and is not compatible with consoles, nor does it work standalone.

What is the Ultra-Wide optical engine?

It is the widest field-of-view optical engine in the Crystal Super interchangeable system. It reaches 140° horizontally by reducing the stereo overlap from 105° to 90°.

Does it include controllers and a microphone?

Yes, controllers are included. The audio features a 3.5 mm jack and two microphones, with an optional DMAS system available.

Does it have eye tracking and automatic IPD?

Yes. Eye tracking is sampled at 120 Hz and powers Dynamic Foveated Rendering 2.0, along with automatic IPD adjustment between 58 and 72 mm.
