3DRap GGKit | Load Cell Pedal Upgrade Kit

Name: 3DRap GGKit – Load Cell Pedal Upgrade Kit
Brand: 3DRAP
SKU: SL071_KT1
Price: 125.99 EUR
Availability: InStock

3DRap GGKit for Logitech, Thrustmaster or Fanatec pedals

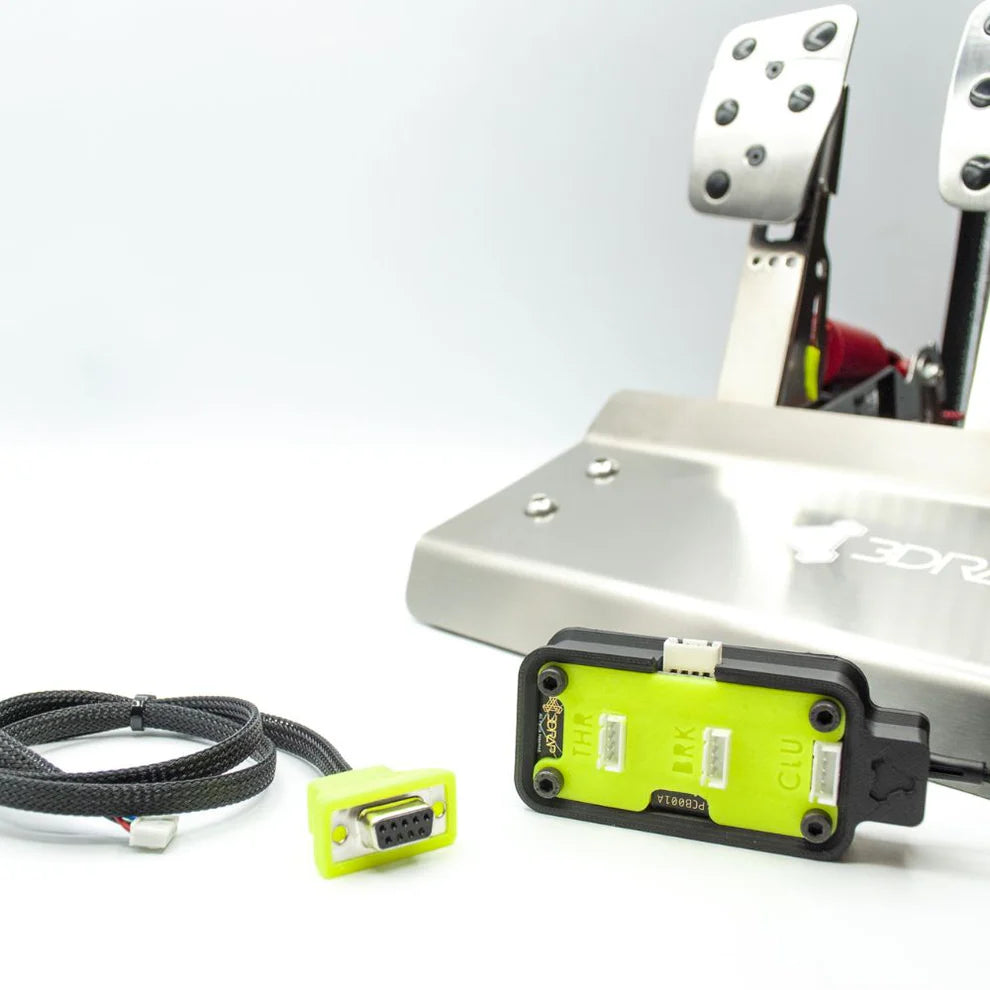

Components of the 3DRap GGKit for upgrading pedals

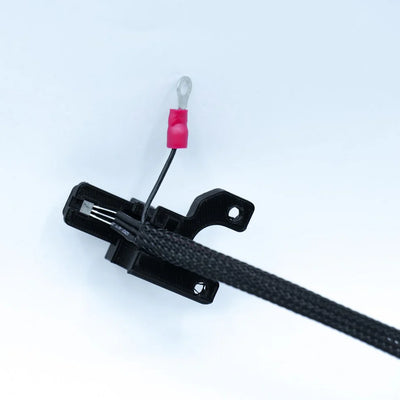

GGKit Hall sensors for throttle and clutch

Interchangeable GGKit elastomers to adjust the brake hardness

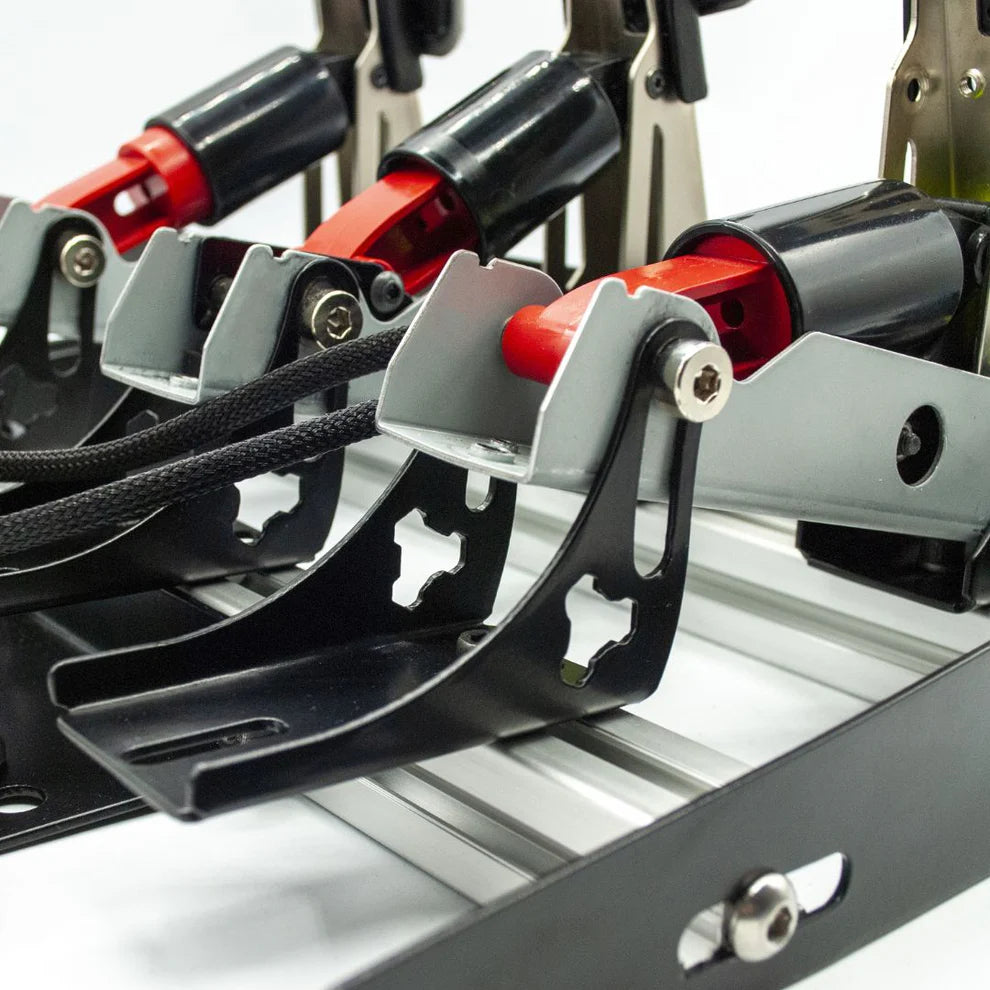

Bearing-based clutch kinematics of the GGKit

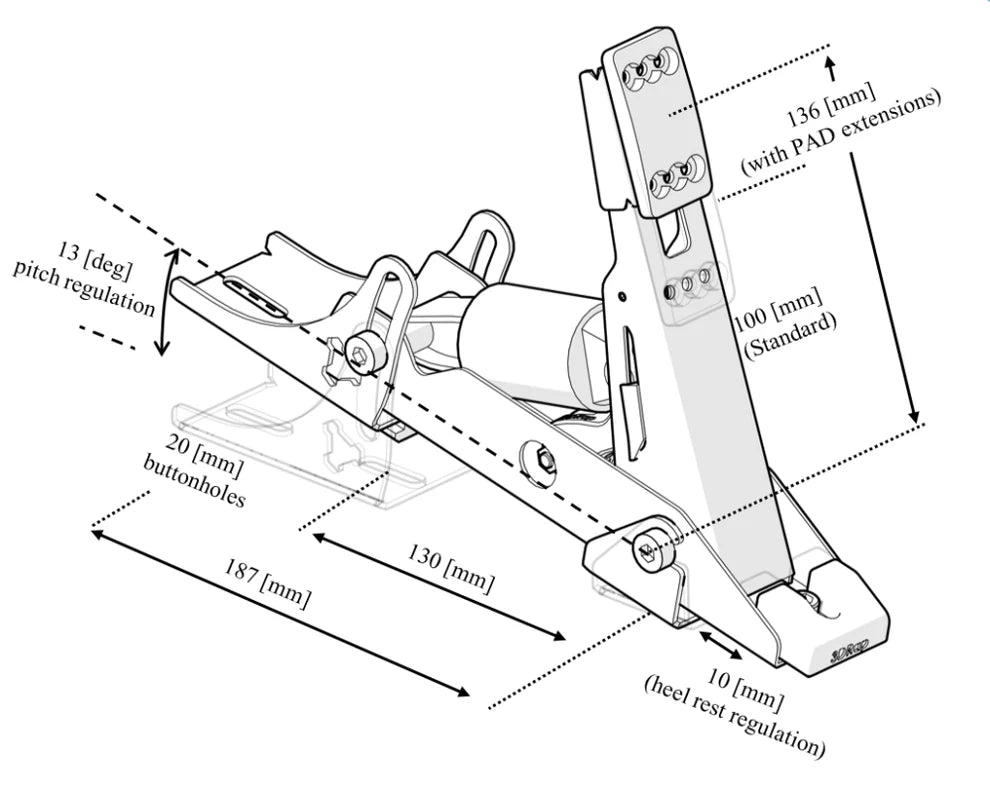

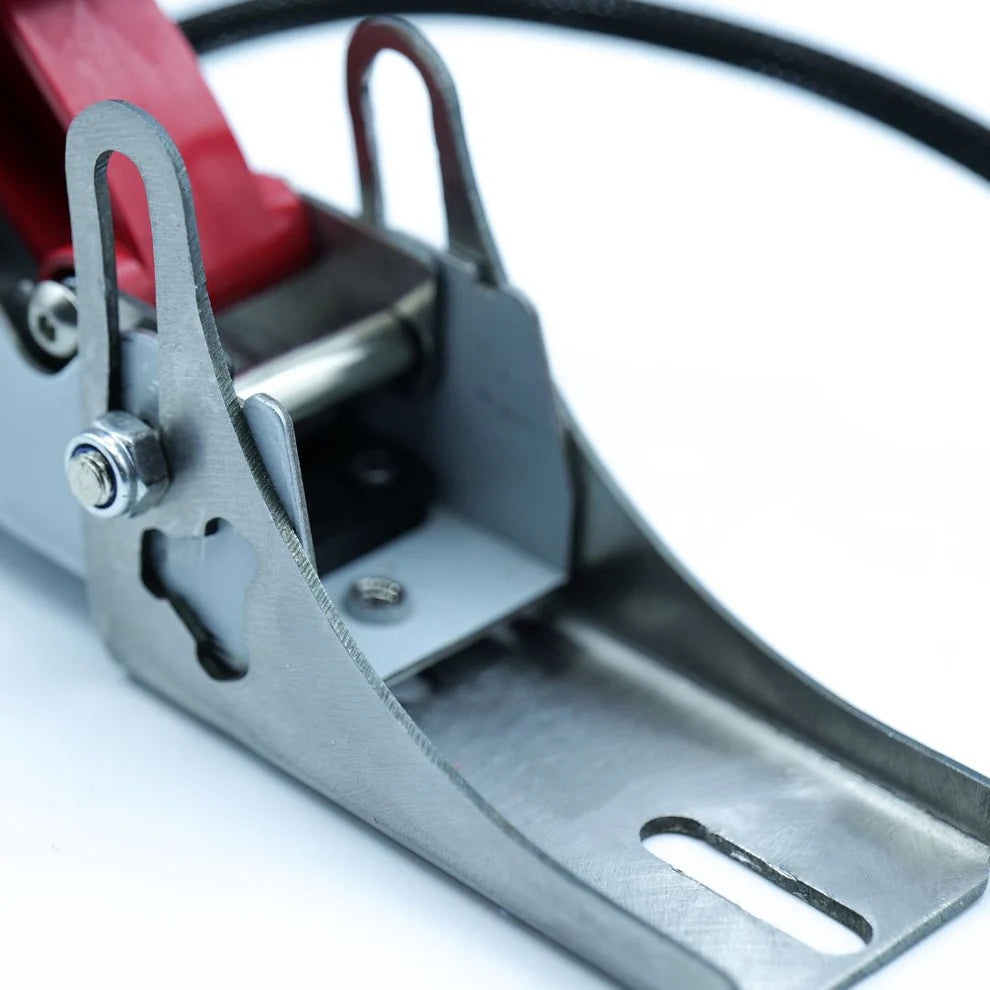

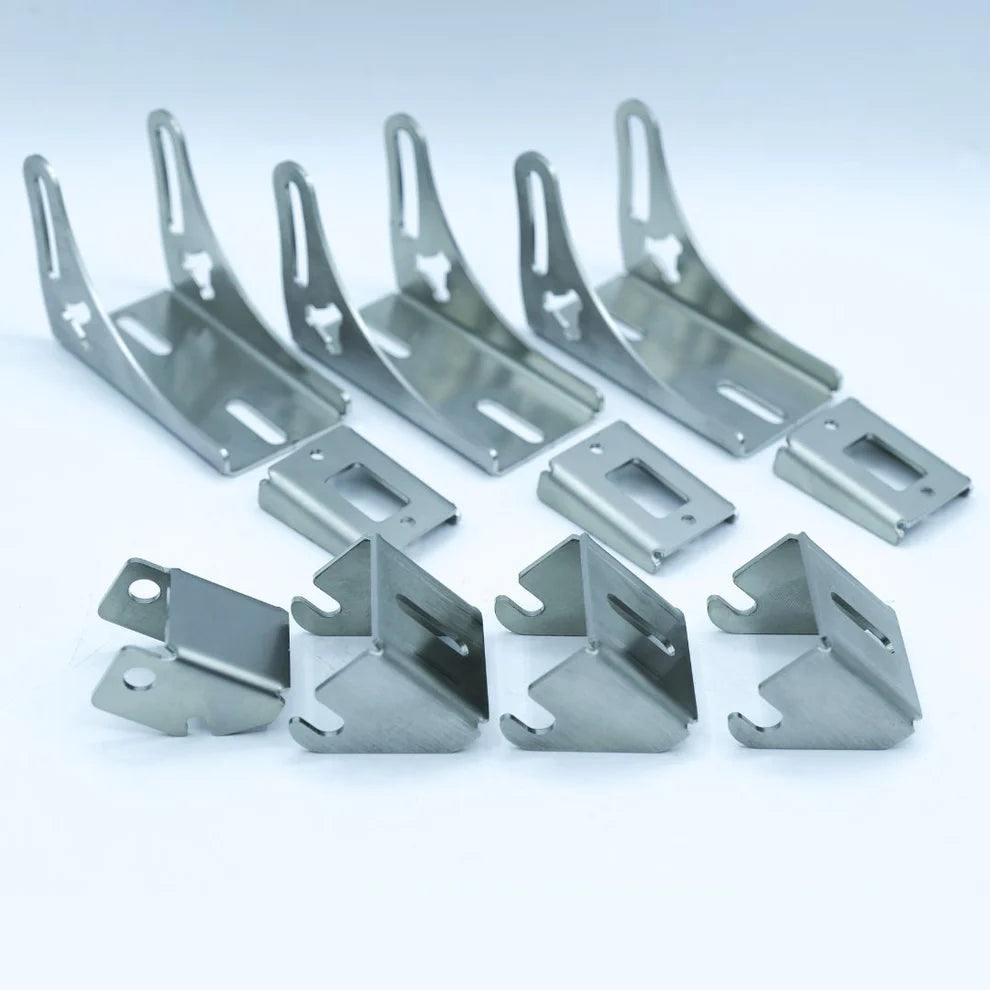

GGKit inclination and depth adjustment plates

Axis configuration software of the 3DRap GGKit

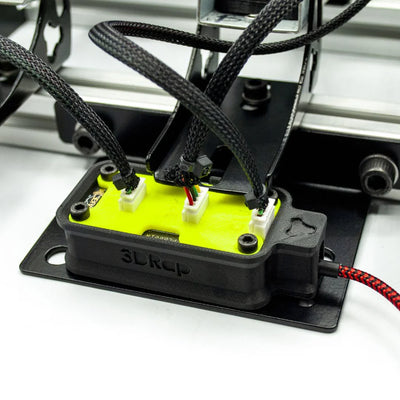

3DRap GGKit installed on Logitech pedals

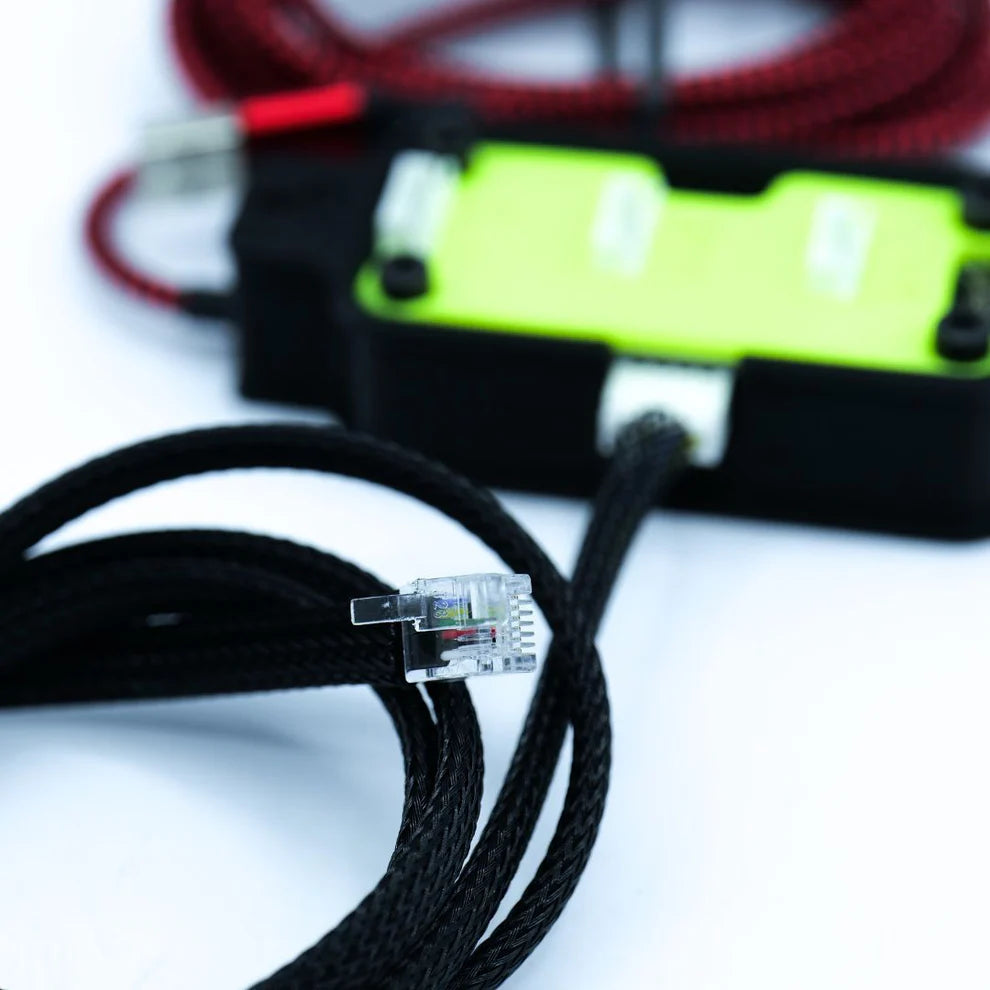

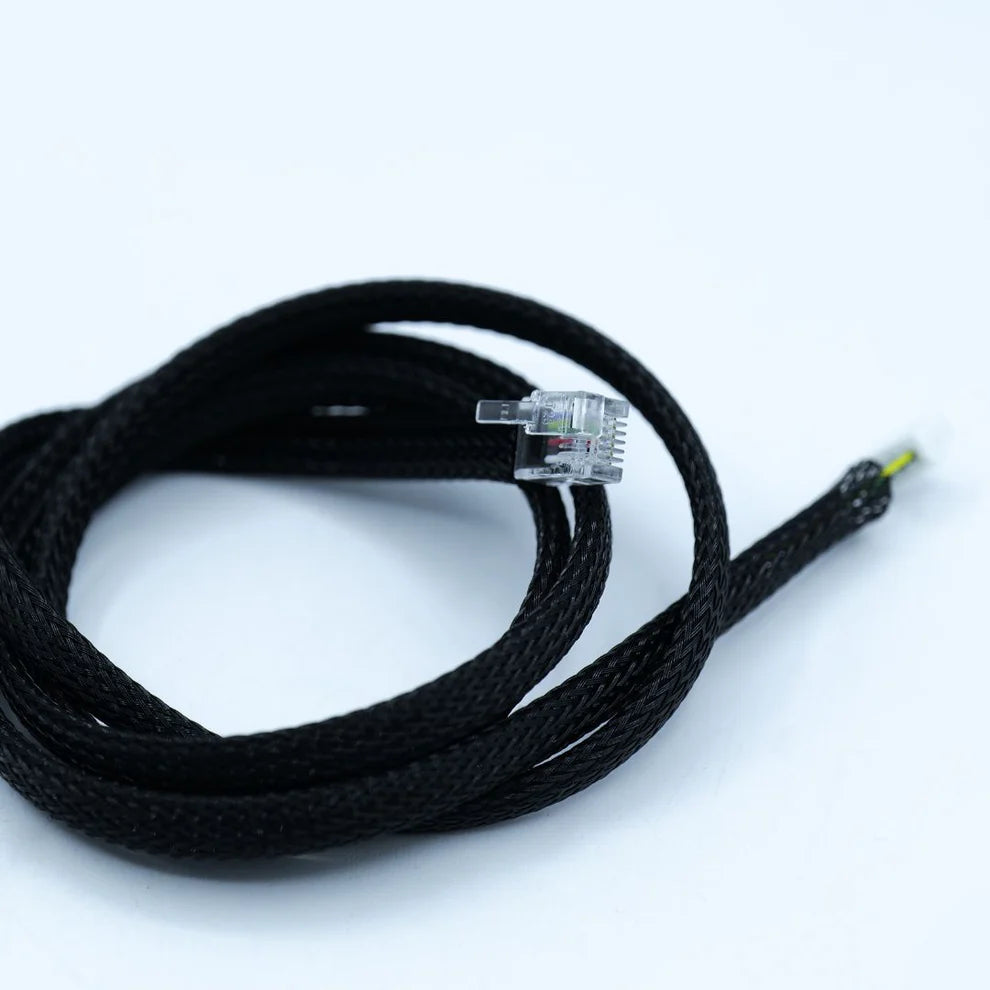

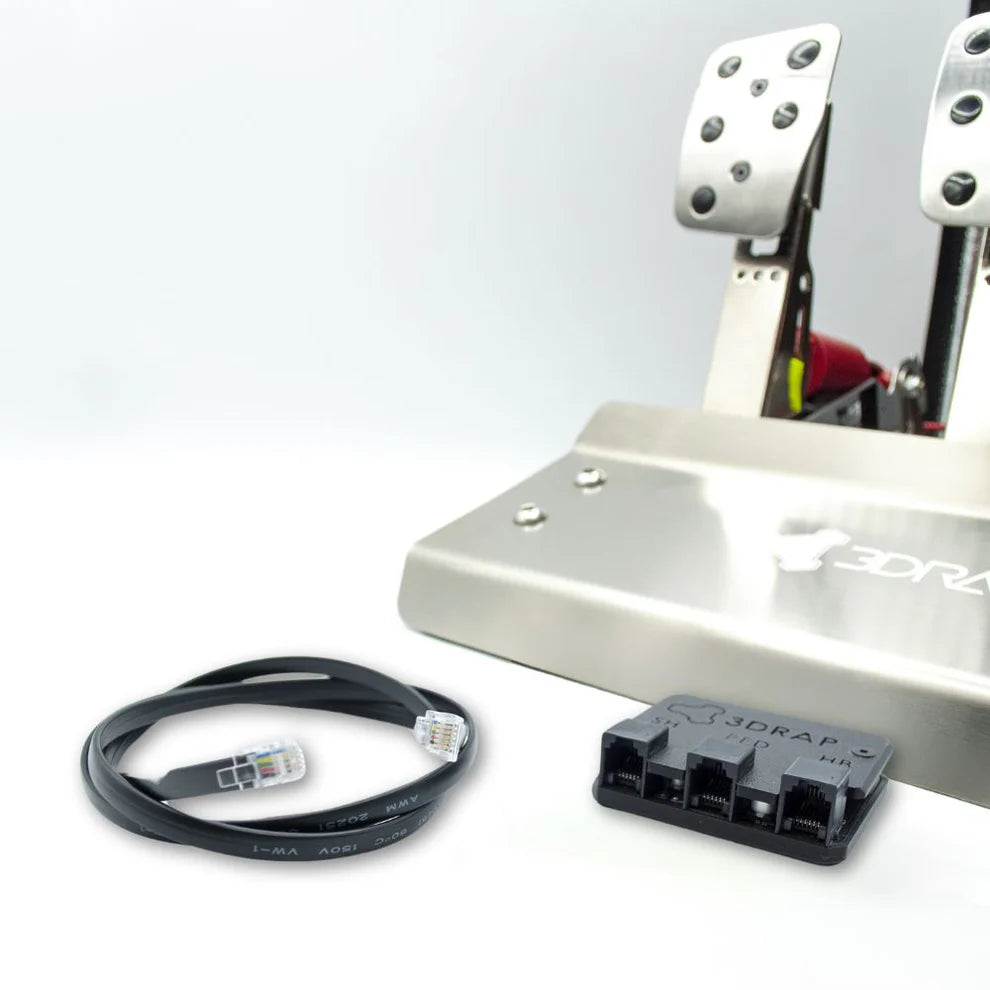

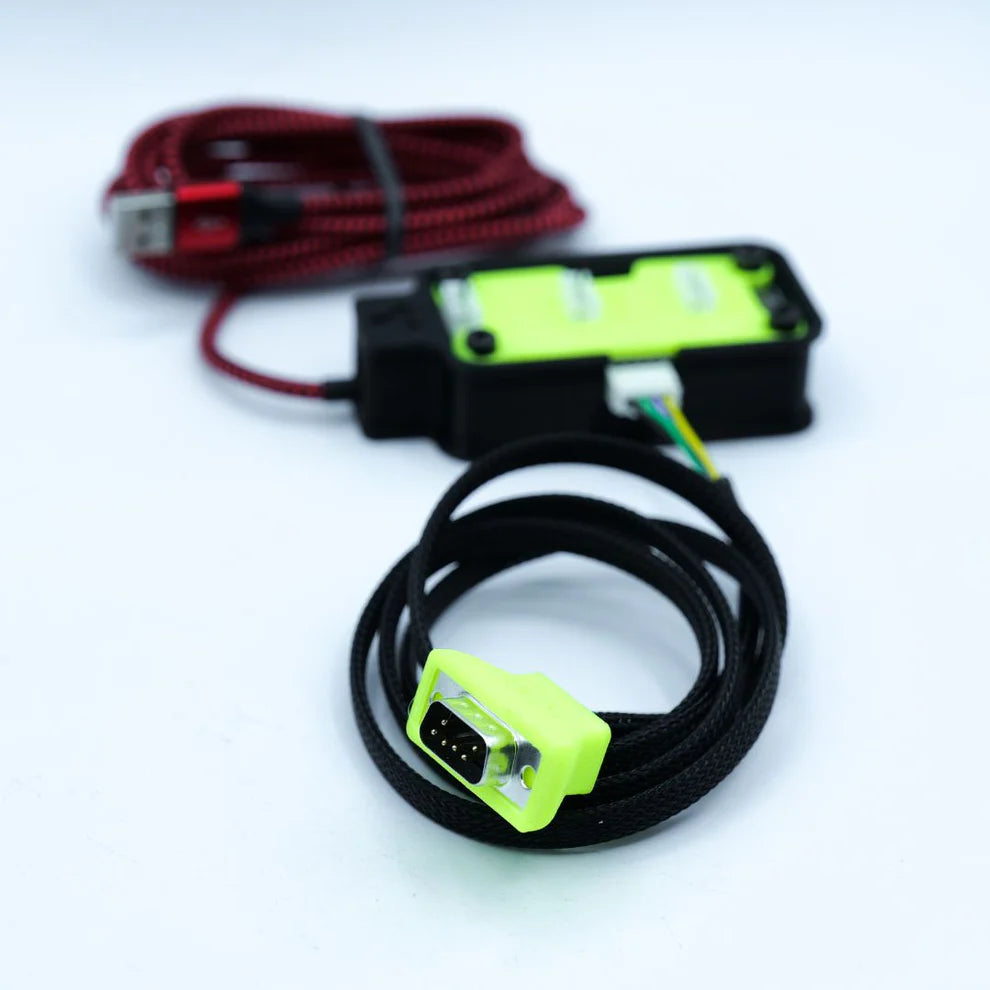

GGKit RJ connector for a Thrustmaster or Fanatec base

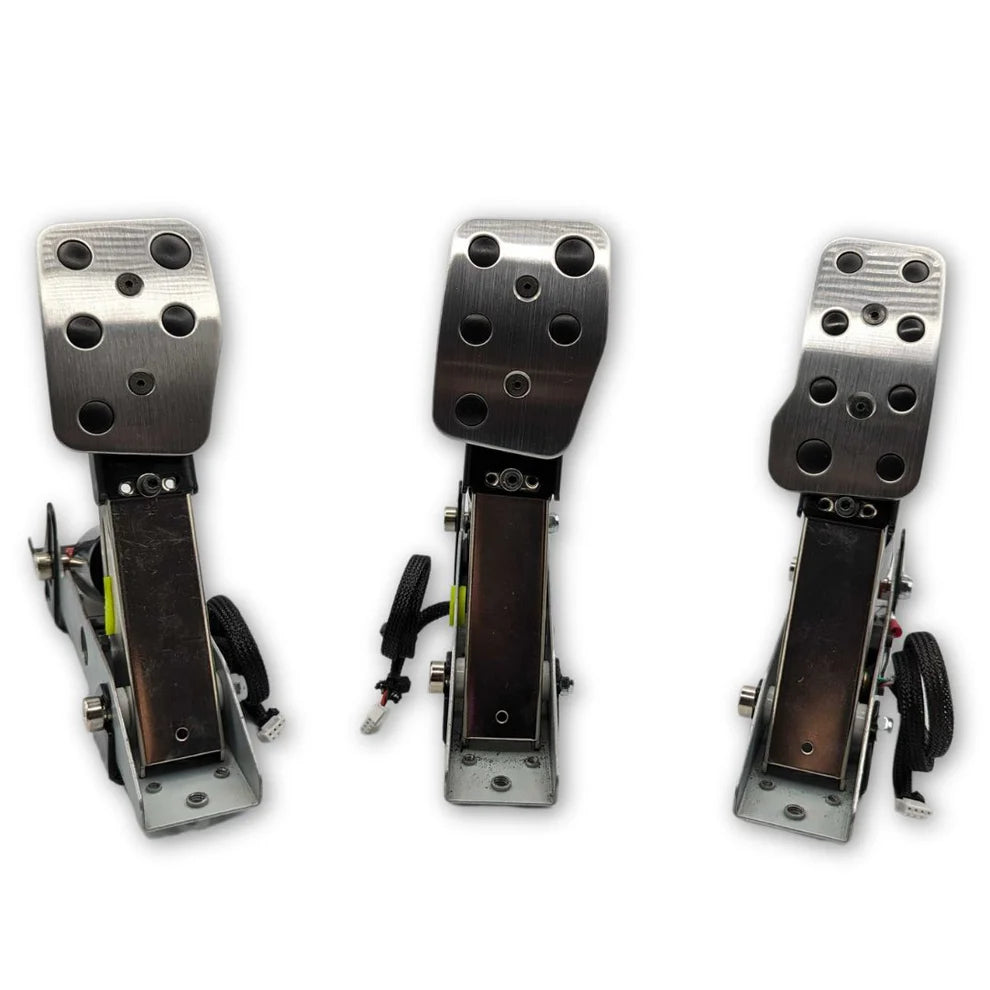

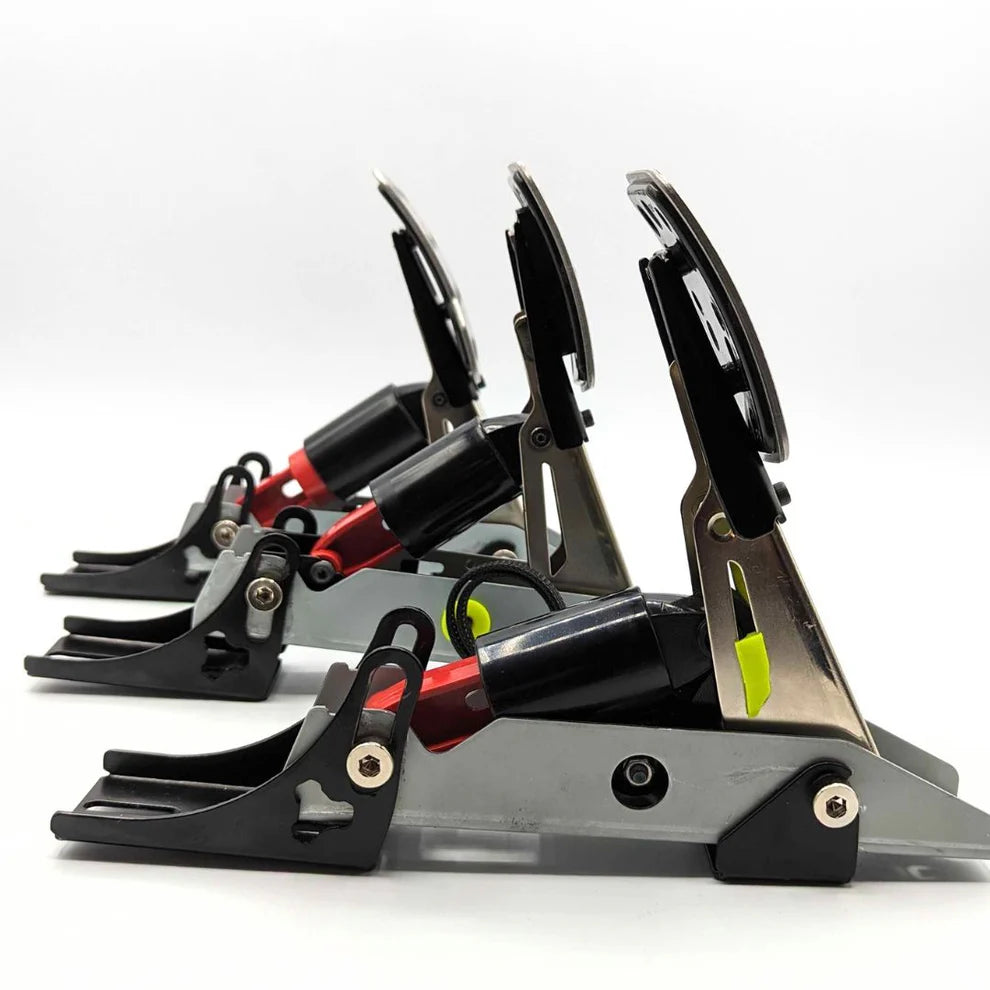

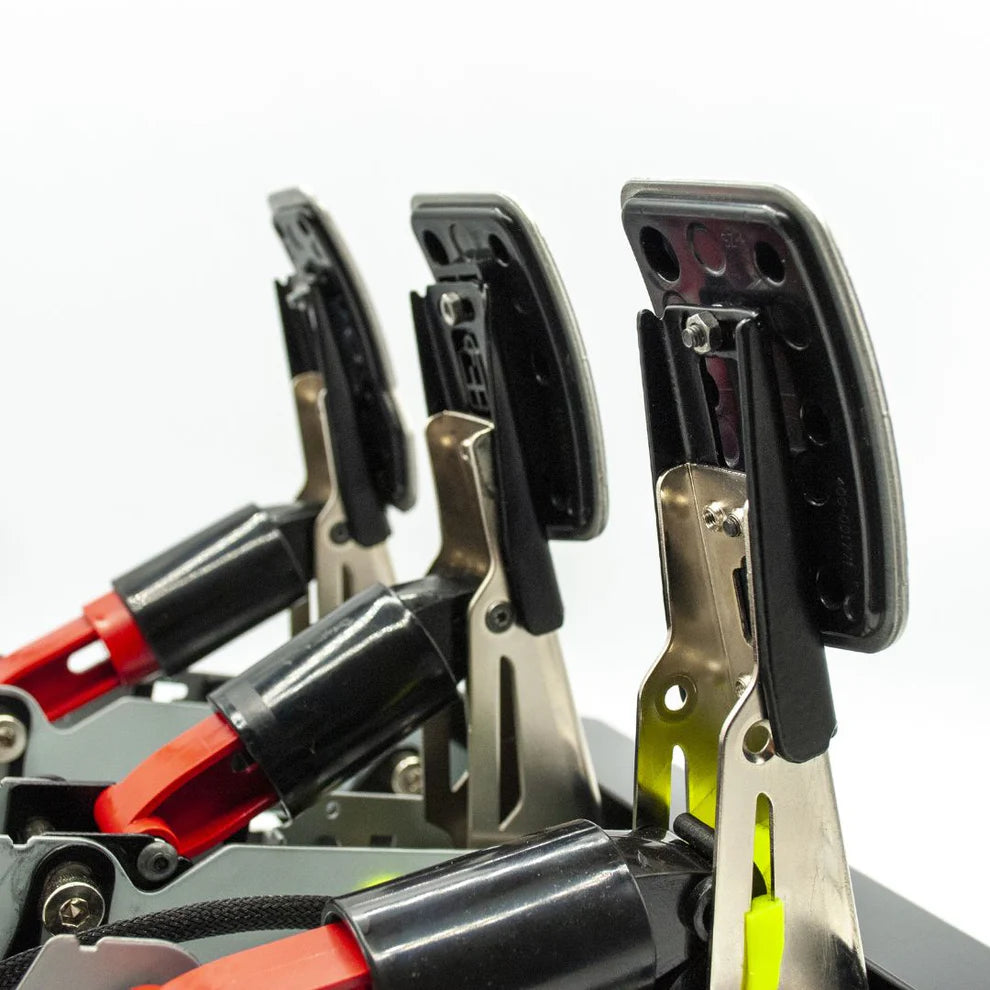

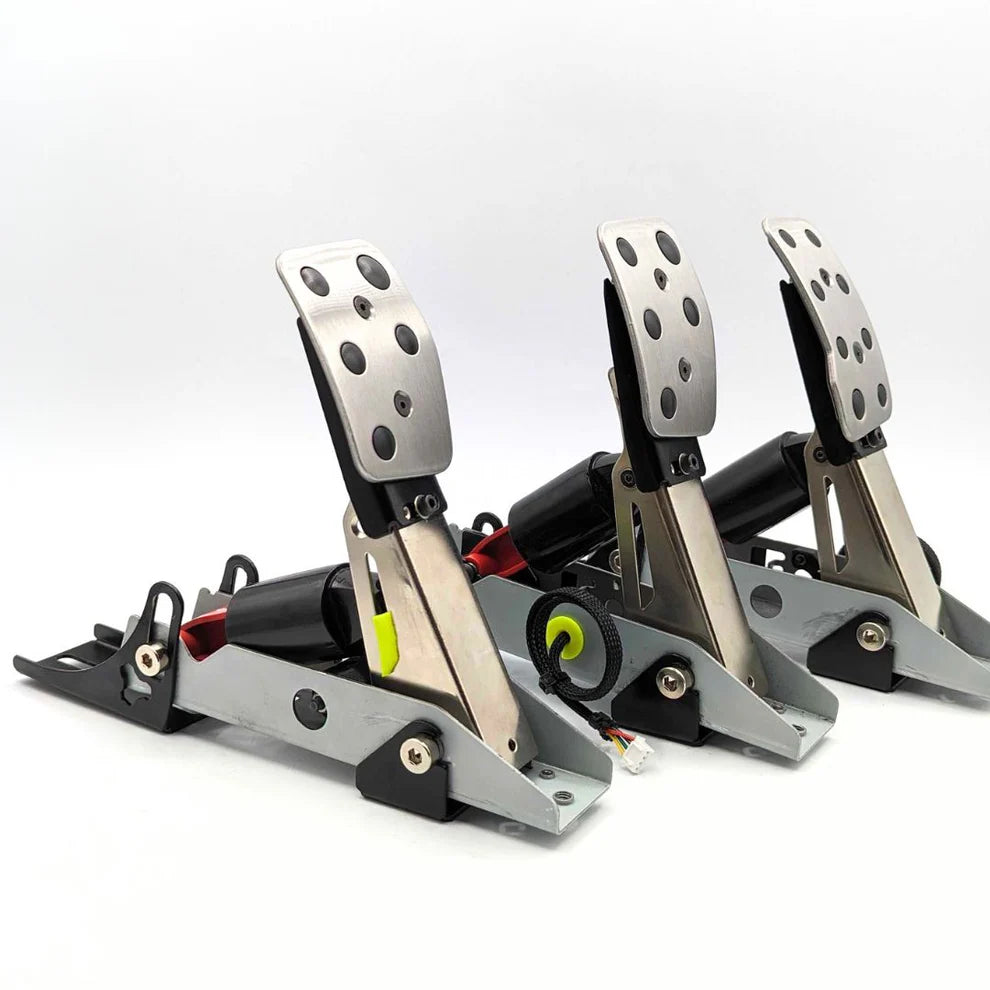

Overview of pedals with the 3DRap GGKit fitted

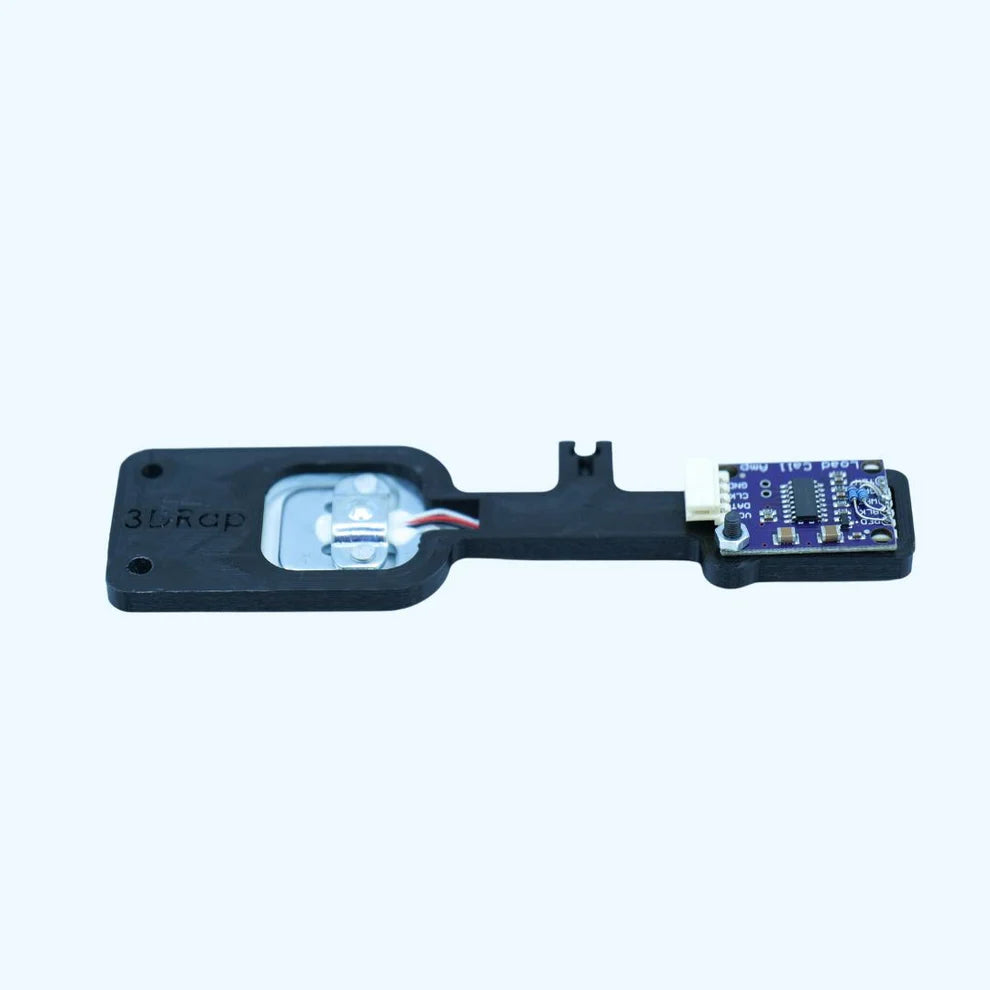

Detail of the brake pedal with the GGKit Load Cell

GGKit pad extensions to improve ergonomics

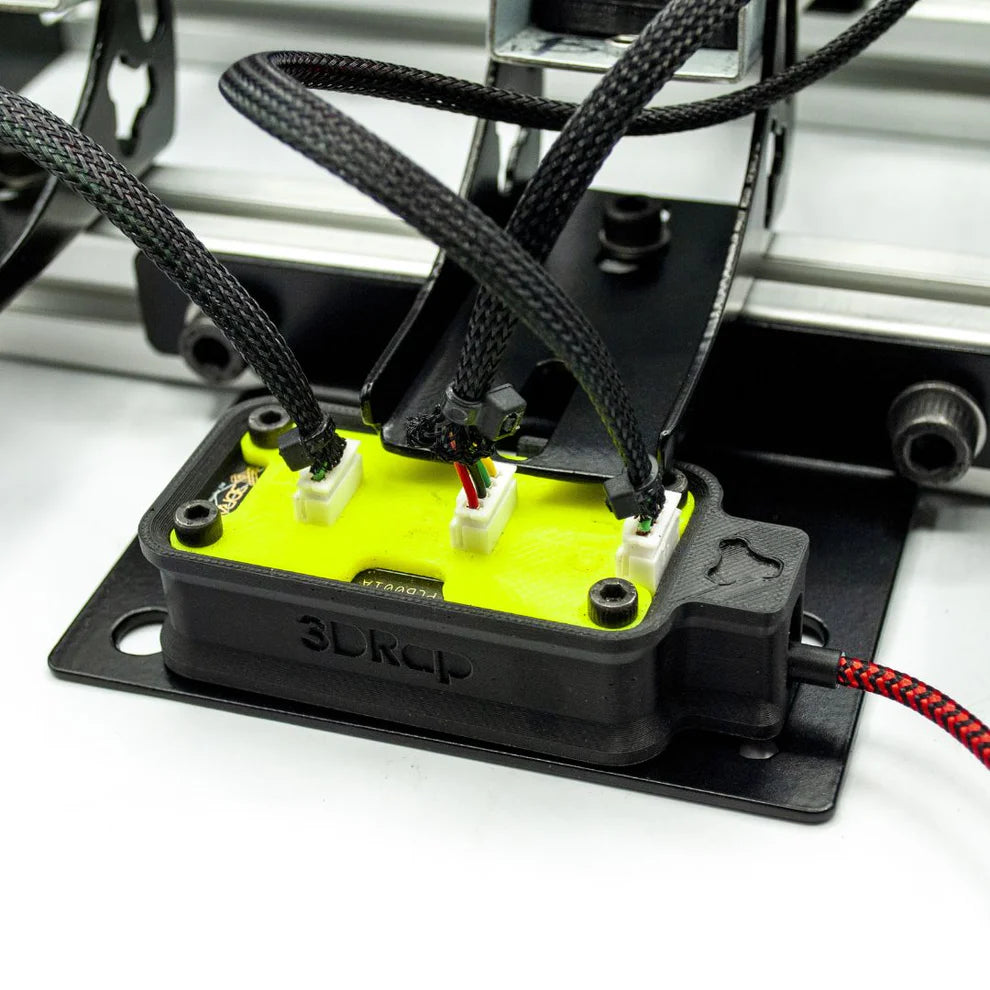

Redesigned industrial-black GGKit housing

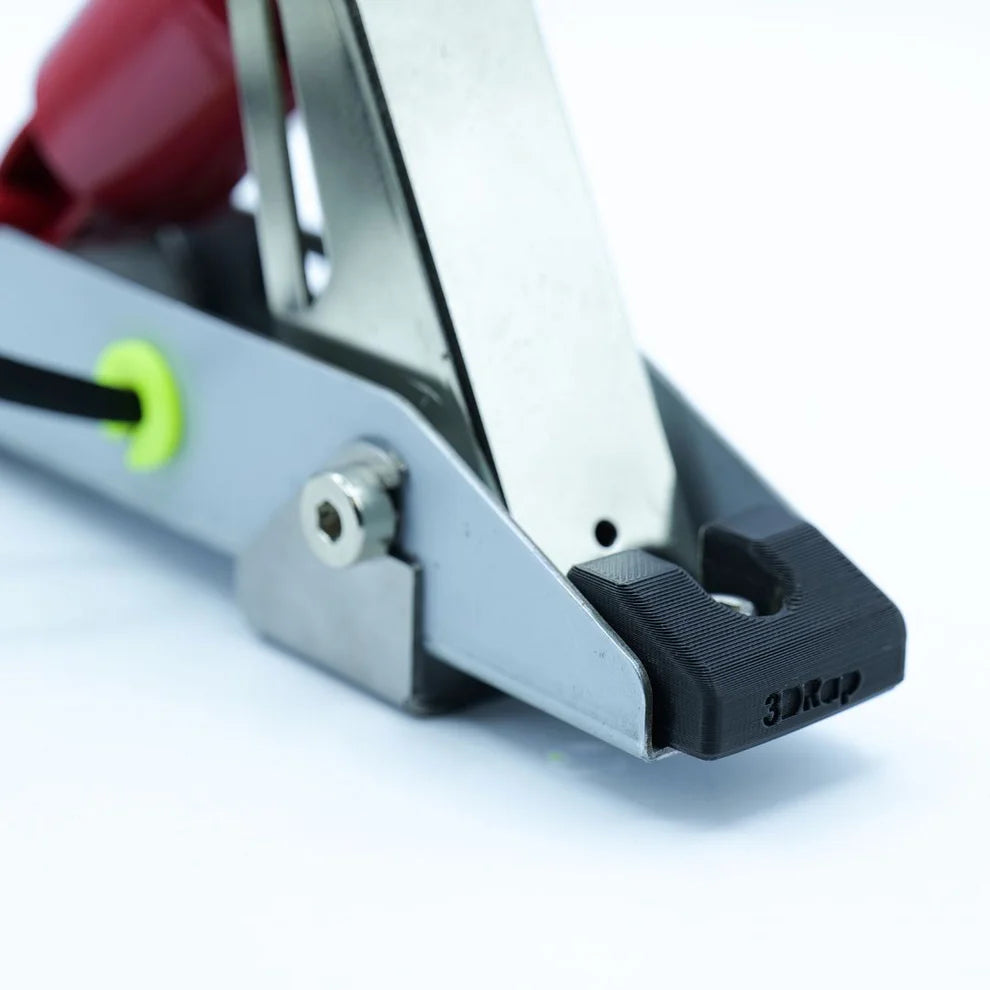

End-of-stroke pads for the GGKit throttle

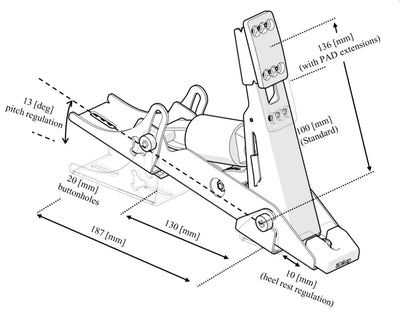

Pedal travel and hardness adjustment with the GGKit

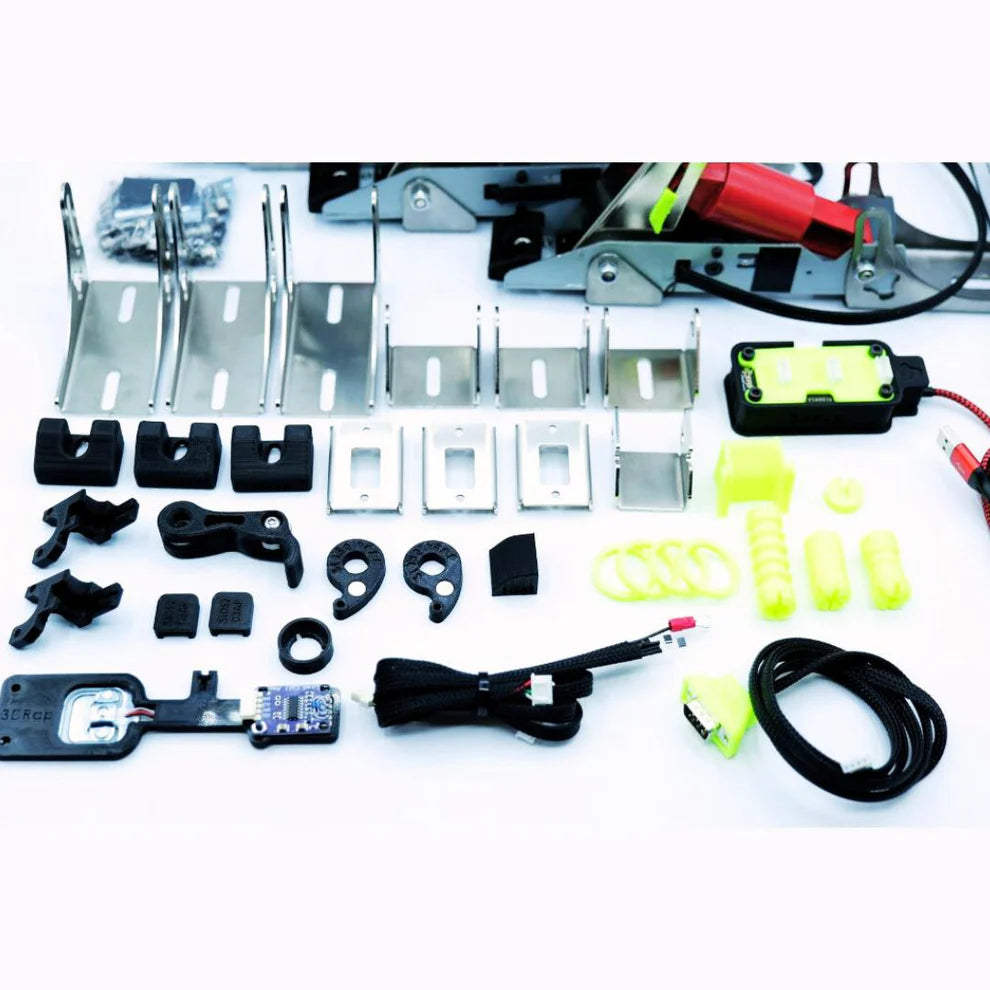

Complete 3DRap GGKit with all its components

Detail of the GGKit high-resolution sensors

Pedal set upgraded with the 3DRap GGKit for sim racing

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":52547675423053,"title":"PC only (USB cable)","option1":"PC only (USB cable)","option2":null,"option3":null,"sku":"SL071_KT1","requires_shipping":true,"taxable":true,"featured_image":{"id":73445330190669,"product_id":10309319360845,"position":1,"created_at":"2025-10-09T09:22:32+02:00","updated_at":"2025-10-09T09:25:50+02:00","alt":"3DRap GGKit for Logitech, Thrustmaster or Fanatec pedals","width":990,"height":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_25.webp?v=1759994750","variant_ids":[52547675423053]},"available":true,"name":"3DRap GGKit – Load Cell Pedal Upgrade Kit - PC only (USB cable)","public_title":"PC only (USB cable)","options":["PC only (USB cable)"],"price":12599,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841155","featured_media":{"alt":"3DRap GGKit for Logitech, Thrustmaster or Fanatec pedals","id":57748655145293,"position":1,"preview_image":{"aspect_ratio":1.0,"height":990,"width":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_25.webp?v=1759994750"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547675455821,"title":"Logitech base (DB9 + USB cable)","option1":"Logitech base (DB9 + USB cable)","option2":null,"option3":null,"sku":"SL071_KT2","requires_shipping":true,"taxable":true,"featured_image":{"id":73445329568077,"product_id":10309319360845,"position":23,"created_at":"2025-10-09T09:22:32+02:00","updated_at":"2025-10-09T09:25:50+02:00","alt":"Complete 3DRap GGKit with all its components","width":990,"height":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_1.webp?v=1759994750","variant_ids":[52547675455821]},"available":true,"name":"3DRap GGKit – Load Cell Pedal Upgrade Kit - Logitech base (DB9 + USB cable)","public_title":"Logitech base (DB9 + USB cable)","options":["Logitech base (DB9 + USB cable)"],"price":12999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841162","featured_media":{"alt":"Complete 3DRap GGKit with all its components","id":57748654522701,"position":23,"preview_image":{"aspect_ratio":1.0,"height":990,"width":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_1.webp?v=1759994750"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547675488589,"title":"Thrustmaster base (RJ + USB cable)","option1":"Thrustmaster base (RJ + USB cable)","option2":null,"option3":null,"sku":"SL071_KT3","requires_shipping":true,"taxable":true,"featured_image":{"id":73445340021069,"product_id":10309319360845,"position":24,"created_at":"2025-10-09T09:23:42+02:00","updated_at":"2025-10-09T09:25:50+02:00","alt":"Detail of the GGKit high-resolution sensors","width":990,"height":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_3.webp?v=1759994750","variant_ids":[52547675488589]},"available":true,"name":"3DRap GGKit – Load Cell Pedal Upgrade Kit - Thrustmaster base (RJ + USB cable)","public_title":"Thrustmaster base (RJ + USB cable)","options":["Thrustmaster base (RJ + USB cable)"],"price":12999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841179","featured_media":{"alt":"Detail of the GGKit high-resolution sensors","id":57748665041229,"position":24,"preview_image":{"aspect_ratio":1.0,"height":990,"width":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_3.webp?v=1759994750"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547675521357,"title":"Fanatec base (RJ + USB cable)","option1":"Fanatec base (RJ + USB cable)","option2":null,"option3":null,"sku":"SL071_KT4","requires_shipping":true,"taxable":true,"featured_image":{"id":73445339988301,"product_id":10309319360845,"position":25,"created_at":"2025-10-09T09:23:42+02:00","updated_at":"2025-10-09T09:25:50+02:00","alt":"Pedal set upgraded with the 3DRap GGKit for sim racing","width":990,"height":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_2.webp?v=1759994750","variant_ids":[52547675521357]},"available":true,"name":"3DRap GGKit – Load Cell Pedal Upgrade Kit - Fanatec base (RJ + USB cable)","public_title":"Fanatec base (RJ + USB cable)","options":["Fanatec base (RJ + USB cable)"],"price":14999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841186","featured_media":{"alt":"Pedal set upgraded with the 3DRap GGKit for sim racing","id":57748665008461,"position":25,"preview_image":{"aspect_ratio":1.0,"height":990,"width":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/GGKit-para-Pedales-Logitech_-Thrustmaster-o-Fanatec-Simufy_2.webp?v=1759994750"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The 3DRap GGKit is an upgrade kit for sim racing that turns your Logitech, Thrustmaster or Fanatec pedals into a set with a 16-bit Load Cell, compatible with PC, PS4, PS5 and Xbox.

The GGKit replaces the electronics and several mechanical parts of your original pedals to bring them close to the feel of a high-end pedal set, without replacing the whole structure. It adds high-resolution sensors, force-based braking and multiple physical adjustments.

Key features of the 3DRap GGKit

16-bit Load Cell on the brake: feel based on force, not travel, with up to 30 kgf.

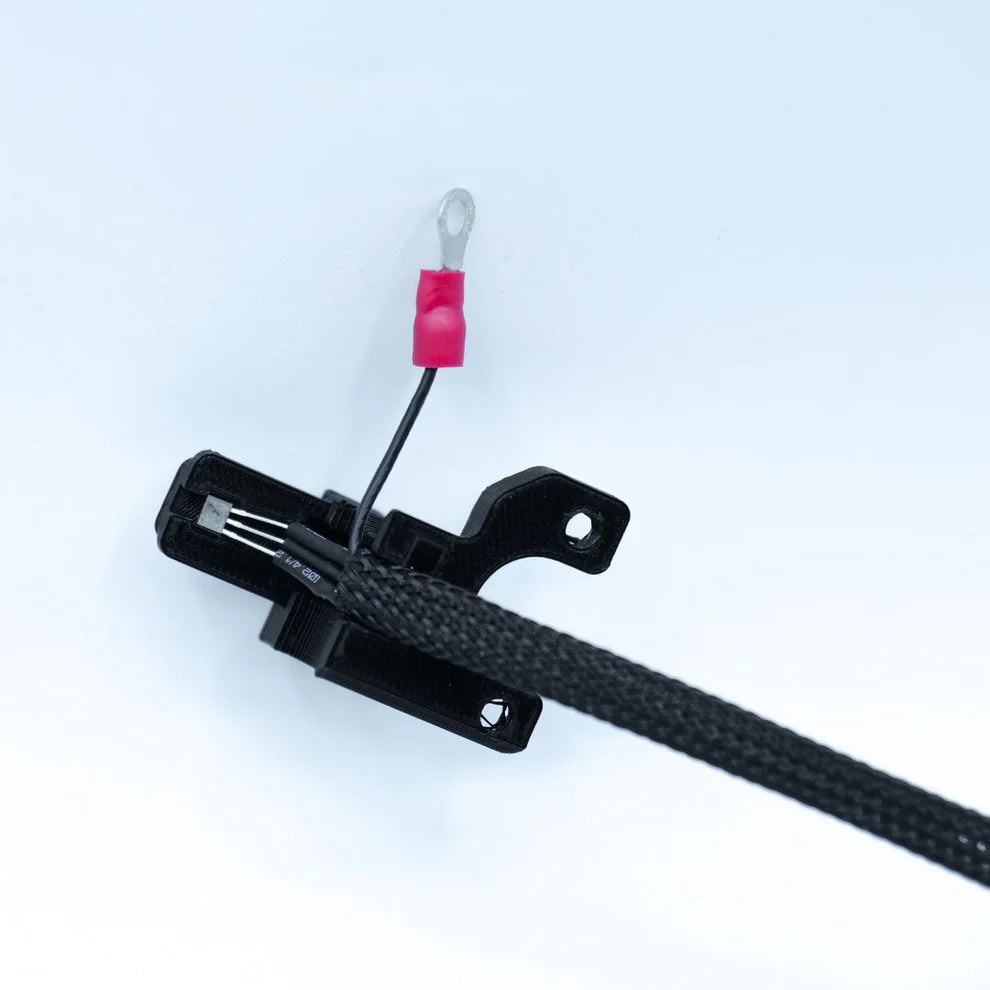

12-bit Hall sensors on the throttle and clutch, replacing the factory potentiometers.

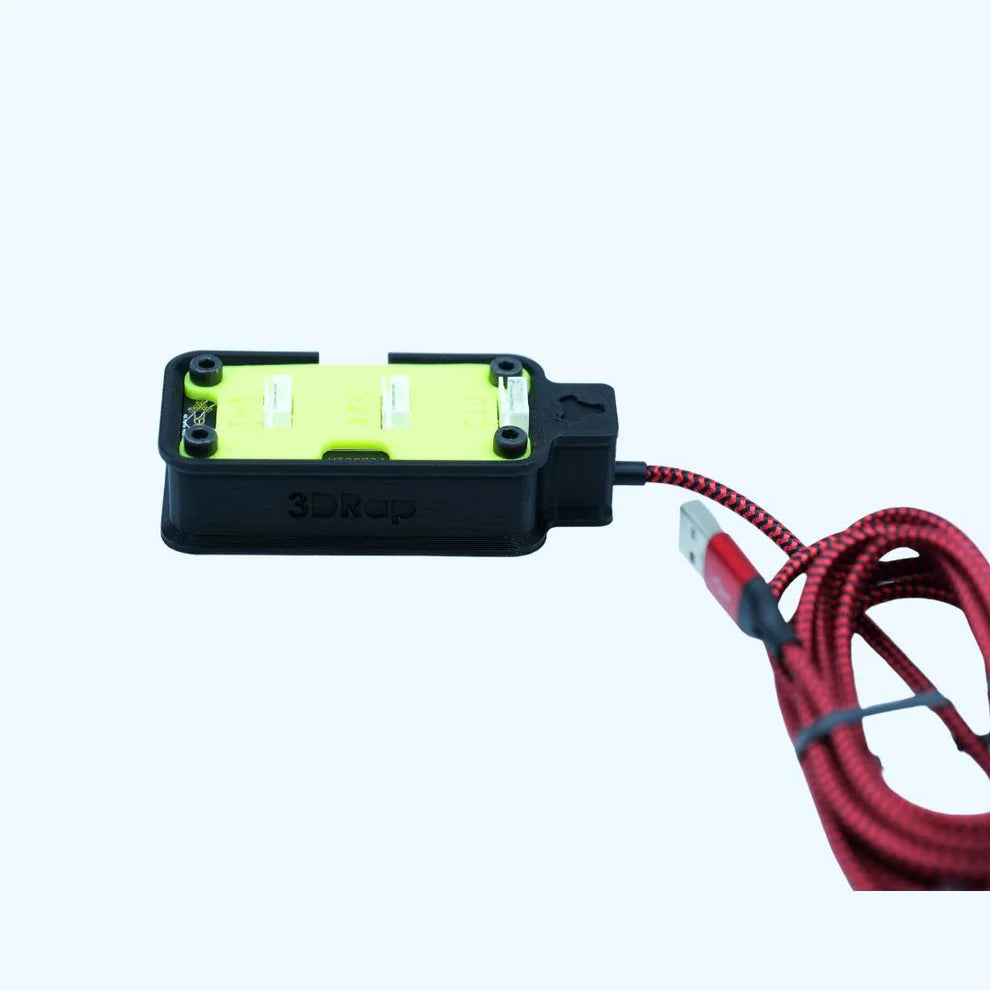

32-bit electronics with proprietary firmware and software (GUI) to configure the axes.
Bearing-based kinematics on the clutch to simulate the double detachment point.
Interchangeable elastomers (medium and hard) with spacers to adjust hardness and preload.
Inclination and depth adjustment plates, pad extensions and end-of-stroke pads.
Eliminates common issues such as flickering, mechanical play or worn potentiometers.

Technical specifications

Component	Detail
Brake	16-bit Load Cell (up to 30 kgf)
Throttle and clutch	12-bit Hall sensors
Electronics	32-bit with proprietary firmware
Software	Proprietary GUI to configure axes
Mechanics	Bearings, medium and hard elastomers, spacers, end-of-stroke pads
Adjustments	Inclination, depth, hardness and travel
Platforms	PC, PS4, PS5 and Xbox (via compatible base)
Connection	USB / DB9 / RJ depending on the base

Compatibility

PC (Windows) via USB connection.

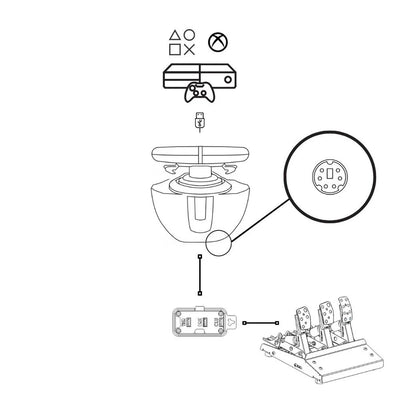

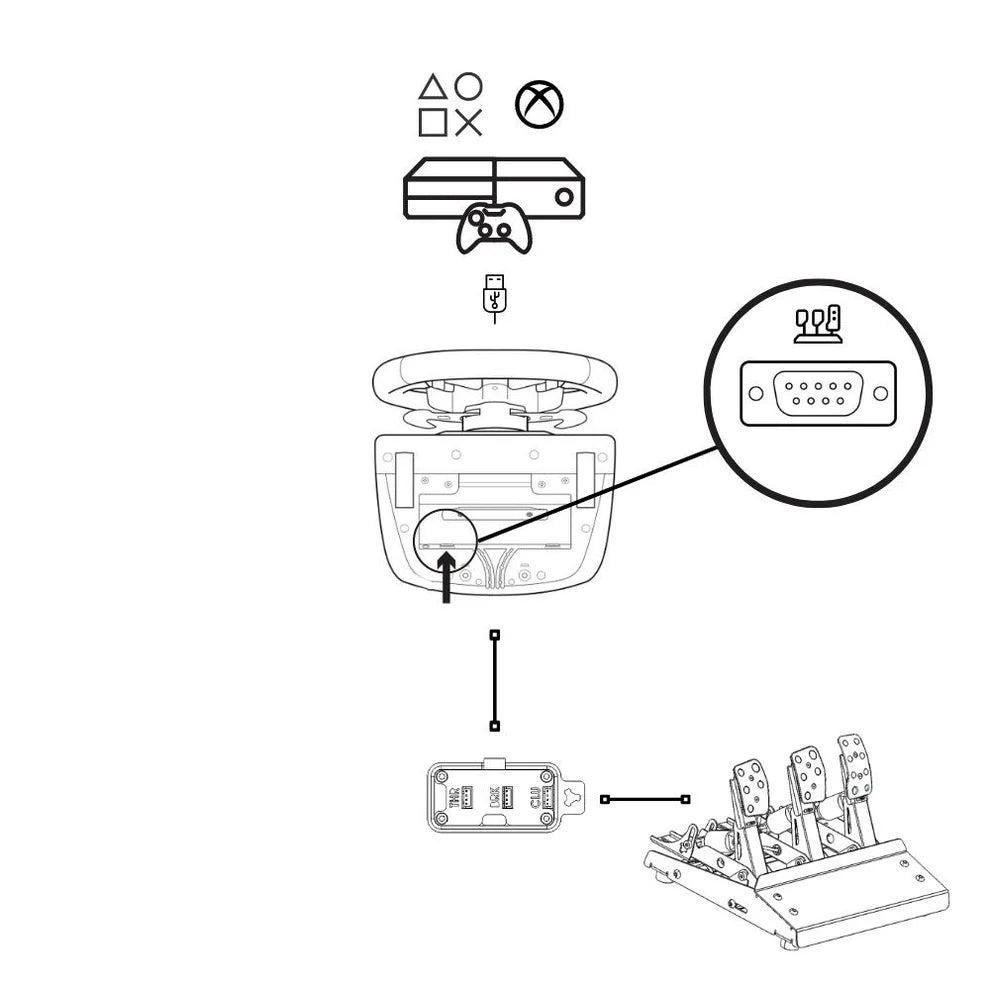

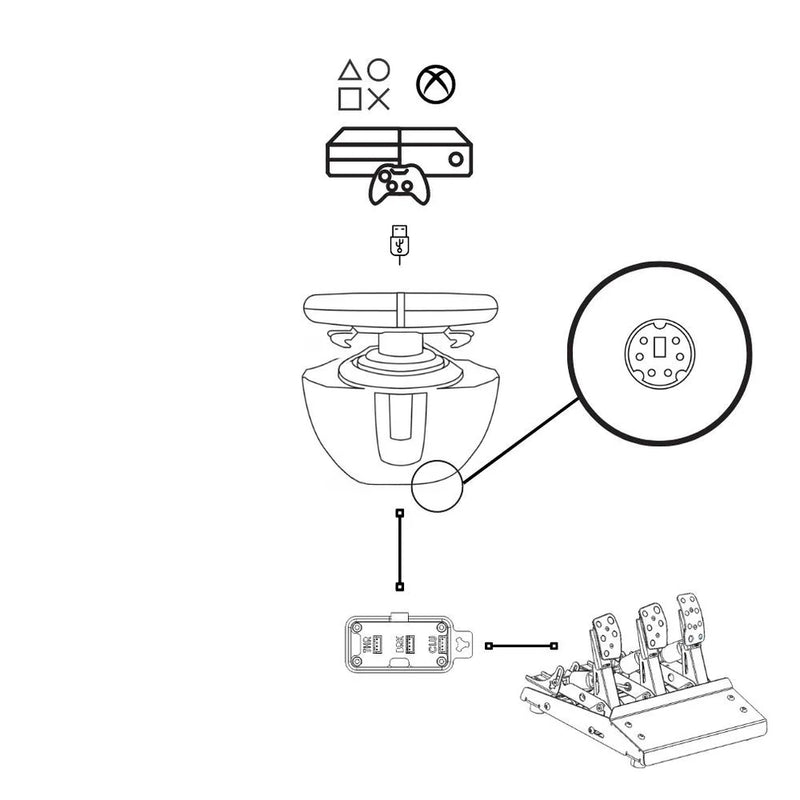

PlayStation 4, PlayStation 5 and Xbox through a Logitech, Thrustmaster or Fanatec base.

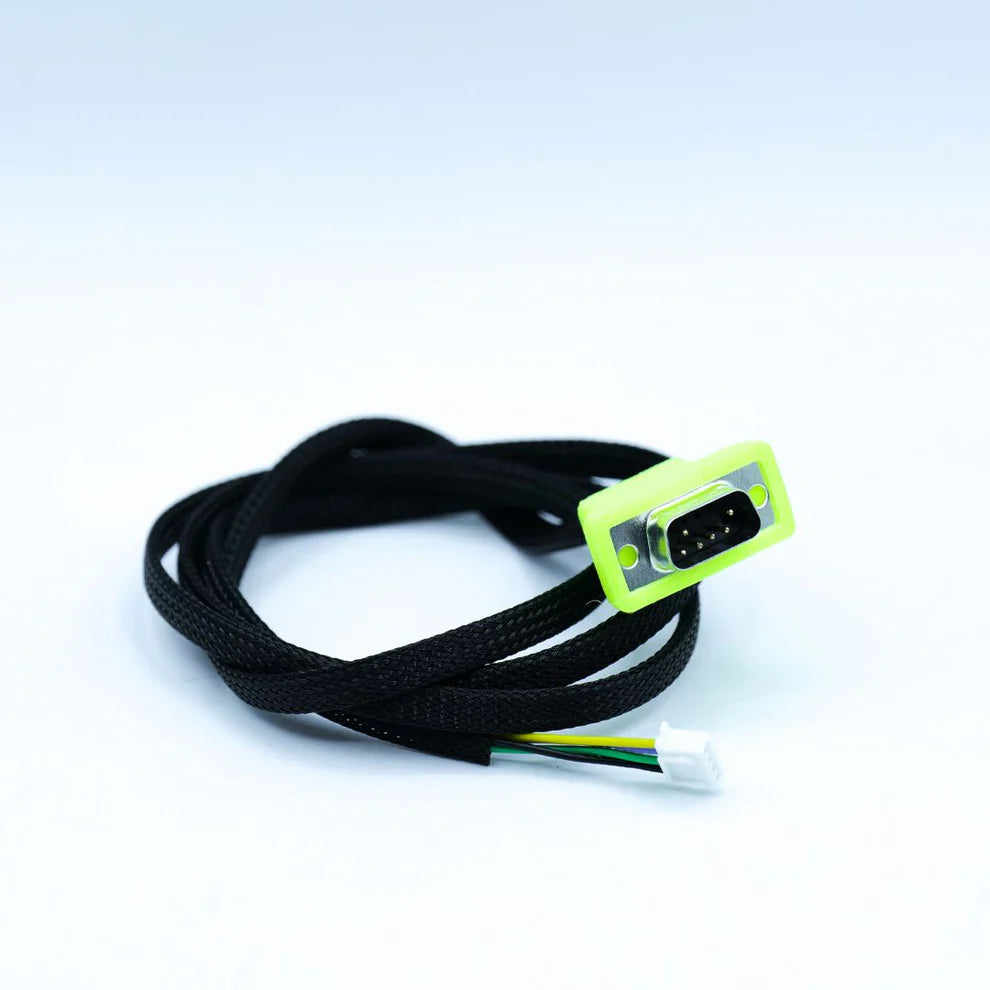

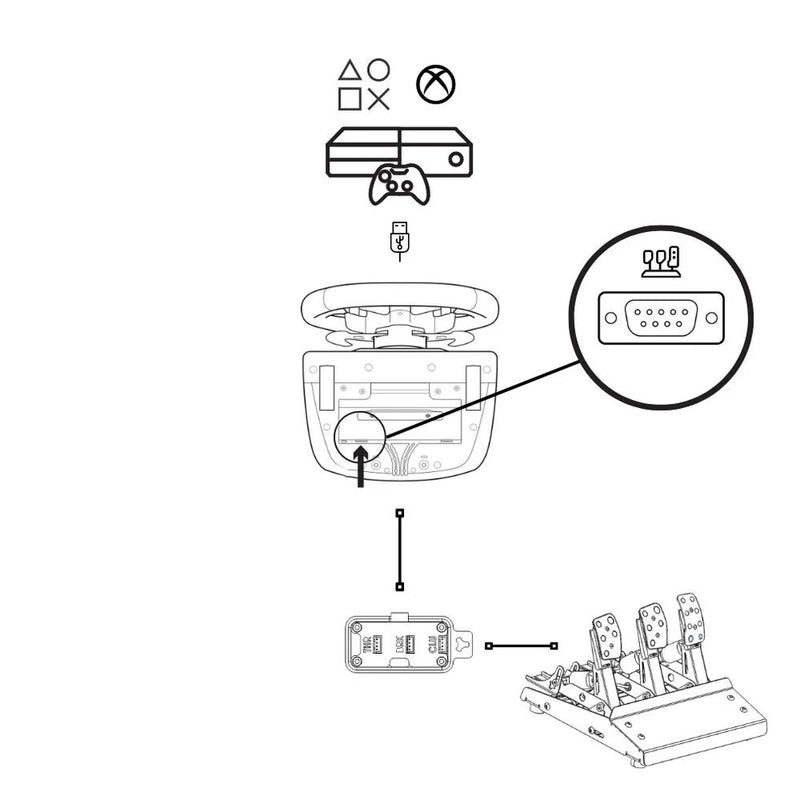

Logitech G25, G27, G29, G920, G923 and G PRO (DB9 connector).

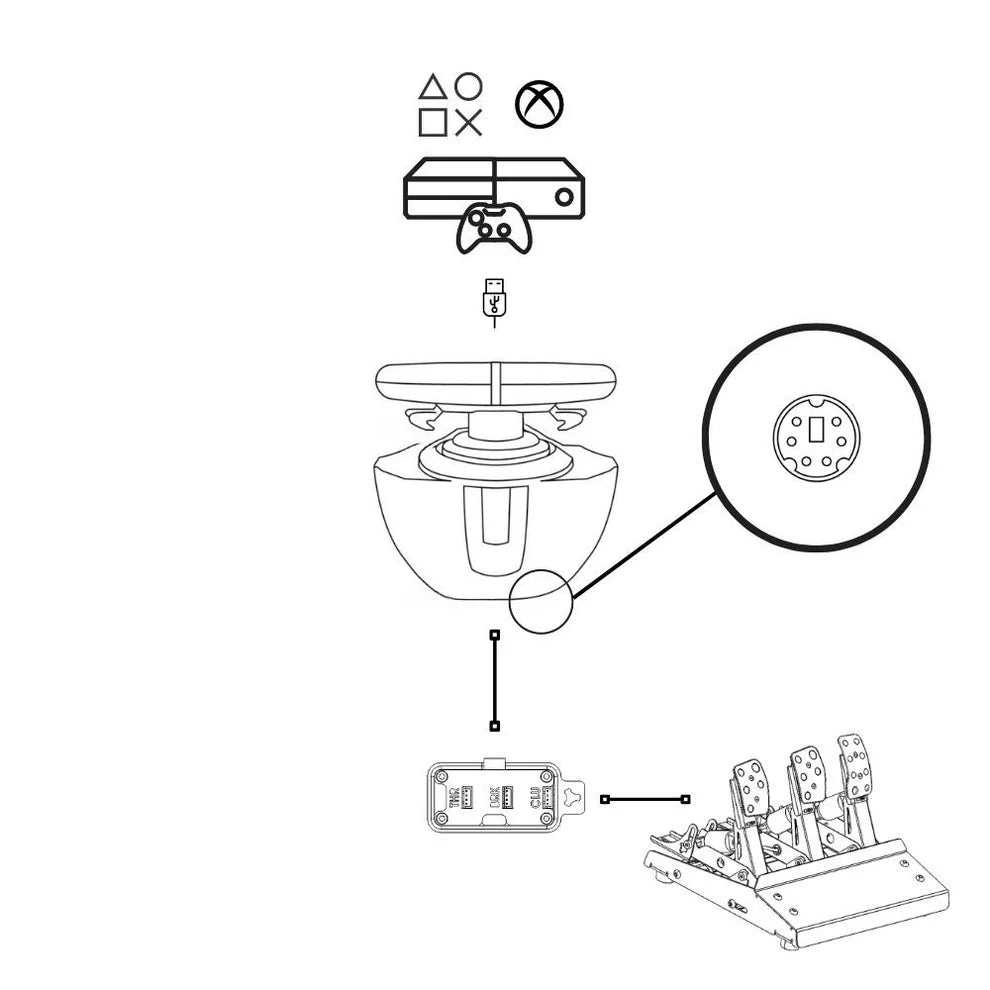

Thrustmaster, except the T500 (RJ connector).

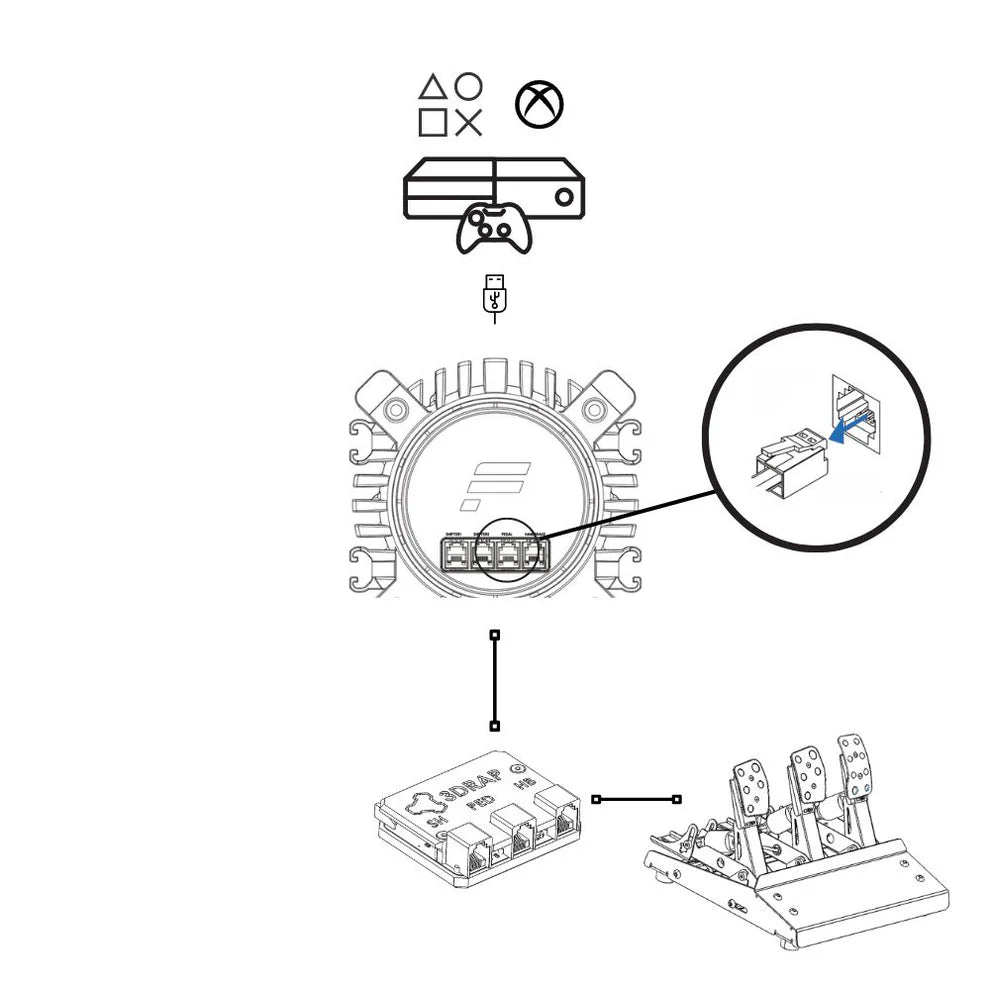

Fanatec (RJ connector).

Note for Logitech G25/G27: an external hub may be required to ensure full compatibility.

Which version should you choose?

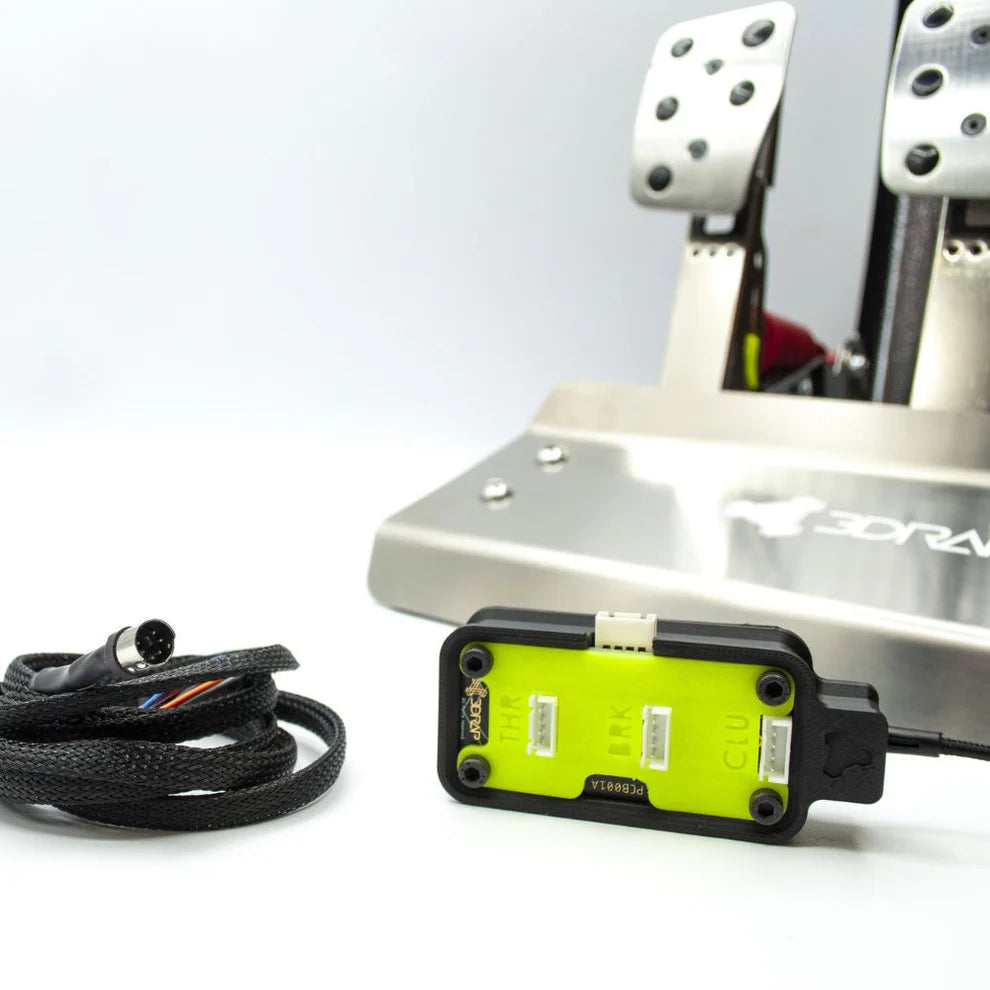

Choose the cable variant according to where you connect the kit: "PC only" if you use it via USB on your computer, or your base version (Logitech, Thrustmaster or Fanatec) if you also want to play on console. The kit contents are the same; only the included cable changes.

Frequently asked questions

Does the GGKit work on PS5 and Xbox?

Yes, through a compatible Logitech, Thrustmaster or Fanatec base. On PC it connects directly via USB.

Which pedals are compatible?

Logitech G25, G27, G29, G920, G923 and G PRO; Thrustmaster except the T500; and Fanatec, depending on the corresponding connector.

What does the load cell add?

It measures the force applied to the brake, up to 30 kgf, instead of travel, giving more precise and repeatable braking.

Do I need to replace the whole pedal set?

No. The GGKit reuses the structure of your original pedals and replaces the electronics and several mechanical parts.

Can I adjust the brake hardness?

Yes. It includes interchangeable elastomers (medium and hard) and preload spacers to tailor the feel to your style.

Does the Logitech G25/G27 need anything else?

It may require an external hub to ensure full compatibility with the kit.
