3DRap Universal Hub Thrustmaster TMX/TMX Pro | Wheels

Name: 3DRap Universal Hub Thrustmaster TMX/TMX Pro – Wheel Adapter
Brand: 3DRAP
SKU: ST074_KT3
Price: 45.99 EUR
Availability: InStock

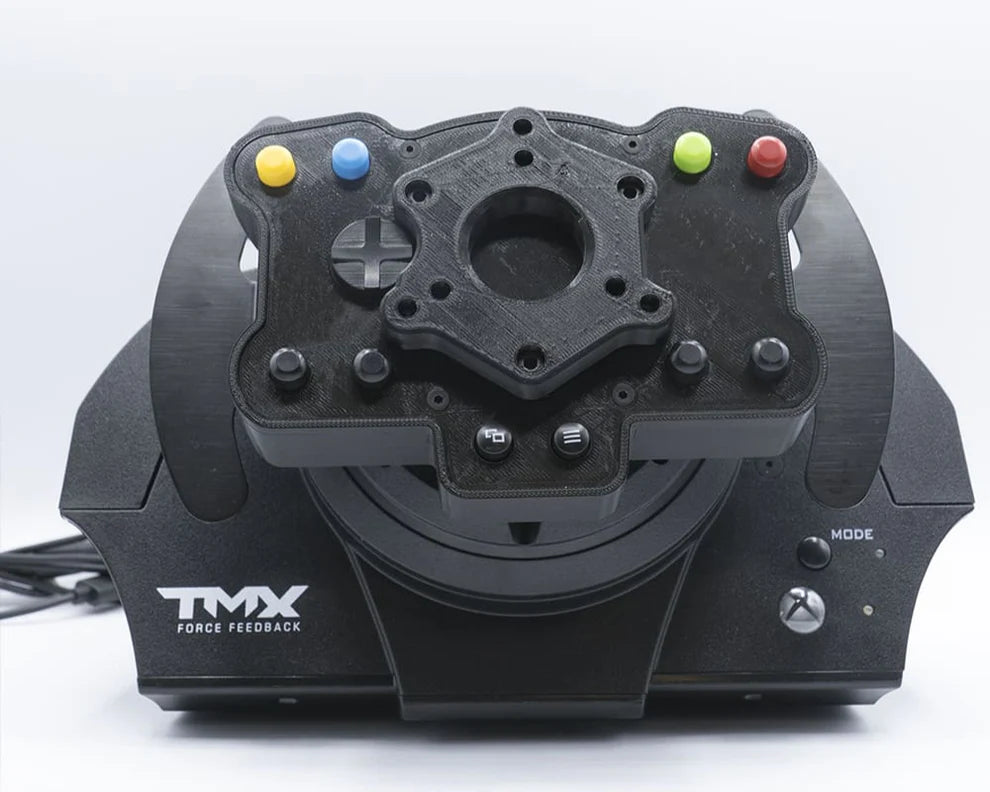

3DRap universal hub for Thrustmaster TMX and TMX Pro with 70 and 50.8 mm plates

70 mm and 50.8 mm hub plates of the 3DRap adapter for Thrustmaster TMX

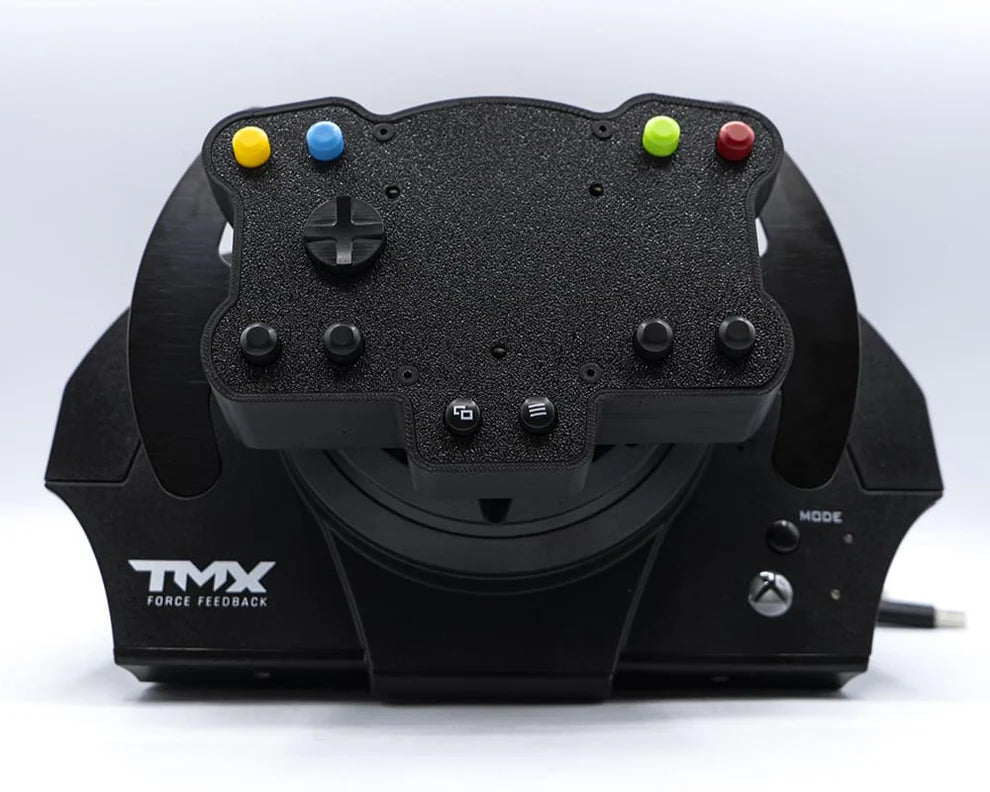

Electronics box of the 3DRap universal hub for Thrustmaster TMX Pro

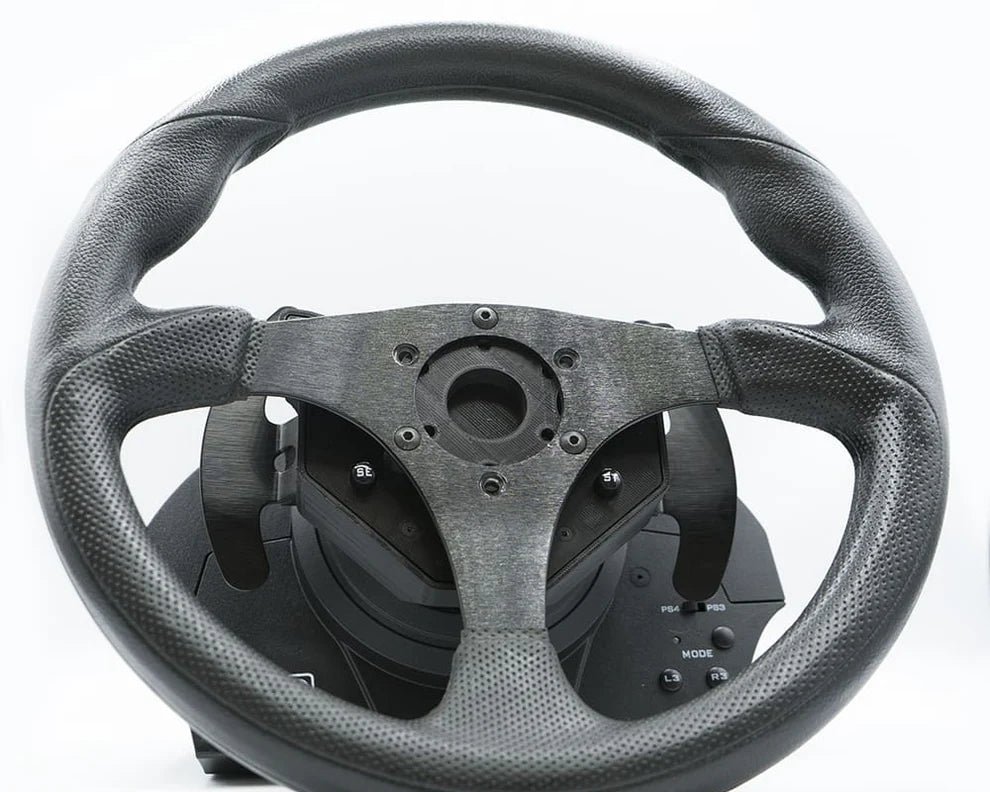

Sports steering wheel mounted on Thrustmaster TMX base with 3DRap hub

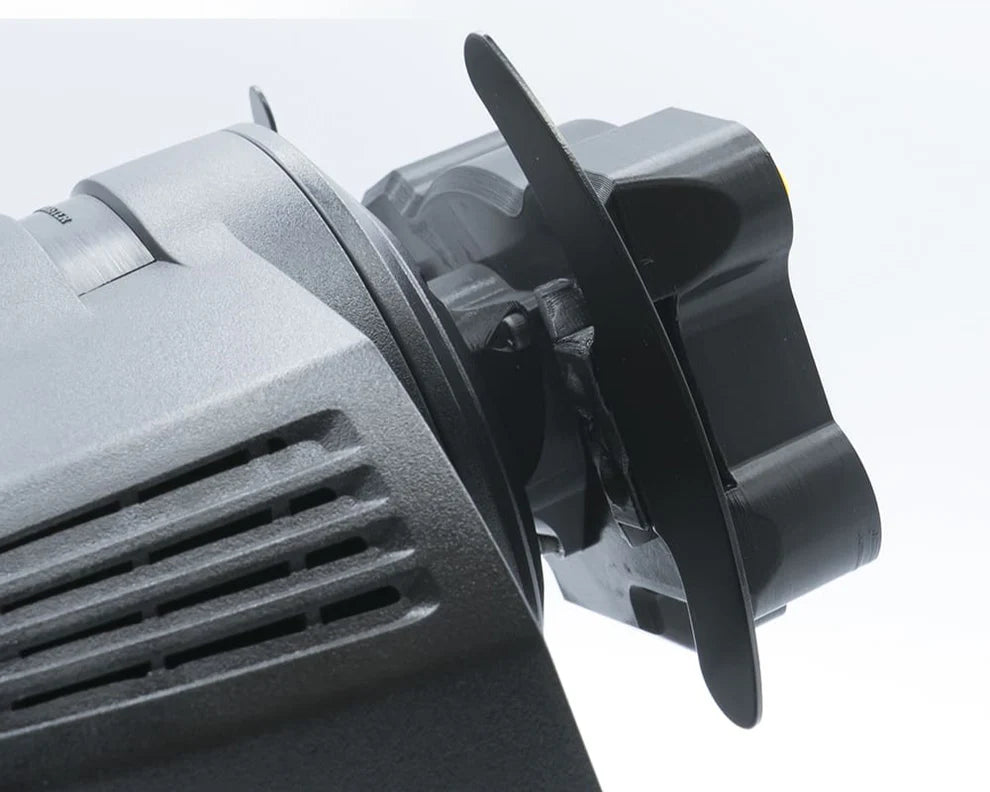

Close-up of the 3DRap universal hub for Thrustmaster TMX

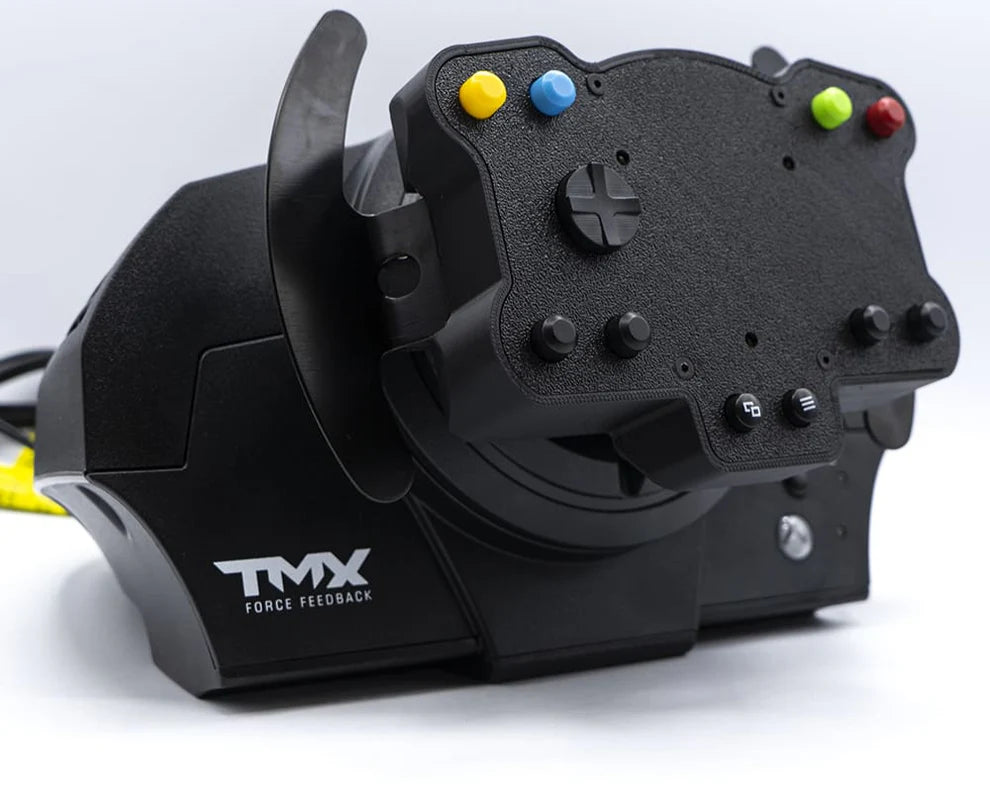

Mounting the 3DRap wheel adapter on Thrustmaster TMX Pro

Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.

Price

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

FECHA ESTIMADA

ARTÍCULO EN PRE-ORDER

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":52548192862541,"title":"HUB only","option1":"HUB only","option2":null,"option3":null,"sku":"ST074_KT3","requires_shipping":true,"taxable":true,"featured_image":{"id":73449282732365,"product_id":10309466784077,"position":1,"created_at":"2025-10-09T11:55:36+02:00","updated_at":"2025-10-09T11:55:58+02:00","alt":"3DRap universal hub for Thrustmaster TMX and TMX Pro with 70 and 50.8 mm plates","width":990,"height":792,"src":"\/\/simufy.com\/cdn\/shop\/files\/Hub-Universal-para-Thrustmaster-TMX-y-TMX-Pro-Simufy_1.webp?v=1760003758","variant_ids":[52548192862541]},"available":true,"name":"3DRap Universal Hub Thrustmaster TMX\/TMX Pro – Wheel Adapter - HUB only","public_title":"HUB only","options":["HUB only"],"price":4599,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841209","featured_media":{"alt":"3DRap universal hub for Thrustmaster TMX and TMX Pro with 70 and 50.8 mm plates","id":57749980086605,"position":1,"preview_image":{"aspect_ratio":1.25,"height":792,"width":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/Hub-Universal-para-Thrustmaster-TMX-y-TMX-Pro-Simufy_1.webp?v=1760003758"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52548192895309,"title":"HUB + Magnetic Paddle Shifters","option1":"HUB + Magnetic Paddle Shifters","option2":null,"option3":null,"sku":"ST074_KT4","requires_shipping":true,"taxable":true,"featured_image":{"id":73449282568525,"product_id":10309466784077,"position":6,"created_at":"2025-10-09T11:55:36+02:00","updated_at":"2025-10-09T11:55:58+02:00","alt":"Mounting the 3DRap wheel adapter on Thrustmaster TMX Pro","width":990,"height":792,"src":"\/\/simufy.com\/cdn\/shop\/files\/Hub-Universal-para-Thrustmaster-TMX-y-TMX-Pro-Simufy_2.webp?v=1760003758","variant_ids":[52548192895309]},"available":true,"name":"3DRap Universal Hub Thrustmaster TMX\/TMX Pro – Wheel Adapter - HUB + Magnetic Paddle Shifters","public_title":"HUB + Magnetic Paddle Shifters","options":["HUB + Magnetic Paddle Shifters"],"price":5599,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841216","featured_media":{"alt":"Mounting the 3DRap wheel adapter on Thrustmaster TMX Pro","id":57749979922765,"position":6,"preview_image":{"aspect_ratio":1.25,"height":792,"width":990,"src":"\/\/simufy.com\/cdn\/shop\/files\/Hub-Universal-para-Thrustmaster-TMX-y-TMX-Pro-Simufy_2.webp?v=1760003758"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The 3DRap Universal Hub for Thrustmaster TMX/TMX Pro is a wheel adapter that lets you fit aftermarket sports wheels or Quick Release systems to the Thrustmaster TMX and TMX Pro bases while keeping the original electronics, compatible with PC and Xbox.

Made by 3DRap, it supports the two most common sim racing patterns —70 mm 6-bolt and 50.8 mm 3-bolt— and includes the electronic box with lid, so you can swap the stock rim for the sim racing wheel you prefer without losing buttons, paddles or native connection. It is also ready for the magnetic paddle shifter MOD.

Key features

Universal adapter compatible with 70 mm (6-bolt) and 50.8 mm (3-bolt) patterns.
Fully retains the original TMX / TMX Pro electronics: buttons, paddles and connection.
Compatible with aftermarket sports wheels and Quick Release systems.
Ready for the 3DRap magnetic paddle shifter MOD.
Includes hub adapter, electronic box with lid and 70 mm and 50.8 mm HUB plates.
Use on PC and Xbox through the TMX / TMX Pro base.

Technical specifications

Component	Detail
Type	Universal wheel adapter
Mounting patterns	70 mm (6-bolt) and 50.8 mm (3-bolt)
Electronic compatibility	Full, keeps the original Thrustmaster electronics
Includes	Hub adapter, electronic box with lid, 70 mm and 50.8 mm HUB plates
MOD ready	Yes, magnetic paddle shifters
Compatible bases	Thrustmaster TMX, TMX Pro
Platforms	PC, Xbox (via TMX base)

Which configuration should you choose?

"HUB only" mounts your wheel while keeping the original paddles; "HUB + Magnetic Paddle Shifters" adds the 3DRap magnetic-effect paddle MOD for a more mechanical, precise action.

Compatibility

Compatible with the Thrustmaster TMX and TMX Pro bases. Works on PC (Windows) and Xbox One / Series X|S through the original Thrustmaster base.

Frequently asked questions

Which wheels can I fit on the hub for Thrustmaster TMX?

Wheels with a 70 mm (6-bolt) or 50.8 mm (3-bolt) pattern, both aftermarket sports wheels and Quick Release systems.

Do I lose the buttons or paddles when using the hub?

No. The hub fully retains the original TMX / TMX Pro electronics: buttons, paddles and native connection.

Does it work on Xbox?

Yes. It works on PC and on Xbox One / Series X|S through the Thrustmaster TMX base.

What does the hub include?

It includes the hub adapter, the electronic box with lid and the 70 mm and 50.8 mm HUB plates.

Can I add magnetic paddle shifters?

Yes. It is ready for the 3DRap magnetic paddle shifter MOD, available in the HUB + Magnetic Paddle Shifters configuration.
