3DRap Elastomer Brake MOD – Fanatec ClubSport V3

Brand: 3DRAP

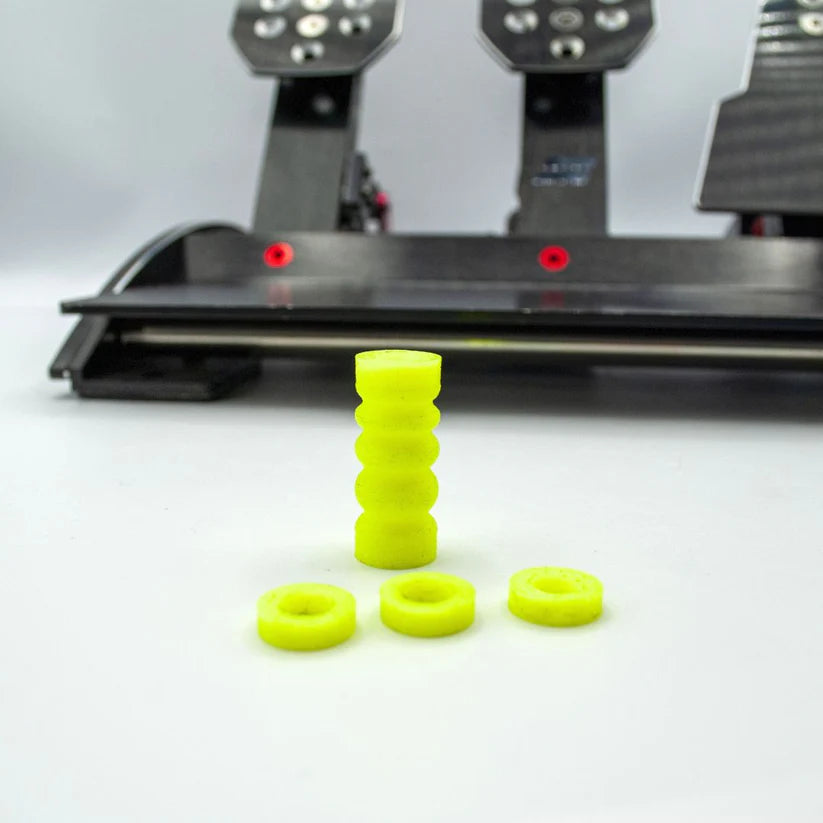

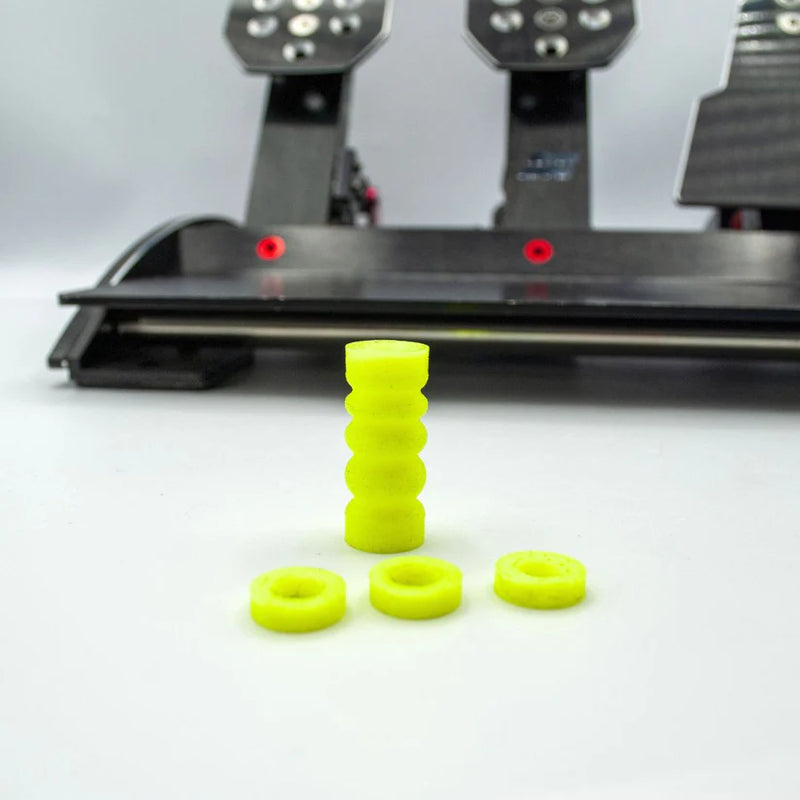

3DRap Elastomer Brake MOD for the Fanatec ClubSport V3 brake pedal with shape memory elastomers

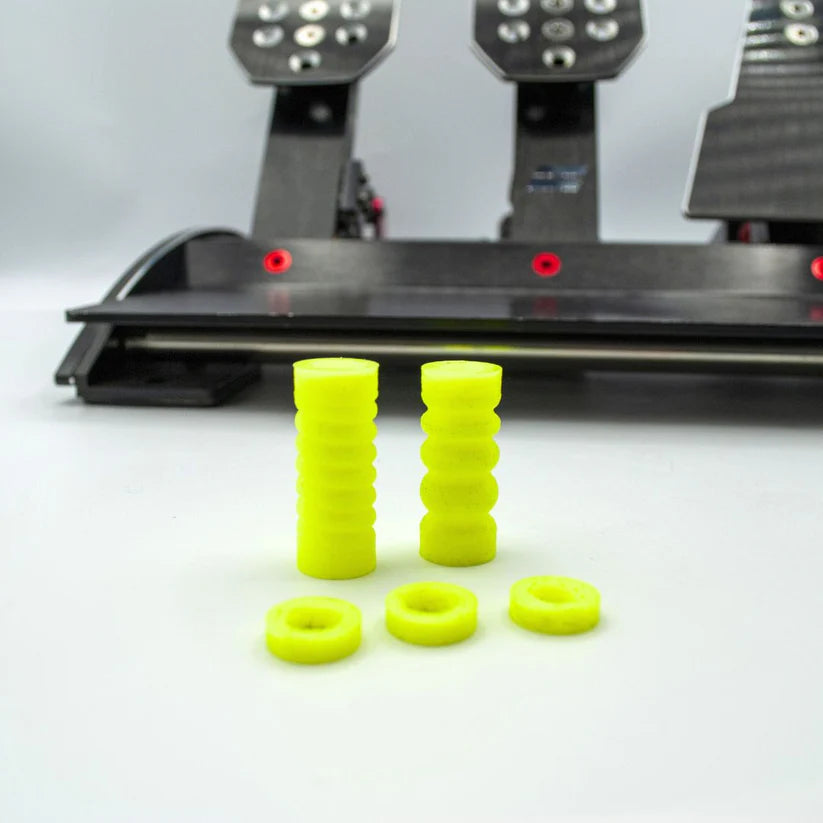

LINEAR and PROGRESSIVE elastomer kit of the 3DRap brake MOD for Fanatec ClubSport V3

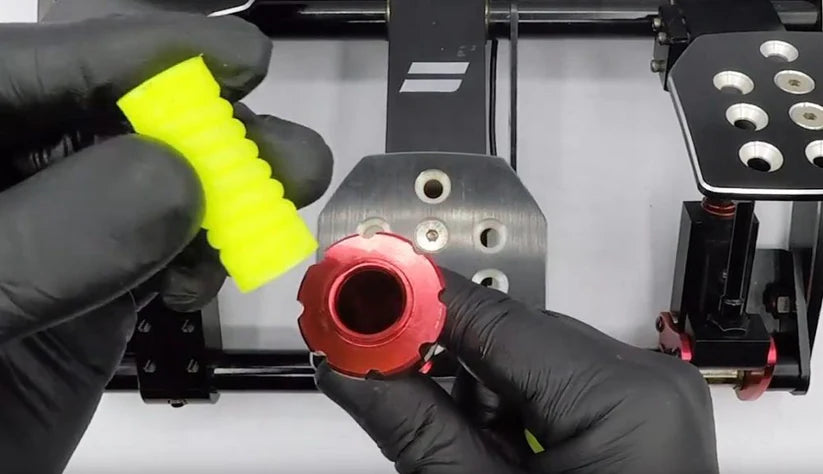

3DRap elastomers mounted on the load cell of the Fanatec ClubSport V3 brake pedal

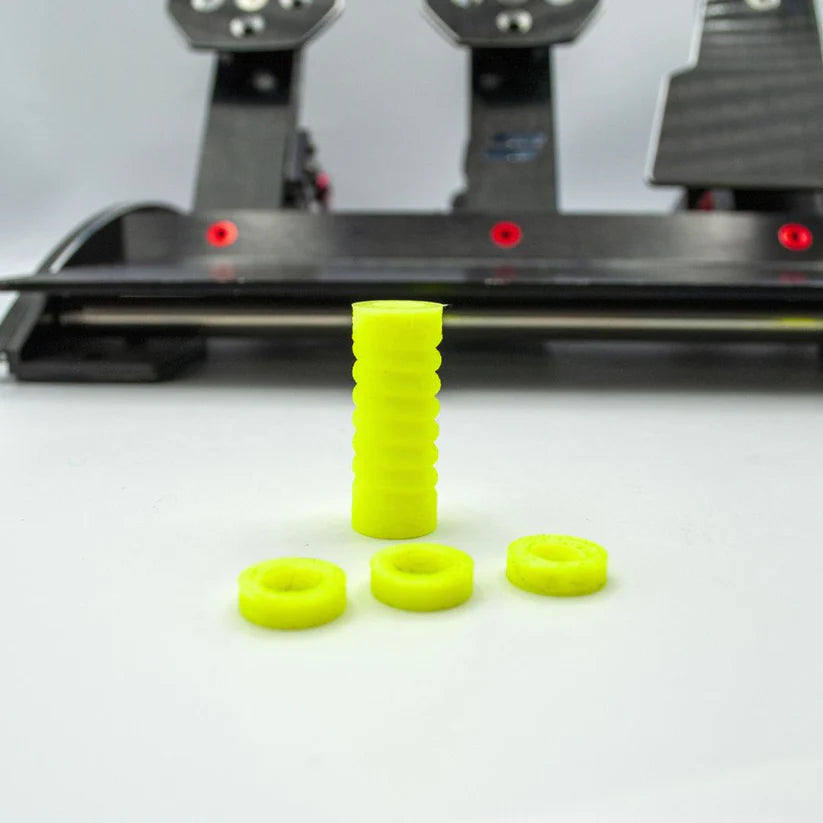

Linear and progressive setups of the 3DRap Brake MOD for Fanatec ClubSport V3

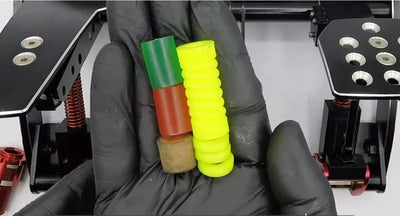

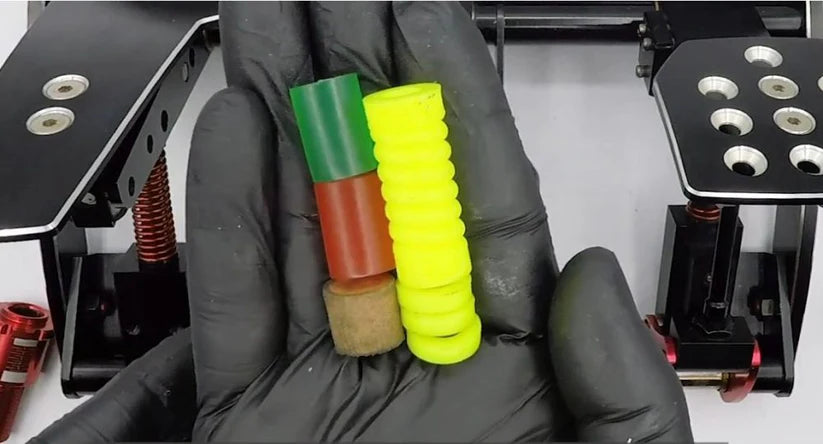

Box contents of the 3DRap elastomer kit for the Fanatec ClubSport V3 brake pedal
3DRap Elastomer Brake MOD for the Fanatec ClubSport V3 brake pedal with shape memory elastomers
LINEAR and PROGRESSIVE elastomer kit of the 3DRap brake MOD for Fanatec ClubSport V3
3DRap elastomers mounted on the load cell of the Fanatec ClubSport V3 brake pedal
Linear and progressive setups of the 3DRap Brake MOD for Fanatec ClubSport V3
Box contents of the 3DRap elastomer kit for the Fanatec ClubSport V3 brake pedal

3DRap Elastomer Brake MOD – Fanatec ClubSport V3

Brand: 3DRAP
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The 3DRap Elastomer Brake MOD for the Fanatec ClubSport V3 is a shape-memory elastomer kit that turns the load cell brake pedal into a progressive, realistic and adjustable braking feel for sim racing, compatible with PC, PlayStation and Xbox.

On the stock load cell, modulation can feel imprecise and your foot barely senses the real intensity of the force applied. This MOD corrects the braking curve ramp and recovers a large share of usable travel: the harder you press, the firmer the pedal becomes, just like a real car. It installs by combining the 3DRap elastomers with Fanatec's factory inserts, without touching the electronics of your pedals.

Key features

  • Progressive braking on the load cell: the harder you press, the firmer it gets, for finer, more precise modulation.
  • Three adjustable configurations: Linear, Progressive and Linear + Progressive (hybrid), combining elastomers with Fanatec inserts.
  • Recovers usable travel —up to ~43% in the hybrid setup— and corrects the braking curve ramp.
  • Shape-memory elastomer: consistent feel and long service life under heavy use.
  • Mechanical plug & play install: no complex tools and no electronic modifications.
  • Fewer wheel lock-ups and less fatigue over long stints thanks to a more consistent response.

Technical specifications

ConfigurationElastomersRecovered travelBest for
Linear1× LINEAR~36%GT, Rally, Drift (sharp, intense braking)
Progressive1× PROGRESSIVE~20%Formula, GT3 and light cars (intense at the end)
Linear + Progressive1× LINEAR + 1× PROGRESSIVE~43%LMP and Prototypes (linear turning sharper)

Which version should you choose?

Choose Linear if you drive GT, rally or drift and want clear, firm braking from the start. Go for Progressive in single-seaters, GT3 or light cars, where resistance builds towards the end of the travel. Linear + Progressive (hybrid) is the most versatile: an initially linear feel that stiffens progressively, ideal for LMP and prototypes.

Compatibility

  • Pedals: Fanatec ClubSport Pedals V3 (load cell brake pedal).
  • Platforms: PC, PlayStation 4, PlayStation 5 and Xbox, through a compatible Fanatec wheelbase.
  • Combines with Fanatec's original inserts. Pedals not included.

Frequently asked questions

Which pedals is this MOD compatible with?

It is designed exclusively for the Fanatec ClubSport Pedals V3 with load cell brake pedal.

Does it work on PlayStation and Xbox?

Yes. It works with PC, PlayStation 4, PlayStation 5 and Xbox through a compatible Fanatec wheelbase, since the MOD is purely mechanical and does not alter the electronics.

What is the difference between the linear and progressive setup?

The linear setup (1 LINEAR elastomer) recovers around 36% of the travel and delivers sharp, intense braking, ideal for GT, rally and drift. The progressive setup (1 PROGRESSIVE elastomer) recovers about 20% and becomes very intense at the end, aimed at Formula, GT3 and light cars.

Do I need tools or software to install it?

No. Installation is plug & play, with no software or special tools: you swap the elastomers inside the load cell following the instructions.

Does the elastomer wear out over time?

It is made from a shape-memory material that keeps its feel and returns to shape, with far greater durability than a DIY modification.

Are the pedals included?

No. The product is only the MOD elastomer kit; the Fanatec ClubSport V3 pedals are sold separately.
