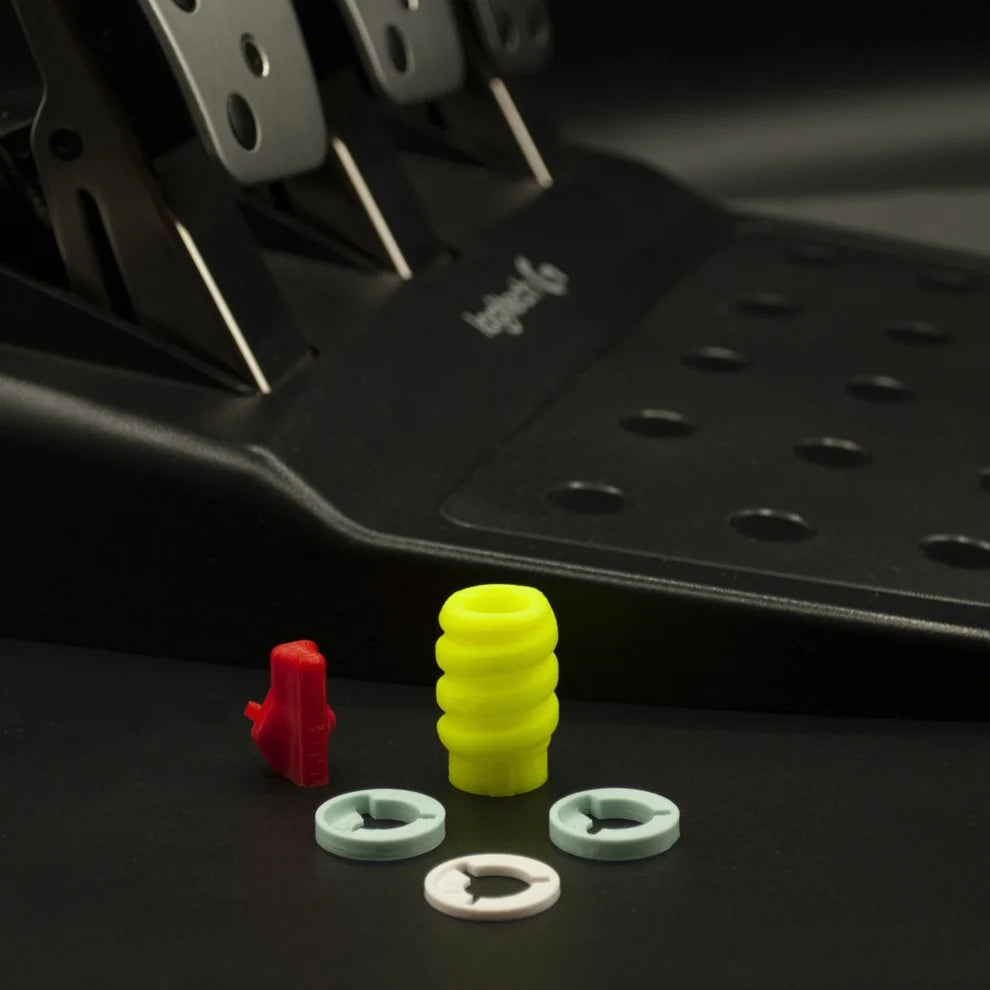

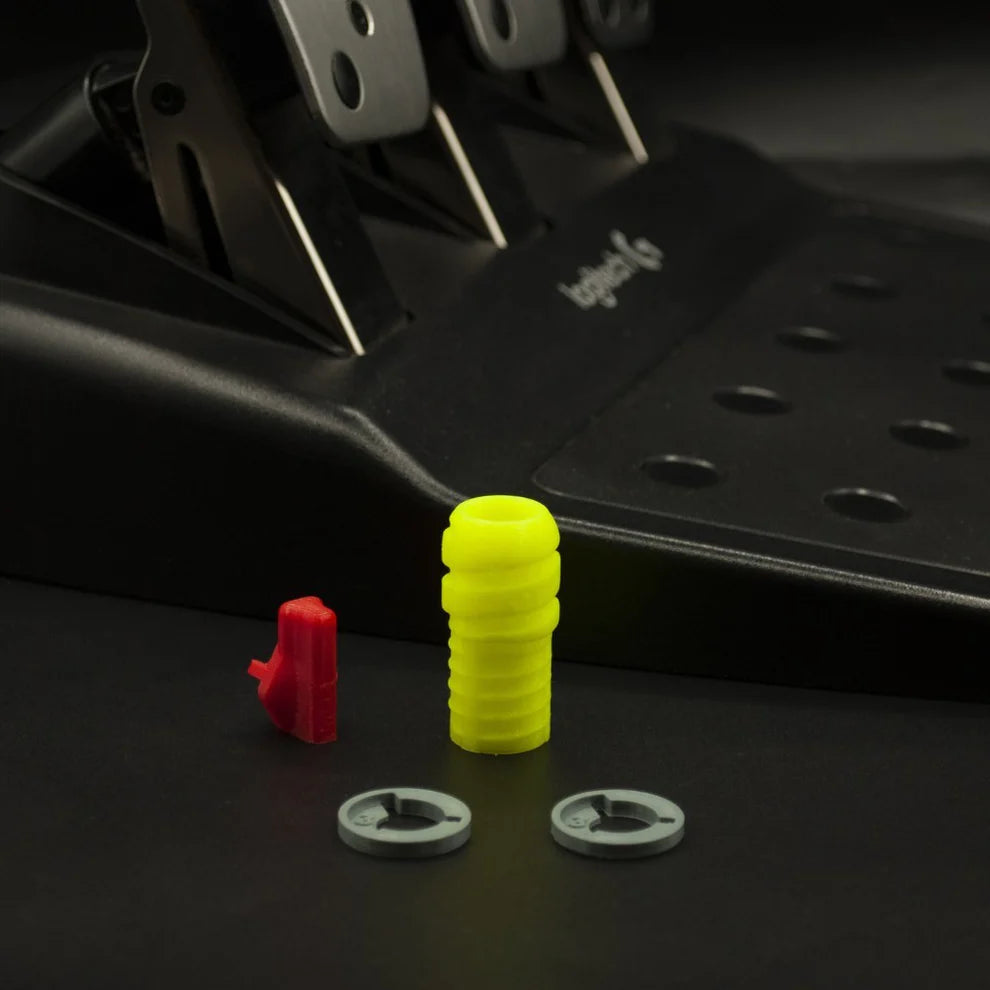

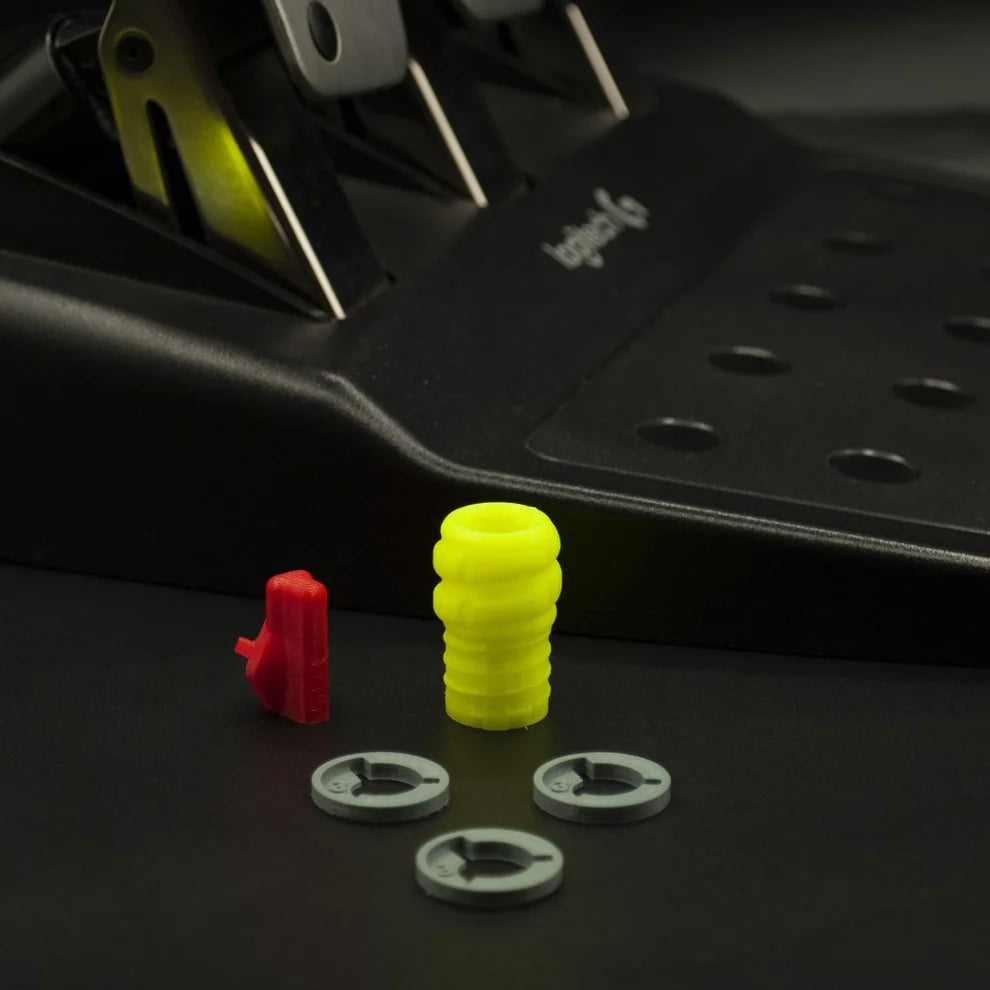

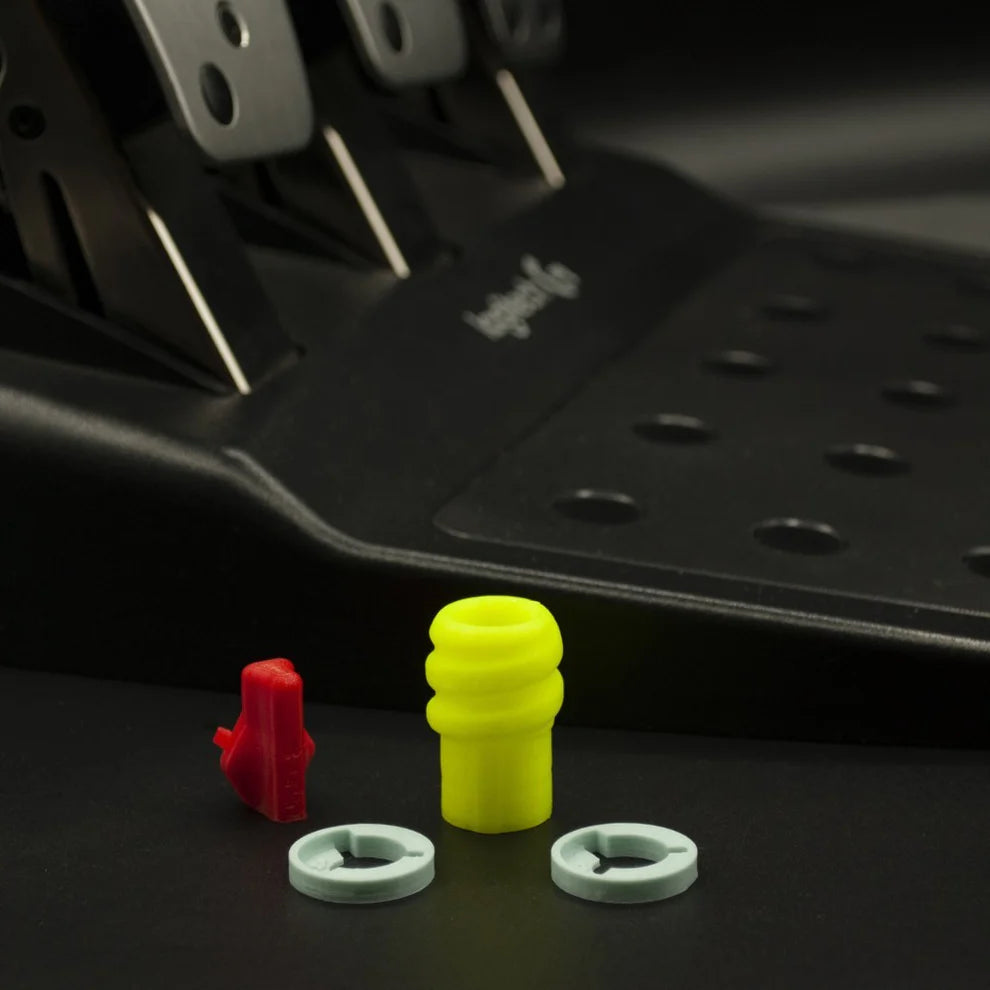

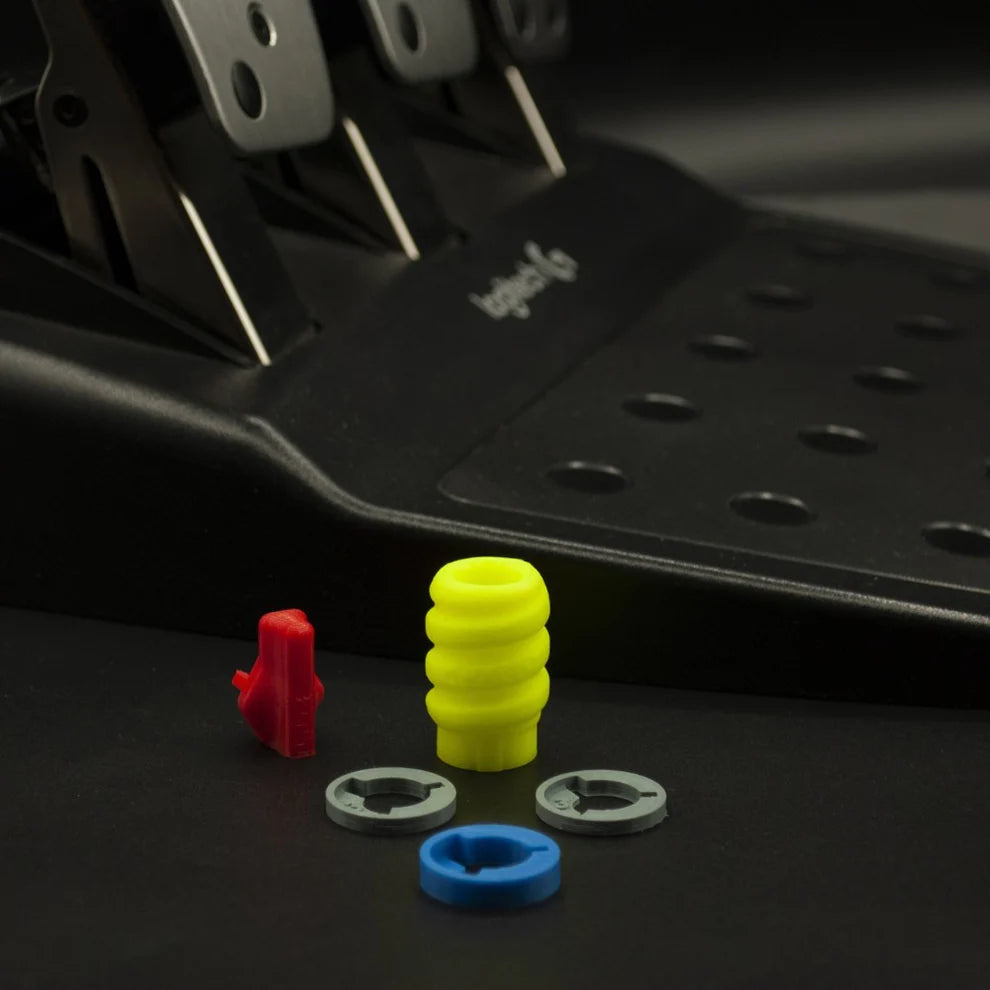

3DRap brake MOD kit with elastomer, rings and assembly tool

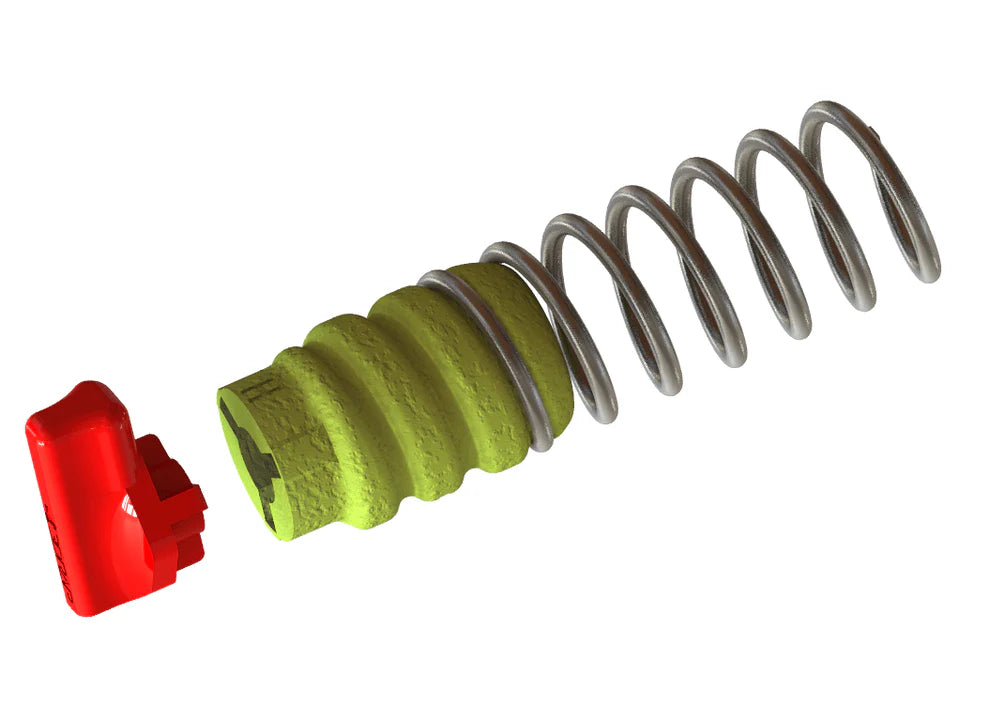

Close-up of the 3DRap load-cell-style brake elastomer

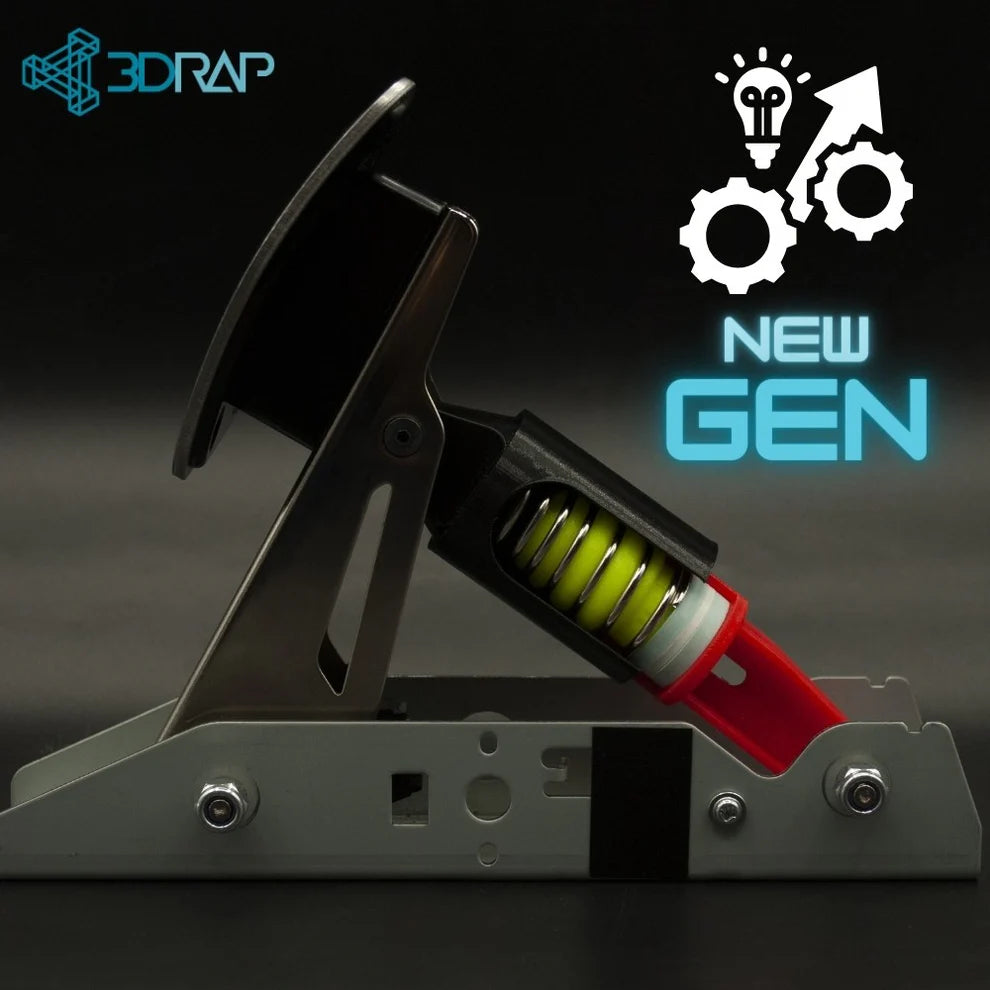

3DRap brake MOD fitted on the brake pedal of a Logitech G29

Assembly tool included with the 3DRap brake MOD

Firmness configurations of the 3DRap brake MOD for Logitech

Installing the 3DRap brake elastomer on Logitech pedals

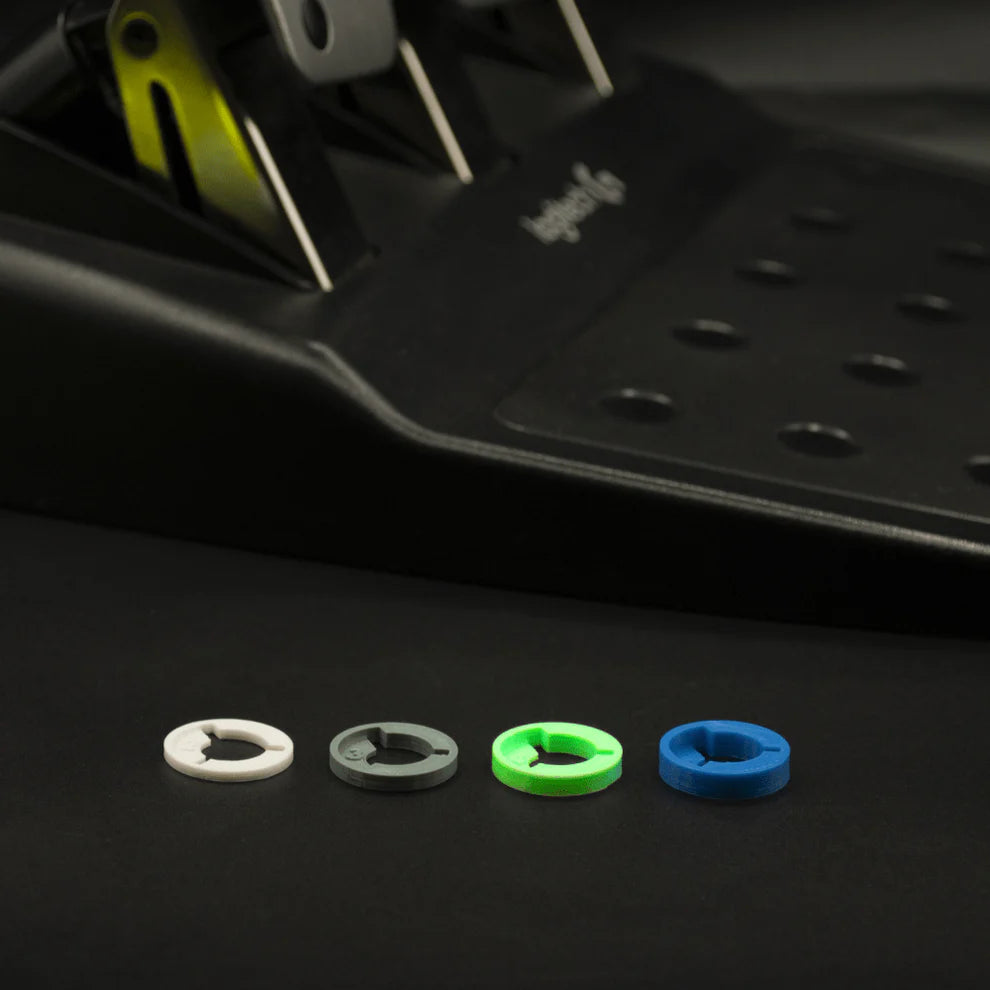

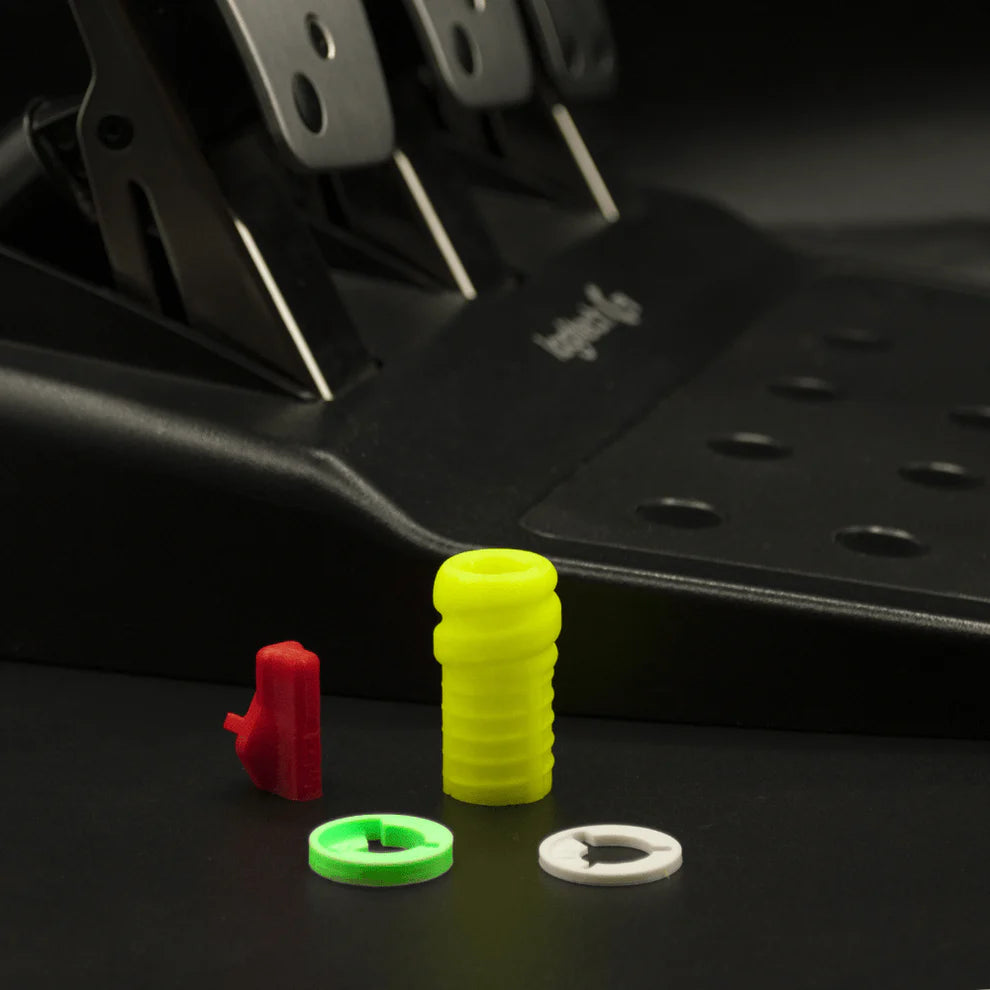

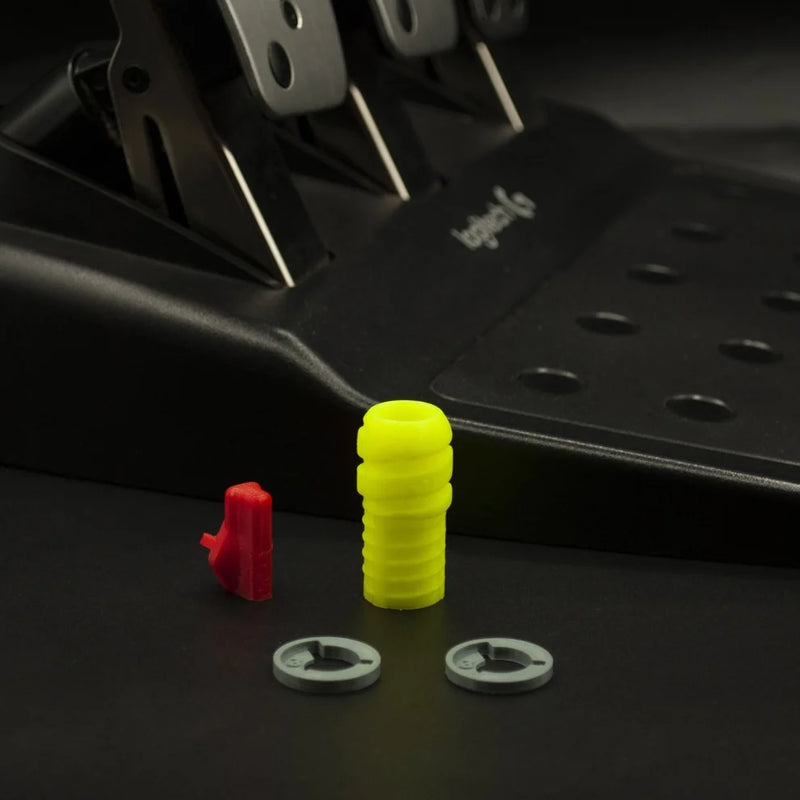

3DRap preload rings in different thicknesses for the Logitech brake

Rear view of the 3DRap brake MOD on the Logitech pedal set

3DRap New-Gen brake MOD to simulate a load cell feel on Logitech

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":52547620733261,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Soft","option3":null,"sku":"SL063_KT1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Soft"],"price":1999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841629","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620766029,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Medium","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Medium","option3":null,"sku":"SL063_KT3","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Medium","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Medium","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Medium"],"price":1999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841674","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620798797,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Hard","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Hard","option3":null,"sku":"SL063_KT2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Hard","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Hard","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Hard"],"price":1999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841667","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620831565,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Medium + Hard","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Medium + Hard","option3":null,"sku":"SL063_KT4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Medium + Hard","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Medium + Hard","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Medium + Hard"],"price":3399,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841681","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620864333,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Medium","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Soft + Medium","option3":null,"sku":"SL063_KT6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Medium","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Medium","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Soft + Medium"],"price":3399,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841704","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620897101,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Hard","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Soft + Hard","option3":null,"sku":"SL063_KT5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Hard","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Hard","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Soft + Hard"],"price":3399,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841698","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620929869,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Medium + Hard","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"Soft + Medium + Hard","option3":null,"sku":"SL063_KT7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Medium + Hard","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ Soft + Medium + Hard","options":["Logitech G25 \/ G27 \/ G29 \/ G920","Soft + Medium + Hard"],"price":4899,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841711","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547620962637,"title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ 4 Additional Preload Rings","option1":"Logitech G25 \/ G27 \/ G29 \/ G920","option2":"4 Additional Preload Rings","option3":null,"sku":"SL063_KT12","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G25 \/ G27 \/ G29 \/ G920 \/ 4 Additional Preload Rings","public_title":"Logitech G25 \/ G27 \/ G29 \/ G920 \/ 4 Additional Preload Rings","options":["Logitech G25 \/ G27 \/ G29 \/ G920","4 Additional Preload Rings"],"price":999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547621060941,"title":"Logitech G923 \/ Medium","option1":"Logitech G923","option2":"Medium","option3":null,"sku":"SL063_KT9","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G923 \/ Medium","public_title":"Logitech G923 \/ Medium","options":["Logitech G923","Medium"],"price":1999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841735","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547621093709,"title":"Logitech G923 \/ Hard","option1":"Logitech G923","option2":"Hard","option3":null,"sku":"SL063_KT10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G923 \/ Hard","public_title":"Logitech G923 \/ Hard","options":["Logitech G923","Hard"],"price":1999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841636","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547621126477,"title":"Logitech G923 \/ Medium + Hard","option1":"Logitech G923","option2":"Medium + Hard","option3":null,"sku":"SL063_KT11","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G923 \/ Medium + Hard","public_title":"Logitech G923 \/ Medium + Hard","options":["Logitech G923","Medium + Hard"],"price":3399,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841643","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547621257549,"title":"Logitech G923 \/ 4 Additional Preload Rings","option1":"Logitech G923","option2":"4 Additional Preload Rings","option3":null,"sku":"SL063_KT12","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Logitech G923 \/ 4 Additional Preload Rings","public_title":"Logitech G923 \/ 4 Additional Preload Rings","options":["Logitech G923","4 Additional Preload Rings"],"price":999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841650","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547621552461,"title":"Progressive spring (like the GTEye) \/ 4 Additional Preload Rings.","option1":"Progressive spring (like the GTEye)","option2":"4 Additional Preload Rings.","option3":null,"sku":"SL063_KT12","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Progressive spring (like the GTEye) \/ 4 Additional Preload Rings.","public_title":"Progressive spring (like the GTEye) \/ 4 Additional Preload Rings.","options":["Progressive spring (like the GTEye)","4 Additional Preload Rings."],"price":999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841650","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52547621585229,"title":"Progressive spring (like the GTEye) \/ Extended","option1":"Progressive spring (like the GTEye)","option2":"Extended","option3":null,"sku":"SL063_KT8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3DRap New-Gen Load Cell Brake MOD Logitech - Progressive spring (like the GTEye) \/ Extended","public_title":"Progressive spring (like the GTEye) \/ Extended","options":["Progressive spring (like the GTEye)","Extended"],"price":1999,"weight":200,"compare_at_price":0,"inventory_management":"shopify","barcode":"8437028841728","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The 3DRap New-Gen Brake MOD is a brake elastomer for sim racing that simulates the feel of a load cell on the Logitech G25, G27, G29, G920 and G923 pedals, without replacing the original electronics.

Its elastomer stiffens the pedal progressively with the pressure applied: more force, more resistance. This gives you far more precise brake modulation, helps you avoid wheel lock-ups and keeps you consistent under heavy braking or in long races. The included preload rings let you tune the force curve to your taste.

Key features

Simulates load cell behaviour, stiffening the pedal as pressure increases.
Purpose-made elastomer that delivers constant, durable resistance.
Adjustable preload rings to tailor the force curve to your style.
Several firmness levels (Soft, Medium, Hard) plus an Extended setting for progressive springs.
Compatible with progressive springs such as the GTEye.
Includes a dedicated tool for assembly and disassembly.

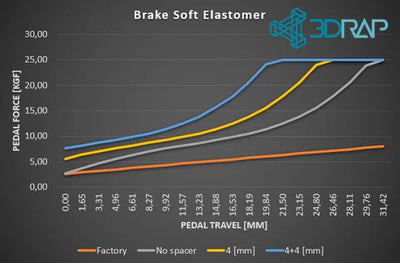

Firmness configurations

Configuration	Travel reduction	Rings included

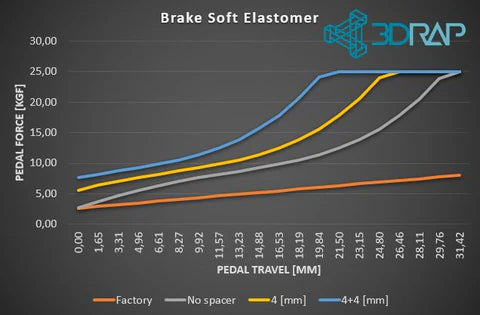

Soft	25%	4 mm + 4 mm (not available for G923)

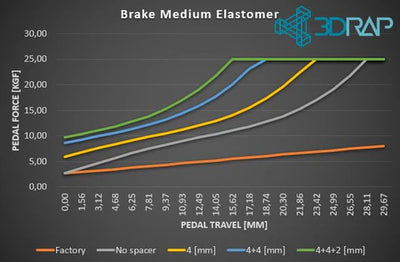

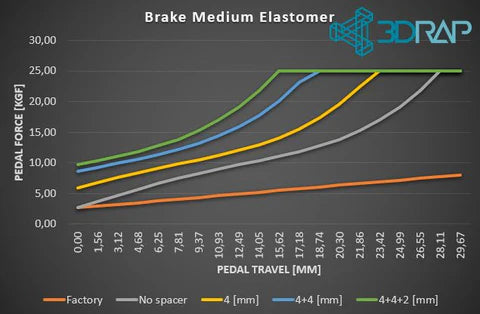

Medium	25%	4 mm + 4 mm + 2 mm

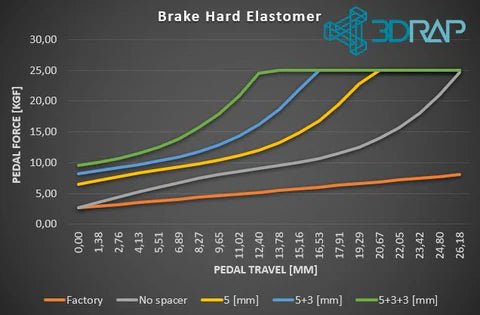

Hard	35%	5 mm + 3 mm + 3 mm
Extended	25% (for progressive springs)	3 mm + 3 mm + 3 mm

You can also choose combinations of firmness levels or a set of 4 additional preload rings.

Technical specifications

Feature	Detail
Brand	3DRap
Type	Elastomer load-cell-style brake MOD
Contents	Brake elastomer, adjustable preload rings and assembly tool
Function	Progressive braking and force-curve adjustment
Compatible models	Logitech G25, G27, G29, G920, G923
Compatible with	Progressive springs such as the GTEye
Platforms	PC, PlayStation, Xbox
Installation	Remove the black rubber pad and the white plastic caps from the original brake

Compatibility

Designed for the Logitech G25, G27, G29, G920 and G923 pedal sets, and compatible with progressive springs such as the GTEye. As a physical accessory, it works on PC, PlayStation and Xbox depending on the platform your Logitech wheel supports. Discover more pedals and accessories at Simufy.

Frequently asked questions

Which Logitech pedals is it compatible with?

It is compatible with the Logitech G25, G27, G29, G920 and G923 pedal sets.

Do I need to change the pedal electronics?

No. The MOD mechanically simulates a load cell feel, without replacing the pedal's original electronics.

What is the difference between Soft, Medium and Hard?

They set the firmness and travel reduction: Soft and Medium reduce travel by 25% and Hard by 35%, each with different preload rings. The Soft configuration is not available for the G923.

What is included in the kit?

It includes the brake elastomer, adjustable preload rings and the tool for assembly and disassembly.

Is it compatible with progressive springs such as the GTEye?

Yes. It is compatible with progressive springs such as the GTEye and has an Extended configuration designed for them.

How is it installed?

Remove the black rubber pad and the two white plastic caps from the original brake (if present) and fit the elastomer with the included tool.
