MOZA MGX1000 | G1000 Flight Instrument Panel

Name: MOZA MGX1000 – G1000 Flight Instrument Panel
Brand: MOZA Racing
SKU: AS024
Price: 469.99 EUR
Availability: InStock

MOZA MGX1000 panel de instrumentos de vuelo G1000 con pantalla IPS de 10,4"

Price

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

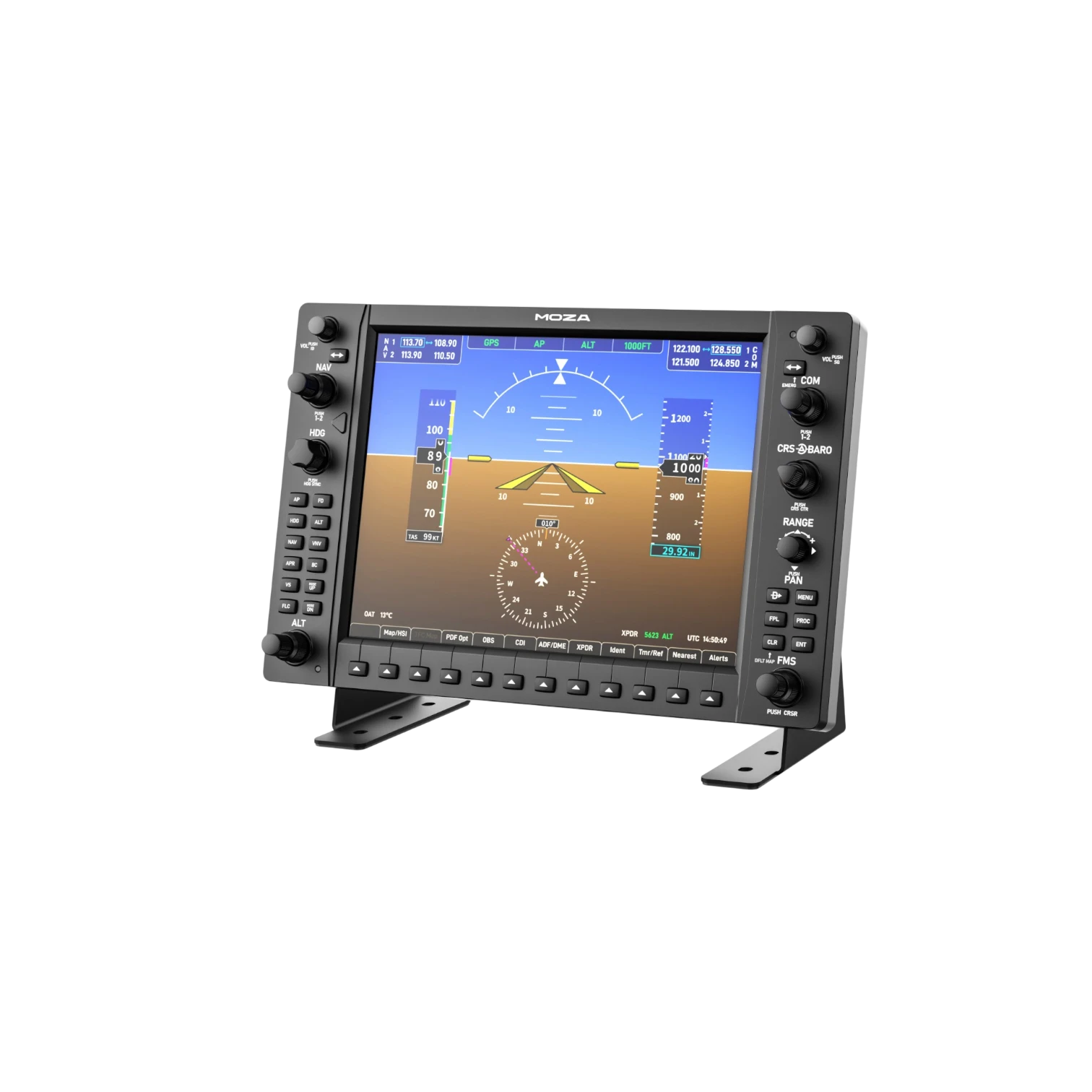

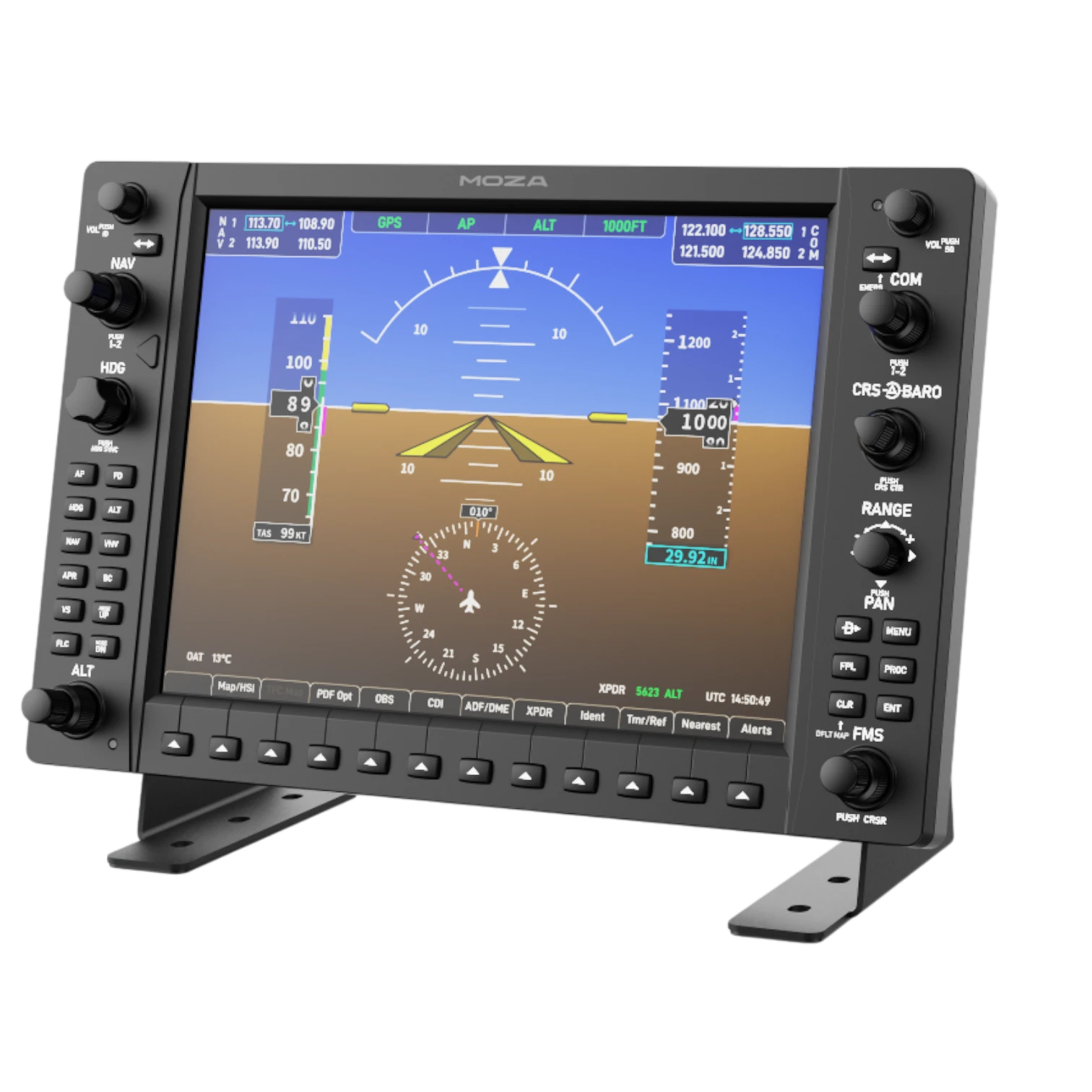

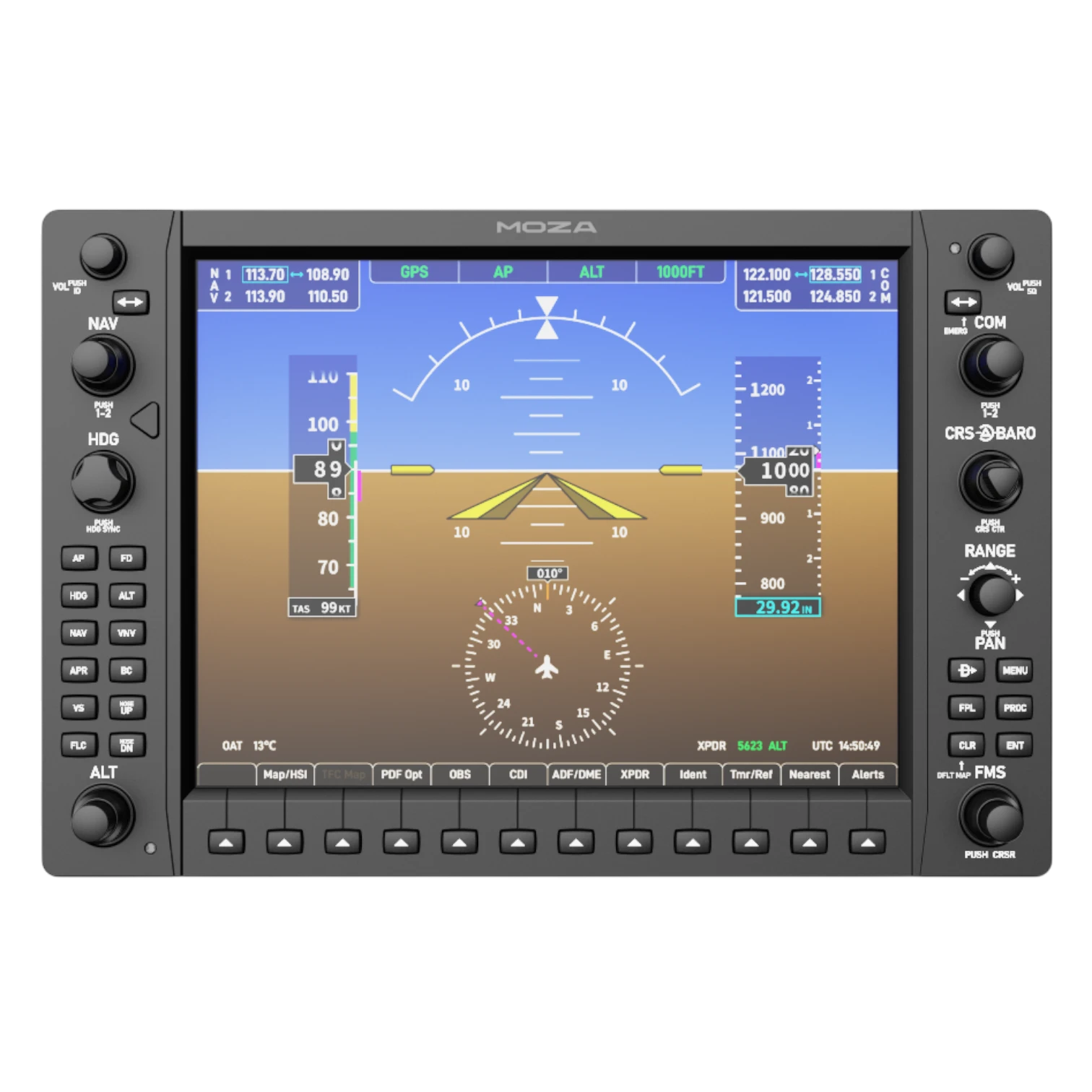

The MOZA MGX1000 is a flight instrument panel with a 10.4" IPS display that reproduces the Garmin G1000 avionics suite 1:1, compatible with PC (MSFS and X-Plane), aimed at simulation pilots and home cockpit builders.

It replicates the button and switch layout and operating logic of the G1000 glass cockpit at true panel size and integrates into the Moza ecosystem through the MOZA Cockpit software. It connects via DisplayLink over a single USB 3.0 cable, carrying both the video feed and the key mapping.

Key features of the MOZA MGX1000

1:1 full-size replica of the G1000 panel: button count, layout and operating logic faithful to the original.
10.4" IPS display with 1024 × 768 resolution and up to 500 nits of brightness, sharp in both day and night flying.
DisplayLink connectivity over a single USB 3.0 cable: no HDMI and no dedicated GPU output taken up.
Precision tactile controls: rotary knobs with defined detents, silicone keys and a 7-way ALPS joystick that mirrors the real control (zoom, panning and press).
Independently adjustable lighting (display, characters and button status) with brightness sensors and telemetry synchronisation through MOZA Cockpit.
Each unit can be assigned as a Primary Flight Display (PFD) or Multi-Function Display (MFD); two units join via a VESA plate for a PFD + MFD configuration.
Lightweight 1.17 kg body with flexible mounting: included desktop stand, 75 × 75 mm VESA, aluminium profiles and bottom mounting points.

Technical specifications

Feature	MOZA MGX1000
Display	10.4" IPS, up to 500 nits
Resolution	1024 × 768
Dimensions	304 × 201 × 66.8 mm
Material	ABS + PC
Weight	1.17 kg
Connectivity	USB-A (USB 3.0), DC 5 V
Rated voltage	5 V (USB) / 5 V (DC)
Rated current	900 mA (USB) / 2 A (DC)
Supported platform	PC
Mounting options	Desktop stand, 75 × 75 mm VESA, bottom mount
Included accessories	Data cable, desktop stand, power adapter

Compatibility

The MOZA MGX1000 is compatible with PC and works with Microsoft Flight Simulator 2020 and 2024 and with X-Plane 11 and 12. It is compatible with every native G1000 aircraft, plus add-ons such as the COWS DA40 and the Kodiak 100. It is not compatible with consoles.

Frequently asked questions

Is the MOZA MGX1000 compatible with consoles?

No. The MOZA MGX1000 is a PC panel; it is not compatible with PlayStation or Xbox. It works with MSFS 2020/2024 and X-Plane 11/12 through the MOZA Cockpit software.

Does it need an HDMI port or a dedicated GPU output?

No. It uses DisplayLink technology and carries video and key mapping over a single USB 3.0 cable, without taking up a graphics output or adding load to the GPU.

Which aircraft and simulators does it work with?

With every native G1000 aircraft in MSFS 2020/2024 and X-Plane 11/12, including add-ons such as the COWS DA40 and the Kodiak 100, with configurable key mapping.

Can I use two units as PFD and MFD?

Yes. Each unit is independently assigned as a PFD or MFD, and a VESA connector plate joins two MGX1000 units into a PFD + MFD configuration.

How is the panel mounted?

A desktop stand is included. It also supports mounting on aluminium profiles, 75 × 75 mm VESA fixing and bottom mounting points for fixed installations.
