SIMAGIC Alpha EVO Ultra 28 Nm Pack – Wheelbase, Wheel, Pedals

The SIMAGIC Alpha EVO Ultra Pack is a sim racing bundle built around the 28 Nm SIMAGIC Alpha EVO Ultra direct drive wheelbase, plus the wheel and pedals of your choice. It runs on PC and is aimed at drivers who want the most powerful wheelbase in the Simagic ecosystem.

The Alpha EVO Ultra is the flagship of the range, sitting above the 18 Nm Alpha EVO Pro. It uses a five-pole-pair industrial servo motor with an ultra-low inertia rotor and Zero-Cogging technology, a 21-bit encoder, a new-generation DFDF algorithm and HYPER COOL active cooling, and is tuned through SimPro Manager V3.0.0. Configured as a bundle, the wheelbase pairs with eleven Simagic wheels and five pedal sets to build a racing simulator around the way you drive.

Key features of the SIMAGIC Alpha EVO Ultra Pack

• 28 Nm of continuous peak torque: SIMAGIC states this as sustained torque rather than a short-lived peak, thanks to the dynamic cooling system.
• Five-pole-pair industrial servo motor with Zero-Cogging: a reduced-diameter, ultra-low inertia rotor with near-zero torque ripple.
• 21-bit encoder: over 2 million steps per rotation, resolving even micro-movements of the wheel.
• New-generation DFDF algorithm: rebuilds the force feedback curve in real time at microsecond response speeds, with a 180 MHz processing frequency and a 20 kHz response rate.
• HYPER COOL active cooling: air ducting, active fan cooling and Japanese vacuum potting to deliver 100% of available torque stint after stint.
• 11 ports with CAN, CAN FD and USB: snap-on magnetic dash support and an optional QR-A adapter with USB passthrough for third-party wheels.
• 500-ton die-cast, CNC-machined aluminium shell: 11 kg net weight, with an external kill switch included.

Alpha EVO Ultra wheelbase specifications

Which configuration should you choose?

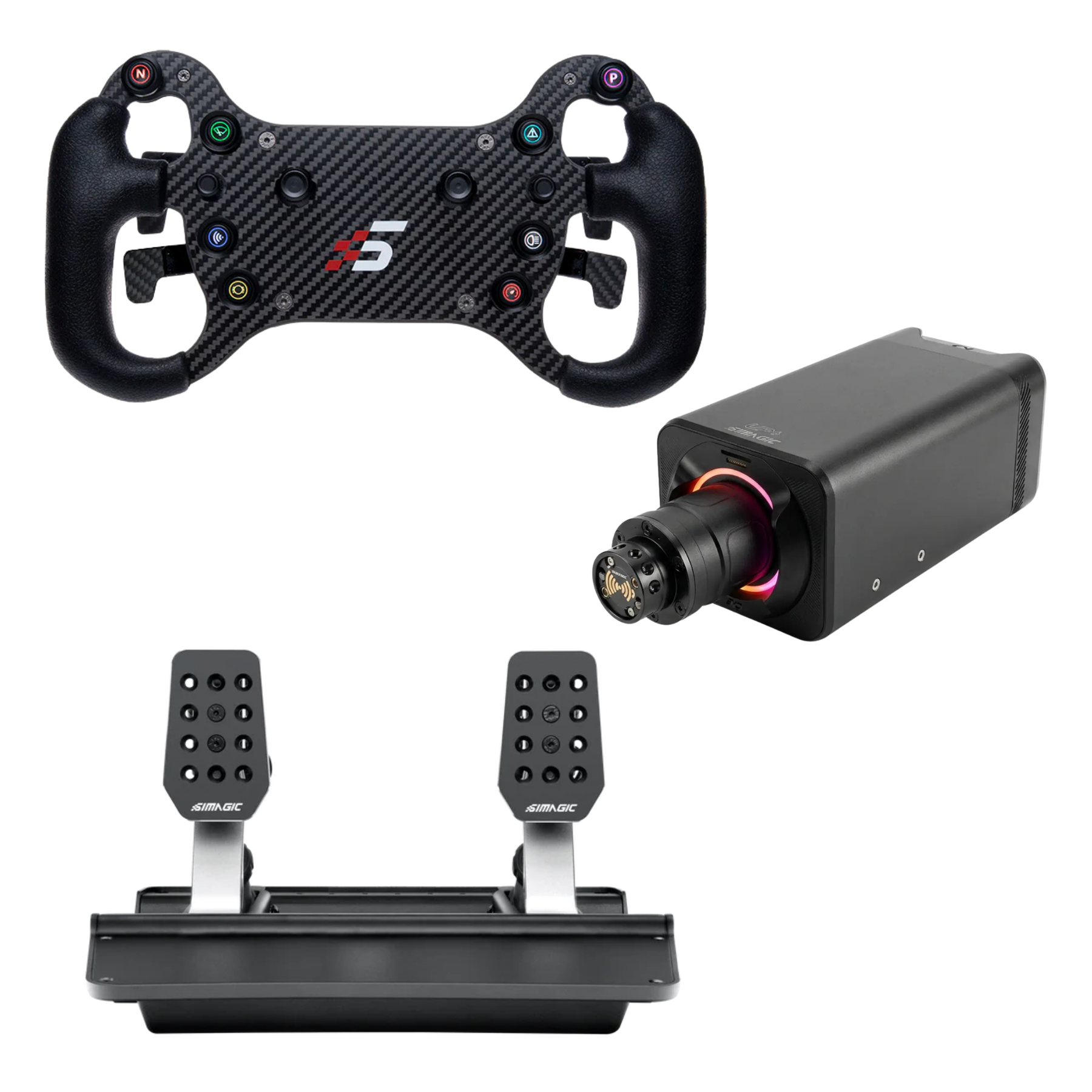

The pack is built in two steps: first the wheel, then the pedals. The wheelbase is always the same Simagic Alpha EVO Ultra 28Nm, so your choice of peripherals is what steers the rig towards one discipline or another.

Wheels to choose from

Formula-style rims for single-seaters and prototypes, GT and round rims for touring cars and endurance, and the modular Neo X series. These are the eleven sim racing wheels available in the pack:

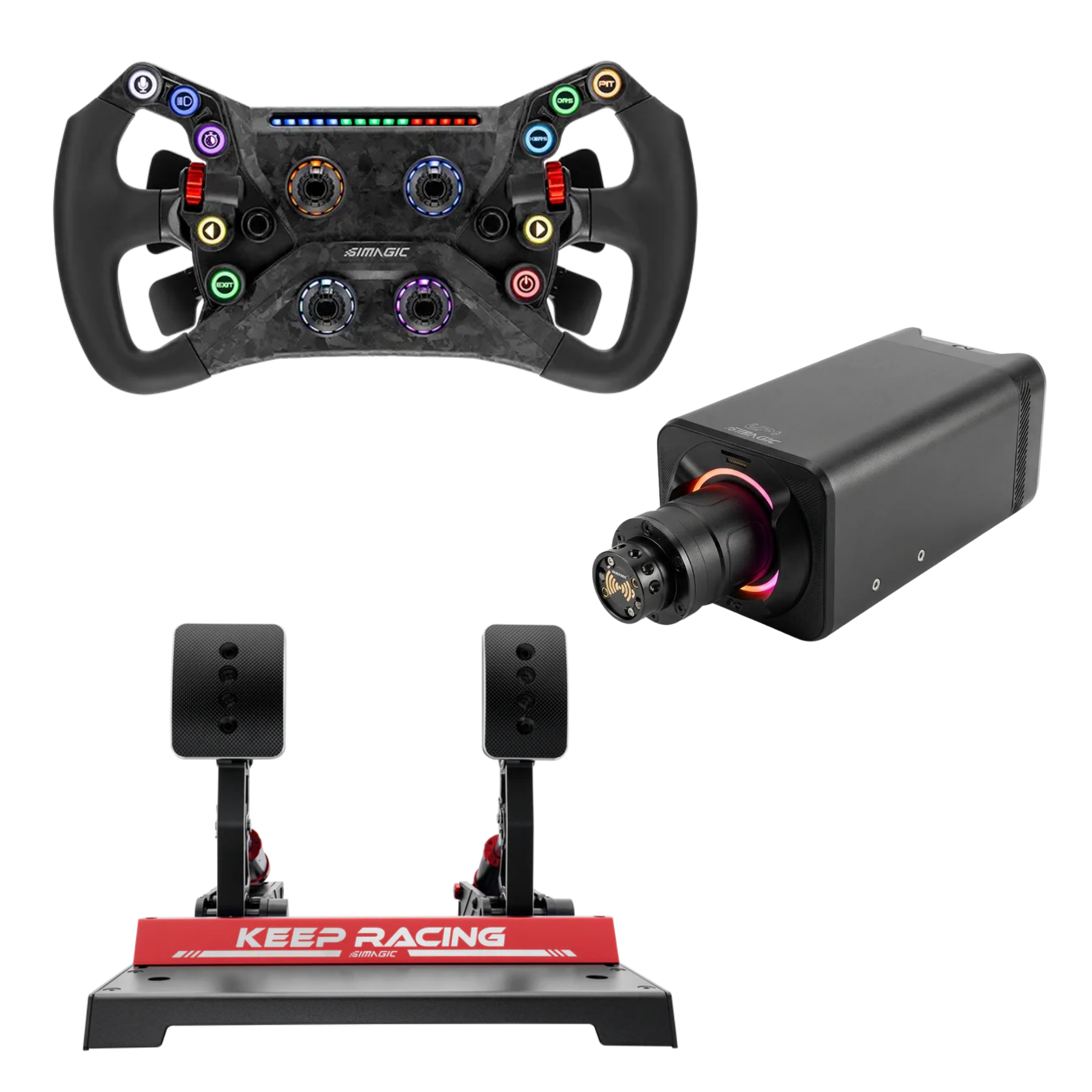

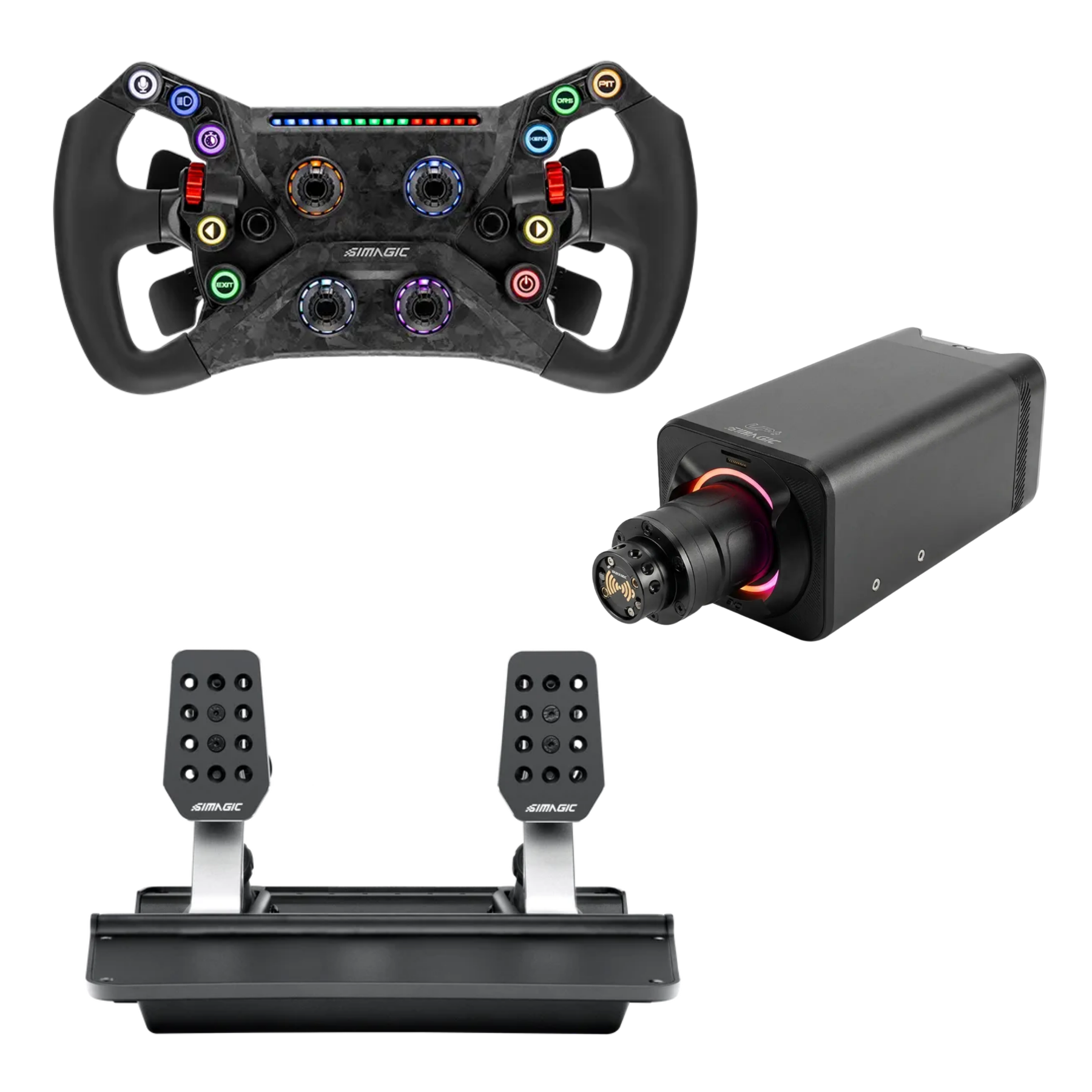

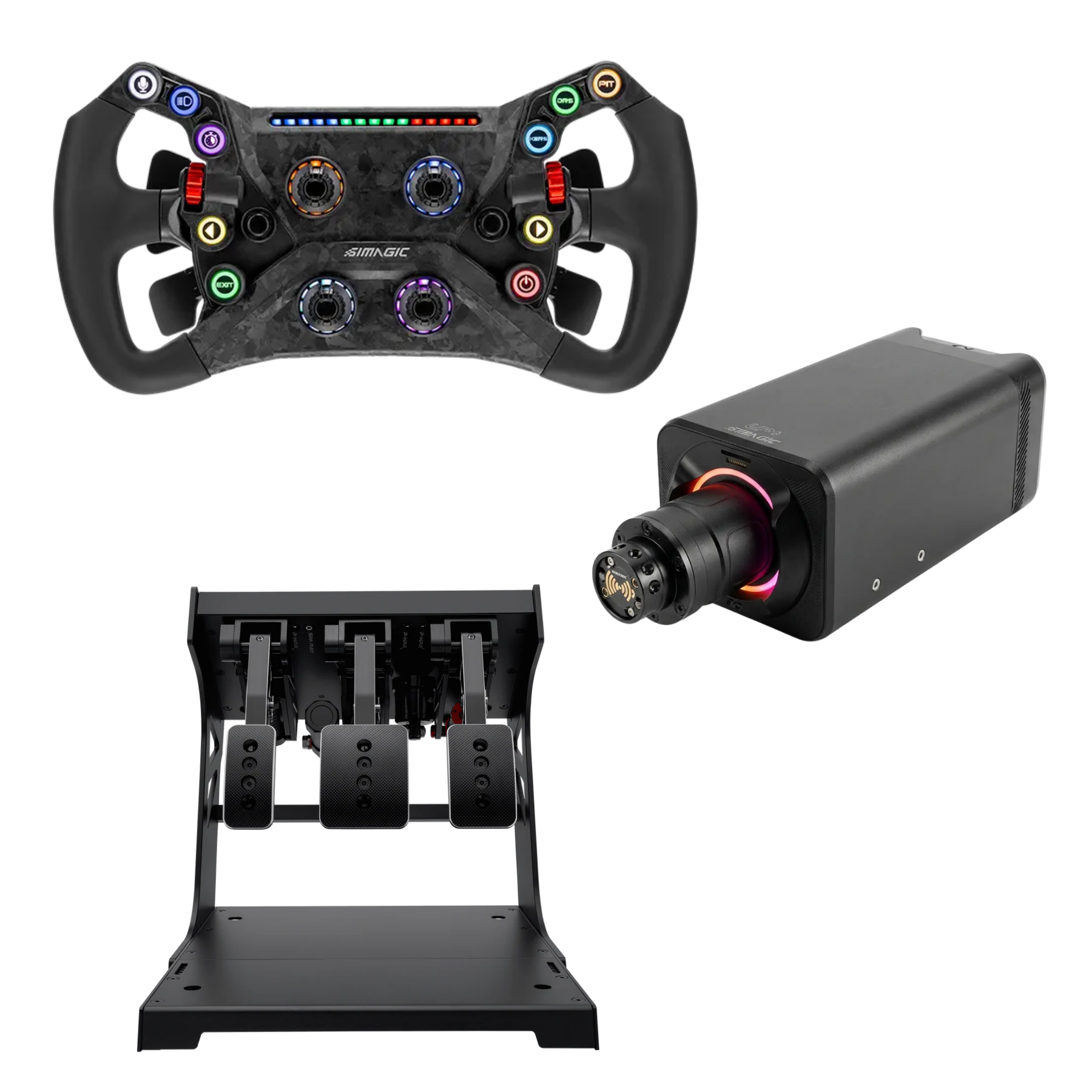

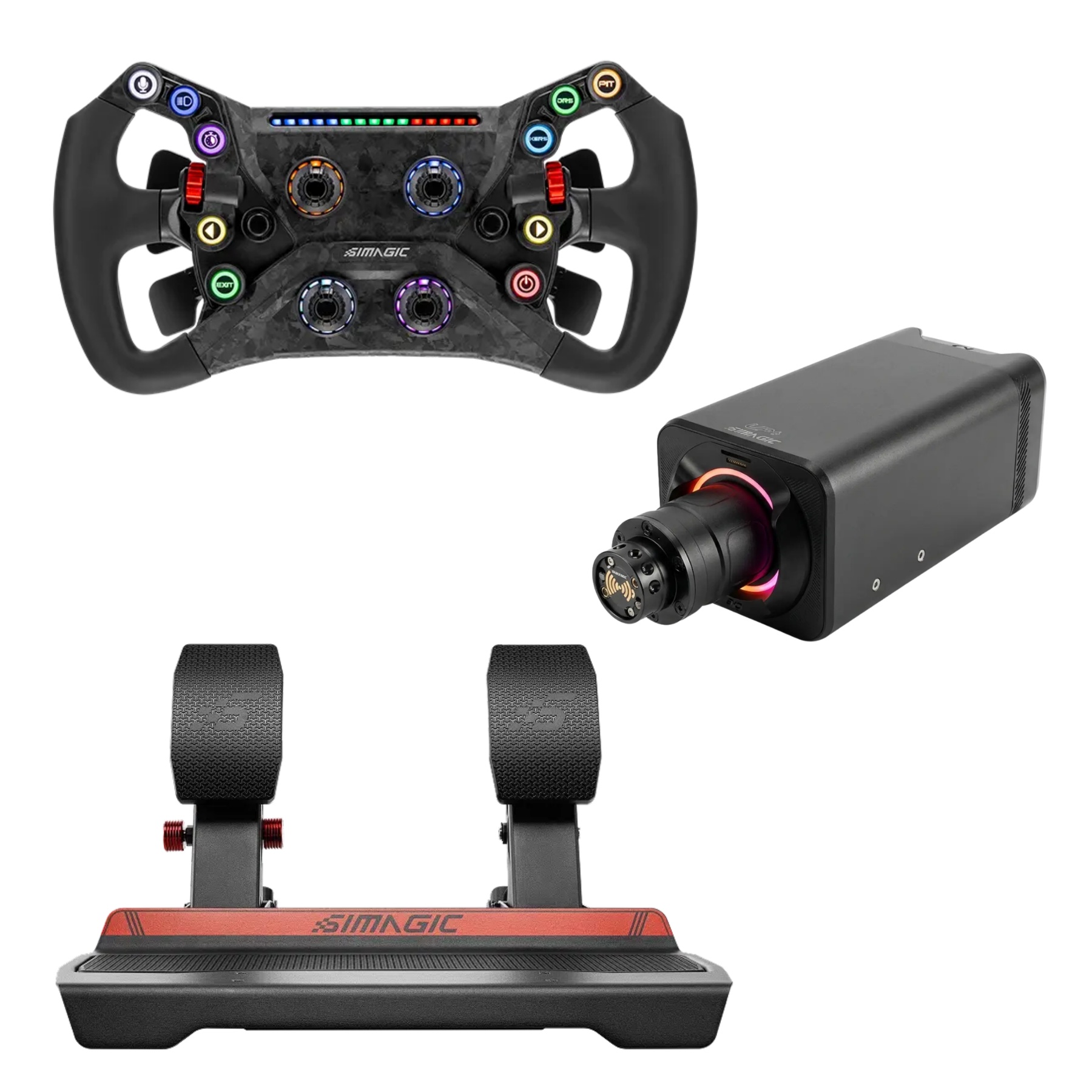

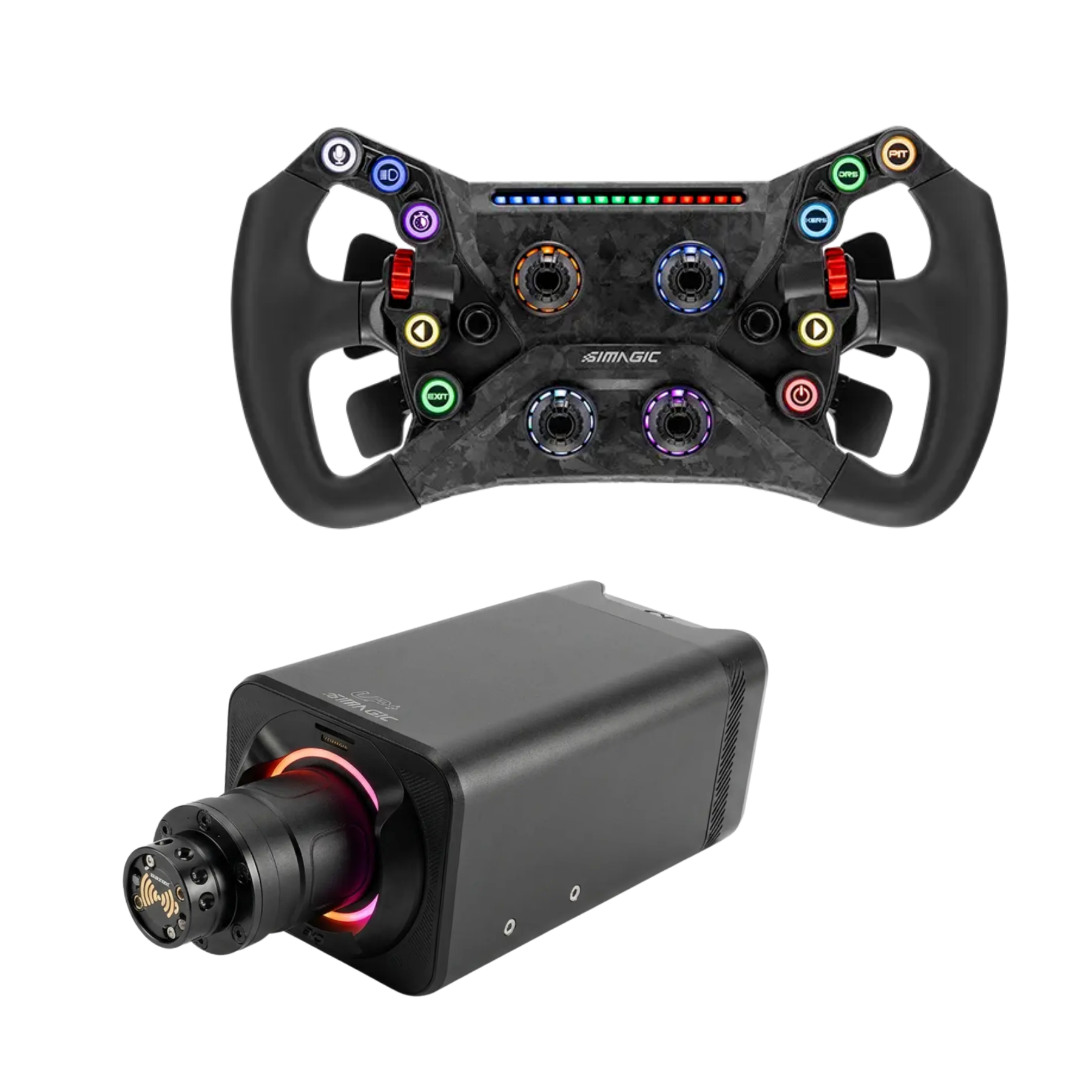

• GT Neo
• Neo X-350W

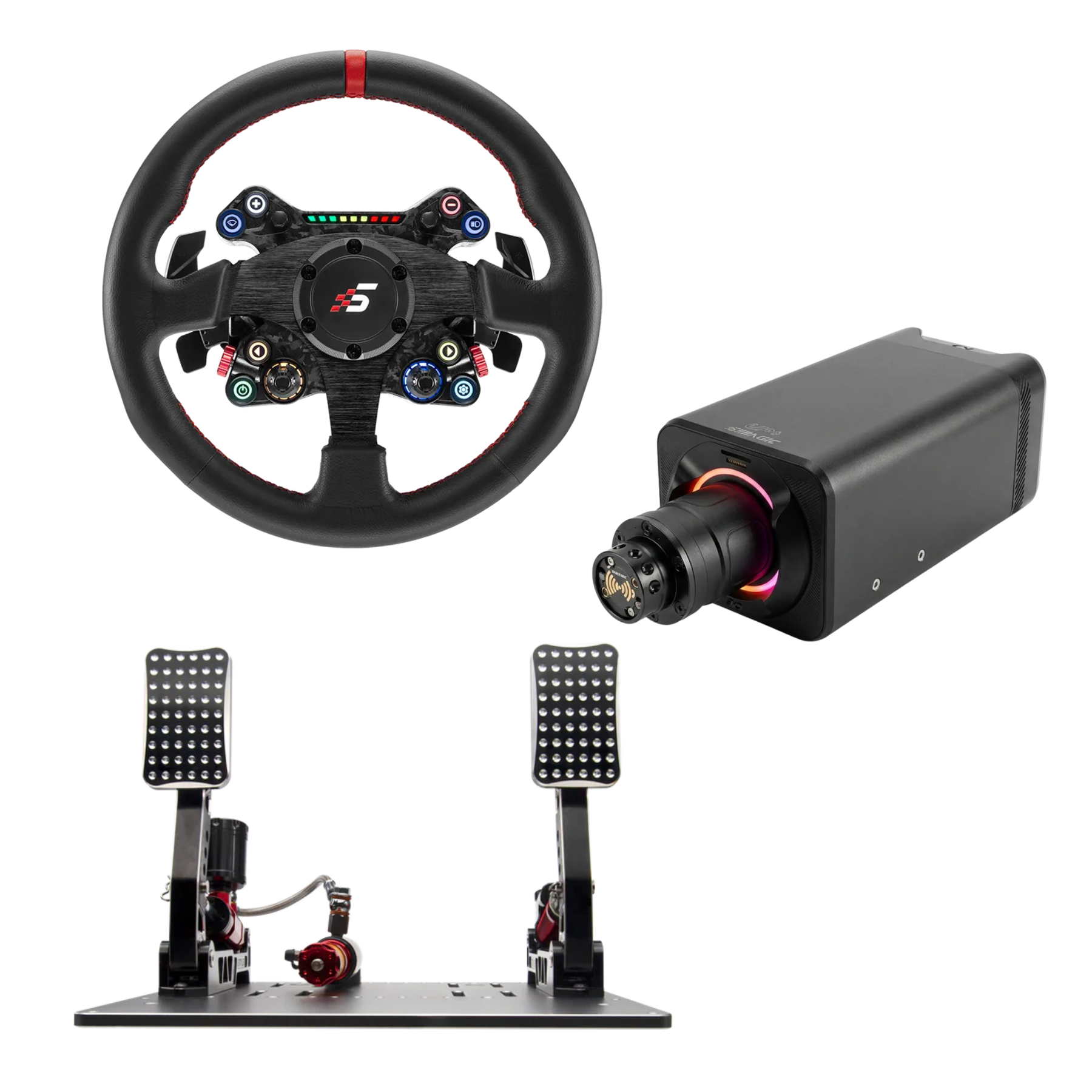

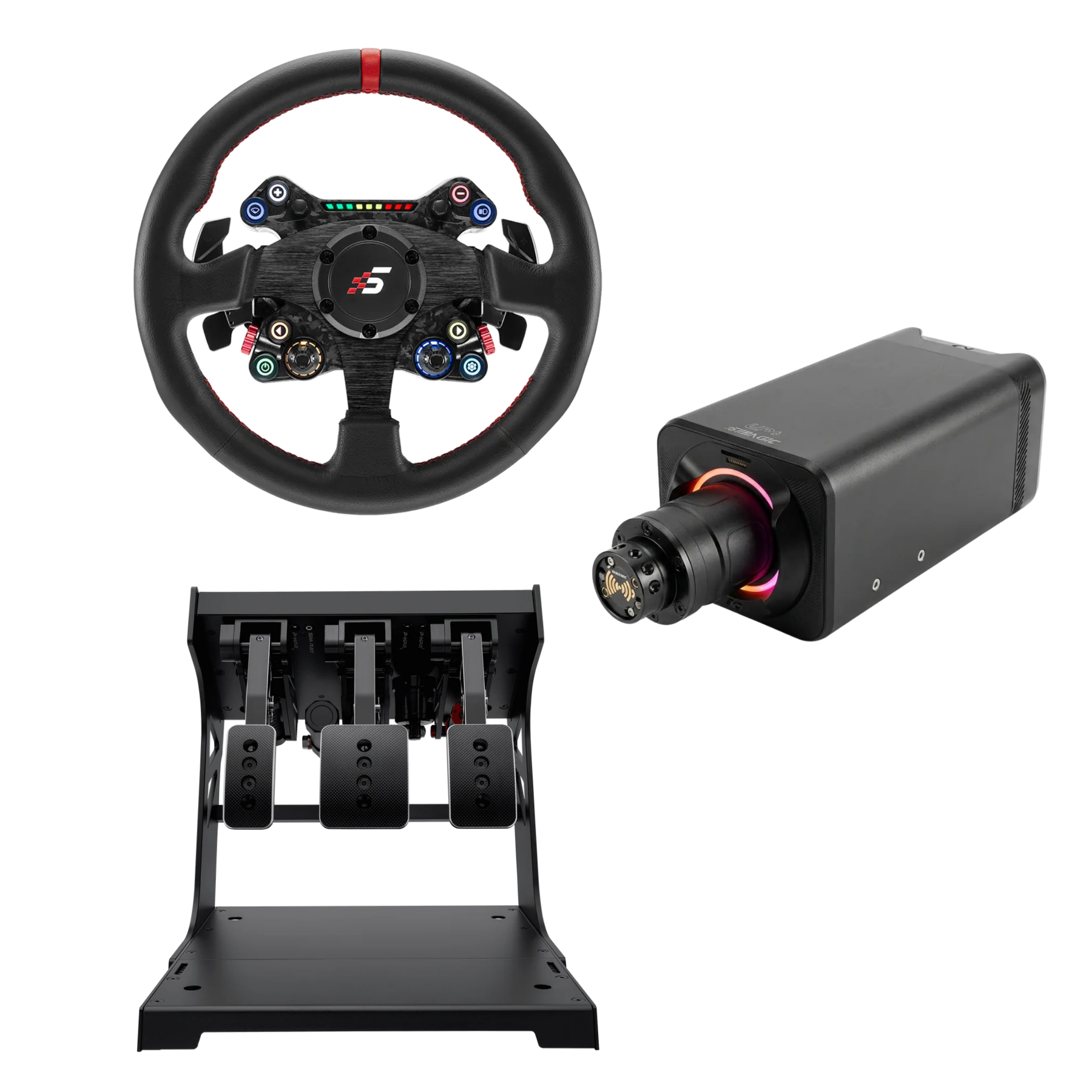

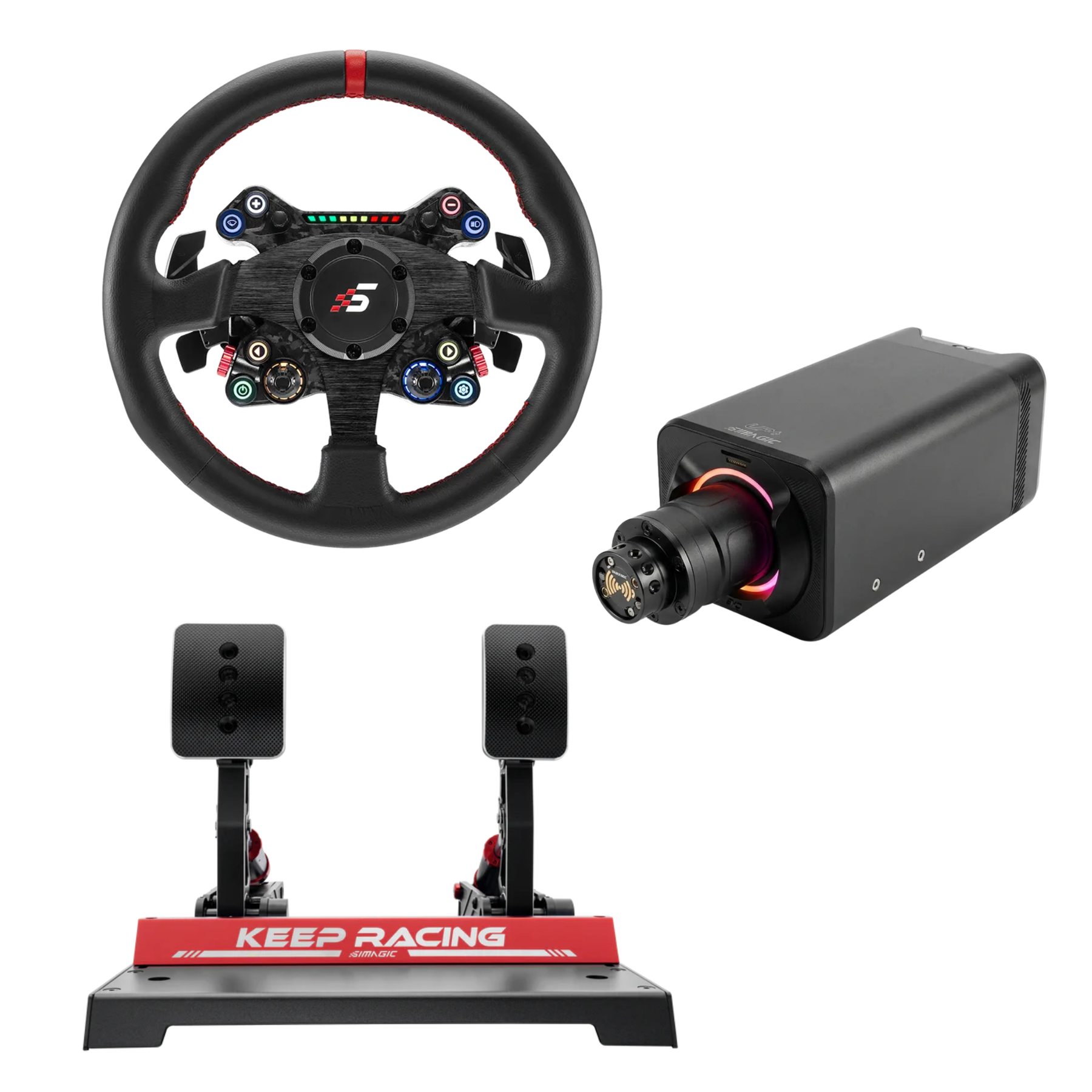

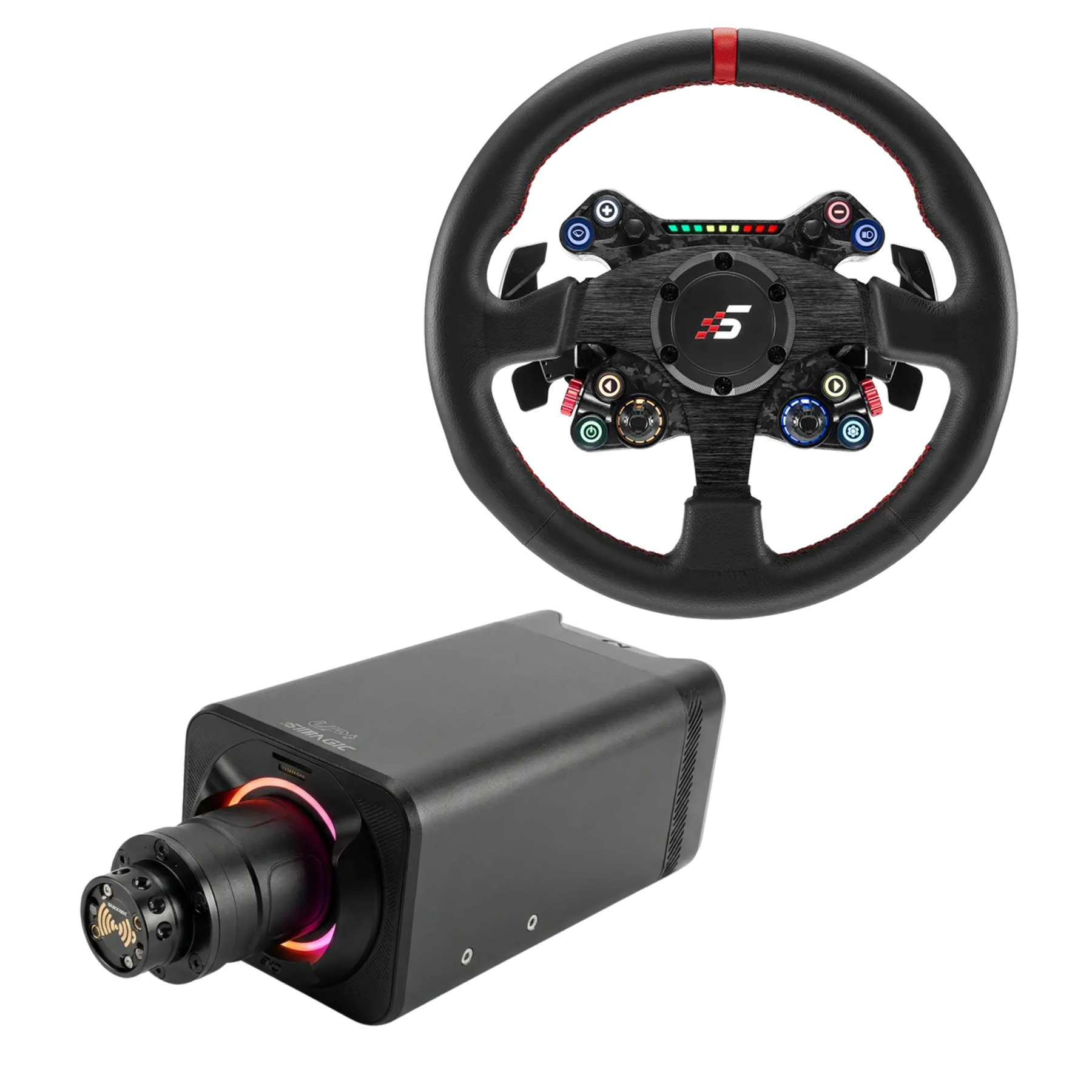

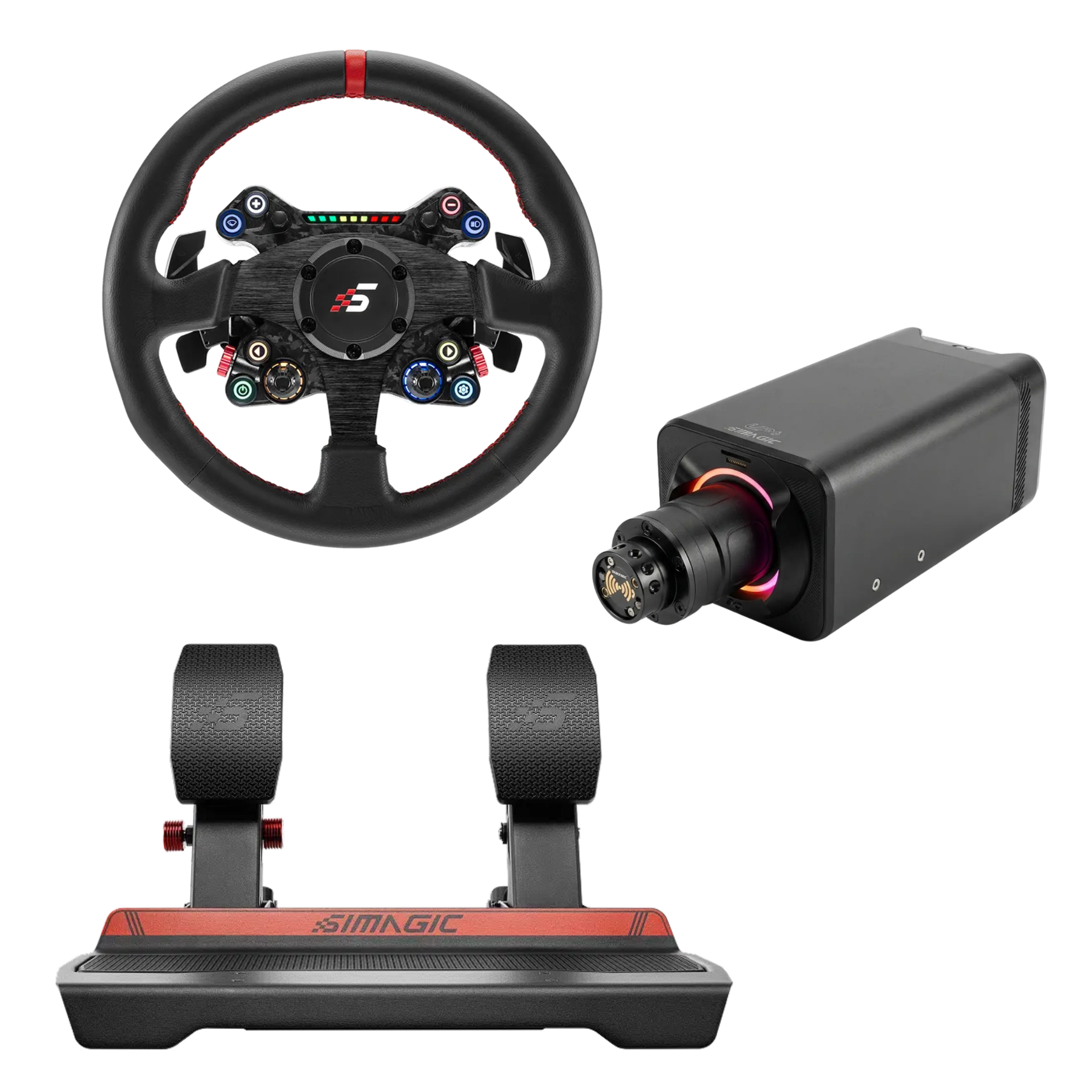

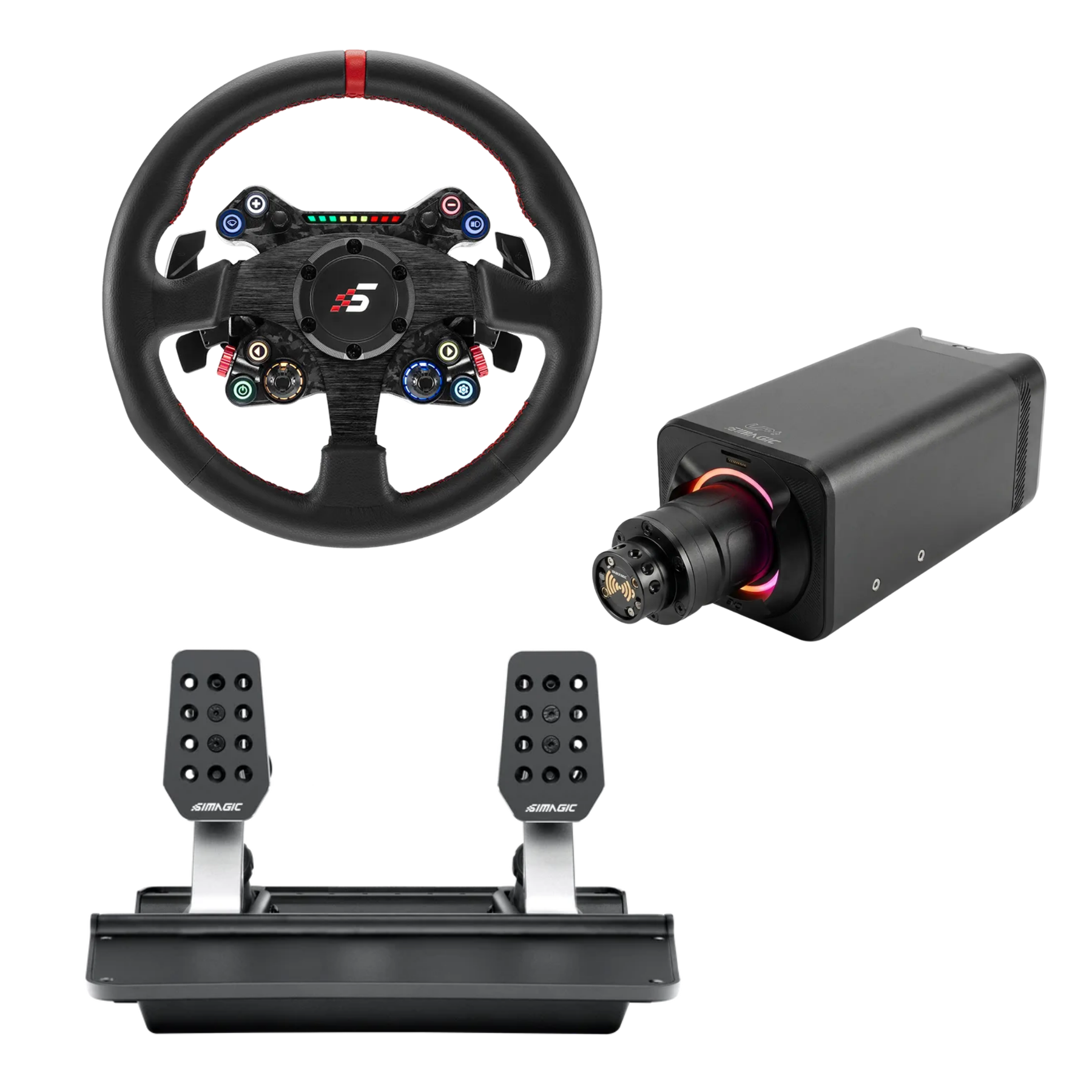

• Neo X-330R
• Neo X-310G
• Neo X-330T

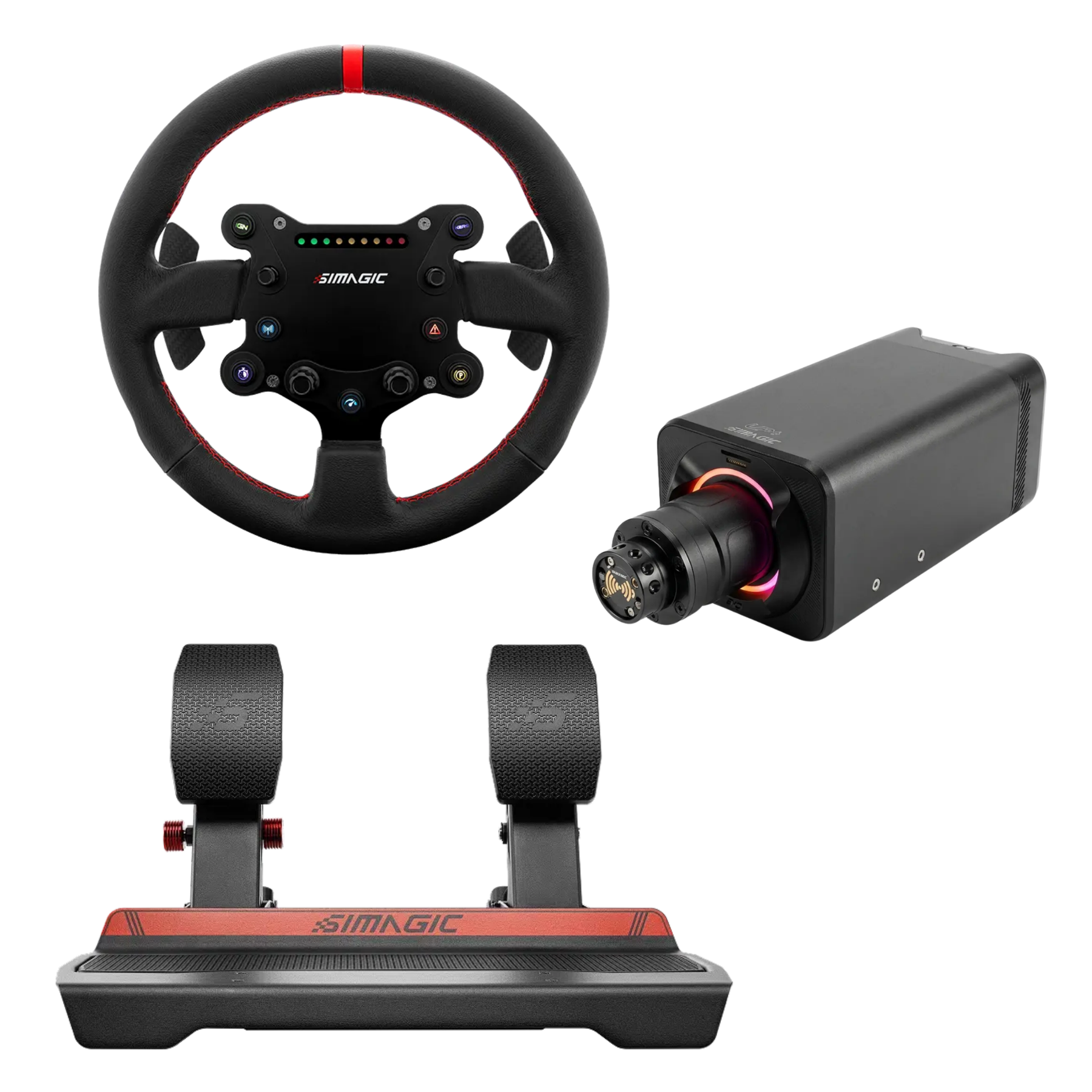

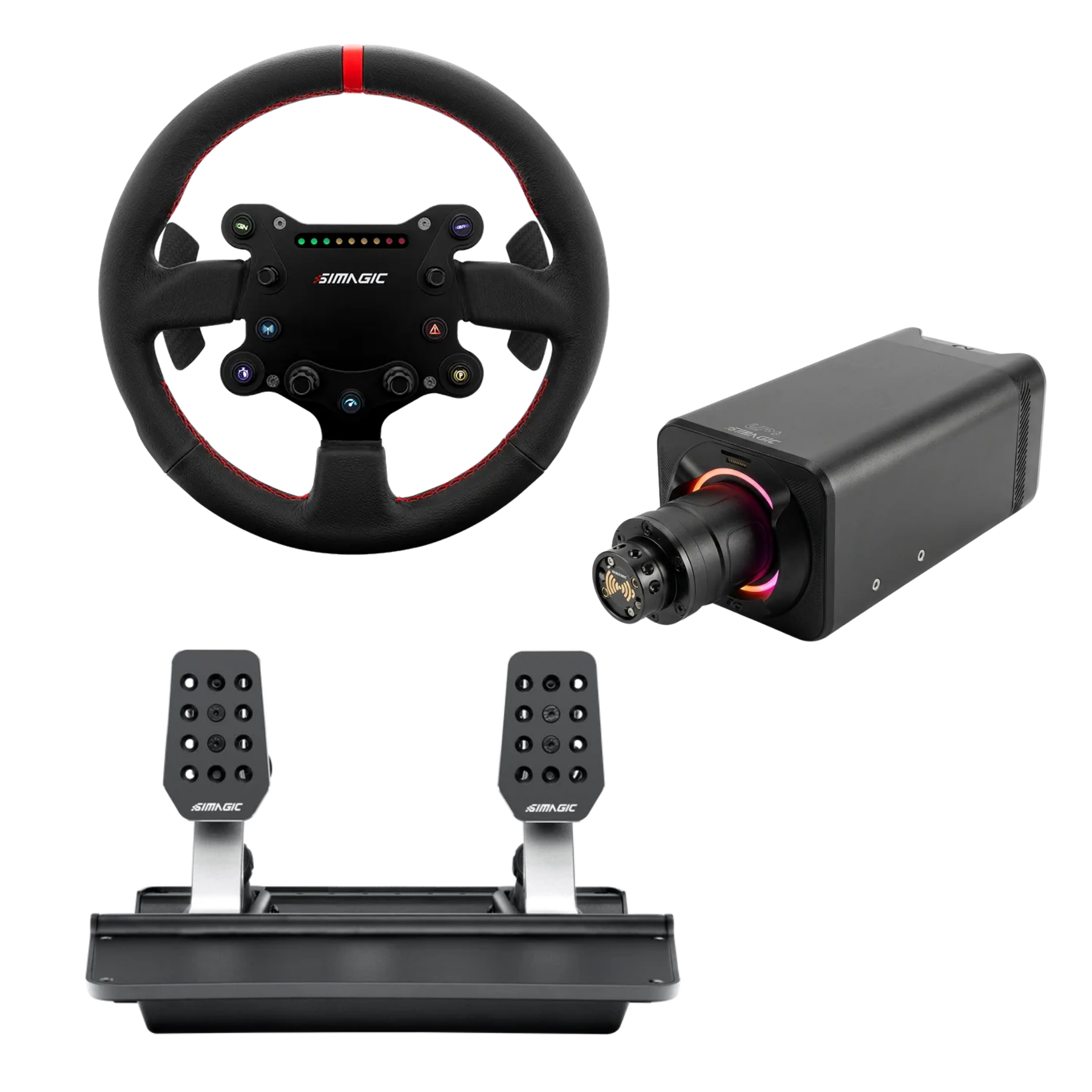

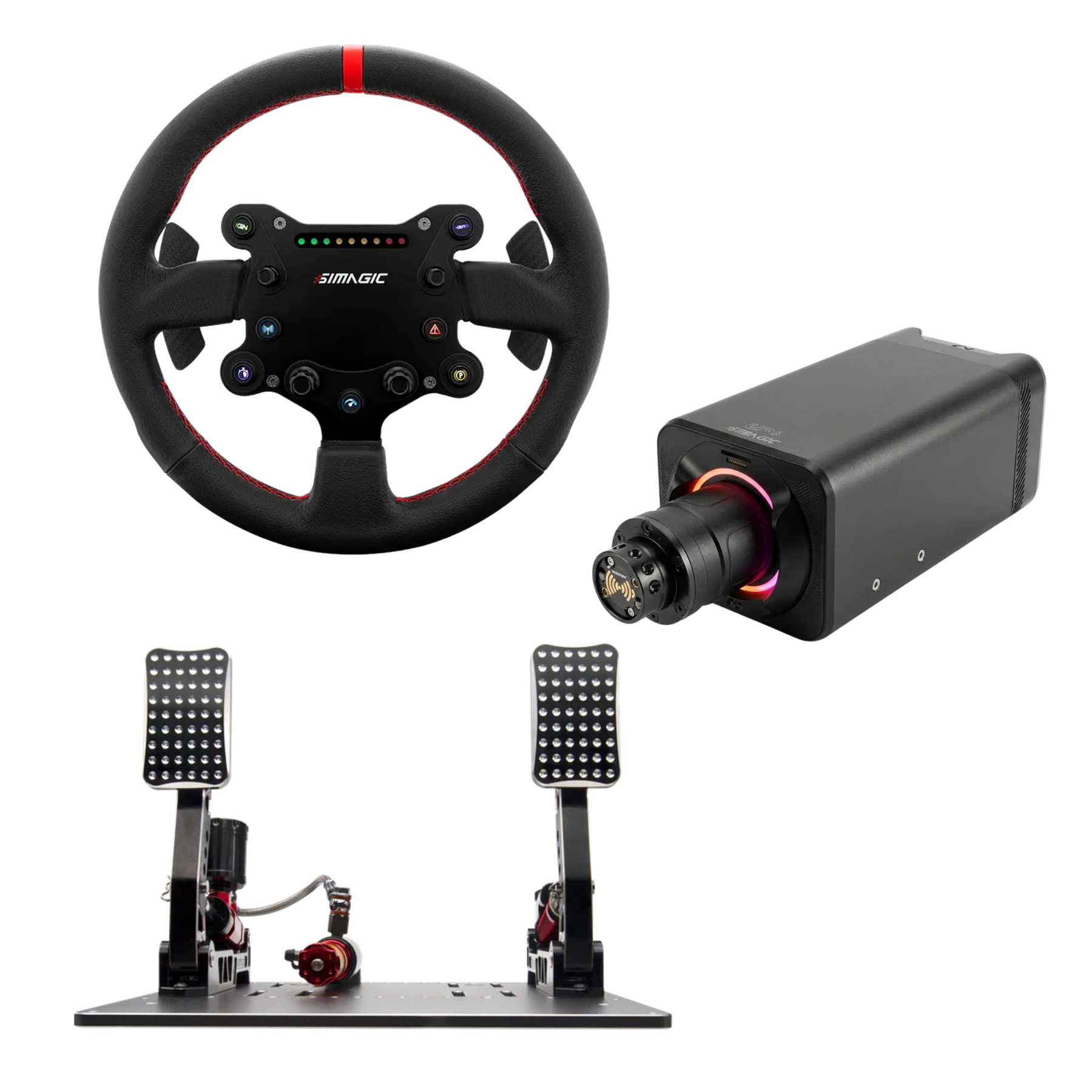

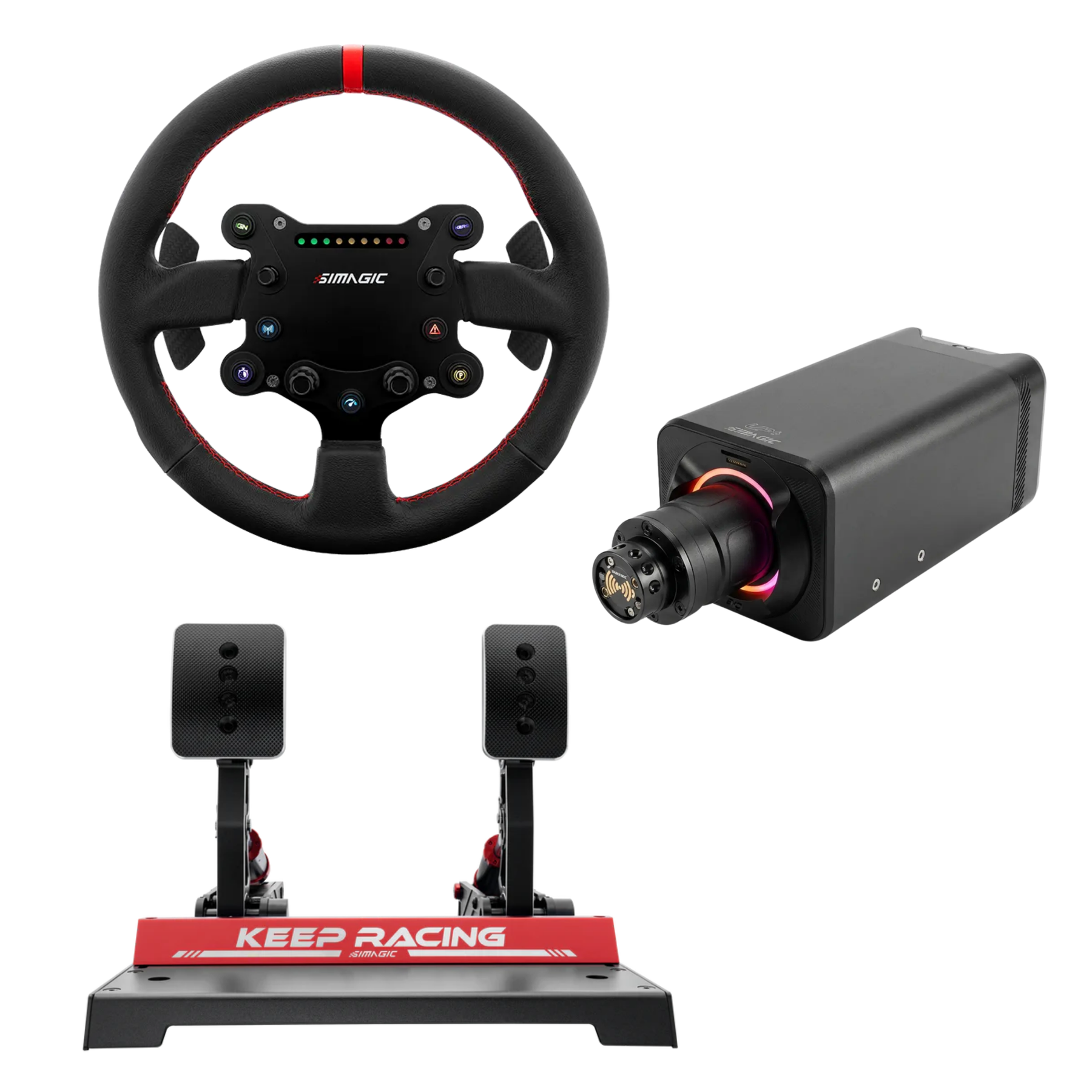

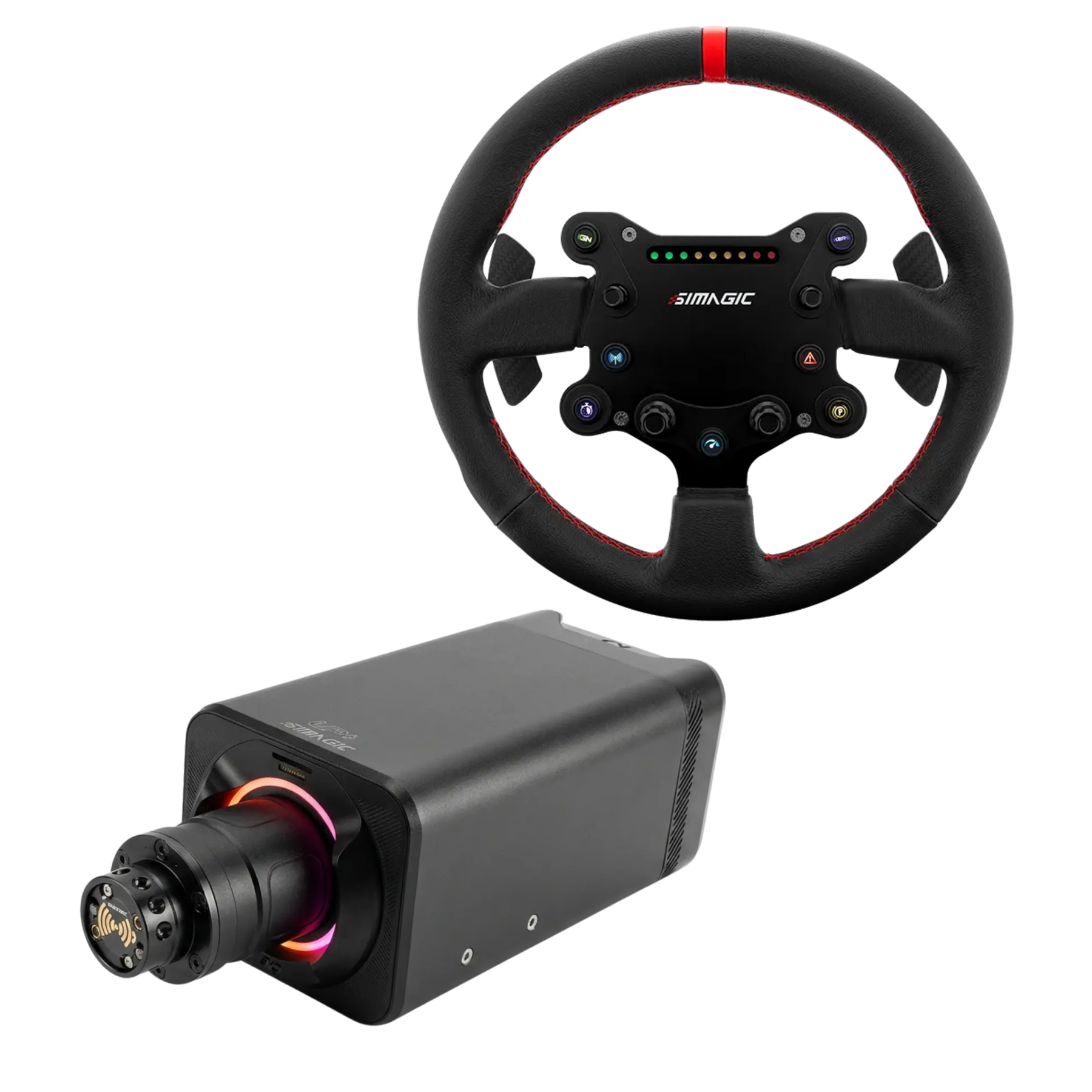

• GTS in leather

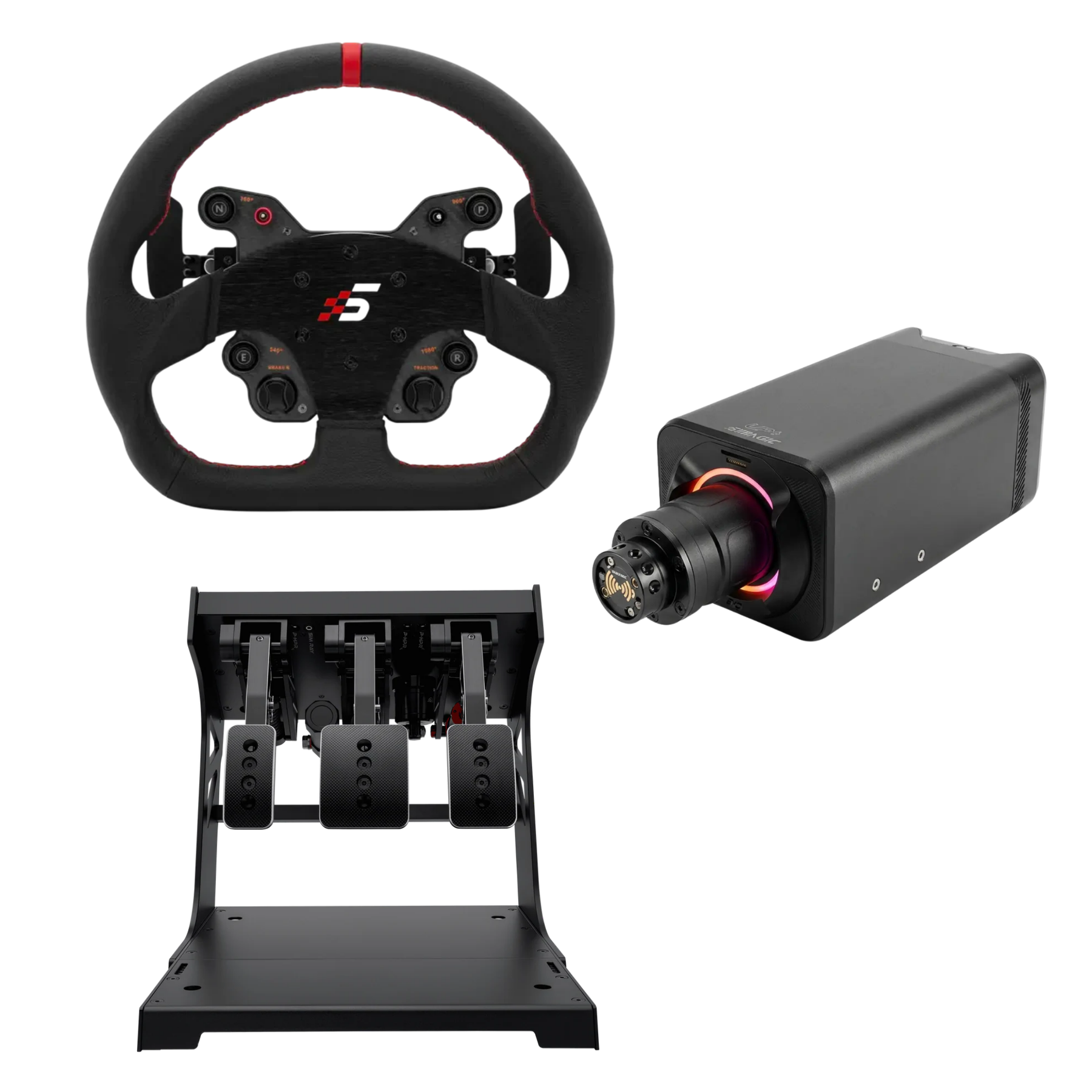

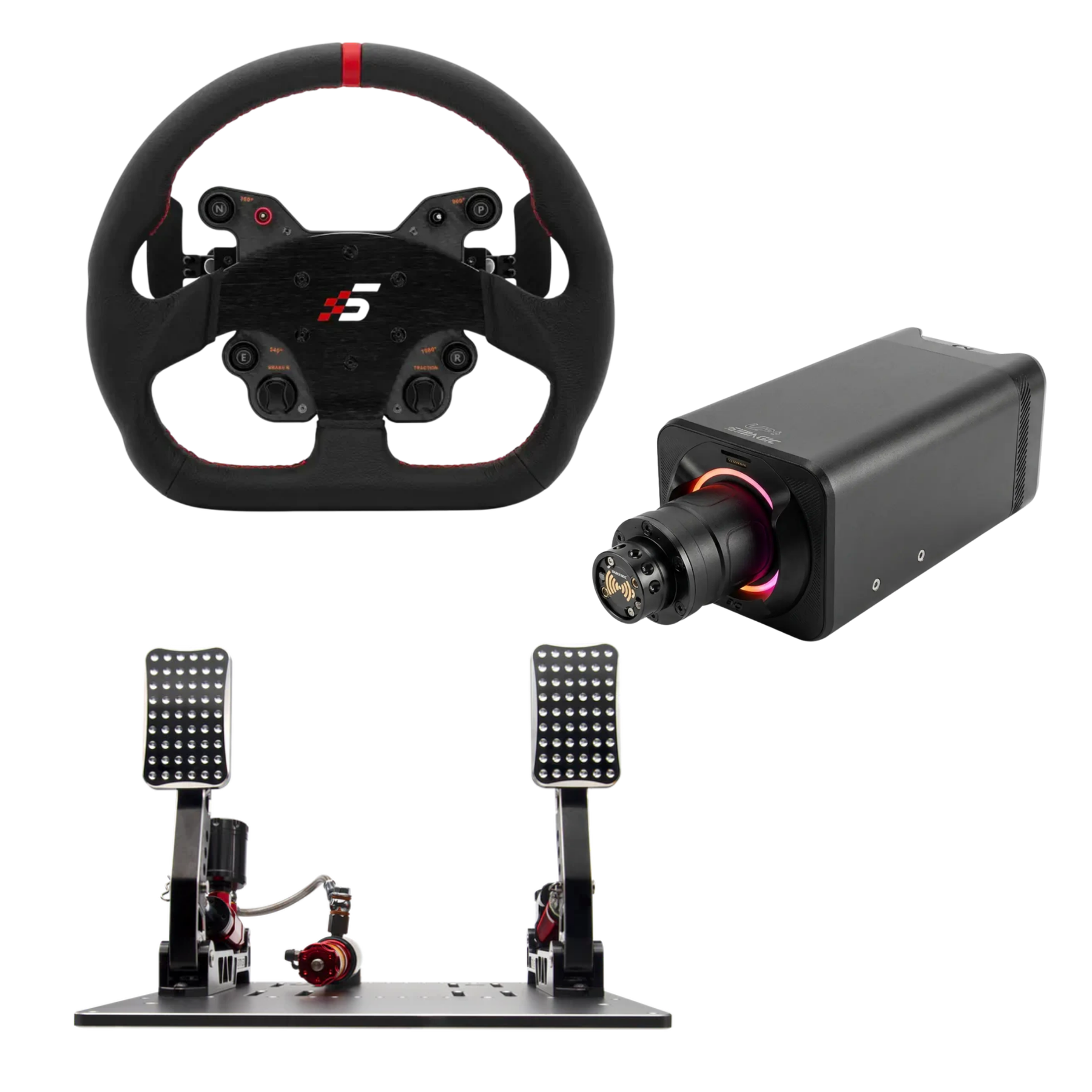

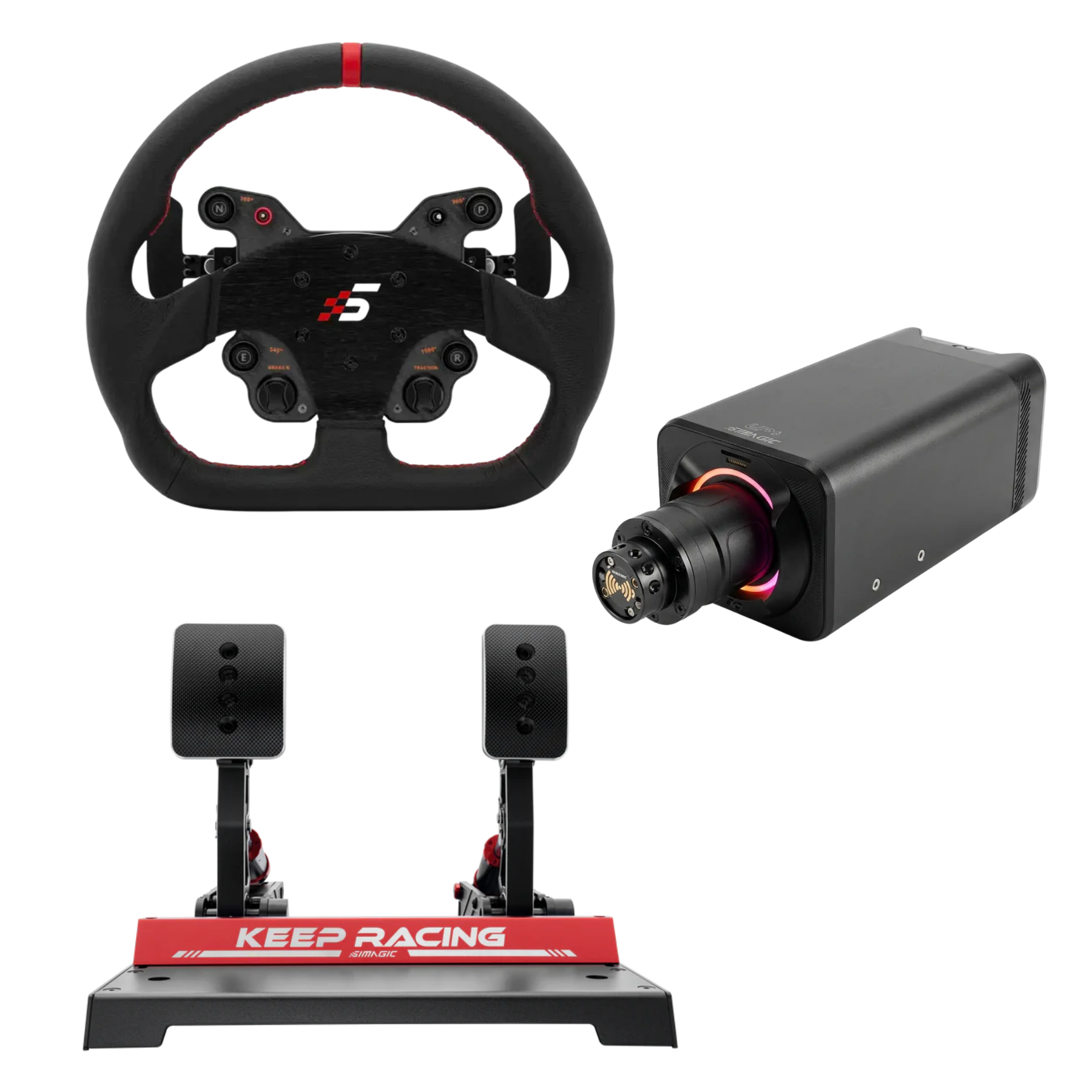

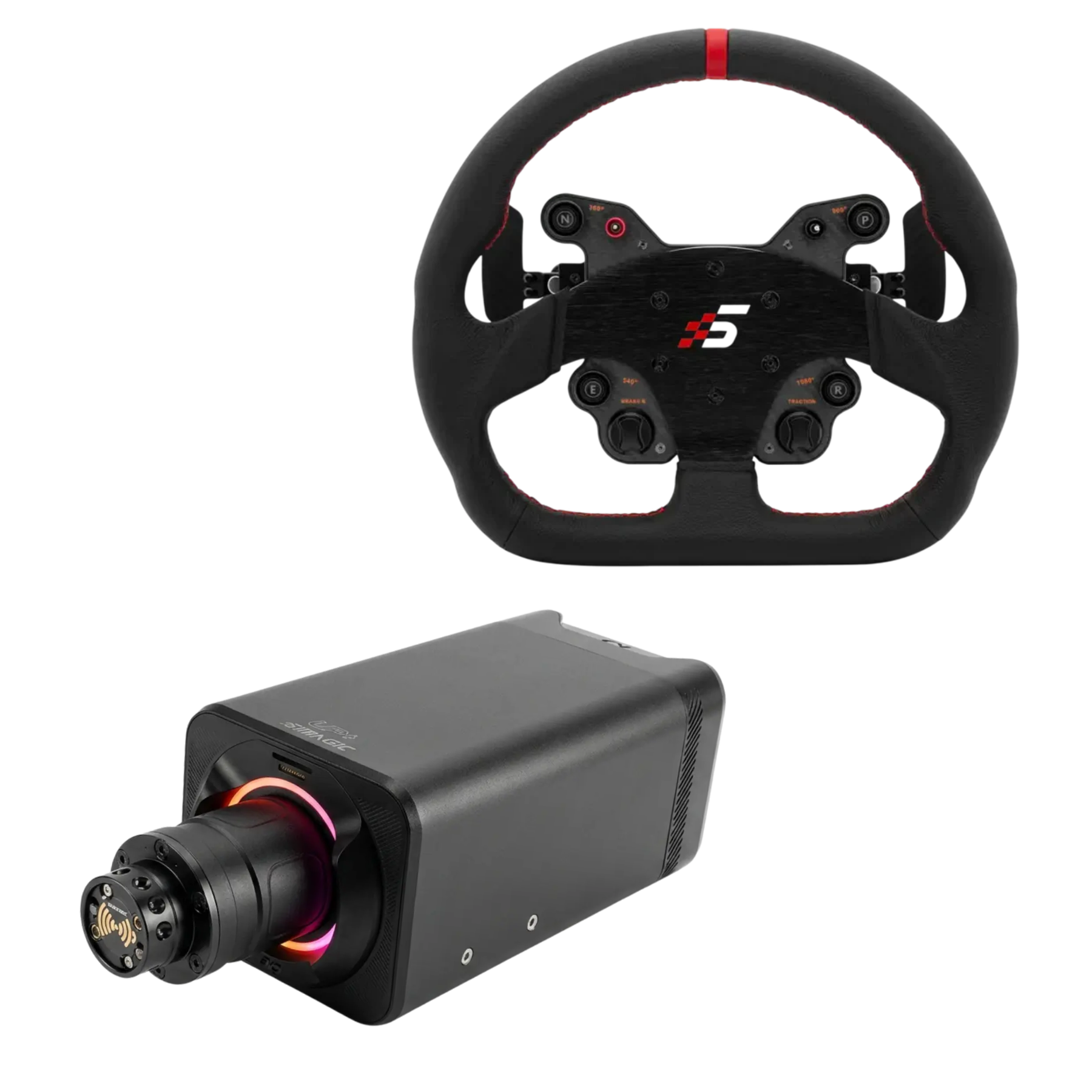

• GT1 in D-shape and leather

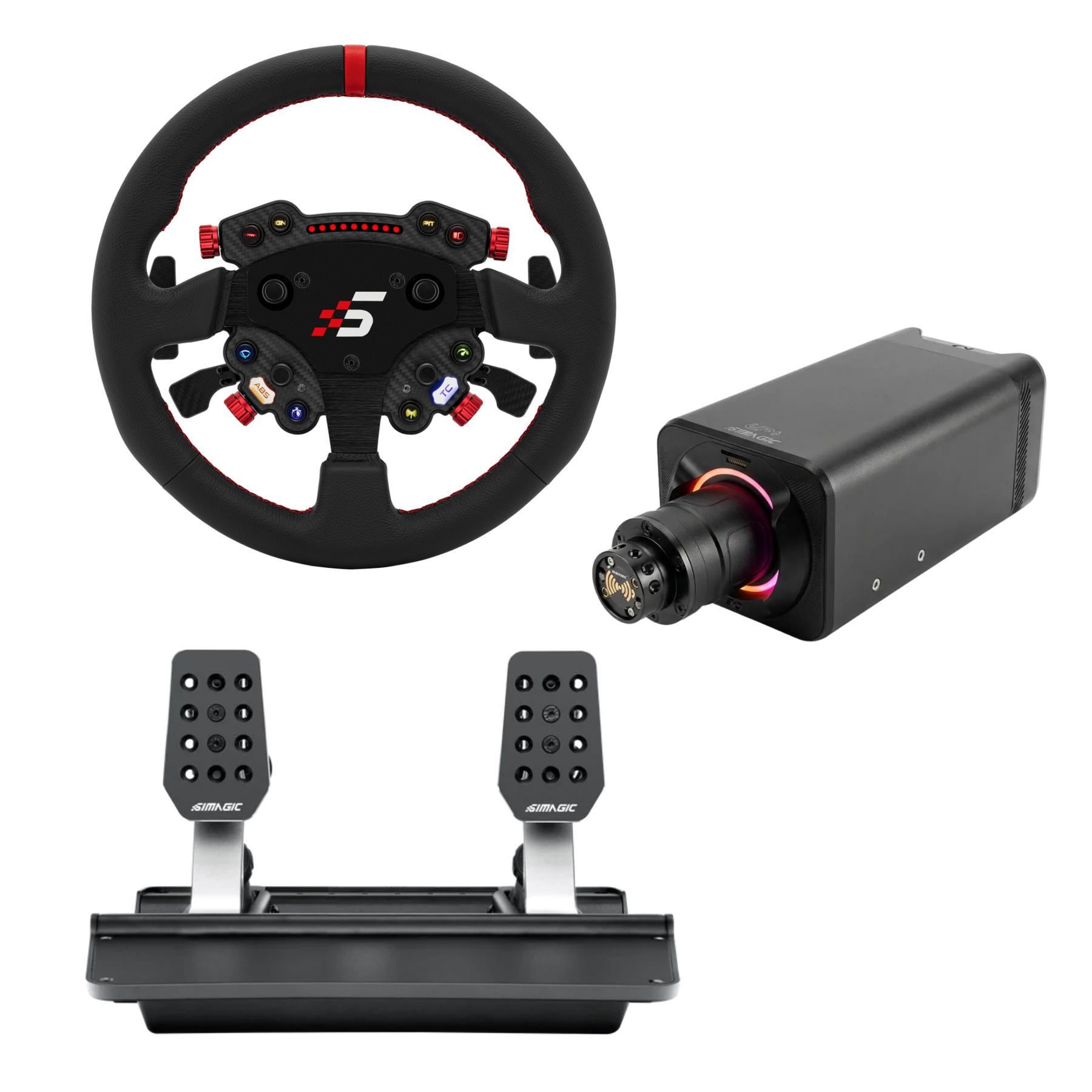

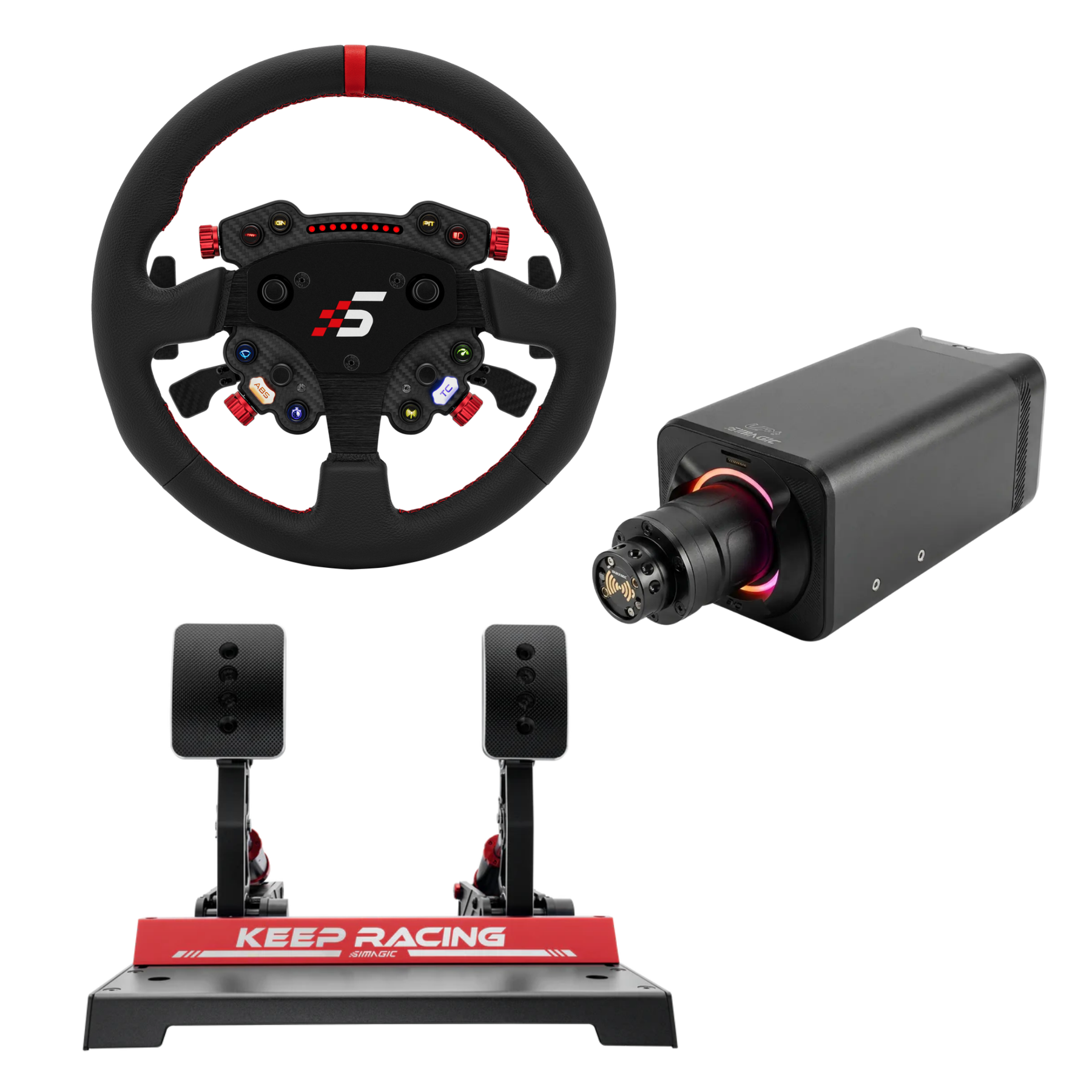

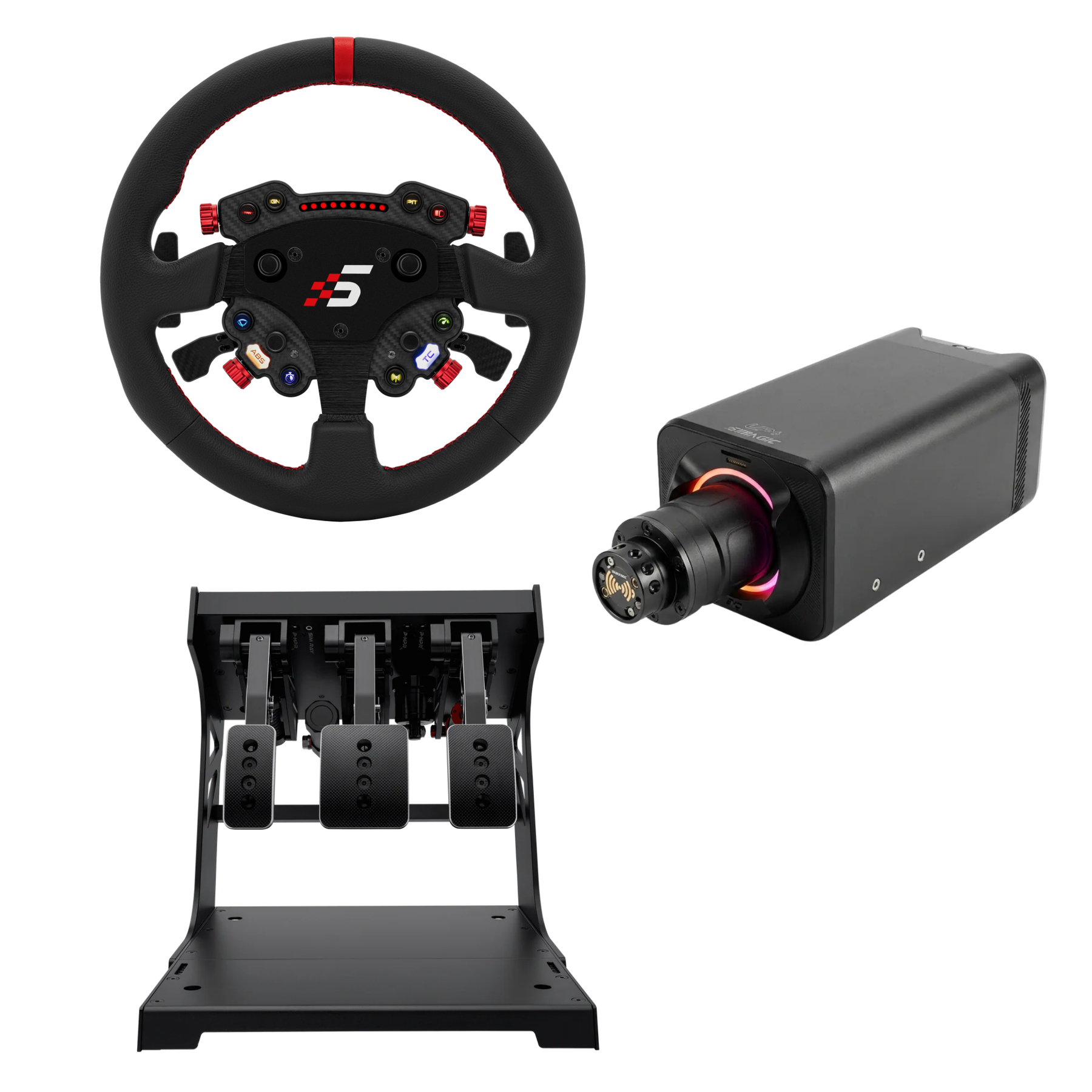

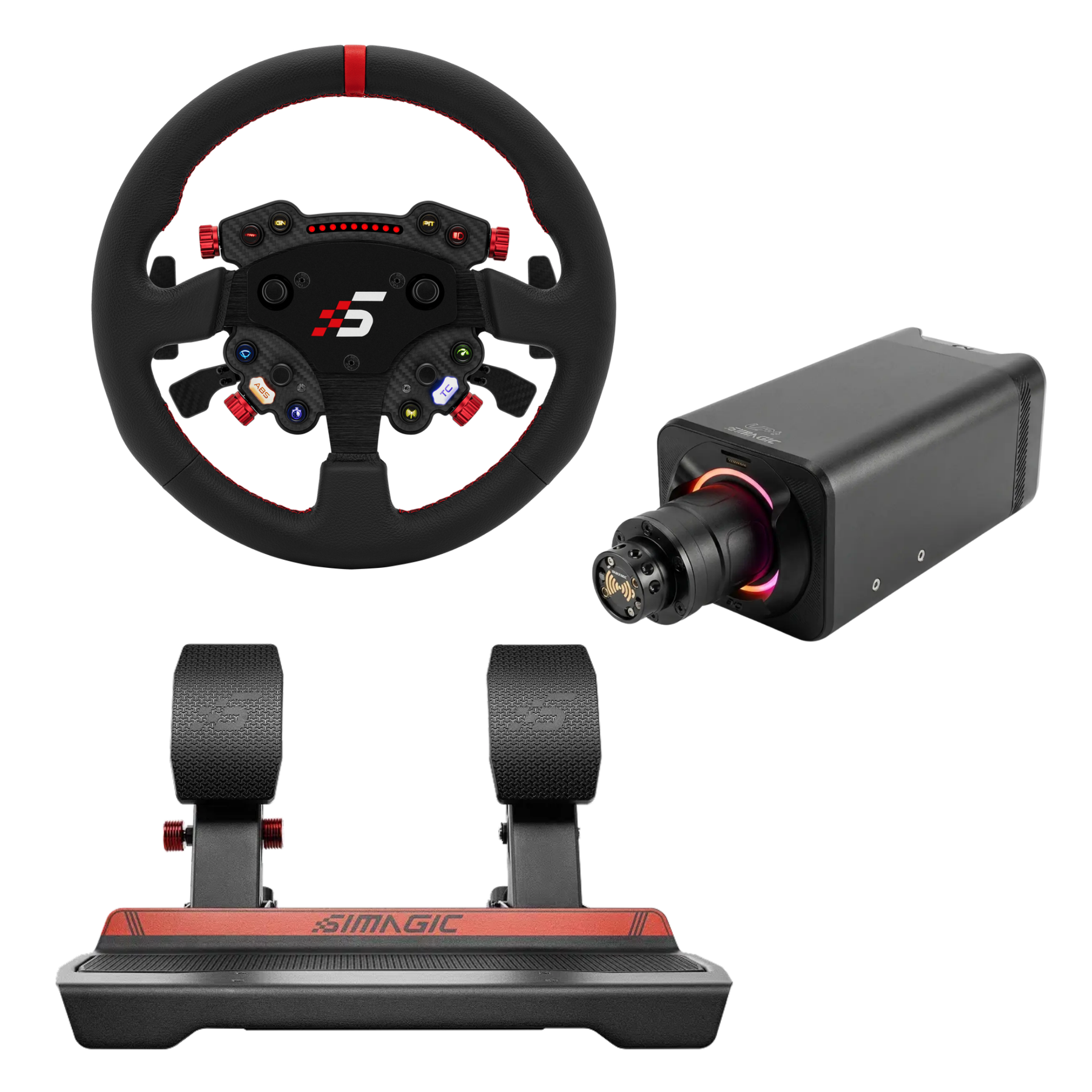

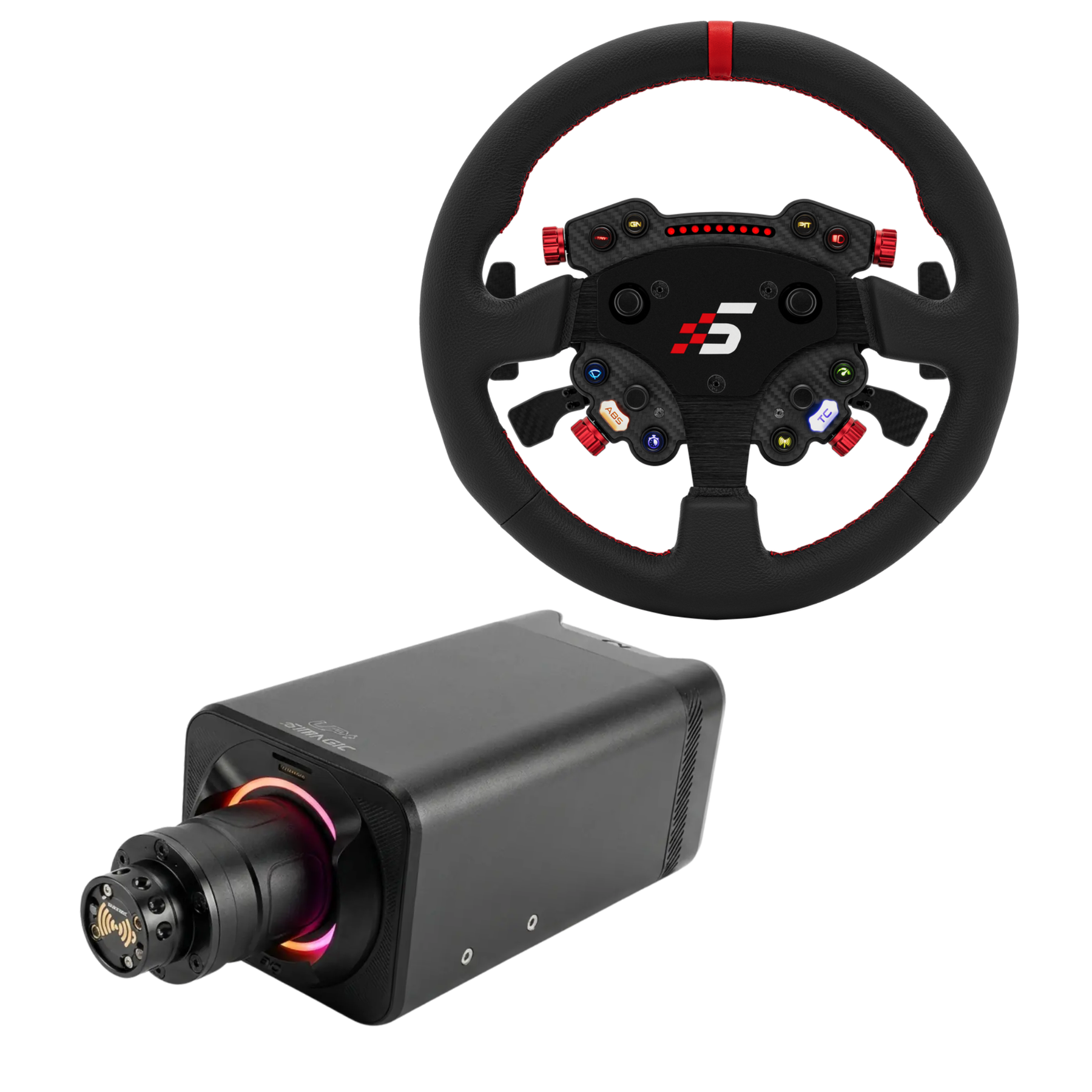

• GT Pro Hub in round and leather

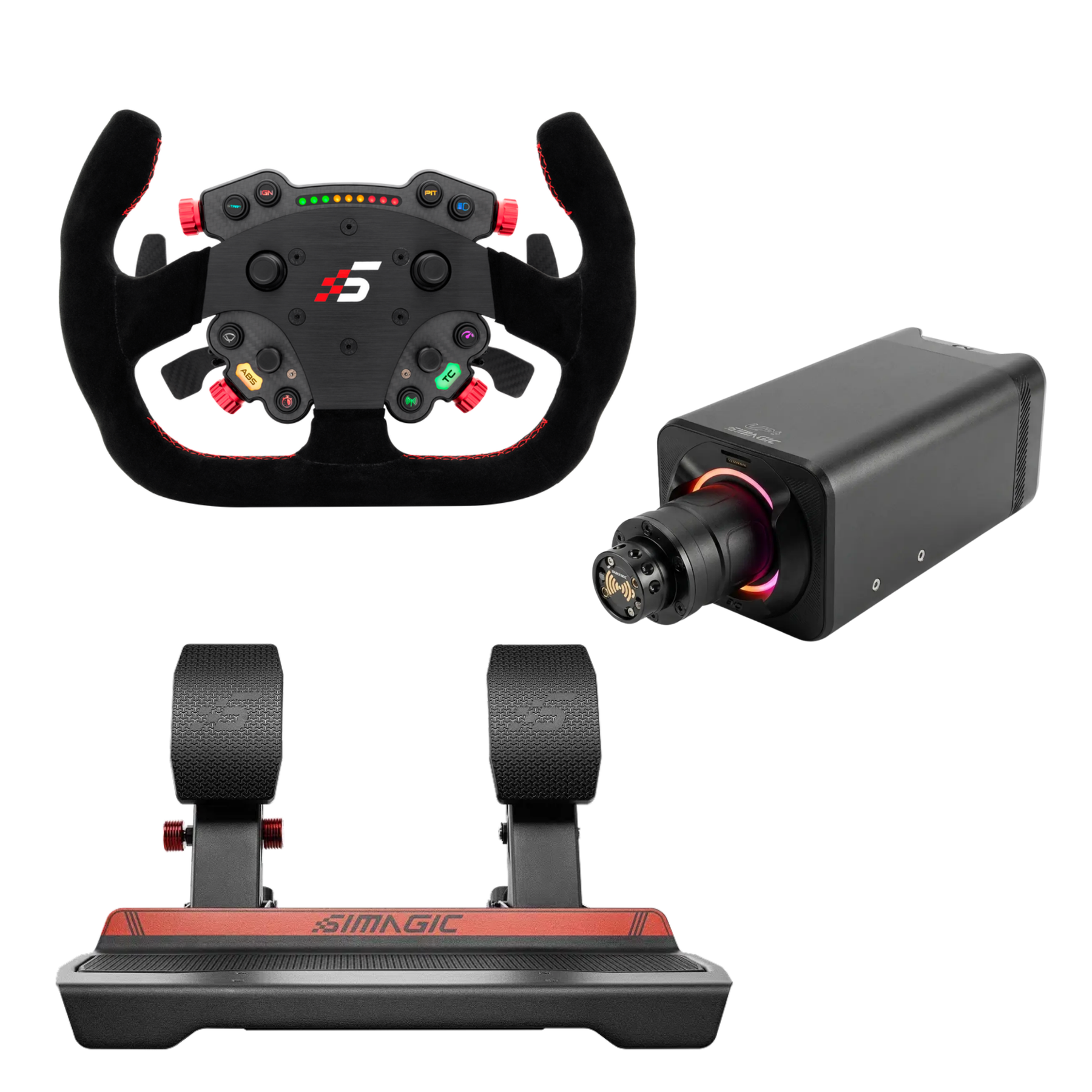

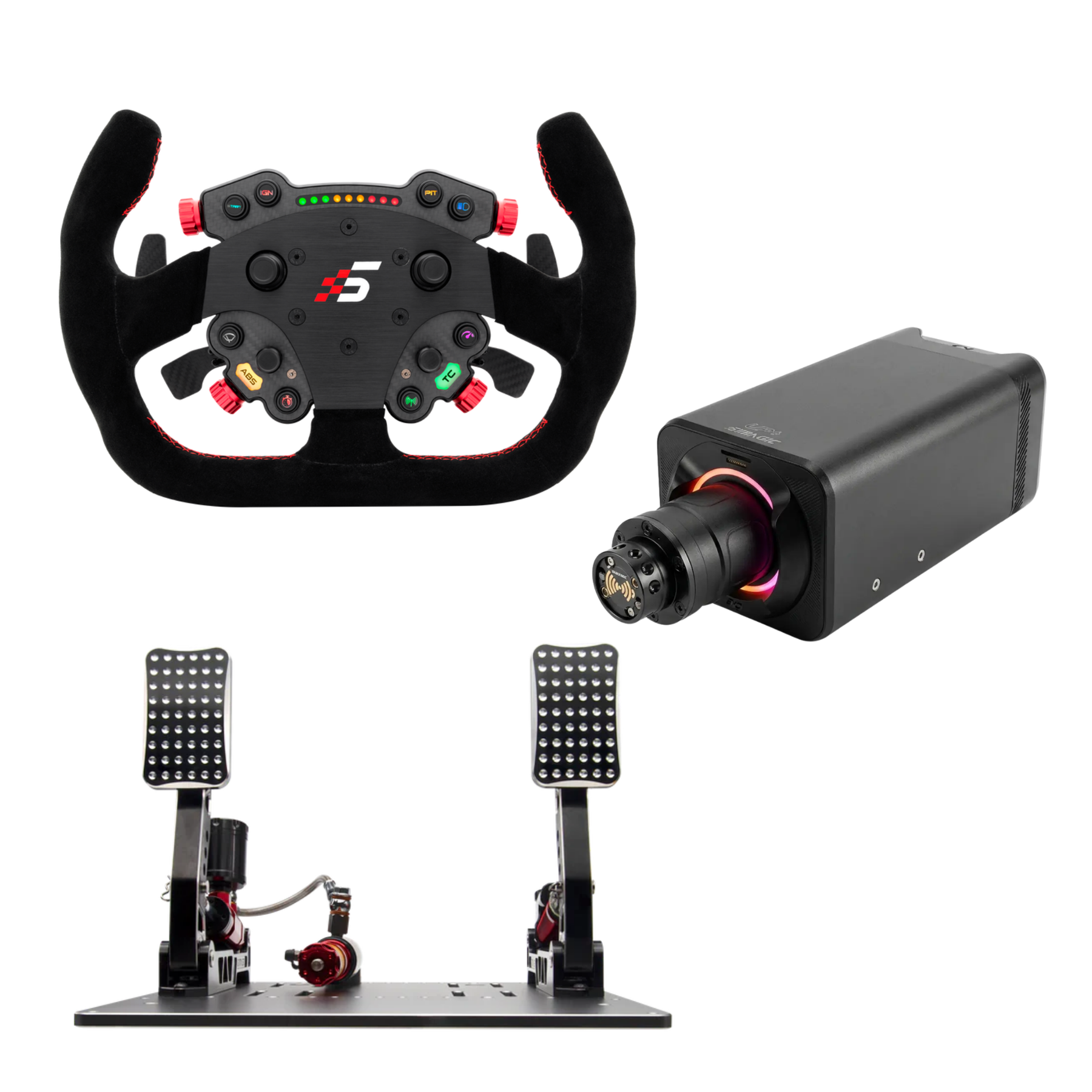

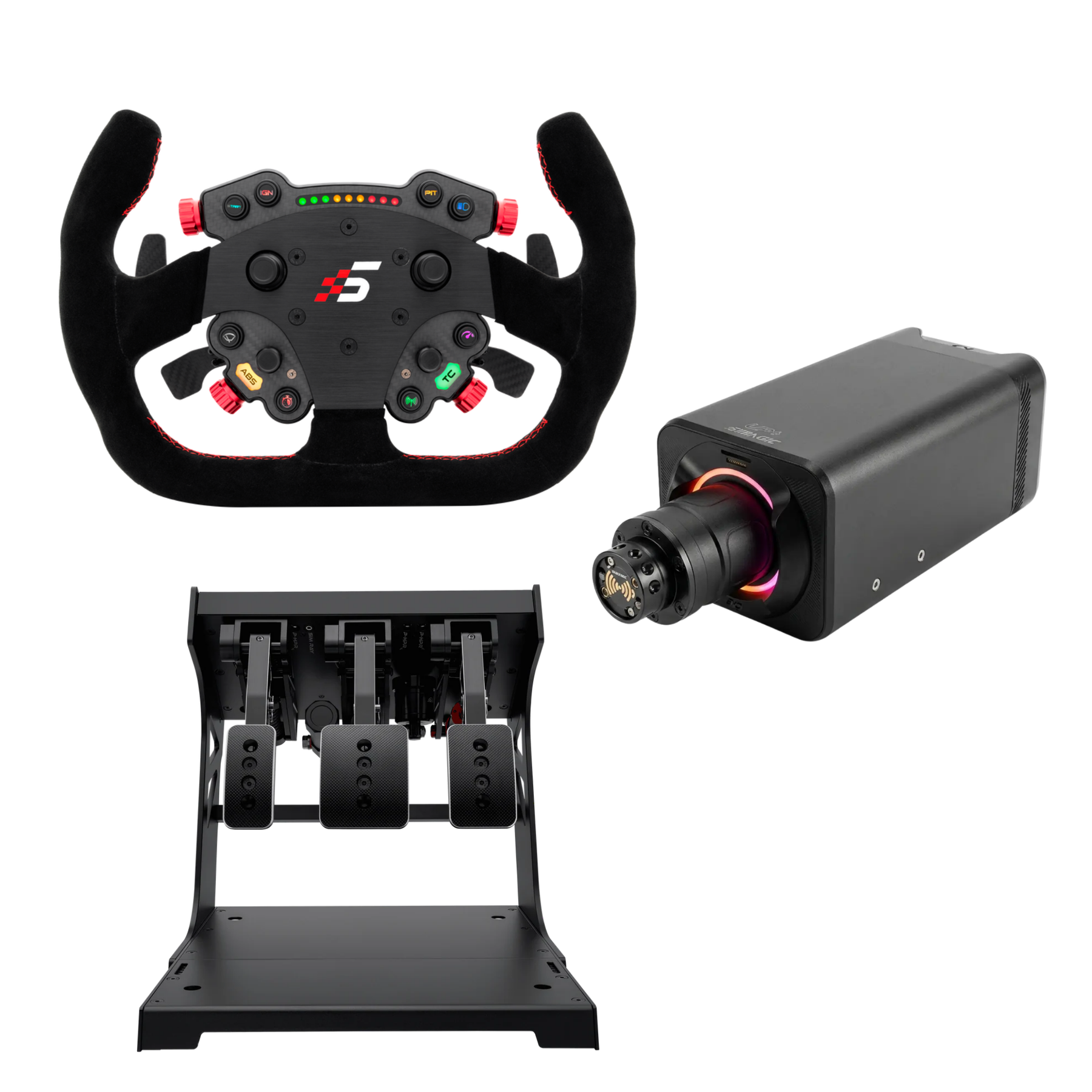

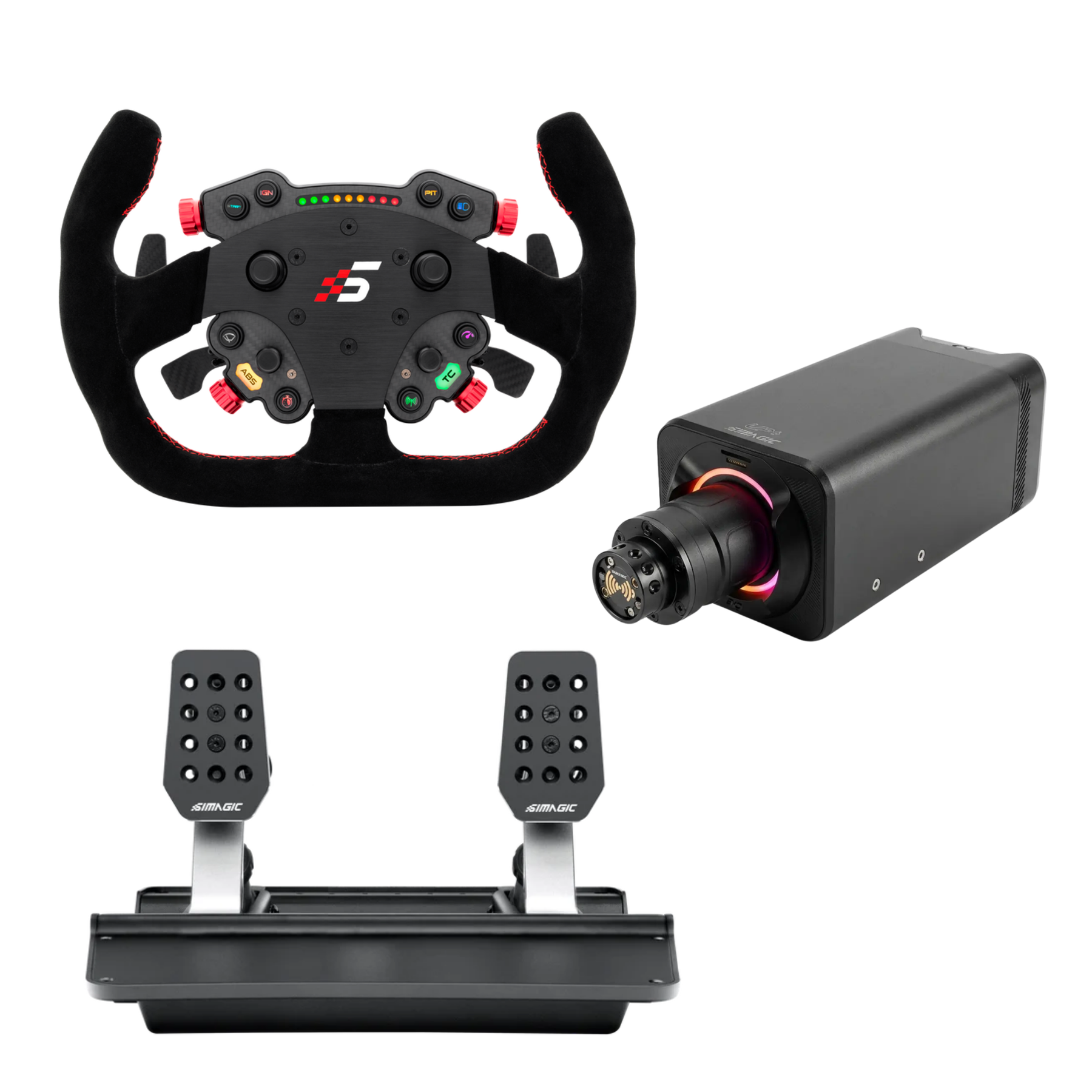

• GTC in leather

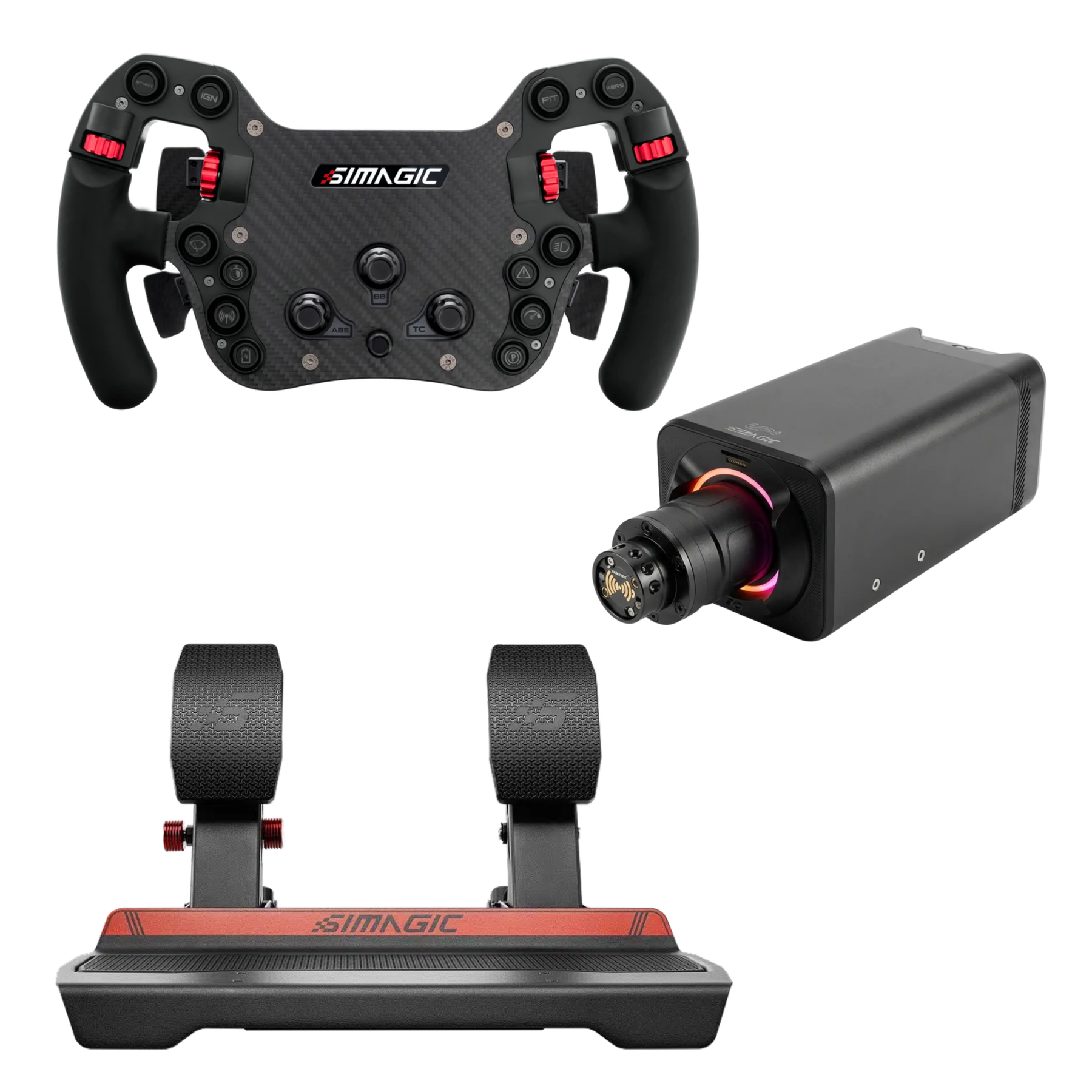

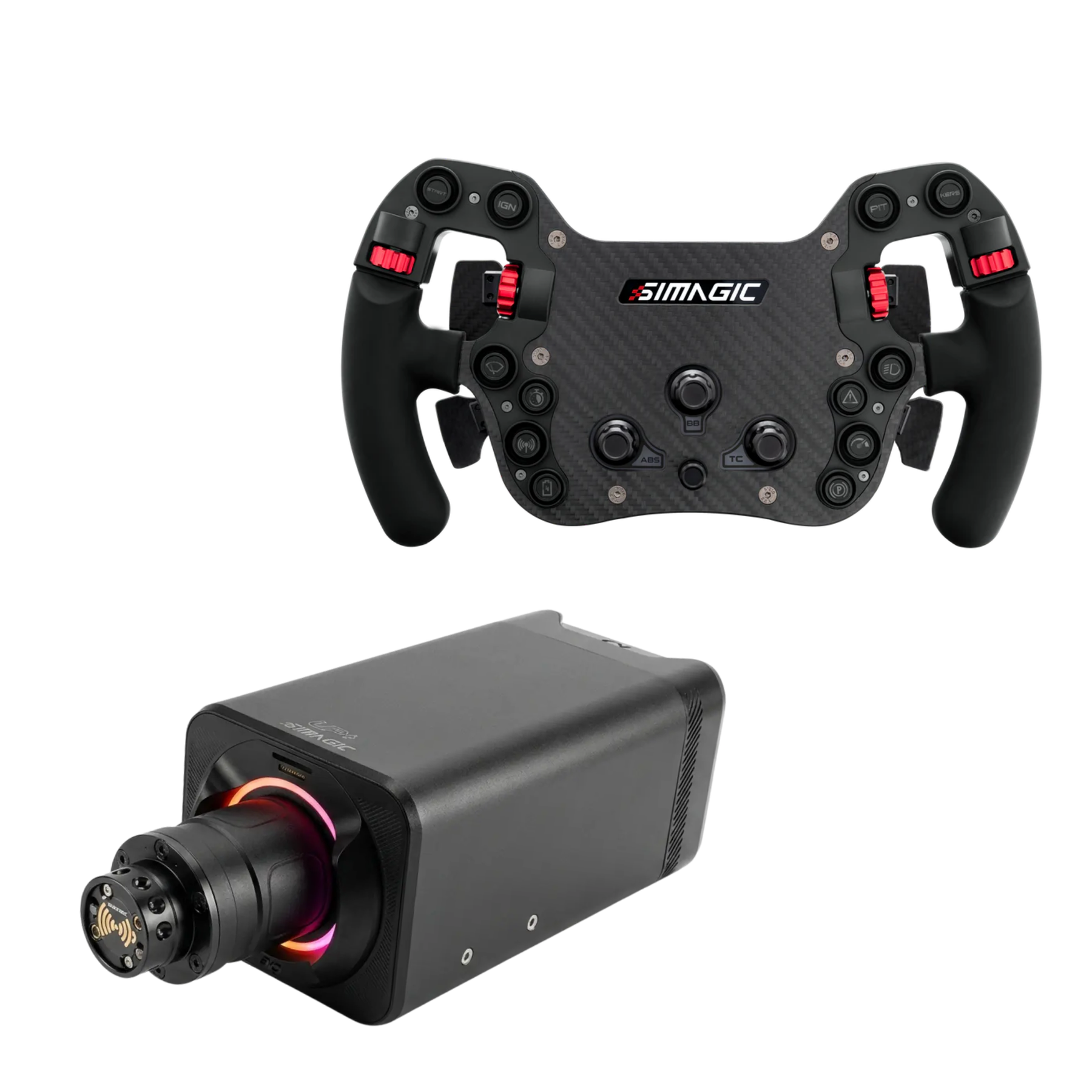

• FX Formula

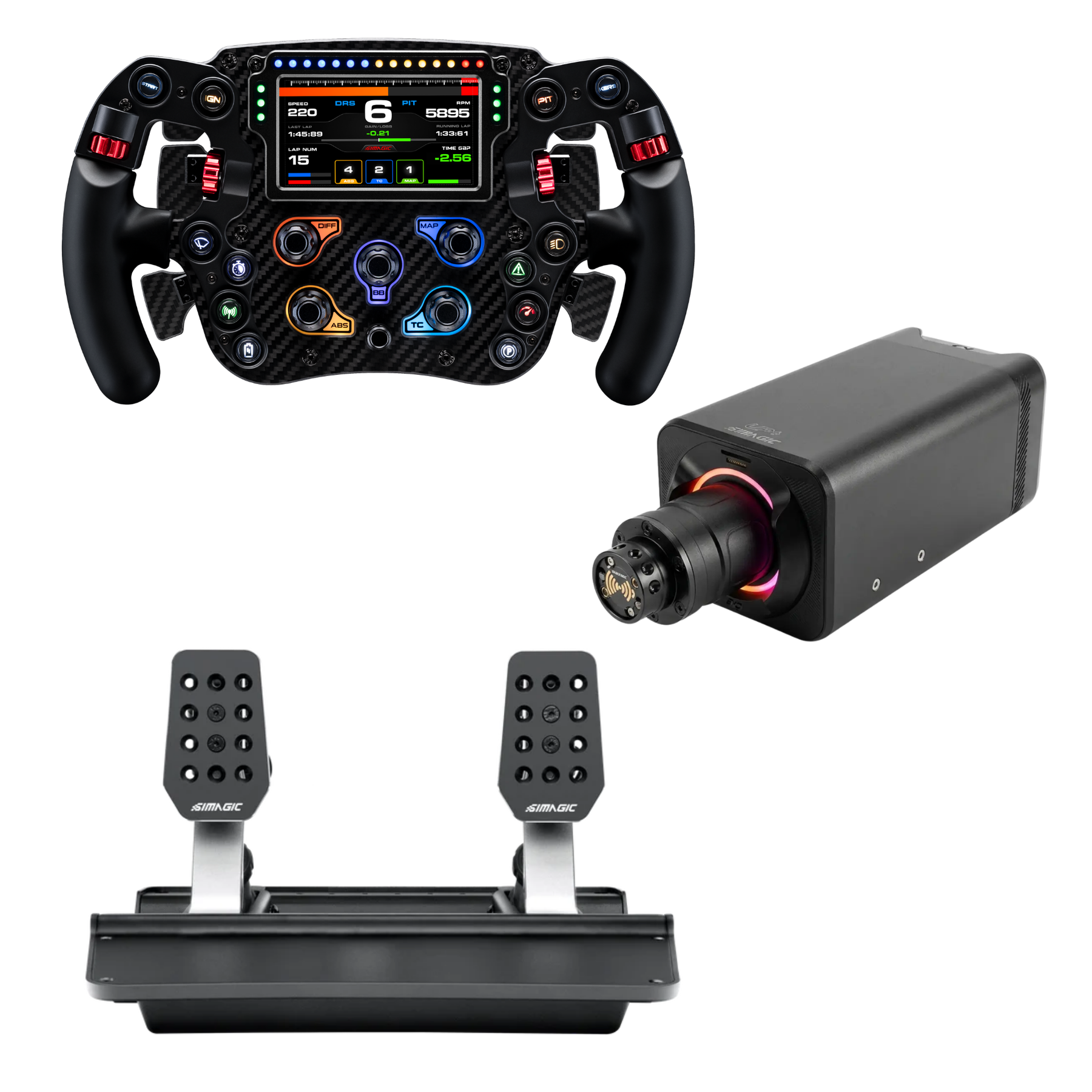

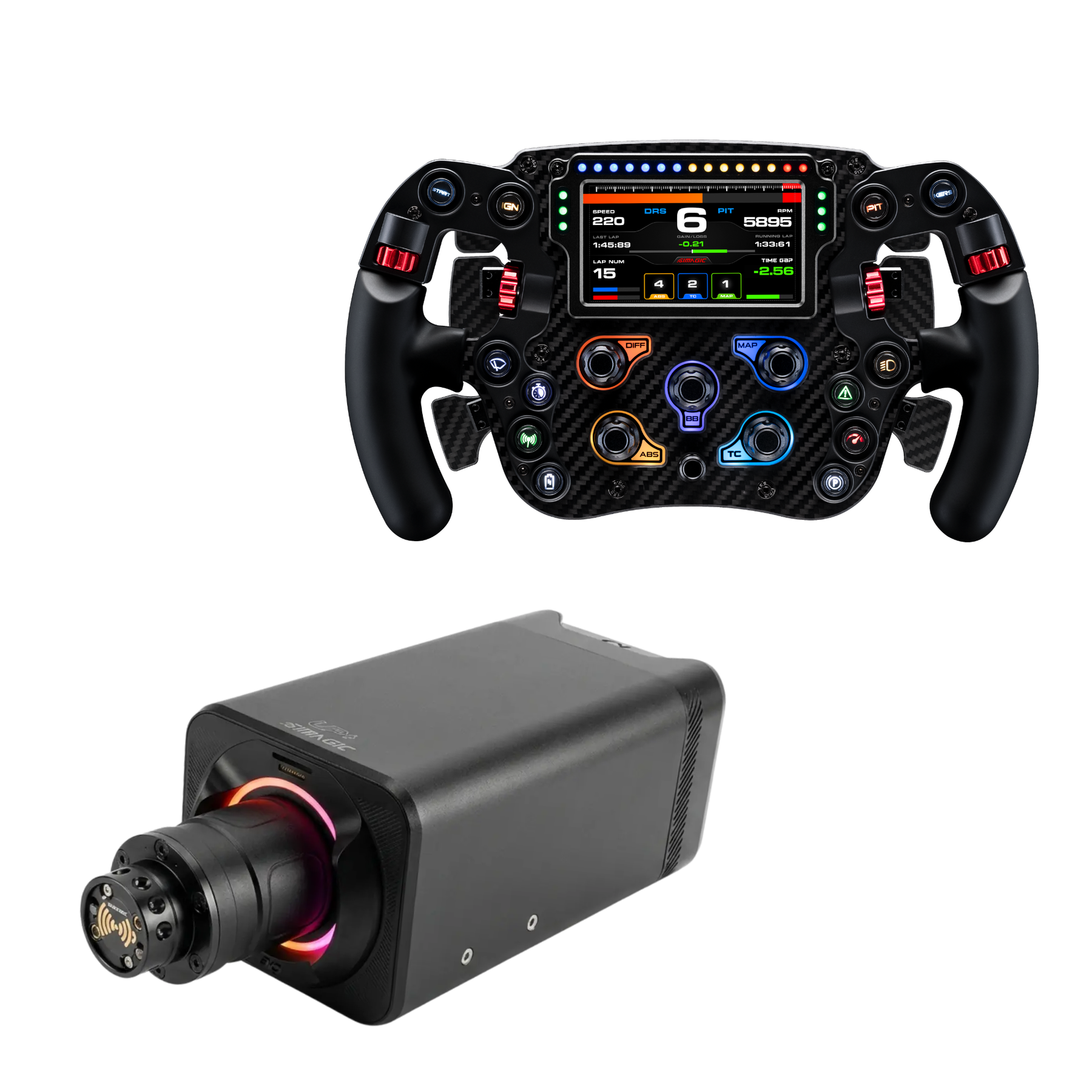

• FX Pro

Pedals to choose from

Five pedal sets, plus the option of configuring the pack without them if you already own a set:

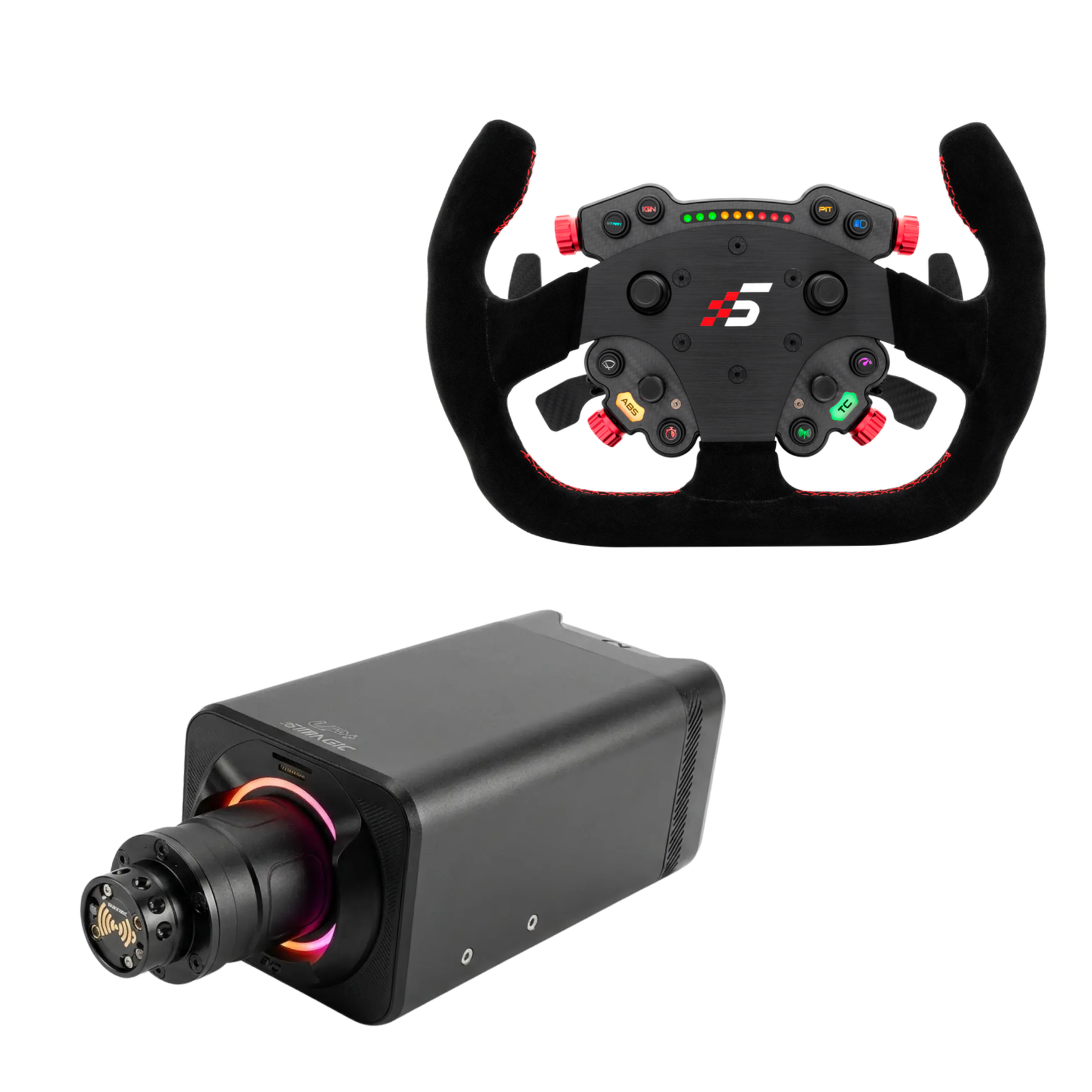

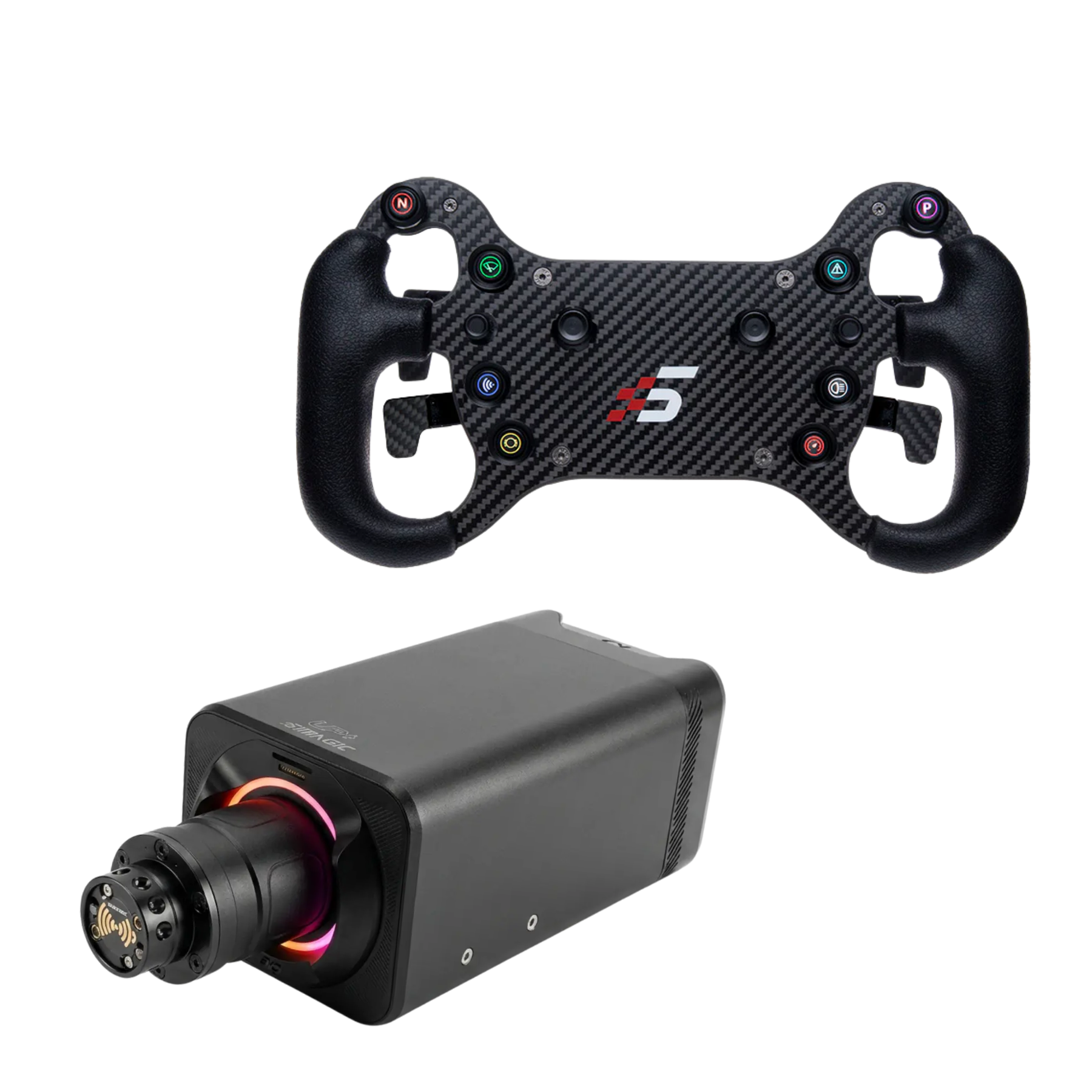

• No pedals: wheelbase and wheel only

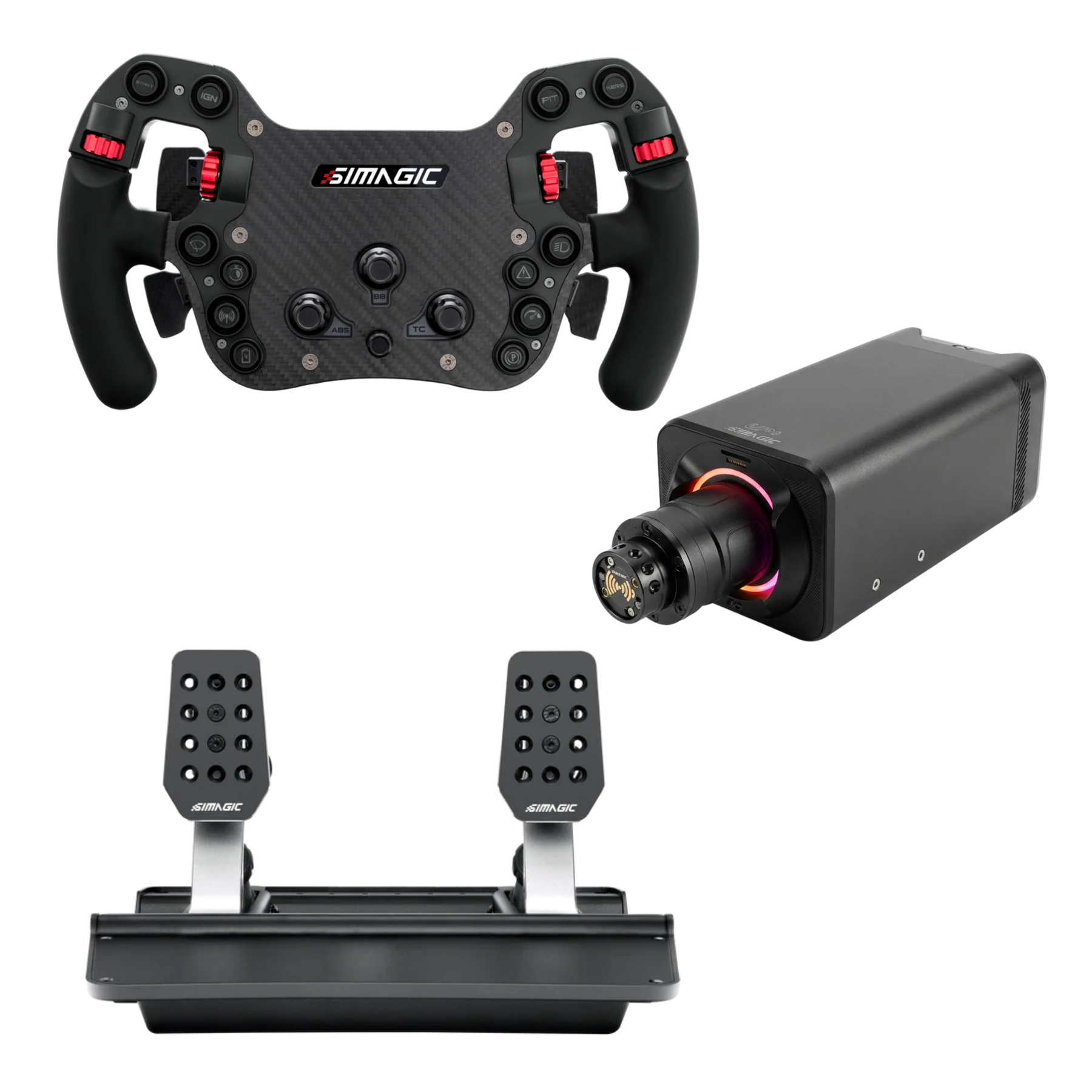

• P500: 2 pedals

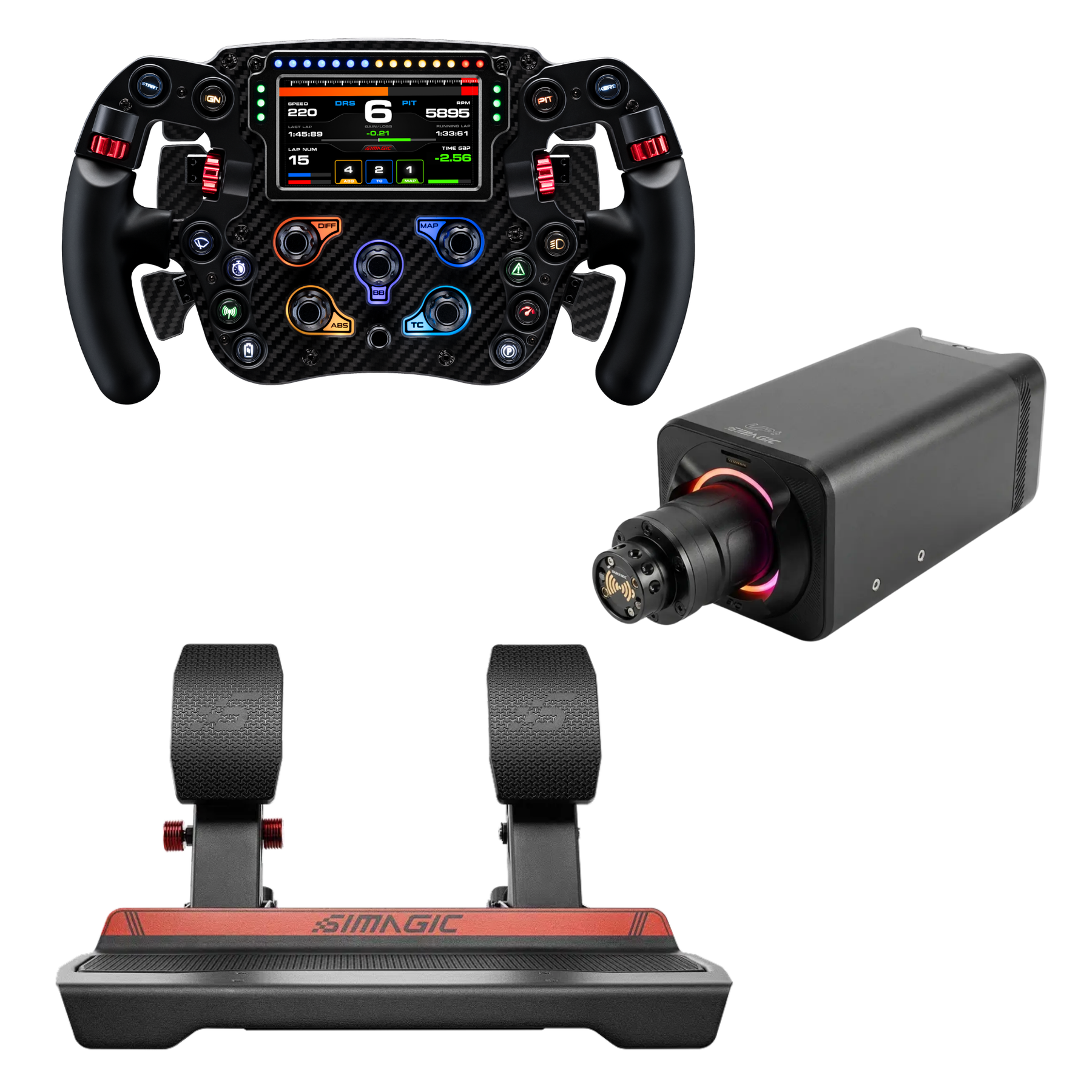

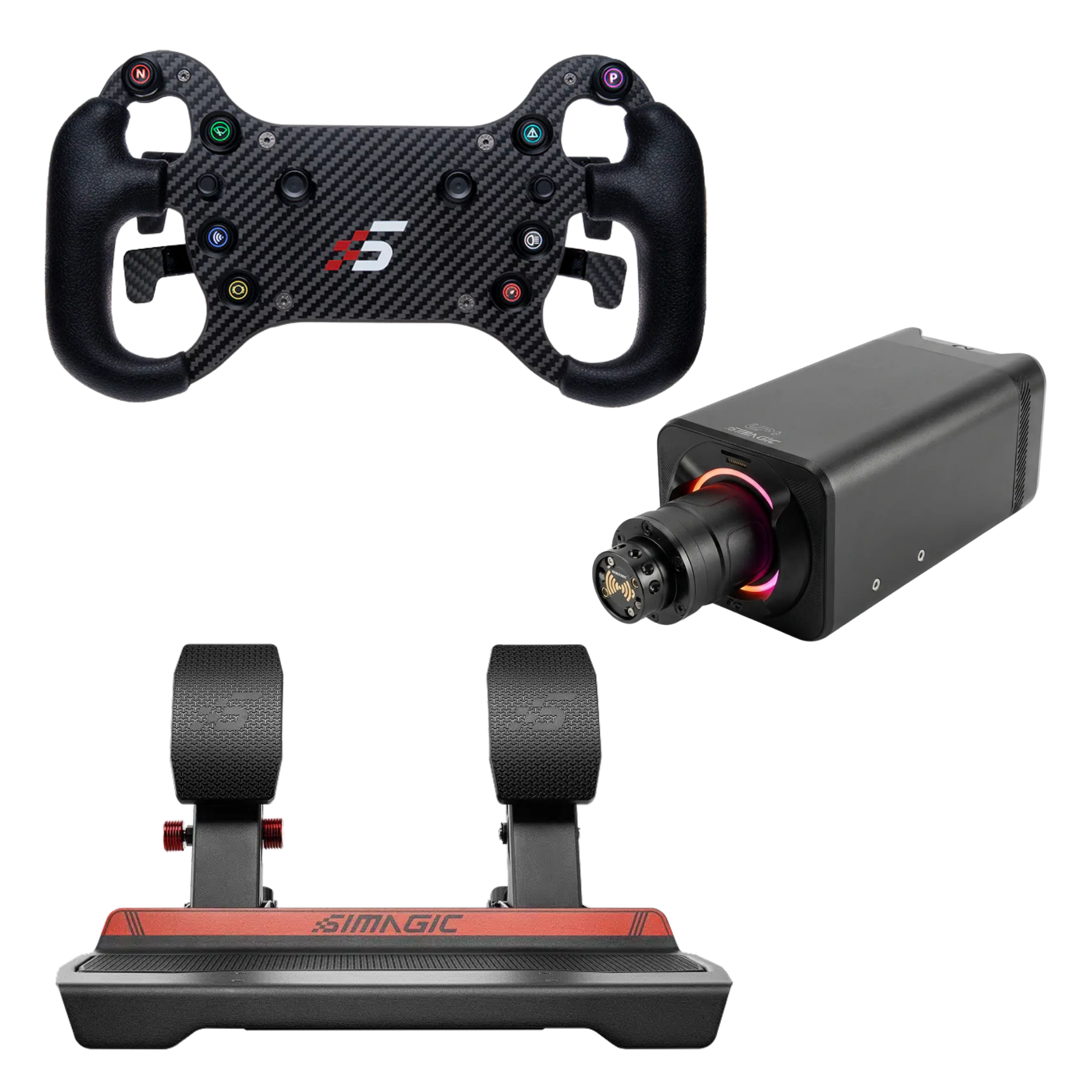

• P700: 2 pedals

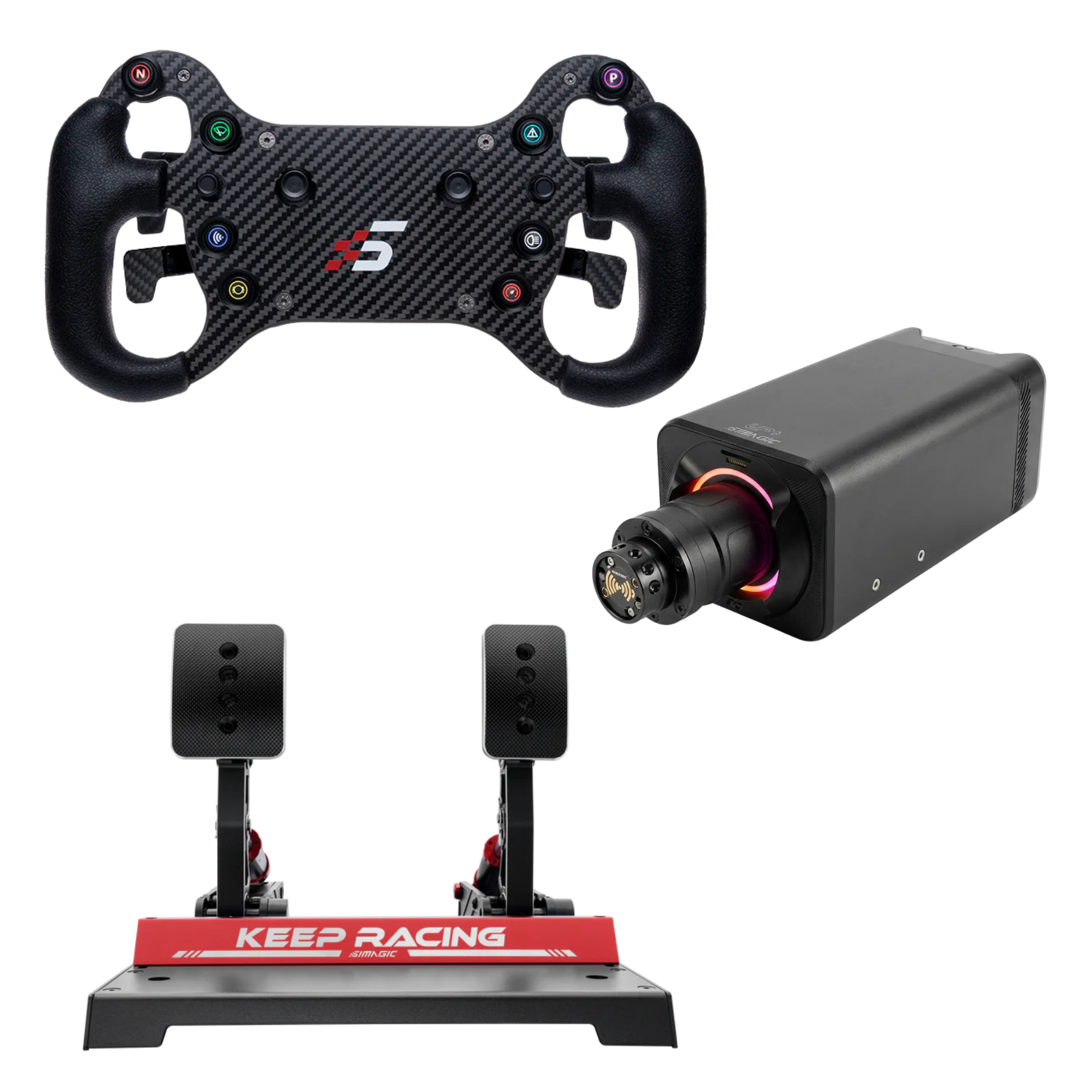

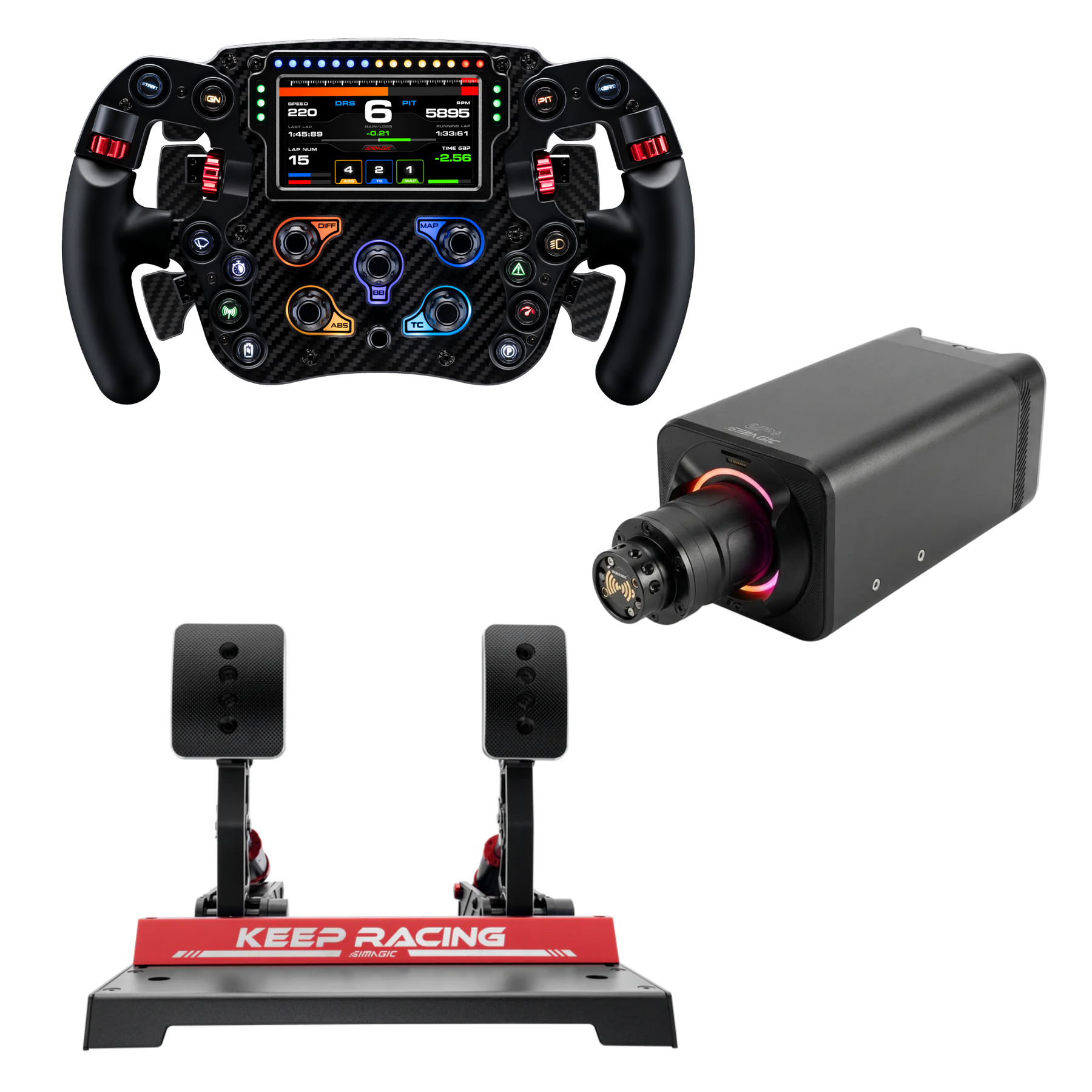

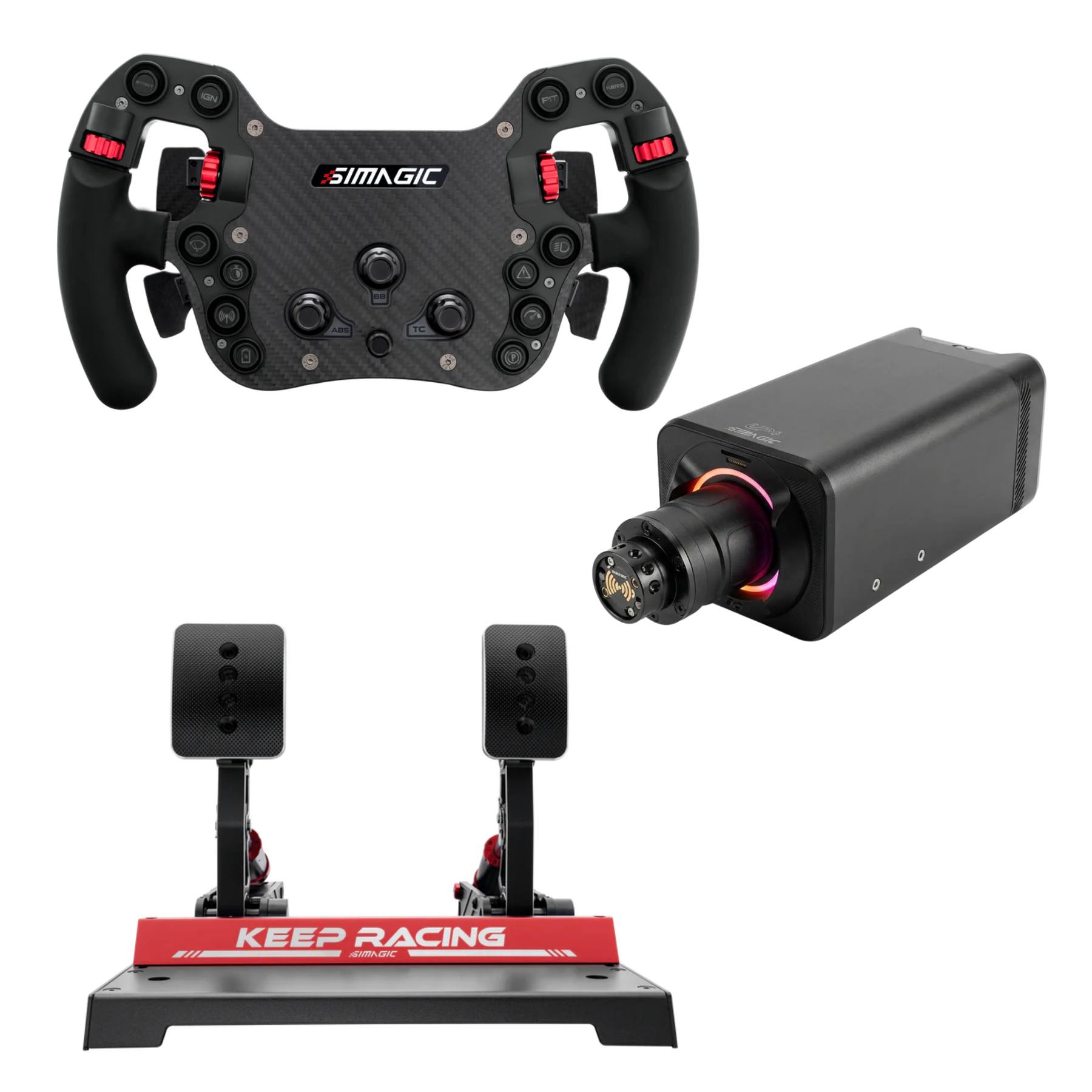

• P1000: 2 pedals, mechanical actuation

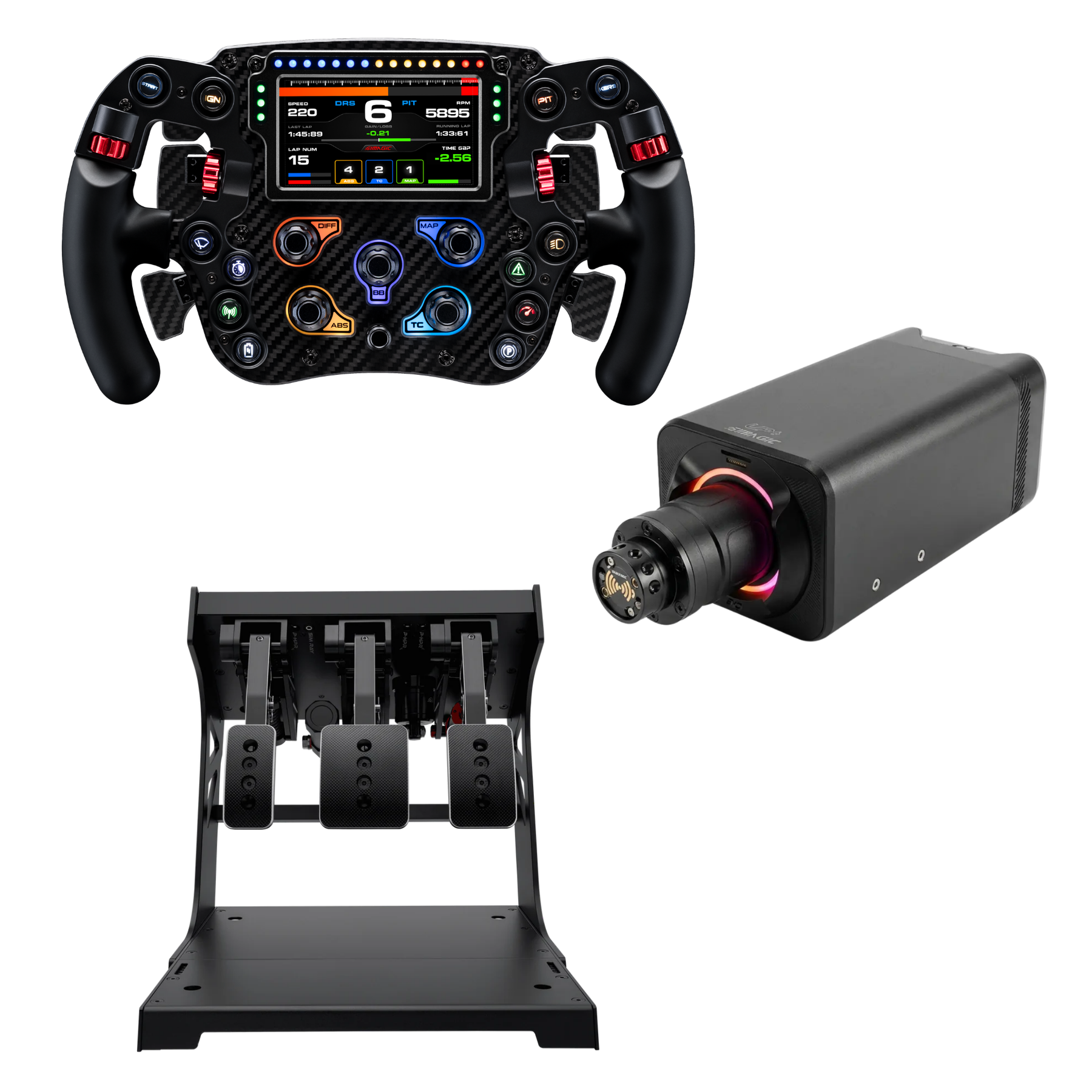

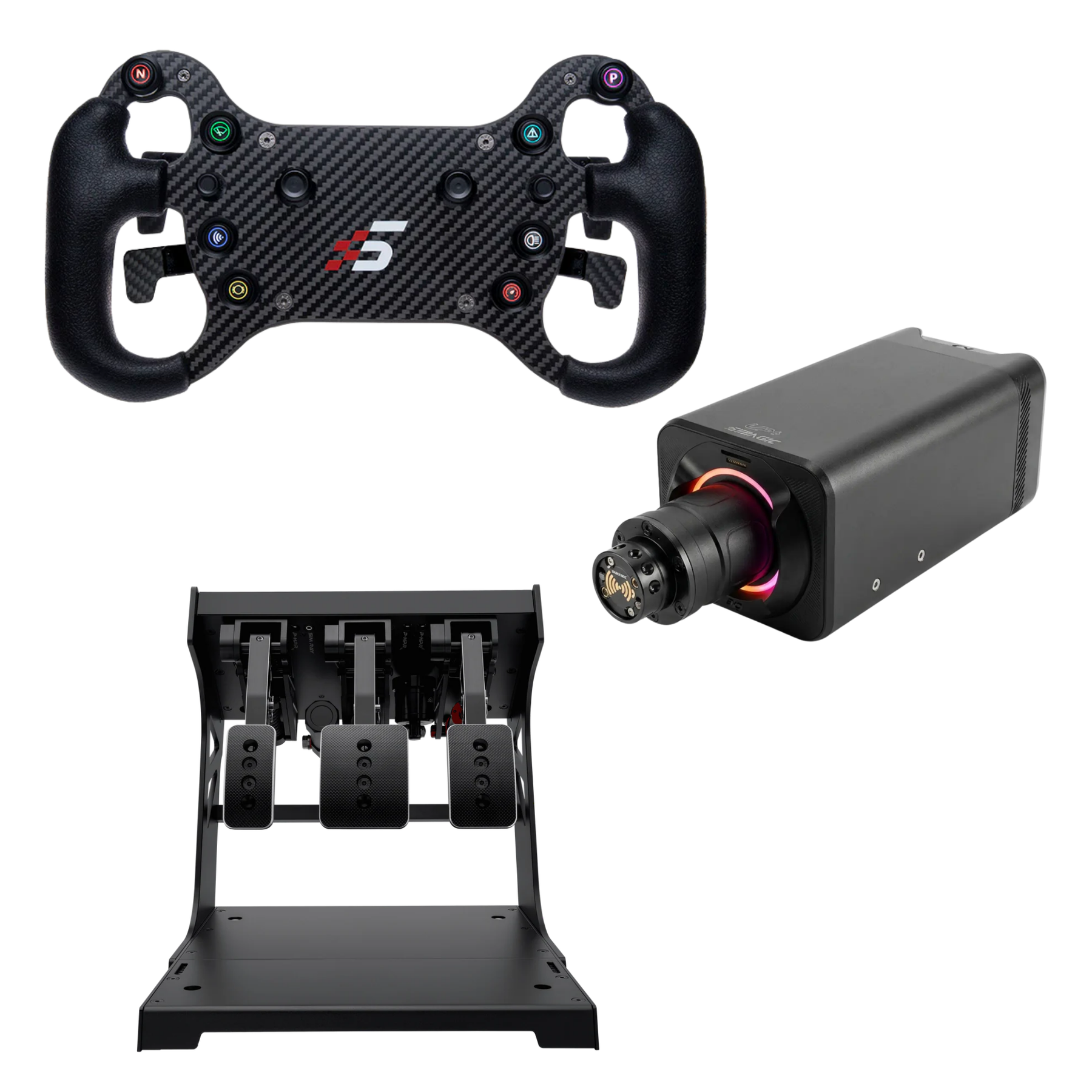

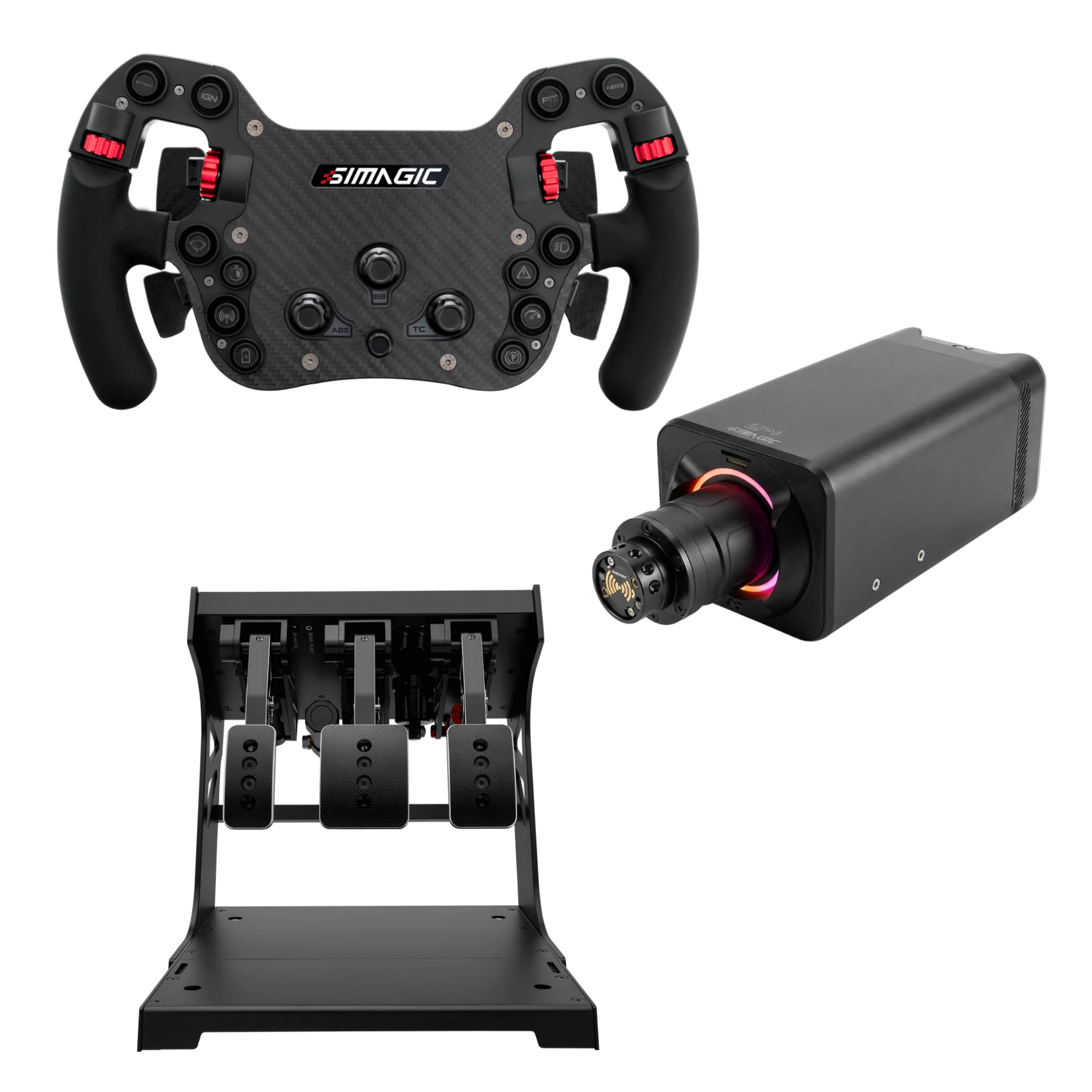

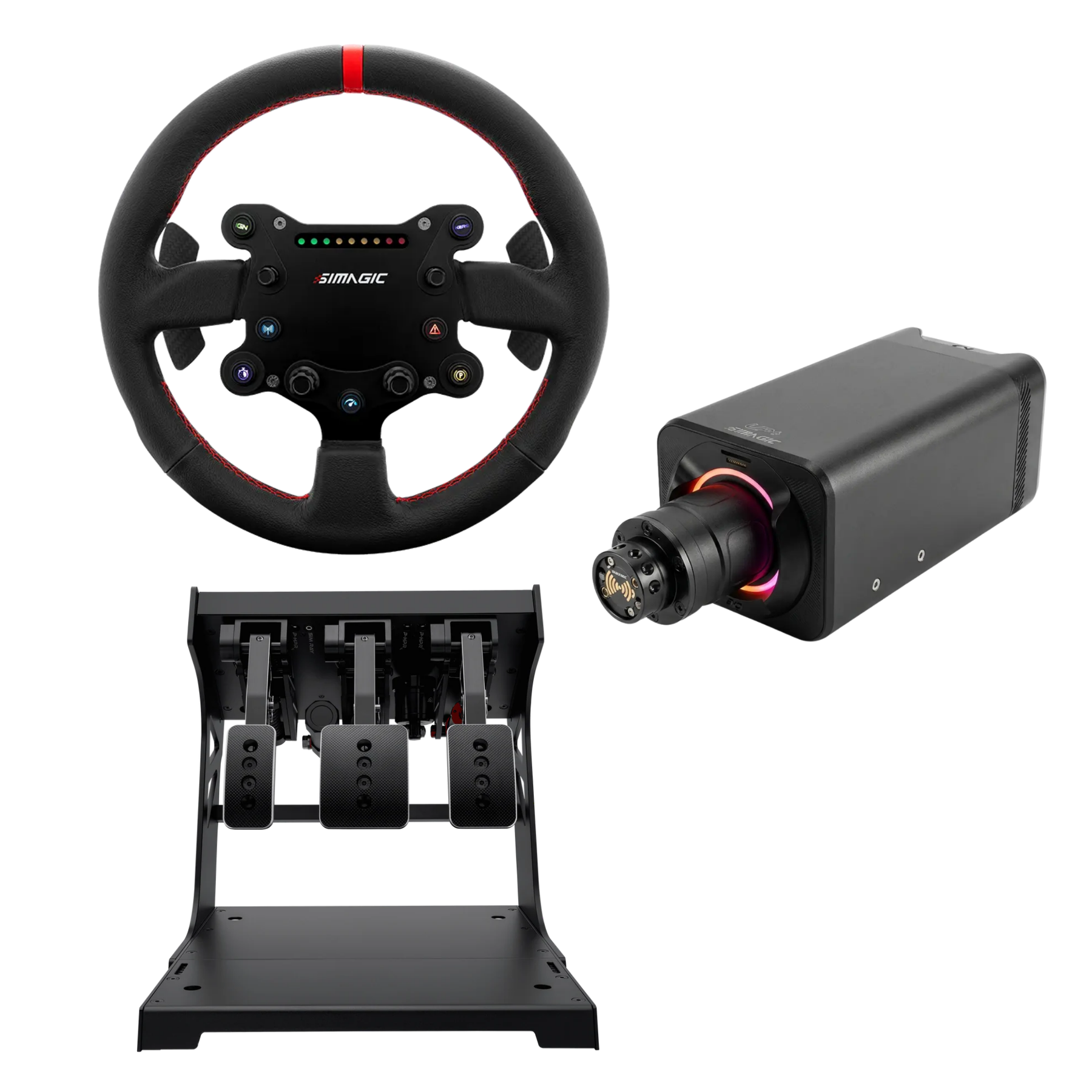

• P1000 inverted: 3 pedals, mechanical actuation

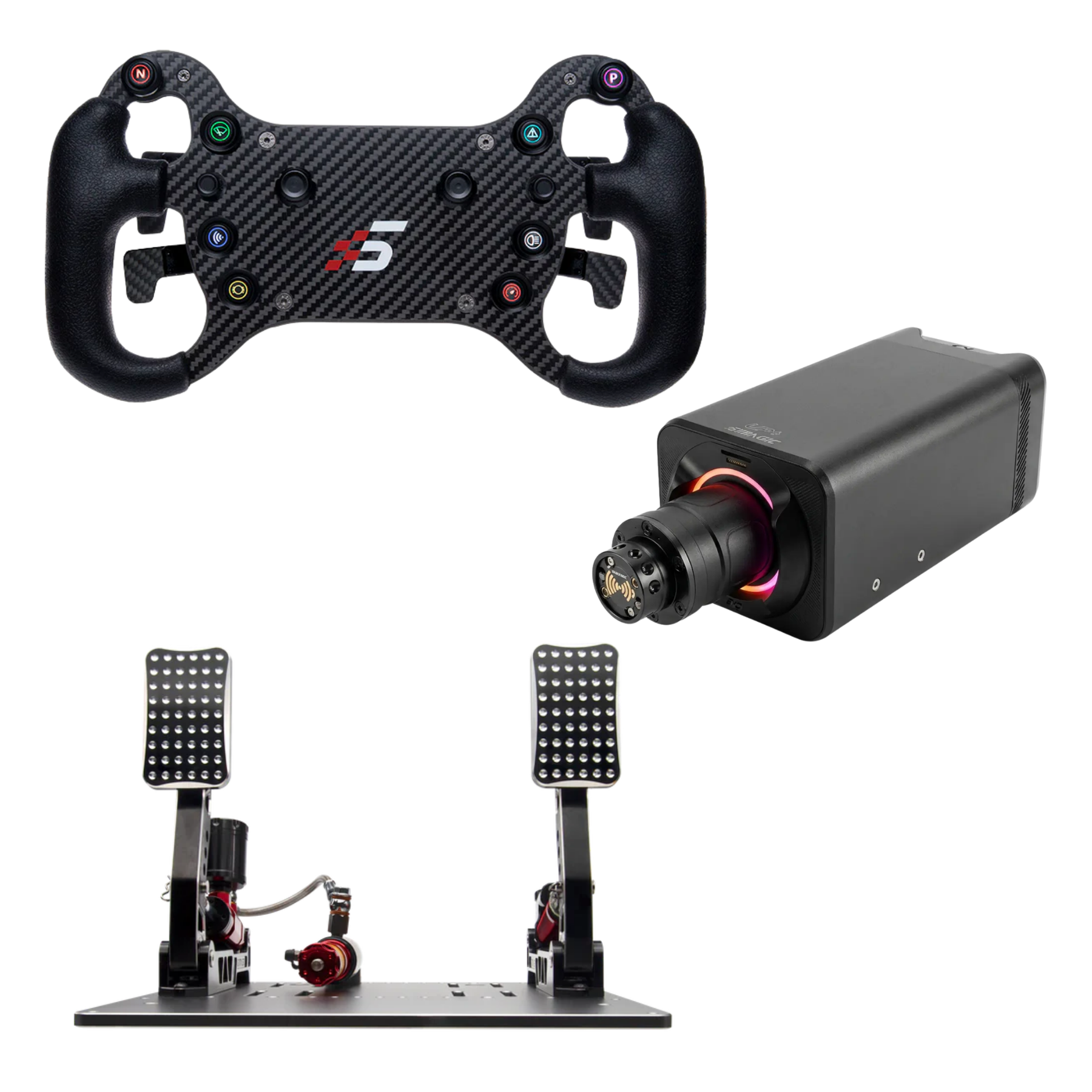

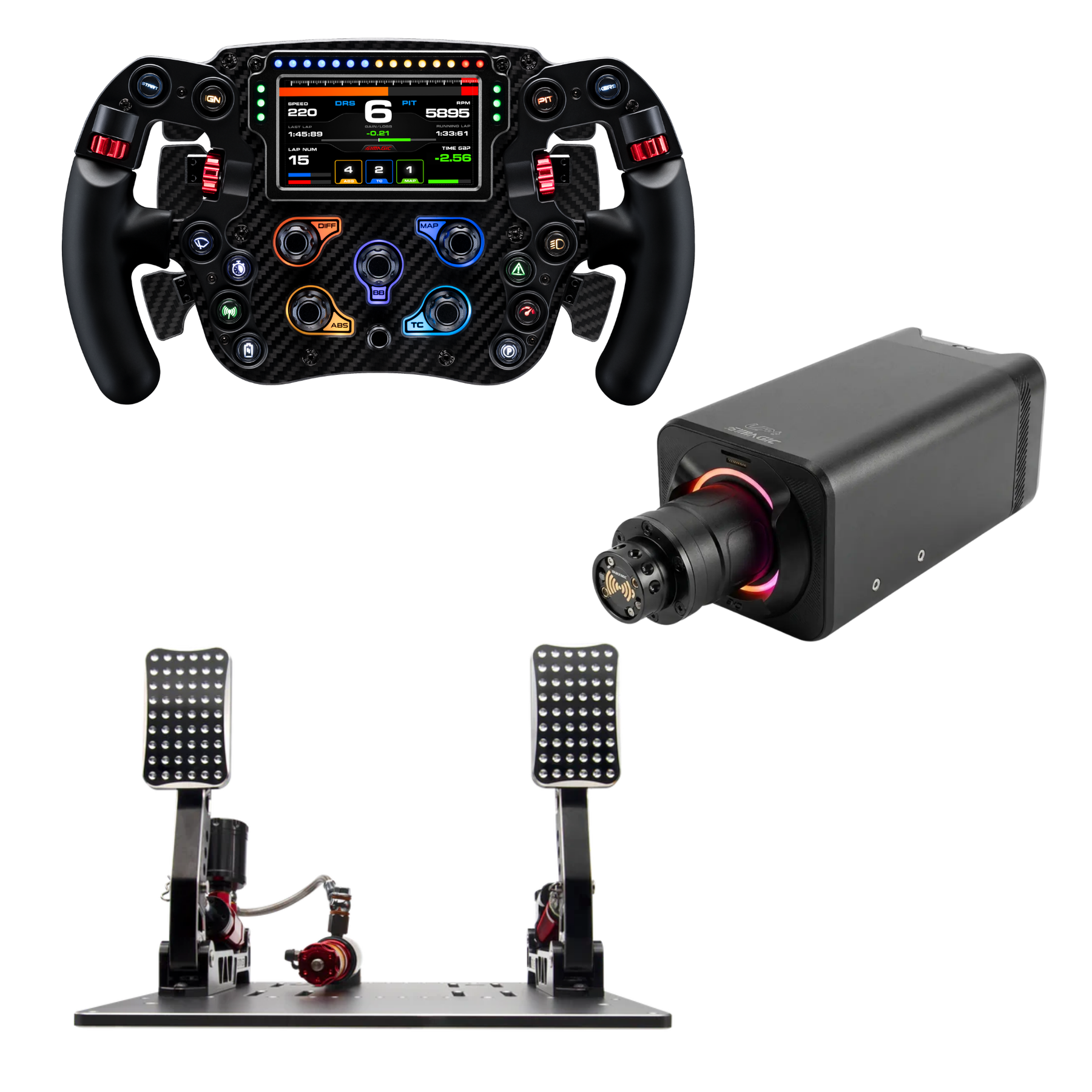

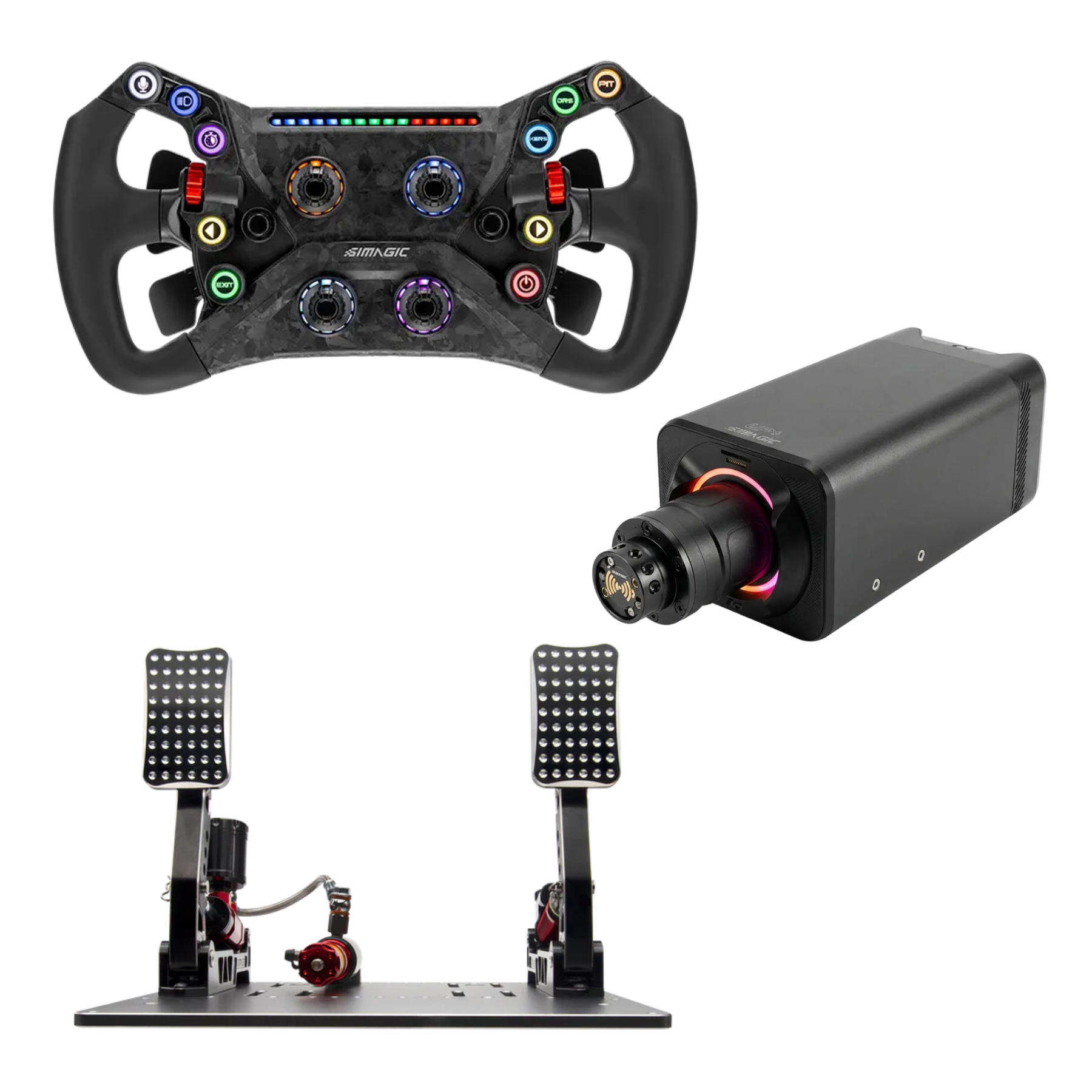

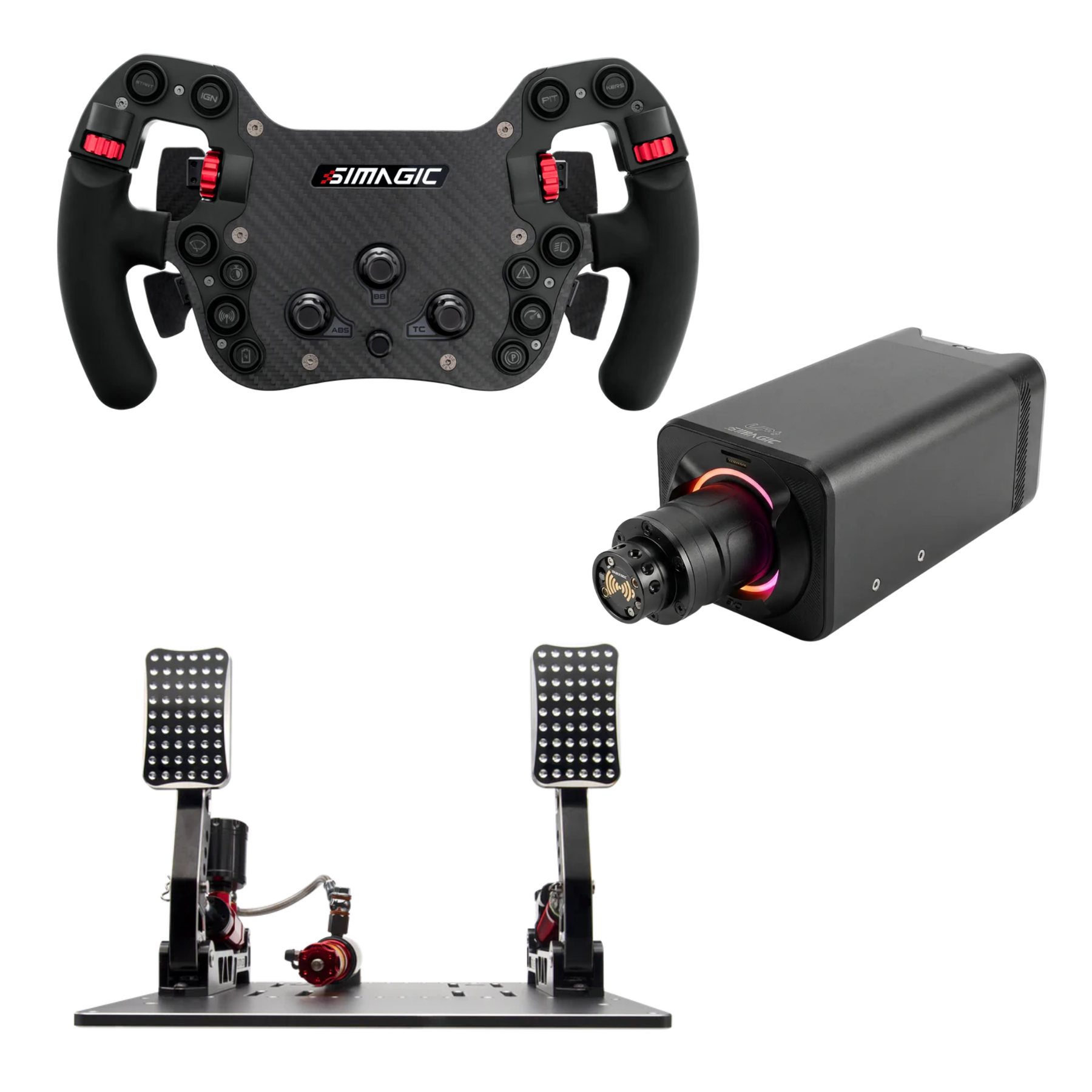

• P2000: 2 pedals, hydraulic actuation

Compatibility

• Platform: PC only. SIMAGIC lists support for iRacing and all major PC sim racing titles, including iRacing's native 360 Hz force feedback mode. It is not compatible with PlayStation or Xbox.
• Wheels: QR50, QR70 and QR-A quick releases. Next-generation wheels connect over CAN FD and legacy wheels over 2.4G; third-party wheels connect through the QR-A adapter with USB passthrough, keeping screens, LEDs and buttons working without extra wiring.
• Peripherals: shifters, handbrakes and sequential gearboxes, both legacy (CAN) and next-generation (CAN FD), plus the magnetic dash from the Simagic ecosystem.
• Mounting: bottom mounting needs no accessories. The side (MB-S) and front (MB-F) brackets and the desk fixture (T-LOC) are sold separately; the front bracket blocks the magnetic quick release interface, so avoid it if you need magnetic power and data.
• Certifications: FCC, RCM, VCI, EAC, RoHS and CE.
