Simgrade R7 Clutch – Load Cell Clutch Pedal

Brand: SIMGRADE

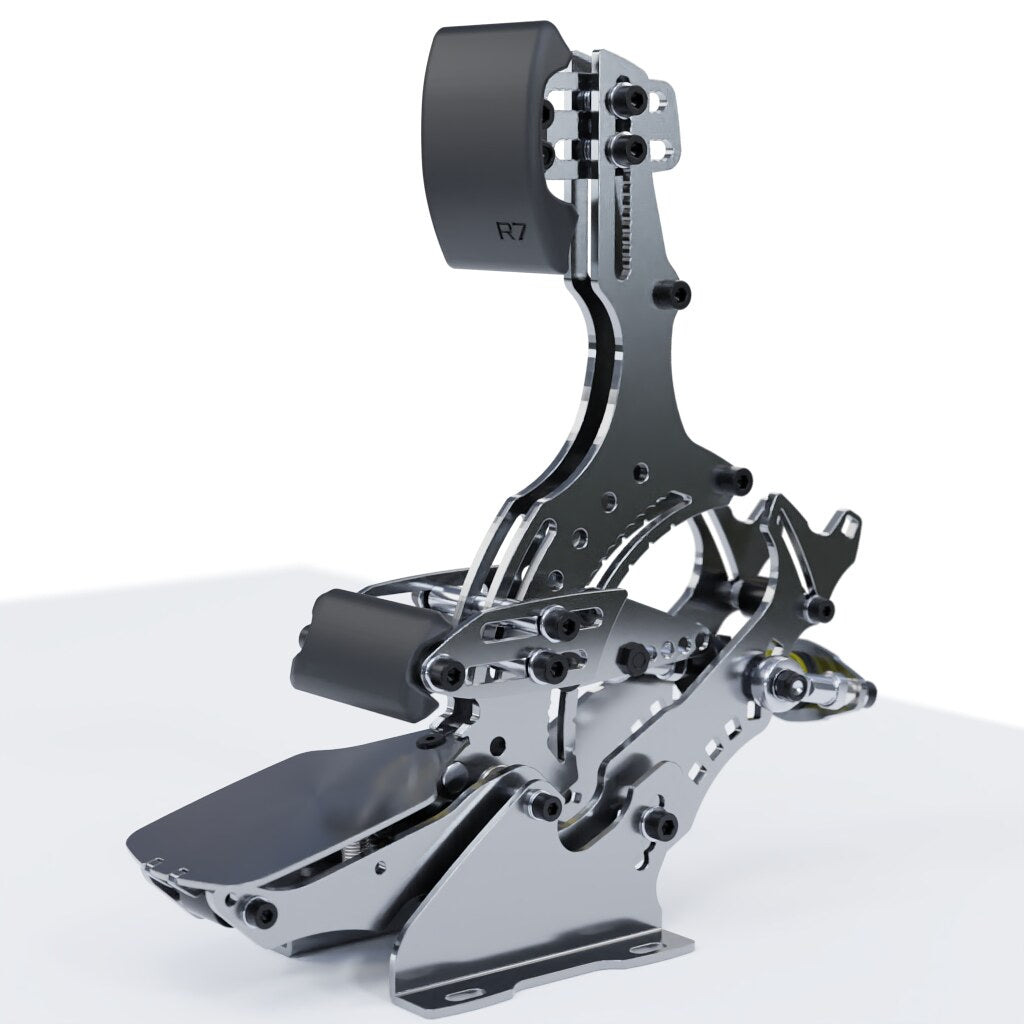

Simgrade R7 Spec C clutch pedal in stainless steel with load cell

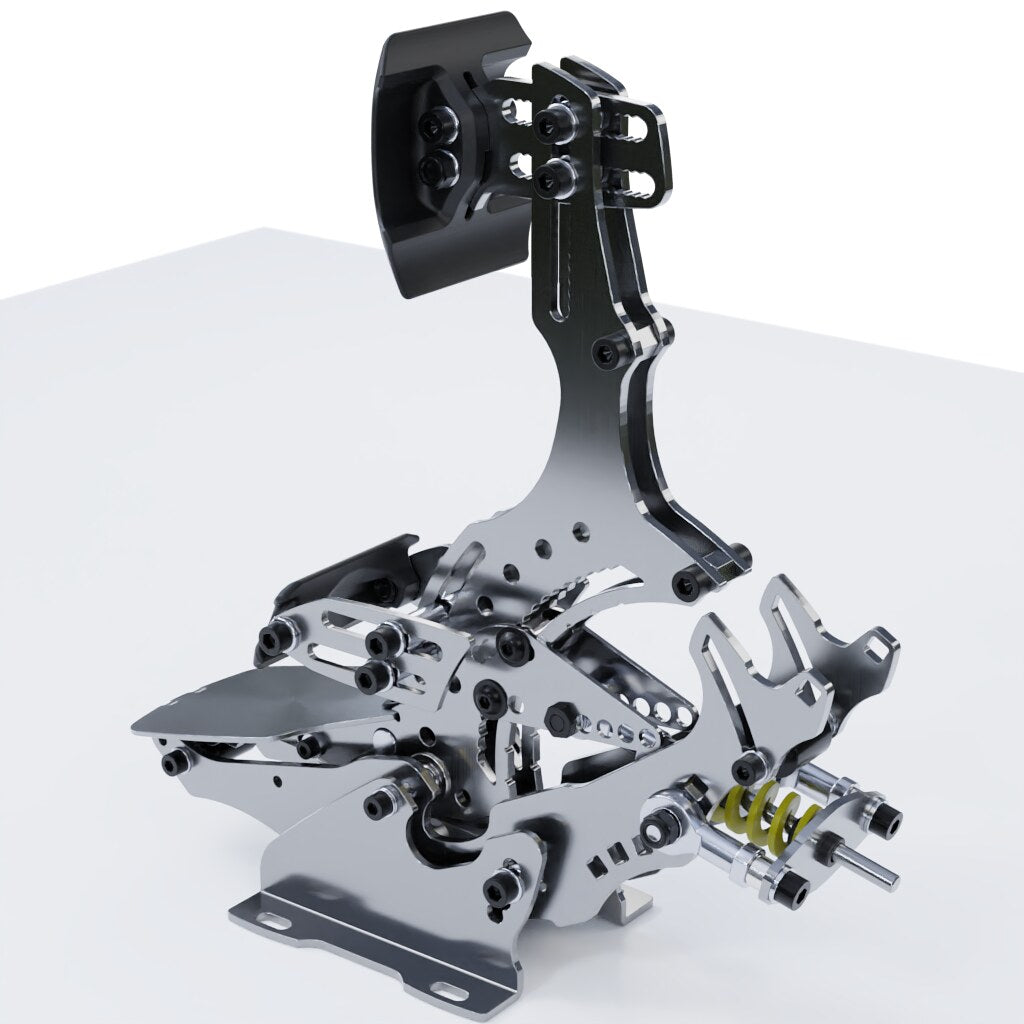

Side view of the R7 clutch with its dual action arm and moving heel support

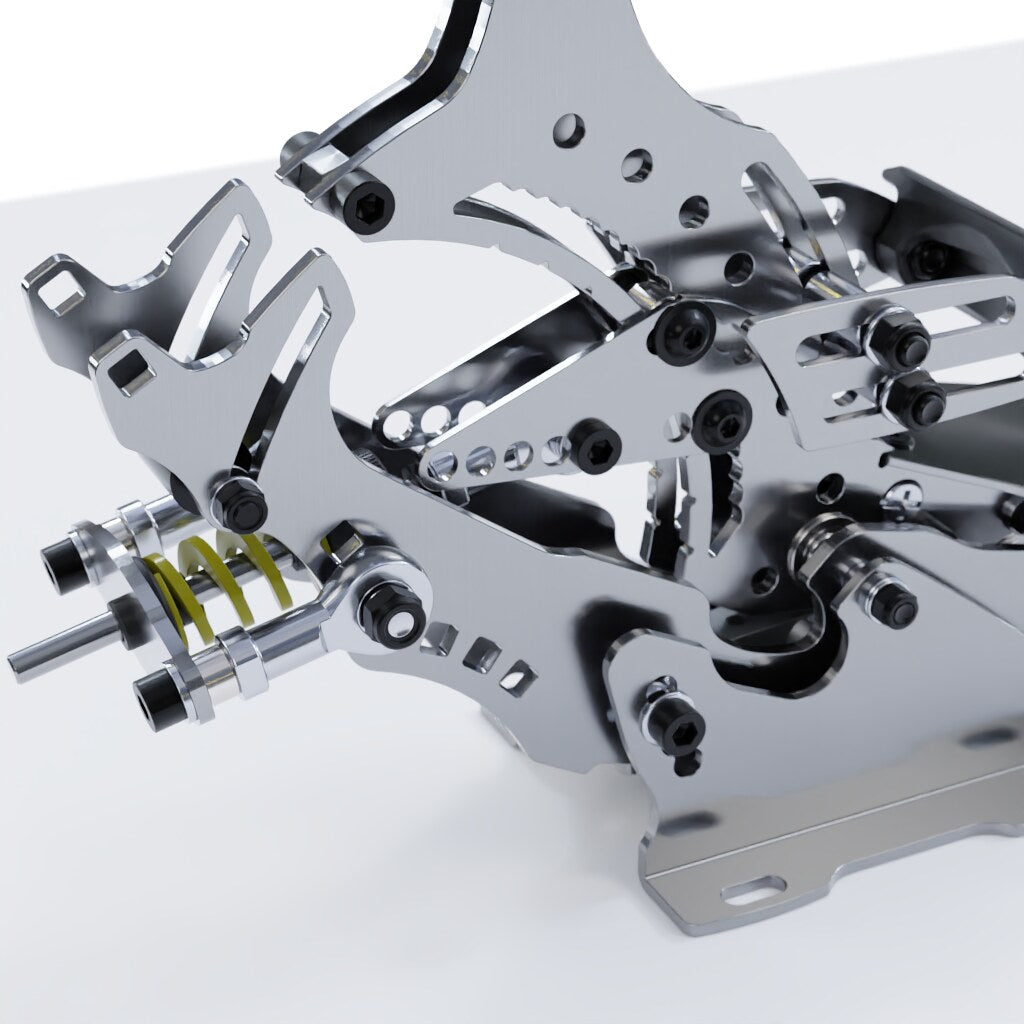

Close-up of the mechanism and bearings of the Simgrade R7 clutch pedal
Simgrade R7 Spec C clutch pedal in stainless steel with load cell
Side view of the R7 clutch with its dual action arm and moving heel support
Close-up of the mechanism and bearings of the Simgrade R7 clutch pedal

Simgrade R7 Clutch – Load Cell Clutch Pedal

Brand: SIMGRADE
- 34%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The Simgrade R7 Clutch is the load cell clutch pedal from the R7 Spec C range, built in heavy duty stainless steel with the brand's signature dual action arm, made to add the third pedal to a two-pedal R7 set.

Its defining feature is the moving heel support: the heel travels up and down with the foot, so contact is never lost at any point of the stroke. Simgrade puts the resulting gain in control accuracy at practically double that of a conventional arm. The whole assembly runs on ball bearings and spherical rod-ends, is silent and needs no lubrication.

Key features of the Simgrade R7 clutch pedal

  • Load cell in the pedal, sharing the same 16-bit electronics as the rest of the R7 pedal set.
  • Dual action arm with moving heel support that follows the foot through the entire stroke.
  • Heavy duty stainless steel construction with no play in any direction.
  • Fully adjustable pedal face and heel support to fine-tune feel and ergonomics.
  • Pedal tilt adjustable from +8 to -16 degrees, plus fast adjustment of travel and operating force.
  • Silent operation on ball bearings and spherical rod-ends, with no lubrication required.
  • Supplied with one optional extra spring to vary the resistance.

Technical specifications

Specification Detail
Sensor typeLoad cell
Resolution16-bit
ConstructionHeavy duty stainless steel
StructureDual action arm with moving heel support
BearingsBall bearings and spherical rod-ends
Tilt angleAdjustable from +8 to -16 degrees
Pedal to control box cable25 cm
Mounting87 mm (lateral) x 80 mm (longitudinal) pattern
MaintenanceNo lubrication required
Warranty2 years
Manufactured inFinland

Compatibility

  • Designed to expand the two-pedal Simgrade R7 Spec C pedal set into a three-pedal one.
  • Connects to the R7 control box; it does not work as a standalone USB pedal.
  • Mounts directly on 80/20 aluminium profile of at least 40 x 120 mm, or on two separate profiles.
  • Shares the calibration software with the rest of the R7 pedals, with non-linear response curves and saveable profiles.

What's in the box

  • R7 Spec C clutch pedal
  • One optional extra spring
  • 4 M6 T-nuts for aluminium profile
  • 4 M6-16 bolts with washers

Frequently asked questions

Does the R7 clutch pedal work on its own?

No. It is an add-on that connects to the R7 Spec C control box through its 25 cm cable. It has no electronics or USB connection of its own.

What is the dual action arm?

It is the R7's signature structure: the heel support follows the movement of the pedal arm, so the foot keeps contact through the whole stroke. Simgrade states this practically doubles control accuracy.

Is it compatible with every R7 version?

This pedal is the Spec C specification, the current one. If your pedal set is an earlier spec, it is worth confirming control box compatibility before ordering.

How does it mount?

On an 87 mm lateral by 80 mm longitudinal pattern, directly onto 80/20 aluminium profile of at least 40 x 120 mm or two profiles. It includes 4 M6 T-nuts and 4 M6-16 bolts with washers.

What is included and what warranty does it carry?

It includes the pedal with its mounting hardware and one optional extra spring. Simgrade covers it with a 2-year warranty.
