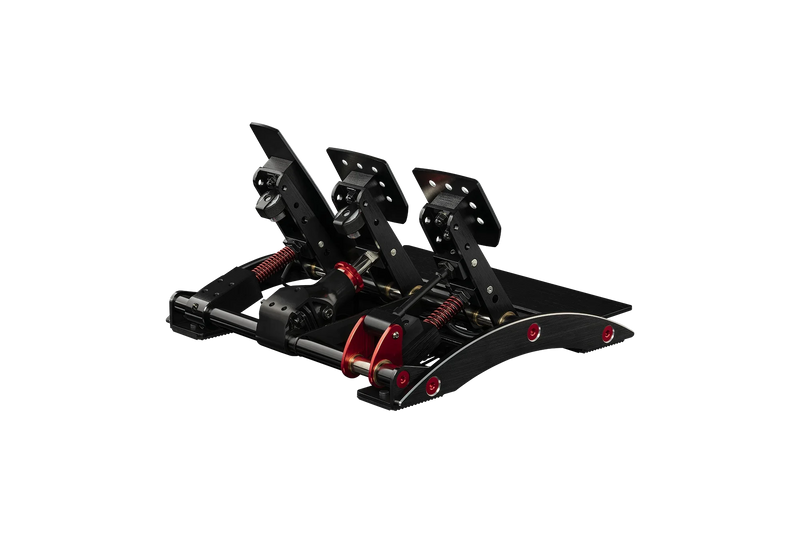

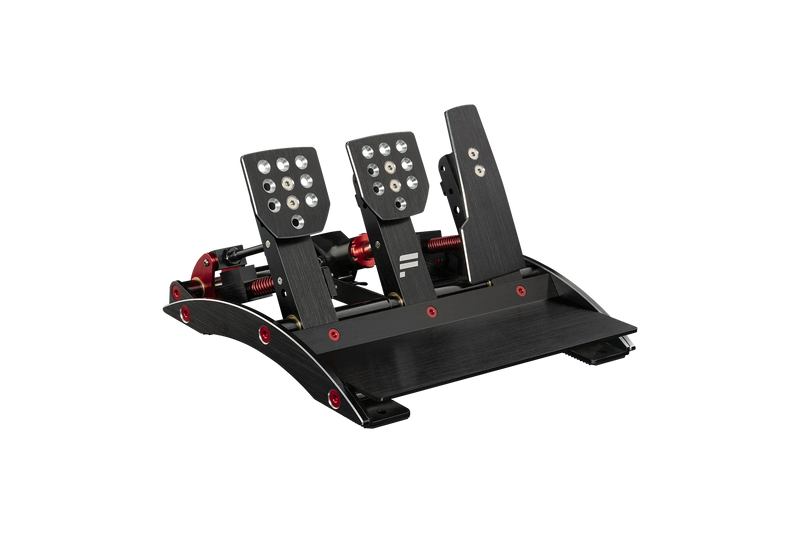

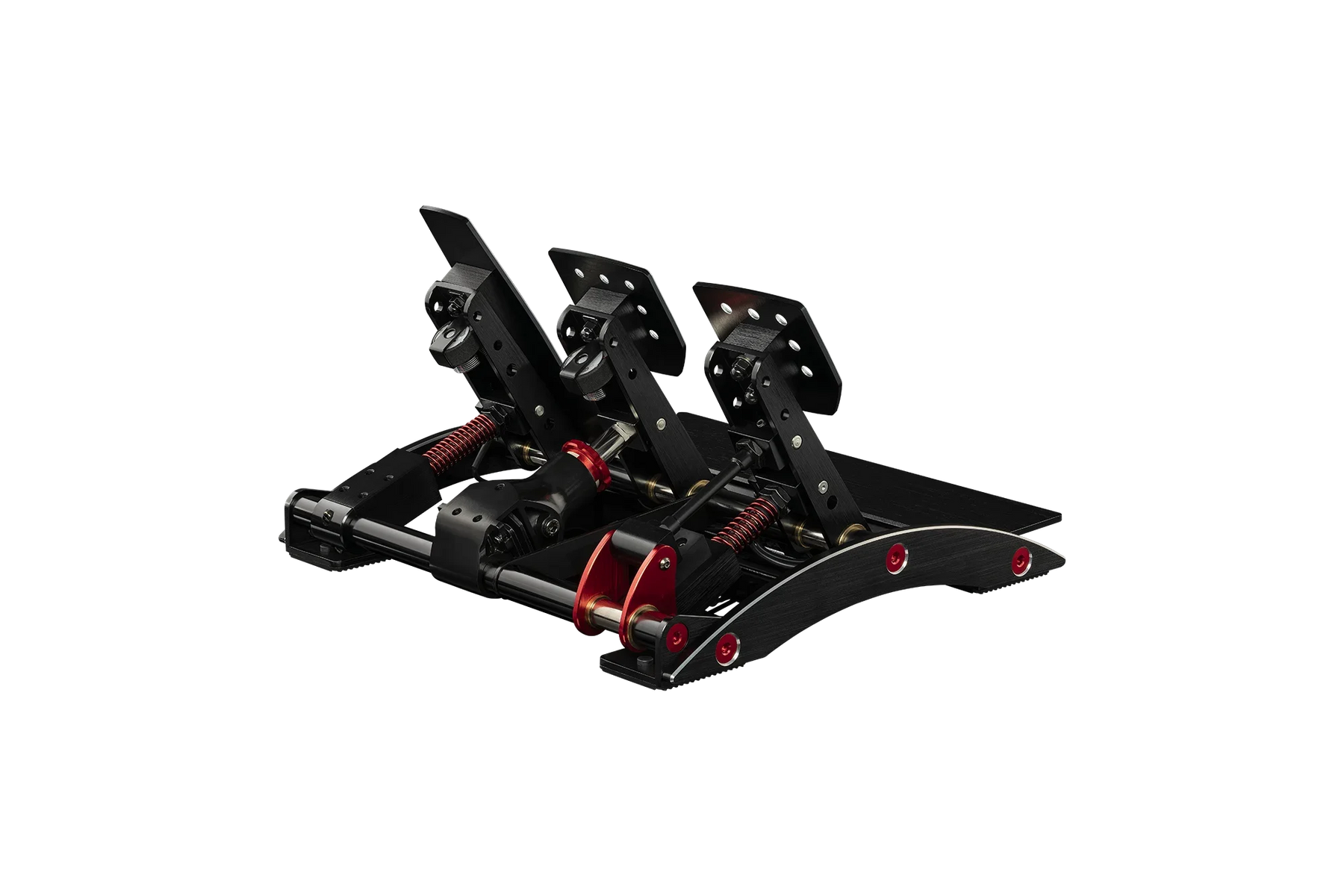

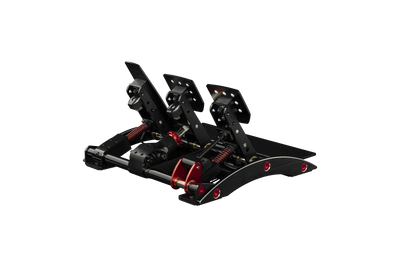

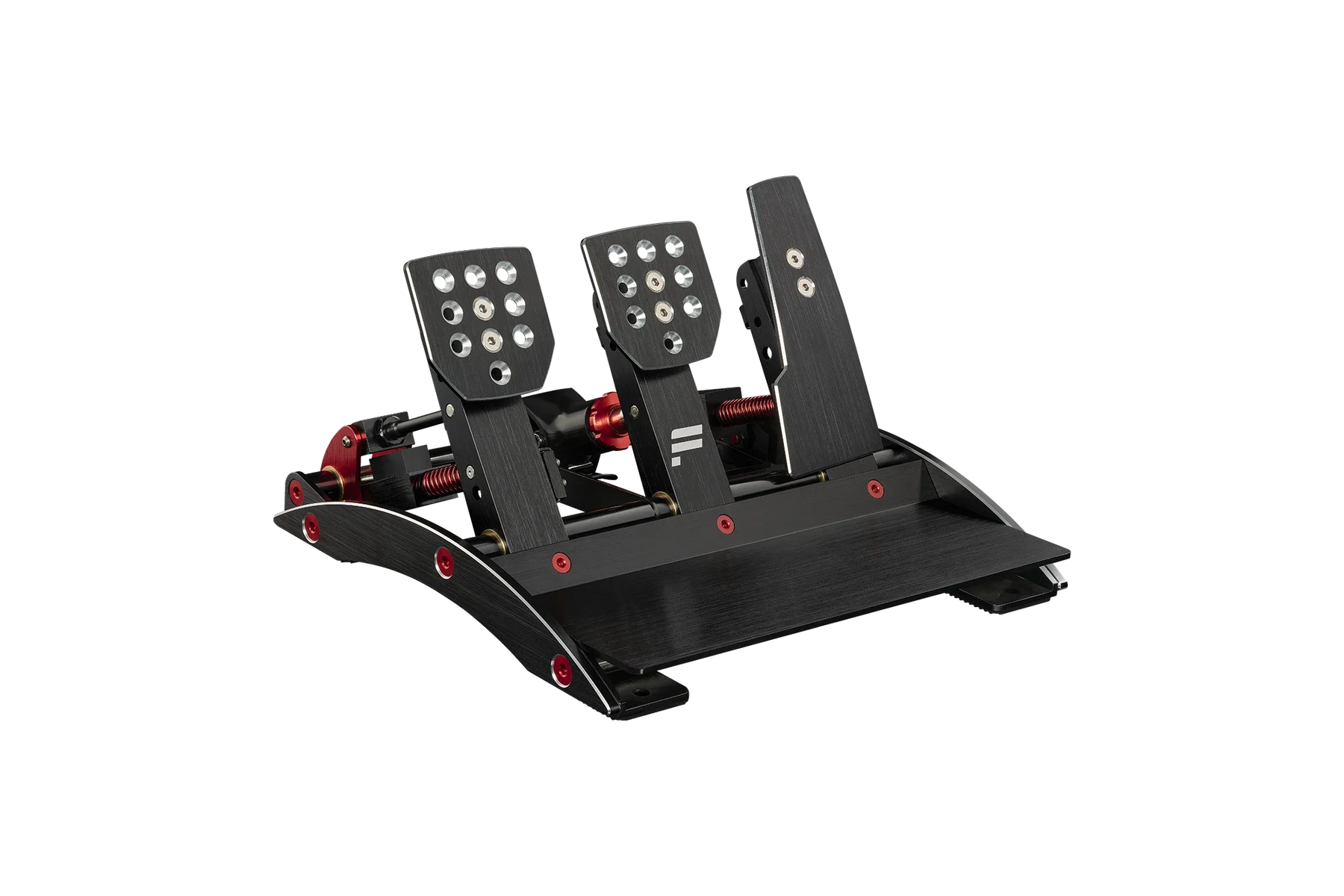

Fanatec ClubSport V3 pedal set with 90 kg load cell brake

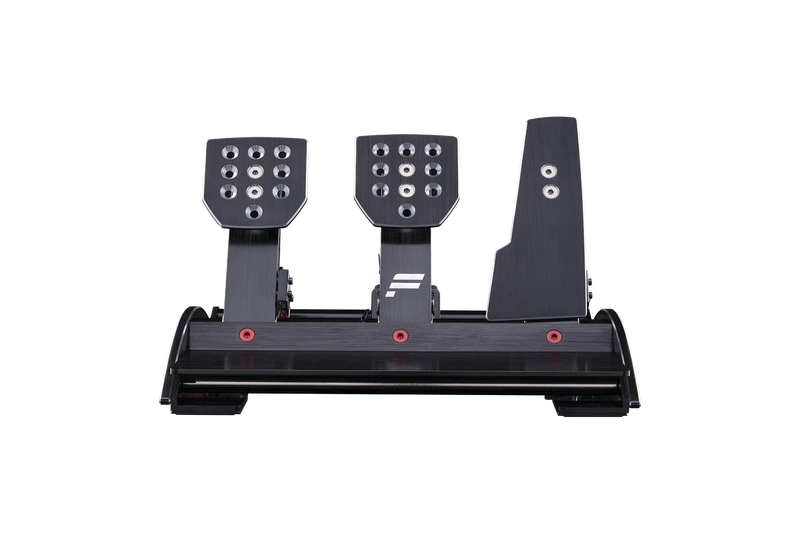

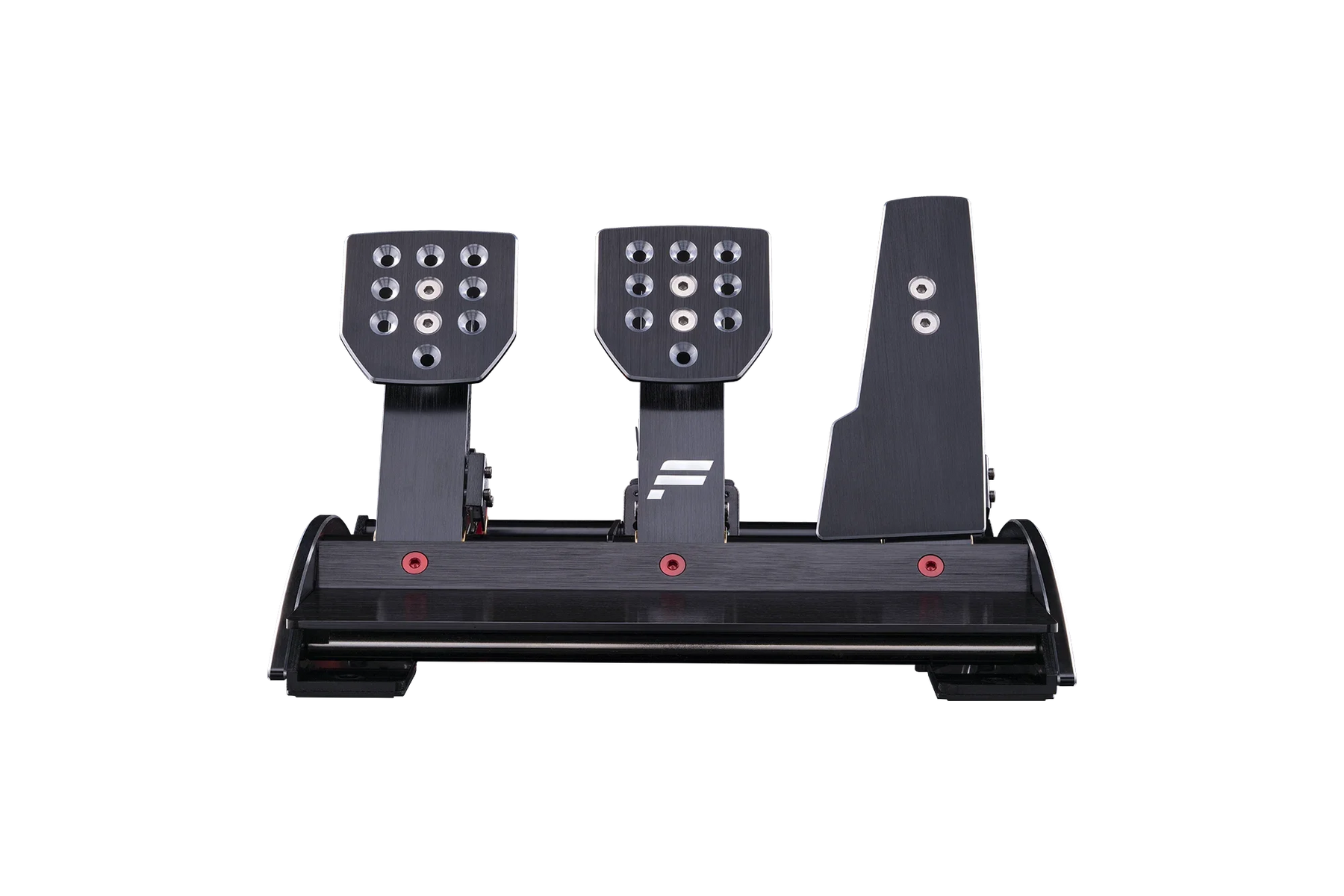

Fanatec ClubSport V3 pedals in CNC aluminium seen from the front

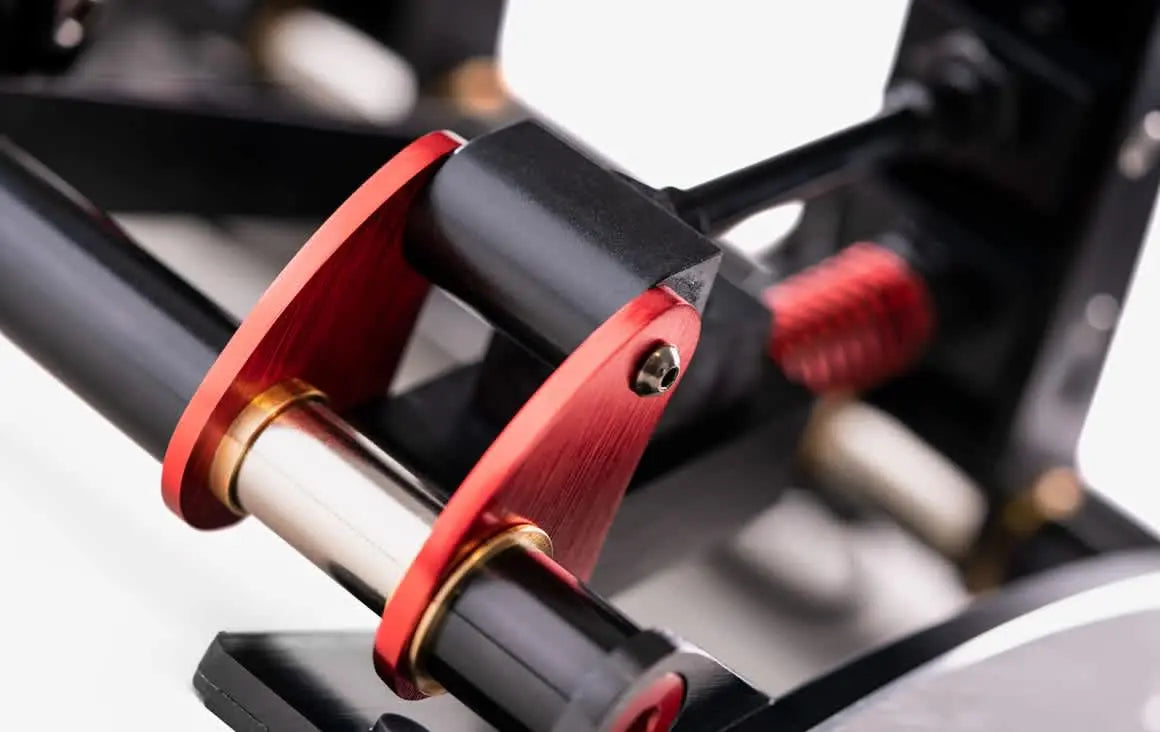

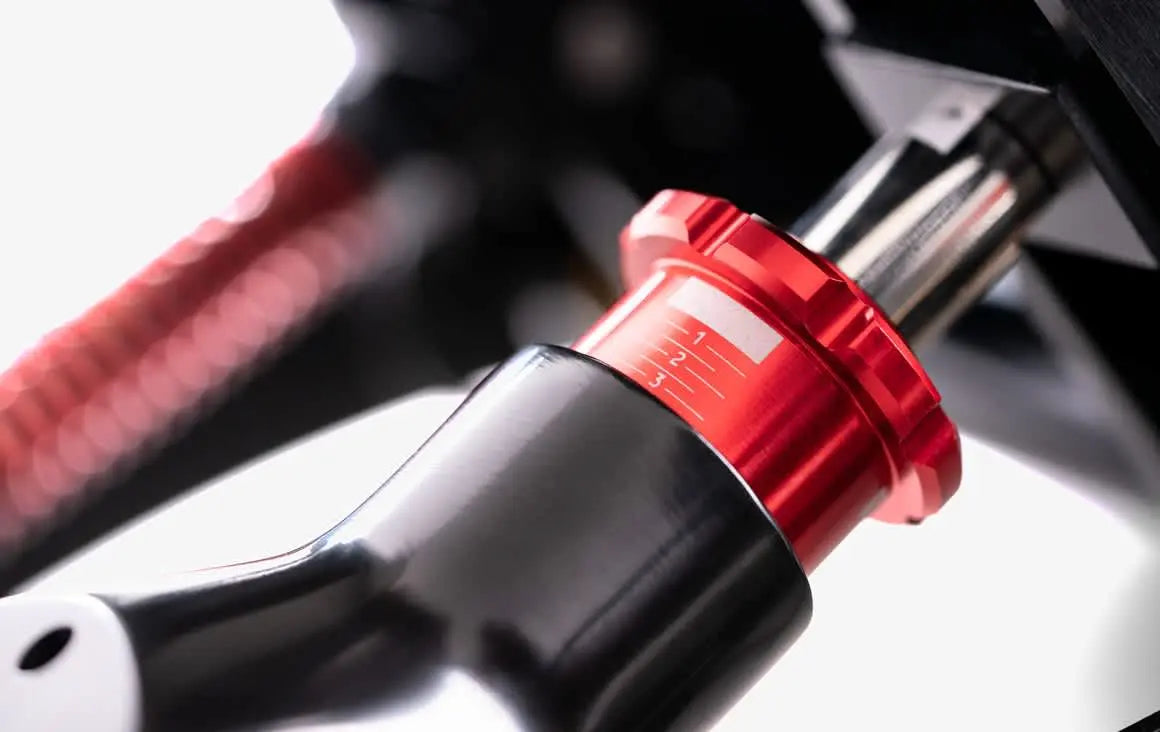

Load cell brake of the Fanatec ClubSport V3 with adjustable elastomers

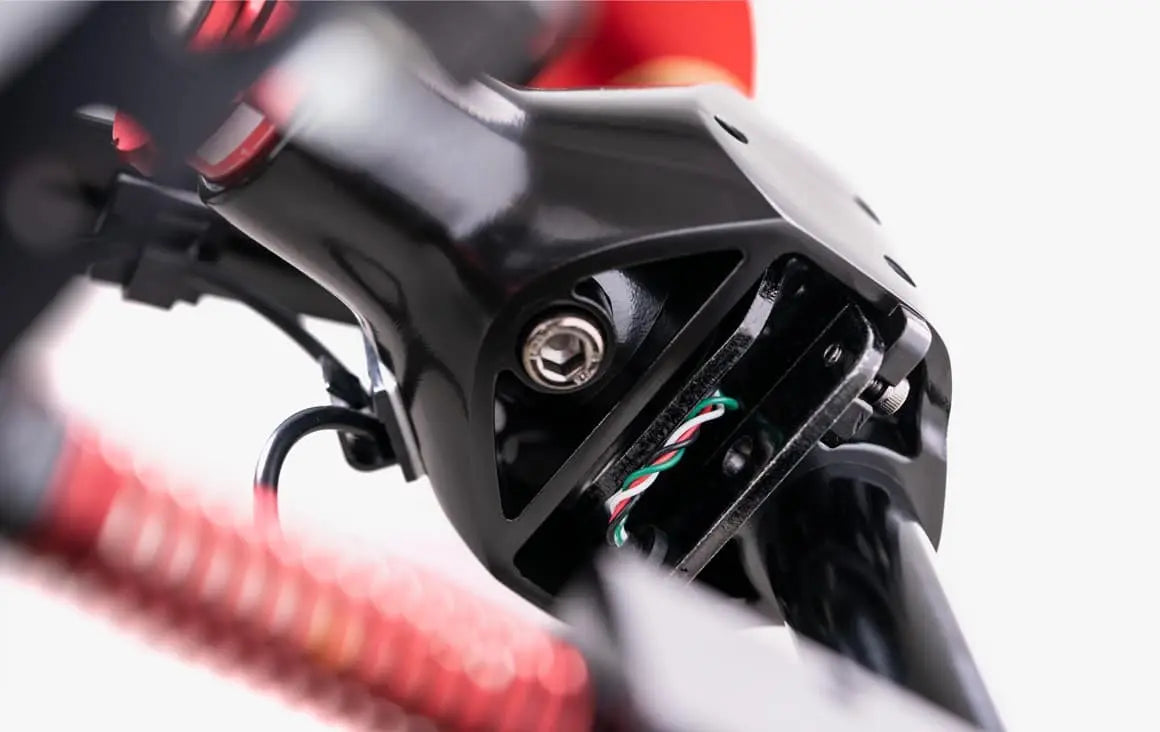

Close-up of the Fanatec ClubSport V3 throttle Hall sensor

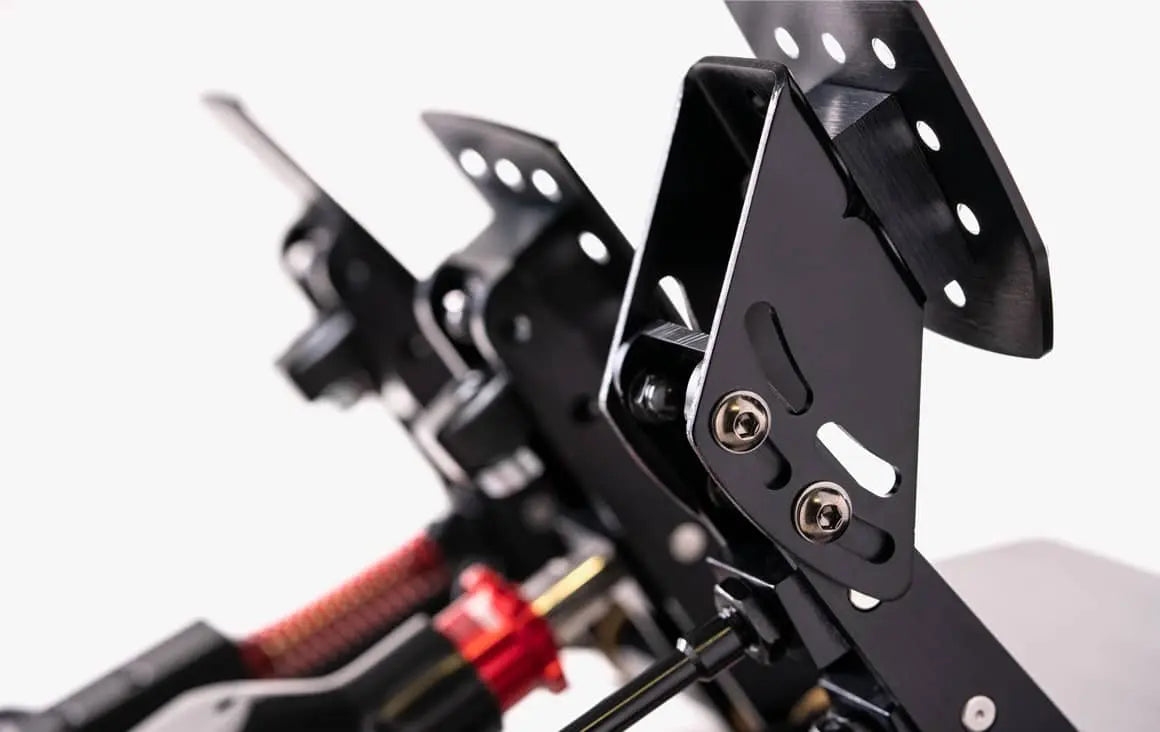

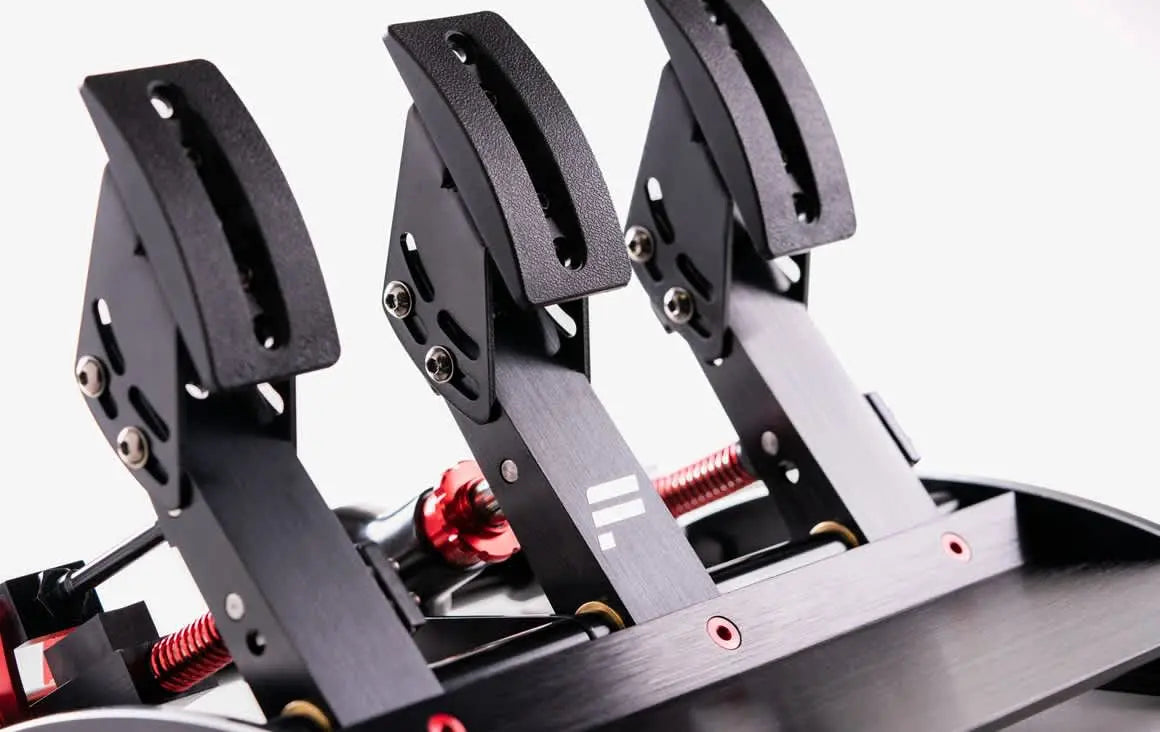

D-shape plates and extensions of the Fanatec ClubSport V3 pedals

Adjustable clutch pedal of the Fanatec ClubSport V3 pedal set

Aluminium base and bolts of the Fanatec ClubSport V3 pedals

RJ12 and USB connectors of the Fanatec ClubSport V3 pedal set

Rear view of the Fanatec ClubSport V3 pedal set

Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.

Price

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

FECHA ESTIMADA

ARTÍCULO EN PRE-ORDER

Fecha de disponibilidad: Oct 07, 2026

[{"id":52283919991117,"title":"No","option1":"No","option2":null,"option3":null,"sku":"CSP_V3","requires_shipping":true,"taxable":true,"featured_image":{"id":70572456902989,"product_id":10229500215629,"position":1,"created_at":"2025-08-23T13:11:43+02:00","updated_at":"2025-08-23T13:11:46+02:00","alt":"Fanatec ClubSport V3 pedal set with 90 kg load cell brake","width":2000,"height":1333,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedales-Fanatec-ClubSport-V3-Simufy_9.webp?v=1755947506","variant_ids":[52283919991117]},"available":true,"name":"Fanatec ClubSport V3 – 90 kg Load Cell Pedal Set - No","public_title":"No","options":["No"],"price":32995,"weight":6500,"compare_at_price":0,"inventory_management":"shopify","barcode":"840440409724","featured_media":{"alt":"Fanatec ClubSport V3 pedal set with 90 kg load cell brake","id":56935211565389,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1333,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedales-Fanatec-ClubSport-V3-Simufy_9.webp?v=1755947506"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52283920122189,"title":"Yes","option1":"Yes","option2":null,"option3":null,"sku":"CSP_V3+CSP_V3_BPK","requires_shipping":true,"taxable":true,"featured_image":{"id":70572457001293,"product_id":10229500215629,"position":9,"created_at":"2025-08-23T13:11:43+02:00","updated_at":"2025-08-23T13:12:10+02:00","alt":"Rear view of the Fanatec ClubSport V3 pedal set","width":2000,"height":1333,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedales-Fanatec-ClubSport-V3-Simufy_3.webp?v=1755947530","variant_ids":[52283920122189]},"available":true,"name":"Fanatec ClubSport V3 – 90 kg Load Cell Pedal Set - Yes","public_title":"Yes","options":["Yes"],"price":34995,"weight":6500,"compare_at_price":36990,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Rear view of the Fanatec ClubSport V3 pedal set","id":56935211663693,"position":9,"preview_image":{"aspect_ratio":1.5,"height":1333,"width":2000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedales-Fanatec-ClubSport-V3-Simufy_3.webp?v=1755947530"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The Fanatec ClubSport V3 is a three-pedal set with a 90 kg load cell brake for sim racing, compatible with PC and consoles (via a Fanatec wheelbase), aimed at drivers who demand realistic braking and maximum durability.

Built entirely from CNC-machined aluminium, it features contactless magnetic Hall sensors with 12-bit resolution (4,096 steps) on throttle and clutch, vibration on brake and throttle, and a tool-free adjustment system. It is the benchmark of the ClubSport range and expands with the Brake Performance Kit and the Damper Kit.

Key features

90 kg load cell brake that measures muscle pressure rather than travel, for consistent braking just like in a real car.
Contactless magnetic Hall sensors on throttle and clutch, with 12-bit resolution (4,096 steps) per axis and no wear.
Built-in vibration on brake and throttle to signal lock-ups, ABS or loss of traction (in supported games).
Tool-free brake stiffness and travel adjustment, plus position and angle adjustment on every pedal.
Full metal CNC-machined aluminium construction, with curved D-shape plates and extensions included.
Upgradeable with the Brake Performance Kit (brake feel via elastomers) and Damper Kit (hydraulic damping).

Technical specifications

Specification	Detail
Series	ClubSport
Number of pedals	3 (throttle, brake, clutch)
Brake	90 kg load cell, tool-free adjustment
Throttle and clutch sensors	Contactless magnetic Hall
Resolution	12-bit (4,096 steps per axis)
Construction	CNC-machined aluminium (full metal)
Vibration	Throttle and brake
Connectivity	RJ12 (Fanatec wheelbases) or USB (PC)
Weight	7.26 kg
Customisation	Position, angle, stiffness and travel

Compatibility

PC: direct USB connection or through a Fanatec wheelbase.
Consoles (PlayStation / Xbox): only when connected to a compatible Fanatec direct drive wheelbase.
Compatible with all Fanatec wheelbases with RJ12 connector, with the Brake Performance Kit, the Damper Kit and the Fanatec handbrake.
No ClubSport USB Adapter required: they include their own USB cable.

Frequently asked questions

Do the Fanatec ClubSport V3 work on PS5 and Xbox Series?

Yes, as long as they are connected to a Fanatec wheelbase compatible with the console. Over direct USB they only work on PC.

What is the difference between a load cell brake and a normal brake?

The load cell measures the pressure you apply (up to 90 kg), not how far the pedal travels, reproducing the feel of a real brake and improving braking consistency.

Do I need the Brake Performance Kit to use them?

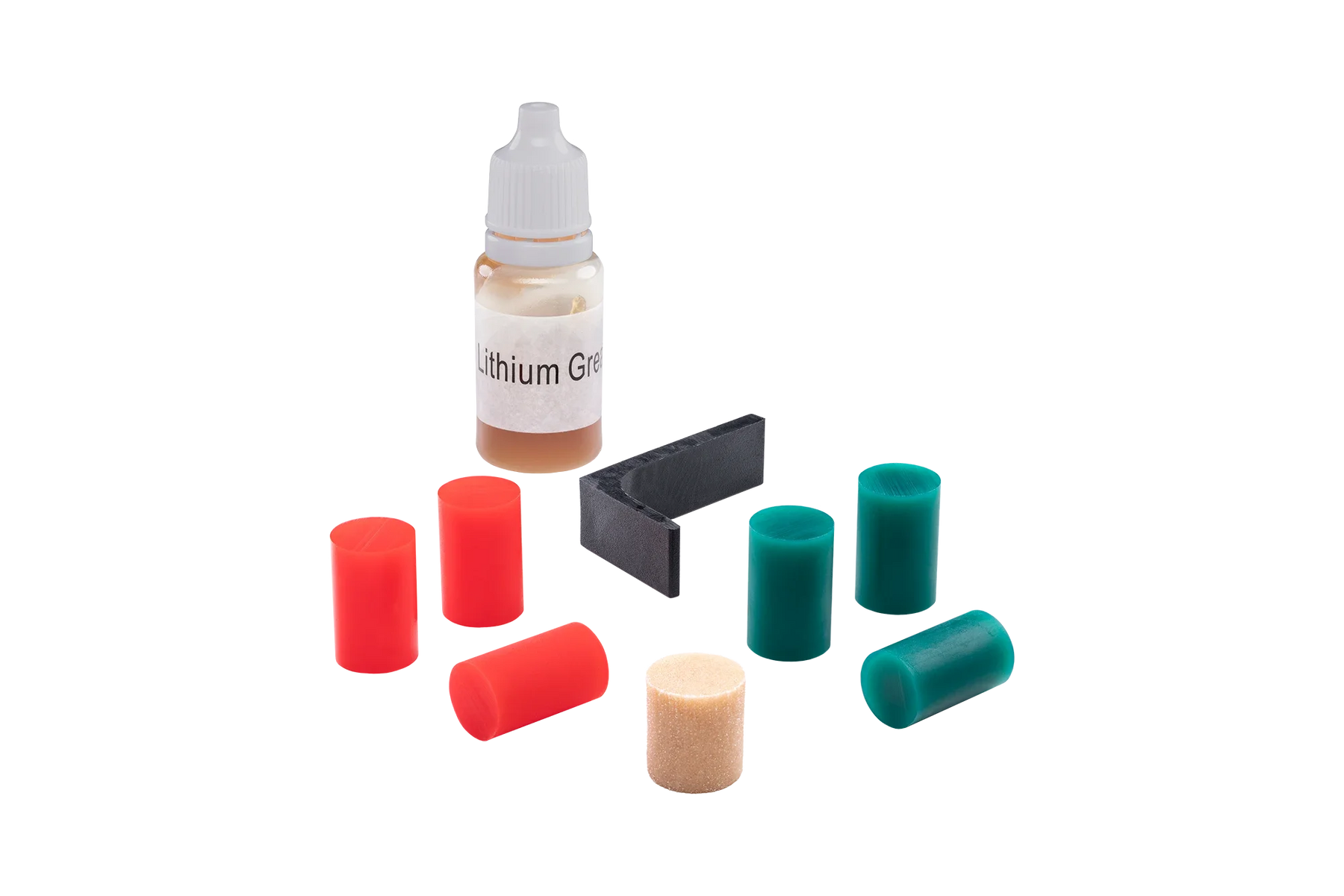

No. The pedals work out of the box with the load cell brake. The Brake Performance Kit is optional and lets you fine-tune brake feel with elastomers of different hardness.

Does the vibration work in every game?

Brake and throttle vibration is triggered through telemetry, so it depends on the game or the Fanatec software sending it; not every title supports it.

What resolution do the pedals work at?

The throttle and clutch Hall sensors offer 12-bit (4,096 steps) per axis, for very precise control with no wear thanks to the contactless design.
