MOZA SRP2 | 100 kg Load Cell Sim Racing Pedals

Name: MOZA SRP2 – 100 kg Load Cell Pedals
Brand: MOZA Racing
SKU: RS098
Price: 159.99 EUR
Availability: InStock

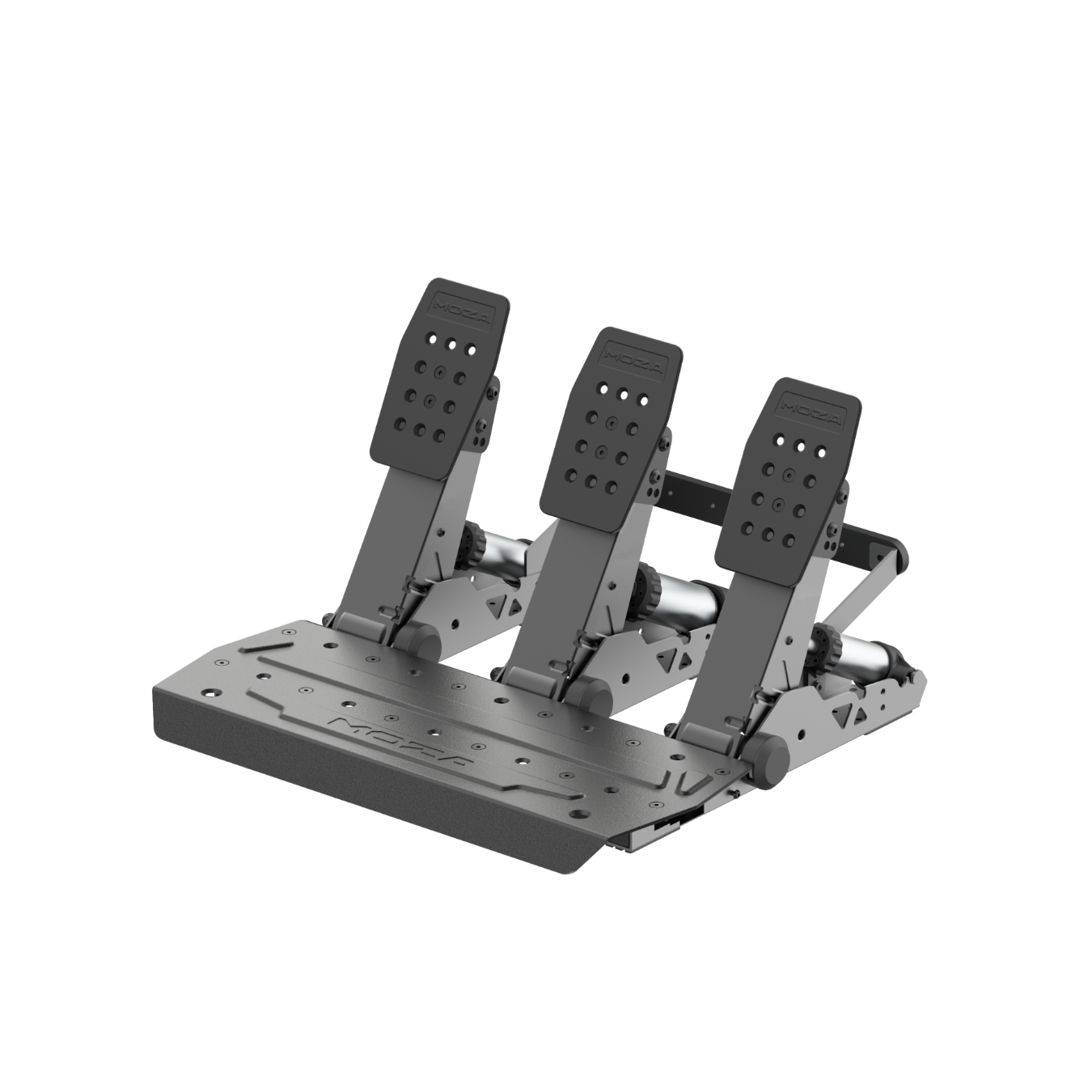

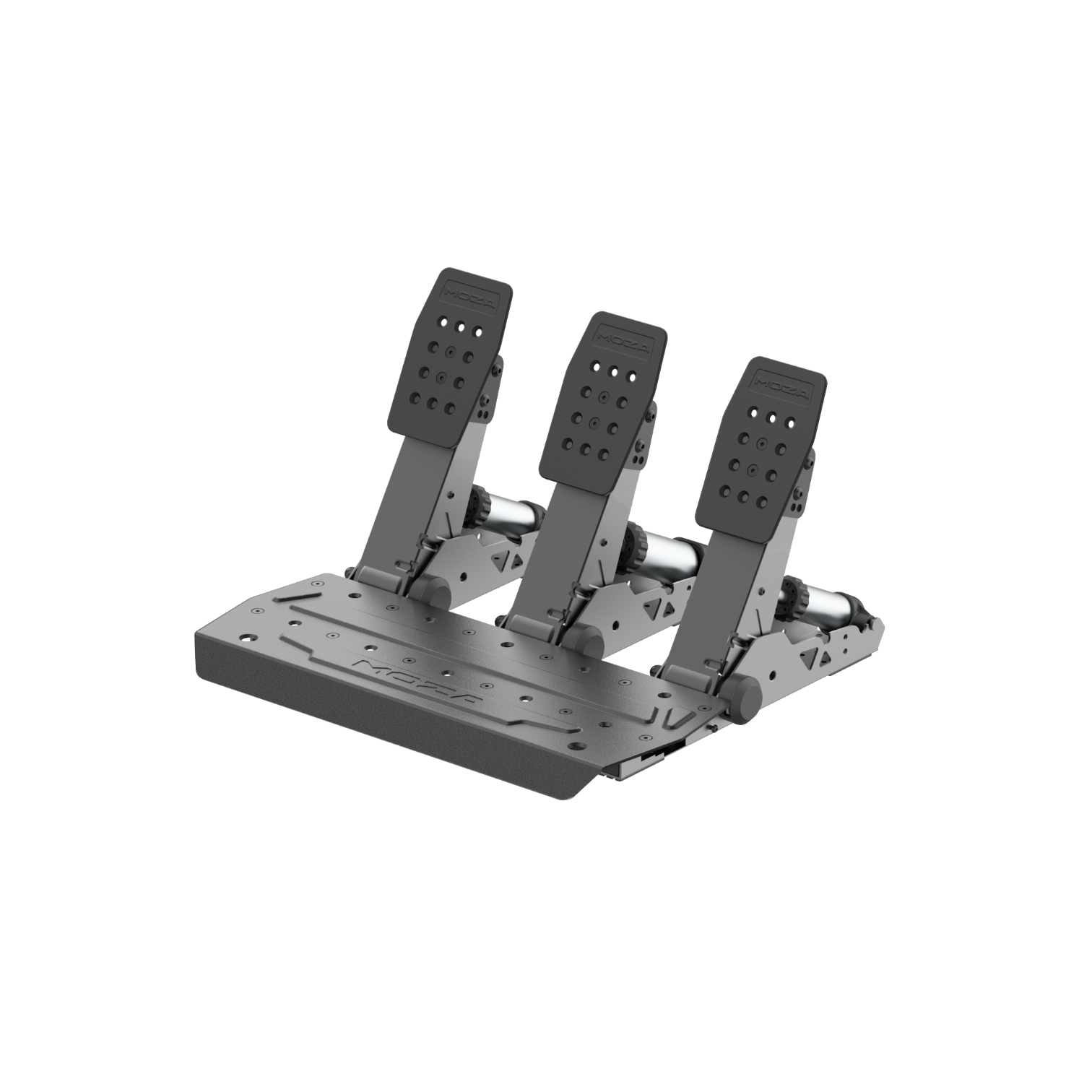

MOZA SRP2 pedals with a 100 kg load cell for sim racing

MOZA SRP2 — brake pedal with load cell and angle sensor

MOZA SRP2 — pedals in CNC aerospace aluminium and steel

MOZA SRP2 — interchangeable brake elastomers and springs

MOZA SRP2 — pedals mounted on a desk setup

Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.

Price

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

FECHA ESTIMADA

ARTÍCULO EN PRE-ORDER

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":53591391338829,"title":"No - Throttle and Brake only \/ No - Without wall stop","option1":"No - Throttle and Brake only","option2":"No - Without wall stop","option3":null,"sku":"RS098","requires_shipping":true,"taxable":true,"featured_image":{"id":84634777026893,"product_id":10591547162957,"position":2,"created_at":"2026-03-25T21:01:25+01:00","updated_at":"2026-03-25T21:02:16+01:00","alt":"MOZA SRP2 — brake pedal with load cell and angle sensor","width":1512,"height":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_4.png?v=1774468936","variant_ids":[53591391338829]},"available":true,"name":"MOZA SRP2 – 100 kg Load Cell Pedals - No - Throttle and Brake only \/ No - Without wall stop","public_title":"No - Throttle and Brake only \/ No - Without wall stop","options":["No - Throttle and Brake only","No - Without wall stop"],"price":15999,"weight":4000,"compare_at_price":0,"inventory_management":"shopify","barcode":"6973137271251","featured_media":{"alt":"MOZA SRP2 — brake pedal with load cell and angle sensor","id":61264207348045,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1512,"width":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_4.png?v=1774468936"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53591391371597,"title":"No - Throttle and Brake only \/ Yes - With wall stop","option1":"No - Throttle and Brake only","option2":"Yes - With wall stop","option3":null,"sku":"RS098+RS100","requires_shipping":true,"taxable":true,"featured_image":{"id":84634776961357,"product_id":10591547162957,"position":4,"created_at":"2026-03-25T21:01:25+01:00","updated_at":"2026-03-25T21:02:16+01:00","alt":"MOZA SRP2 — interchangeable brake elastomers and springs","width":1512,"height":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_9_b41eaa3d-39f9-402d-8334-caff91f55e48.png?v=1774468936","variant_ids":[53591391371597]},"available":true,"name":"MOZA SRP2 – 100 kg Load Cell Pedals - No - Throttle and Brake only \/ Yes - With wall stop","public_title":"No - Throttle and Brake only \/ Yes - With wall stop","options":["No - Throttle and Brake only","Yes - With wall stop"],"price":18999,"weight":4800,"compare_at_price":19498,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"MOZA SRP2 — interchangeable brake elastomers and springs","id":61264207282509,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1512,"width":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_9_b41eaa3d-39f9-402d-8334-caff91f55e48.png?v=1774468936"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53591391404365,"title":"Yes - Throttle + Brake + Clutch \/ No - Without wall stop","option1":"Yes - Throttle + Brake + Clutch","option2":"No - Without wall stop","option3":null,"sku":"RS098+RS099","requires_shipping":true,"taxable":true,"featured_image":{"id":84634777059661,"product_id":10591547162957,"position":3,"created_at":"2026-03-25T21:01:25+01:00","updated_at":"2026-03-25T21:02:16+01:00","alt":"MOZA SRP2 — pedals in CNC aerospace aluminium and steel","width":1512,"height":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_5.png?v=1774468936","variant_ids":[53591391404365]},"available":true,"name":"MOZA SRP2 – 100 kg Load Cell Pedals - Yes - Throttle + Brake + Clutch \/ No - Without wall stop","public_title":"Yes - Throttle + Brake + Clutch \/ No - Without wall stop","options":["Yes - Throttle + Brake + Clutch","No - Without wall stop"],"price":19999,"weight":6000,"compare_at_price":20998,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"MOZA SRP2 — pedals in CNC aerospace aluminium and steel","id":61264207380813,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1512,"width":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_5.png?v=1774468936"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53591391437133,"title":"Yes - Throttle + Brake + Clutch \/ Yes - With wall stop","option1":"Yes - Throttle + Brake + Clutch","option2":"Yes - With wall stop","option3":null,"sku":"RS098+RS099+RS100","requires_shipping":true,"taxable":true,"featured_image":{"id":84634776994125,"product_id":10591547162957,"position":1,"created_at":"2026-03-25T21:01:25+01:00","updated_at":"2026-03-26T11:07:23+01:00","alt":"MOZA SRP2 pedals with a 100 kg load cell for sim racing","width":1350,"height":1350,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_3_c781bab8-9f53-4a96-b473-b491e866ce60.png?v=1774519643","variant_ids":[53591391437133]},"available":true,"name":"MOZA SRP2 – 100 kg Load Cell Pedals - Yes - Throttle + Brake + Clutch \/ Yes - With wall stop","public_title":"Yes - Throttle + Brake + Clutch \/ Yes - With wall stop","options":["Yes - Throttle + Brake + Clutch","Yes - With wall stop"],"price":22999,"weight":6800,"compare_at_price":24497,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"MOZA SRP2 pedals with a 100 kg load cell for sim racing","id":61264207315277,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1350,"width":1350,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_3_c781bab8-9f53-4a96-b473-b491e866ce60.png?v=1774519643"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":53591391338829,"title":"No - Throttle and Brake only \/ No - Without wall stop","option1":"No - Throttle and Brake only","option2":"No - Without wall stop","option3":null,"sku":"RS098","requires_shipping":true,"taxable":true,"featured_image":{"id":84634777026893,"product_id":10591547162957,"position":2,"created_at":"2026-03-25T21:01:25+01:00","updated_at":"2026-03-25T21:02:16+01:00","alt":"MOZA SRP2 — brake pedal with load cell and angle sensor","width":1512,"height":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_4.png?v=1774468936","variant_ids":[53591391338829]},"available":true,"name":"MOZA SRP2 – 100 kg Load Cell Pedals - No - Throttle and Brake only \/ No - Without wall stop","public_title":"No - Throttle and Brake only \/ No - Without wall stop","options":["No - Throttle and Brake only","No - Without wall stop"],"price":15999,"weight":4000,"compare_at_price":0,"inventory_management":"shopify","barcode":"6973137271251","featured_media":{"alt":"MOZA SRP2 — brake pedal with load cell and angle sensor","id":61264207348045,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1512,"width":1512,"src":"\/\/simufy.com\/cdn\/shop\/files\/pedales-MOZA-SRP2-Simufy_4.png?v=1774468936"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The MOZA SRP2 are sim racing pedals with a 100 kg load cell and a hybrid sensor system that delivers progressive, highly configurable braking. Their combination of load cell and angle sensor replicates the resistance of a real brake system, so you can rely on muscle memory to repeat braking points consistently.

Made of CNC-machined aerospace-grade aluminium and high-strength steel, they let you adjust stiffness, angle, height and lateral position tool-free, and accept the optional CRP2 brake kit to expand the feel combinations. Compatible with PC and with Xbox via a MOZA ESX wheel.

Key features of the MOZA SRP2

Brake pedal with a 100 kg load cell for braking based on real pressure.
Hybrid load cell + 15-bit angle sensor (32,768 points) for maximum resolution.
Brake stiffness adjustment with interchangeable elastomers and springs (up to 25 configurations).
Compatible with the optional CRP2 kit to exceed 1,000 brake combinations.
Angle adjustment up to 25°, lateral ±15 mm and independent height of 36 mm.
Throttle and clutch with two-level adjustable preload.
Tool-free adjustments and smooth, quiet movement with polished shafts.

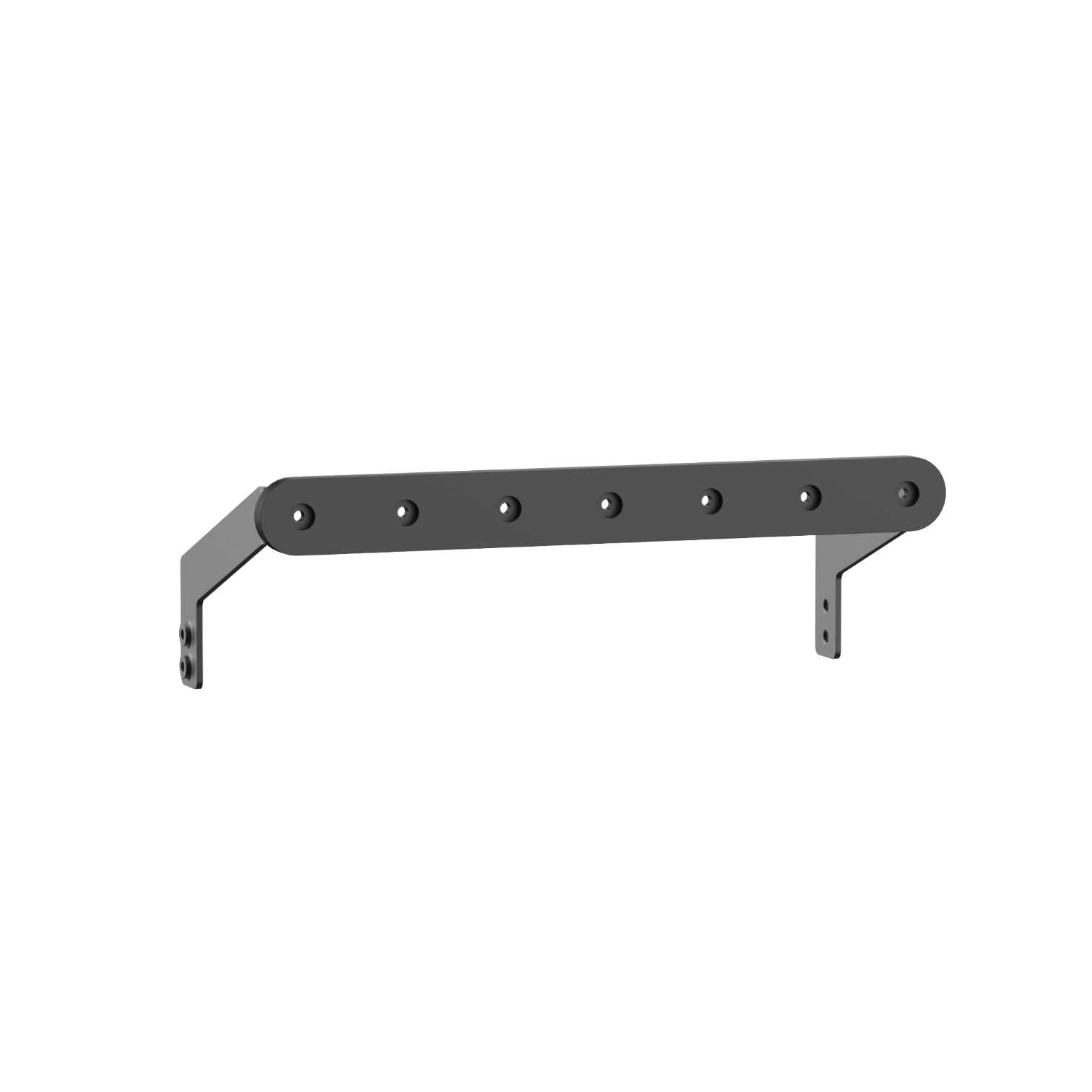

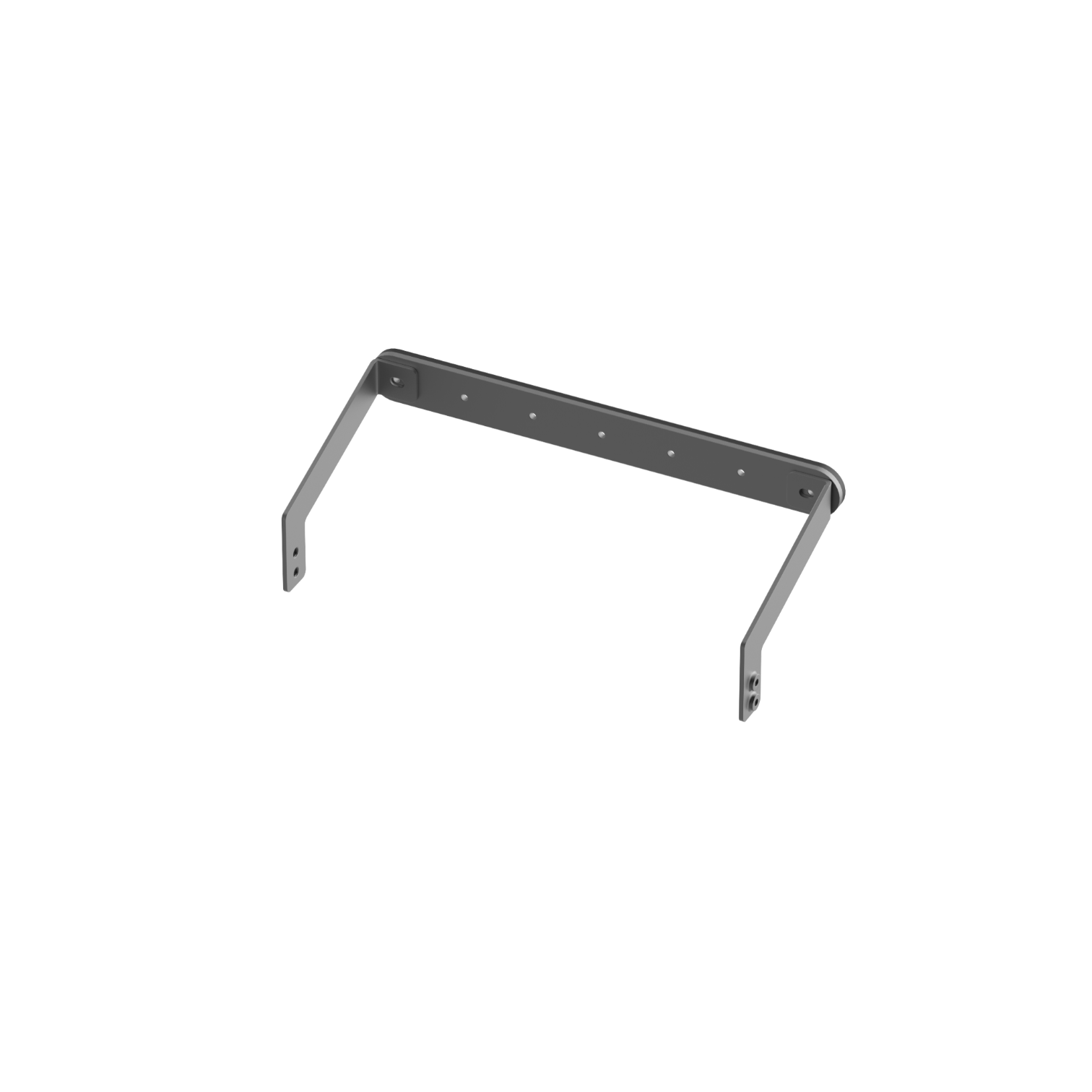

Desk-optimised design with an optional wall stop; MOZA Pit House software.
Durability tested for over one million presses.

Technical specifications

Specification	Detail
Pedal material	CNC aerospace-grade aluminium + high-strength steel
Base	High-strength steel
Load cell range	0–100 kg
Brake system	Load cell + angle sensor (hybrid)
Sensor resolution	15-bit (32,768 PPR)
Angle adjustment	Up to 25°
Lateral adjustment	±15 mm
Height adjustment	36 mm
Brake configuration	Interchangeable elastomers + springs (up to 25)
Throttle and clutch	Two-level adjustable preload
Compatibility	PC (USB) and Xbox (with a MOZA ESX wheel)
Software	MOZA Pit House
Durability	Over 1,000,000 presses

Compatibility

The SRP2 work with PC over USB and with Xbox through a MOZA ESX wheel. They are compatible with the main simulators (iRacing, Assetto Corsa, rFactor 2 and others) and fit cockpits, rigs and desk setups, with an optional wall stop. They are configured with MOZA Pit House software.

Frequently asked questions

What is the load cell capacity?

The brake pedal uses a 100 kg load cell with a 15-bit angle sensor (32,768 points), in a hybrid system that delivers progressive braking based on real pressure.

Can they be used on Xbox?

Yes. They work on PC over USB and on Xbox when combined with an Xbox-licensed MOZA ESX wheel.

How is brake stiffness adjusted?

Through interchangeable elastomers and springs, with up to 25 configurations. With the optional CRP2 kit you go beyond 1,000 combinations.

Do they include the clutch pedal?

It depends on the chosen version: you can configure them as throttle and brake, or also add the clutch pedal.

Can they be wall-mounted?

Yes. They are optimised for desk use and accept an optional wall stop for extra stability under braking.
