Name: FatBlackCat PurrPRO Formula 200 kg – Load Cell Pedals
Brand: FATBLACKCAT
SKU: 623-SPPPFP2
Price: 1329.99 EUR
Availability: InStock

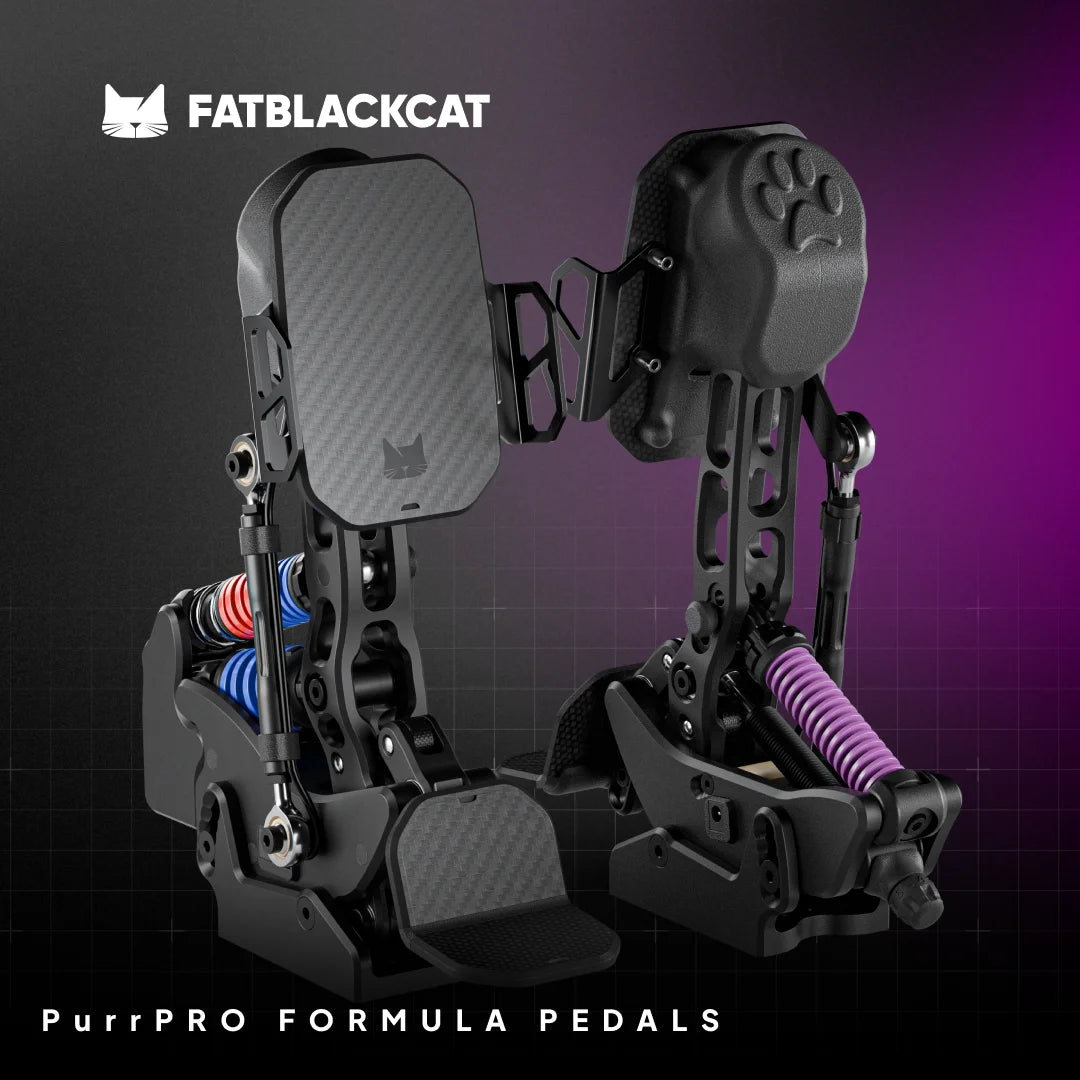

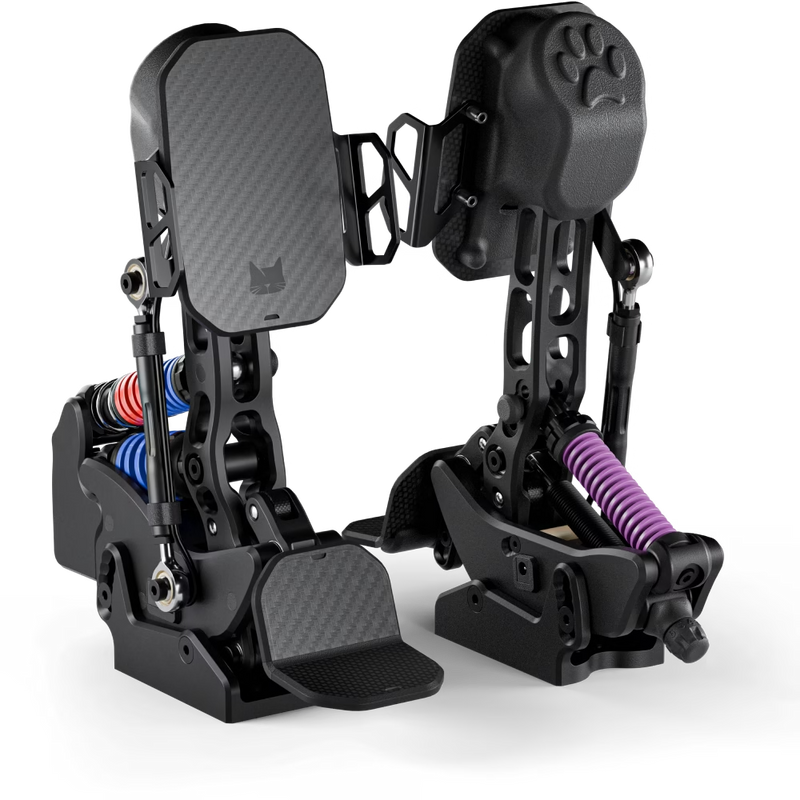

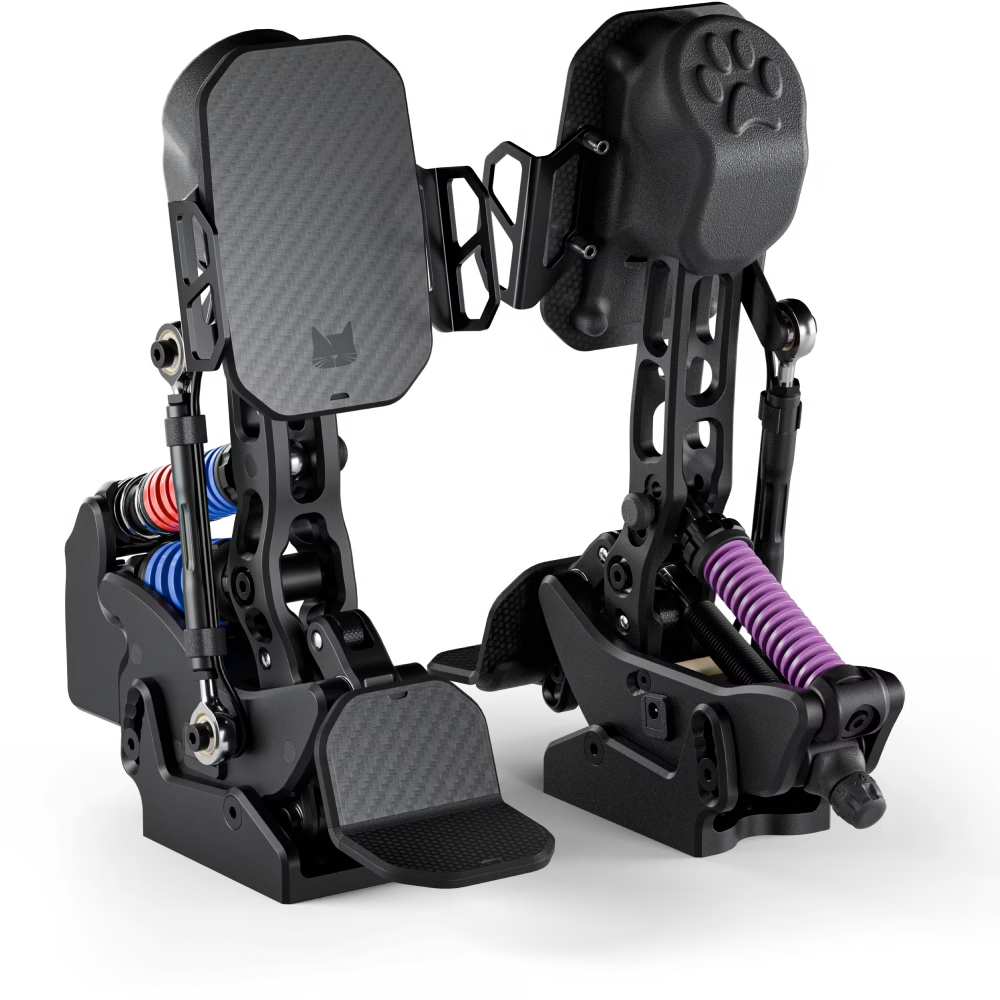

FatBlackCat PurrPRO Formula pedals with load cell brake and haptics

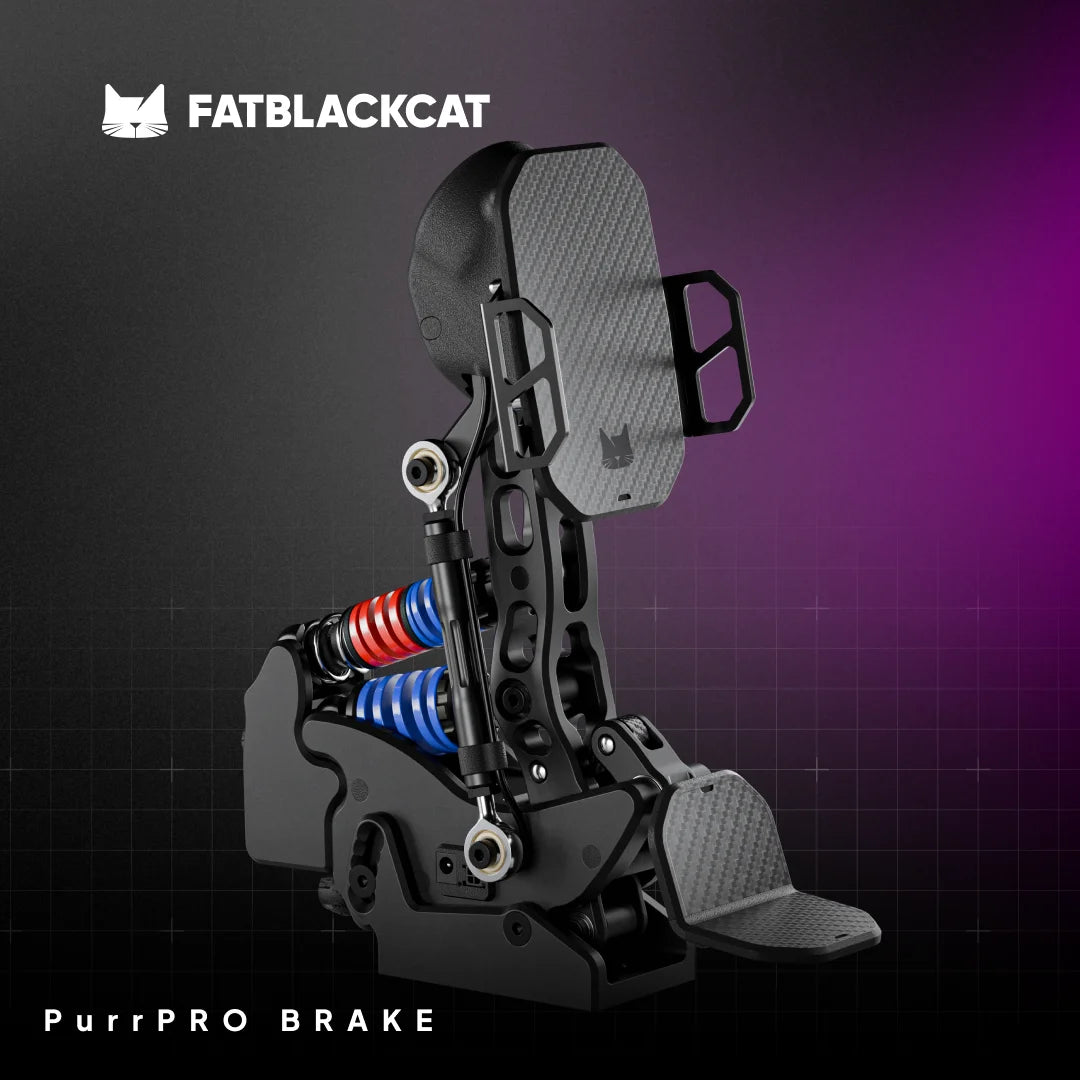

Detail of the 200 kg load cell brake pedal on the PurrPRO Formula

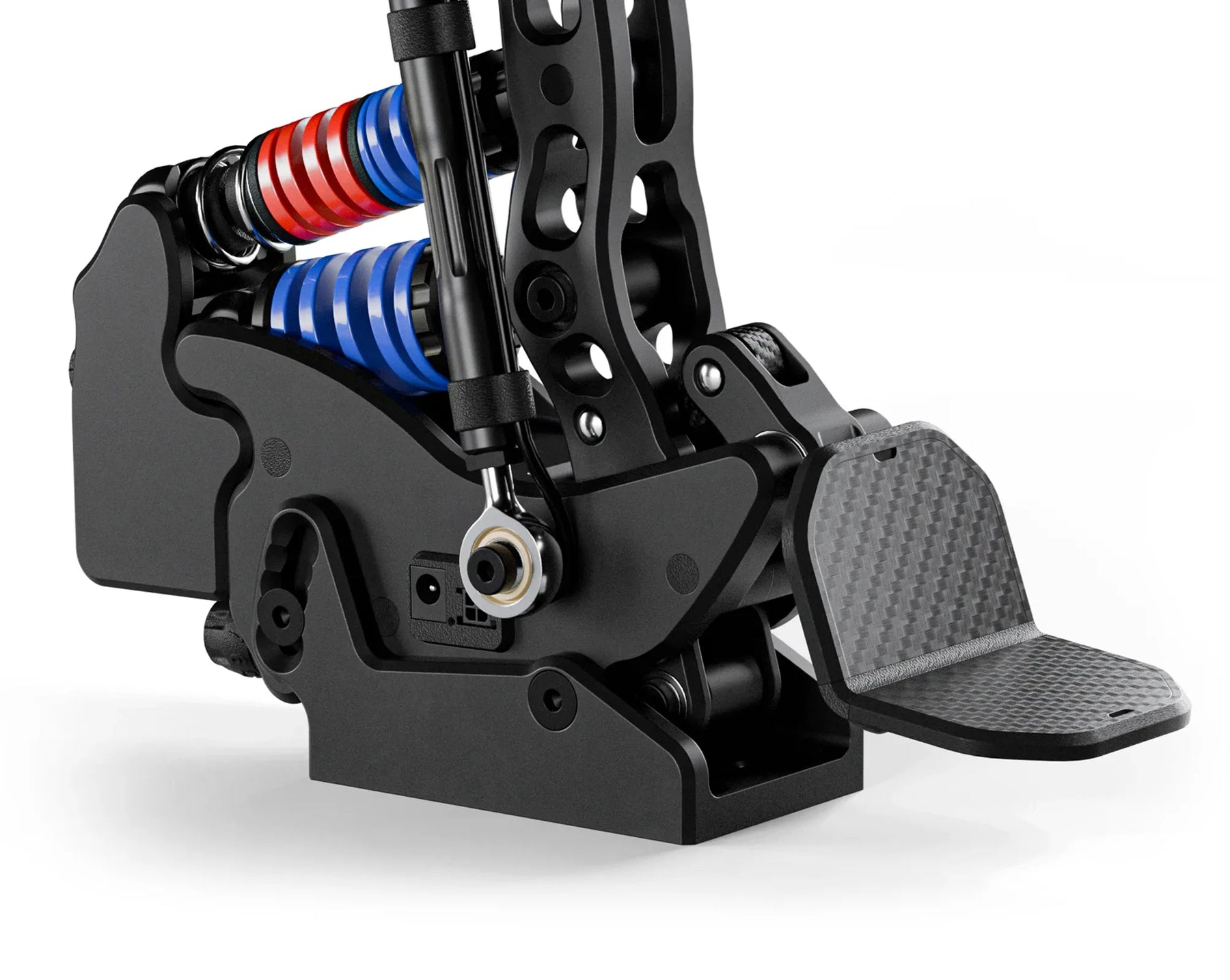

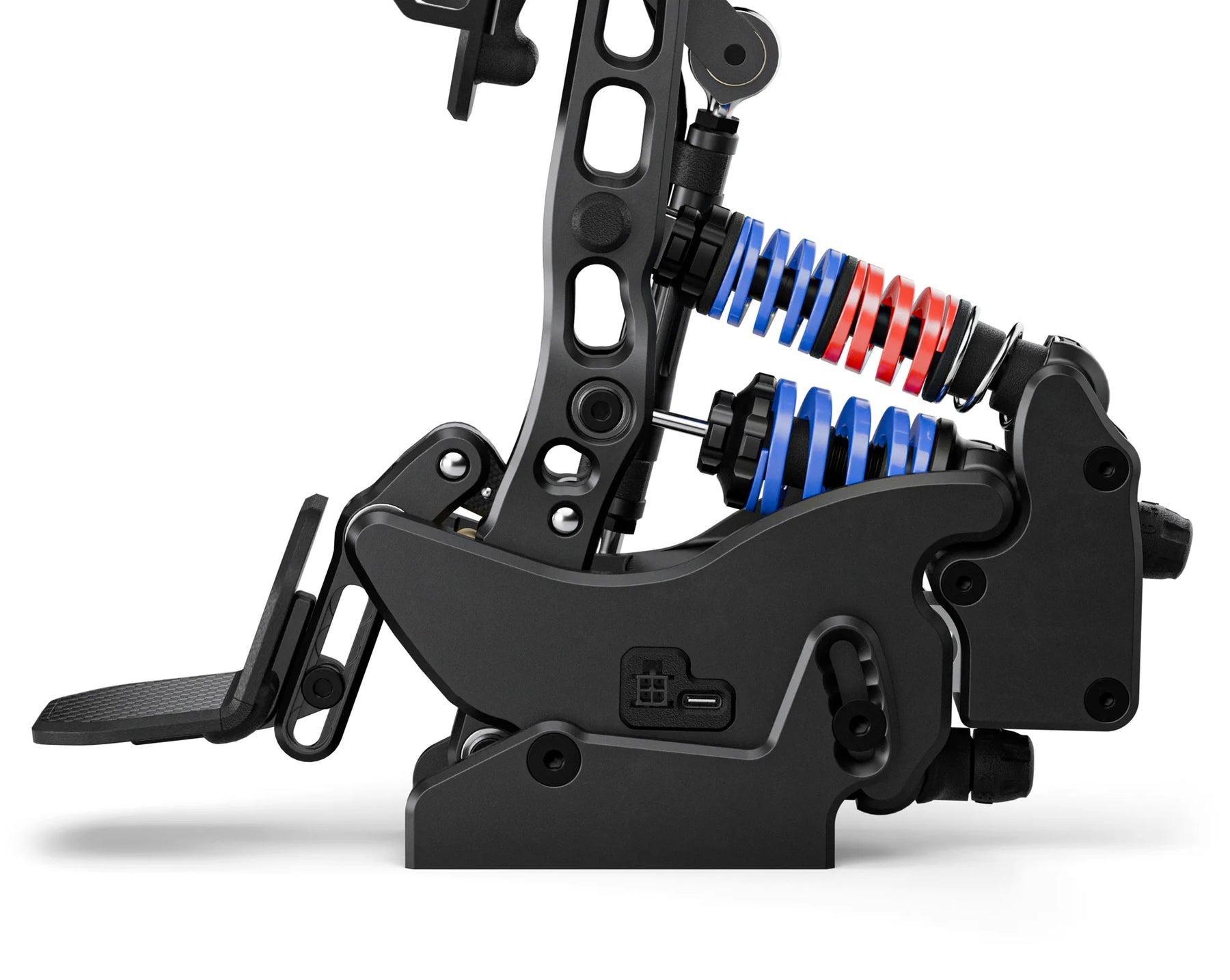

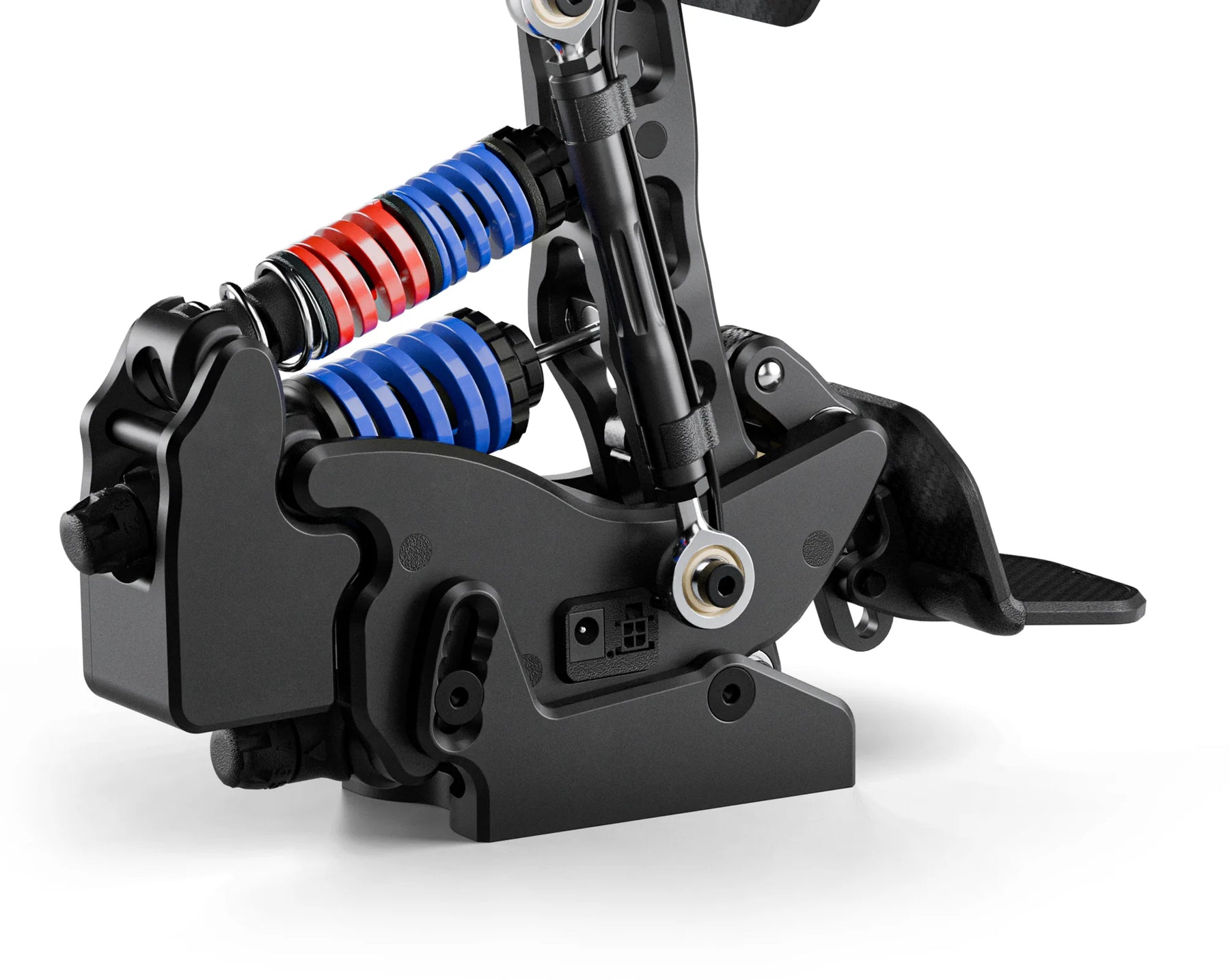

Adjustable hydraulic dampers of the FatBlackCat PurrPRO Formula brake

Active Heel Support of the FatBlackCat PurrPRO Formula pedals

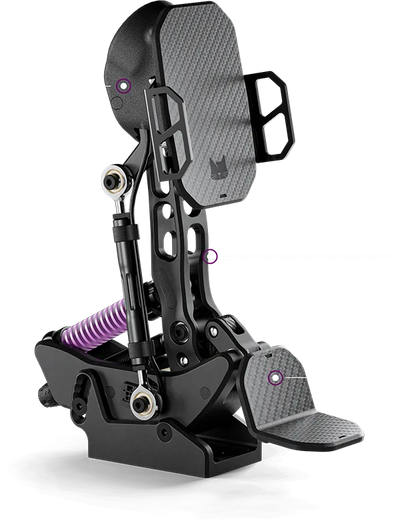

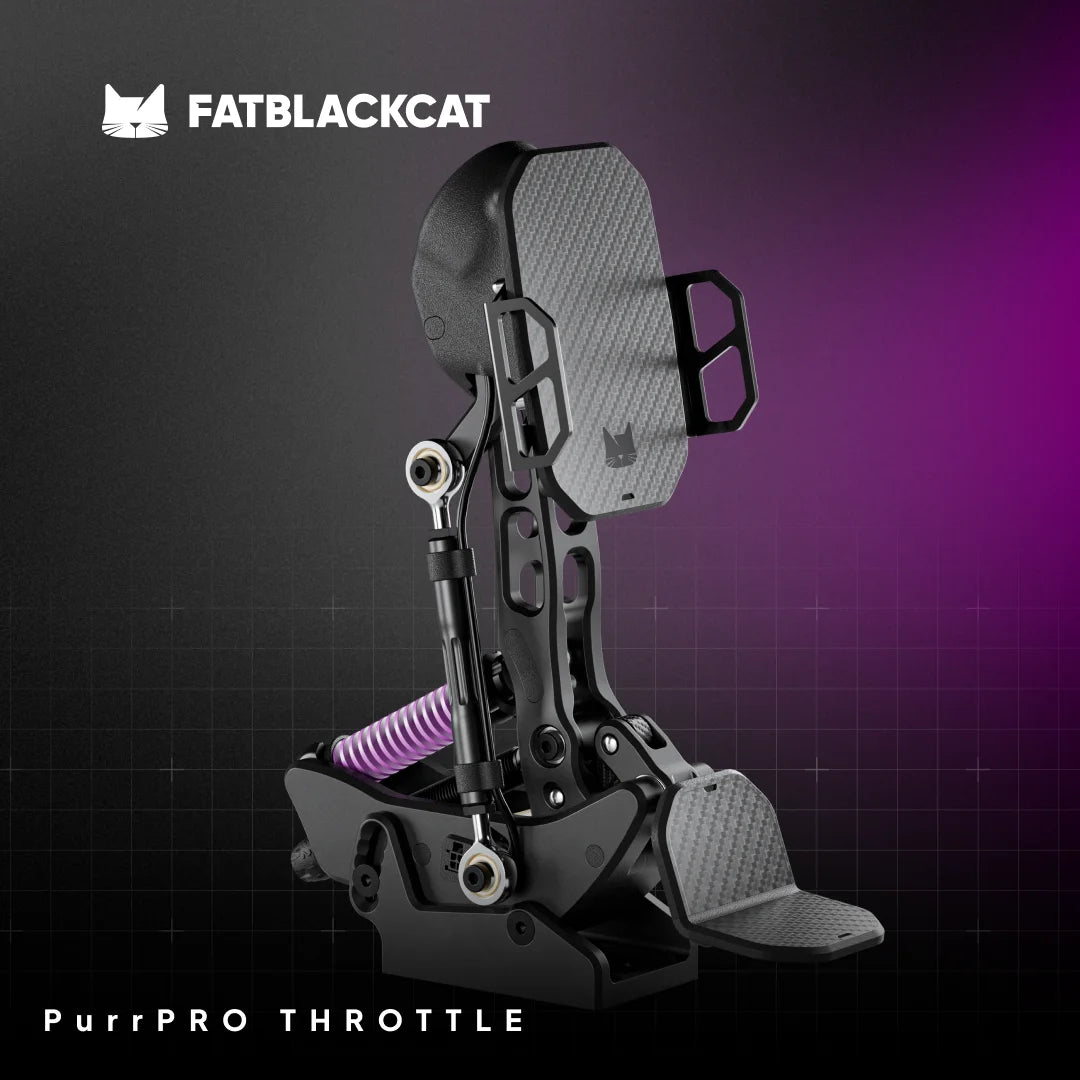

PurrPRO Formula throttle pedal with Hall magnetic sensor

Electronics and sensors of the FatBlackCat PurrPRO Formula pedals

PurrPRO Formula pedals mounted on a sim racing cockpit

USB-C and Molex connectors of the PurrPRO Formula pedals

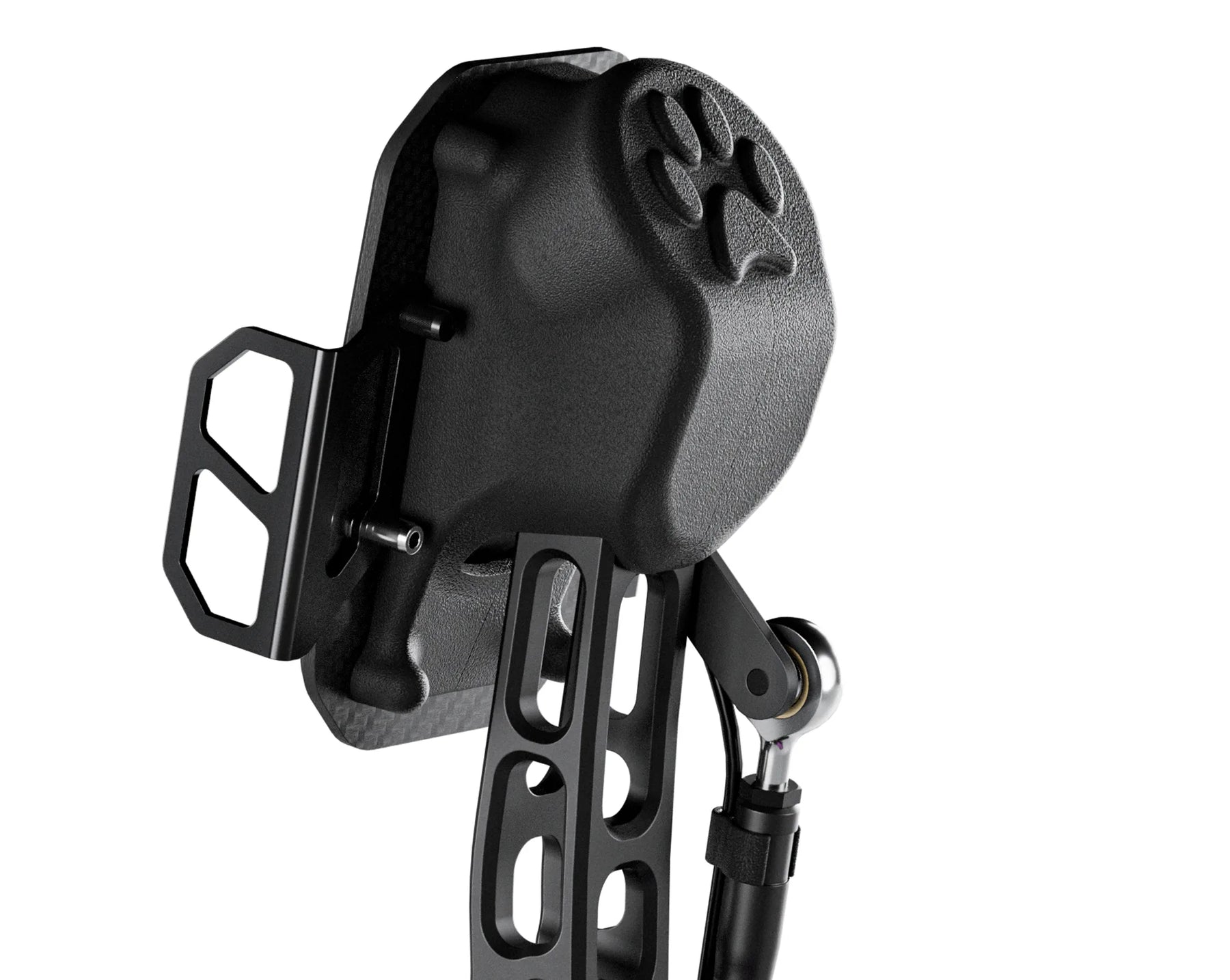

Interchangeable pedal faces and heel plates of the PurrPRO Formula

Please note that pre-order products may arrive later.

Price - 5%

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

ESTIMATED DATE

PRE-ORDER ITEM

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The FatBlackCat PurrPRO Formula are sim racing pedals with a 200 kg load cell brake, twin adjustable hydraulic dampers and PurrForce haptics in each pedal, compatible with Windows PC and designed for drivers who want maximum control under braking.

Designed by an ex-F1 engineer and manufactured in Poland, they pair active pedal kinematics with a 3-stage hybrid brake built around springs and maintenance-free hydraulic damping. Active Heel Support keeps your foot in position through the whole pedal stroke, and everything is configured in the PurrOS software.

FatBlackCat PurrPRO Formula key features

200 kg load cell brake: up to 195 kg of maximum braking force.
3-stage braking: initial free play, pressure modulation and grip threshold control, with quick adjustment via the Magnetic Quick Pin.
Twin hydraulic brake dampers: press and release are tuned separately to refine your trail braking.
Active kinematics: Active Heel Support and Non Tilt Pedal Face for precise control and greater comfort on long stints.
PurrForce haptics: one bass shaker in each pedal and latency under 10 ms with PurrOS.
Adjustable throttle: 91 mm travel limit, contactless Hall sensor, 3 stiffness gradients and a hydraulic damper.
Construction: CNC-machined 6082 aluminium and carbon composite plates, with an overall weight of 4.2 kg.

Technical specifications

Feature	Detail
Platform	Windows PC, with PurrOS software
Main material	CNC-machined 6082 aluminium
Electronics	STM32 microprocessor, 16-bit on all axes
Pedal tilt	18° range on the mounting brackets
Pedal face angle	Adjustable via ErgoLink length
Vertical height	Adjustable via the Active Heel Support
Connectivity	USB-C to USB-A to the PC · Molex to Molex between pedals
Power	2 AC/DC adapters, 15 V 2.4 A
Mounting	U-shape bracket, M6 bolts and washers
Overall weight	4.2 kg
Colour	Black anodised aluminium / carbon fibre
SKU	623-SPPPFP2

Throttle and brake in detail

Specification	Throttle	Brake
Travel limit	91 mm	73.5 mm
Stiffness	3 gradients + preload	Spring combinations + preload
Damping	Adjustable hydraulic	Twin hydraulic: press and release
Sensor	Contactless magnetic Hall	200 kg load cell
Haptics	PurrForce	PurrForce
Size (L×H×W)	244 × 298 × 90 mm	262 × 298 × 90 mm

Compatibility

Compatible with Windows PC through PurrOS and not compatible with consoles. Haptics are controlled with PurrOS 2.0, available as an early alpha for iRacing, or with SimHub: you use one or the other. They mount on cockpits with 8020 aluminium profile or a custom pedal plate.

You can complete the set with the Light throttle spring, the Bespoke Heel Cup, standard or wide footrests and grip tapes.

In the box

PurrPRO Formula throttle and brake pedals
Additional sets of springs and washers
0.5 m Molex to Molex cable and 2 m USB-C to USB-A cable
M6 bolts, T-nuts and washers
2 high-grip pedal faces and 4 ankle faces
Side footrests: two sets for both pedals
2 × 15 V power adapters
User manual via QR code

Frequently asked questions

Which platforms are the PurrPRO Formula compatible with?

Windows PC through the PurrOS software. They are not compatible with consoles.

Why a hybrid system rather than elastomers alone?

Elastomers rely on rubber compression, which degrades over time. This system pairs a 200 kg load cell with adjustable hydraulic damping for precision and a consistent feel.

Do the hydraulic dampers need maintenance?

No. They need no maintenance, bleeding or top-ups.

How do the PurrForce haptics work?

Each pedal has a built-in bass shaker. PurrOS 2.0 controls it in iRacing, currently as an early alpha: ABS and grip loss on the brake, engine vibration and traction control on the throttle. You can also use SimHub, where each pedal appears as its own output and ready-made profiles are available to download.

Will they fit my cockpit?

Yes, if it takes standard 8020 aluminium profile or a custom pedal plate. The M6 hardware is included and the 18° tilt range suits GT or formula positions.

What warranty do they carry?

The manufacturer offers a 3-year warranty on mechanics and electronics. At Simufy you buy them with official warranty and specialised technical support.
