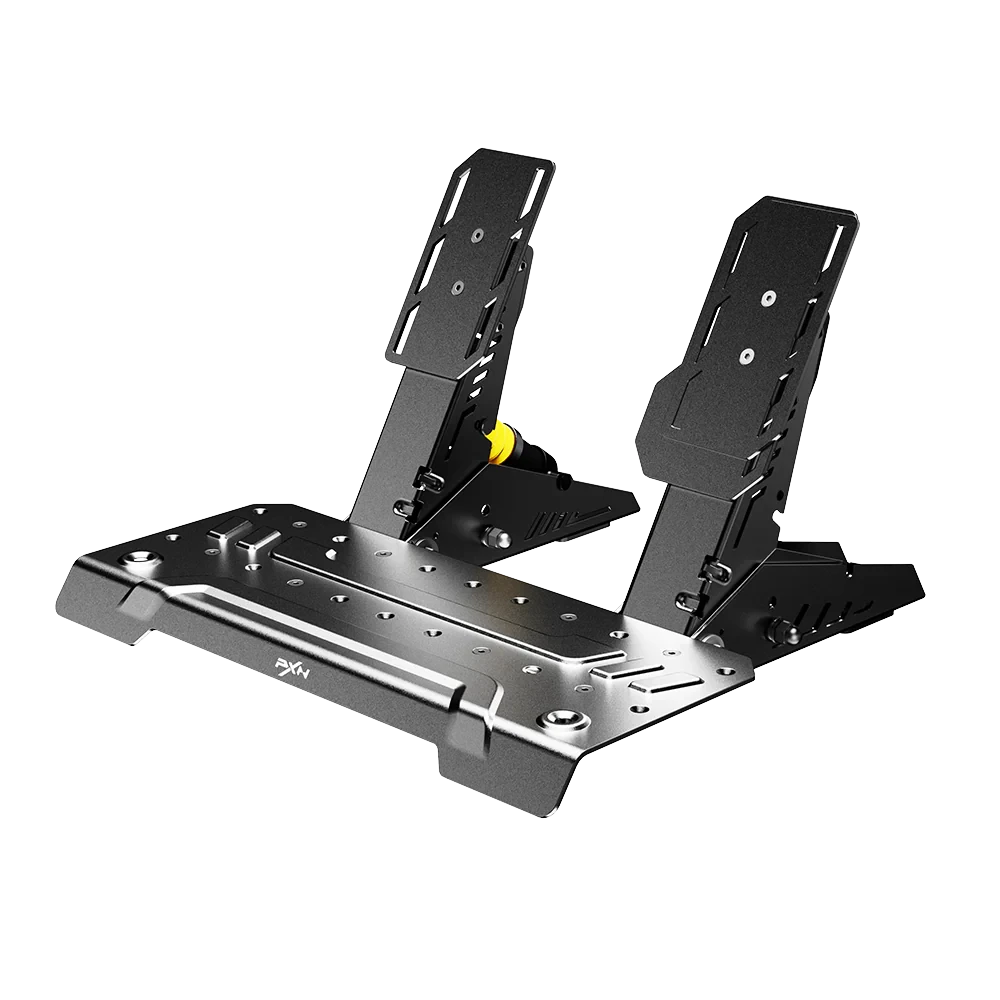

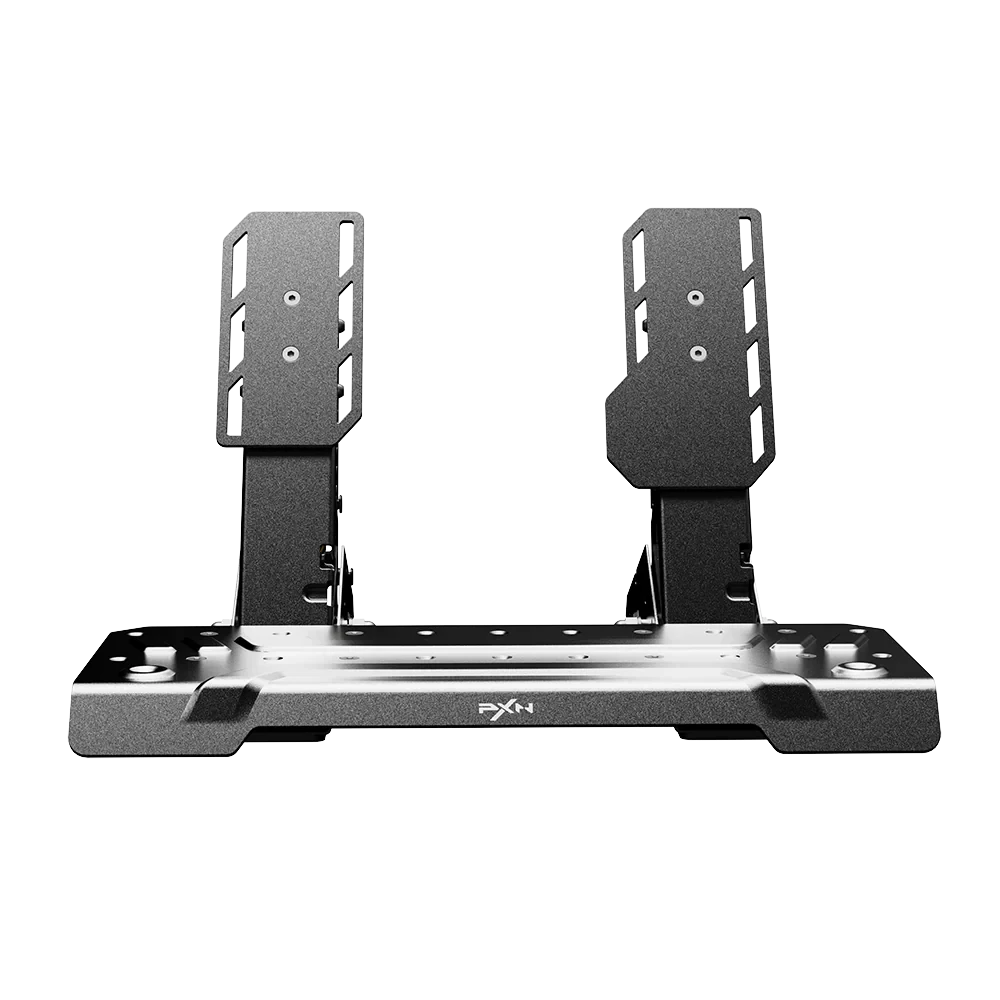

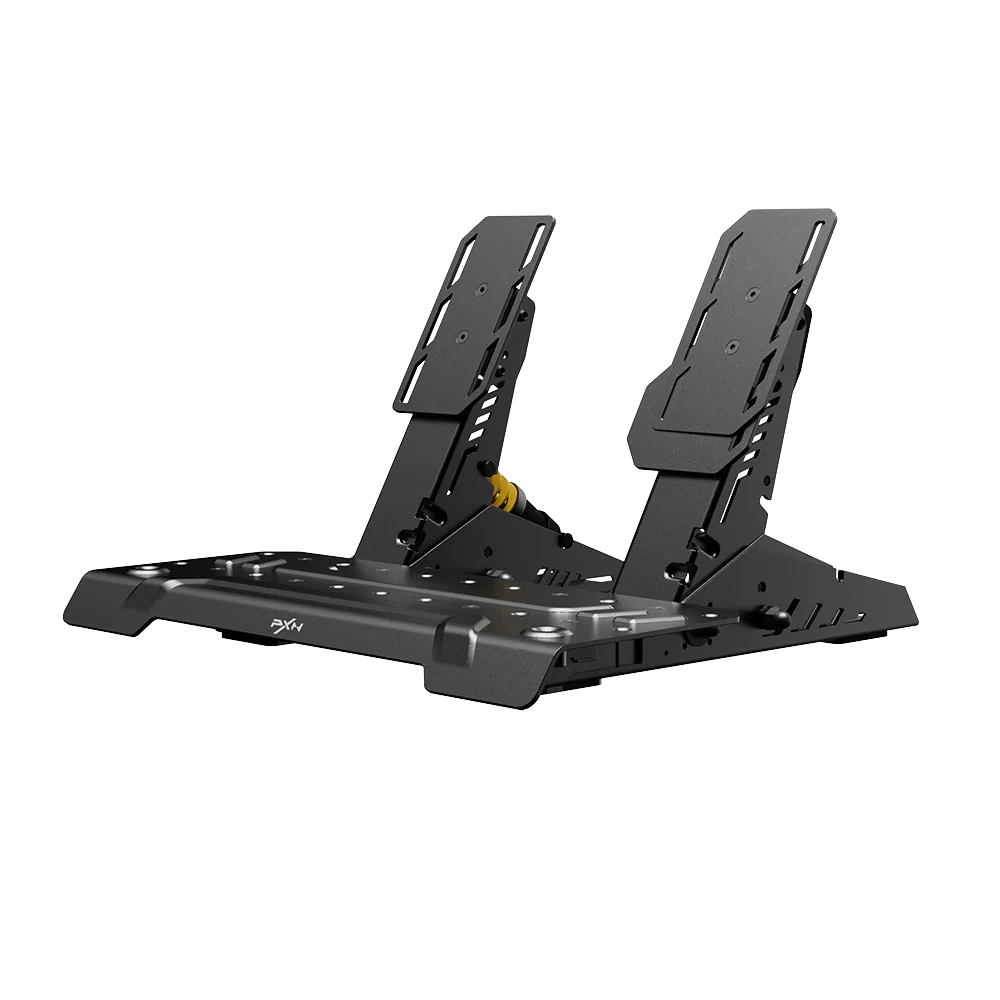

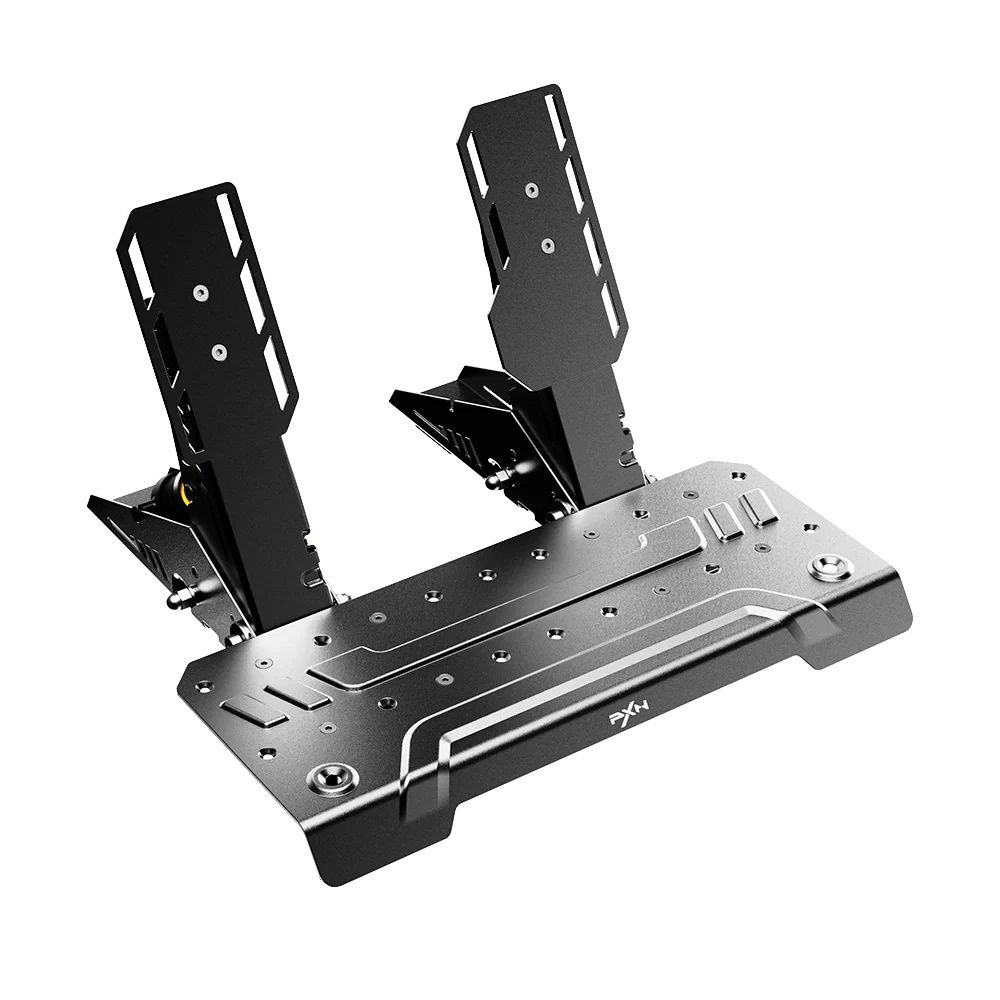

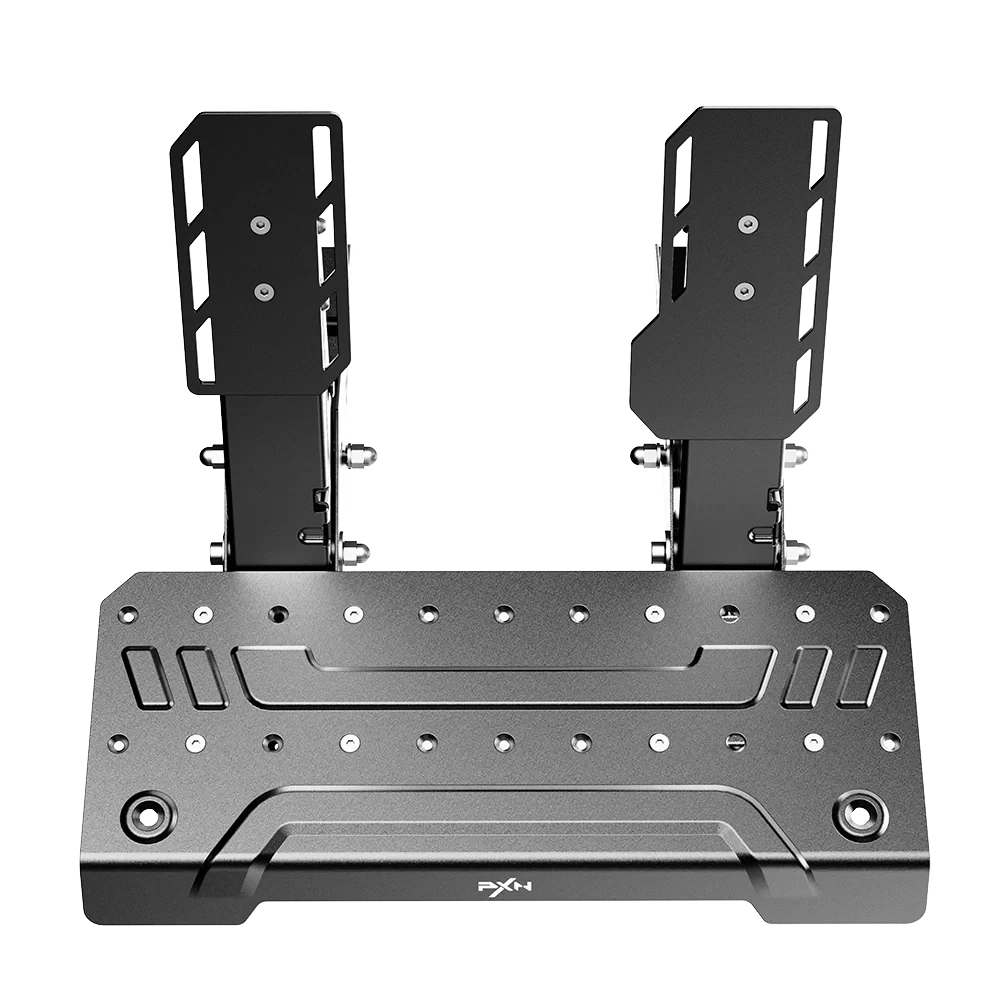

PXN PD HM throttle and brake pedal set with Hall sensors for sim racing

Metal brake pedal of the PXN PD HM pedal set

Throttle pedal of the PXN PD HM pedal set

Hall-effect sensors of the PXN PD HM pedals

Angle and height adjustment of the PXN PD HM pedal set

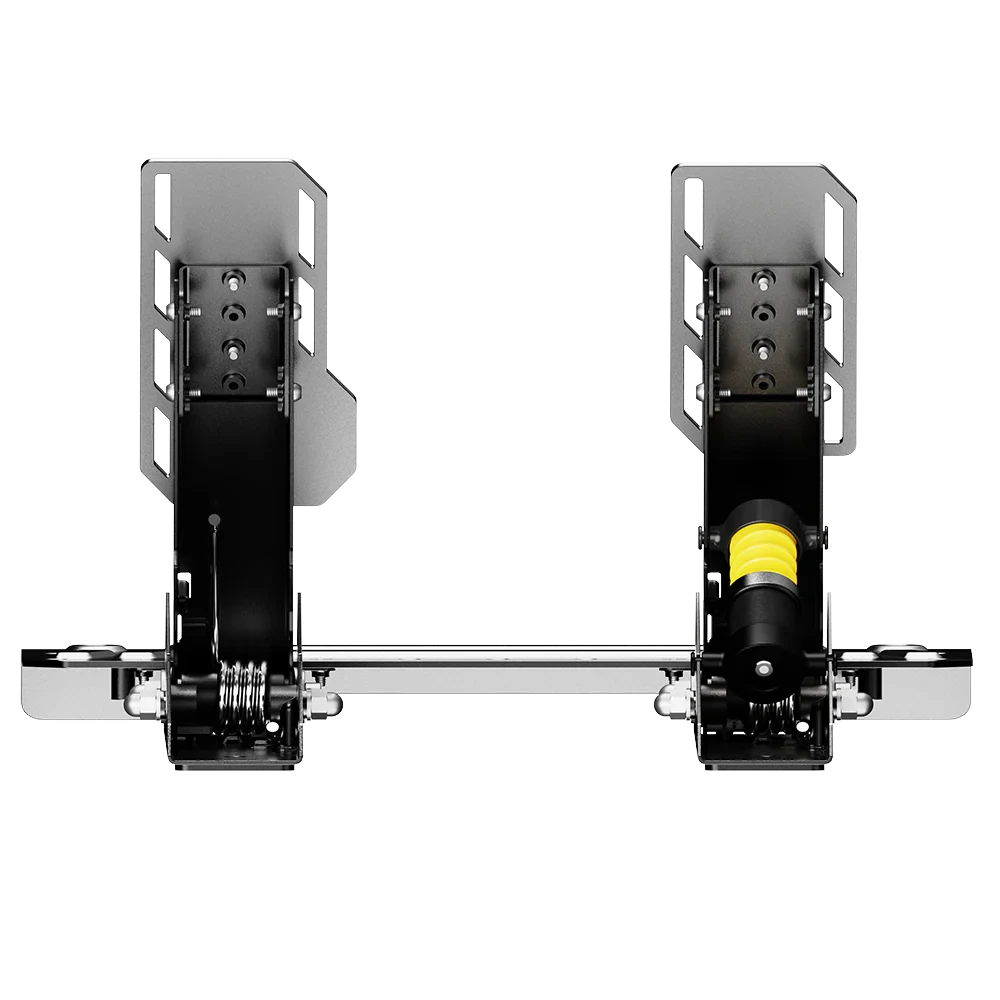

Spring and damper kit of the PXN PD HM brake

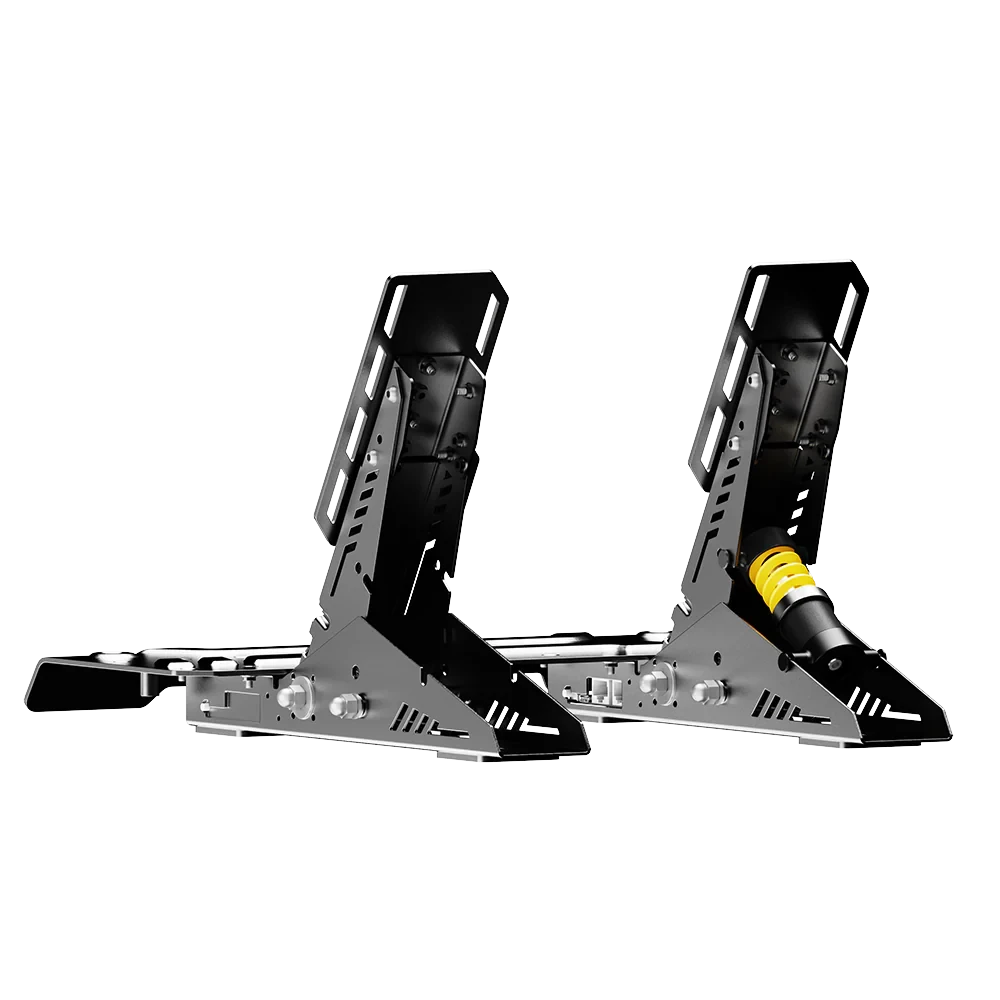

Steel and aluminium structure of the PXN PD HM pedal set

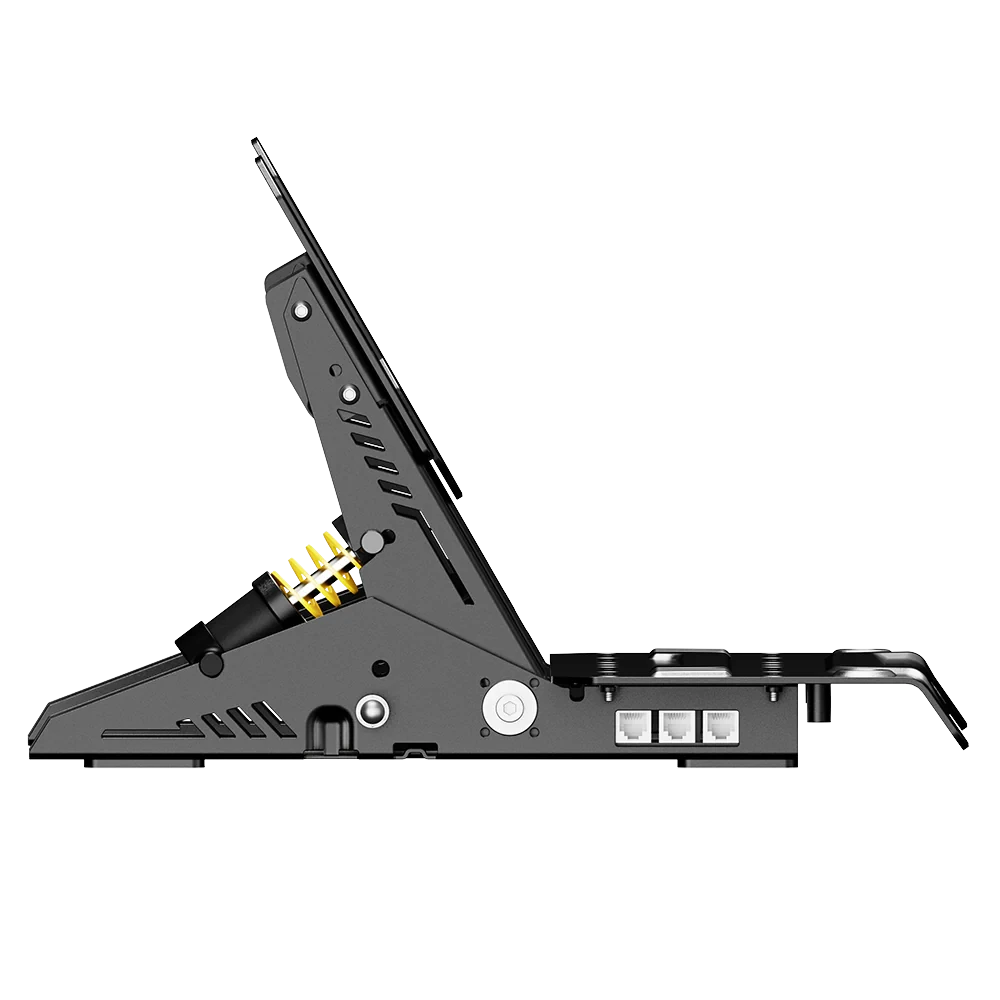

USB-A, USB-C and RJ11 connections of the PXN PD HM pedal set

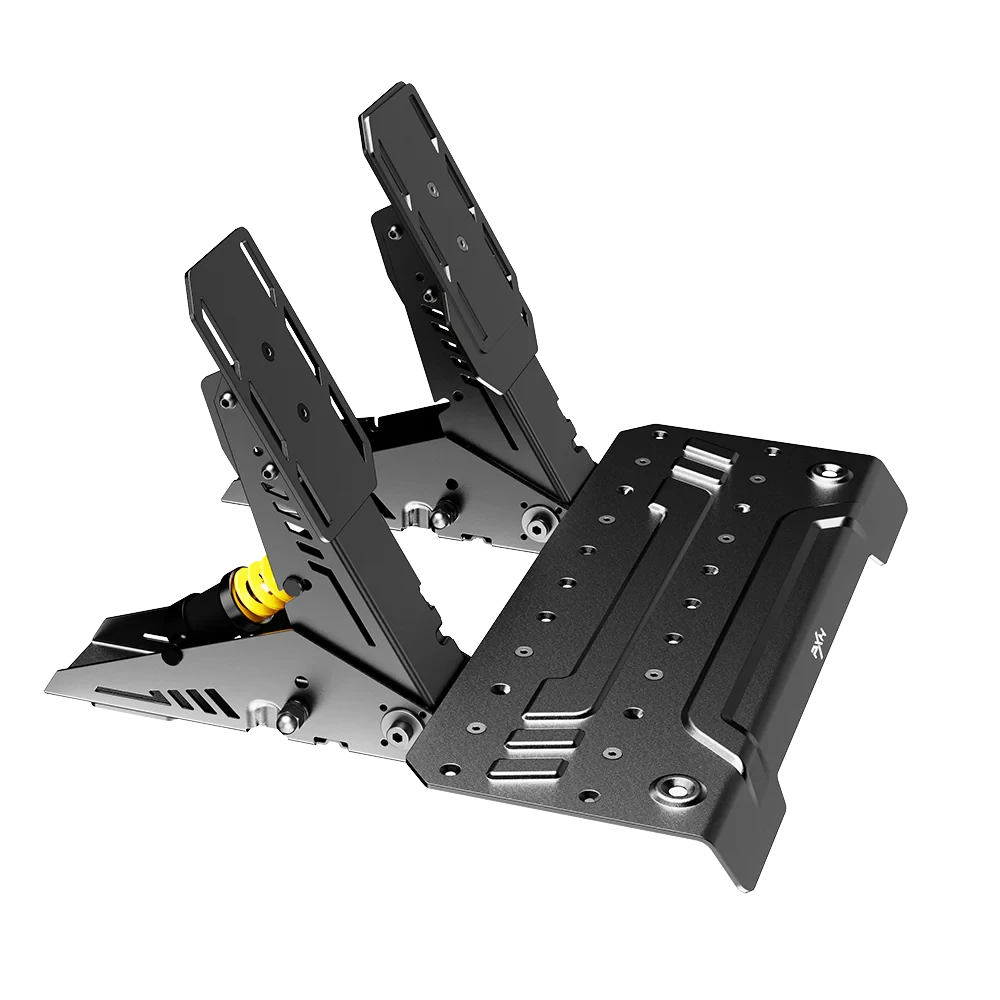

Non-slip base of the PXN PD HM pedal set

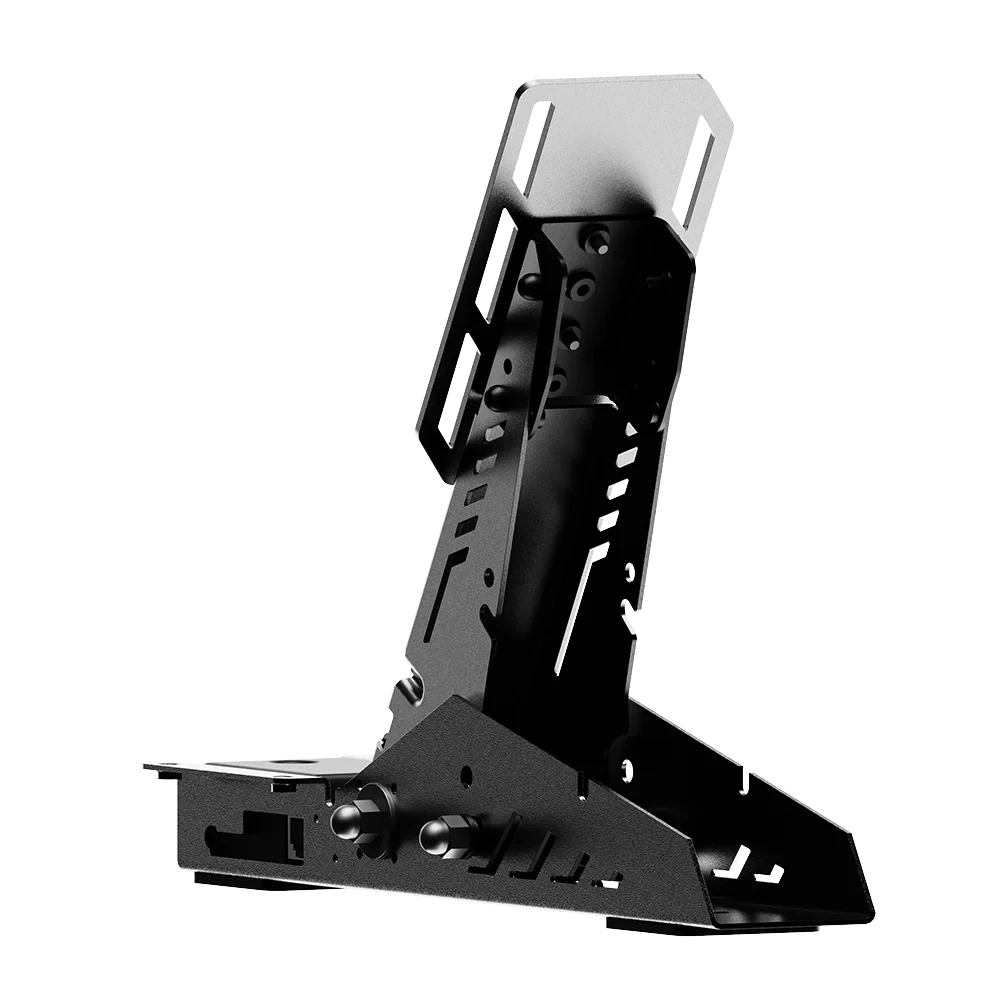

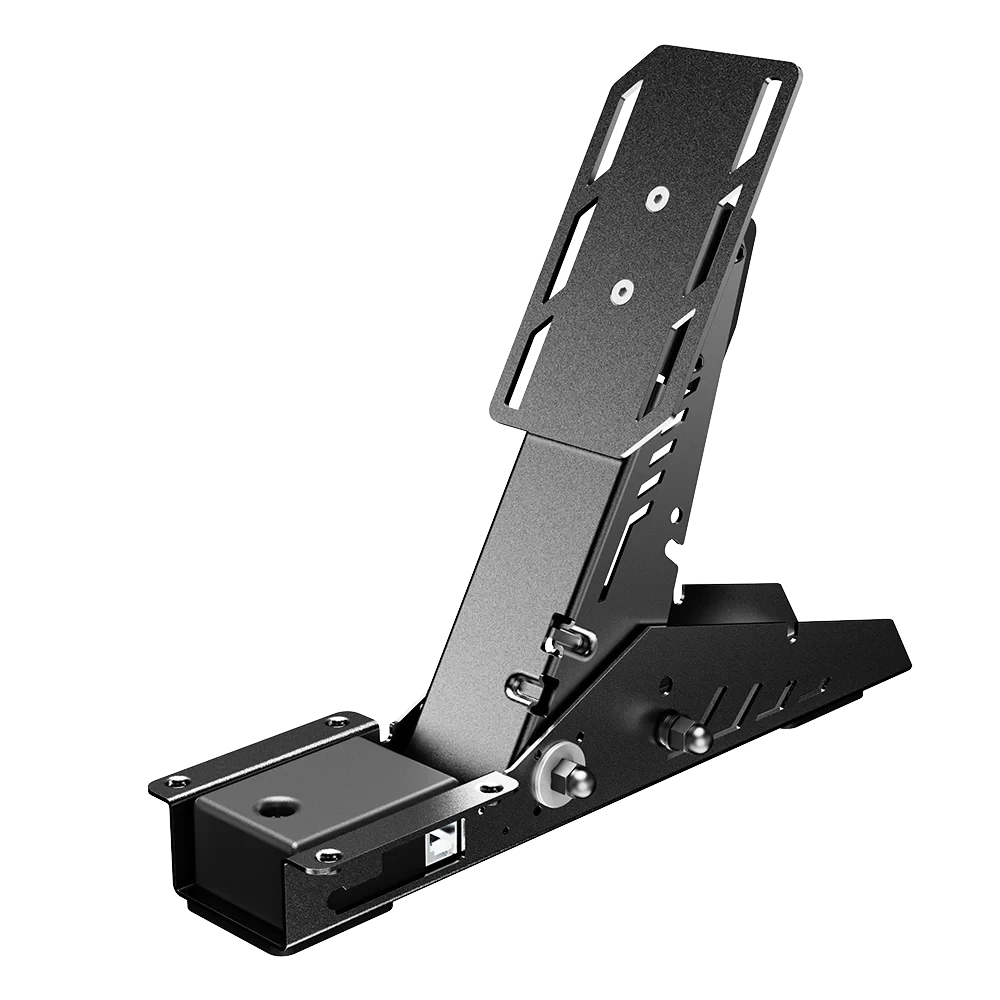

Clutch pedal of the PXN PD HM 3-pedal set

Close-up of the Hall clutch pedal of the PXN PD HM

Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.

Price

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

FECHA ESTIMADA

ARTÍCULO EN PRE-ORDER

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":53702155010381,"title":"2-pedal set – Throttle + Brake","option1":"2-pedal set – Throttle + Brake","option2":null,"option3":null,"sku":"PXN-PD-HM","requires_shipping":true,"taxable":true,"featured_image":{"id":85626411516237,"product_id":10617322176845,"position":1,"created_at":"2026-04-12T16:18:25+02:00","updated_at":"2026-04-12T16:19:22+02:00","alt":"PXN PD HM throttle and brake pedal set with Hall sensors for sim racing","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedales-PXN-PD-HM-Simufy_10.webp?v=1776003562","variant_ids":[53702155010381]},"available":true,"name":"PXN PD HM – Metal Hall Sim Racing Pedals - 2-pedal set – Throttle + Brake","public_title":"2-pedal set – Throttle + Brake","options":["2-pedal set – Throttle + Brake"],"price":8999,"weight":4570,"compare_at_price":null,"inventory_management":"shopify","barcode":"6948052904089","featured_media":{"alt":"PXN PD HM throttle and brake pedal set with Hall sensors for sim racing","id":61645507854669,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedales-PXN-PD-HM-Simufy_10.webp?v=1776003562"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53702155043149,"title":"3-pedal set – Throttle + Brake + Clutch","option1":"3-pedal set – Throttle + Brake + Clutch","option2":null,"option3":null,"sku":"PXN-PD-HM+PXN-PD-HM-C","requires_shipping":true,"taxable":true,"featured_image":{"id":85626302923085,"product_id":10617322176845,"position":12,"created_at":"2026-04-12T16:15:44+02:00","updated_at":"2026-04-12T16:19:22+02:00","alt":"Close-up of the Hall clutch pedal of the PXN PD HM","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedal-Embrague-PXN-PD-HM-Simufy_4_7cb1a1cb-35f3-4da7-847f-872153a97805.webp?v=1776003562","variant_ids":[53702155043149]},"available":true,"name":"PXN PD HM – Metal Hall Sim Racing Pedals - 3-pedal set – Throttle + Brake + Clutch","public_title":"3-pedal set – Throttle + Brake + Clutch","options":["3-pedal set – Throttle + Brake + Clutch"],"price":12499,"weight":6420,"compare_at_price":13998,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Close-up of the Hall clutch pedal of the PXN PD HM","id":61645496910157,"position":12,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/Pedal-Embrague-PXN-PD-HM-Simufy_4_7cb1a1cb-35f3-4da7-847f-872153a97805.webp?v=1776003562"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The PXN PD HM is a metal sim racing pedal set with non-contact Hall-effect sensors and a brake adjustable up to 20 kg, compatible with PC, available as a two-pedal set (throttle and brake) or a three-pedal set (with clutch).

The whole structure is carbon steel and aluminium, with an anti-slip base and a multi-hole design that lets you adjust the angle, height and spacing of each pedal. The magnetic sensors have no physical contact, so they don't wear or drift over time, and the response curves are fine-tuned from the PXN SimRacing software. They connect directly to a PC or to a PXN base, and also work with direct drive wheelbases from other brands over USB.

Key features of the PXN PD HM

Non-contact Hall-effect sensors on throttle and brake (and clutch in the 3-pedal set), with no wear or signal drift.
Factory resistance of around 8 kg on the throttle and around 10 kg on the brake, extendable up to 20 kg with the spring and damper kit.
Fully metal construction in carbon steel and aluminium, with an anti-slip base.
Multi-hole plate with adjustable pedal angle, height and spacing.
Triple connectivity: USB-A to a PC, USB-C to PXN VD-series bases and RJ11 to the V10, V99 and V12 bases.
Response-curve tuning from the PXN SimRacing software.
Expandable: the 2-pedal set can take the PD HM clutch pedal.

Technical specifications

Specification	2-pedal set (Throttle + Brake)	3-pedal set (+ Clutch)
Pedals included	2	3
Sensors	Non-contact Hall effect	Non-contact Hall effect
Throttle resistance	~8 kg	~8 kg
Brake resistance	~10 kg (up to 20 kg with damper kit)	~10 kg (up to 20 kg with damper kit)
Clutch resistance	—	~8 kg
Construction	Carbon steel and aluminium	Carbon steel and aluminium
Adjustments	Angle, height and spacing	Angle, height and spacing
Connection	USB-A, USB-C and RJ11	USB-A, USB-C and RJ11
Software	PXN SimRacing (pedal curves)	PXN SimRacing (pedal curves)
Platform	PC (Windows)	PC (Windows)
Approx. weight	~3.9 kg	~3.9 kg
Warranty	3-year legal warranty in Spain and Portugal	3-year legal warranty in Spain and Portugal

Which version should you choose?

The 2-pedal set suits anyone who drives with paddles or a sequential gearbox, which covers most modern GT cars and single-seaters. The 3-pedal set adds the Hall clutch pedal, ideal if you drive classics, rally or H-pattern cars, or make standing starts regularly. The clutch can also be bought separately later to expand the 2-pedal set.

Compatibility

PC running Windows over USB-A, also as a standalone device alongside wheels from other brands.
PXN VD-series bases (VD4, VD6 and VD10) via the USB-C cable.
PXN V10 Pro/Ultra, V99, V12 and V12 Lite bases via the RJ11 cable.
Not compatible with PlayStation or Xbox consoles.
Anti-slip base; for maximum stability we recommend bolting them to a cockpit (mounting brackets sold separately).

Frequently asked questions about the PXN PD HM

What's the difference between the 2-pedal and 3-pedal set?

The 2-pedal set includes throttle and brake. The 3-pedal set adds the clutch pedal, also with a Hall-effect sensor. The rest of the construction, adjustments and connections is identical.

How much resistance does the brake have?

Around 10 kg from the factory, and the throttle around 8 kg. The brake can be stiffened up to 20 kg by fitting the included spring and damper kit.

Are they compatible with PS5 or Xbox?

No. The PXN PD HM are pedals for PC running Windows and do not work with PlayStation or Xbox consoles.

Which bases do they work with?

With a PC over USB-A (also alongside wheels from other brands), with PXN VD-series bases over USB-C and with the PXN V10, V99 and V12 bases over RJ11.

Can the pedals be adjusted?

Yes. The multi-hole plate lets you adjust the angle, height and spacing of each pedal, and the response curves are set from the PXN SimRacing software.

Can the clutch be added later?

Yes. If you choose the 2-pedal set, the PD HM clutch pedal is sold separately and attaches afterwards to complete a three-pedal set.
