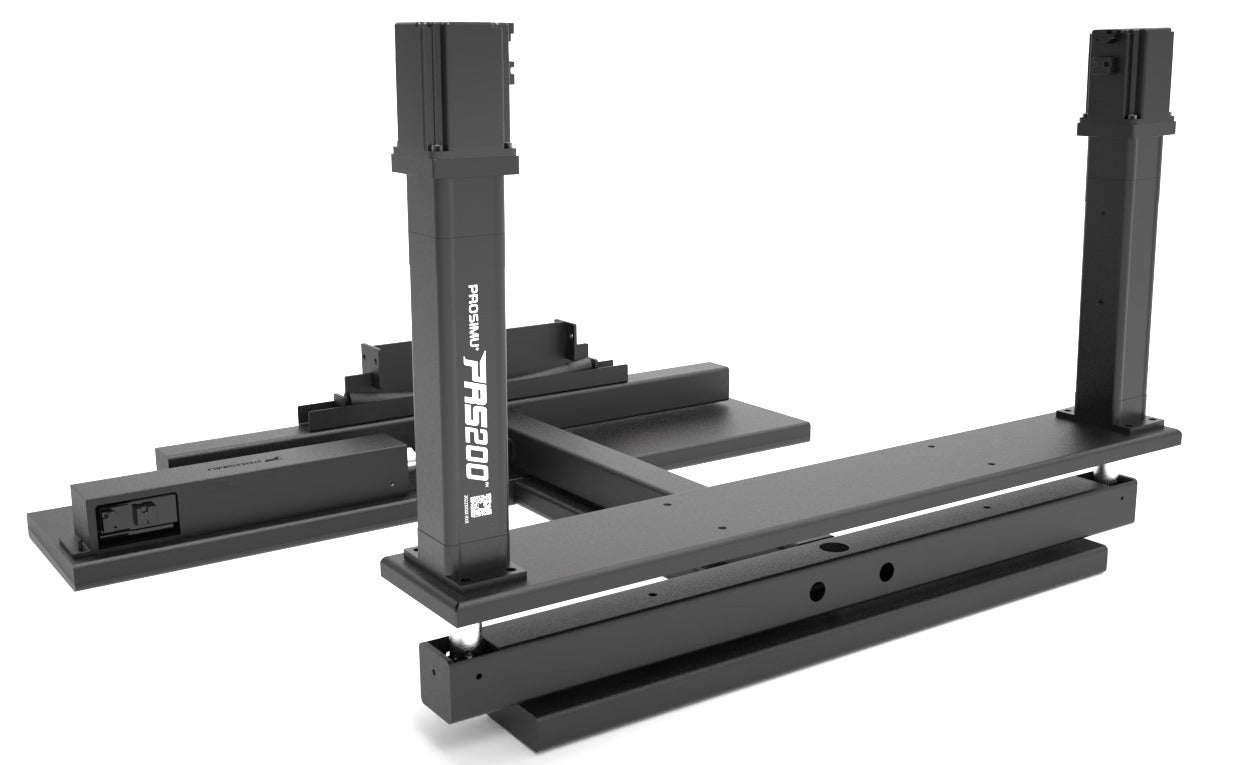

PRS200 actuators of the ProSimu P3MP Silent platform
Rear traction loss actuator of the ProSimu P3MP
Side view of the ProSimu P3MP Silent platform

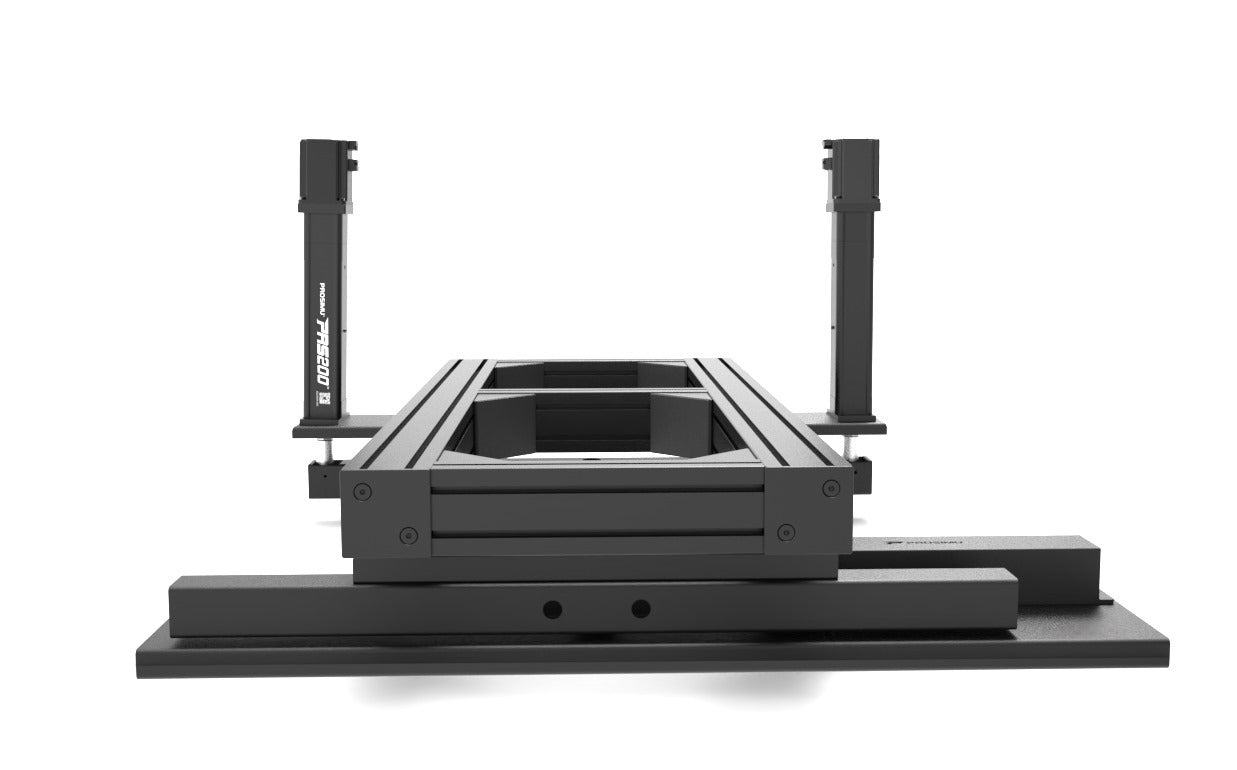

Low profile of the ProSimu P3MP motion platform
Shielded wiring of the ProSimu P3MP Silent

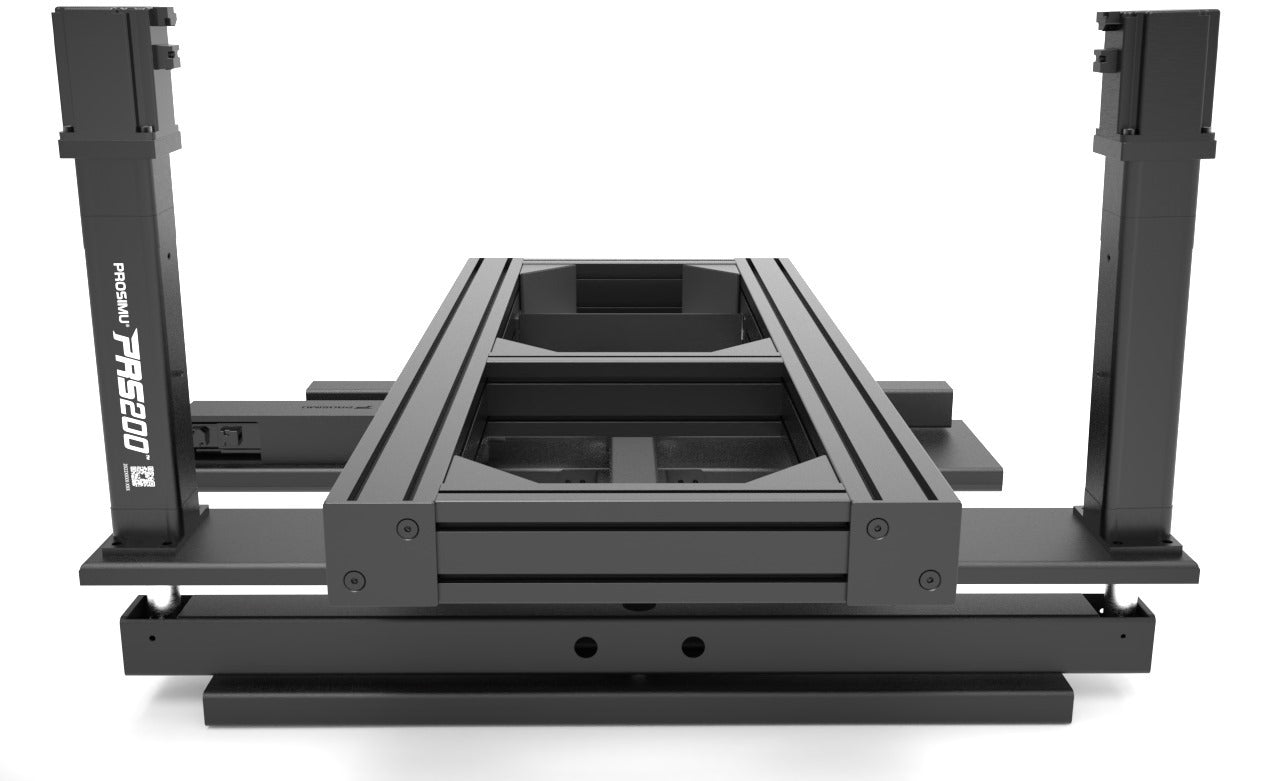

Modular structure of the ProSimu P3MP platform
ProSimu P3MP Silent with aluminium chassis
Mounting detail of the ProSimu P3MP platform
Complete ProSimu P3MP Silent motion platform
ProSimu P3MP Silent, 3-actuator motion platform with traction loss
Silent ProSimu P3MP motion platform with a cockpit fitted
PRS200 actuators of the ProSimu P3MP Silent platform
Rear traction loss actuator of the ProSimu P3MP
Side view of the ProSimu P3MP Silent platform
Low profile of the ProSimu P3MP motion platform
Shielded wiring of the ProSimu P3MP Silent
Modular structure of the ProSimu P3MP platform
ProSimu P3MP Silent with aluminium chassis
Mounting detail of the ProSimu P3MP platform
Complete ProSimu P3MP Silent motion platform

ProSimu P3MP Silent – Motion Platform

Brand: Prosimu
Please note that pre-order products may arrive later.
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The ProSimu P3MP Silent is a 3-actuator motion platform with rear traction loss (oversteer), compatible with PC, designed for simracers who want maximum immersion with quiet operation and easy integration into existing cockpits.

The Silent version cuts noise thanks to a new mechanical design and shielded, anti-interference (EMI) wiring. Its 750 W servo actuators reach 280 mm/s and 2G with 44 movements per second, managed by automotive-grade CAN Bus communication, and the rear actuator reproduces oversteer with a precision that a direct drive wheel or a conventional 4DOF system cannot. You can mount your cockpit directly on top of it to enjoy a motion racing simulator without redesigning your rig.

Key features

  • 3 actuators with rear traction loss; choice of configuration: 2× PRS200 + 1× rear PRS50, or 3× PRS50.
  • 750 W servomotors with selectable travel of 100, 150 or 200 mm.
  • Speed up to 280 mm/s and acceleration up to 2G.
  • 44 movements per second, with no perceptible latency.
  • Quiet design with shielded anti-interference (EMI) wiring.
  • Supported load up to 350 kg and modular integration (sliding seat and different chassis).
  • Automotive-grade CAN Bus communication and compatibility with over 100 games through SimTools.

Technical specifications

FeatureDetail
Actuators3 (config. 2× PRS200 + 1× rear PRS50, or 3× PRS50), 750 W servo (100 / 150 / 200 mm travel)
Traction lossYes (rear oversteer)
Maximum speed280 mm/s
Maximum acceleration2G
Movement frequency44 movements/s
Supported loadUp to 350 kg
Weight120 kg

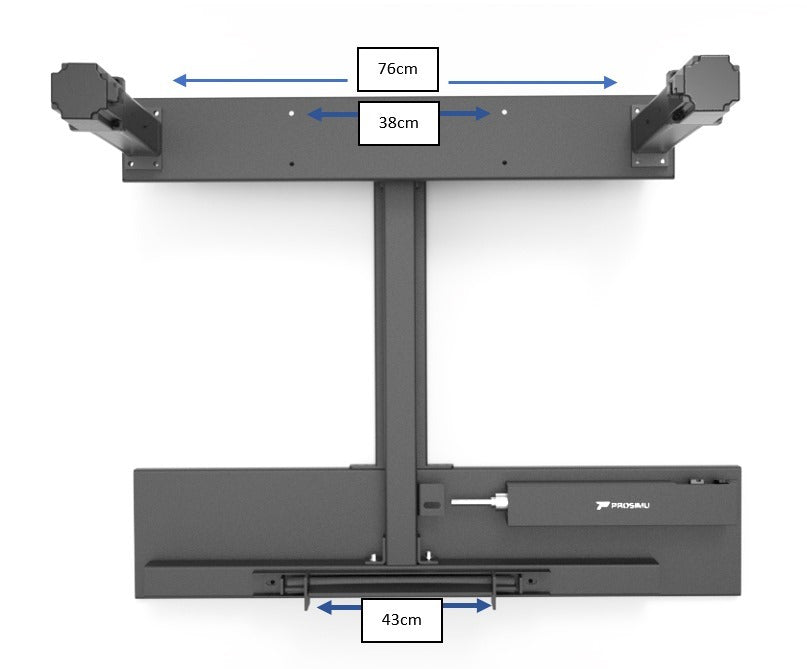

Dimensions154 × 110 × 34 cm (225 cm with extensions)
CommunicationAutomotive-grade CAN Bus, shielded (EMI) wiring
Power supply220–240 V
Control softwareSimTools with ProSimu optimisation
Warranty2 years
ManufacturingFrance

Compatibility

The P3MP Silent is controlled from a PC (Windows) through SimTools software optimised by ProSimu and works with over 100 car, truck and even flight simulators depending on the actuator travel. Motion is managed from the PC, so it does not connect directly to consoles. You can mount your current cockpit directly on the platform.

Frequently asked questions

Why is the P3MP called Silent?

Because its optimised mechanical design and shielded anti-interference (EMI) wiring noticeably reduce the noise level during operation.

How does it simulate traction loss?

The rear actuator reproduces oversteer (rear loss of grip and lateral slide) with a precision that direct drive wheels and conventional 4DOF systems do not offer.

Which actuator configuration can I choose?

You can choose between 2 PRS200 (100 or 150 mm) with 1 rear 100 mm PRS50, or 3 100 mm PRS50, depending on the level of immersion you want.

Does it integrate into my current cockpit?

Yes. You can mount your cockpit directly on the platform without redesigning the rig; it accepts a sliding seat and different chassis.

Is it compatible with consoles?

It works with PC (Windows) through SimTools and over 100 simulators. Motion is controlled from the PC, so it does not connect directly to consoles.

How much does it weigh and how much can it support?

The platform weighs 120 kg and takes a load of up to 350 kg with no loss of performance.
