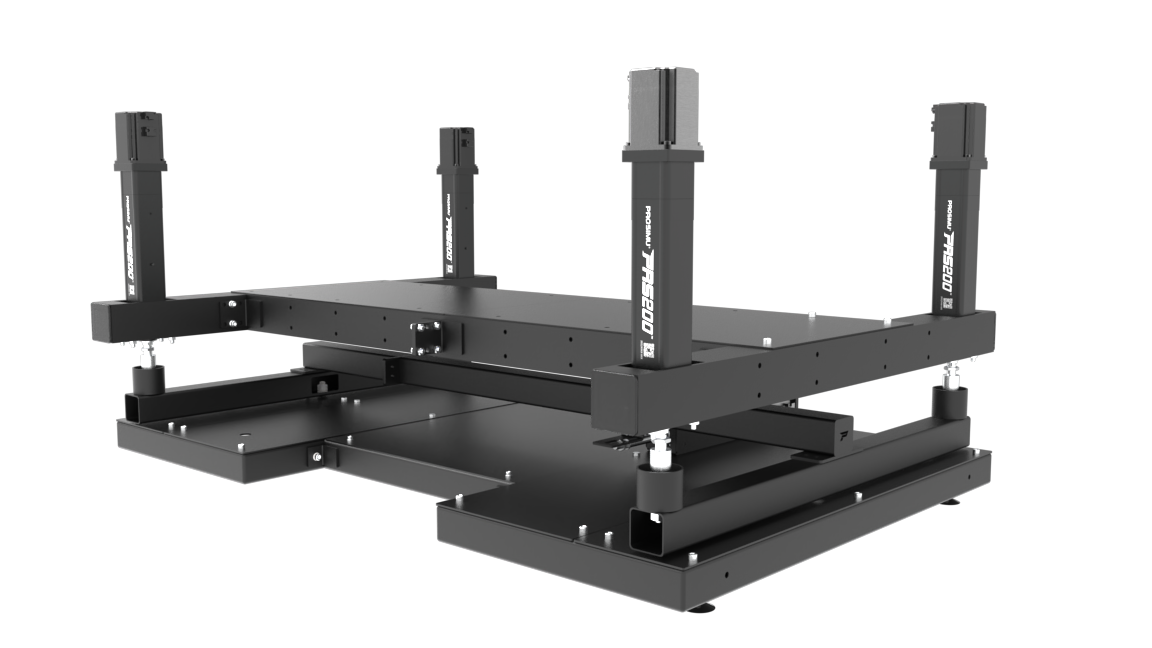

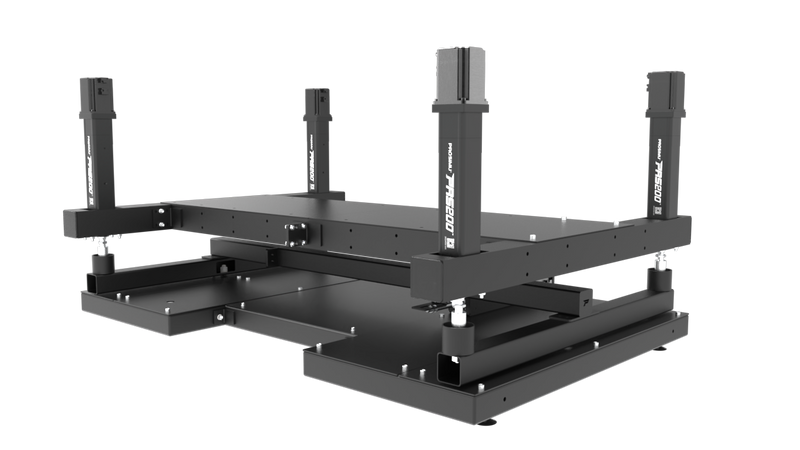

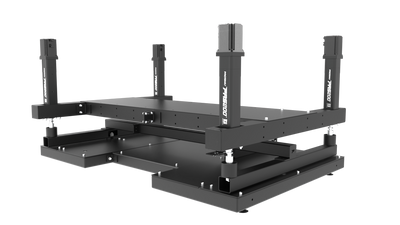

ProSimu P5MP, 5-actuator motion platform with rear traction loss
ProSimu P5MP motion platform integrated into a cockpit
PRS200 and PRS50 actuators of the ProSimu P5MP platform

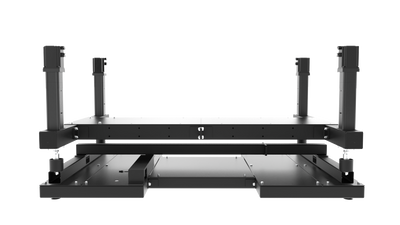

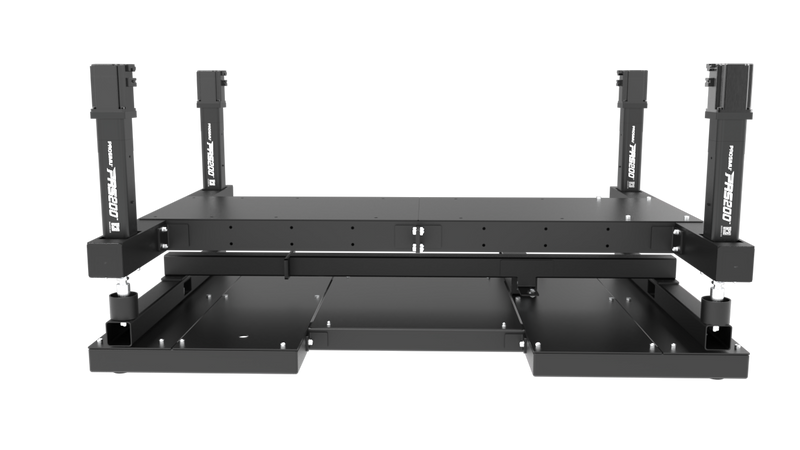

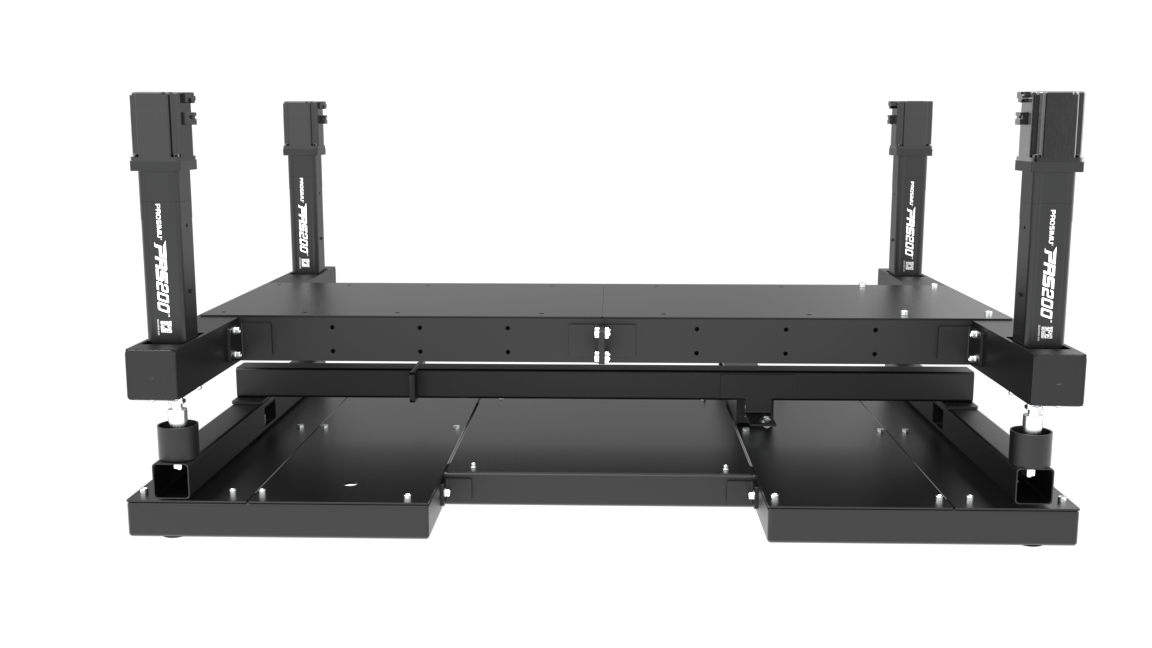

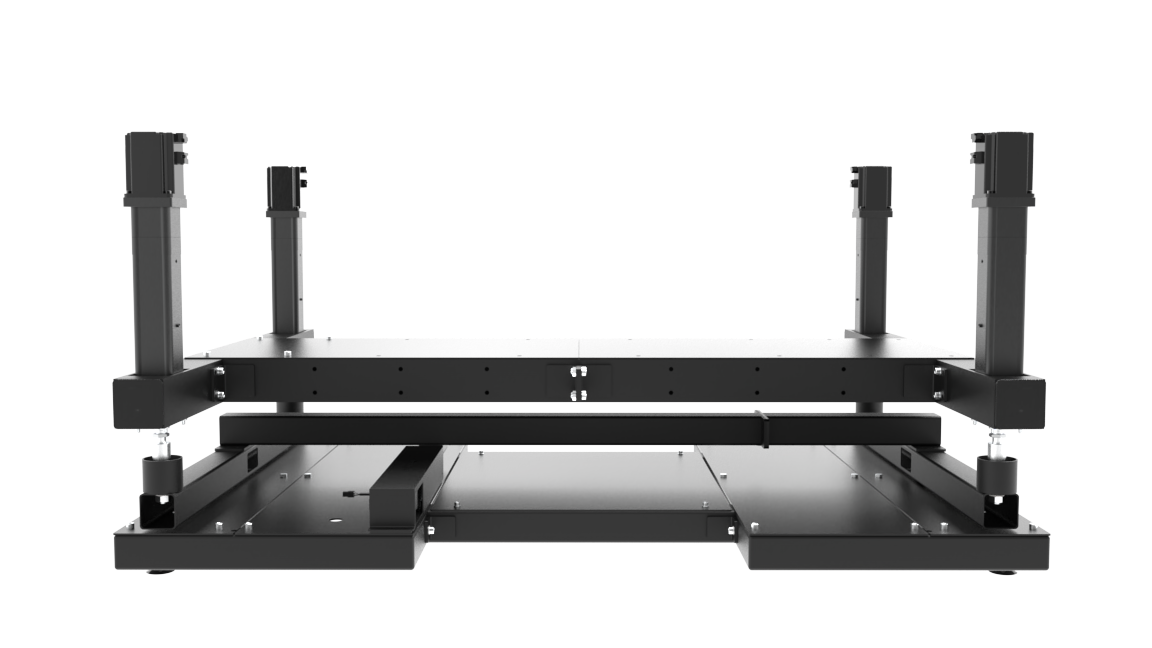

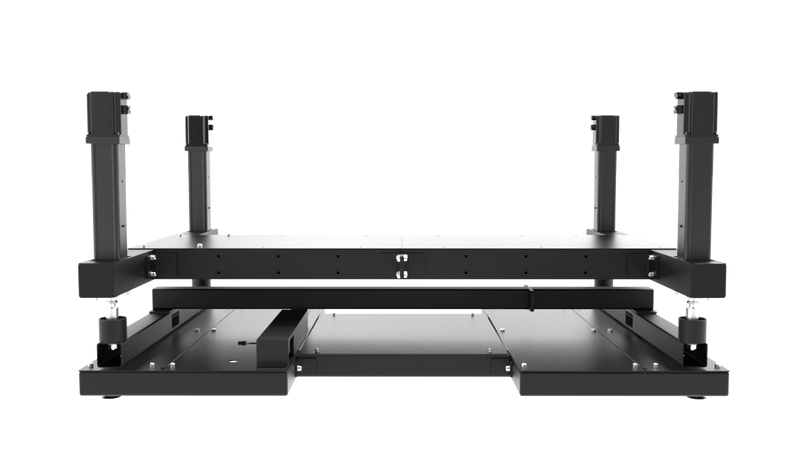

Side view of the ProSimu P5MP platform
Detail of the rear PRS50 actuator of the ProSimu P5MP
ProSimu P5MP, 5-actuator motion platform with rear traction loss
ProSimu P5MP motion platform integrated into a cockpit
PRS200 and PRS50 actuators of the ProSimu P5MP platform
Side view of the ProSimu P5MP platform
Detail of the rear PRS50 actuator of the ProSimu P5MP

ProSimu P5MP 5 Actuators – Motion Platform

Brand: Prosimu
Please note that pre-order products may arrive later.
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
Pago 100% seguro

Pago 100% seguro

3 años de garantía

3 años de garantía

Envíos en 24/48 horas

Envío 24/48 horas (Península)*

Atención personalizada

Atención personalizada

100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

Pago 100% seguro

Pagamento 100% seguro

3 años de garantía

Garantia de 3 anos

Entrega em 24/48 horas

Entrega em 24/48 horas (Península)*

Atención personalizada

Atenção personalizada

100 % sichere Zahlung

100 % sichere Zahlung

3 Jahre Garantie

3 Jahre Garantie

Versand innerhalb von 24/48 Stunden

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The ProSimu P5MP is a high-performance 5-actuator motion platform (4 PRS200 plus a rear PRS50 for traction loss), compatible with PC, designed for simracers who demand the highest realism and easy to integrate into existing cockpits.

The four 750 W PRS200 servo actuators generate the tilt, roll and weight transfer, while the rear PRS50 adds oversteer (rear traction loss). The system reaches 280 mm/s and 2G with 44 movements per second, managed by automotive-grade CAN Bus communication. It is the platform on which you build a professional racing simulator without redesigning your rig.

Key features

  • 5 actuators: 4× PRS200 Black Series plus 1× rear PRS50 for traction loss.
  • 750 W servomotors with selectable travel of 100, 150 or 200 mm.
  • Speed up to 280 mm/s and acceleration up to 2G.
  • 44 movements per second, with no perceptible latency.
  • Dump valve that improves performance and reduces power consumption.
  • Supported load up to 350 kg and quiet operation.
  • Automotive-grade CAN Bus communication and compatibility with over 100 games through SimTools.

Technical specifications

FeatureDetail
Actuators5 (4× PRS200 Black Series + 1× rear PRS50), 750 W servo (100 / 150 / 200 mm travel)
Maximum speed280 mm/s
Maximum acceleration2G
Movement frequency44 movements/s
Supported loadUp to 350 kg
Weight200 kg

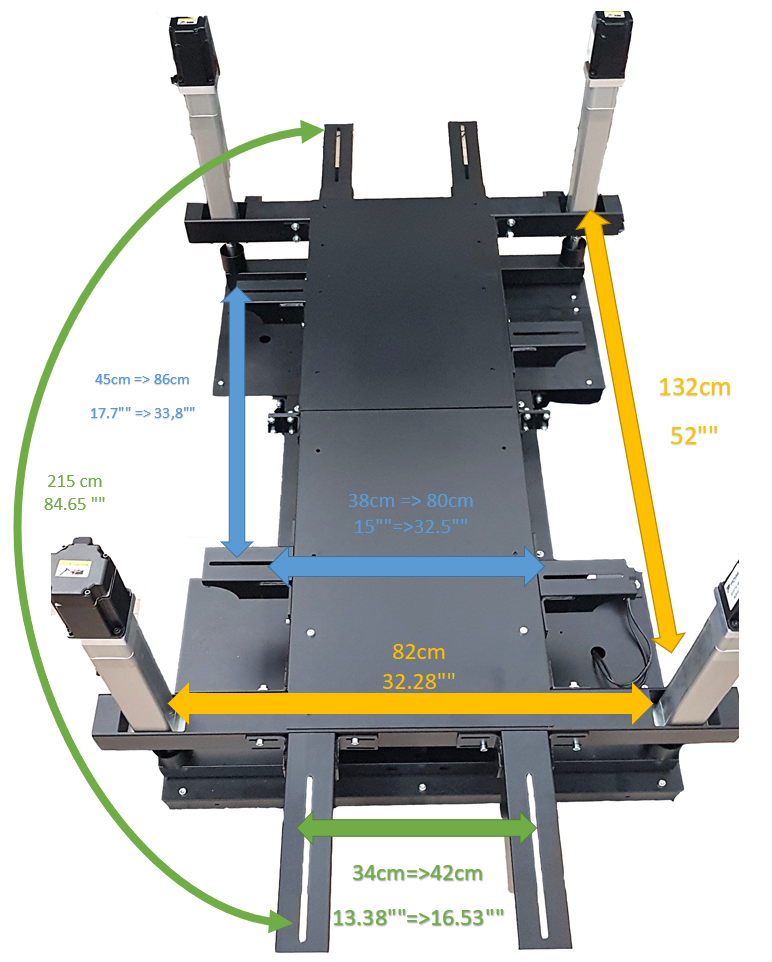

Dimensions154 × 110 × 90 cm (225 cm with extensions)
CommunicationAutomotive-grade CAN Bus
Power supply110–240 V / 3–6 A
ConnectivityUSB 2.0 / PCIe USB 3.0
Control softwareSimTools with ProSimu optimisation
Warranty2 years
ManufacturingFrance

Compatibility

The P5MP is controlled from a PC (Windows) through SimTools software optimised by ProSimu and works with over 100 car, aviation and truck simulators depending on the travel configuration. Motion is managed from the PC, so it does not connect directly to consoles. It is compatible with existing cockpits.

Frequently asked questions

How many actuators does the P5MP have and how does it simulate traction loss?

It uses 5 actuators: 4 PRS200 for the main motion and 1 rear PRS50 that adds oversteer (rear traction loss).

Does it integrate into my current cockpit?

Yes. The P5MP is designed to integrate into existing cockpits without redesigning the rig.

Which actuator travel should I choose: 100, 150 or 200 mm?

The 200 mm travel offers the widest range for driving and aviation; the 100 and 150 mm strokes are used in more compact installations.

Is it compatible with consoles?

It works with PC (Windows) through SimTools and over 100 simulators. Motion is controlled from the PC, so it does not connect directly to consoles.

How much does it weigh and how much can it support?

The platform weighs 200 kg and takes a load of up to 350 kg with no loss of performance.

Where is it made and what warranty does it have?

It is made in France and sold with an official 2-year warranty and specialised technical support at Simufy.
