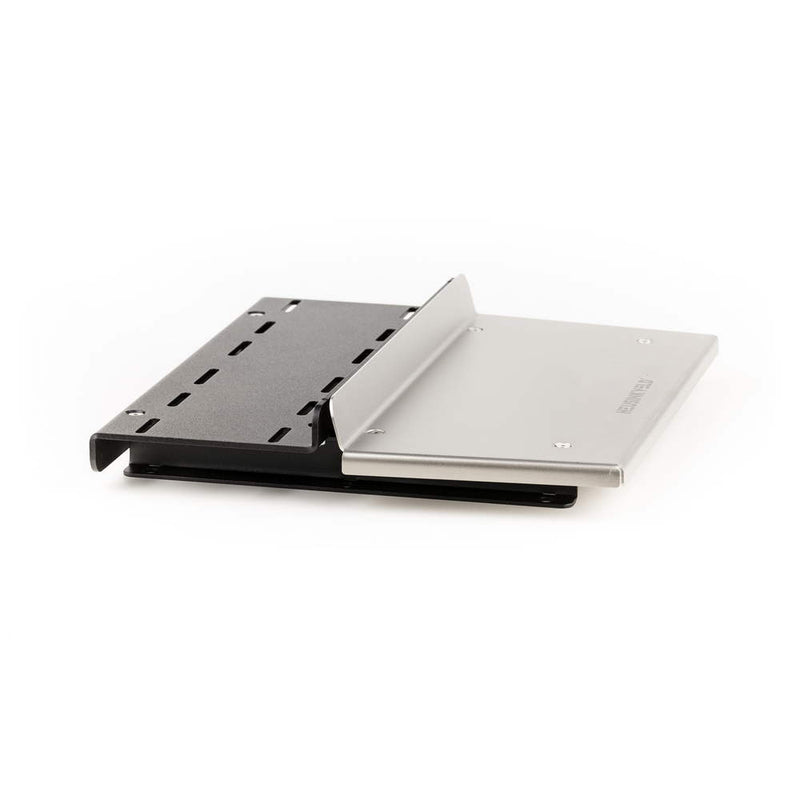

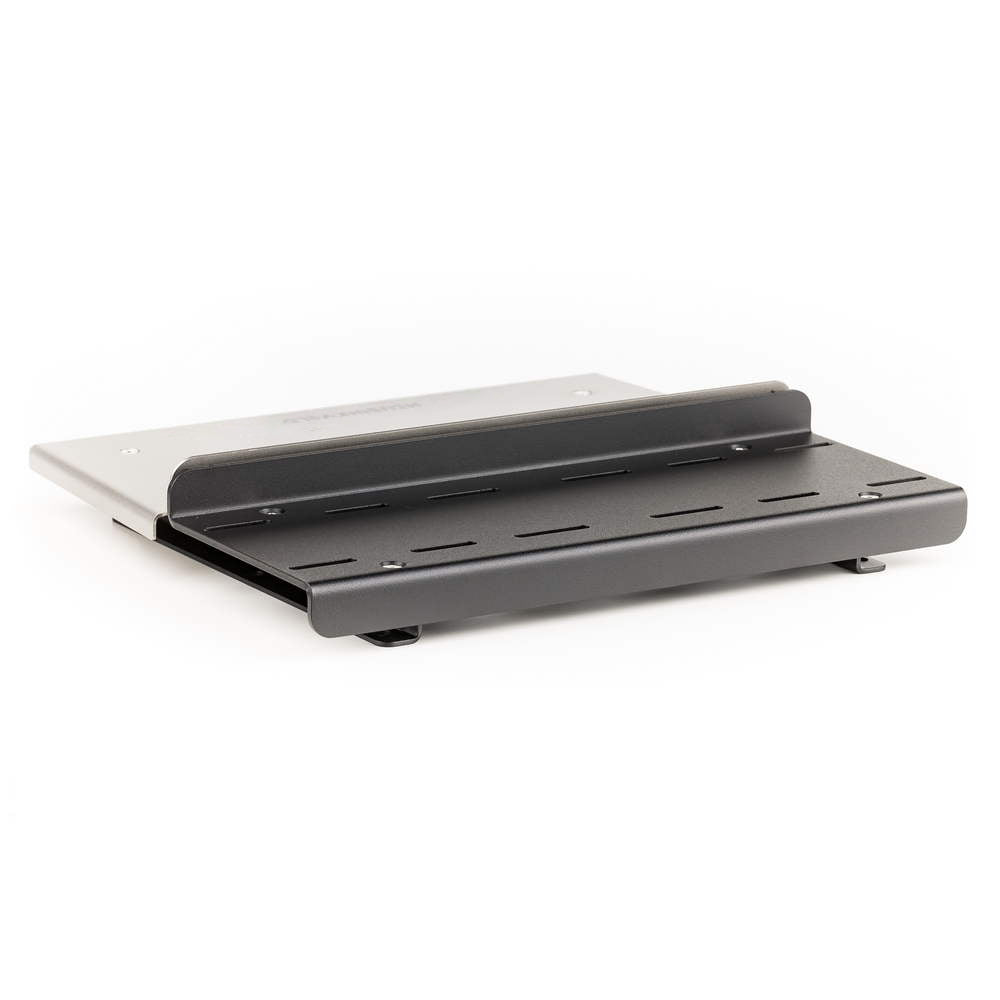

Heusinkveld Sprint pedal baseplate in black
Adjustable heel plate of the Heusinkveld Sprint Baseplate
Side brackets of the Heusinkveld Sprint Baseplate
Lateral adjustment slots of the Sprint Baseplate
Mounting detail of the Sprint pedals on the baseplate
Integrated cable routing of the Heusinkveld Sprint Baseplate
Fixing points of the Sprint Baseplate to aluminium profile

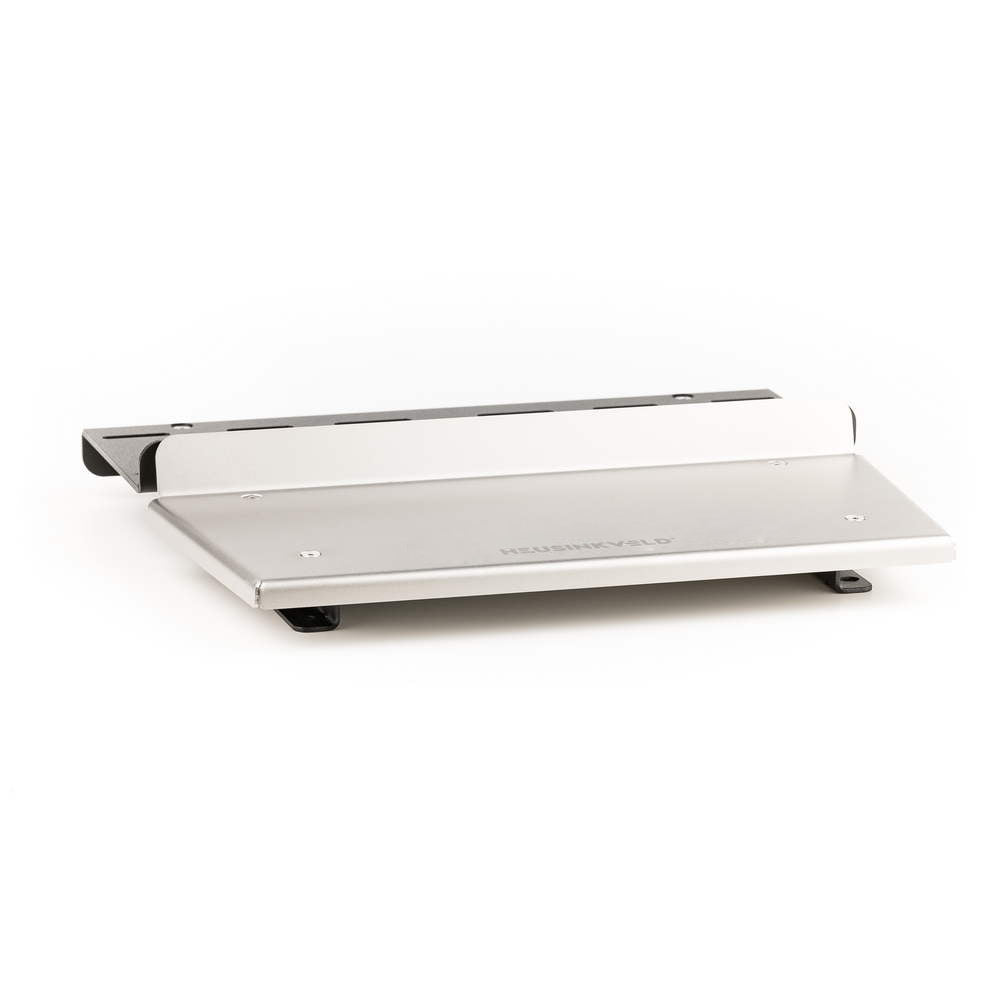

Full view of the Heusinkveld Sprint Baseplate in black

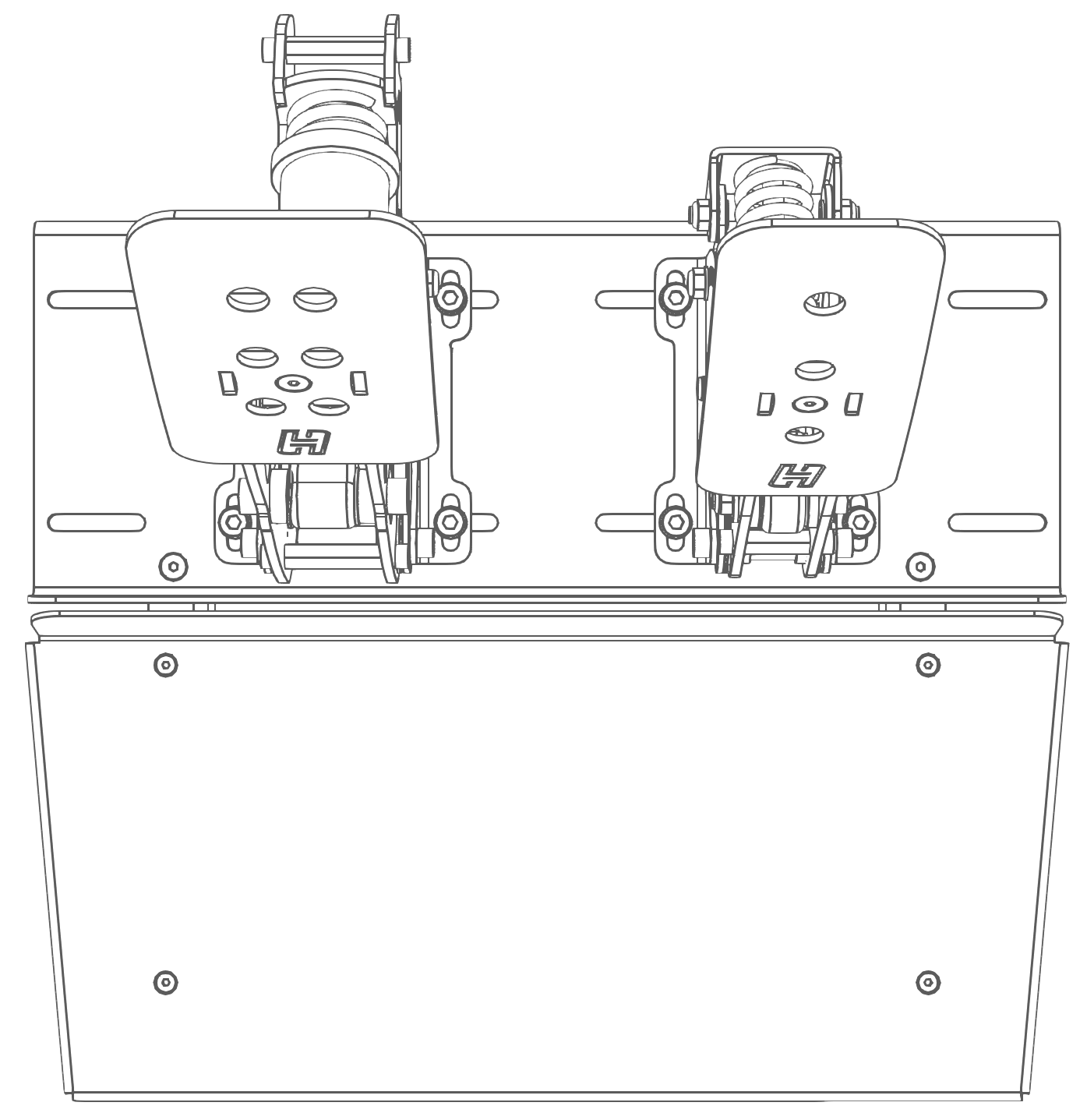

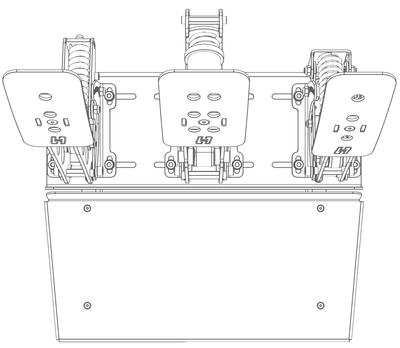

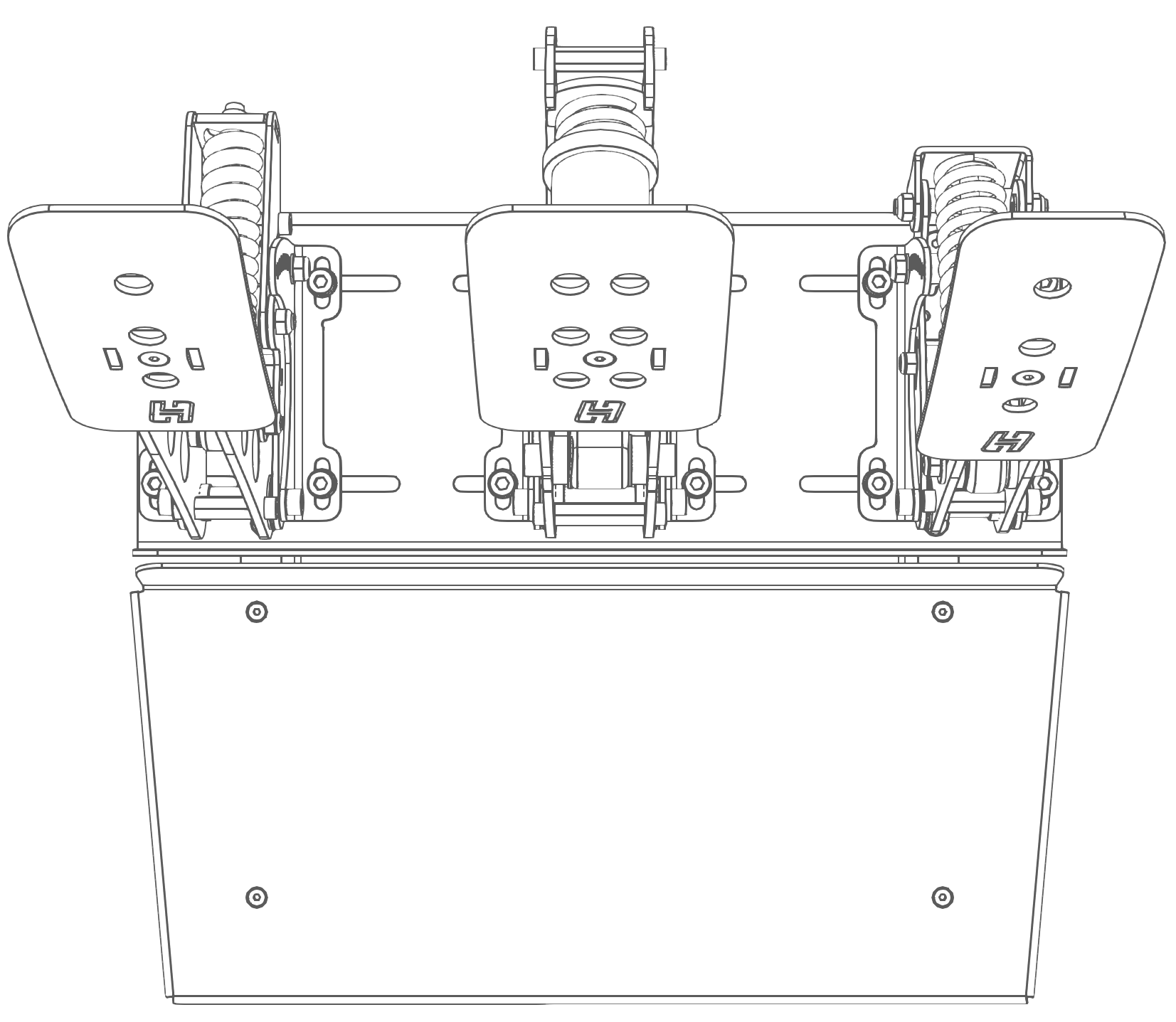

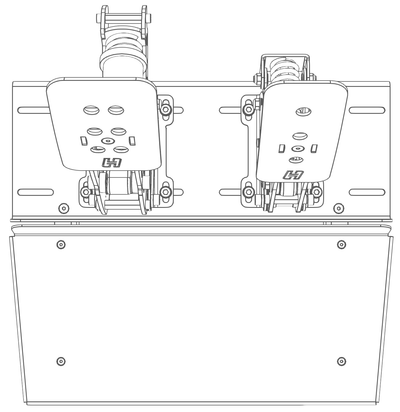

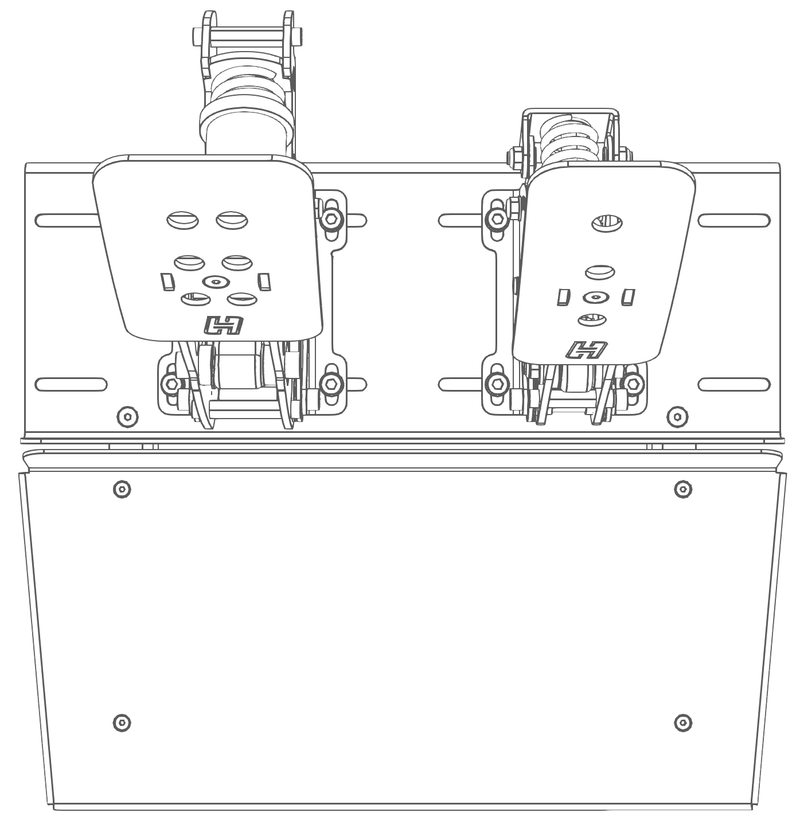

Heusinkveld Sprint baseplate with pedals mounted

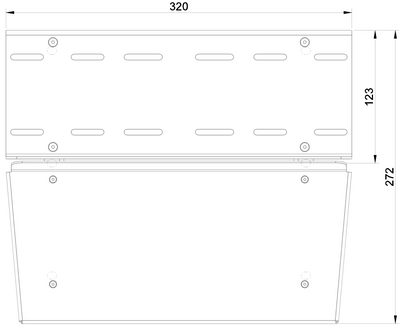

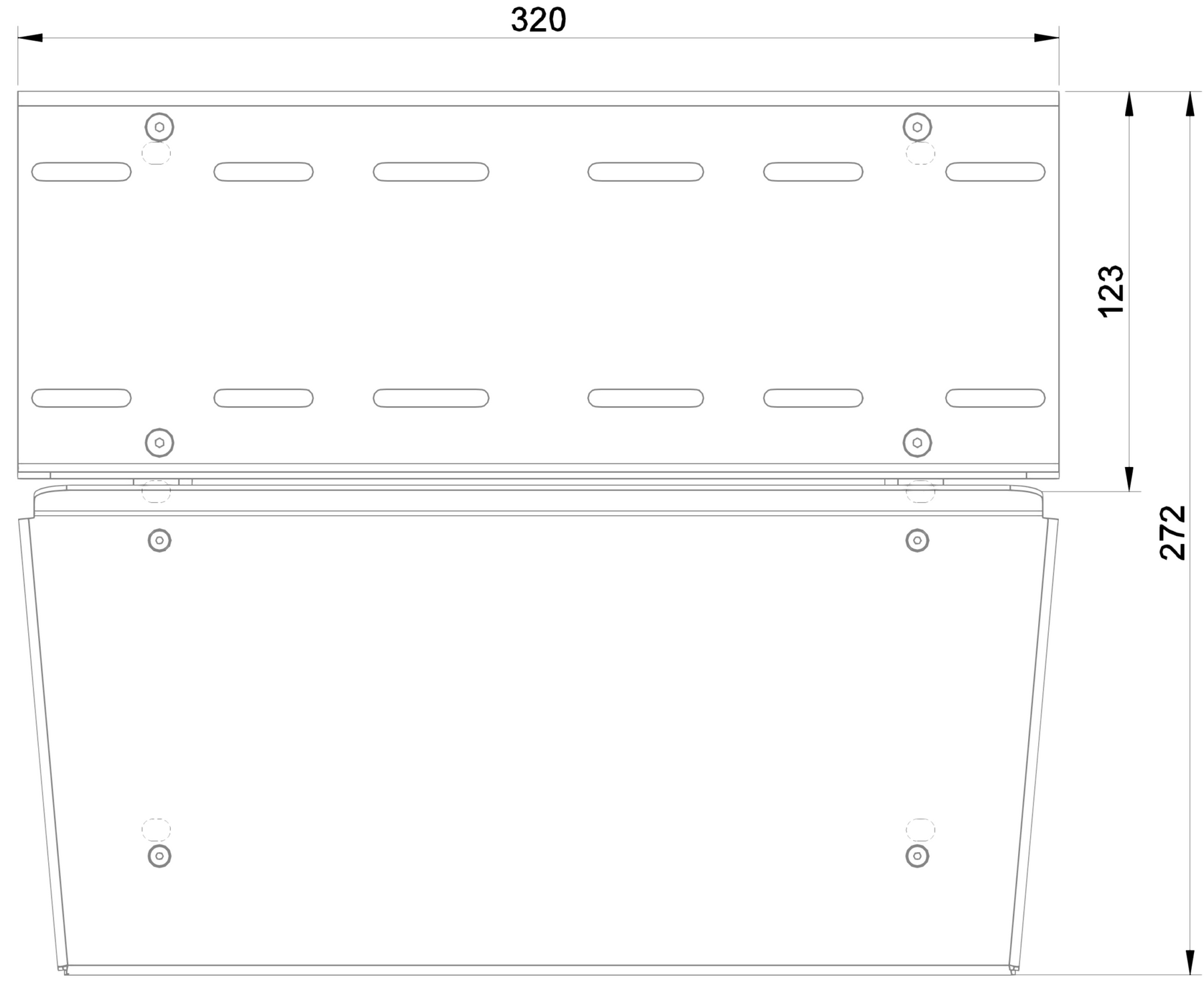

Mounting diagram of the Heusinkveld Sprint Baseplate
Heel plate adjustment of the Sprint Baseplate
Close-up of the hardware included with the Sprint Baseplate

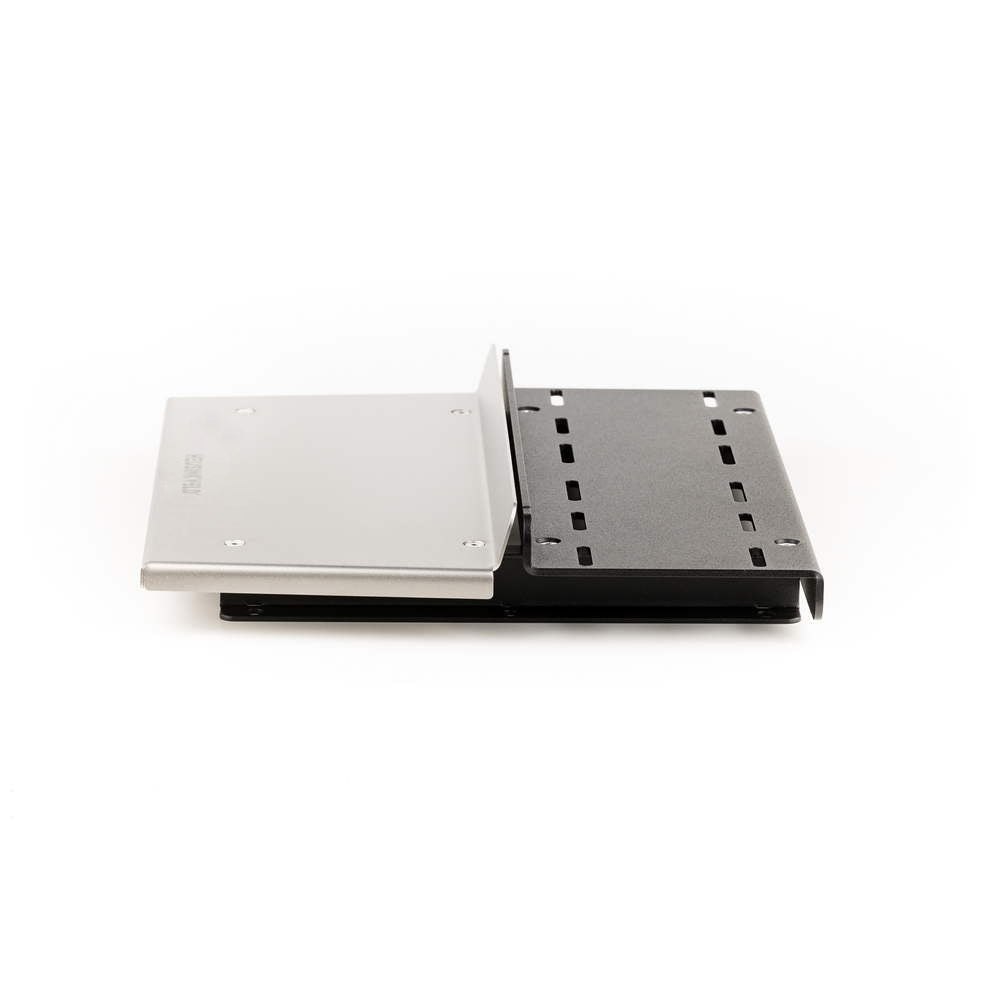

Side view of the Heusinkveld Sprint Baseplate
Longitudinal pedal adjustment on the Sprint Baseplate

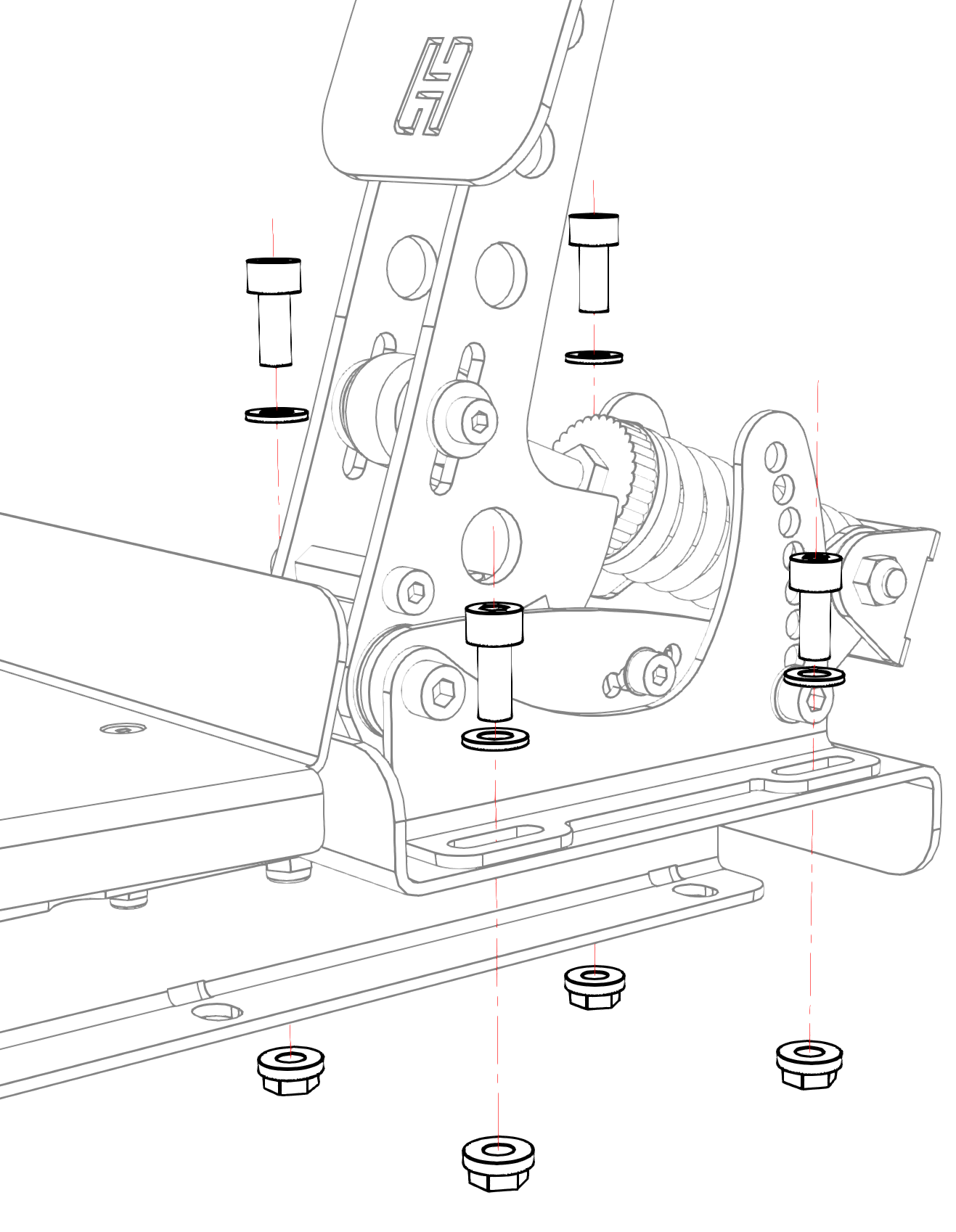

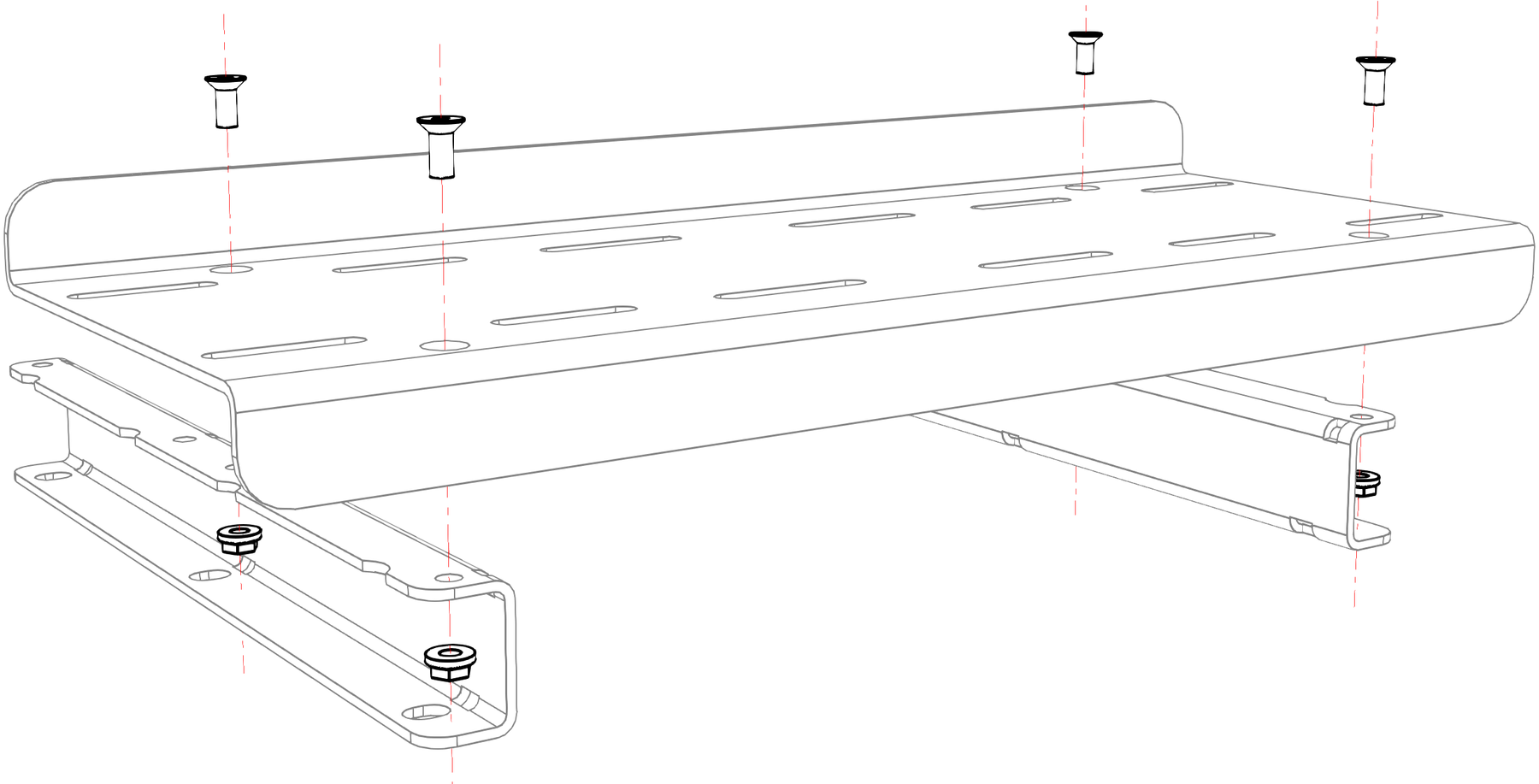

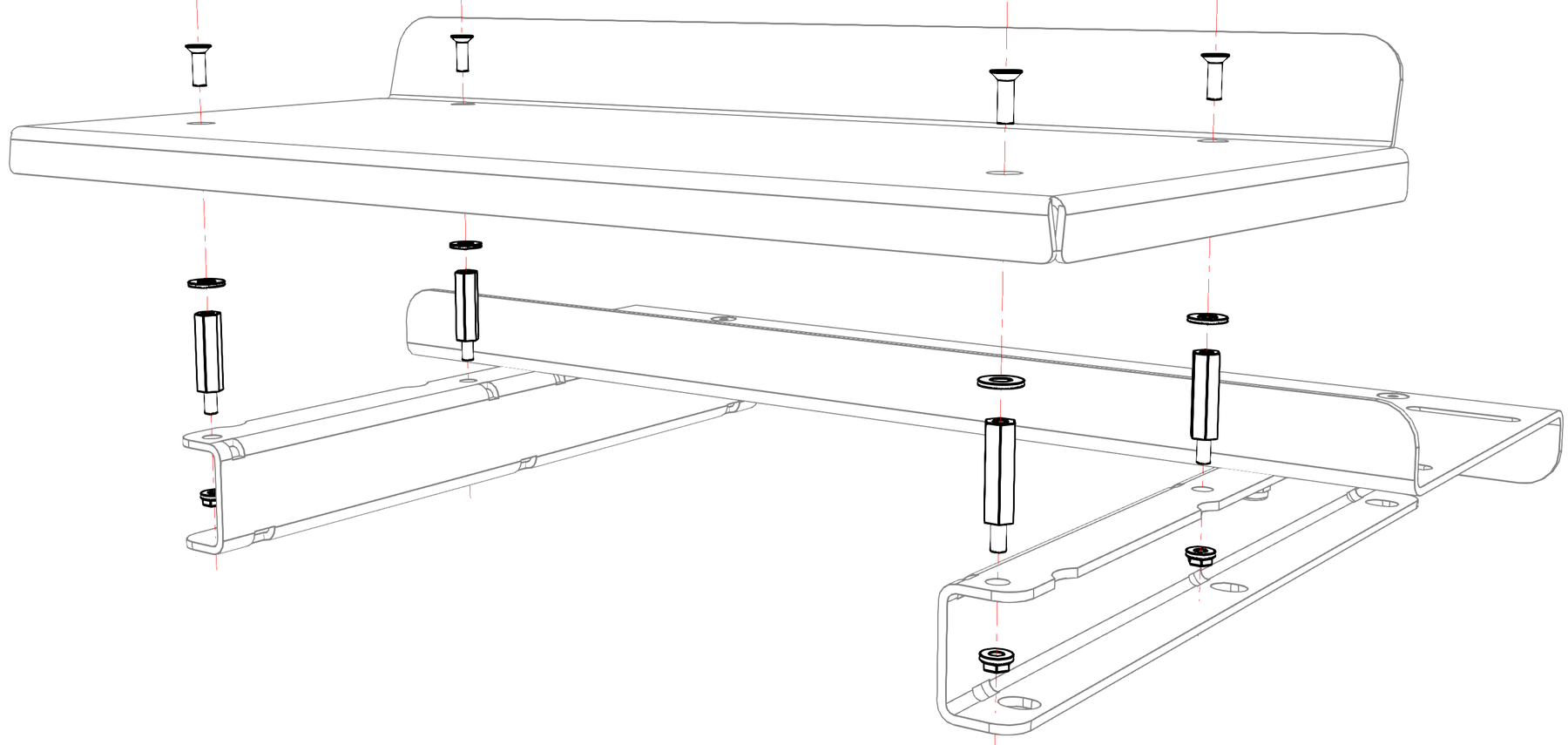

Assembly of the Heusinkveld Sprint Baseplate
Main pedal plate of the Sprint Baseplate
Heusinkveld Sprint Baseplate mounted in a cockpit
Heusinkveld Sprint pedal baseplate in black
Adjustable heel plate of the Heusinkveld Sprint Baseplate
Side brackets of the Heusinkveld Sprint Baseplate
Lateral adjustment slots of the Sprint Baseplate
Mounting detail of the Sprint pedals on the baseplate
Integrated cable routing of the Heusinkveld Sprint Baseplate
Fixing points of the Sprint Baseplate to aluminium profile
Full view of the Heusinkveld Sprint Baseplate in black
Heusinkveld Sprint baseplate with pedals mounted
Mounting diagram of the Heusinkveld Sprint Baseplate
Heel plate adjustment of the Sprint Baseplate
Close-up of the hardware included with the Sprint Baseplate
Side view of the Heusinkveld Sprint Baseplate
Longitudinal pedal adjustment on the Sprint Baseplate
Assembly of the Heusinkveld Sprint Baseplate
Main pedal plate of the Sprint Baseplate
Heusinkveld Sprint Baseplate mounted in a cockpit

Heusinkveld Sprint Baseplate – Pedal Mounting Plate

Brand: HEUSINKVELD
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The Heusinkveld Sprint Baseplate is a rigid mounting platform for the Sim Pedals Sprint, with a height-adjustable heel plate and lateral and longitudinal adjustment of each pedal, able to withstand up to 65 kg of braking without flex.

It is the ideal solution if you would rather not bolt the pedals directly to your cockpit: the Sim Pedals Sprint can generate braking forces of up to 65 kg, and many rig plates flex under that load. Made from powder-coated steel, it creates a solid base that keeps a precise, consistent pedal feel even under heavy use. An accessory designed to get the most out of your Sprint sim racing pedals in a dedicated cockpit.

Key features

  • Designed exclusively for the Sim Pedals Sprint (2-pedal configuration).
  • Rigid platform that withstands up to 65 kg of braking force without flex.

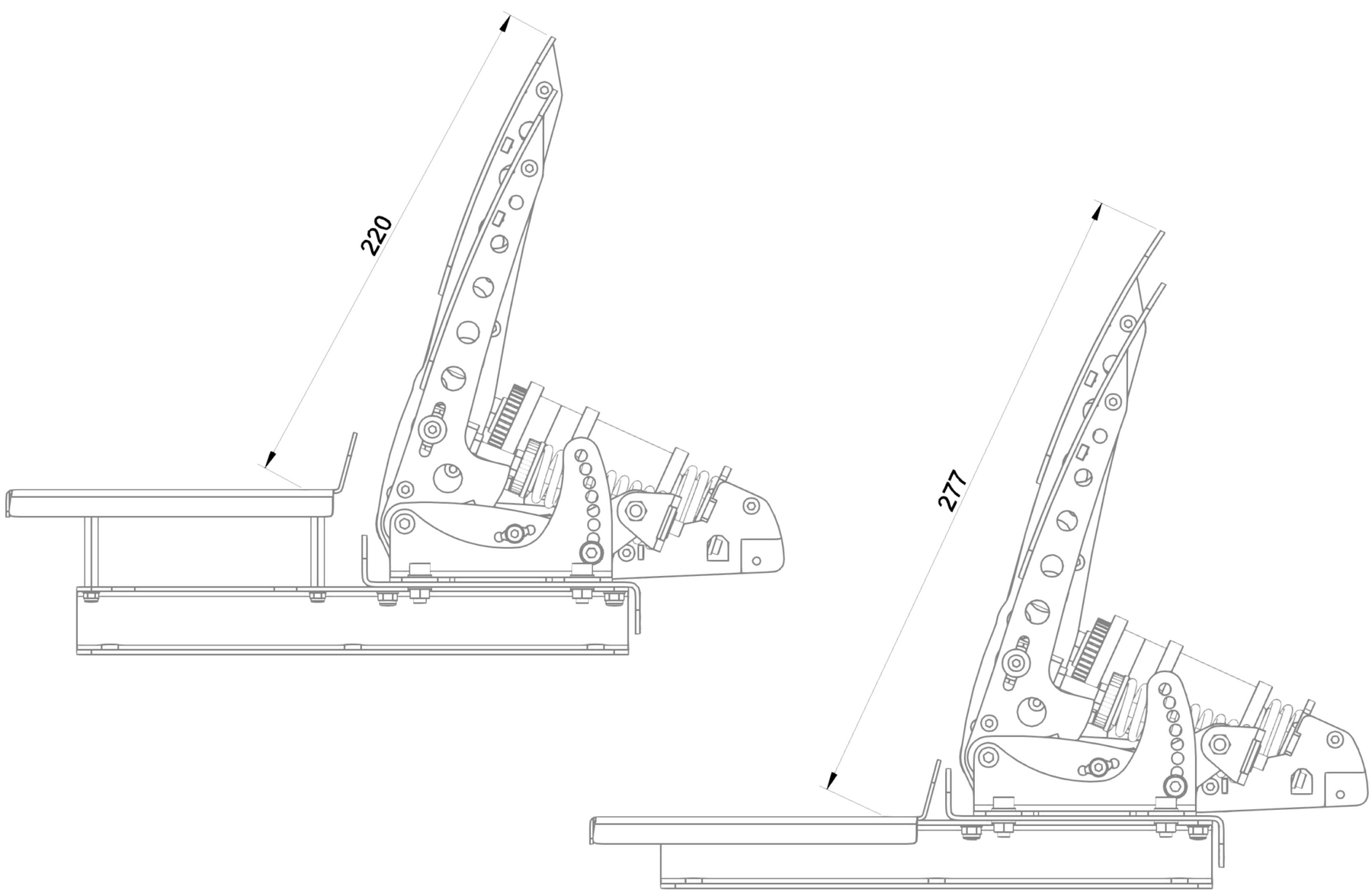

  • Height-adjustable heel plate: 0 mm or +30 mm with the supplied spacers.
  • Individual lateral adjustment (29 mm slots for the brake, 24 mm for throttle and clutch) and 12.5 mm longitudinal adjustment fore/aft.
  • Complete assembly: pedal plate, heel plate and 2 side brackets, with all the hardware and T-nuts.
  • 6 mounting points compatible with aluminium profiles and custom rigs, with integrated cable pass-throughs for a clean install.

Technical specifications

FeatureDetail
TypeMounting platform (baseplate) for Sim Pedals Sprint
CompatibilitySim Pedals Sprint only (not Ultimate or Ultimate+)
CapacityUp to 65 kg of braking without flex
Heel plate0 mm or +30 mm with supplied spacers
Lateral adjustment29 mm (brake) / 24 mm (throttle and clutch)
Longitudinal adjustment12.5 mm fore/aft
Mounting points6 on the brackets (aluminium profile or rig)
Minimum surface thickness6 mm
IncludesFull hardware and T-nuts; integrated cable pass-throughs
MountingRequires a full, rigid rig or cockpit
Warranty2 years

Compatibility

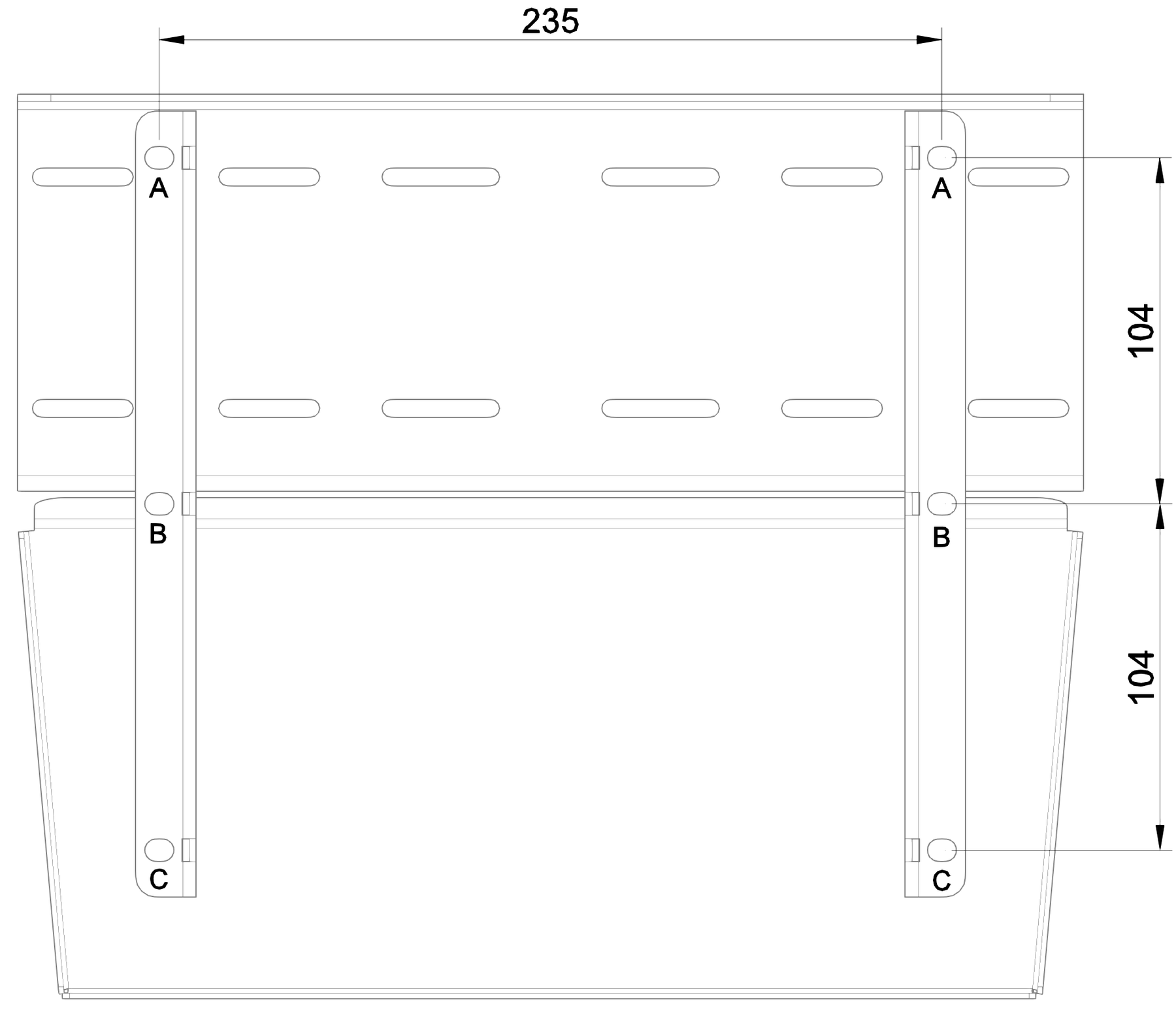

Compatible only with the Sim Pedals Sprint (2 pedals). The brackets also accept Thrustmaster T3PA and T3PA Pro (235 mm) pedal sets.

Pedal modelCompatibility
Heusinkveld Sim Pedals SprintCompatible
Heusinkveld Sim Pedals Ultimate+Not compatible
Heusinkveld Sim Pedals UltimateNot compatible

Important: this baseplate cannot be installed directly on the floor or on stands without a structural connection to the seat. A full, rigid rig is required.

Frequently asked questions

Which pedals is it for?

Only for the Sim Pedals Sprint (2 pedals). It is not compatible with the Ultimate or Ultimate+, which use their own baseplate.

Why do I need a baseplate?

The Sprint can generate up to 65 kg of braking, and many rig plates flex under that load. The baseplate creates a rigid, flex-free base for a precise pedal feel.

What adjustments does it offer?

Lateral (29 mm brake / 24 mm throttle and clutch) and longitudinal (12.5 mm) adjustment of each pedal, plus a height-adjustable heel plate (0 or +30 mm).

Can I mount it on the floor or a wheel stand?

No. It requires a full, rigid rig or cockpit with a structural connection to the seat; it is not suitable for direct floor use.

Does it include hardware?

Yes. It includes all the hardware and T-nuts to fix the pedals to the plate and the plate to a surface at least 6 mm thick.
