BDH H1SQ Dual Mode | H-Pattern & Sequential Shifter

Name: BDH H1SQ Dual Mode – H-Pattern & Sequential Shifter
Brand: BDH
SKU: BDH-H1SQ
Price: 1099.99 EUR
Availability: InStock

BDH H1SQ Dual Mode, H-pattern and sequential shifter for sim racing

BDH H1SQ Dual Mode, front view of the dual-mode shifter

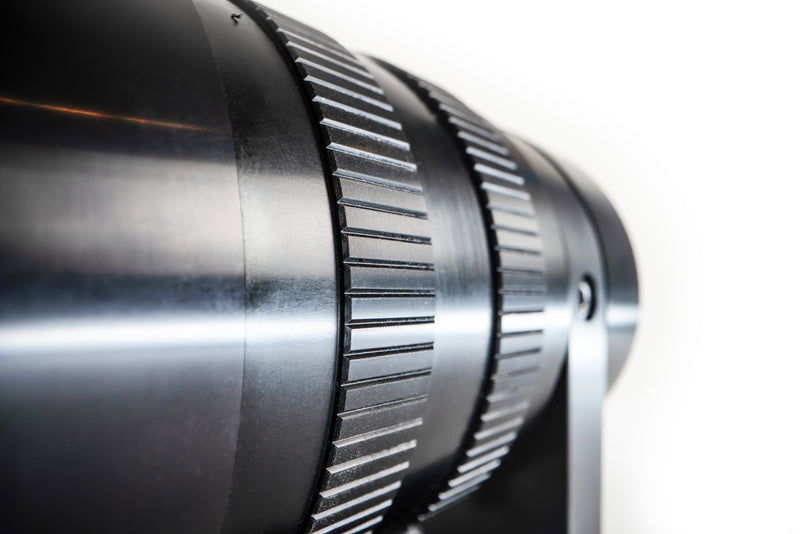

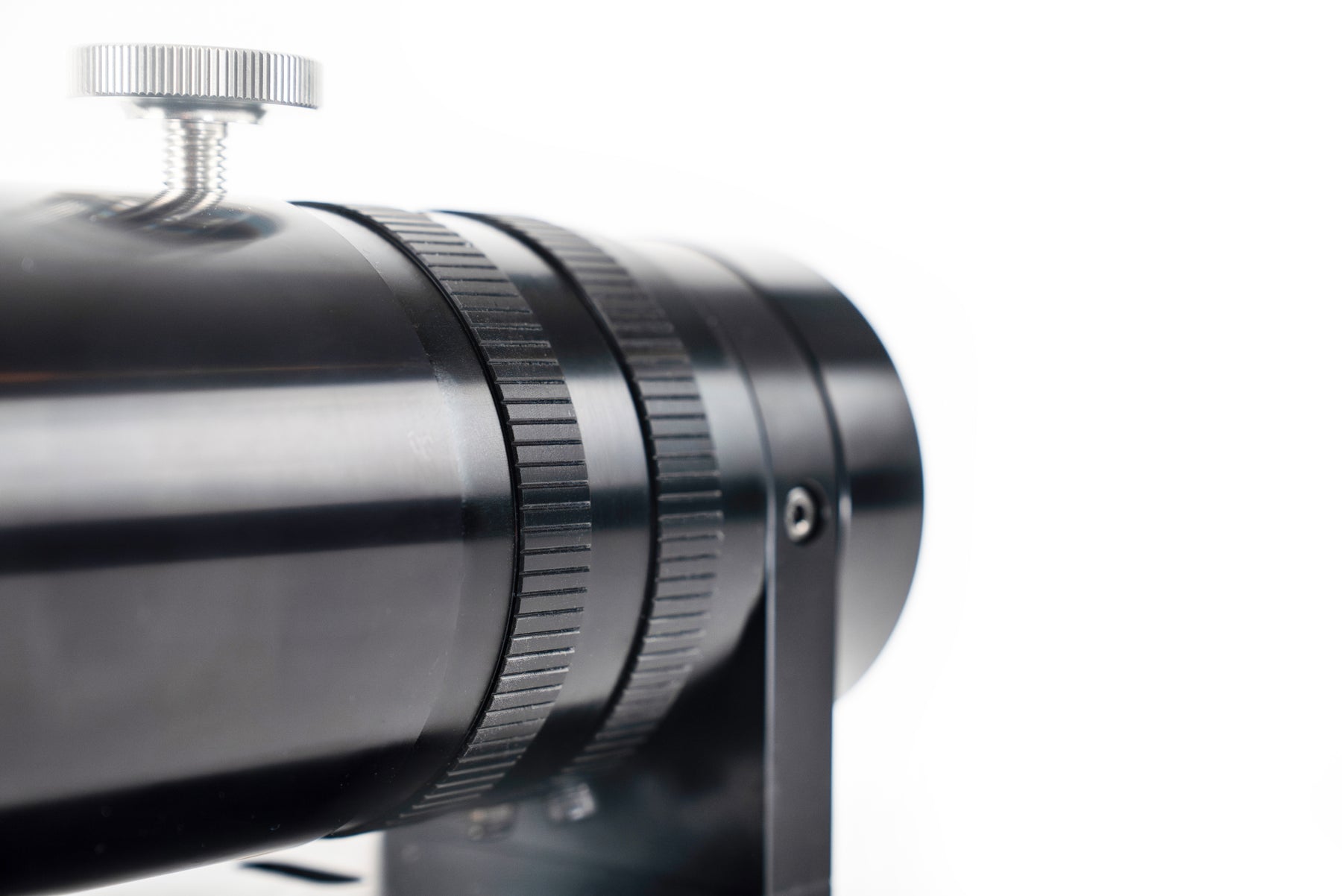

Mode selector collar of the BDH H1SQ Dual Mode

Quaife WRC-style knob of the BDH H1SQ in nylon

8-position H-pattern gate of the BDH H1SQ

Sequential mode of the BDH H1SQ Dual Mode

Detail of the internal mechanism of the BDH H1SQ

USB-C connection of the BDH H1SQ Dual Mode

Contactless Hall sensors of the BDH H1SQ

BDH H1SQ Dual Mode, detail of the dual-lock collar

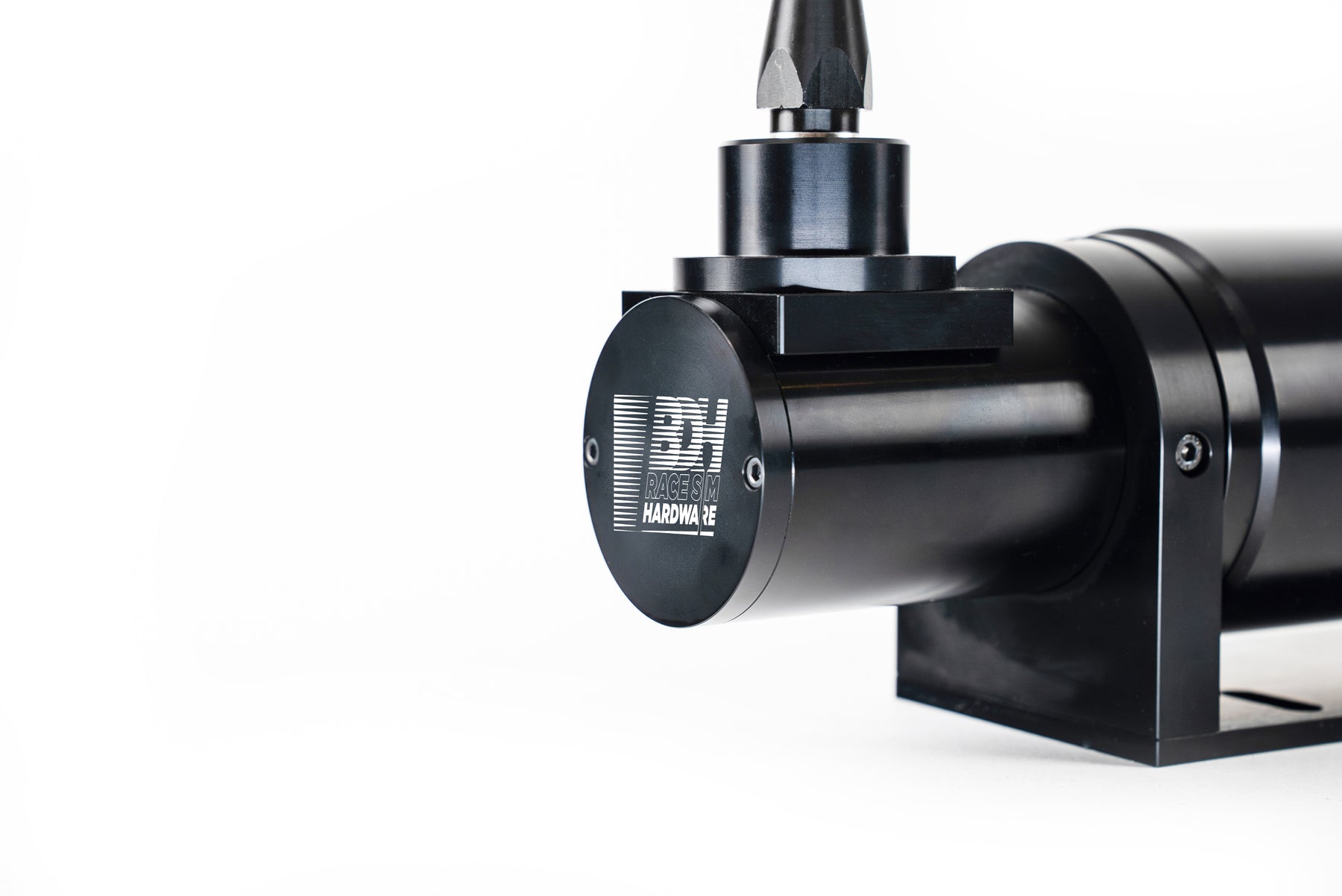

BDH H1SQ Dual Mode, rear view with connection

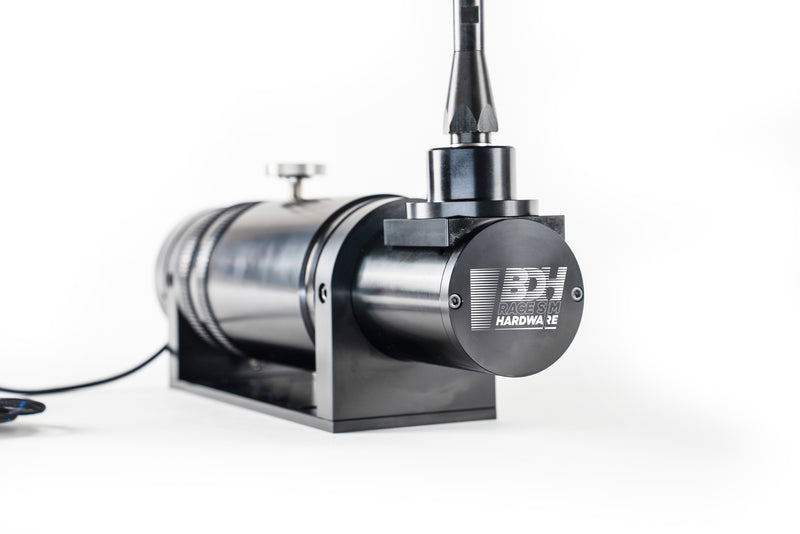

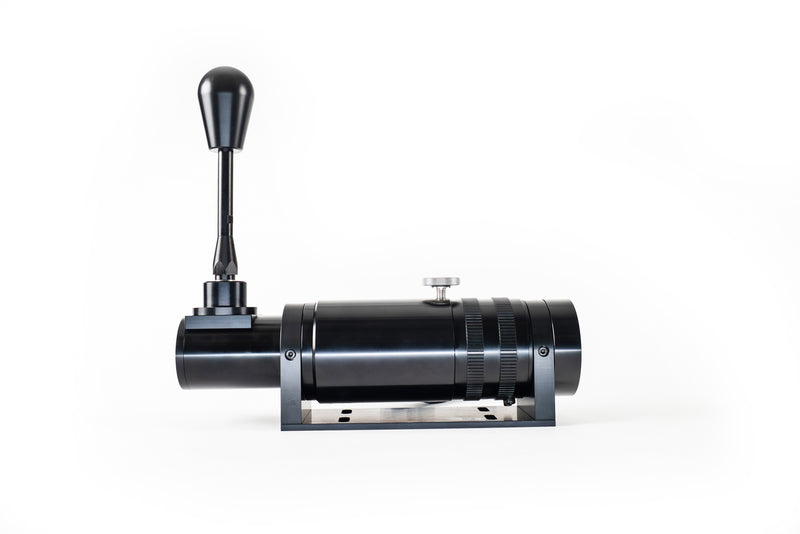

BDH H1SQ Dual Mode, complete shifter assembly

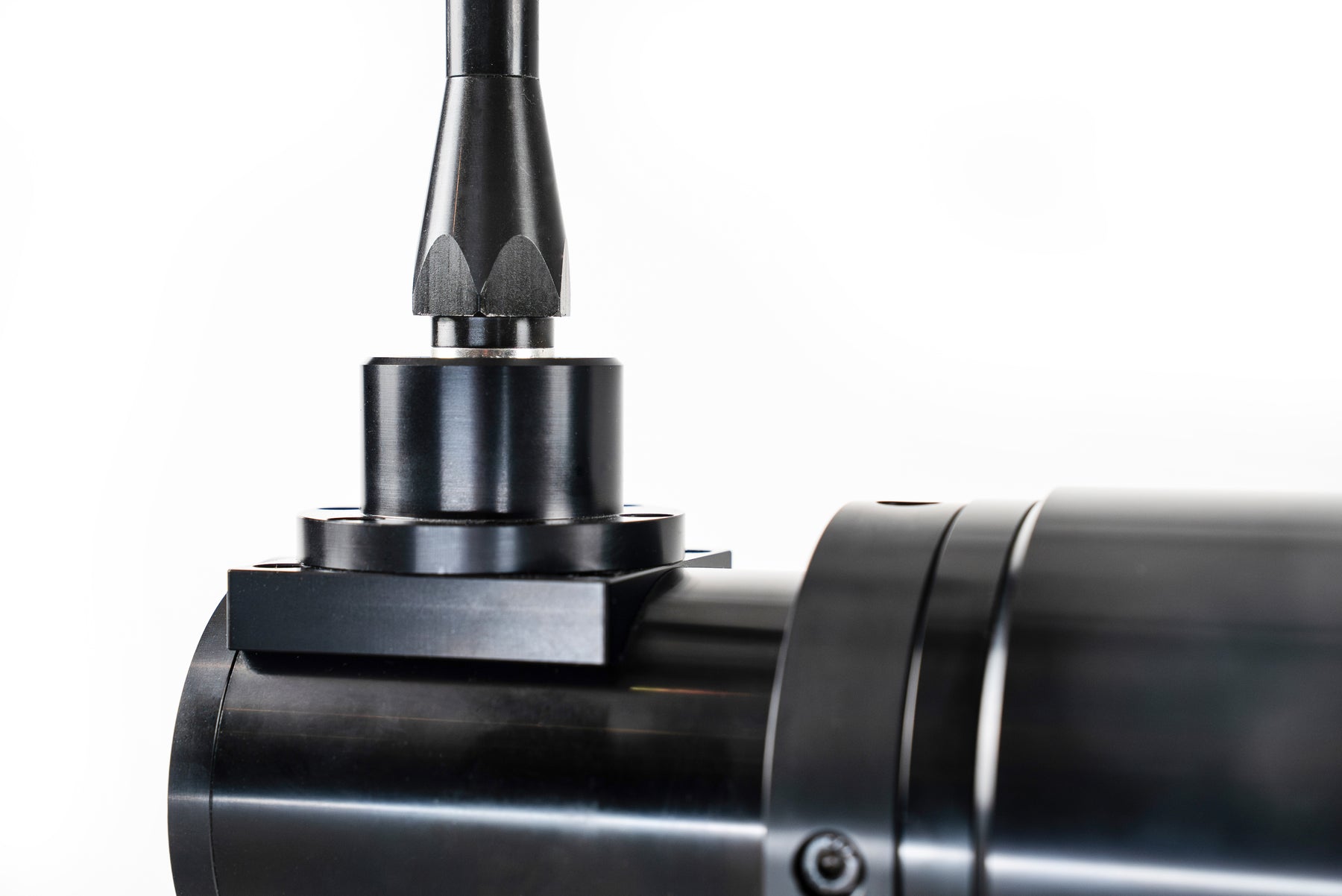

BDH H1SQ Dual Mode, detail of the knob and lever

BDH H1SQ Dual Mode, centralising CAM system

BDH H1SQ Dual Mode, Silver finish in detail

BDH H1SQ Dual Mode, Full Black finish in detail

BDH H1SQ Dual Mode, optional mounting adapter

BDH H1SQ Dual Mode, lever in sequential position

BDH H1SQ Dual Mode, lever in H-pattern shift

BDH H1SQ Dual Mode, detail of the metal construction

BDH H1SQ Dual Mode, top view of the gate

BDH H1SQ Dual Mode, steel and bronze components

BDH H1SQ Dual Mode – H-Pattern & Sequential Shifter

Price - 31%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":51408487055693,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":"BDH-H1SQ","requires_shipping":true,"taxable":true,"featured_image":{"id":61080172986701,"product_id":9855028691277,"position":10,"created_at":"2024-11-20T15:52:21+01:00","updated_at":"2024-11-20T15:52:25+01:00","alt":"Detail of the internal mechanism of the BDH H1SQ","width":4240,"height":2832,"src":"\/\/simufy.com\/cdn\/shop\/files\/Shifter-BDH-H1SQ-Dual-Mode-Simufy_13.jpg?v=1732114345","variant_ids":[51408487055693]},"available":true,"name":"BDH H1SQ Dual Mode – H-Pattern \u0026 Sequential Shifter - Silver","public_title":"Silver","options":["Silver"],"price":109999,"weight":5500,"compare_at_price":159999,"inventory_management":"shopify","barcode":"5061115600061","featured_media":{"alt":"Detail of the internal mechanism of the BDH H1SQ","id":52665982845261,"position":10,"preview_image":{"aspect_ratio":1.497,"height":2832,"width":4240,"src":"\/\/simufy.com\/cdn\/shop\/files\/Shifter-BDH-H1SQ-Dual-Mode-Simufy_13.jpg?v=1732114345"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51408487088461,"title":"Full Black","option1":"Full Black","option2":null,"option3":null,"sku":"BDH-H1SQ-BLACK","requires_shipping":true,"taxable":true,"featured_image":{"id":64574878646605,"product_id":9855028691277,"position":19,"created_at":"2025-04-22T20:16:29+02:00","updated_at":"2025-04-23T13:15:54+02:00","alt":"BDH H1SQ Dual Mode, detail of the knob and lever","width":4240,"height":2832,"src":"\/\/simufy.com\/cdn\/shop\/files\/Shifter-BDH-H1SQ-Dual-Mode-SIMUFY_100.jpg?v=1745406954","variant_ids":[51408487088461]},"available":false,"name":"BDH H1SQ Dual Mode – H-Pattern \u0026 Sequential Shifter - Full Black","public_title":"Full Black","options":["Full Black"],"price":109999,"weight":5500,"compare_at_price":159999,"inventory_management":"shopify","barcode":"5061115600078","featured_media":{"alt":"BDH H1SQ Dual Mode, detail of the knob and lever","id":54778229719373,"position":19,"preview_image":{"aspect_ratio":1.497,"height":2832,"width":4240,"src":"\/\/simufy.com\/cdn\/shop\/files\/Shifter-BDH-H1SQ-Dual-Mode-SIMUFY_100.jpg?v=1745406954"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The BDH H1SQ Dual Mode is a dual-mode shifter —H-pattern and sequential— fully mechanical for sim racing, compatible with PC via USB-C, with a 4 kg HE260 aluminium chassis and contactless Hall sensors, available in Silver and Full Black finishes.

Hand-crafted in York, England, the H1SQ integrates two independent mechanisms in a single unit: simply twist the selector collar to switch from an 8-position H-pattern shift to a sequential one, with no tools. With adjustable resistance, a Quaife WRC-style knob and high-tensile steel construction, it delivers a competition feel on aluminium profile cockpits and rigs.

Key features of the BDH H1SQ Dual Mode

True dual mode: H-pattern (8 configurable positions) and sequential in a single unit, switching modes by twisting the selector collar.
Adjustable shift resistance: tune the shift feel to your driving style.
Premium construction: CNC HE260 aerospace aluminium and high-tensile steel, with no flex or premature wear.
Selector collar with dual lock and a centralising CAM system for precise, error-free selection.
Quaife WRC-style knob in nylon with a high-grip texture (M10×1.5 thread, compatible with other knobs).
Contactless Hall sensors (zero lag) and proprietary BDH firmware, with no external power supply.
360° mounting with M8×1.25 points, compatible with most 8020 profile rigs.

Technical specifications

Specification	Detail
Modes	Dual: H-pattern (8 gears) + sequential
Dimensions	300 × 200 × 150 mm
Weight	4 kg
Material	CNC HE260 aluminium, high-tensile steel, self-lubricating bronze bushings
Internal components	EN8 steel, PTFE spherical bearings, graphite bronze guides
Shift gate	Selector collar with dual lock and centralising CAM
Knob	Quaife WRC-style in nylon, M10×1.5 thread
Sensors	Contactless Hall (zero lag)
Connection	USB-C (2 m cable), 5 V DC via USB
Firmware	Proprietary BDH (no external supply)
Mounting	Universal, M8×1.25 points, 360°
Finishes	Silver, Full Black
Compatibility	PC (iRacing, Assetto Corsa, rFactor 2, ACC…)

Compatibility

Compatible with PC and all modern sim racing titles (iRacing, Assetto Corsa, rFactor 2, ACC…) via USB-C.
Not compatible with consoles (neither PlayStation nor Xbox).
Universal mounting on aluminium profile 8020 cockpits and rigs with 360° adjustability and M8×1.25 points; optional sandwich adapter.
Includes a 2 m USB-C cable, mounting hardware (M8) and a quick-start manual.

Frequently asked questions

How do you switch between H and sequential mode?

By twisting the selector collar you go from H-pattern (8 positions) to sequential with no tools or software; a dual-lock mechanism prevents errors.

Can the shift resistance be adjusted?

Yes. The shift resistance is fully adjustable to match the feel to your driving style.

What sensors and connection does it use?

Contactless Hall sensors (zero lag) and a USB-C connection (2 m cable) powered by the USB port itself (5 V); proprietary BDH firmware, with no external supply.

What is it compatible with?

PC and all modern sim racing titles (iRacing, Assetto Corsa, rFactor 2, ACC…). It is not compatible with consoles.

What finishes are available?

Available in Silver and Full Black; both share the same mechanism and specifications.

How is it mounted?

Universal 360° mounting with M8×1.25 points on 8020 profile rigs; it accepts M10×1.5 knobs and an optional sandwich adapter.

Downloads and video

Download the BDH H1SQ manual.
