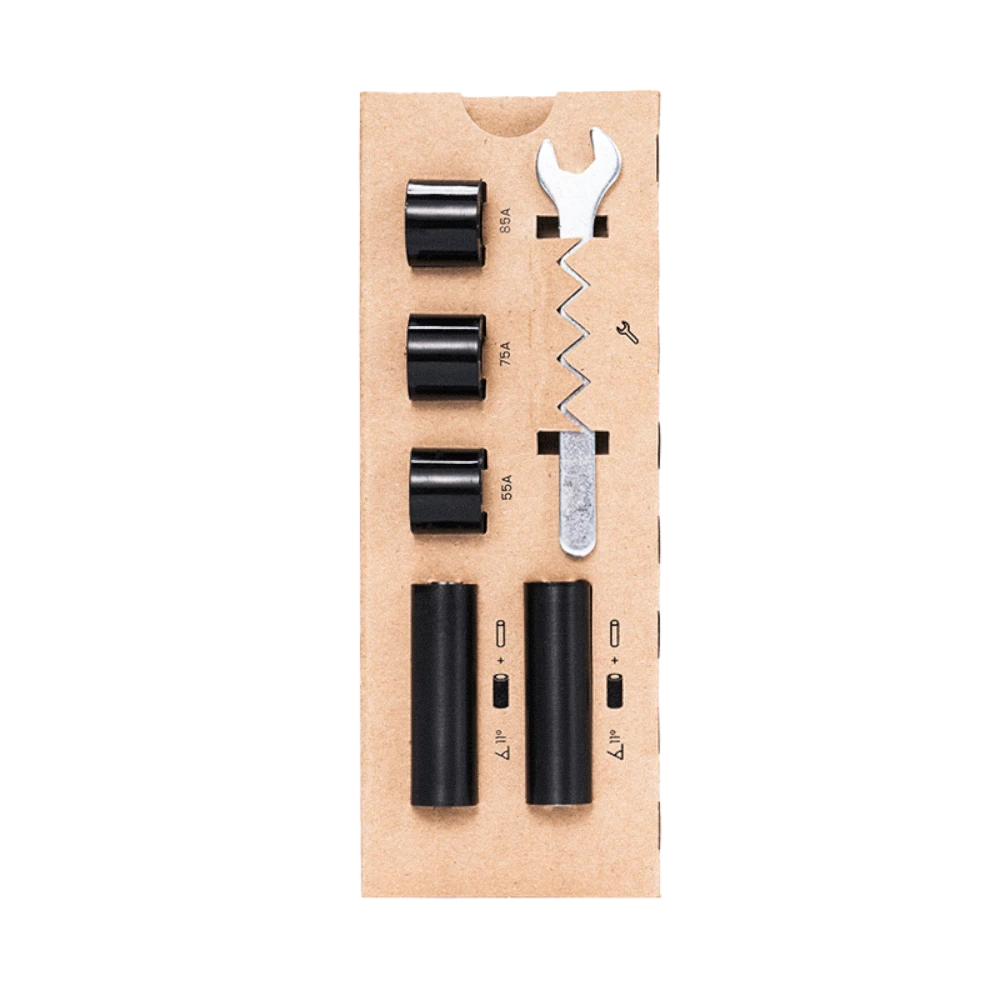

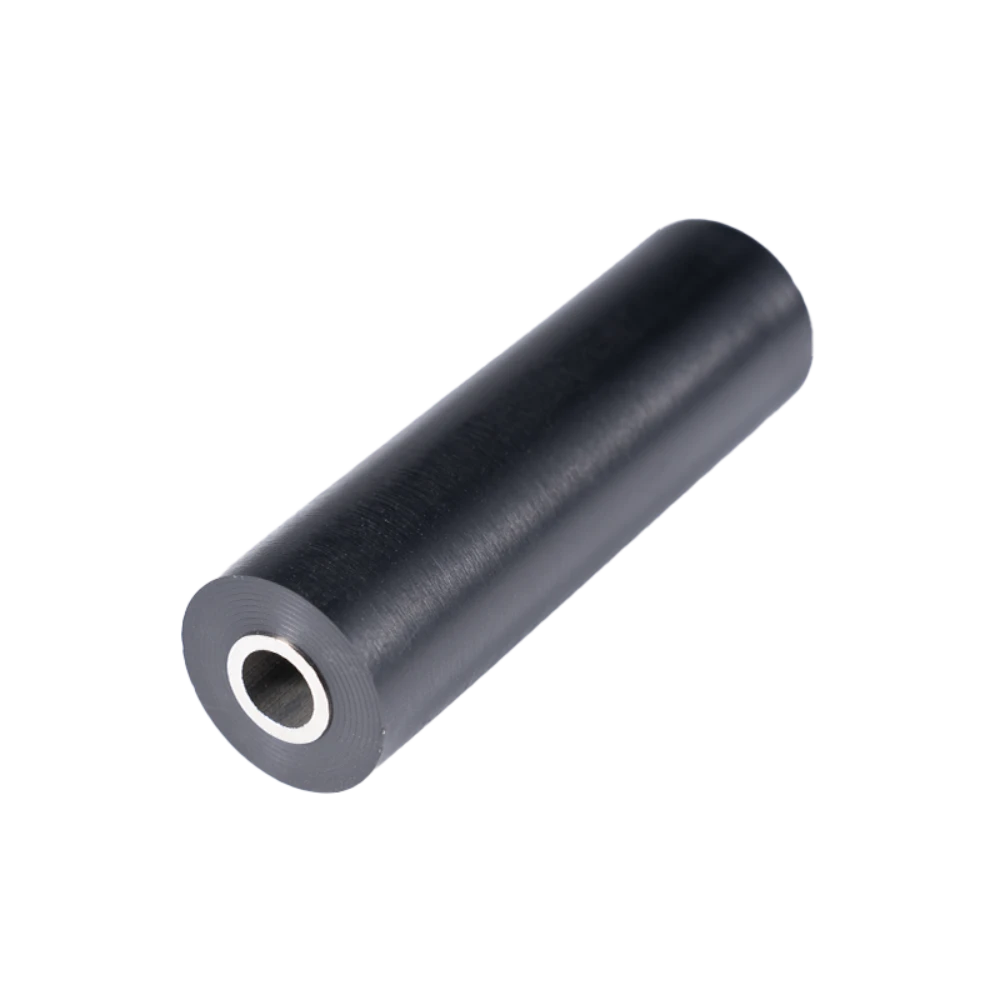

Close-up of the limit bushing and stainless steel sleeve from the P700 Racing Kit

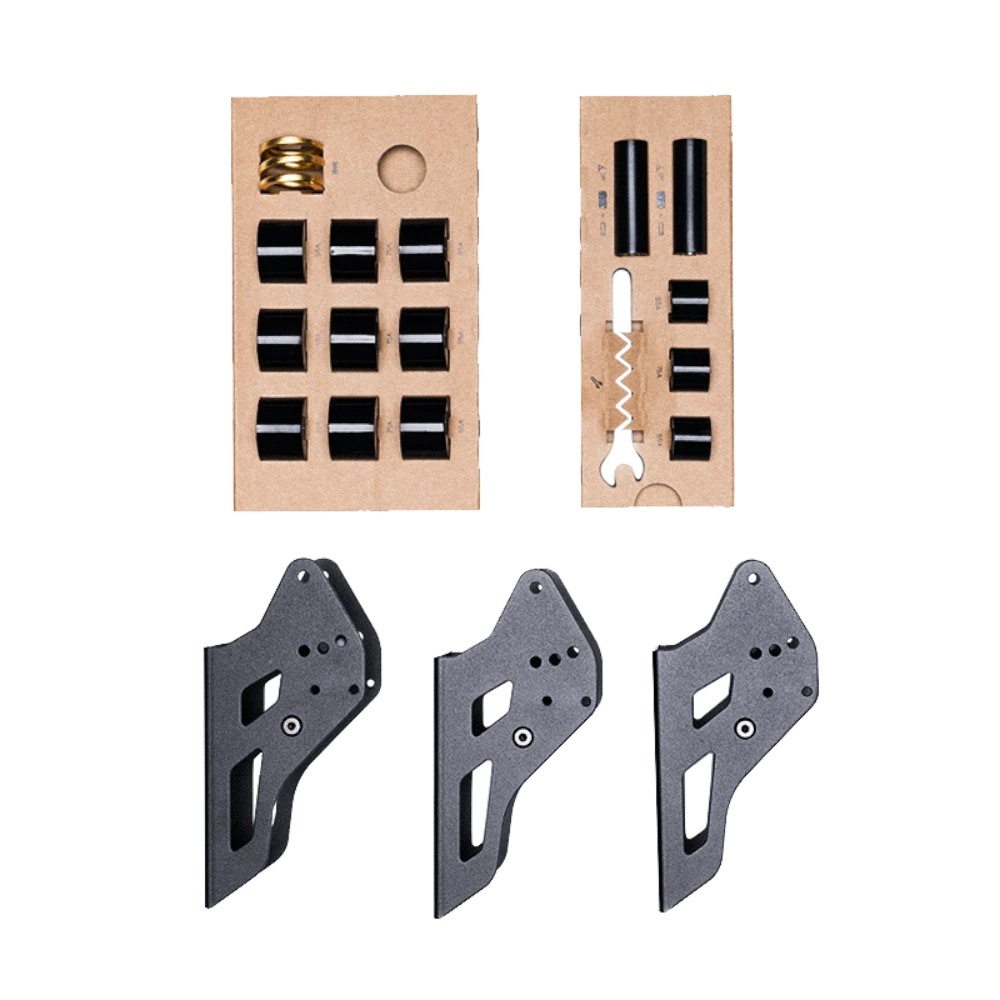

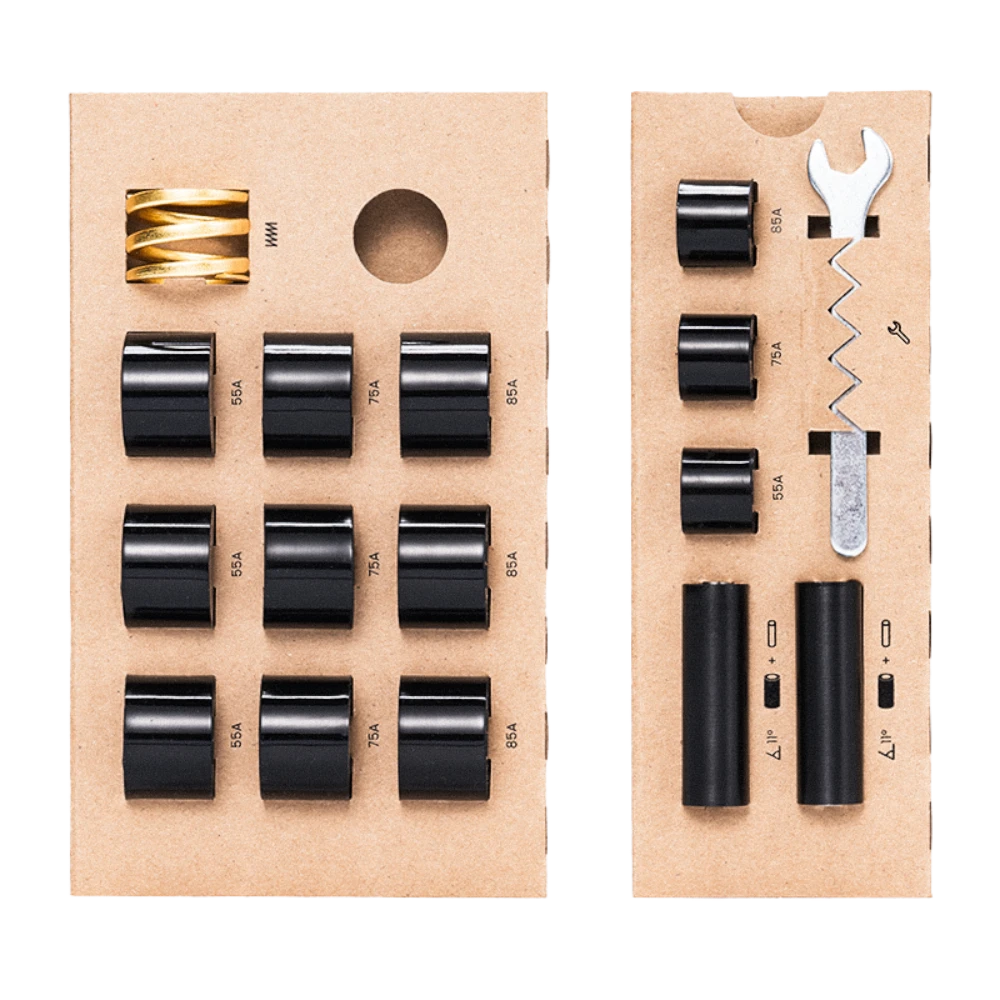

Simagic P700 Racing Kit contents: elastomers, stop collars, brackets, 8 mm wrench and quick guide

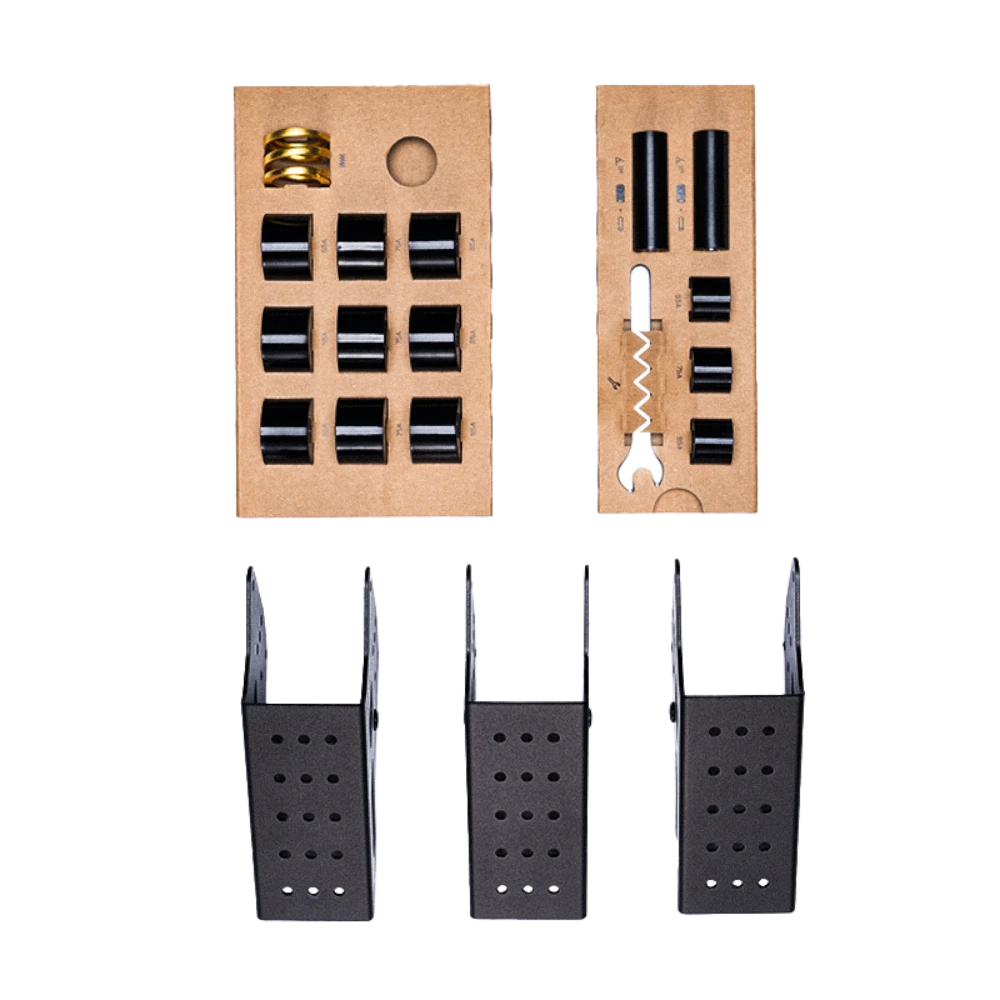

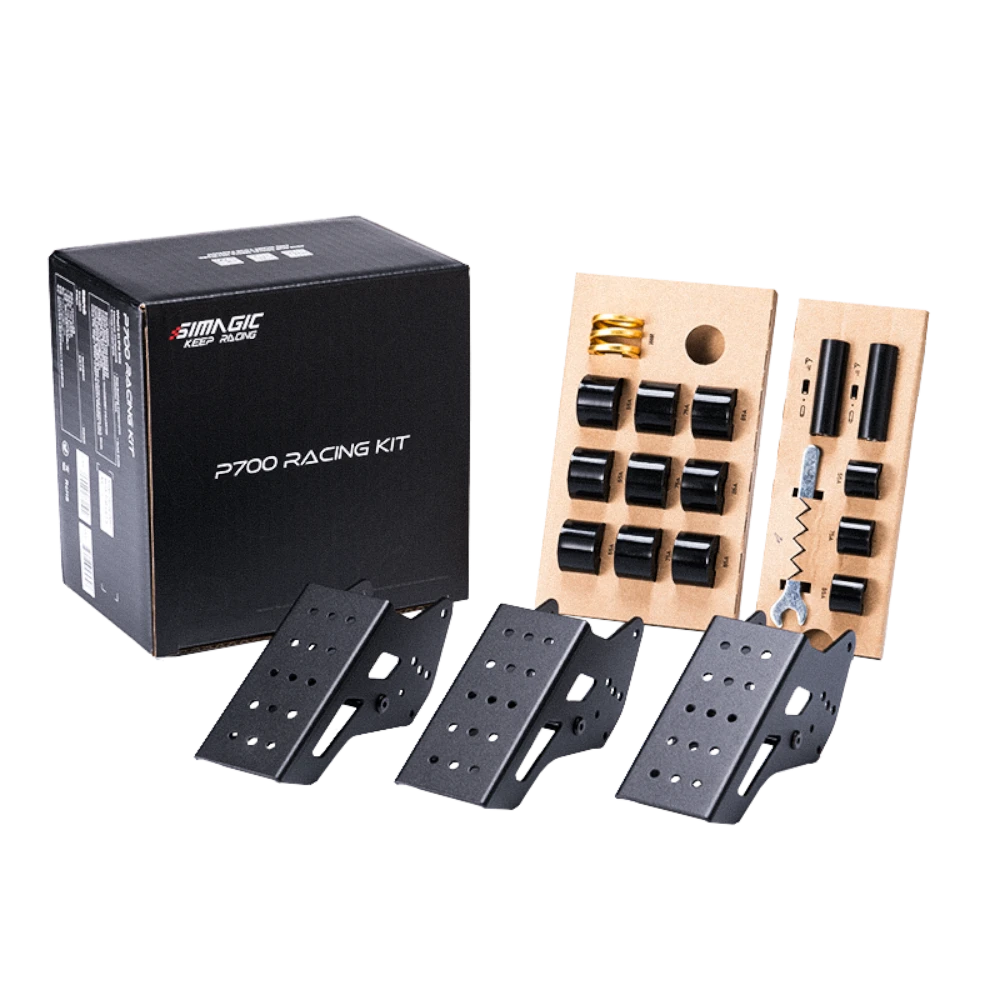

Simagic P700 Racing Kit complete with elastomers, Gold spring, raised pedal brackets and stop collars

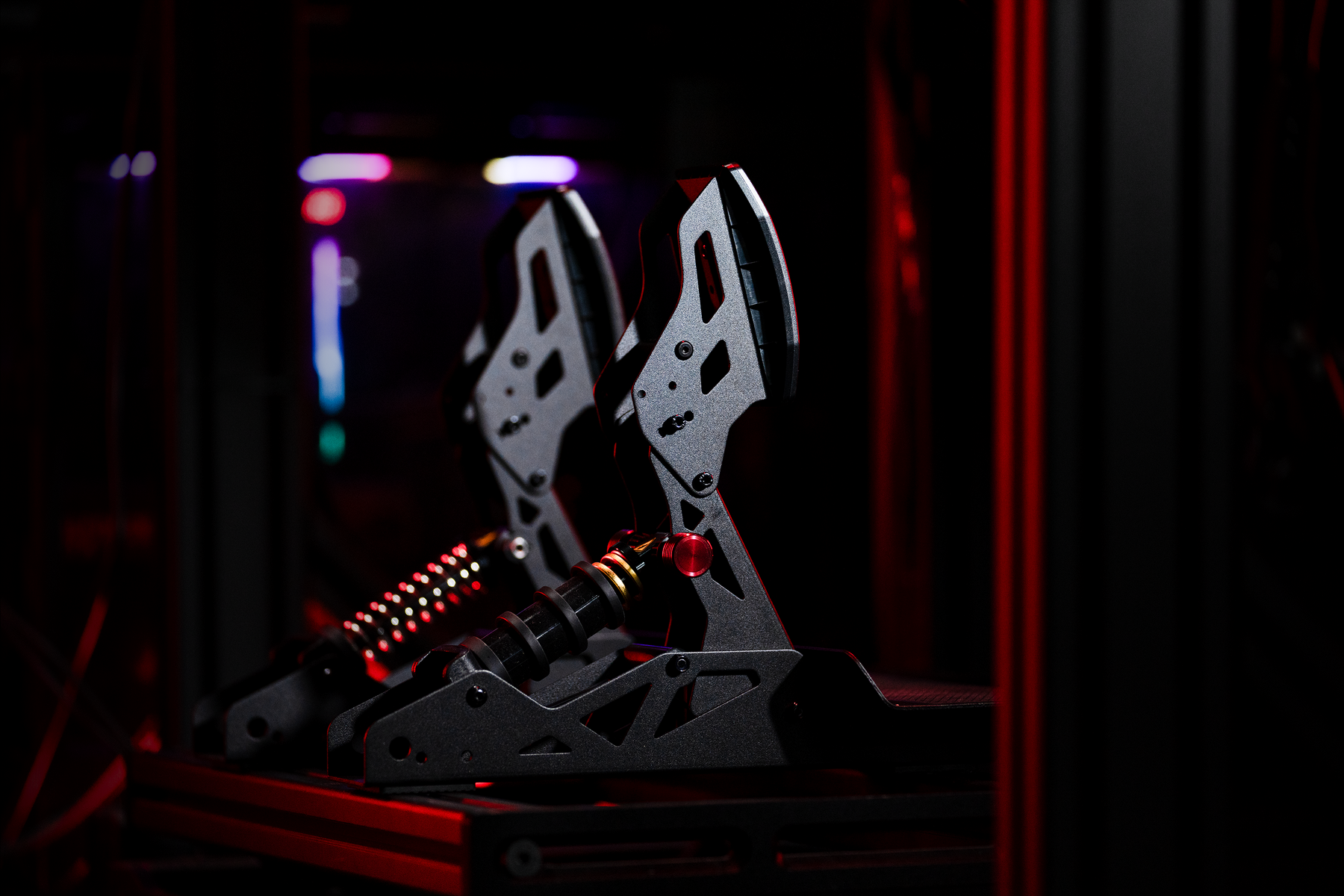

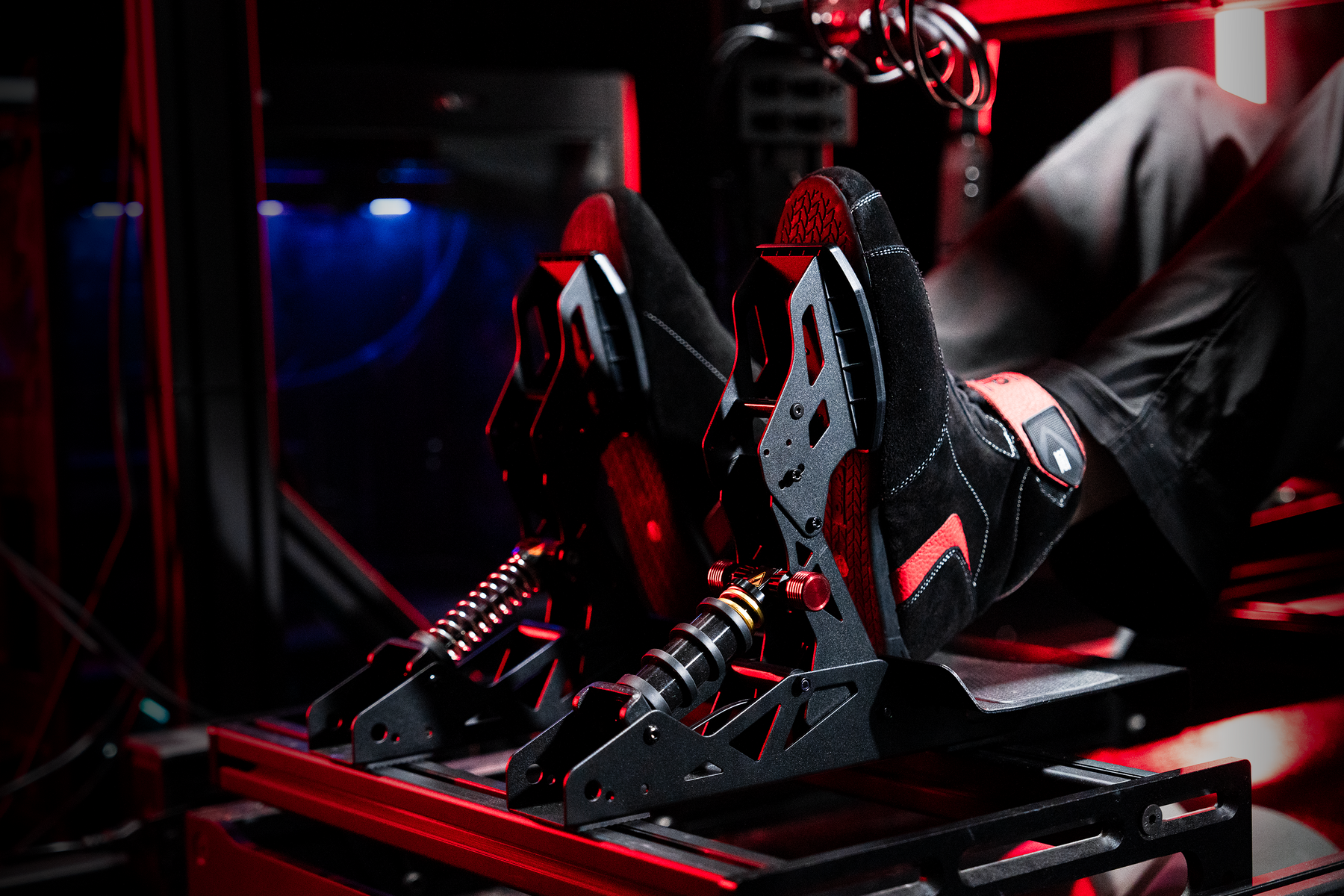

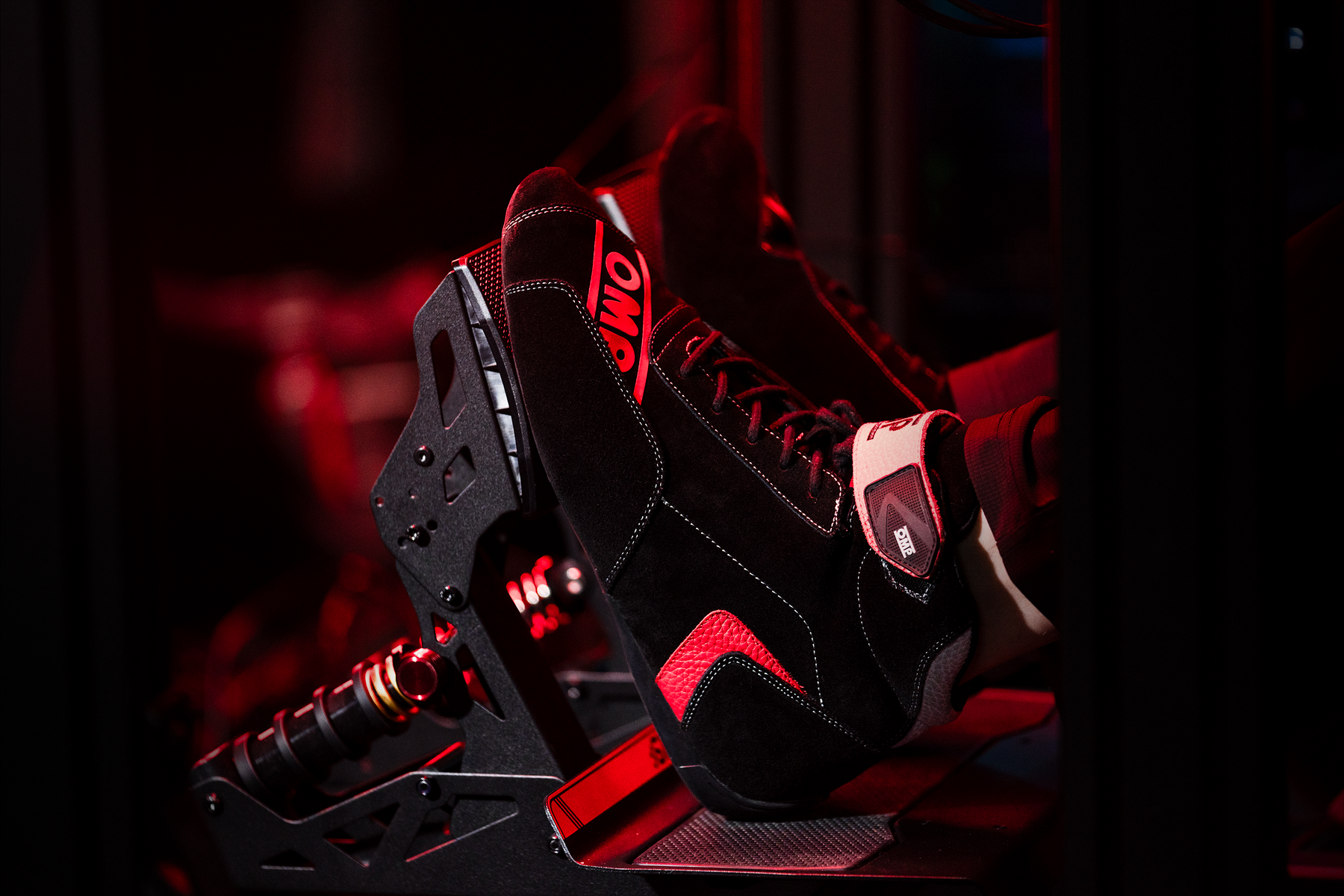

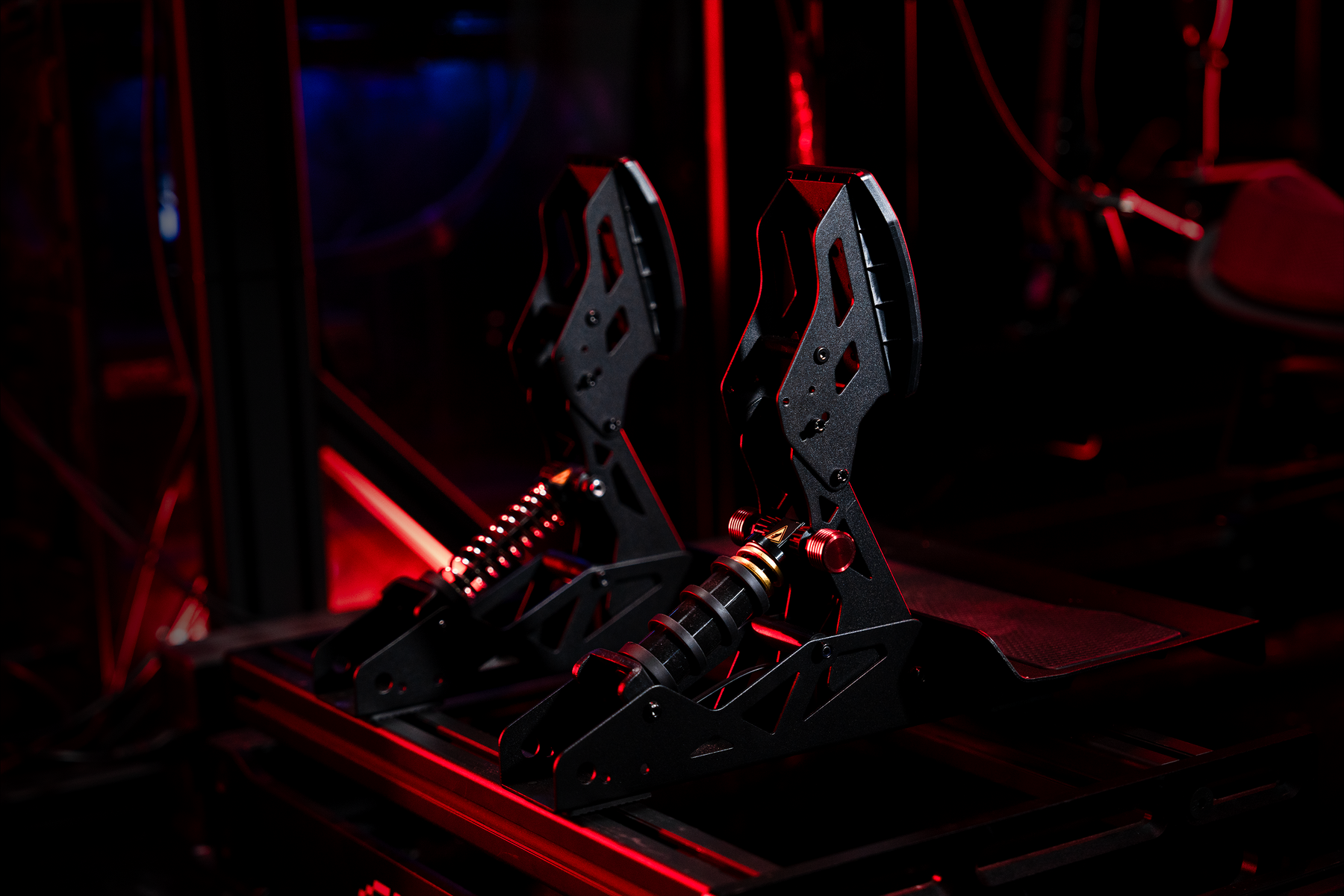

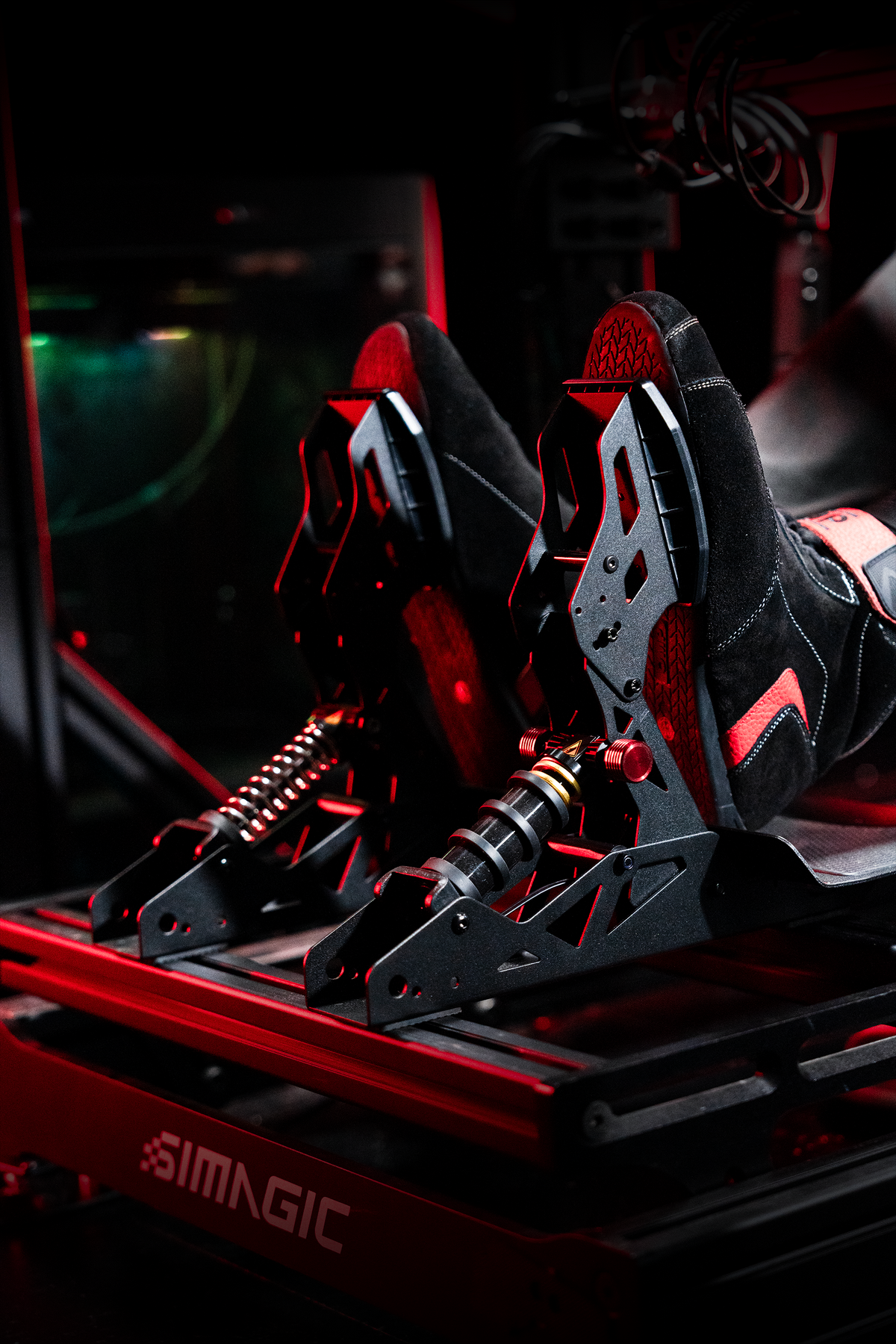

Simagic P700 pedals raised with the Racing Kit brackets in a sim racing cockpit
A55, A75 and A85 elastomers and Gold compression spring from the Simagic P700 Racing Kit

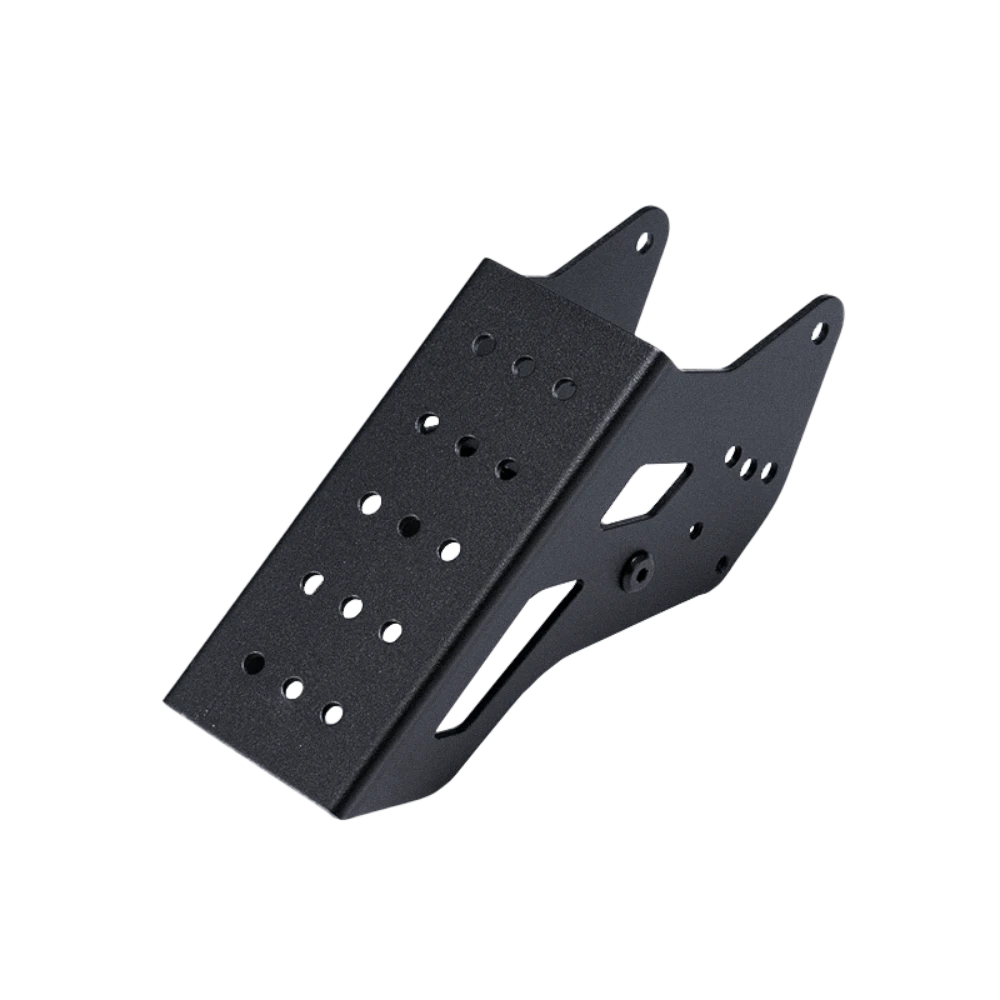

Reinforced raised pedal bracket from the Simagic P700 Racing Kit to lift the P700 pedals
Simagic P700 Racing Kit pedal stop collar fitted to the P700 throttle pedal
P700 Racing Kit hardness scale: silver, black and gold springs and 55, 75 and 85 elastomers
P700 Racing Kit hardness scale: silver, black and gold springs and 55, 75 and 85 elastomers
Simagic P700 Racing Kit pedal stop collar fitted to the P700 throttle pedal
Simagic P700 Racing Kit contents: elastomers, stop collars, brackets, 8 mm wrench and quick guide
Close-up of the limit bushing and stainless steel sleeve from the P700 Racing Kit
Simagic P700 Racing Kit components for tuning the feel of the P700 pedals
Simagic P700 Racing Kit complete with elastomers, Gold spring, raised pedal brackets and stop collars
Reinforced raised pedal bracket from the Simagic P700 Racing Kit to lift the P700 pedals
Simagic P700 pedals raised with the Racing Kit brackets in a sim racing cockpit
A55, A75 and A85 elastomers and Gold compression spring from the Simagic P700 Racing Kit
Close-up of the limit bushing and stainless steel sleeve from the P700 Racing Kit
Simagic P700 Racing Kit contents: elastomers, stop collars, brackets, 8 mm wrench and quick guide
Simagic P700 Racing Kit complete with elastomers, Gold spring, raised pedal brackets and stop collars
Simagic P700 pedals raised with the Racing Kit brackets in a sim racing cockpit
A55, A75 and A85 elastomers and Gold compression spring from the Simagic P700 Racing Kit
Reinforced raised pedal bracket from the Simagic P700 Racing Kit to lift the P700 pedals
Simagic P700 Racing Kit pedal stop collar fitted to the P700 throttle pedal
P700 Racing Kit hardness scale: silver, black and gold springs and 55, 75 and 85 elastomers
P700 Racing Kit hardness scale: silver, black and gold springs and 55, 75 and 85 elastomers
Simagic P700 Racing Kit pedal stop collar fitted to the P700 throttle pedal
Simagic P700 Racing Kit contents: elastomers, stop collars, brackets, 8 mm wrench and quick guide
Close-up of the limit bushing and stainless steel sleeve from the P700 Racing Kit
Simagic P700 Racing Kit components for tuning the feel of the P700 pedals
Simagic P700 Racing Kit complete with elastomers, Gold spring, raised pedal brackets and stop collars
Reinforced raised pedal bracket from the Simagic P700 Racing Kit to lift the P700 pedals
Simagic P700 pedals raised with the Racing Kit brackets in a sim racing cockpit
A55, A75 and A85 elastomers and Gold compression spring from the Simagic P700 Racing Kit

Simagic P700 Racing Kit – Pedal Upgrade Kit

Brand: SIMAGIC
Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
FECHA ESTIMADA
ARTÍCULO EN PRE-ORDER
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The Simagic P700 Racing Kit is the official upgrade kit for the Simagic P700 pedals: it adds elastomers in three hardness grades (A55, A75 and A85), a Gold compression spring, three raised pedal brackets and two pedal stop collars to firm up the brake, lift the pedal position and shorten throttle and clutch travel.

This is a purely mechanical kit with no electronics and no software dependency, so it acts directly on pedal feel. With it, a stock set of Simagic P700 pedals moves from a progressive road-car resistance to a firm, short race-car response, while pedal height adapts to reclined or formula-style seating positions.

Key features

  • Elastomers in three hardness grades — A55, A75 and A85 — with three large units and one small unit of each, freely combinable.
  • Gold compression spring, the firmest end of the P700 scale (silver < black < gold), for the firmest brake feel in the range.
  • Three raised pedal brackets (short bracket assemblies) that lift the pedals while retaining the original mounting and angle adjustment system.
  • Reinforced brackets measuring 136.5 mm high and 64 mm deep, designed for reclined and formula-style setups.
  • Two pedal stop collars (large limit bushing + stainless steel sleeve) that shorten throttle and clutch travel.
  • The brackets retain the mounting points for the P-HPR, P-HPR GT and P-HPR Neo haptic modules via the adapter plate.
  • 8 mm open-end wrench and quick guide included in the box.

Technical specifications

FeatureSimagic P700 Racing Kit
Product typeMechanical upgrade kit for Simagic P700 pedals
Large elastomersA55 ×3, A75 ×3, A85 ×3
Small elastomersA55 ×1, A75 ×1, A85 ×1
Compression springGold ×1
Hardness scaleSprings: silver < black < gold · Elastomers: 55 < 75 < 85
Raised pedal brackets3 P700 short bracket assemblies
Bracket dimensions136.5 mm (height) × 50 mm (width) × 64 mm (depth)
Bracket inner width46 mm
Pedal stop collars2 × large limit bushing + stainless steel sleeve
Bracket fastenersM4×6 socket head cap screws (the pedal's own screws are reused)
Tool included8 mm open-end wrench
DocumentationQuick guide
Operating temperature0–40 °C
Humidity20–80% RH, non-condensing
UseIndoor use only, mounted on a sim racing rig
Warranty24 months

Compatibility

  • Simagic P700 pedals (throttle and brake) and the C-P700 clutch module: the kit includes three brackets, one per pedal.
  • Pedal stop collars: designed for throttle and clutch; the brake pedal does not use them.
  • Elastomers and Gold spring: for the brake pedal's elastomer assembly; throttle and clutch also accept elastomer changes.
  • Simagic P-HPR, P-HPR GT and P-HPR Neo haptic modules, mounted to the pedal via the adapter plate.
  • A mechanical accessory specific to the P700 range: not universal and not suited to other pedal sets.

With no electronics involved, the kit is platform-independent: it works the same whether the pedals are connected over USB to a PC or linked to a Simagic wheelbase.

Frequently asked questions

Which pedals is the Simagic P700 Racing Kit compatible with?

It is designed for the Simagic P700 range: the throttle and brake pedals of the P700 set plus the C-P700 clutch module. It includes three brackets, one per pedal, so it covers a full three-pedal set. It is not a universal accessory and does not fit other pedal sets.

What is the difference between the A55, A75 and A85 elastomers?

The number indicates hardness: 55 is the softest, 75 the intermediate and 85 the firmest. The higher the number, the firmer the pedal resistance and the sooner the force ceiling is reached. The kit includes three large elastomers and one small elastomer of each grade, so they can be combined until you reach the feel you want.

What are the pedal stop collars for and which pedals take them?

They fit the throttle and the clutch, limiting pedal travel for shorter, more controlled inputs. The kit includes two sets, one per pedal, each made up of a large limit bushing and a stainless steel sleeve. The brake does not use them: its feel is tuned with the elastomers and the spring.

Can I still use the P-HPR haptic modules with the raised brackets fitted?

Yes. The brackets retain the pedal's original mounting points, so the Simagic P-HPR, P-HPR GT and P-HPR Neo modules still attach to the pedal via their adapter plate.

Do I need software or a recalibration after fitting the kit?

The kit is purely mechanical with no electronics, so no software installation is required. That said, after swapping elastomers or the spring it is worth recalibrating the brake pedal in SimPro Manager, the P700 pedals' software, so the force range matches the new feel.

What tools do I need to fit it?

The included 8 mm open-end wrench is enough for the spring and elastomer assembly. To remove and refit the brackets and the pedal face you will also need an Allen key for the pedal's own M4×6 screws. The included quick guide covers every step.
