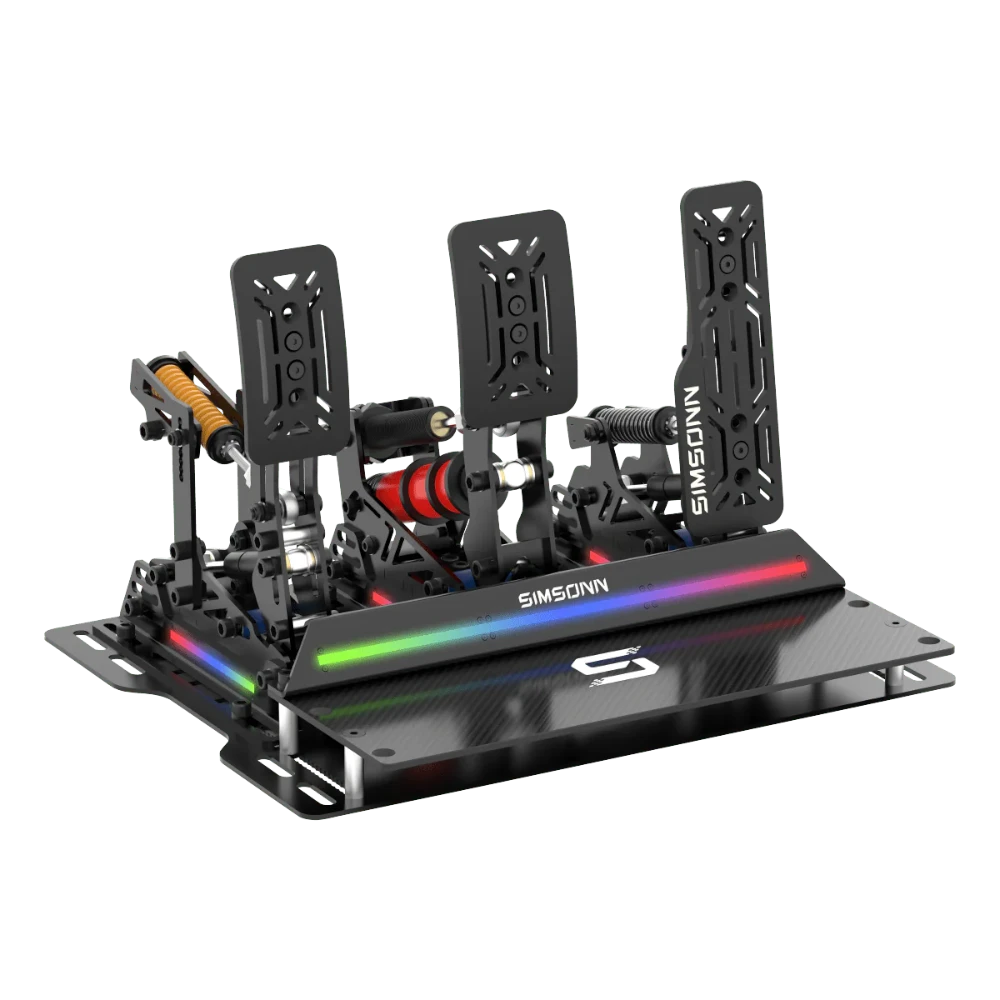

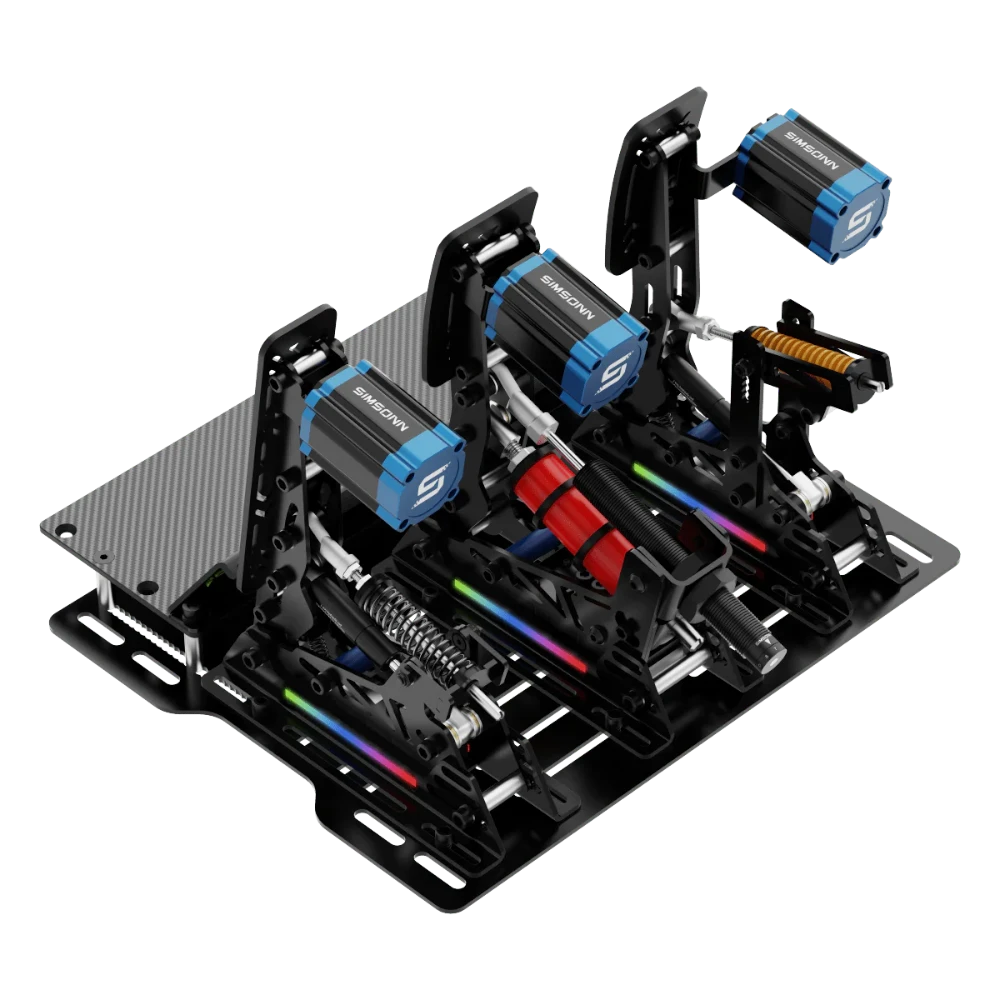

SIMSONN Pro X Ultra, sim racing pedal set with hydraulic brake and aluminium control box

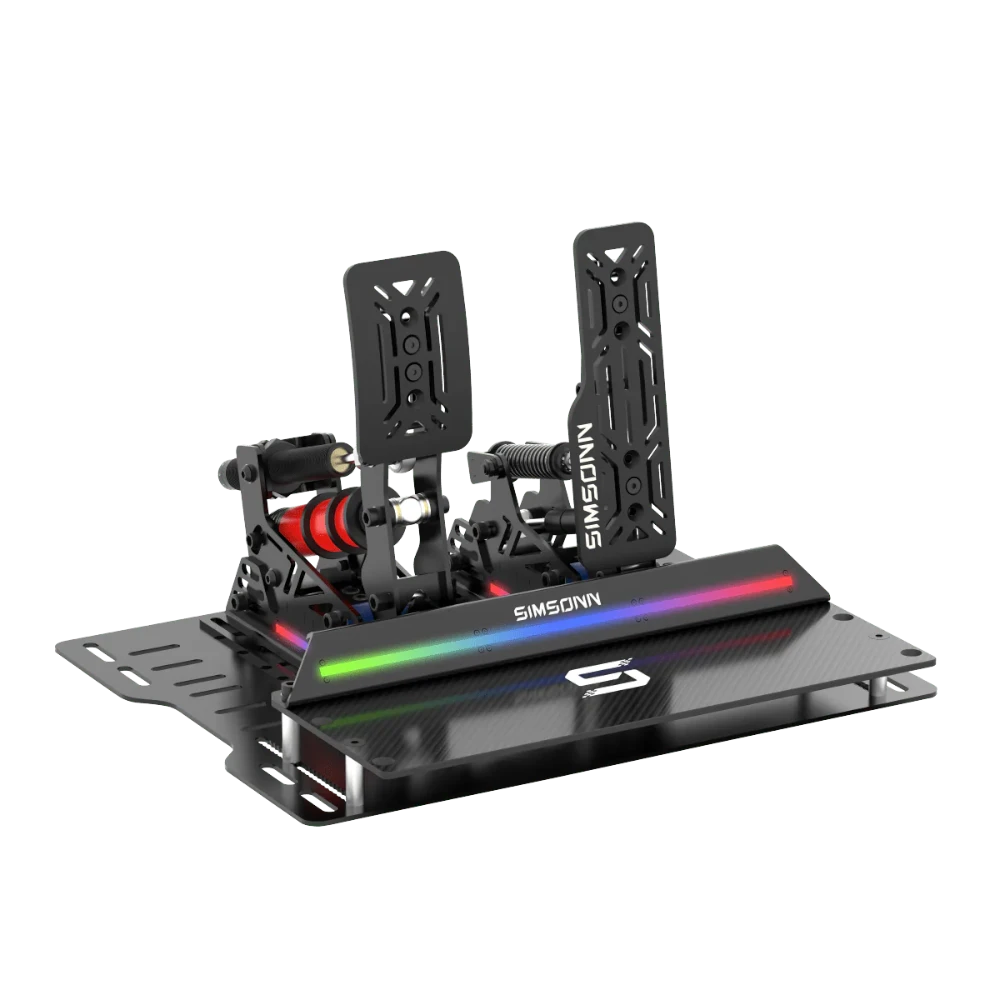

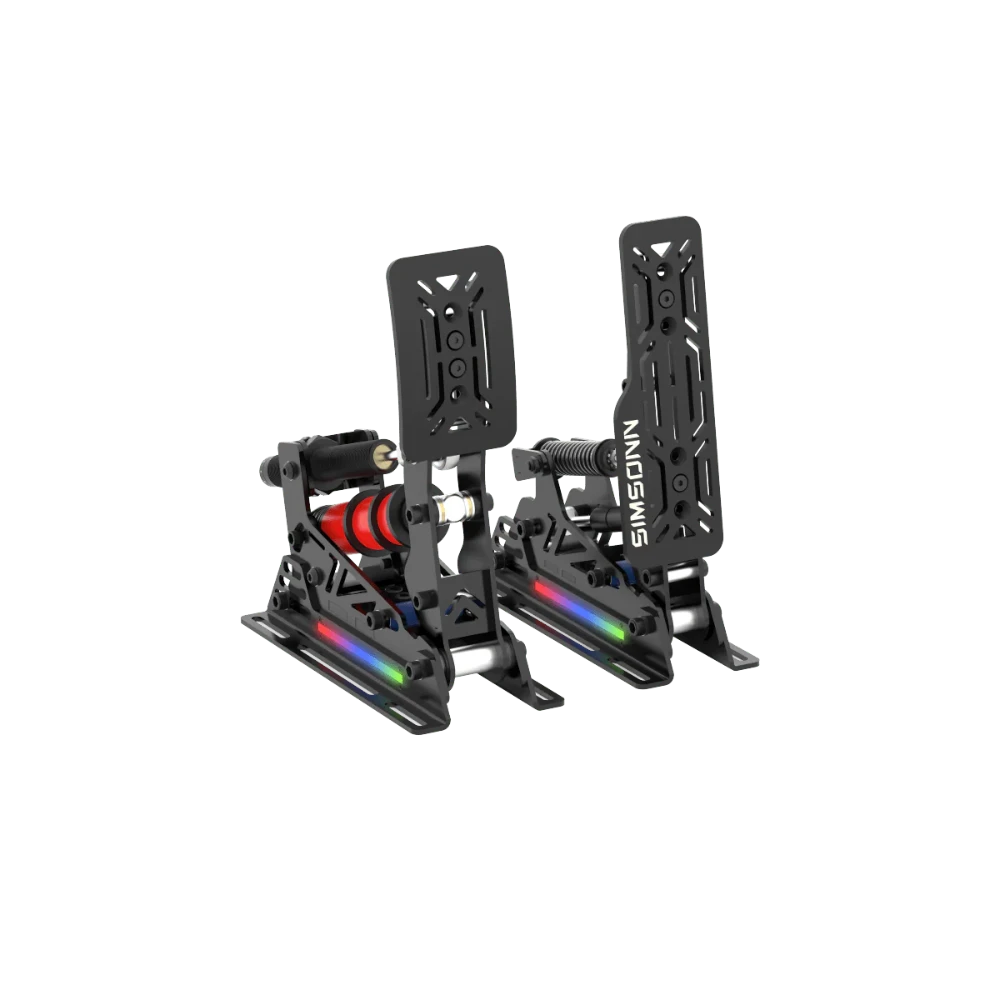

Ambient RGB lighting of the SIMSONN Pro X Ultra pedals

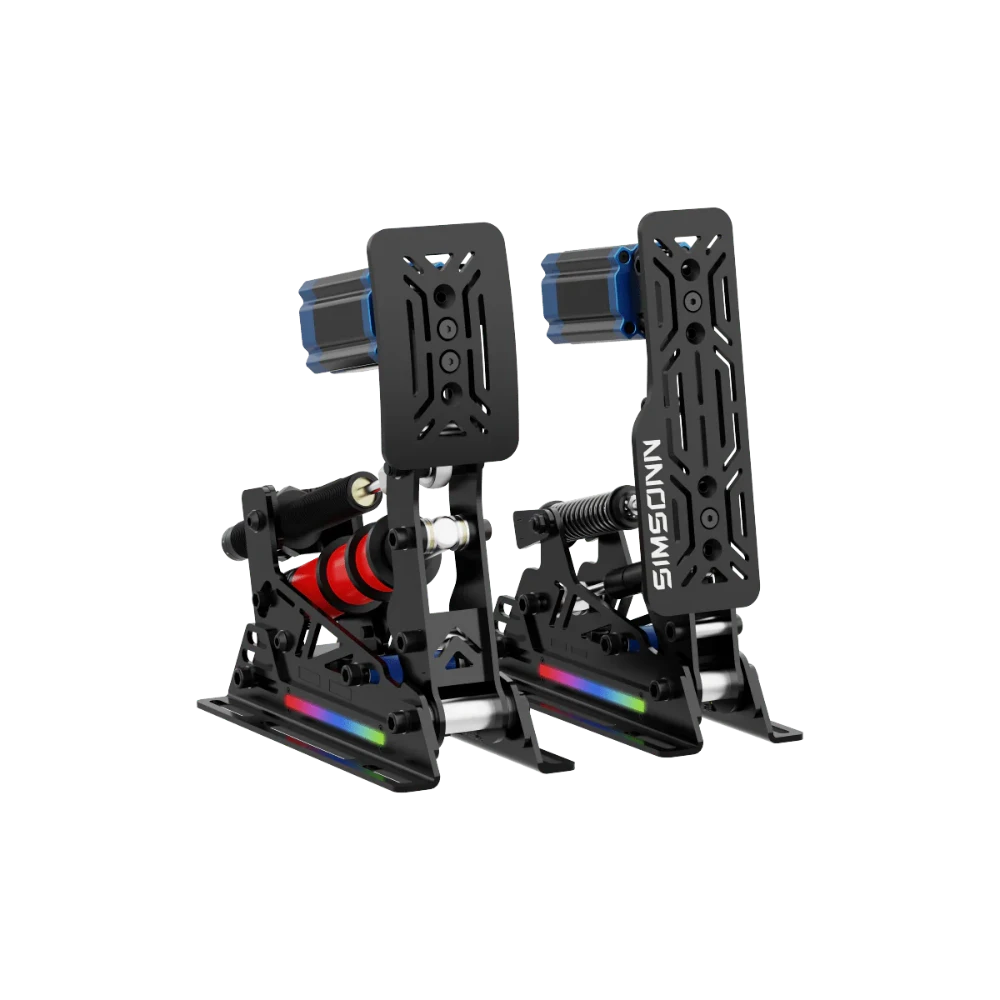

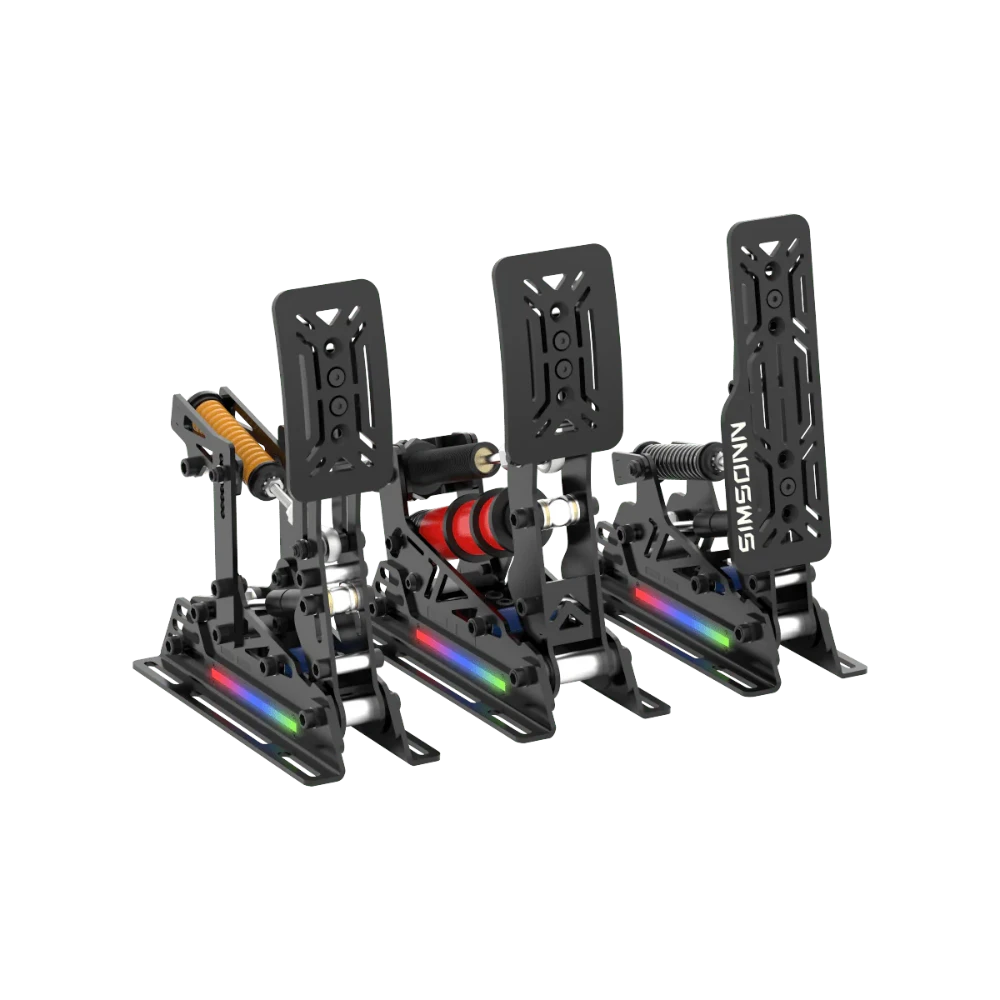

SIMSONN Pro X Ultra sim racing pedals with hydraulic brake and RGB

Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.

Price

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

FECHA ESTIMADA

ARTÍCULO EN PRE-ORDER

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":54108105572685,"title":"Set of 2 \/ No","option1":"Set of 2","option2":"No","option3":null,"sku":"SSN-PROXULT-P2-H2","requires_shipping":true,"taxable":true,"featured_image":{"id":89694885445965,"product_id":10708845592909,"position":4,"created_at":"2026-06-14T20:28:20+02:00","updated_at":"2026-06-14T20:28:22+02:00","alt":"Ambient RGB lighting of the SIMSONN Pro X Ultra pedals","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_5.webp?v=1781461702","variant_ids":[54108105572685]},"available":true,"name":"SIMSONN Pro X Ultra – Hydraulic Pedals - Set of 2 \/ No","public_title":"Set of 2 \/ No","options":["Set of 2","No"],"price":24999,"weight":6100,"compare_at_price":null,"inventory_management":"shopify","barcode":"850068465156","featured_media":{"alt":"Ambient RGB lighting of the SIMSONN Pro X Ultra pedals","id":62860647727437,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_5.webp?v=1781461702"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54108109177165,"title":"Set of 2 \/ Yes","option1":"Set of 2","option2":"Yes","option3":null,"sku":"SSN-PROXULT-P2-H2-BP-HP","requires_shipping":true,"taxable":true,"featured_image":{"id":89694885314893,"product_id":10708845592909,"position":2,"created_at":"2026-06-14T20:28:20+02:00","updated_at":"2026-06-14T20:28:22+02:00","alt":"SIMSONN Pro X Ultra, sim racing pedal set with hydraulic brake and aluminium control box","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_3.webp?v=1781461702","variant_ids":[54108109177165]},"available":true,"name":"SIMSONN Pro X Ultra – Hydraulic Pedals - Set of 2 \/ Yes","public_title":"Set of 2 \/ Yes","options":["Set of 2","Yes"],"price":30999,"weight":9900,"compare_at_price":34998,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"SIMSONN Pro X Ultra, sim racing pedal set with hydraulic brake and aluminium control box","id":62860647596365,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_3.webp?v=1781461702"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54108105605453,"title":"Set of 3 \/ No","option1":"Set of 3","option2":"No","option3":null,"sku":"SSN-PROXULT-P3-H3","requires_shipping":true,"taxable":true,"featured_image":{"id":89694885380429,"product_id":10708845592909,"position":3,"created_at":"2026-06-14T20:28:20+02:00","updated_at":"2026-06-14T20:28:22+02:00","alt":"Ambient RGB lighting of the SIMSONN Pro X Ultra pedals","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_4.webp?v=1781461702","variant_ids":[54108105605453]},"available":true,"name":"SIMSONN Pro X Ultra – Hydraulic Pedals - Set of 3 \/ No","public_title":"Set of 3 \/ No","options":["Set of 3","No"],"price":29999,"weight":8700,"compare_at_price":34998,"inventory_management":"shopify","barcode":"850068465163","featured_media":{"alt":"Ambient RGB lighting of the SIMSONN Pro X Ultra pedals","id":62860647661901,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_4.webp?v=1781461702"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54108109209933,"title":"Set of 3 \/ Yes","option1":"Set of 3","option2":"Yes","option3":null,"sku":"SSN-PROXULT-P3-H3-BP-HP","requires_shipping":true,"taxable":true,"featured_image":{"id":89694885249357,"product_id":10708845592909,"position":1,"created_at":"2026-06-14T20:28:20+02:00","updated_at":"2026-06-14T20:28:22+02:00","alt":"SIMSONN Pro X Ultra, sim racing pedal set with hydraulic brake and aluminium control box","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_2.webp?v=1781461702","variant_ids":[54108109209933]},"available":true,"name":"SIMSONN Pro X Ultra – Hydraulic Pedals - Set of 3 \/ Yes","public_title":"Set of 3 \/ Yes","options":["Set of 3","Yes"],"price":35999,"weight":12500,"compare_at_price":44997,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"SIMSONN Pro X Ultra, sim racing pedal set with hydraulic brake and aluminium control box","id":62860647530829,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_2.webp?v=1781461702"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":54108105572685,"title":"Set of 2 \/ No","option1":"Set of 2","option2":"No","option3":null,"sku":"SSN-PROXULT-P2-H2","requires_shipping":true,"taxable":true,"featured_image":{"id":89694885445965,"product_id":10708845592909,"position":4,"created_at":"2026-06-14T20:28:20+02:00","updated_at":"2026-06-14T20:28:22+02:00","alt":"Ambient RGB lighting of the SIMSONN Pro X Ultra pedals","width":1000,"height":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_5.webp?v=1781461702","variant_ids":[54108105572685]},"available":true,"name":"SIMSONN Pro X Ultra – Hydraulic Pedals - Set of 2 \/ No","public_title":"Set of 2 \/ No","options":["Set of 2","No"],"price":24999,"weight":6100,"compare_at_price":null,"inventory_management":"shopify","barcode":"850068465156","featured_media":{"alt":"Ambient RGB lighting of the SIMSONN Pro X Ultra pedals","id":62860647727437,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/simufy.com\/cdn\/shop\/files\/SIMSONN-Pro-X-Ultra-Pedales-hidraulicos-simracing-simufy_5.webp?v=1781461702"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The SIMSONN Pro X Ultra is a professional-grade sim racing pedal set with an 8-stage adjustable hydraulic rod on the brake, compatible with PC and configurable via SIMSONN Manager, aimed at drivers who want to fully personalise their braking feel.

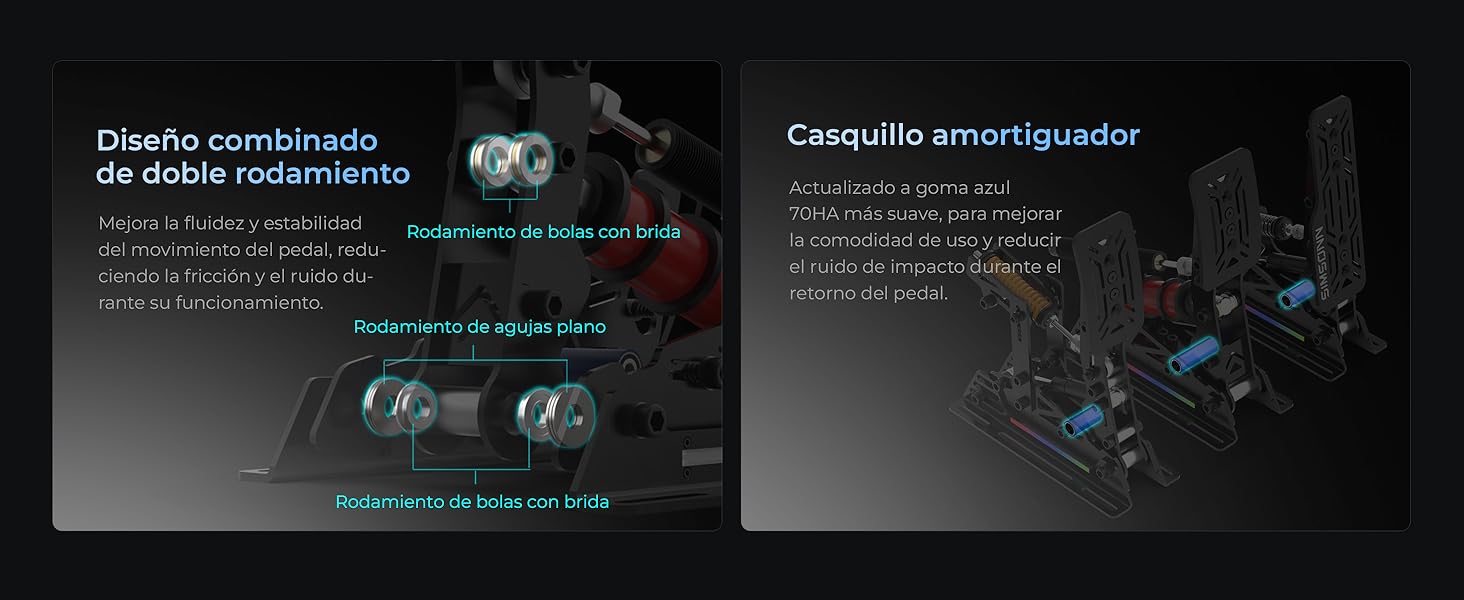

The Pro X Ultra range reimagines the design of SIMSONN pedals on its proven mechanical base: reinforced stainless steel chassis, dual-bearing design per pedal and a two-stage brake damping system. The brake features an 8-stage hydraulic rod and three dampers of different hardness to reproduce the braking load of different cars, with integrated RGB lighting for visual feedback.

Key features

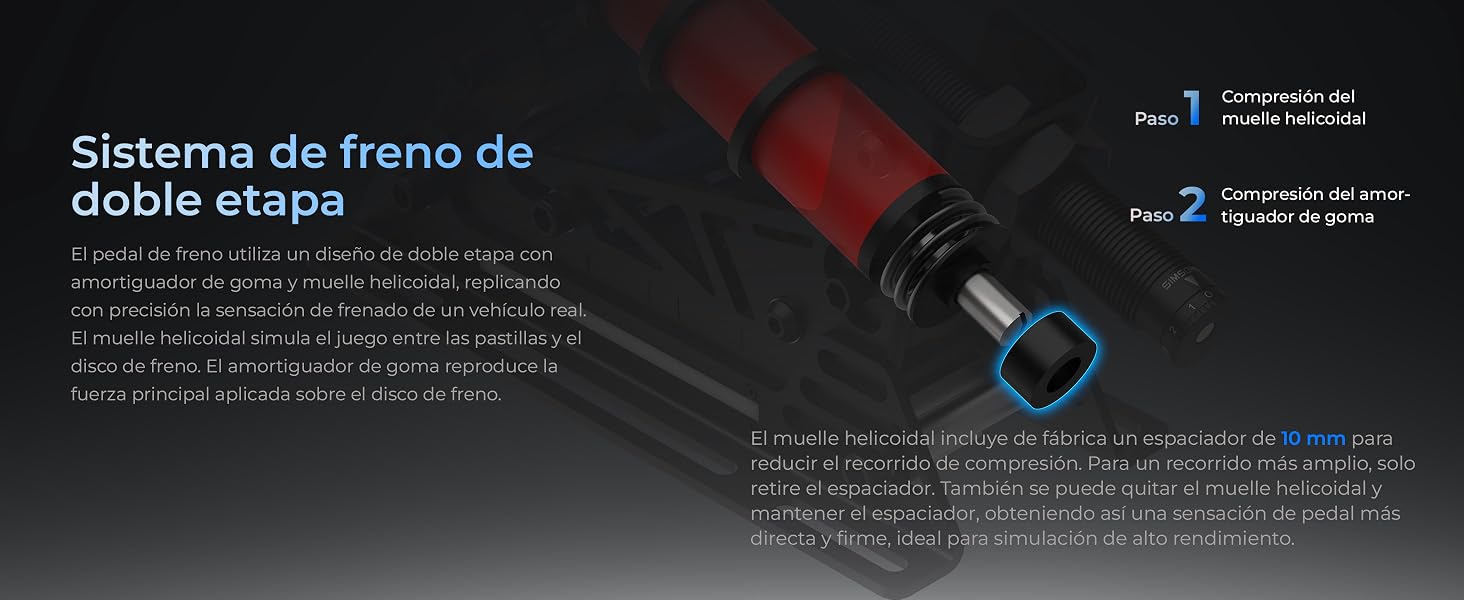

Two-stage brake (rubber damper + coil spring) with an 8-stage adjustable hydraulic rod for a realistic, progressive braking feel.

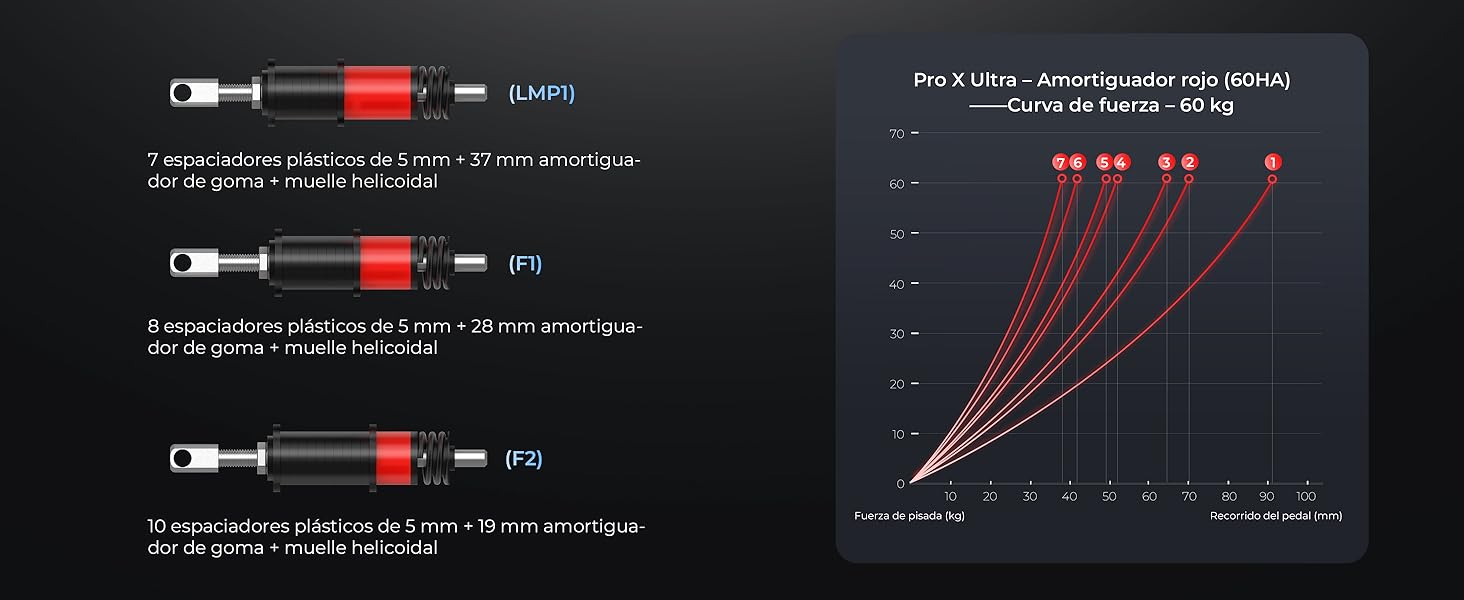

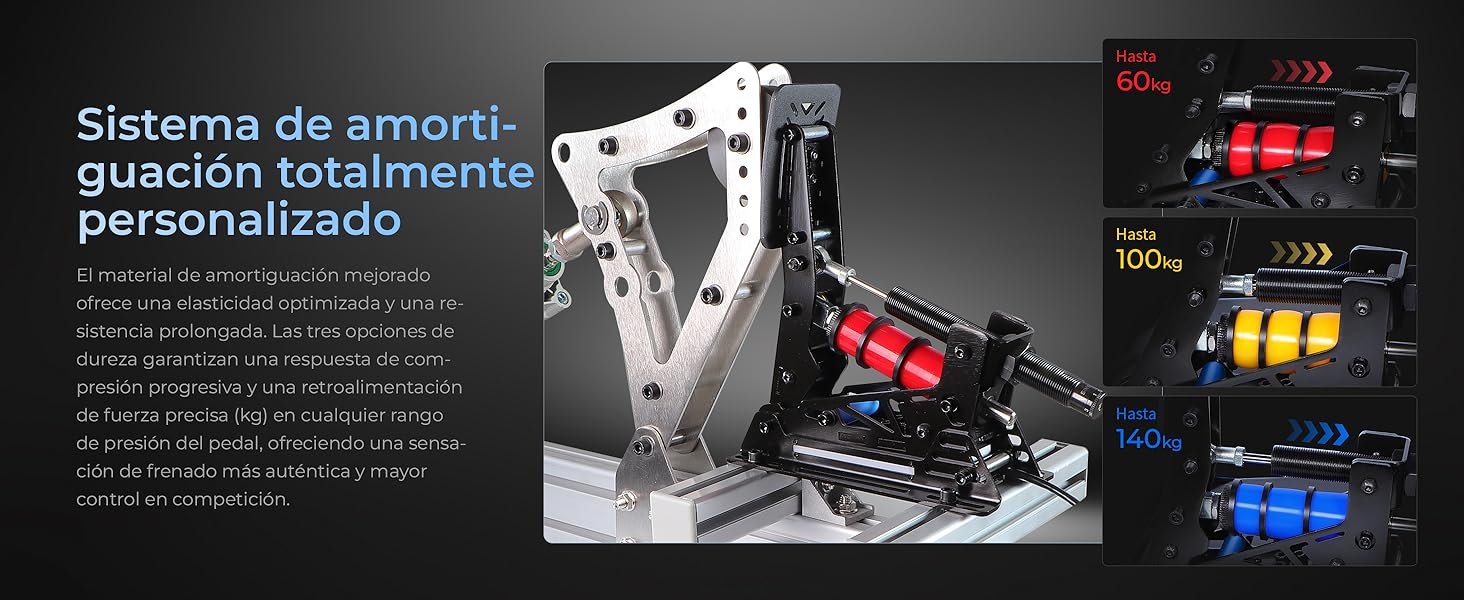

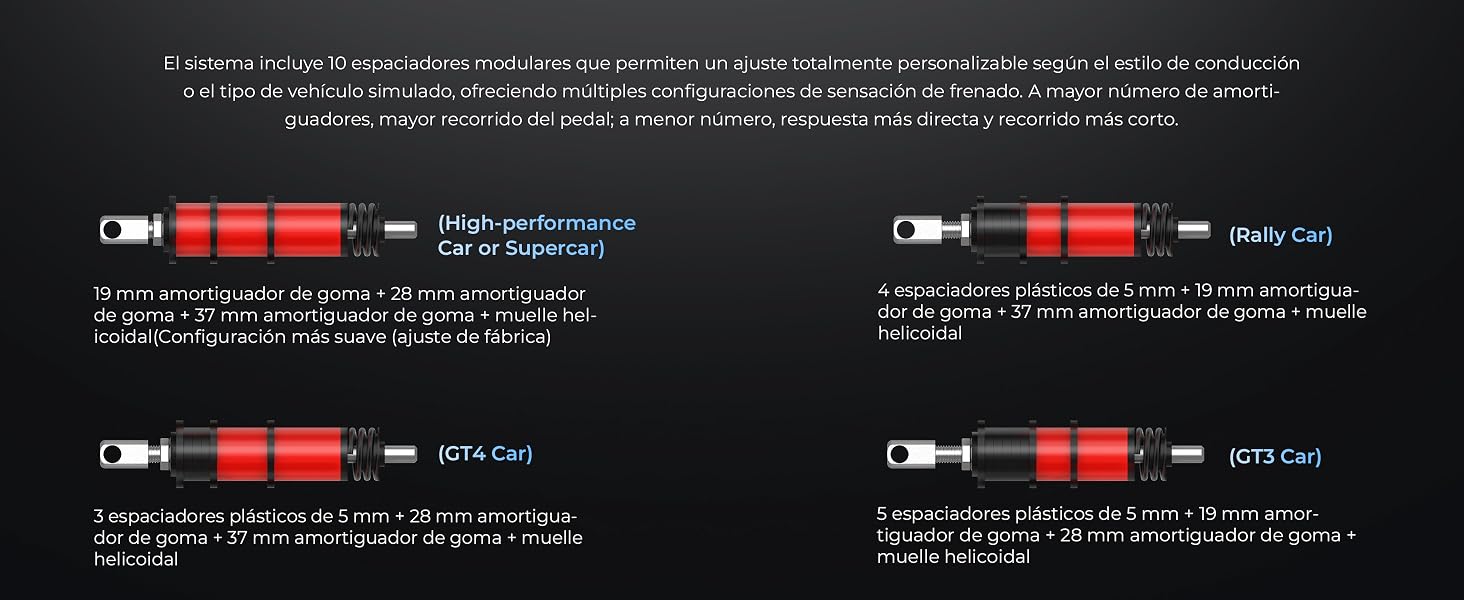

Damping system with three dampers of different hardness and 10 spacers: combinations up to 60, 100 and 140 kg with adjustable travel.

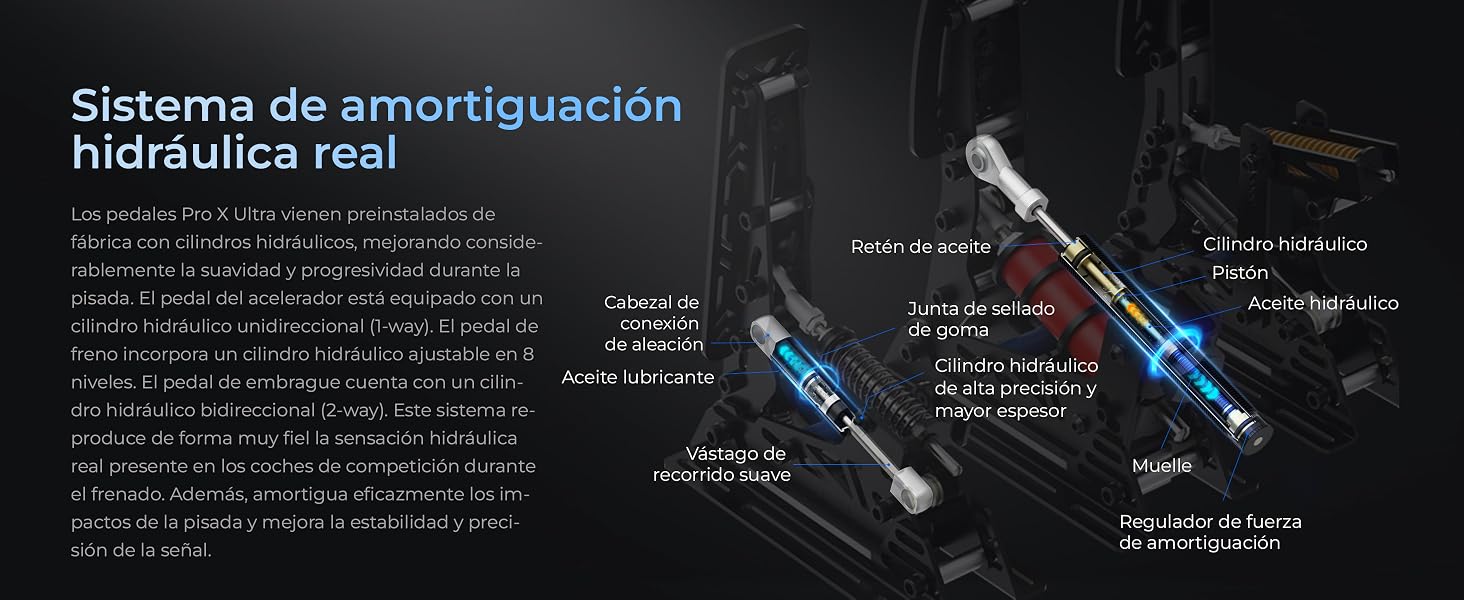

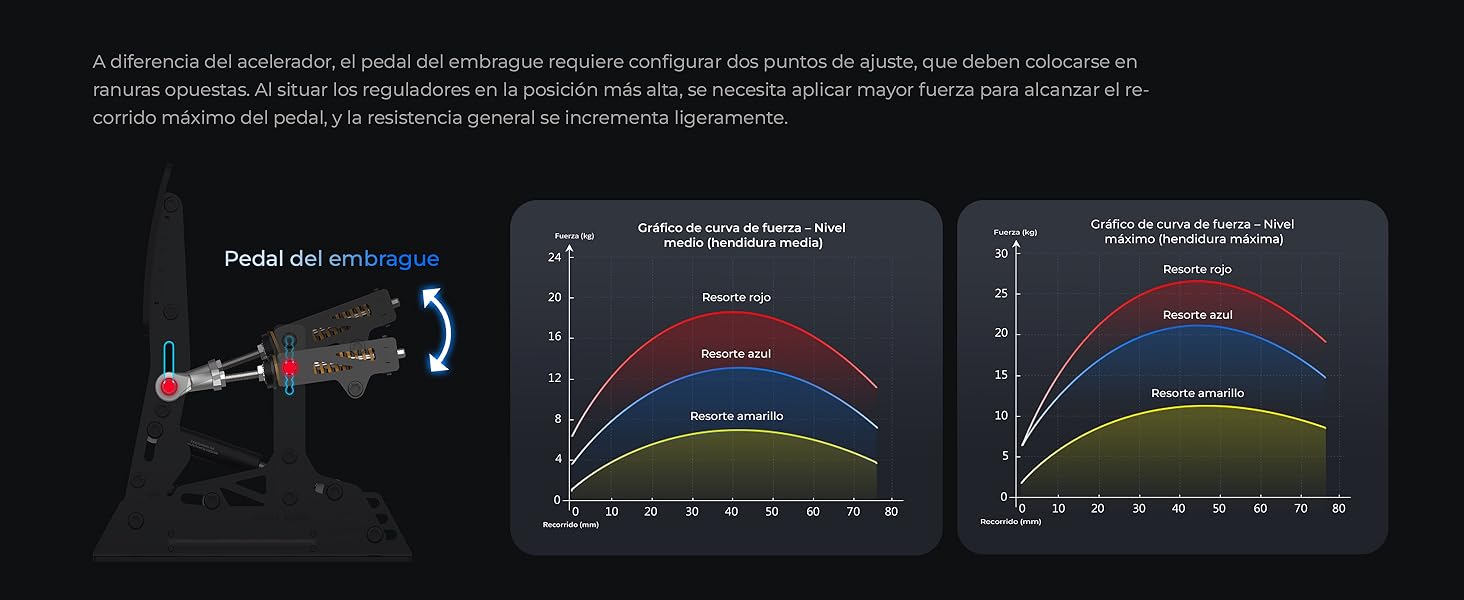

Throttle with one-way hydraulic rod and clutch with two-way hydraulic rod, each with its own spring.

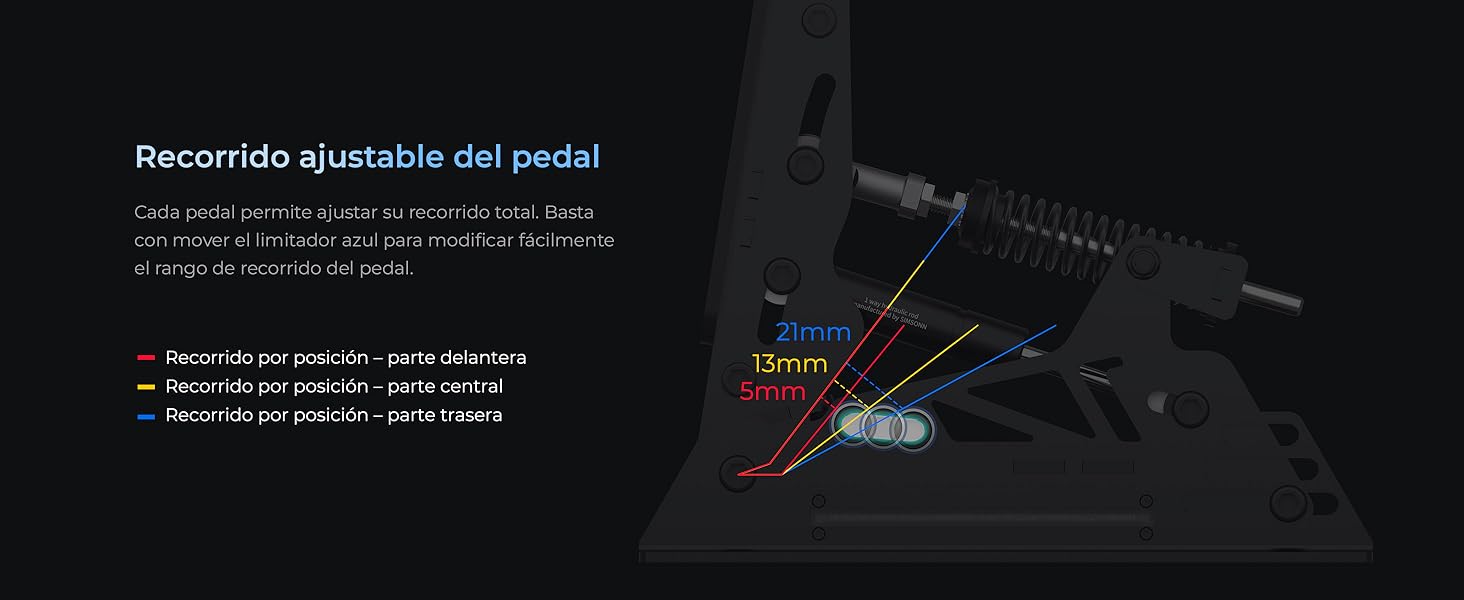

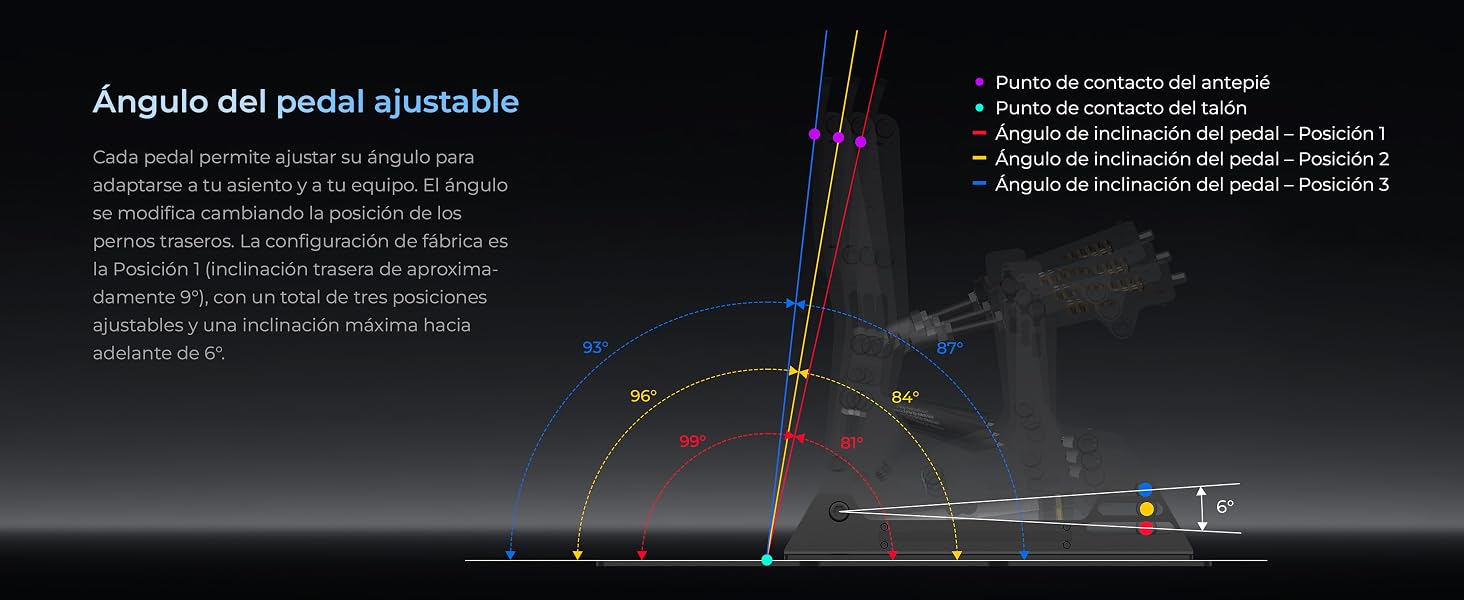

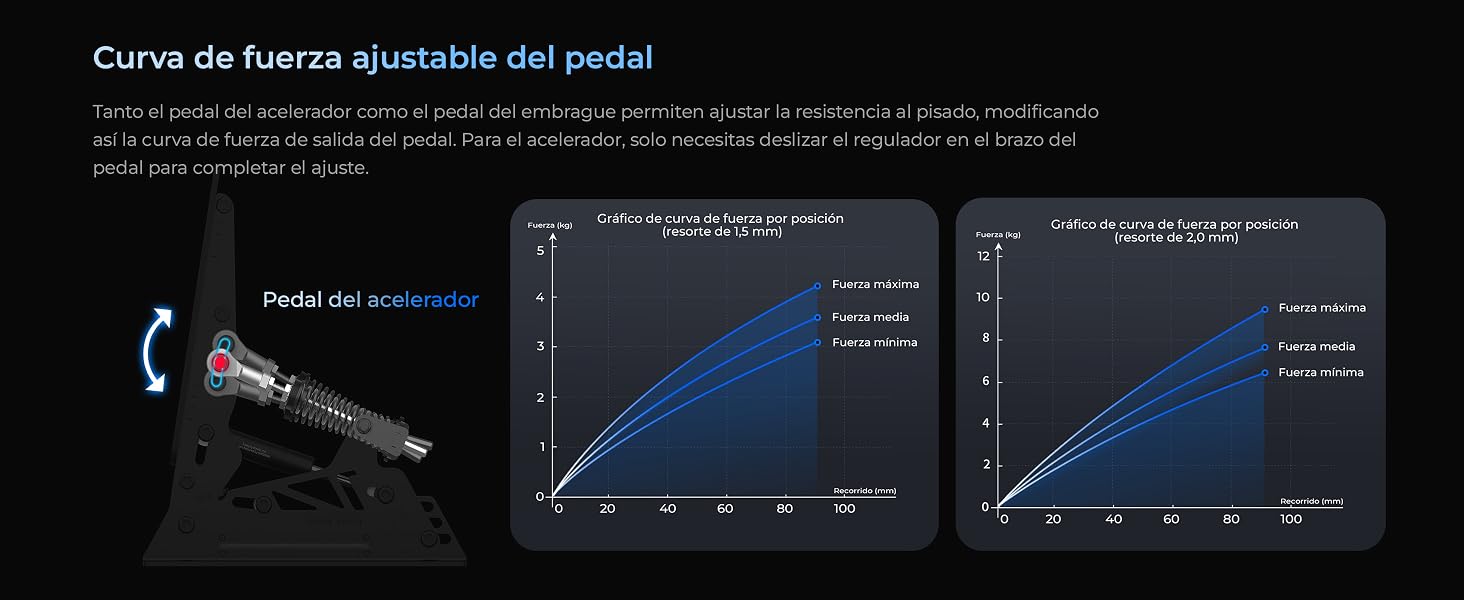

Full adjustment of height (2 levels, 15 mm), angle (3 levels, from ~9° back to 6° forward), travel and force curve.

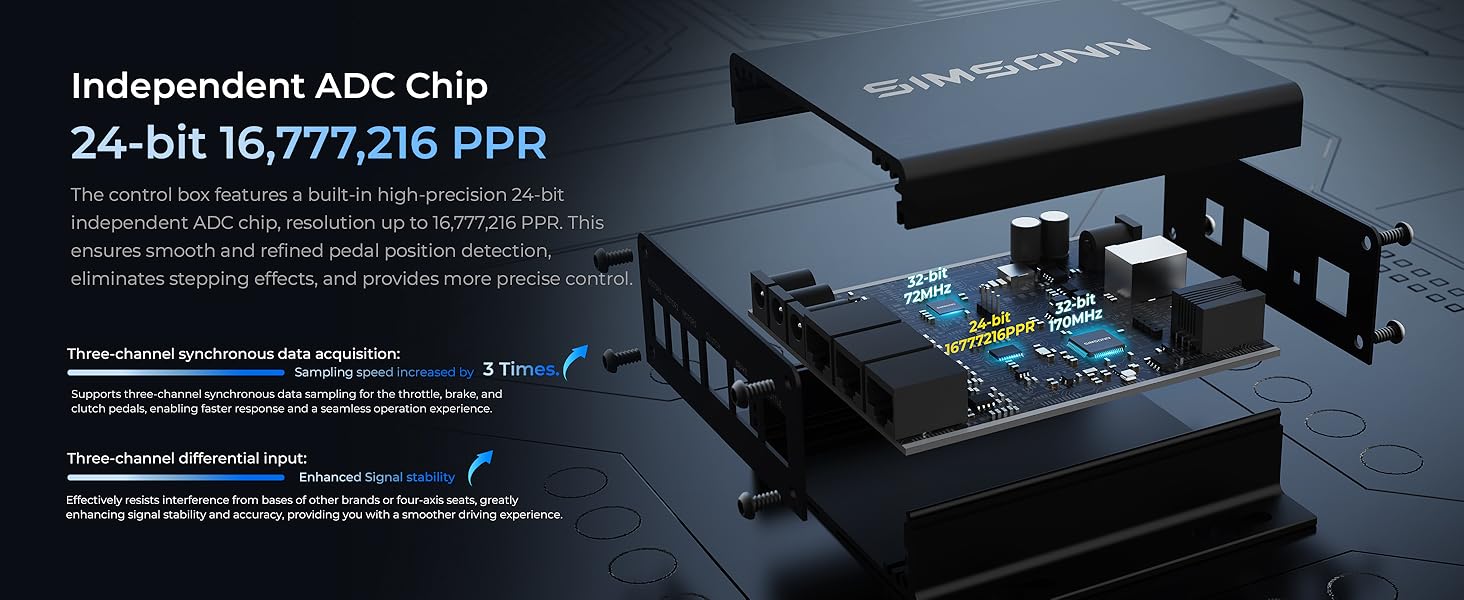

Sealed aluminium control box with a dual-core processor (32 bit 170 MHz and 32 bit 72 MHz) and an independent 24-bit ADC, anti-interference.

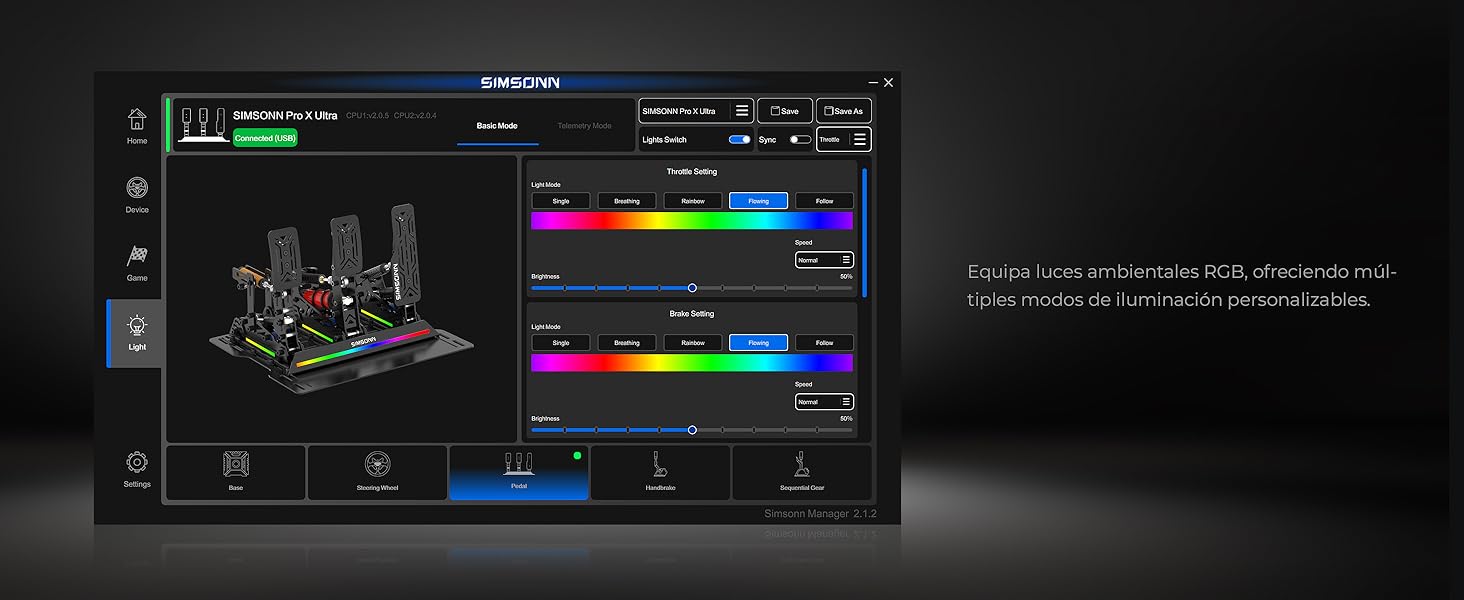

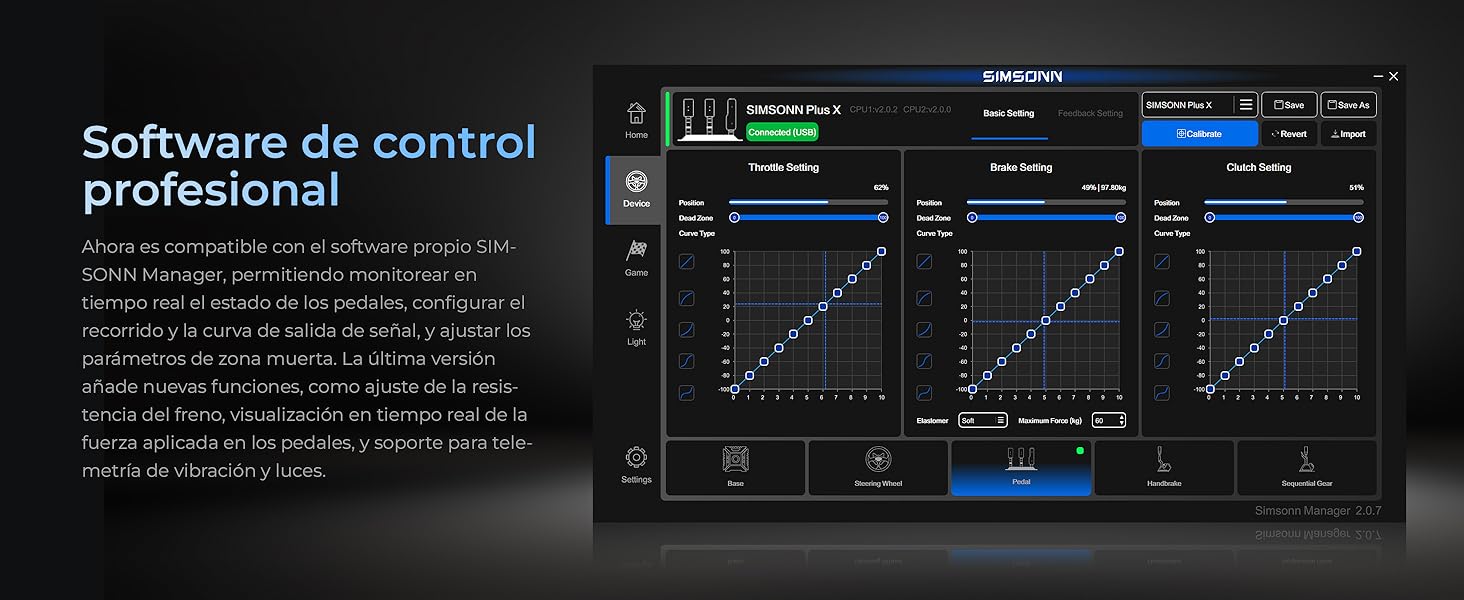

RGB ambient lighting with customisable modes and SIMSONN Manager software for curves, dead zones and brake damping.

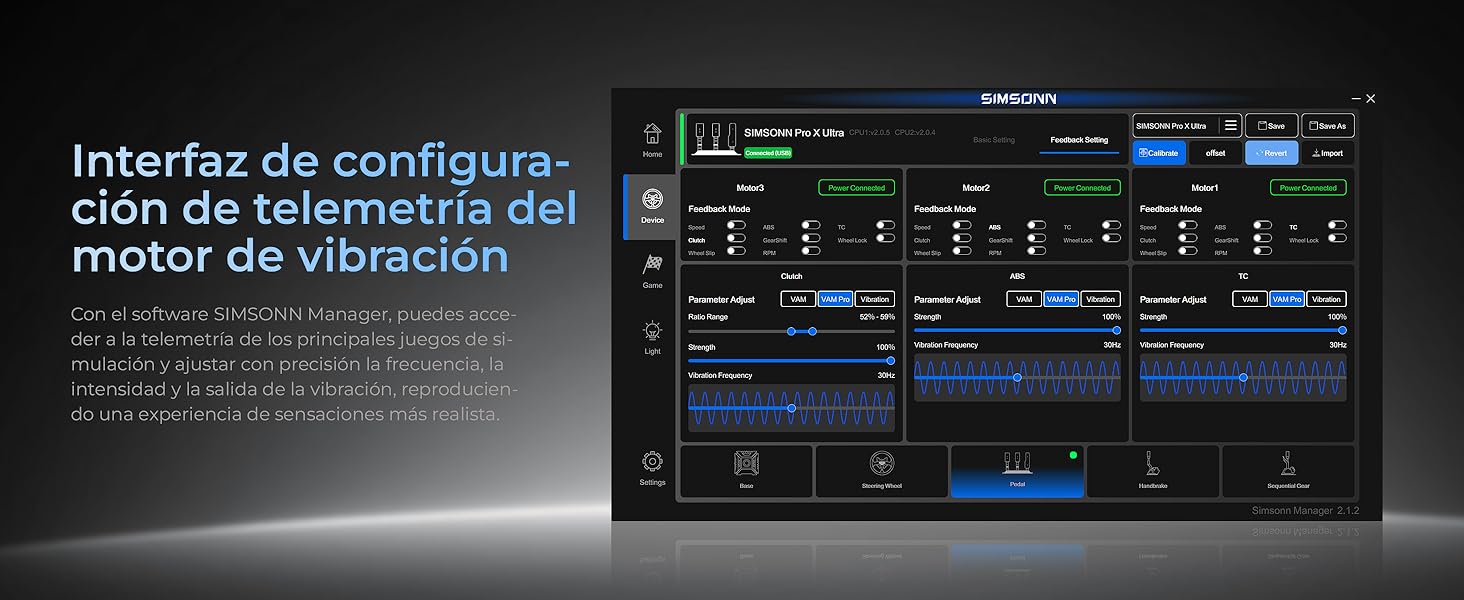

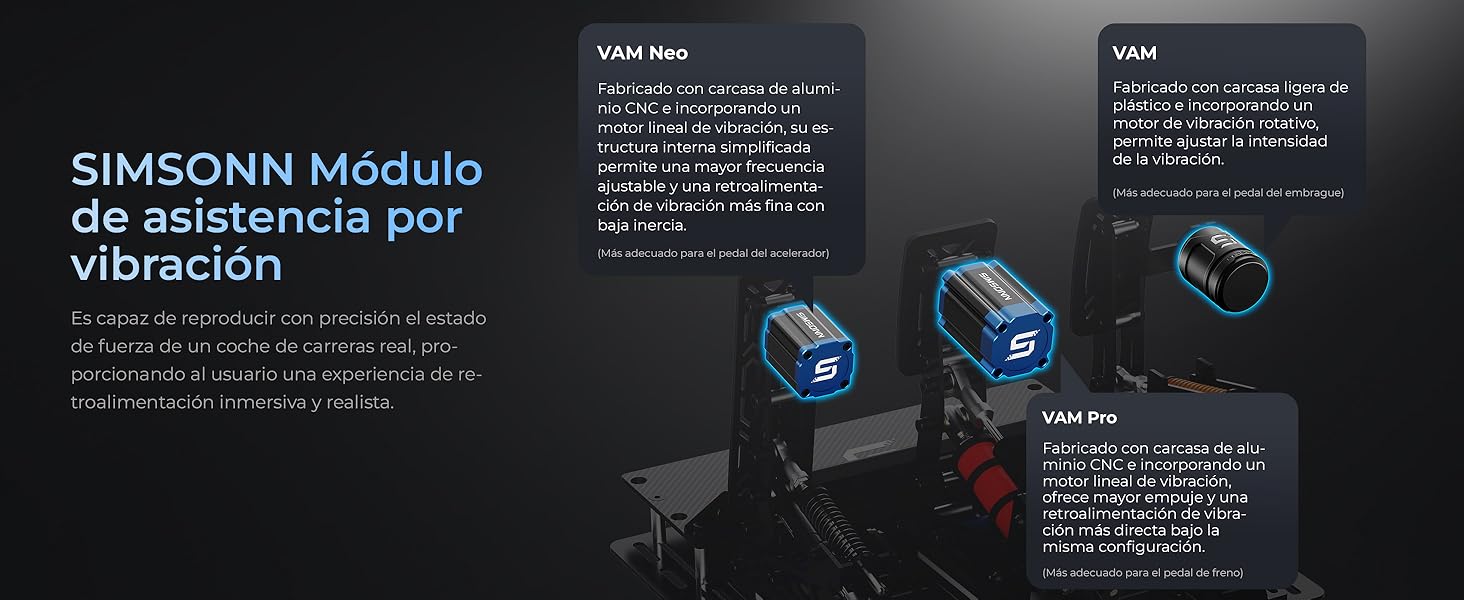

Compatible with the VAM / VAM NEO vibration module, configurable via telemetry.

Technical specifications

Feature	Value
Product type	Sim racing pedal set (professional grade)
Configurations	2 or 3 pedals (with/without clutch), with/without baseplate

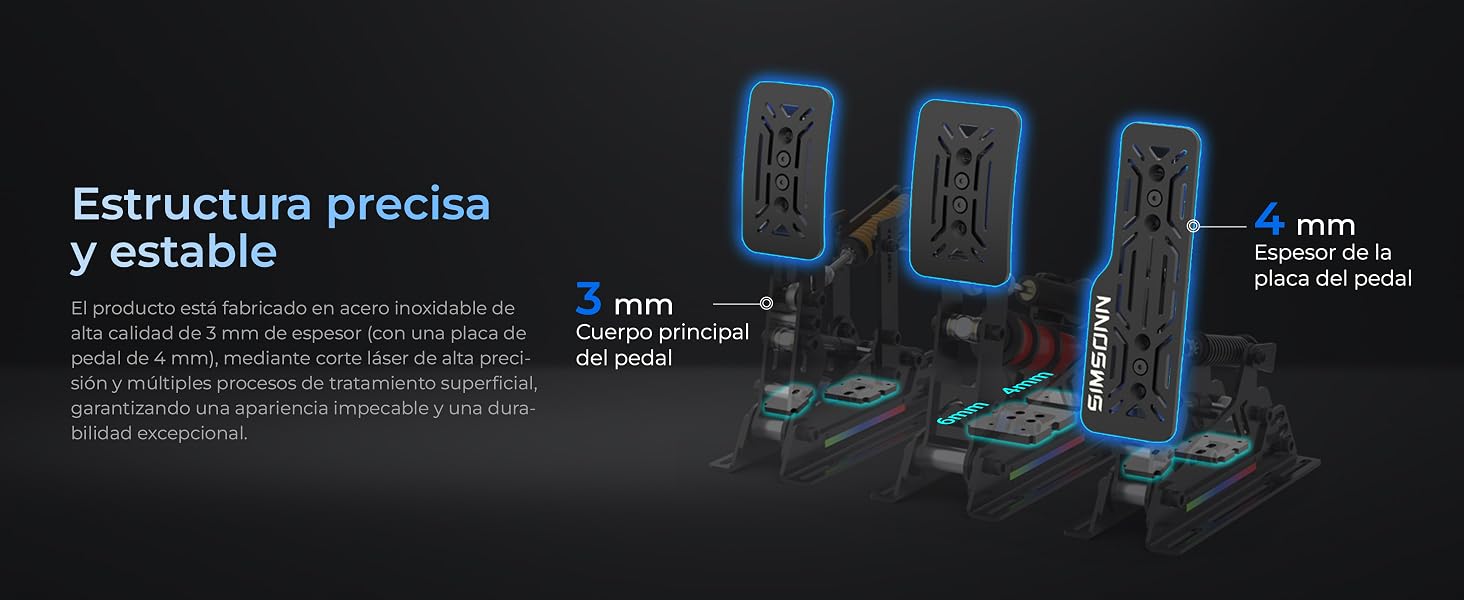

Chassis	Reinforced stainless steel, 3 mm, 4 mm pedal plate
Brake system	Two-stage: rubber damper + coil spring
Brake hydraulic rod	8-stage adjustable
Throttle	One-way hydraulic rod + medium-tension spring
Clutch	Two-way hydraulic rod + light-tension spring
Brake dampers	3 of different hardness; combinations up to 60 / 100 / 140 kg
Spacers	10 (travel adjustment)
Bearings	Dual-bearing per pedal
Height adjustment	2 levels (15 mm apart)
Angle adjustment	3 levels (~9° back to 6° forward)
Processor	Dual-core: 32 bit 170 MHz + 32 bit 72 MHz
ADC	Independent 24-bit chip (16,777,216 PPR)
Control box	Sealed aluminium, anti-interference, with vibration port
Lighting	RGB ambient with customisable modes
Software	SIMSONN Manager (curves, dead zones, brake damping, real-time force)
Vibration module	Compatible with VAM / VAM NEO
Connection	USB
Compatible platform	PC (Windows)

Dimensions and weight per component

Component	Dimensions (mm)	Weight
Throttle	213 × 80 × 251	1.61 kg
Brake	213 × 95 × 251	2.45 kg
Clutch	213 × 80 × 251	1.72 kg
Heel plate	347 × 34 × 30	0.4 kg
Heightening plate	350 × 4 × 130	0.3 kg
Base plate	400 × 3 × 320	2.78 kg

Which configuration to choose?

The set comes with two or three pedals and with or without a baseplate. The 2-pedal version (throttle and brake) suits cars with automatic or sequential gearboxes; the 3-pedal version adds a clutch for H-pattern manual driving, rally or classic simulators. The baseplate allows stable, direct mounting on the floor or cockpit; without it, you fix the pedals to your own profile or chassis.

Compatibility

Compatible with PC only, via USB connection and configuration through the SIMSONN Manager software. Not compatible with PlayStation or Xbox consoles.

Frequently asked questions

How many pedals does the SIMSONN Pro X Ultra include?

Depending on the configuration, it includes 2 pedals (throttle and brake) or 3 pedals, adding the clutch. The variant is selected in the product picker.

What is the baseplate for and do I need to buy it?

The baseplate lets you mount the pedals stably and directly on the floor or cockpit. It is optional: if you have your own profile or chassis to fix them to, you can do without it.

How is the brake hardness adjusted?

The brake combines an 8-stage adjustable hydraulic rod with three dampers of different hardness, giving combinations up to 60, 100 and 140 kg, plus 10 spacers to adjust pedal travel.

Do I need to install any software?

Yes. SIMSONN Manager lets you adjust signal curves, dead zones and brake damping, view real-time pedal force and monitor pedal status.

Are they compatible with the VAM vibration module?

Yes. The Pro X Ultra are compatible with the VAM and VAM NEO vibration modules, whose frequency and intensity are configured via telemetry in SIMSONN Manager.

Do they work on PlayStation or Xbox?

No. The SIMSONN Pro X Ultra are designed for PC: they connect via USB and are configured with SIMSONN Manager. They are not compatible with PlayStation or Xbox consoles.
