MOZA Pedal Haptic Feedback Kit – Pedal Vibration System

Brand: MOZA Racing

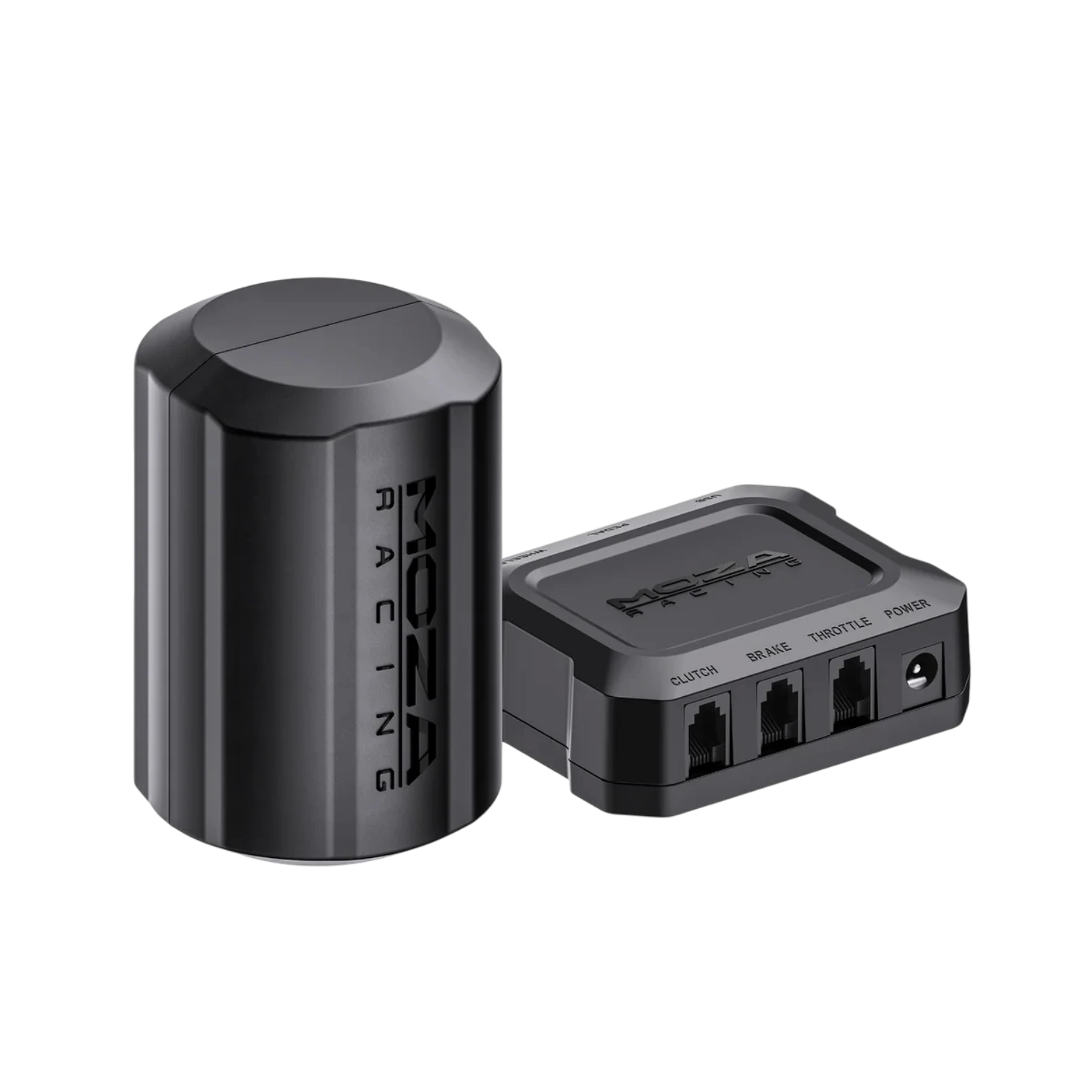

MOZA Pedal Haptic Feedback Kit: PHF vibration module and Control Box for MOZA pedals

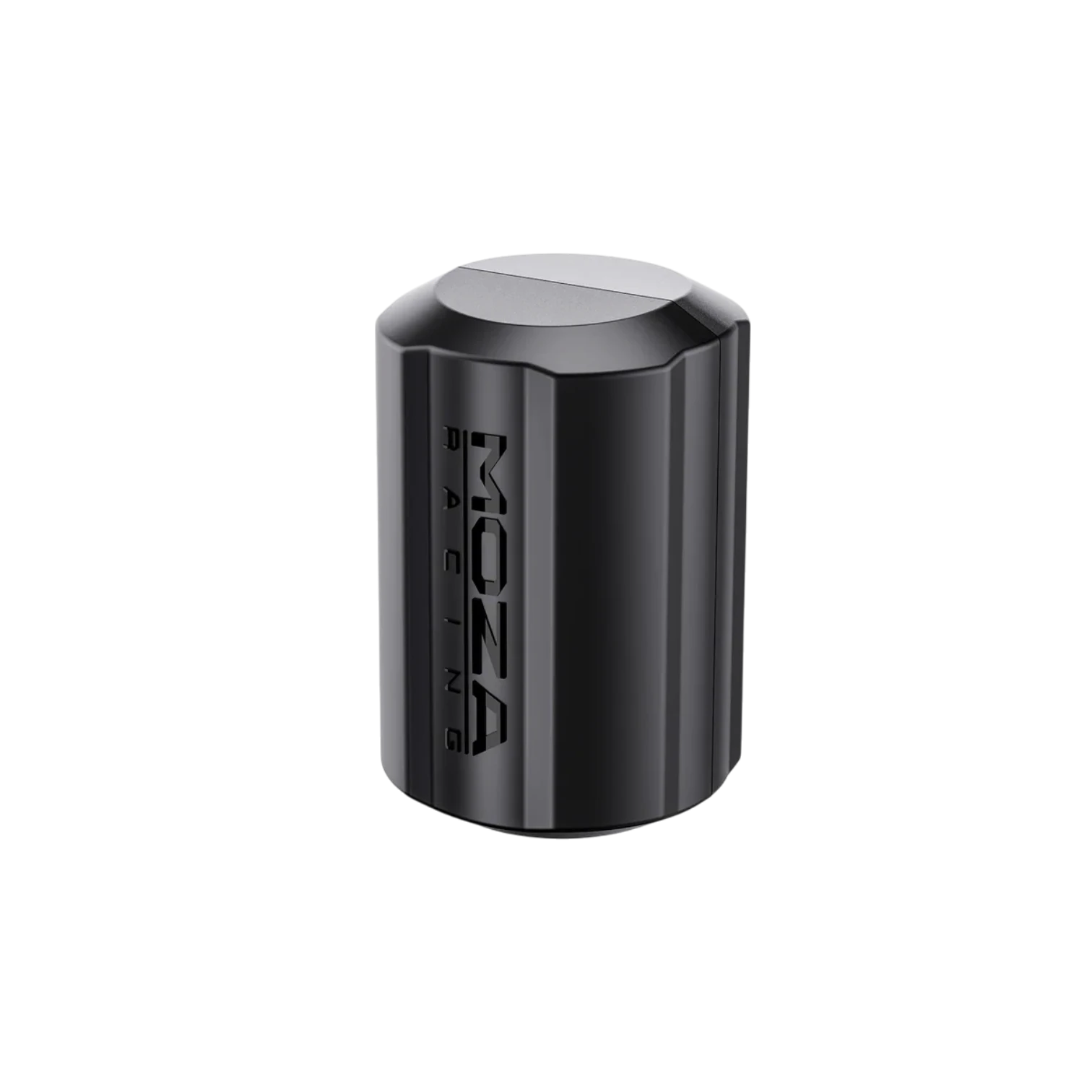

MOZA PHF vibration module with integrated pedal mounting bracket

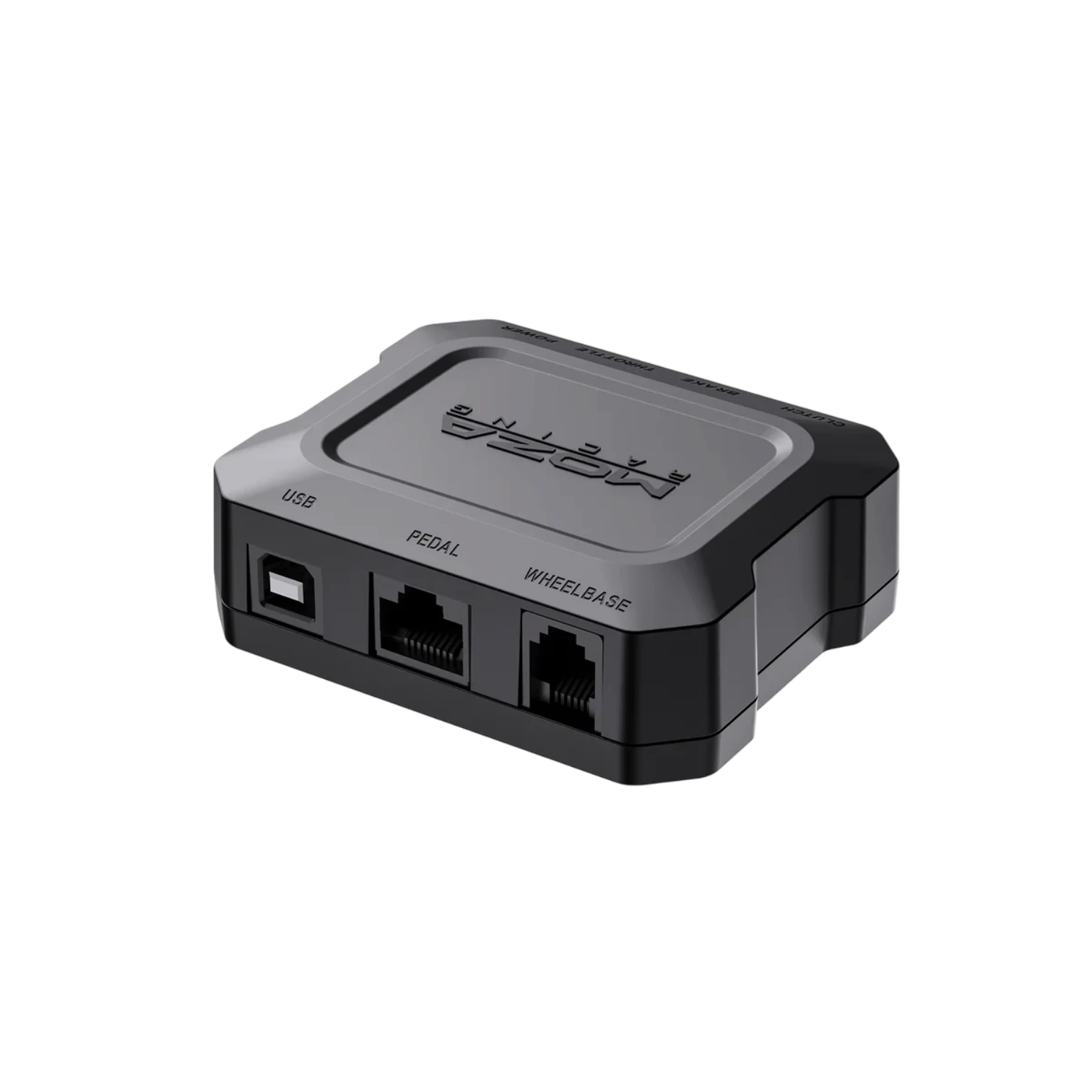

MOZA PHF kit Control Box with USB and RJ11 connections to the PC or wheelbase
MOZA PHF haptic kit fitted to a MOZA pedal to feel ABS and wheel lock-up
MOZA Pedal Haptic Feedback Kit: PHF vibration module and Control Box for MOZA pedals
MOZA PHF vibration module with integrated pedal mounting bracket
MOZA PHF kit Control Box with USB and RJ11 connections to the PC or wheelbase
MOZA PHF haptic kit fitted to a MOZA pedal to feel ABS and wheel lock-up

MOZA Pedal Haptic Feedback Kit – Pedal Vibration System

Brand: MOZA Racing
Please note that pre-order products may arrive later.
- 10%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Available from: Jan 15, 2027
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The MOZA Pedal Haptic Feedback Kit is a haptic vibration system for sim racing pedals that delivers 0–100 Hz effects straight to your foot, compatible with MOZA SR-P Lite, SR-P, SRP2 and CRP2 pedals.

The MOZA kit pairs a 98 g PHF module, which mounts on the pedal, with a Control Box that drives it from your sim's telemetry. You feel ABS kicking in, a wheel locking up or wheelspin on corner exit through the pedal itself – information the wheel's force feedback cannot convey.

Key features

  • Vibration motor with a 0–100 Hz frequency range and 0–100% adjustable intensity
  • 6 telemetry-based effects: ABS, traction control, engine RPM, wheel lock-up, wheelspin and gearshifts
  • Compact 40 × 41 × 61 mm module with a high-strength integrated mounting bracket
  • Fits the brake, throttle or clutch pedal
  • Dual connection: USB directly to your PC, or RJ11 to a compatible MOZA direct drive wheelbase
  • Fully configurable in MOZA Pit House

Technical specifications

SpecificationValue
Frequency range0–100 Hz
Intensity0–100% (adjustable)
PHF module dimensions40 × 41 × 61 mm
Control Box dimensions80 × 66 × 26 mm
Net weight98 g
Power supply12 V, 2 A
ConnectionUSB (PC) or RJ11 (MOZA wheelbase)
SoftwareMOZA Pit House
In the box1 PHF module, 1 PHF Control Box, 12 V 2 A power adapter, USB cable, RJ11 cable, RJ45 cable

Compatibility

  • MOZA pedals: SR-P Lite, SR-P, SRP2 and CRP2
  • Other brands' pedals: non-active pedal sets, connected to the PC and with a custom mount
  • Connection: USB directly to the PC or RJ11 to a compatible MOZA wheelbase (never both at once)
  • Platform: PC with MOZA Pit House; MOZA does not list console compatibility

Frequently asked questions

Which pedals is the MOZA Pedal Haptic Feedback Kit compatible with?

It is compatible with MOZA SR-P Lite, SR-P, SRP2 and CRP2 pedals. Connected directly to a PC, it can also be used on non-active pedal sets from other brands with a user-designed mount.

What effects does the MOZA PHF vibration kit reproduce?

It reproduces effects based on your sim's telemetry: ABS, traction control, engine RPM, wheel lock-up, wheelspin and gearshifts. Frequency (0–100 Hz) and intensity (0–100%) are set in MOZA Pit House.

Does it connect to the PC or to the MOZA wheelbase?

Either: via USB directly to the PC, or via RJ11 cable to a compatible MOZA wheelbase. MOZA states that the Control Box must not be connected to the PC and the wheelbase at the same time.

Which pedal does it fit – brake, throttle or clutch?

The PHF module can be mounted on the brake, throttle or clutch pedal using its integrated mounting bracket. The kit includes one module; for additional pedals MOZA sells the PHF module separately, which works with the Control Box.

What is included in the MOZA Pedal Haptic Feedback Kit?

One PHF vibration module, one PHF Control Box, a 12 V 2 A power adapter, a USB cable, an RJ11 cable and an RJ45 cable.

Is it compatible with consoles?

The effects are configured with MOZA Pit House on PC. MOZA does not list compatibility of the PHF Kit with PlayStation or Xbox.
