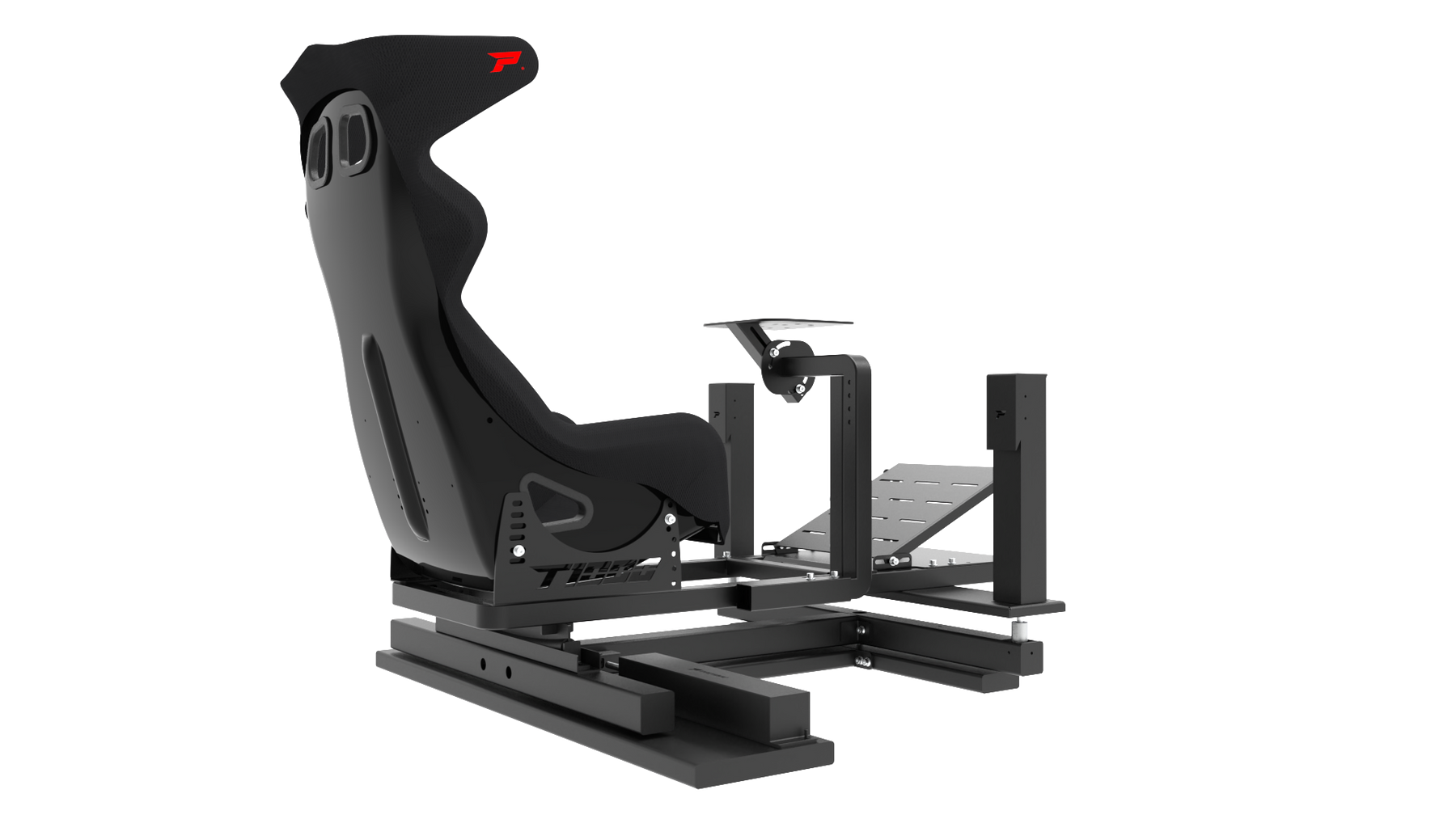

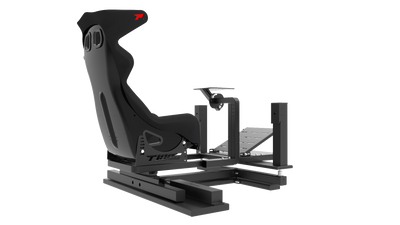

ProSimu T1000 3Motions simulator with T1000 chassis

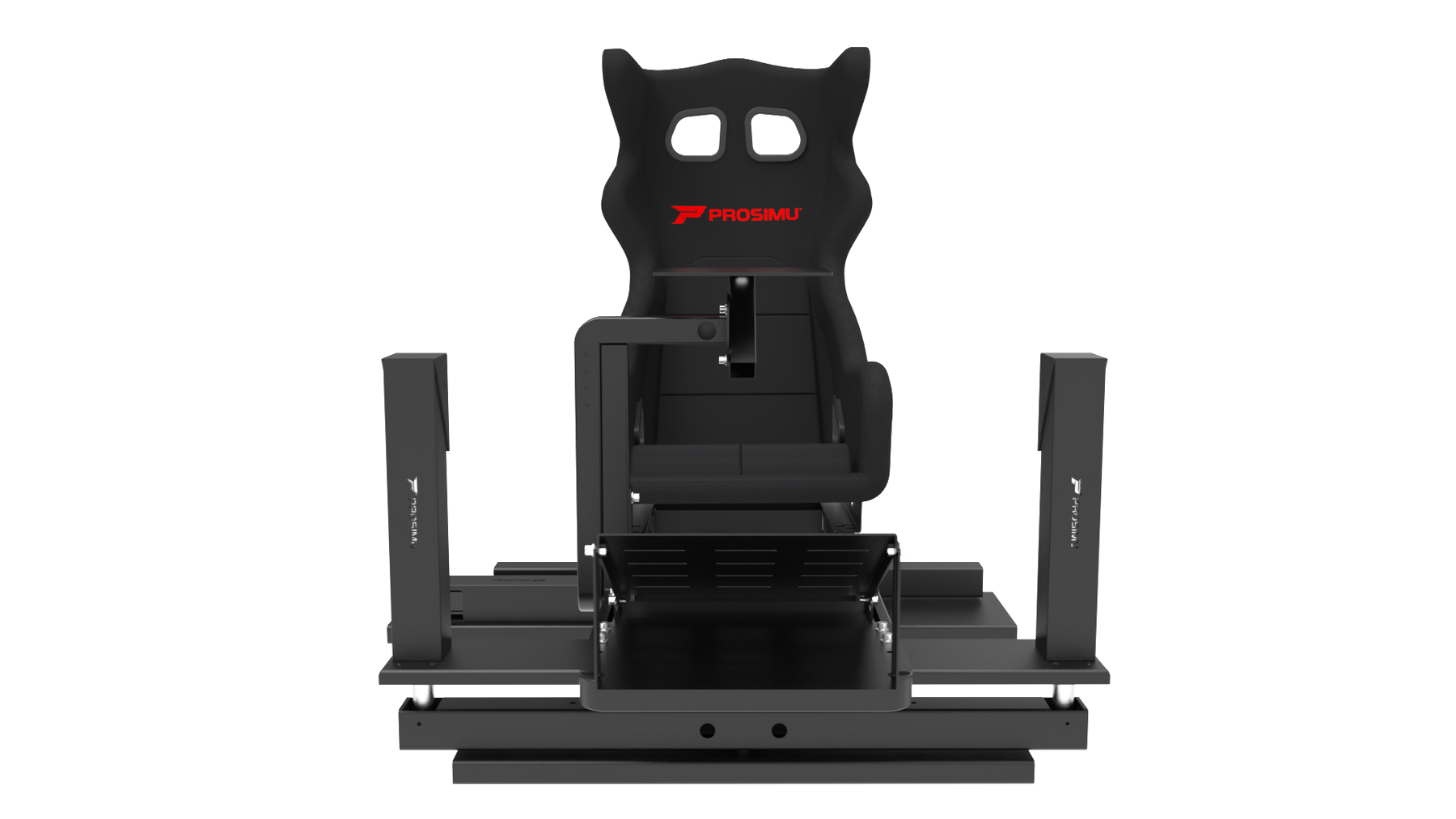

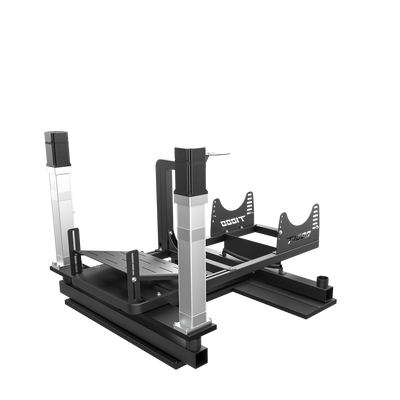

Front actuators of the ProSimu T1000 3Motions
Rear PRS50 yaw actuator of the ProSimu T1000 3Motions

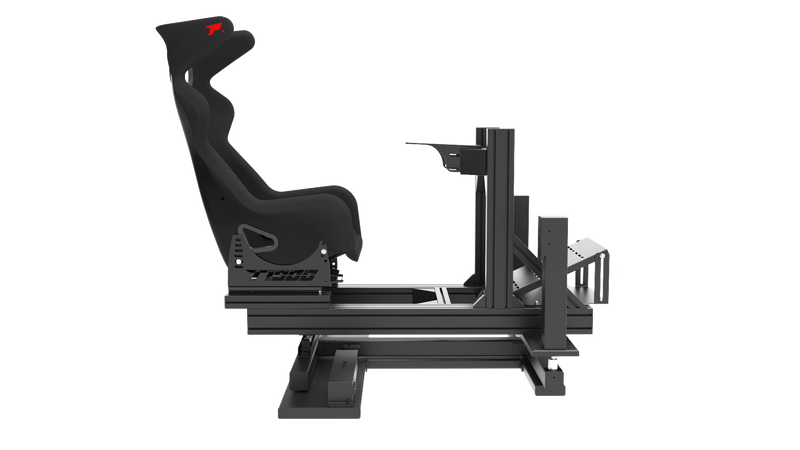

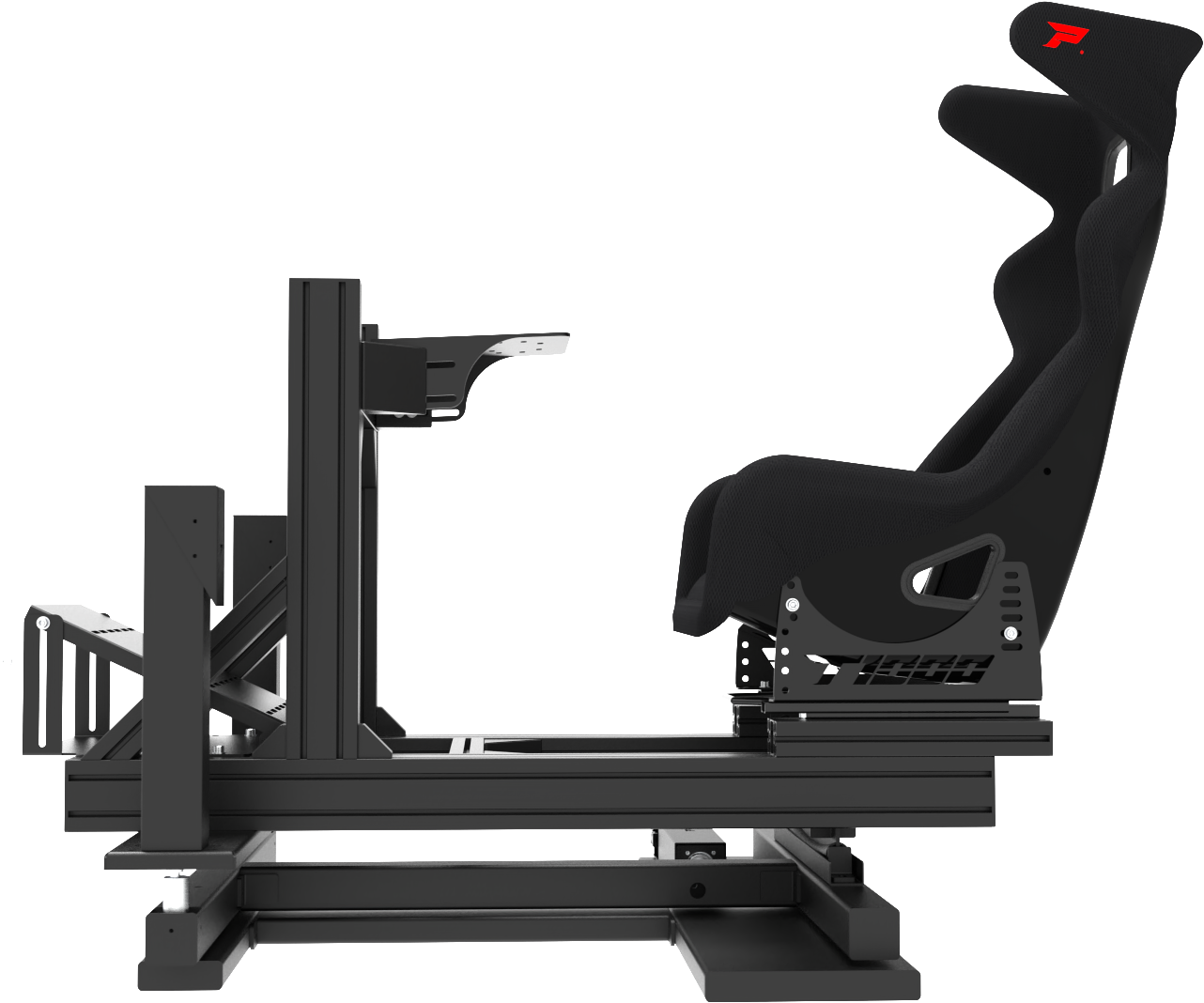

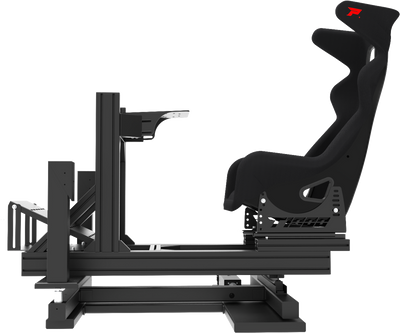

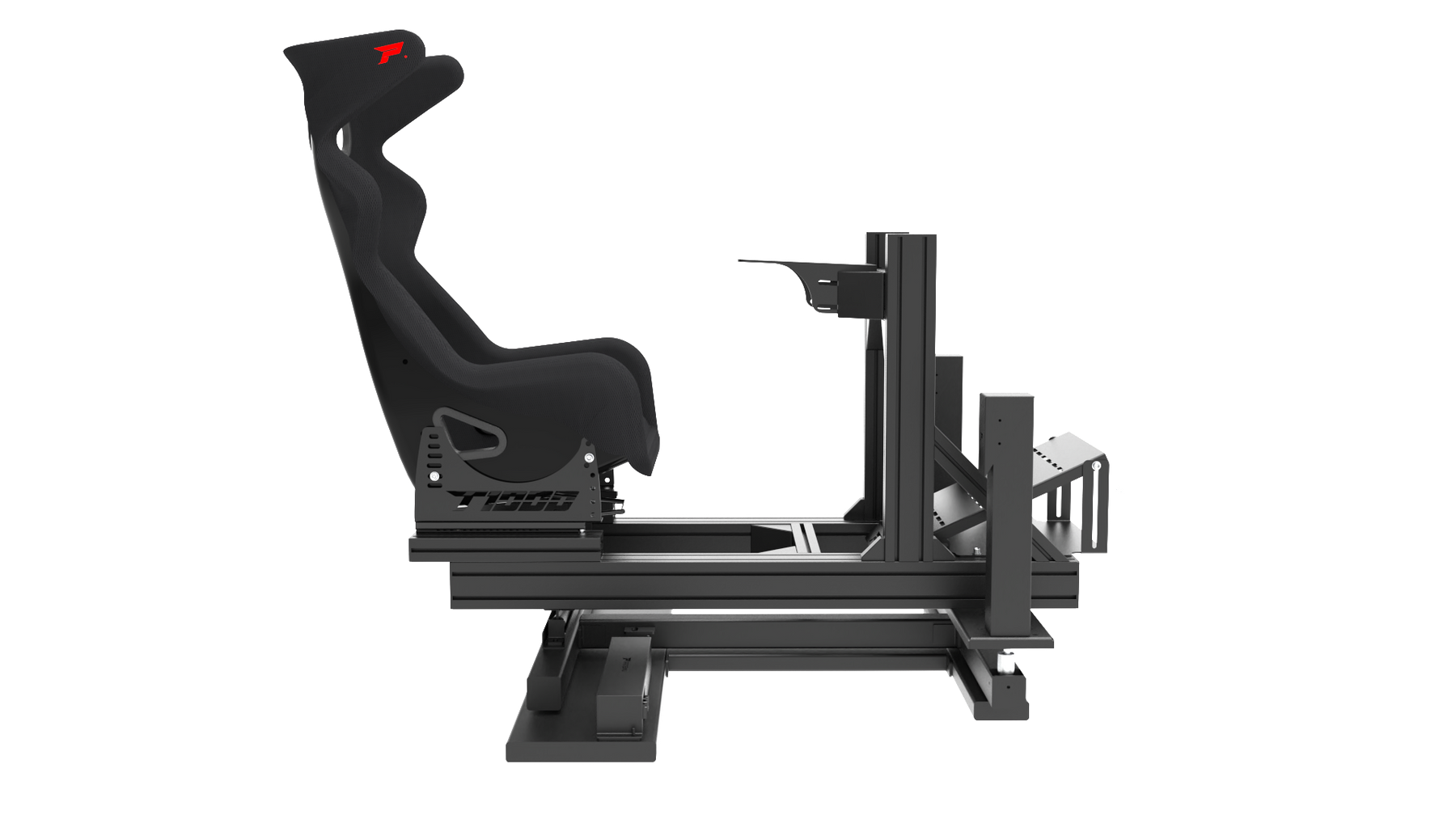

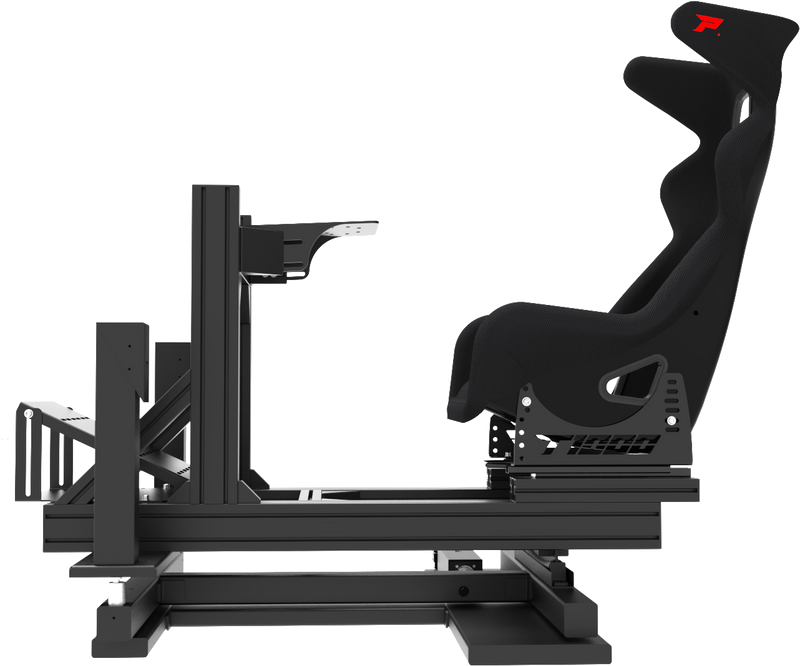

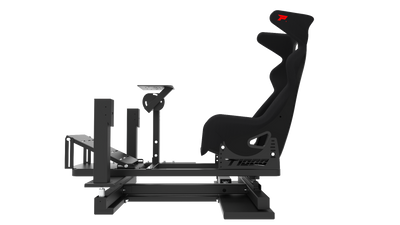

Side view of the ProSimu T1000 3Motions simulator

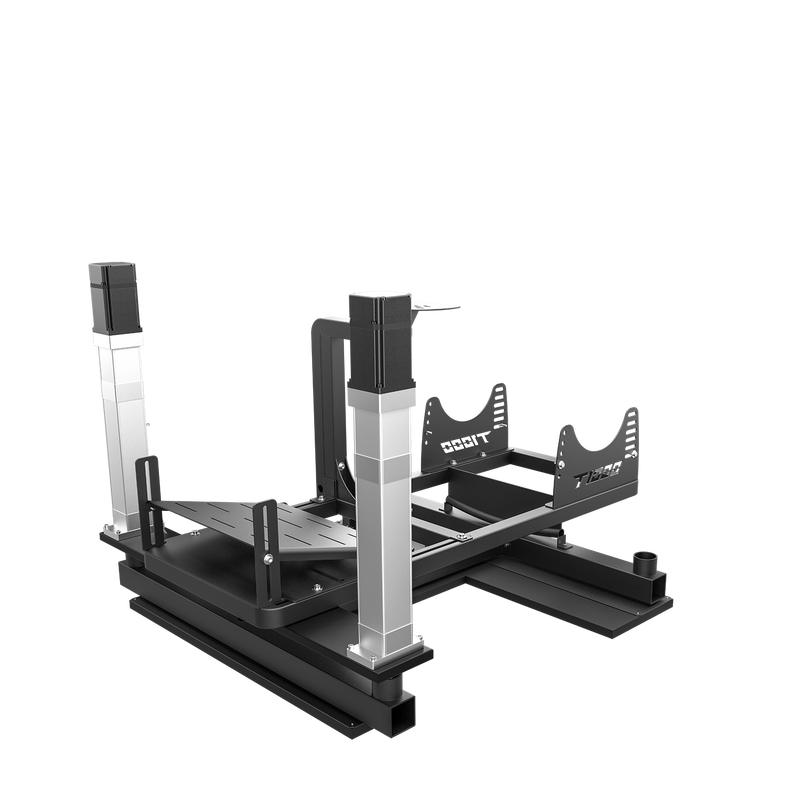

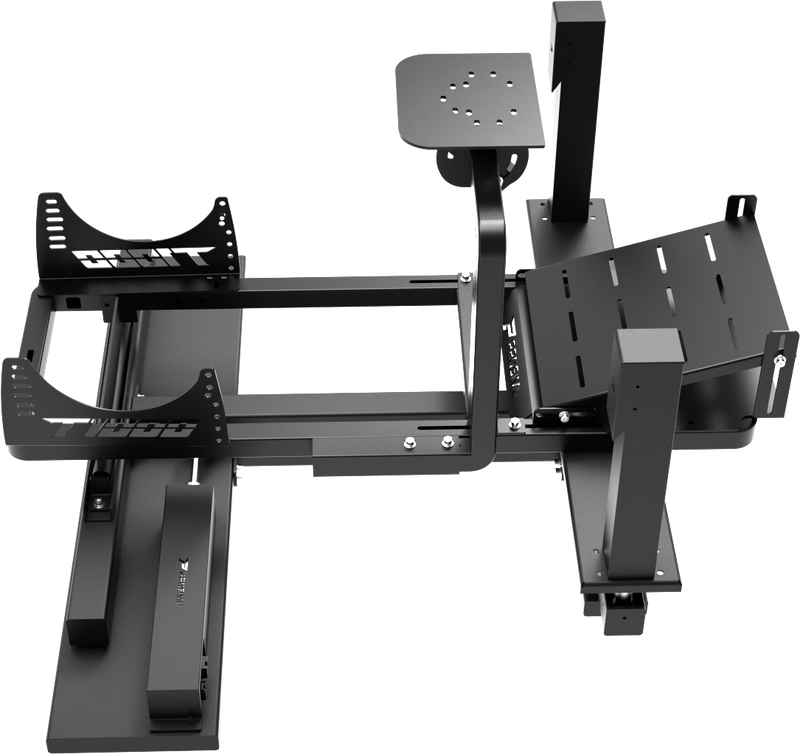

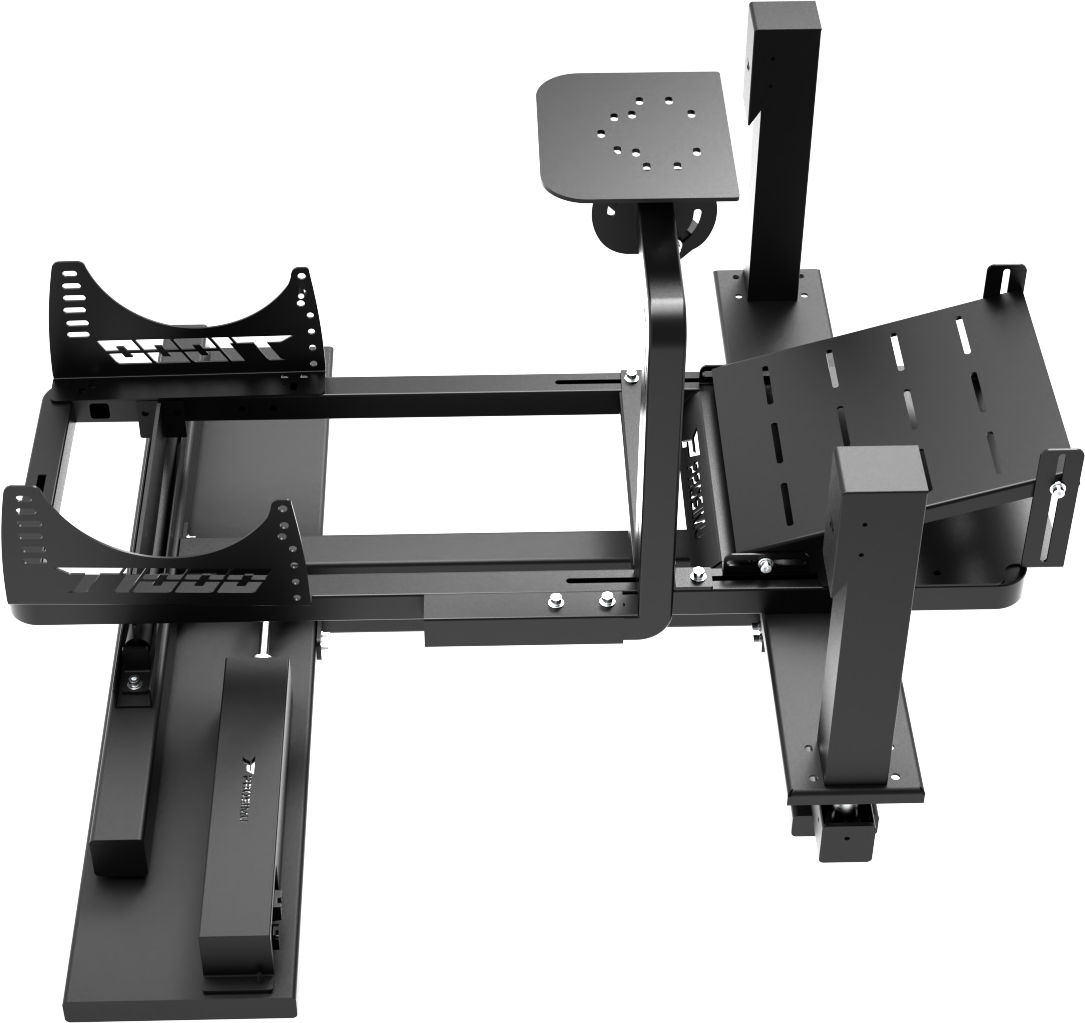

T1000 chassis of the ProSimu 3Motions motion simulator
ProSimu T1000 3Motions in a sim racing configuration
Mounting detail of the ProSimu T1000 3Motions
Three-axis motion platform ProSimu T1000 3Motions
ProSimu T1000 3Motions with steering wheel and pedals

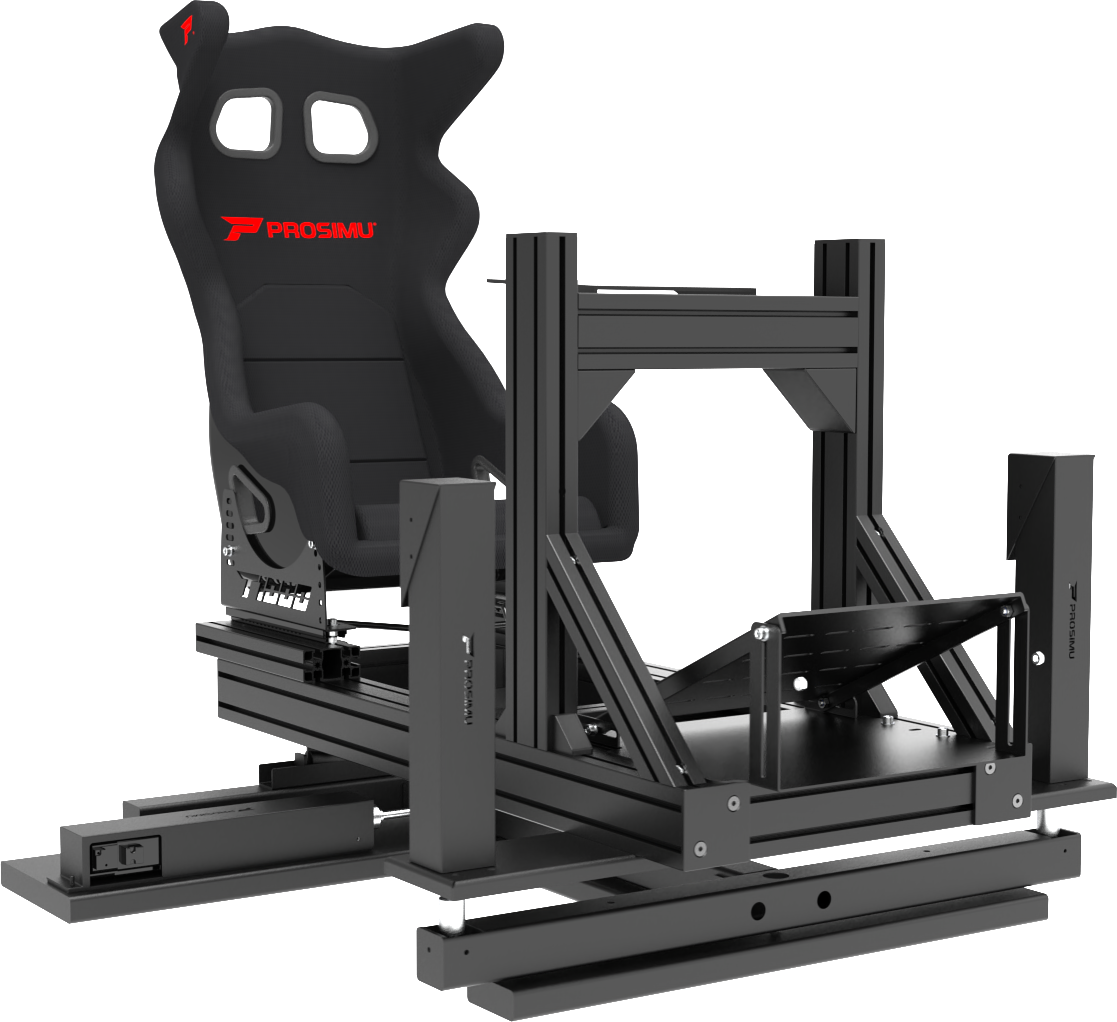

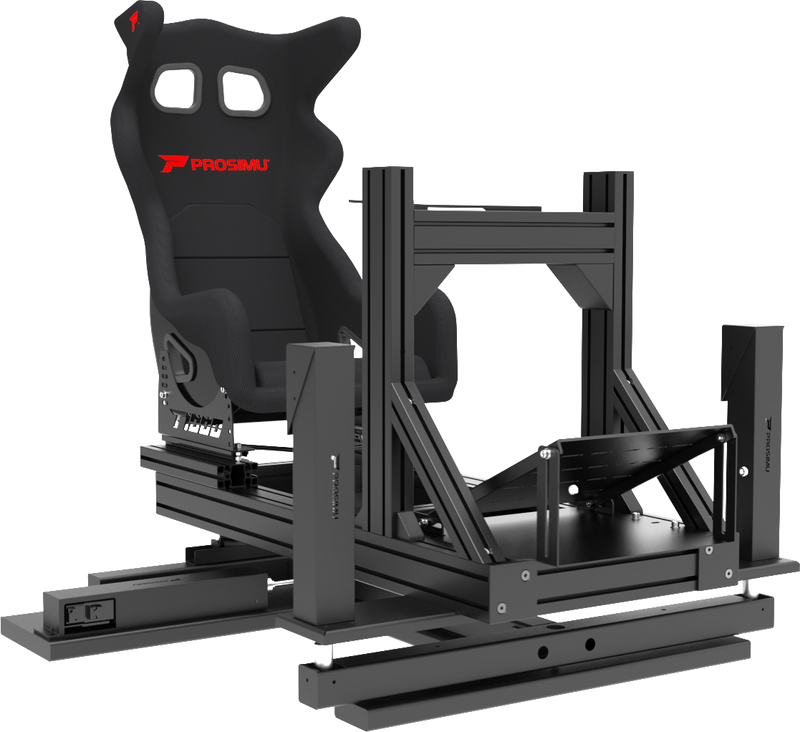

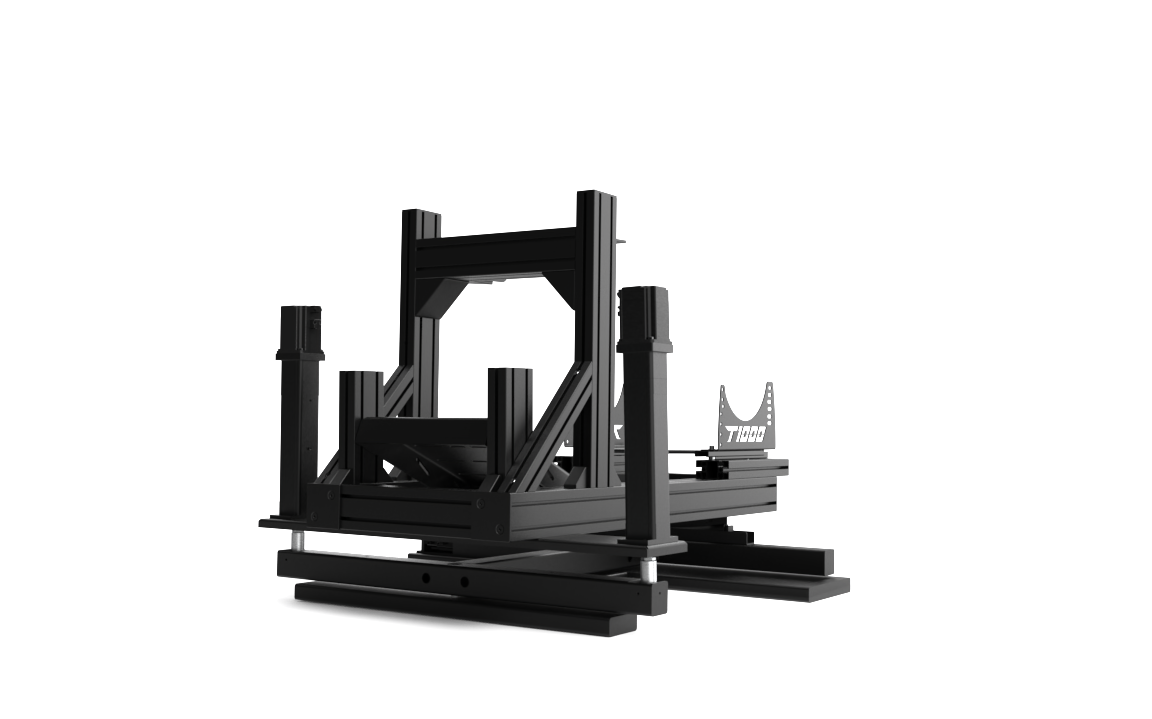

Structure of the ProSimu T1000 3Motions in T1000AL aluminium version
Complete ProSimu T1000 3Motions racing simulator
ProSimu T1000 3Motions, dynamic 3DOF racing simulator with traction loss
ProSimu T1000 3Motions simulator with T1000 chassis
Front actuators of the ProSimu T1000 3Motions
Rear PRS50 yaw actuator of the ProSimu T1000 3Motions
Side view of the ProSimu T1000 3Motions simulator
T1000 chassis of the ProSimu 3Motions motion simulator
ProSimu T1000 3Motions in a sim racing configuration
Mounting detail of the ProSimu T1000 3Motions
Three-axis motion platform ProSimu T1000 3Motions
ProSimu T1000 3Motions with steering wheel and pedals
Structure of the ProSimu T1000 3Motions in T1000AL aluminium version
Complete ProSimu T1000 3Motions racing simulator

ProSimu T1000 3Motions 3DOF – Racing Simulator

Brand: Prosimu
Please note that pre-order products may arrive later.
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The ProSimu T1000 3Motions 'SV is a dynamic 3-axis racing simulator (pitch, roll and yaw) with two front actuators and a rear PRS50 traction-loss actuator, compatible with PC, for advanced simracers and professional centres.

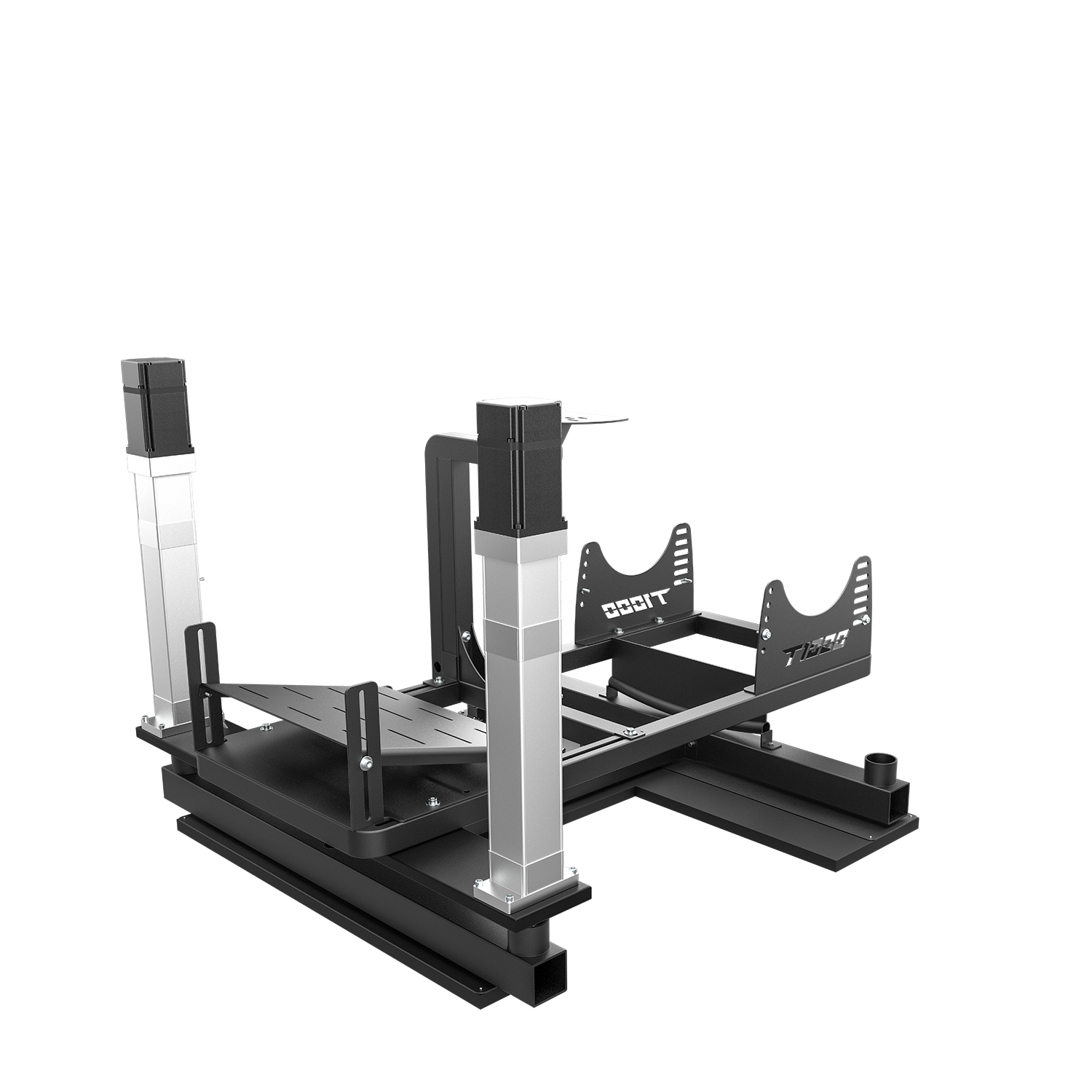

The two front actuators —PRS50 (100 mm) or PRS200 (up to 200 mm), your choice— generate weight transfer and chassis tilt, while the rear PRS50 adds the yaw axis to reproduce oversteer and loss of grip. With PRS200 actuators it reaches up to 280 mm/s and 2G, with instant response and no mechanical play. It is a racing simulator that is scalable to the 5Motions system when you want to step up.

Key features

  • 3 motion axes (pitch, roll and yaw) with rear traction loss.
  • 2 front actuators to choose from: PRS50 (100 mm) or PRS200 (up to 200 mm).
  • 1 rear PRS50 actuator (100 mm) for the yaw axis.
  • Up to 280 mm/s and 2G with PRS200 actuators, with no perceptible latency.
  • Ultra-quiet actuators with no mechanical play.
  • Rigid T1000 chassis, with a steel or aluminium (T1000AL) version.
  • Scalable to the 5Motions system.

Technical specifications

FeatureDetail
Degrees of freedom3 (pitch, roll, yaw)
Actuators2 front (PRS50 100 mm or PRS200 up to 200 mm) + 1 rear PRS50 (100 mm, yaw)
Maximum speedUp to 280 mm/s (with PRS200)
Maximum accelerationUp to 2G (with PRS200)
Dimensions140 × 120 × 130 cm
Weight85 kg (without seat)
Maximum user weight130 kg
Power supply110–240 V
ConnectivityUSB 2.0 / PCIe USB 3.0
Control softwareSimTools with ProSimu optimisation
Warranty2 years (private use) / 1 year (commercial use)
ManufacturingFrance

Compatibility

The T1000 3Motions is controlled from a PC (Windows) through SimTools software optimised by ProSimu and works with over 100 simulators. Motion is managed from the PC, so it does not connect directly to consoles. The chassis can be T1000 (steel) or T1000AL (aluminium). The seat is not included.

Frequently asked questions

How many axes does the T1000 3Motions have and how does it simulate traction loss?

It has 3 axes (pitch, roll and yaw). The two front actuators generate tilt and weight transfer, and the rear PRS50 adds the yaw to reproduce oversteer and rear loss of grip.

What is the difference between choosing PRS50 or PRS200 actuators?

The front PRS50 have 100 mm of travel; the PRS200 reach up to 200 mm and deliver the highest performance, up to 280 mm/s and 2G. The choice depends on the level of immersion and budget.

Is it compatible with consoles?

It works with PC (Windows) through SimTools and over 100 simulators. Motion is controlled from the PC, so it does not connect directly to consoles.

Can it be scaled up to a larger system?

Yes. The T1000 3Motions shares the T1000 chassis and is scalable to the 5-axis 5Motions system.

What is included and which chassis can I choose?

It includes the T1000 chassis with bolts, the motion platform with the chosen actuators and the SimTools licence. The chassis can be T1000 (steel) or T1000AL (aluminium). The seat is not included.

How much weight does it support?

It supports a maximum user weight of 130 kg.
