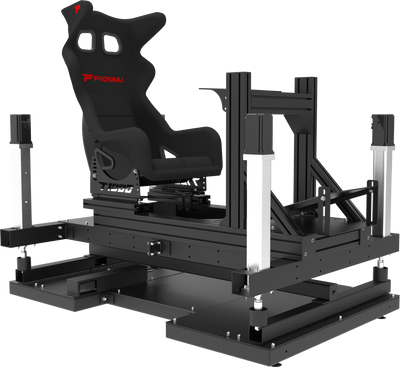

ProSimu T1000 5Motions, dynamic 5-axis racing simulator with PRS200 actuators

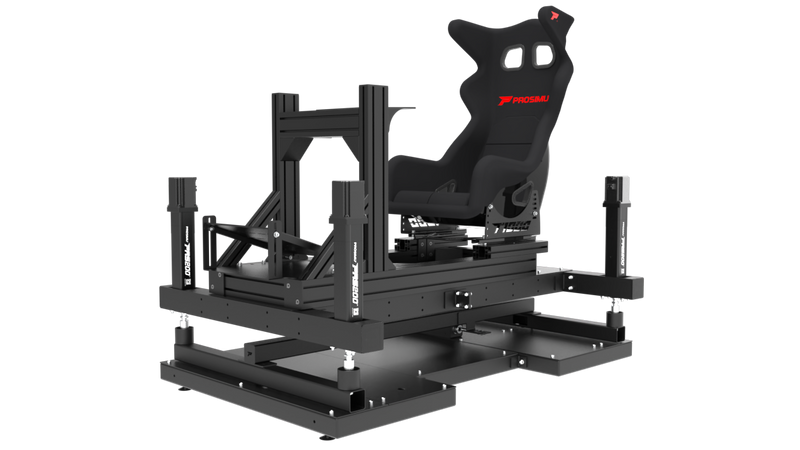

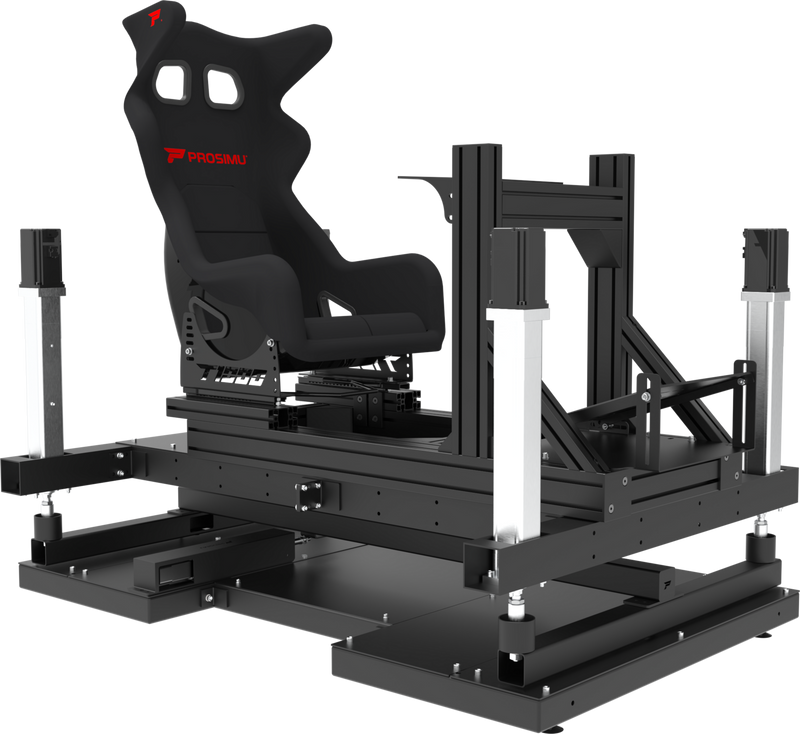

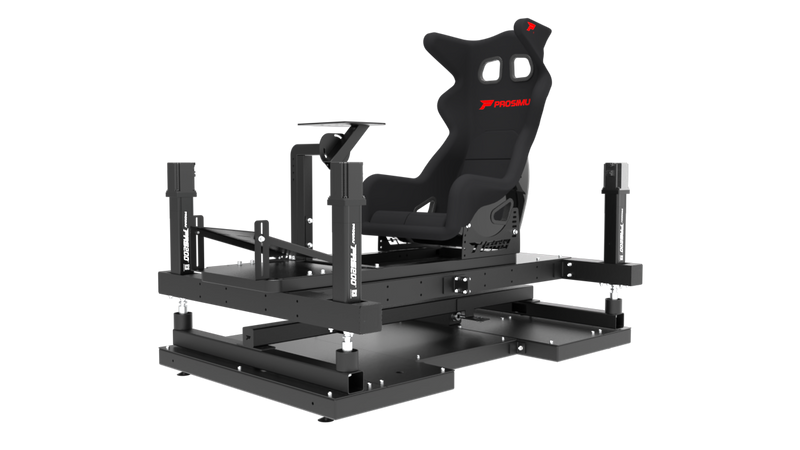

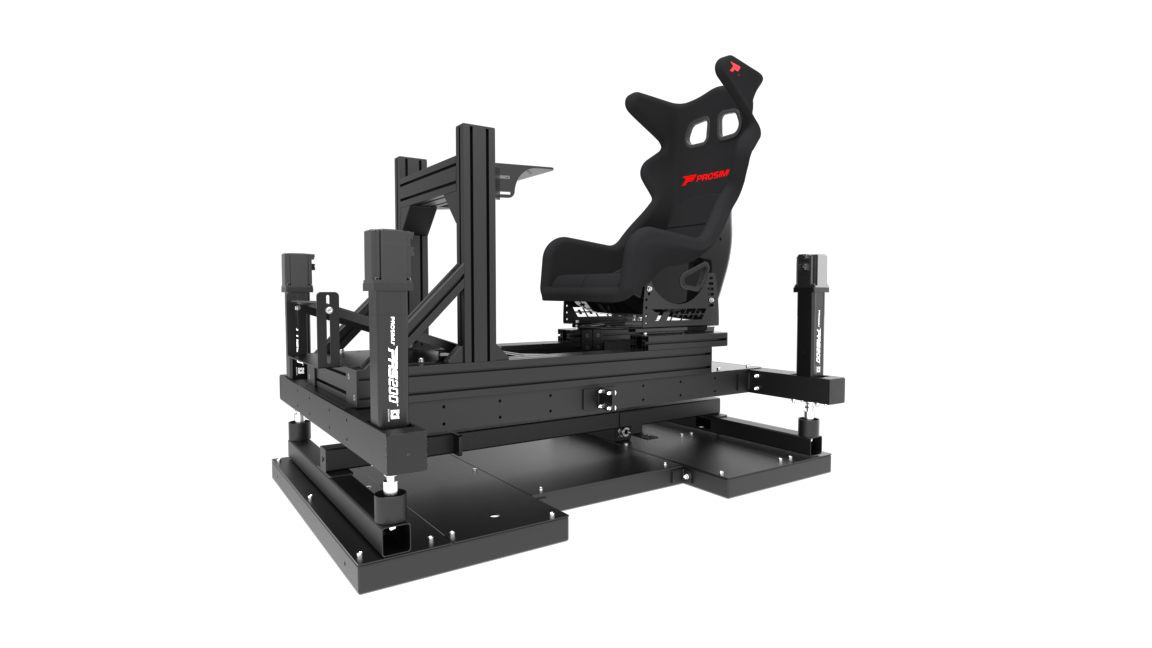

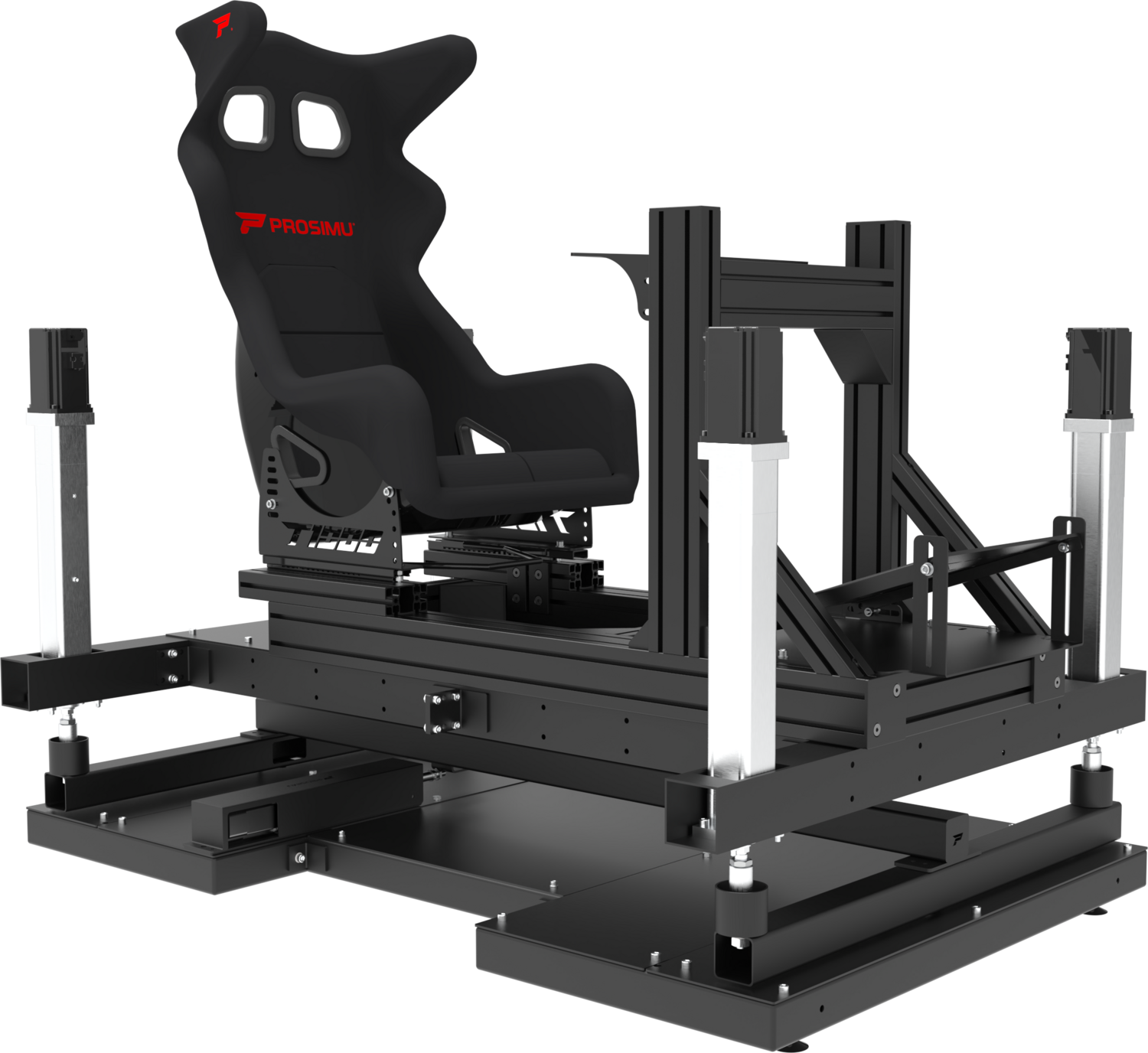

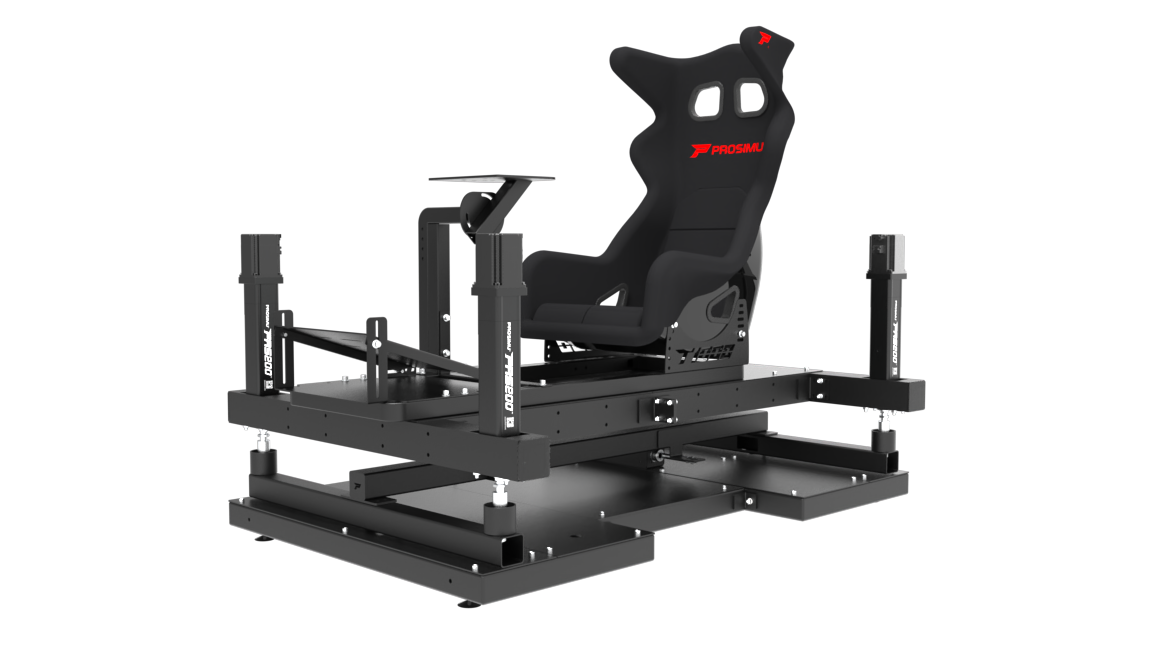

ProSimu T1000 5Motions simulator with T1000 chassis and PRS200 actuators

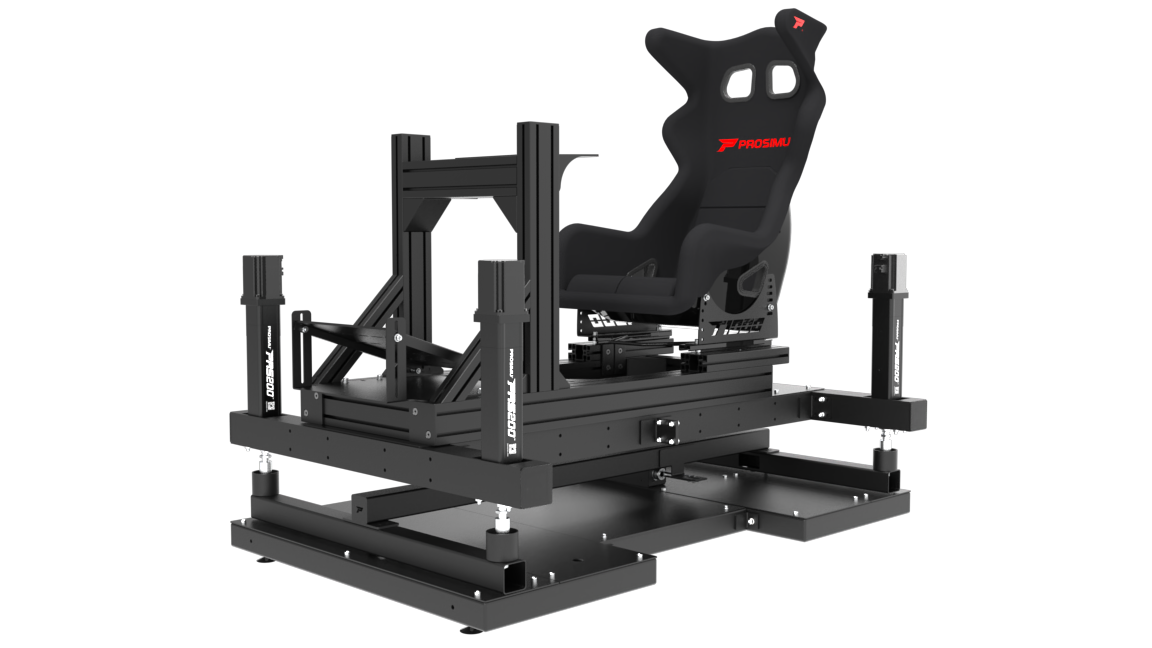

PRS200 Black Series actuators of the ProSimu T1000 5Motions
Rear PRS50 yaw actuator of the ProSimu T1000 5Motions

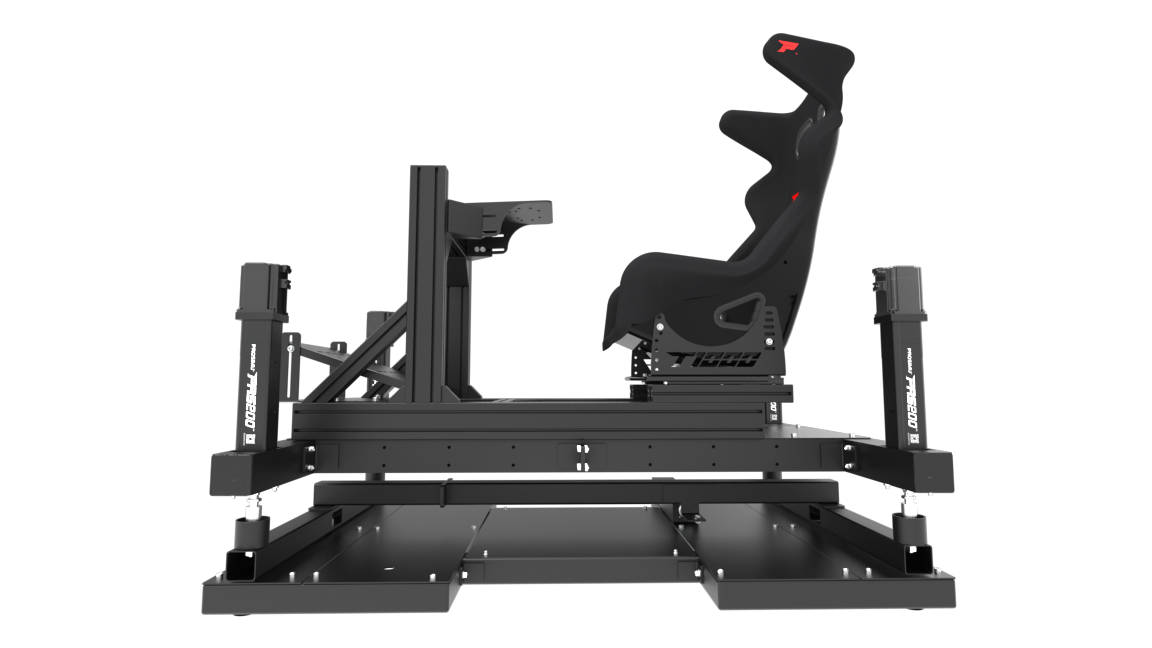

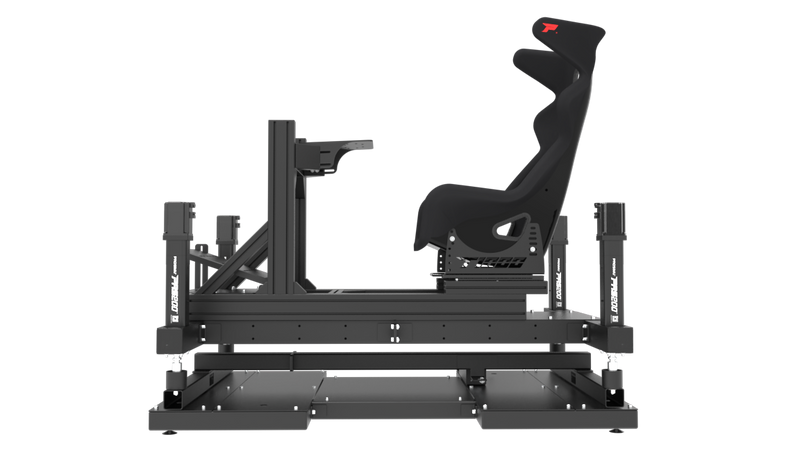

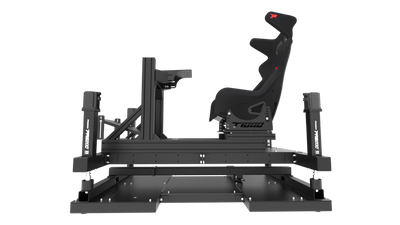

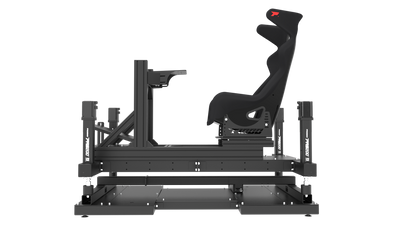

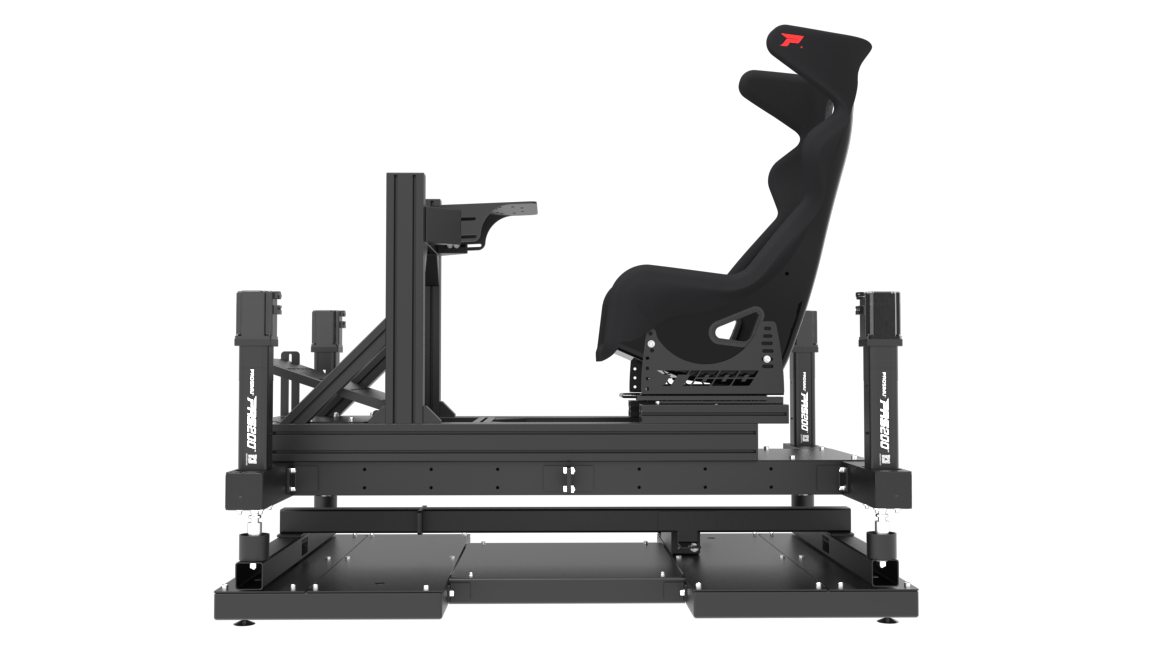

Side view of the ProSimu T1000 5Motions motion simulator

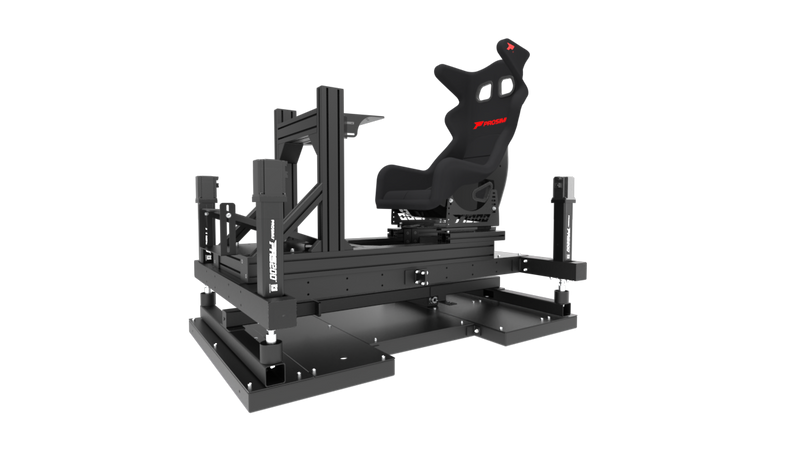

Reinforced chassis of the ProSimu T1000 5Motions for sim racing

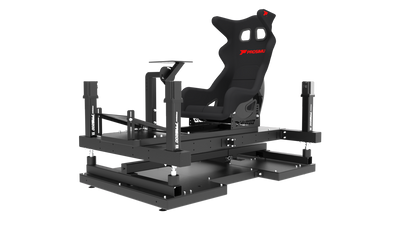

ProSimu T1000 5Motions in a driver configuration
Mounting detail of the ProSimu T1000 5Motions simulator

ProSimu T1000 5Motions 'SV – Racing Simulator

Brand: Prosimu
Please note that pre-order products may arrive later.
Regular price €10.359,99
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
Pago 100% seguro

Pago 100% seguro

3 años de garantía

3 años de garantía

Envíos en 24/48 horas

Envío 24/48 horas (Península)*

Atención personalizada

Atención personalizada

100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

Pago 100% seguro

Pagamento 100% seguro

3 años de garantía

Garantia de 3 anos

Entrega em 24/48 horas

Entrega em 24/48 horas (Península)*

Atención personalizada

Atenção personalizada

100 % sichere Zahlung

100 % sichere Zahlung

3 Jahre Garantie

3 Jahre Garantie

Versand innerhalb von 24/48 Stunden

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The ProSimu T1000 5Motions 'SV is a dynamic 5-axis racing simulator with 4 PRS200 actuators and a rear PRS50 for traction loss, compatible with PC, designed for demanding simracers, drivers in training and professional centres.

The four 750 W PRS200 servo actuators generate the vertical motion (tilt, suspension, bumps) and the rear PRS50 actuator adds the yaw axis to reproduce loss of grip. The system reaches 280 mm/s and 2G with 44 movements per second, managed by secure, fast CAN Bus communication. It is a racing simulator base ready for your wheelbase, wheel and pedals, with a choice of T1000 (steel) or T1000AL (aluminium) chassis.

Key features

  • 5 motion axes: 4 vertical PRS200 actuators plus 1 rear PRS50 for traction loss (yaw).
  • 750 W PRS200 servo actuators with selectable travel of 100, 150 or 200 mm.
  • Speed of 280 mm/s and acceleration up to 2G.
  • 44 movements per second, with no perceptible latency.
  • Load capacity up to 350 kg per platform.
  • Reinforced T1000 chassis, with a steel or aluminium (T1000AL) version.
  • Optional Flight Pack that turns the simulator into a flight cockpit (compatible with HOTAS Warthog).

Technical specifications

FeatureDetail
Motion axes5 (4 vertical + 1 yaw)
Actuators4× PRS200 (100 / 150 / 200 mm travel) + 1× PRS50 (100 mm, yaw), 750 W servo
Maximum speed280 mm/s
Maximum acceleration2G
Movement frequency44 movements/s
Load capacityUp to 350 kg
Maximum user weight200 kg
Total weight240 kg
Dimensions154 × 110 × 140 cm
Power supply110–240 V
ConnectivityUSB 2.0 / PCIe USB 3.0
Control softwareSimTools with ProSimu optimisation
Warranty2 years (private use)
ManufacturingFrance

Compatibility

The T1000 5Motions is controlled from a PC (Windows) through SimTools software optimised by ProSimu and works with over 100 car and flight simulators. Motion is managed from the PC, so it does not connect directly to consoles. With the optional Flight Pack it becomes a flight cockpit compatible with HOTAS Warthog. The seat is not included.

Frequently asked questions

How many axes does the T1000 5Motions have and how does it simulate traction loss?

It has 5 axes: 4 vertical PRS200 actuators for tilt, suspension and bumps, plus a rear PRS50 that adds the yaw to reproduce loss of grip.

Which actuator travel should I choose: 100, 150 or 200 mm?

The 200 mm travel offers the most realism in traction, braking and bumps; the 100 and 150 mm strokes are used in more compact installations.

Can it be used for flight simulation?

Yes. The optional Flight Pack turns the T1000 5Motions into a flight cockpit compatible with the HOTAS Warthog.

Is it compatible with consoles?

It works with PC (Windows) through SimTools and over 100 simulators. Motion is controlled from the PC, so it does not connect directly to consoles.

What is included and which chassis can I choose?

It includes the T1000 chassis (with bolts), the actuators in the chosen configuration, full wiring and the SimTools licence. The chassis can be T1000 (steel) or T1000AL (aluminium). The seat is not included.

How much weight does it support?

It supports a maximum user weight of 200 kg and a platform load of up to 350 kg with no loss of performance.
