ProSimu T5 PRO | Compact 5-Axis Motion System

Name: ProSimu T5 PRO – Compact Motion System
Brand: Prosimu
SKU: PRS-T5PRO-SS-SF-SC
Price: 16109.99 EUR
Availability: InStock

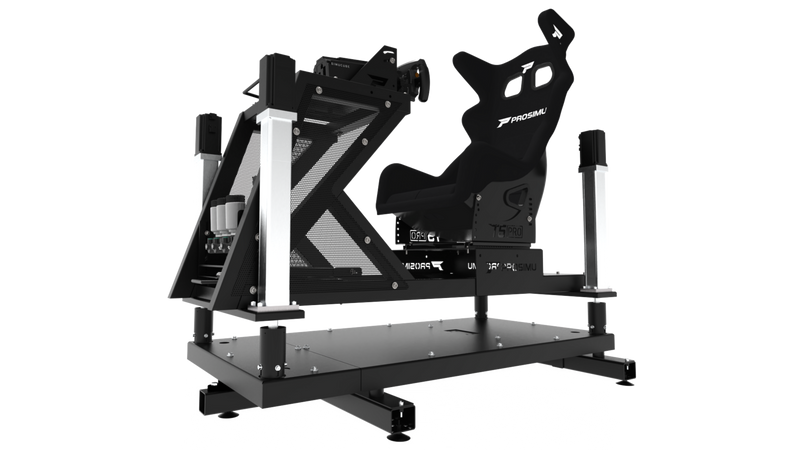

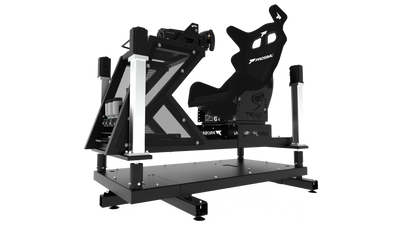

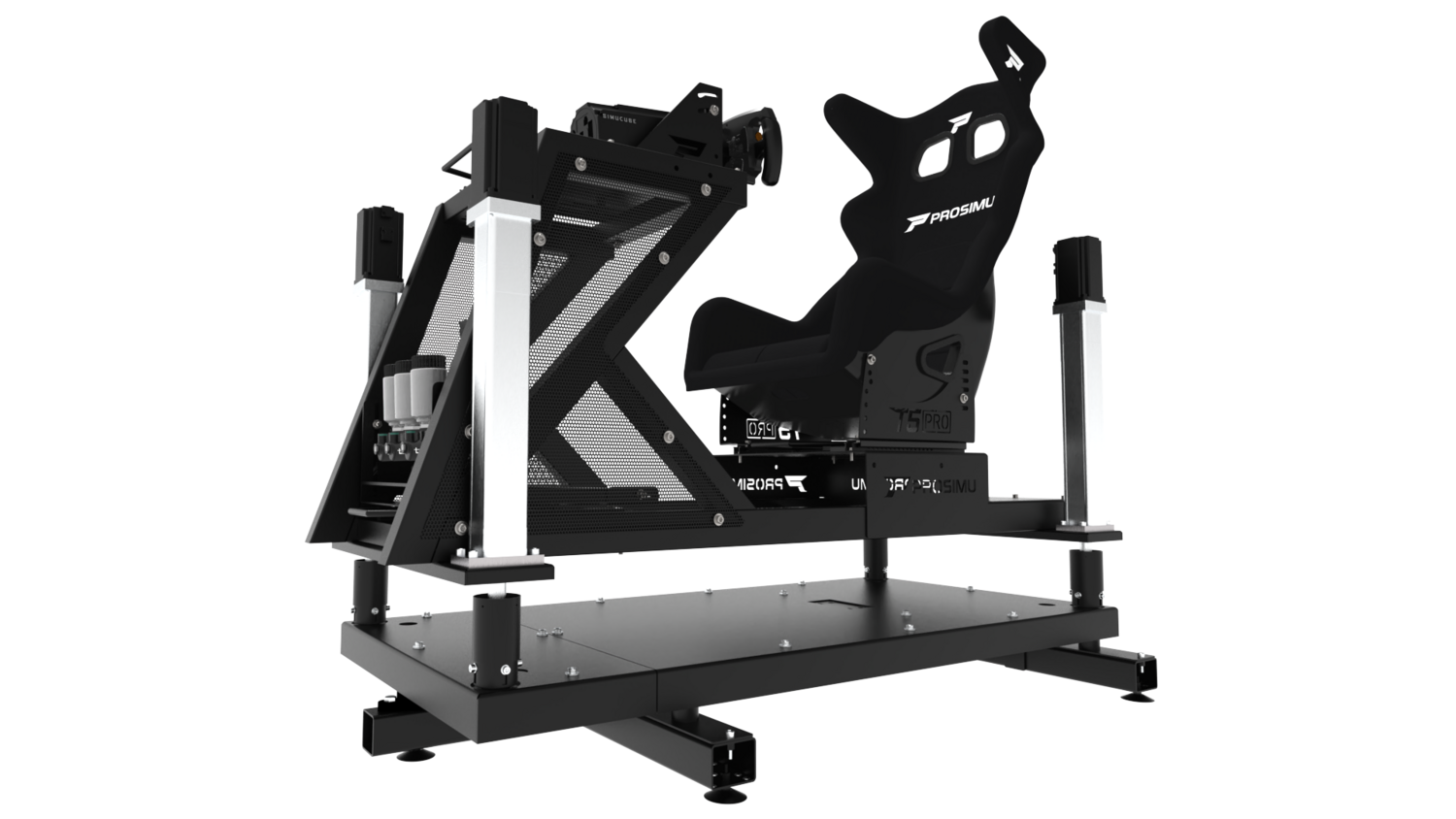

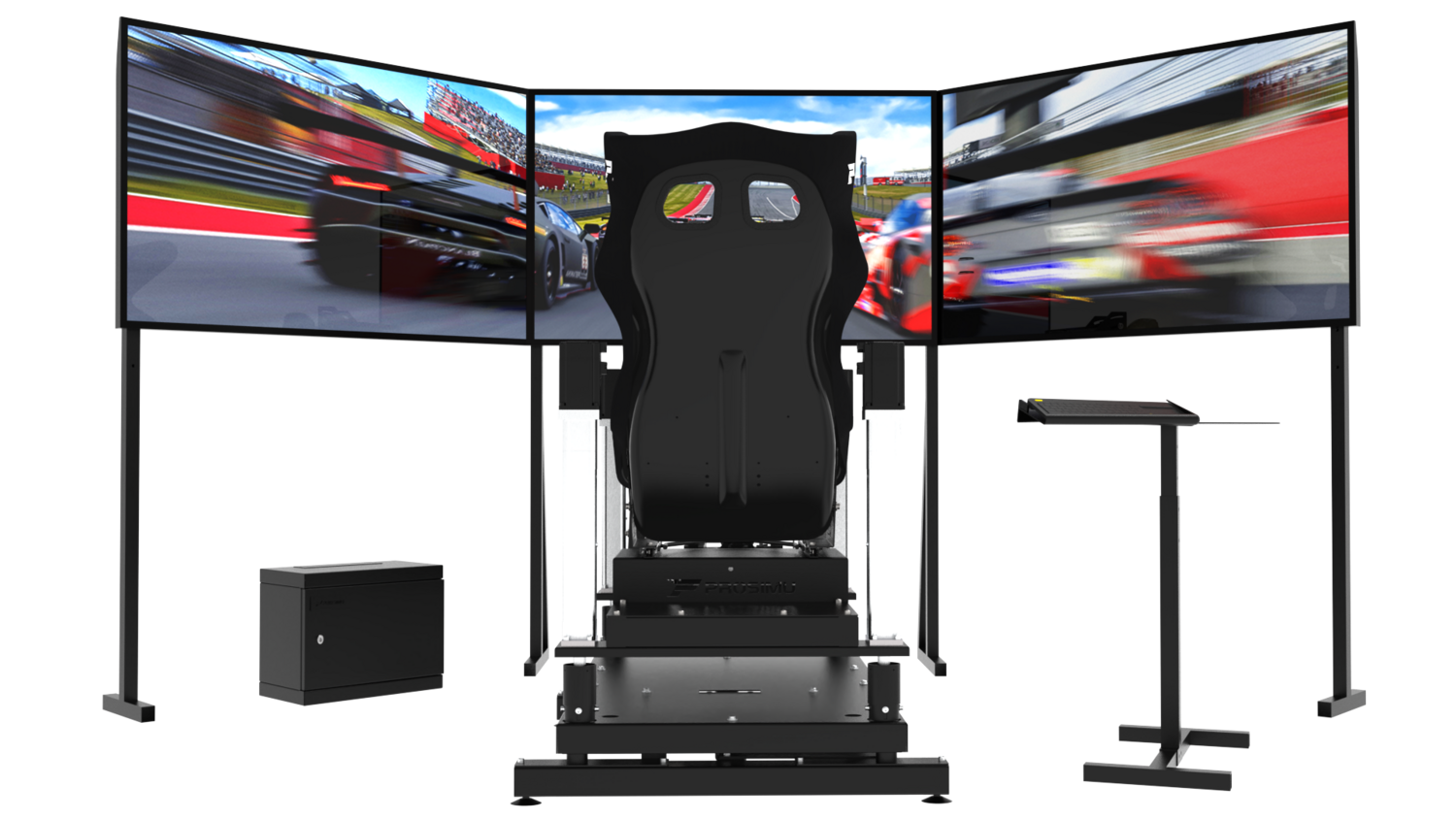

ProSimu T5 PRO, compact 5-actuator PRS200 motion simulator

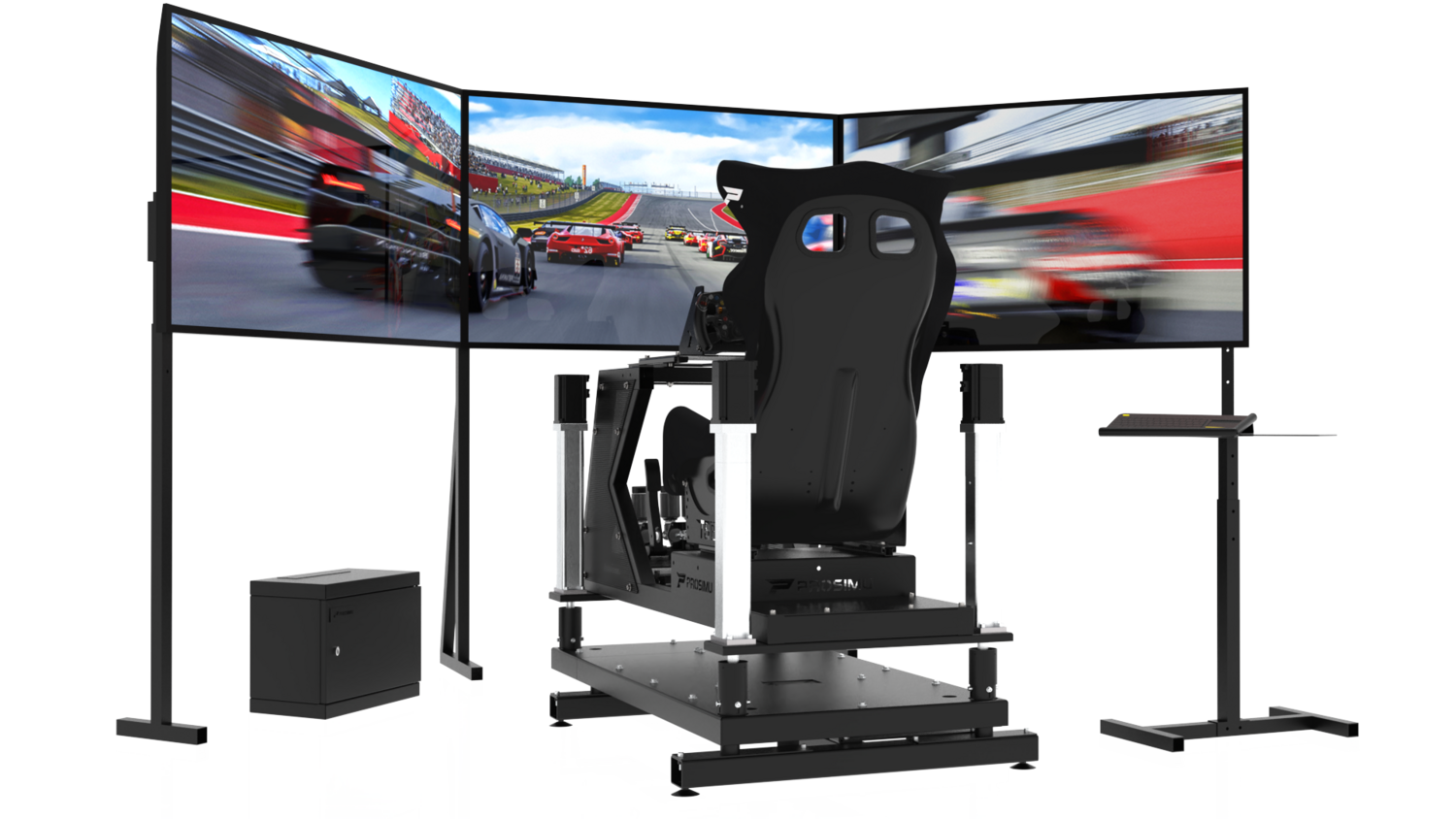

ProSimu T5 PRO simulator with PRS200 Black Series actuators

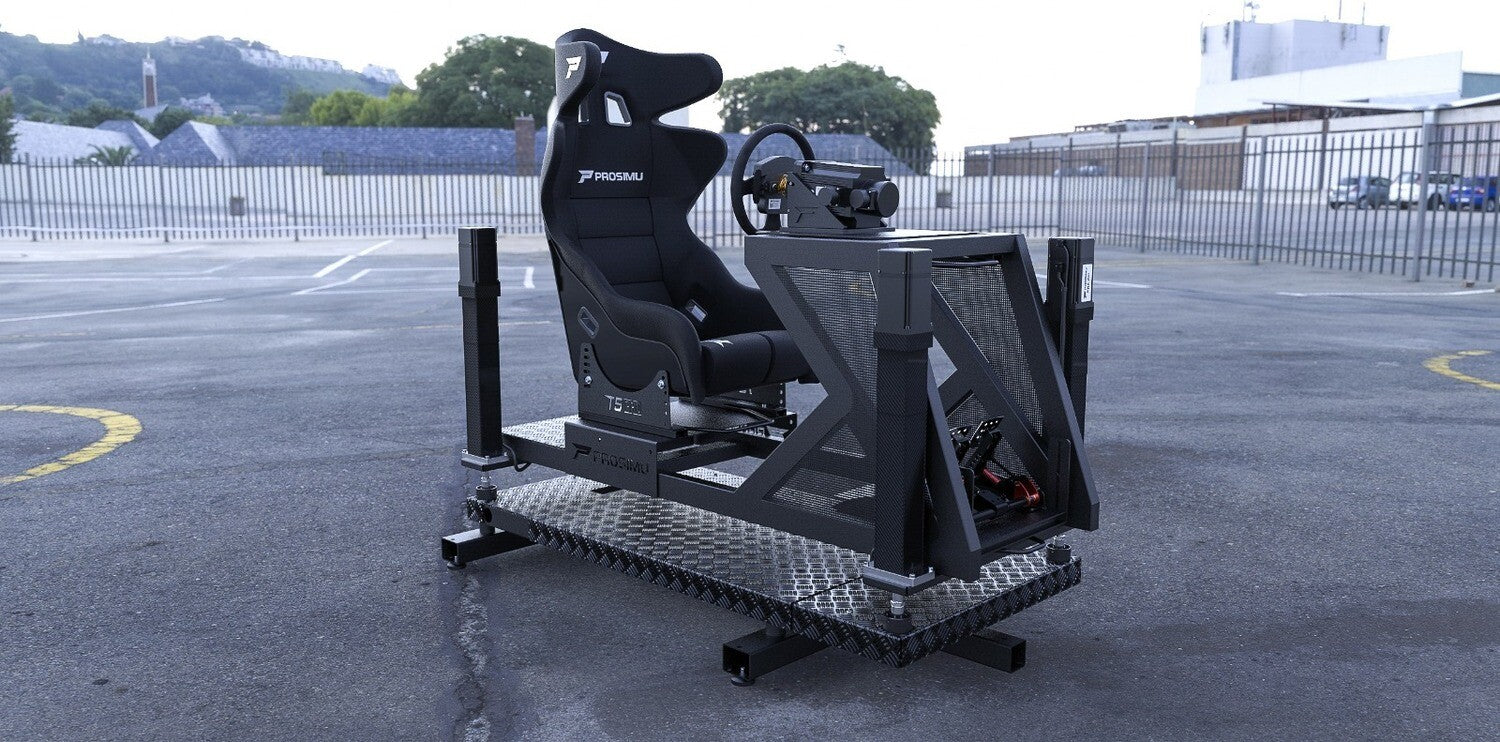

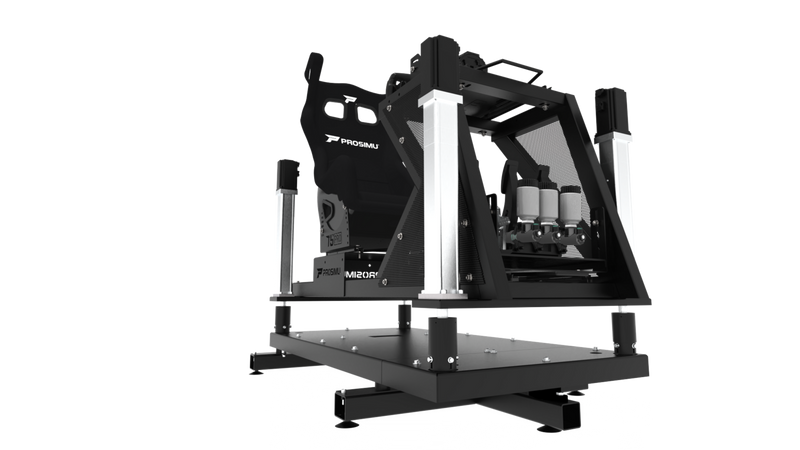

Reinforced, transportable chassis of the ProSimu T5 PRO

Detail of the actuators of the ProSimu T5 PRO motion simulator

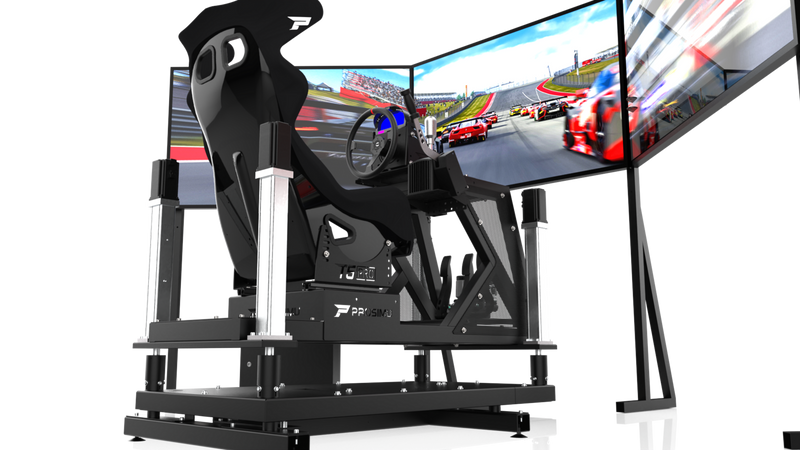

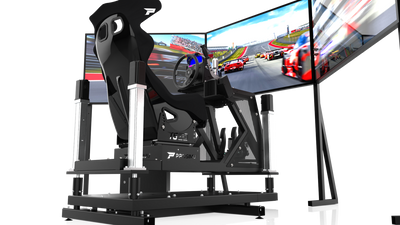

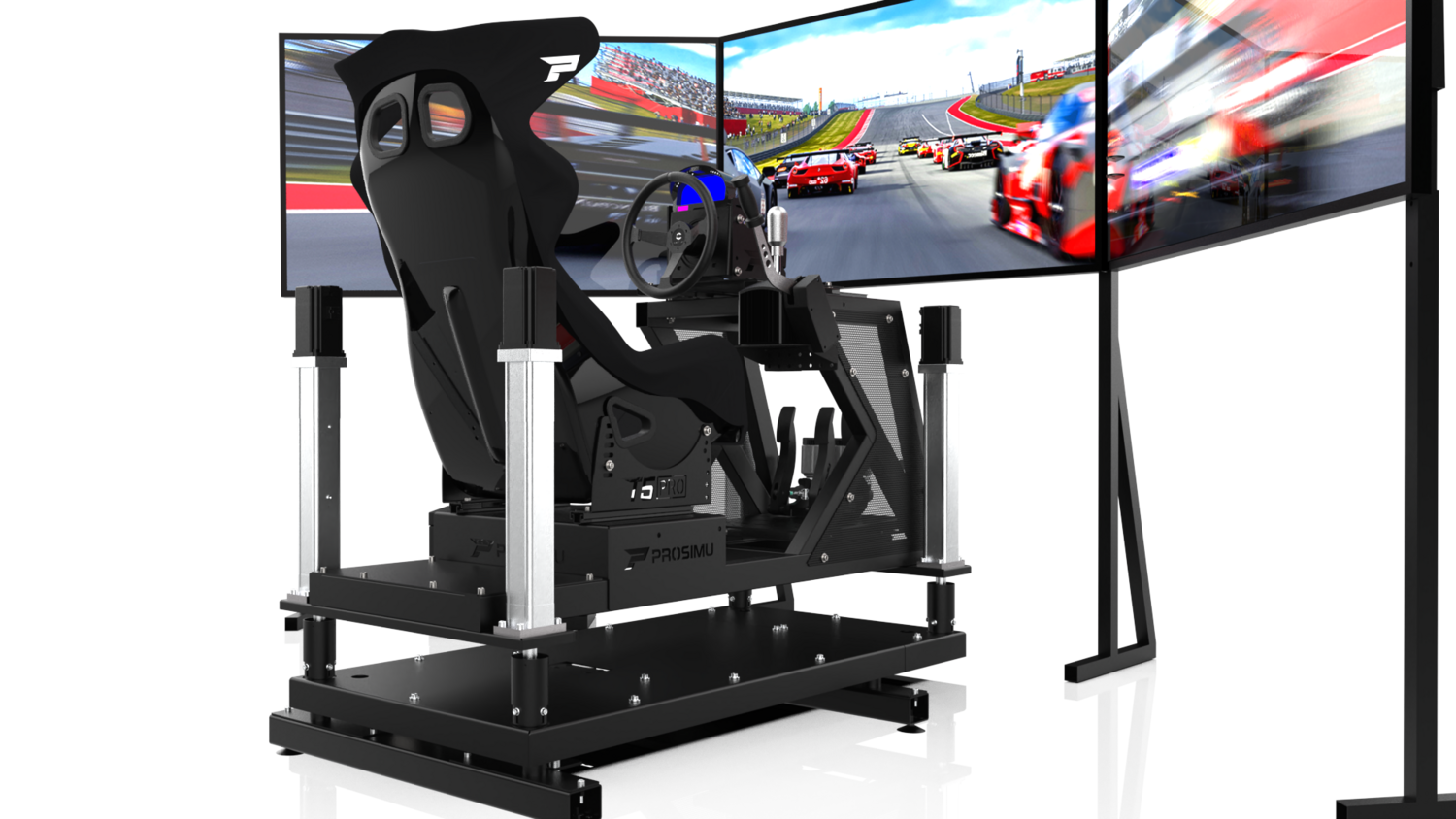

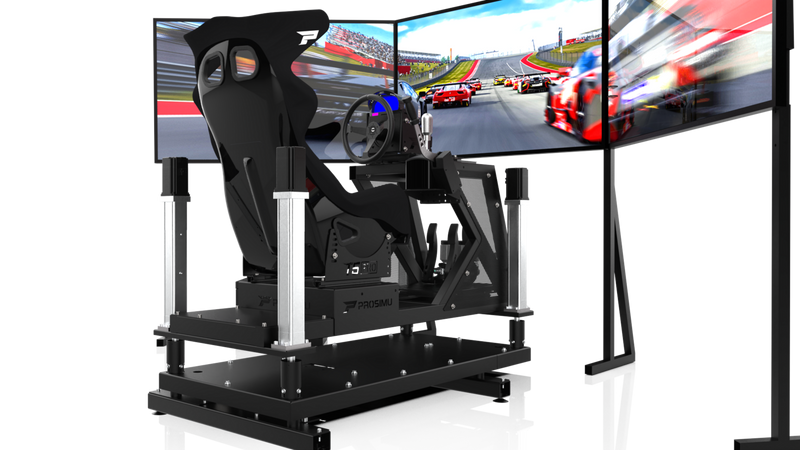

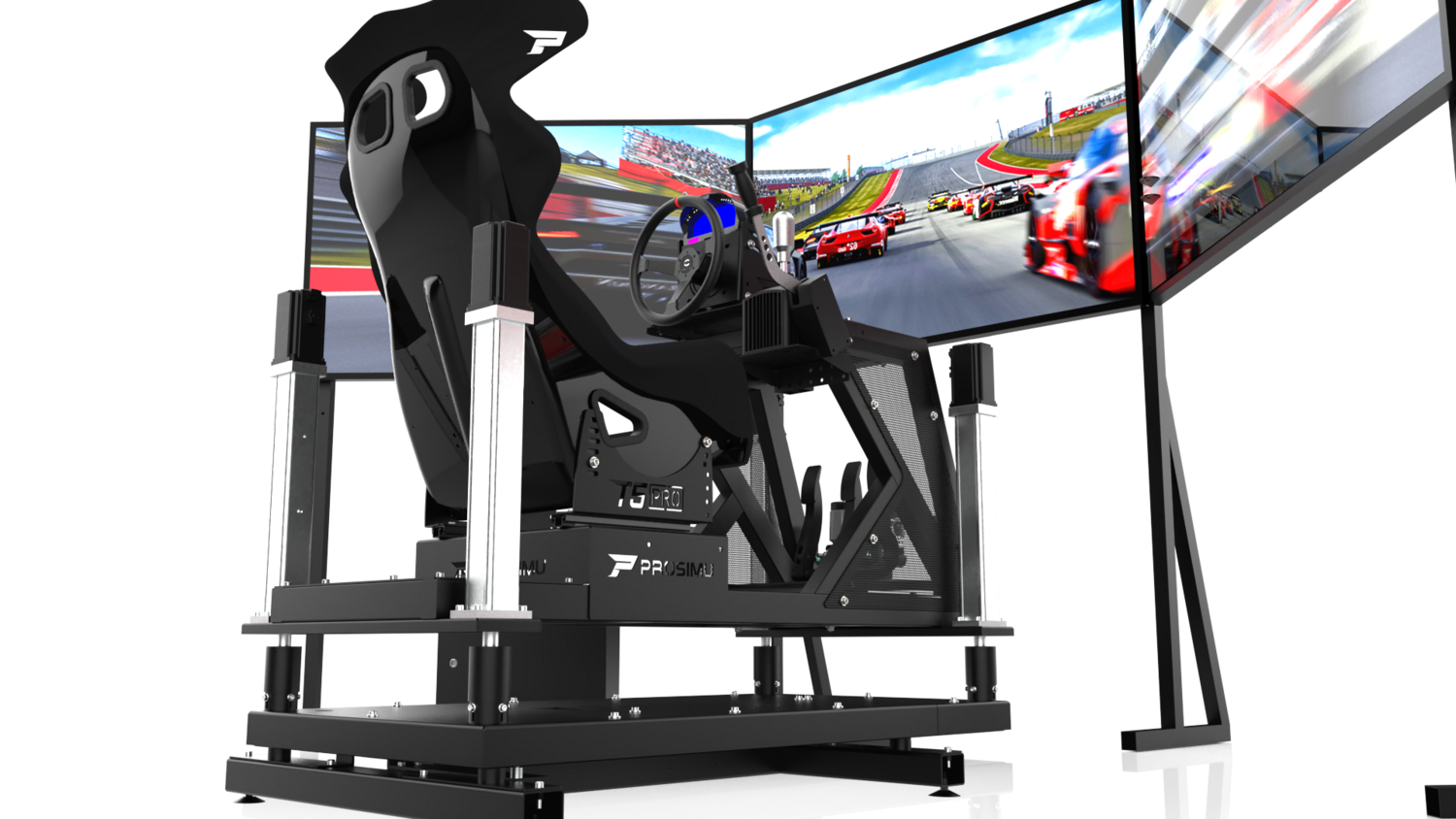

ProSimu T5 PRO set up for sim racing in a compact space

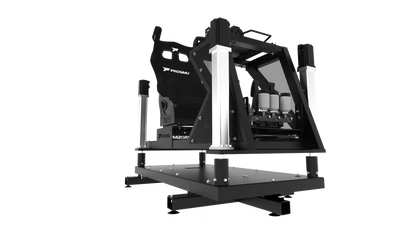

Rear view of the ProSimu T5 PRO and its traction loss system

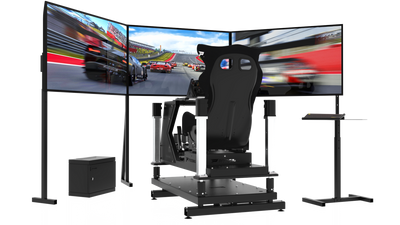

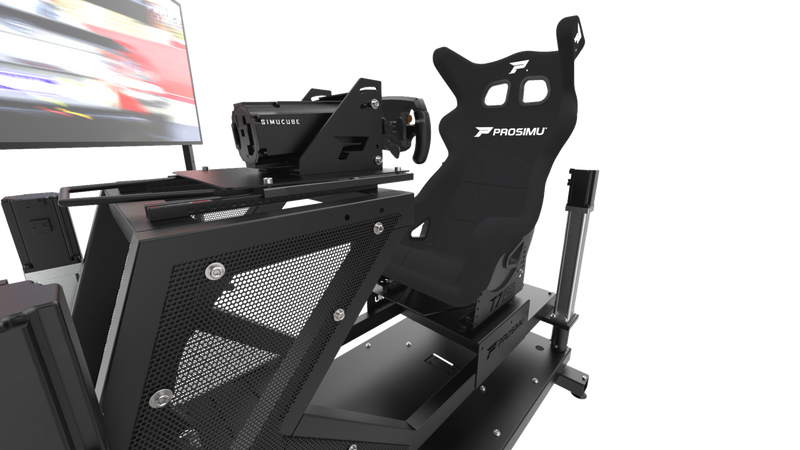

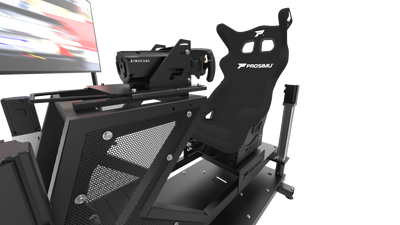

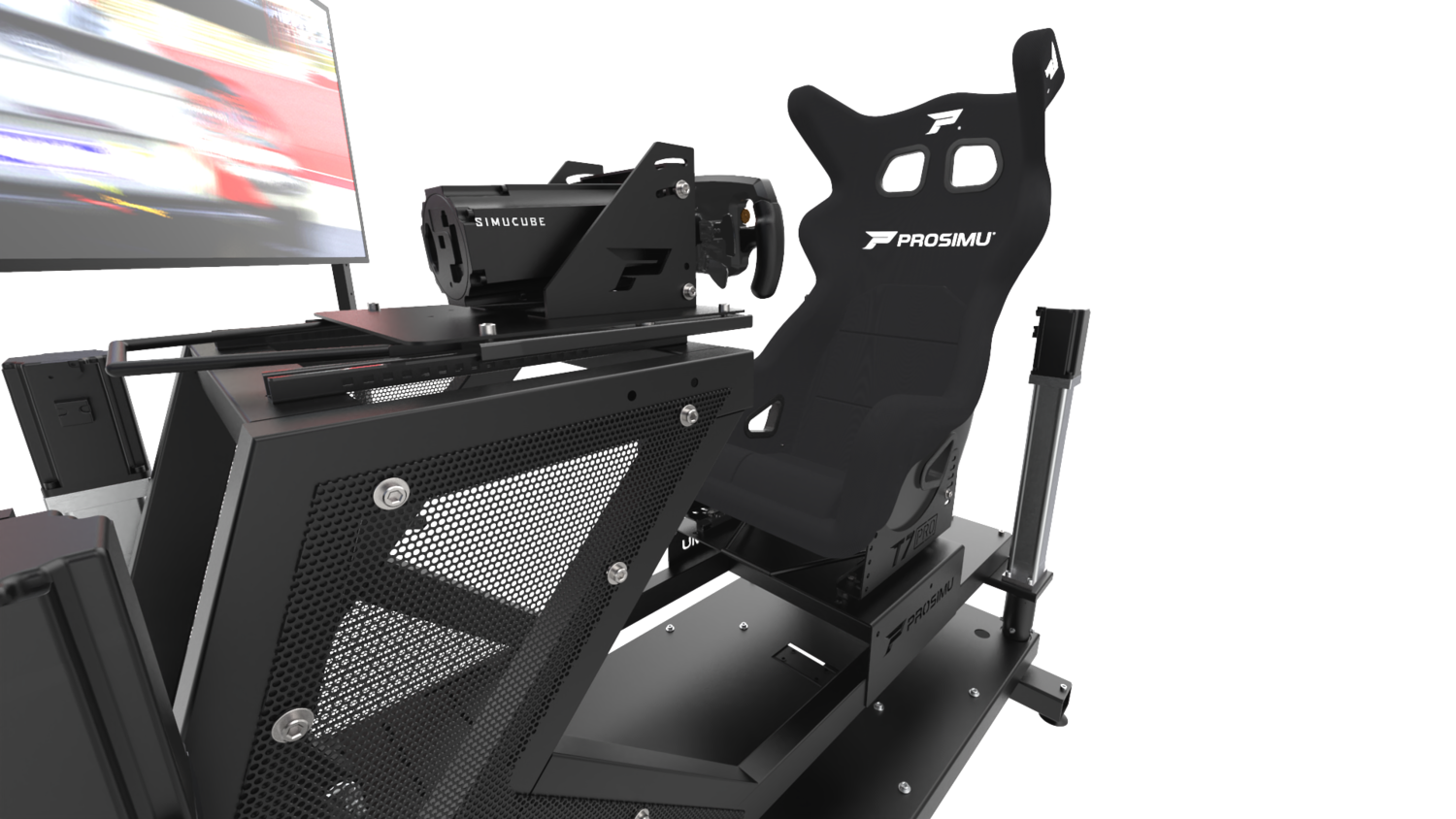

ProSimu T5 PRO motion simulator in a driver configuration

PRS50 yaw actuator of the ProSimu T5 PRO

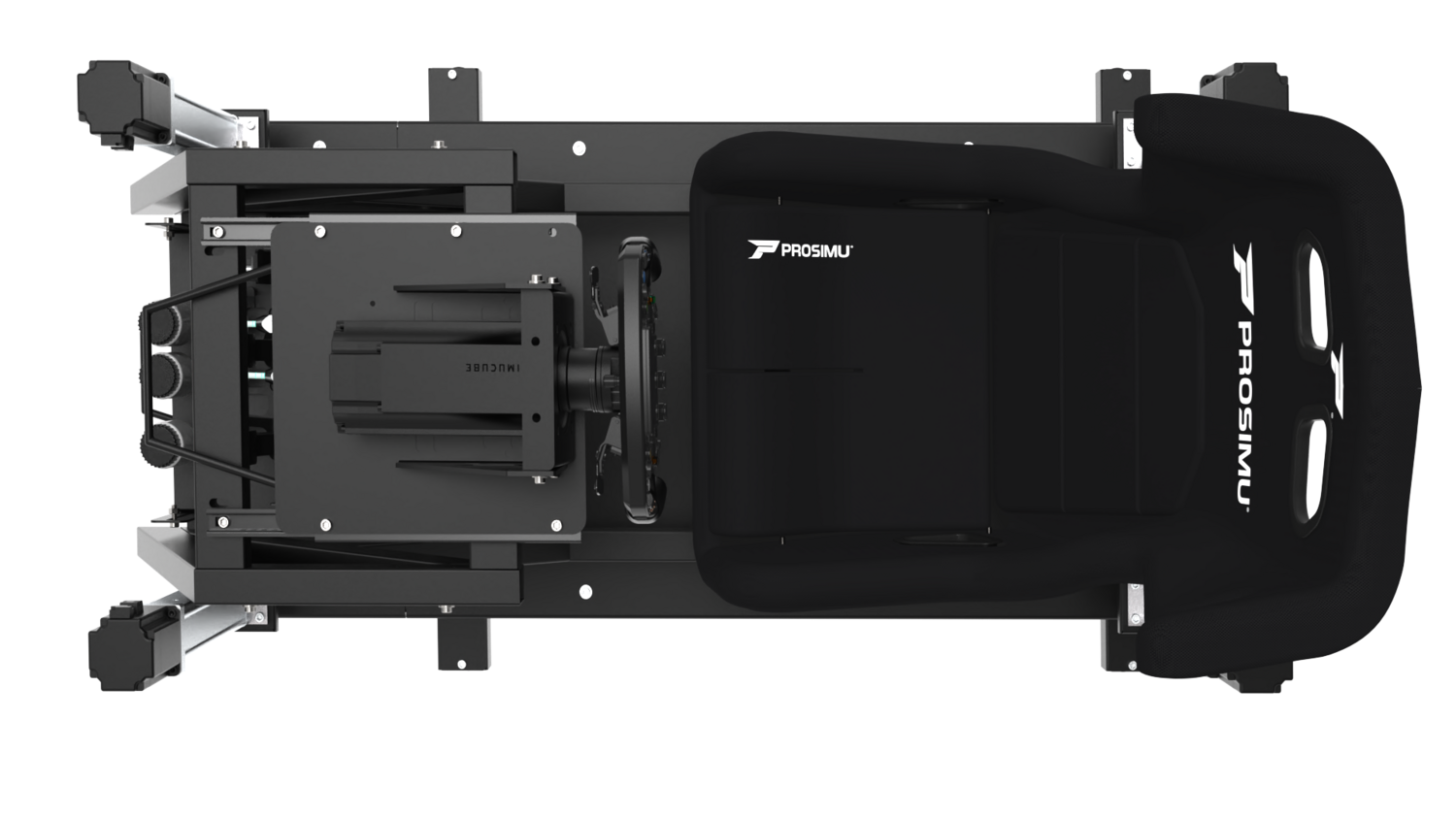

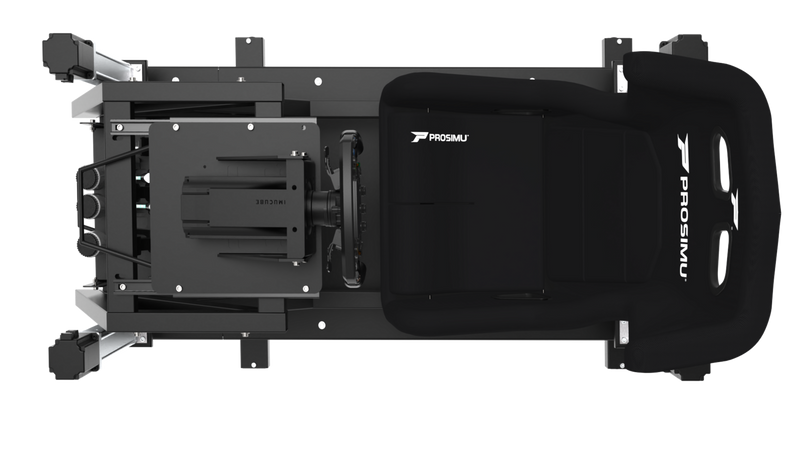

Aluminium structure of the ProSimu T5 PRO simulator

Please note that pre-order products may arrive later.

Price

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

ESTIMATED DATE

PRE-ORDER ITEM

Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.

[{"id":51377635295565,"title":"Yes \/ Yes \/ Yes","option1":"Yes","option2":"Yes","option3":"Yes","sku":"PRS-T5PRO-SS-SF-SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - Yes \/ Yes \/ Yes","public_title":"Yes \/ Yes \/ Yes","options":["Yes","Yes","Yes"],"price":1610999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635328333,"title":"Yes \/ Yes \/ No","option1":"Yes","option2":"Yes","option3":"No","sku":"PRS-T5PRO-SS-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - Yes \/ Yes \/ No","public_title":"Yes \/ Yes \/ No","options":["Yes","Yes","No"],"price":1589999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635361101,"title":"Yes \/ No \/ Yes","option1":"Yes","option2":"No","option3":"Yes","sku":"PRS-T5PRO-SS-SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - Yes \/ No \/ Yes","public_title":"Yes \/ No \/ Yes","options":["Yes","No","Yes"],"price":1594999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635393869,"title":"Yes \/ No \/ No","option1":"Yes","option2":"No","option3":"No","sku":"PRS-T5PRO-SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - Yes \/ No \/ No","public_title":"Yes \/ No \/ No","options":["Yes","No","No"],"price":1574999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635426637,"title":"No \/ Yes \/ Yes","option1":"No","option2":"Yes","option3":"Yes","sku":"PRS-T5PRO-SF-SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - No \/ Yes \/ Yes","public_title":"No \/ Yes \/ Yes","options":["No","Yes","Yes"],"price":1594999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635459405,"title":"No \/ Yes \/ No","option1":"No","option2":"Yes","option3":"No","sku":"PRS-T5PRO-SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - No \/ Yes \/ No","public_title":"No \/ Yes \/ No","options":["No","Yes","No"],"price":1574999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635492173,"title":"No \/ No \/ Yes","option1":"No","option2":"No","option3":"Yes","sku":"PRS-T5PRO-SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - No \/ No \/ Yes","public_title":"No \/ No \/ Yes","options":["No","No","Yes"],"price":1579999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51377635524941,"title":"No \/ No \/ No","option1":"No","option2":"No","option3":"No","sku":"PRS-T5PRO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ProSimu T5 PRO – Compact Motion System - No \/ No \/ No","public_title":"No \/ No \/ No","options":["No","No","No"],"price":1559999,"weight":190000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The ProSimu T5 PRO is a compact 5-actuator motion system (4 PRS200 plus one PRS50 for traction loss) for sim racing, compatible with PC, designed for drivers, training centres and mobile setups.

Its reinforced, transportable chassis, just 147 cm long, houses 750 W servo actuators that reach 280 mm/s and 2G with 44 movements per second. The PRS50 actuator adds the yaw axis to reproduce oversteer and understeer, and automotive-grade CAN Bus transmission keeps the response fast and free of latency. It is the ideal base on which to build a professional racing simulator in a small footprint.

Key features

5 actuators: 4× PRS200 Black Series plus 1× PRS50 for traction loss (yaw).
750 W servo actuators with 100 mm travel per actuator.
Speed of 280 mm/s and acceleration up to 2G.
44 movements per second, with no perceptible latency.
Rigid, transportable structure (147 cm long) for mobile or professional setups.
Load capacity up to 350 kg.
Automotive-grade CAN Bus transmission and compatibility with over 100 games through SimTools.

Technical specifications

Feature	Detail
Actuators	5 (4× PRS200 + 1× PRS50 for traction loss), 100 mm travel
Actuator power	750 W servo
Maximum speed	280 mm/s
Maximum acceleration	2G
Movement frequency	44 movements/s
Load capacity	Up to 350 kg
Weight	220 kg
Dimensions	147 × 85 × 140 cm (L × W × H)
Power supply	110–240 V
Connectivity	USB 2.0 / PCIe USB 3.0 recommended
Control software	SimTools with ProSimu optimisation
Warranty	2 years
Manufacturing	France

Compatibility

The T5 PRO is controlled from a PC (Windows) through SimTools software optimised by ProSimu and works with over 100 simulators, such as Assetto Corsa and Competizione, iRacing, rFactor 2, F1, Dirt Rally 1 and 2 or Project CARS, as well as flight titles like Microsoft Flight Simulator and X-Plane. Motion is managed from the PC, so it does not connect directly to consoles. Seat and monitor are not included.

Frequently asked questions

How many actuators does the T5 PRO have and how does it simulate traction loss?

It uses 5 actuators: 4 PRS200 for the main motion and 1 PRS50 that adds the yaw axis to reproduce oversteer and understeer.

Is it compatible with consoles?

The T5 PRO works with PC (Windows) through SimTools and over 100 simulators. Motion is controlled from the PC, so it does not connect directly to consoles.

How much space does it take and can it be moved?

It measures 147 × 85 × 140 cm and weighs 220 kg. Its compact, reinforced chassis is designed for mobile setups, simulation rooms and events.

How much weight does it support?

It takes a load of up to 350 kg with no loss of performance.

What is included in the box?

It includes the T5 PRO chassis with bolts, the motion platform, the 5 actuators, the controllers and full wiring, and the official SimTools licence. Seat and monitor are not included.

Can it be scaled up to a larger system?

Yes. The T5 PRO shares ProSimu's PRS200 actuator platform and is scalable towards the 6DOF T7 PRO in the higher range.
