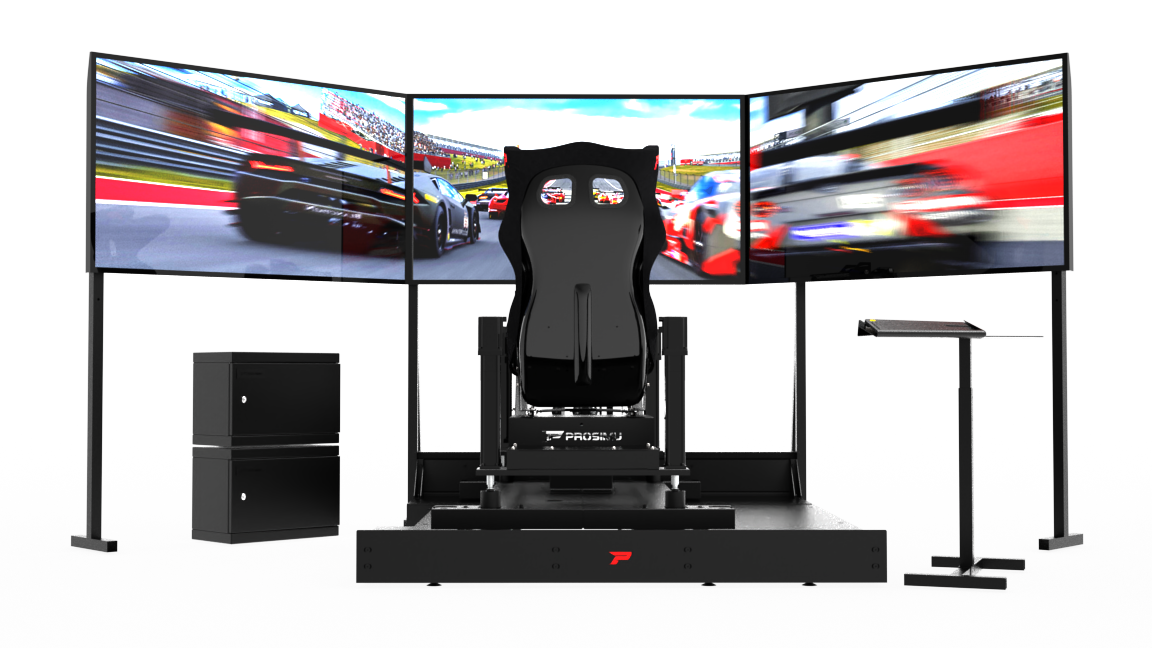

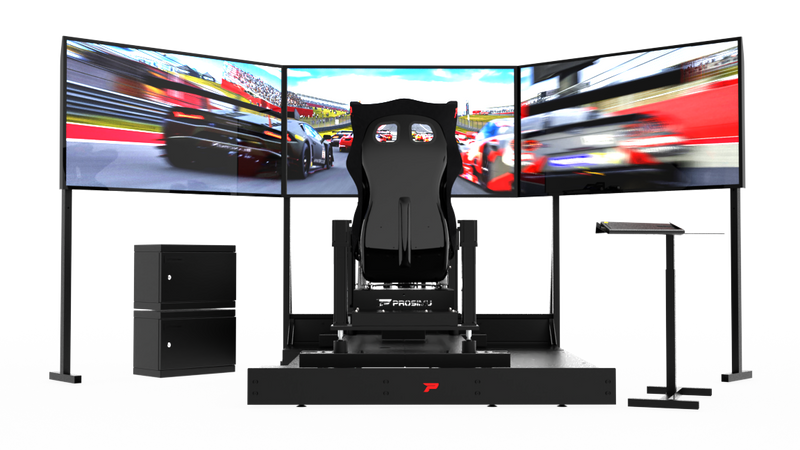

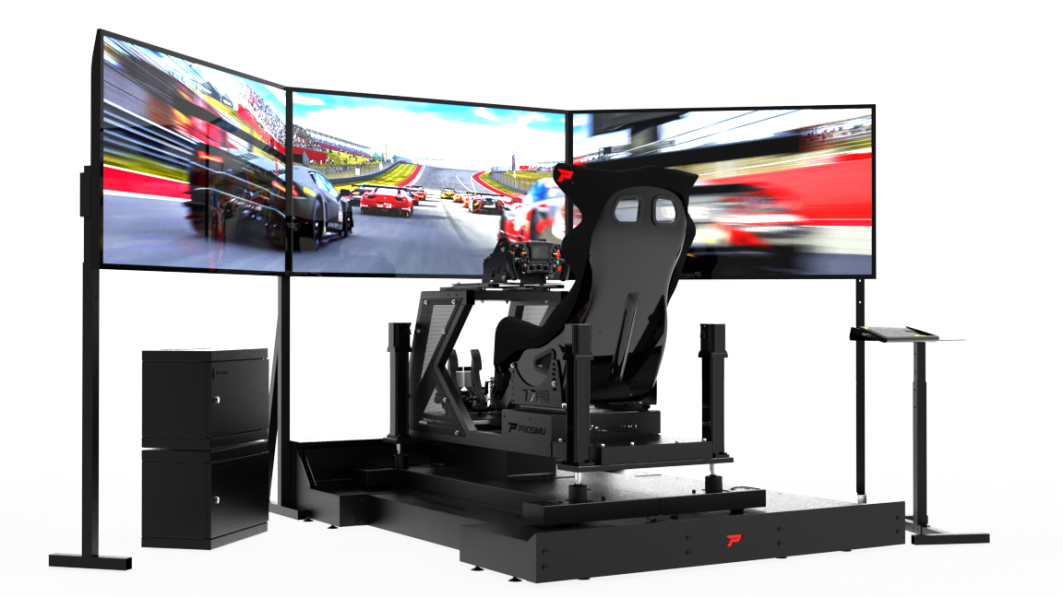

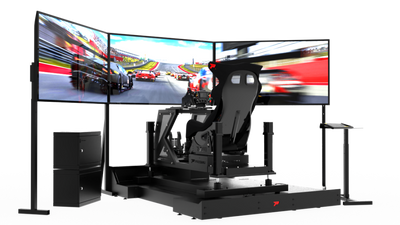

ProSimu T7 PRO motion simulator set up with a sim racing cockpit

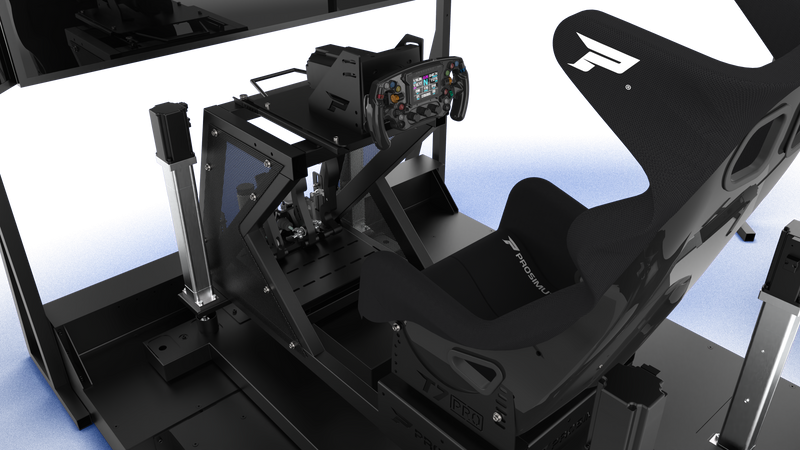

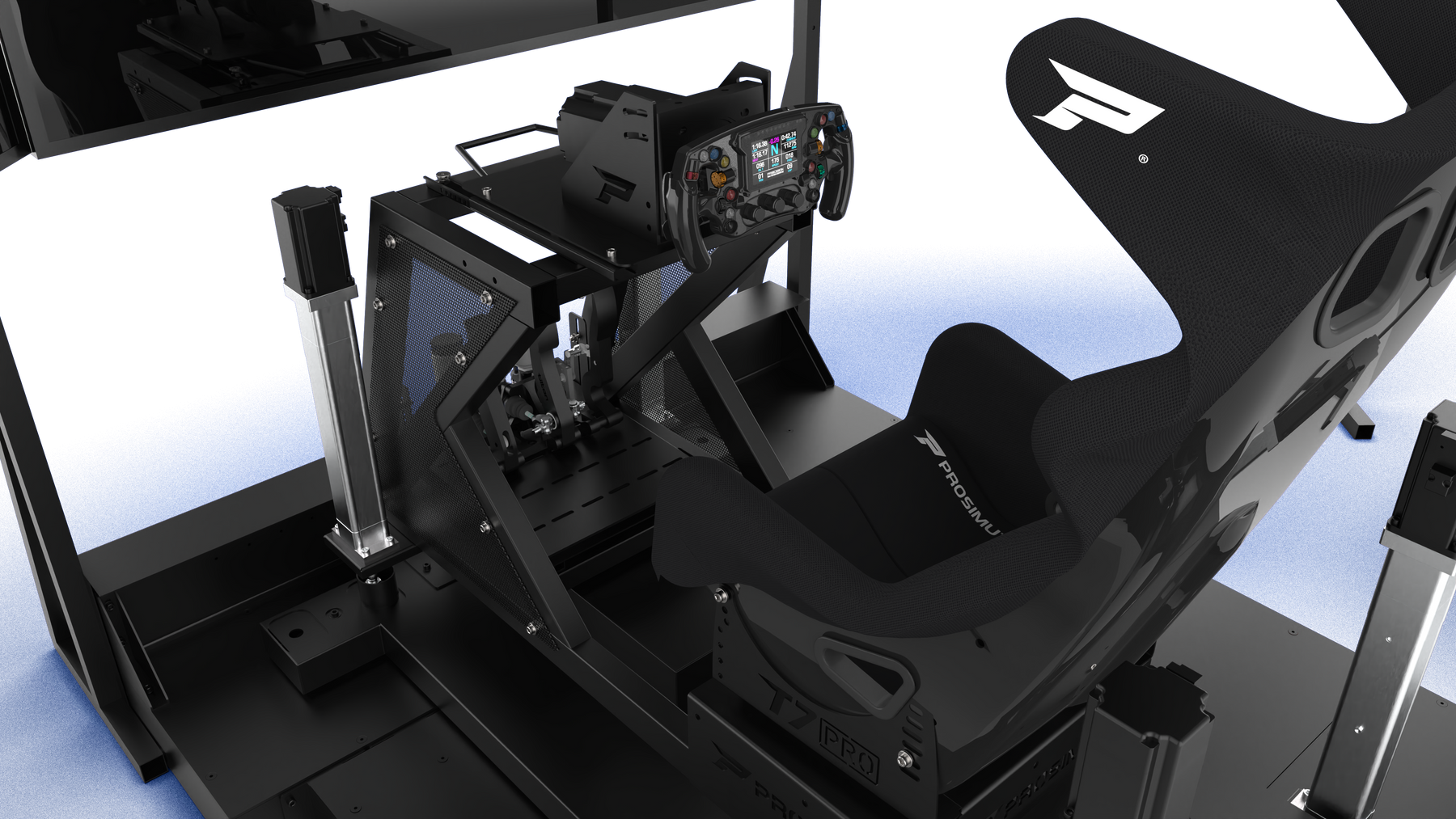

PRS200 actuators of the ProSimu T7 PRO motion platform

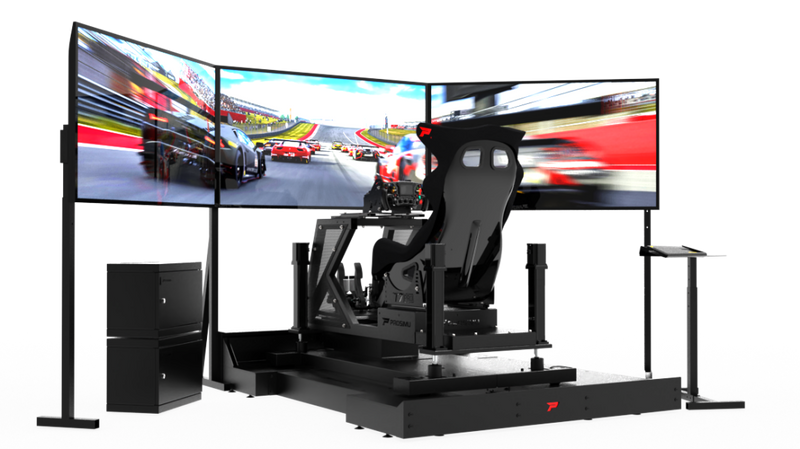

Side view of the 6-degrees-of-freedom ProSimu T7 PRO

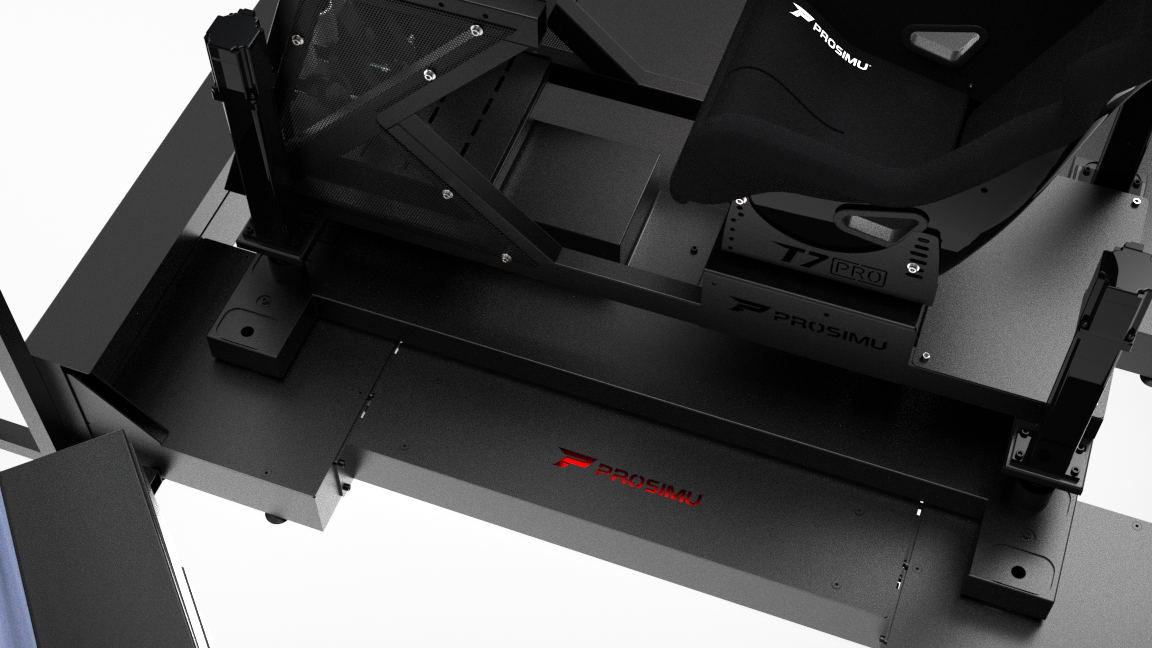

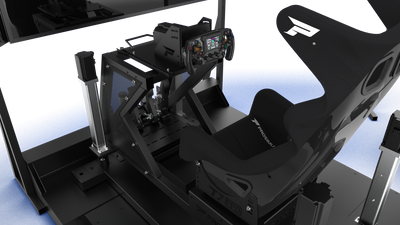

Detail of the chassis and mounting of the ProSimu T7 PRO simulator
ProSimu T7 PRO configured for professional flight simulation
ProSimu T7 PRO, professional 6DOF motion simulator with seven PRS200 actuators
ProSimu T7 PRO motion simulator set up with a sim racing cockpit
PRS200 actuators of the ProSimu T7 PRO motion platform
Side view of the 6-degrees-of-freedom ProSimu T7 PRO
Detail of the chassis and mounting of the ProSimu T7 PRO simulator
ProSimu T7 PRO configured for professional flight simulation

ProSimu T7 PRO 6DOF – Motion System

Brand: Prosimu
Please note that pre-order products may arrive later.
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
Pago 100% seguro

Pago 100% seguro

3 años de garantía

3 años de garantía

Envíos en 24/48 horas

Envío 24/48 horas (Península)*

Atención personalizada

Atención personalizada

100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

Pago 100% seguro

Pagamento 100% seguro

3 años de garantía

Garantia de 3 anos

Entrega em 24/48 horas

Entrega em 24/48 horas (Península)*

Atención personalizada

Atenção personalizada

100 % sichere Zahlung

100 % sichere Zahlung

3 Jahre Garantie

3 Jahre Garantie

Versand innerhalb von 24/48 Stunden

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The ProSimu T7 PRO is a professional 6-degrees-of-freedom (6DOF) motion system with 7 PRS200 actuators for sim racing and flight simulation, compatible with PC, designed and manufactured in France for real drivers, training centres and industrial applications.

It is the most advanced model in the ProSimu range: on top of the six real axes (heave, surge, sway, yaw, roll and pitch), it reproduces front and rear traction loss —oversteer and understeer— that a traditional hexapod cannot replicate. Its actuators reach 280 mm/s and 2G of acceleration with 44 movements per second, and CAN Bus communication at 10 Mbit/s (ISO 11898) keeps the response free of any perceptible latency. It is the platform on which you build a professional-grade racing simulator.

Key features

  • True 6DOF (heave, surge, sway, yaw, roll and pitch) plus oversteer and understeer simulation.
  • 7 PRS200 actuators with configurable travel of 100, 150 or 200 mm.
  • Maximum speed of 280 mm/s and acceleration up to 2G per axis.
  • 44 movements per second, with no perceptible delay.
  • CAN Bus communication at 10 Mbit/s (ISO 11898), fast and secure.
  • Platform just 43 cm high for an optimised centre of gravity.
  • Load capacity up to 450 kg and French manufacturing with CE and ISO certification.

Technical specifications

FeatureDetail
Degrees of freedom6DOF (heave, surge, sway, yaw, roll, pitch) + oversteer/understeer
Actuators7× PRS200 (100 / 150 / 200 mm travel)
Maximum speed280 mm/s
Maximum acceleration2G per axis
Movement frequency44 movements/s
Load capacityUp to 450 kg
Platform height43 cm
CommunicationCAN Bus 10 Mbit/s (ISO 11898)
Power supply220 V 16 A (compatible with 110 V via converter)
WeightApprox. 380 kg
Control softwareSimTools with ProSimu optimisation
CertificationsCE and ISO
ManufacturingFrance

Compatibility

The T7 PRO is controlled from a PC (Windows) through SimTools software optimised by ProSimu and works with over 100 simulators:

  • Sim racing: Assetto Corsa and Competizione, iRacing, rFactor 2, F1, Dirt Rally 1 and 2, Project CARS.
  • Flight simulation: Microsoft Flight Simulator, X-Plane, Aerofly FS 2.
  • Space and military: Elite Dangerous, Star Wars Squadrons, War Thunder.

The motion system is managed from the PC using the simulator's telemetry; it does not connect directly to consoles.

Which actuator travel should you choose?

For driving, 200 mm is recommended on the lower actuators (traction loss, braking and weight transfer) and 100 mm on the upper ones. For aviation, 200 mm on every actuator for maximum amplitude.

Frequently asked questions

What sets the T7 PRO apart from a traditional hexapod?

The T7 PRO adds oversteer and understeer simulation (front and rear traction loss) to its 6DOF and reaches 280 mm/s and 2G, compared with the typical 100–150 mm/s and 0.5–1G of a hexapod. CAN Bus communication cuts latency below RS232 or Ethernet systems.

Which platforms and games is it compatible with?

It is compatible with PC and over 100 car, flight, space and military simulators through the SimTools software optimised by ProSimu. Motion is controlled from the PC, so it does not connect directly to consoles.

Which actuator travel should I choose: 100, 150 or 200 mm?

For sim racing, 200 mm is recommended on the lower actuators and 100 mm on the upper ones; for flight simulation, 200 mm on all of them for maximum range of movement.

How much weight does the T7 PRO support?

The platform takes a working load of up to 450 kg, enough for the cockpit, the installed equipment and the driver.

Does it include a wheelbase, wheel or pedals?

No. The T7 PRO is the motion platform with its chassis, the 7 PRS200 actuators and the management software licence. You install your own wheelbase, wheel, pedals and seat on it.

Where is it made and what warranty does it have?

It is designed and manufactured in France with CE and ISO certification. At Simufy it is sold with official warranty and specialised technical support.
