U-Shake6 SRS Haptic Vibration

SRS U-Shake6: 6-channel haptic vibration to feel every detail of your simulator

The SRS U-Shake6 is an advanced haptic seat pad designed to transform your racing simulator into a much more physical, precise, and immersive experience. Compatible with PC and console driving and flight video games, it reproduces vibrations based on game telemetry so you can feel curbs, asphalt irregularities, turbulence, engine vibration, gear changes, impacts, accelerations, braking, G-forces, loss of traction, and much more.

Thanks to its 6 integrated transducers, the U-Shake6 doesn't just generate generic vibration: it distributes effects to specific areas of the seat so that each sensation reaches the correct spot, with the appropriate intensity and at the precise moment.

Precise sensations from six independent zones

The SRS U-Shake6 incorporates 6 independent vibration channels: front right, front left, rear right, rear left, center, and subwoofer. This distribution allows for a more faithful recreation of what happens in the virtual vehicle, whether it's a race car, single-seater, GT, rally car, or aircraft.

Engine effects are automatically redirected to the center and sub channels, while sensations such as suspension, loss of traction, bumps, ABS, or curbs are sent to the four corners of the seat. The result is a much clearer understanding of the car's behavior, ideal for improving immersion and better understanding what's happening on track.

Key Benefits of the SRS U-Shake6

• 6 integrated transducers for multichannel haptic vibration.
• Effects based on real game telemetry, not just audio.
• Localized sensations in the front, rear, center, and sub zones.
• Compatible with driving and flight simulators.
• Compact and flexible design, adaptable to almost any seat.
• Ultra-quiet operation, designed not to disturb at home.
• No complex assembly: just place it on the seat and connect via USB.

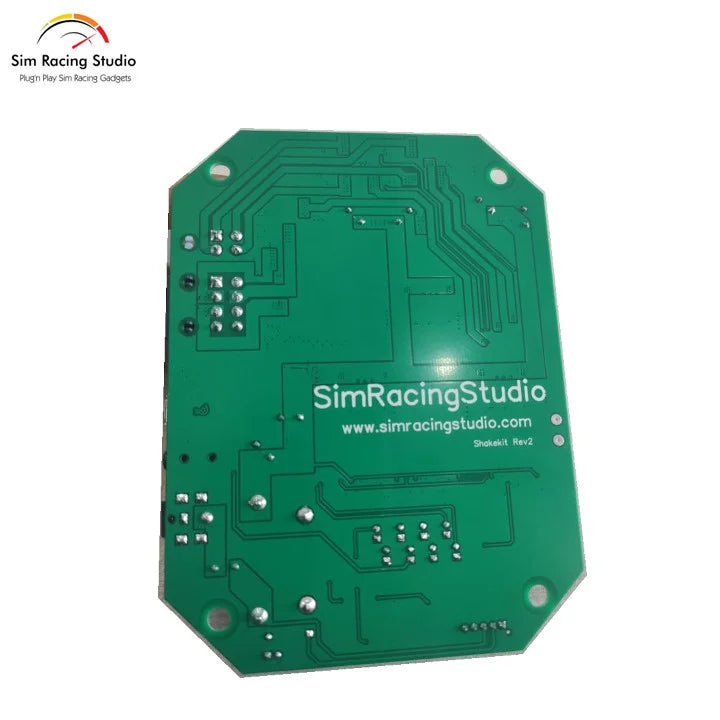

• Exclusive Sim Racing Studio control board included.

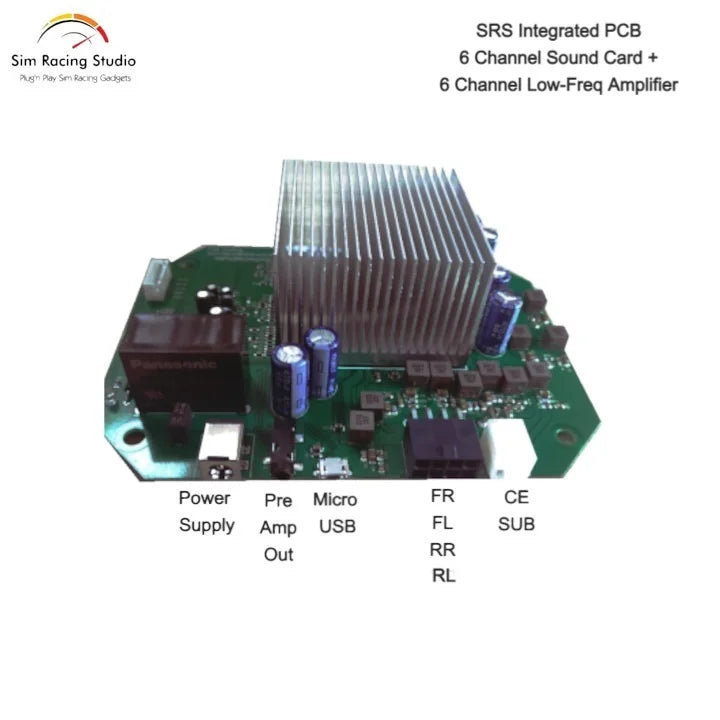

• Integrated 6-channel sound card.
• Integrated 6-channel amplifier, with 120 W / 4 ohms per channel.

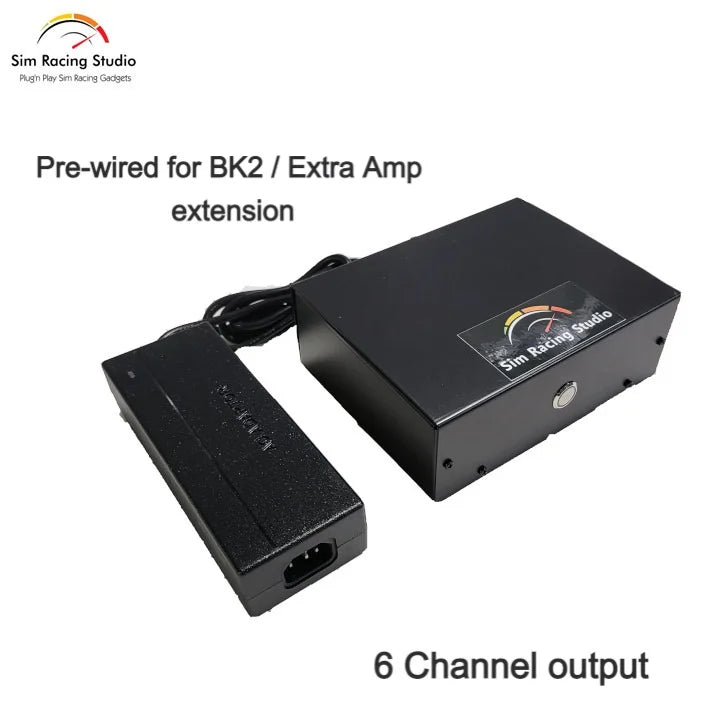

• 3.5 mm pre-amplified output for adding external amplifiers or shakers.
• Compatible with SimHaptic and other bass shaker software.
• Sim Racing Studio license for advanced control of the 6 transducers.

Key features for a more immersive seat

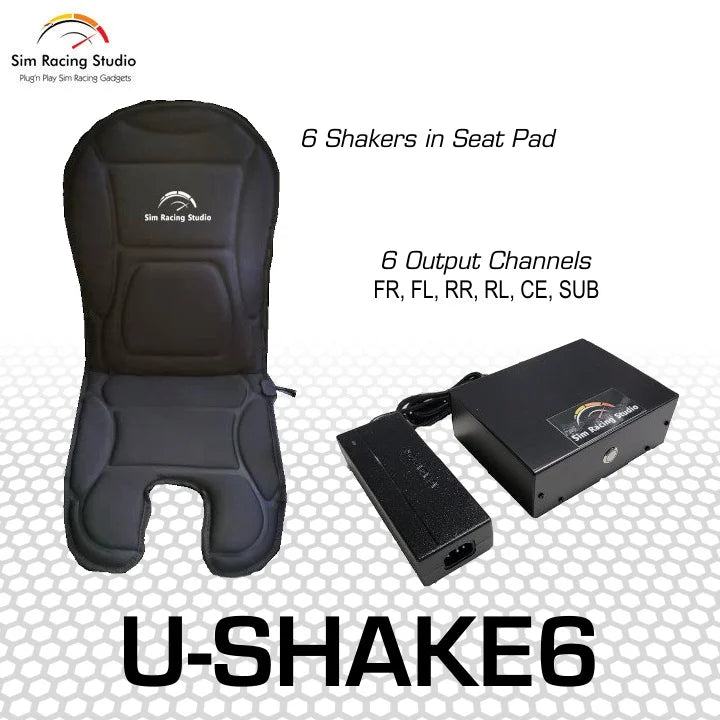

• Product: Sim Racing Studio U-Shake6
• Type: Haptic seat pad for seat
• Number of transducers: 6 integrated

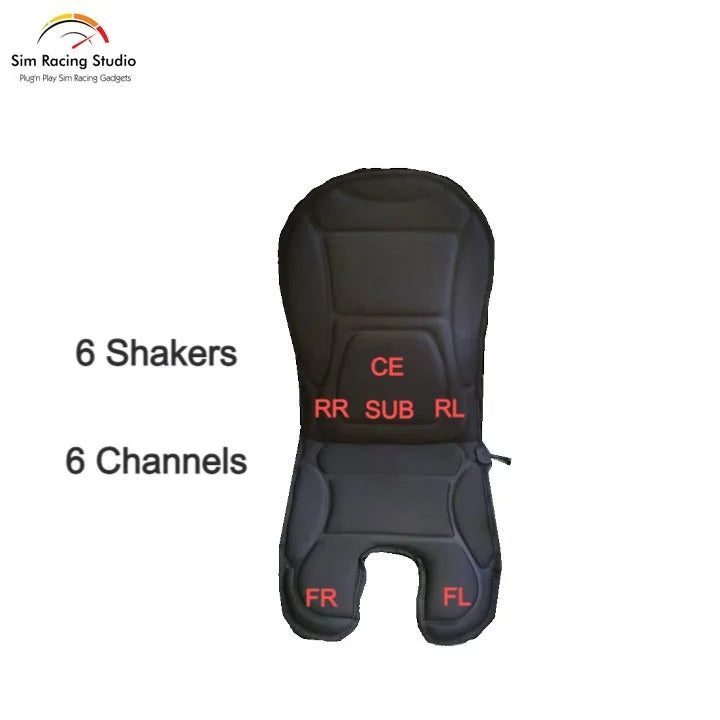

• Channels: Front Right, Front Left, Rear Right, Rear Left, Center, and Sub
• Control: Independent effects per channel via Sim Racing Studio
• Technology: Haptic vibration based on game telemetry
• Recommended use: simracing, flight simulation, and immersive gaming
• Installation: No assembly, direct placement on the seat
• PC Connection: USB included
• Amplification: 6 channels, 120 W / 4 ohms per channel
• Additional Output: 3.5 mm pre-amp for external shakers
• Compatible Software: Sim Racing Studio, SimHaptic, and other bass shaker programs
• SRS License

More useful information than a conventional shaker

Unlike a mono vibration system like a traditional shaker, the U-Shake6 works as a multichannel experience. Instead of sending all effects to a single point, it distributes each signal to the corresponding area of the seat.

This allows for better differentiation between a curb on the right side, a loss of rear traction, engine vibration, or an impact. For a sim racing driver, this information adds a physical layer that helps interpret the car more naturally, especially during braking, cornering, gear changes, and low-grip areas.

Easy installation and quick setup

The SRS U-Shake6 is designed to integrate easily into any cockpit, flight station, or gaming chair. No assembly is required: simply place the pad on the seat, connect the U-Shake6 box to your computer via the included USB cable, and power the system with the supplied power source.

With the Sim Racing Studio software, each of the 6 transducers can be controlled independently. From the settings section, you can customize the intensity of the effects to adapt the vibration to your driving style, simulator type, or personal preferences.

Compatibility and Requirements

The SRS U-Shake6 is compatible with PC and console for compatible driving and flight video games. For advanced telemetry control, it is recommended to use it with Sim Racing Studio.

It can also be used with SimHaptic and other available bass shaker software, which expands its configuration possibilities in different simulation environments.

Requires:

• Compatible PC for software configuration.
• Available USB port.
• Power outlet for the included power supply.
• Racing, flight, or gaming seat to place the pad on.
• Compatible software depending on the desired use.

Technical Specifications

Package Contents

• 1x U-Shake6 amplifier
• 1x U-Shake6 seat pad
• 1x USB cable
• 1x Power supply with cable
• Sim Racing Studio Standard License

A haptic upgrade for driving and flying with more information

The SRS U-Shake6 is an ideal upgrade for those seeking a more immersive, quiet, and precise simulator. Its 6 independent channels allow for a better feel of what's happening under the car or aircraft, providing clearer physical feedback that helps to enjoy each session more and interpret every situation on track or in flight with greater detail.
