VNM Handbrake V1 | 200 kg Load Cell Handbrake

Name: VNM Handbrake V1 – 200 kg Load Cell Sim Racing Handbrake
Brand: VNM Simulation
SKU: VNM-HBRK01
Price: 239.99 EUR
Availability: InStock

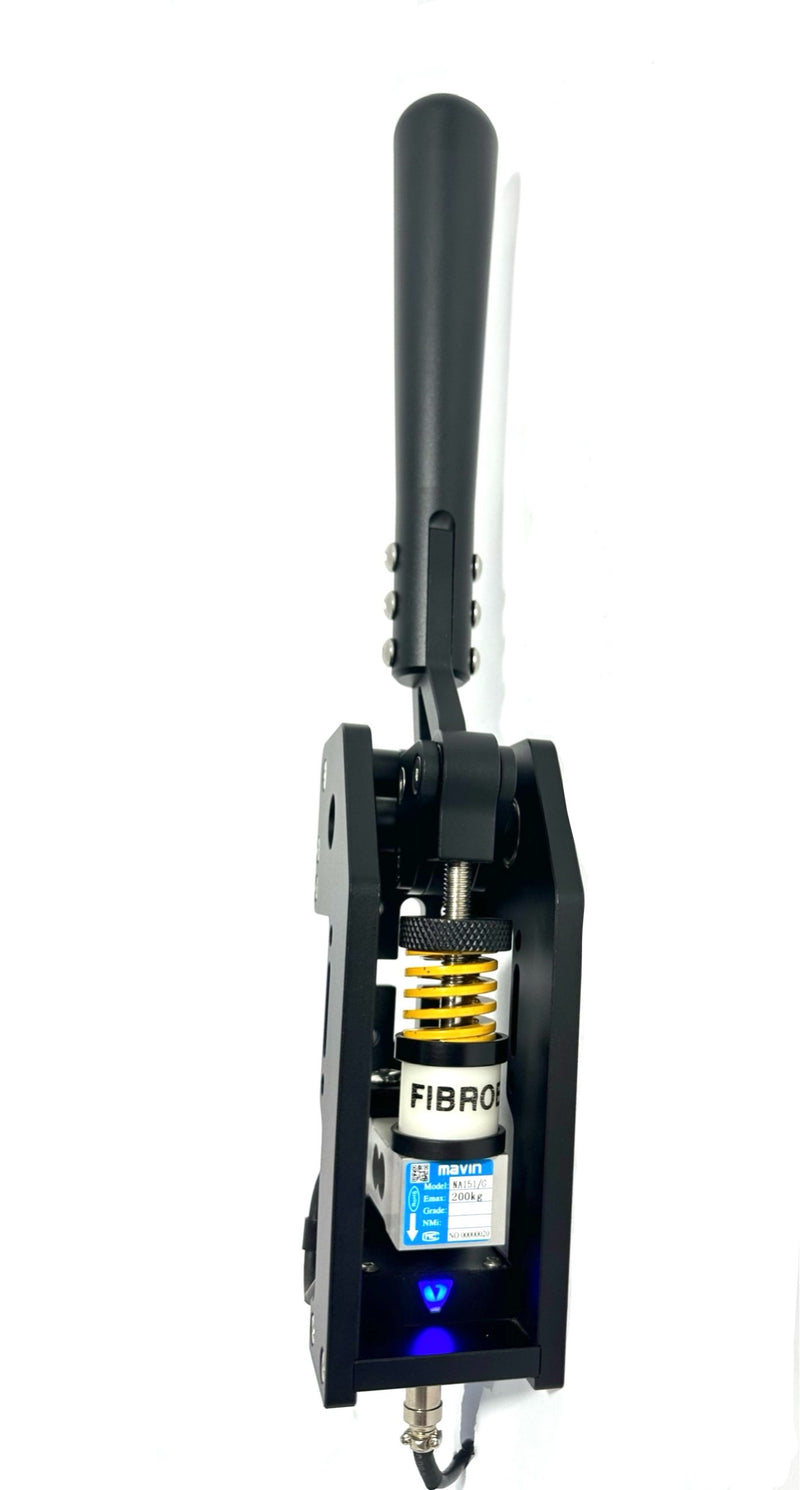

VNM Handbrake V1 handbrake in machined aluminium, front view

Detail of the aluminium body of the VNM Handbrake V1

Lever of the VNM V1 handbrake for rally and drift

Base and mounting holes of the VNM Handbrake V1

VNM Handbrake V1 mounted on a sim racing cockpit

USB GX12 connection of the VNM V1 handbrake

Industrial 200 kg load cell of the VNM Handbrake V1

Springs of the VNM V1 handbrake for pre-load adjustment

PRO Kit of the VNM Handbrake V1 with springs and elastomers

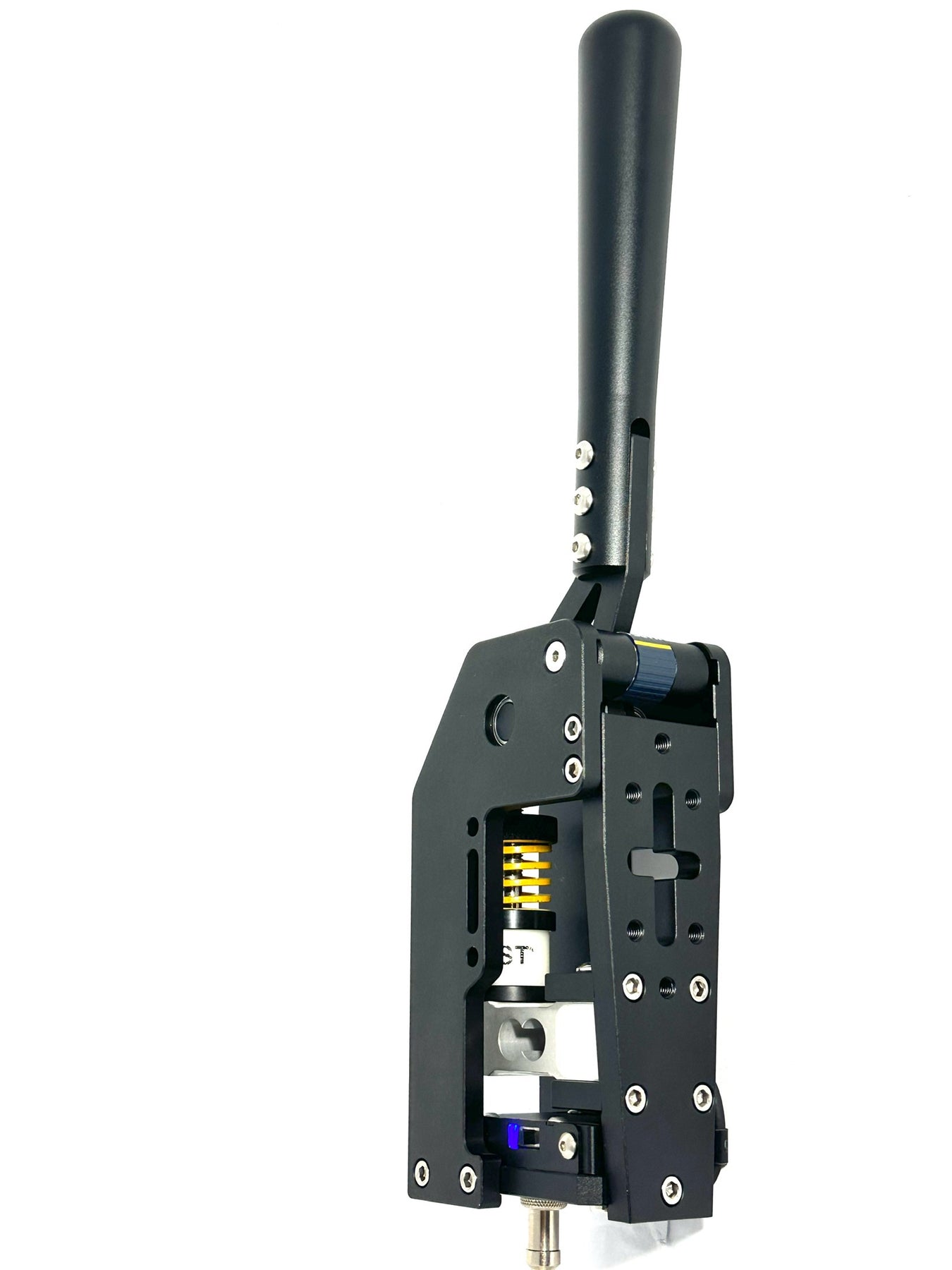

Side view of the VNM Handbrake V1 handbrake

VNM Handbrake V1 with 90-degree conversion kit

VNM Handbrake V1 handbrake for PC, rally and drift

Price - 8%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":42632068432130,"title":"No","option1":"No","option2":null,"option3":null,"sku":"VNM-HBRK01","requires_shipping":true,"taxable":true,"featured_image":{"id":37094276759810,"product_id":7652345053442,"position":1,"created_at":"2022-04-09T11:23:21+02:00","updated_at":"2025-04-02T13:28:06+02:00","alt":"VNM Handbrake V1, 200 kg load cell handbrake for sim racing","width":682,"height":1024,"src":"\/\/simufy.com\/cdn\/shop\/products\/Freno-Mano-V1-VNM-simufy.webp?v=1743593286","variant_ids":[42632068432130]},"available":true,"name":"VNM Handbrake V1 – 200 kg Load Cell Sim Racing Handbrake - No","public_title":"No","options":["No"],"price":23999,"weight":2900,"compare_at_price":25999,"inventory_management":"shopify","barcode":"8936230211003","featured_media":{"alt":"VNM Handbrake V1, 200 kg load cell handbrake for sim racing","id":29661391585538,"position":1,"preview_image":{"aspect_ratio":0.666,"height":1024,"width":682,"src":"\/\/simufy.com\/cdn\/shop\/products\/Freno-Mano-V1-VNM-simufy.webp?v=1743593286"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42632068464898,"title":"Yes","option1":"Yes","option2":null,"option3":null,"sku":"VNM-HBRK01+VNM-HB01PK","requires_shipping":true,"taxable":true,"featured_image":{"id":37094276694274,"product_id":7652345053442,"position":5,"created_at":"2022-04-09T11:23:21+02:00","updated_at":"2025-04-02T13:28:41+02:00","alt":"Base and mounting holes of the VNM Handbrake V1","width":1024,"height":1024,"src":"\/\/simufy.com\/cdn\/shop\/products\/Freno-Mano-V1-VNM-simufy_4.webp?v=1743593321","variant_ids":[42632068464898]},"available":true,"name":"VNM Handbrake V1 – 200 kg Load Cell Sim Racing Handbrake - Yes","public_title":"Yes","options":["Yes"],"price":27499,"weight":3500,"compare_at_price":30998,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Base and mounting holes of the VNM Handbrake V1","id":29661391552770,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/simufy.com\/cdn\/shop\/products\/Freno-Mano-V1-VNM-simufy_4.webp?v=1743593321"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The VNM Handbrake V1 is a 200 kg load cell handbrake for sim racing, compatible with PC, built for rally, drift and rallycross drivers who want a firm, progressive and precise pull.

Its fully machined aluminium body and 200 kg load cell, read by an STM32 board with a 16-bit ADC, measure pressure rather than travel for a natural, repeatable input. The result is the mechanical feel of a real hydraulic handbrake, in a rugged build made to last.

Key features of the VNM Handbrake V1

Industrial 200 kg load cell: pressure-sensitive, progressive and consistent braking.
STM32 board with 16-bit ADC: high-resolution reading for detailed inputs.
Fully machined aluminium body: rigid, durable and with a professional feel.
Direct mounting on aluminium-profile or metal rigs.
USB GX12 plug & play connection (PC only).
Expandable with the PRO Kit: extra springs and elastomers plus a 90° conversion kit for more tuning and mounting freedom.

Technical specifications

Specification	Detail
Material	Machined aluminium
Sensor	Industrial 200 kg load cell
Electronics	STM32 board with 16-bit ADC
Mounting	Aluminium profile or metal structures
Compatibility	PC only
Connection	USB GX12 (plug & play)
In the box	V1 handbrake, USB GX12 cable, Allen keys, digital manual

Standard or PRO Kit version?

The standard version ships as the complete handbrake with its spring set, already progressive and adjustable in pre-load. The PRO Kit adds extra springs and elastomers to stiffen or soften the feel, plus a 90° conversion kit that widens your mounting options. Choose PRO for the widest tuning range; standard is enough for most setups.

Compatibility

It connects over USB in plug & play mode and works on PC with iRacing, Assetto Corsa, EA SPORTS WRC, DiRT Rally and any title that accepts an analogue axis. It is not compatible with consoles.

Frequently asked questions

Does the VNM Handbrake V1 work on console?

No. It is designed for PC and connects over USB GX12 in plug & play; it is not compatible with PlayStation or Xbox.

What does the load cell measure?

It measures the pressure (force) you apply, not travel. It is a 200 kg industrial load cell read by an STM32 board with a 16-bit ADC, giving a progressive, repeatable response.

What does the PRO Kit add?

Extra spring and elastomer combinations to adjust tension, plus a 90° conversion kit that widens mounting freedom.

How does it mount to the rig?

It bolts to aluminium profile or standard metal structures using the rear and side mounting holes, and connects over USB.

How is it different from the VNM Handbrake V1.5?

The VNM Handbrake V1.5 (Rally) is based on the V1 and includes the Pro Kit as standard, with a longer length-adjustable lever and an angle set across 7 positions.
