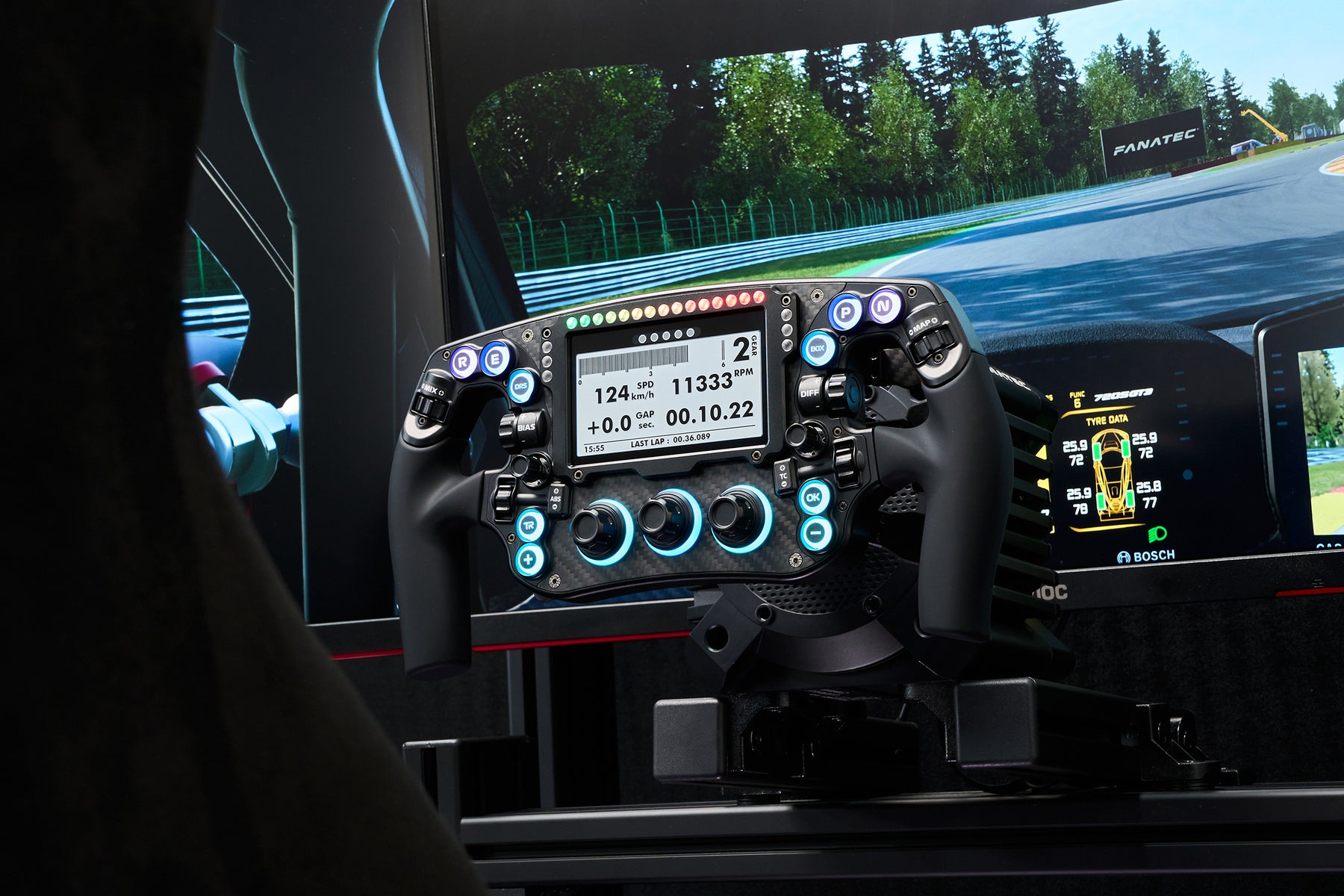

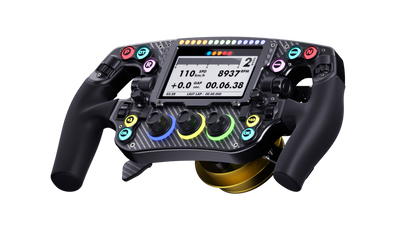

The Leoxz XF1 Ultimate is a formula sim racing wheel with a 4.3" IPS screen and up to 49 controls, compatible with direct drive wheelbases from Fanatec, Simagic, Moza, Simucube and Asetek, built for drivers competing in open-wheel and GT racing on PC and console.

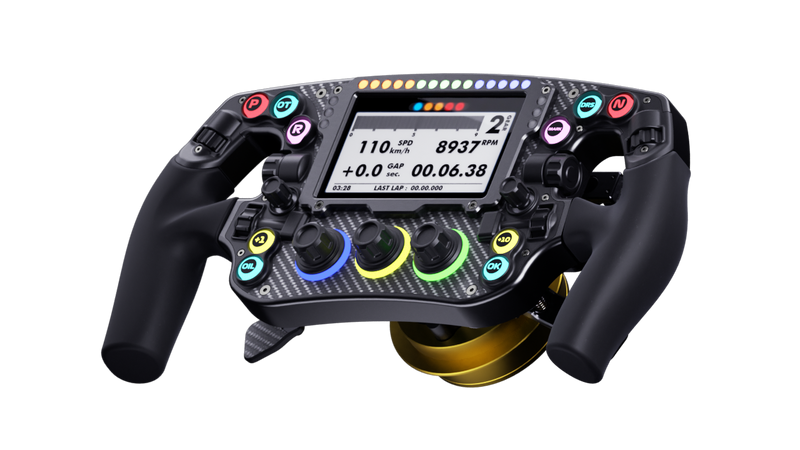

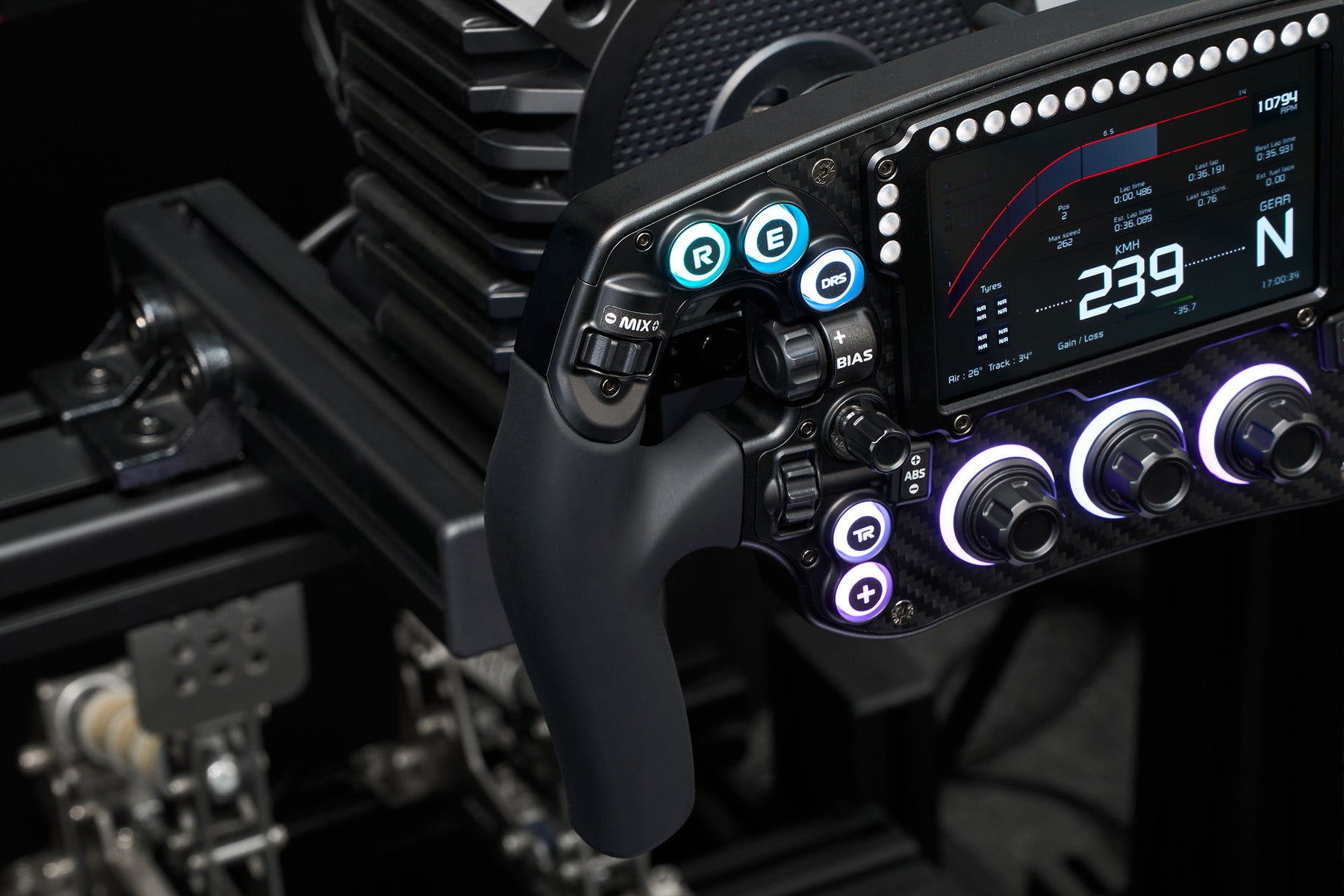

The front plate and paddles are 3K carbon fibre and the rear structure is CNC-machined anodised aluminium. Its 4.3" IPS screen (800×480 px, 60 fps) shows telemetry dashboards configurable through SimHub, and it brings together up to 49 controls: 10 RGB buttons, two joysticks with encoders, three push-button encoders and six thumb knobs. The silent magnetic paddles use non-contact Hall sensors.
Key features of the Leoxz XF1 Ultimate
- Front plate and paddles in 3K carbon fibre; rear structure in CNC anodised aluminium.

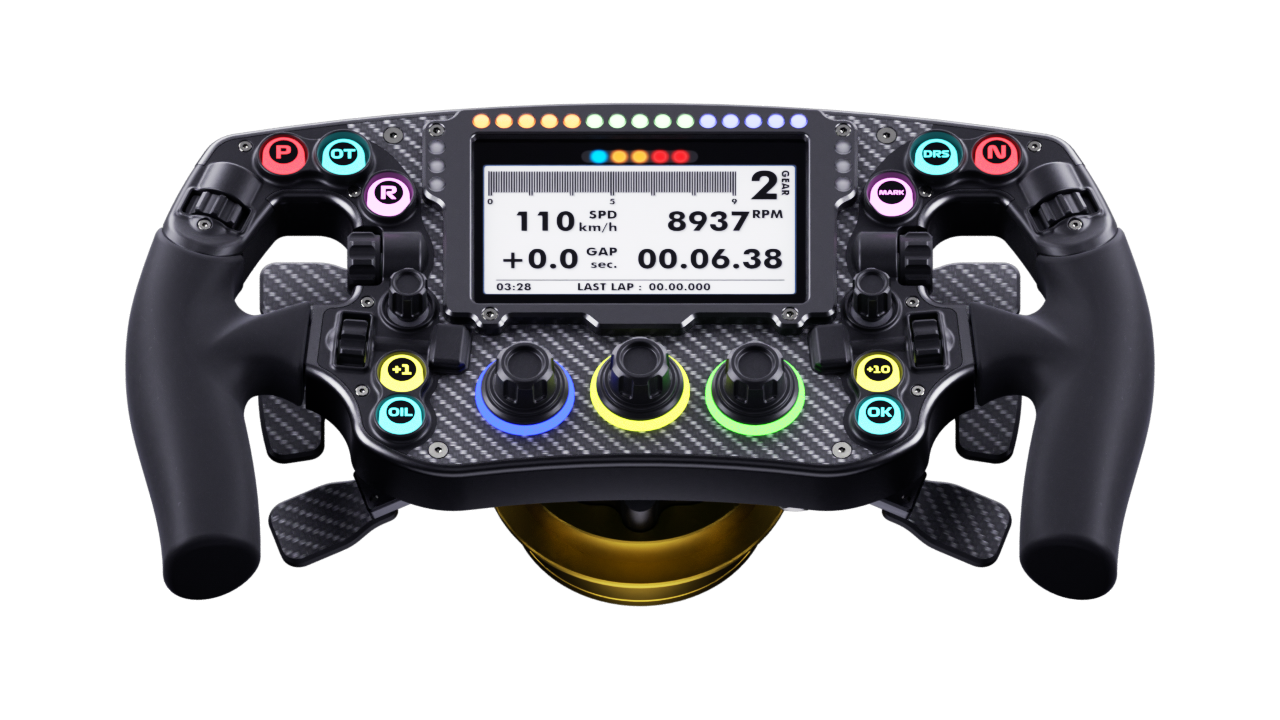

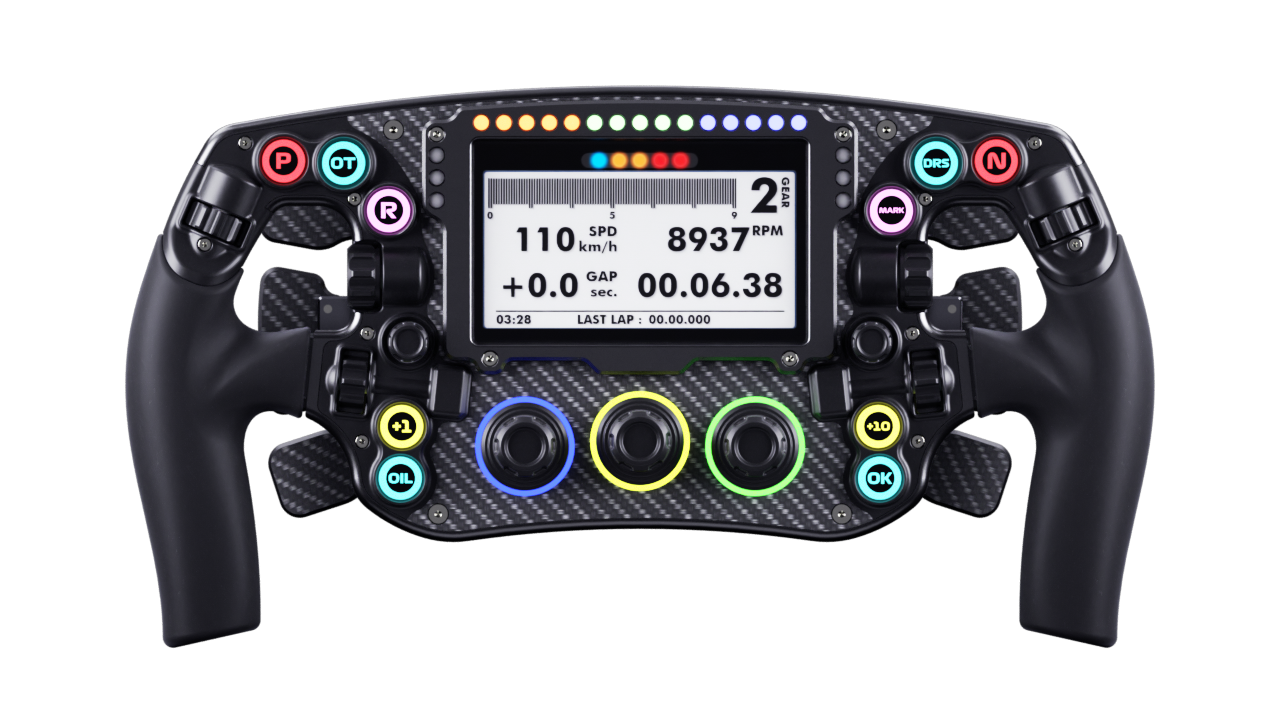

- 4.3" IPS screen (800×480 px, 60 fps) with dashboards you can customise in SimHub.
- Up to 49 controls: 10 RGB buttons, 2 joysticks with encoders, 3 push-button encoders and 6 thumb knobs.
- RGB lighting: 21 rev LEDs, 10 button LEDs and 3 extra, configurable in SimHub.

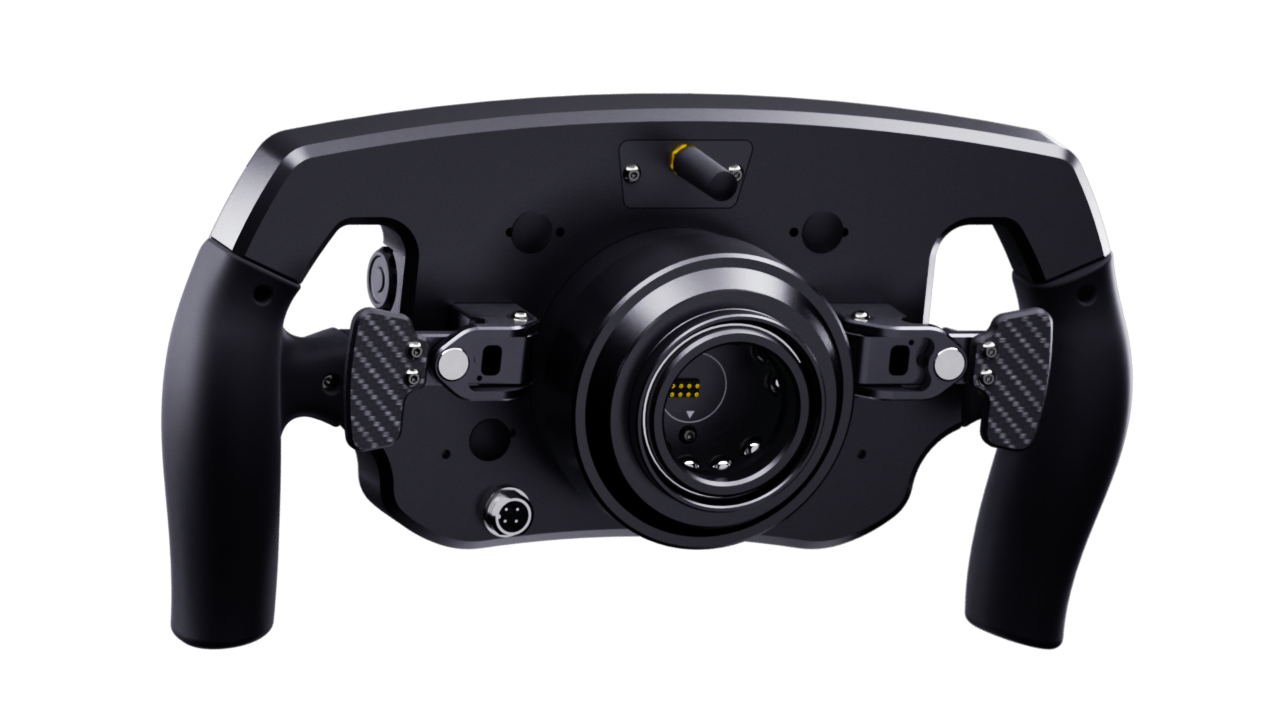

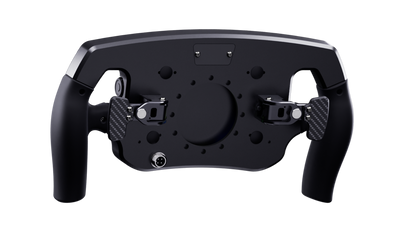

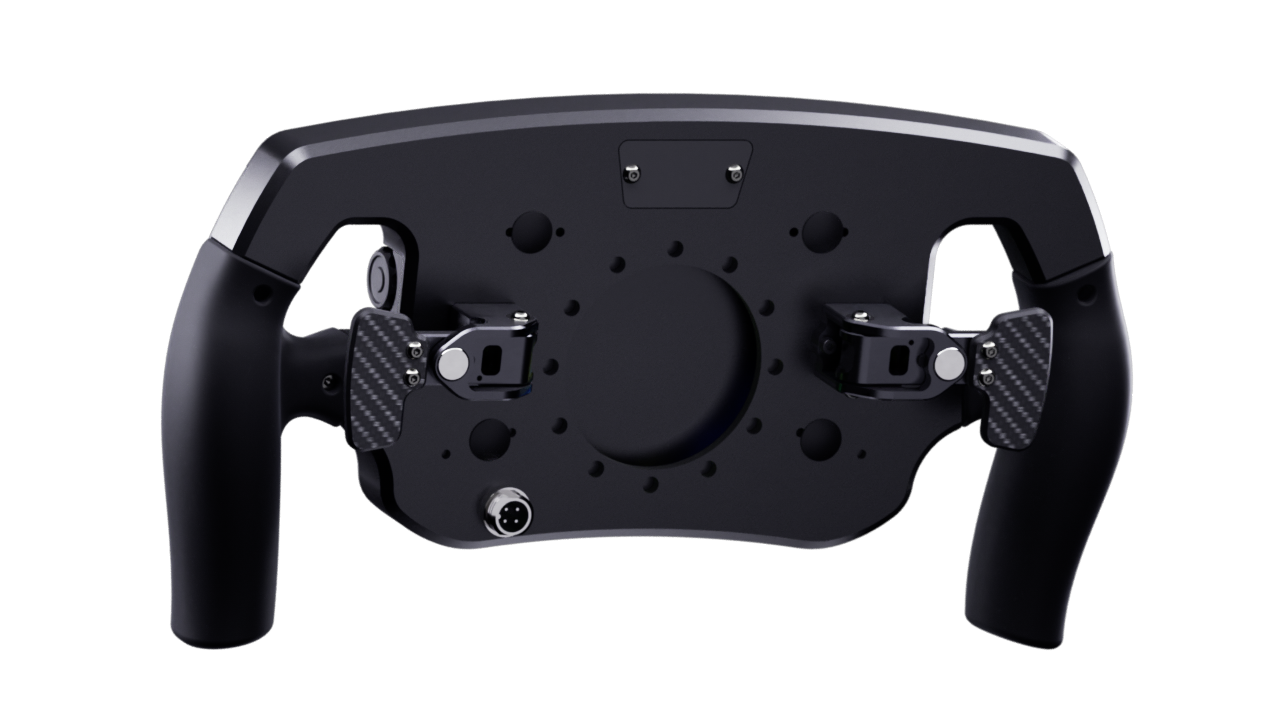

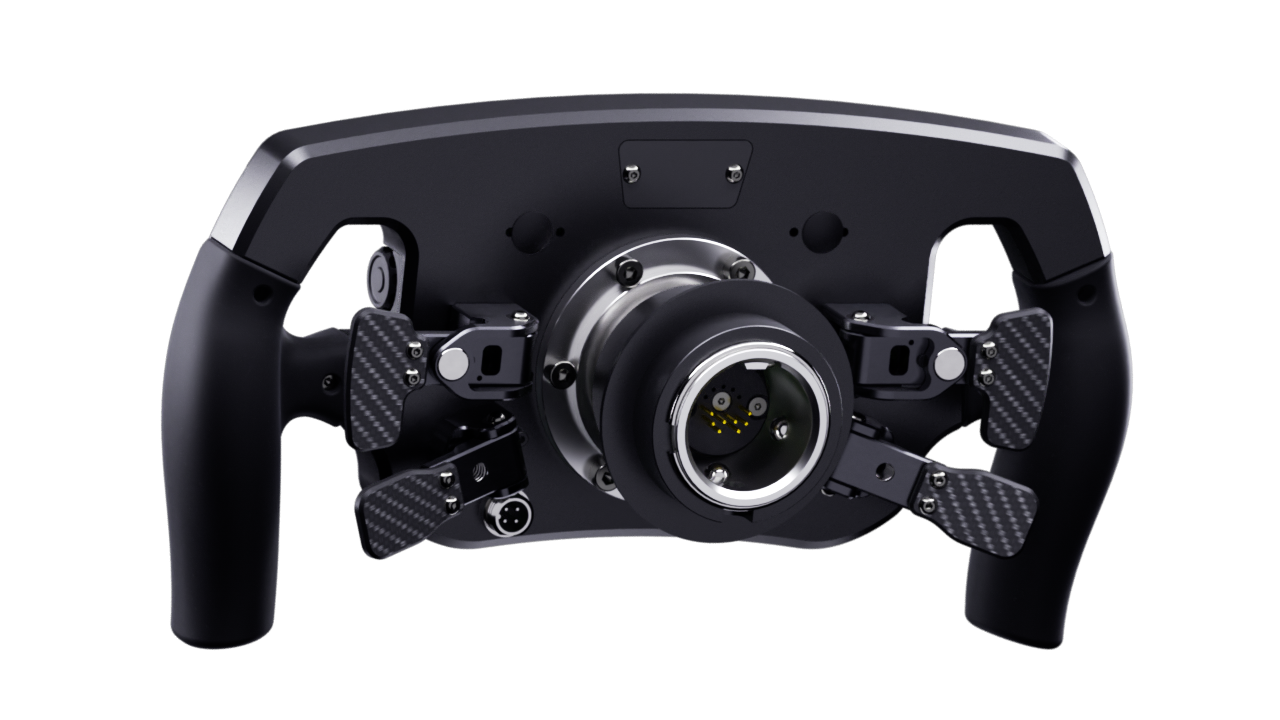

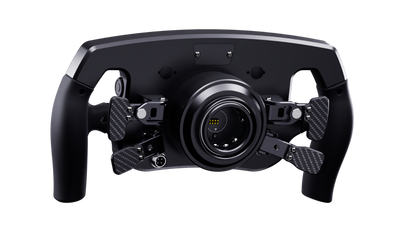

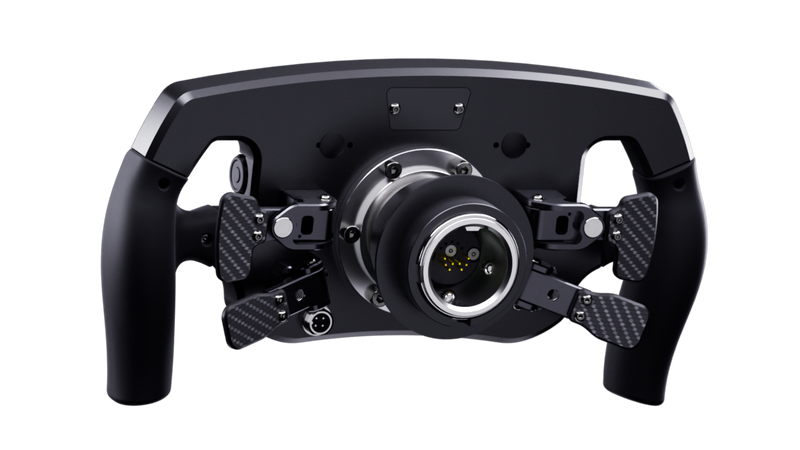

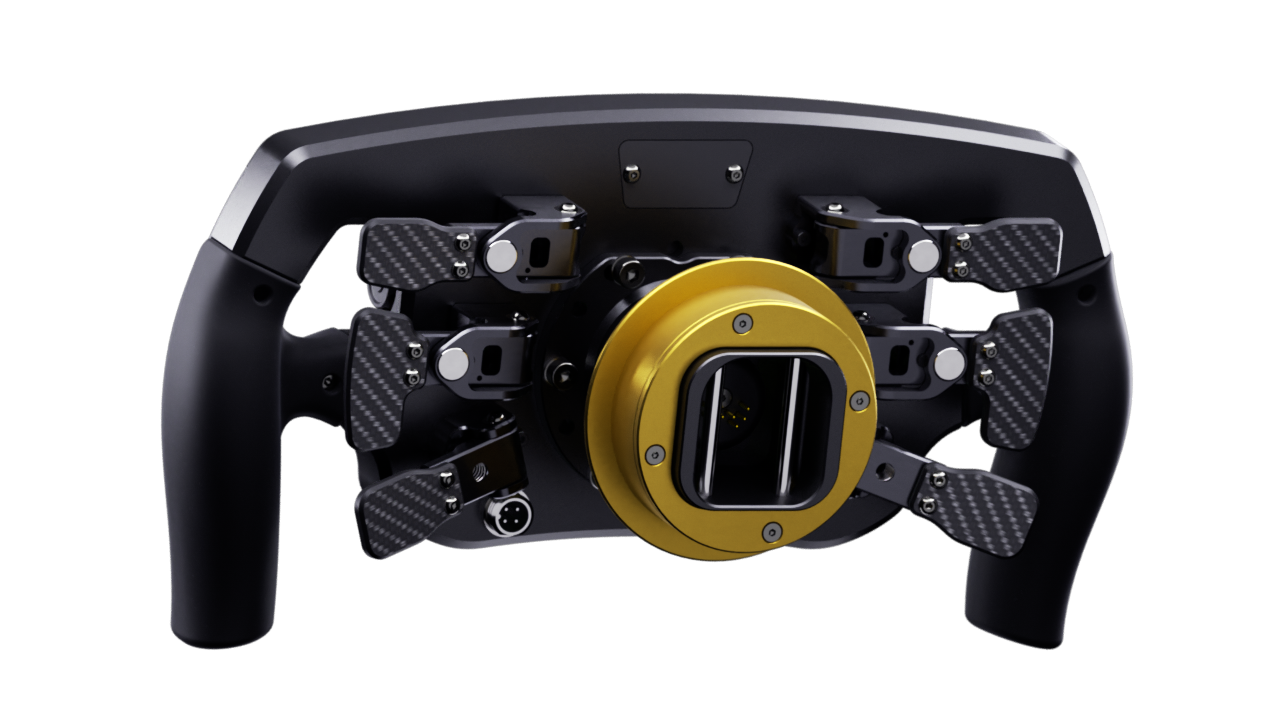

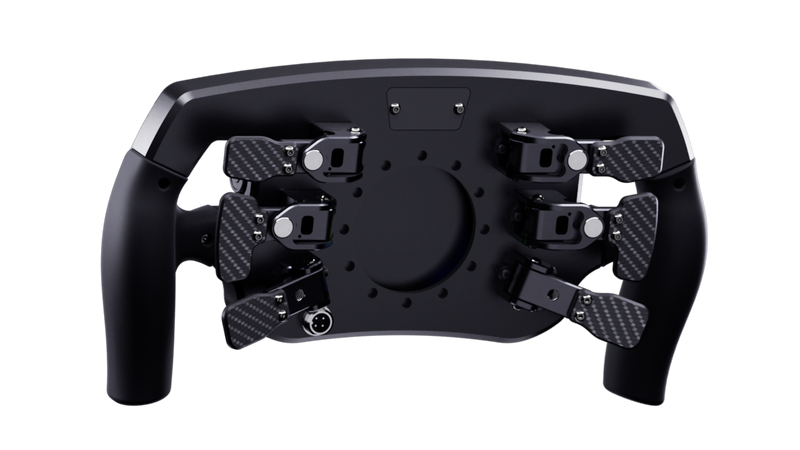

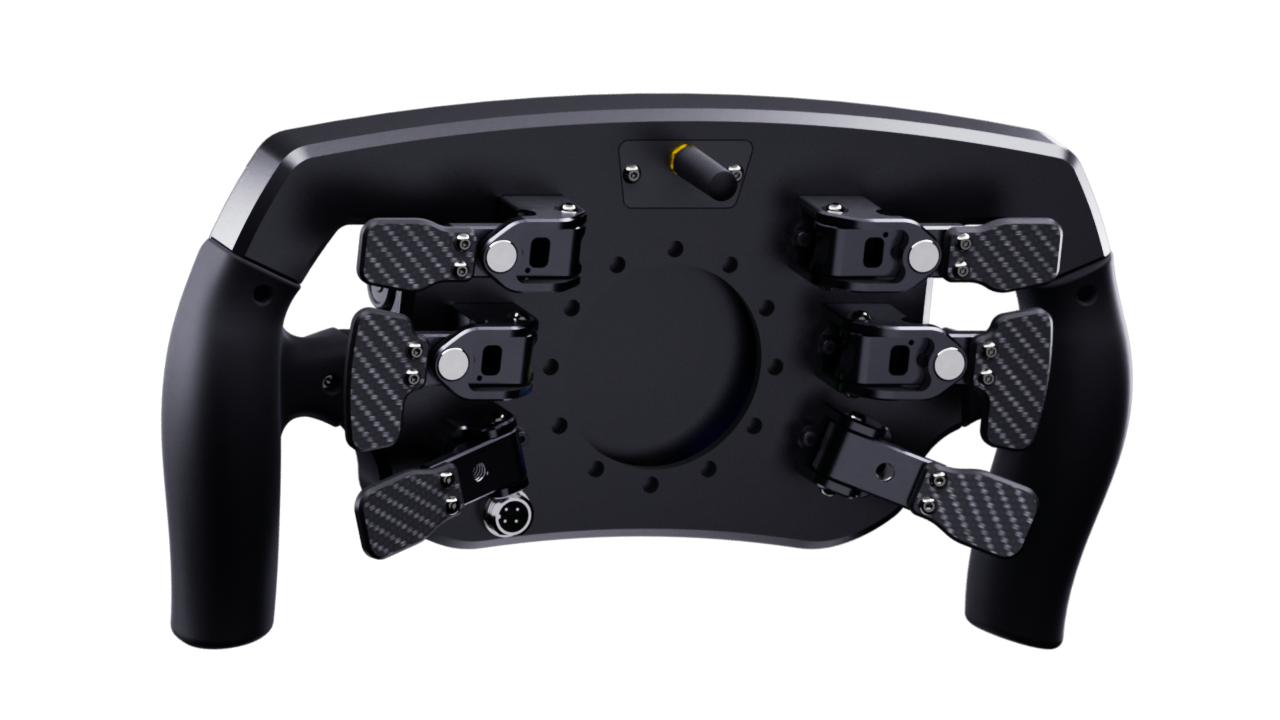

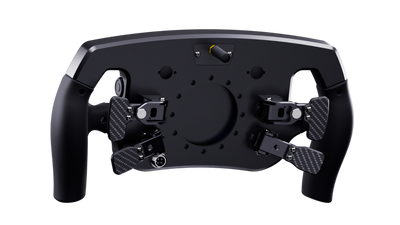

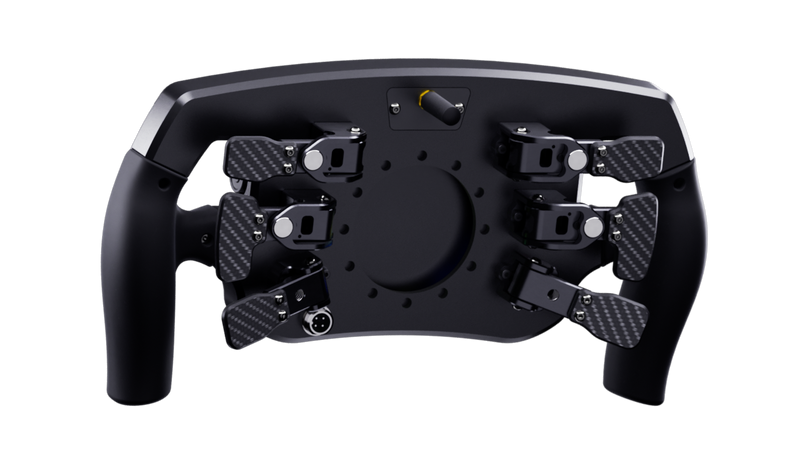

- Silent magnetic shifter paddles with Hall sensors; optional clutch and function paddles.
- Replaceable 295 mm polyurethane grips with anti-sweat coating.
- Industrial GX12 threaded USB connection and optional 2.4G wireless; Fanatec mode for console.
Technical specifications
| Specification | Detail |
|---|---|
| Grip | 295 mm, replaceable textured polyurethane |
| Chassis | Front plate and paddles in 3K carbon fibre; rear in CNC anodised aluminium |
| Screen | IPS 4.3", 800×480 px, 60 fps |
| Lighting | 21 rev LEDs + 10 button LEDs + 3 extra (SimHub) |
| Controls | Up to 49: 10 RGB buttons, 2 joysticks with encoders, 3 encoders, 6 thumb knobs |
| Paddles | Silent magnetic with Hall sensors; optional clutch and function paddles |
| Sensors | Non-contact Hall |

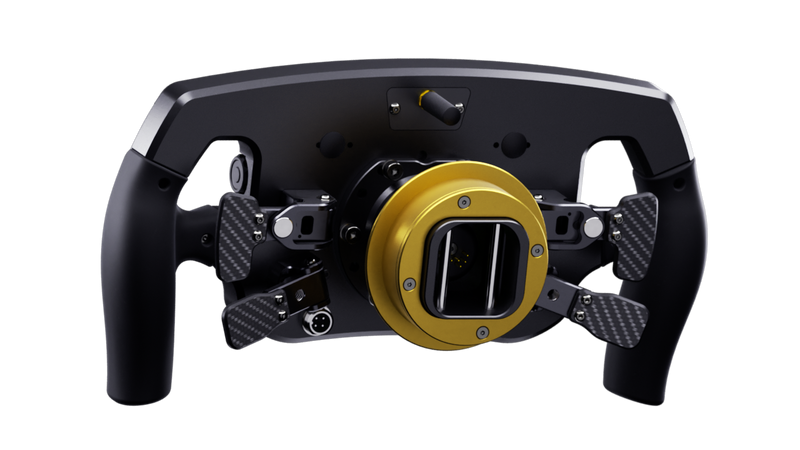

| Mounting | 70 mm Quick Release |
| Connection | GX12 threaded USB; optional 2.4G; Fanatec mode |
| Power | 5 V (USB) / 12 V (QR) |
| Weight | 1.5 kg |
| Dimensions (packaging) | 33 × 19 × 14 cm |
Compatibility

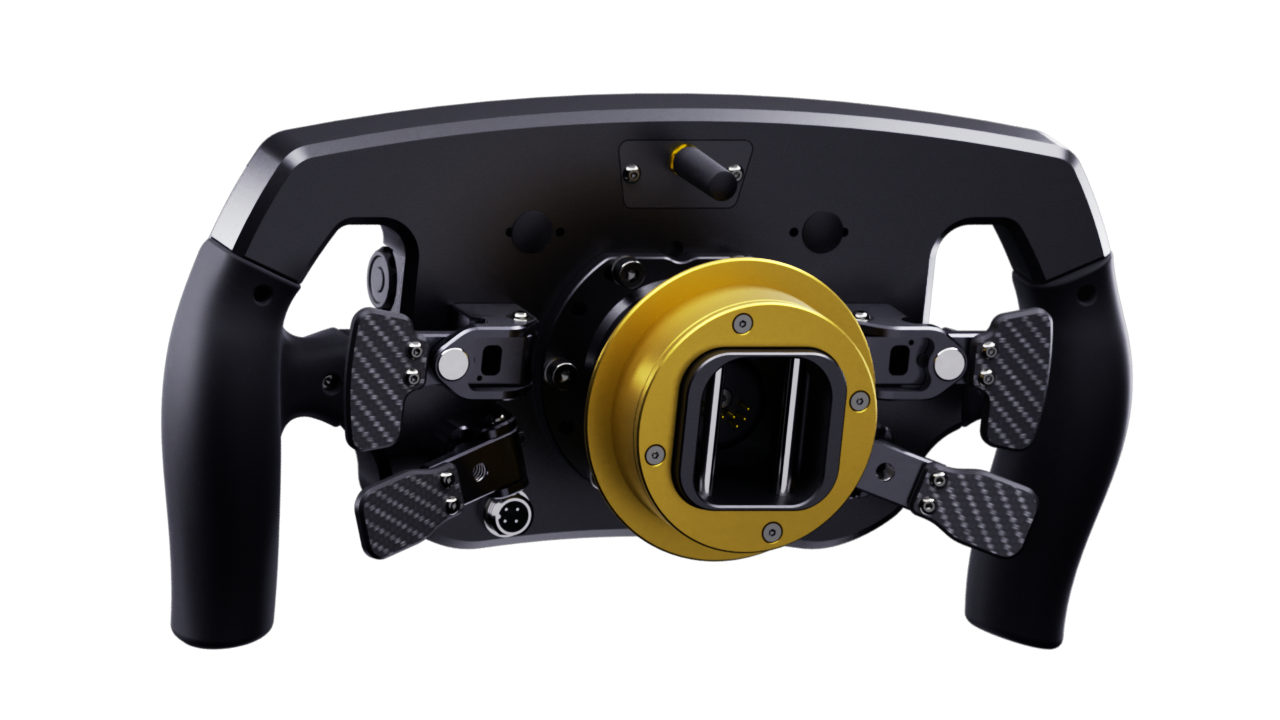

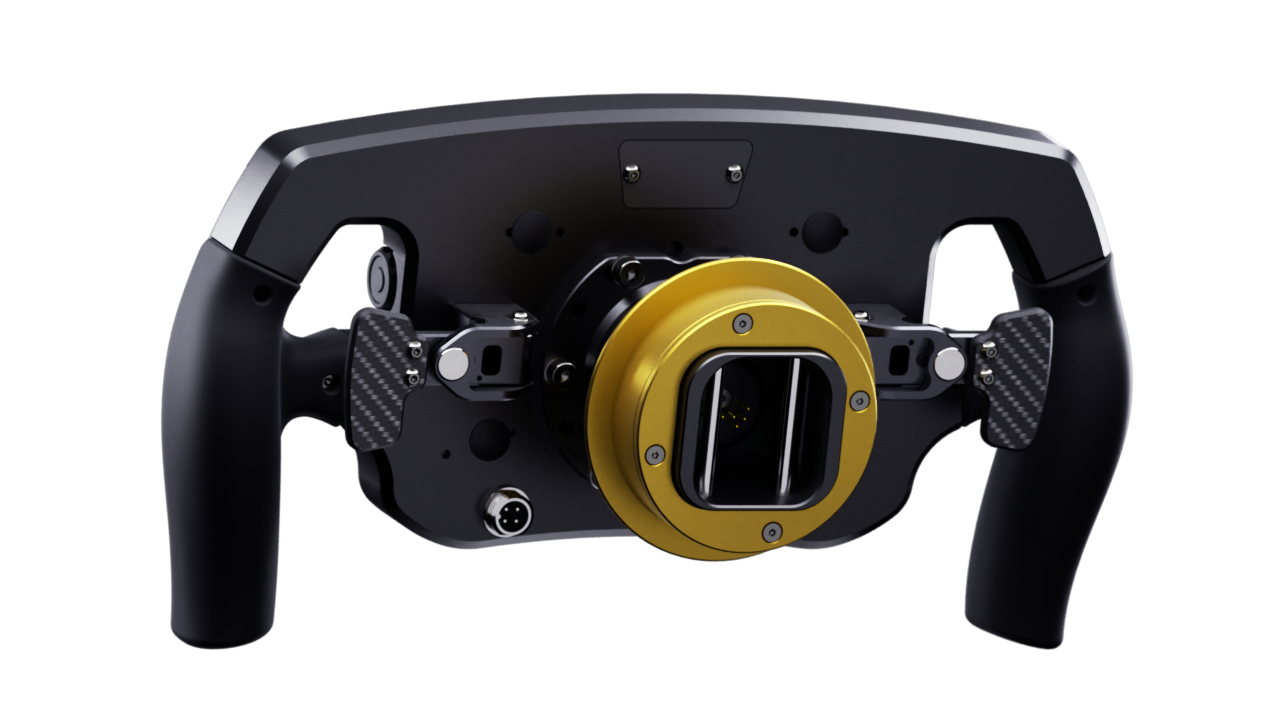

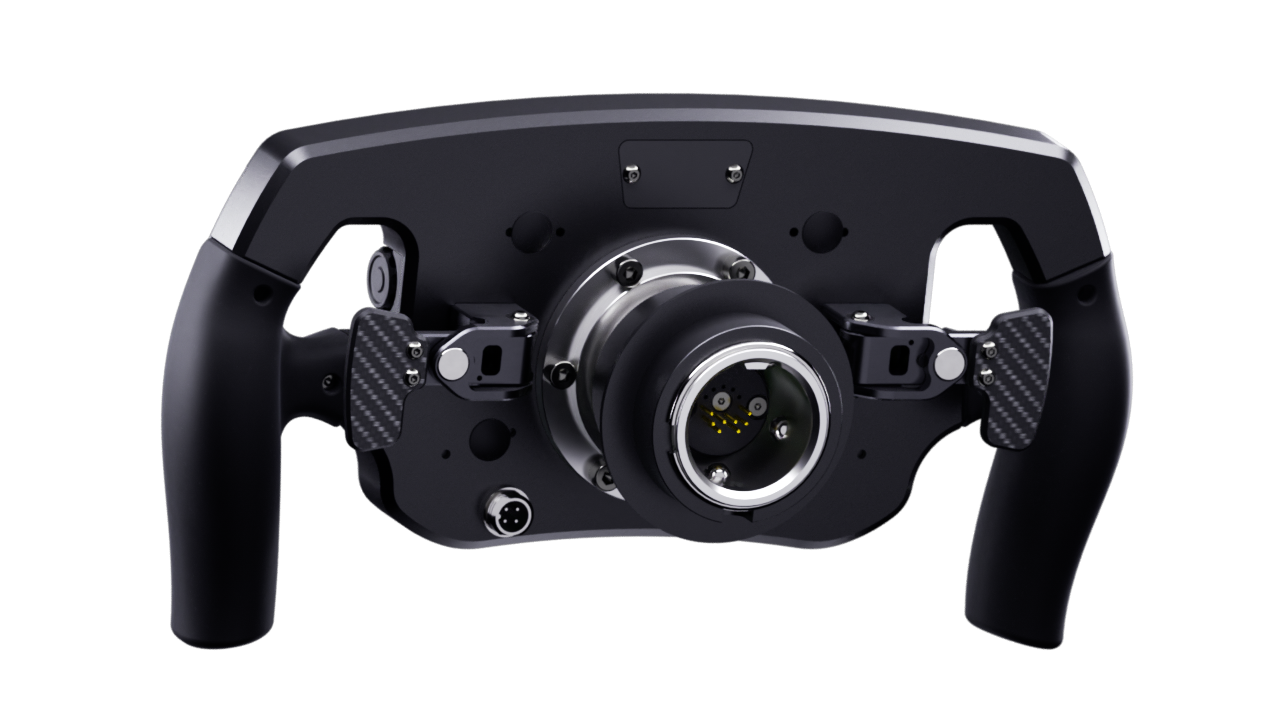

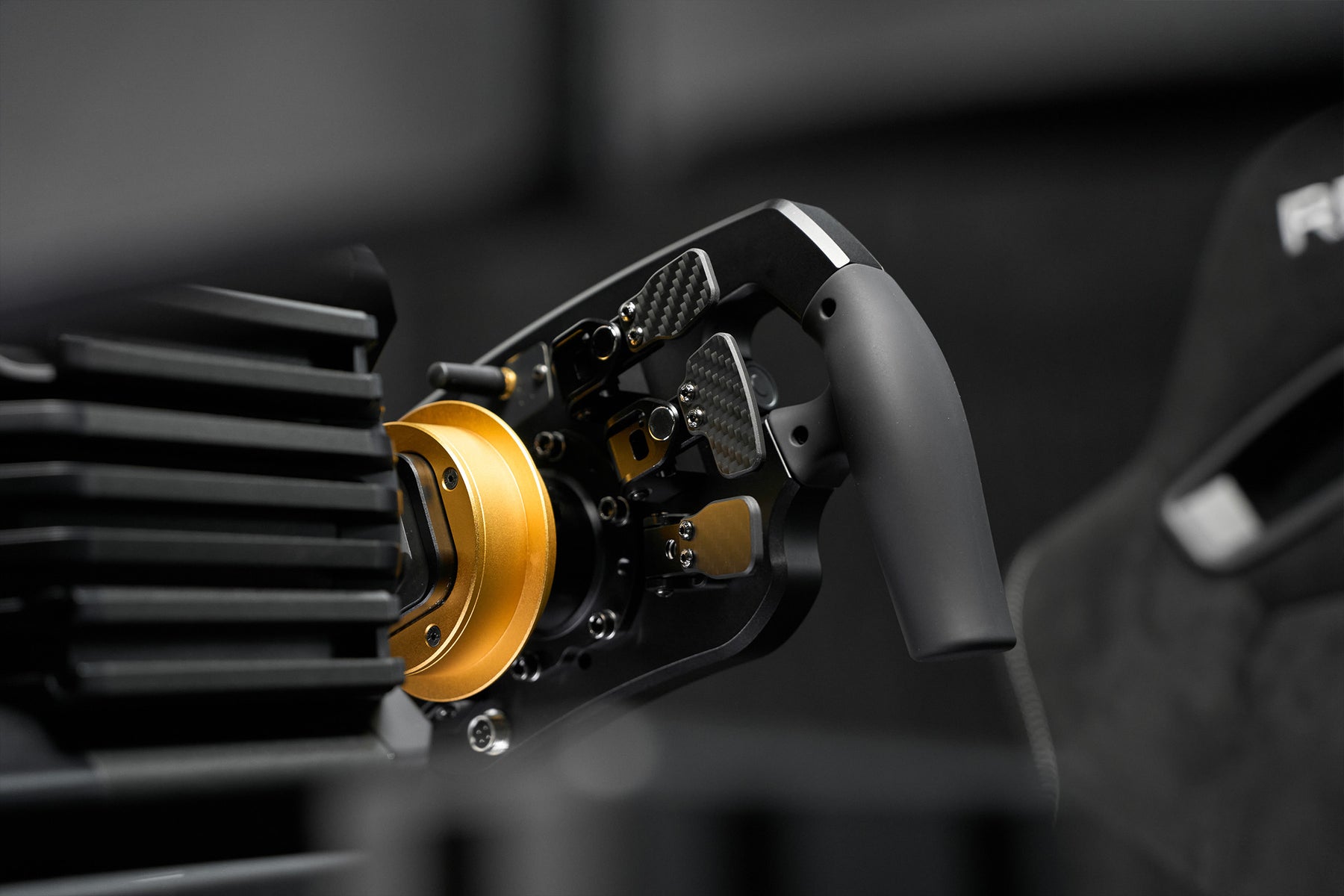

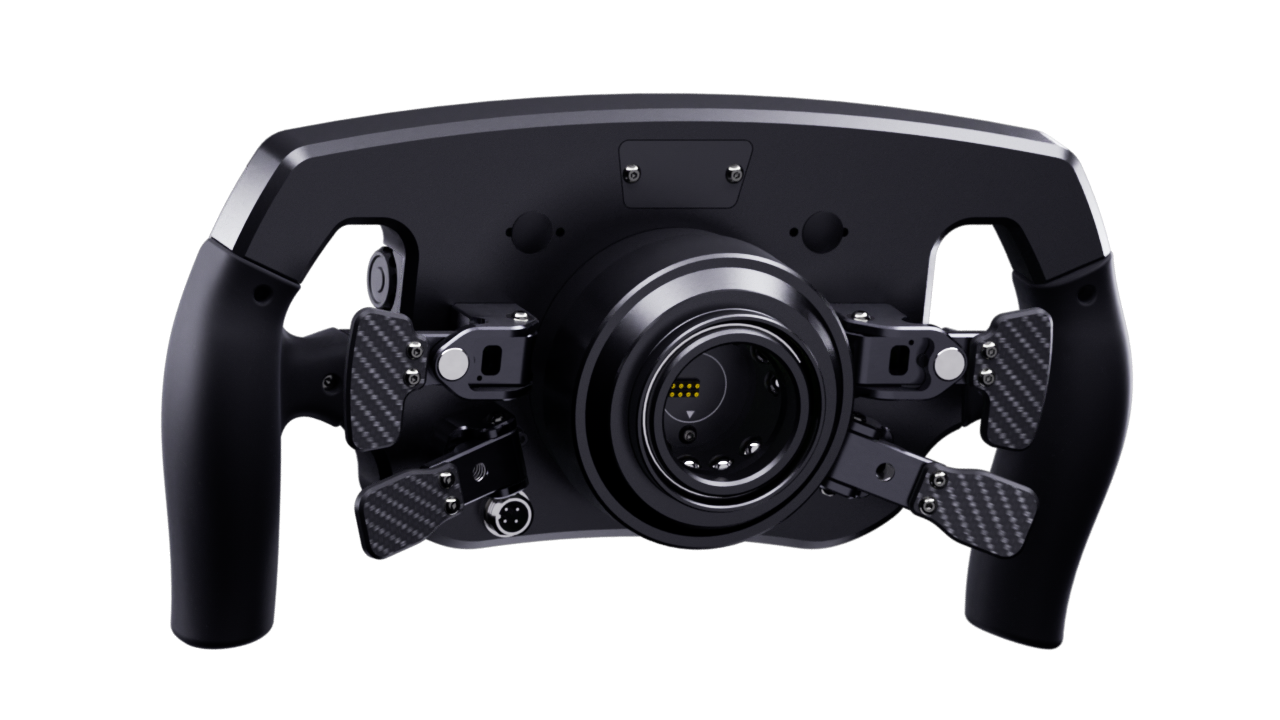

The XF1 Ultimate mounts on the main direct drive wheelbases through the matching Quick Release (sold separately):

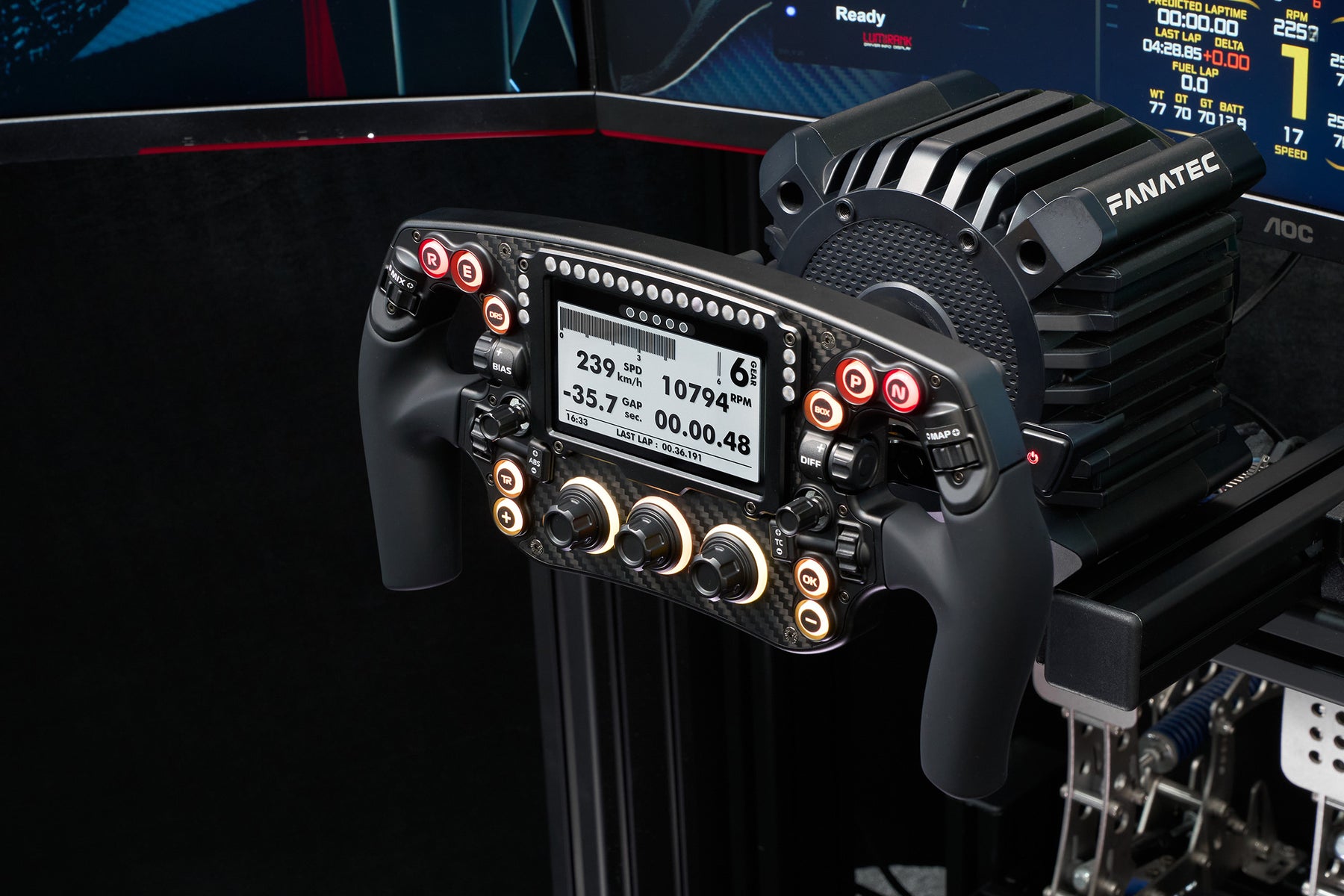

- Fanatec: DD1, DD2, CSL DD, DD Pro and DD+ (full torque with the Leoxz QR for Fanatec).
- Simagic: Alpha, Alpha Mini and Alpha Ultimate.
- Moza: R12 (V2 versions; over USB on V1).
- Simucube: SC1 and SC2.
- Asetek: Direct Drive (with Invicta QR adapter).
- Consoles: PS4/PS5 in Fanatec mode (GT7 and F1 24, powered QR and Wireless Kit required).
On PC it works over USB with SimHub and SimBridge. The 2.4G wireless connection requires the optional Wireless Kit.
Frequently asked questions
Which wheelbases is the Leoxz XF1 Ultimate compatible with?
With Fanatec (DD1, DD2, CSL DD, DD Pro, DD+), Simagic (Alpha, Alpha Mini, Alpha Ultimate), Moza R12 (V2), Simucube (SC1, SC2) and Asetek Direct Drive (with Invicta QR adapter), each with its matching Quick Release.
How many controls does the XF1 Ultimate have?
Up to 49 inputs: 10 backlit RGB buttons, 2 multi-directional joysticks with encoders, 3 push-button encoders and 6 thumb knobs, plus the paddles.
Can I use the XF1 Ultimate on PS4 or PS5?
Yes, on Fanatec bases through Fanatec mode (tested in GT7 and F1 24). It requires the Wireless Kit and a powered Quick Release. On PC it connects over USB with SimHub.
What is the difference between "Shifter only", "Shifter + Clutch" and "Shifter + Clutch + Options"?

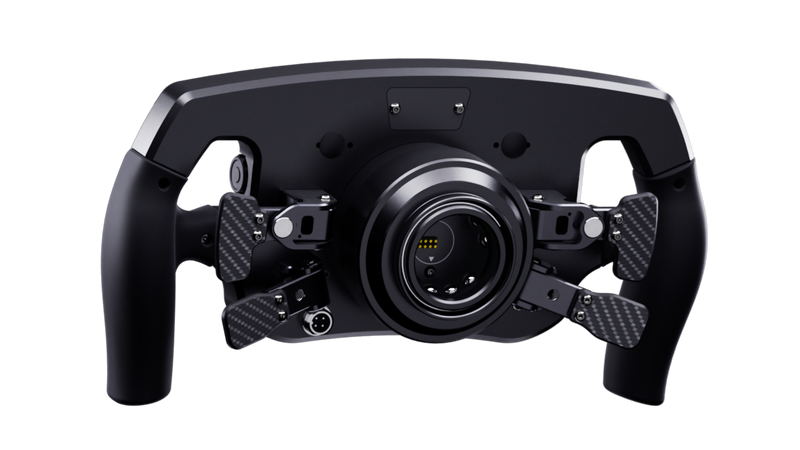

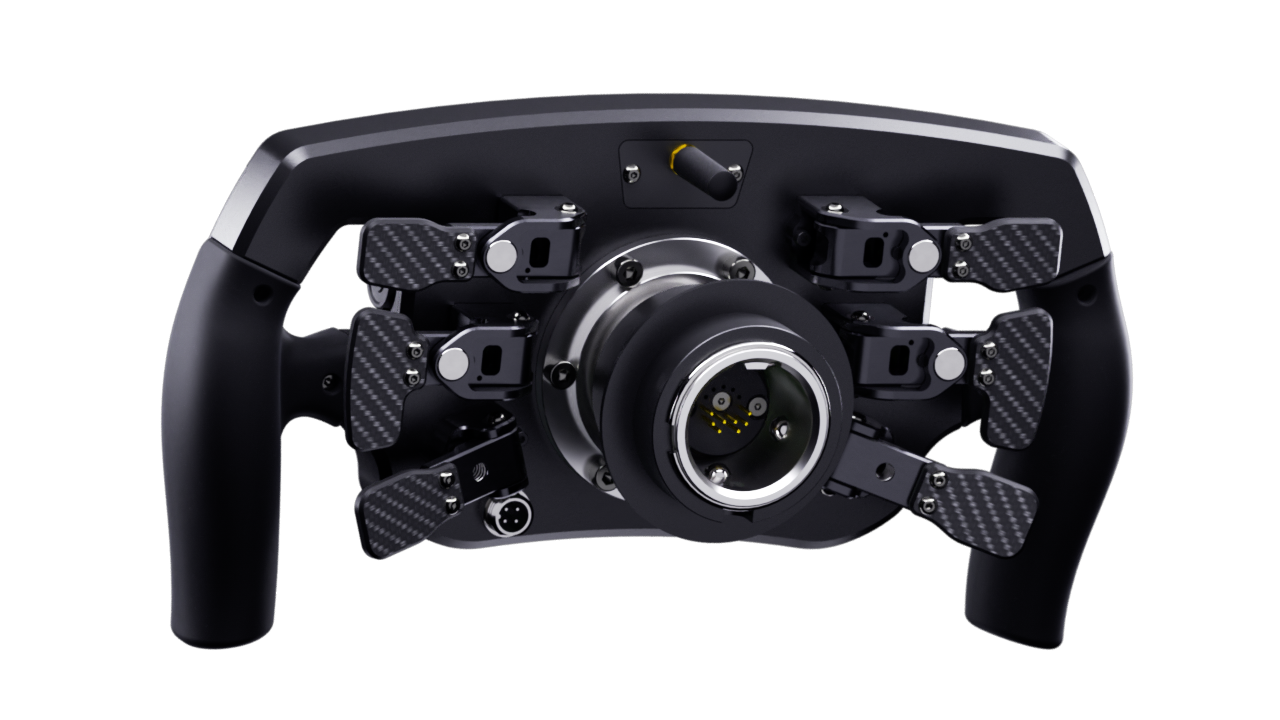

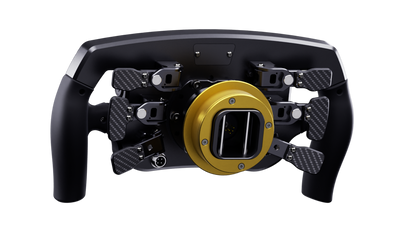

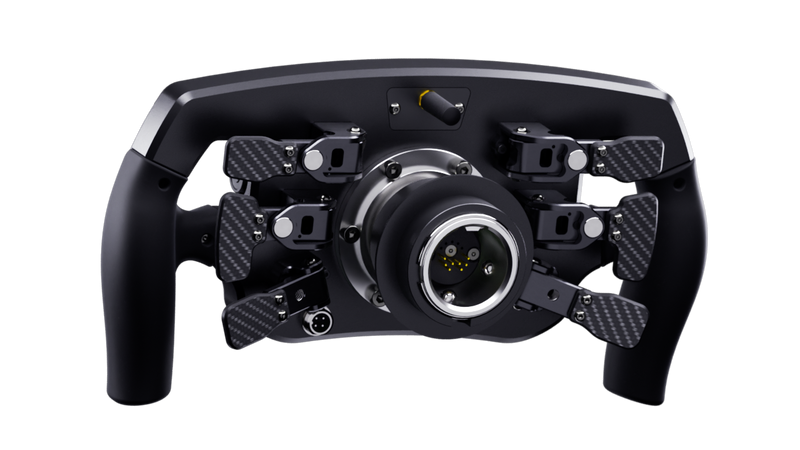

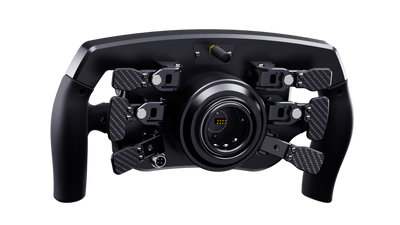

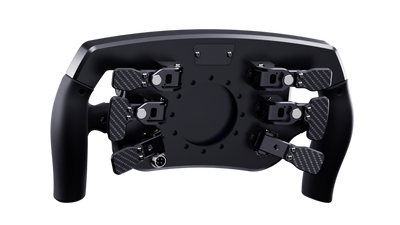

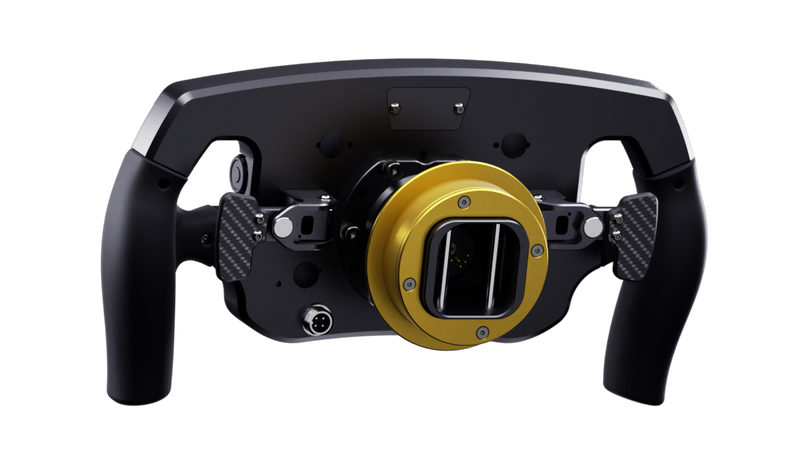

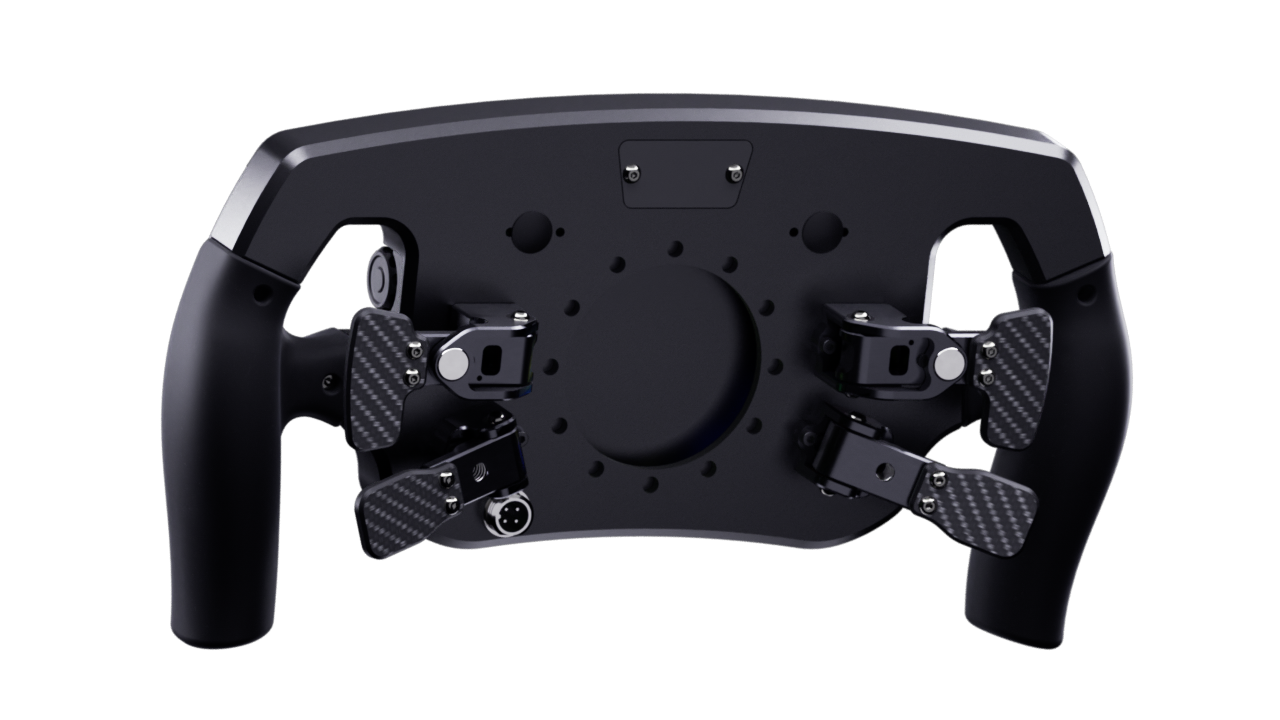

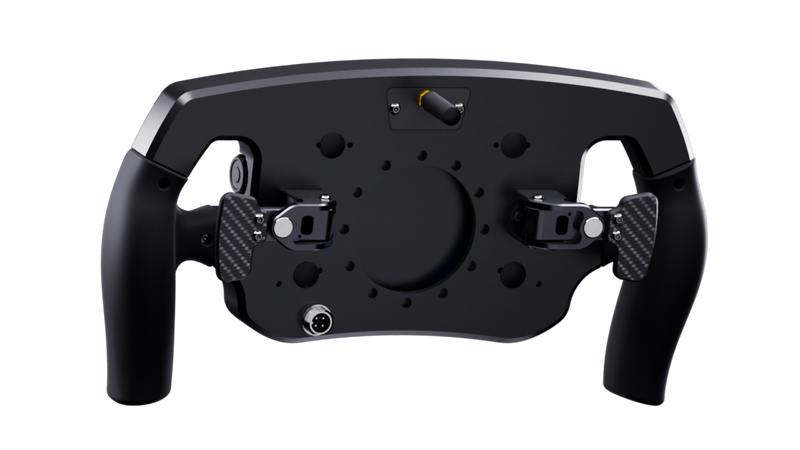

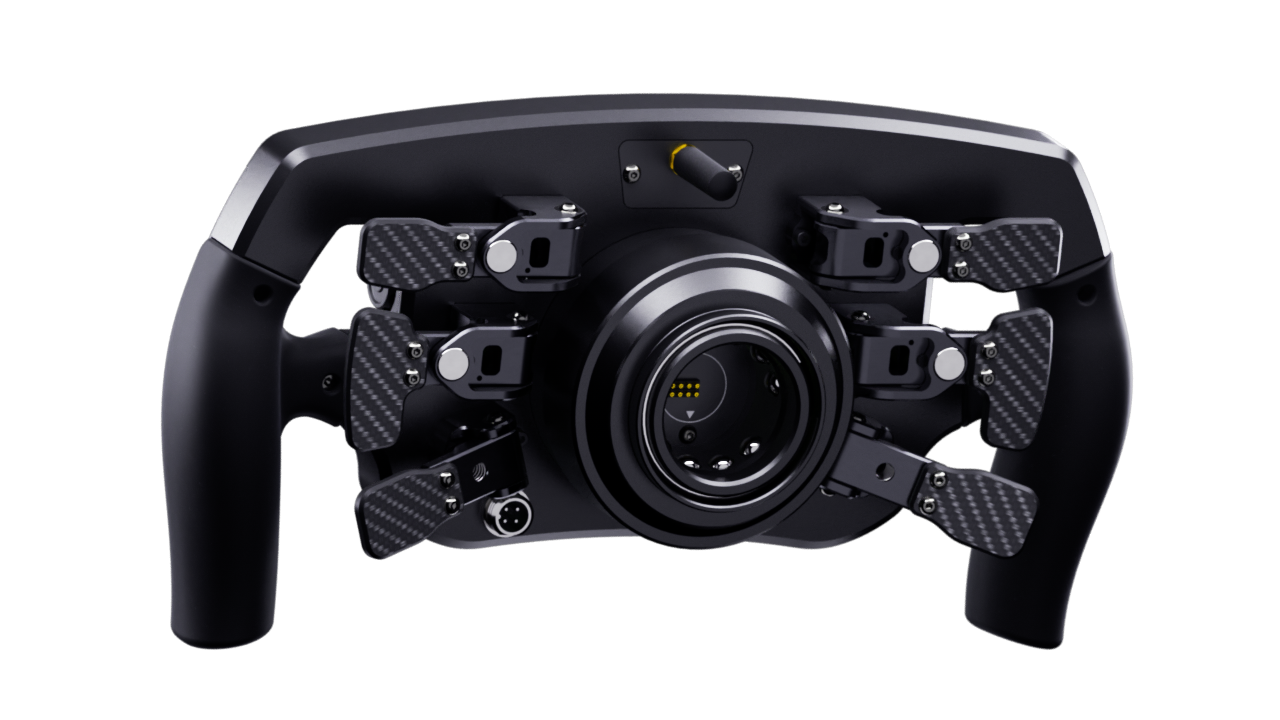

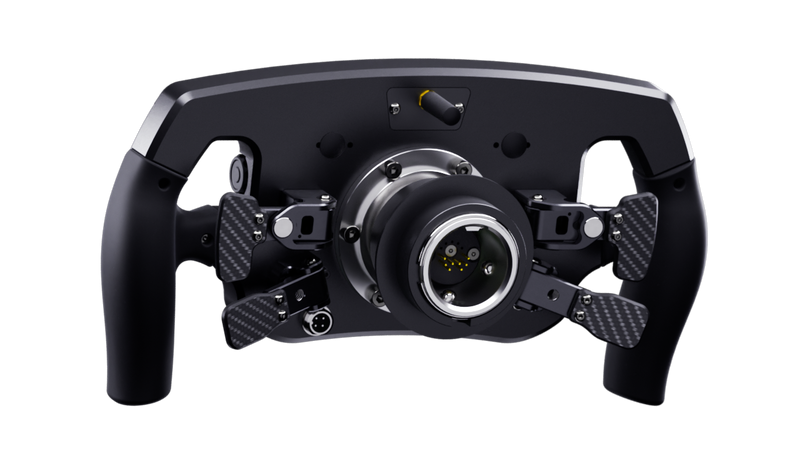

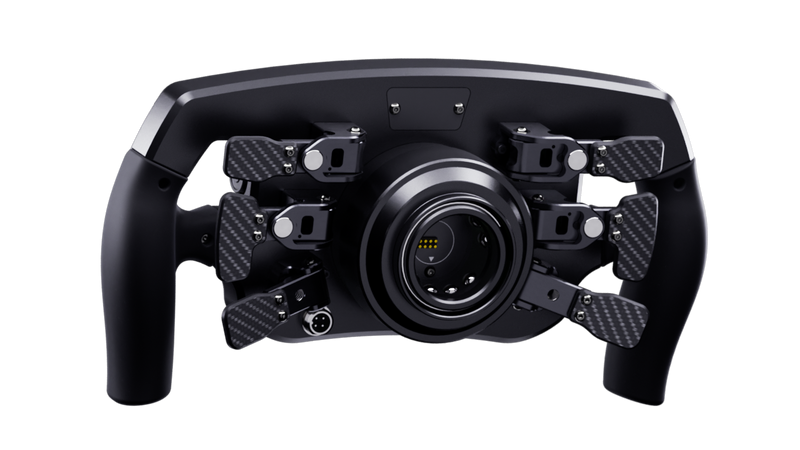

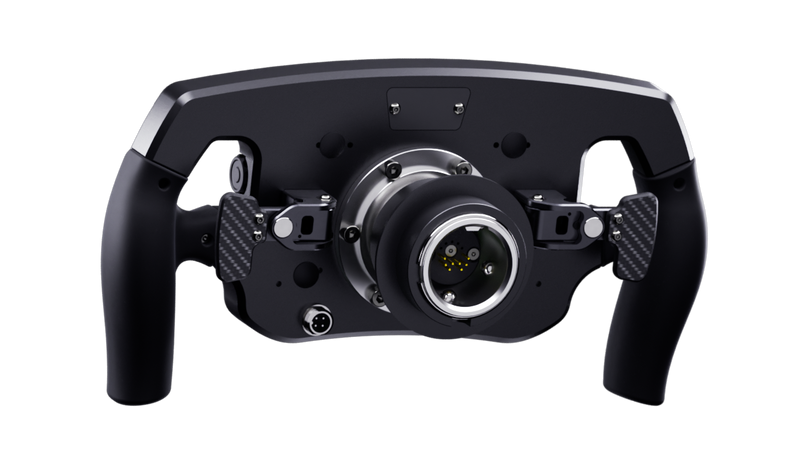

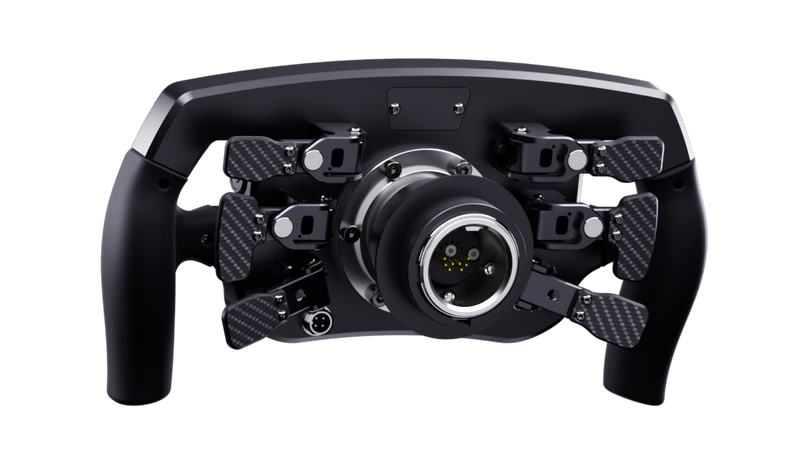

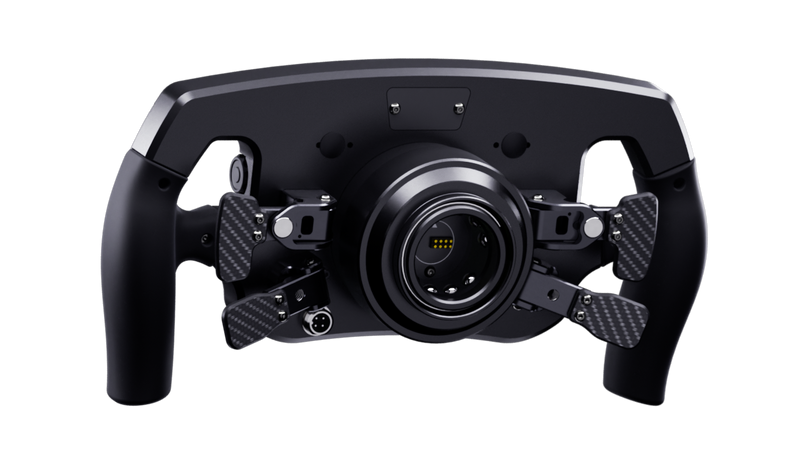

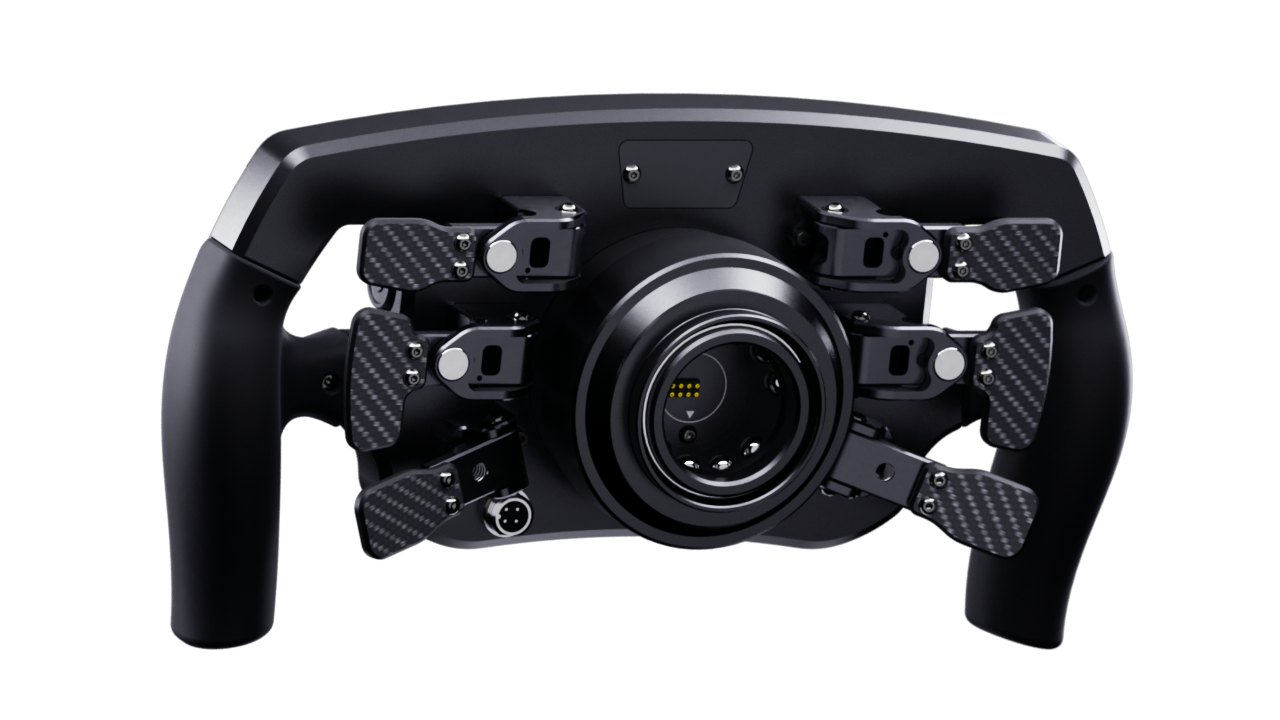

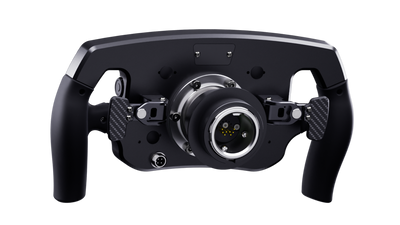

"Shifter only" comes with just the shifter paddles. "Shifter + Clutch" adds two clutch paddles. "Shifter + Clutch + Options" also includes extra function paddles.
Can it be used wirelessly?
Yes, with the optional Wireless Kit (low-latency 2.4G). The full SimHub dashboard requires a USB connection; in wireless mode the built-in data is shown.
What is in the box?
The XF1 Ultimate wheel, the reinforced USB GX12 cable, custom stickers, nylon tweezers, paddle spacers with bolts (depending on the version) and an Allen key. The Quick Release and Wireless Kit are optional.
