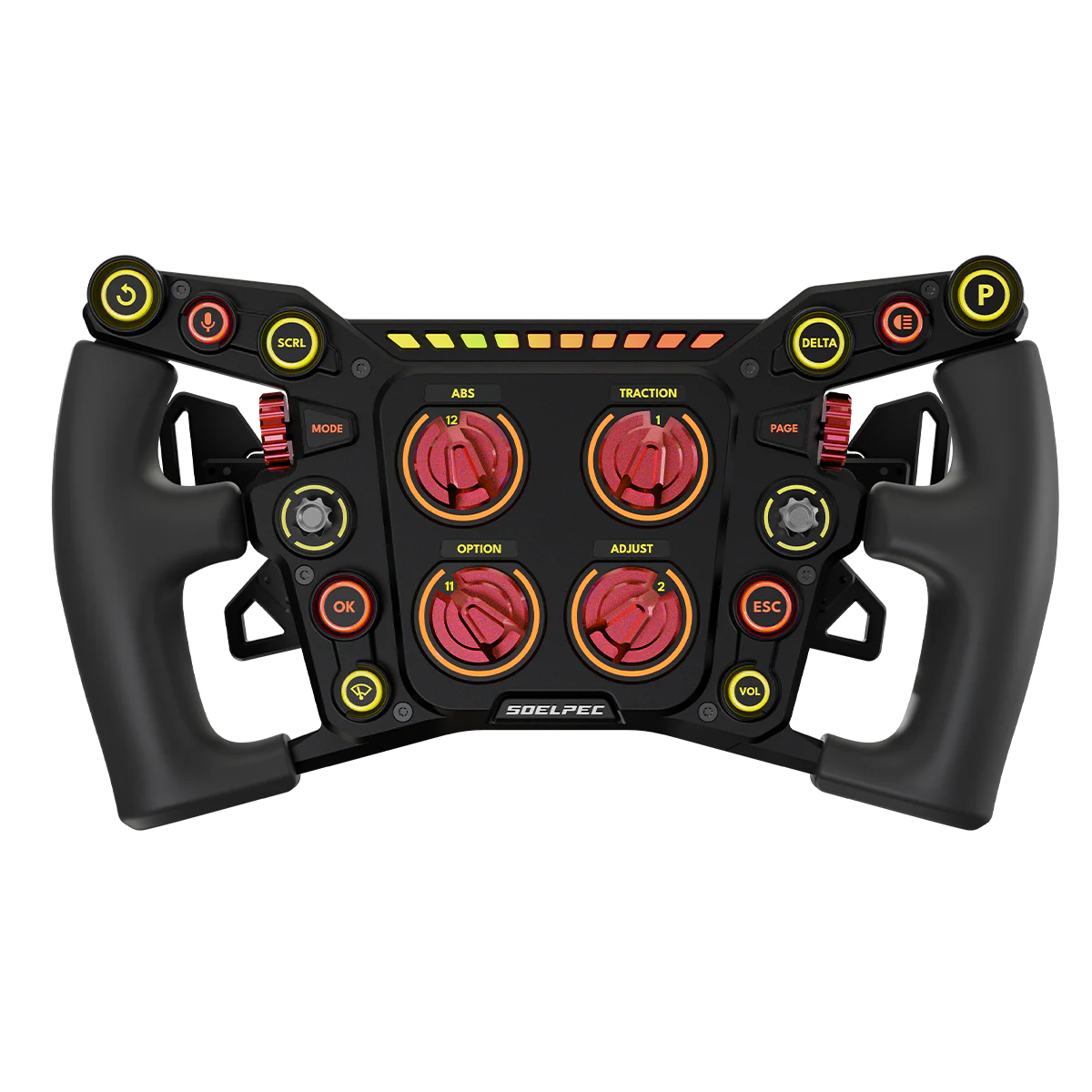

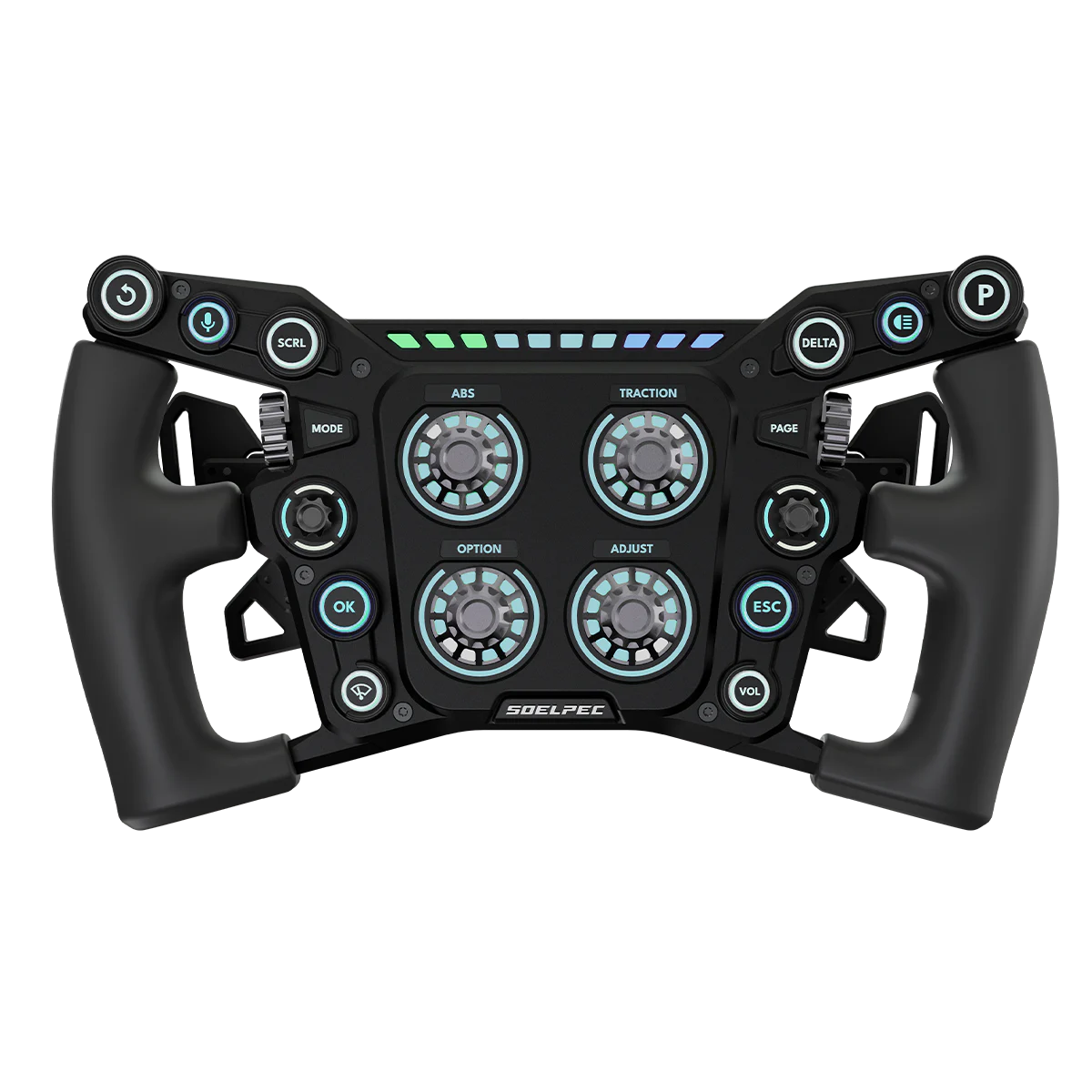

Front view of the SOELPEC Terra LX wheel with its 13 backlit push buttons

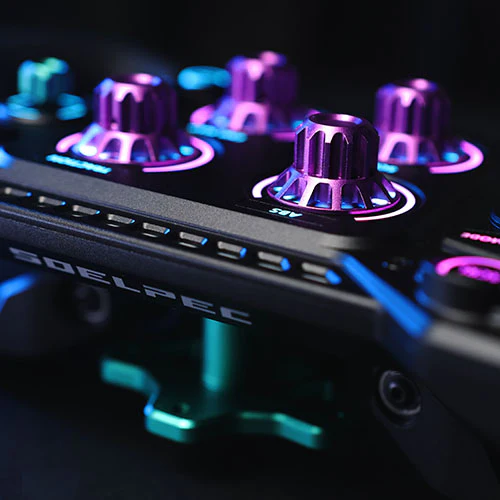

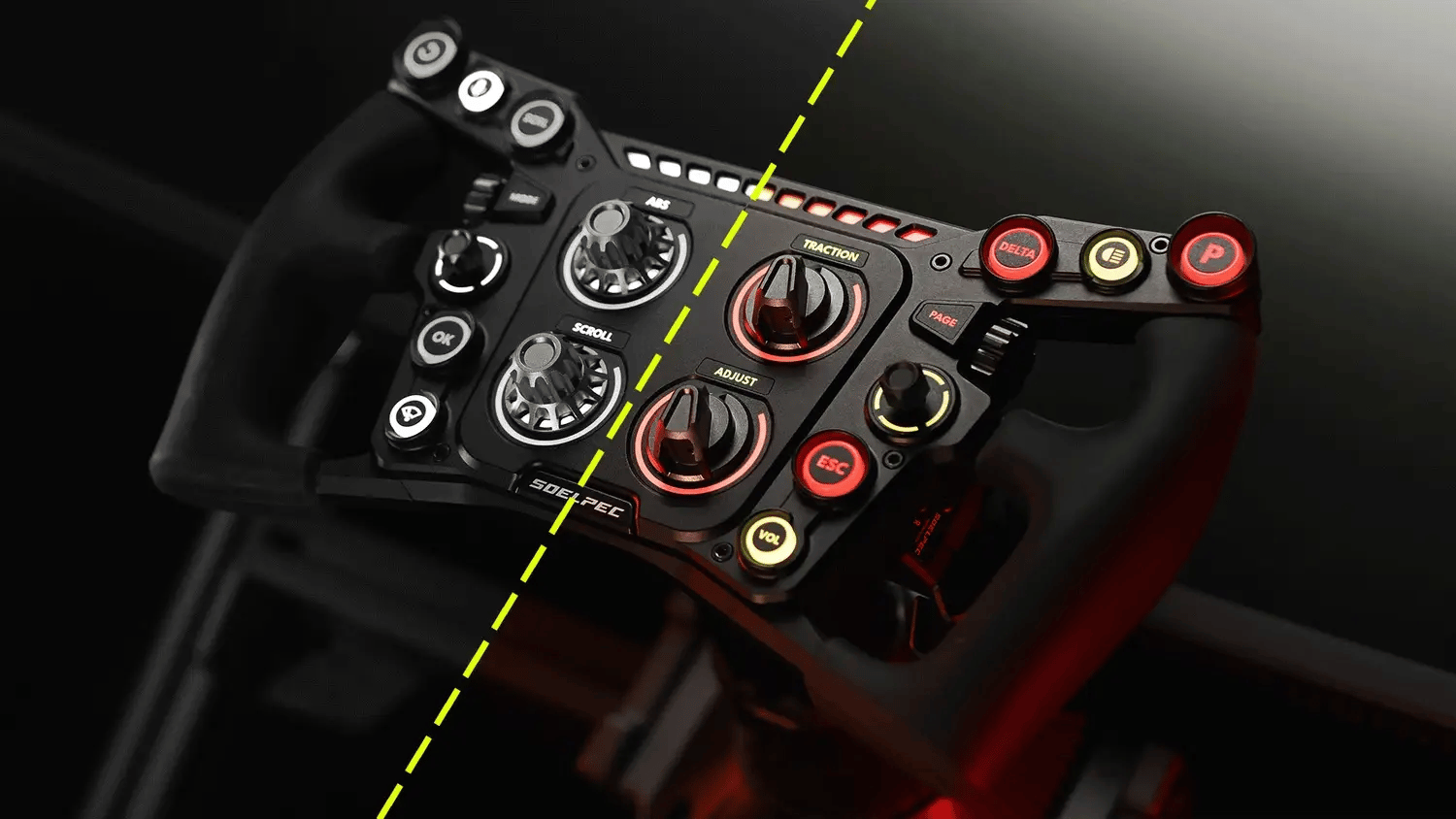

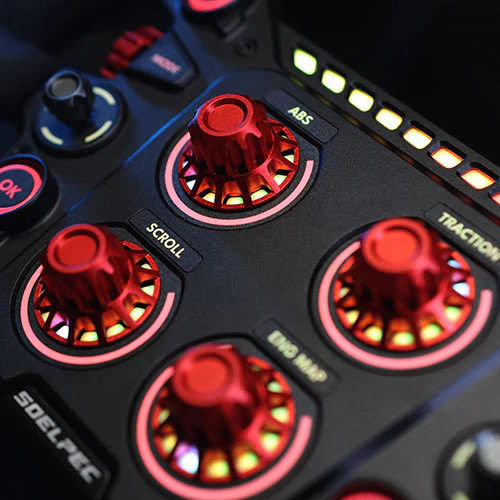

HybridSwitch centre encoders of the SOELPEC Terra LX with interchangeable knobs

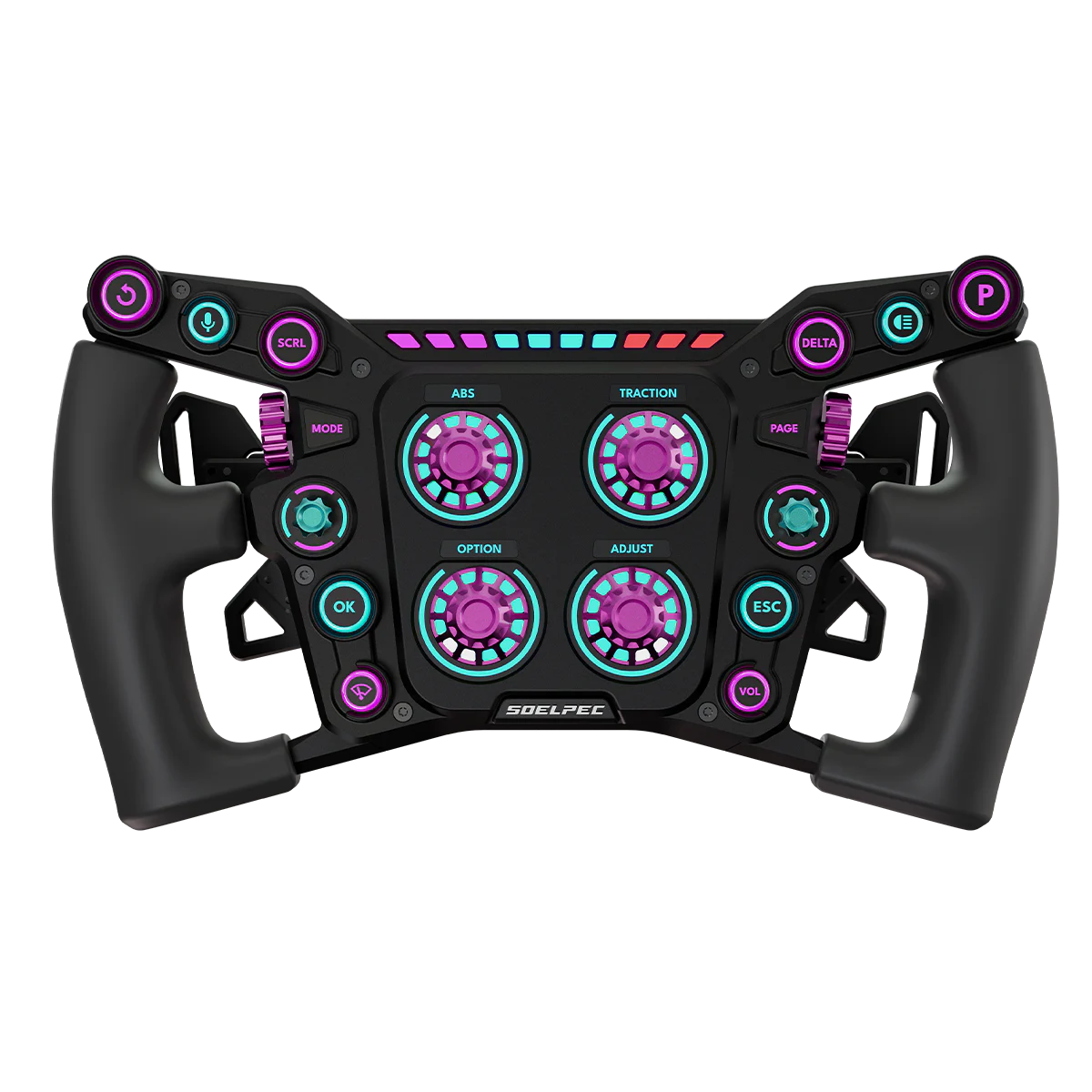

Animation of the 128-LED RGB illumination on the SOELPEC Terra LX wheel

Close-up of the 50A overmoulded silicone grips on the SOELPEC Terra LX

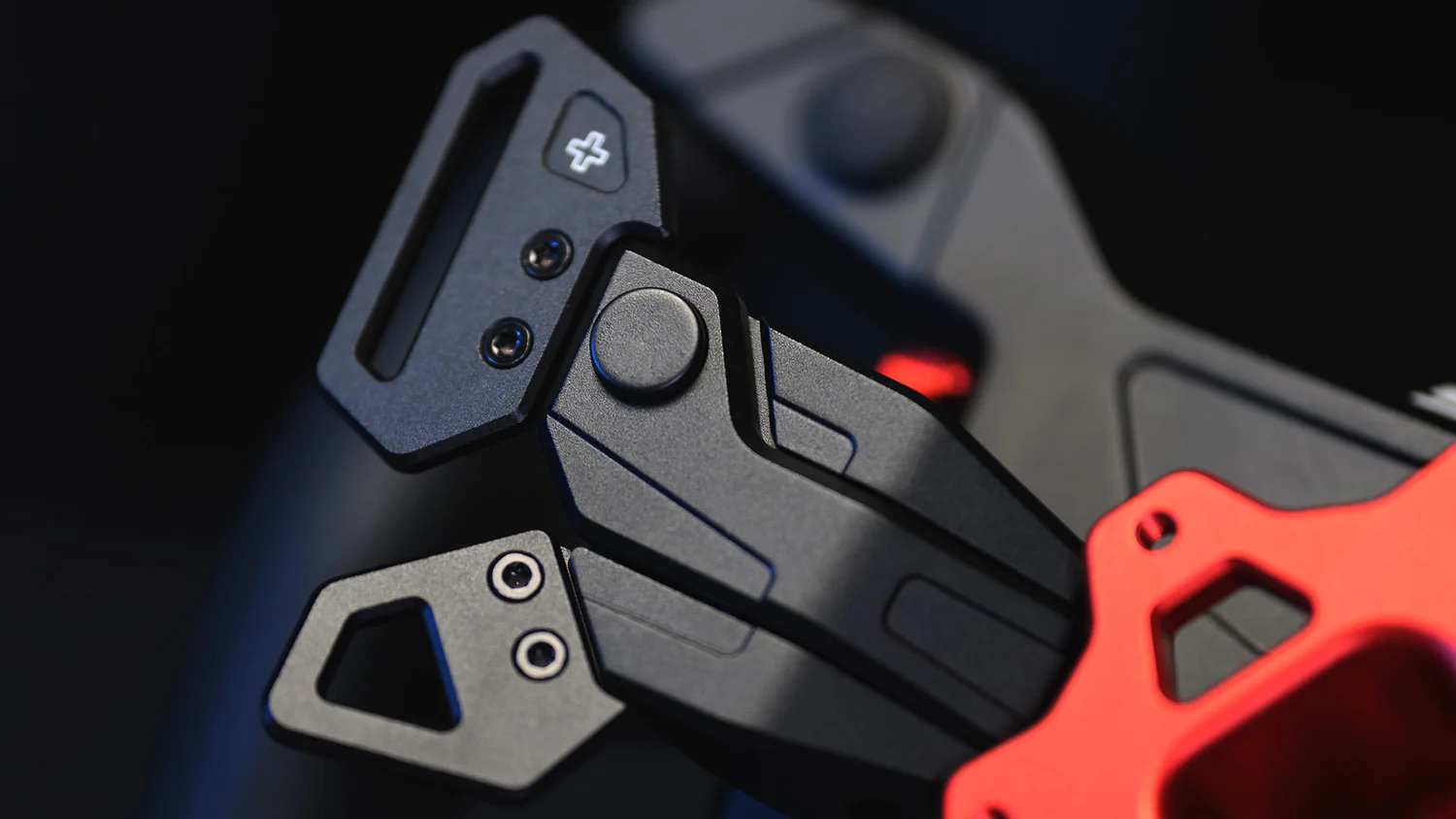

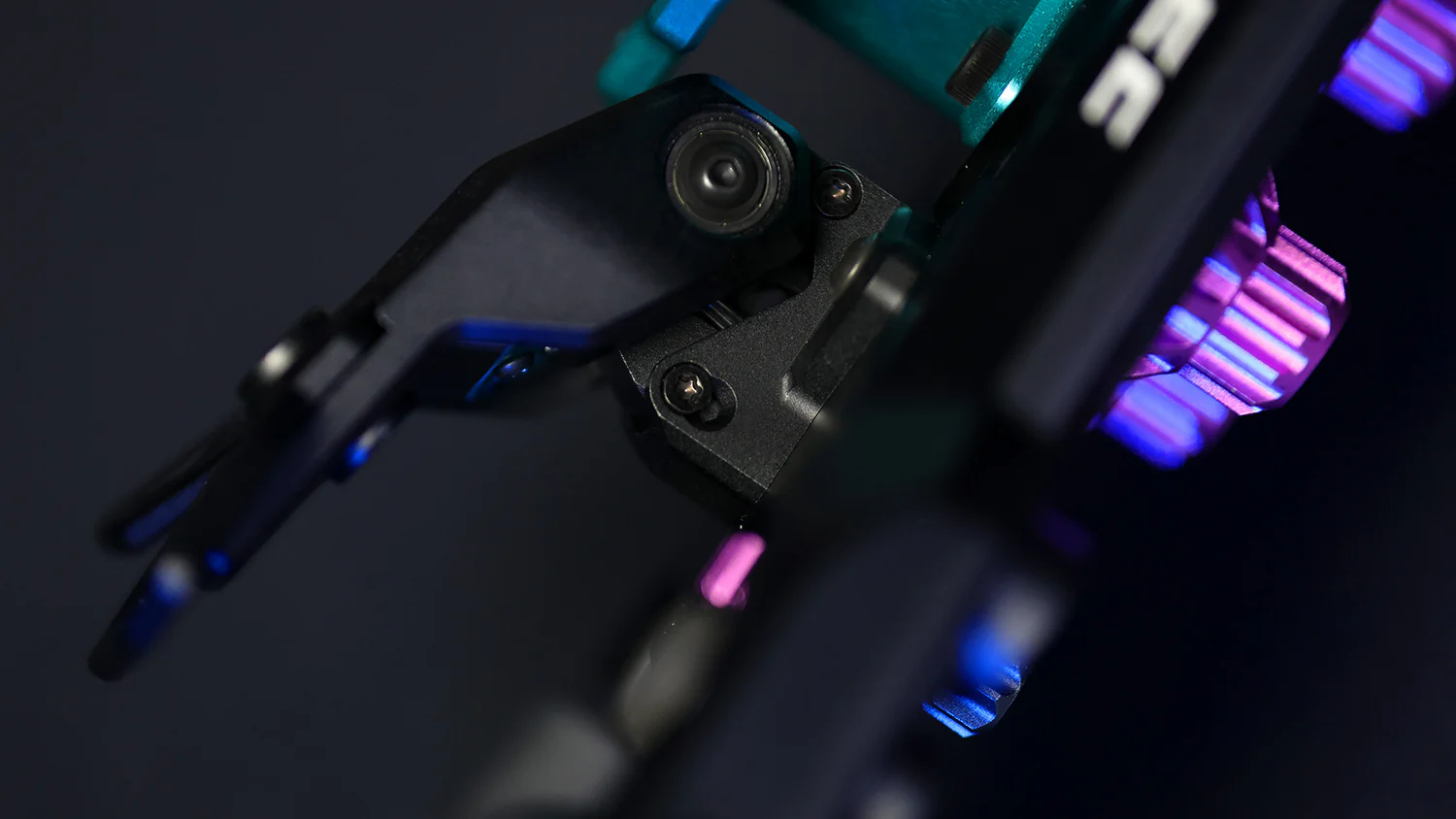

DuoACT magnetic paddles with ball bearings and N52 magnets on the SOELPEC Terra LX

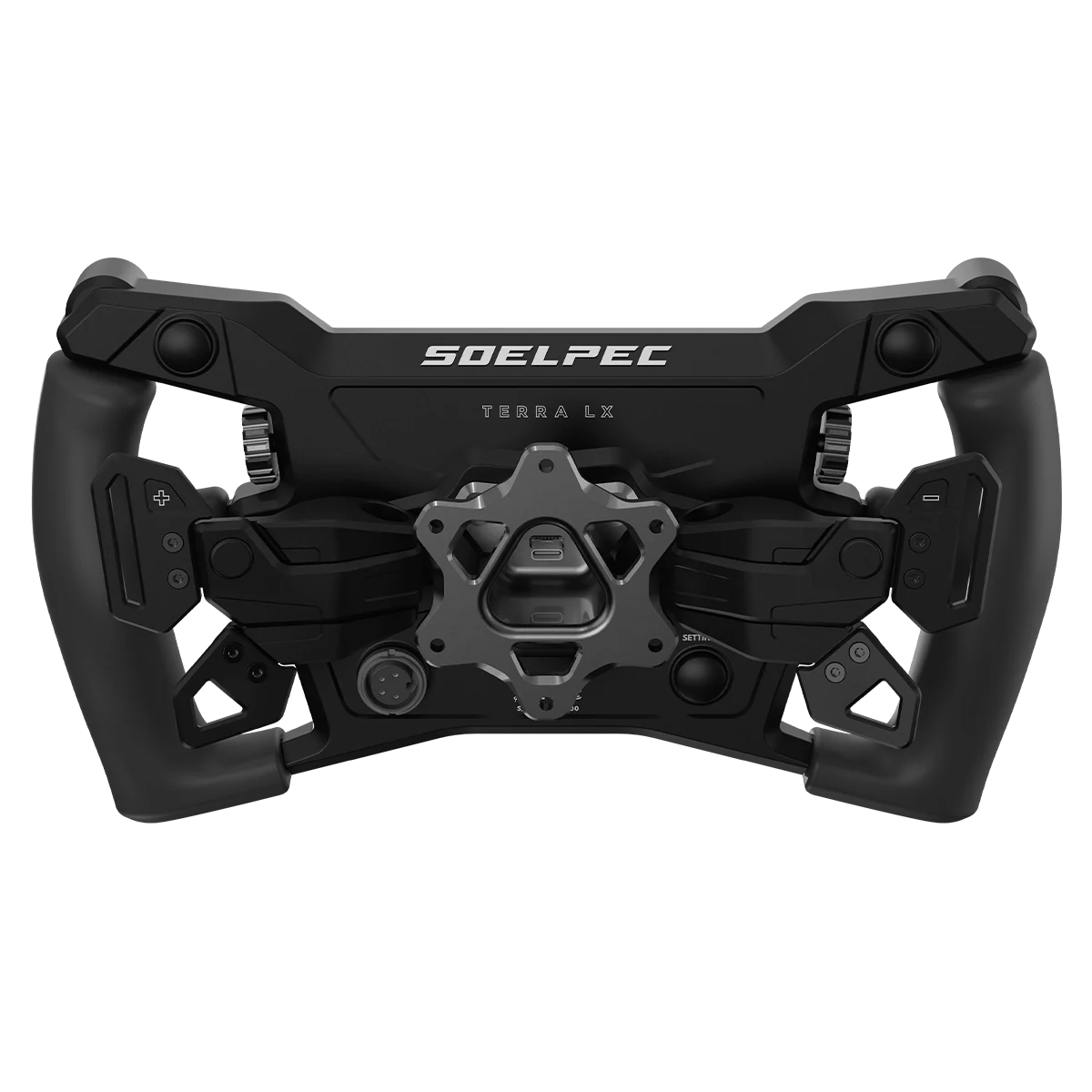

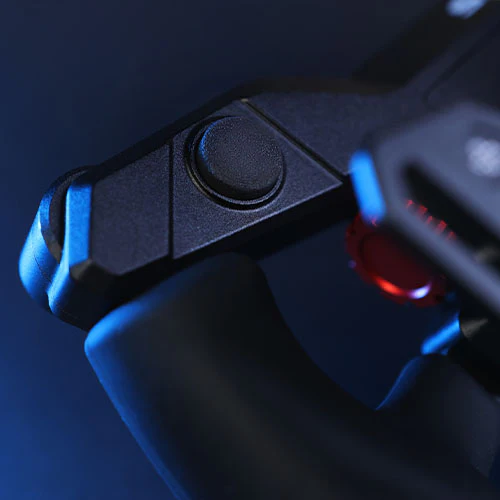

Rear of the SOELPEC Terra LX showing the rear-facing buttons and the paddles

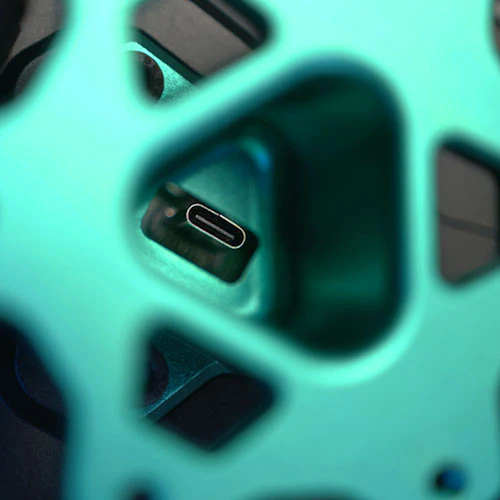

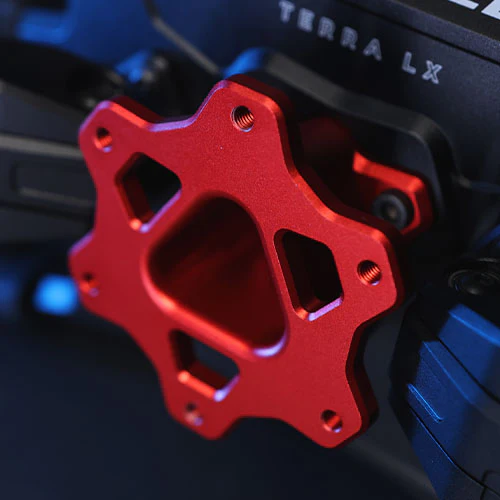

32 mm rear hub with integrated USB connection on the SOELPEC Terra LX wheel

7-way switches and thumb encoders on the SOELPEC Terra LX

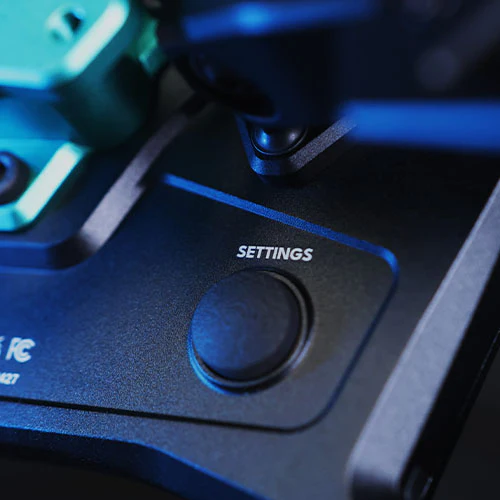

Dedicated settings button on the SOELPEC Terra LX steering wheel

PMMA button caps with LED diffusers on the SOELPEC Terra LX

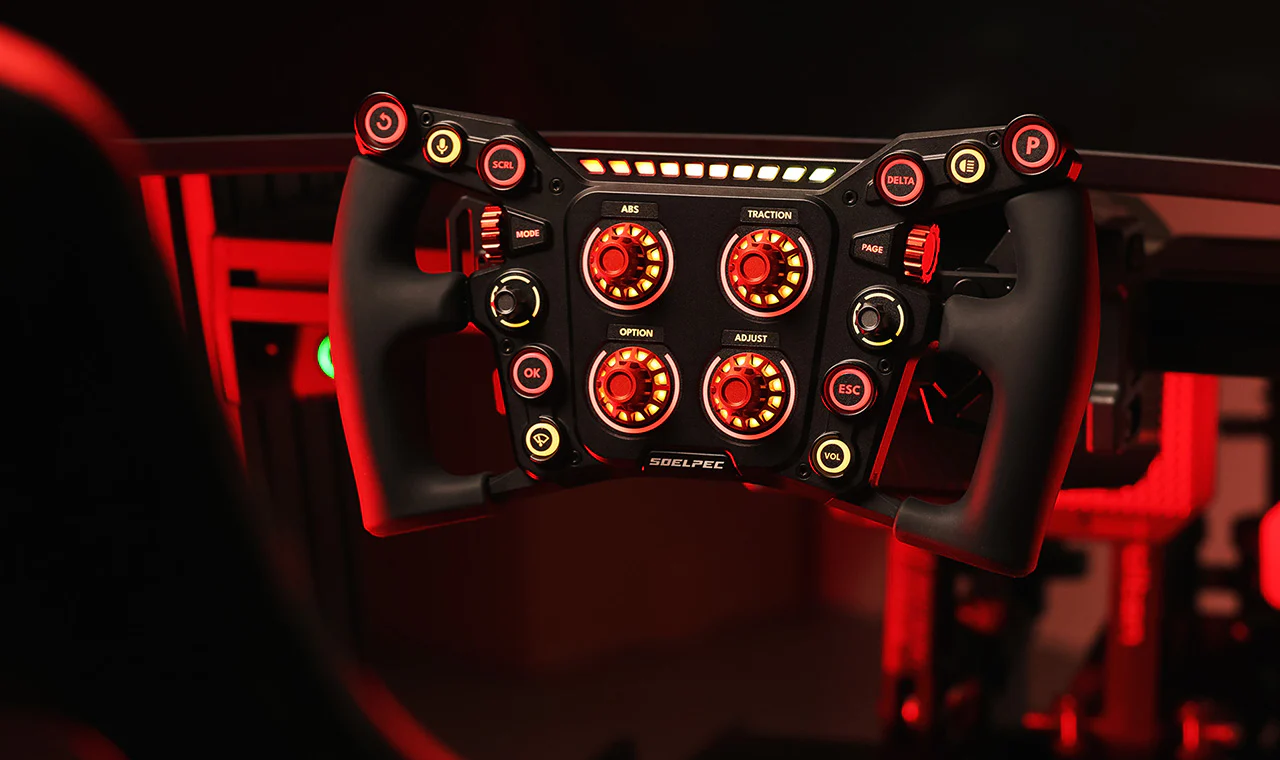

SOELPEC Terra LX fitted in a sim racing cockpit on a direct drive wheelbase

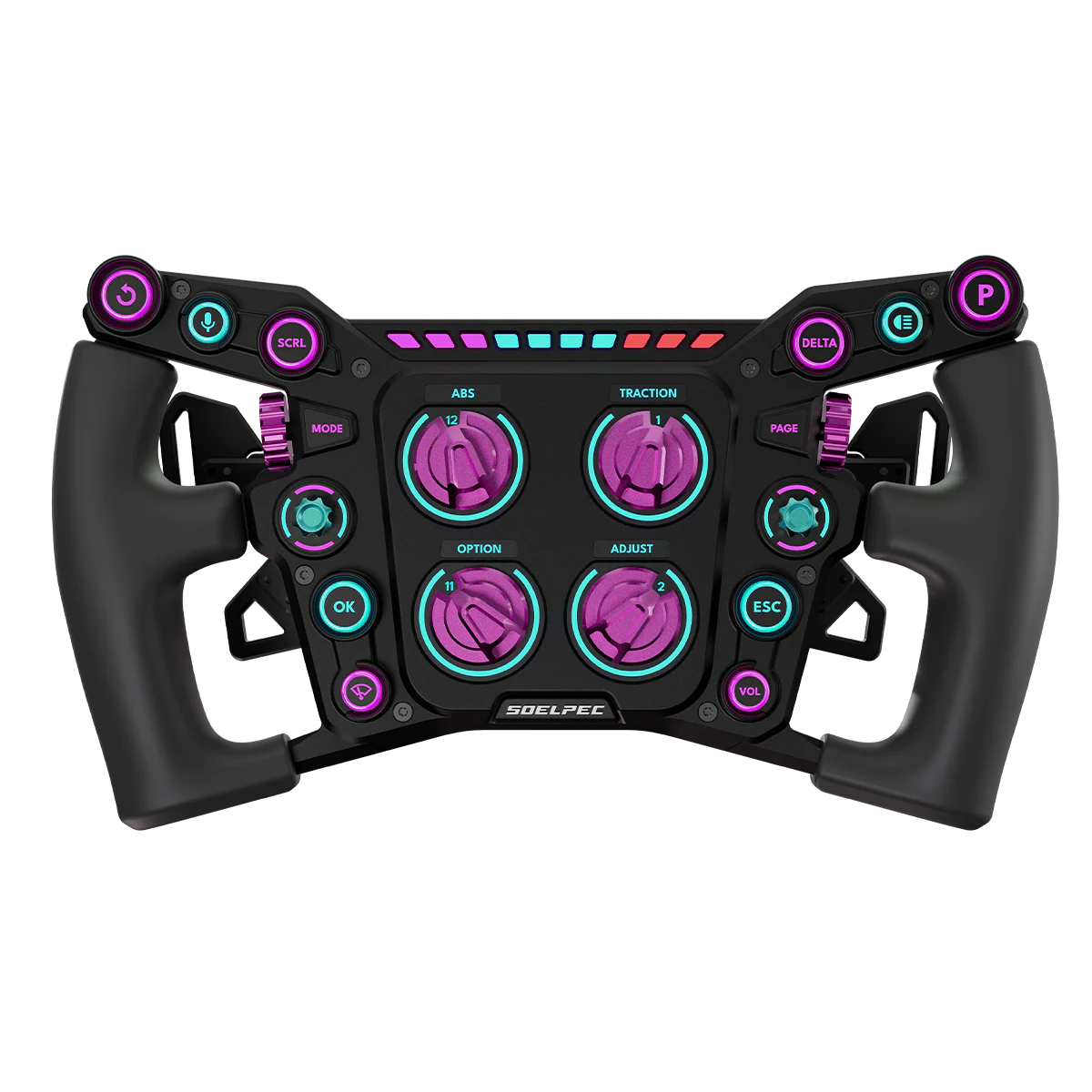

SOELPEC Terra LX steering wheel in the Lava finish on a dark background

Box contents of the SOELPEC Terra LX with hub, coiled cable and magnets

SOELPEC Terra LX steering wheel in the Arctic finish on a dark background

SOELPEC Terra LX steering wheel in the Basalt finish on a dark background

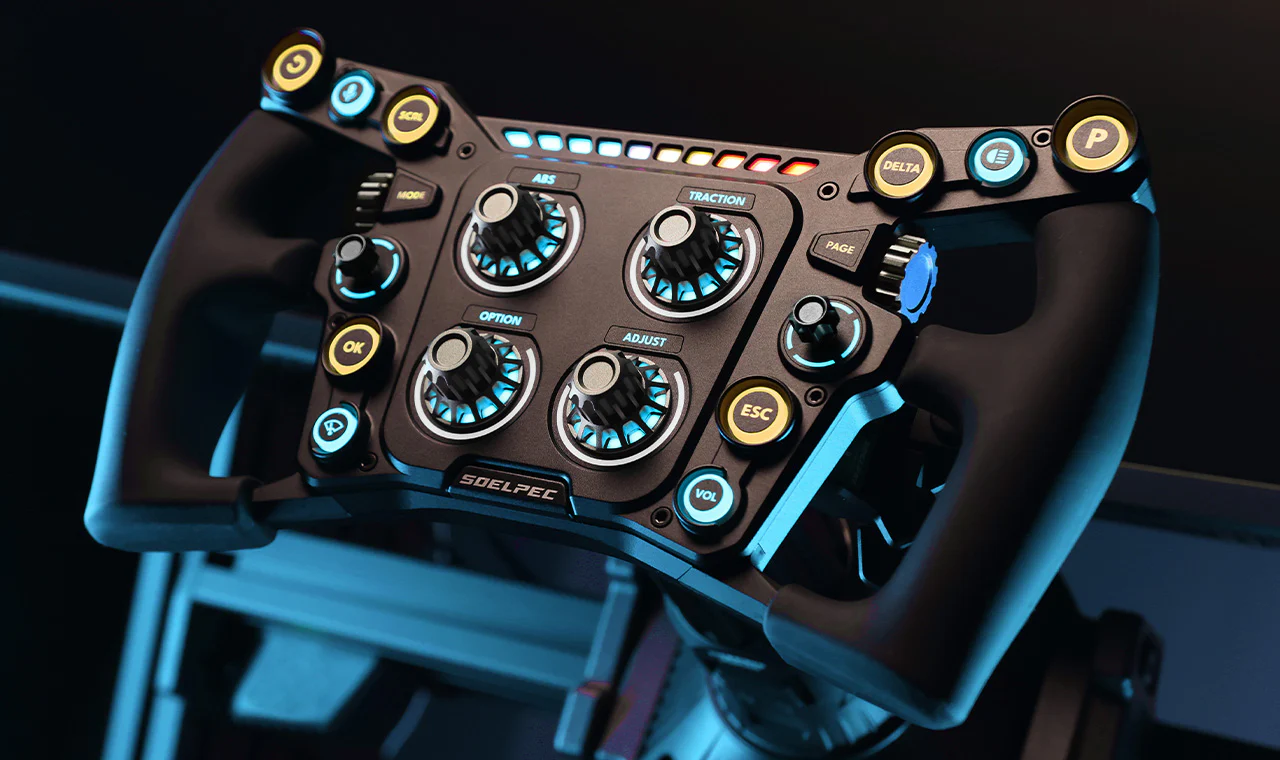

Close-up of the illuminated thumb encoders on the SOELPEC Terra LX

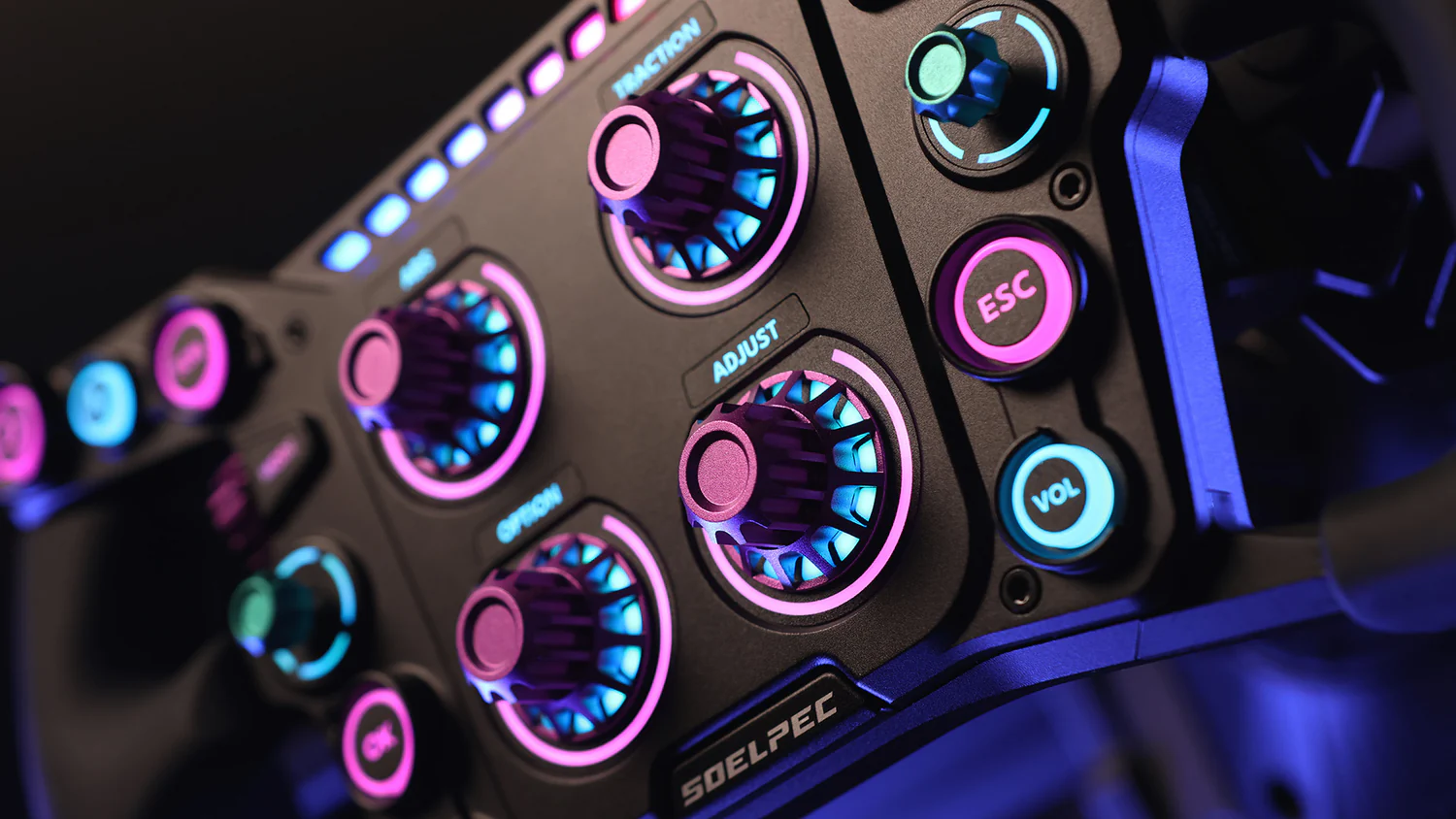

LightSync illumination of the encoders on the SOELPEC Terra LX wheel

CNC machined anodised 6061 aluminium structure of the SOELPEC Terra LX

Customisable textured PVC film stickers on the SOELPEC Terra LX wheel

Coiled USB cable with 4-pin circular connector for the SOELPEC Terra LX

Please note that pre-order products may arrive later.

Price - 3%

Tax included. Shipping calculated at checkout.

Inventory on the way

%3Cp%3E%20%3Cstrong%3EEarn%20[points_amount]%3C/strong%3E%20with%20this%20purchase!%3C/p%3E

ESTIMATED DATE

PRE-ORDER ITEM

Availability date: Jul 30, 2026

[{"id":53122661908813,"title":"Lava","option1":"Lava","option2":null,"option3":null,"sku":"SLPC-TERRALX-LA","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SOELPEC Terra LX 297 mm – Sim Racing Steering Wheel - Lava","public_title":"Lava","options":["Lava"],"price":106999,"weight":3200,"compare_at_price":109999,"inventory_management":"shopify","barcode":"769548535022","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53122661941581,"title":"Arctic","option1":"Arctic","option2":null,"option3":null,"sku":"SLPC-TERRALX-AR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SOELPEC Terra LX 297 mm – Sim Racing Steering Wheel - Arctic","public_title":"Arctic","options":["Arctic"],"price":106999,"weight":3200,"compare_at_price":109999,"inventory_management":"shopify","barcode":"769548535039","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53122662039885,"title":"Basalt","option1":"Basalt","option2":null,"option3":null,"sku":"SLPC-TERRALX-BA","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SOELPEC Terra LX 297 mm – Sim Racing Steering Wheel - Basalt","public_title":"Basalt","options":["Basalt"],"price":106999,"weight":3200,"compare_at_price":109999,"inventory_management":"shopify","barcode":"769548535046","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The SOELPEC Terra LX is a 297 mm sim racing steering wheel with up to 136 programmable inputs, 128 individual RGB LEDs and an anodised 6061 aluminium structure, compatible with direct drive wheelbases using the 70 mm six-bolt pattern.

Its closed formula-style format packs an unusual density of controls into 297 mm: 13 front push buttons, rear-facing buttons, two 7-way switches and six encoders. The HybridSwitch system lets each centre encoder act as a 12-position rotary switch, a push button or an incremental encoder, while HybridLink adds up to 12 virtual layers on the thumb encoders, so you can jump between car configurations without touching the software.

Key features of the SOELPEC Terra LX

Up to 136 programmable inputs through the HybridSwitch and HybridLink systems.
4 HybridSwitch centre encoders combining a 12-position rotary switch, a push button and an encoder in a single control.
128 individual RGB LEDs plus 10 configurable telemetry LEDs, synchronised with SimHub.
DuoACT magnetic paddles and clutches with ball bearings, black N52 magnets and both tactile and Hall sensors.
Anodised 6061 aluminium structure with 50A overmoulded silicone grips.
Modular design: interchangeable encoder knobs, PMMA button caps and textured PVC film stickers.

Technical specifications

Specification	Detail
Diameter	297 mm
Weight	1,350 g (without the rear hub)
Total inputs	Up to 136 programmable
Buttons	13 push buttons with 700 gf tactile switches, plus rear-facing buttons
Switches	2x 7-way
Centre encoders	4 HybridSwitch with push button (12-position rotary, push or encoder)
Thumb encoders	2 dual-action illuminated, up to 24 inputs in HybridSwitch mode
Virtual layers	Up to 12 via HybridLink
RGB LEDs	128 individual plus 10 configurable telemetry LEDs
Encoder illumination	LightSync technology
Paddles and clutches	Adjustable DuoACT magnetic, with ball bearings and black N52 magnets
Paddle sensors	Tactile and Hall
Structure	Anodised 6061 aluminium
Grips	50A overmoulded silicone
Button caps	PMMA with LED diffusers
Rear hub	32 mm with integrated USB connection, included
Mounting pattern	6 bolts at 70 mm
Settings button	Dedicated, for quick changes from the wheel itself
Software	SimHub

Compatibility and finishes

Wheelbases: compatible with most direct drive wheelbases on the market thanks to the standard 70 mm six-bolt pattern. The 32 mm rear hub is included and adds extra spacing to make mounting easier.
Platform: PC. The illumination and dashboard functions require SimHub; it is not compatible with consoles.
Finishes: available in Lava, Arctic and Basalt. SOELPEC's anodised knob kits also let you change the colour of the encoders.
Recommendation: the manufacturer advises using a powered USB hub for the highest brightness levels.

What's in the box

SOELPEC Terra LX wheel with paddles and clutches
32 mm rear hub in a matching finish
Coiled USB cable with 4-pin circular connector
Extra magnets for adjusting the paddle force
Mounting hardware and tools

Frequently asked questions about the SOELPEC Terra LX

Which direct drive wheelbases is the Terra LX compatible with?

With most wheelbases on the market that use the standard 70 mm six-bolt pattern. The wheel includes the 32 mm rear hub with the USB connection already integrated, so you do not need to buy a separate quick release for that pattern.

What are HybridSwitch and HybridLink?

HybridSwitch lets a single encoder work as a 12-position rotary switch, a push button or an incremental encoder. HybridLink adds up to 12 virtual layers on the thumb encoders. Together, the two systems reach the wheel's 136 programmable inputs.

Can the paddle force be adjusted?

Yes. The DuoACT mechanism is magnetic and adjustable, and the box includes extra magnets to change the actuation force. The paddles run on ball bearings with black N52 magnets, and use both a tactile switch and a Hall sensor.

Does it work on PlayStation or Xbox?

No. The Terra LX is aimed at PC: the RGB illumination, the telemetry LEDs and the dashboard functions are all managed through SimHub, which is PC only.

Which colours is it available in?

At Simufy you can choose between the Lava, Arctic and Basalt finishes. These are purely cosmetic variants: all three share exactly the same technical specifications.
