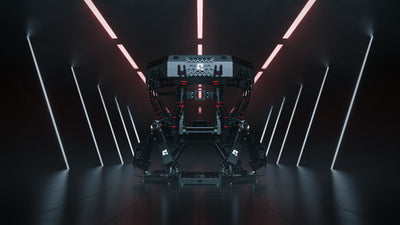

Qubic System QS-S35 6DOF motion cockpit for sim racing and flight simulation

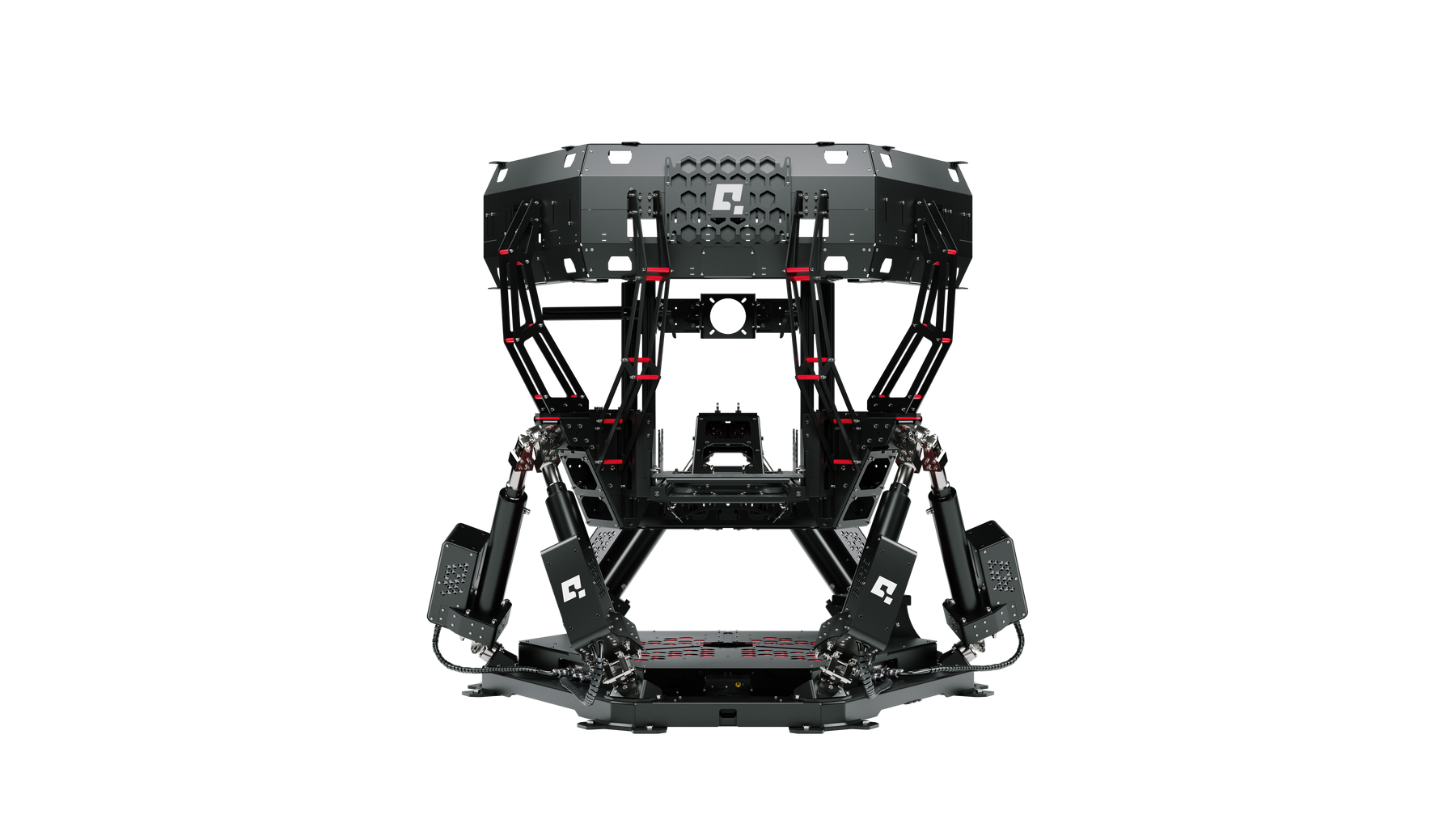

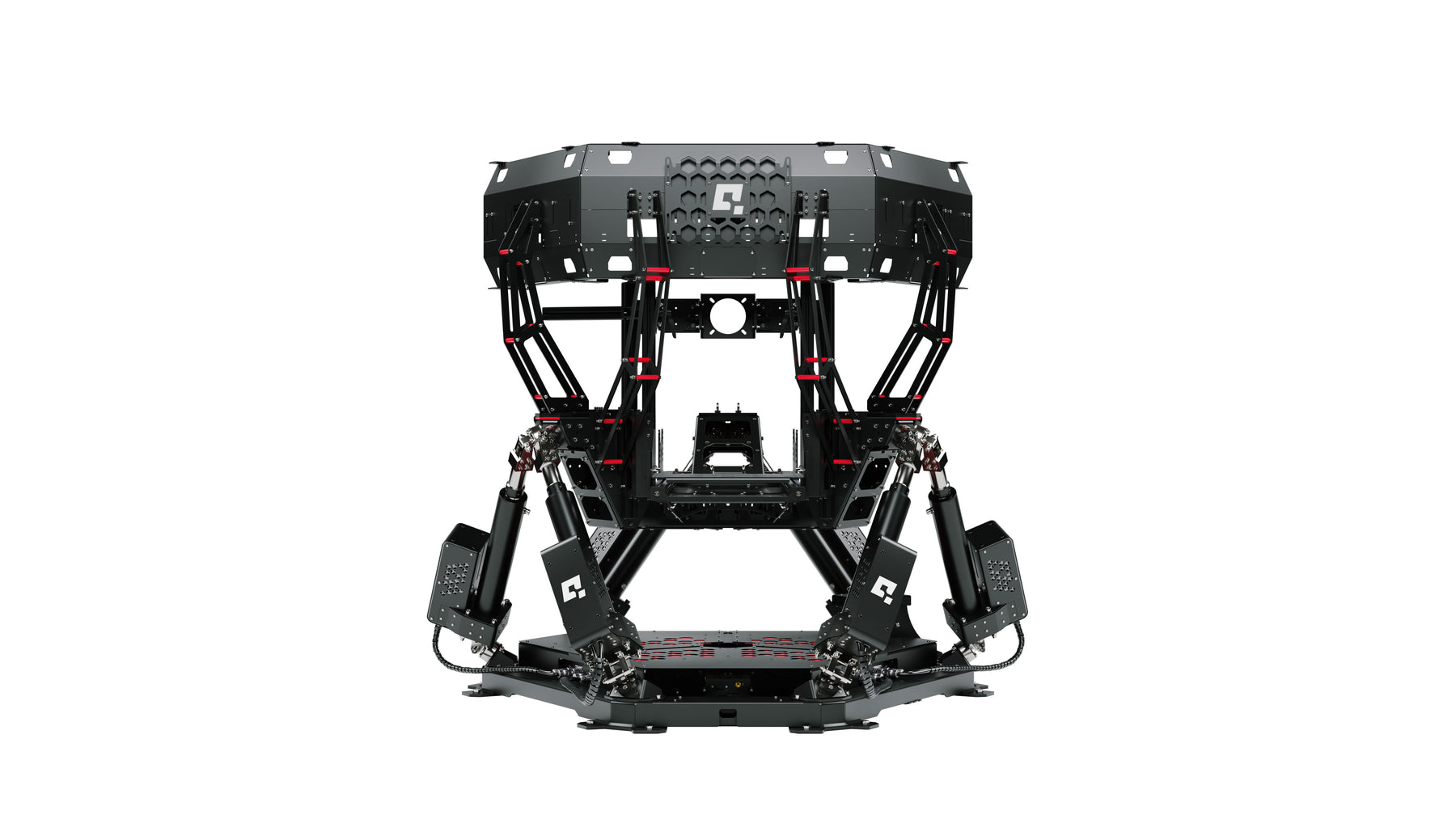

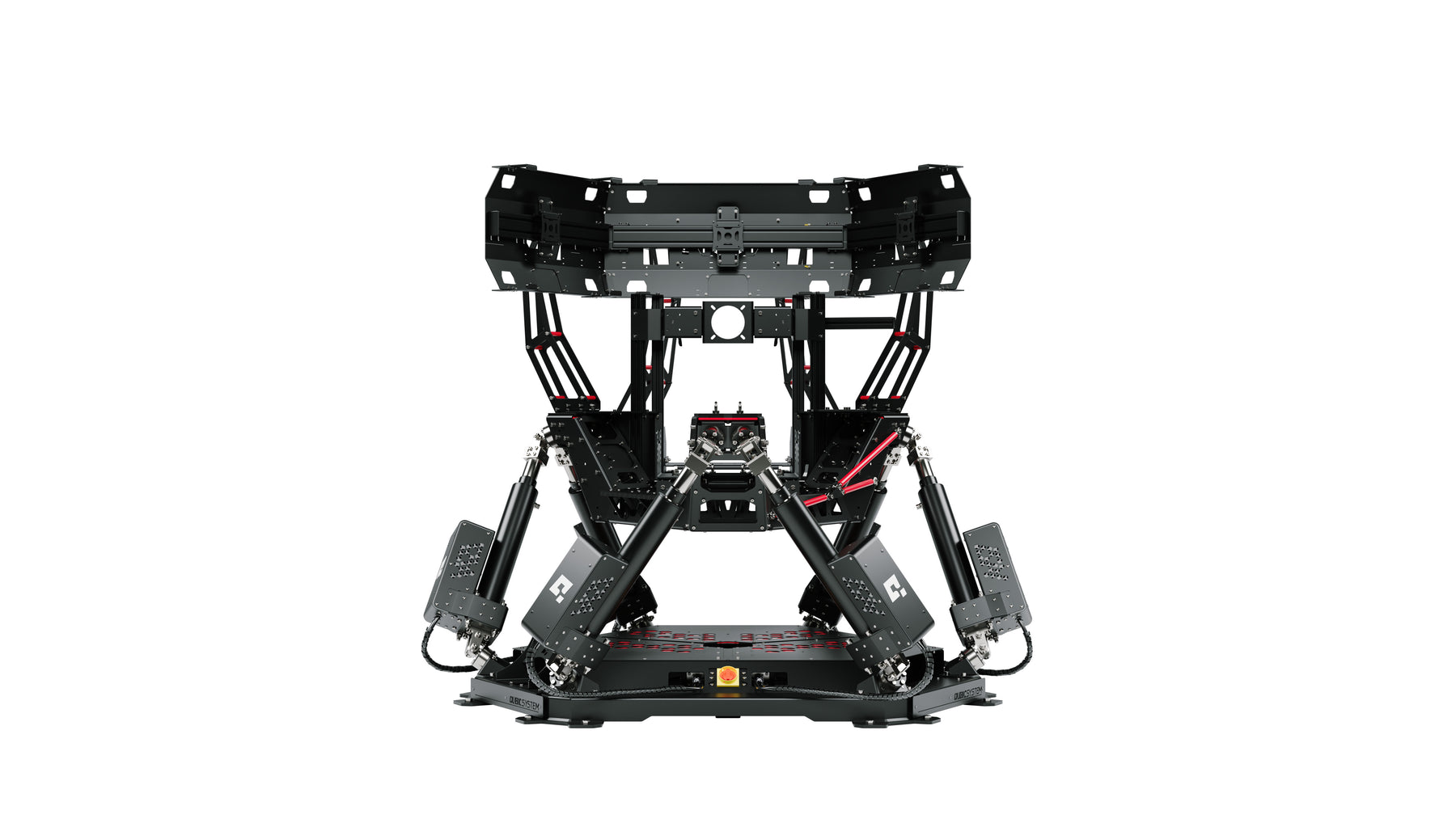

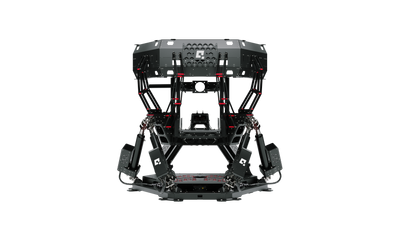

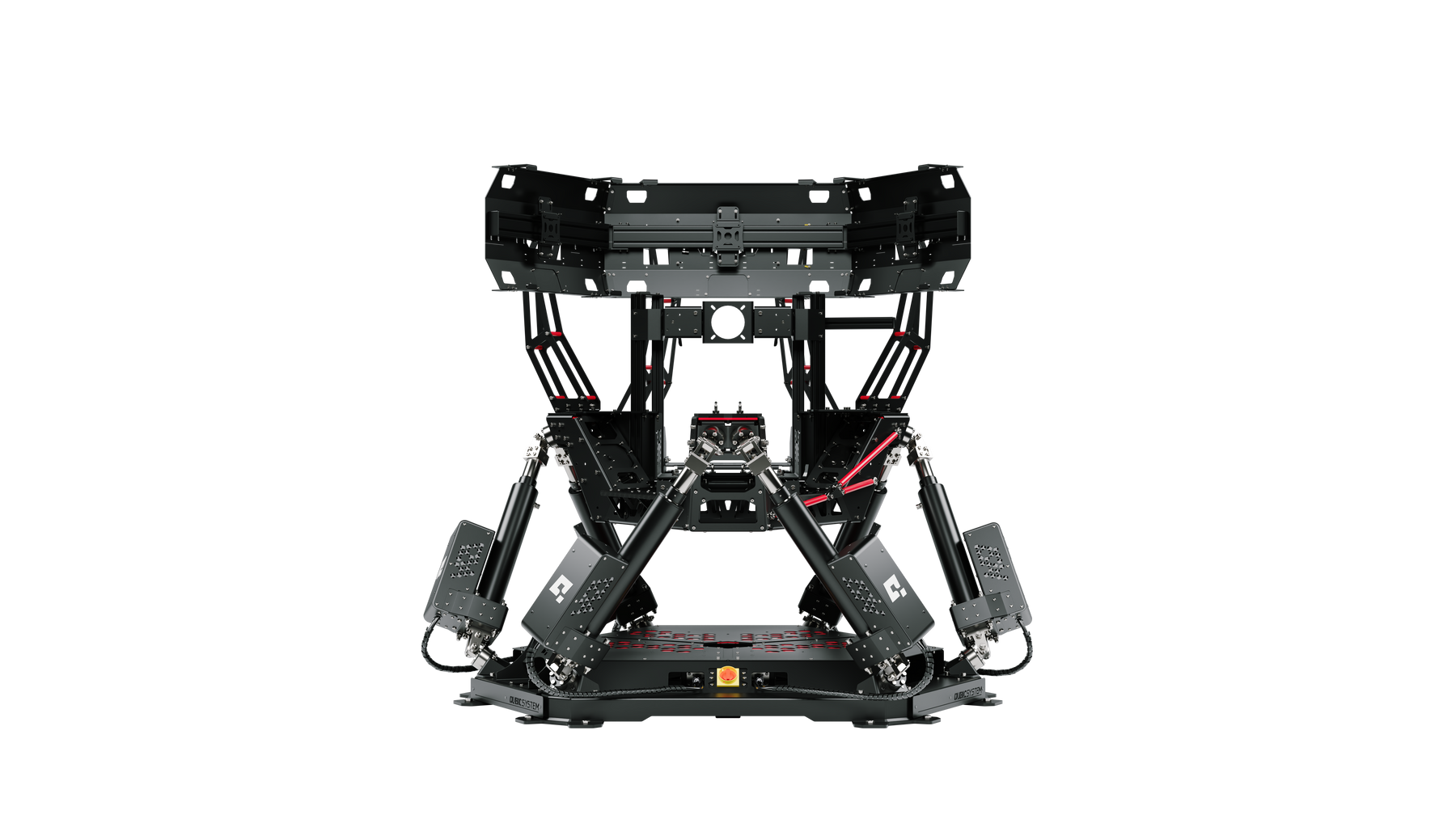

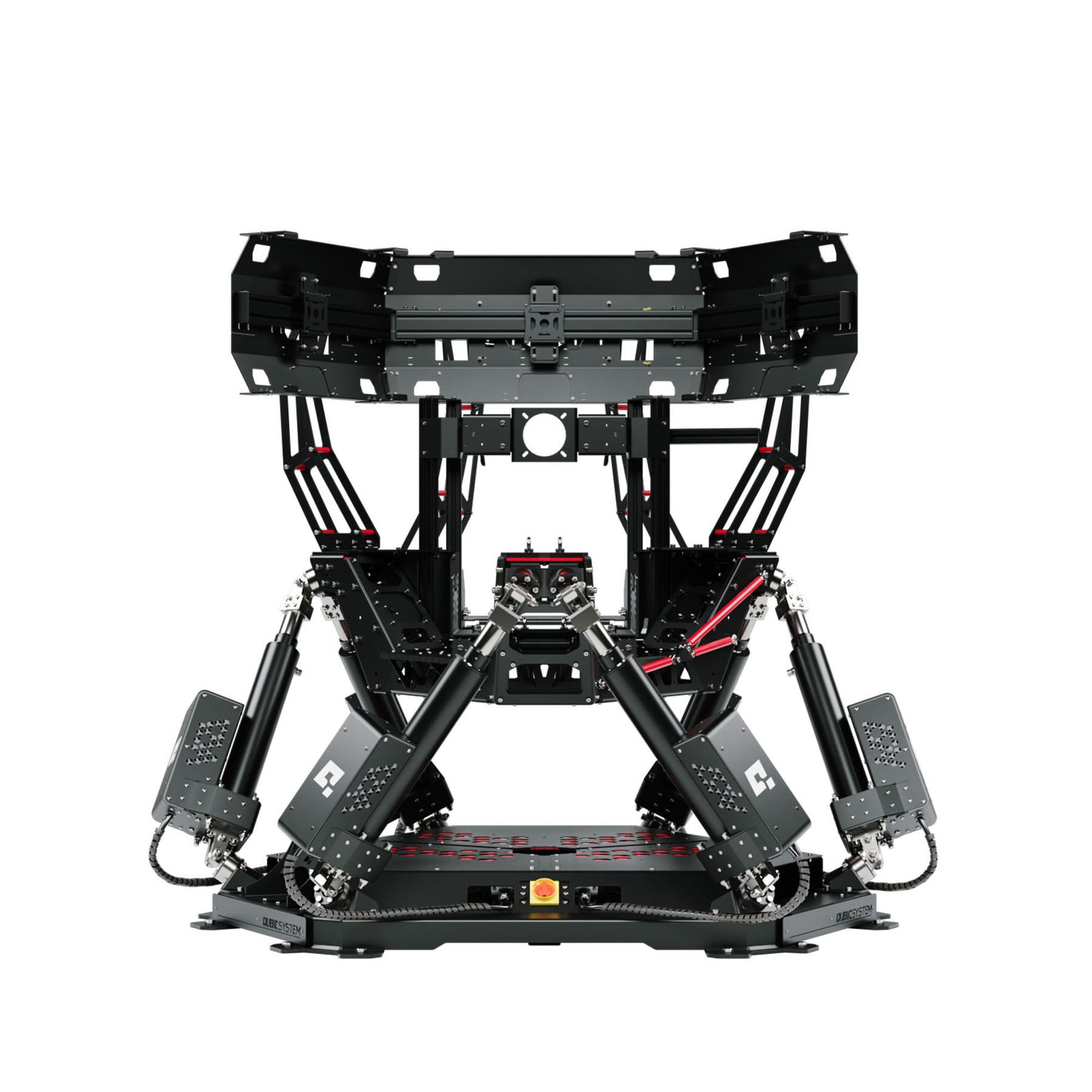

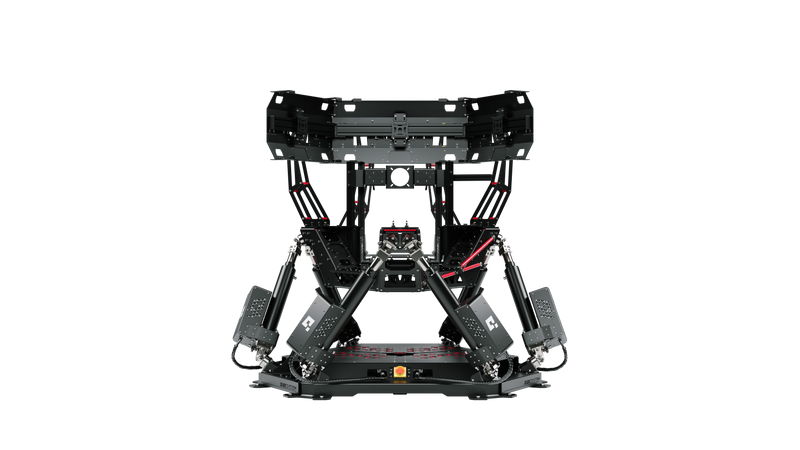

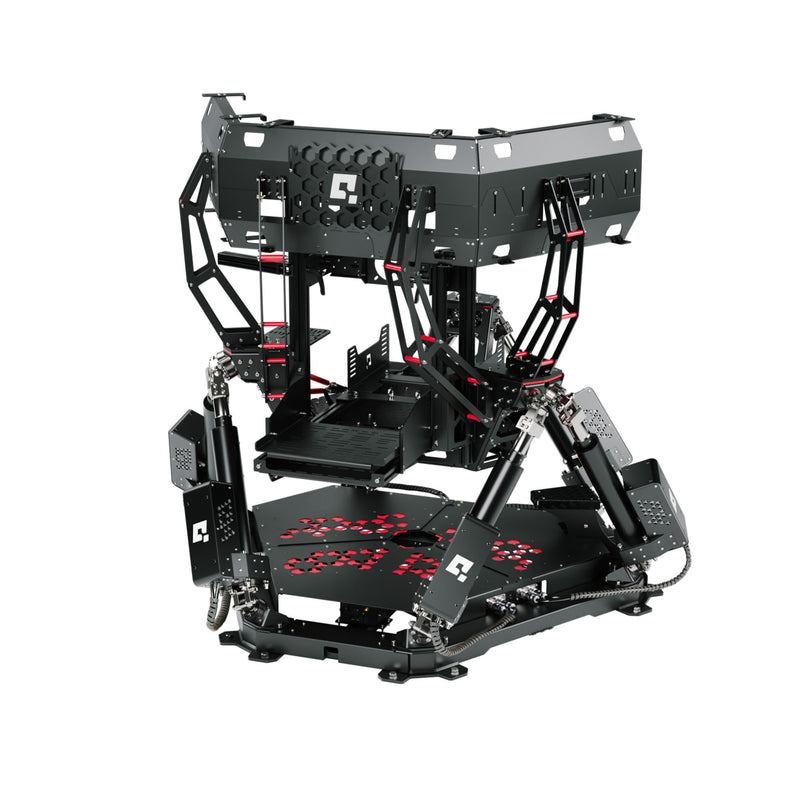

QS-S35 platform with its six long-travel industrial linear actuators
Detail of the QS-S35 R5 with Direct Drive wheel and pedal mounts
QS-S35 reproducing the 342 mm of vertical travel in heave
Qubic System QS-S35 – 6DOF Motion Cockpit
QS-S35 6DOF simulator with built-in mount for three 32-inch monitors

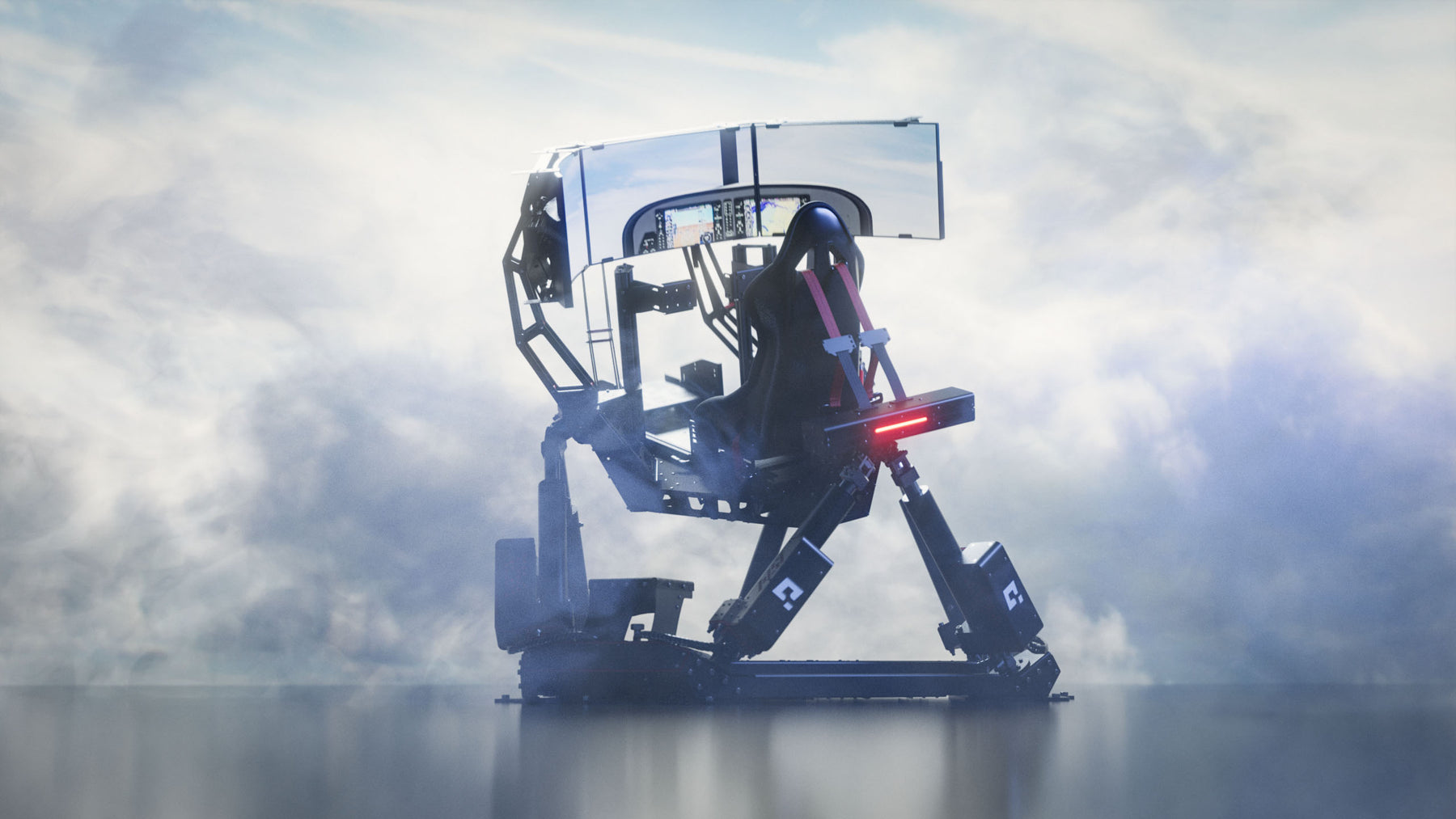

QS-S35 set up for flight simulation with a yoke
QS-S35 electromagnetic brakes for an instant stop with the motion lock
QS-S35 base with transport wheels and assisted-entry system
QS-S35 tilting the cockpit in pitch and roll to reproduce G-forces
Qubic System QS-S35 cockpit in use with wheel and pedals

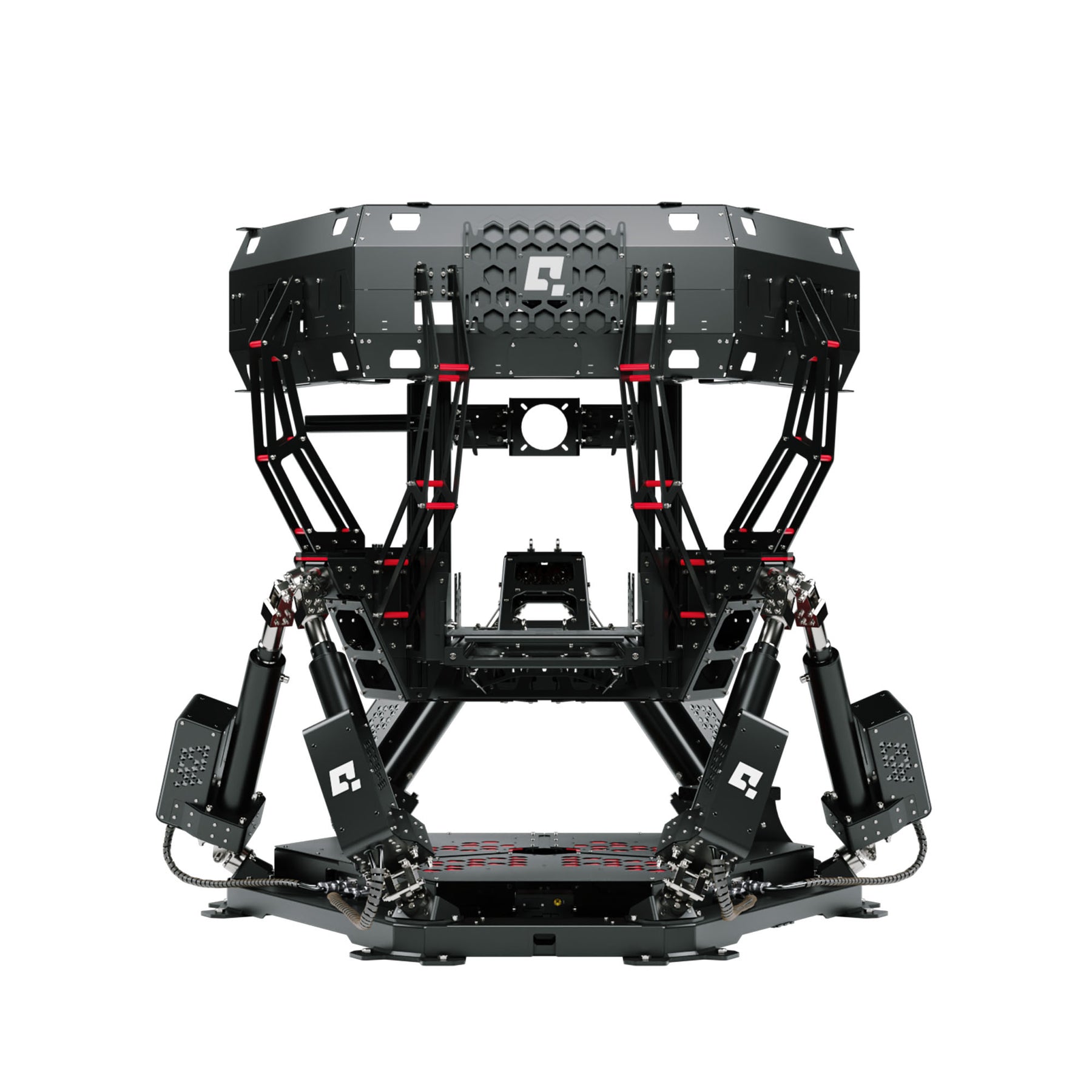

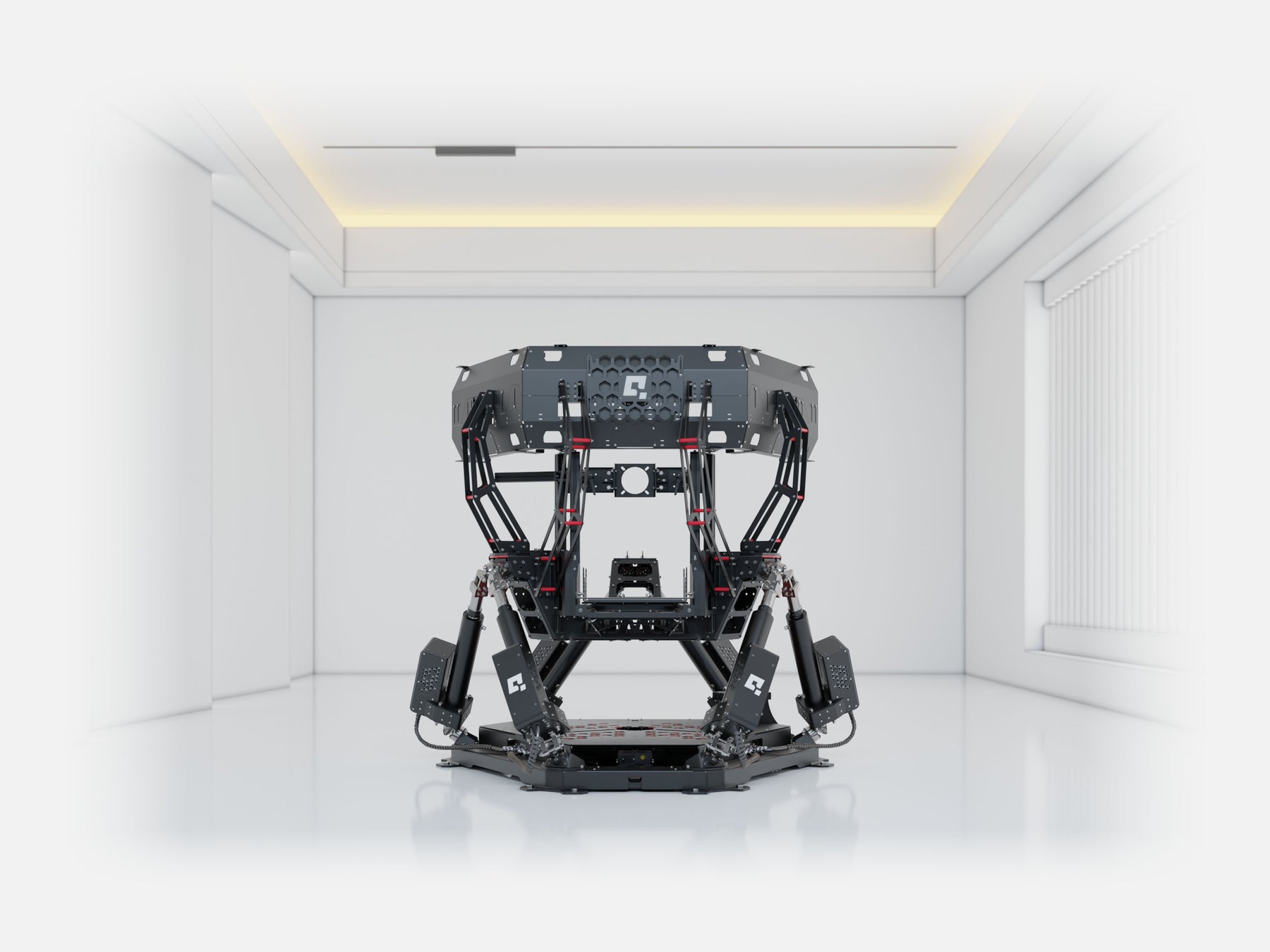

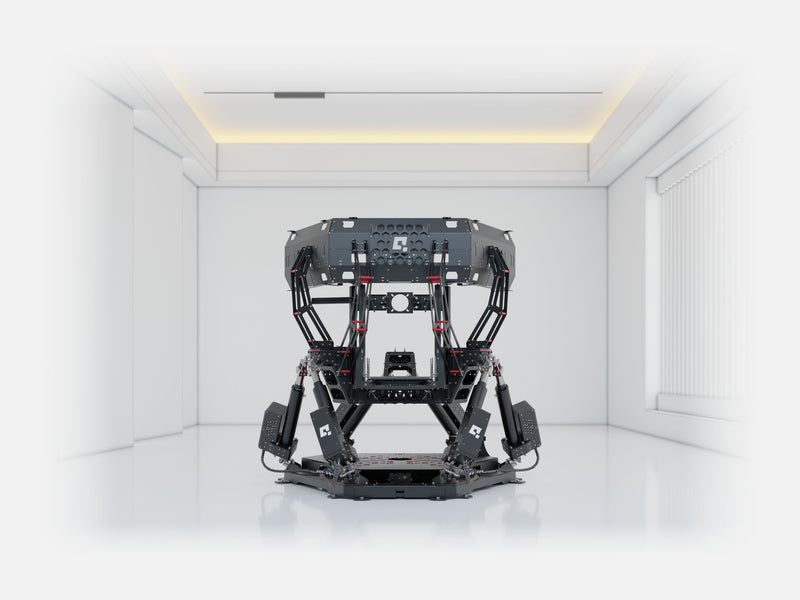

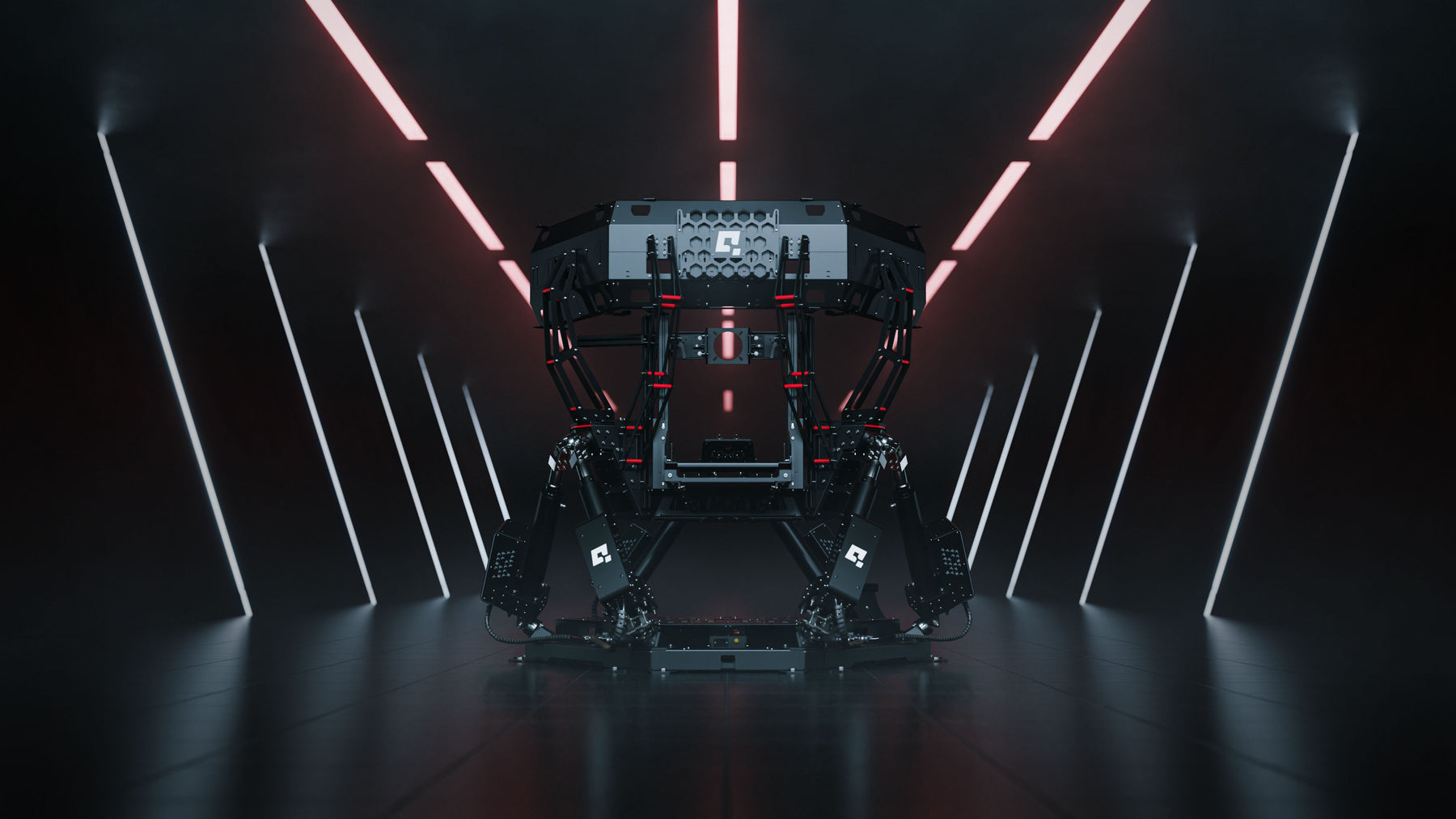

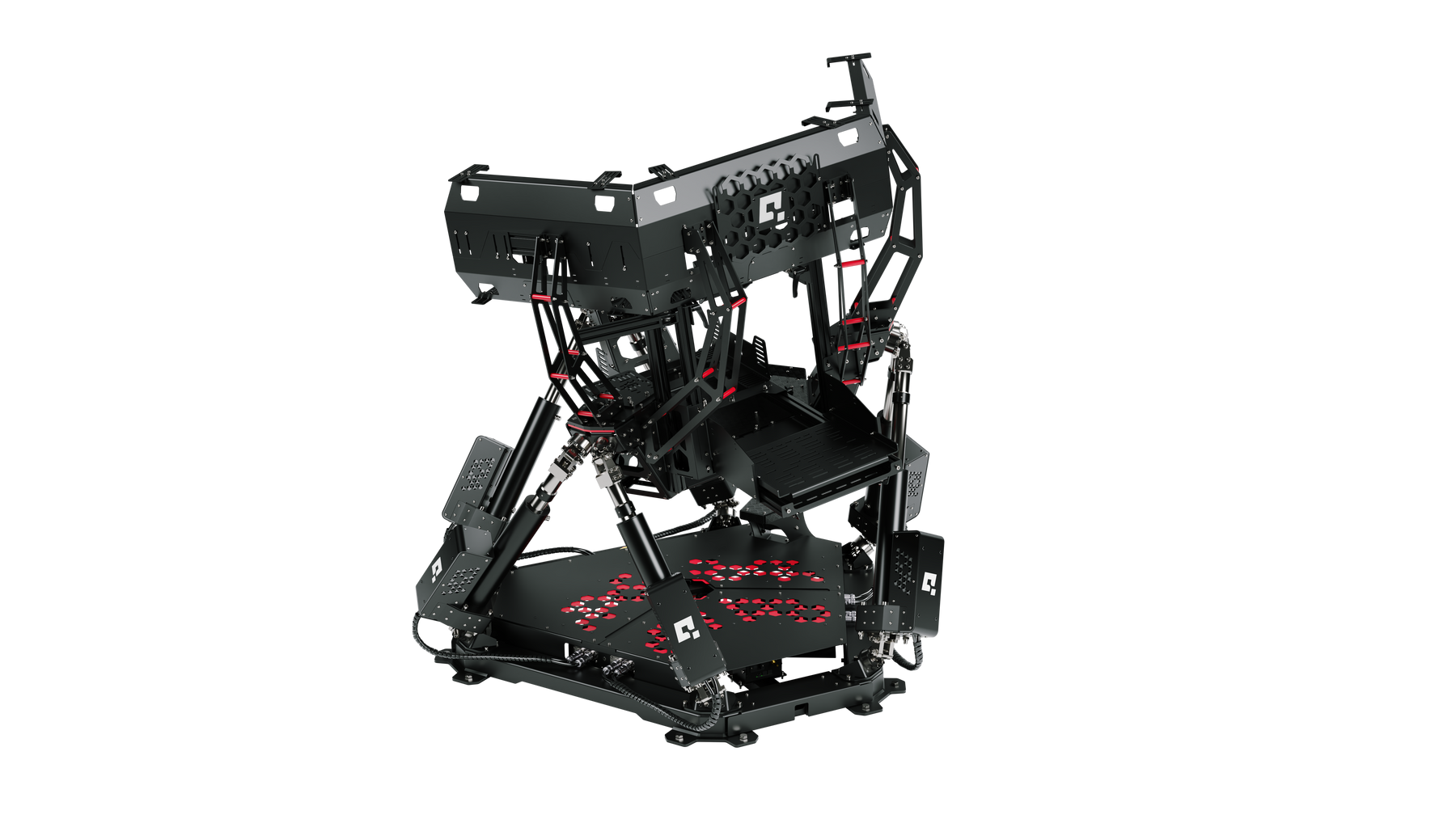

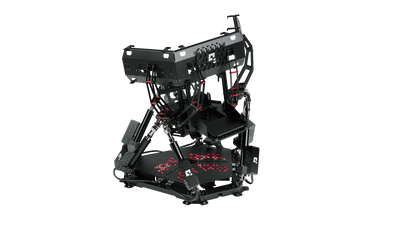

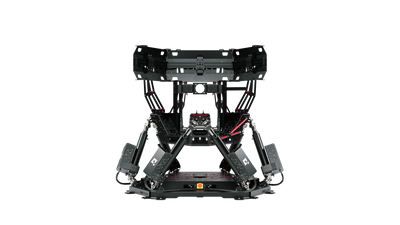

Overall view of the QS-S35 6DOF motion platform
Diagram of the six degrees of freedom of the QS-S35
Qubic System QS-S35 6DOF motion cockpit for sim racing and flight simulation
QS-S35 platform with its six long-travel industrial linear actuators
Detail of the QS-S35 R5 with Direct Drive wheel and pedal mounts
QS-S35 reproducing the 342 mm of vertical travel in heave
Qubic System QS-S35 – 6DOF Motion Cockpit
QS-S35 6DOF simulator with built-in mount for three 32-inch monitors
QS-S35 set up for flight simulation with a yoke
QS-S35 electromagnetic brakes for an instant stop with the motion lock
QS-S35 base with transport wheels and assisted-entry system
QS-S35 tilting the cockpit in pitch and roll to reproduce G-forces
Qubic System QS-S35 cockpit in use with wheel and pedals
Overall view of the QS-S35 6DOF motion platform
Diagram of the six degrees of freedom of the QS-S35

Qubic System QS-S35 – 6DOF Motion Cockpit

Brand: Qubic System
Ten en cuenta que los productos en Pre-Order podrían llegar más tarde.
- 4%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
FECHA ESTIMADA
ARTÍCULO EN PRE-ORDER
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The Qubic System QS-S35 is a 6DOF motion cockpit for sim racing and flight simulation, compatible with PC, that reproduces accelerations, weight shifts and altitude changes with six long-travel industrial linear actuators and 342 mm of heave.

Presented as the only commercial 6DOF platform with a class-leading motion range, the QS-S35 delivers more than three times the vertical travel of other systems. It is one of the most advanced motion systems in the Qubic range: its Ghost Moves technology self-calibrates the actuators and keeps the rig always centred, and it runs almost silently thanks to Motion Systems' experience in professional simulators. Switch between racing and flight setups with no complex tools.

Key features of the Qubic System QS-S35

  • 6DOF motion with six long-travel, high-precision industrial linear actuators.
  • 342 mm of heave, more than triple that of other commercial systems.
  • Ghost Moves technology: self-calibrating actuators that keep the rig centred.
  • Electromagnetic brakes for an instant stop when the motion lock is engaged.
  • Almost silent operation, ideal for training facilities and professional setups.
  • Built-in mounting for up to 3 × 32" monitors and for the QS-BT1 belt tensioner.
  • VR Ready and quick switching between sim racing and flight (Direct Drive and yoke compatible).

Technical specifications

SpecificationDetail
Architecture6DOF (six degrees of freedom)
Actuators6 long-travel industrial linear
Vertical travel (heave)342 mm
Maximum loadUp to 250 kg (without accessories)
BrakingElectromagnetic (instant lock)
Monitor supportUp to 3 × 32" monitors
Dimensions2157 mm diameter × 1720.61 mm height
Weight475 kg
Average consumption500 W
Power220-240 V
SoftwareQubic Manager (included)
ManufacturingEurope (Poland)

Compatibility

  • Platform: PC (Windows) with the main racing and flight titles.
  • Virtual reality: VR Ready, with built-in motion synchronisation.
  • Peripherals: Direct Drive wheels and flight yokes; mounts for wheel, pedals, seat and monitors.
  • Power: requires 220-240 V (for 120 V, consult an electrician).

Ready for your setup

  • Mounts for wheel, pedals, seat, accessories and monitors.
  • Built-in mount for the QS-BT1 belt tensioner.
  • Transport wheels and an assisted-entry system.
  • Base ready for secure floor anchoring.

Frequently asked questions

What sets the QS-S35 apart from other 6DOF platforms?

Its motion range: 342 mm of heave, more than triple that of other commercial systems, with six long-travel industrial actuators for superior realism.

Is it suitable for both sim racing and flight?

Yes. It switches quickly between racing and flight setups and is compatible with Direct Drive wheels and yokes.

What is Ghost Moves technology?

It is an actuator self-calibration system that keeps the rig always centred and ready for the next move, with continuous feedback.

How many monitors does it support?

It includes built-in mounting for up to three 32-inch monitors.

What power does it need?

It runs on 220-240 V. For 120 V installations it is best to consult an electrician.

Is it a noisy platform?

No. Despite its power, it operates almost silently, ideal for training facilities and professional home setups.
