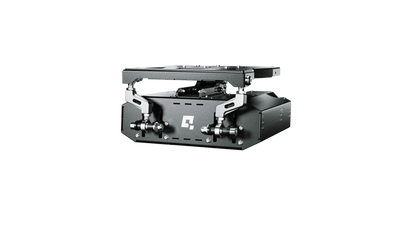

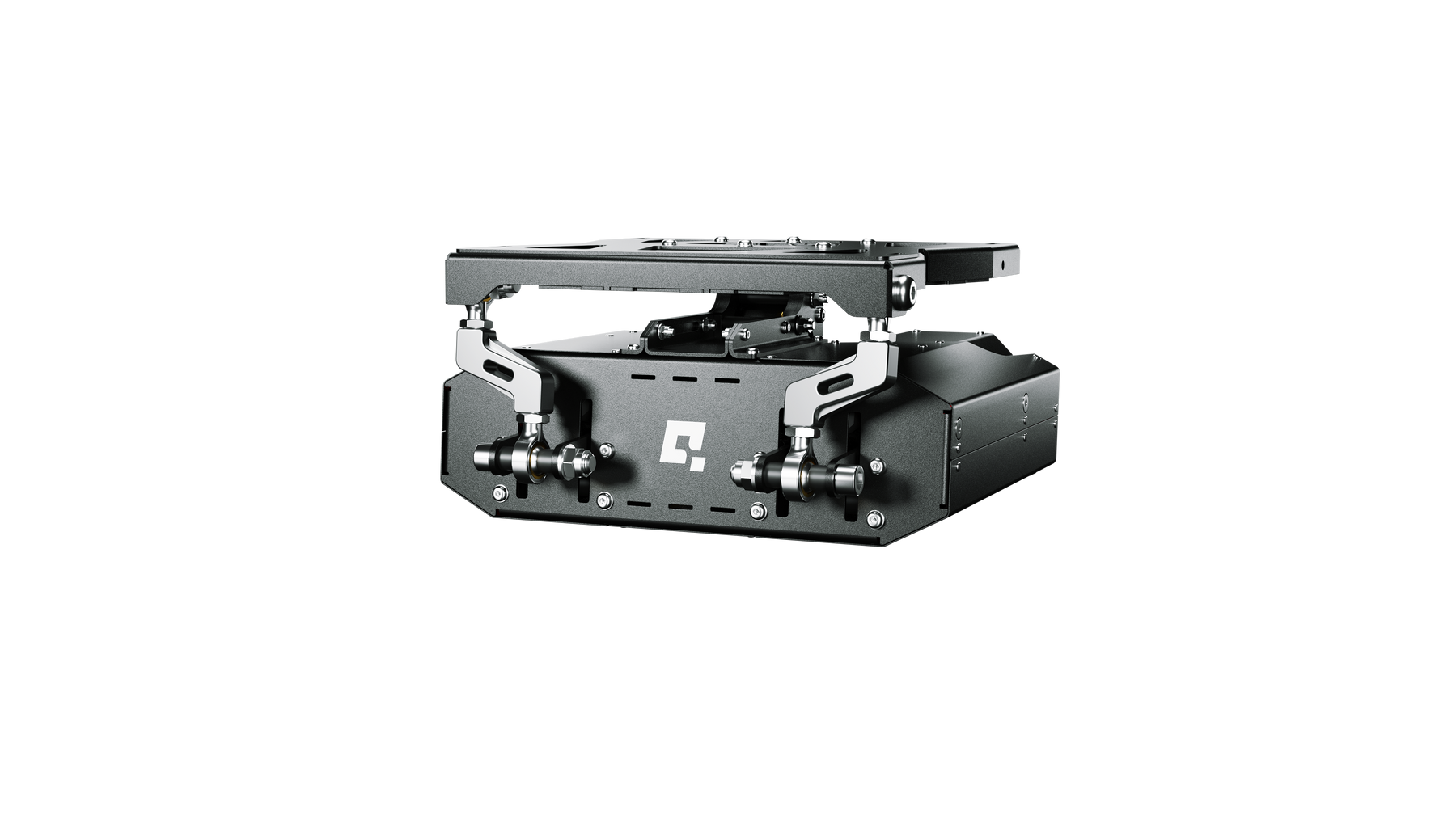

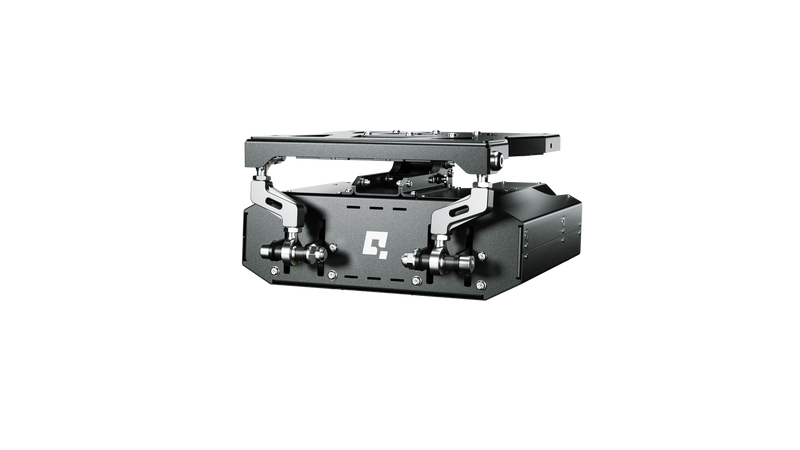

Qubic System QS-H13 2DOF seat mover for sim racing on an aluminium cockpit
QS-H13 seat mover in motion reproducing seat pitch and roll

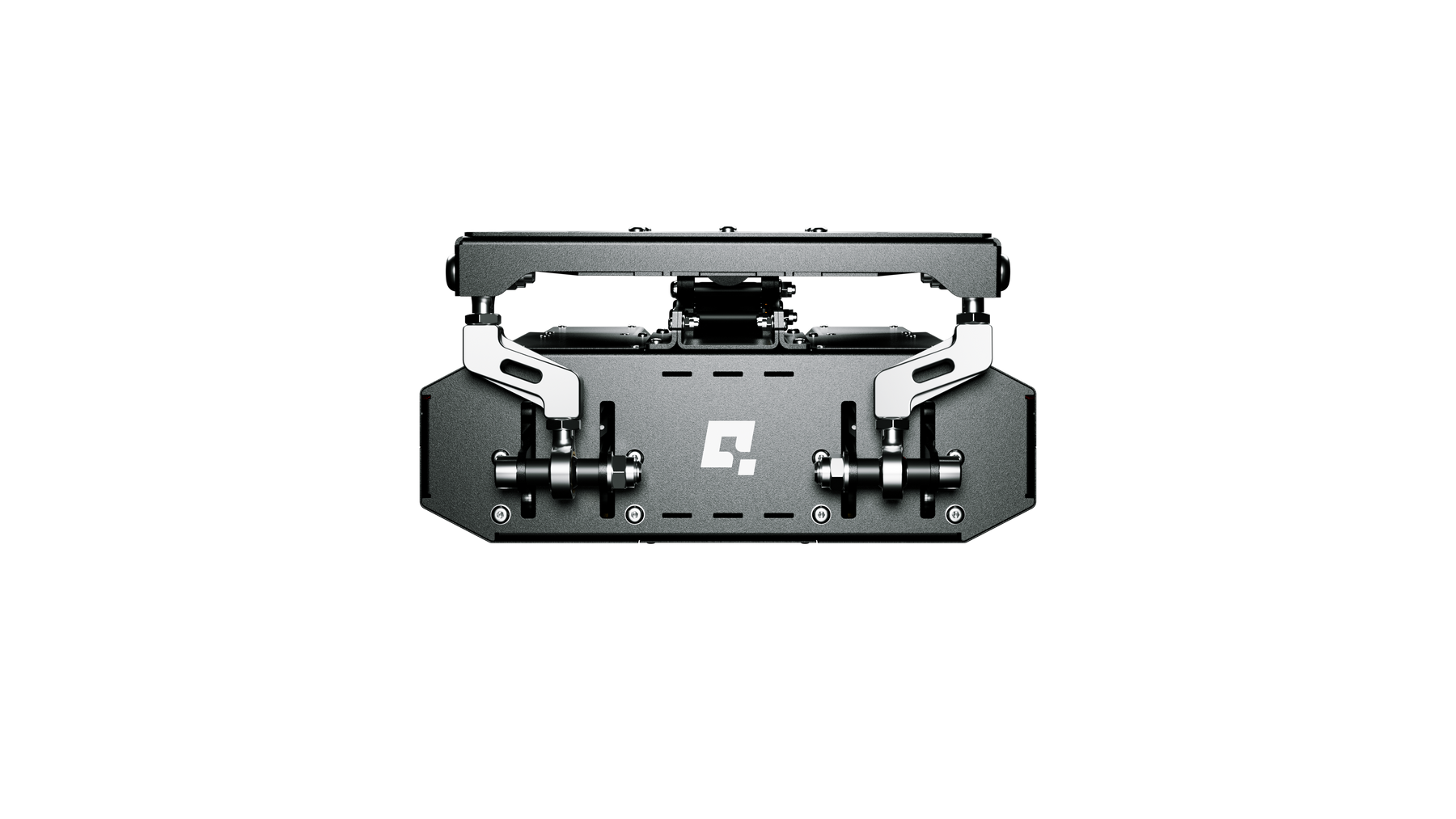

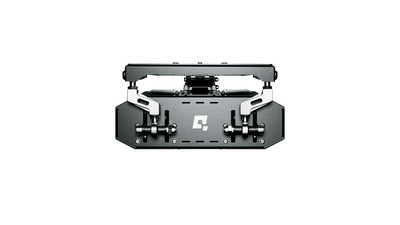

QS-H13 platform side view with its linear actuators under the seat

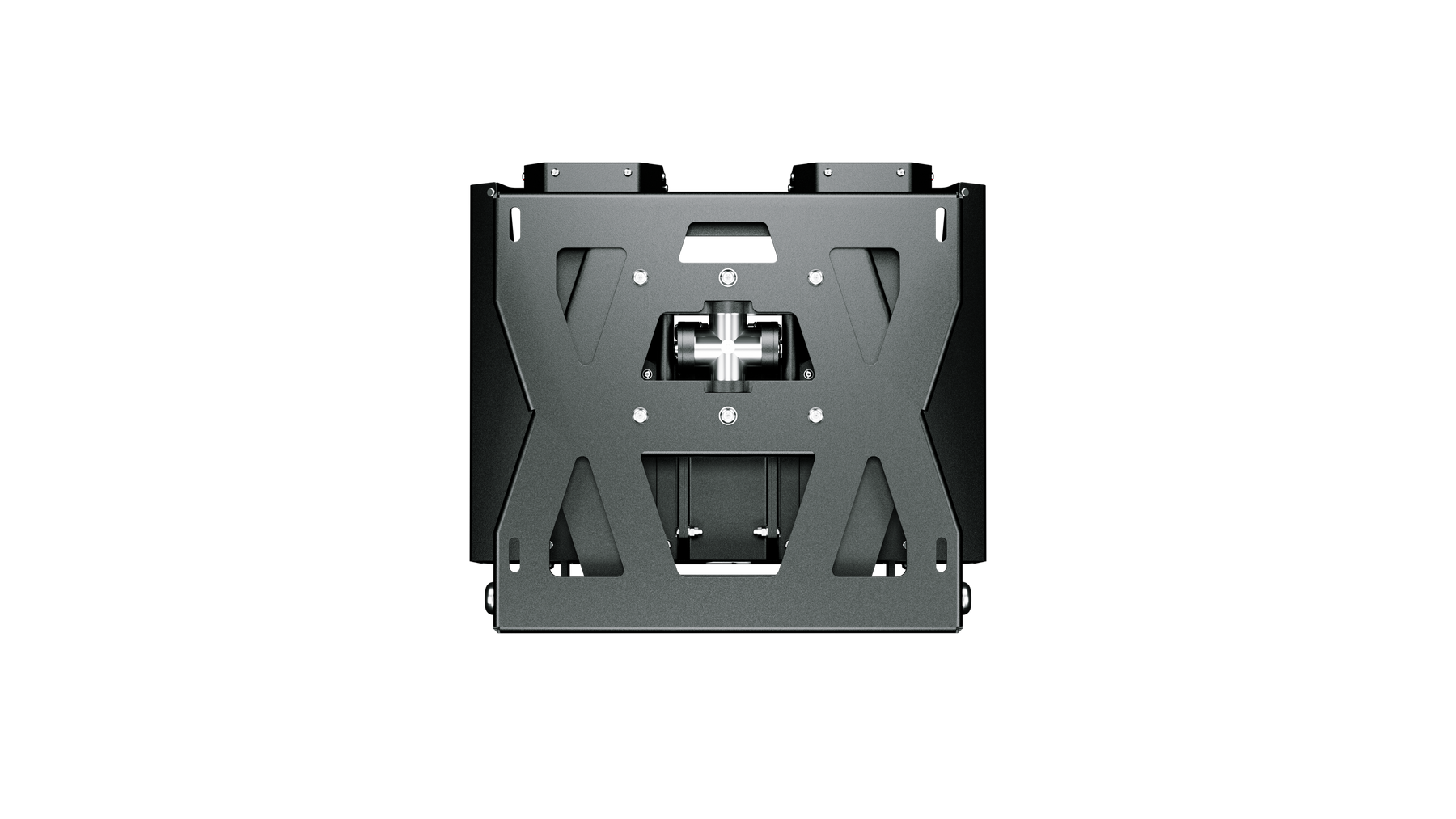

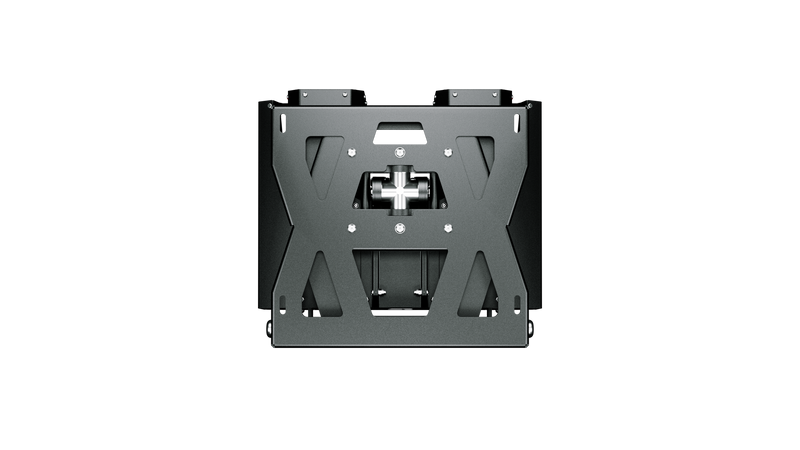

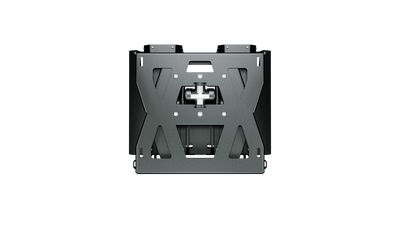

Close-up of the QS-H13 seat mover top frame ready for the seat
QS-H13 simulating braking weight transfer through seat motion
QS-H13 linear actuators derived from QS-220 technology
QS-H13 seat mover fitted to an aluminium-profile sim racing cockpit
QS-H13 showing roll motion through a corner on the seat axis
Qubic System QS-H13 motion system in use with wheel and pedals
Animation of the QS-H13 reproducing acceleration and braking under the seat
QS-H13 compatibility with the QS-BT1 belt tensioner and the Qubic ecosystem
Motion Systems QS-H13 seat mover for racing and flight simulators
QS-H13 10 ms latency measured from telemetry to physical motion
Qubic System QS-H13 2DOF seat mover for sim racing on an aluminium cockpit
QS-H13 seat mover in motion reproducing seat pitch and roll
QS-H13 platform side view with its linear actuators under the seat
Close-up of the QS-H13 seat mover top frame ready for the seat
QS-H13 simulating braking weight transfer through seat motion
QS-H13 linear actuators derived from QS-220 technology
QS-H13 seat mover fitted to an aluminium-profile sim racing cockpit
QS-H13 showing roll motion through a corner on the seat axis
Qubic System QS-H13 motion system in use with wheel and pedals
Animation of the QS-H13 reproducing acceleration and braking under the seat
QS-H13 compatibility with the QS-BT1 belt tensioner and the Qubic ecosystem
Motion Systems QS-H13 seat mover for racing and flight simulators
QS-H13 10 ms latency measured from telemetry to physical motion

Qubic System QS-H13 Seat Mover 2DOF – Motion System

Brand: Qubic System
Please note that pre-order products may arrive later.
- 22%
/
Tax included. Shipping calculated at checkout.
  • Inventory on the way
%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E
ESTIMATED DATE
PRE-ORDER ITEM
Reserve your unit from the next batch. Shipping date still to be confirmed by the manufacturer. Cancel for free anytime.
100% secure payment

100% secure payment

3-year warranty

3-year warranty

Shipping within 24/48 hours

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Personalized attention

*More information in Shipping Policy.

The Qubic System QS-H13 is a 2DOF seat mover (pitch and roll) for sim racing and flight simulation, compatible with PC, that reproduces braking, acceleration and cornering forces by moving the seat at under 58 dB(A).

Built by Motion Systems in Poland using the same linear-actuator technology as the QS-220, the QS-H13 is one of the quietest motion systems in its class: it does away with gearboxes and DC motors to achieve 10 ms latency and near-silent operation. Its low pivot point, close to the seat, delivers G-forces straight to your body and, with no vertical travel, transmits no vibration to the floor.

Key features of the Qubic System QS-H13

  • Real 2DOF motion (pitch and roll) with linear actuators derived from the QS-220.
  • Near-silent operation below 58 dB(A): one of the quietest seat movers in its class.
  • 10 ms latency from the moment the telemetry signal arrives to physical motion.
  • No vertical travel: it transmits no vibration to the floor, ideal for flats and shared spaces.
  • Built-in vibration effects (engine, RPM, gear changes, kerbs and road texture) with no need for bass shakers.
  • Plug & Play installation on aluminium-profile cockpits, with universal adapters included and no drilling.
  • Ready to expand with the QS-BT1 Belt Tensioner and the rest of the Qubic ecosystem.

Technical specifications

SpecificationDetail
TypeSeat mover
Degrees of freedom2DOF (pitch + roll)
ActuatorsLinear (QS-220 technology, no gearbox or DC motor)
Latency10 ms
Noise level< 58 dB(A)
User capacityUp to 130 kg
System weight33 kg
Dimensions (L × W × H)417 × 460 × 231 mm
Power115 V / 230 V (external supply)
SoftwareQubic Manager (VR Ready)
PlatformPC (Windows)
ManufacturingEurope (Poland)

Compatibility

  • Platform: PC (Windows) through Qubic Manager. Not compatible with consoles.
  • Virtual reality: VR Ready, with motion compensation (VR HeadWay) built into Qubic Manager.
  • Cockpits: standard aluminium profiles (Sim-Lab, Trak Racer, etc.) with universal adapters, no extra brackets or drilling.
  • Qubic ecosystem: combines with QS-210, QS-220, QS-CH2 and the QS-BT1 belt tensioner.

What's in the box

  • QS-H13 main unit
  • USB cable
  • External power supply
  • Mounting adapter for the QS-BT1
  • Motion-lock jumper and interlink cable
  • Mounting adapters for aluminium cockpits

Note: the power cord is not included.

Frequently asked questions

Is the QS-H13 compatible with consoles?

No. The QS-H13 runs on PC (Windows) through the Qubic Manager software; it is not compatible with PlayStation or Xbox.

Do I need a specific cockpit to mount it?

It must be mounted on a stable aluminium-profile cockpit. It includes universal mounting adapters, so it fits most cockpits with no drilling or extra brackets.

Is it quiet enough for home use?

Yes. It operates below 58 dB(A) and, with no vertical travel, transmits no vibration to the floor, so it suits flats and shared spaces even at night.

Can I add the QS-BT1 belt tensioner?

Yes. The QS-H13 is ready to take the QS-BT1 on its top frame and includes the required mounting adapter.

Does it work with VR headsets?

Yes. It is VR Ready and uses Qubic Manager's VR HeadWay motion compensation, which adjusts the in-game image to the platform's motion for a smoother experience.

Is the power cord included?

No. The power cord is not included in the box and must be purchased separately.
