GSI GXL Pro | 310 mm Carbon Sim Racing Wheel

Name: GSI GXL Pro 310 mm – Screenless Sim Racing Wheel
Brand: GSI
SKU: GSI-GXL-ALP
Price: 599.99 EUR
Availability: OutOfStock

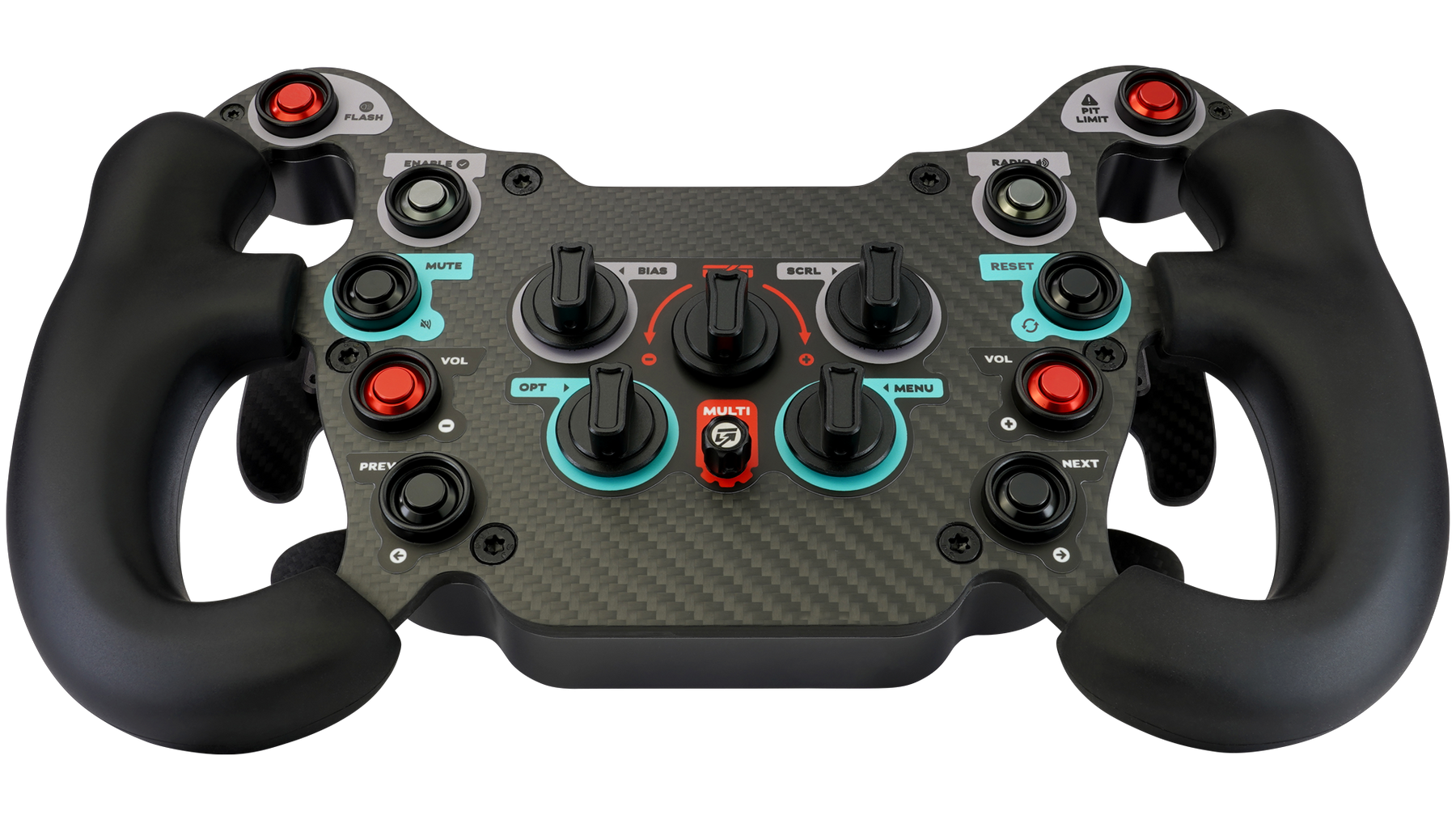

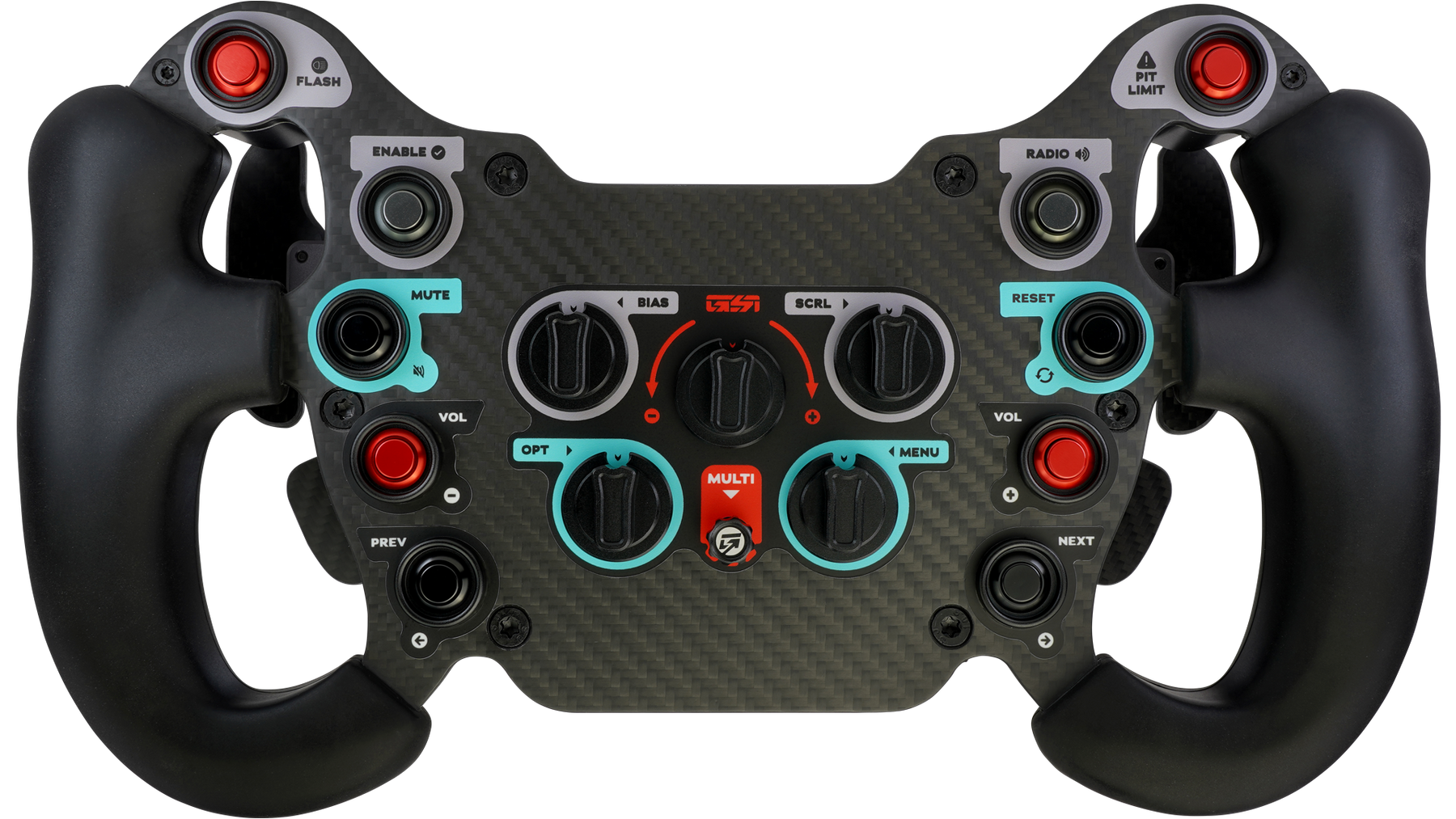

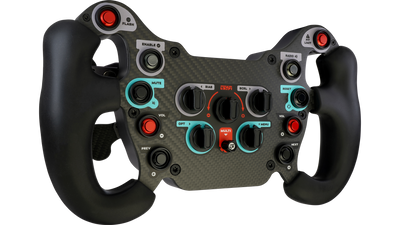

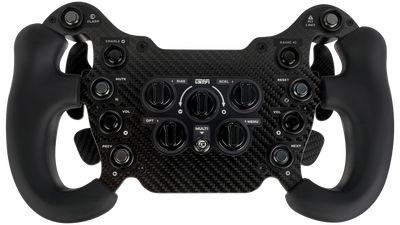

GSI GXL Pro 310 mm screenless sim racing wheel, front view in carbon fibre

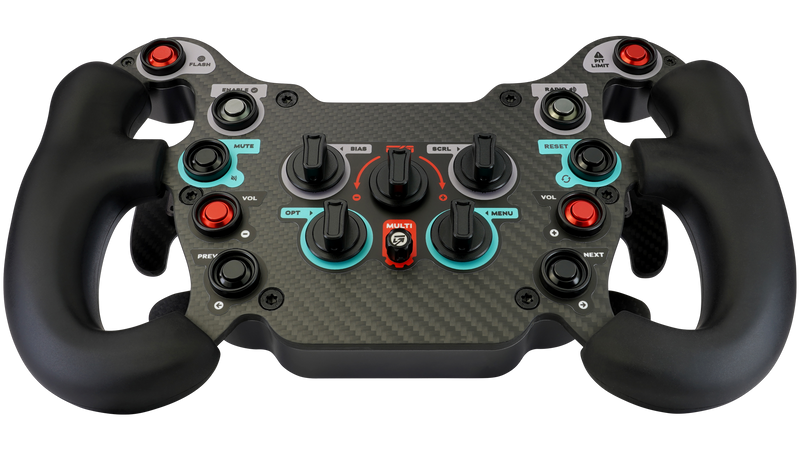

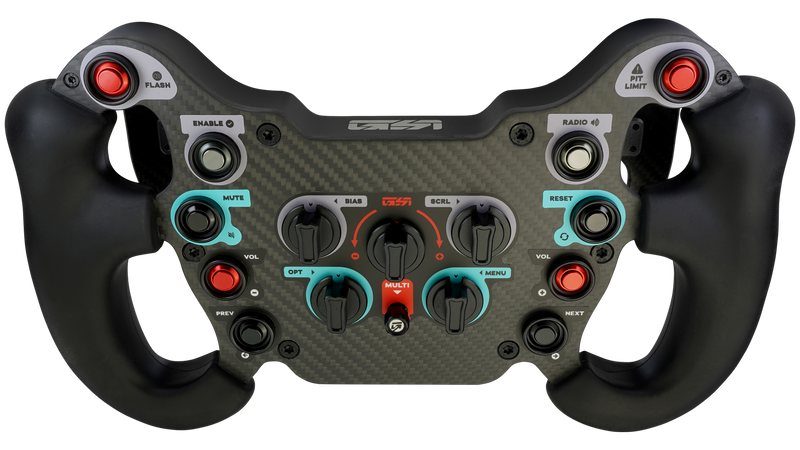

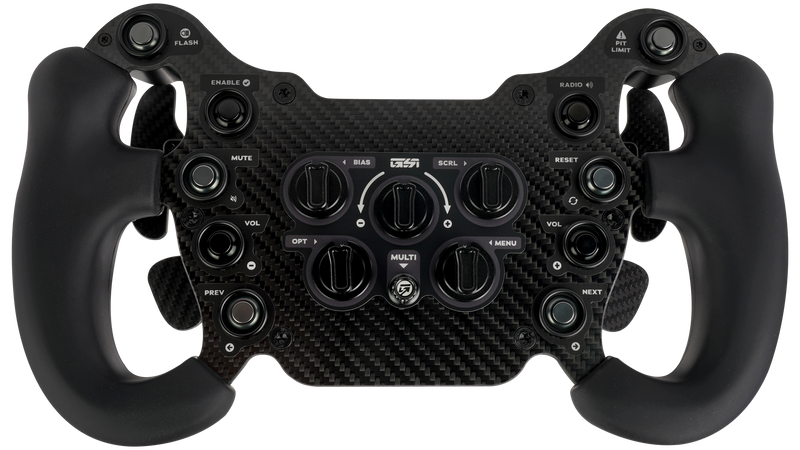

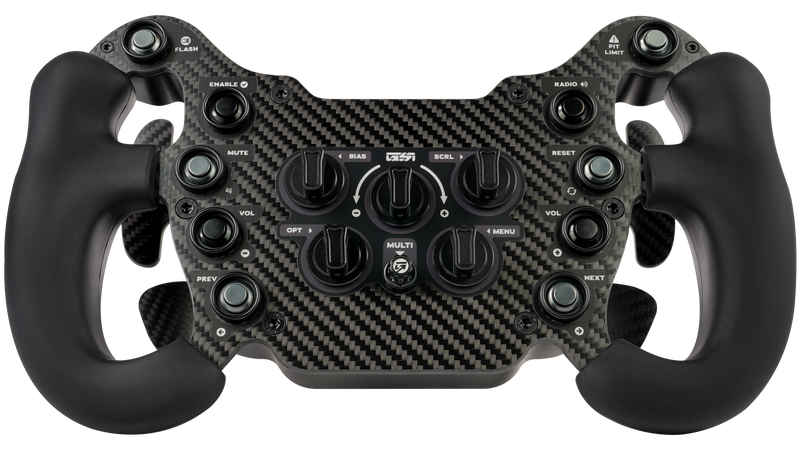

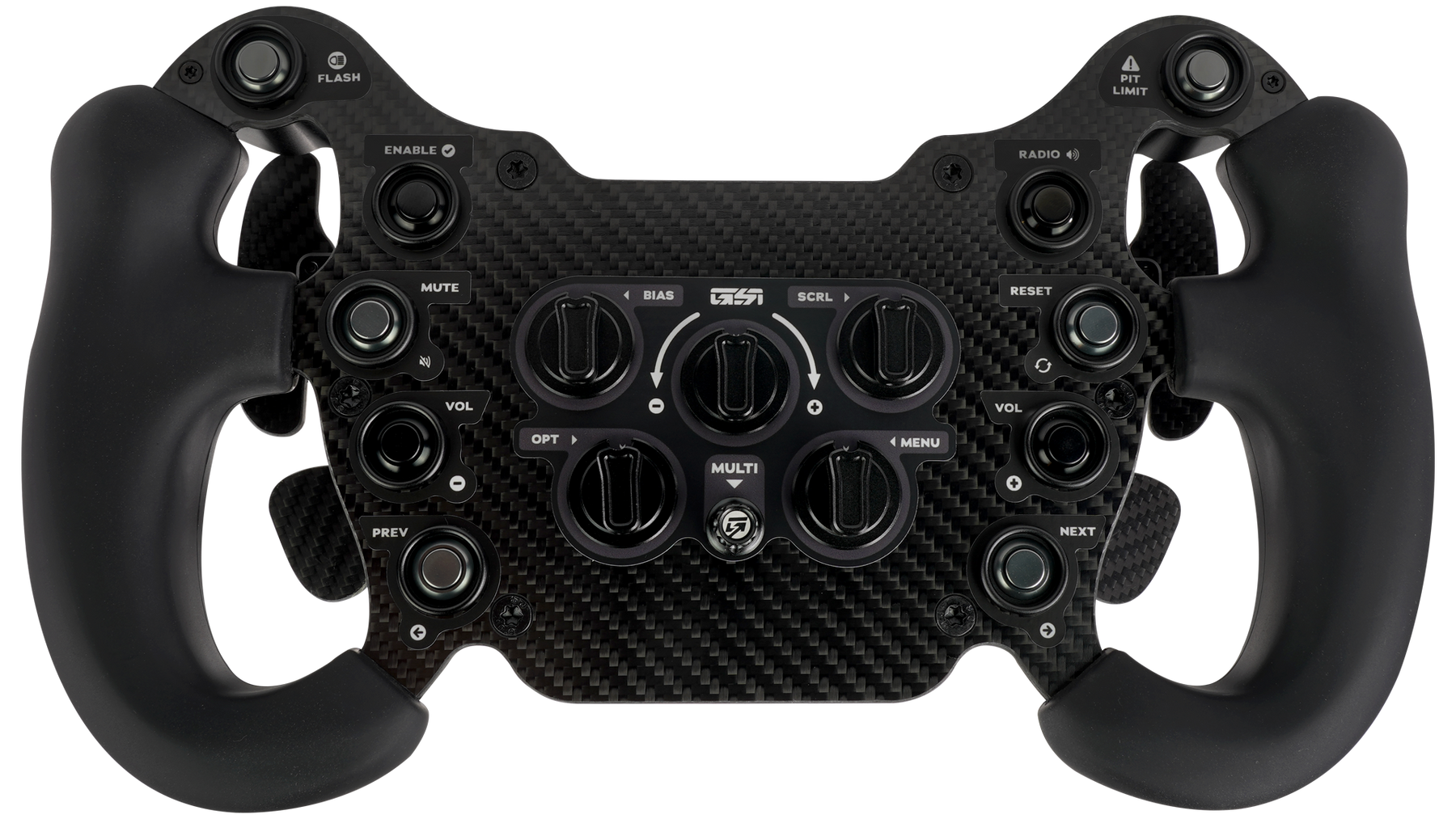

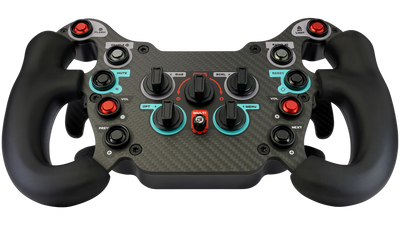

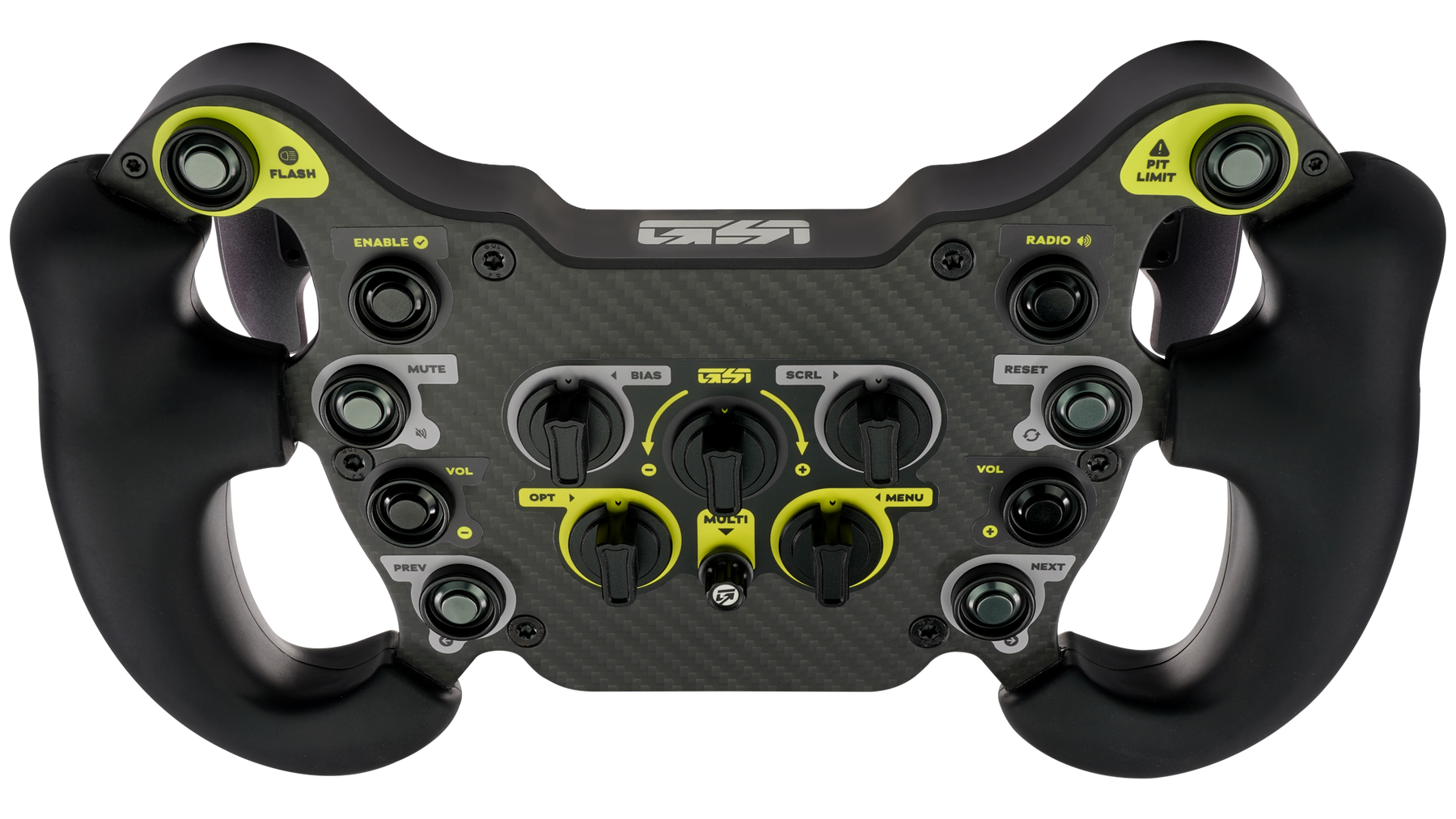

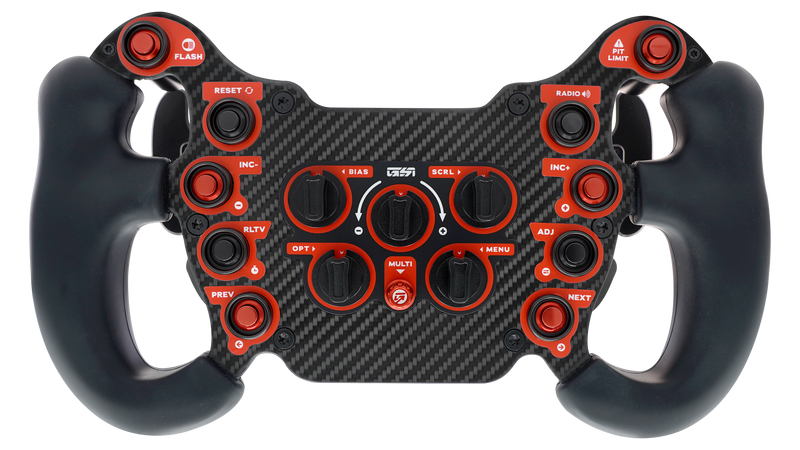

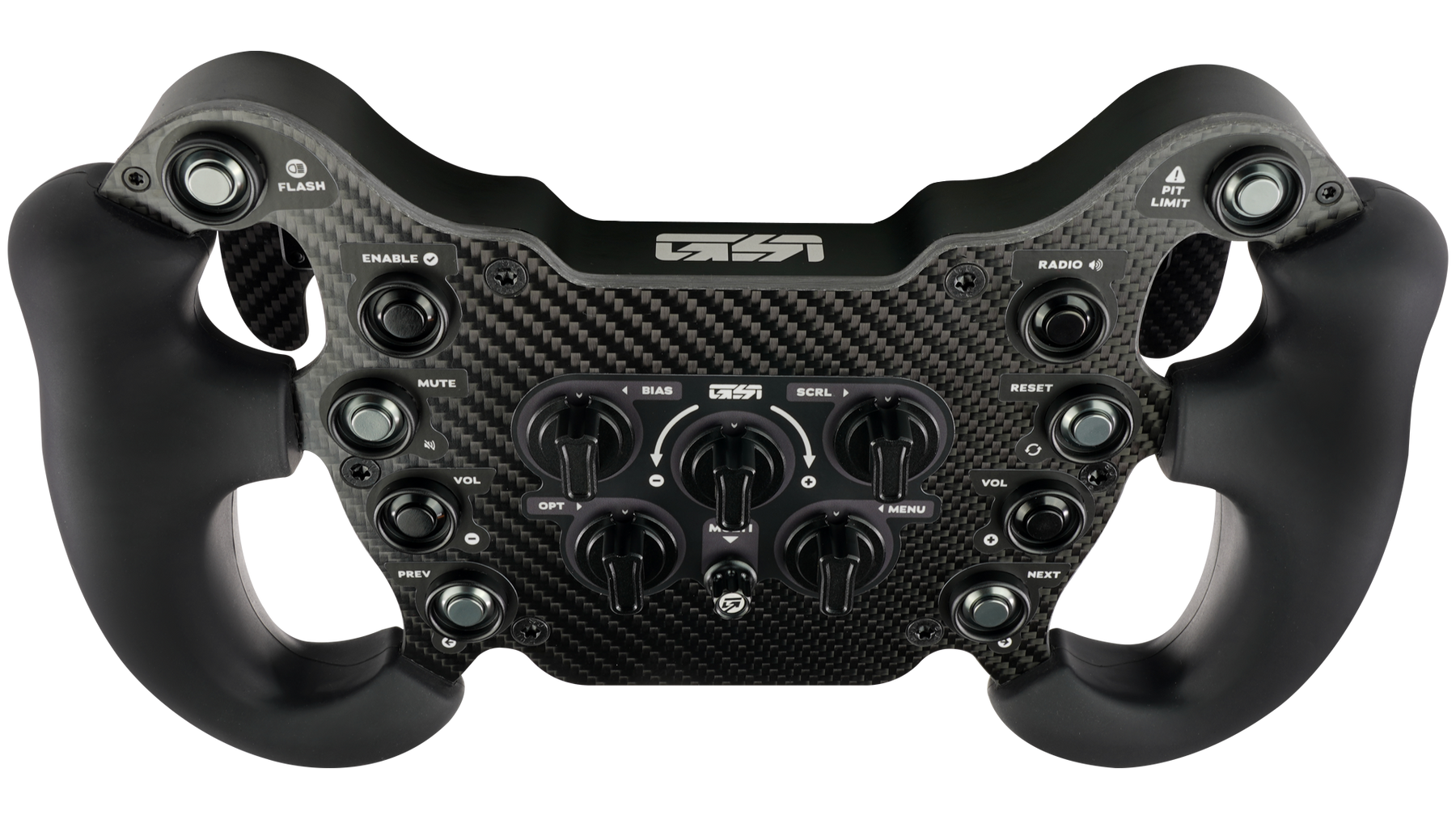

Front of the GSI GXL Pro with its 10 buttons and 5 rotary encoders

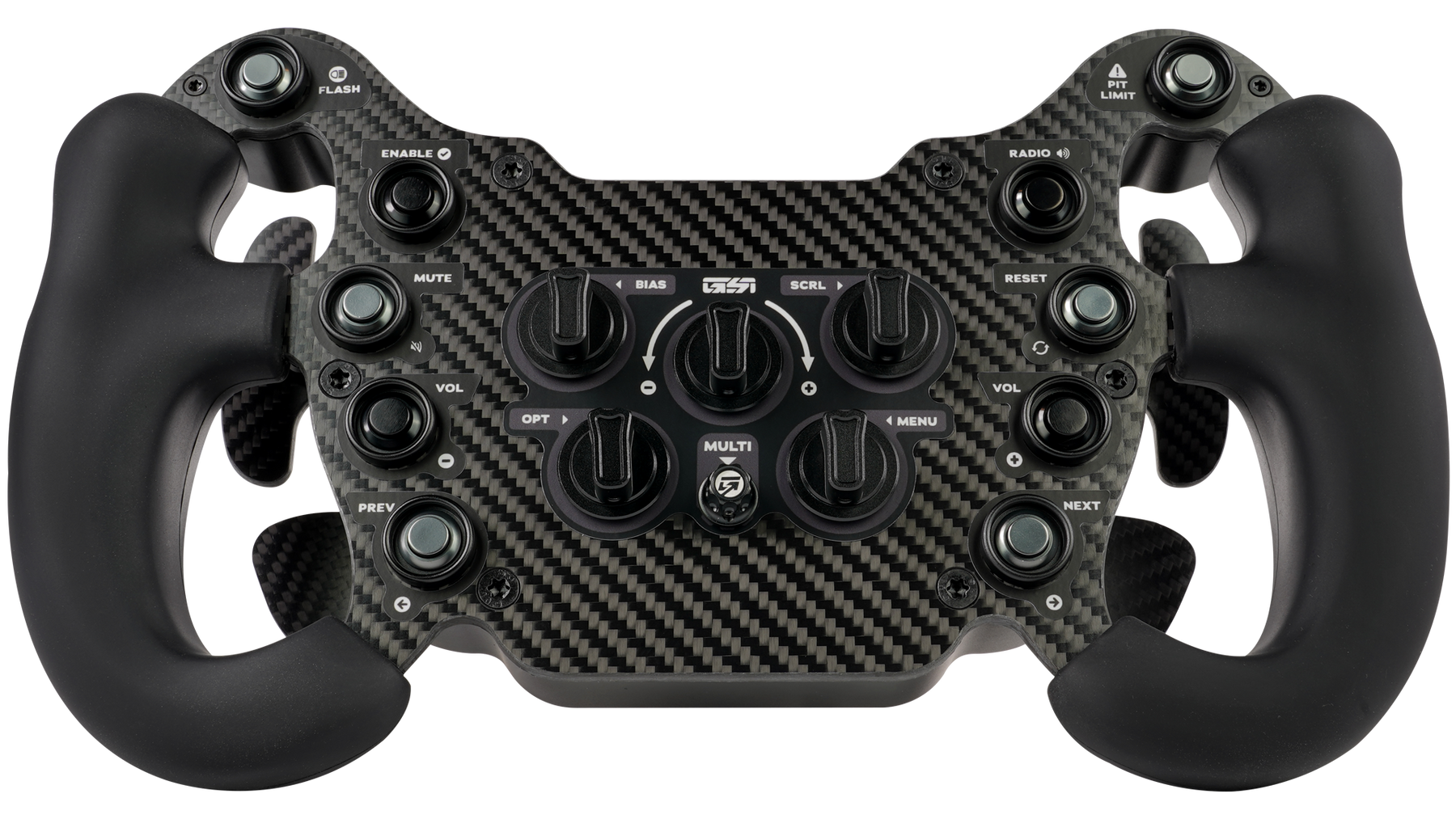

5 mm matte carbon fibre front plate of the GSI GXL Pro

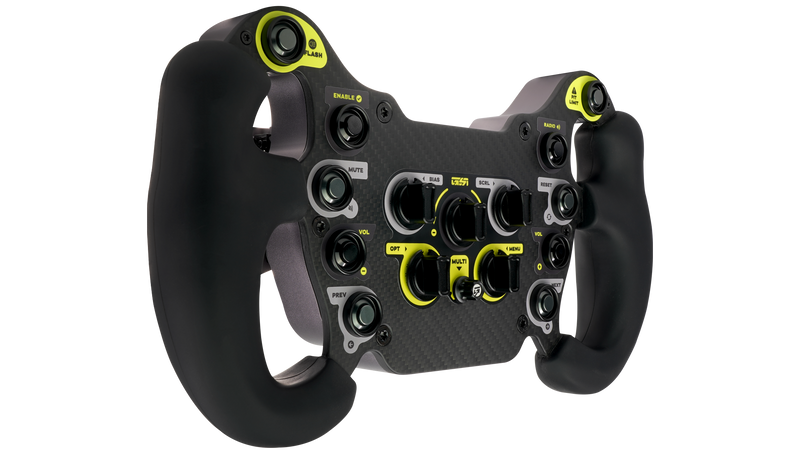

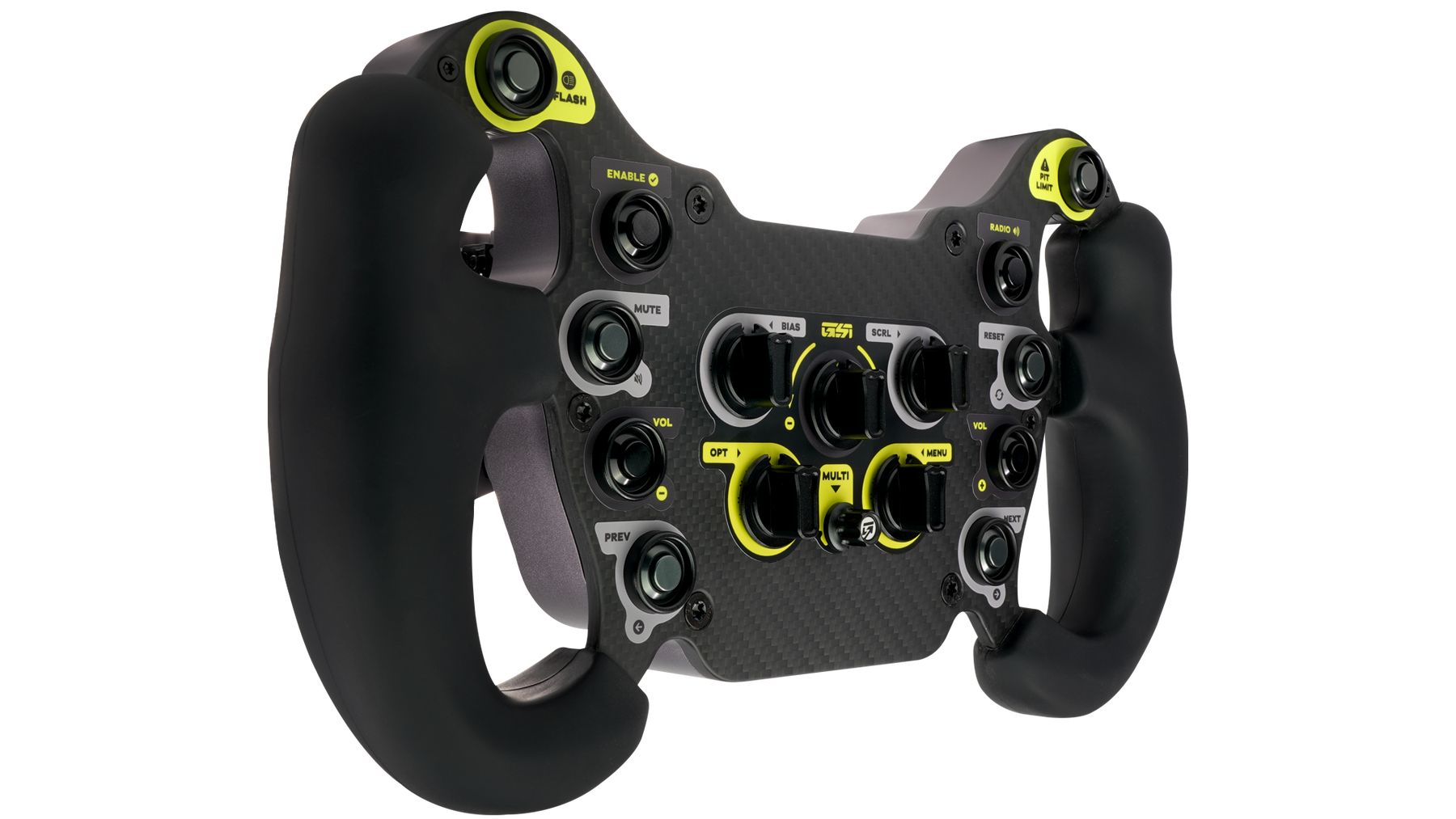

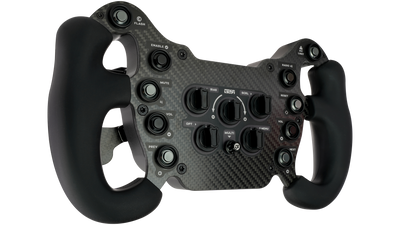

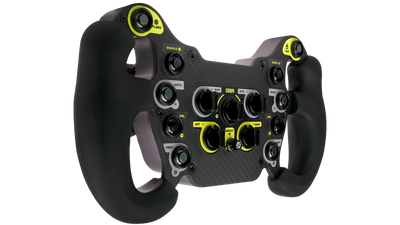

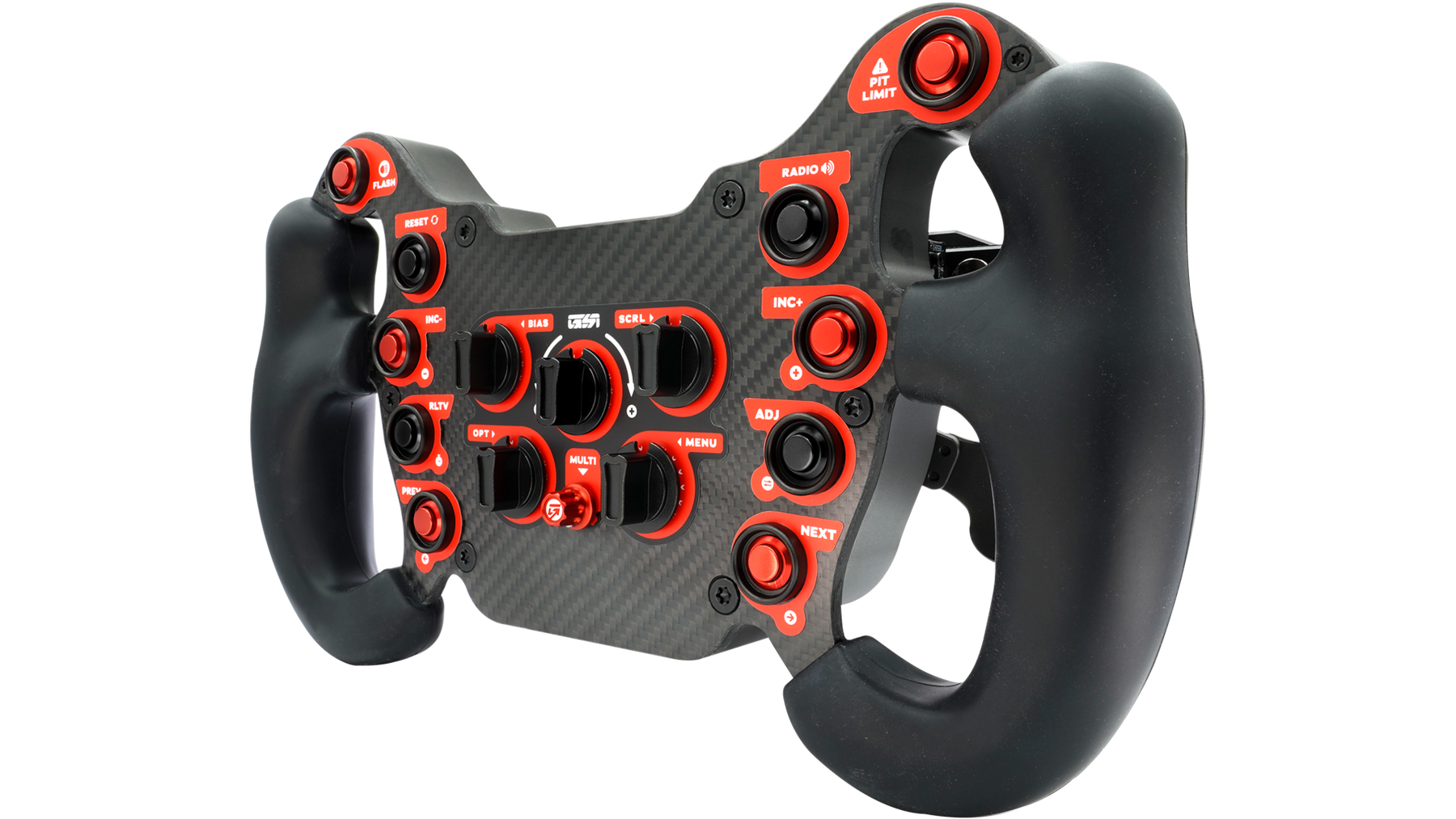

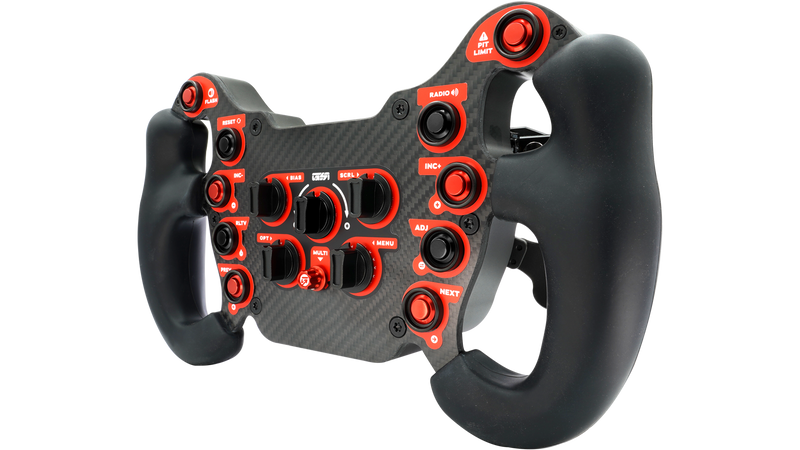

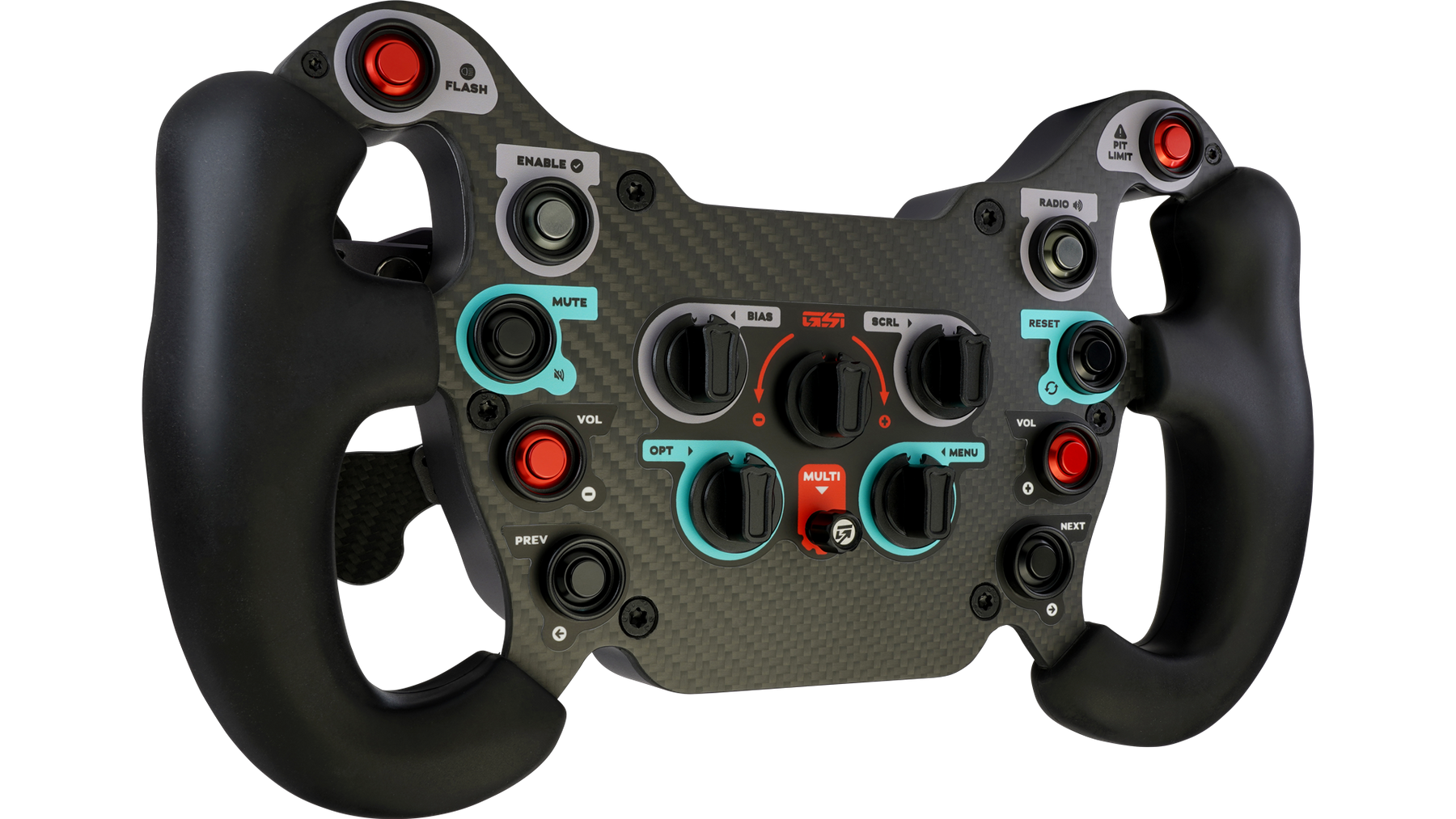

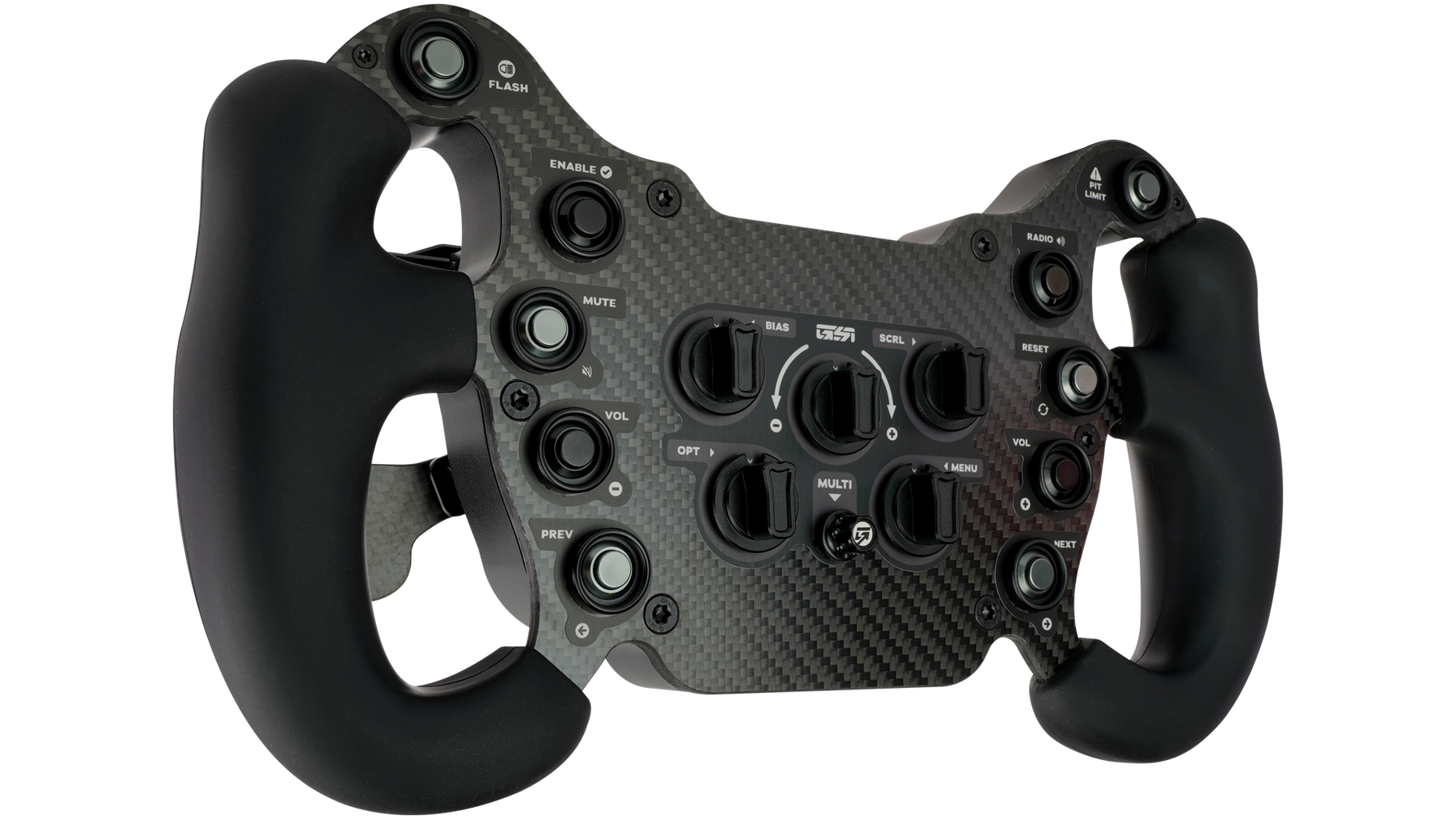

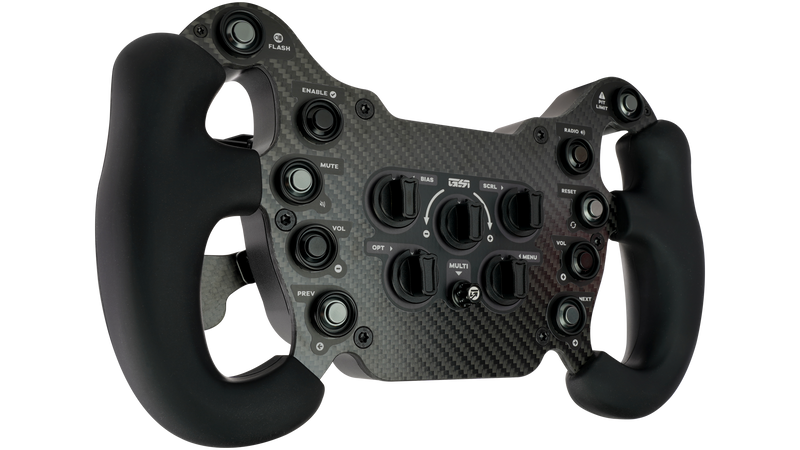

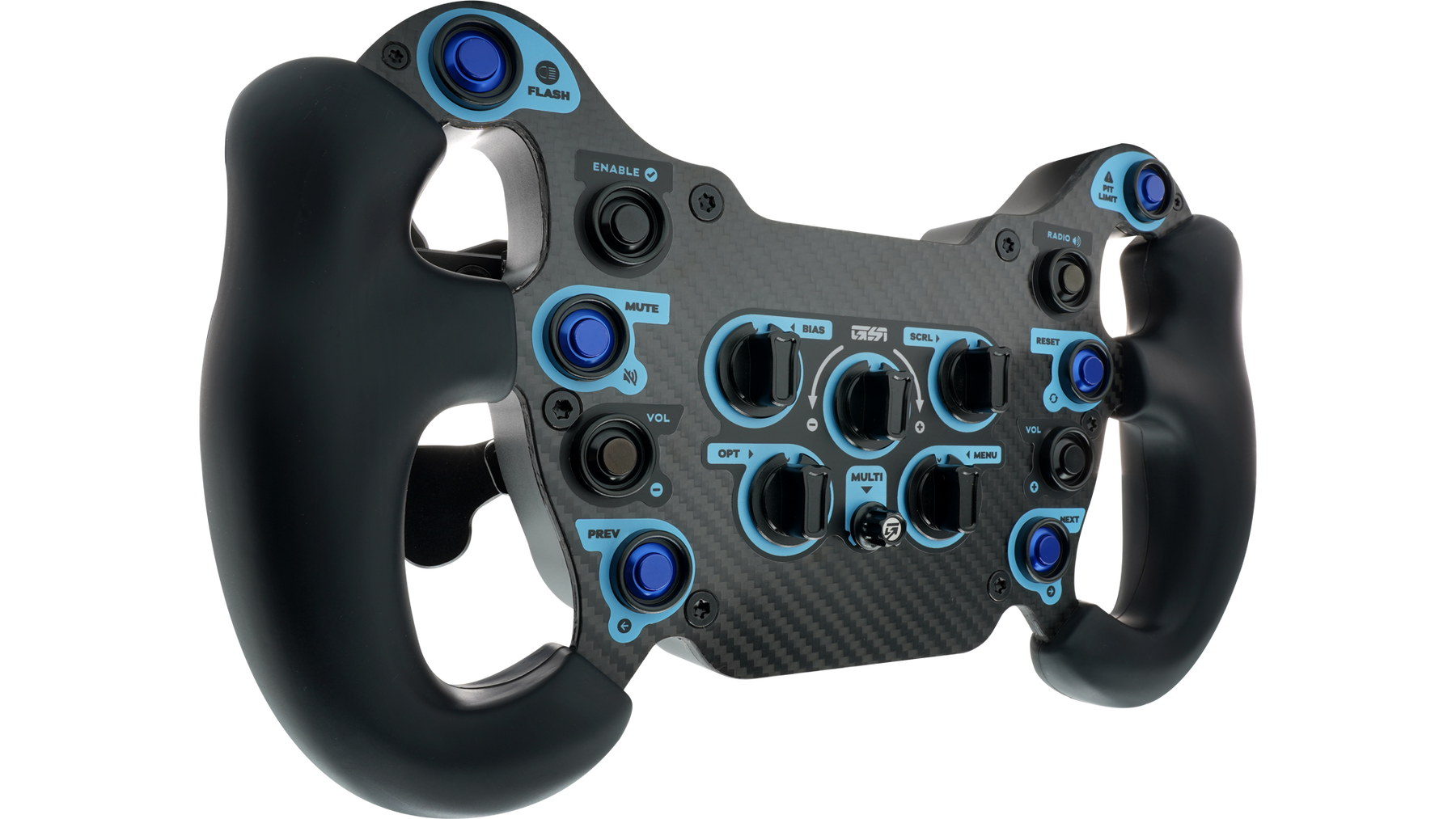

Angled view of the GSI GXL Pro wheel on its 6061 aluminium chassis

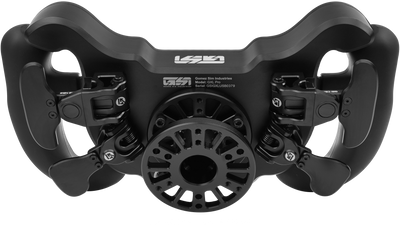

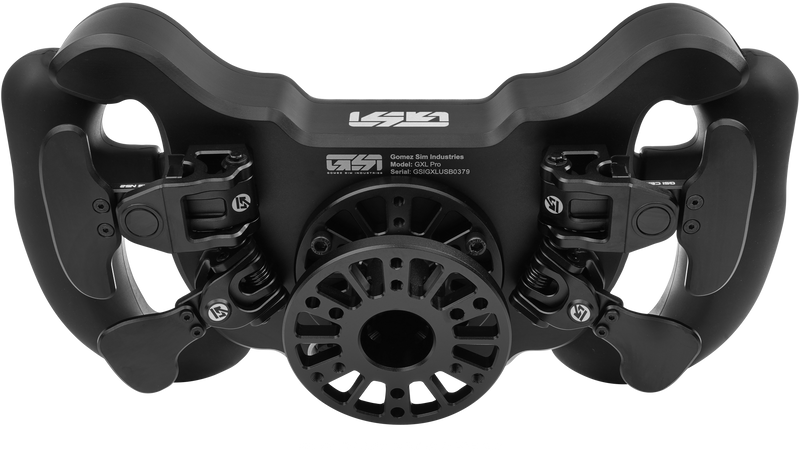

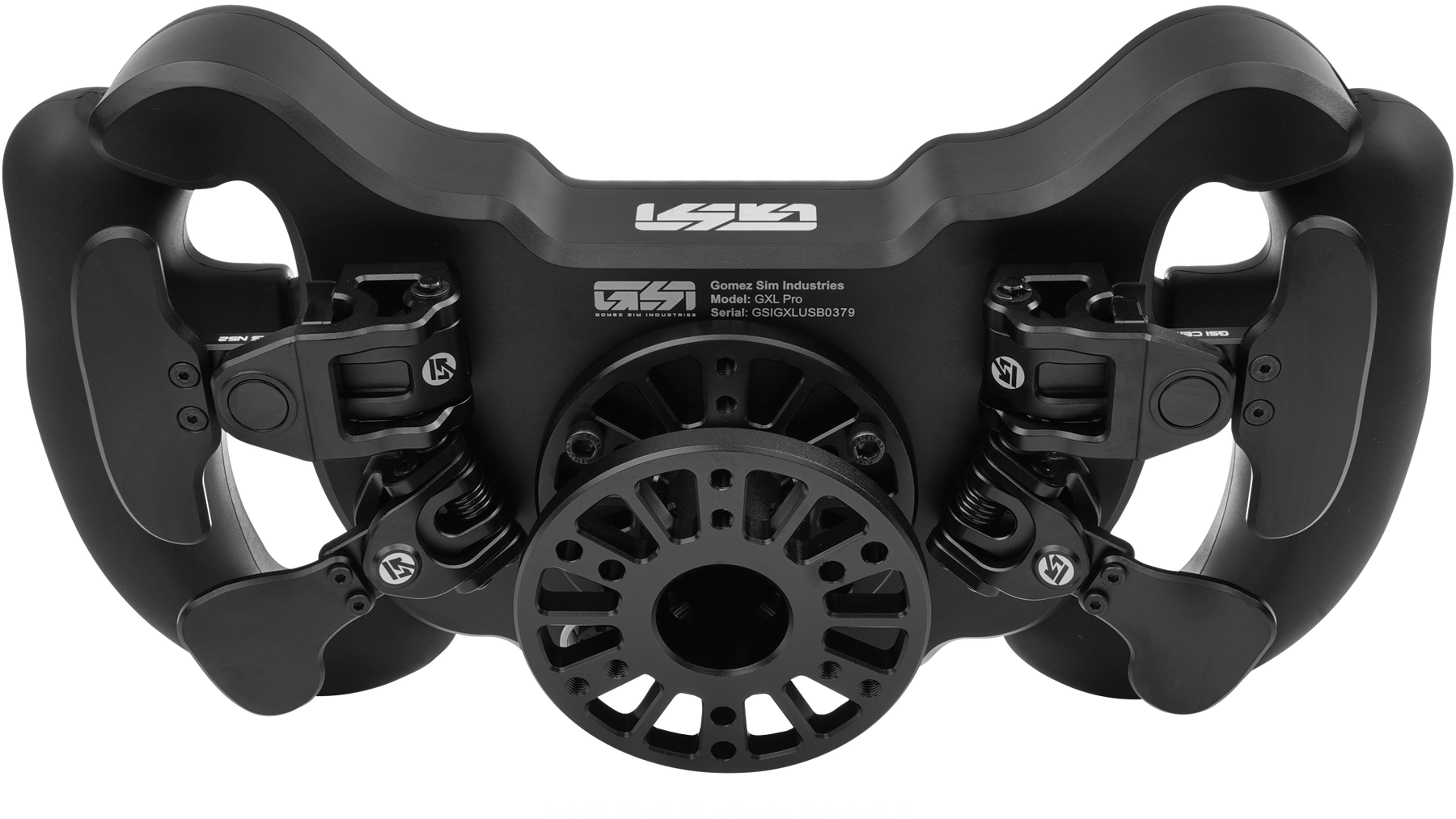

Rear of the GSI GXL Pro with its CEMS N52 V2 magnetic paddles

Direct-injection silicone handles of the GSI GXL Pro wheel

Close-up of the seven-way multi switches on the GSI GXL Pro

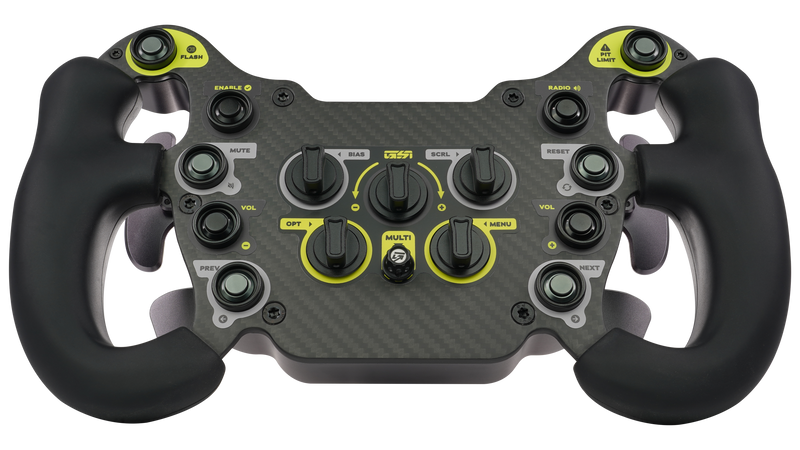

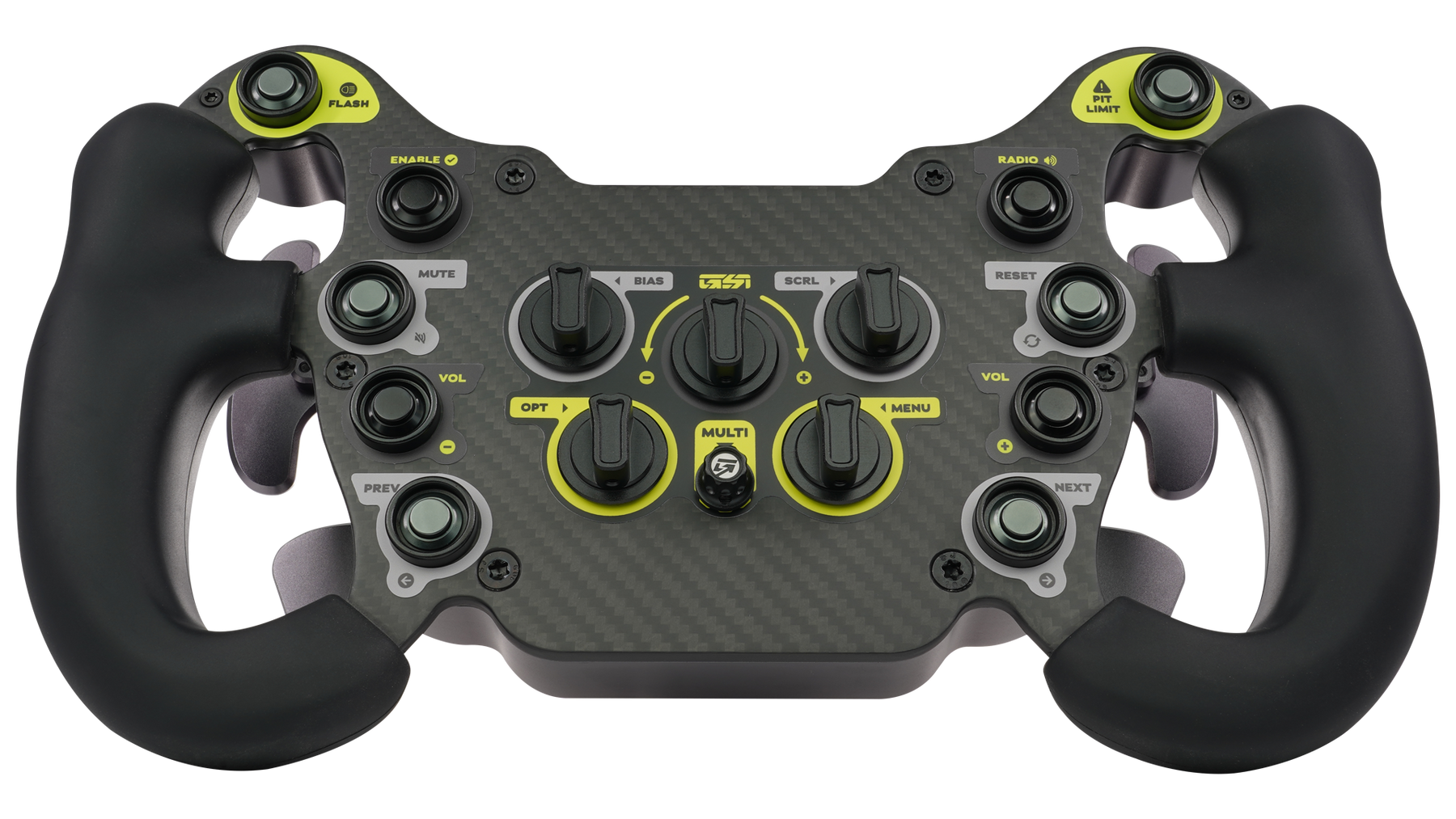

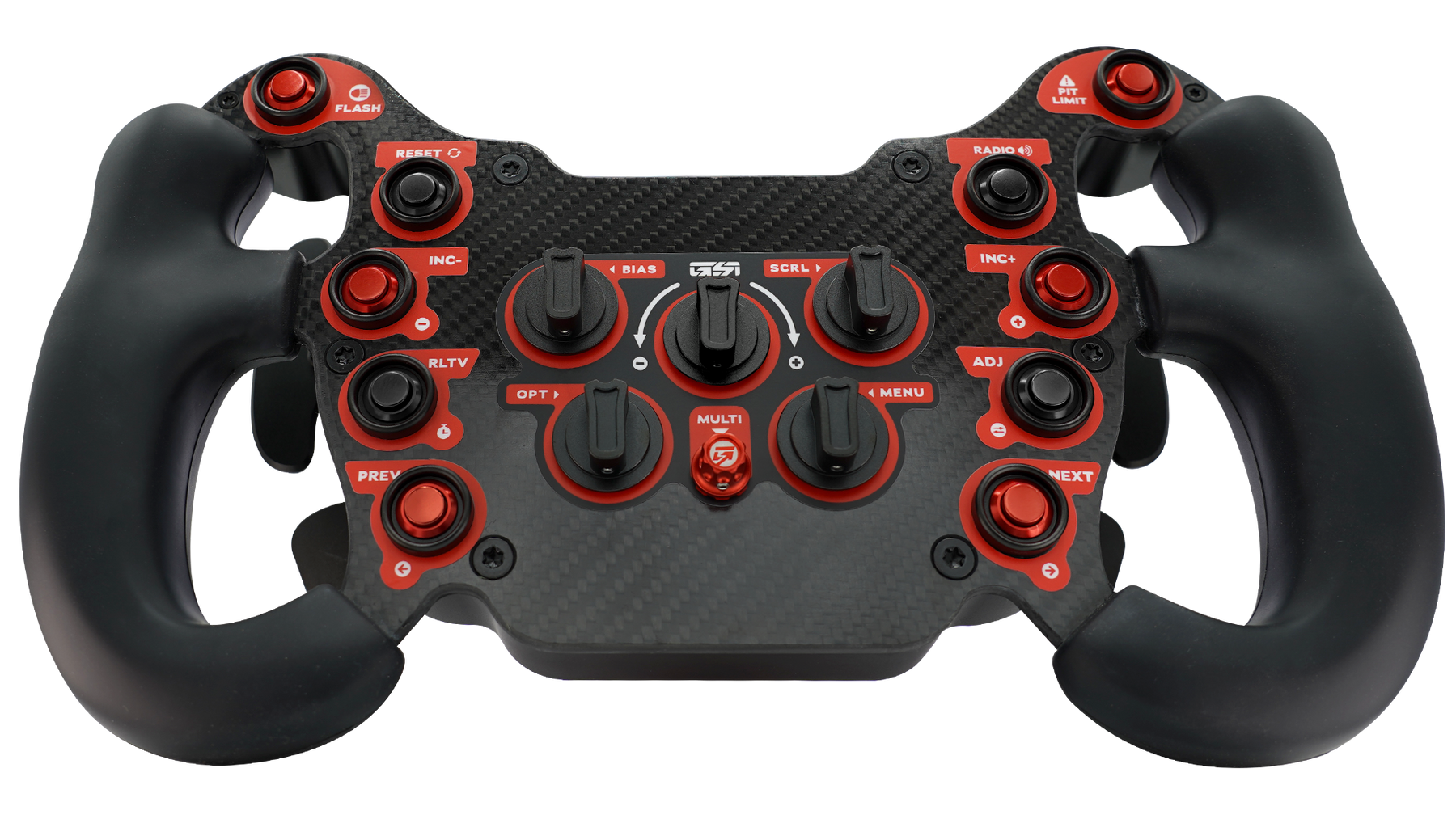

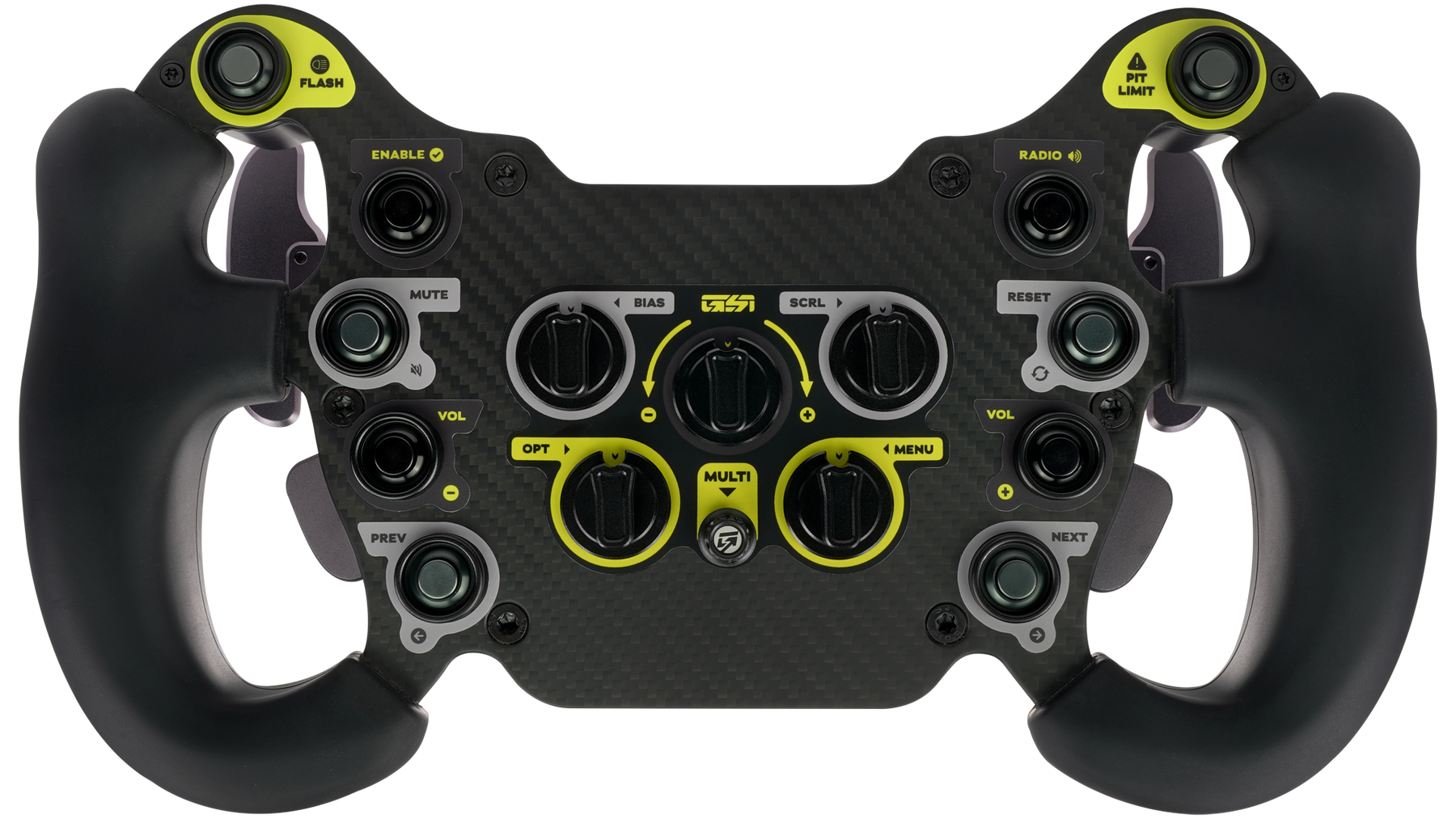

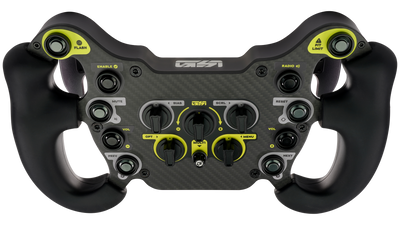

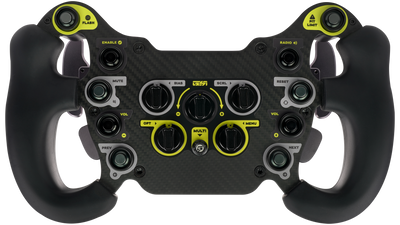

Alpha finish of the GSI GXL Pro sim racing wheel

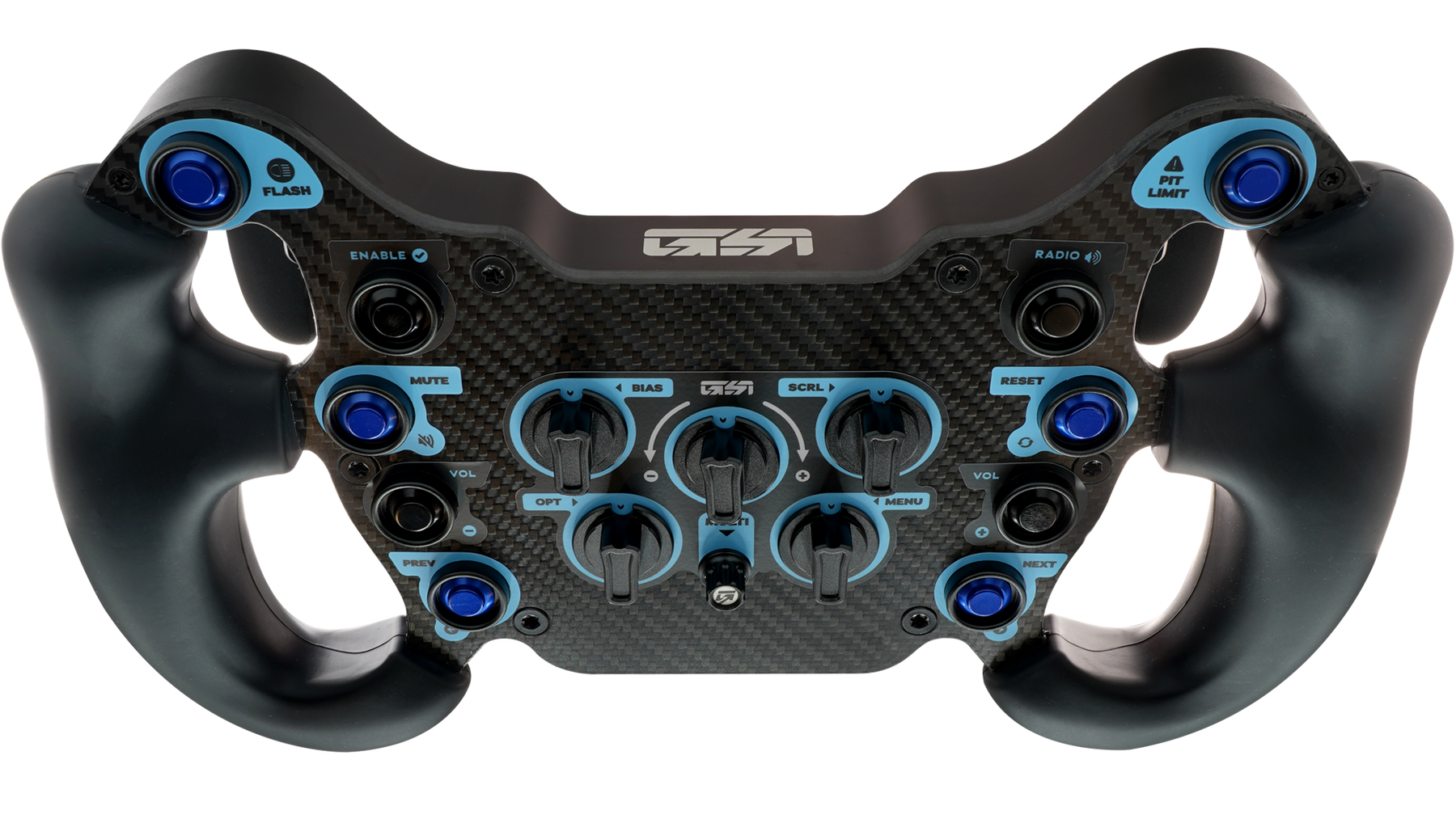

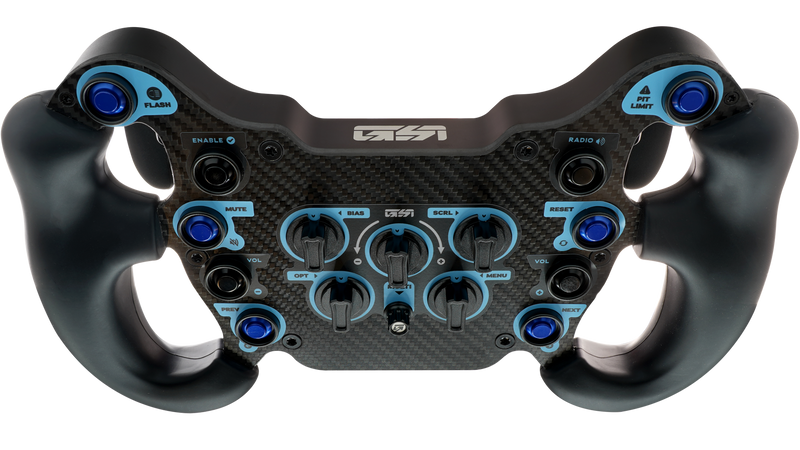

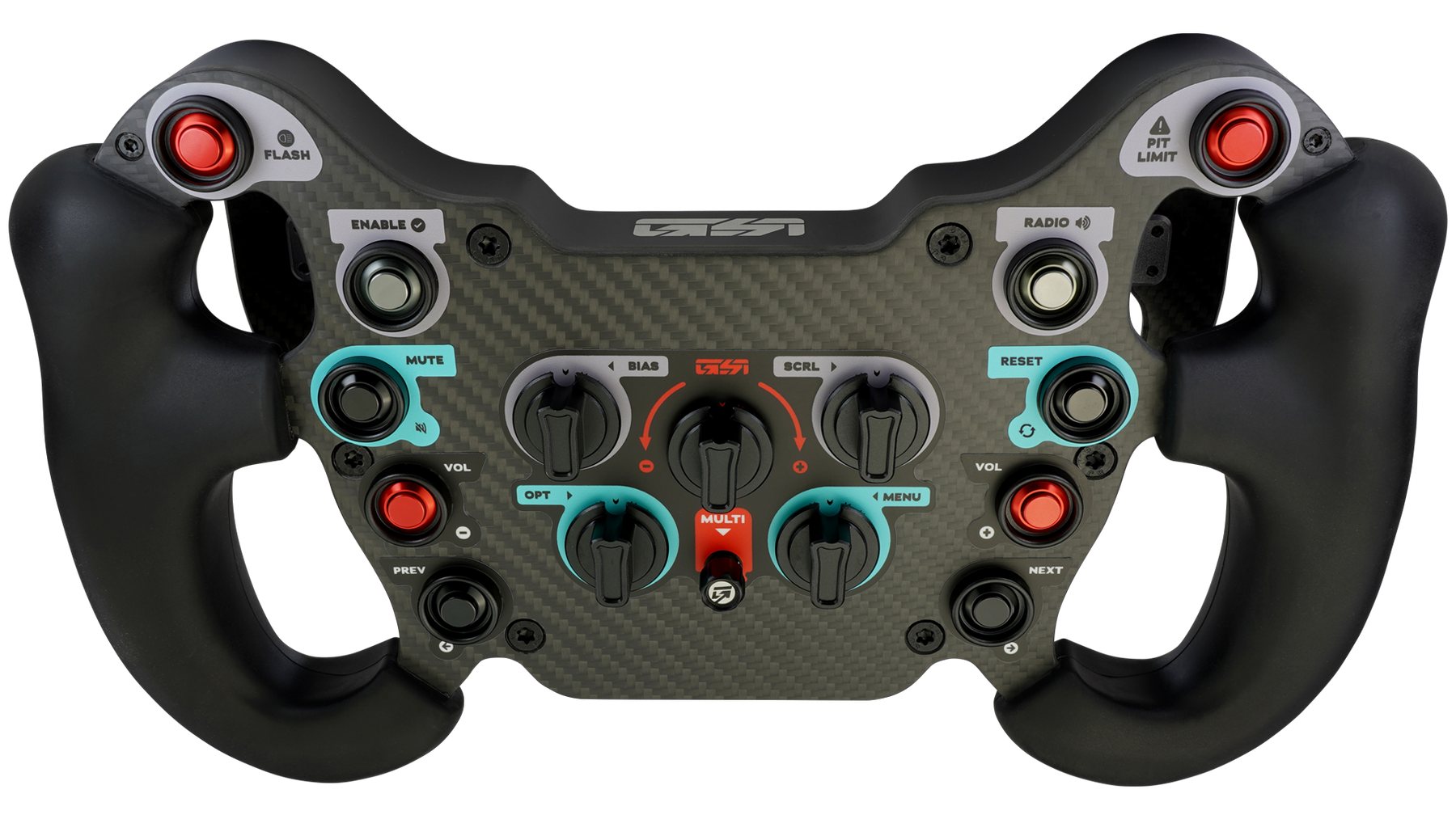

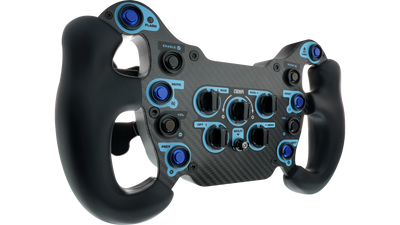

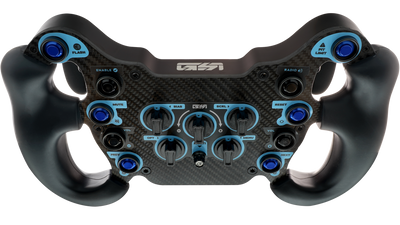

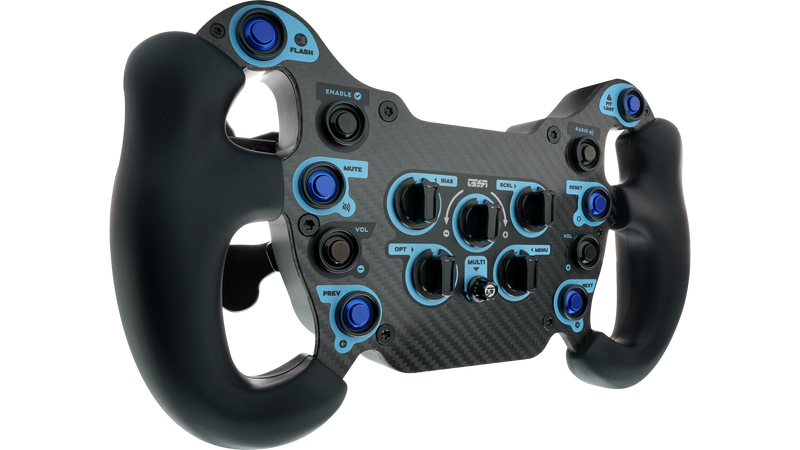

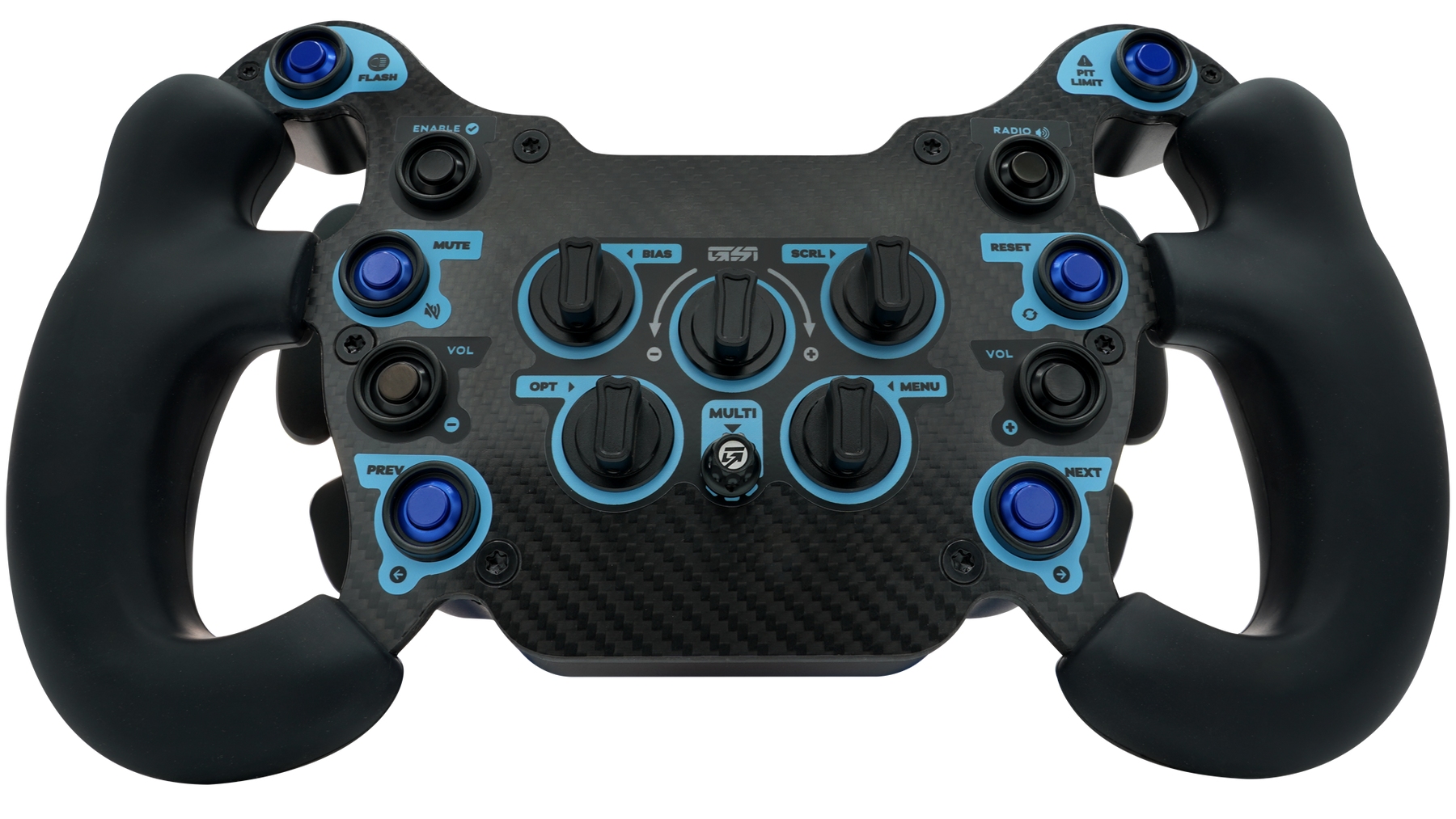

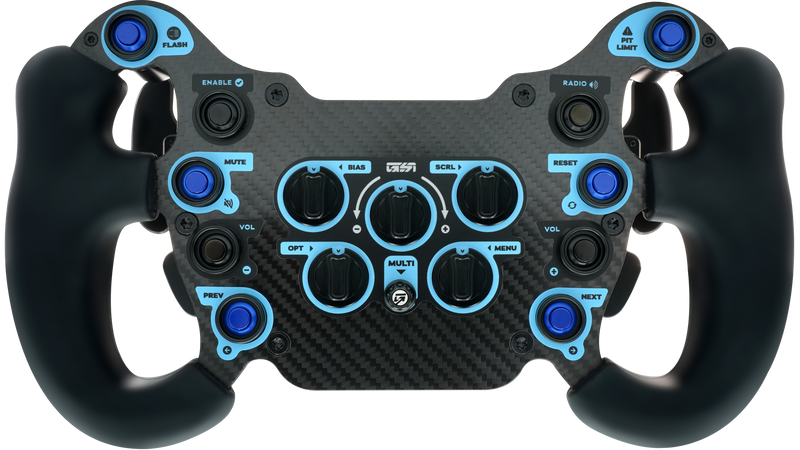

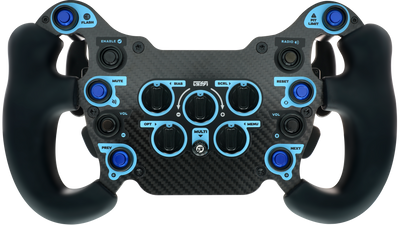

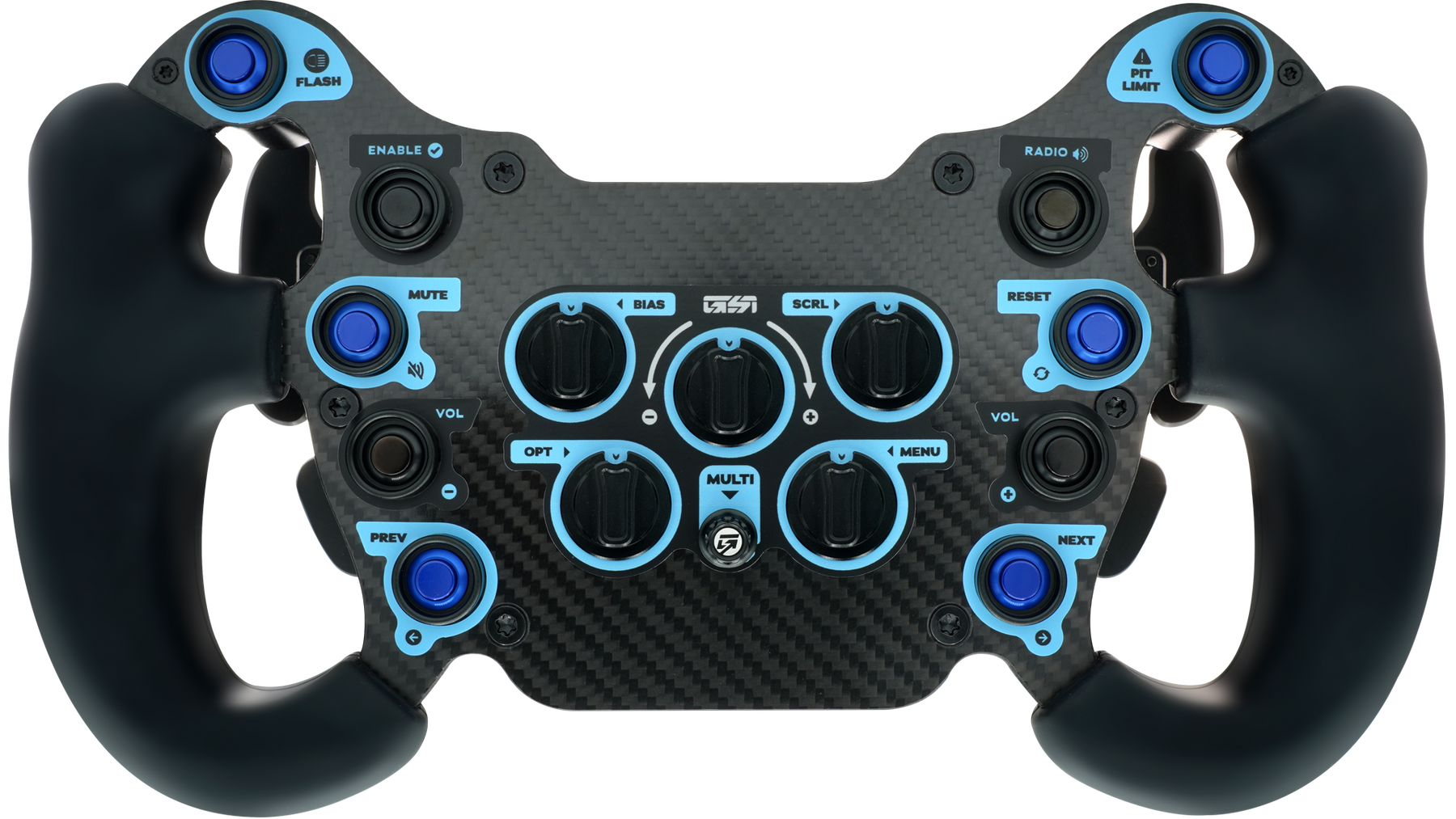

Sapphire finish of the GSI GXL Pro wheel

70 mm PCD bolt pattern on the rear of the GSI GXL Pro

Laser-etched function buttons on the GSI GXL Pro wheel

Close-up of a push-button rotary encoder on the GSI GXL Pro

GSI GXL Pro wheel fitted to a sim racing rig

USB connector of the Spec 3 coiled cable included with the GSI GXL Pro

Extra button label set supplied with the GSI GXL Pro

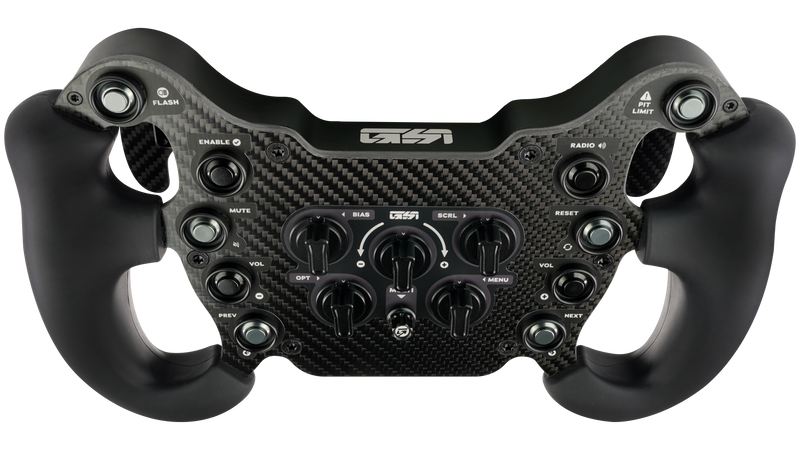

Overhead view of the 310 mm GSI GXL Pro sim racing wheel

Price - 38%

Tax included. Shipping calculated at checkout.

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":48199390626125,"title":"Alpha","option1":"Alpha","option2":null,"option3":null,"sku":"GSI-GXL-ALP","requires_shipping":true,"taxable":true,"featured_image":{"id":54943155749197,"product_id":8846452130125,"position":1,"created_at":"2024-02-13T18:16:48+01:00","updated_at":"2025-04-04T14:53:53+02:00","alt":"GSI GXL Pro 310 mm screenless sim racing wheel, front view in carbon fibre","width":1920,"height":1080,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_0.png?v=1743771233","variant_ids":[48199390626125]},"available":false,"name":"GSI GXL Pro 310 mm – Screenless Sim Racing Wheel - Alpha","public_title":"Alpha","options":["Alpha"],"price":59999,"weight":4500,"compare_at_price":96999,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"GSI GXL Pro 310 mm screenless sim racing wheel, front view in carbon fibre","id":47588378181965,"position":1,"preview_image":{"aspect_ratio":1.778,"height":1080,"width":1920,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_0.png?v=1743771233"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48199390658893,"title":"Crimson","option1":"Crimson","option2":null,"option3":null,"sku":"GSI-GXL-2","requires_shipping":true,"taxable":true,"featured_image":{"id":54943447286093,"product_id":8846452130125,"position":6,"created_at":"2024-02-13T18:31:48+01:00","updated_at":"2025-04-04T14:54:45+02:00","alt":"Direct-injection silicone handles of the GSI GXL Pro wheel","width":1920,"height":1080,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_5.png?v=1743771285","variant_ids":[48199390658893]},"available":false,"name":"GSI GXL Pro 310 mm – Screenless Sim Racing Wheel - Crimson","public_title":"Crimson","options":["Crimson"],"price":49999,"weight":4500,"compare_at_price":99999,"inventory_management":"shopify","barcode":"8437028844996","featured_media":{"alt":"Direct-injection silicone handles of the GSI GXL Pro wheel","id":47588671193421,"position":6,"preview_image":{"aspect_ratio":1.778,"height":1080,"width":1920,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_5.png?v=1743771285"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48199390691661,"title":"Omega","option1":"Omega","option2":null,"option3":null,"sku":"GSI-GXL-3","requires_shipping":true,"taxable":true,"featured_image":{"id":54943452430669,"product_id":8846452130125,"position":10,"created_at":"2024-02-13T18:32:08+01:00","updated_at":"2025-04-04T14:55:36+02:00","alt":"Omega finish of the GSI GXL Pro wheel","width":1920,"height":1080,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_9.png?v=1743771336","variant_ids":[48199390691661]},"available":false,"name":"GSI GXL Pro 310 mm – Screenless Sim Racing Wheel - Omega","public_title":"Omega","options":["Omega"],"price":59999,"weight":4500,"compare_at_price":96999,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Omega finish of the GSI GXL Pro wheel","id":47588676075853,"position":10,"preview_image":{"aspect_ratio":1.778,"height":1080,"width":1920,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_9.png?v=1743771336"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48199390724429,"title":"Onyx","option1":"Onyx","option2":null,"option3":null,"sku":"GSI-GXL-4","requires_shipping":true,"taxable":true,"featured_image":{"id":54943462883661,"product_id":8846452130125,"position":14,"created_at":"2024-02-13T18:32:47+01:00","updated_at":"2025-04-04T14:56:24+02:00","alt":"70 mm PCD bolt pattern on the rear of the GSI GXL Pro","width":1920,"height":1080,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_13.png?v=1743771384","variant_ids":[48199390724429]},"available":false,"name":"GSI GXL Pro 310 mm – Screenless Sim Racing Wheel - Onyx","public_title":"Onyx","options":["Onyx"],"price":59999,"weight":4500,"compare_at_price":96999,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"70 mm PCD bolt pattern on the rear of the GSI GXL Pro","id":47588686365005,"position":14,"preview_image":{"aspect_ratio":1.778,"height":1080,"width":1920,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_13.png?v=1743771384"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48199390757197,"title":"Sapphire","option1":"Sapphire","option2":null,"option3":null,"sku":"GSI-GXL-5","requires_shipping":true,"taxable":true,"featured_image":{"id":54943463997773,"product_id":8846452130125,"position":18,"created_at":"2024-02-13T18:32:56+01:00","updated_at":"2025-04-04T14:57:10+02:00","alt":"USB connector of the Spec 3 coiled cable included with the GSI GXL Pro","width":1920,"height":1080,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_17.png?v=1743771430","variant_ids":[48199390757197]},"available":false,"name":"GSI GXL Pro 310 mm – Screenless Sim Racing Wheel - Sapphire","public_title":"Sapphire","options":["Sapphire"],"price":49999,"weight":4500,"compare_at_price":99999,"inventory_management":"shopify","barcode":"8437028844989","featured_media":{"alt":"USB connector of the Spec 3 coiled cable included with the GSI GXL Pro","id":47588687413581,"position":18,"preview_image":{"aspect_ratio":1.778,"height":1080,"width":1920,"src":"\/\/simufy.com\/cdn\/shop\/files\/Volante-GXL-Pro-GSI-simufy_17.png?v=1743771430"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The GSI GXL Pro is a 310 mm screenless sim racing steering wheel with a 5 mm matte carbon fibre front plate and a machined 6061 aluminium chassis, built for drivers who prefer to read telemetry on an external dash and keep the wheel face clear.

It began life as the slimmed-down version of the Formula Pro Elite: it keeps the construction and most of the controls of the screened model, but in a thinner silhouette and without the display electronics. With no LCD, the entire front face is given over to buttons, encoders and switches, and the whole thing weighs and costs less than an equivalent wheel with a screen.

Key features of the GSI GXL Pro

Screenless design: a clear front face, with no display electronics to manage or update.
10 mechanical push buttons with etched functions and an extra label set included so you can reassign them.
5 push-button rotary encoders and 2 seven-way multi switches for brake bias, TC and menus on the move.
5 mm matte carbon fibre front plate over a machined 6061 aluminium chassis: an assembly with no flex.
GSI “CEMS N52” V2 magnetic paddle shifters in the 2-paddle configuration we stock, with direct-injection silicone handles.
310 mm diameter and a 70 mm PCD bolt pattern, the standard on high-end direct drive wheelbases.

Technical specifications

Specification	Value
Diameter	310 mm
Display	None
Buttons	10 mechanical push buttons
Encoders	5 rotary with push function
Multi switches	2 seven-way
Paddles	GSI “CEMS N52” V2 magnetic · 2 aluminium paddles
Front plate	5 mm matte carbon fibre
Chassis	Machined 6061 aluminium
Handles	Direct-injection silicone
Bolt pattern	70 mm PCD (6 × M5)
Connection	USB via the GSI “Spec 3” coiled cable

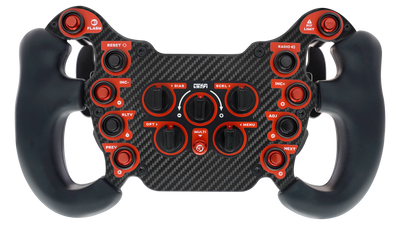

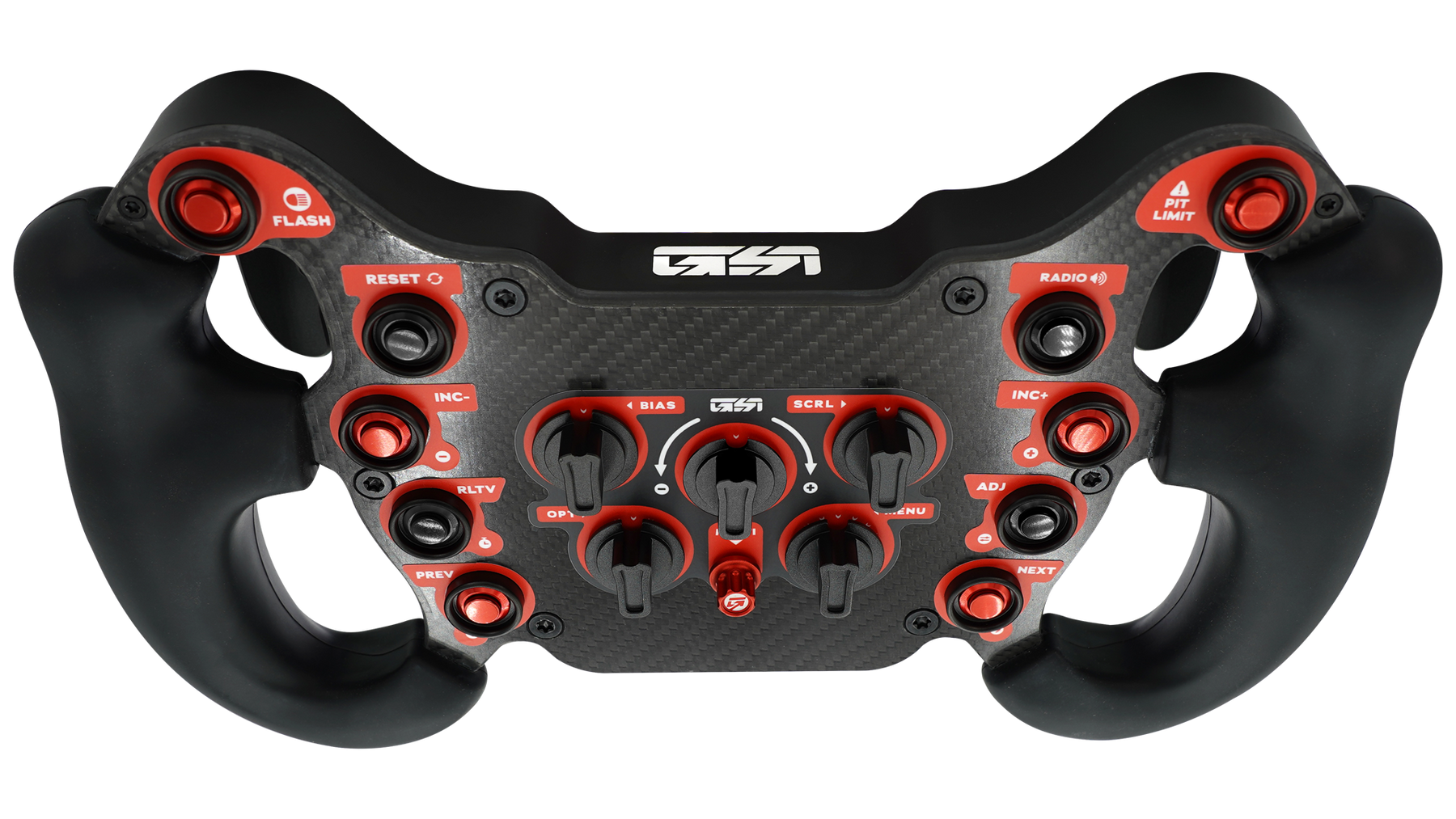

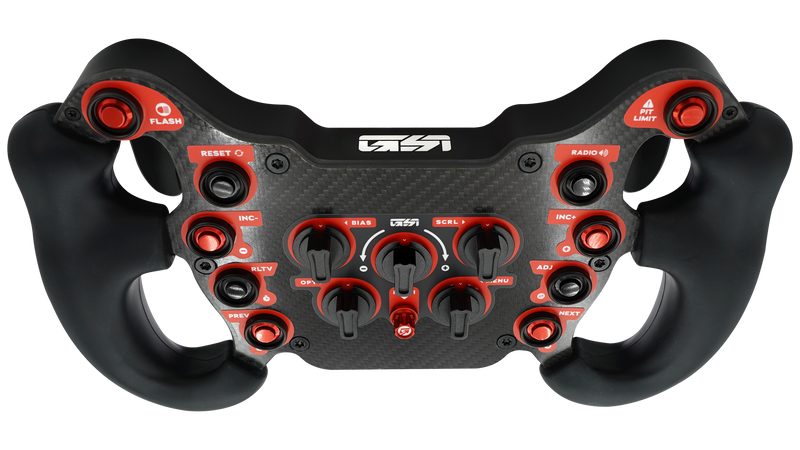

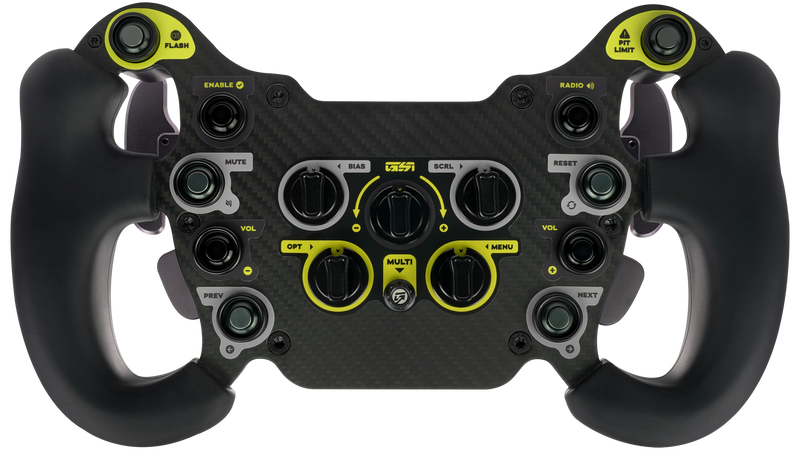

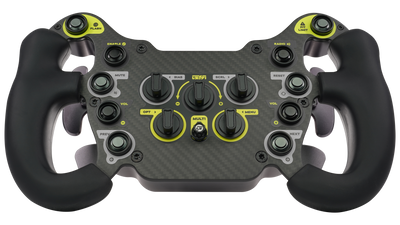

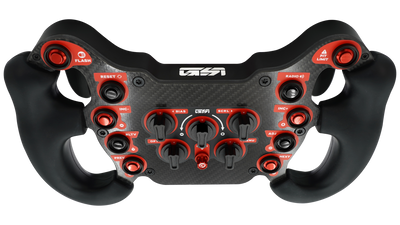

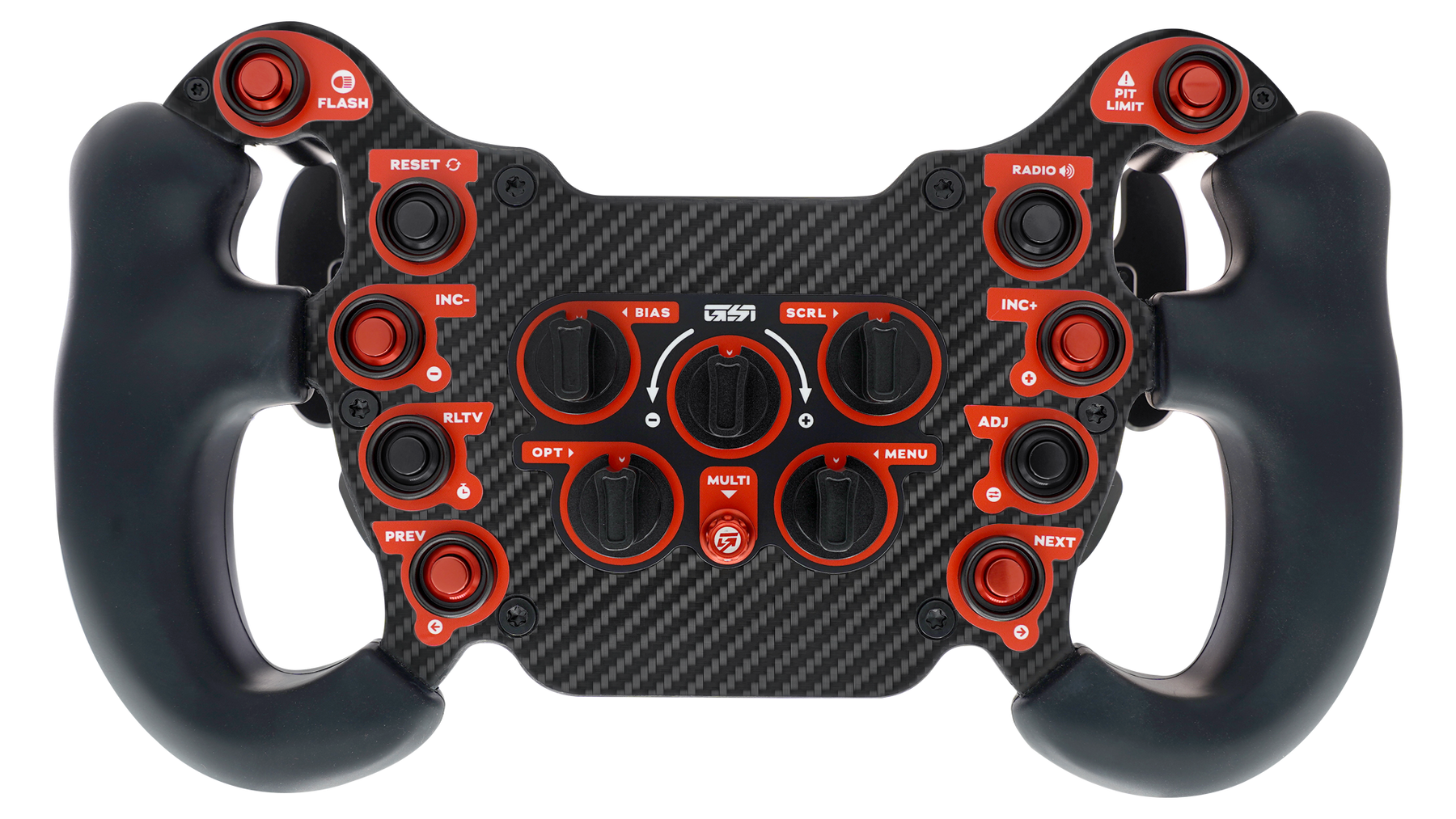

Finishes	Alpha, Crimson, Omega, Onyx and Sapphire
Manufacturer warranty	12 months

What’s in the box

GSI GXL Pro steering wheel
GSI “Spec 3” coiled USB cable
Extra button label set

The AH50 extension hub is sold separately.

Compatibility

It runs over USB on PC (Windows) and mounts on direct drive wheelbases with a 70 mm PCD, either directly or through the matching quick release or hub. In our own fitting experience it installs on MOZA R5, R9, R12, R16 and R21; Asetek Forte and Invicta; Simucube 2 Sport, Pro and Ultimate; Simagic Alpha Mini, Alpha and Alpha Ultimate; VRS Direct Force Pro; Cammus DDWB15; Qubic System QS-DD-20; Accuforce via its quick release, and Fanatec bases through the Podium Hub.

Not compatible with consoles: it is a USB peripheral for PC.
Connect it to a powered USB hub or an active USB repeater; passive USB extension cables cause problems.
As there is no screen, telemetry is read on an external dash or on your monitor.

Frequently asked questions

How does the GXL Pro differ from the Formula Pro Elite?

In the screen. The Formula Pro Elite carries a 4.3-inch touchscreen LCD in the centre of the front plate; the GXL Pro drops it and uses that space to keep the wheel thinner and clearer. They share the 5 mm carbon plate, the 6061 aluminium chassis, the silicone handles and the N52 magnetic paddles.

How many paddles does the version you sell have?

Two aluminium shift paddles, with no dual clutch. It is the entry configuration of the model: if you need to manage the bite point on standing starts, the logical route is a GXL V2 or a Formula Pro Elite V2 with four paddles.

Does it work with PlayStation or Xbox?

No. It is a USB wheel for Windows PC. There is no firmware or console licence that enables it on PlayStation or Xbox.

Do I need anything else to fit it?

Your wheelbase or quick release needs a 70 mm PCD bolt pattern. The “Spec 3” coiled cable and the label set are included; the AH50 extension hub is not.

Without a screen, do I lose information during a race?

No, it changes where you look. Telemetry is shown on an external dash or in a corner of your monitor through the usual dash applications. Many drivers prefer it: your eyes never drop to the wheel and the assembly weighs less.

Do the five finishes change anything beyond the colour?

No. Alpha, Crimson, Omega, Onyx and Sapphire share electronics, materials and functions; what changes is the printing and the colour scheme of the front plate.
