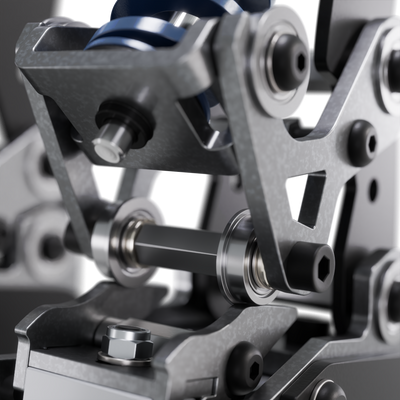

Sealed stainless steel ball bearings at the VX-PRO pivot points

Narrow base of the VX-PRO pedal set for adjusting pedal-to-pedal spacing

Large height adjustable VX-PRO pedal faces

8.5 degree angle adjustment on the Simgrade VX-PRO pedals

Interchangeable ISO 10243 compatible springs for the VX-PRO

Spring preload and lock nuts on the VX-PRO throttle

Control box of the Simgrade VX-PRO pedal set with USB-C connection

1.8 m USB-A to USB-C cable included with the VX-PRO pedal set

M6 bolts and T-nuts included with the VX-PRO pedals

Mounting pattern drawing for the Simgrade VX-PRO pedal set

Dimensions and measurements of the VX-PRO pedals

Simgrade calibration software with non-linear response curves

Dead zones and saved profiles in the VX-PRO software

Optional VX-PRO throttle side support for stabilising the foot

Rear view of the VX-PRO pedal set showing the mounting fixings

Close-up of the black anodised finish on the VX-PRO pedals

Two-pedal VX-PRO set with throttle and brake

VX-PRO pedal set in use during a sim racing session

Comparison of the VX-PRO brake stiffness positions

Optional accessories compatible with the Simgrade VX-PRO pedal set

Simgrade VX-PRO – 200 kg Load Cell Pedal Set

Price - 2%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

[{"id":43616133218562,"title":"Throttle and Brake","option1":"Throttle and Brake","option2":null,"option3":null,"sku":"SGD-VXPRO-2","requires_shipping":true,"taxable":true,"featured_image":{"id":38989784514818,"product_id":7973335662850,"position":1,"created_at":"2023-03-12T20:42:29+01:00","updated_at":"2025-04-07T14:27:57+02:00","alt":"Simgrade VX-PRO load cell pedal set with throttle, 200 kg brake and clutch","width":2048,"height":2048,"src":"\/\/simufy.com\/cdn\/shop\/products\/Pedales-VX-PRO-Simgrade-simufy_0.png?v=1744028877","variant_ids":[43616133218562,43616133251330]},"available":true,"name":"Simgrade VX-PRO – 200 kg Load Cell Pedal Set - Throttle and Brake","public_title":"Throttle and Brake","options":["Throttle and Brake"],"price":47999,"weight":2930,"compare_at_price":48999,"inventory_management":"shopify","barcode":"6429810920065","featured_media":{"alt":"Simgrade VX-PRO load cell pedal set with throttle, 200 kg brake and clutch","id":31588071735554,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/simufy.com\/cdn\/shop\/products\/Pedales-VX-PRO-Simgrade-simufy_0.png?v=1744028877"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43616133251330,"title":"Throttle and Brake + Clutch","option1":"Throttle and Brake + Clutch","option2":null,"option3":null,"sku":"SGD-VXPRO-3","requires_shipping":true,"taxable":true,"featured_image":{"id":38989784514818,"product_id":7973335662850,"position":1,"created_at":"2023-03-12T20:42:29+01:00","updated_at":"2025-04-07T14:27:57+02:00","alt":"Simgrade VX-PRO load cell pedal set with throttle, 200 kg brake and clutch","width":2048,"height":2048,"src":"\/\/simufy.com\/cdn\/shop\/products\/Pedales-VX-PRO-Simgrade-simufy_0.png?v=1744028877","variant_ids":[43616133218562,43616133251330]},"available":true,"name":"Simgrade VX-PRO – 200 kg Load Cell Pedal Set - Throttle and Brake + Clutch","public_title":"Throttle and Brake + Clutch","options":["Throttle and Brake + Clutch"],"price":64999,"weight":5500,"compare_at_price":66999,"inventory_management":"shopify","barcode":"6429810920072","featured_media":{"alt":"Simgrade VX-PRO load cell pedal set with throttle, 200 kg brake and clutch","id":31588071735554,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/simufy.com\/cdn\/shop\/products\/Pedales-VX-PRO-Simgrade-simufy_0.png?v=1744028877"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pago 100% seguro

3 años de garantía

Envío 24/48 horas (Península)*

Atención personalizada

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

Pagamento 100% seguro

Garantia de 3 anos

Entrega em 24/48 horas (Península)*

Atenção personalizada

100 % sichere Zahlung

3 Jahre Garantie

Lieferung innerhalb von 24/48 Stunden (Iberische Halbinsel)*

Individuelle Betreuung

*Más información en Política de envío. *More information in Shipping Policy. *Mais informações na Política de Envio. *Weitere Informationen finden Sie in unseren Versandrichtlinien.

The Simgrade VX-PRO is a load cell pedal set for sim racing on PC, with a load cell in all three pedals, a 200 kg brake with an adjustable dual stage feel and stainless steel ball bearings at every pivot point, aimed at drivers who want fast mechanical adjustment without stepping up to flagship pricing.

The result of three years of development, the VX-PRO brings together what Simgrade learned with the R7 and the Thera in a compact, narrow-base package. It is designed, manufactured and assembled 100% in Finland, with sealed bearings and load cells that make it maintenance free: dust has no effect on performance.

Key features of the Simgrade VX-PRO pedal set

Load cell in all three pedals, with a 200 kg brake and up to 90 kg of maximum braking force from the foot.
Freely and independently adjustable dual stage brake, with four mechanical progressivity settings.
High fidelity throttle with adjustable travel and three mechanical progressivity settings, with no metal-to-metal contact.
Clutch supplied with two profile plates and two mechanical settings: from road car feel to race car feel in seconds.
Super rigid structure with zero play in any direction, running on stainless steel ball bearings in all pivot points.
Large, smooth pedal faces adjustable for height, 8.5 degrees of pedal angle adjustment and adjustable pedal-to-pedal distance thanks to the narrow base.
Compatible with ISO 10243 die springs, which widens the range of stiffness well beyond the standard springs.

Technical specifications

Specification	Detail
Sensor type	Load cell in throttle, brake and clutch
Maximum brake load	200 kg (90 kg maximum braking force from foot)
Brake	Adjustable dual stage · 4 mechanical progressivity settings
Throttle	Adjustable travel · 3 mechanical progressivity settings
Clutch	2 profile plates included · 2 mechanical settings
Bearings	Sealed stainless steel ball bearings at all pivots
Angle adjustment	8.5 degrees
Pedal faces	Large, smooth and height adjustable
Springs	Compatible with ISO 10243 die springs
Connection	USB-A (PC) to USB-C (pedals) cable, 1.8 m, included
Maintenance	Maintenance free (sealed bearings)
Warranty	2 years
Manufactured in	100% in Finland

Two-pedal or three-pedal set?

The VX-PRO comes in two configurations sharing the same mechanics and electronics: Throttle and Brake, the two-pedal set for formula and GT cars that do not need a foot clutch, and Throttle and Brake + Clutch, which adds the VX-PRO clutch pedal with its two profile plates for rally, standing starts and classic cars. The 200 kg brake and every adjustment are identical on both.

Compatibility

Natively compatible with PC through its control box and the free calibration software, with non-linear response curves, adjustable dead zones and profile save and load.
Compatible with consoles through a Drive Hub adapter.
Works with the Simgrade pedal base plate and the heel support plate.
Can be extended with the VX-PRO Brake Kit V1, the tilting heel support and the side support.

What's in the box

Pedals with control box and 1.8 m USB-A to USB-C cable
Springs and progressivity adjustment parts for each pedal
Two clutch profile plates on the configurations that include the clutch
M6 bolts and T-nuts for mounting on aluminium profile
Downloadable calibration software

Frequently asked questions

Do the Simgrade VX-PRO pedals work on PS5 or Xbox?

Natively they work on PC. Consoles need a Drive Hub adapter, which bridges the pedals' control box and the console.

What is the dual stage brake?

The brake pedal combines two resistances that are adjusted freely and independently: a softer first phase and a firm second stage. You choose the percentage at which the second stage kicks in, which helps a lot with trail braking.

How much brake force do they handle?

The load cell is rated at 200 kg and allows up to 90 kg of braking force from the foot. Stiffness is changed across four mechanical settings and through spring preload.

How do they compare with the Thera and the R7?

The VX-PRO takes technology from both in a more compact package with faster cold adjustment. The Thera uses a 200 kg brake measuring up to 110 kg of pedal force with a 5-year warranty; the VX-PRO reaches 90 kg of foot force with a 2-year warranty.

Do they need maintenance?

No. They use load cells and sealed bearings, so dust has no effect on performance and nothing needs lubricating.
