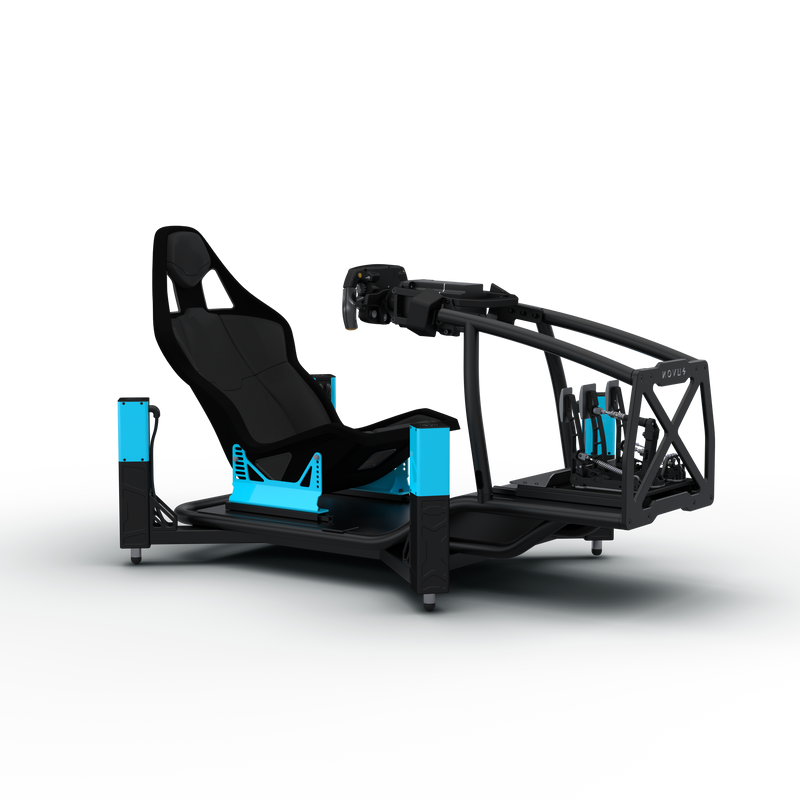

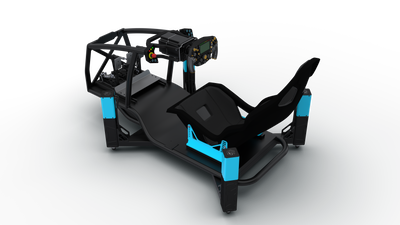

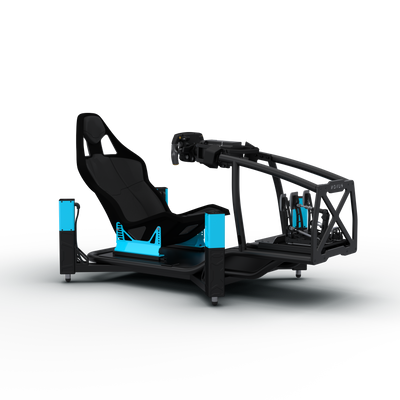

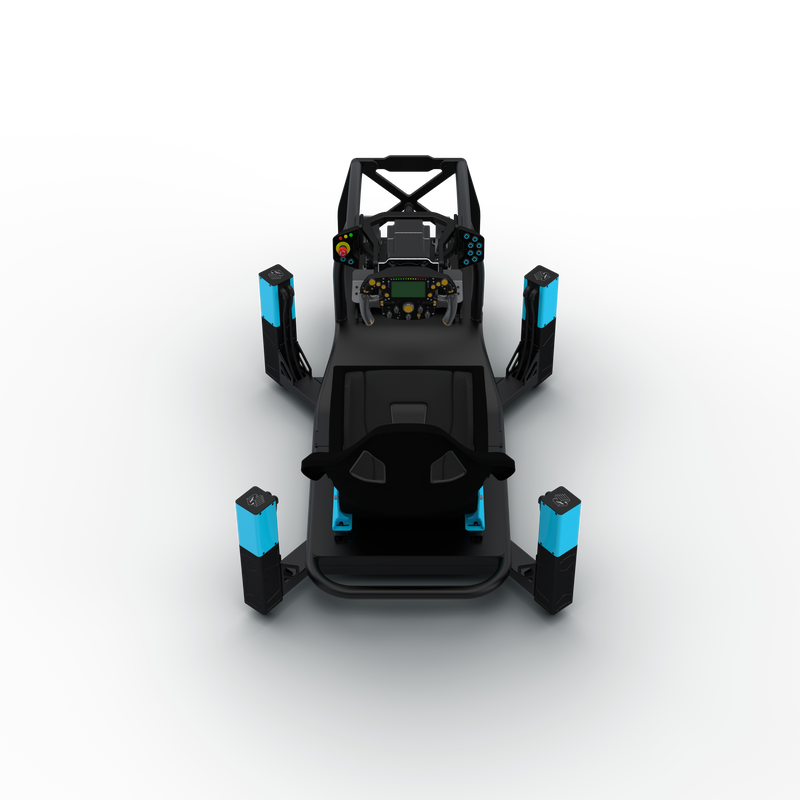

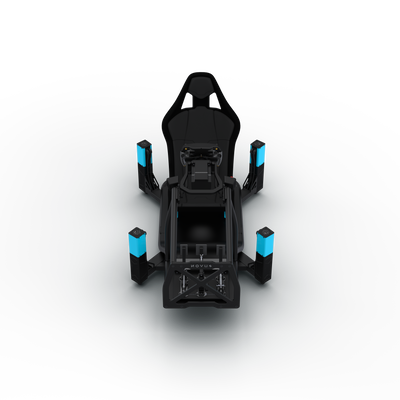

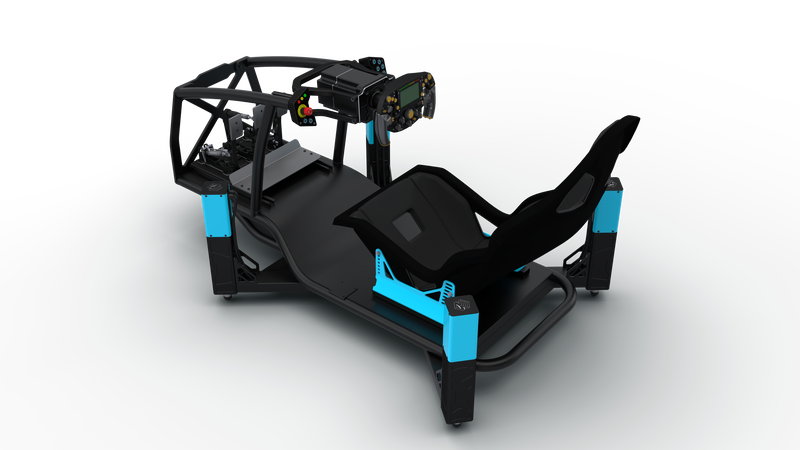

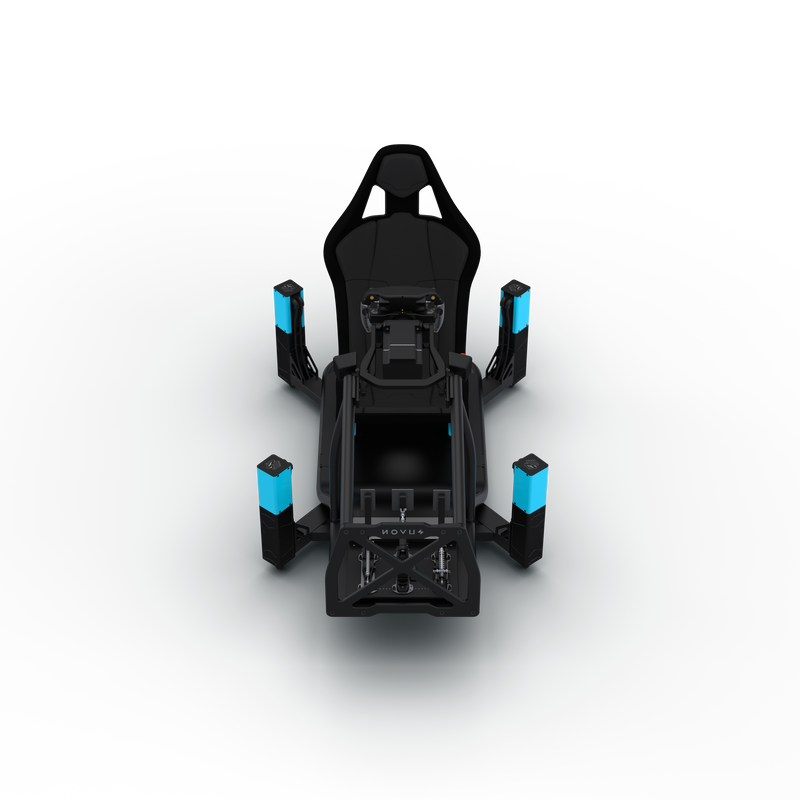

Novus X Motion System, X Cage chassis with 3DOF motion platform

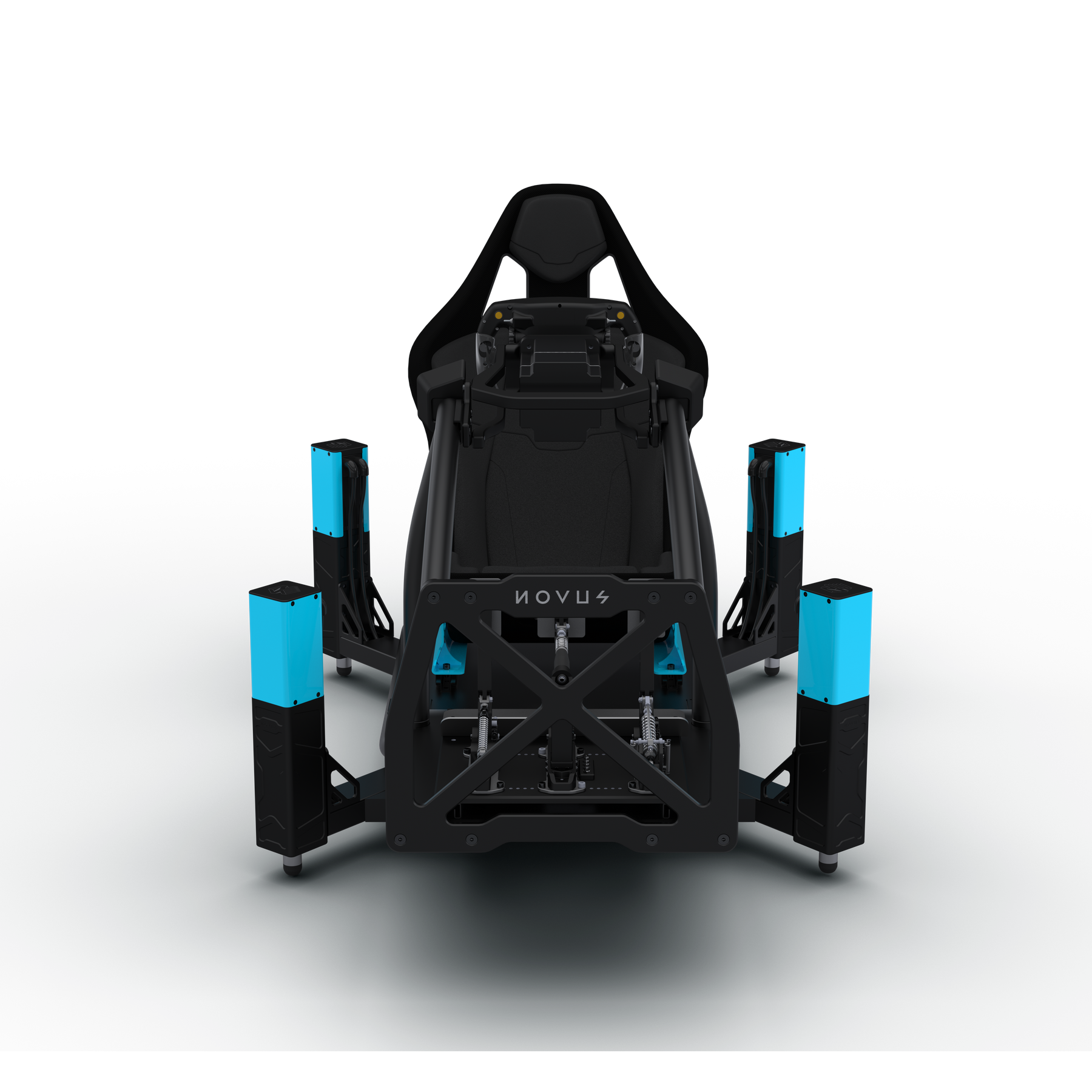

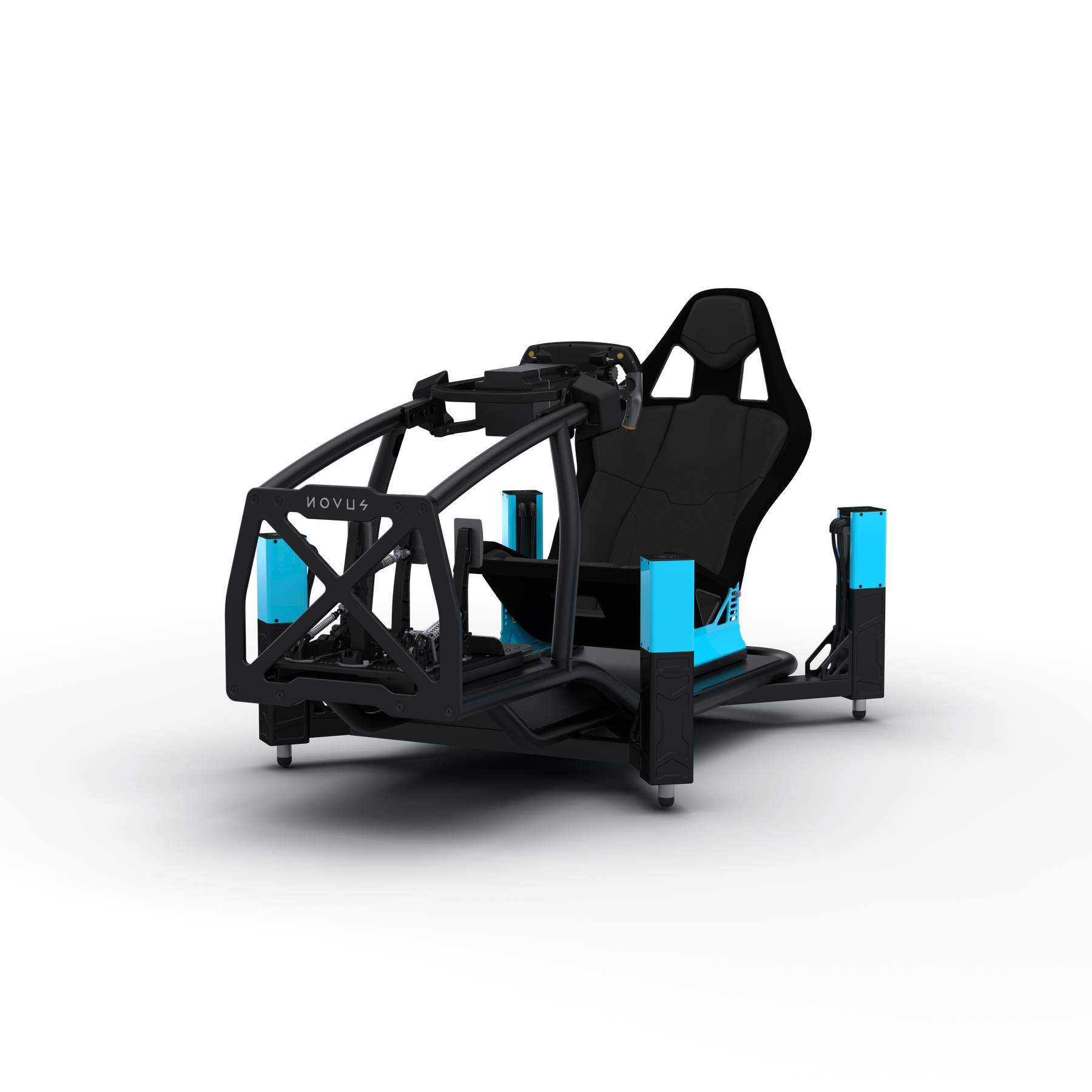

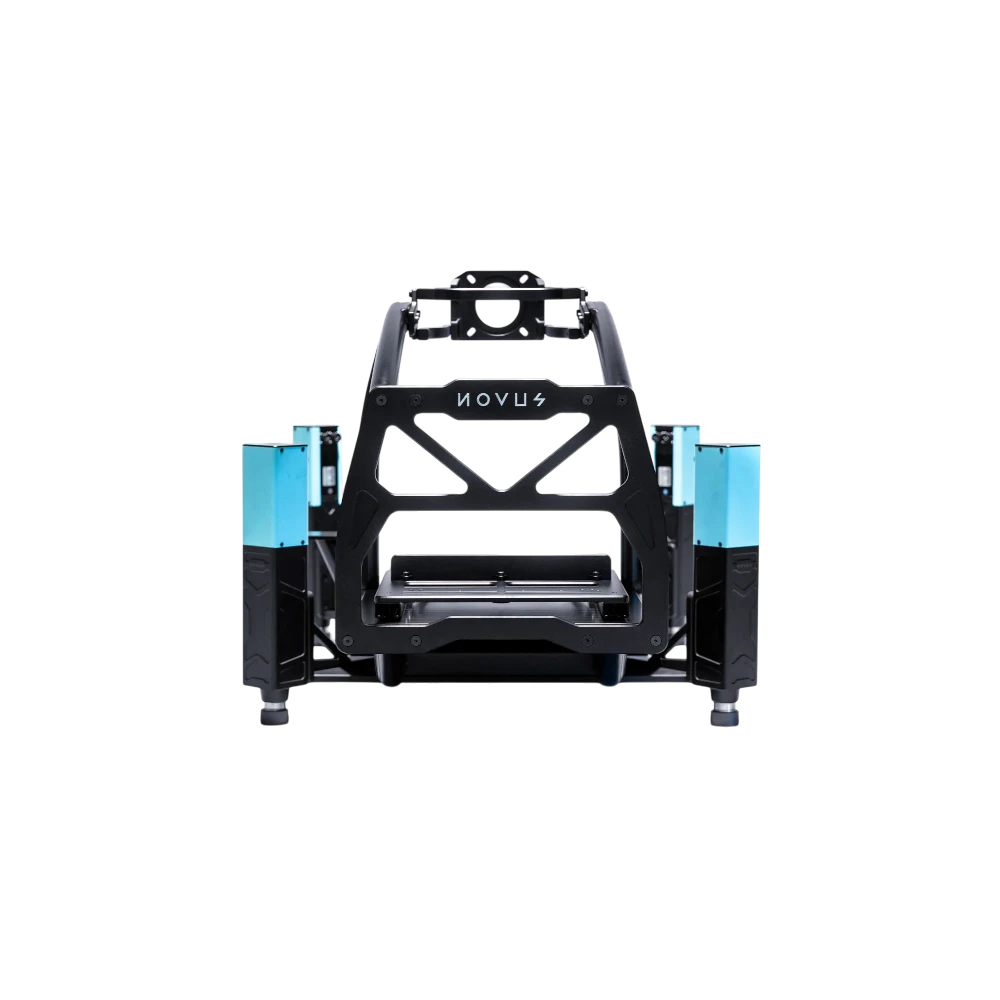

Novus X Motion System platform front view with actuators

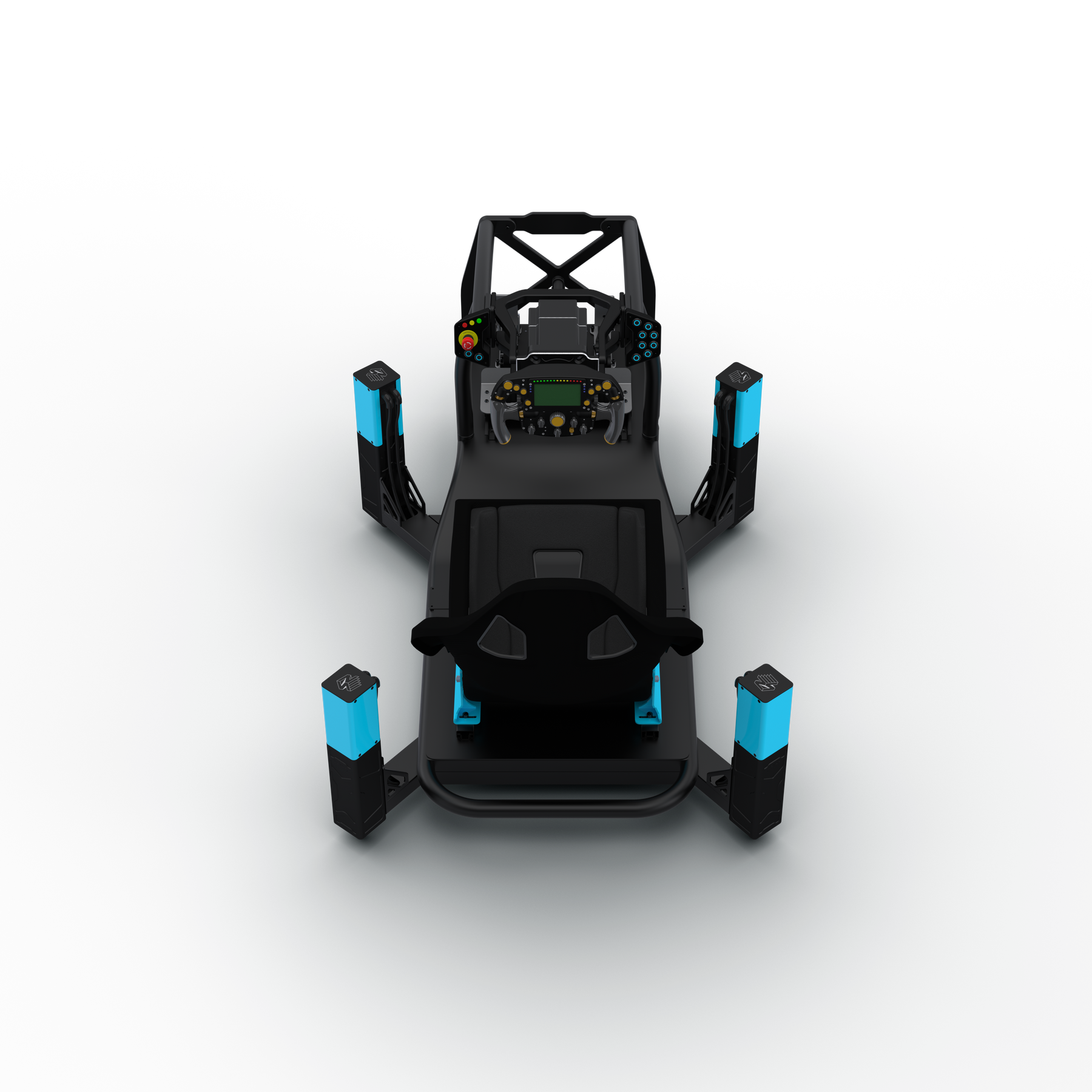

X Cage chassis with 3DOF motion of the Novus X Motion System

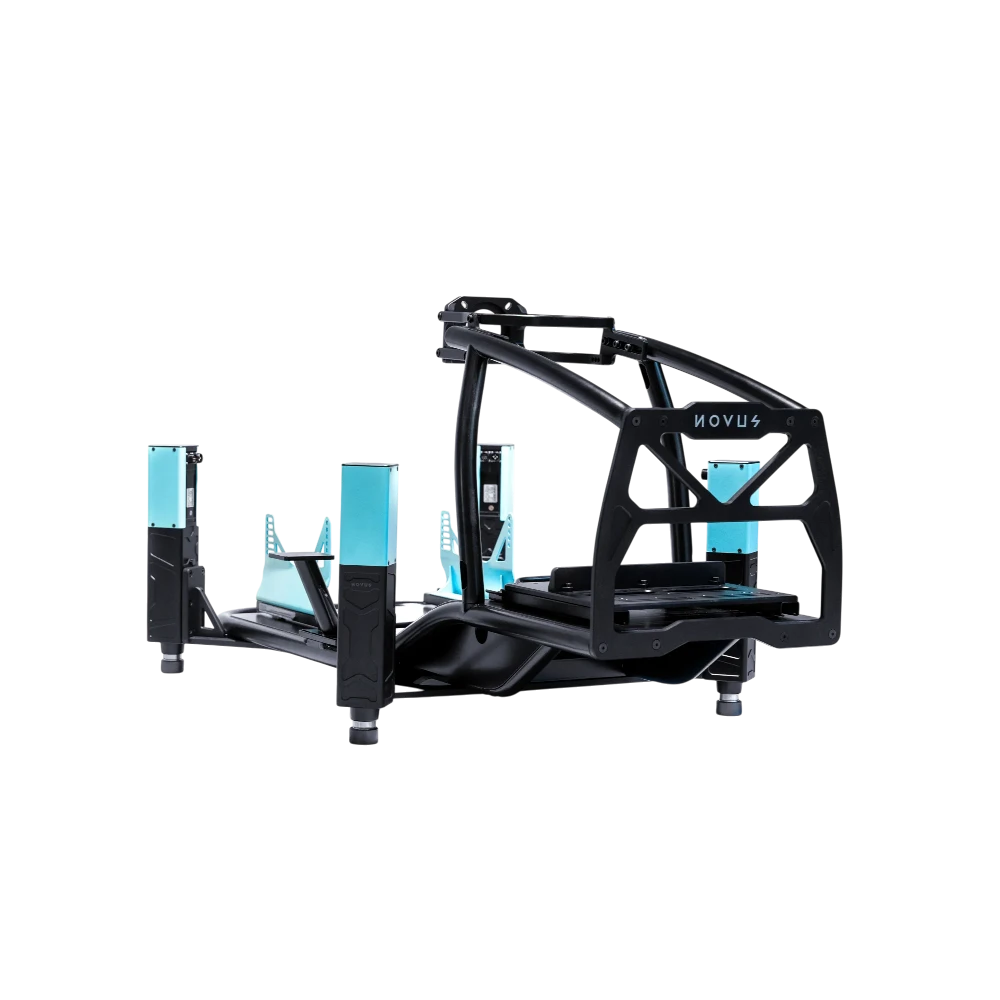

Actuators of the Novus X Motion System mounted on the X Cage chassis

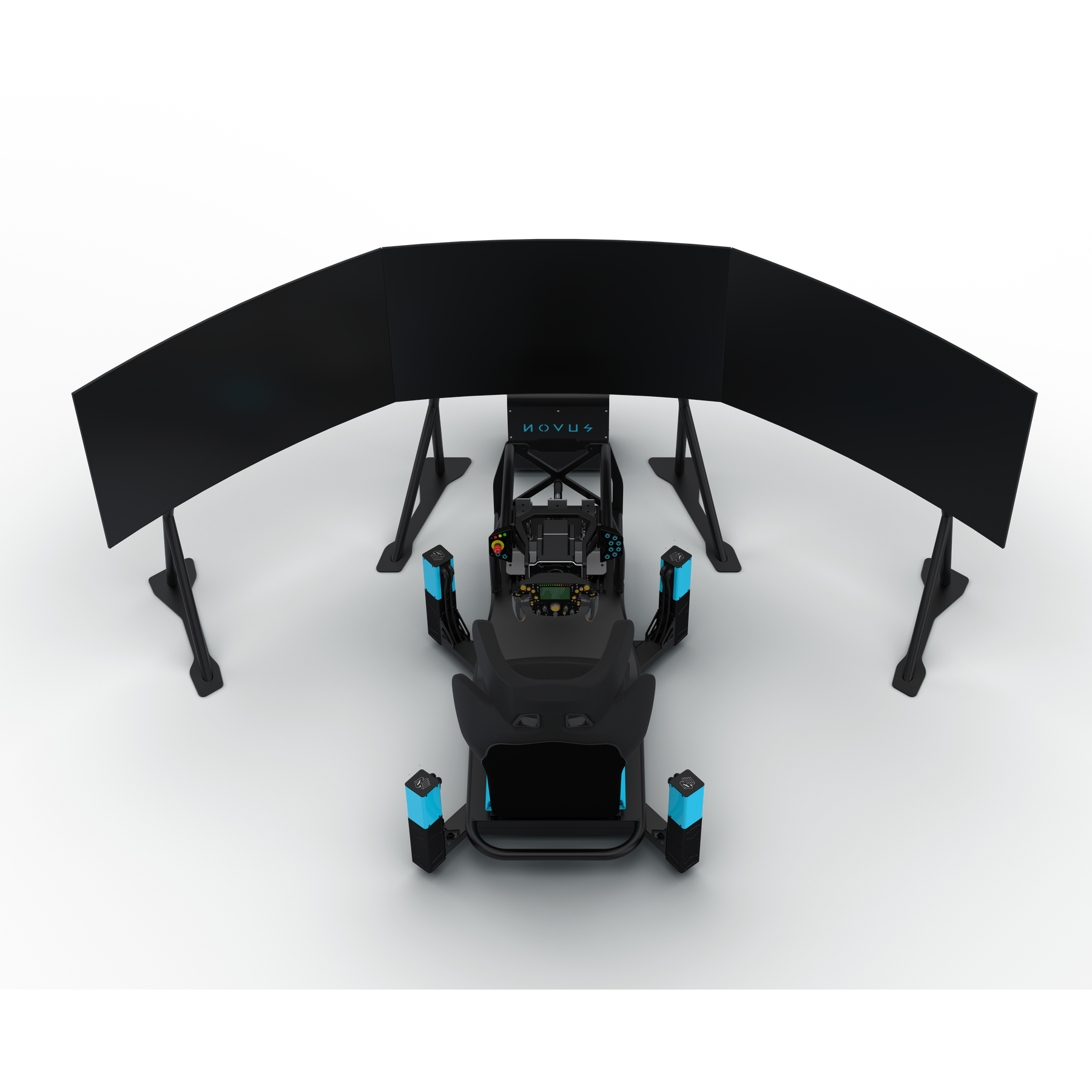

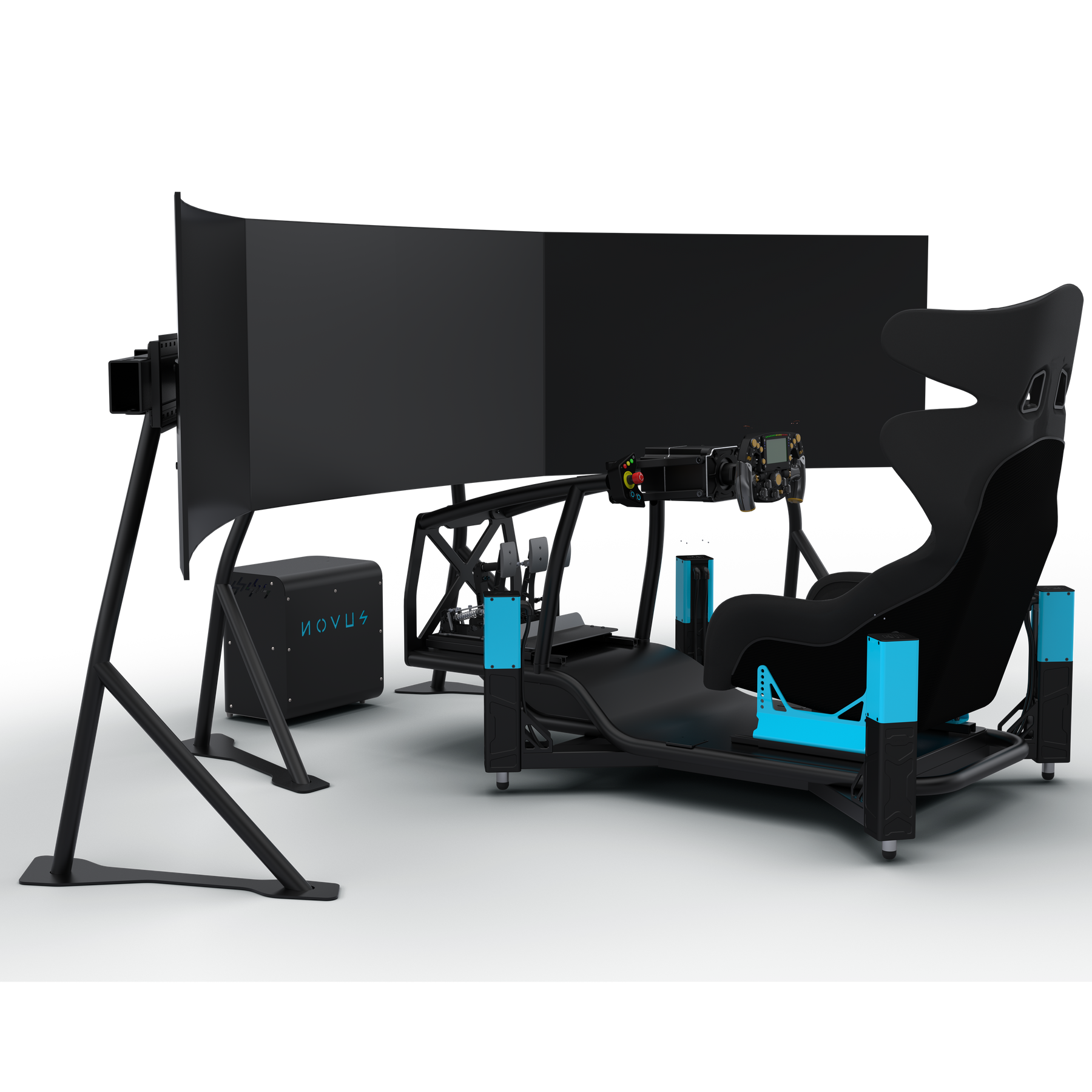

Novus X Motion System ready to mount sim racing peripherals

Detail of the Novus X Motion System motion platform

Chassis and actuators of the Novus X Motion System

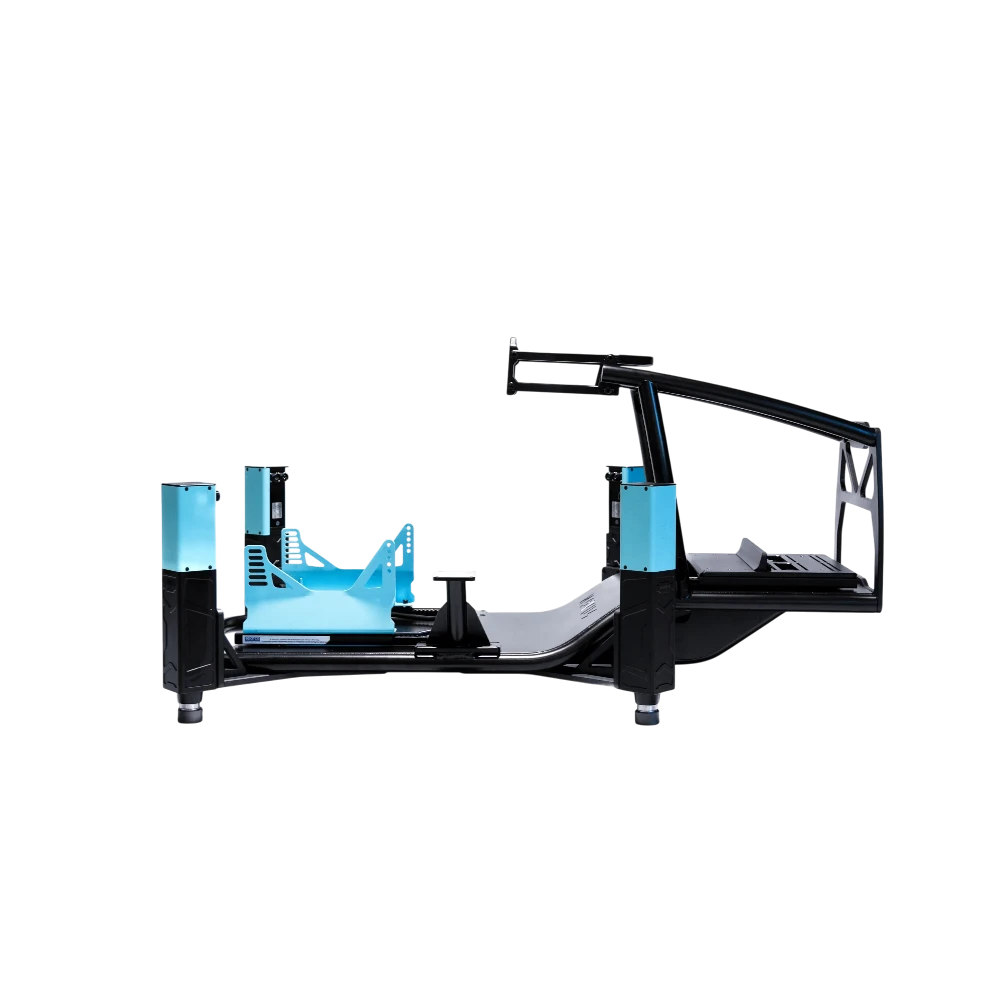

Side view of the Novus X Motion System with 3DOF motion

Complete chassis plus motion Novus X Motion System

Novus X Motion System 3DOF platform for a simulator

Novus X Motion System structure in aerospace aluminium

Novus X Motion System, modular base with real motion

Actuators and X Cage chassis of the Novus X Motion System

Price - 14%

Tax included. Shipping calculated at checkout.

● Available for shipping

Inventory on the way

%3Cp%3E%C2%A1%3Cstrong%3EGana%20[points_amount]%20%3C/strong%3Econ%20esta%20compra!%3C/p%3E

100% secure payment

3-year warranty

24/48 hour delivery (Iberian Peninsula)*

Personalized attention

*More information in Shipping Policy.

The Novus X Motion System is Novus's real-motion foundation: the aerospace-grade aluminium X Cage chassis and the 3DOF X Motion Kit combined in a single order, ready for you to mount your peripherals and build a full motion simulator your way.

It's the same motion Novus uses across its full-motion range —Misha Spec, Full Motion RS and Full Motion S—: four 120 mm electric actuators that reproduce weight transfer, roll and elevation changes at natural scale. Buying it as a system costs less than the chassis and kit separately, and it arrives ready to assemble with an included guide. Peripherals (wheelbase, pedals, seat and displays) are not included: you choose them.

Key features of the Novus X Motion System

Chassis + motion in a single order: the X Cage and the X Motion Kit together, cheaper than separately.
True 3DOF motion (pitch, roll, heave): not compressed or exaggerated, driven by the sim's physics.
4 electric 120 mm actuators with 250 mm/s and sub-10 ms response.
Aerospace aluminium X Cage chassis with a 50-year warranty; motion with 2 years.
Full compatibility: choose wheelbase, pedals, seat and displays from any brand.
The same motion as the Novus full-motion range: identical to the Misha Spec and Full Motion RS/S.

Technical specifications

Specification	Detail
System	X Cage chassis + 3DOF motion (pitch, roll, heave)
Actuators	4 electric
Stroke	120 mm per actuator
Max speed	250 mm/s
Response time	Under 10 ms
Load capacity	250 kg
System weight	~110 kg
Chassis material	Aerospace aluminium (CNC + laser welding)
Control	Motion controller + Brainbox
Software	SimHub (free), via USB-C
Power	230V · 16A outlet
Platform	PC (Windows 10/11)
Minimum space	1.5 × 1.2 m
Warranty	50 years chassis · 2 years actuators and electronics
Peripherals	Not included (wheelbase, pedals, seat and displays separate)

Full freedom to configure your simulator

The X Motion System doesn't force peripherals on you: everything mounts on the same modular chassis, so you upgrade components without changing the base.

Wheelbases: direct drive wheelbases from Simucube, Fanatec, Moza, VRS or Asetek with the ISO 70 mm PCD pattern.
Pedals: Heusinkveld, Simucube, VRS and other pedals on the T-slot platform.
Seat: any competition standard (side- or bottom-mount).

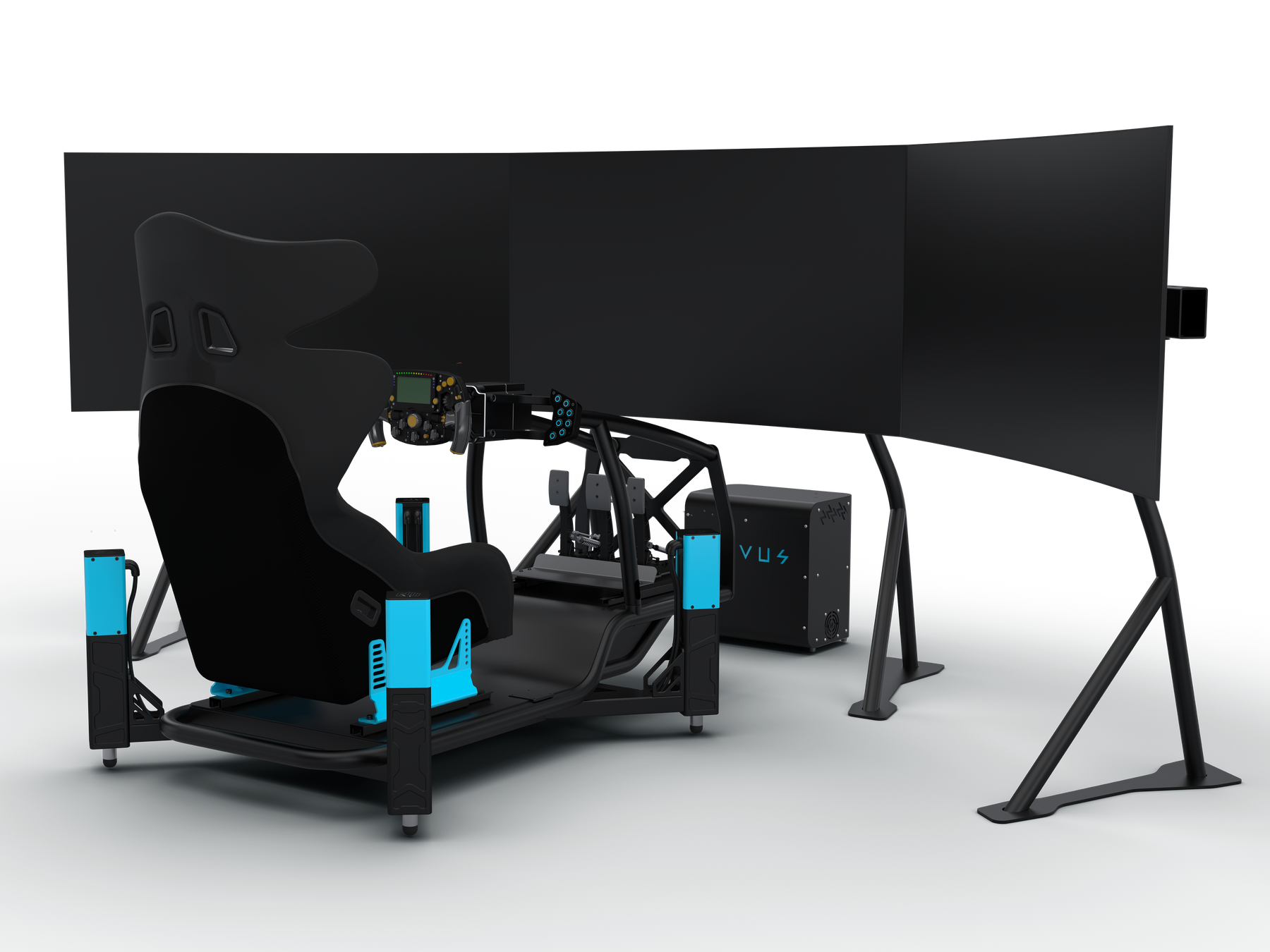

Displays: single-monitor or triple-screen configuration.

Frequently asked questions

What's included in the X Motion System and what isn't?

It includes the aerospace-grade aluminium X Cage chassis and the complete motion kit: four 120 mm electric actuators, a motion controller, a wired Brainbox, harness and mounting hardware. It does not include wheelbase, pedals, seat or displays: you choose and mount those peripherals yourself.

Why buy the System instead of the chassis and kit separately?

Because the X Motion System combines the X Cage and the X Motion Kit in a single order at a lower price than buying them loose, and it arrives ready to mount your peripherals with the included assembly guide.

What brands is it compatible with?

Any sim racing ecosystem. It takes direct drive wheelbases from Simucube, Fanatec, Moza, VRS and Asetek via the ISO 70 mm PCD pattern, pedals from Heusinkveld, VRS or Simucube on the T-slot platform, standard competition seats and single- or triple-monitor configurations.

Is it the same motion as the Novus full-motion systems?

Yes, identical. The Full Motion S, the Full Motion RS and the Misha Spec run these same actuators: 120 mm stroke, 250 mm/s and 250 kg load. The difference between ranges is only in the peripherals, not the motion.

What warranty does it have?

The X Cage chassis has a 50-year warranty on frame and welds; the motion actuators and electronics, 2 years. A service pack for system maintenance is also included.
