Platform Pedals Heusinkveld Ultimate+
Brand: HEUSINKVELD
Engineering
With Sim Pedals Ultimate+ capable of supporting up to 140 kg of force, standard platforms often exhibit excessive flex under these loads. This platform helps create a rigid mounting base for your Sim Pedals Ultimate (note that Sim Pedals Sprint have their own platform).
The platform assembly consists of several elements: the main platform on which the Pedals is mounted, as well as two brackets that create free space on the floor for the bolts and nuts of the Pedals and provide mounting space for the controller. The main platform element is 10 mm thick and will not show any deflection under maximum load.
The color of the platform is black (fine structure powder coating).
Mounting Options
Depending on your cockpit, you have the option of using the straight/parallel brackets or the angled brackets. Both types of brackets are supplied with each platform. The angled brackets are specifically designed for cockpits that come with a patented Pedals mounting plate that is angled towards Racing Seat.

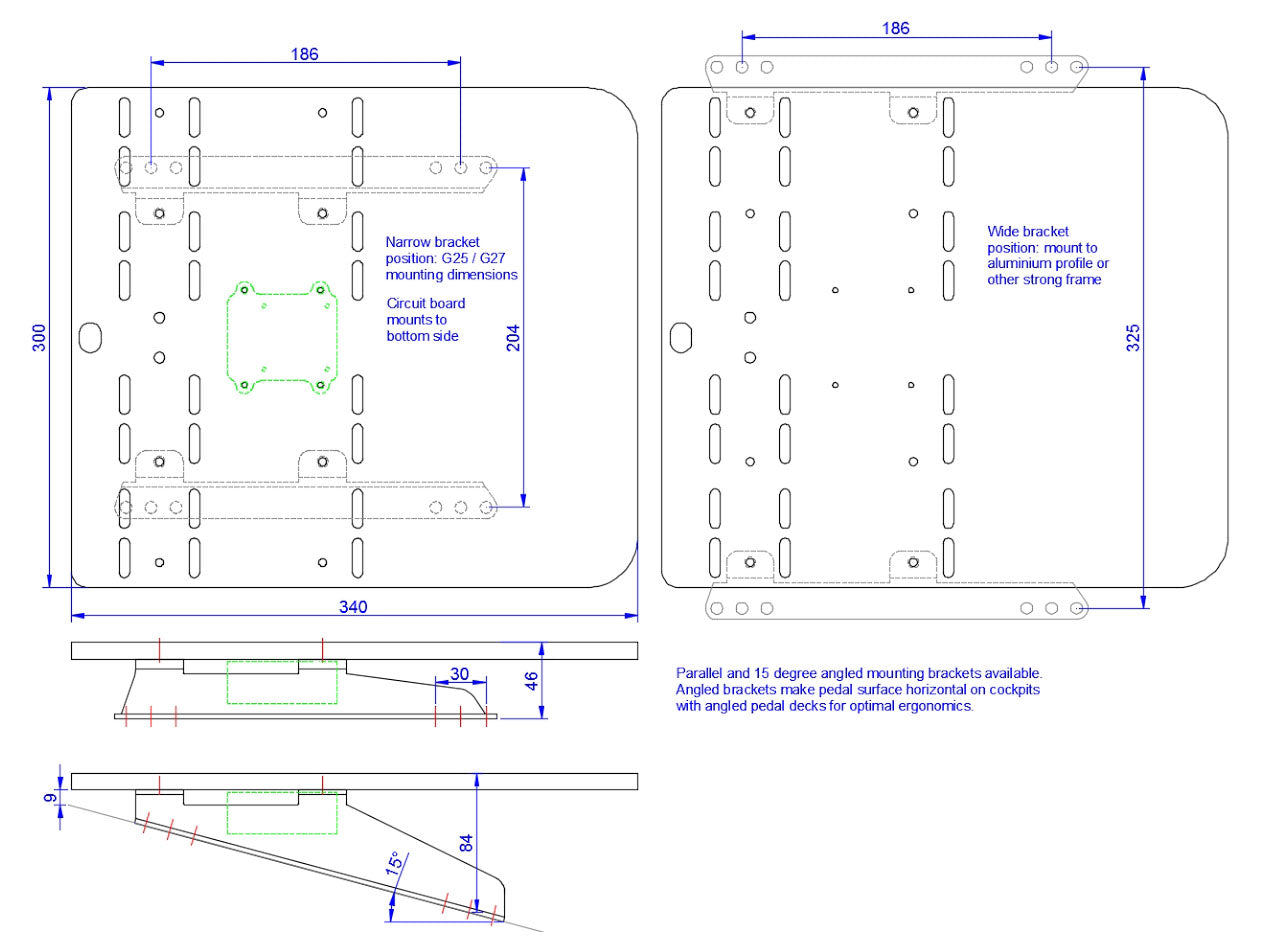

Our angled brackets tilt the Sim Pedals Ultimate platform by 15 degrees. This offsets the default tilt of your cockpit plate, creating a horizontal mounting base for your Sim Pedals. If your cockpit has a tilted Pedals deck, this will also raise the position of the Pedals, improving ergonomics and resulting in a more realistic driving position, where the Pedals box and Racing Seat are in a more level position with each other. The images show both types of brackets, as well as a schematic showing various Racing Seat positions and the appropriate type of bracket.
Both bracket assemblies are compatible with G25/G27 mounting holes, allowing easy installation on many available cockpit platforms. Alternatively, the brackets can also be mounted on the side of the platform in a wider arrangement.
Each platform comes with a set of screws and nuts to attach the Pedals to the platform and mount it to your cockpit. In addition to the mounting holes for your Pedals, each platform also features slots to position the Sim Pedals USB controller.
Compatibility
The Sim Pedals Ultimate platform is suitable for our Sim Pedals Ultimate+. It can also be used for Sim Pedals Ultimate (version without +) and Sim Pedals Pro.
The Sim Pedals Ultimate+ platform is NOT compatible with Sim Pedals Sprint or Sim Pedals Racecentre. For the Sim Pedals Sprint platform, please click here.
